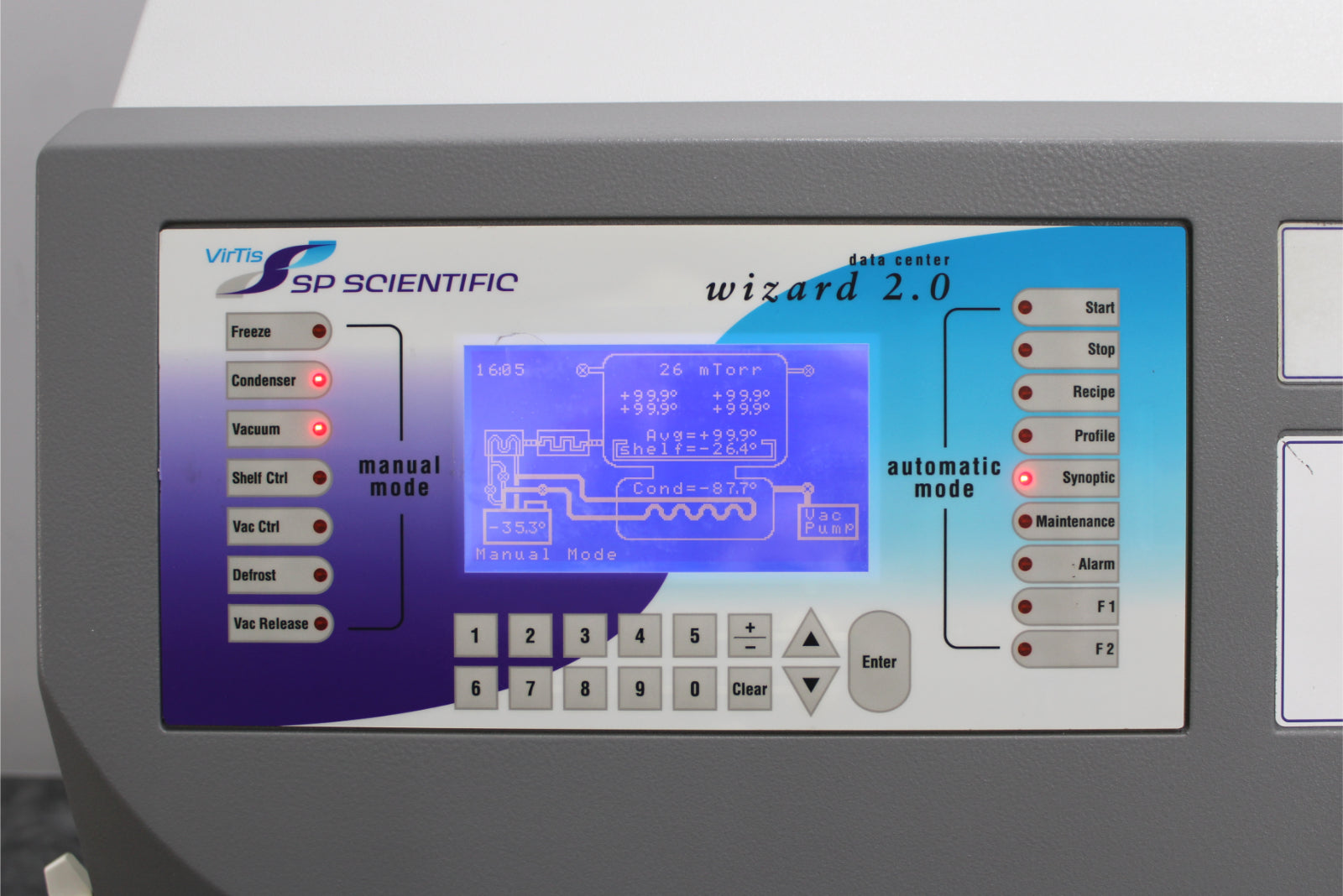

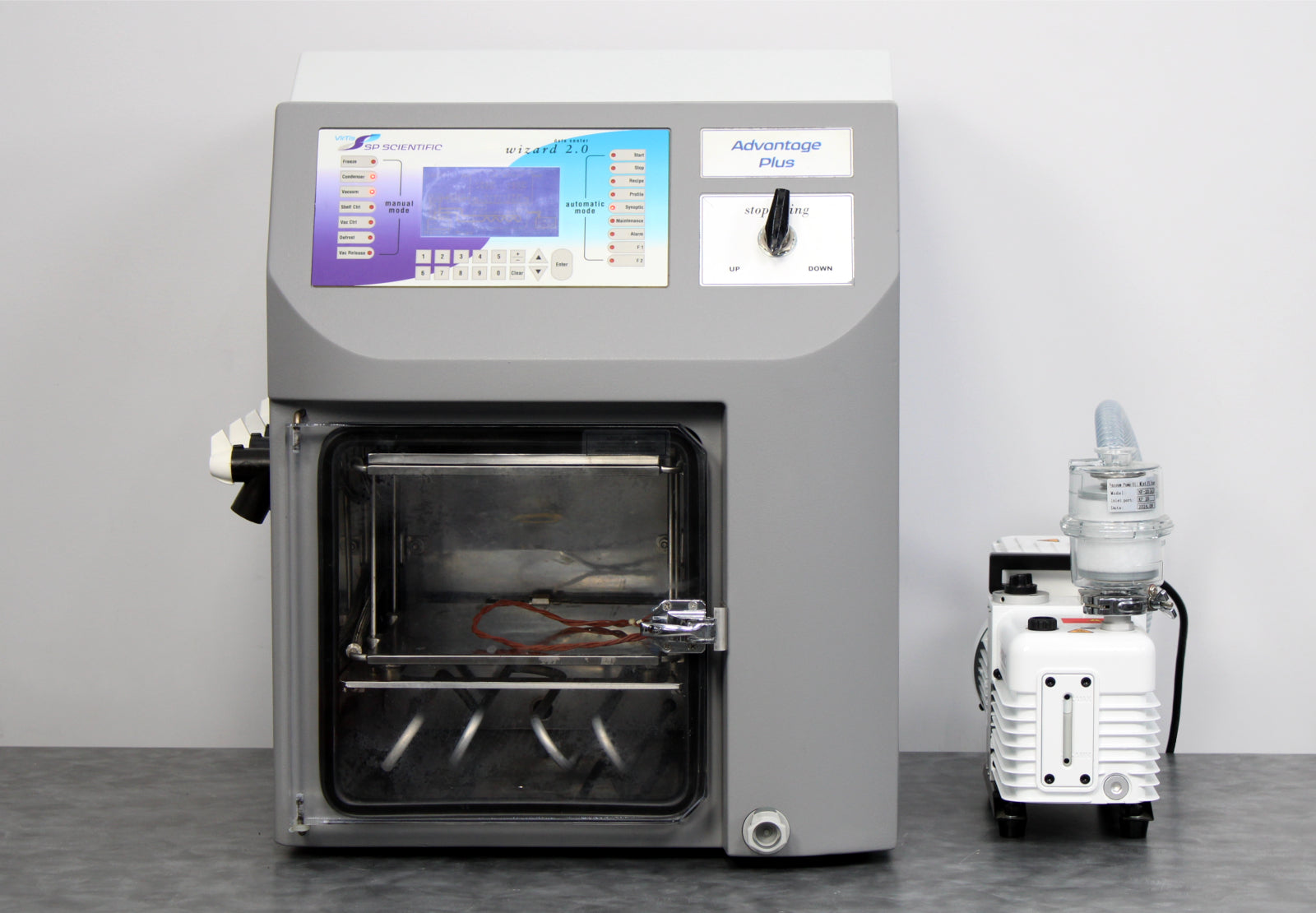

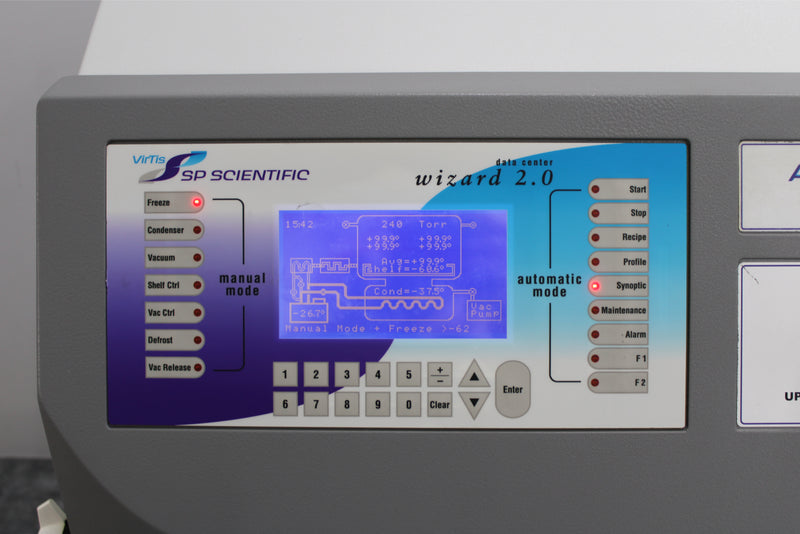

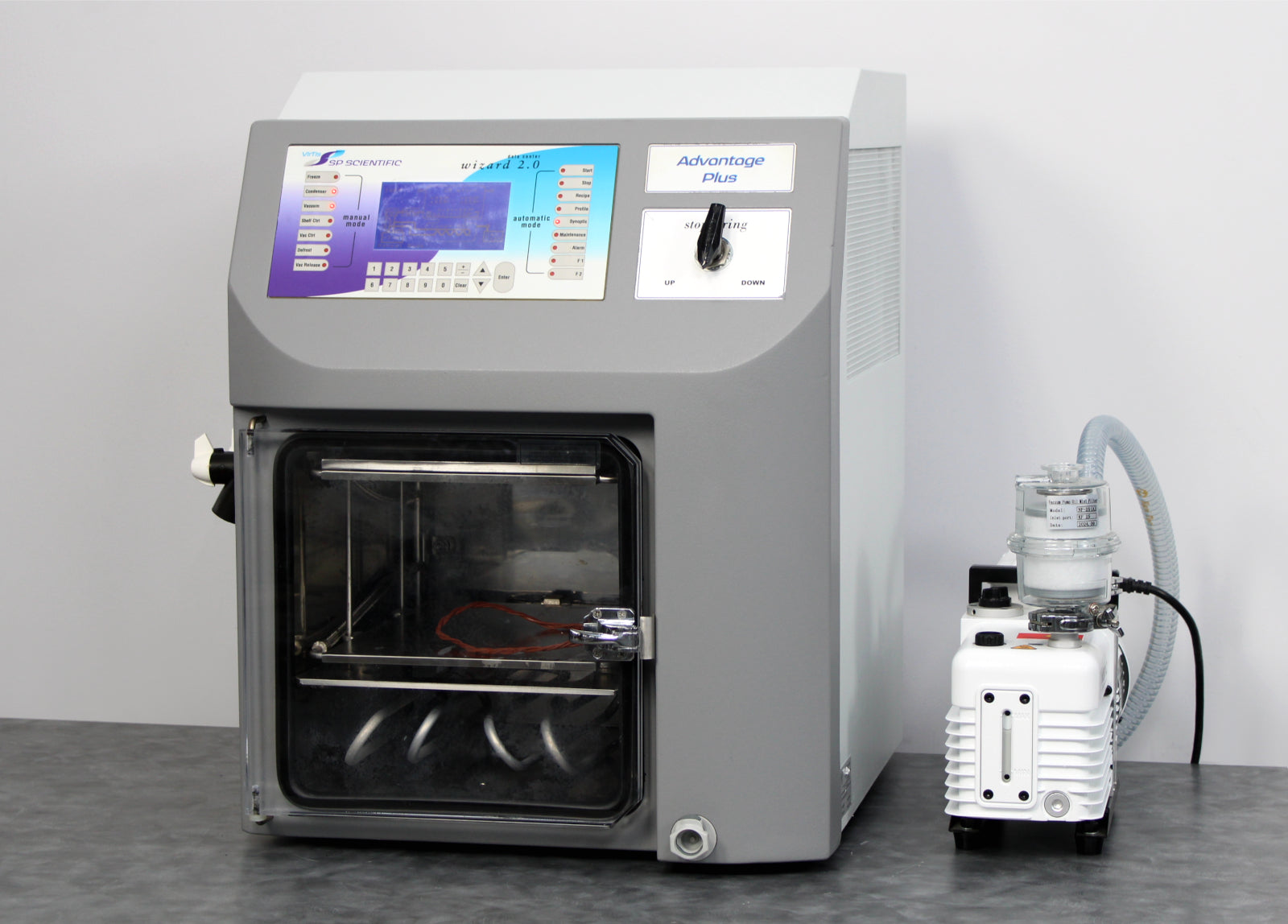

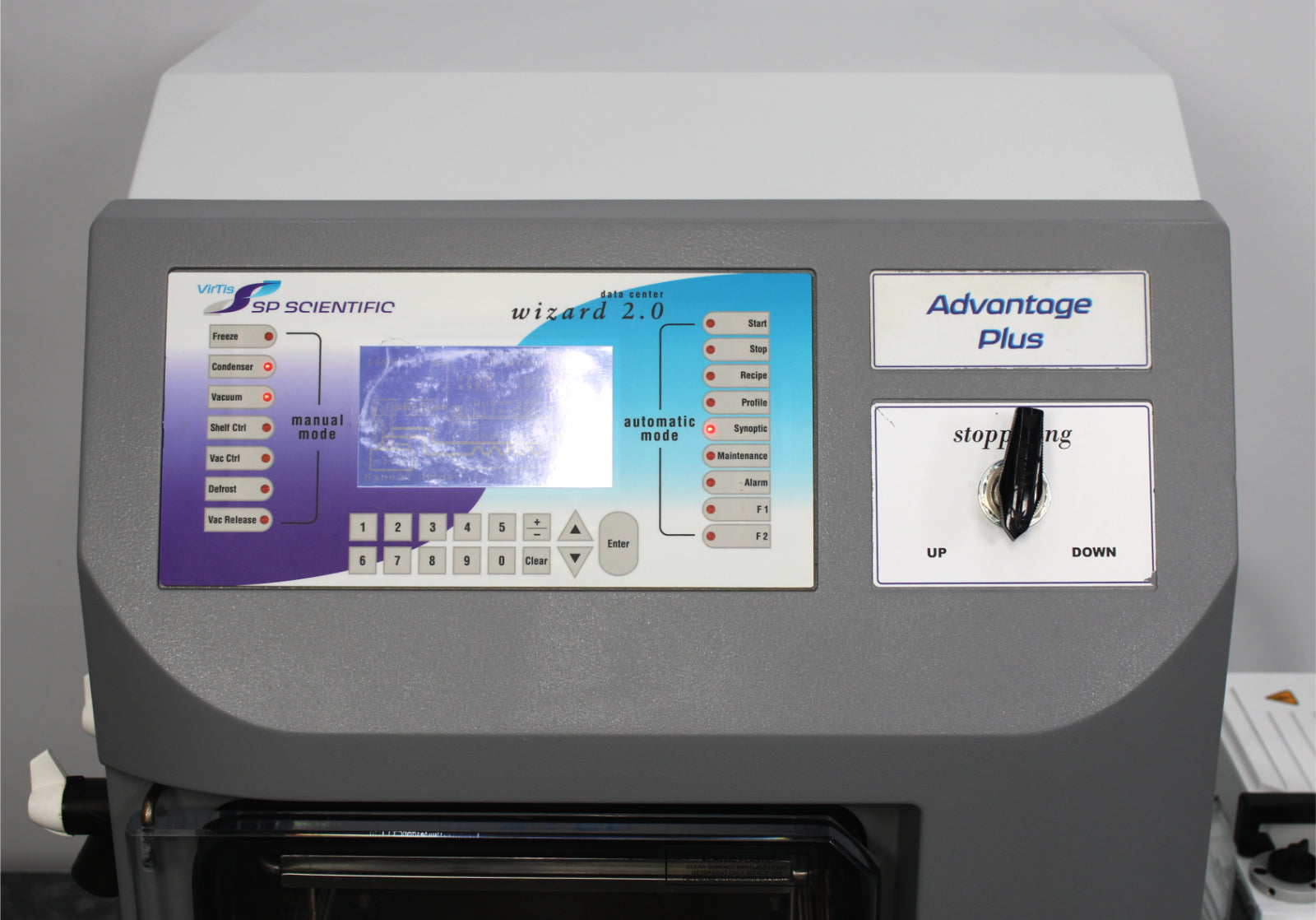

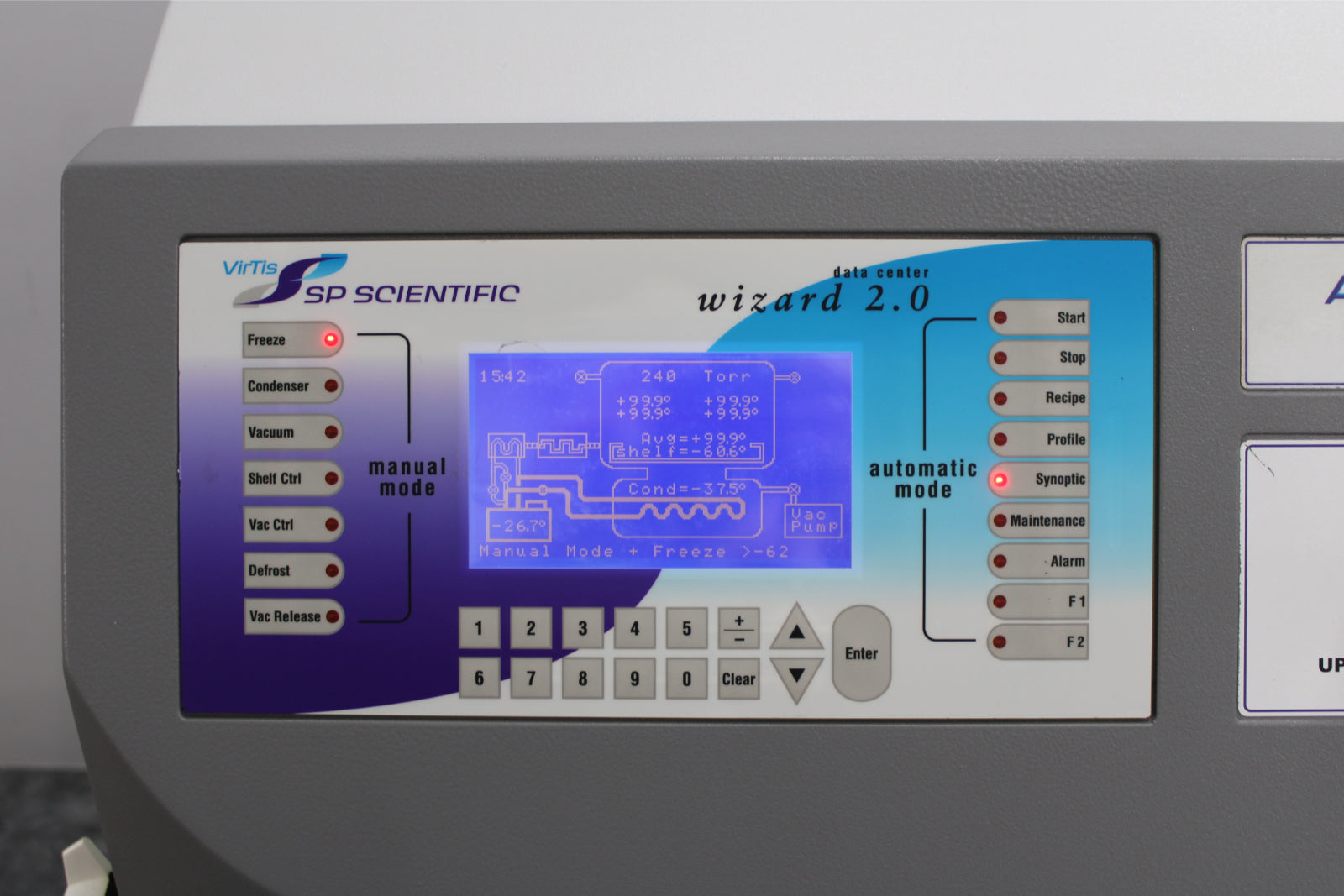

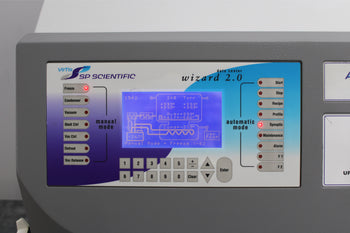

- SP Scientific VirTis Advantage Plus EL-85 Stoppering Benchtop Freeze Dryer 208/230V (100004531) with Wizard 2.0

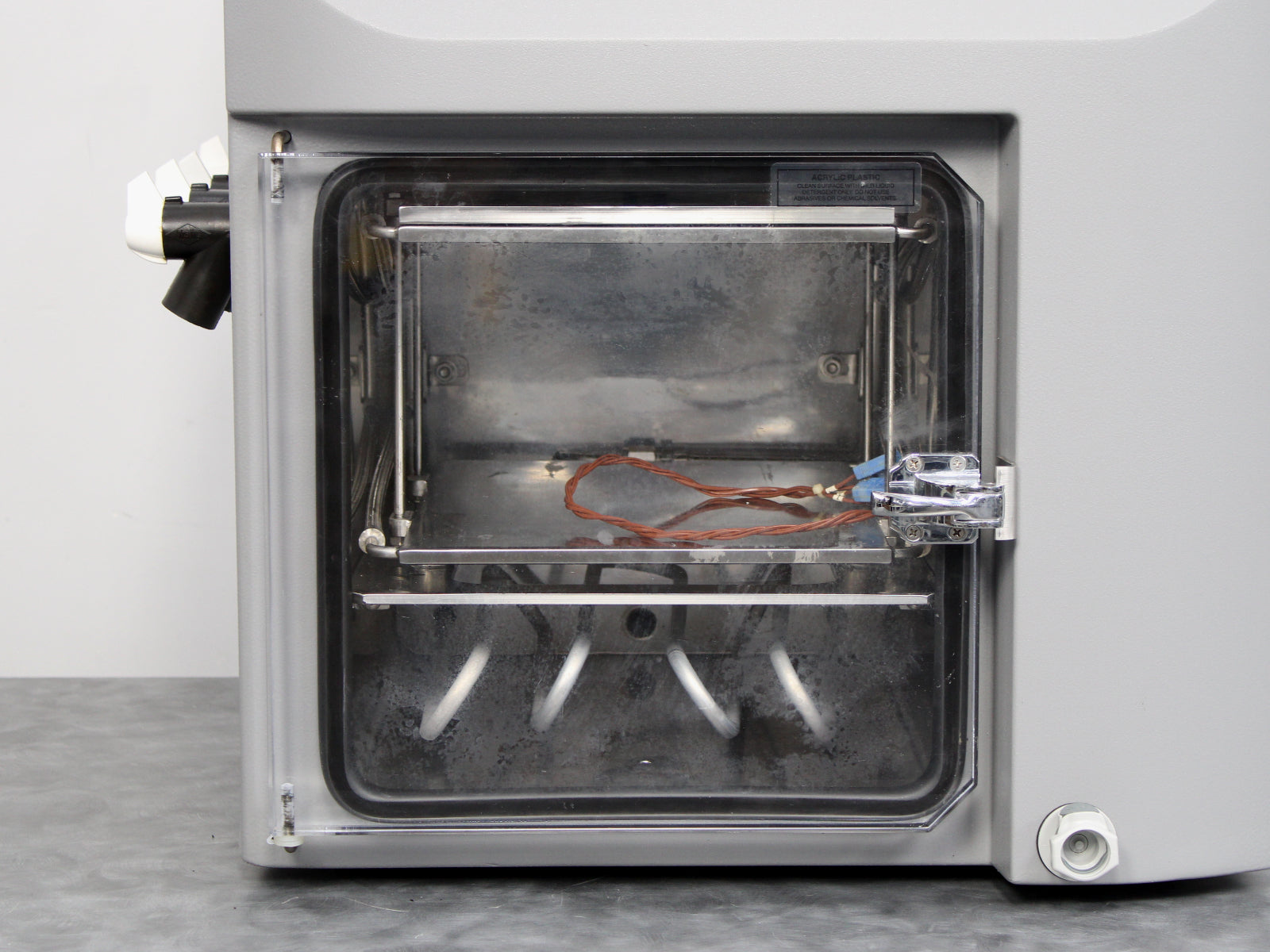

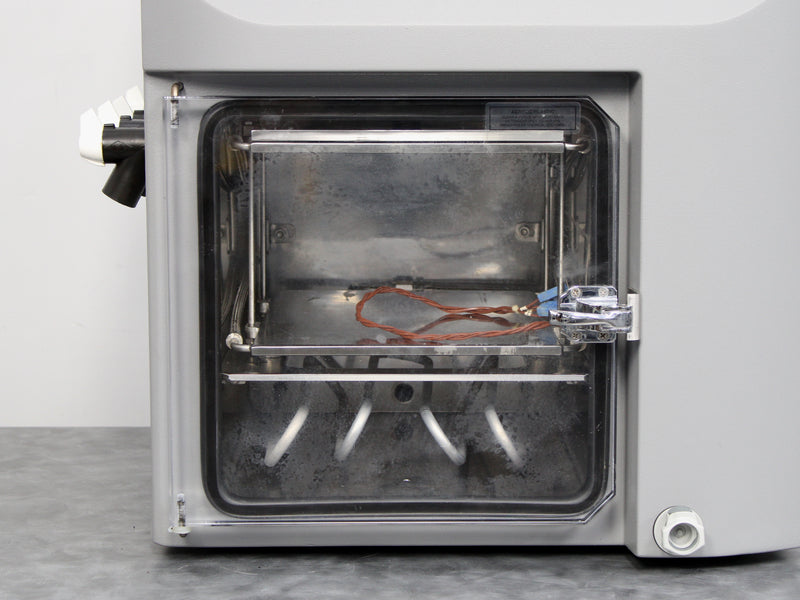

- x1 Shelf with Stoppering

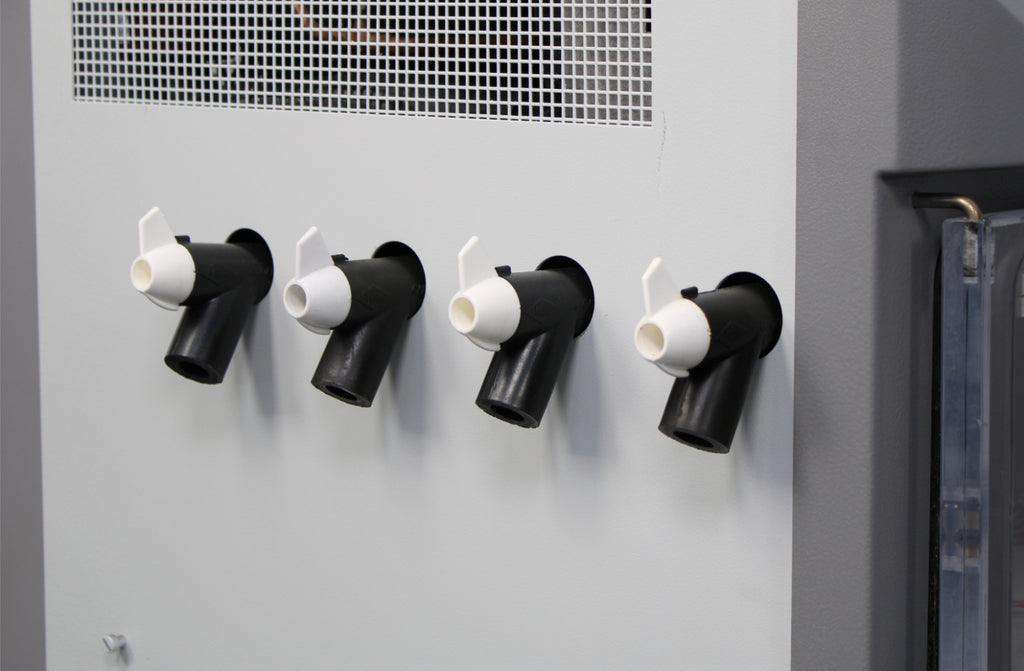

- x4 Manifold Valves

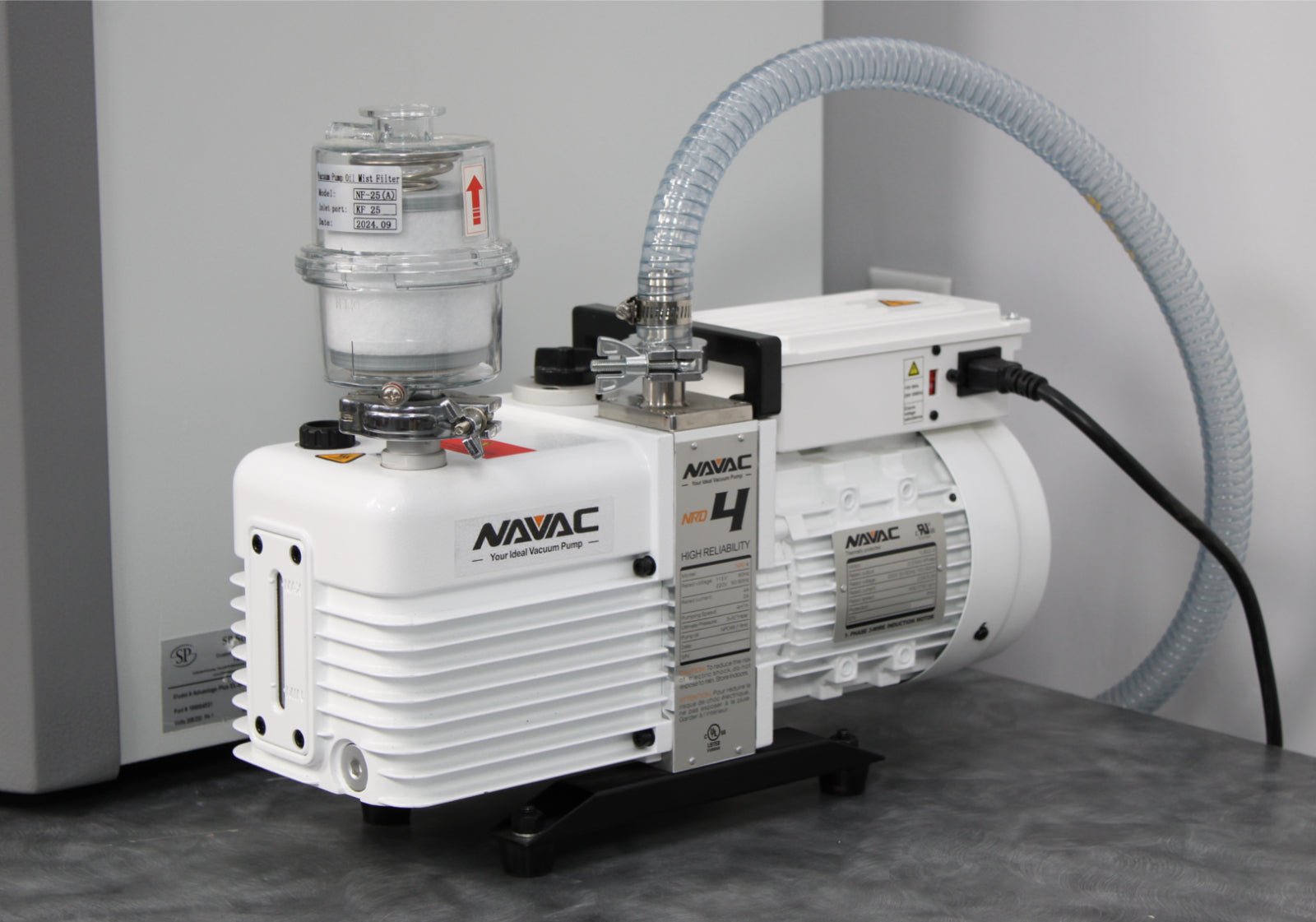

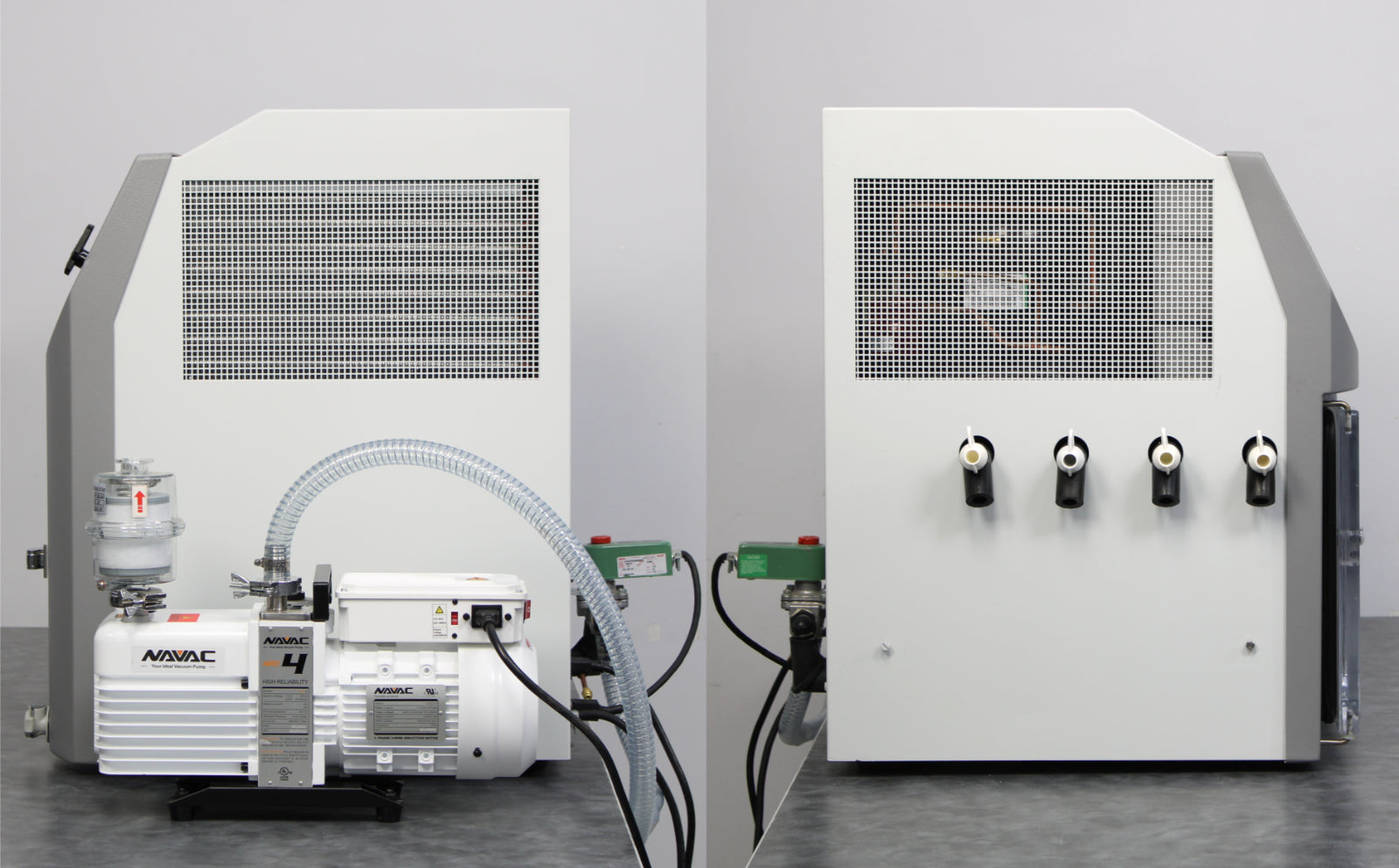

- Navac NRD4 Vacuum Pump (New) with Vacuum Hose
- Pump Power Cable
- Attached Power Cable
- 90-Day Warranty
After its initial disinfection and inspection, our technicians tested the SP Scientific VirTis Advantage Plus EL-85 stoppering benchtop freeze dryer with the following results:
- Calibrated temperature: PASSED
- Shelf temperature achieved -65°C: PASSED
- Condenser temperature achieved -85°C: PASSED
- Calibrated vacuum: PASSED
- Vacuum achieved 12mT: PASSED
- Replaced vacuum hoses.
- Reinsulated refrigeration lines.
- Added a new vacuum pump.
Notice: This freeze dryer has some minor cosmetic blemishes. Please review the available photos to see the physical condition before purchasing.
|

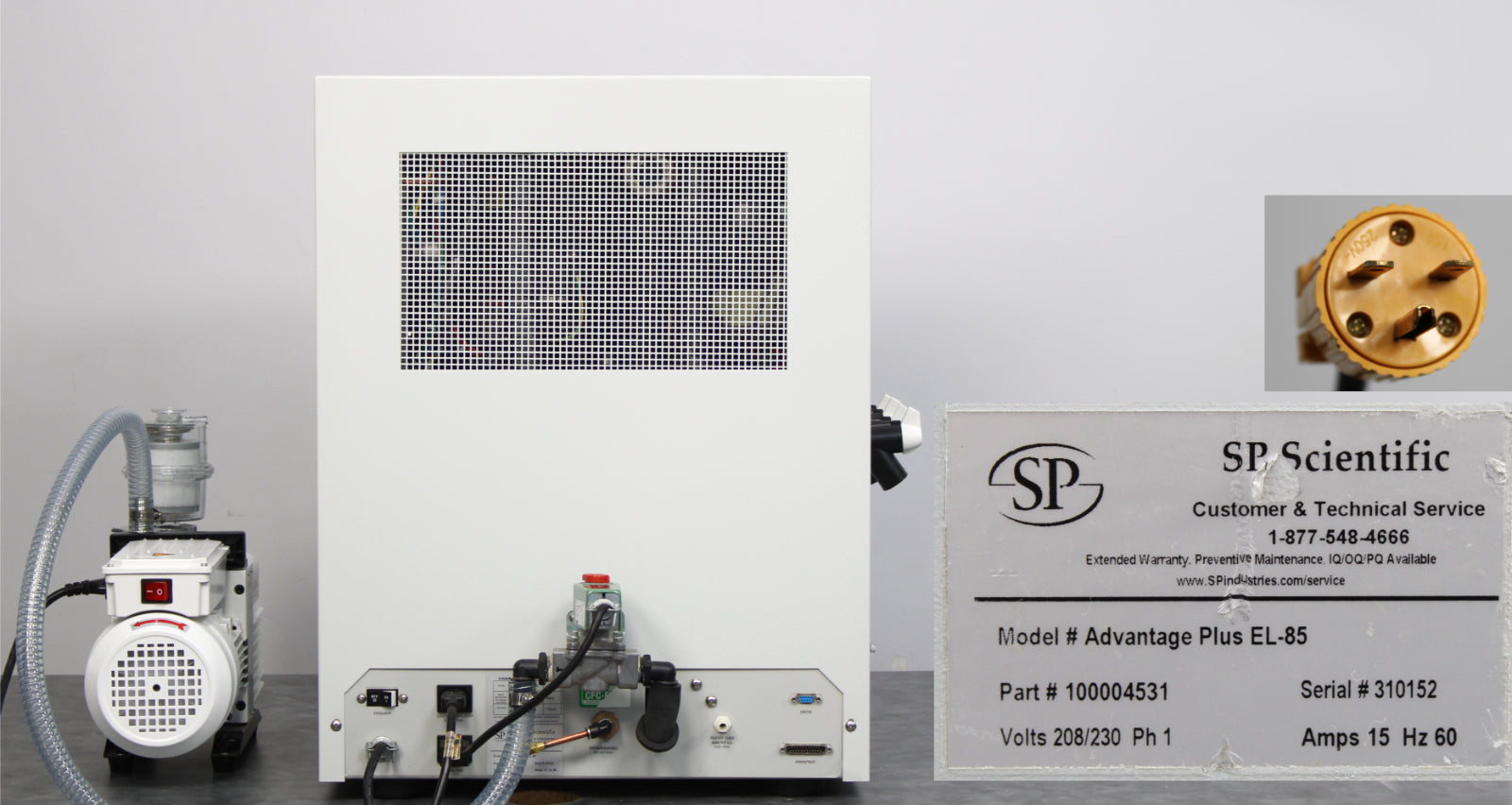

Manufacturer
|
SP Scientific
|
|
Model
|
Advantage Plus EL-85
|
|
Part No.
|
100004531
|
|
Serial No.
|
310152
|
|
Shelf temperature control range
|
-55 to 60°C
|
|
Lowest shelf temperature (50Hz / 60Hz)
|
-62 / -65°C
|
|
Lowest condenser temperature (50Hz / 60Hz)
|
-82 / -85°C
|
|
Maximum condenser capacity
|
6 L
|
|
Maximum ice condensing capacity in 24 hrs
|
4 L
|
|
Maximum deposition rate
|
0.17 L/hour
|
|
Shelf pull-down from 20°C to -40°C
|
≤ 30 minutes
|
|
Number of compressors
|
2
|
|
Compressor horsepower
|
1/3, 1/4
|
|
System refrigerant
|
R508B, R407C
|
|
Vacuum rate of rise
|
≤ 60 mT/hour
|
|
Volume-based leak rate
|
≤ .0009 mbar * L/sec
|
|
Temperature uniformity
|
±1.0°C
|
|
Power rating
|
208/230V, 60Hz, 15A, 1Ph
|
|
Dimensions (W x D x H)
|
25 x 23 x 29 in
|
|
Shelf dimensions (W x D)
|
10 x 14 in
|
