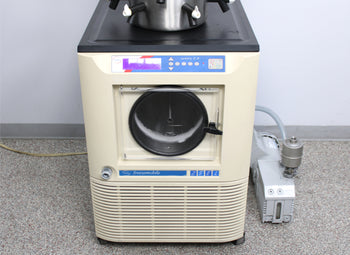

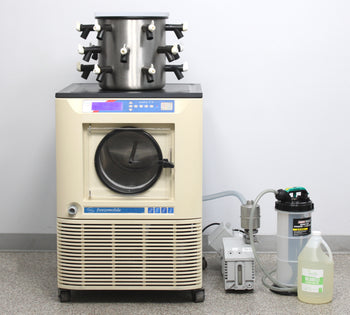

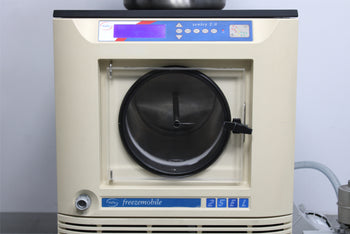

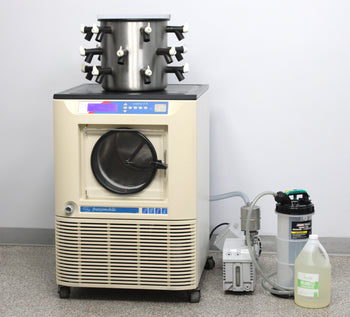

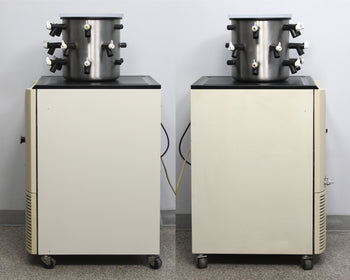

- SP VirTis 25EL Freezemobile FM25EL-85 Freeze Dryer Lyophilizer (446197)

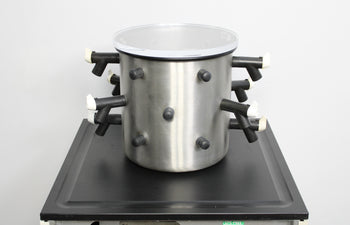

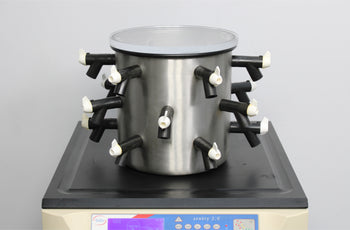

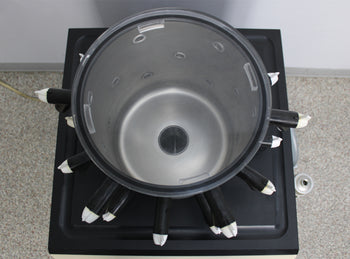

- 18-Port Drum Manifold with 13 Manifold Valves

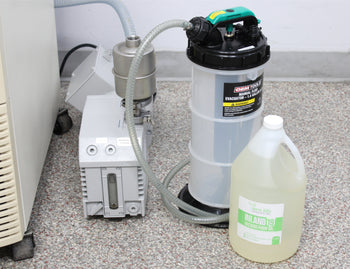

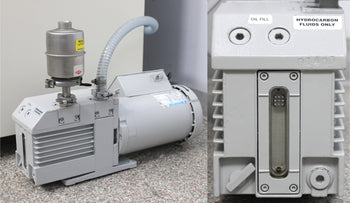

- Vacuum Pump
- 1 Gallon Inland-19 Vacuum Pump Oil
- Manual Fluid Evacuator
- Attached 208V Power Cable
- 90-Day Warranty
Notice: This manifold comes with 13 valves. More manifold valves can be purchased at an additional cost.
After its initial disinfection and inspection, our technicians tested the SP VirTis 25EL Freezemobile freeze dryer with the following results:
- Condenser temperature maintains -85°C: PASSED
- Vacuum maintains 25mT: PASSED
- Reinsulated refrigeration lines.
- Replaced all vacuum hoses.
- Flushed, filled, painted vacuum pump.
- Calibrated temperature.
- Calibrated vacuum pump.
|

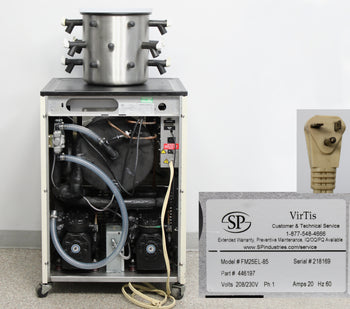

Manufacturer
|
SP VirTis
|
|
Product line
|
Freezemobile
|
|
Model No.
|
FM25EL-85
|
|
Part No.
|
446197
|
|
Serial No.
|
218169
|
|
Lowest condenser temp. (50 Hz / 60Hz)
|
-82°C / -85°C
|
|
Max. condenser capacity
|
25 L
|
|
Number of compressors
|
2
|
|
Compressor horsepower
|
1.0, 1.0
|
|
Vacuum time to 100 millitorr
|
≤ 20 minutes
|
|
Lowest system vacuum
|
≤ 15 mT
|
|
Refrigerant
|
R-407C (high side compressor)
B-508B (low side compressor)
|
|
Construction
|
316L stainless steel condenser chamber
|
|
Power rating
|
208/230V, 60Hz, 20A, 1Ph
|
|
Dimensions (W x D x H)
|
25 x 27 x 37 in (without manifold)
25 x 27 x 51 in (with manifold)
|
