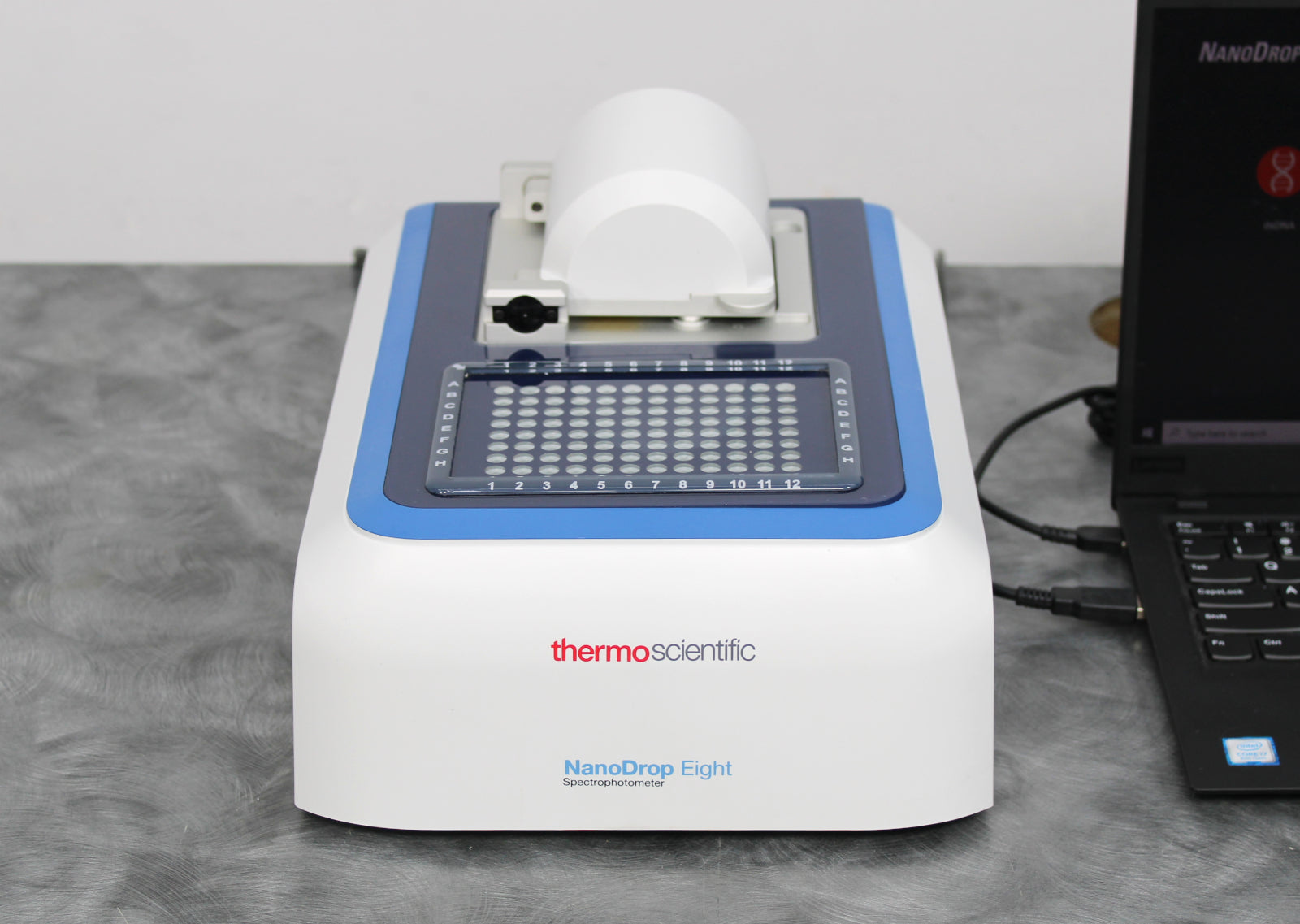

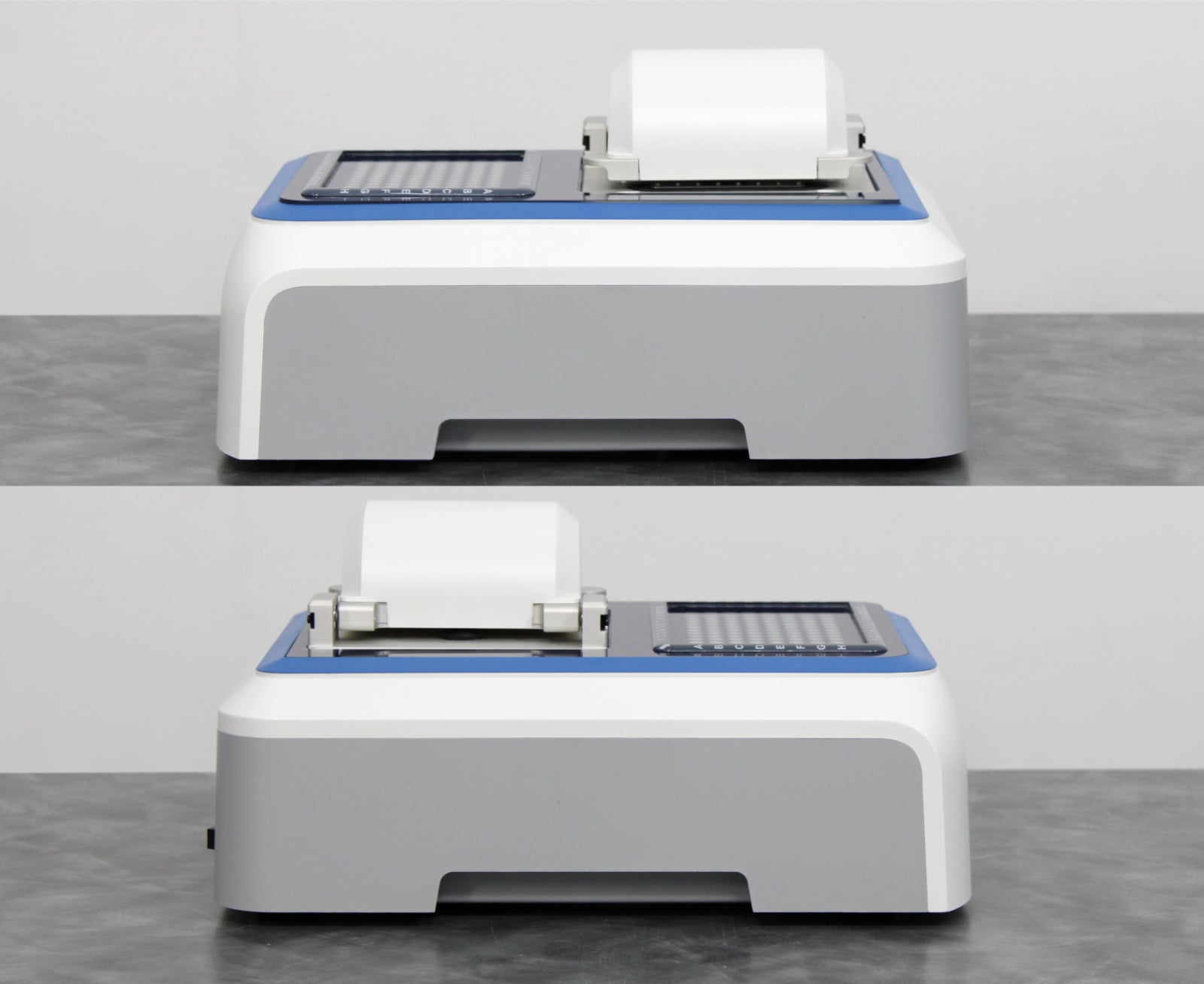

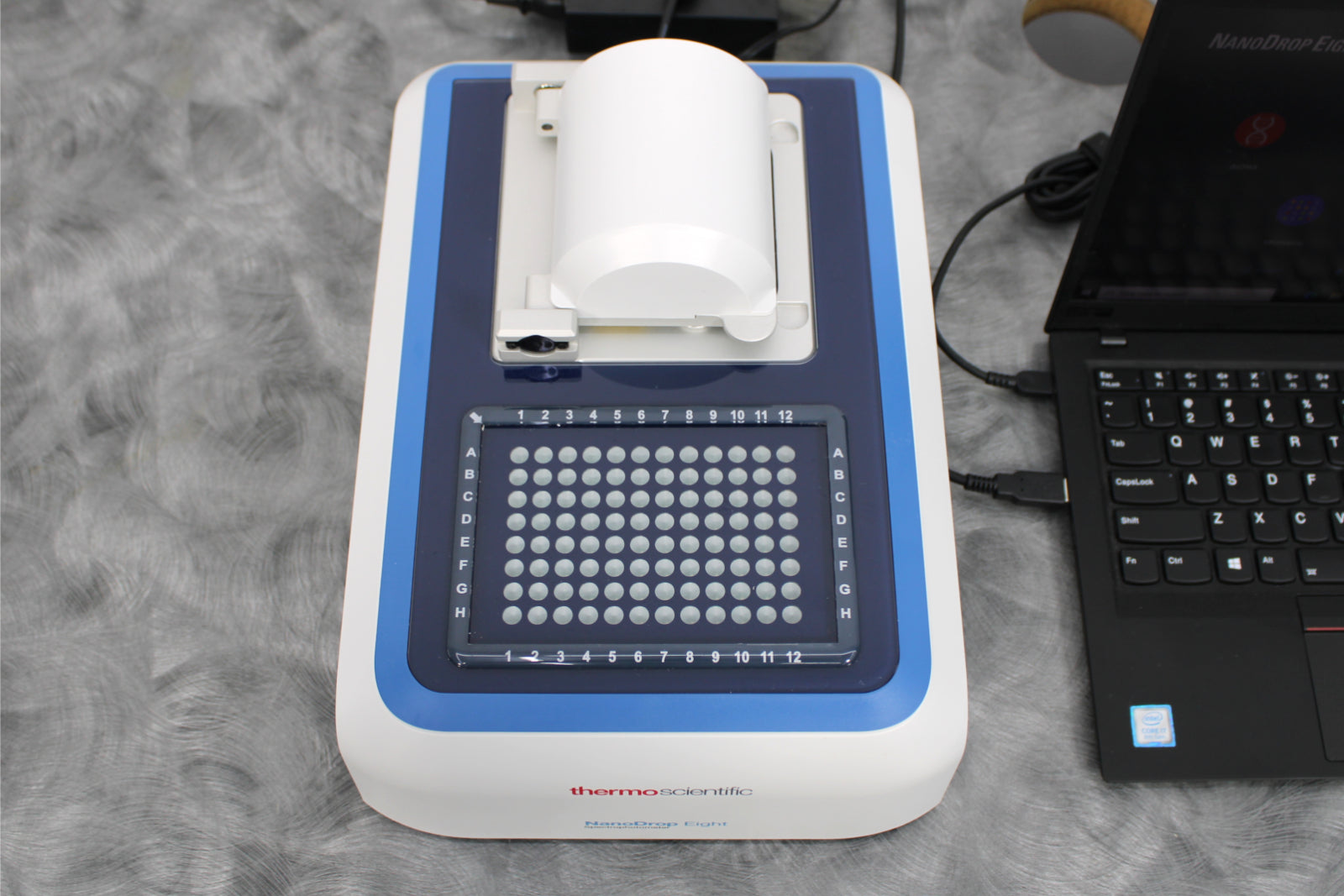

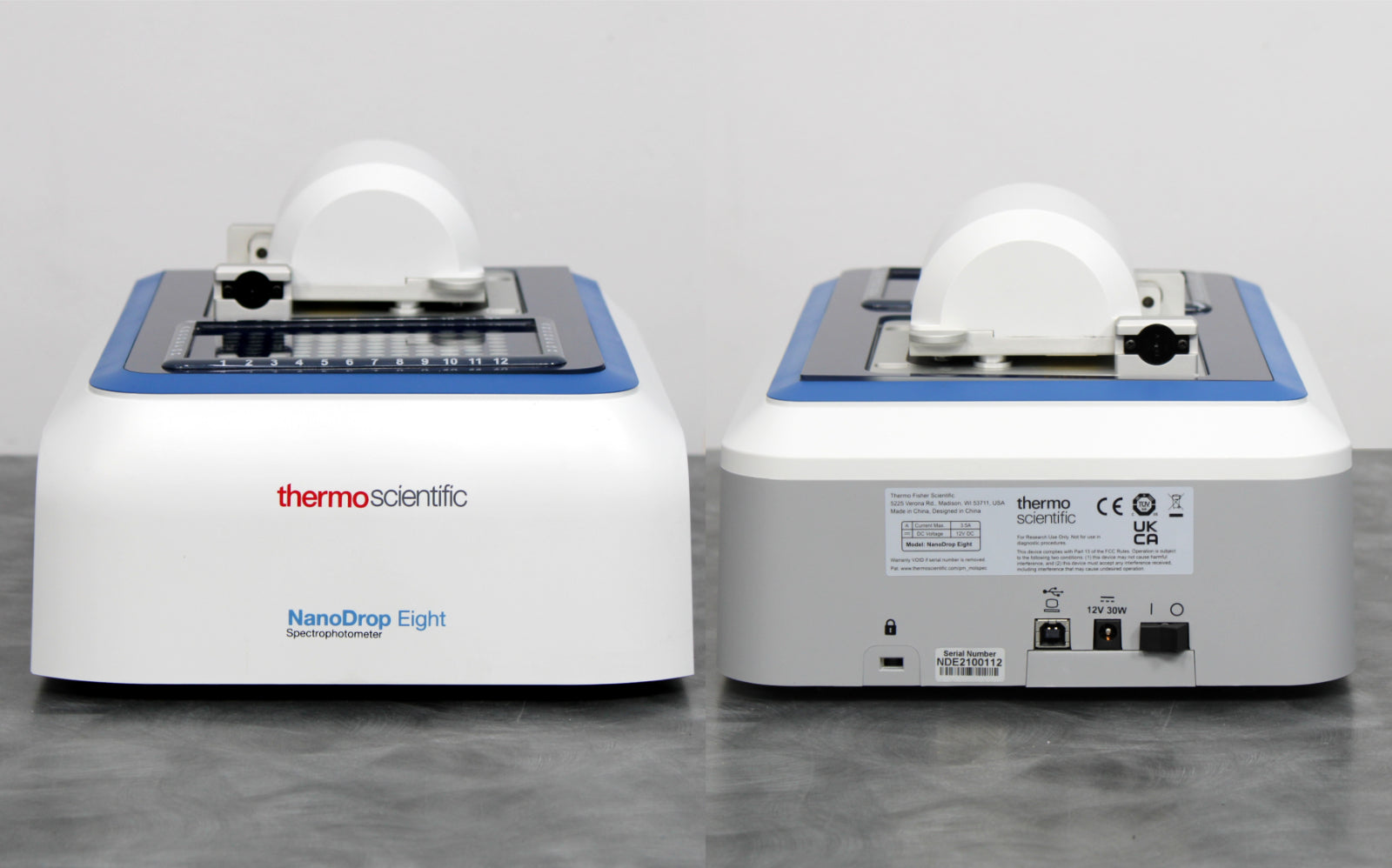

- Thermo Scientific NanoDrop Eight UV-Vis Spectrophotometer

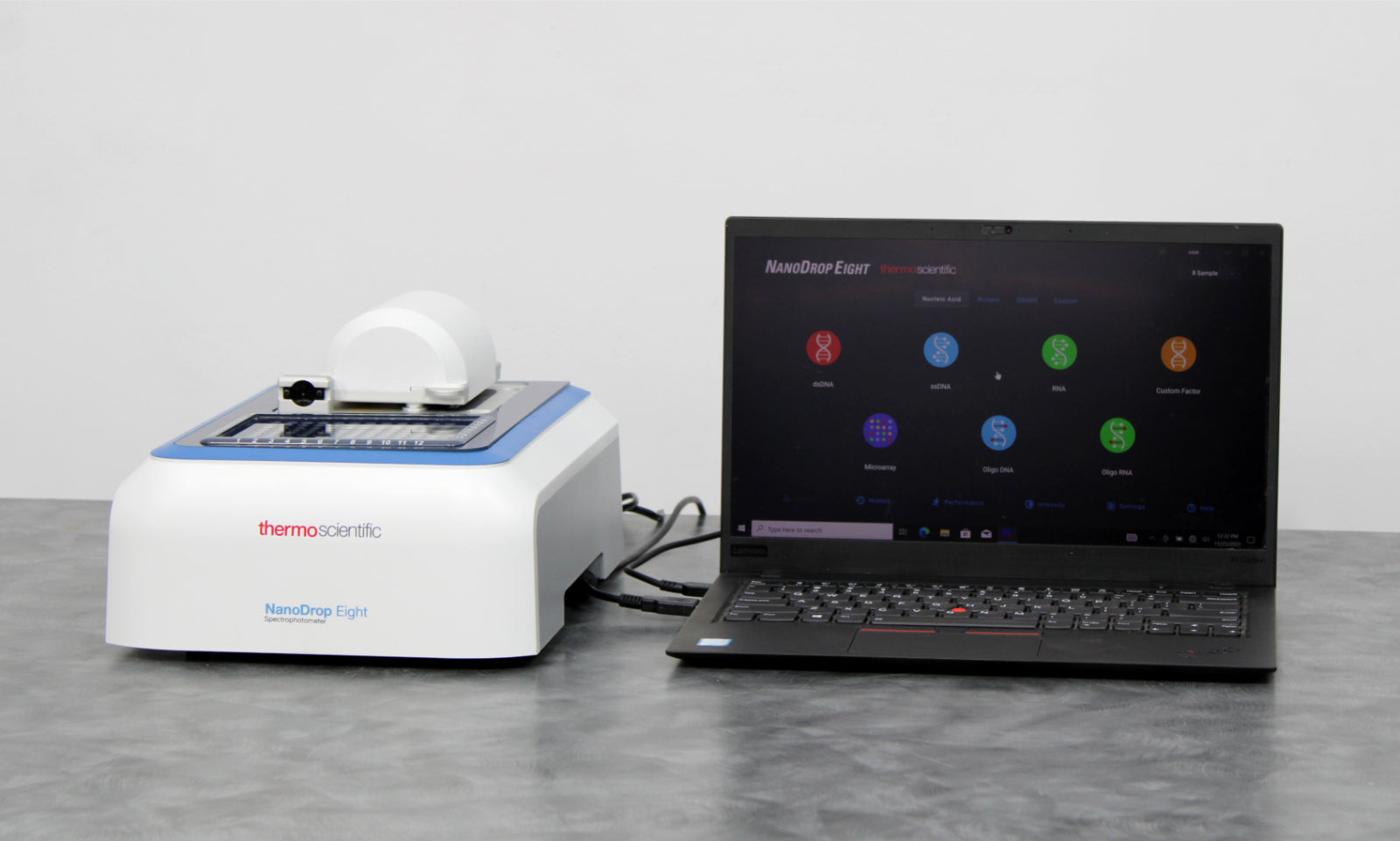

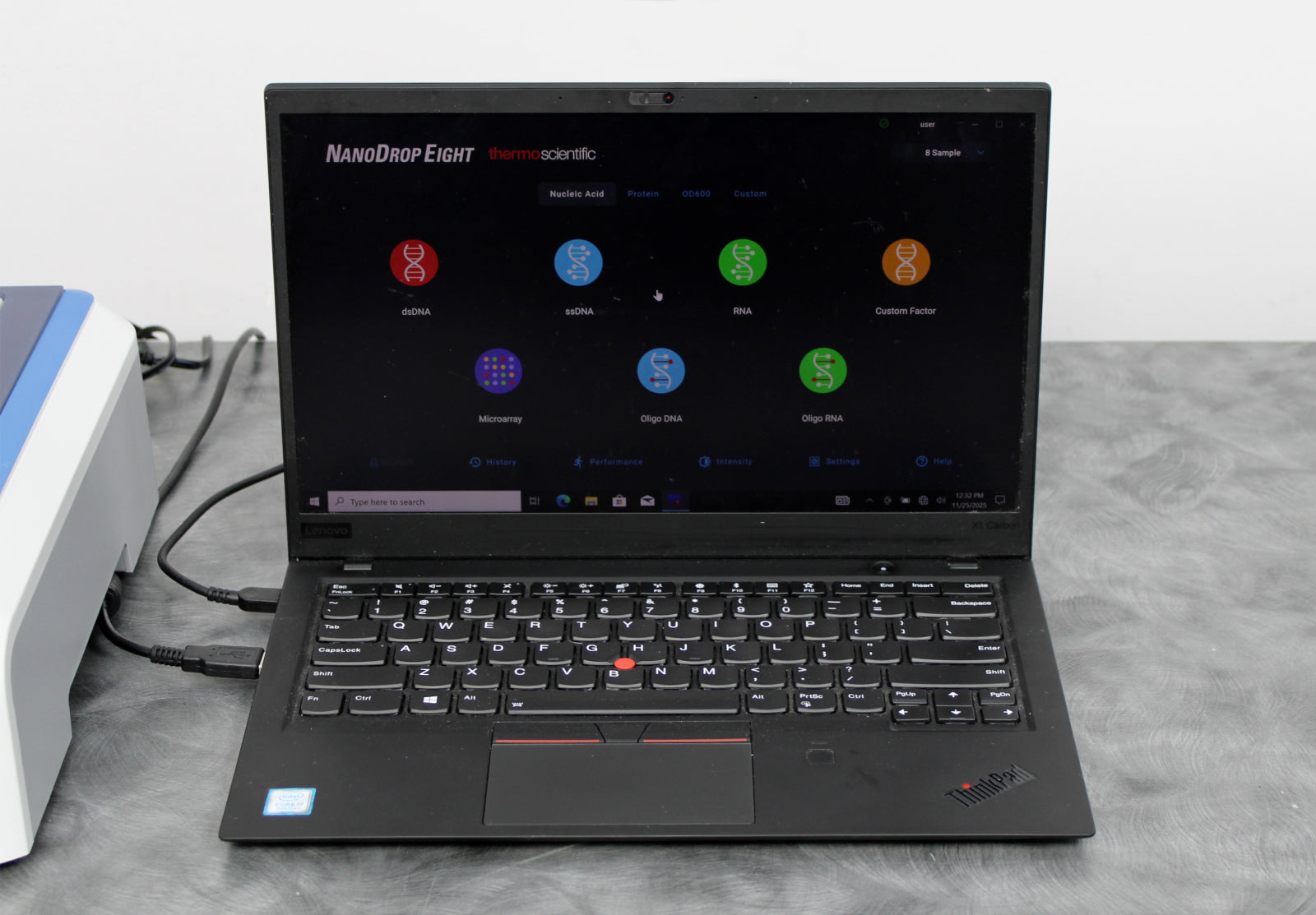

- Laptop with Control Software

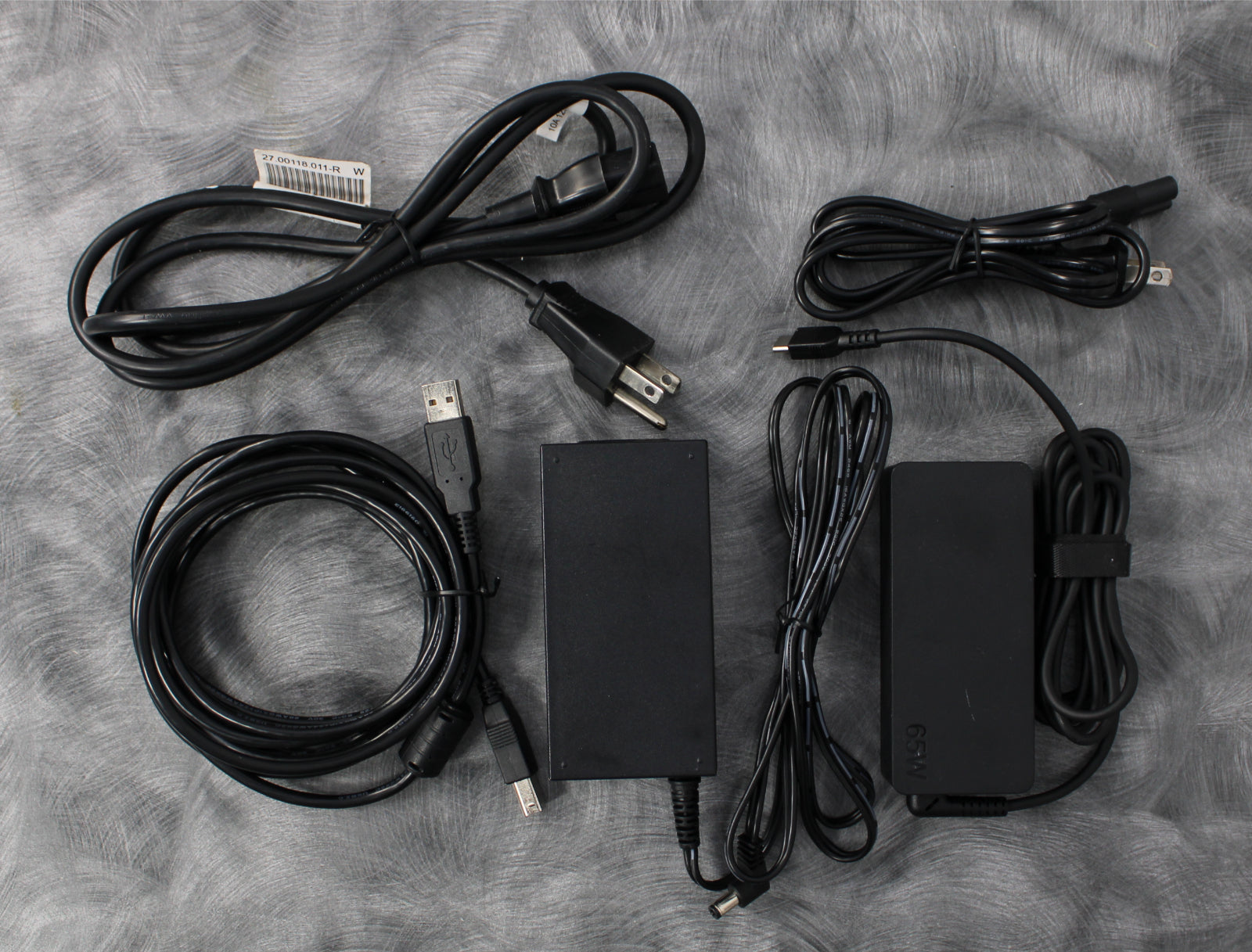

- USB Cable
- Laptop Power Adapter and Cable
- Instrument Power Adapter and Cable
- 90-Day Warranty
After its initial disinfection and inspection, our technicians tested the Thermo Scientific NanoDrop Eight UV-Vis spectrophotometer with the following results:
- Power and initialization: PASSED

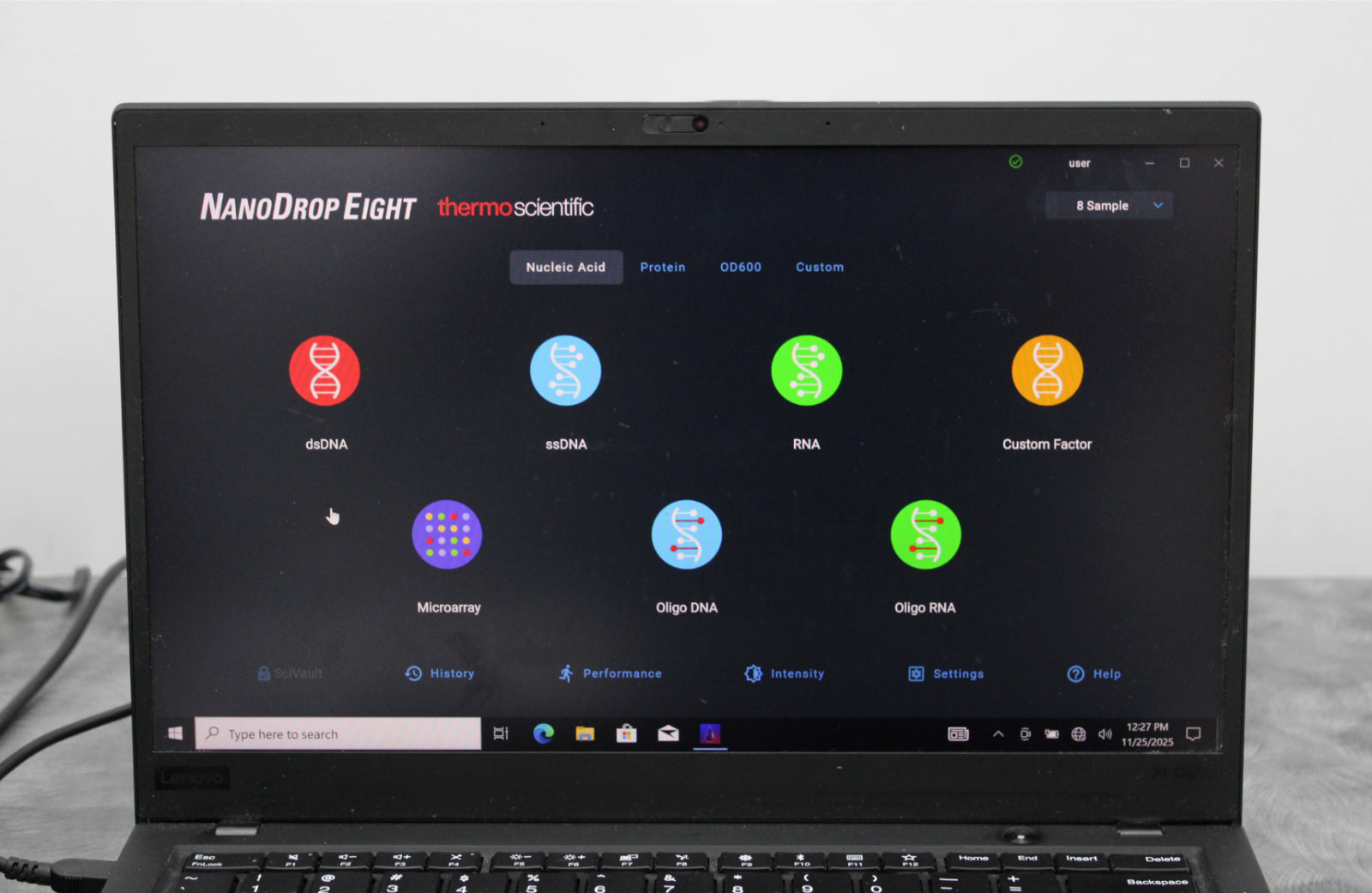

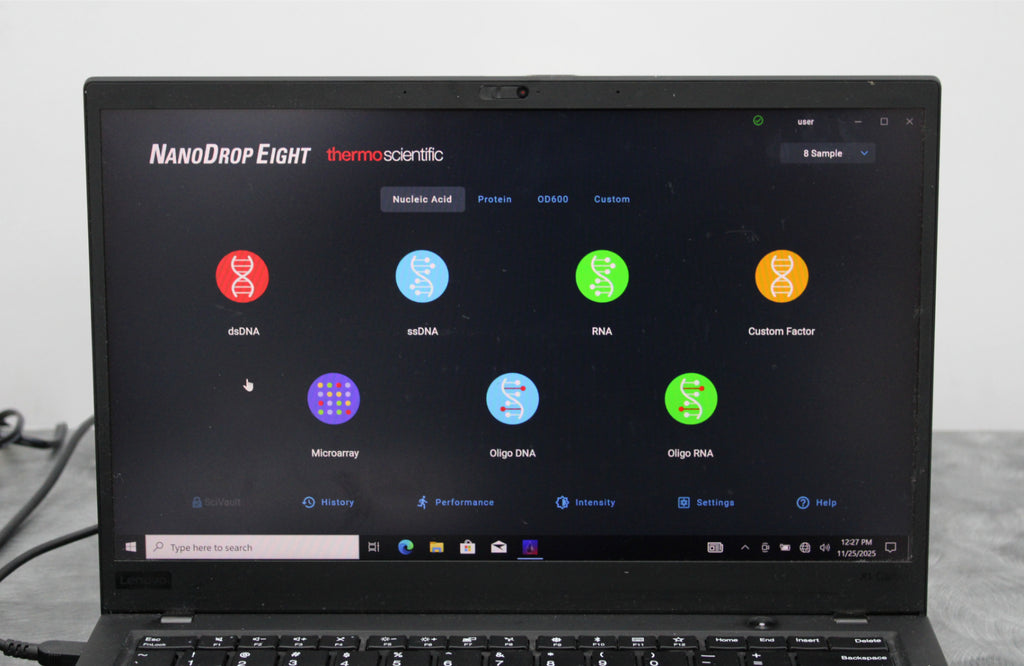

- Software configuration: PASSED
- Device connects to software: PASSED

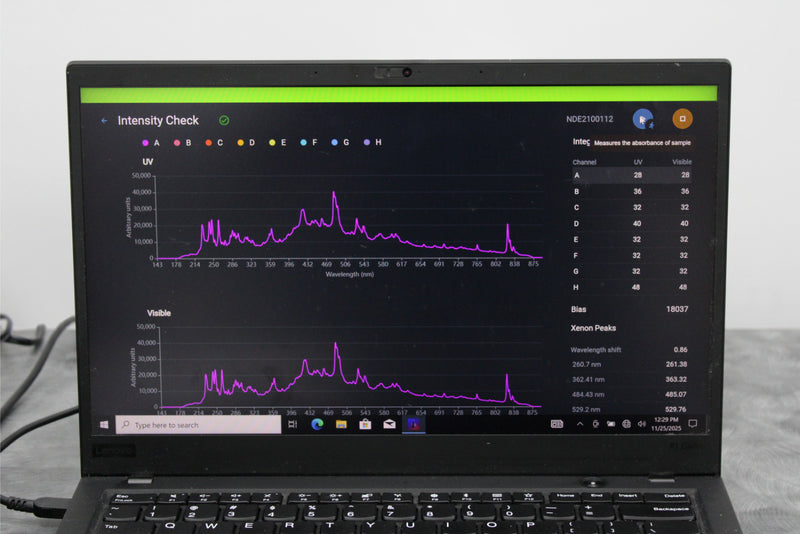

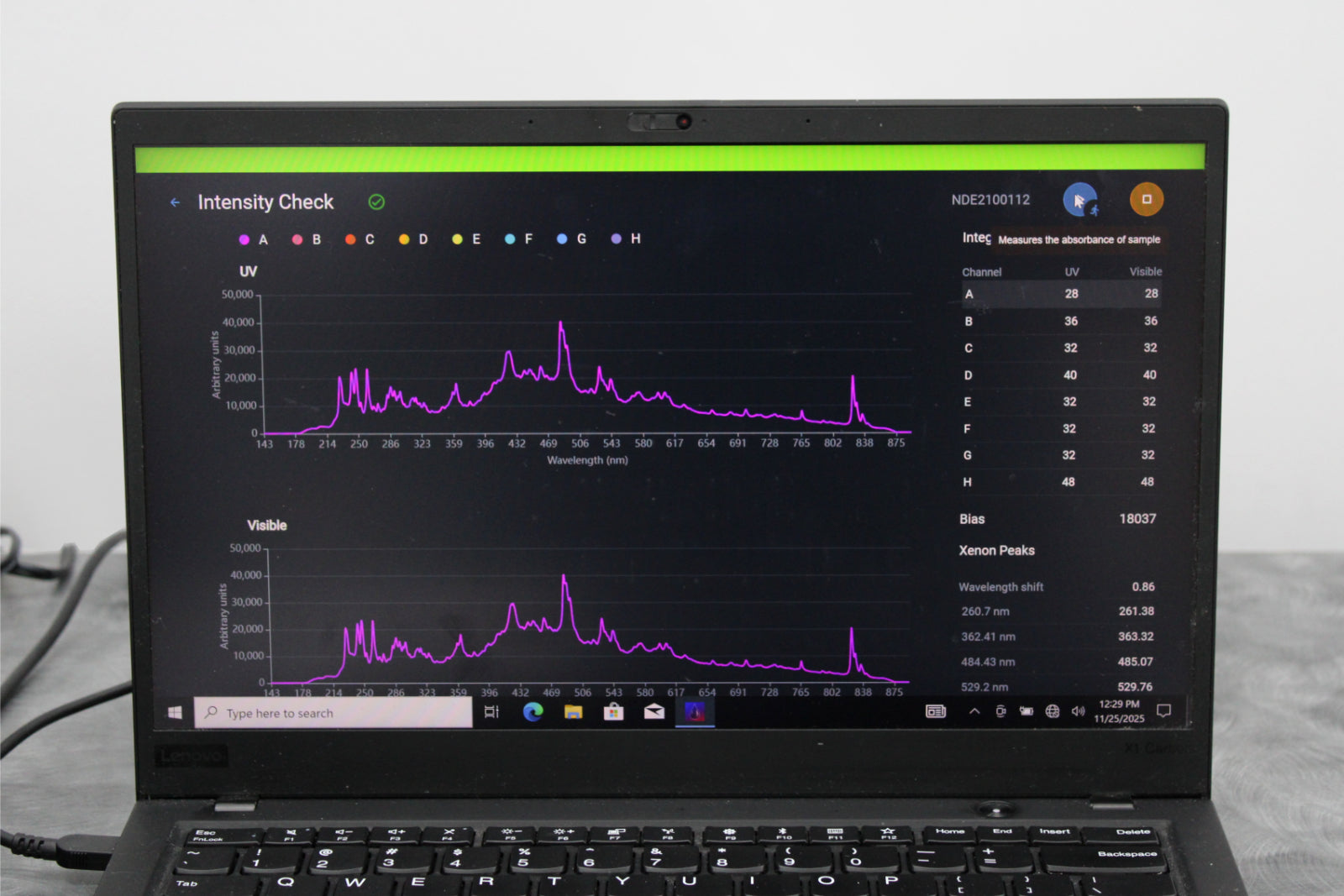

- Completed intensity test: PASSED
- Blank setup for protein analysis: PASSED
|
Manufacturer
|
Thermo Scientific
|
|
Type
|
Spectrophotometer
|
|
Model
|
NanoDrop Eight
|
|

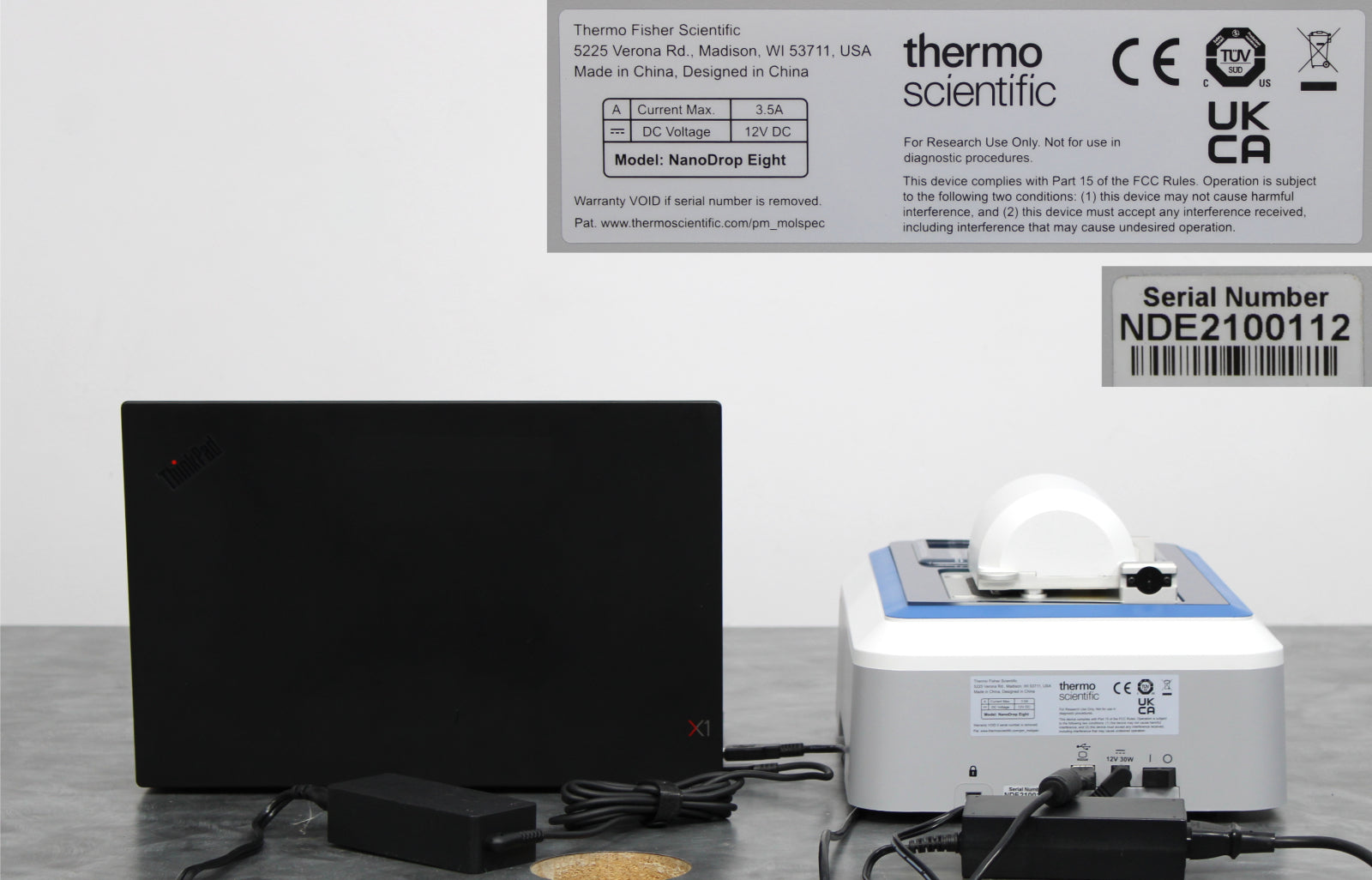

Serial No.
|
NDE2100112
|
|
Sample volume
|
1-2 µL
|
|
Detection limits
|
2.0-10,000 ng/µL dsDNA; 0.03-145 mg/mL IgG
|
|
Absorbance accuracy
|
3% at 0.97 A, 302 nm, 23 ± 2C°
|
|
Absorbance range
|
0.04-200 Abs (10 mm equivalent)
|
|
Wavelength accuracy
|
± 1 nm
|
|
Certifications/compliance
|
UL/CSA and CE
|
|
Detector type
|
2048-element CMOS linear image sensor
|
|
Light source
|
Xenon flash lamp
|
|
Wavelength range
|
190-850 nm
|
|
Measurement range
|
8 samples in ≤ 20 sec
|
|
Pathlength
|
1.0 mm, 0.2 mm, 0.1 mm (automatically adjusting)
|
|
Spectral resolution
|
≤ 1.8 nm (FWHM at Hg 254 nm)
|
|
Power rating
|
100/240V
|
|
Power consumption
|
3W at Idle; 15W at working conditions
|
|
Dimensions (W x D x H)
|
13 x 9.4 x 6.7 in (33 x 24 x 17 cm)
|
|
Weight
|
8.2 lb (3.7 kg)
|
