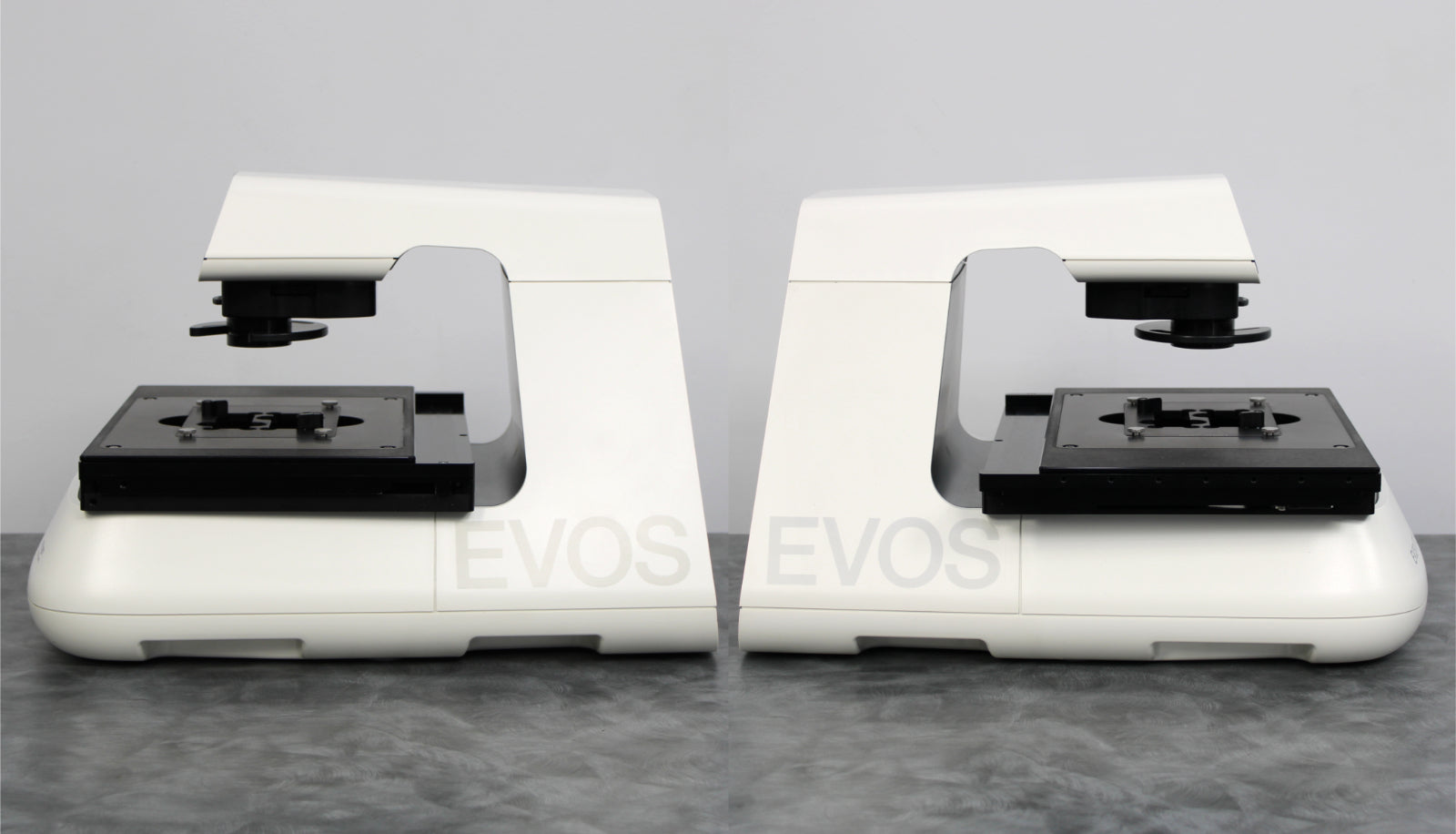

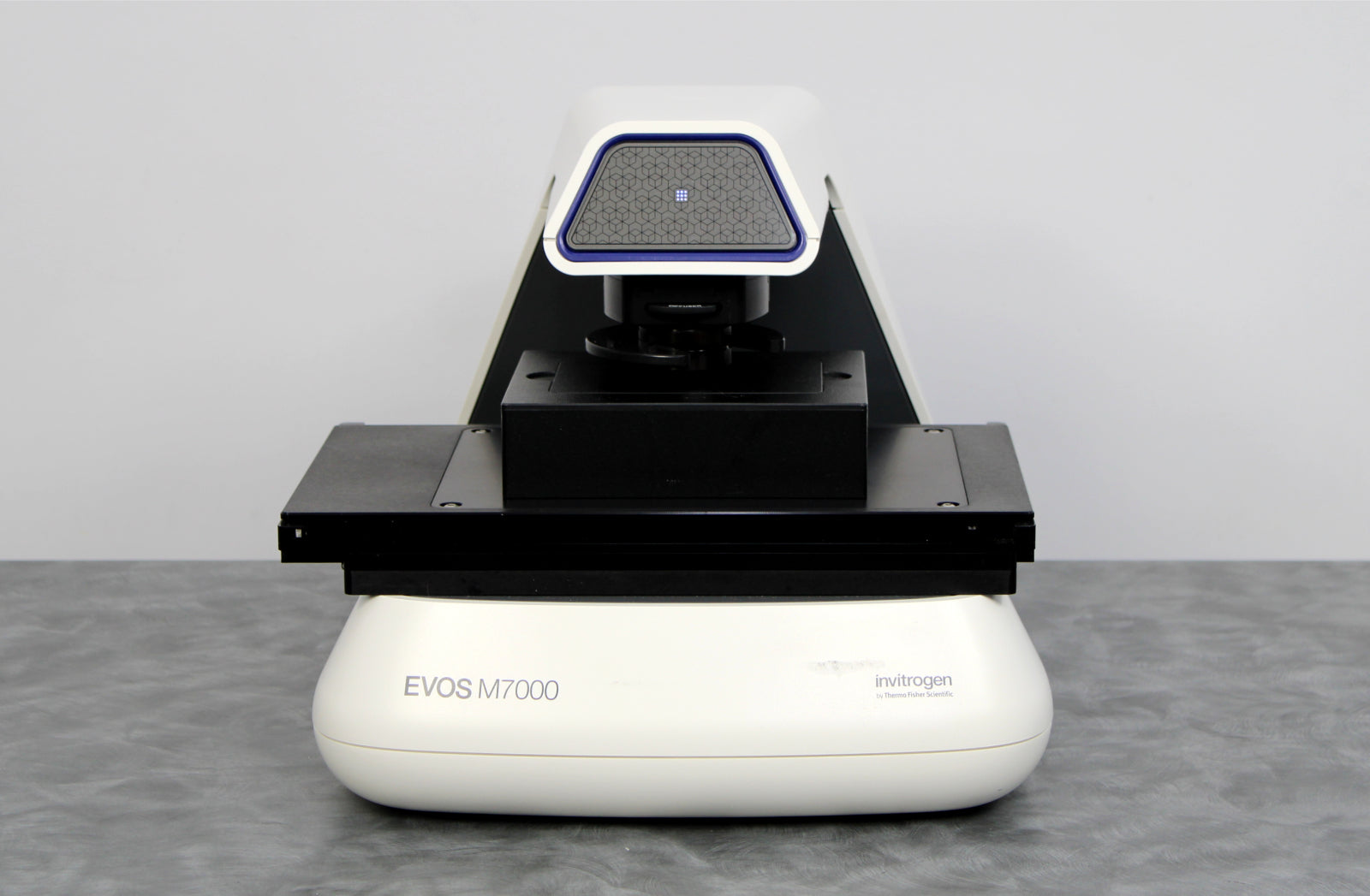

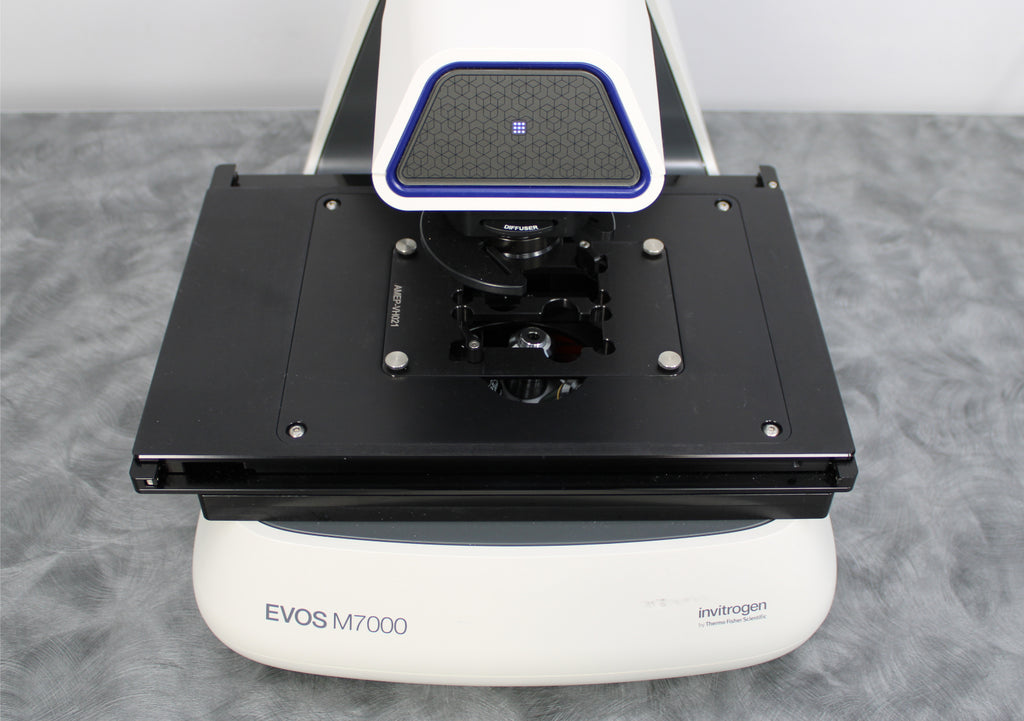

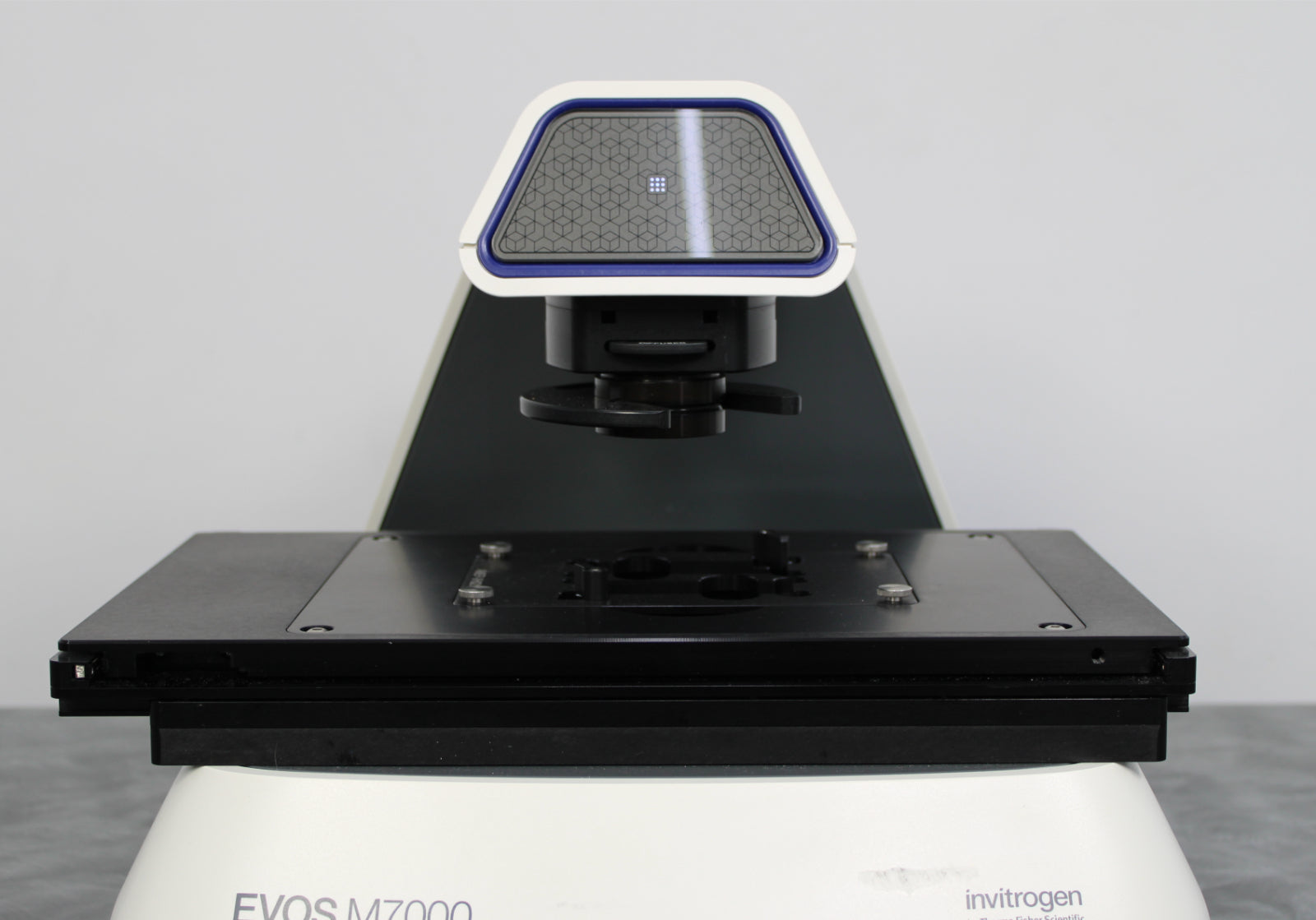

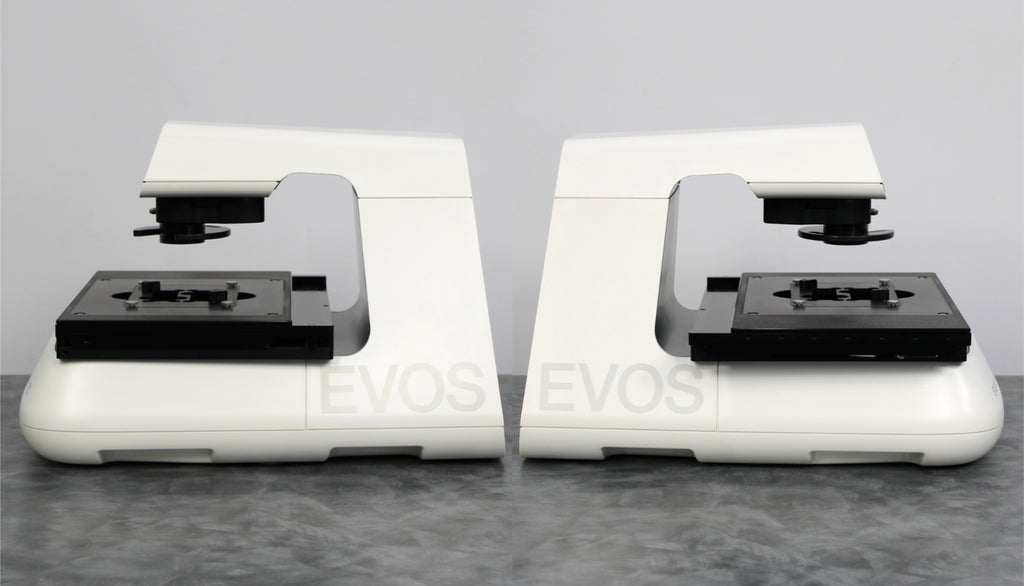

- Thermo Scientific Invitrogen EVOS M7000 Digital Inverted Microscope (AMF7000) with Objectives and Light Cubes

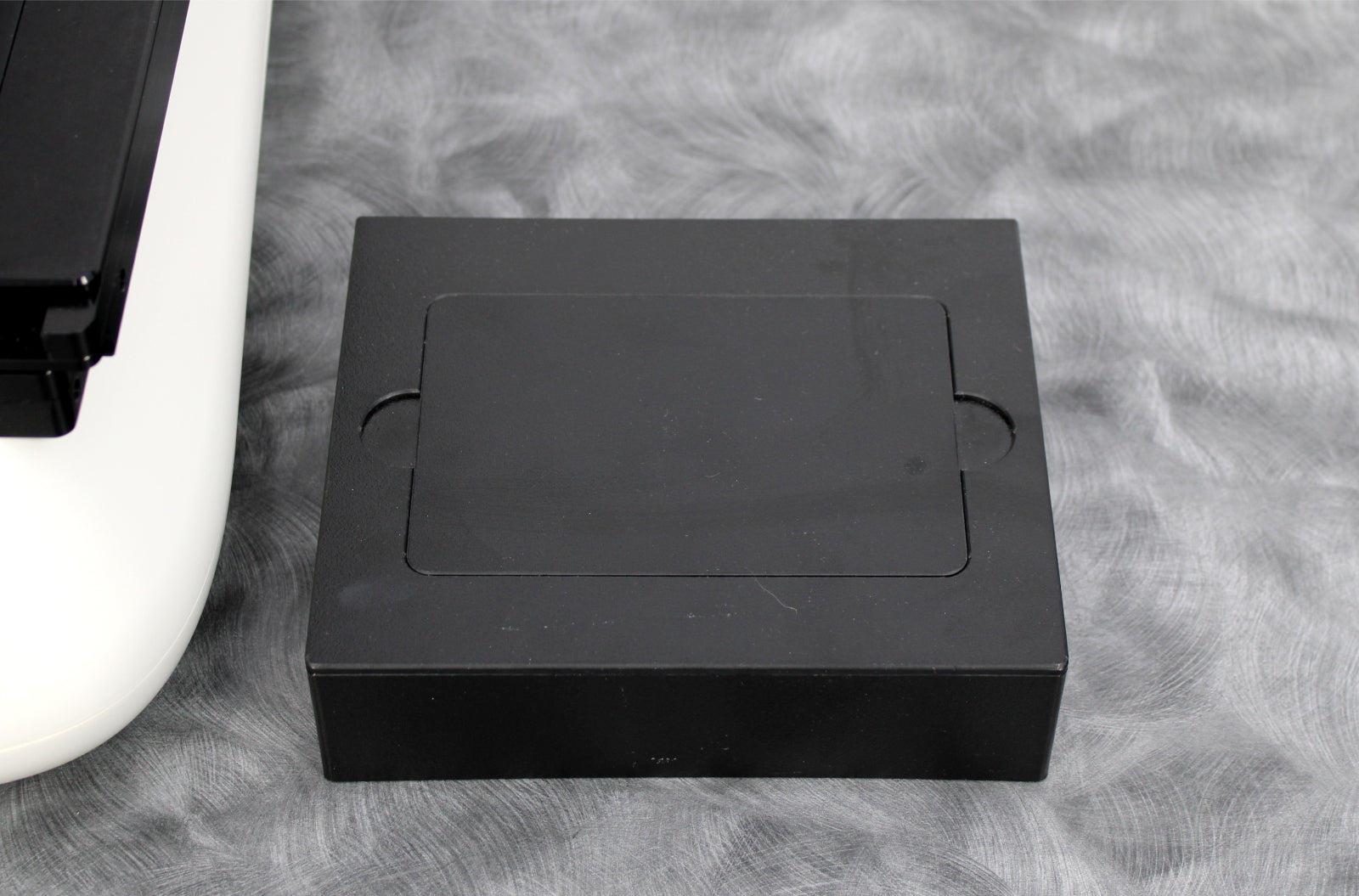

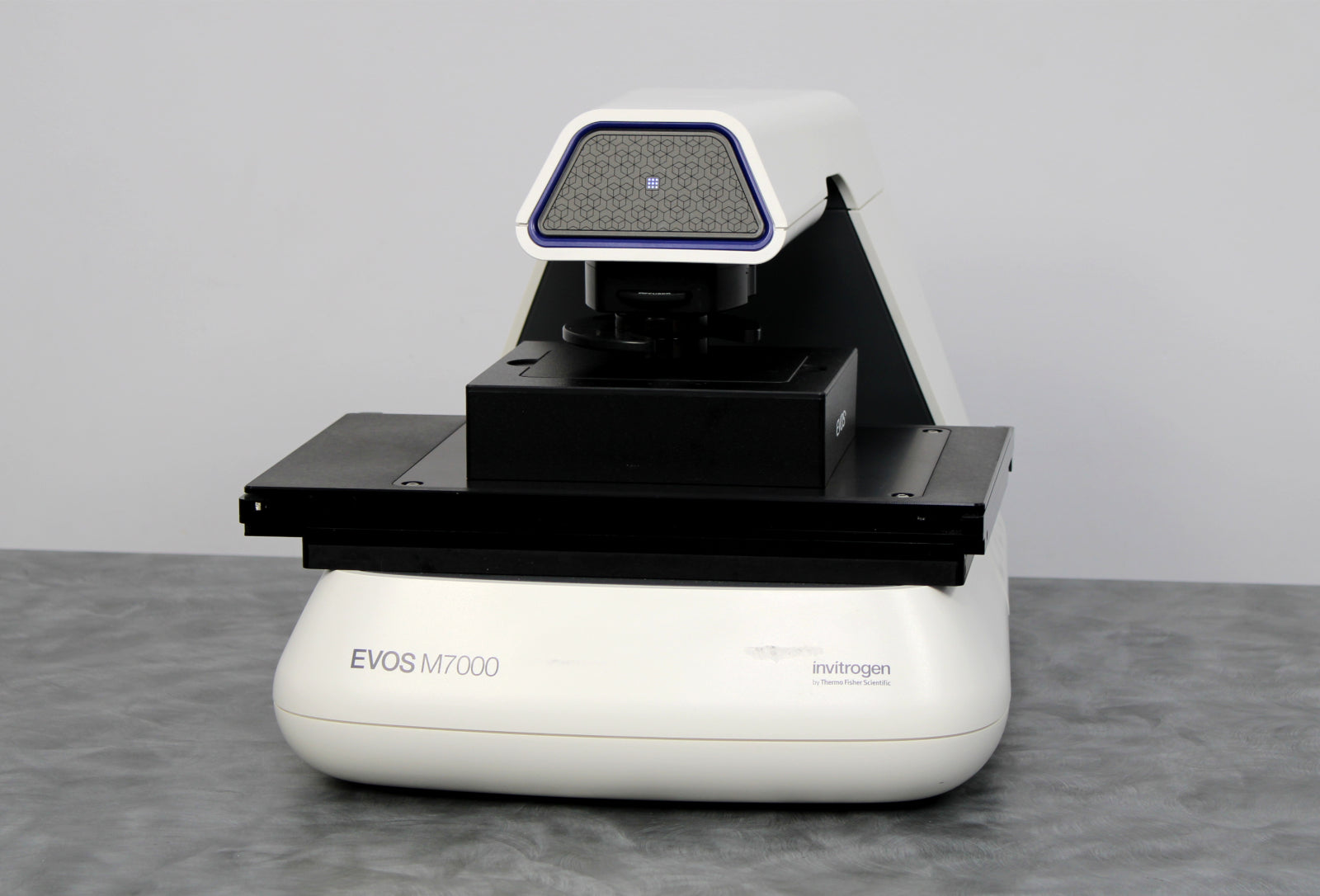

- EVOS Light Shield

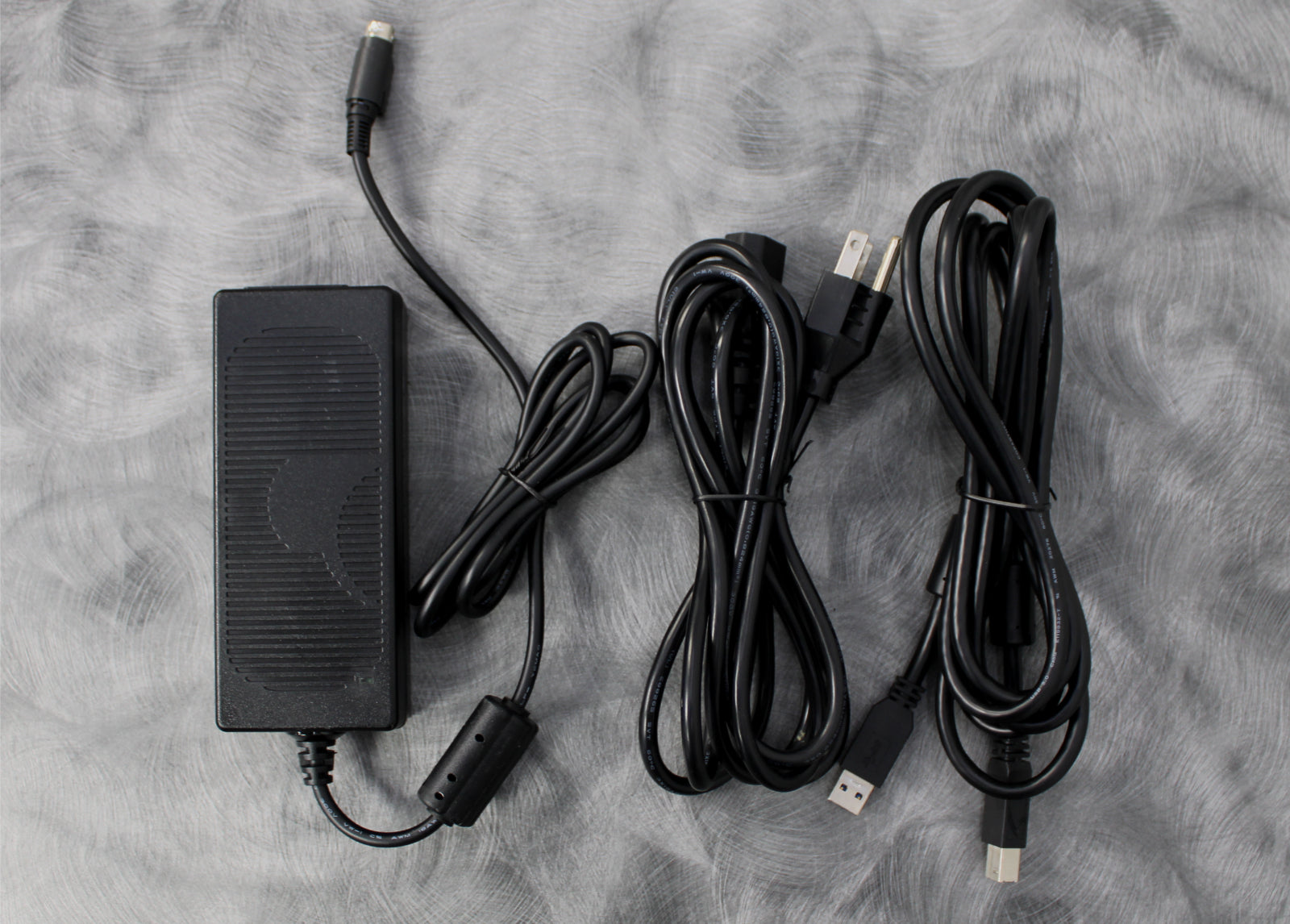

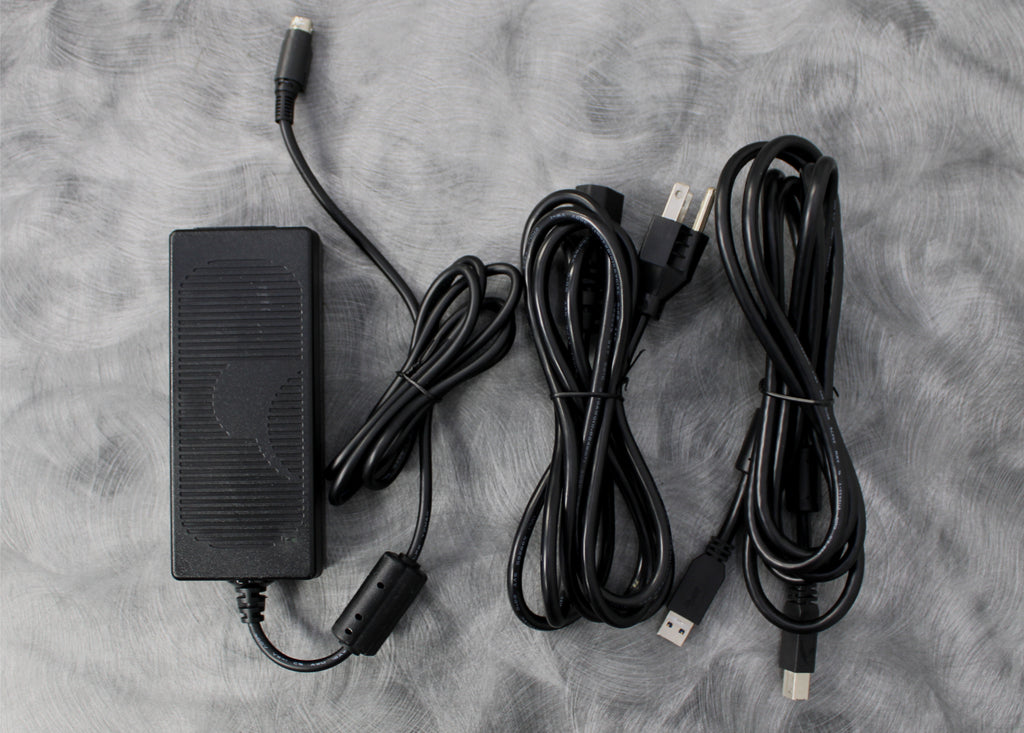

- USB Cable
- Power Adapter
- Power Cable
- 90-Day Warranty
- AMEP4982
- AMEP4980
- FL PH 10x/0.30
- Plan Apo N 2x/0.08
- Plan Apo N 1.25x/0.04
- AMEP 4656 (CY5)
- AMEP 4655 (TxRed)
- AMEP 4651 (GFP)
- AMEP 4650 (DAPI)
Notice: A computer and software must be purchased from Thermo Scientific to operate this microscope.
We powered on this EVOS M7000, but no further testing could be performed without a computer and software. A computer and software must be purchased from Thermo Scientific to operate this microscope.
Notice: This microscope has a minor cosmetic blemish on the front panel. Please review the available photos to see the physical condition before purchasing.
|
Manufacturer
|
Invitrogen
|
|
Product line
|
EVOS
|
|
Type
|
Cell Imaging System
|
|
Model
|
EVOS M7000
|
|

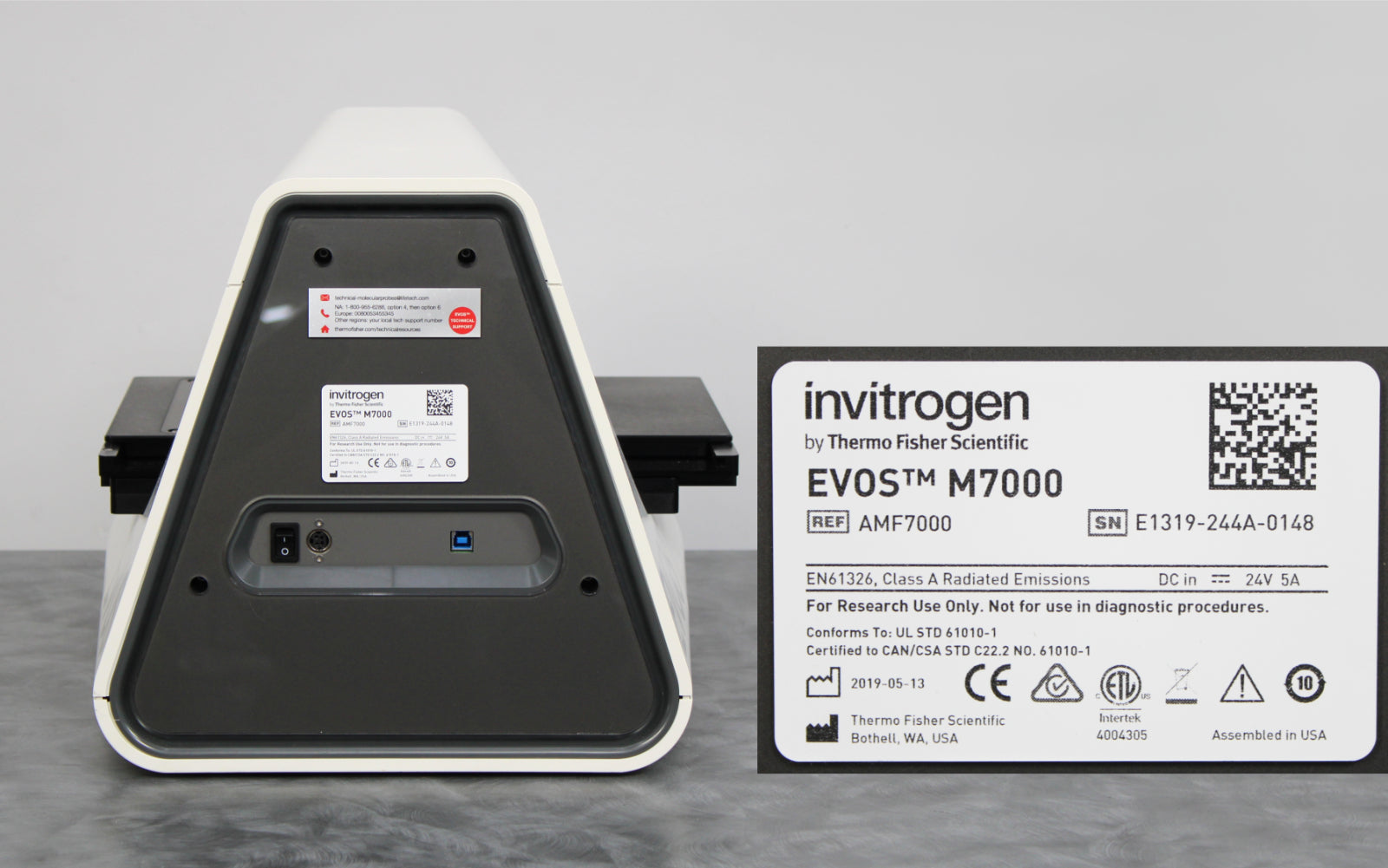

Ref. No.
|
AMF7000
|
|
Serial No.
|
E1319-244A-0148
|
|
Mfg. date
|
2019-05-13
|
|
For use with (application)
|
Neurobiology, Immuno-Oncology, Live-Cell Imaging, 3D Cell Imaging, High-Resolution Tile Scanning, Immunohistochemistry (IHC)
|
|
Magnification
|
1.25X to 100X
|
|

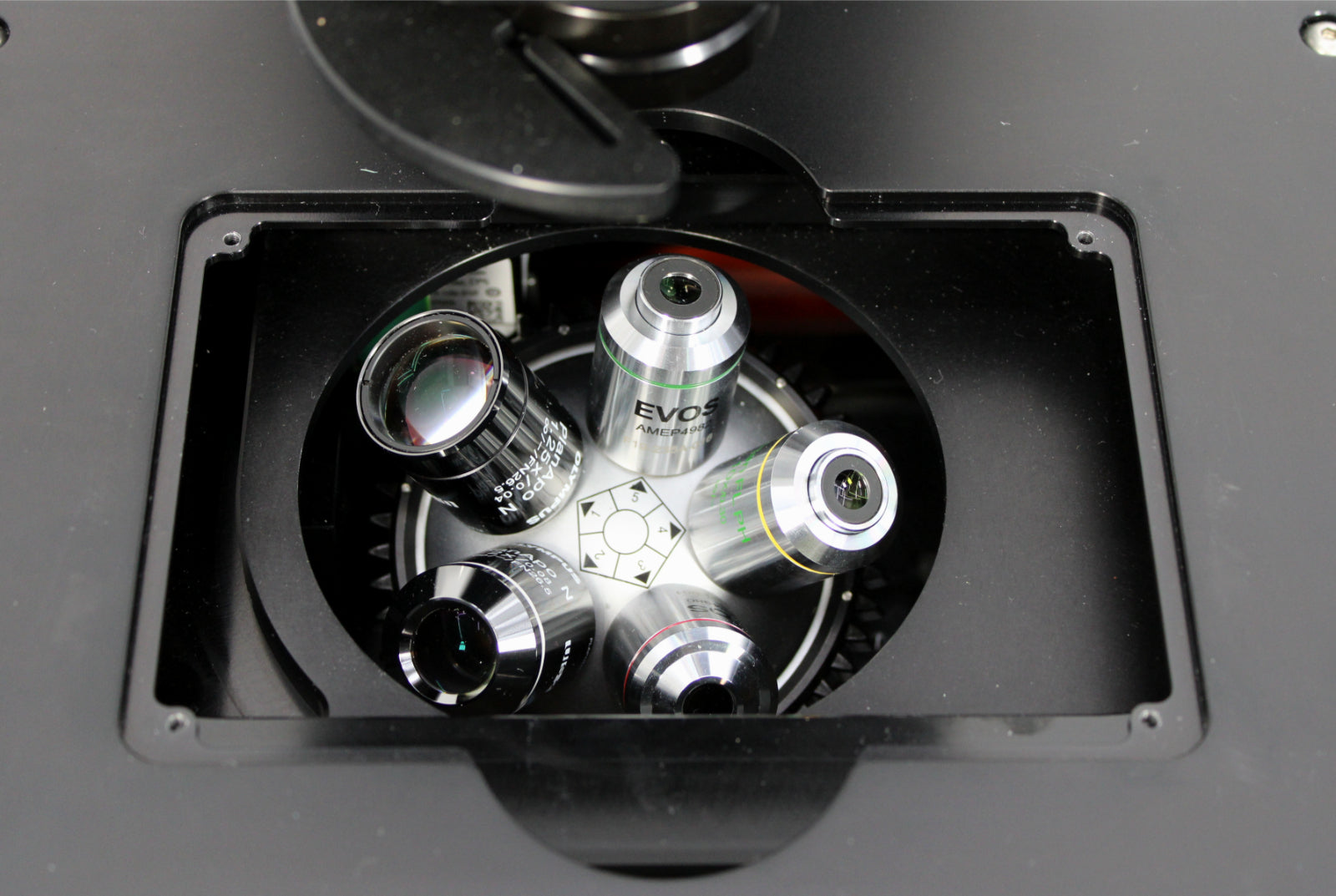

Objective capacity
|
5-position turret
|
|
Optics
|
Infinity-corrected optical system; RMS-threaded objectives with 45-mm parfocal distance
|
|
Imaging mode
|
fluorescence, brightfield, color brightfield, and phase contrast
|
|
Illumination
|
five position chamber for 4 fluorescence light cubes plus brightfield; light cubes with integrated hard coated filter set and LED light source with >50,000 hour life; broad selection of standard and specialty light cubes
|
|
Imaging methods
|
single color, multi-color, area scan with montage or tile-stitch, time lapse, Z-stacking, movie capture
|
|
Condenser
|
60-mm long working distance condenser, 4 position turret with a clear aperture and 3 phase annuli
|
|

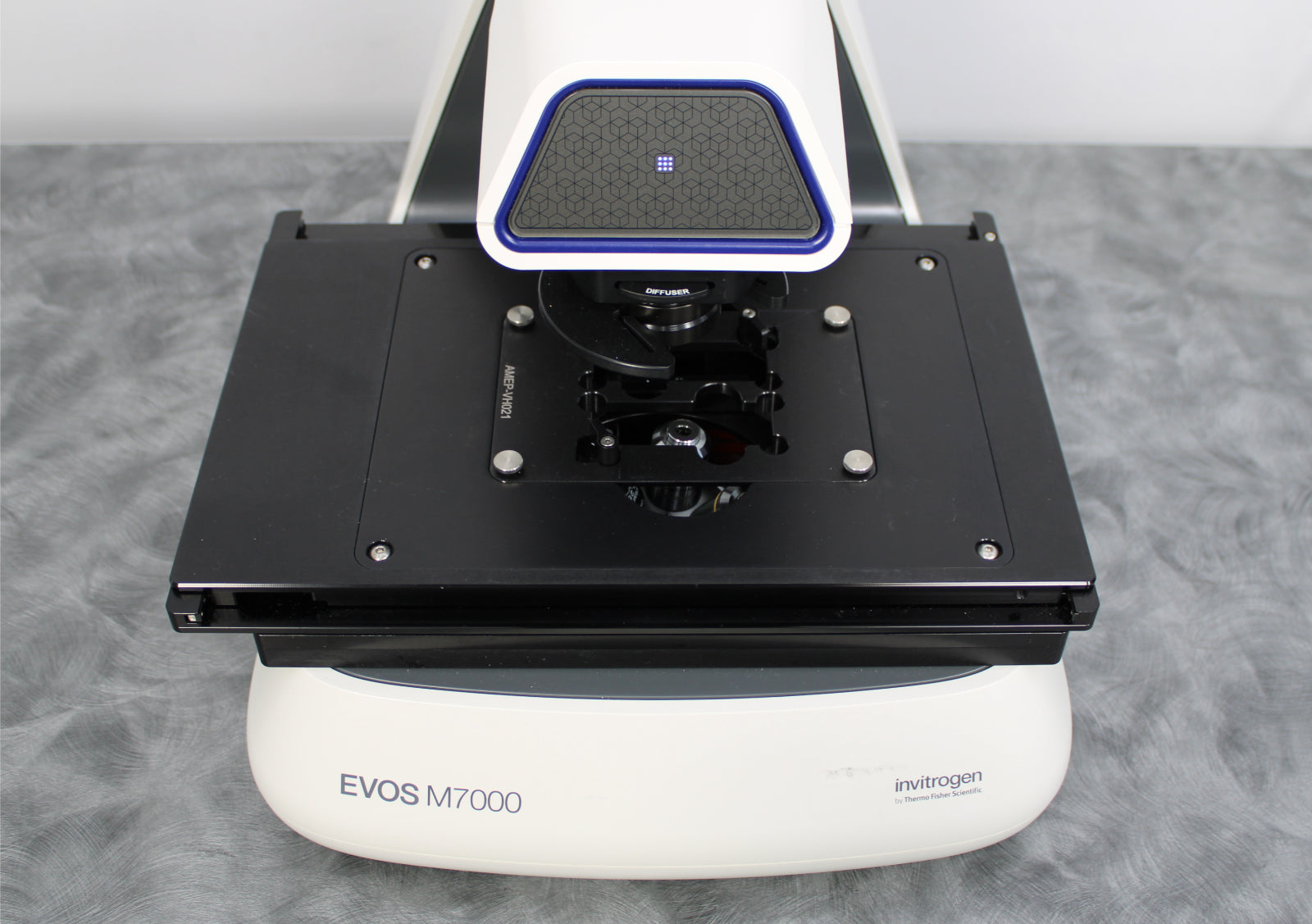

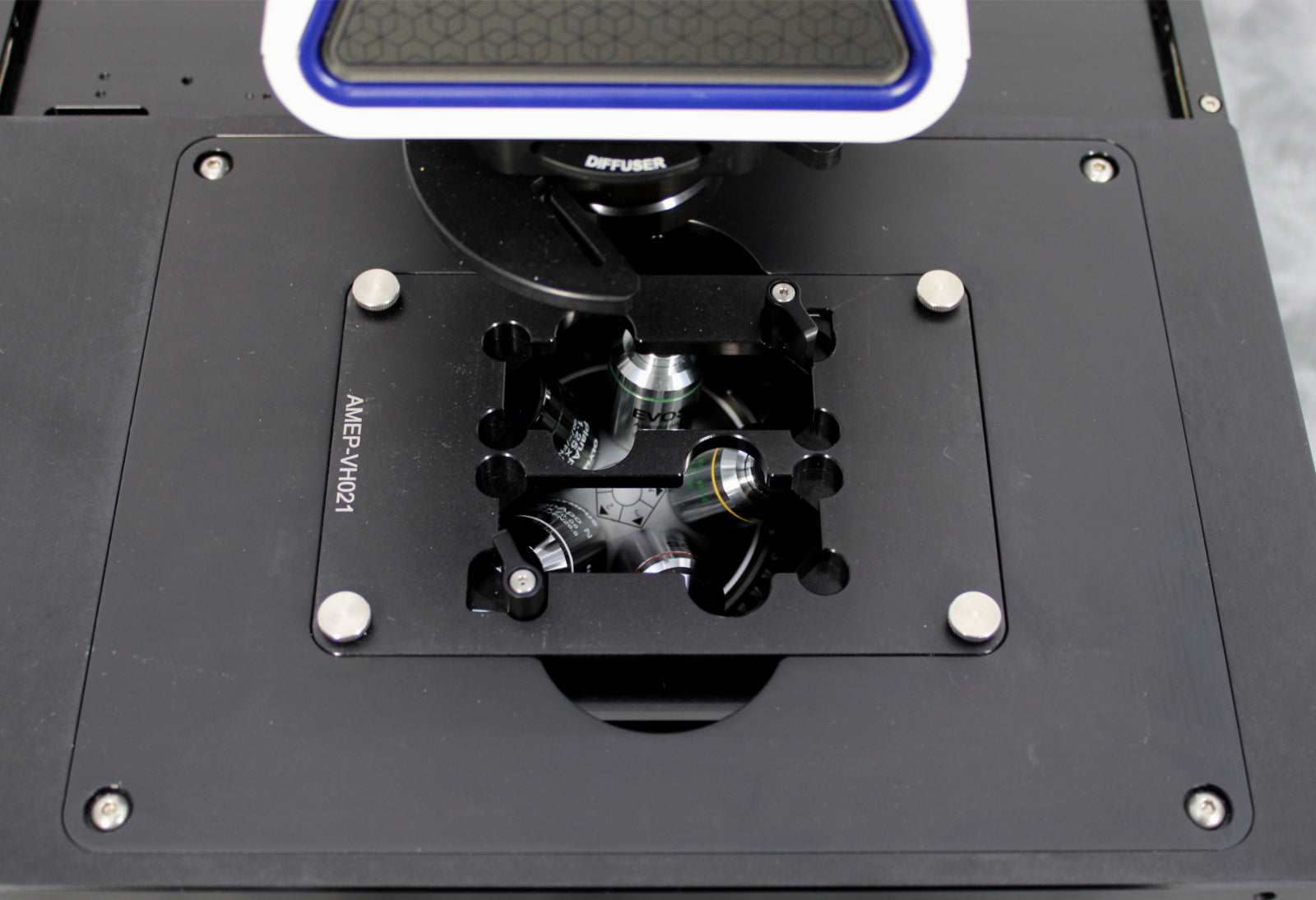

Stage
|
motorized X/Y scanning stage; travel range 120 mm x 80 mm with sub‐micron resolution, drop‐in inserts to receive vessel holders and lock down holders to fix sample in place during long scans
|
|
Focus mechanism
|
automated focus mechanism with sub‐micron resolution
|
|
Cameras
|
high-sensitivity 3.2 MP (2048 x 1536) monochrome CMOS sensor with 3.45 μm pixel resolution; high-sensitivity 3.2 MP (2048 x 1536)
|
|
Power requirement
|
DC in ⎓ 24V 5A
|
|
Dimensions (W x D x H)
|
14 x 18 x 13 in (35.5 x 45.7 x 33 cm)
|
|
Weight
|
38 lb (17.2 kg)
|
