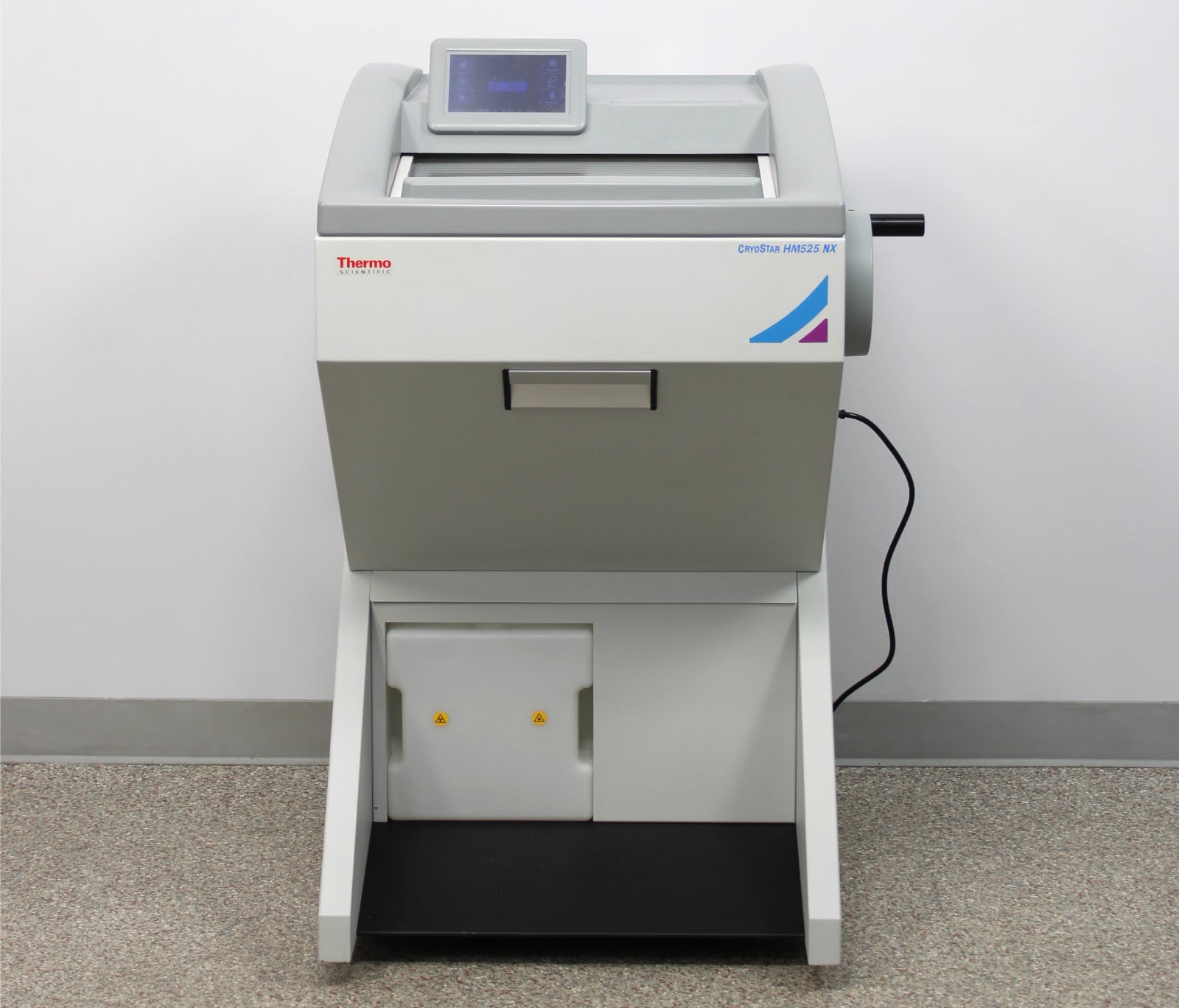

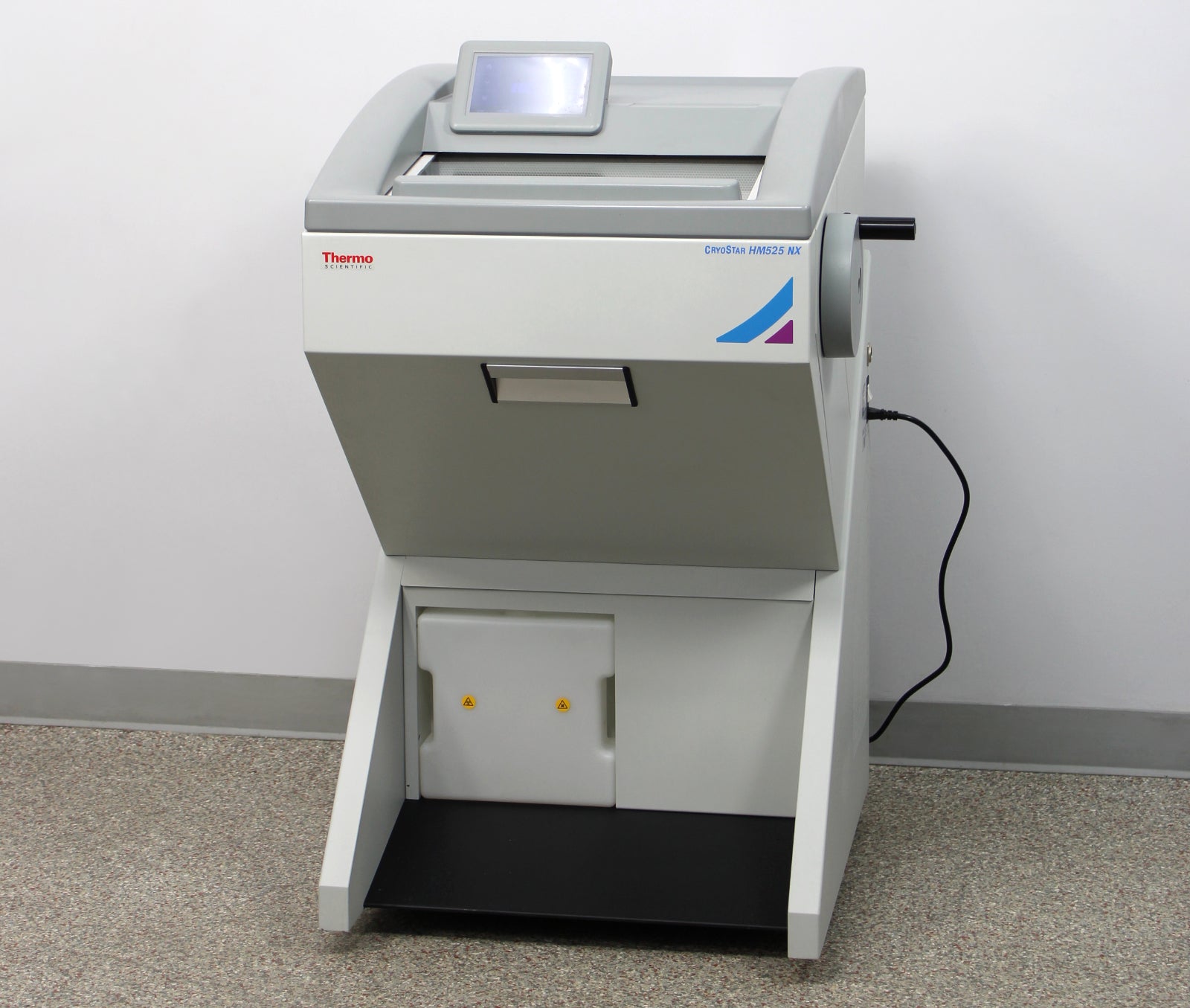

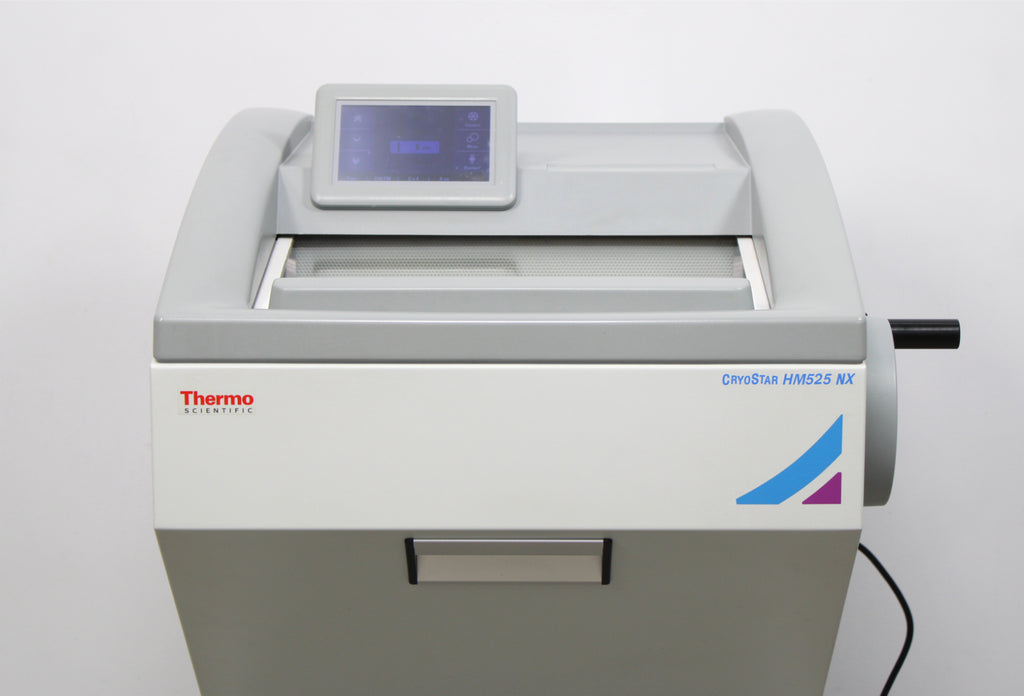

- Thermo Scientific Shandon Cryostar HM525 NX Cryostat Microtome (956640)

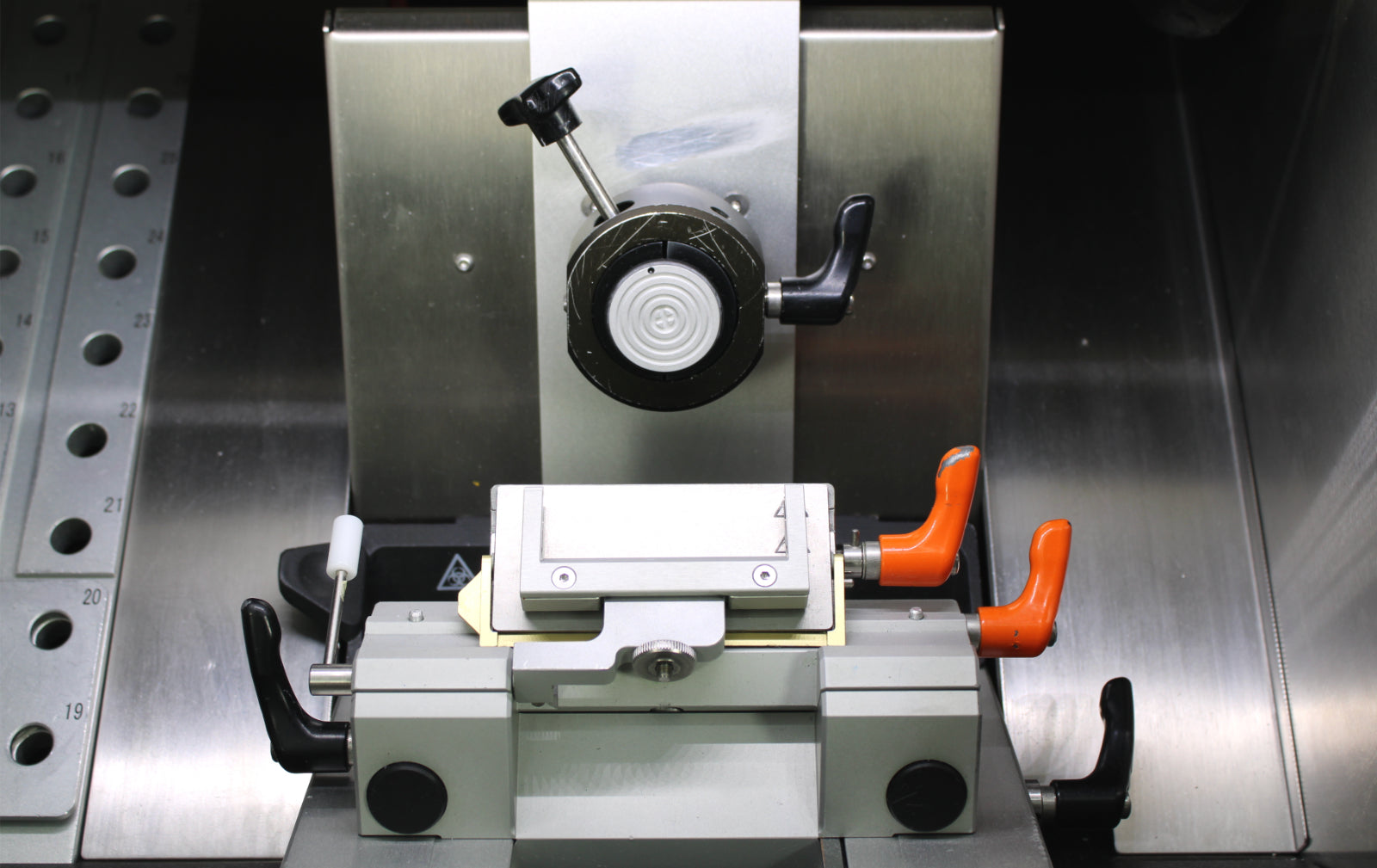

- Blade Holder Assembly
- Specimen Disc
- Tool Tray
- Waste Tray
- Power Cable
- 90-Day Warranty
Notice: Anti-roll plate must be acquired separately.
After its initial disinfection and inspection, our technicians tested the Thermo Scientific Shandon Cryostar HM525 NX cryostat microtome with the following results:
- Temperature maintains -35°C setpoint: PASSED
- Sample advance: PASSED
- Chamber light: PASSED
- Window heater: PASSED

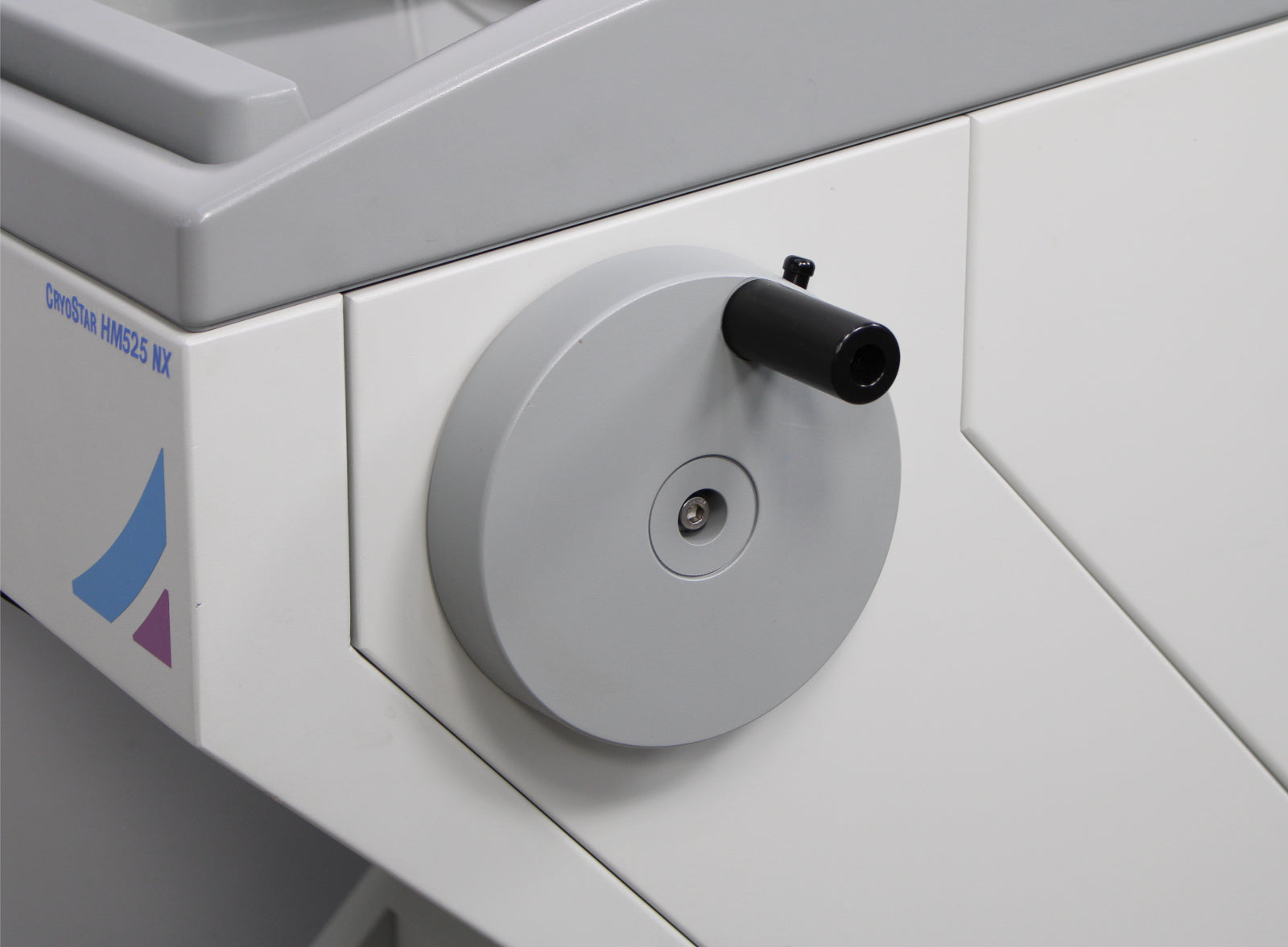

- Handwheel brake: PASSED
- Defrost: PASSED
- New quick freezing shelf peltier installed.

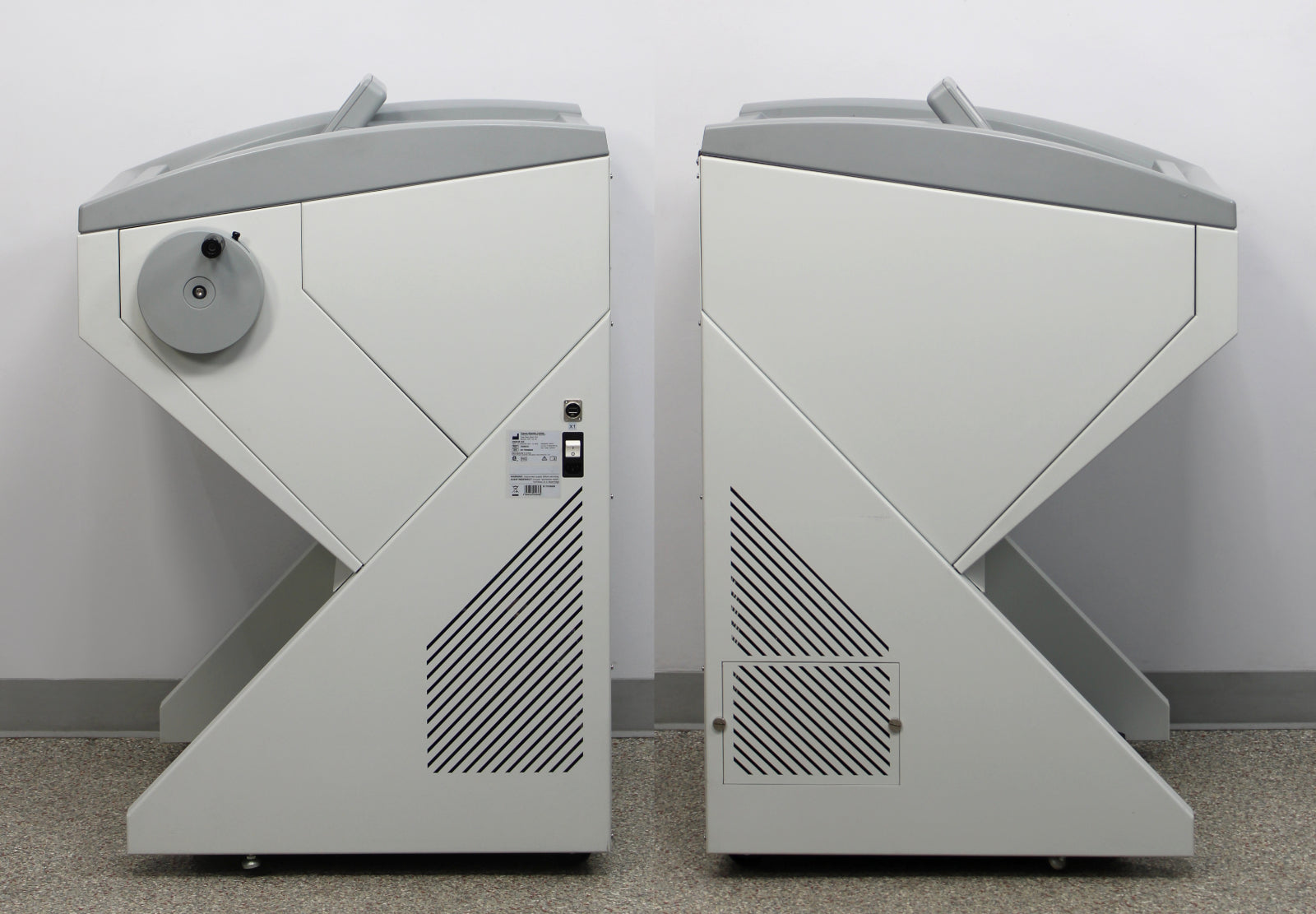

Notice: This cryostat has some cosmetic blemishes. Please review the available photos to see the physical condition before purchasing.
|

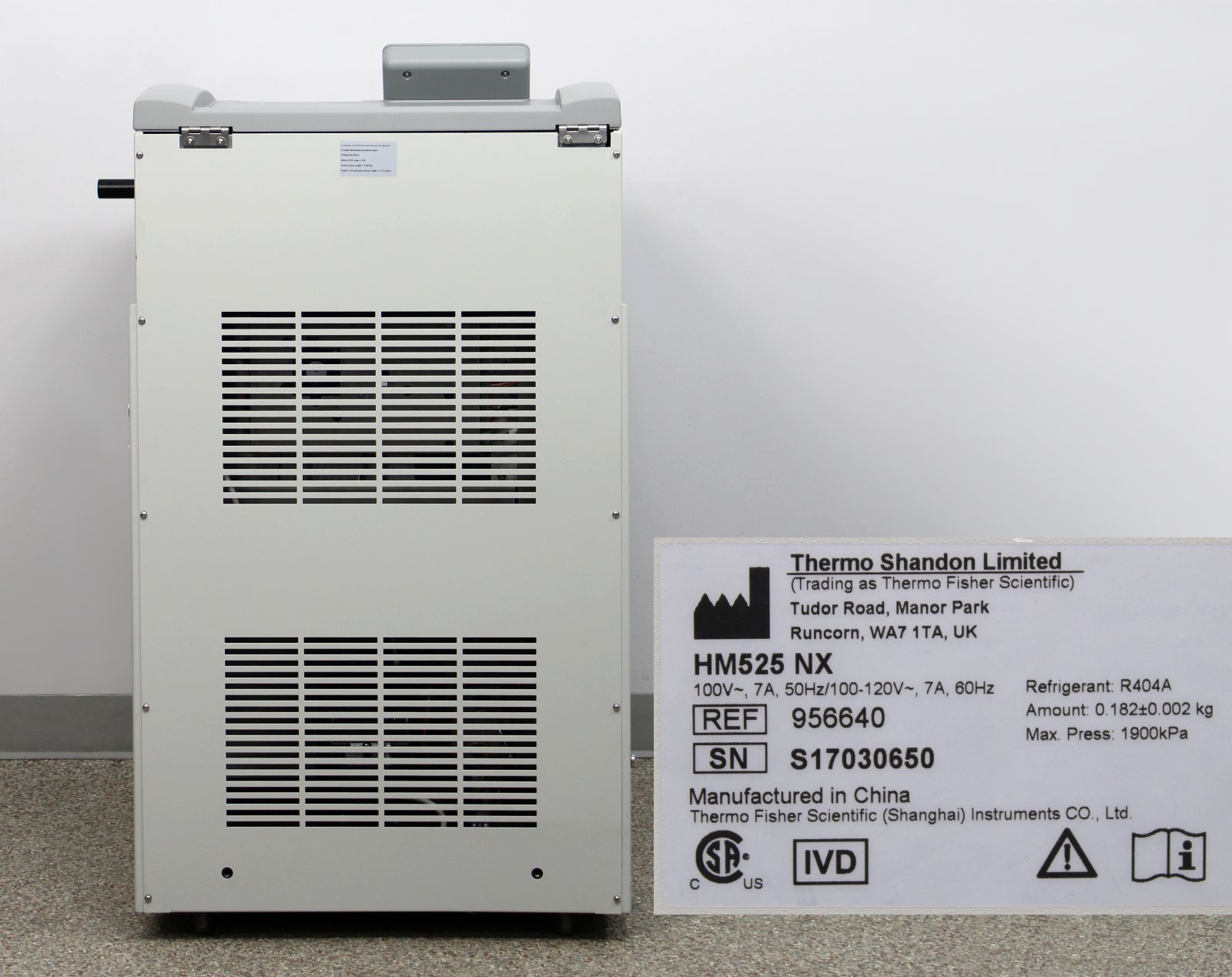

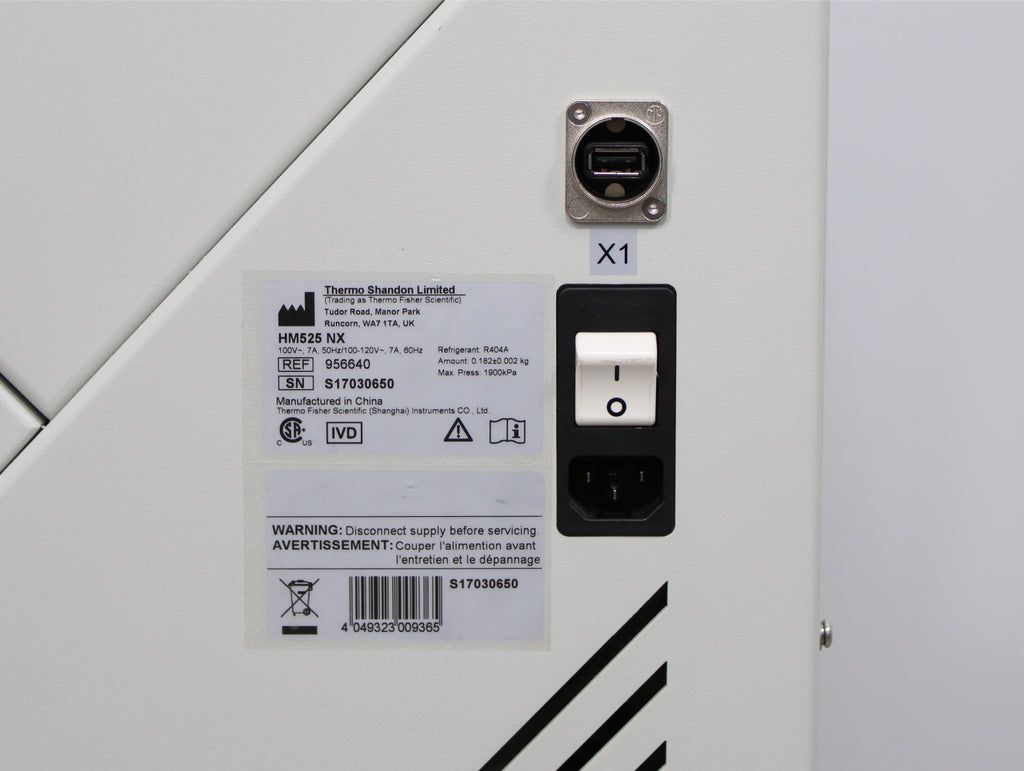

Manufacturer
|
Thermo Shandon Limited
|
|
Model
|
HM525 NX
|
|
Cat. No.
|
956640
|
|
Serial No.
|
S17030650
|
|
Fine section thickness range
|
1-100µm
|
|
Fine section thickness resolution
|
1-10µm in 1µm steps
10-20µm in 2µm steps
20-50µm in 5µm steps
50-100µm in 10µm steps
|
|
Trimming thickness range
|
5-500um
|
|
Trimming thickness resolution
|
5-30µm in 5µm steps
30-100µm in 10µm steps
100-200µm in 20µm steps
200-500µm in 50µm steps
|
|
Specimen retraction (return travel)
|
20µm
|
|
Chamber temperature
|
Max. -35°C +/-3°C at +20°C room temp
|
|
Cryobar cooling (Peltier element)
|
Max. -55°C +/-3°C at 20°C ambient
|
|
Defrosting options
|
Programmed/Immediate
|
|
Certifications
|
CSA, CE
|
|
Power rating
|
100V~, 50Hz, 7A
100-120V~, 60Hz, 7A
|
|
Dimensions (W x D x H)
|
28.5 x 30 x 45.3 in
|
|
Weight
|
315.2 lb (143 kg)
|
