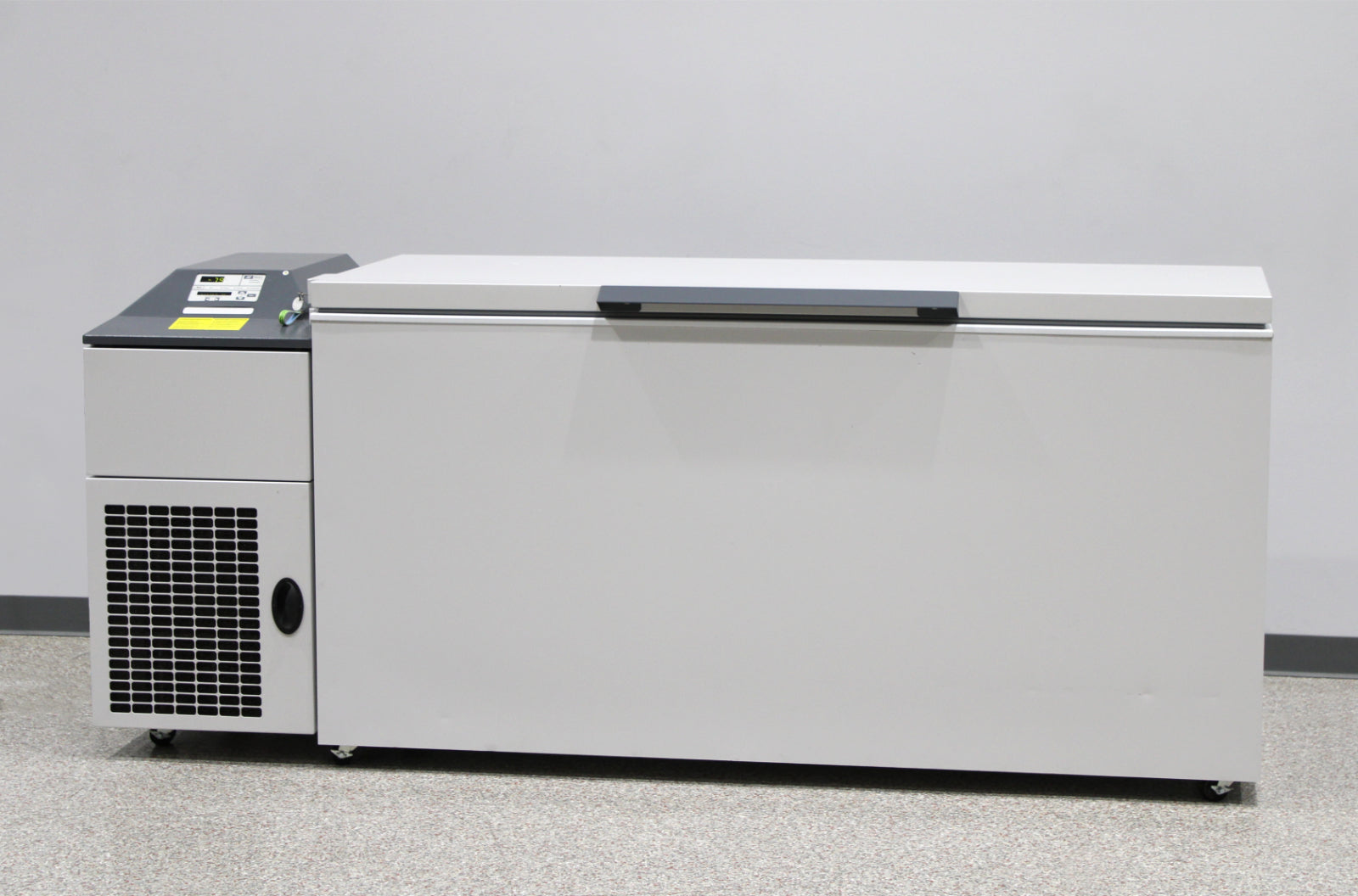

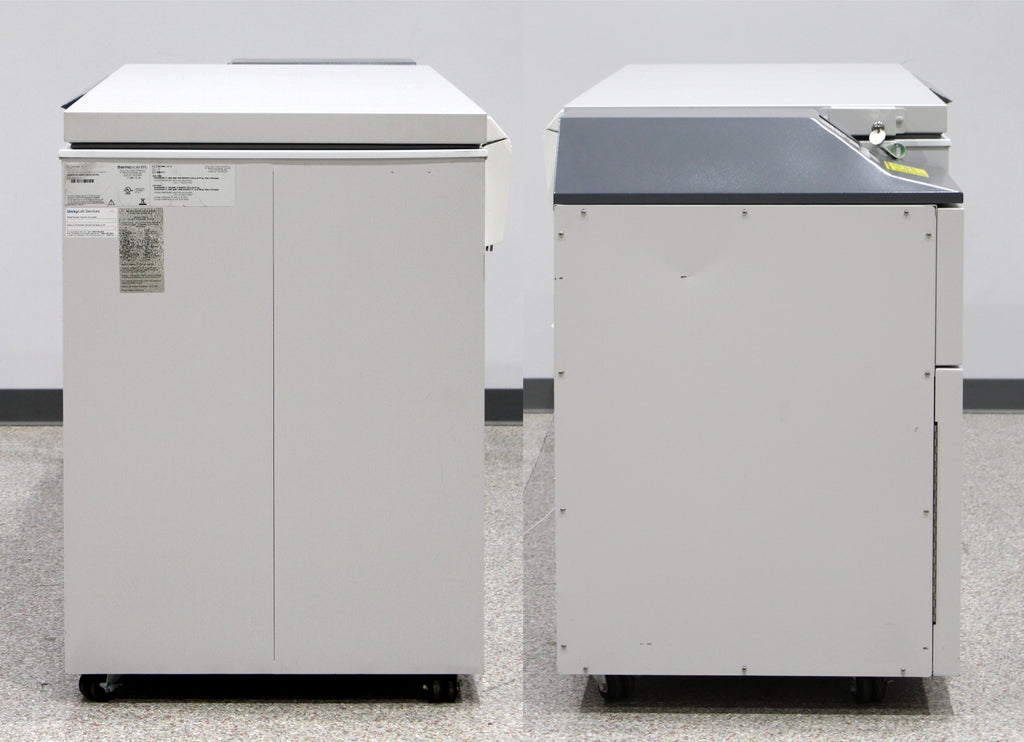

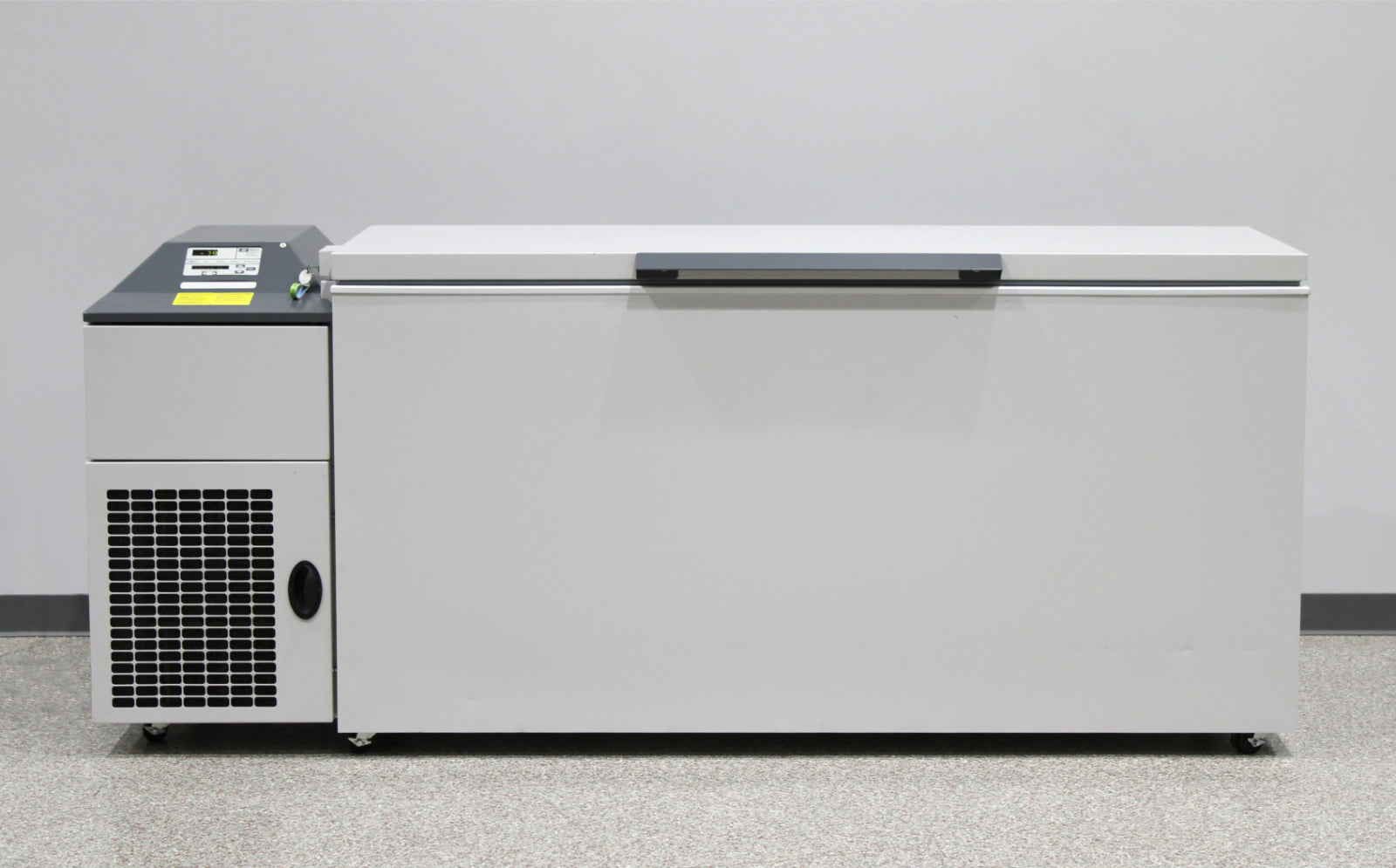

- Thermo Scientific Revco ULT2090-10-A Ultra-Low Temperature Chest Freezer -86C 120V 20 cu. ft.
- Power Cable with NEMA 5-20P Plug
- 90-Day Warranty
After its initial disinfection and inspection, our technicians tested the Thermo Scientific Revco ULT2090-10-A ultra-low temperature chest freezer with the following results:
- Maintains -80°C setpoint: PASSED
|
Manufacturer
|
Thermo Fisher Scientific
|
|
Ref. No.
|
ULT2090-10-A
|
|
Serial No.
|
300561111
|
|
Mfg. date
|
2022-12-20
|
|
Storage volume
|
20 cubic feet (566.3 liters)
|
|
Temperature rating
|
-50°C to -86°C
|
|
Refrigeration system
|
Industrial-rated two stage cascade system
|
|
Compressor / Number
|
Hermetic compressor for low temperature application / 2
|
|
Compressor capacity
|
970 W
|
|
Condenser type / Number
|
Enhanced finned-tube and forced-air cooled / 1
|
|
Expansion device
|
Capillary tube
|
|

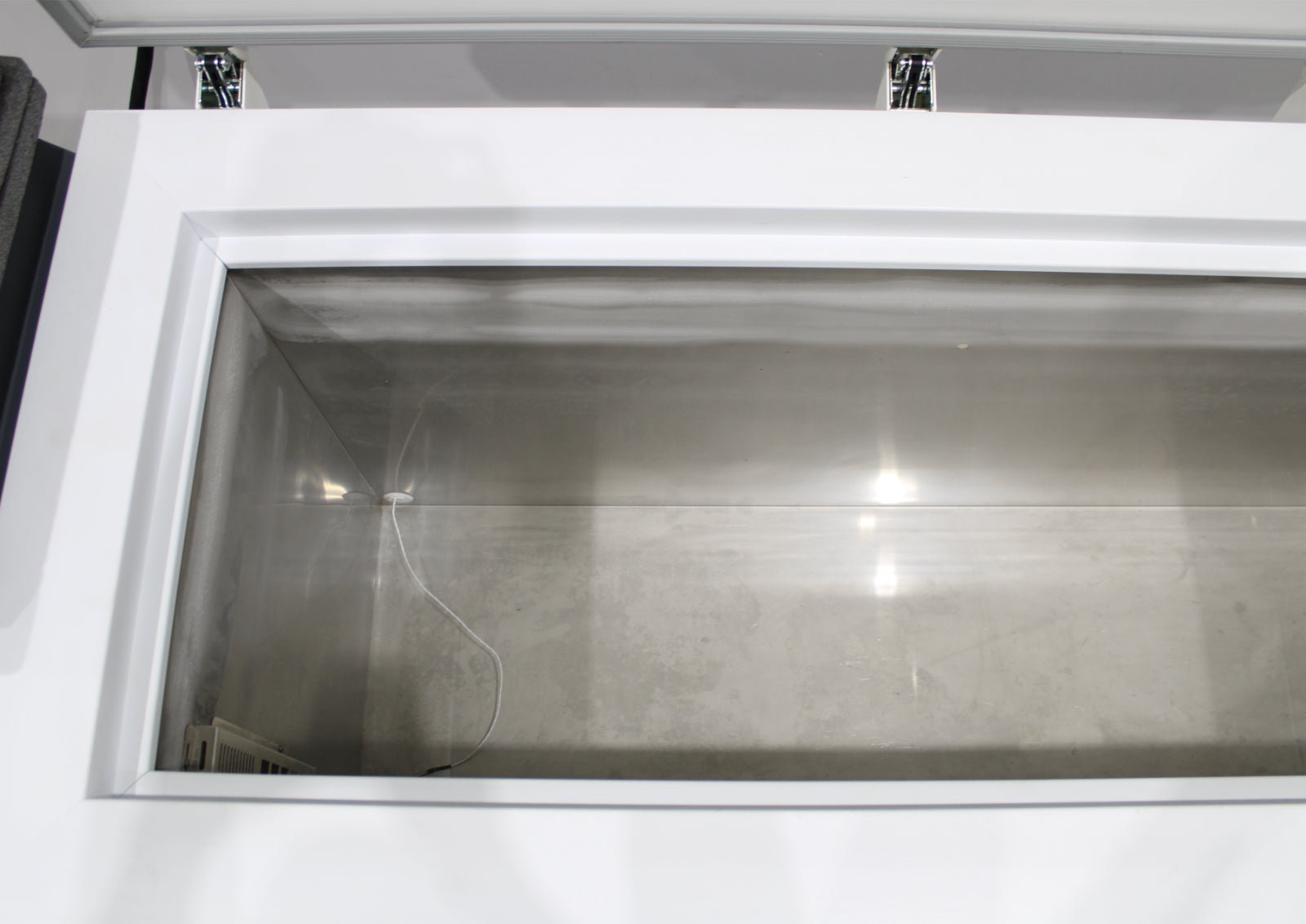

Evaporator type
|
Cold wall with enhanced heat transfer treatment
|
|
Defrost method
|
Manual defrost
|
|
Refrigerant charge / Flammability
|
R404A in 1st Stage / R508B+R290 Mix in 2nd Stage / Non-Flammable
|
|
Building supply rating
|
20.0A (min) dedicated grounded circuit. Protected by circuit breaker rated for inductive loads
|
|
Agency listings
|
UL, cUL, FDA
|
|
Indoor/outdoor usage
|
Indoor use only
|
|
Application environment
|
Non-corrosive, Non-flammable, Non-explosive, Good air ventilation, 15°C - 32°C (59°F - 90°F)
|
|
Controller level
|
Top
|
|
Power switch
|
On-Off with Circuit breaker
|
|

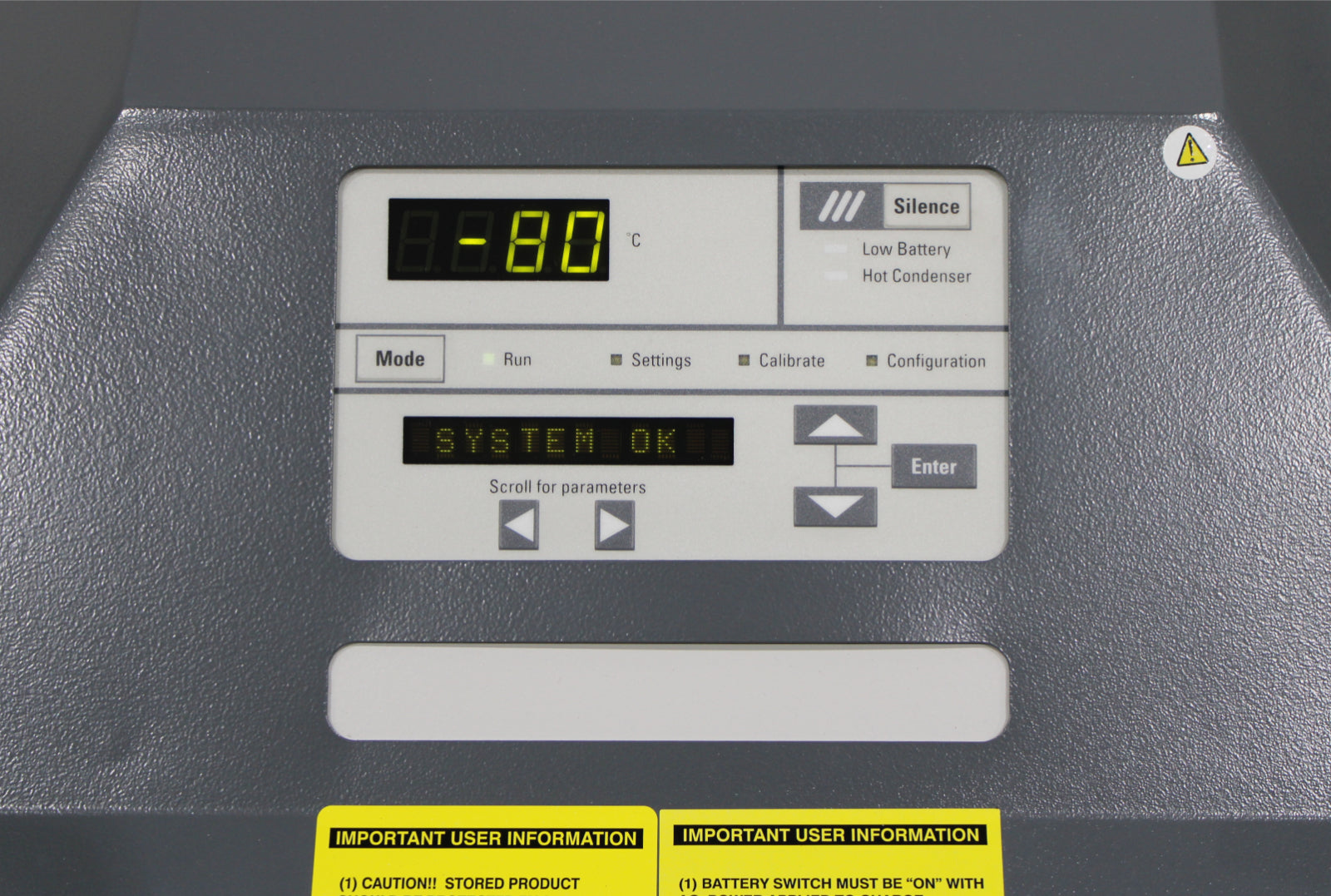

Controller type
|
Microprocess control
|
|
Setpoint security
|
Yes
|
|
Compressor safe guard
|
High pressure cutout switch/High temp cutout switch/Current protection/Logic protection
|
|
Control sensor
|
Single RTD (1000 ohm Platinum RTD)
|
|

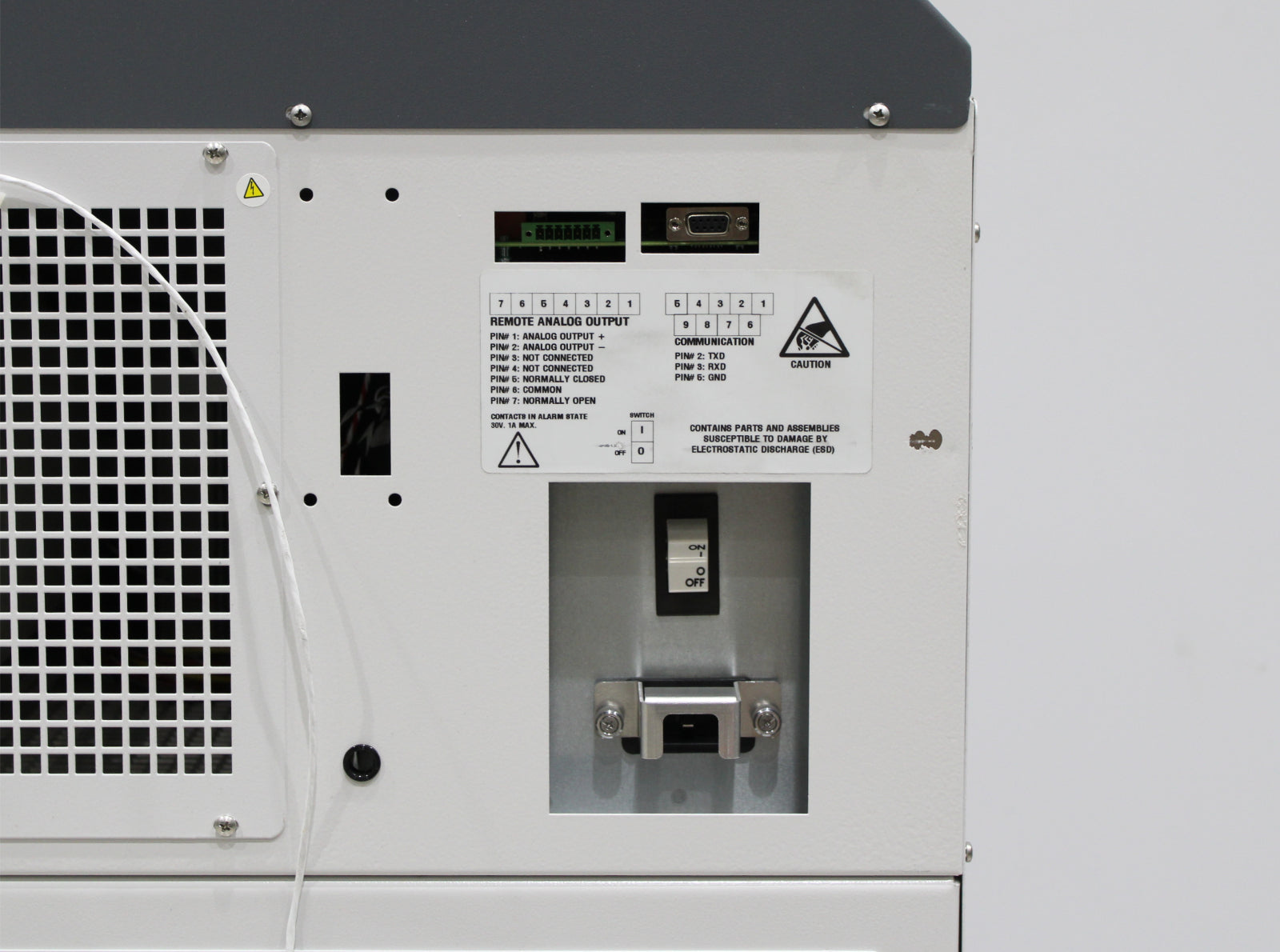

Remote alarm terminals
|
RS485, 4-20mA, Dry contacts
|
|
Adjustable warm/cold alarms
|
Fully adjustable
|
|
Auto-voltage safeguard
|
Buck/boost system
|
|

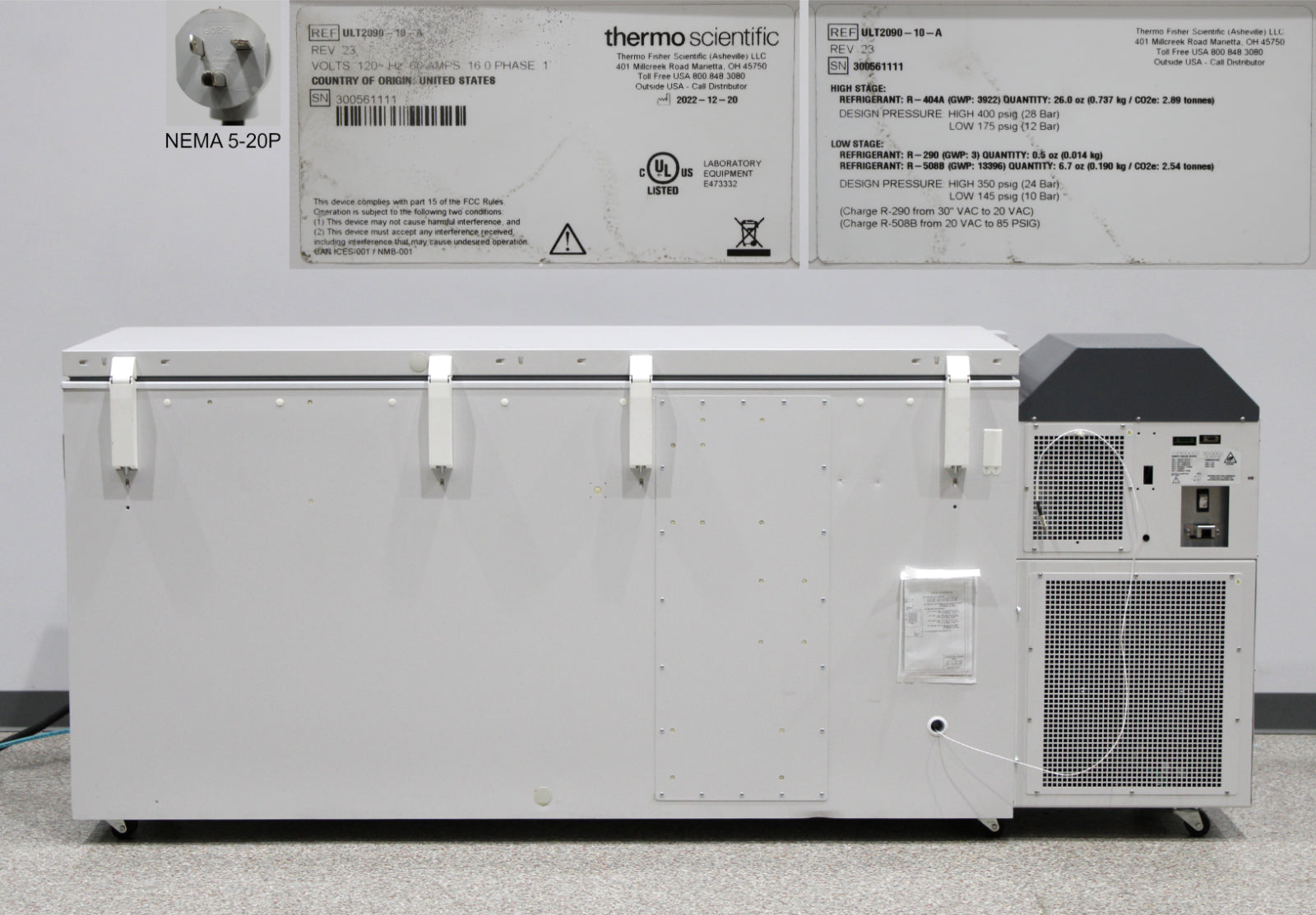

Plug type
|
NEMA 5-20P
|
|
Power rating
|
~120V, 60Hz, 16.0A, 1Ph
|
|

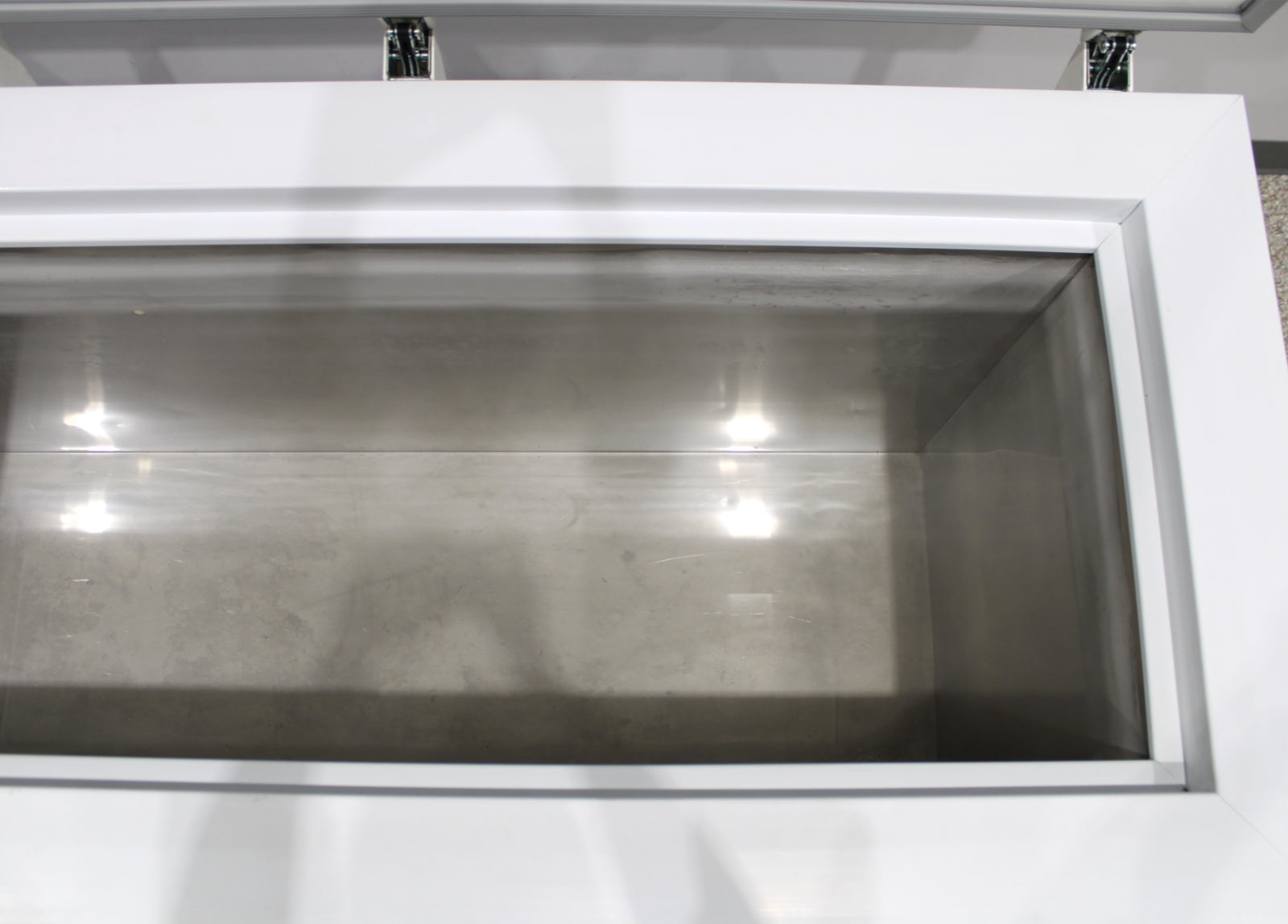

Interior dimensions (W x D x H)
|
66.4 x 18.5 x 27.8 in (168.7 x 47 x 70.6 cm)
|
|
Exterior dimensions (W x D x H)
|
96 x 32.7 x 40.6 in (243.8 x 82.9 x 103.1 cm)
|
|
Approximate weight
|
~783 lb (355 kg)
|
