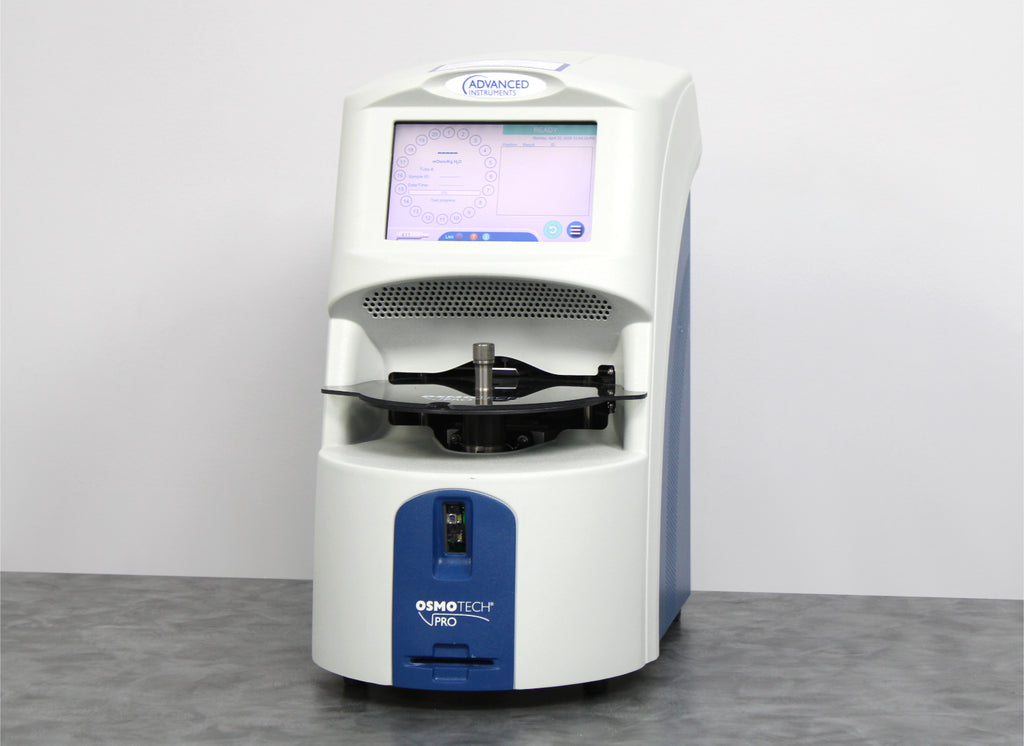

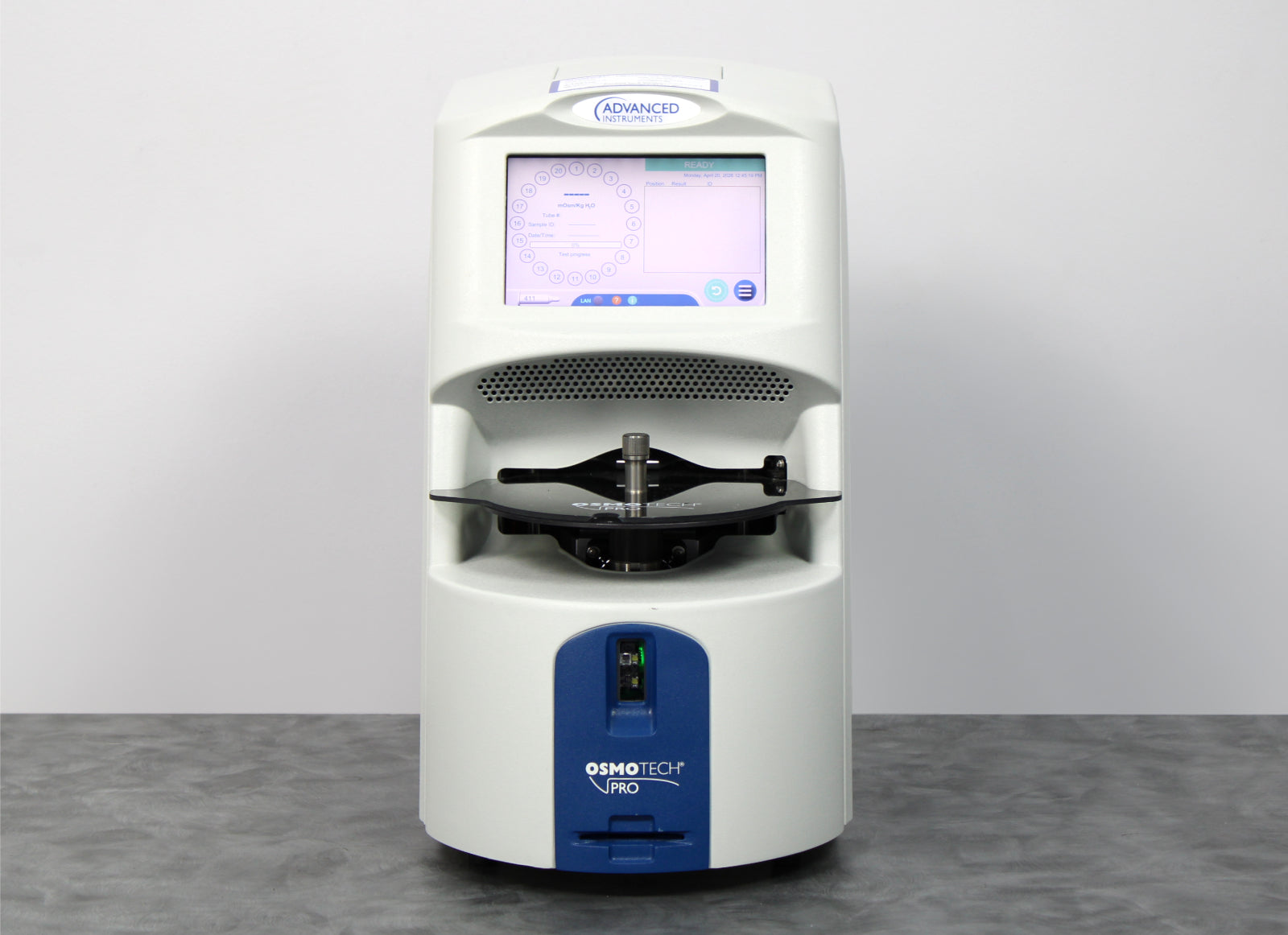

- Advanced Instruments OsmoTECH PRO Multi-Sample Micro-Osmometer
- Power Cable
- 90-Day Warranty

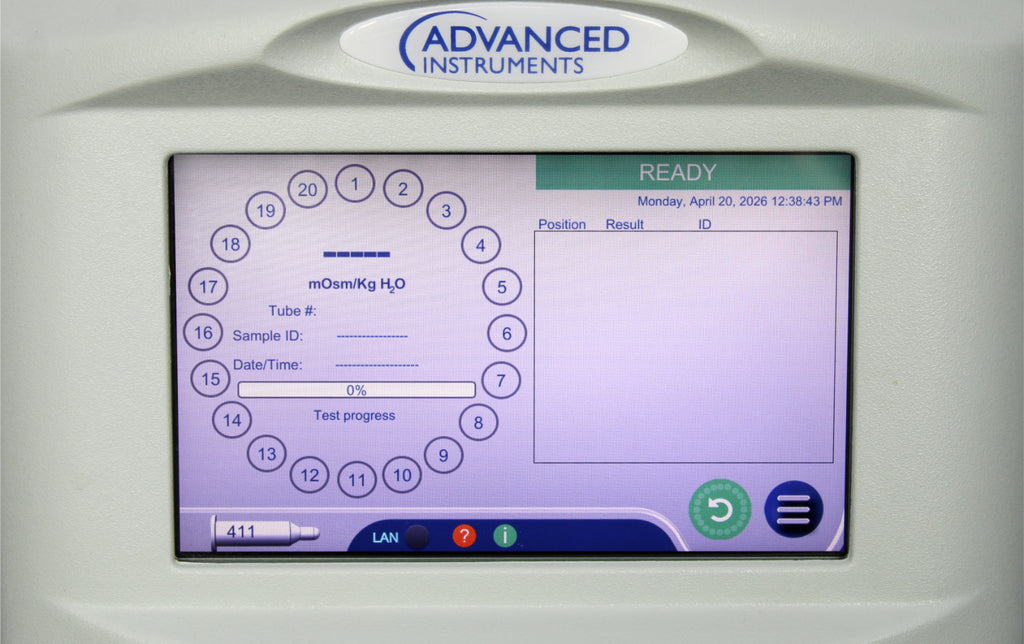

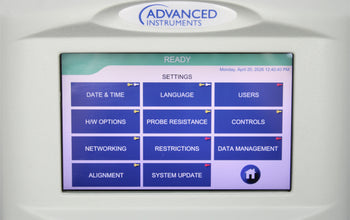

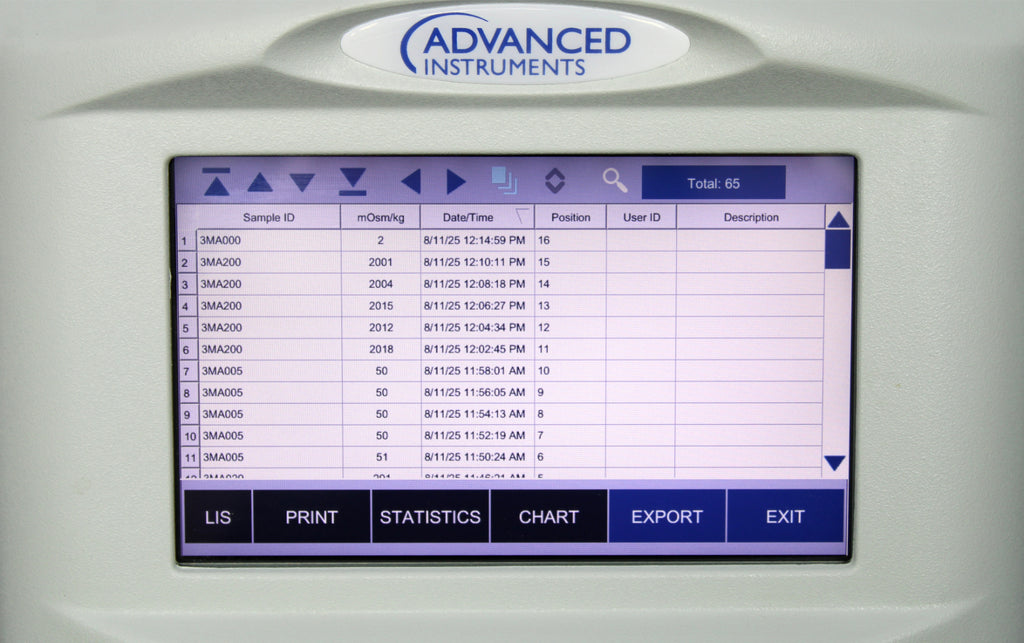

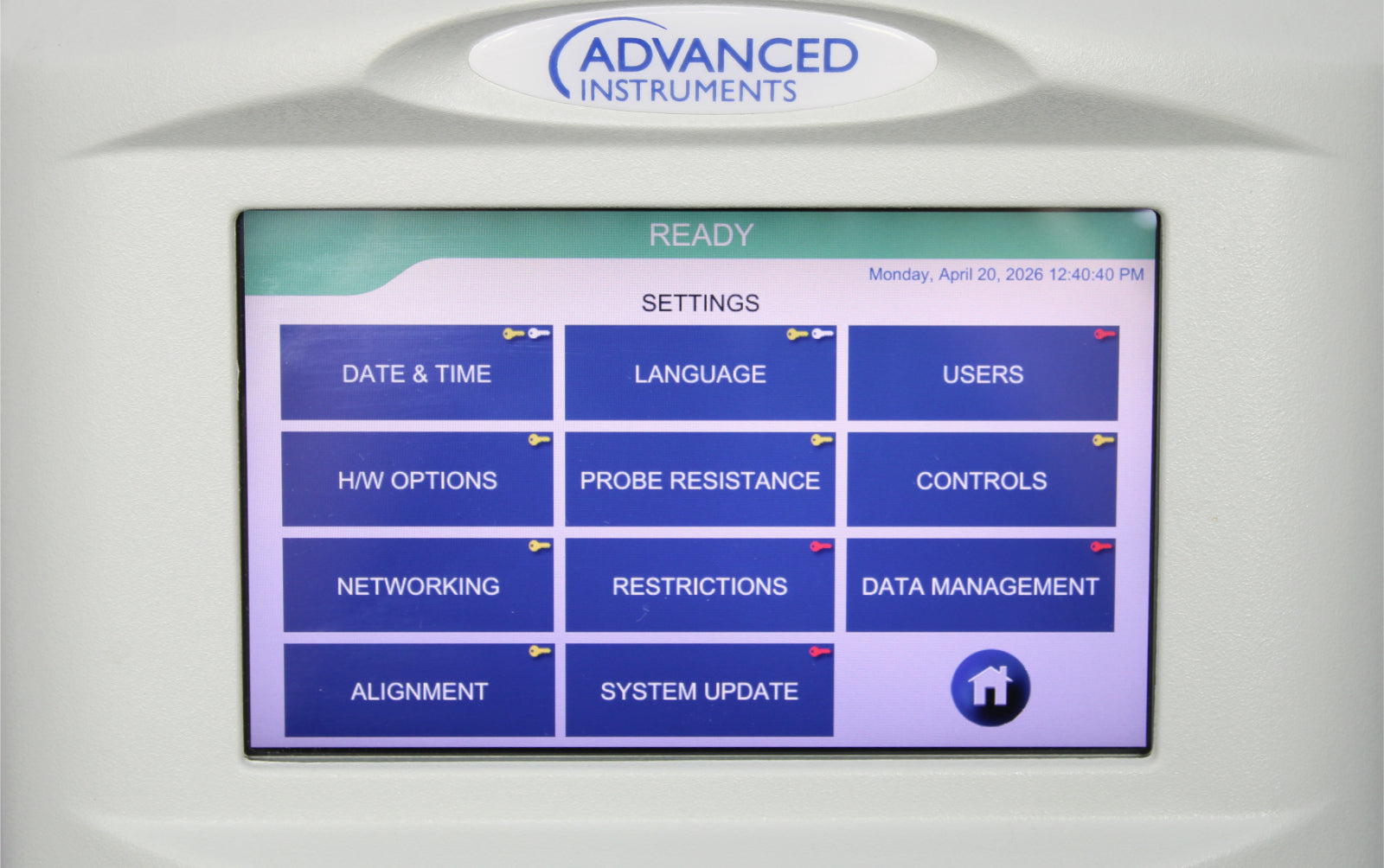

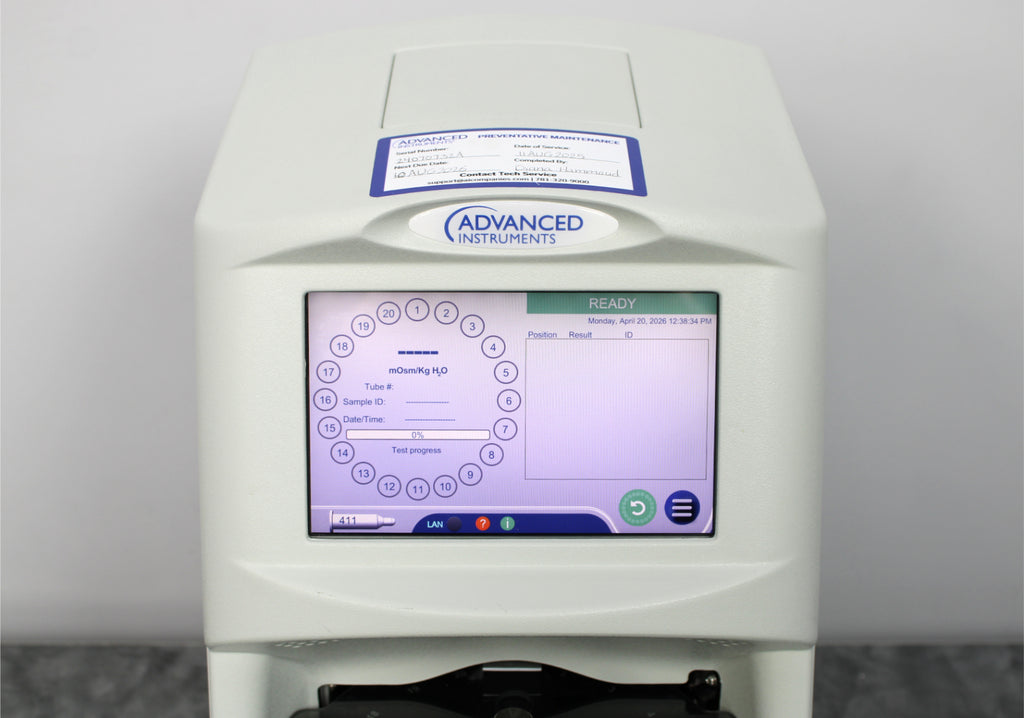

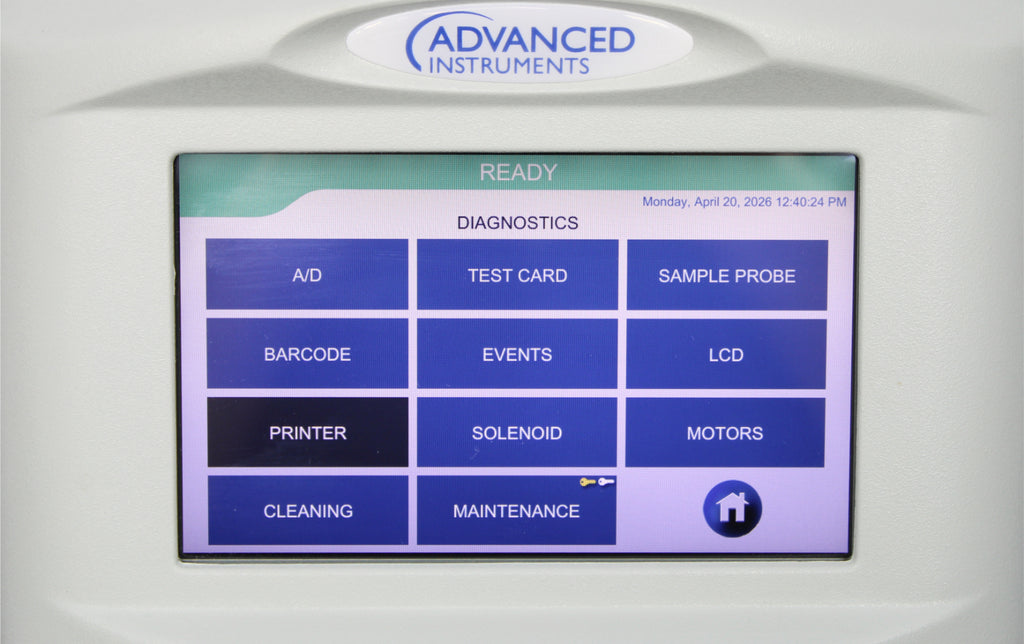

We powered on this OsmoTECH PRO and viewed the runs and history. The touchscreen is responsive and accurate. No further testing was performed.

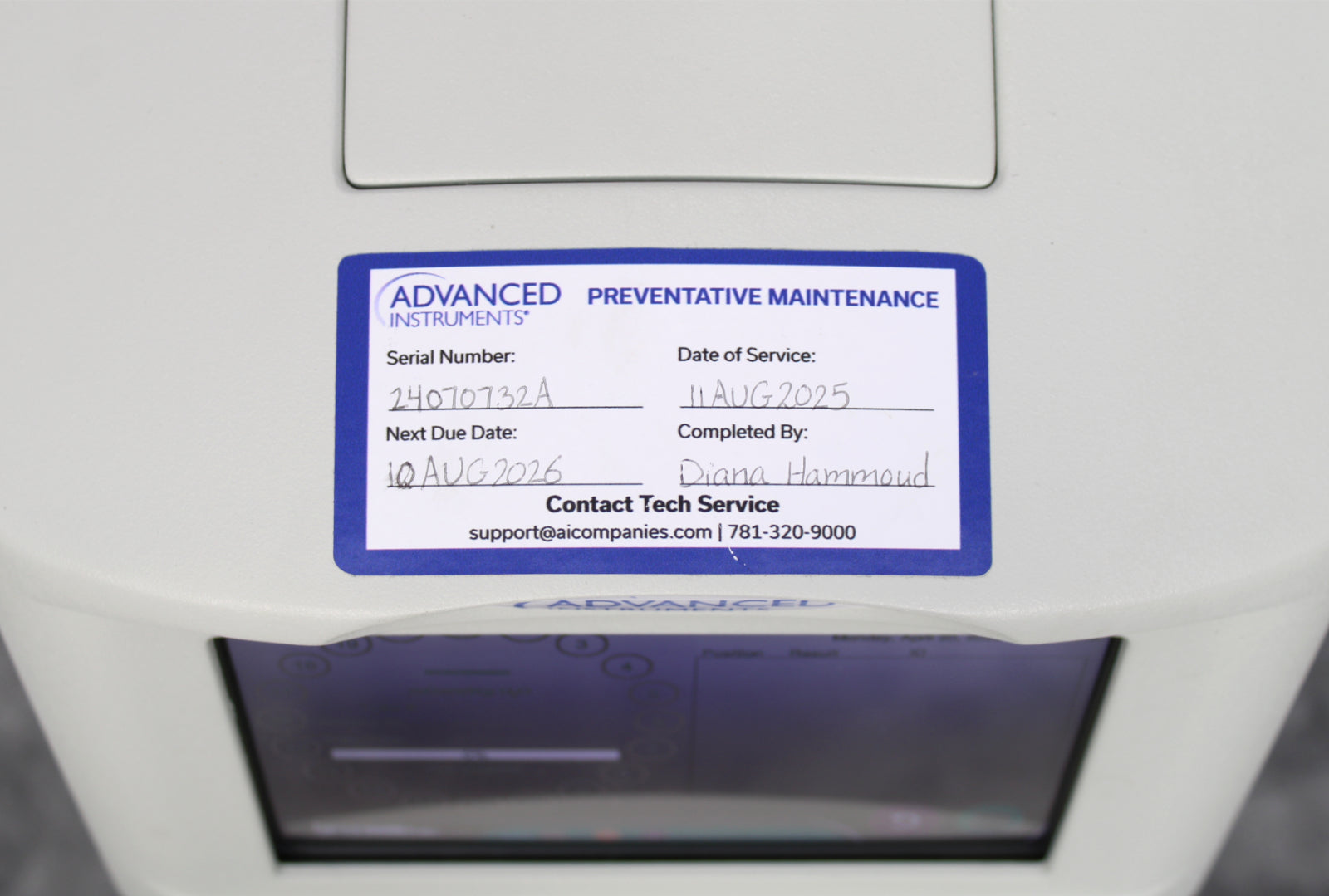

Notice: The last run was in 2025 and it was serviced in 2025. It is not due for service again until August 2026. There are 65 runs dating back to 09/23/24.
|
Manufacturer
|
Advanced Instruments, LLC
|
|
Model
|
OsmoTECH PRO
|
|
Serial No.
|
24070732A
|
|
Sample type
|
Aqueous-based solution
|
|
Sample volume
|
30± 1µL
|
|
Test time
|
90 seconds (typical) to test single sample 40 minutes (typical) to test 20 samples
|
|
Sample capacity
|
Multi sample
|
|
Resolution
|
1 mOsm/kg H2O
|
|
Range
|
0-2000 mOsm/kg H2O
|
|
Accuracy
|
0-400 mOsm/kg H2O: mean value ± 3 mOsm/kg H2O from nominal value 400-2000 mOsm/kg H2O: mean value ± 0.75% from normal value
|
|
Within-run repeatability
|
0-400 mOsm/kg H2O: standard deviation ≤ 3 mOsm/kg H2O from nominal value 400-2000 mOsm/kg H2O: Coefficient of variation ≤ 0.75%
|
|
Operating conditions
|
Temperature: 18°C to 35°C (64°F to 95°F)
Humidity: 5 to 80% relative humidity (non-condensing)
|
|
Temperature effects
|
Less than 1 mOsm/kg H2O per 5°C (9°F) ambient temperature change
|
|
Calibration
|
0, 50, 850, and 2000 mOsm/kg H2O (optional)
|
|
Supported languages
|
Simple Chinese, English, French, German, Italian, Japanese, Korean, Russian, Spanish, Turkish
|
|
Storage temperature
|
-20°C to +45°C (-4°F to +113°F)
|
|

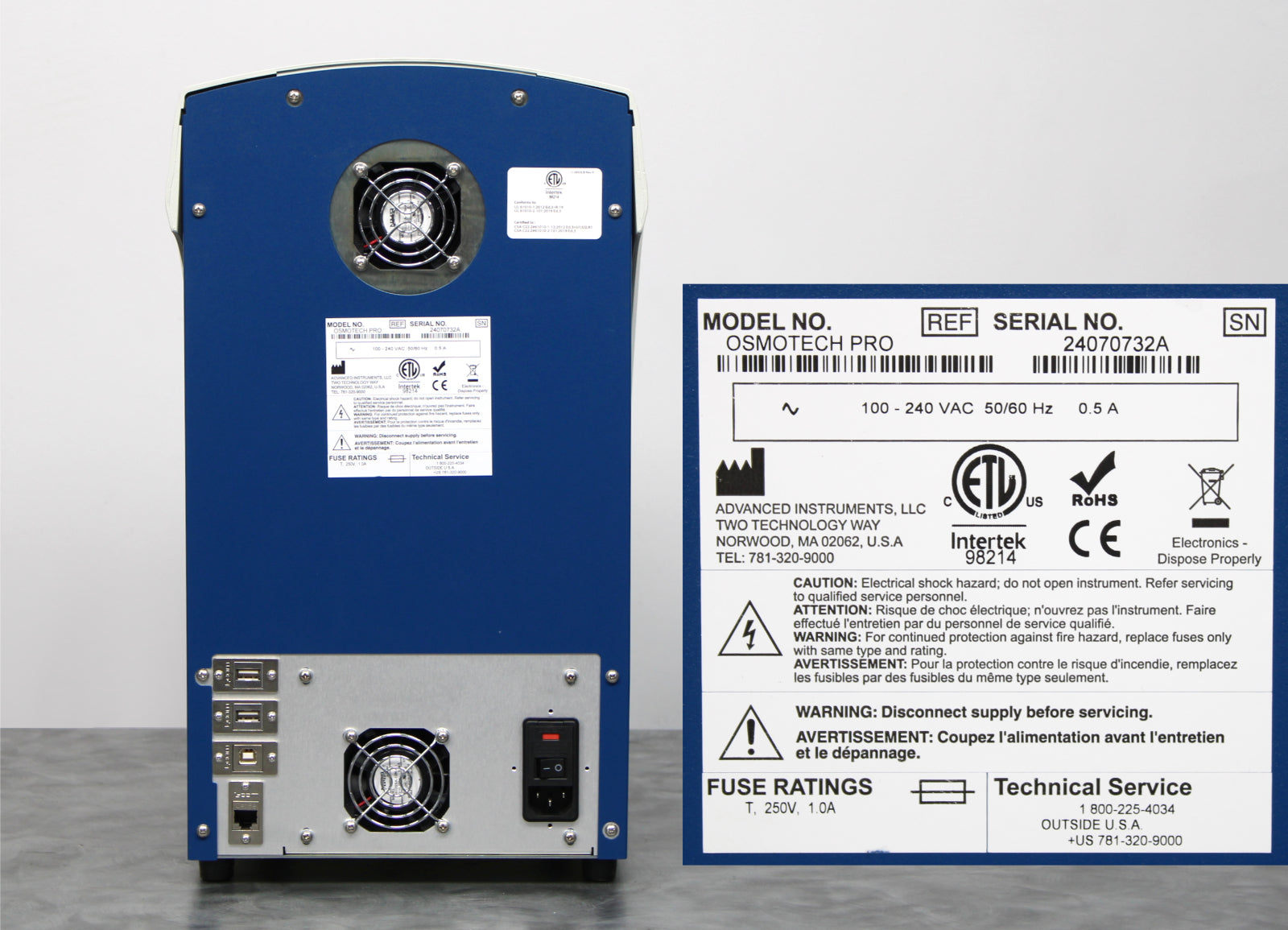

Power rating
|
~100-240VAC, 50/60Hz, 0.5A
|
|
Power consumption
|
60 Watts
|
|
Dimensions (W x D x H)
|
10 x 15.3 x 18 in (25 x 39 x 46 cm)
|
|
Weight
|
29 lb (13.2 kg)
|
