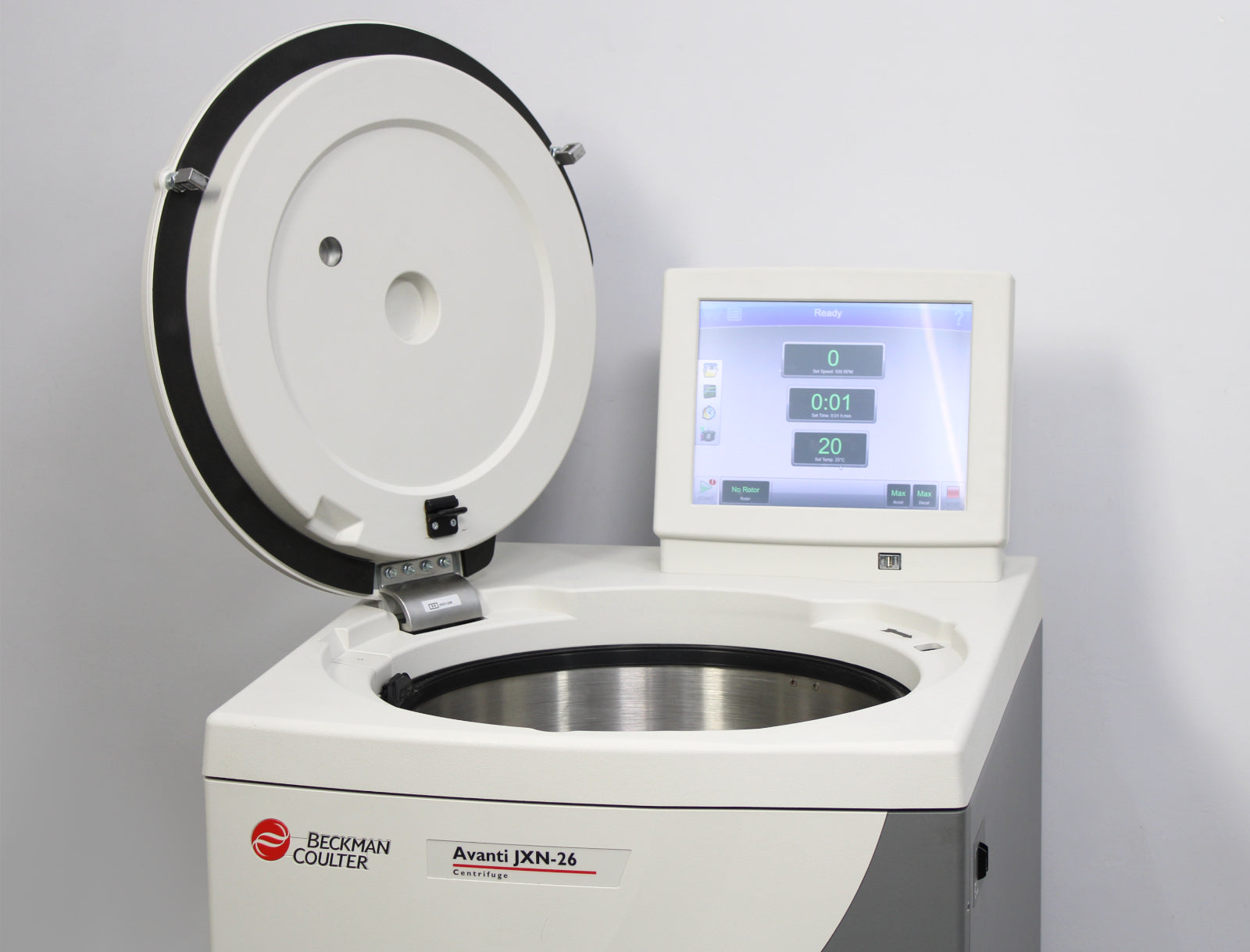

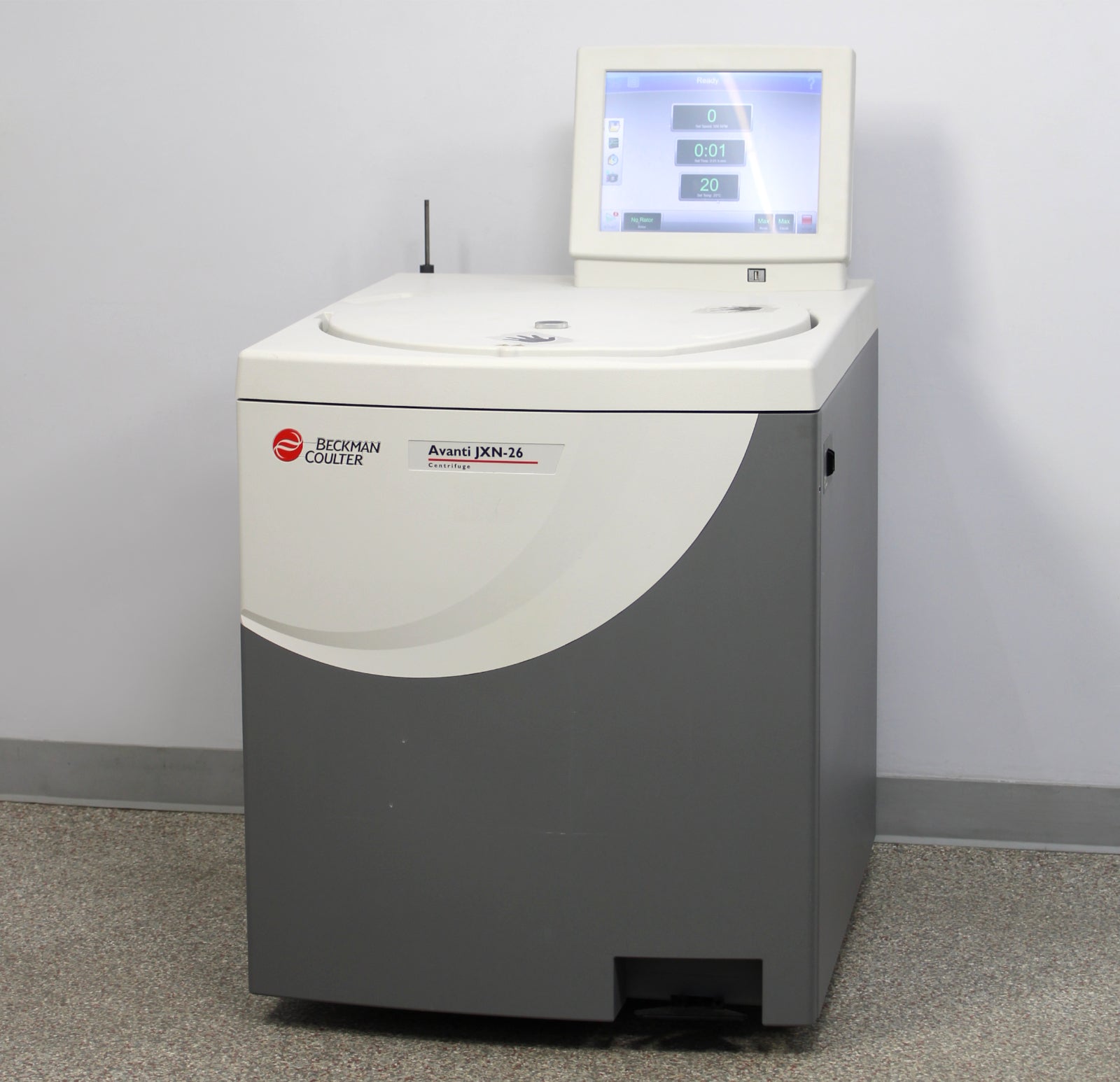

- Beckman Coulter Avanti JXN-26 IVD High-Speed Refrigerated Floor Centrifuge (B38619)
- Attached Power Cable
- 90-Day Warranty

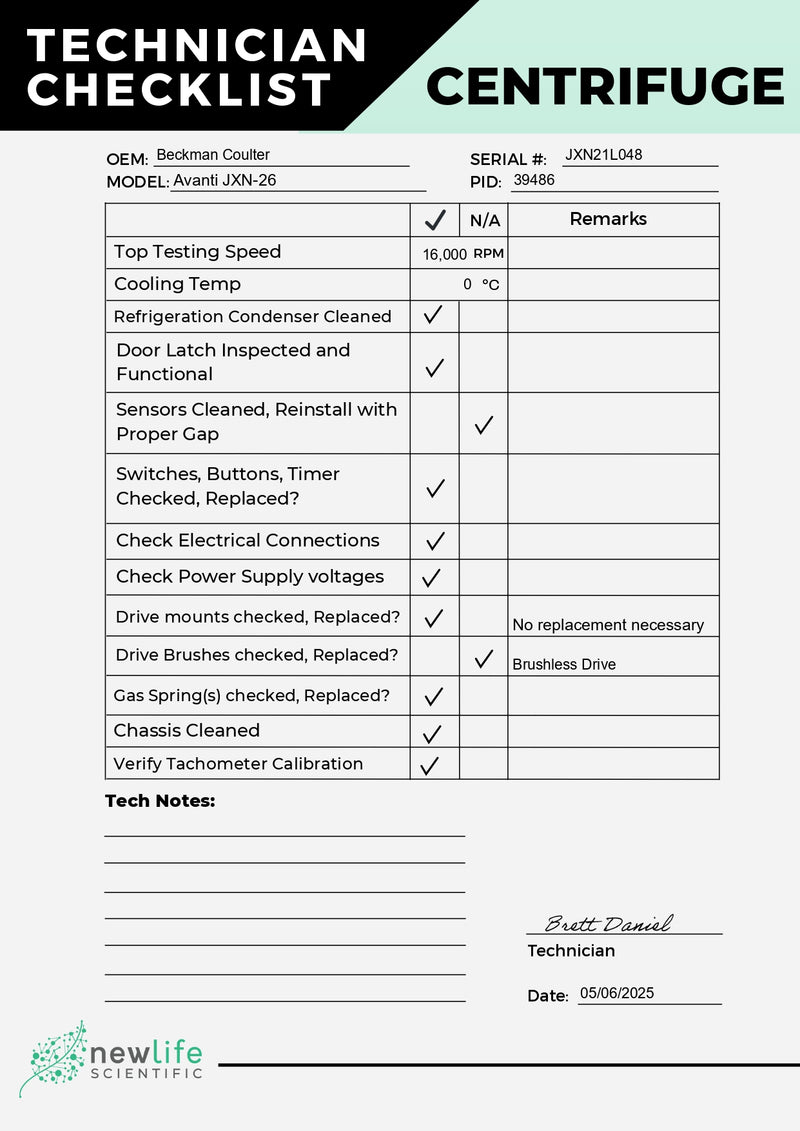

After its initial disinfection and inspection, our technicians tested the Beckman Coulter Avanti JXN-26 IVD high-speed floor centrifuge with the following results:

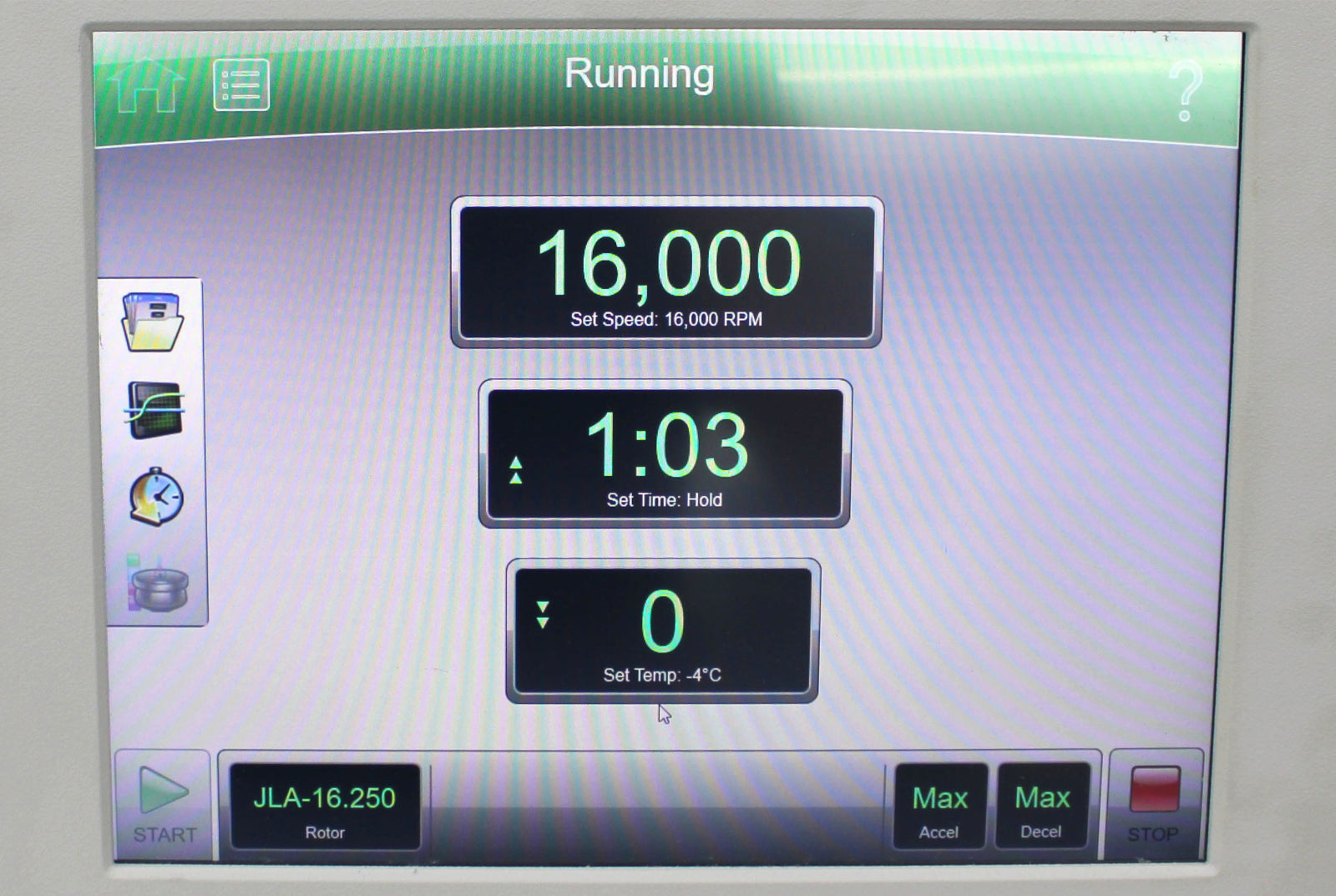

- Ran to 16,000 rpm: PASSED
- Refrigeration held at 0°C: PASSED
- No excessive noise or imbalance: PASSED
- Spun down properly: PASSED
- Performed inspection; no issue found: PASSED
|
Manufacturer
|
Beckman Coulter, Inc.
|
|
Platform
|
Avanti
|
|
Model
|
JXN-26
|
|
Product No.
|
B38619
|
|
Serial No.
|
JXN21L048
|
|
Mfg. date
|
2021-11-19
|
|
Maximum speed
|
26,000 rpm
|
|
Maximum g-Force
|
81770 x g
|
|
BioSafe
|
Yes
|
|
Acceleration
|
11 profiles
|
|
Deceleration
|
12 profiles
|
|
Time run
|
Up to 99 hrs, 59 mins
|
|
Max capacity volume range
|
1 - 6 L
|
|
Refrigeration system
|
Non-CFC, non-ozone depleting refrigerant
|
|
Temperature range(s)
|
From -10°C to +40°C in 1° increments
|
|
Rotor ID
|
Automatic
|
|
Zonal capability
|
Yes
|
|
Installation category
|
II
|
|

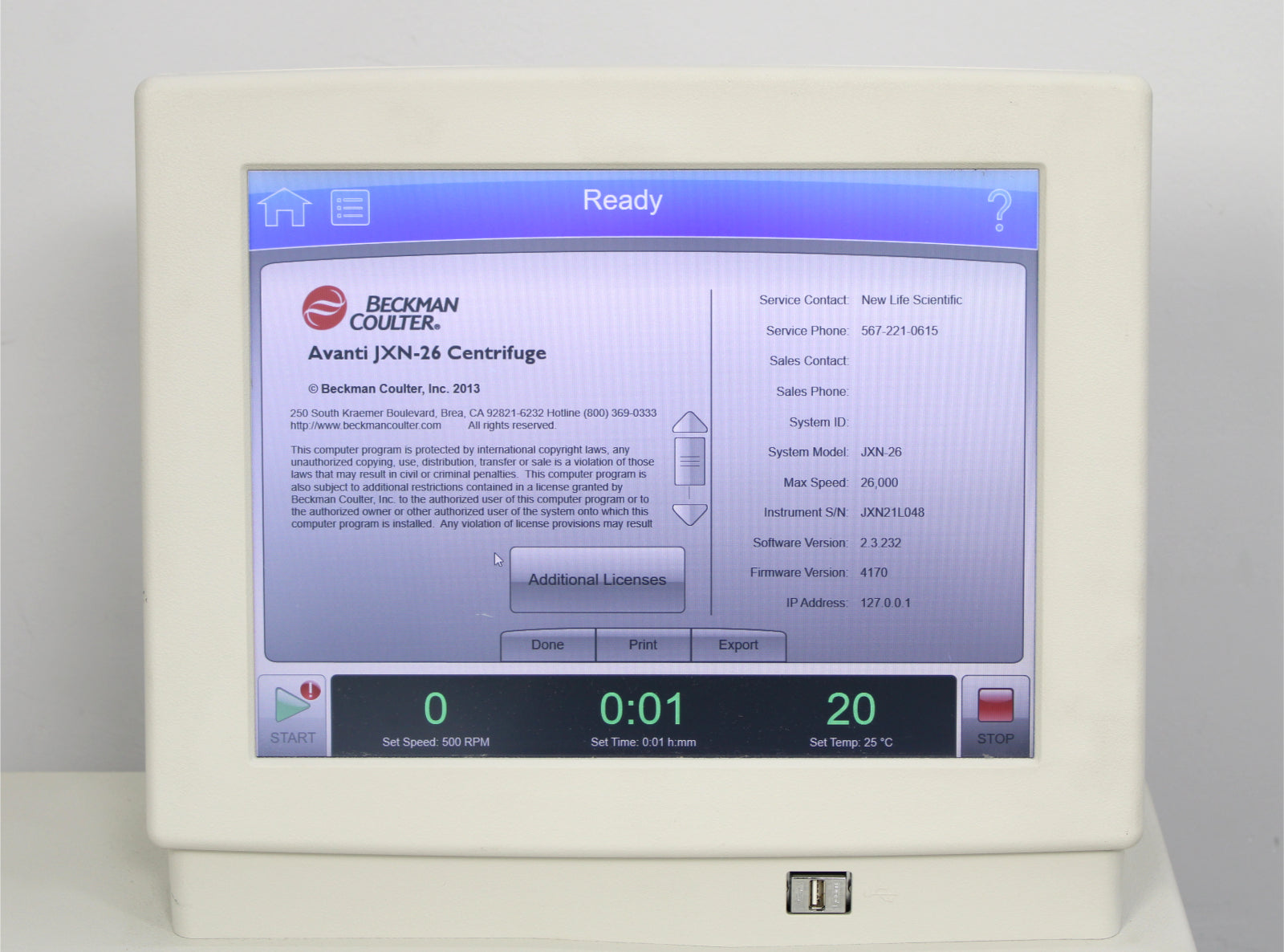

Software
|
Virtual Network Computing (VNC), Mobile Fuge app for Apple iOS and Android
|
|
Material(s)
|
Steel, plastic
|
|
Finish
|
Powder coat paint
|
|
Clearances
|
7.6 cm (sides) & 16 cm (rear)
|
|
Humidity restrictions
|
80% (non-condensing)
|
|

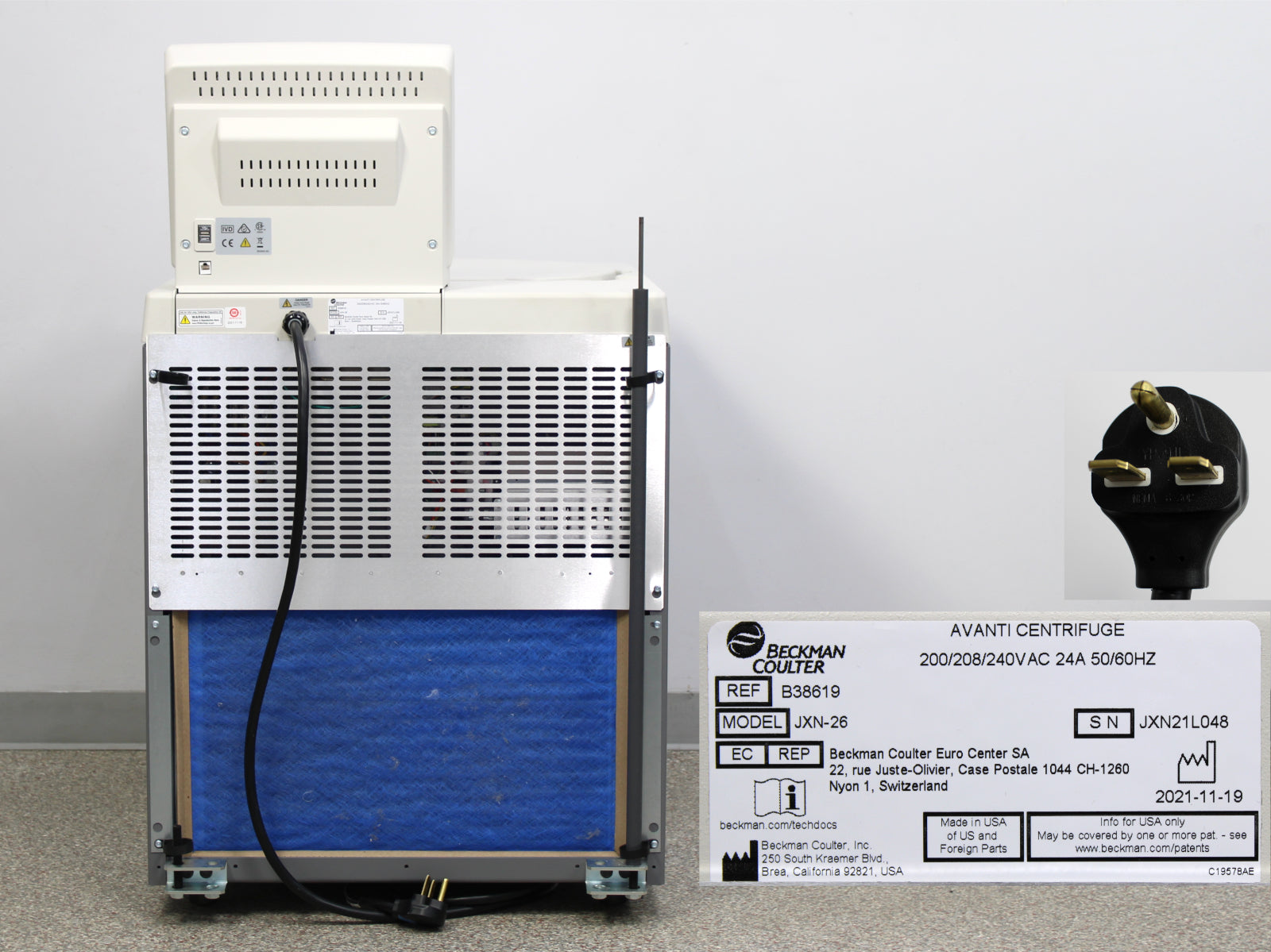

Power rating
|
200/208/240VAC, 50/60Hz, 24A
|
|
Dimensions (W x D x H)
|
28 x 33.9 x 47.5 in (71 x 86 x 120.5 cm)
|
|
Weight
|
639.3 lb (290 kg)
|
