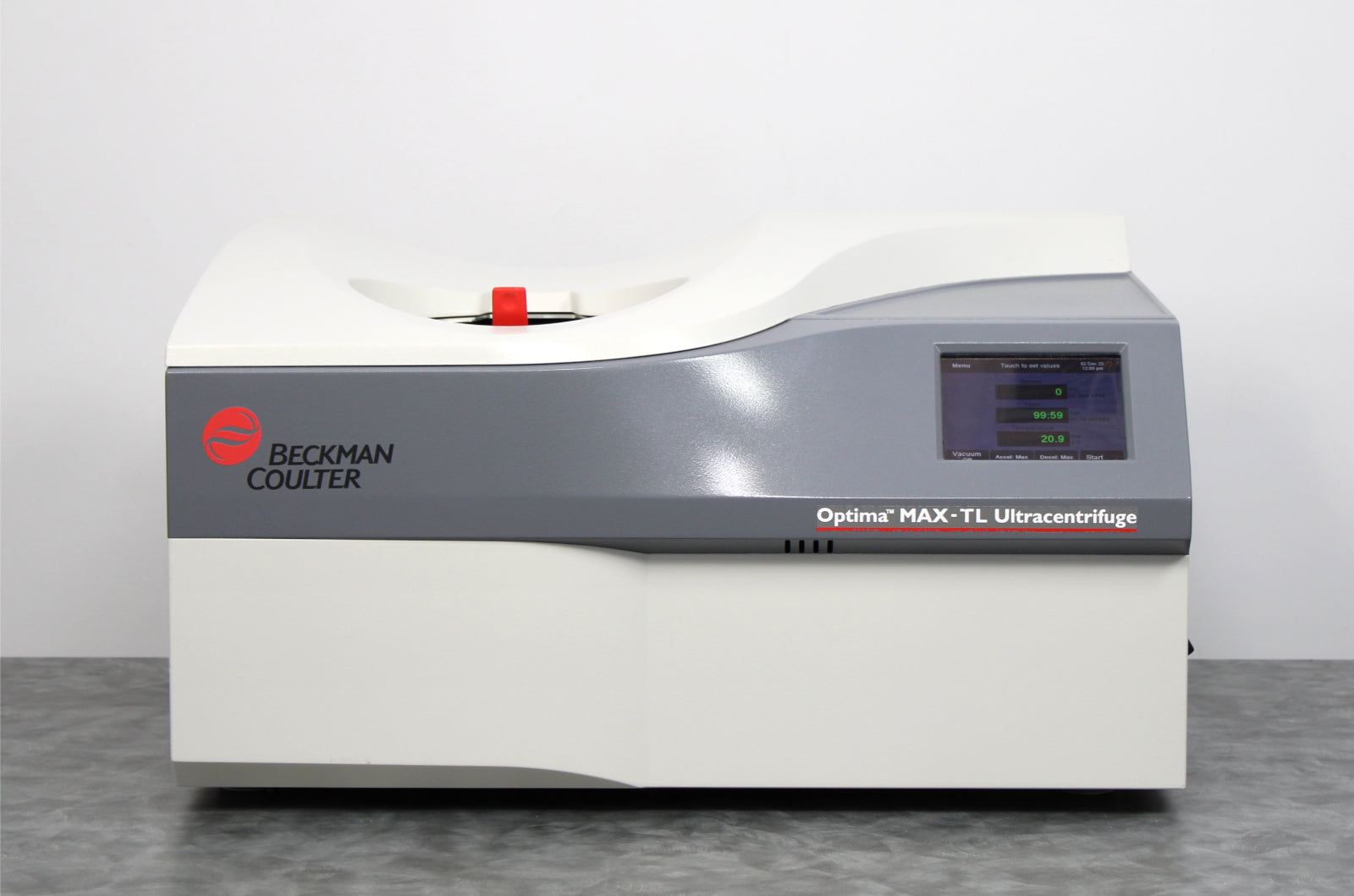

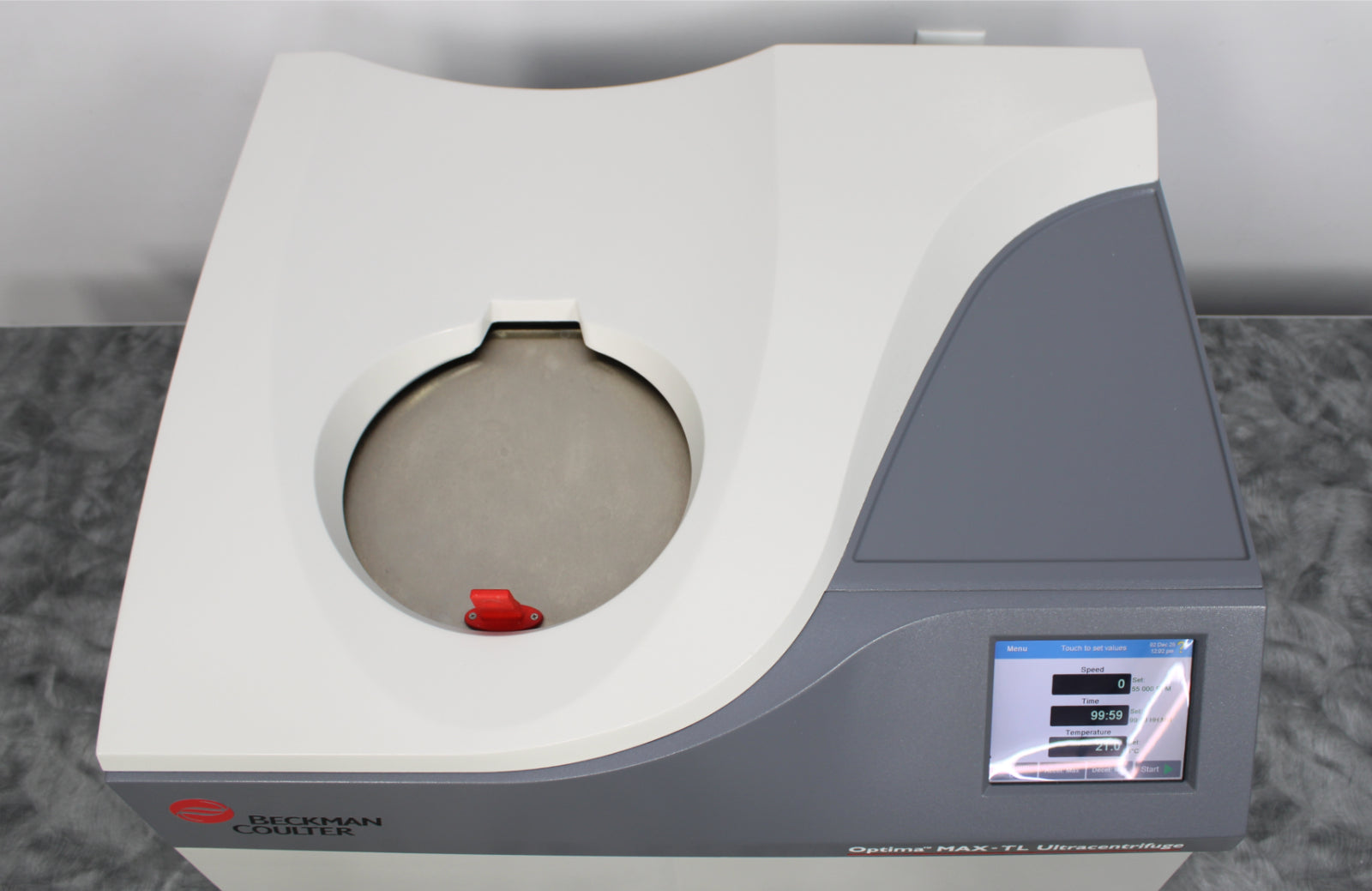

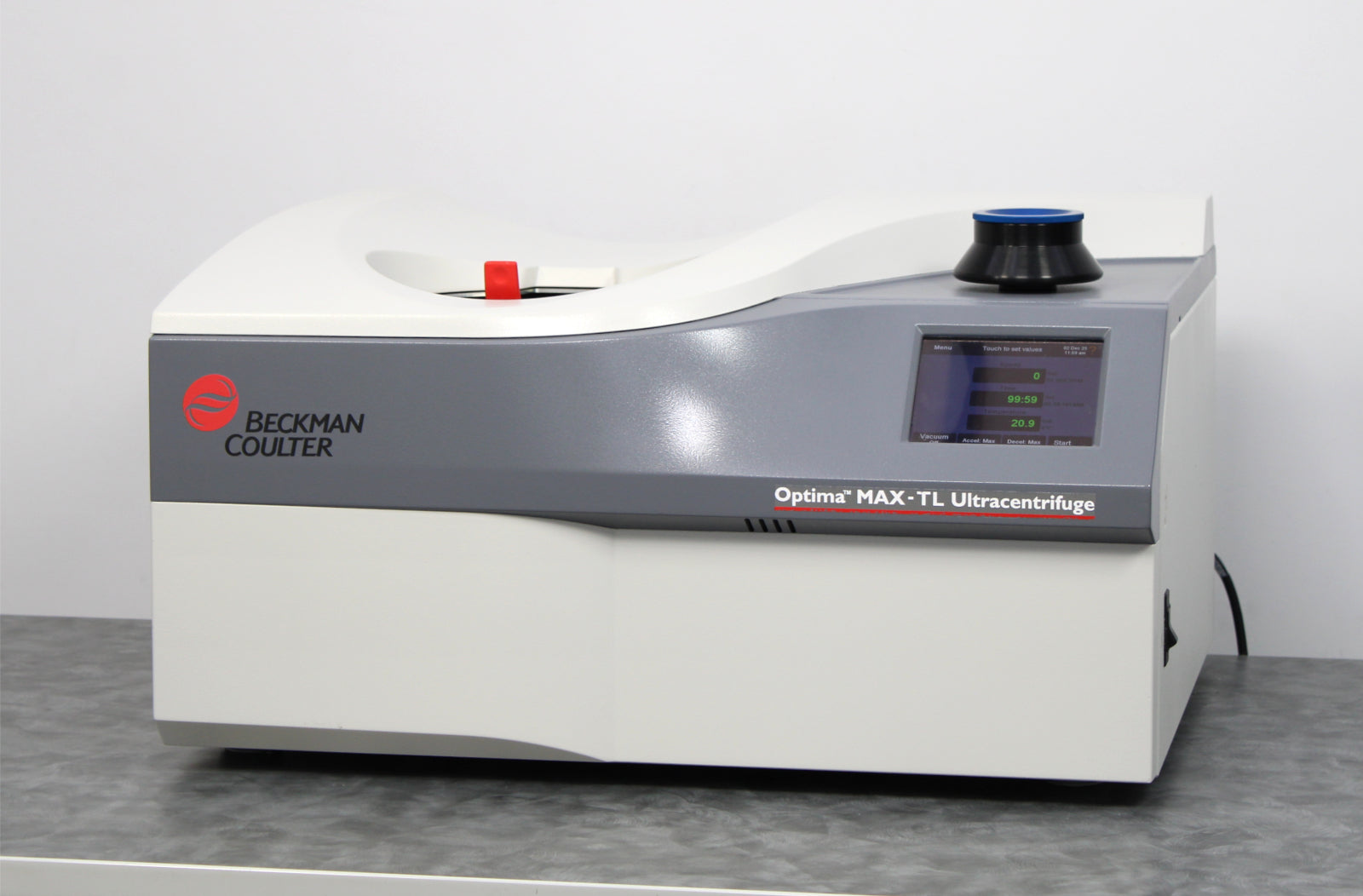

- Beckman Coulter Optima MAX-TL Benchtop Ultracentrifuge (A95761)

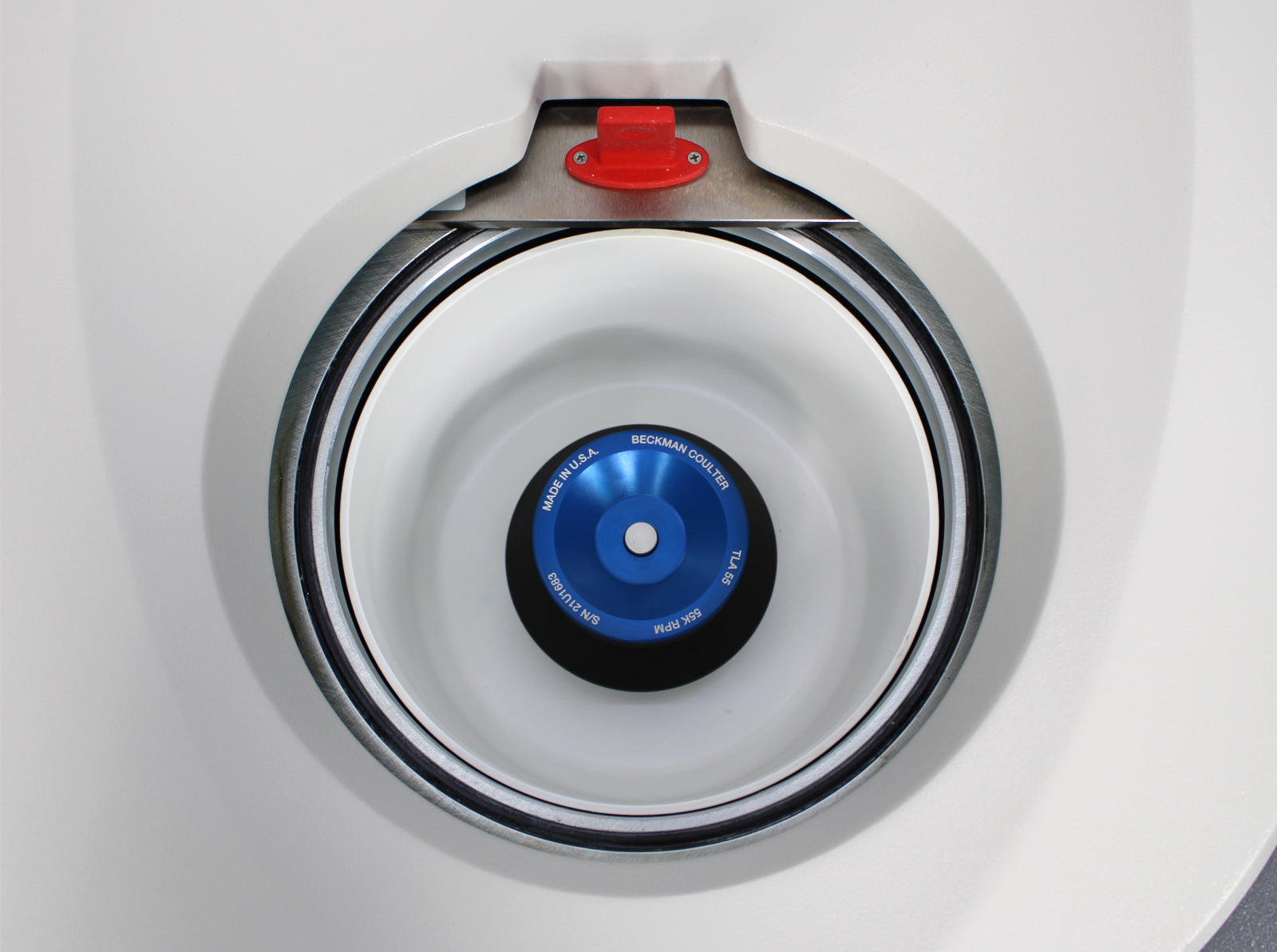

- Beckman Coulter TLA-55 Fixed-Angle Rotor
- Power Cable
- 90-Day Warranty

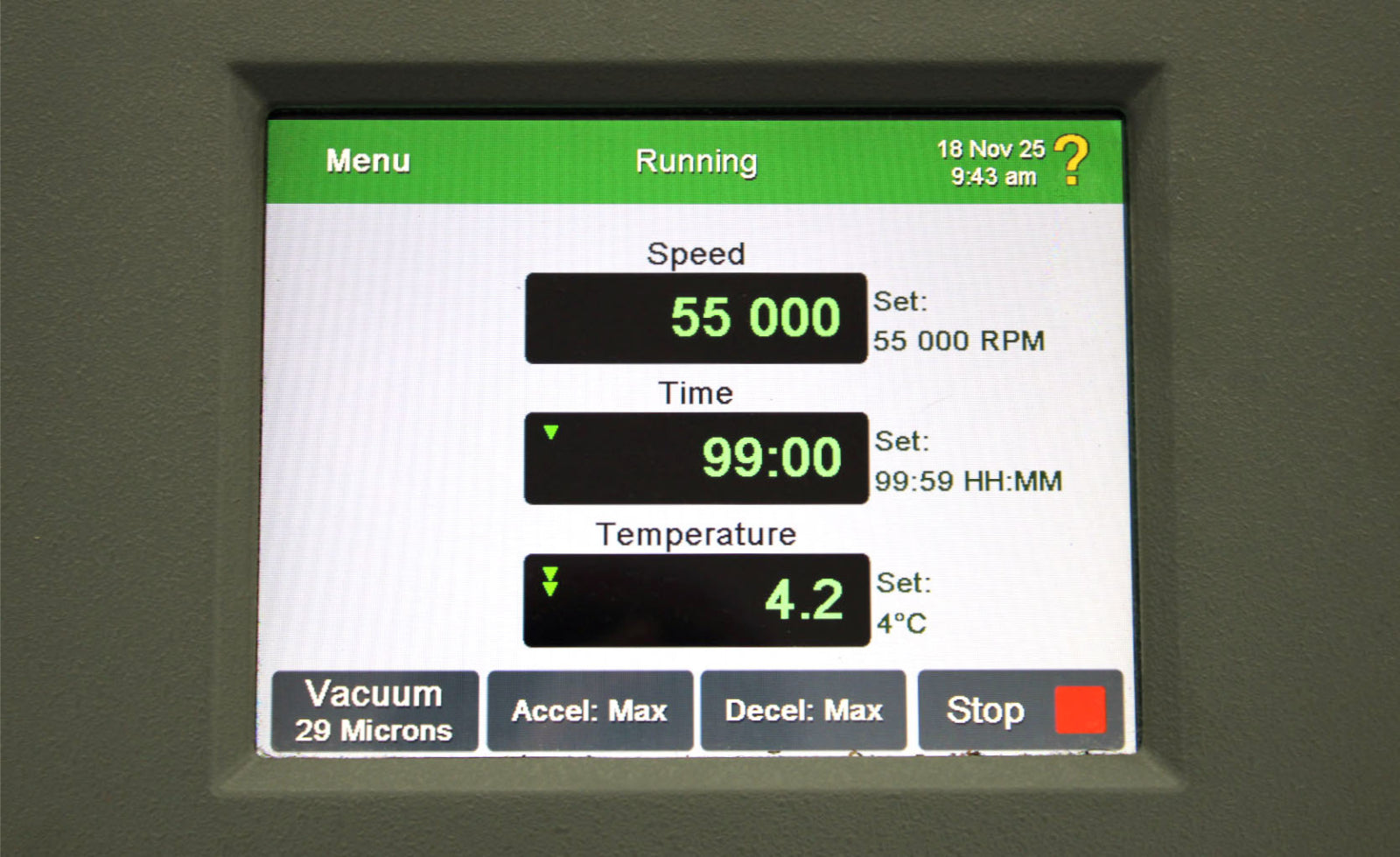

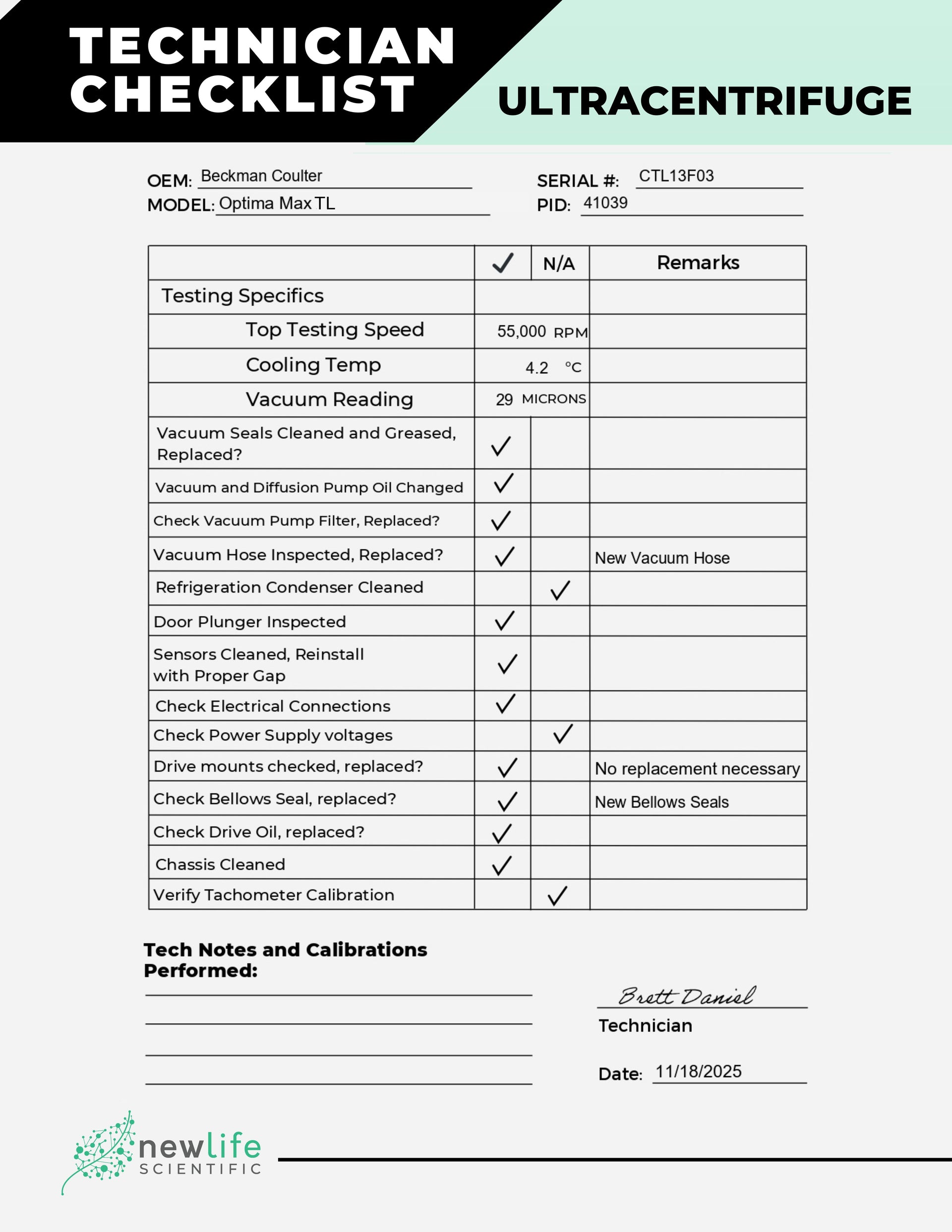

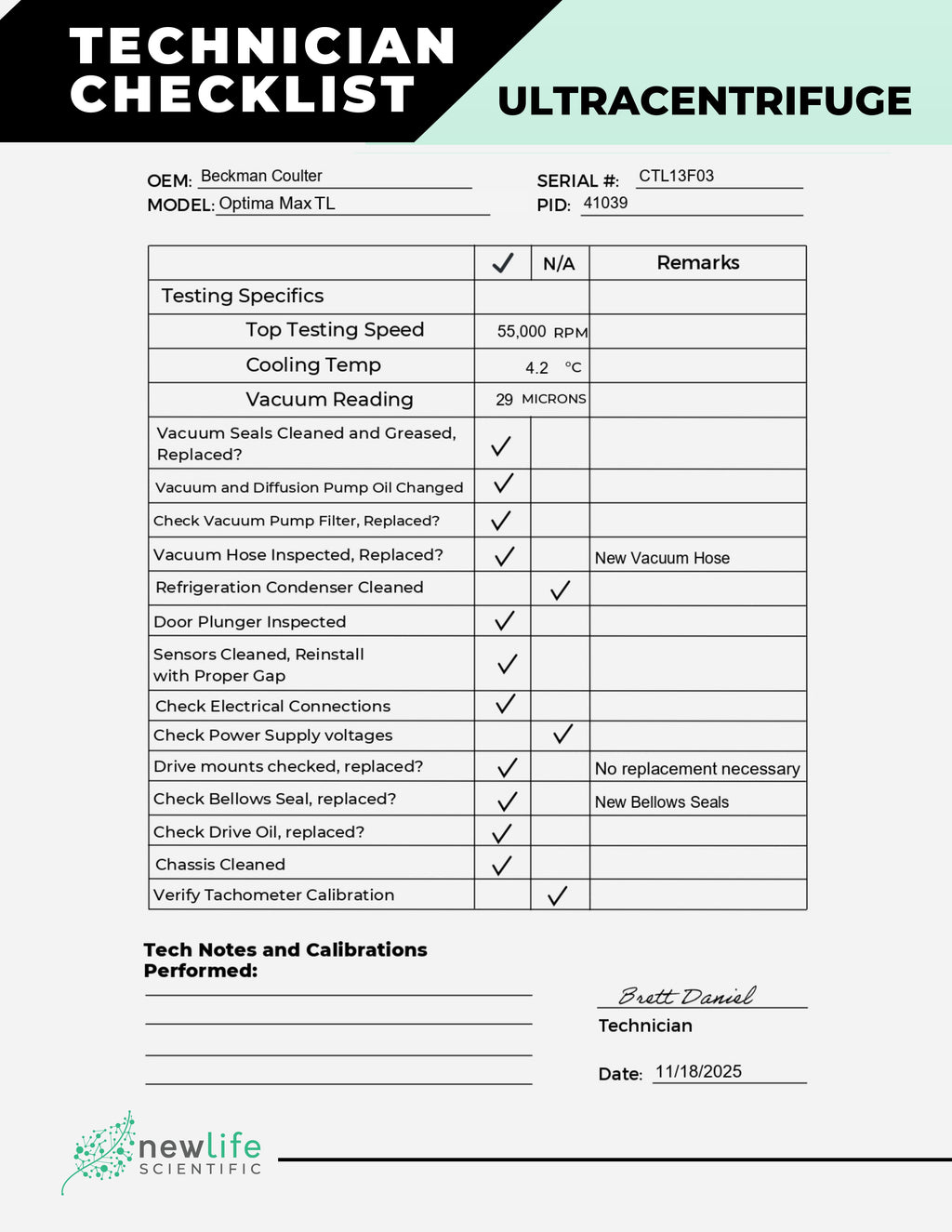

After its initial disinfection and inspection, our technicians tested the Beckman Coulter Optima MAX-TL benchtop ultracentrifuge with the following results:
- Ran to 55,000 rpm: PASSED
- Refrigeration held at 4°C: PASSED
- No excessive noise or imbalance: PASSED
- Spun down properly: PASSED
- Performed inspection; no issue found: PASSED
- Installed new bellows seals.
- Installed new vacuum hoses.

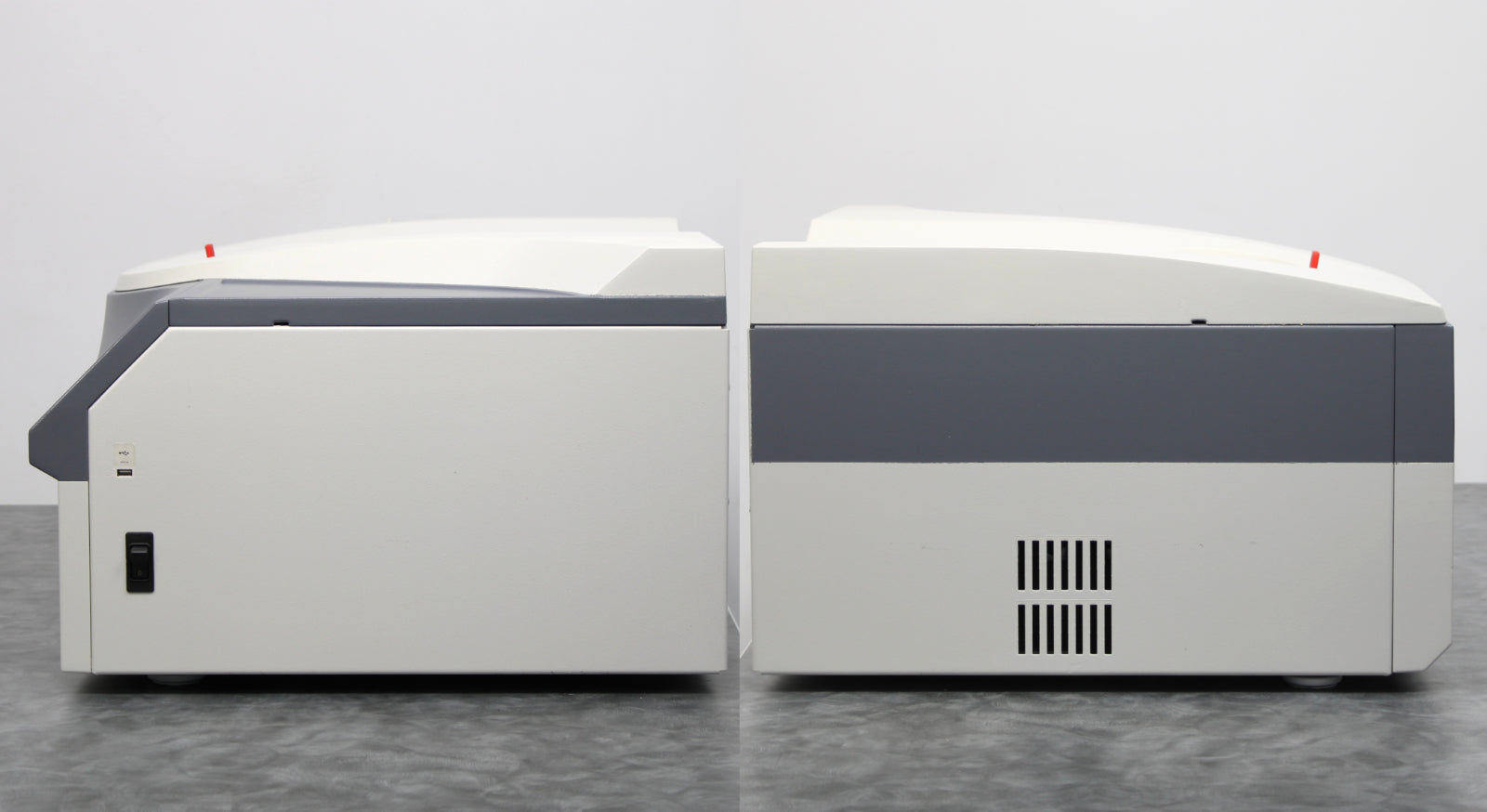

Notice: This centrifuge has some cosmetic blemishes. Please review the available photos to see the physical condition before purchasing.
|
Manufacturer
|
Beckman Coulter
|
|
Model
|

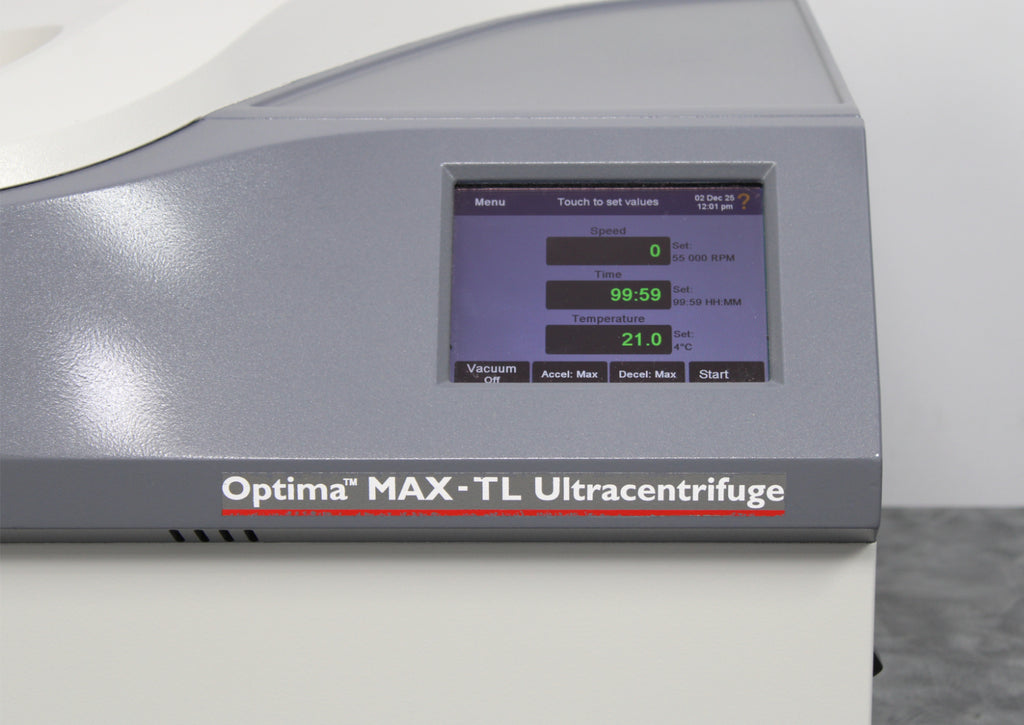

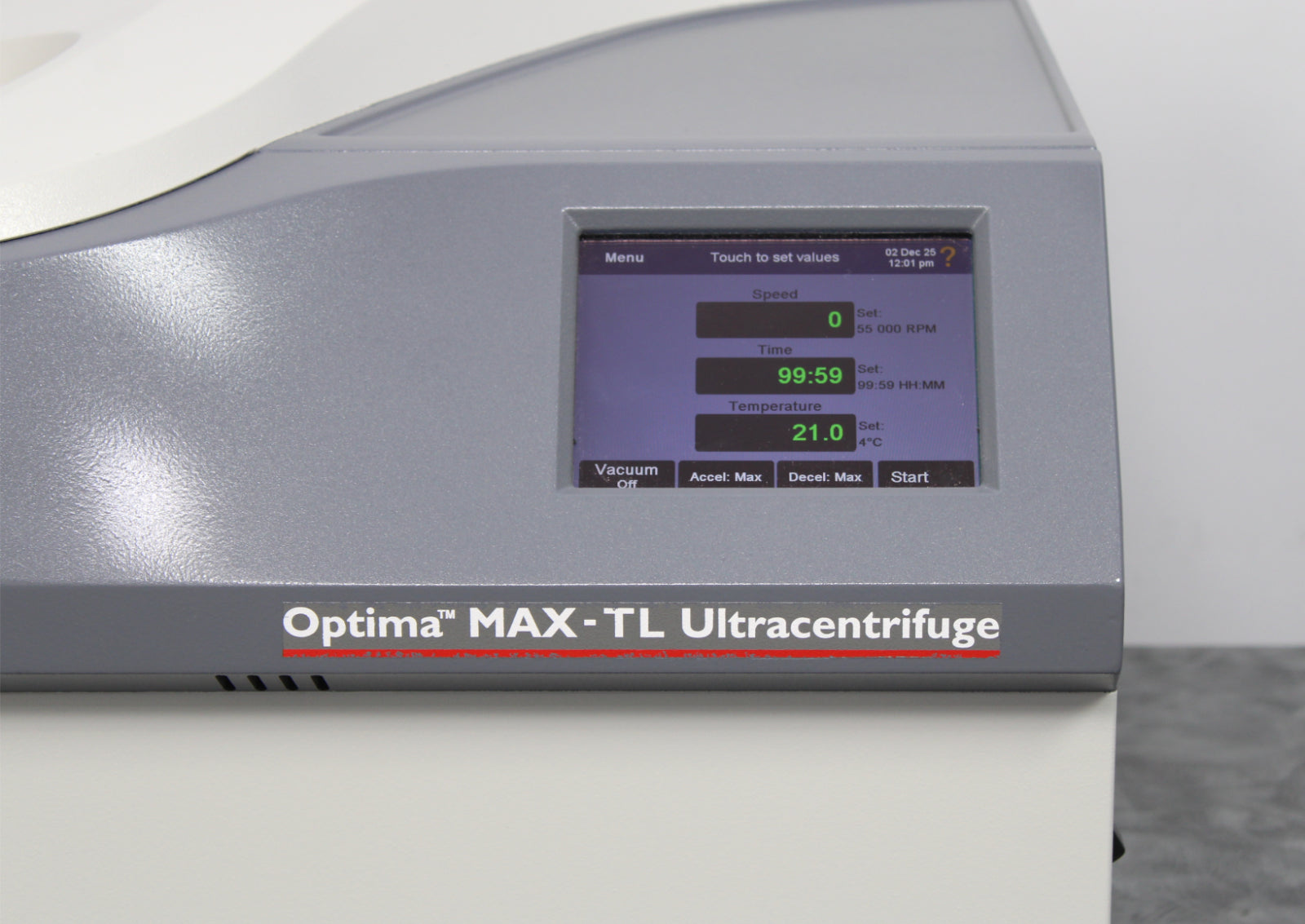

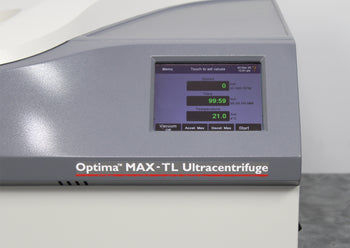

Optima MAX-TL
|
|
Ref. No.
|
A95761
|
|
Serial No.
|
CTL13F03
|
|
Mfg. date
|
2013
|
|
Maximum speed
|
120,000 rpm
|
|
Maximum g-force
|
657,000 x g
|
|
BioSafe
|
No
|
|
Acceleration
|
10 acceleration profiles
|
|
Deceleration
|
11 deceleration profiles
|
|
Time run
|
99 min, 59 sec Continuous run, short run
|
|
Max capacity volume range
|
40.8 mL
|
|
Refrigeration system
|
Solid state (thermoelectric temperature control system with forced air, no coolant, no CFCs,ODCs)
|
|
Drive type cooling
|
Variable frequency induction drive with rotor overspeed ID
|
|
Temperature range(s)
|
0 to 40°C in 1°C increments
|
|
Zonal capability
|
False
|
|
Pollution degree
|
2
|
|
Vacuum and pump
|
Below 10 microns (1.34 Pa)
|
|
Installation category
|
II
|
|
Display
|
Full-color LCD touchscreen
|
|
Finish
|
Coated polycarbonate, acrylic baking enamel, general purpose paint
|
|
Clearances
|
7.6 cm: side and rear
|
|

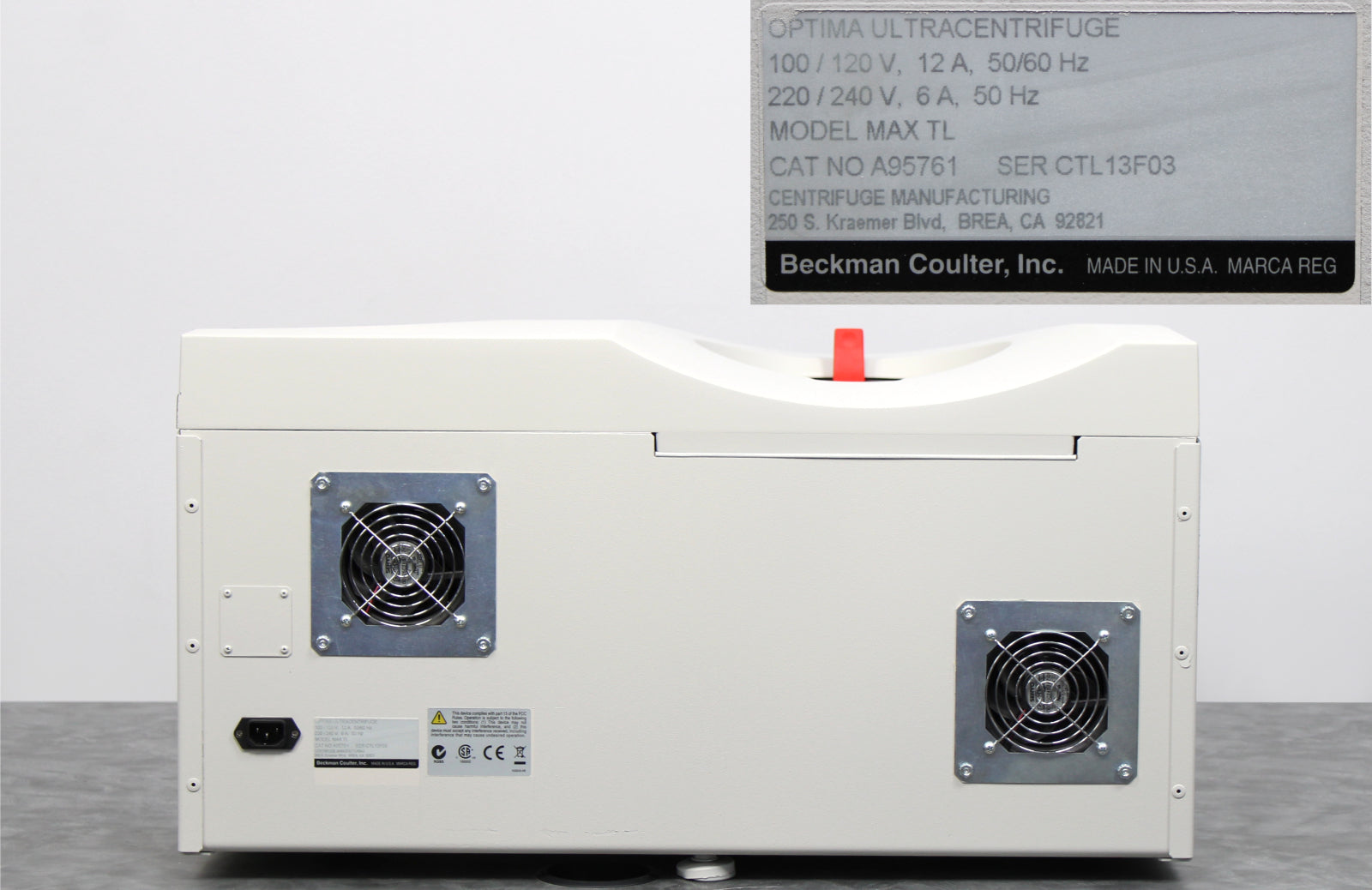

Power rating
|
100/120V, 50/60Hz, 12A
220/240V, 50Hz, 6A
|
|
Dimensions (W x D x H)
|
29 x 24.3 x 15.5 in (73.9 x 61.7 x 39.4 cm)
|
|
Weight
|
231.5 lb (105 kg)
|
|

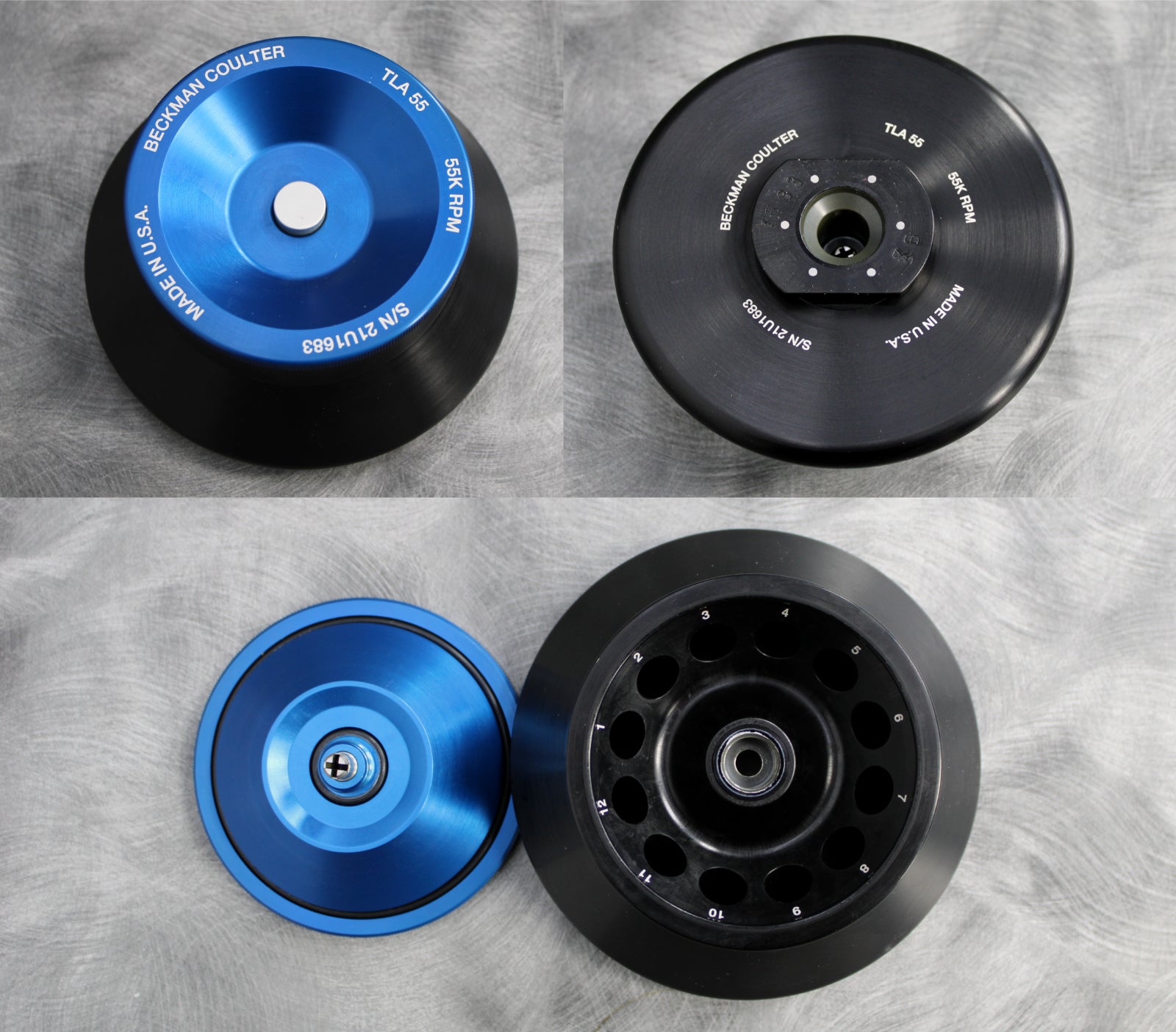

Manufacturer
|
Beckman Coulter
|
|
Platform
|
Tabletop UCF
|
|
Rotor type
|
Fixed-angle (ultracentrifugation)
|
|
Model
|
TLA-55
|
|
Serial No.
|
21U1683
|
|
Angle
|
45
|
|
Maximum RPM
|
55,000 rpm
|
|
Max g-Force
|
186,000
|
|
k-Factor
|
66
|
|
Number of tubes
|
11 x 38 mm, 12 x 1.5 mL
|
|
Nominal capacity
|
18 mL
|
|
rMAX
|
55
|
|
rMIN
|
25
|
|
rAV
|
40 mm
|
|
BioSafe
|
Yes - With BioSafe Lids
|
|
Materials
|
Aluminum
|
