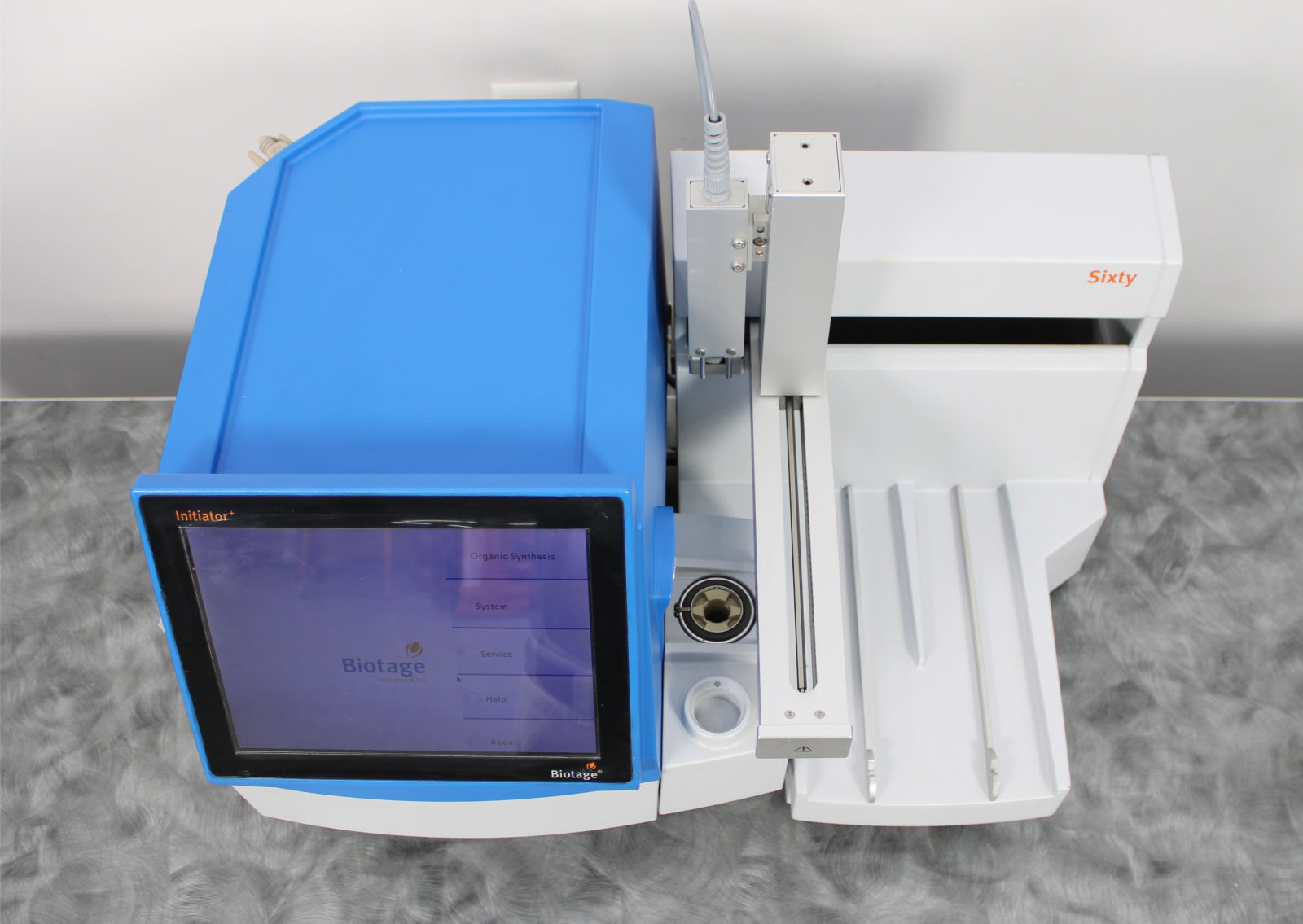

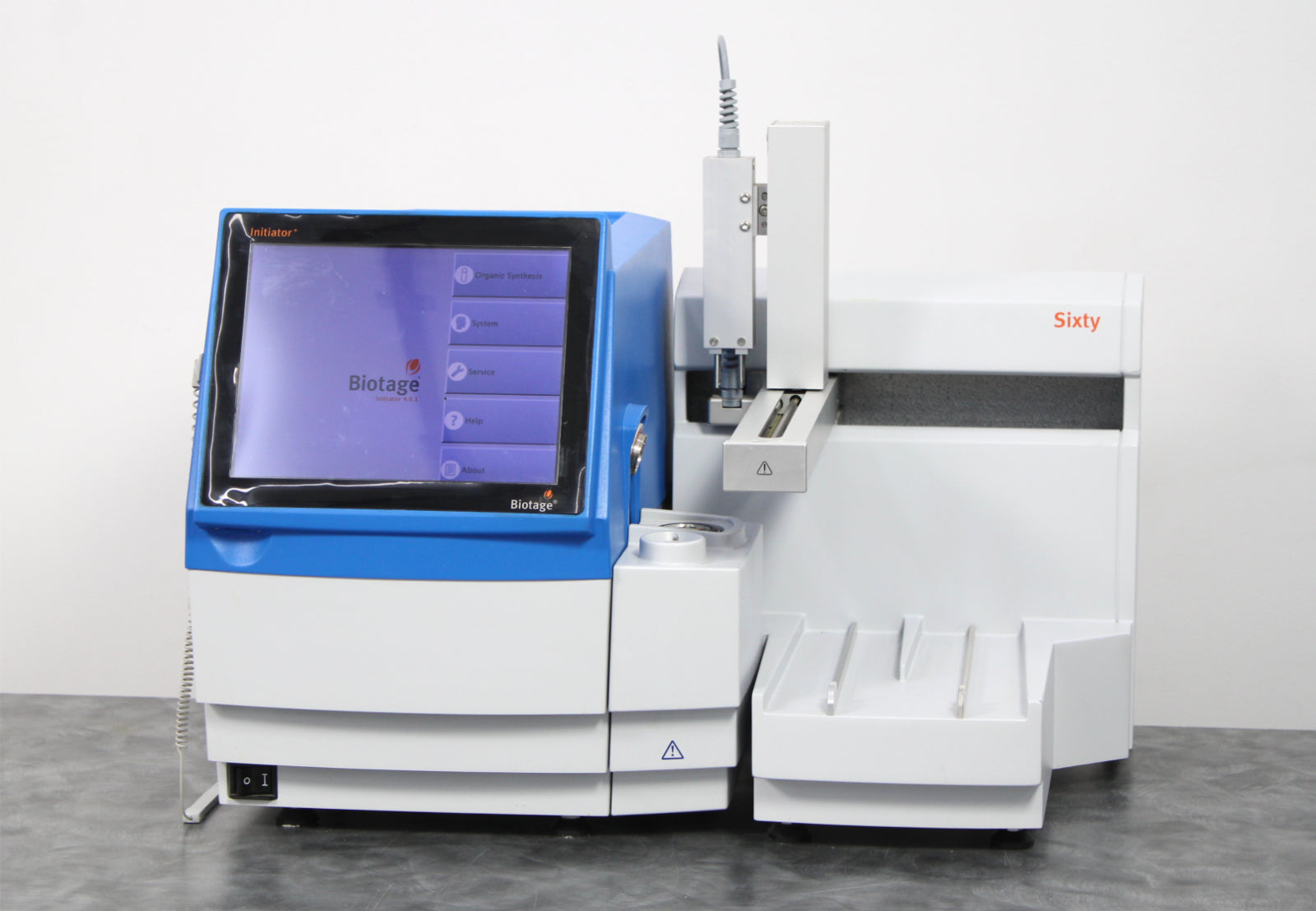

- Biotage Initiator+ US/JP Microwave Synthesizer (356007)
- Biotage Initiator Robot Sixty (355381)
- Communication Cable
- Power Cable
- 90-Day Warranty
After its initial disinfection and inspection, our technicians tested the Biotage Initiator+ and Robot Sixty with the following results:

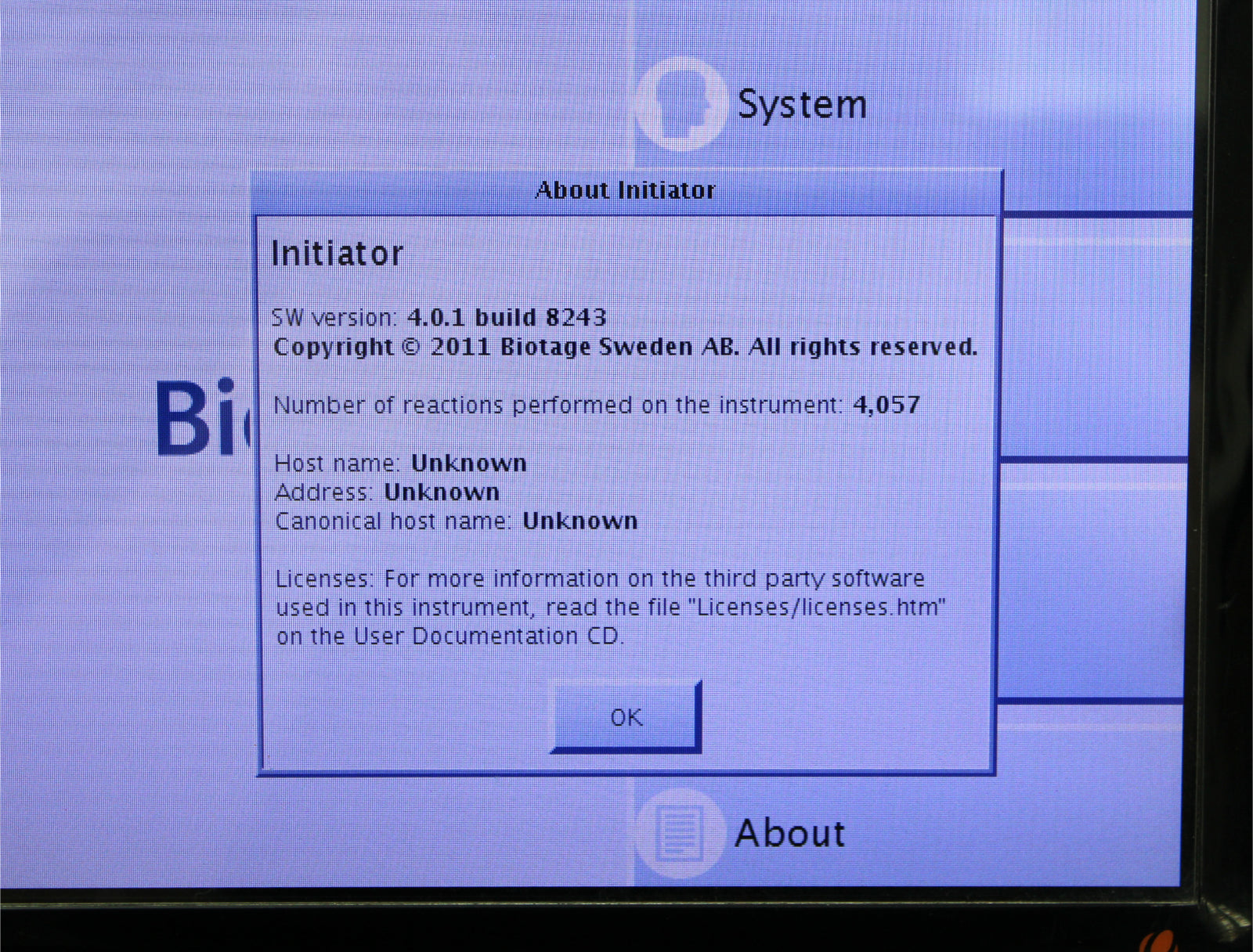

- Powers on and initializes: PASSED

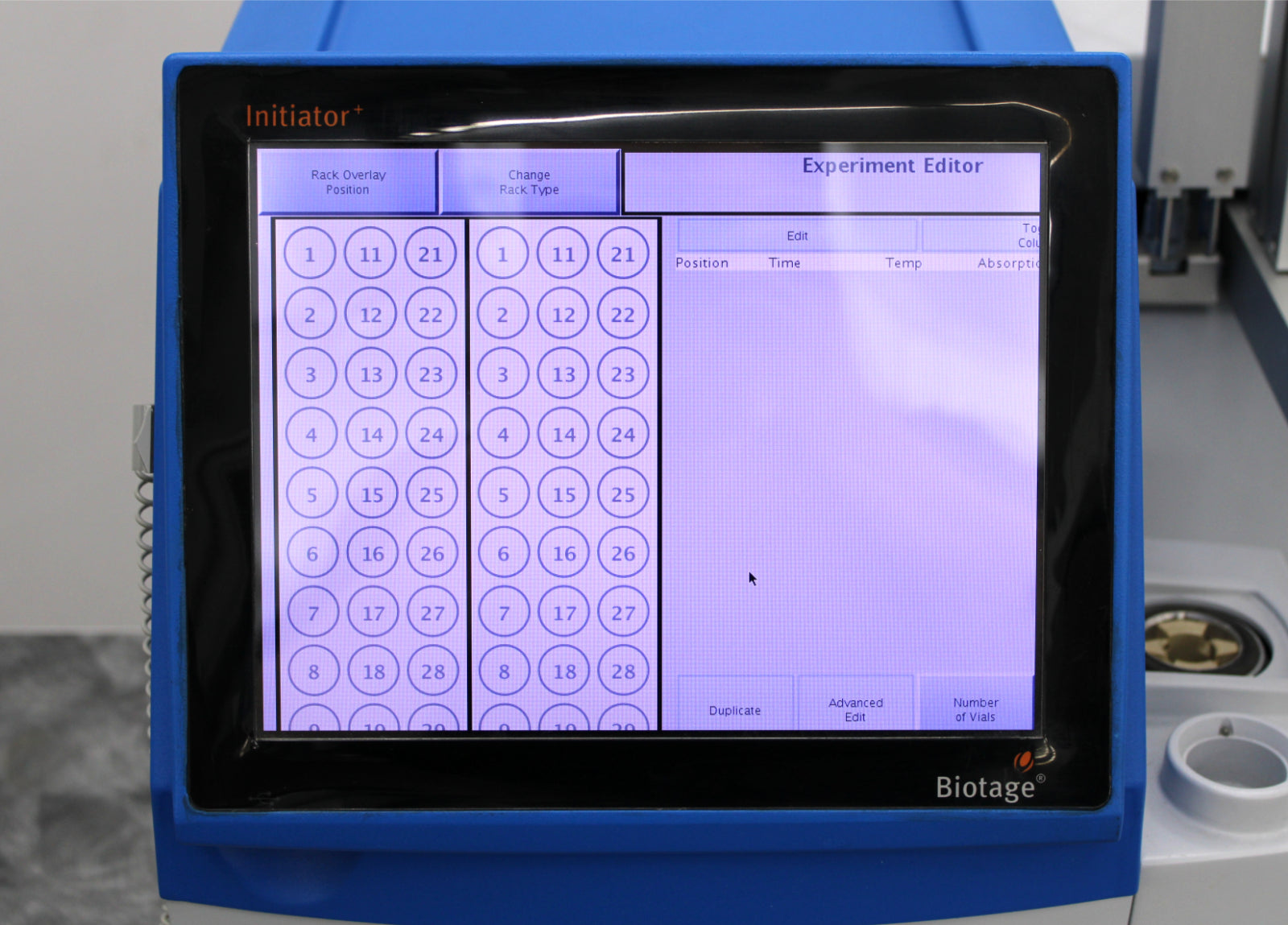

- Touchscreen: PASSED

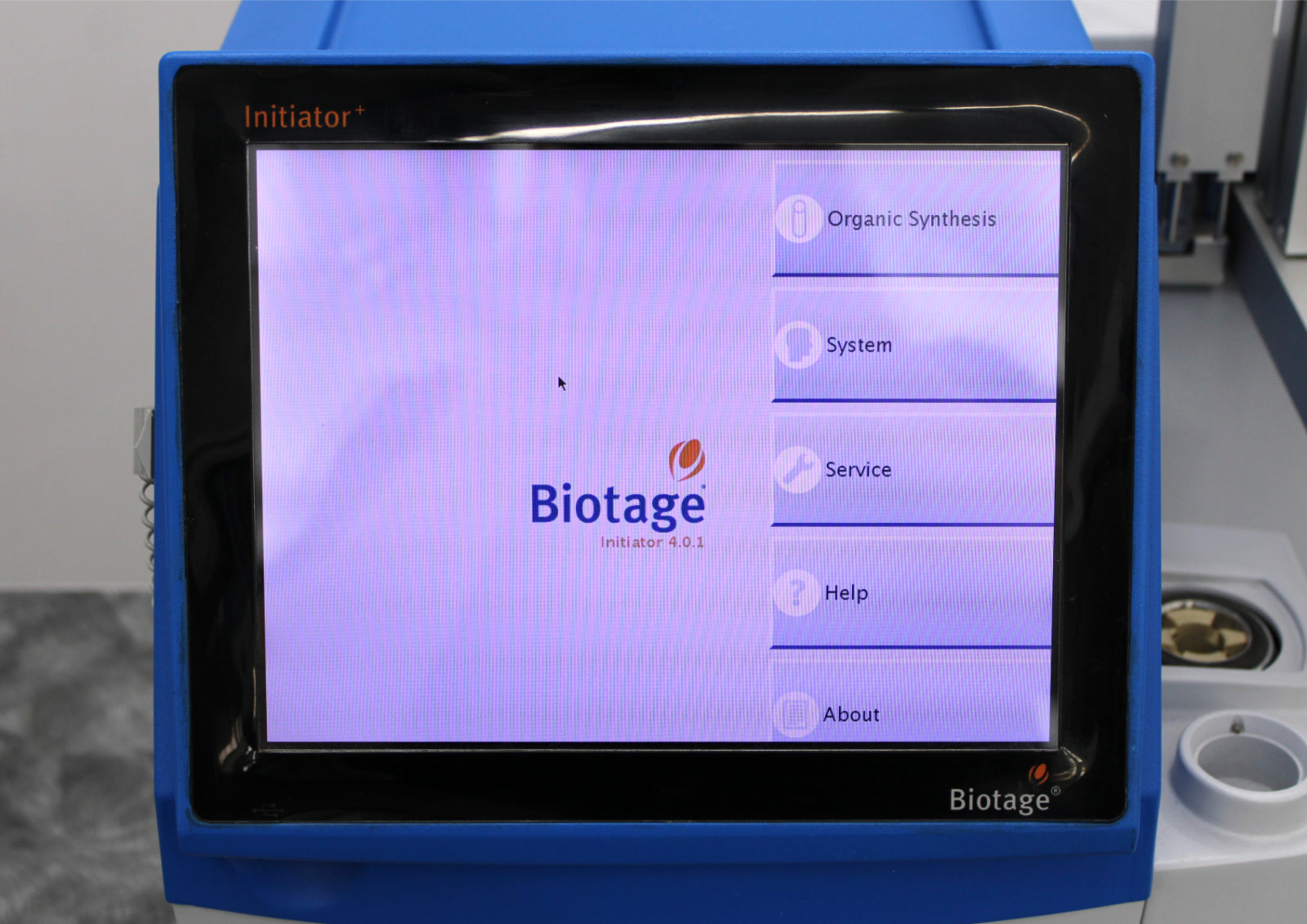

- Menu navigation: PASSED

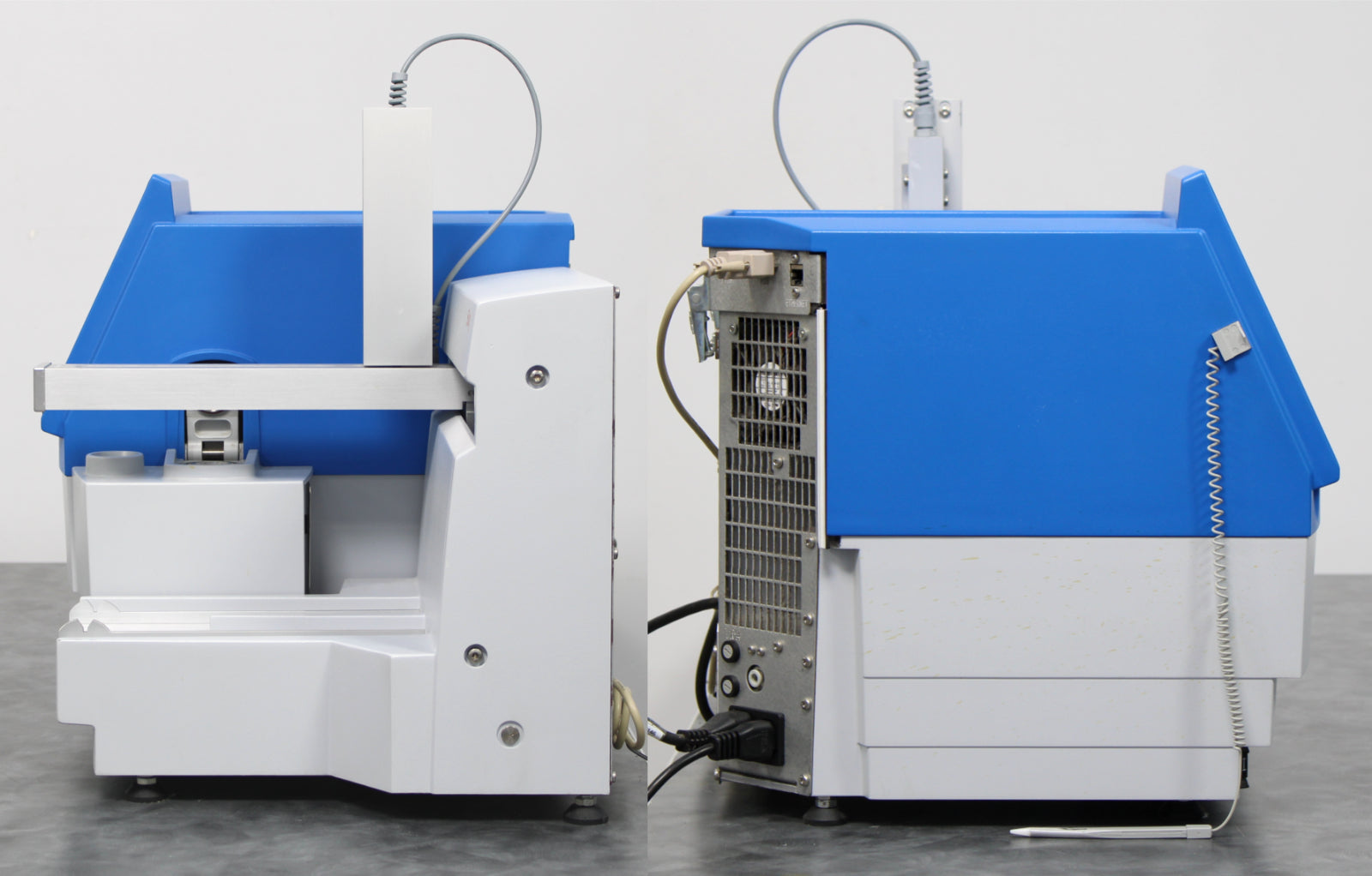

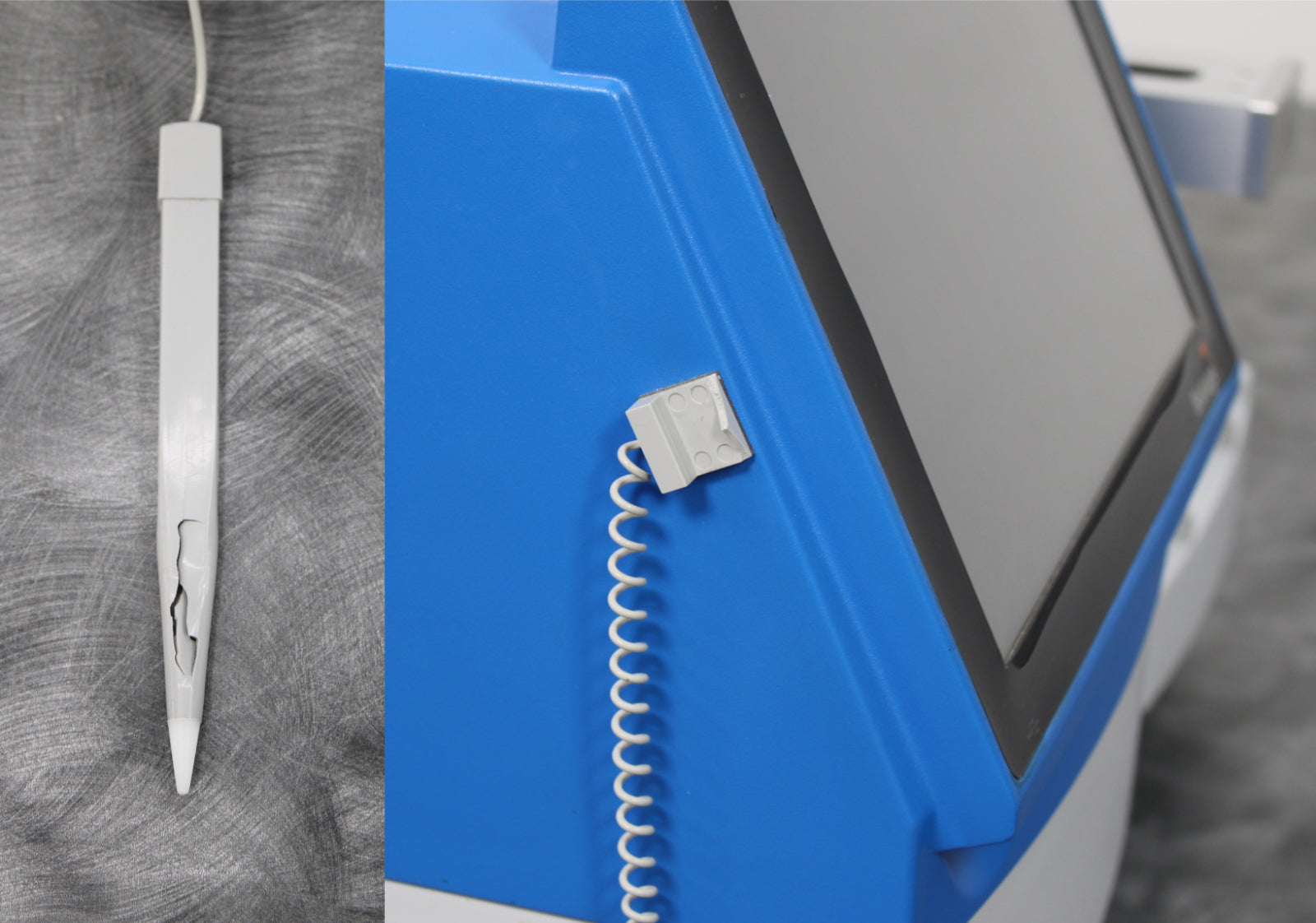

Notice: This system has some cosmetic blemishes. The stylus holder is broken and the stylus itself is cracked. A new stylus may be purchased from Biotage if required. Please review the available photos to see the physical condition before purchasing.
|

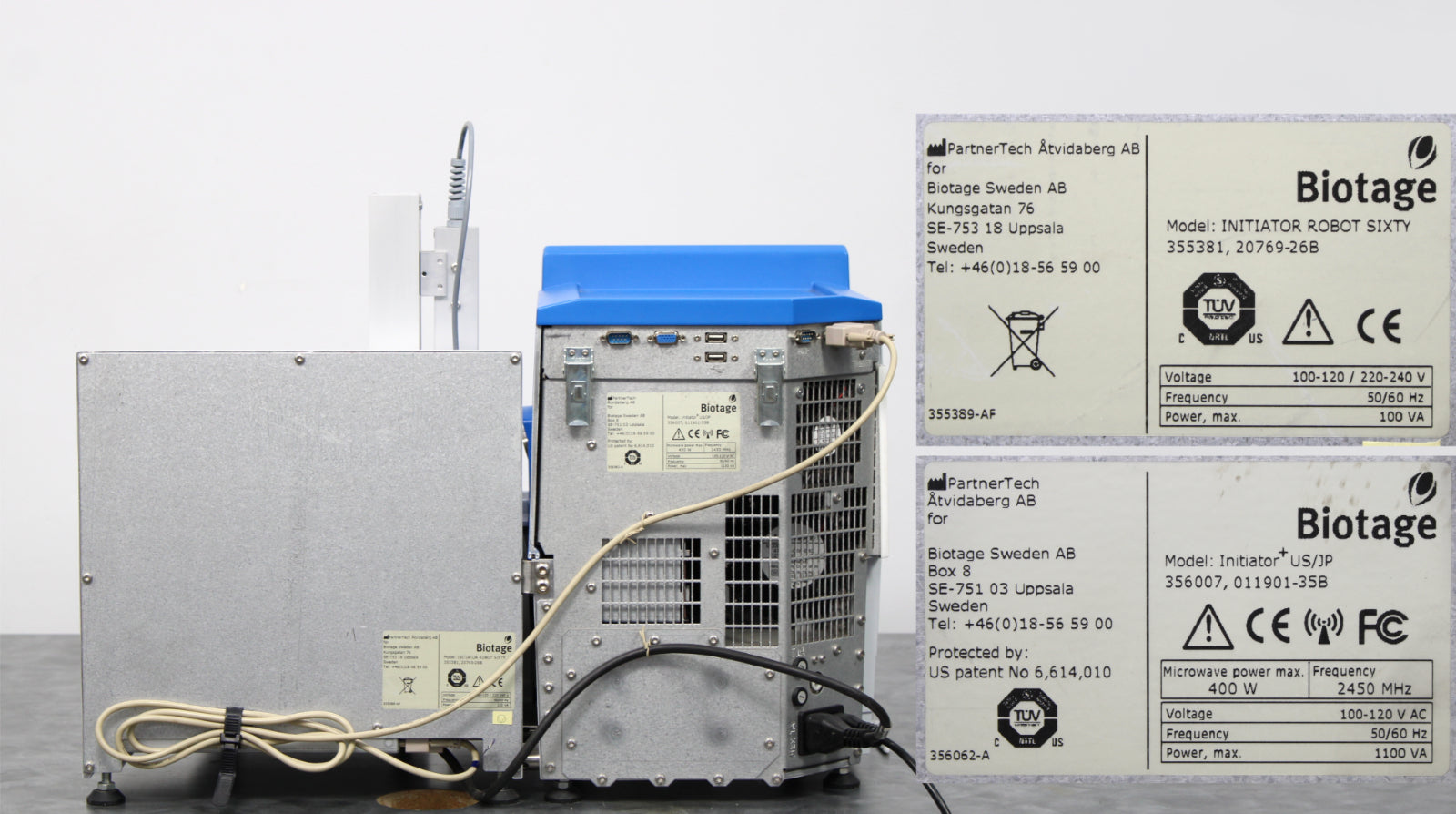

Manufacturer
|
Biotage
|
|
Model
|
Initiator+ US/JP
|
|
Cat. No.
|
356007
|
|
Serial No.
|
011901-35B
|
|
Reaction volumes
|
0.2-20 mL
|
|
Temperature range
|
40-300°C
|
|
Sample processor
|
Upgradable with Robot Eight / Robot Sixty processing capacity 8 vials / 60 vials Rack capacity (large) 2x2 vials / 2x12 vials Rack capacity (small) 2x4 vials / 2x30 vials
|
|
Interfaces
|
On-board computer with 10.4” diagonal touch screen interface.
Archiving/back-up is done via USB.
Printing is done via LAN.
|
|
Location
|
A laboratory fume hood with the capacity to handle leakage of solvents and provide suitable airflow to prevent the build-up of flammable vapors.
|
|
Ambient temperature
|
Operating temperature: 18-32°C
Storage and transportation temperature: -25°C to 60°C
|
|
Humidity
|
20-95% RH (non-condensing)
|
|
Cooling
|
Pressurized air supply: >60 L/min (2.1 cubic feet/min), 2.5-4.0 bar (0.25-0.40 MPa; 36-58 psi)
|
|
Max sound level
|
70 dB(A)
|
|
Temperature increase
|
Typically 2-5°C/sec depending on solvent and power applied
|
|
Reaction time
|
Up to 96 hours. Typically, most reactions require 2-15 minutes of irradiation
|
|
Pressure range
|
0-30 bar (3 MPa; 435 psi)
|
|
Power range
|
0-400W from magnetron at 2.45 GHz
|
|
Agitation
|
Variable magnetic stirrer (300-900 RPM)
|
|

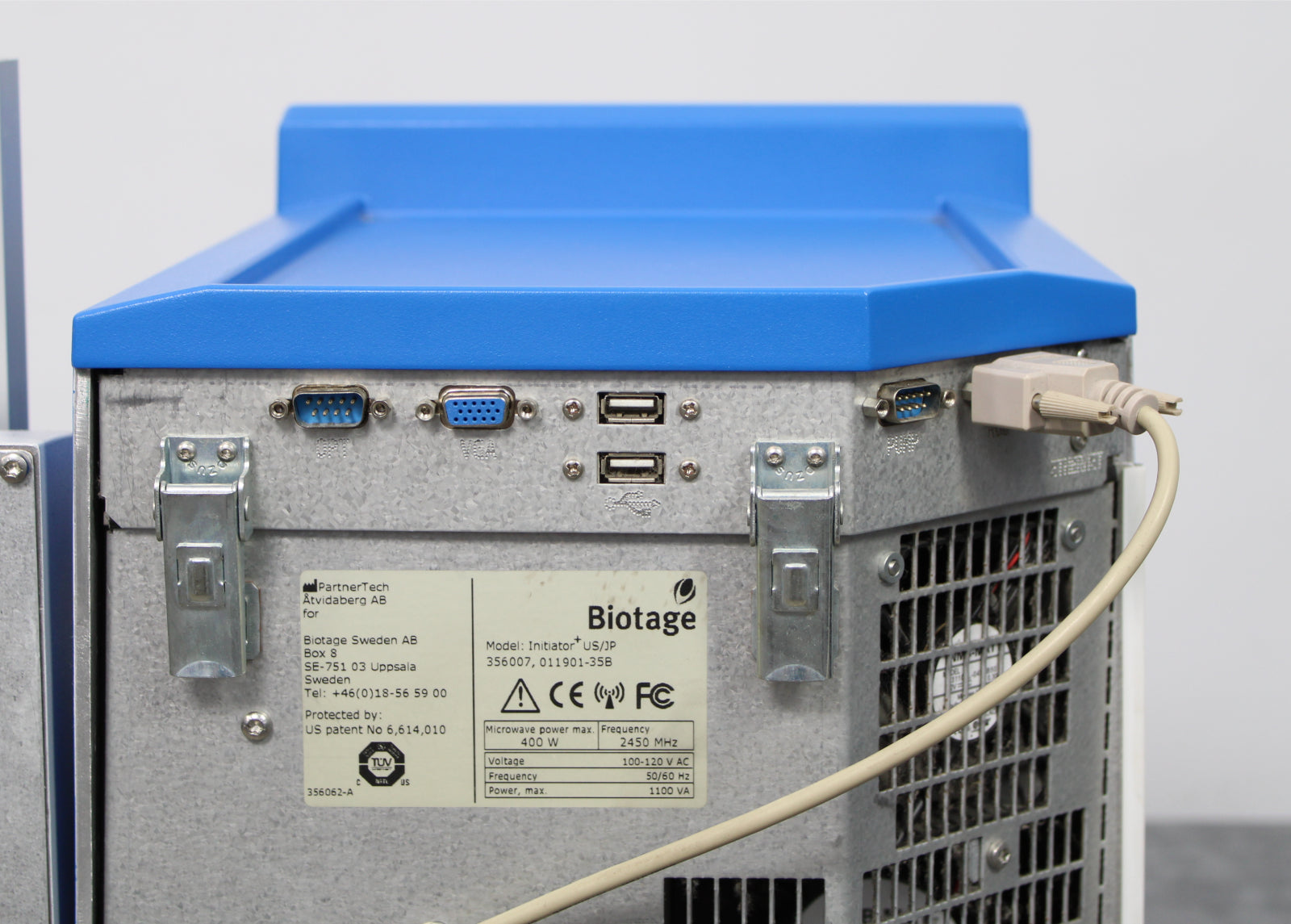

Ports
|
Ethernet LAN port
USB port
|
|
Certificates
|
CE, CSA certified
|
|
Power rating
|
100-120VAC, 50/60Hz
|
|
Power consumption
|
1100VA max.
|
|
Dimensions (W x D x H)
|
14.4 x 16.6 x 16.6 in (36.5 x 42.2 x 42.1 cm)
|
|
Weight
|
48.5 lb (21 kg)
|
|
Manufacturer
|
Biotage
|
|
Model
|
INITIATOR ROBOT SIXTY
|
|
Cat. No.
|
355381
|
|
Serial No.
|
20769-26B
|
|
Power rating
|
100-120/220-240V, 50/60Hz
|
|
Power consumption
|
100VA max.
|
|
Dimensions (W x D x H)
|
13.5 x 15 x 18.5 in
|
