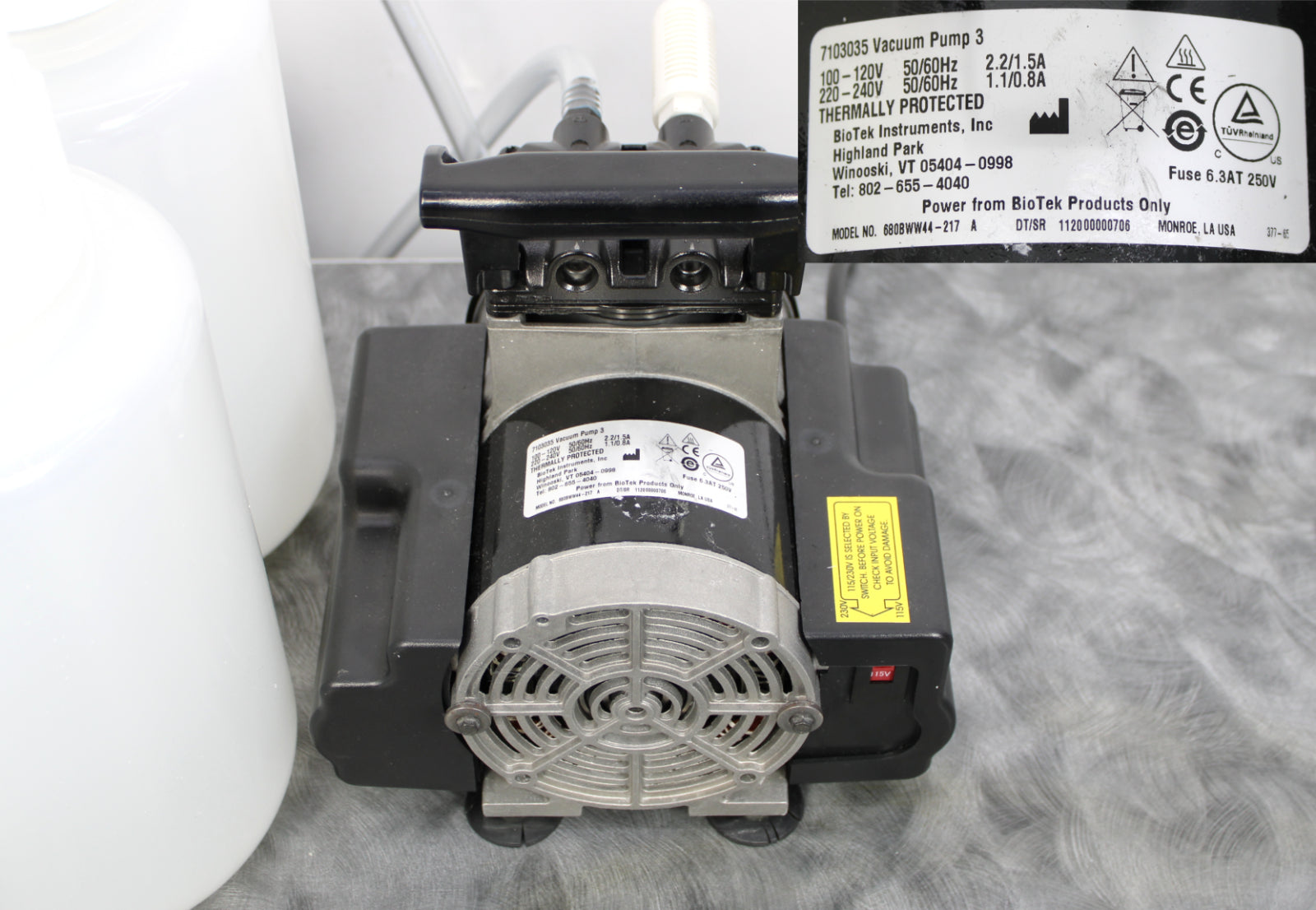

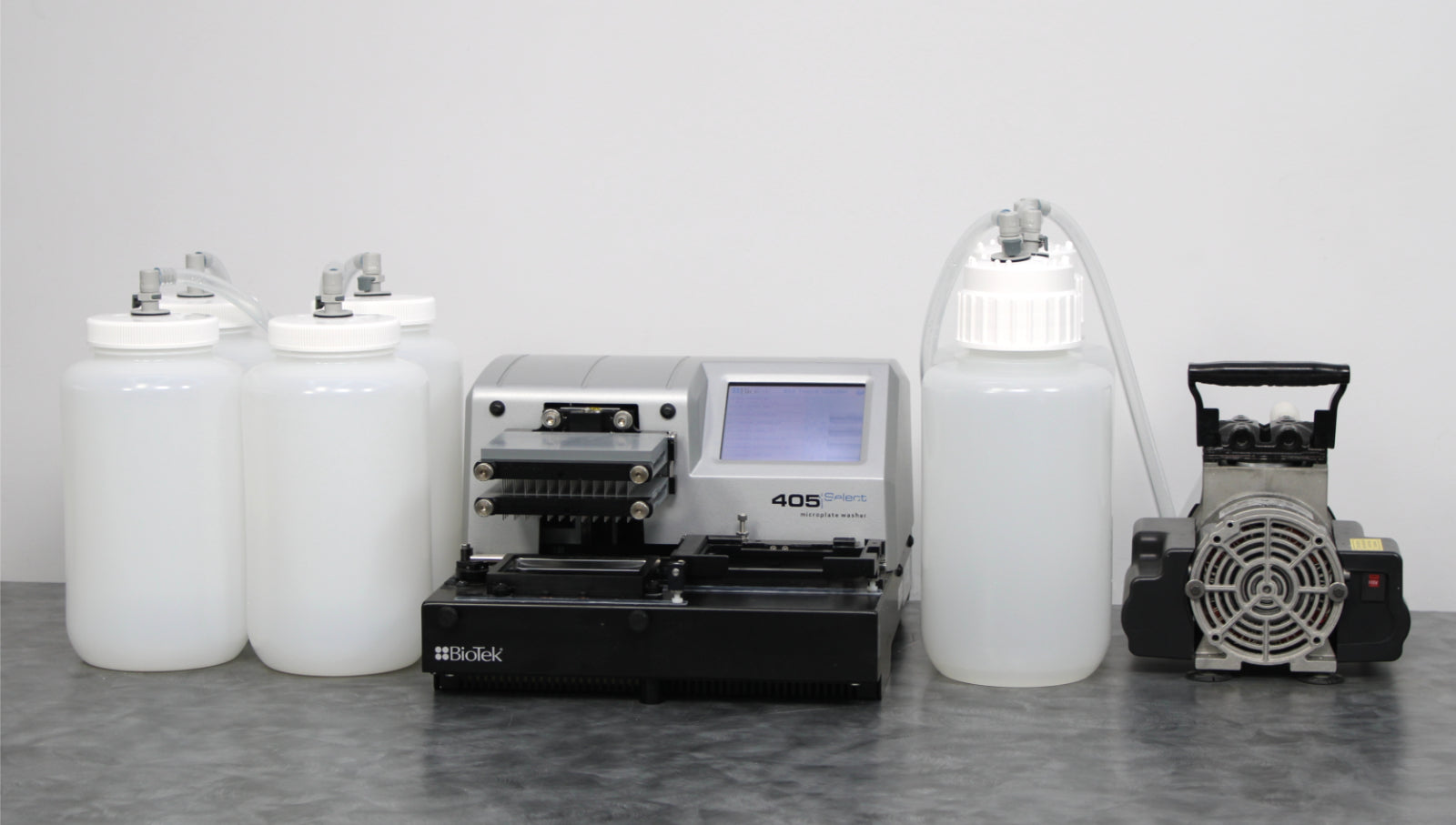

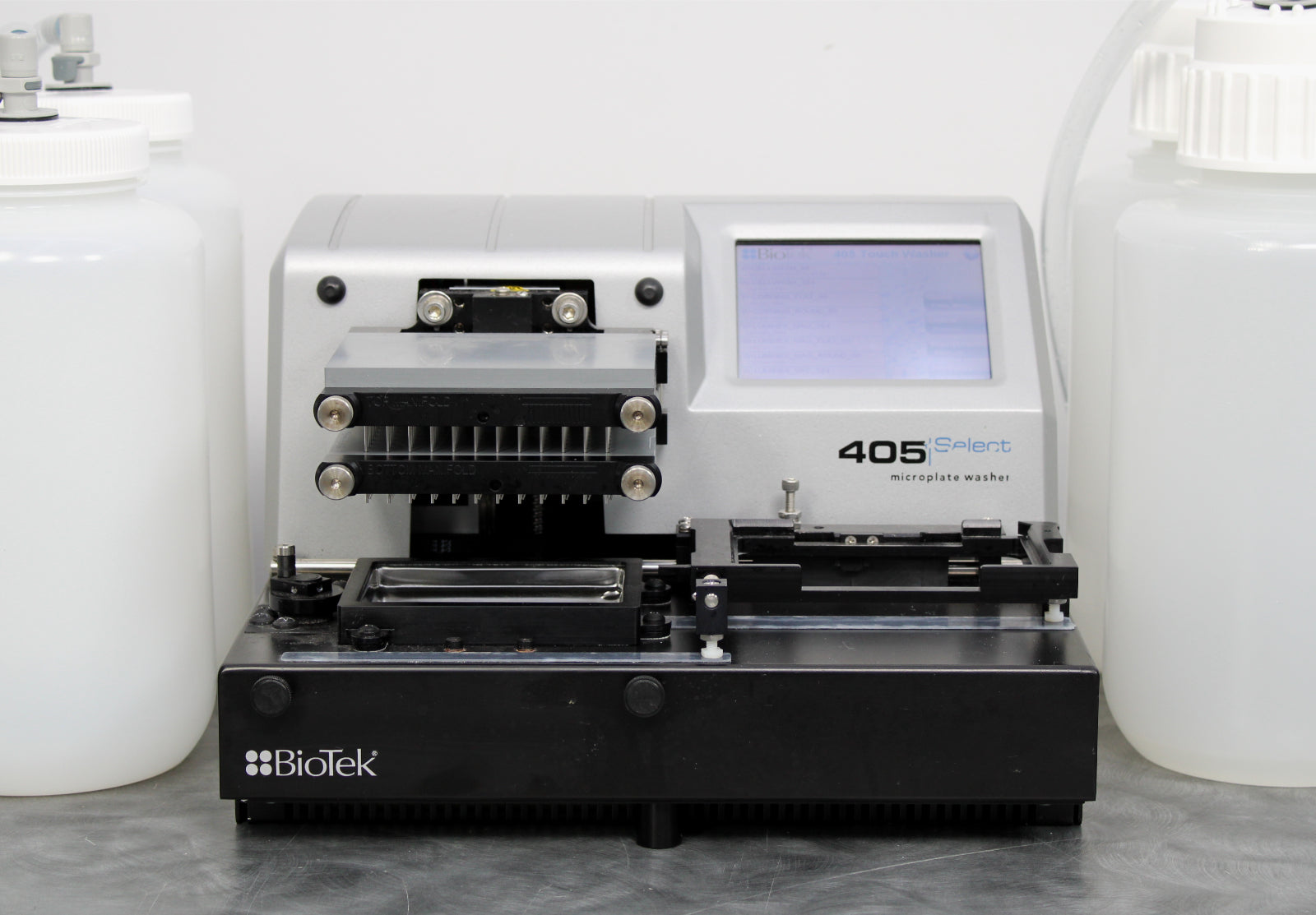

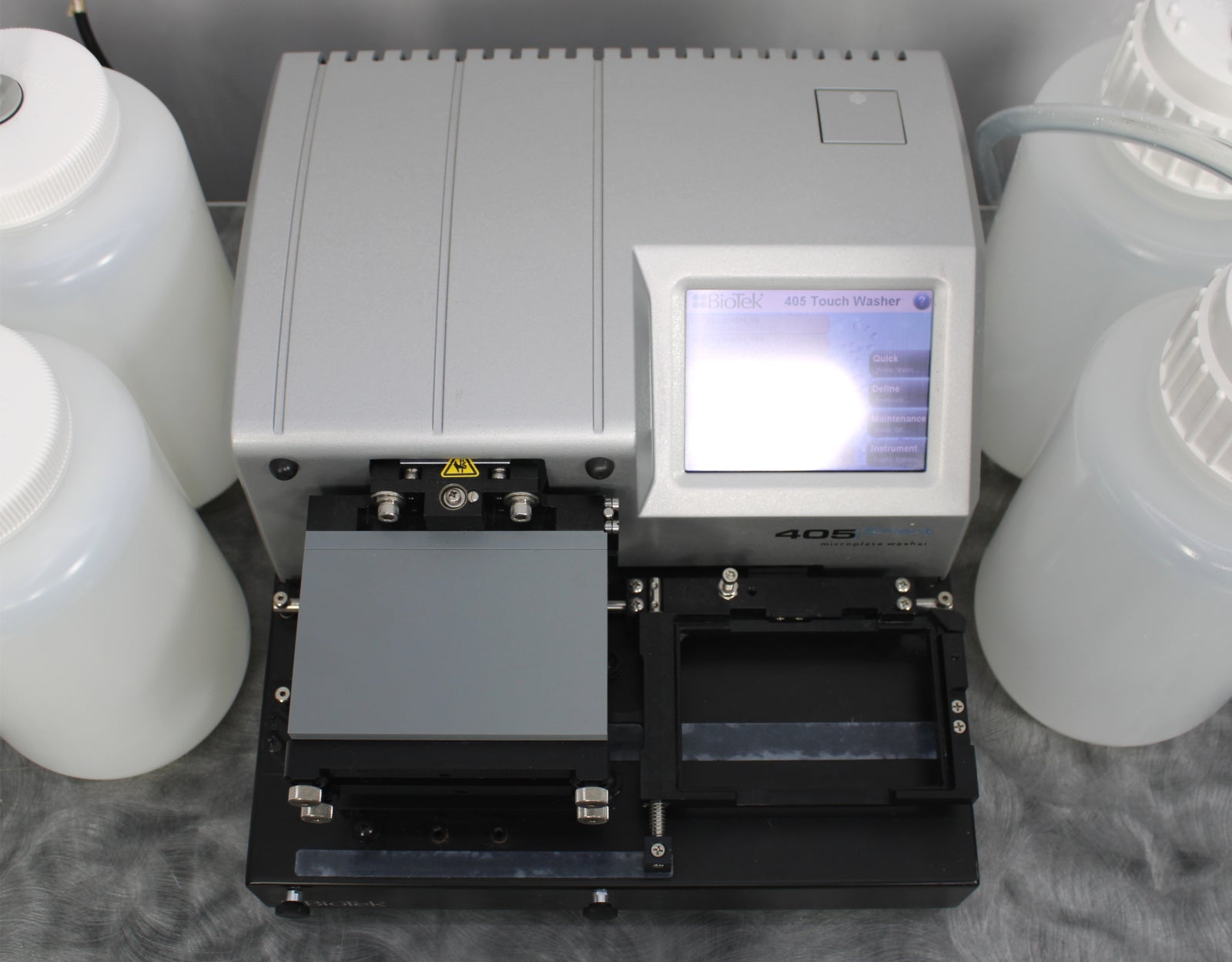

BioTek 405 Select Microplate Washer 405TSUVS 96-Well Manifold with Pump

Manufacturer

BioTek Instruments, Inc

Model

405 Select

Ref. No.

405TSUVS

Serial No.

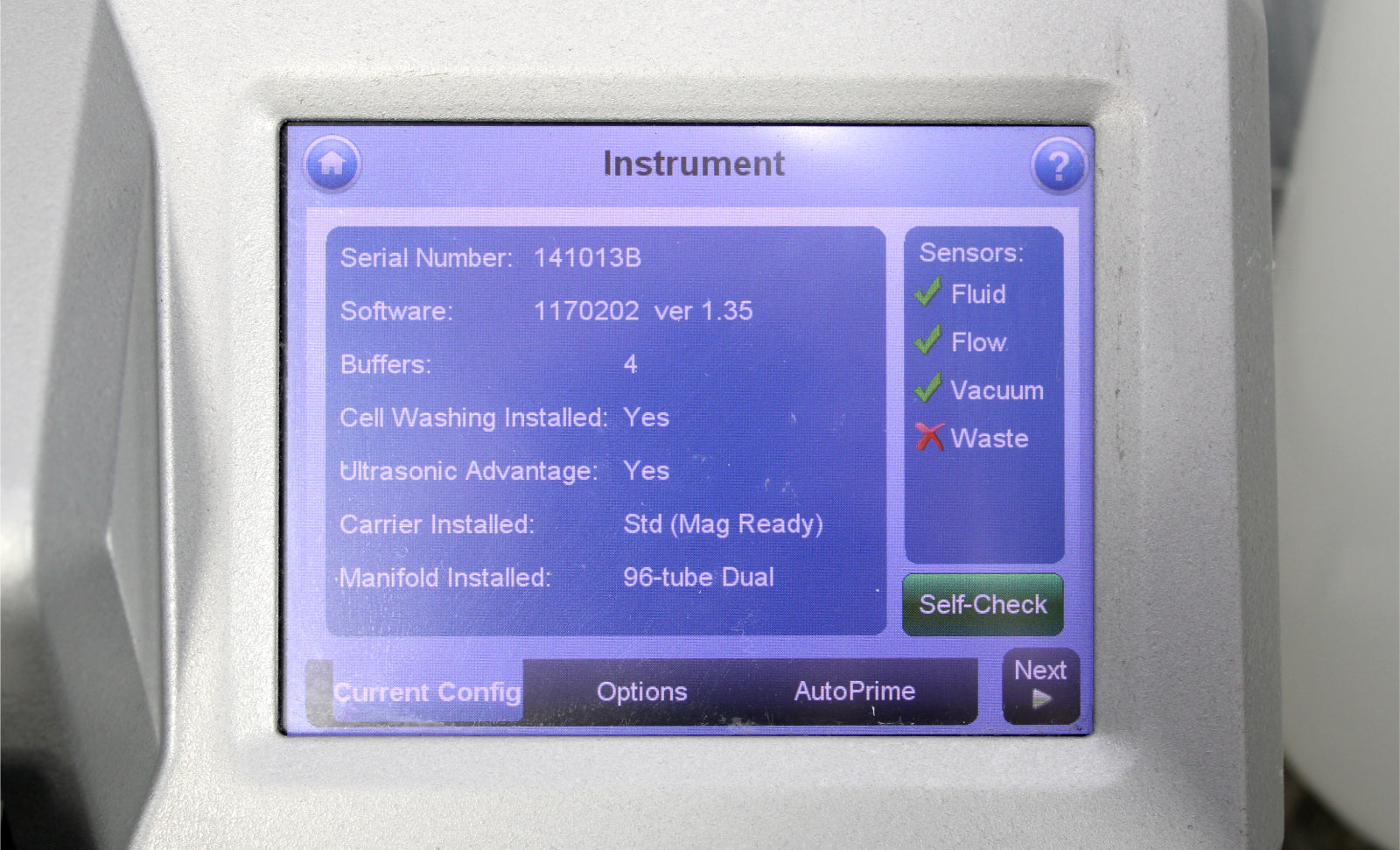

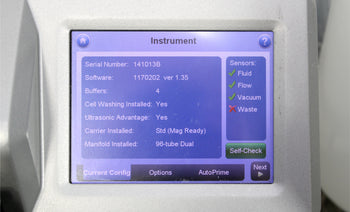

141013B

Configurations

384-Well, 96-Well, Optimized Cell Washing, 4-Buffer Switching, Ultrasonic Advantage, Biomagnetic Separation**, Vacuum Filtration**

Microplate type

96- and 384-well
low profile and standard height

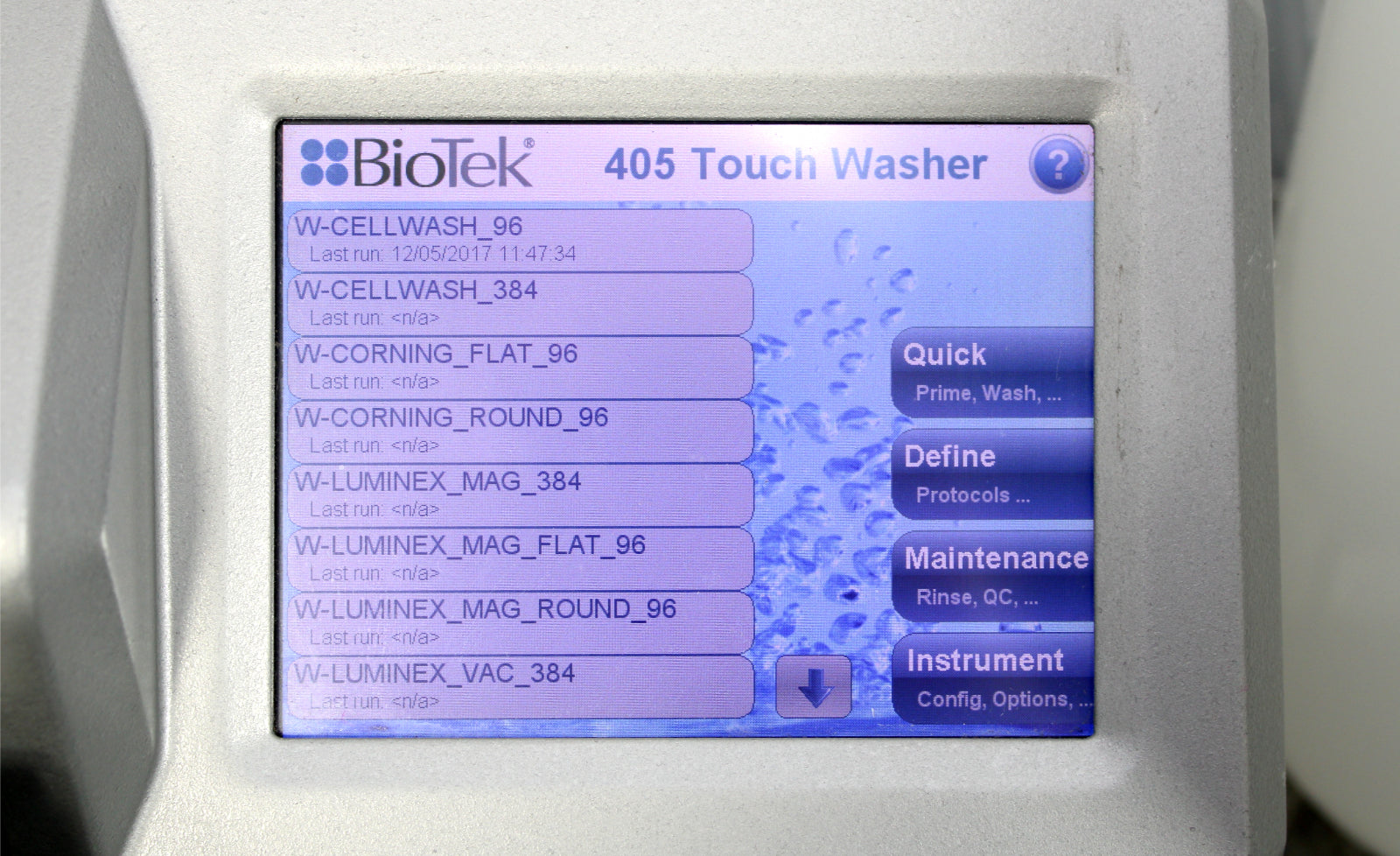

Onboard software

Create, edit, or run multiple protocols

Separation**

Biomagnetic separation, vacuum filtration (optional)

Shaking

Programmable up to 60 minutes
Slow, medium, fast, or variable

Soaking

Programmable up to 60 minutes

Ultrasonic advantage

Yes (option)

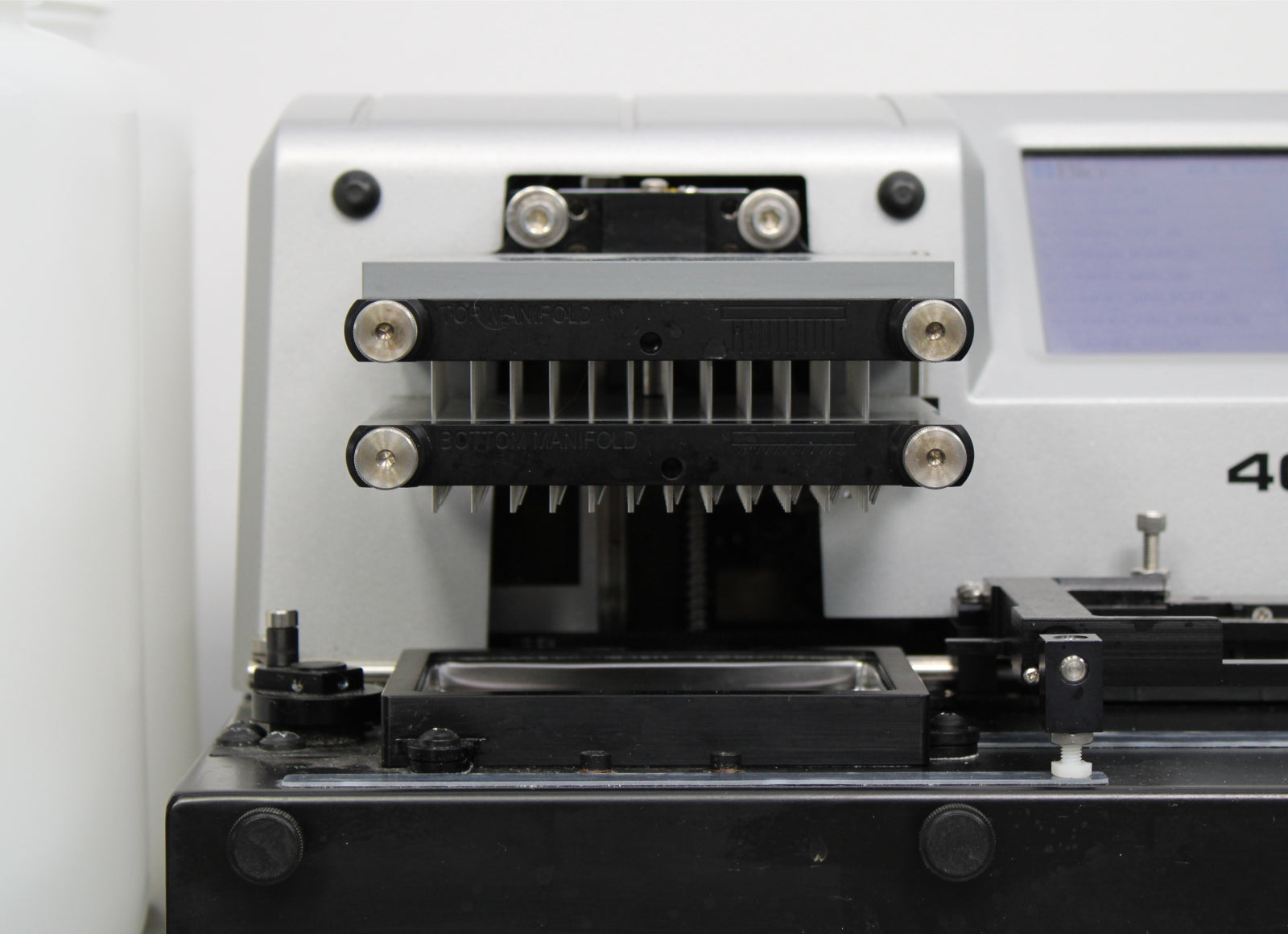

Manifold type

96-tube Dual

Volume range

96-tube manifold: 50-3,000 µL/tube in 1 µL increments

Wash cycles

1-250

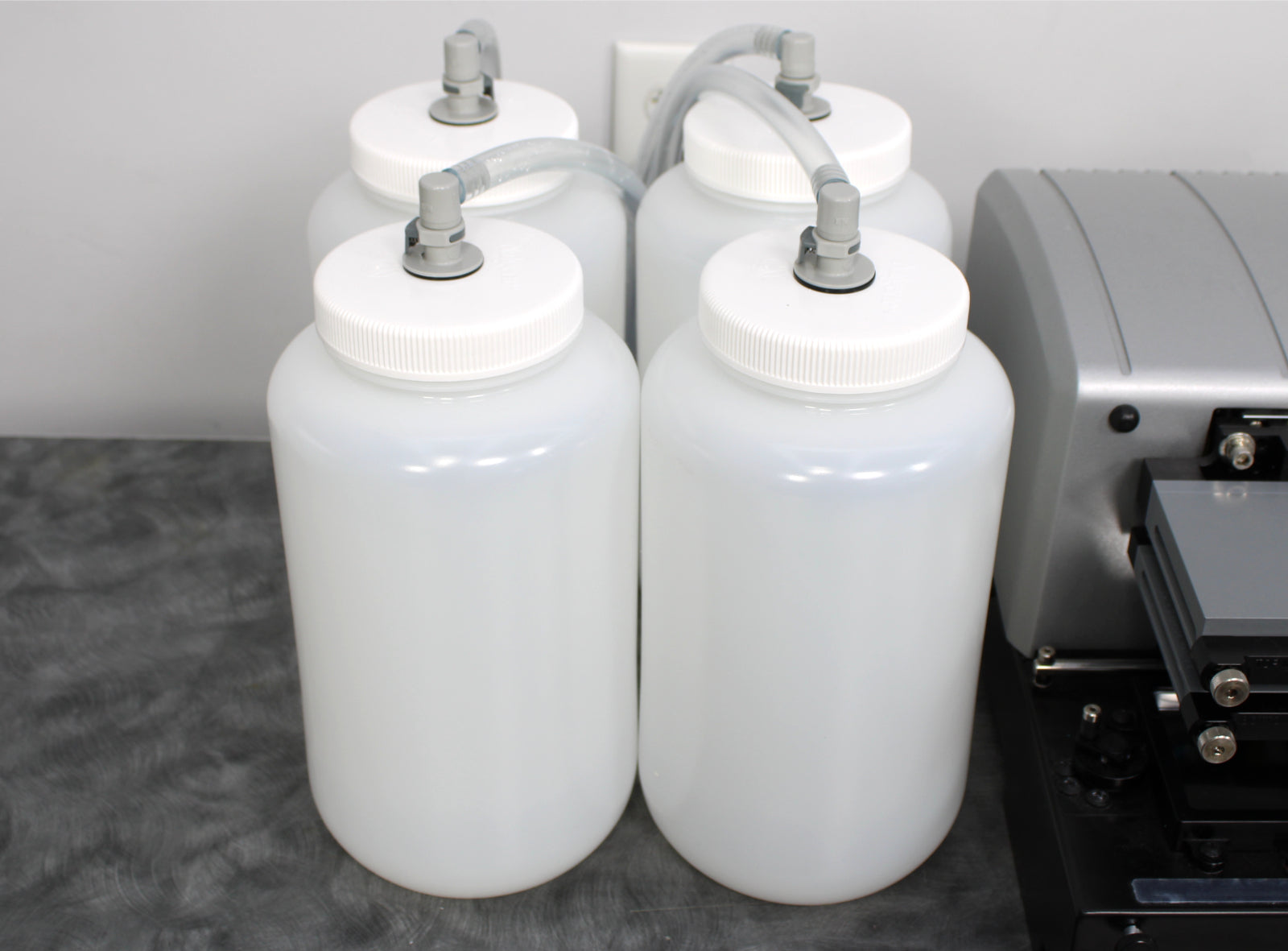

Buffer/reagent selection

Auto switching module for up to four buffers (option)

Supply bottle

4 or 10 L (optional)

Dispense precision

< 3% CV: 300 µL/well (96-well washing)
< 4% CV: 80 µL/well (384-well washing)

Residual volume

≤ 2 µL/well (96- and 384-well washing)
96-tube manifold for 96 wells; 192-tube for 384 wells

Wash speed

96-wells, 300 µL/well, 3 cycles; ≤ 30 s
384-wells, 100 µL/well, 3 cycles; ≤ 80 s
384-wells, 400 µL/well, 1 cycles; ≤ 20 s

Flow rates

High flow to low flow
Optimized rates for cell assays

Sterilization

Chemical

Vacuum filtration**

Selectable: approximate final at 30 s:
Lowest: -38 mmHg
Low: -113 mmHg
Medium: -200 mmHg
High: -390 mmHg
Highest: -506 mmHg
Vacuum filtration time range: 5-999s

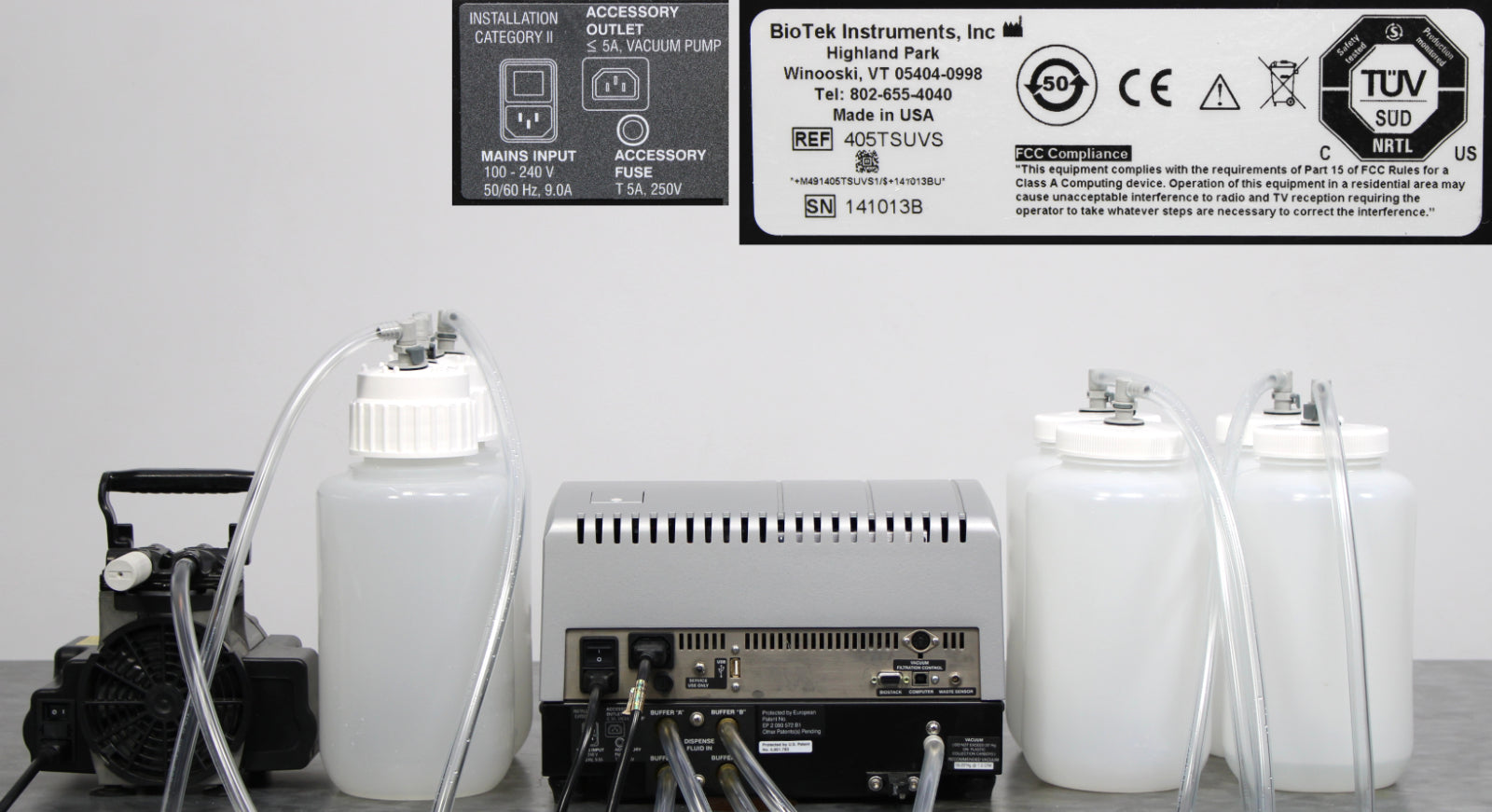

Power rating

100-240V, 50/60Hz, 9.0A

Dimensions (W x D x H)

14 x 17 x 10 in (35.6 x 43.2 x 25.4 cm)

Weight

With internal buffer switching: 36 lb (16.5 kg)
Without internal buffer switching: 30 lb (13.5 kg)
