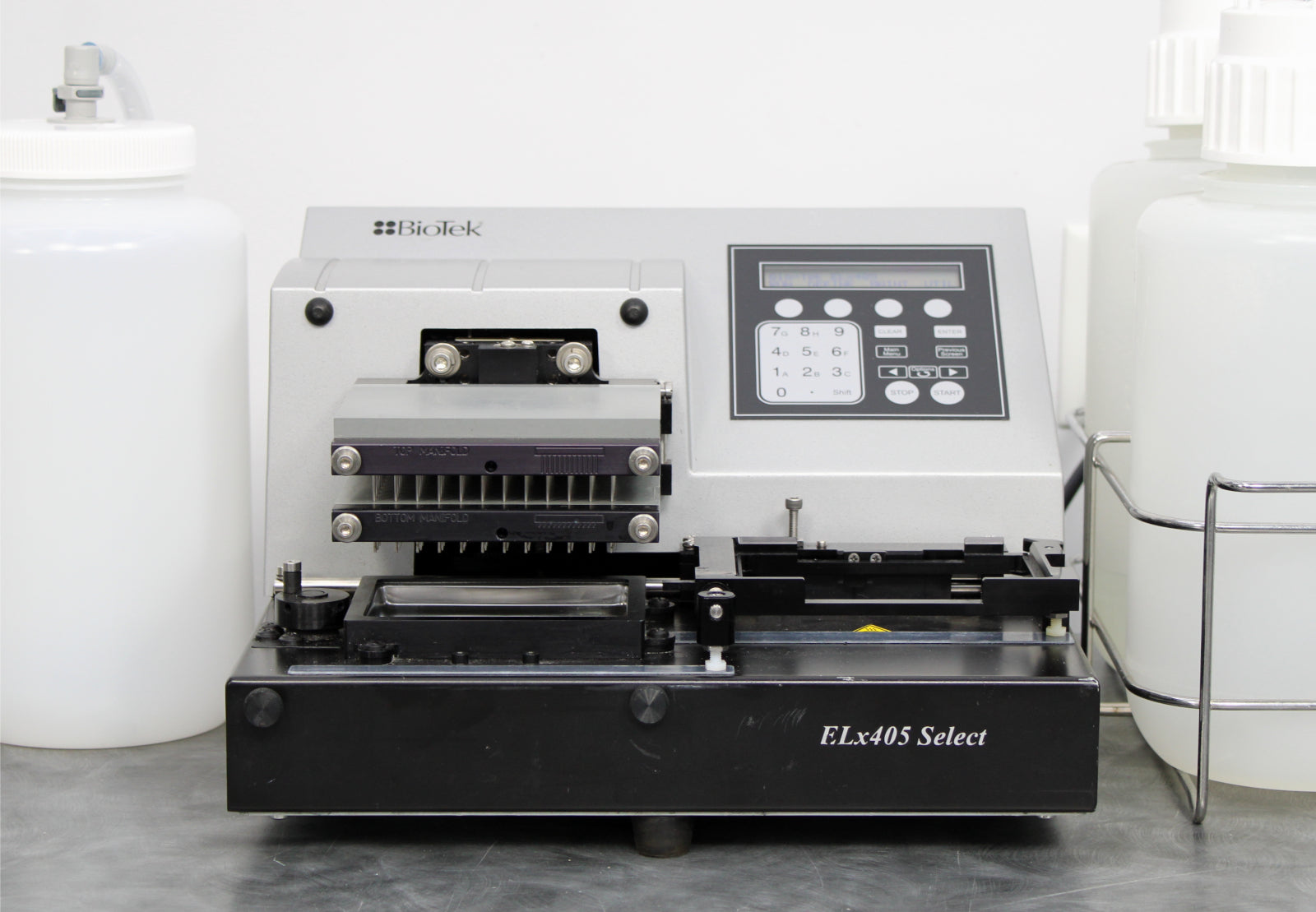

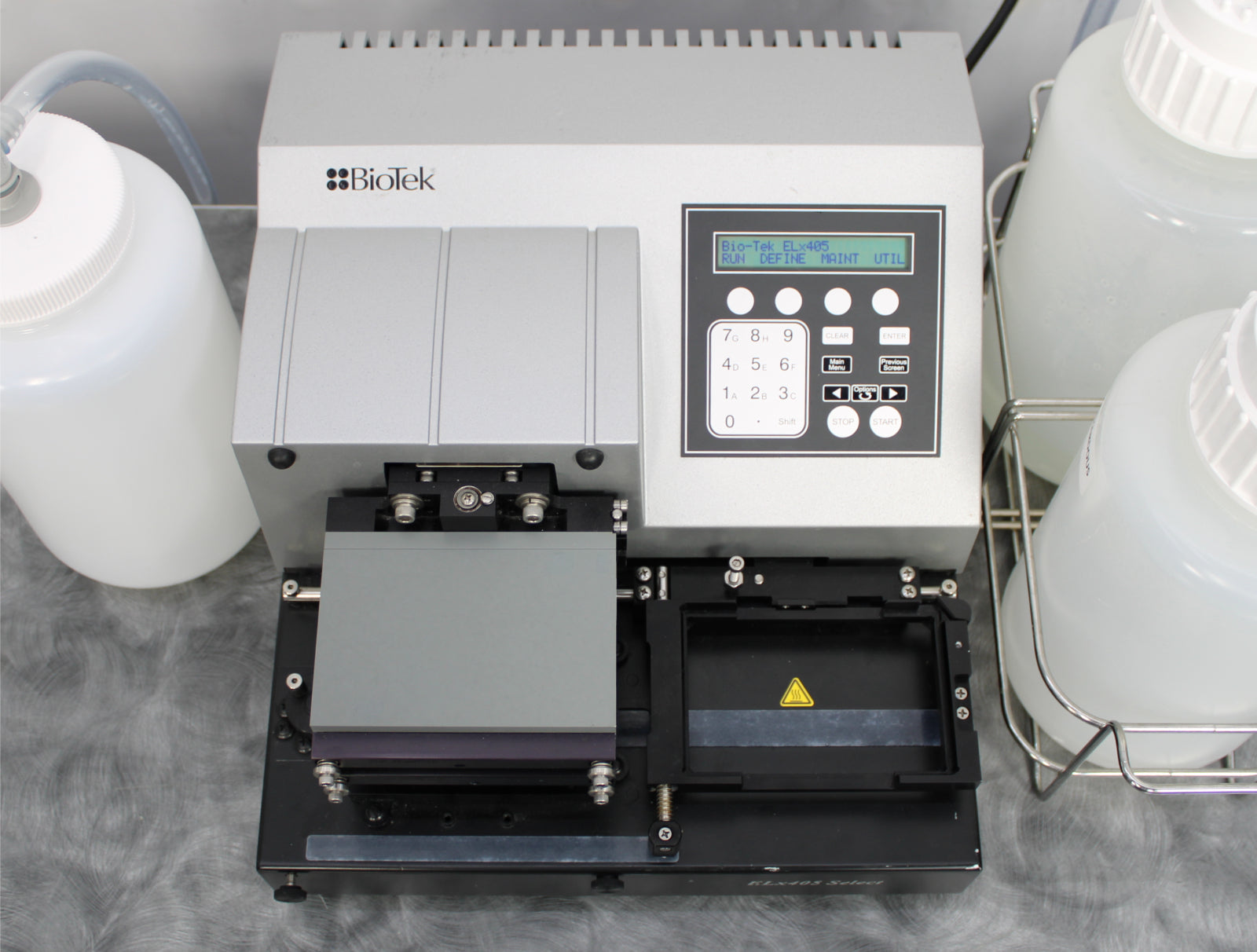

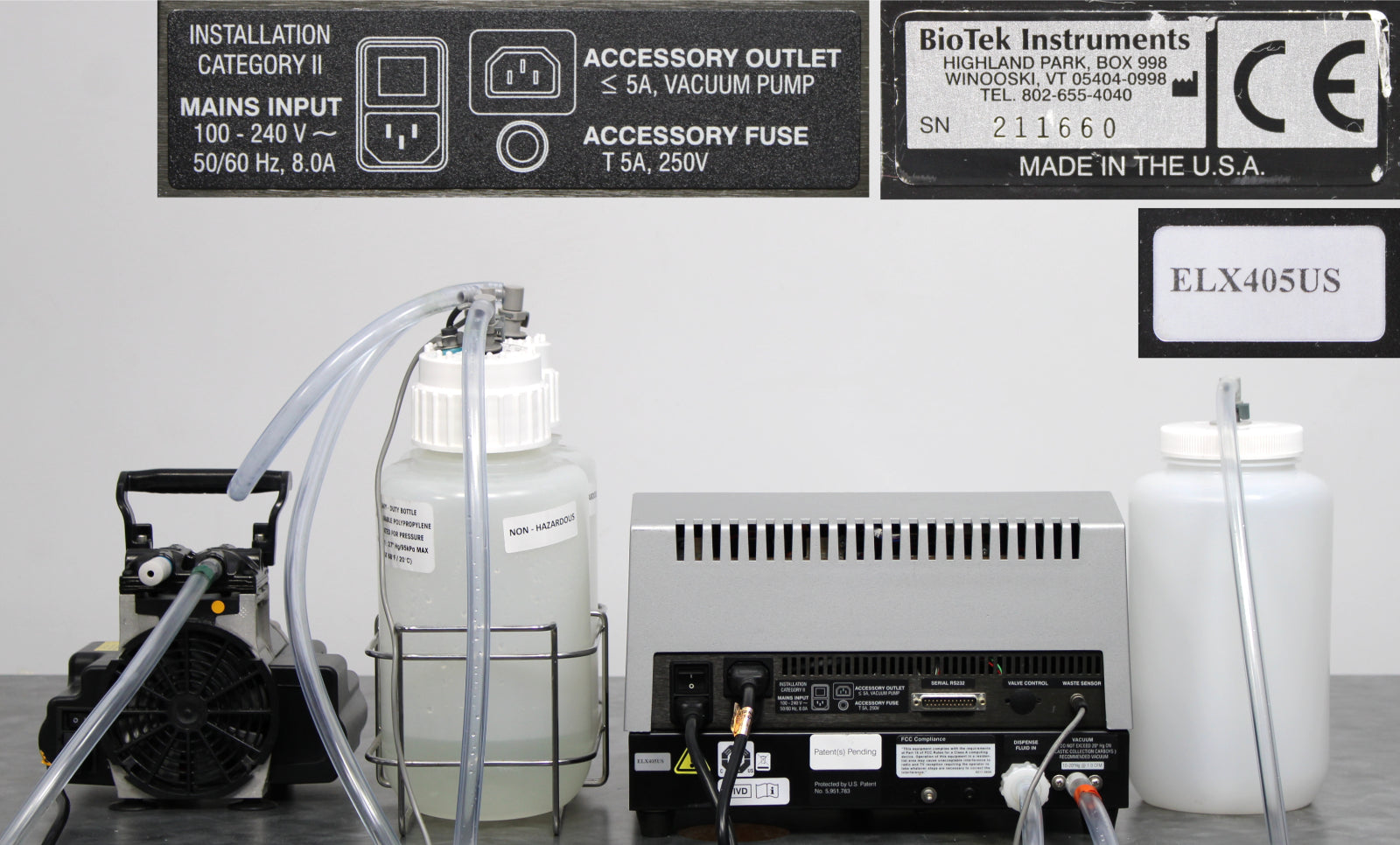

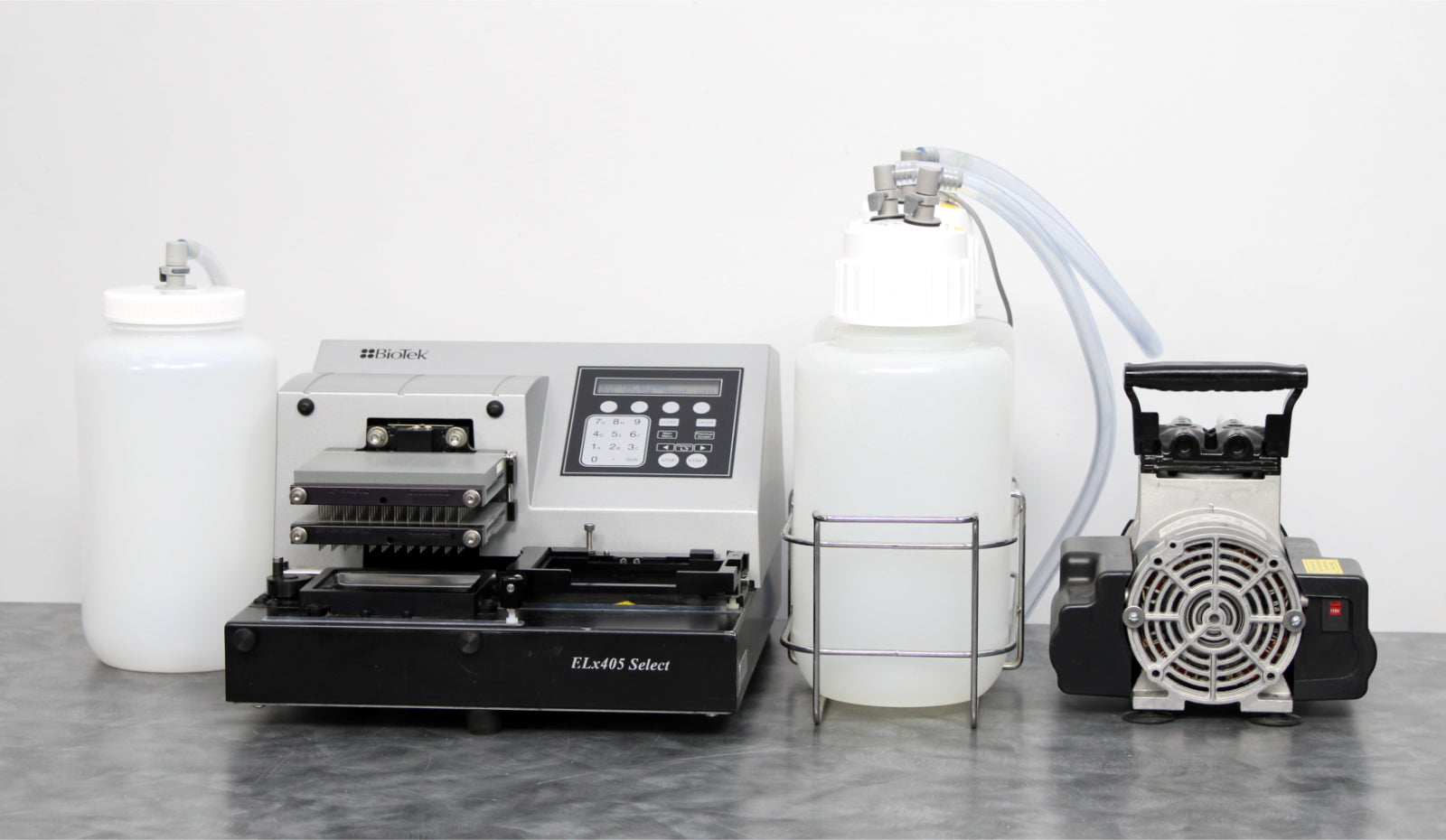

- BioTek Instruments ELx405 Select Microplate Washer (ELX405US)

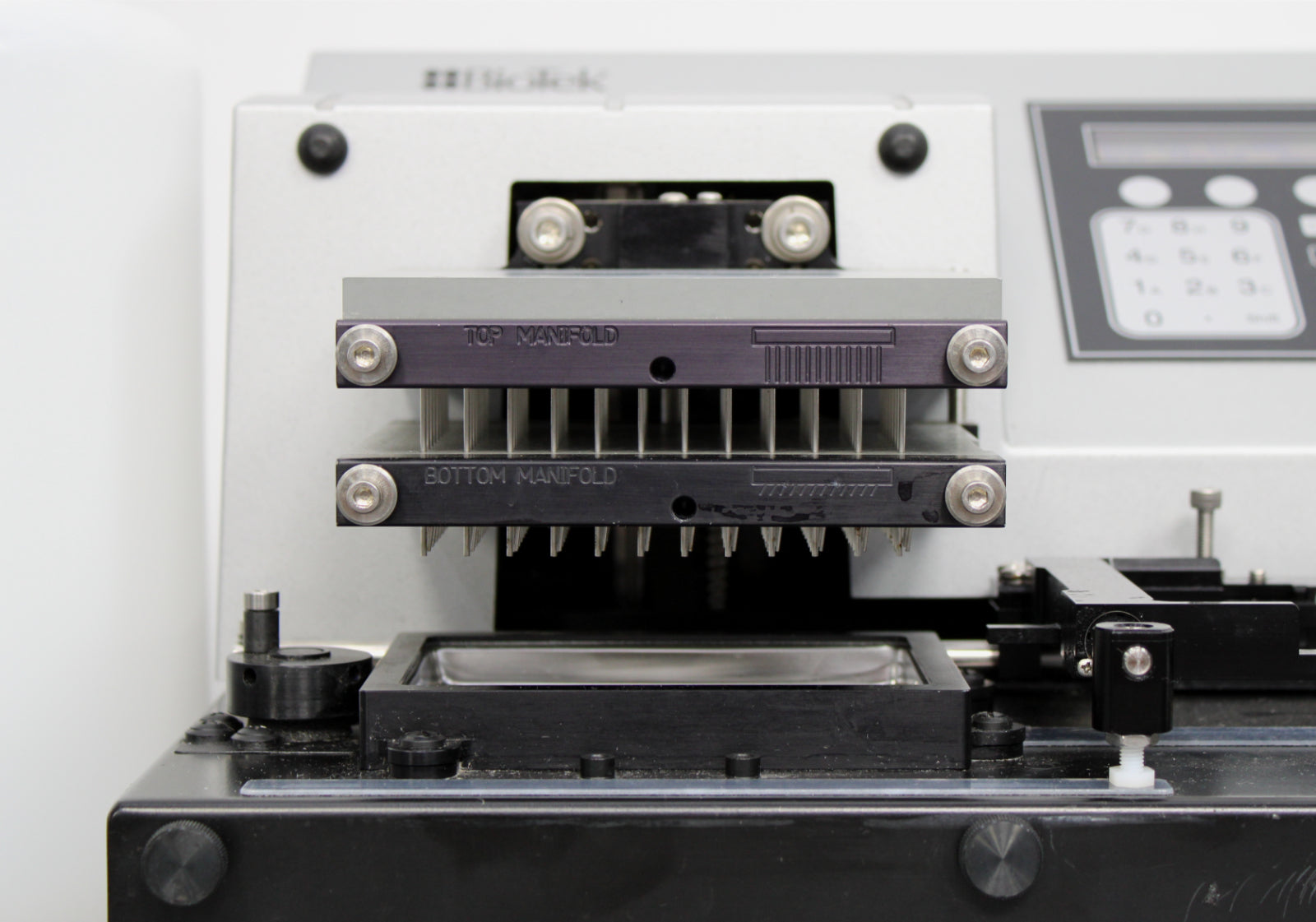

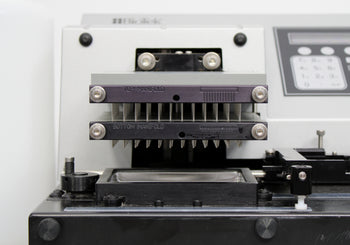

- 96-tube Dual-Action Manifold

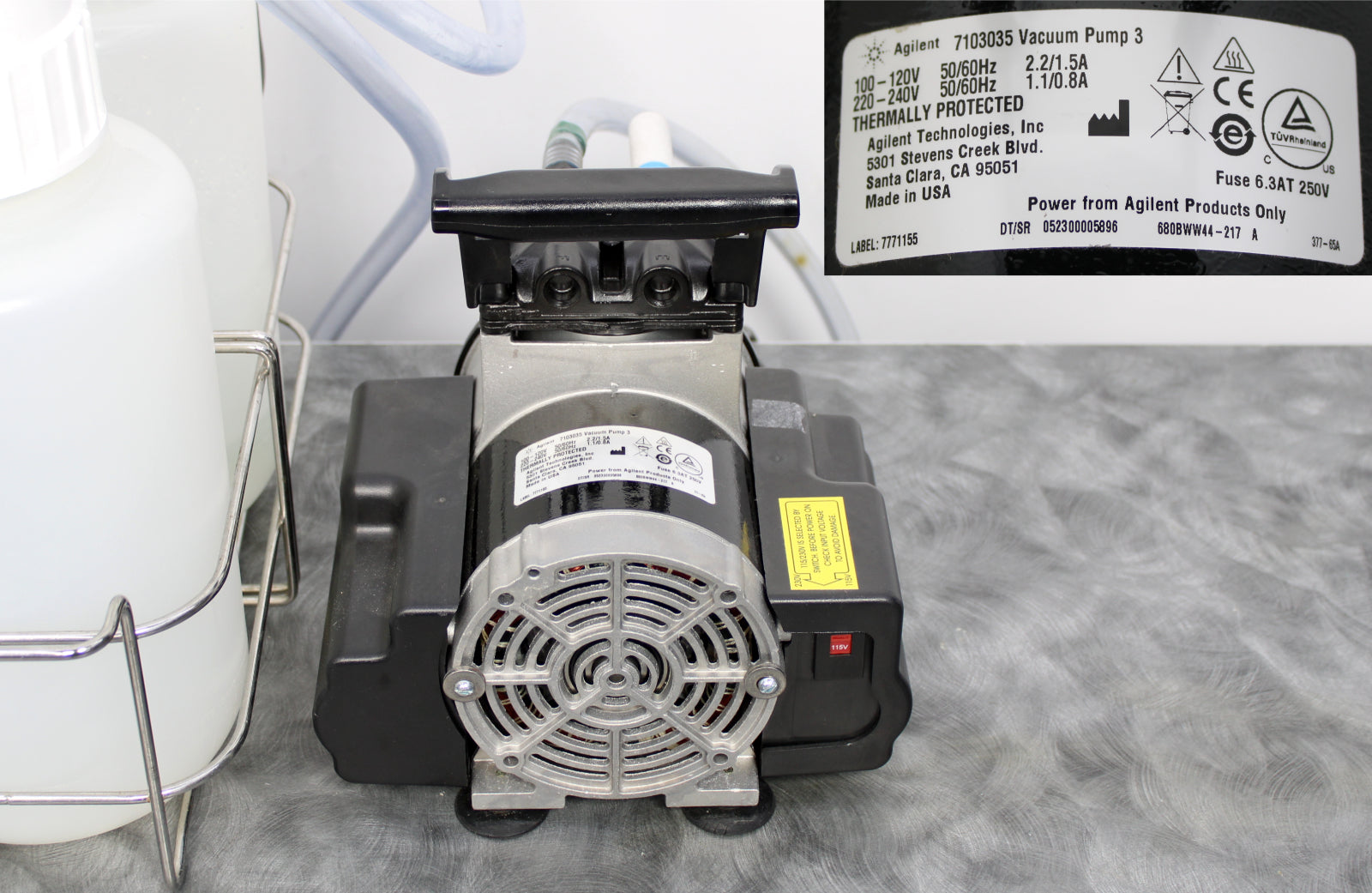

- Vacuum Pump
- Buffer Bottle
- x2 Waste Bottles
- Bottle Rack
- Tubing
- Pump Power Cable
- Main Power Cable
- 90-Day Warranty
Notice: The included 96-tube Dual-Action manifold can wash both 96- and 384-well plates without hardware changes.
After its initial disinfection and inspection, our technicians tested the BioTek Instruments ELx405 Select microplate washer with the following results:
- Ran several wash cycles: PASSED
- Dispensing: PASSED
- Aspiration: PASSED
- Performed inspection; no issue found: PASSED
|
Manufacturer
|
BioTek Instruments
|
|
Model
|
ELx405 Select
|
|
Model No.
|
ELX405US
|
|
Serial No.
|
211660
|
|
Microplate type
|
96- and 384-well
Low profile and standard height
|
|

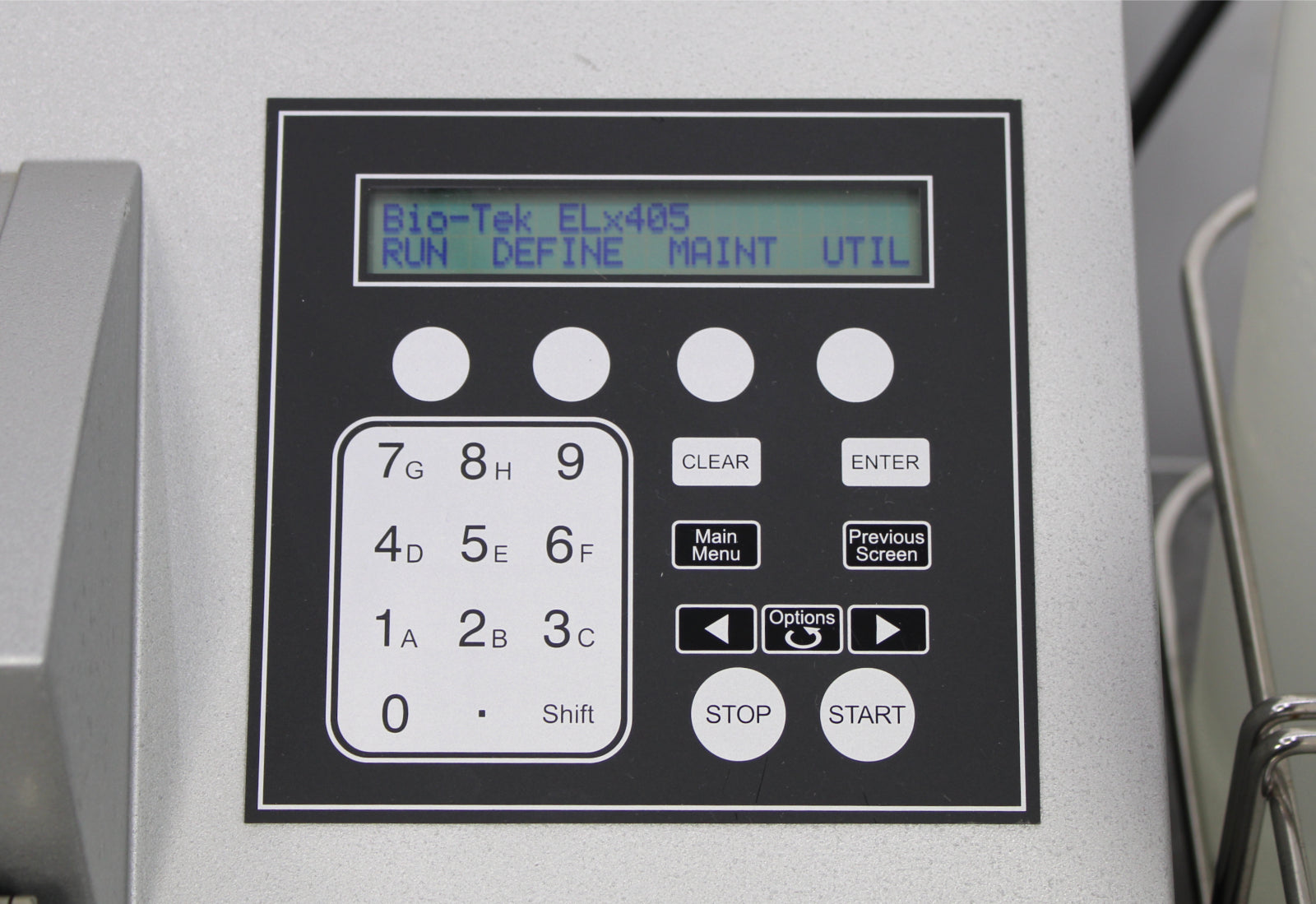

Onboard software
|
Create, edit and run multiple protocols
|
|
Soaking
|
Programmable in minutes and seconds, up to 60 min.
|
|
Ultrasonic advantage
|
Yes (option)
|
|
Manifold type
|
96-tube Dual Action manifold for 96- & 384-well washing
|
|
Volume range
|
50 to 3000 microliter increments
|
|
Wash cycles
|
1-10
|
|
Supply bottle
|
4 or 10 L (optional)
|
|
Dispense precision
|
≤3% CV: 300 µL/well (96-well washing)
|
|
Residual volume
|
≤2 µL/well (standard 96-well plates)
|
|
Wash speed
|
96-wells: 300 μL/well, 3 cycles: <30 s
384-wells: 100 μL/well, 3 cycles: <80 s
|
|
Flow rates
|
High flow to low flow
Optimized rates for cell assays
|
|
Sterilization
|
Chemical
|
|
Vacuum filtration*
|
Selectable: approximate final at 30 s:
Lowest: -38 mmHg
Low: -113 mmHg
Medium: -200 mmHg
High: -390 mmHg
Highest: -506 mmHg
Vacuum filtration time range: 5-999s
|
|

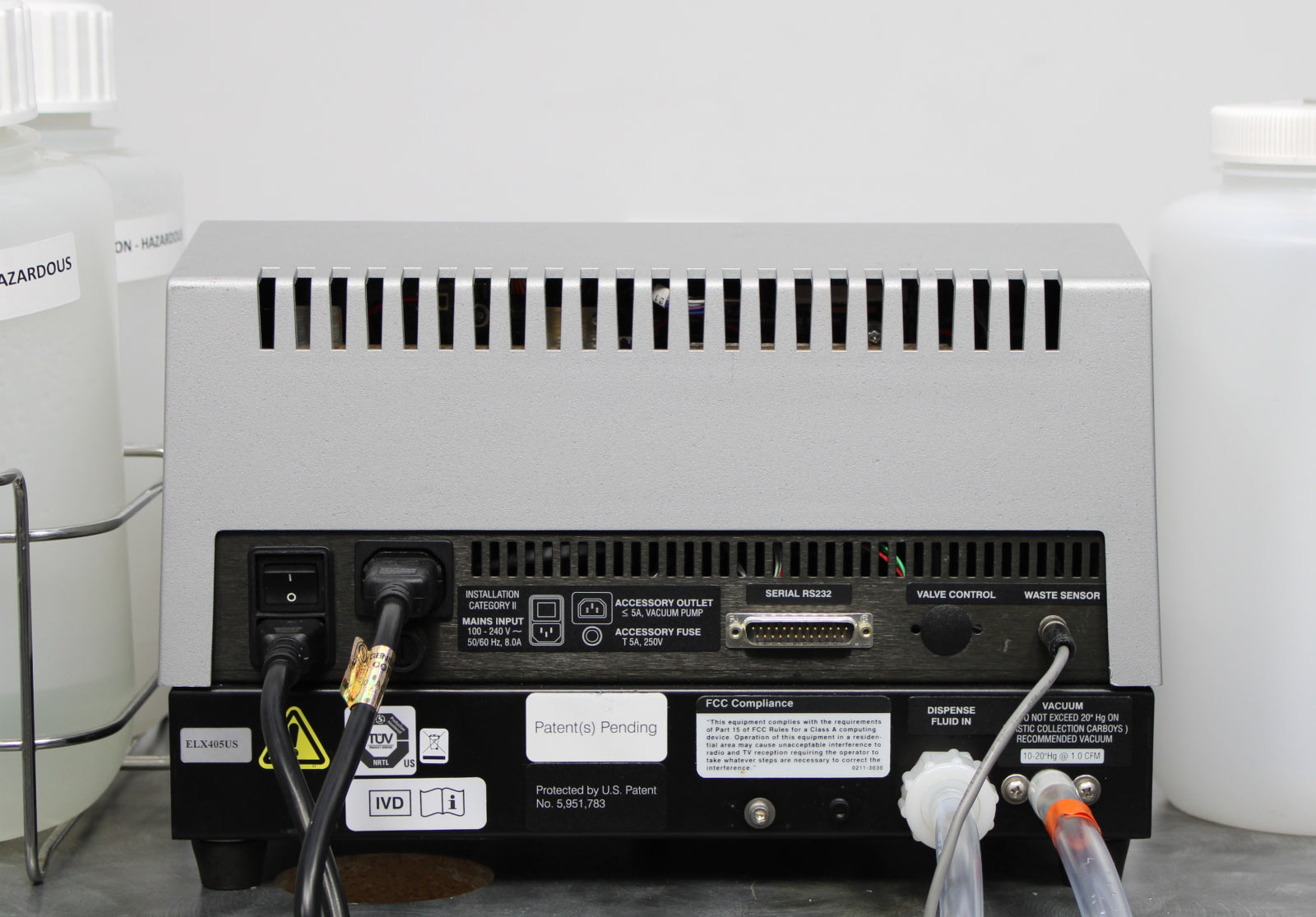

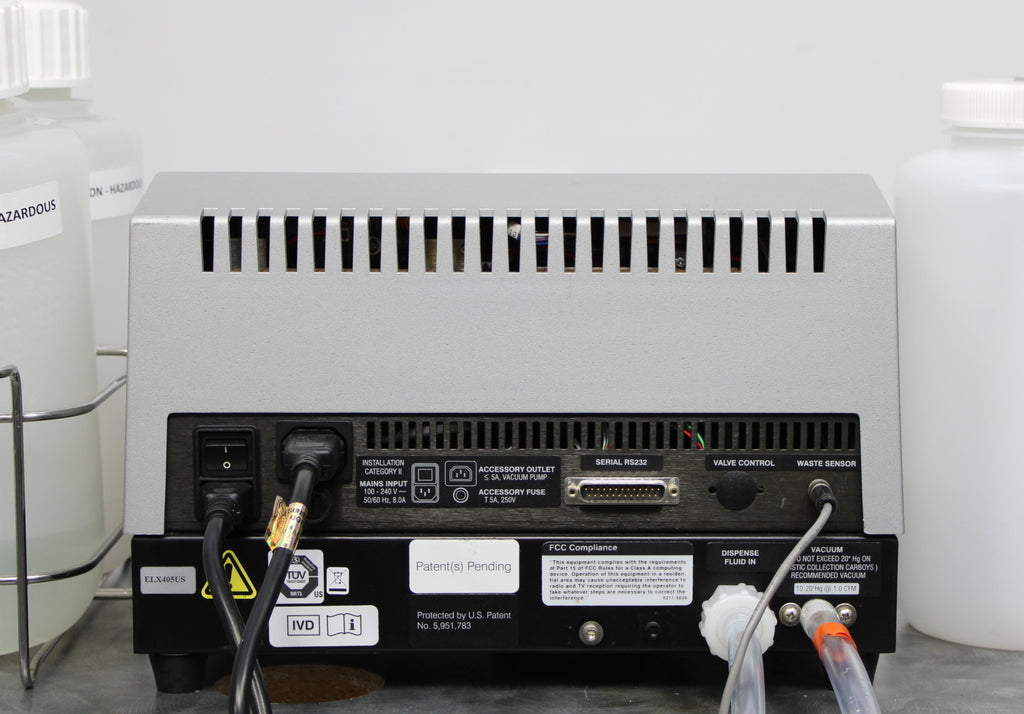

Interface
|
RS-232 port
|
|
Power rating
|
100 to 240V~, 50/60Hz, 8.0A
|
|
Accessory outlet
|
≤5.0A, used for vacuum pump
|
|
Dimensions (W x D x H)
|
14 x 17 x 10 in (35.6 x 43.2 x 25.4 cm)
|
|
Weight
|
With internal buffer switching: 36 lb (16.5 kg)
Without internal buffer switching: 30 lb (13.5 kg)
|
*With available accessory module sold separately.
