- BioTek Instruments ELx50 8-Channel Microplate Strip Washer (ELx508F) with Built-In Vacuum
- Vacuum Filtration Module
- Tubing
- Supply (Buffer) Bottle
- Waste Bottle
- Power Adapter
- Power Cable
- 90-Day Warranty
After its initial disinfection and inspection, our technicians tested the BioTek Instruments ELx50 microplate strip washer with the following results:
- Initialization and self-check: PASSED
- Priming: PASSED
- Dispense: PASSED
- Aspiration: PASSED
- Performed inspection; no issue found: PASSED

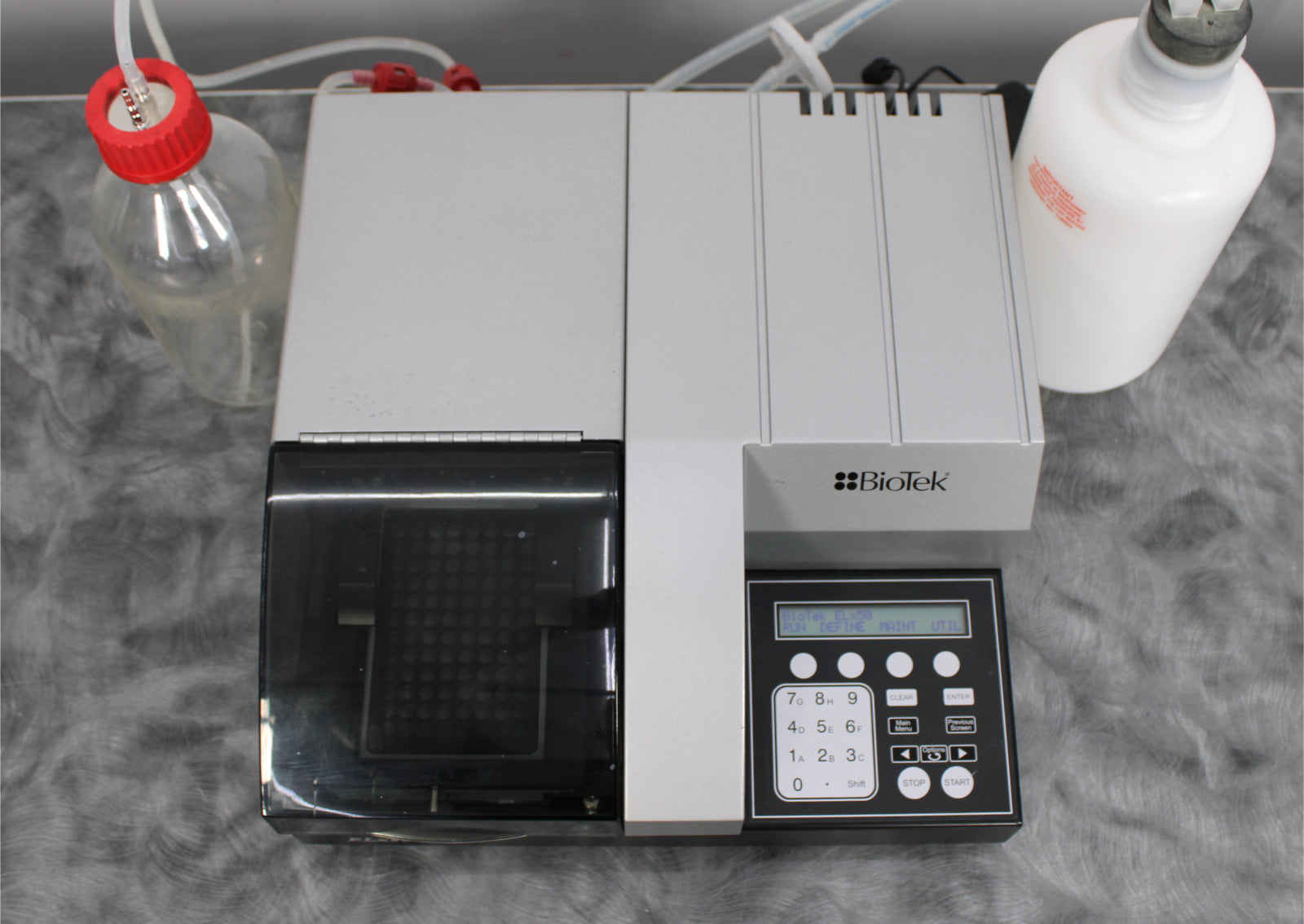

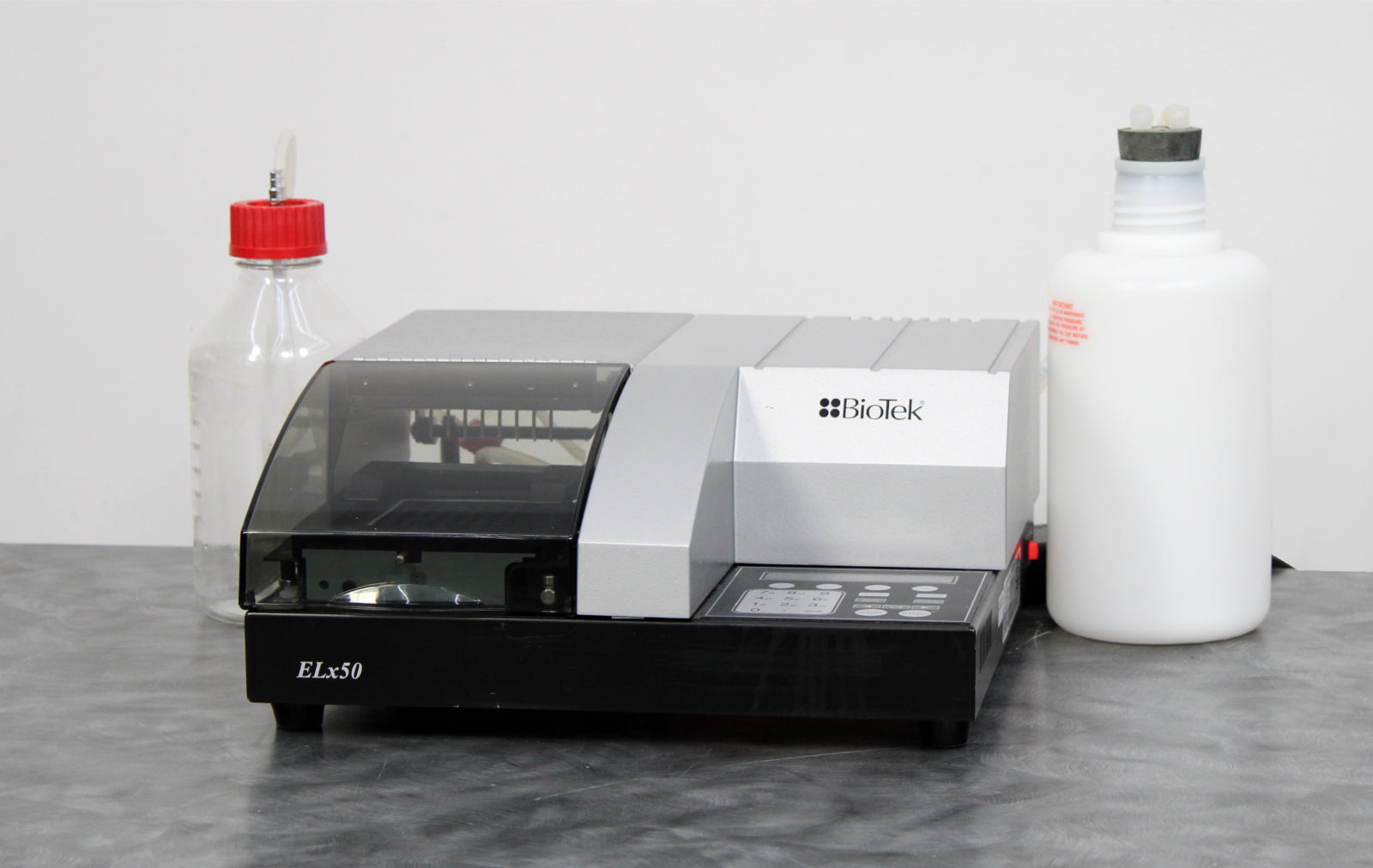

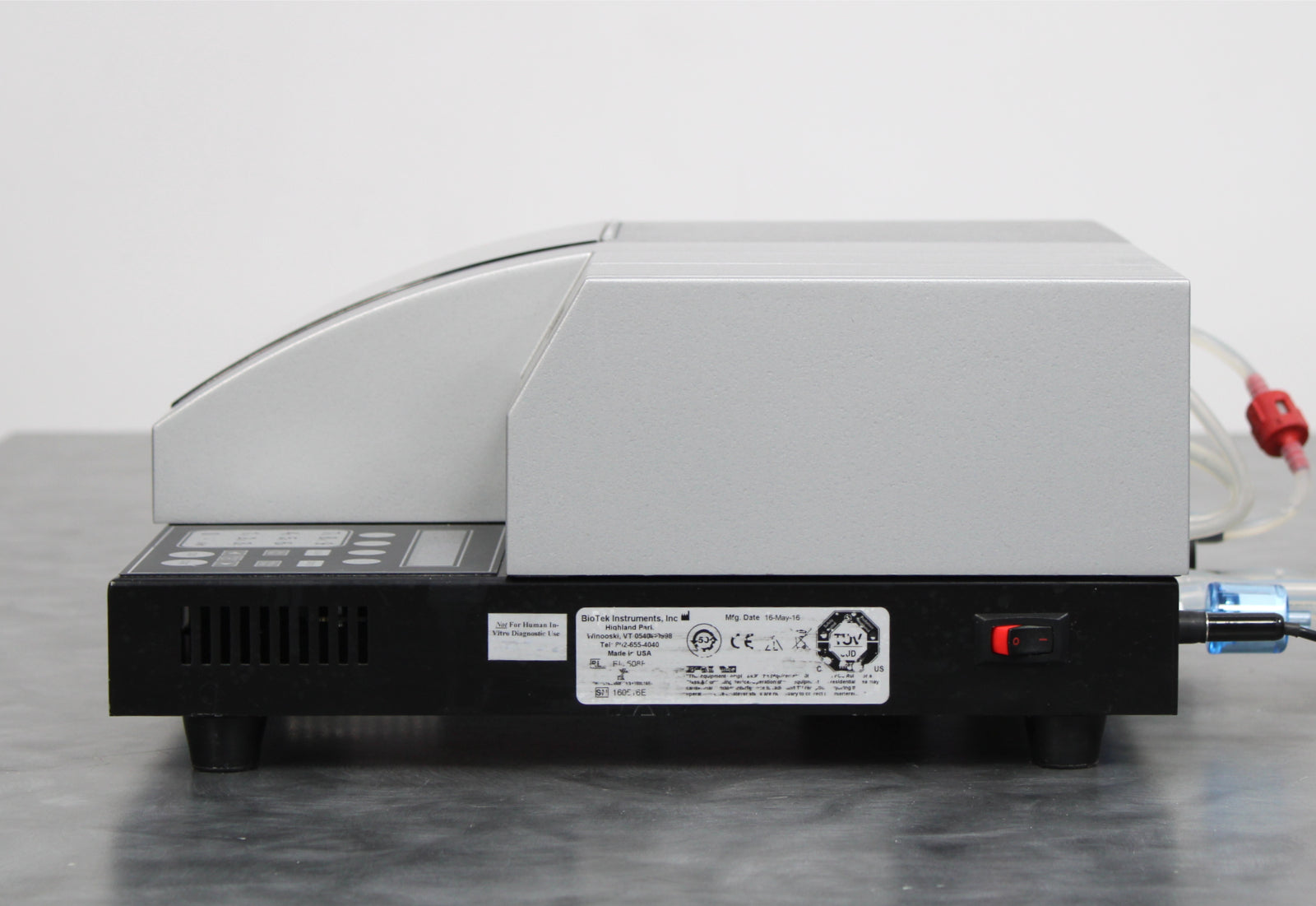

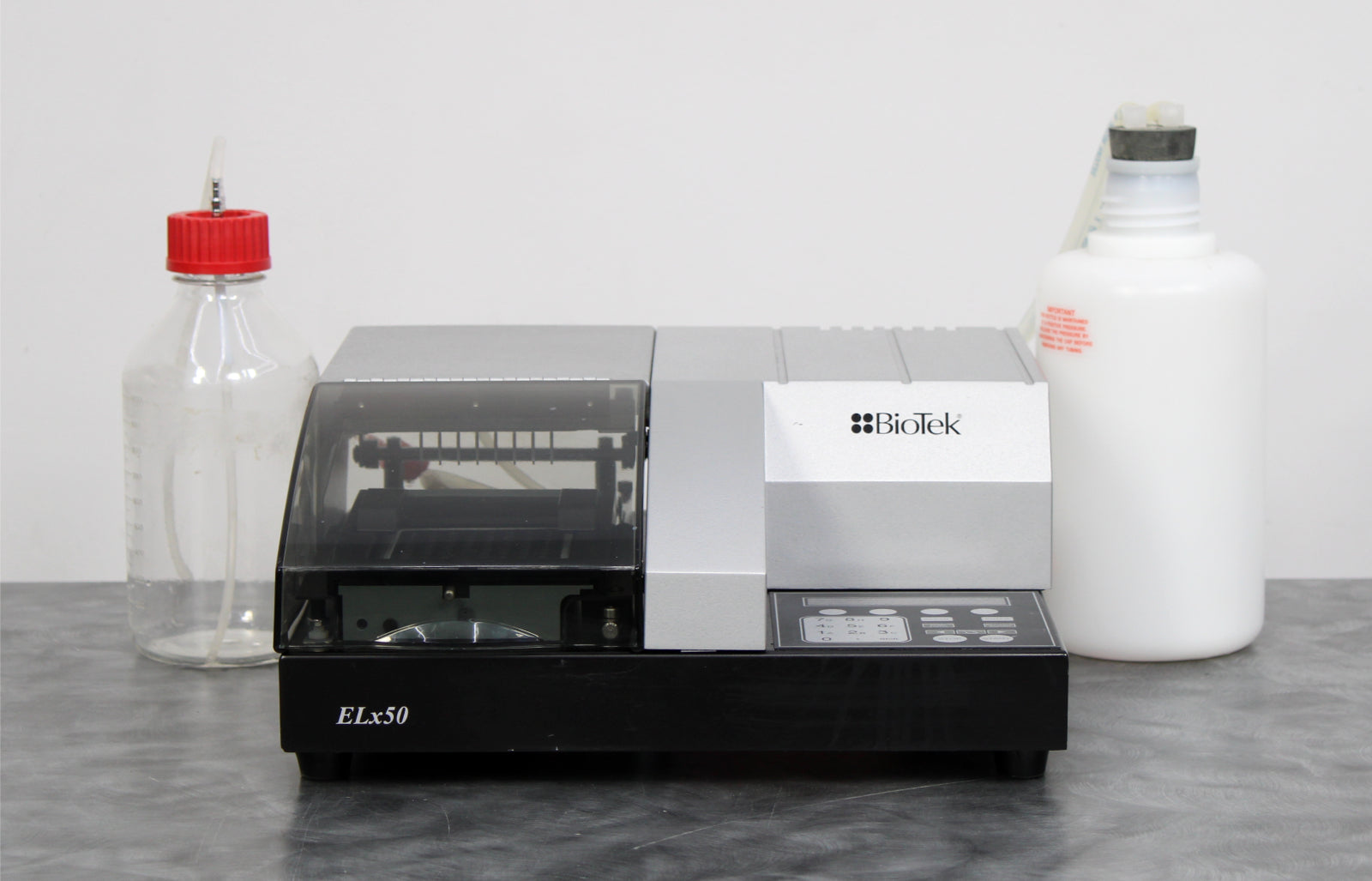

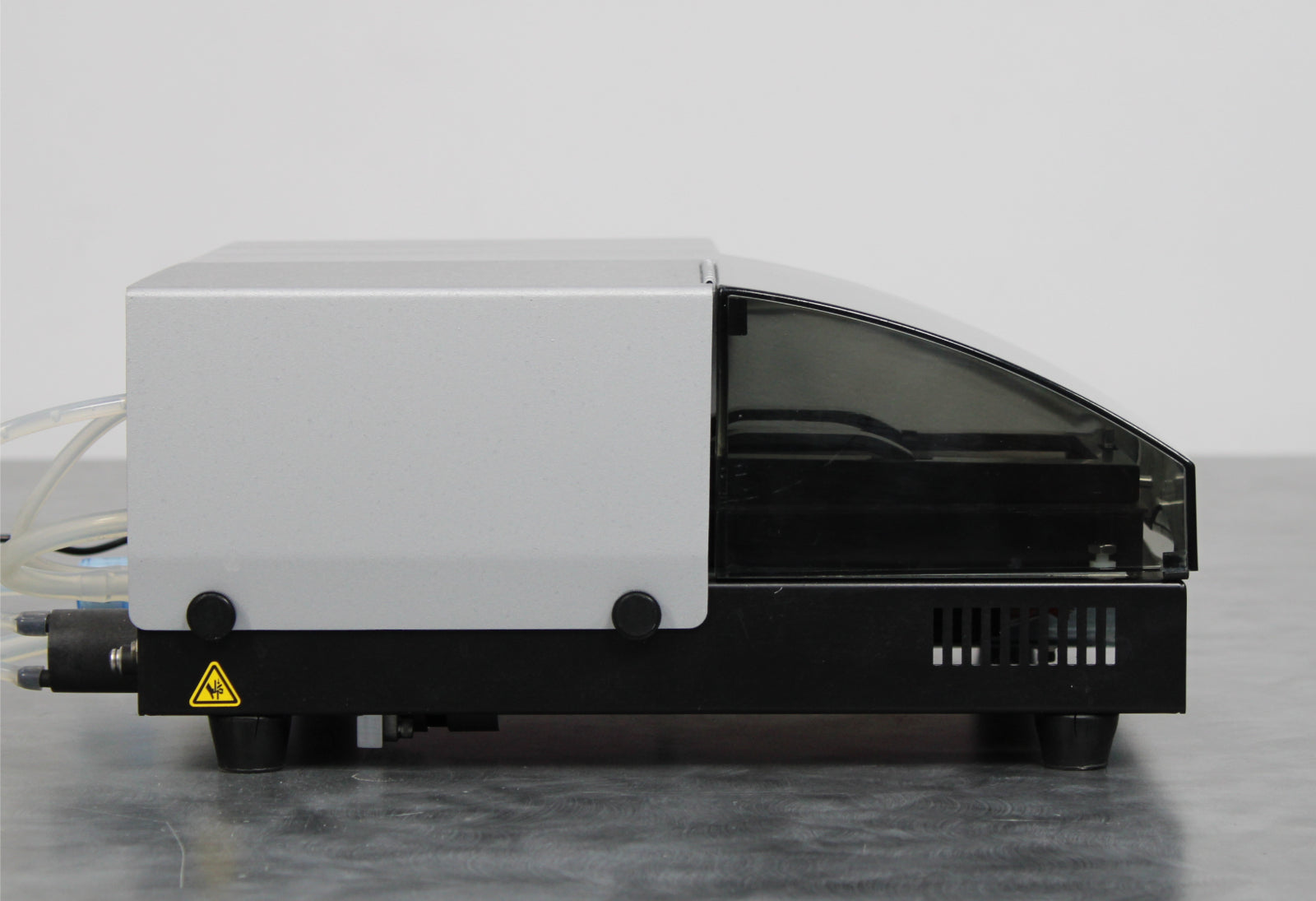

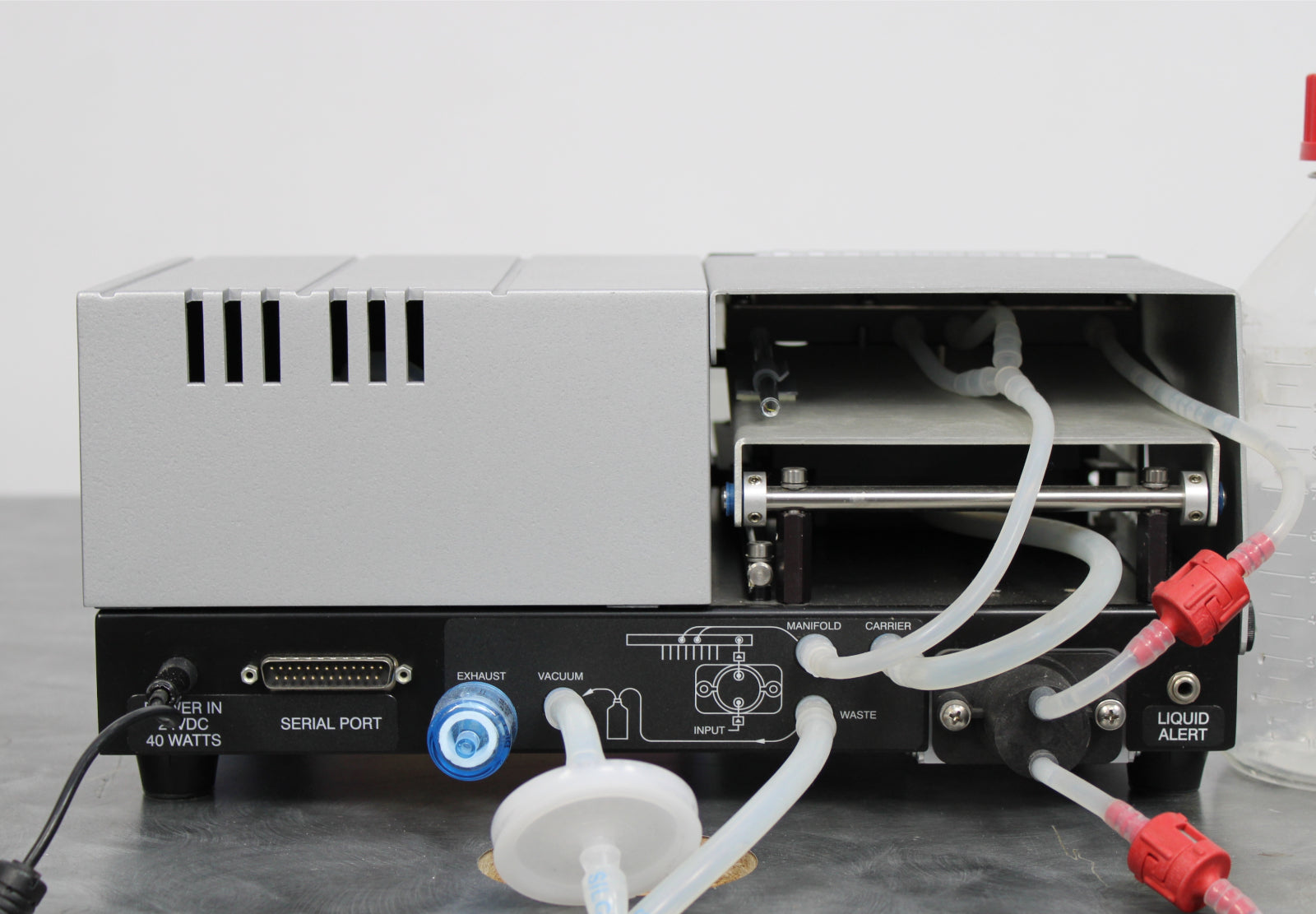

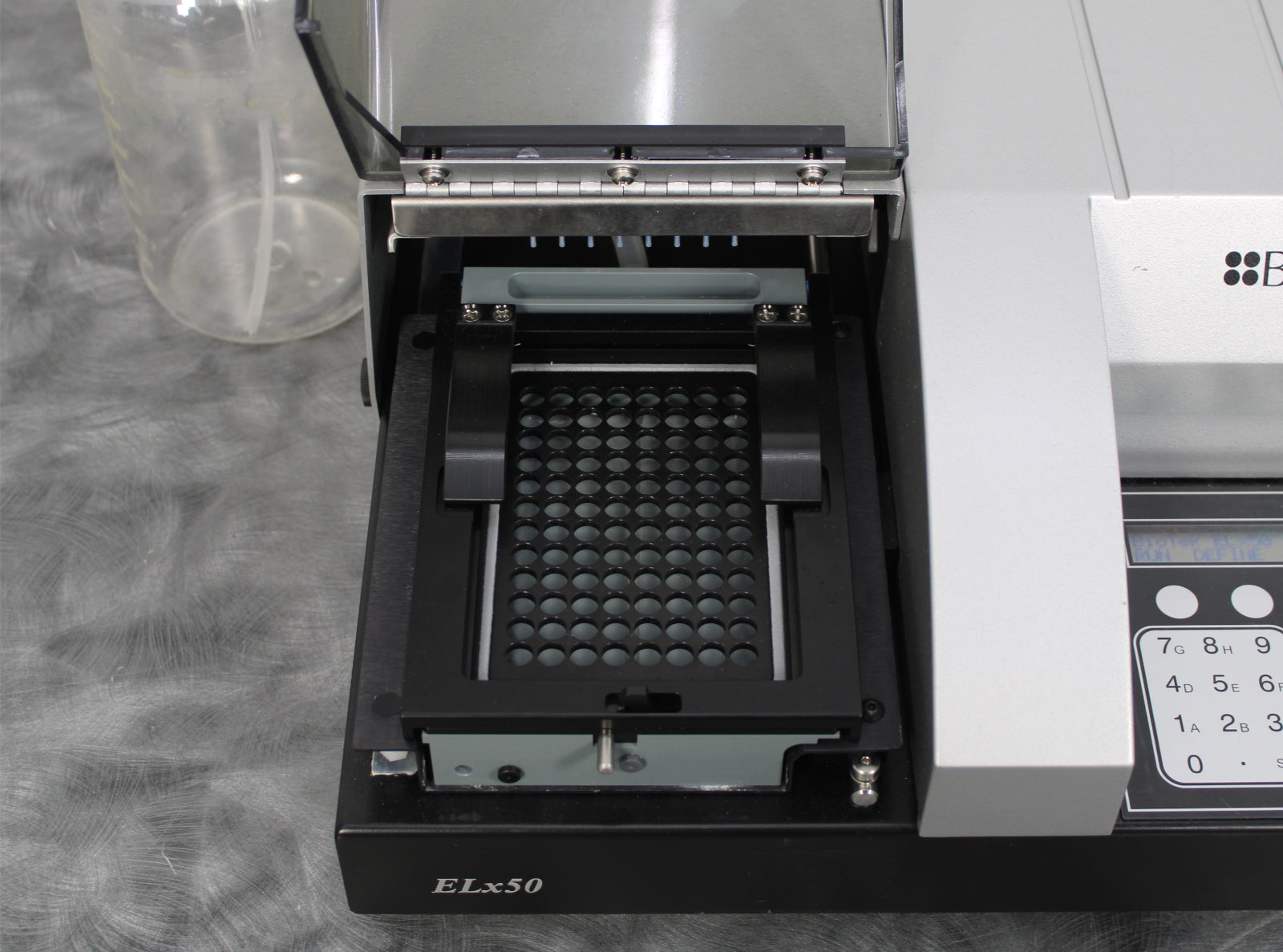

Notice: This microplate washer has some minor cosmetic blemishes. Please review the available photos to see the physical condition before purchasing.
|
Manufacturer
|
BioTek Instruments
|
|
Model
|
ELx508F
|
|

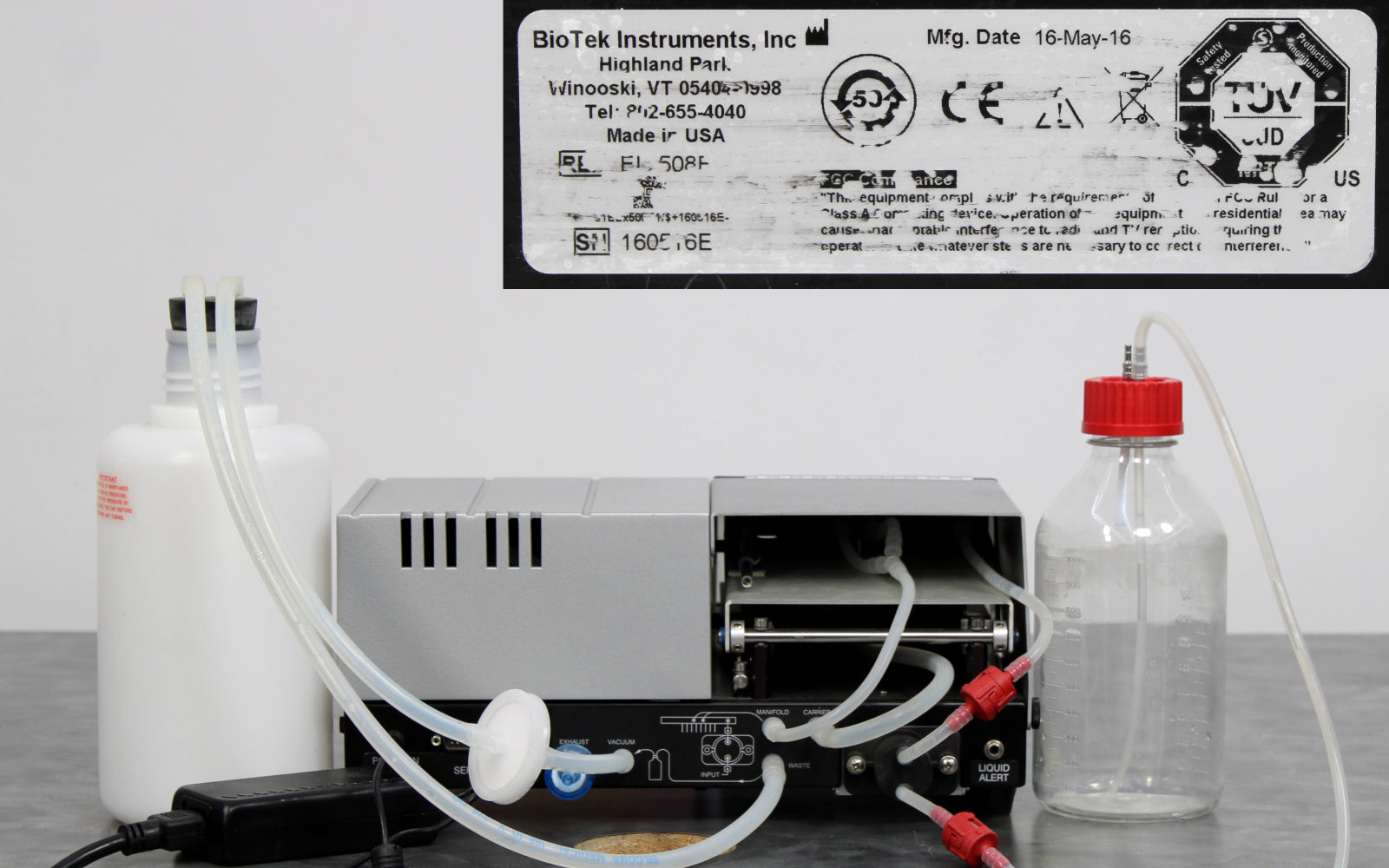

Serial No.
|
160516E
|
|
Mfg. date
|
16-May-16
|
|
Wash cycles
|
1 to 10 cycles
|
|

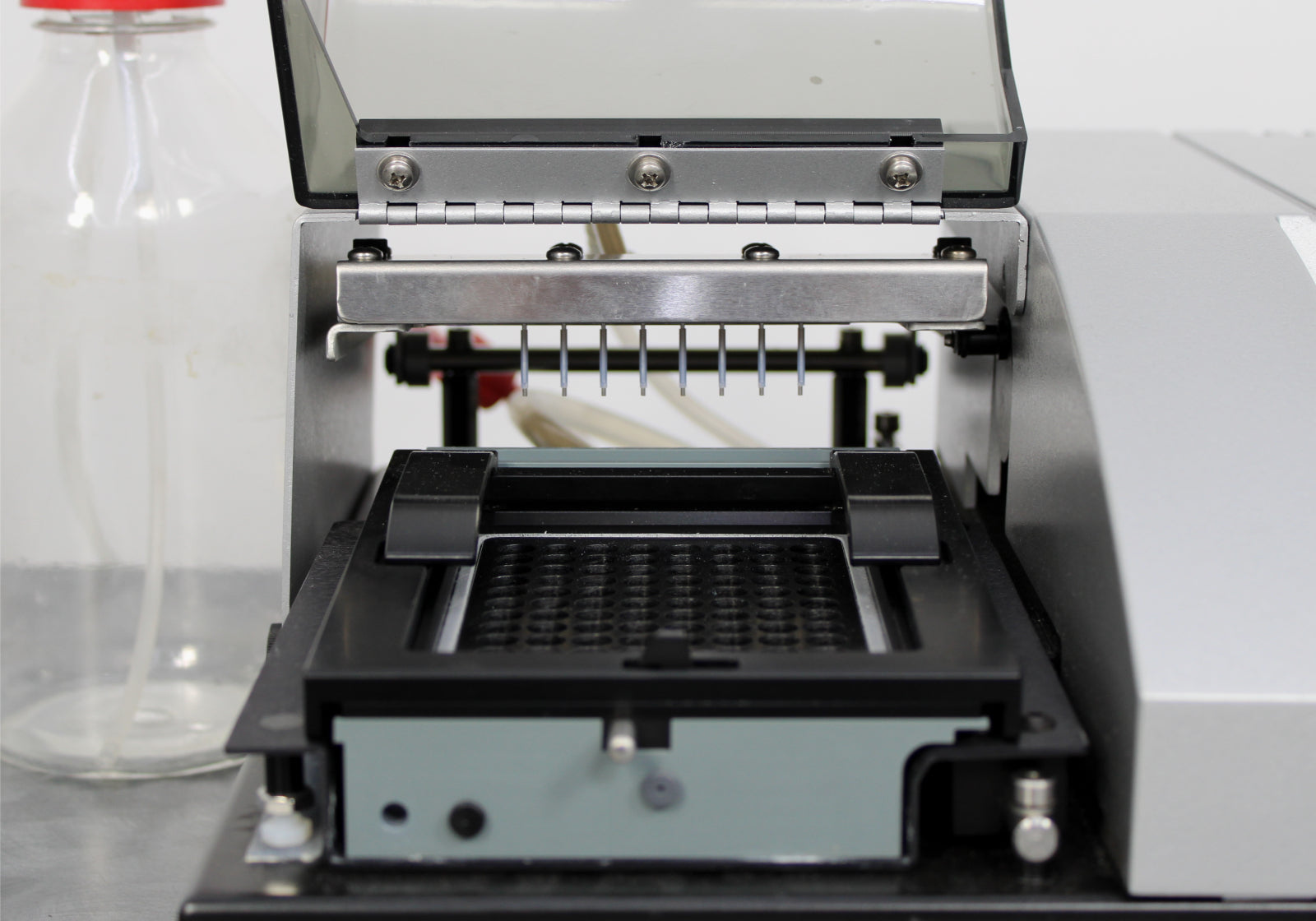

Manifold type
|
8-channel
|
|
Microplate
|
96-well solid-bottom plates and 96-well filter-bottom plates
|
|
Microwells
|
Flat, round, or “V” bottom
|
|
Microstrips
|
1 x 8
|
|
Residual volume (evacuation efficiency) (96-well)
|
Average residual of ≤ 2.0 µl per well after a 3-cycle wash, when dispensing 300 µl per well, into a minimum of 4 strips, using a solution of deionized water with 0.1% Tween® 20 or equivalent buffer solution. The aspirate height adjustment should be optimized for the plate prior to testing.
|
|
Dispense precision (96-well)
|
≤ 3.0% CV when measured over 6 strips from an 8- or 8s-channel manifold, or 4 strips from a 12- channel manifold, dispensing 300 µl per well of deionized water with 0.1% Tween 20 and colored dye at a rate of 300 µl per well per second.
|
|
Processing speed (96-well)
|
<130 seconds for 12 strips (3 cycles, 300 µl/well, no soak)
|
|

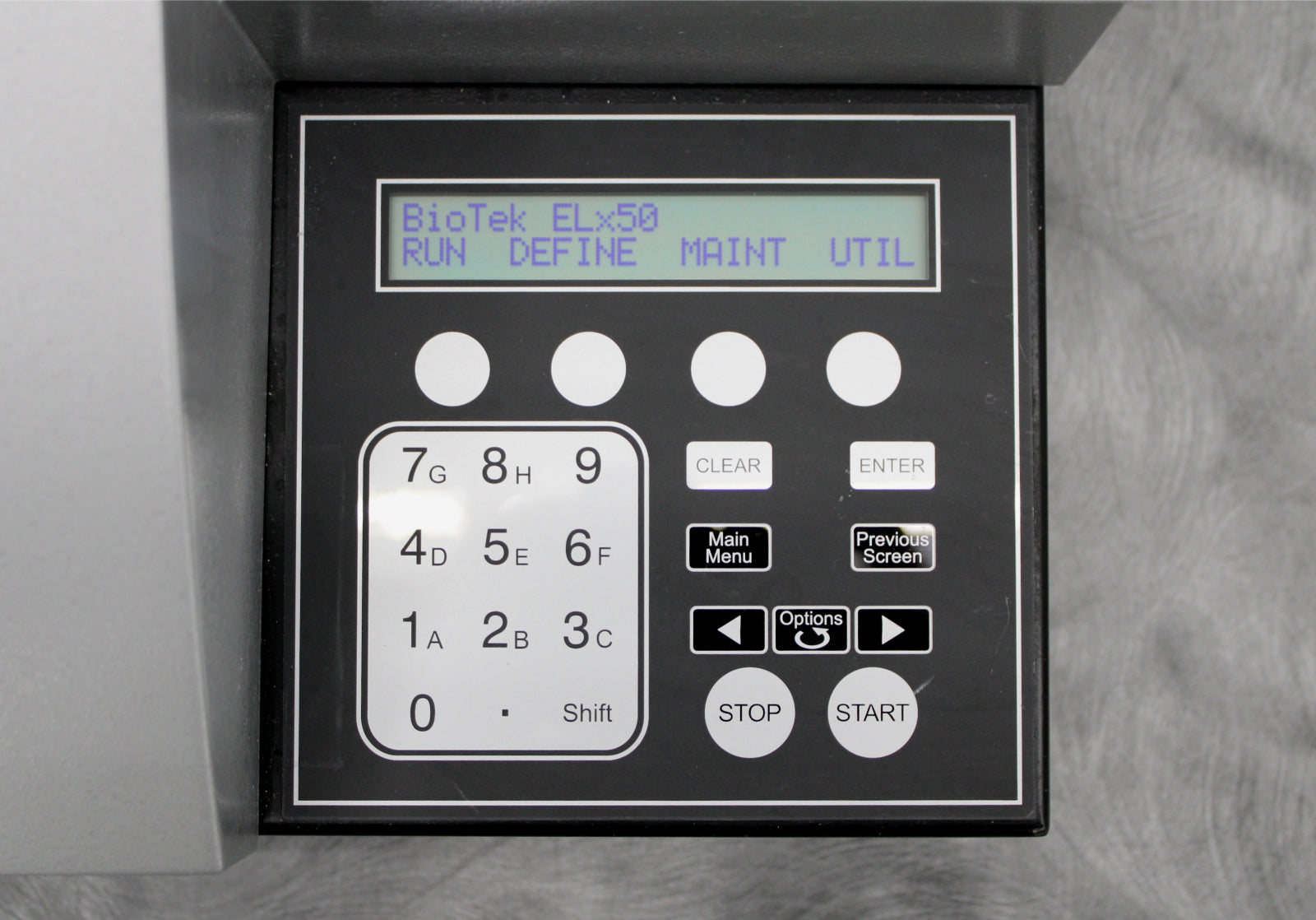

User interface (LCD)
|
2 x 24 LCD display; 25 alphanumeric soft keys
|
|
Power rating
|
100 to 250V~, 50/60Hz
|
|
Power consumption
|
40W
|
|
Dimensions (W x D x H)
|
14 x 16 x 6.5 in (35.6 x 40.6 x 16.5 cm)
|
|
Weight
|
20 lb (8.9 kg)
|
