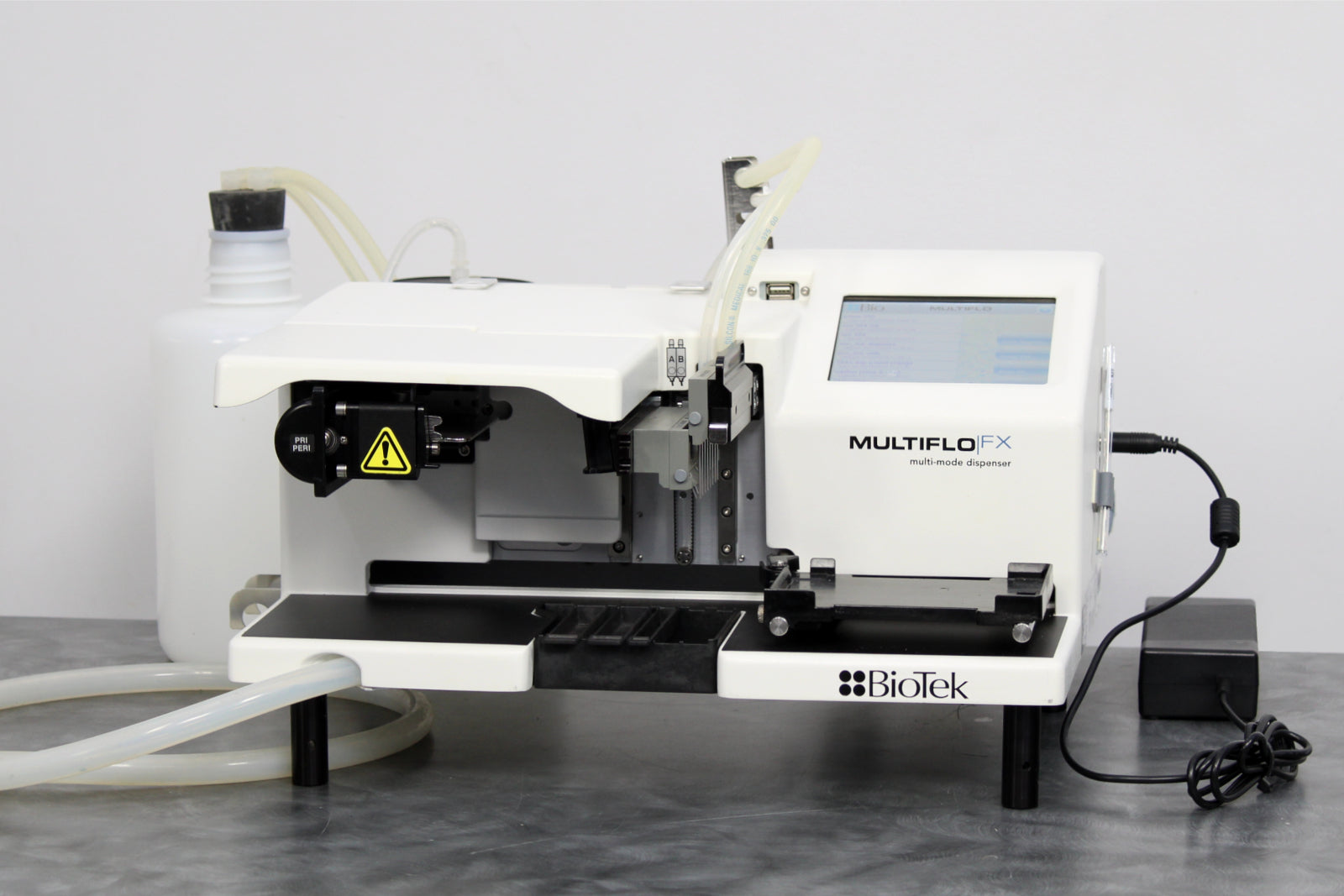

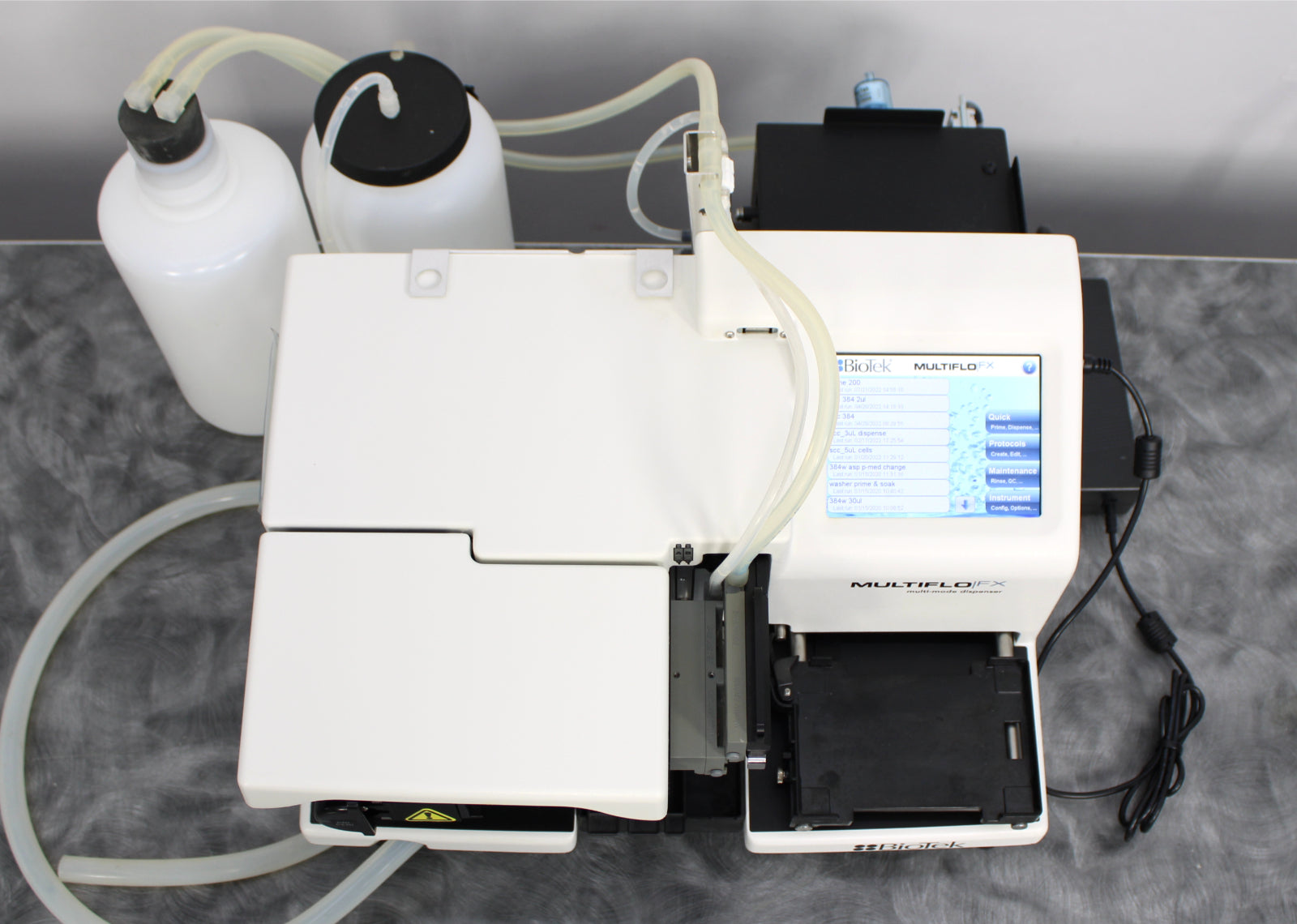

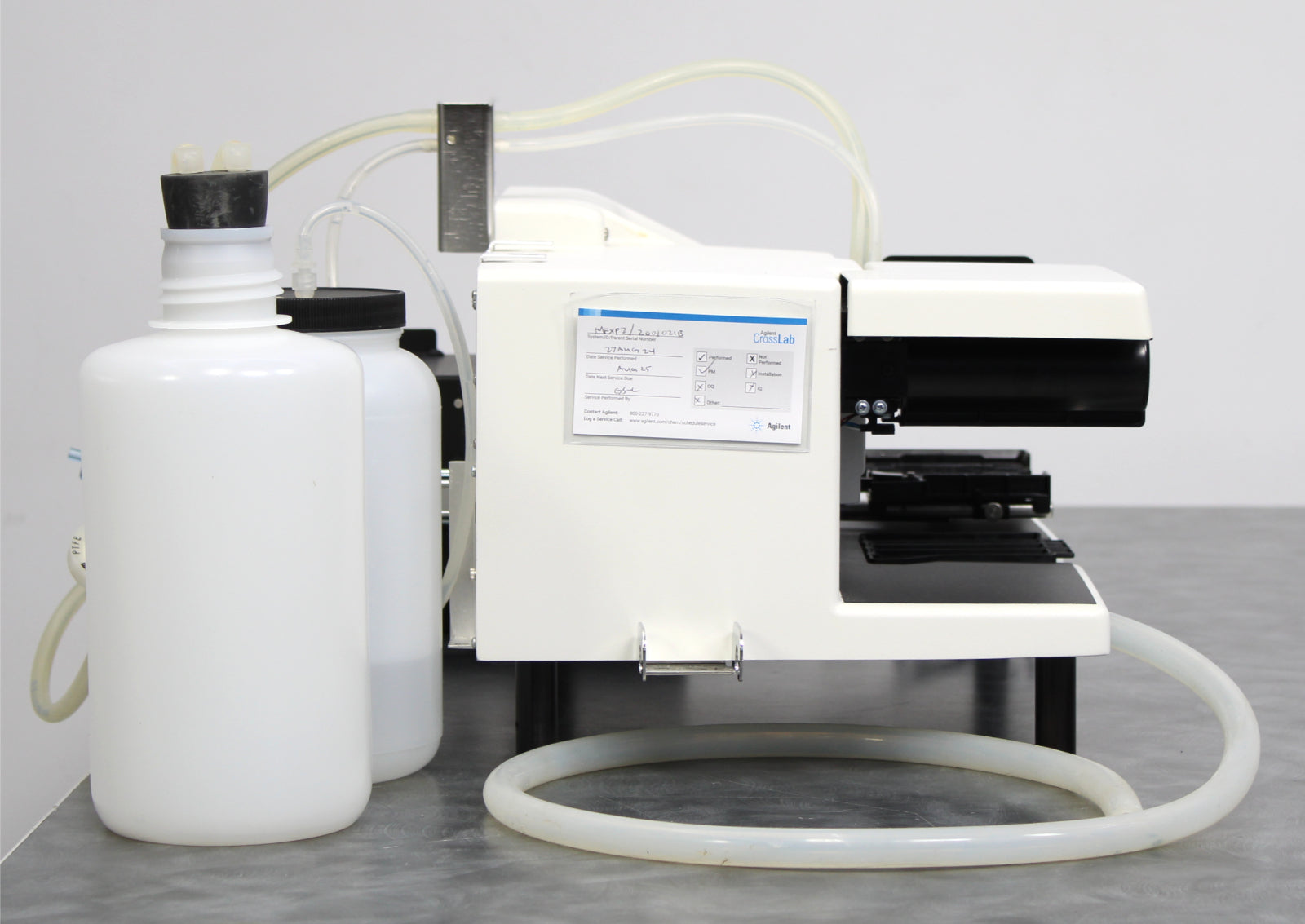

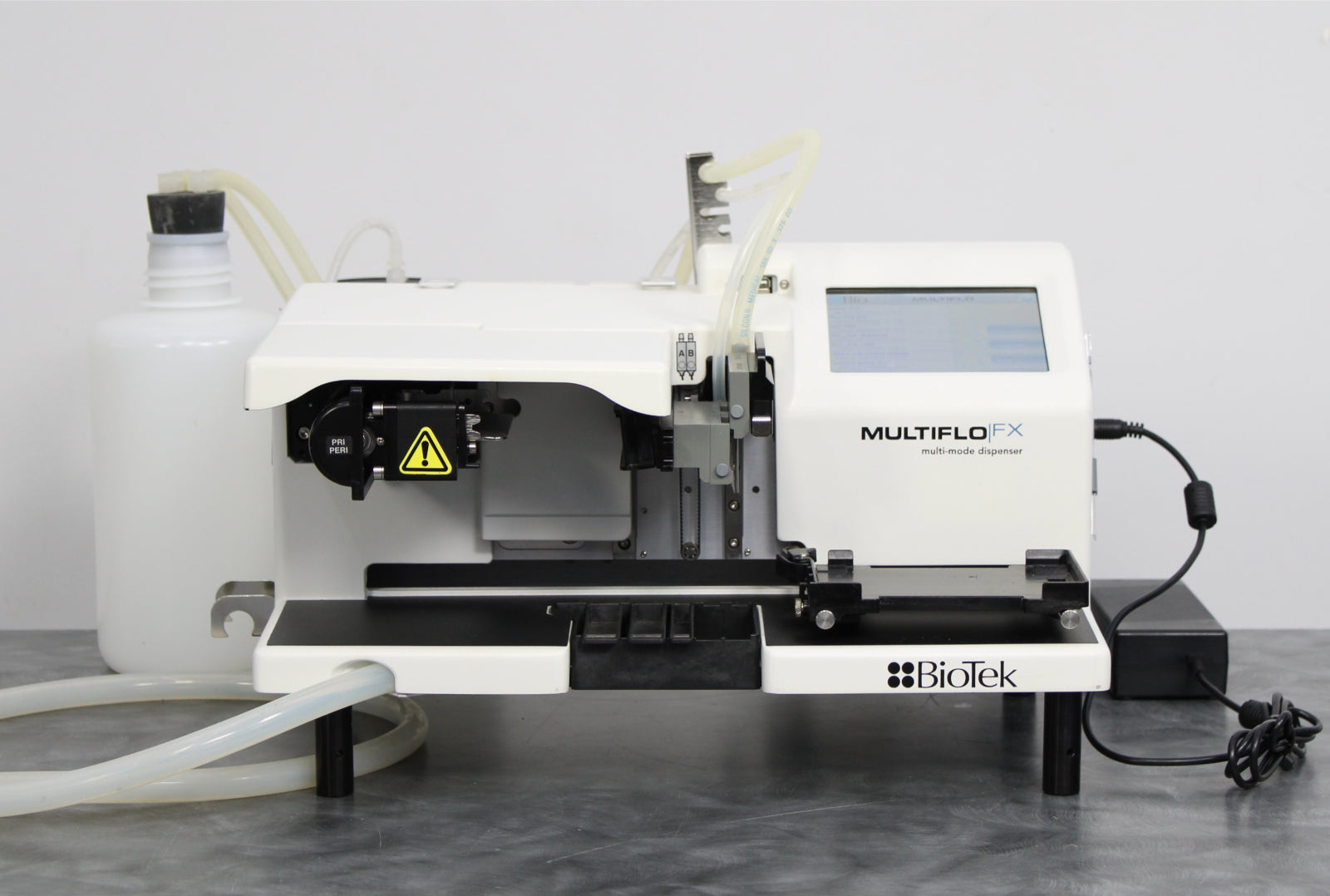

BioTek Instruments MultiFlo FX Multimode Dispenser MFXP2 with Washer Module

Manufacturer

BioTek Instruments, Inc

Model

MultiFlo FX

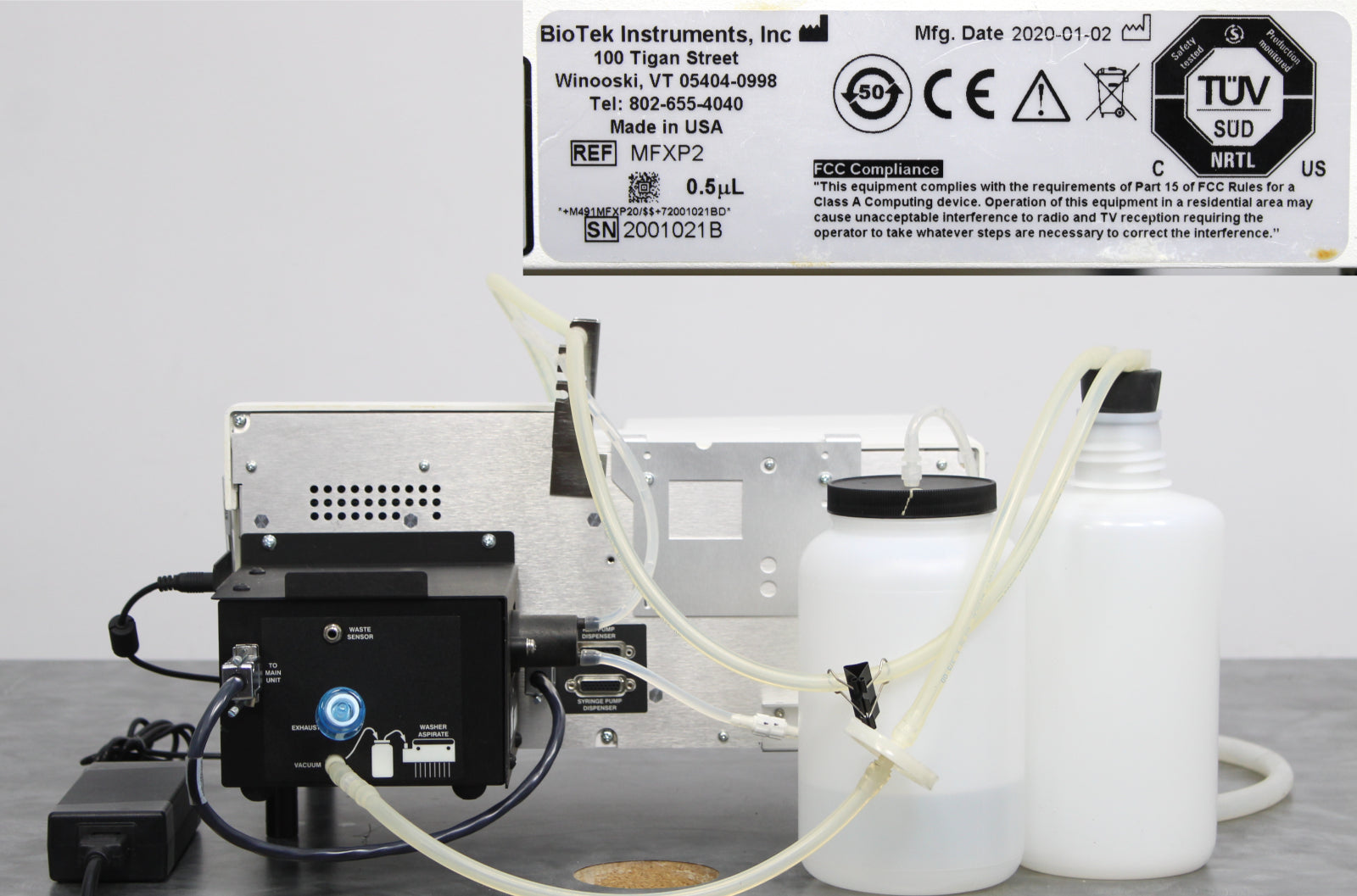

Reference

MFXP2

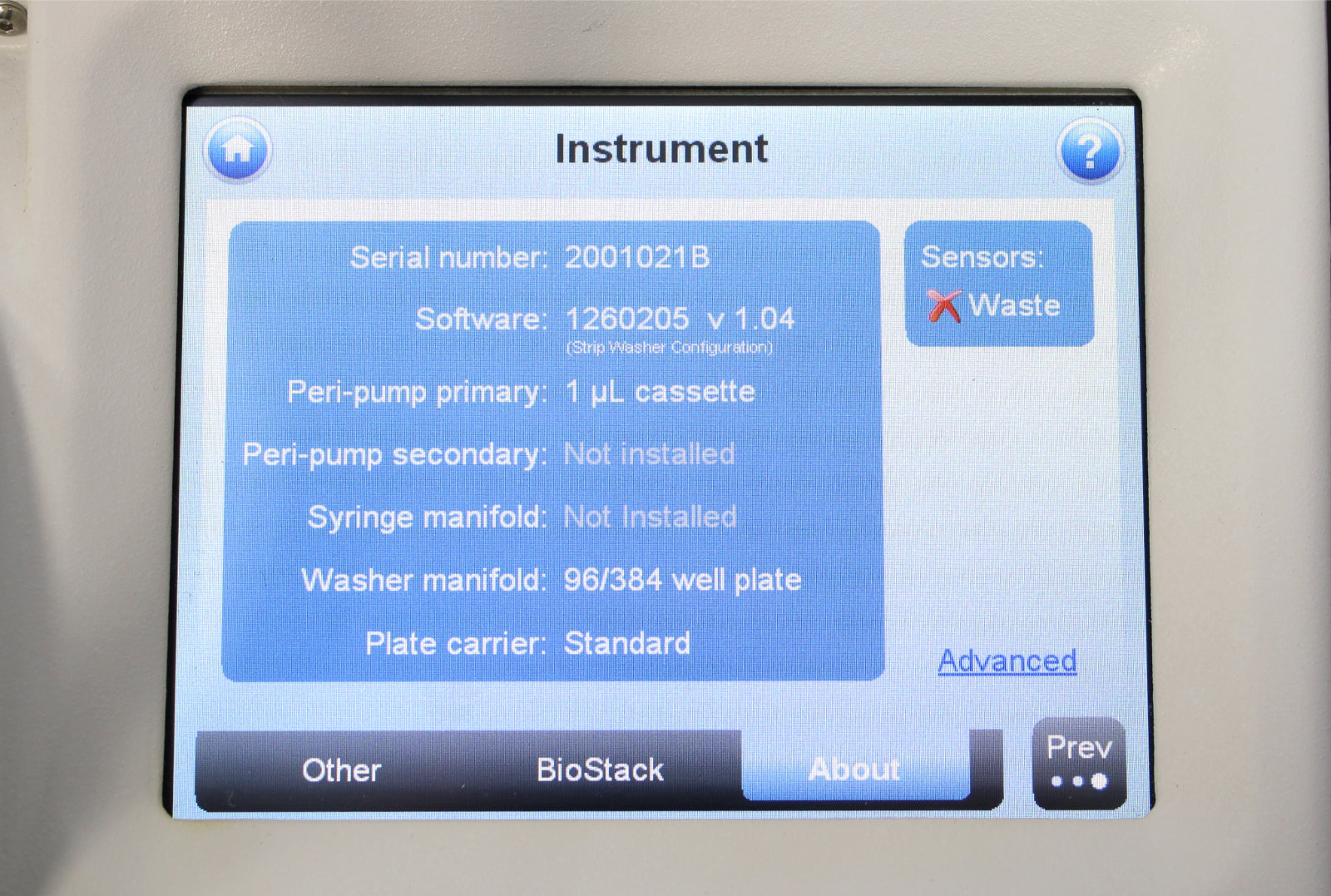

Serial No.

2001021B

Mfg. date

2020-01-02

Microplate types

Dispensing (peripump and syringe):
96-, 384-, and 1536-well standard, deep, and PCR plates; 6-, 12-, 24-, and 48-well plates (dispense tip configurable)

Washing:
96- and 384-well standard plates; 6-, 12-, 24-, and 48-well plates (with compatible manifold configuration)

Shaking and soaking

Programmable up to 60 minutes

Dispensing: Peristaltic pump (multi-channel)

Dispense speed

96 wells, 5 μL cassette, 10 μL/well: 3 seconds
384 wells, 1 μL cassette, 1 μL/well: 6 seconds
1536 wells, 1 μL cassette, 1 μL/well: 21 seconds

Dispense volume range

500 nL - 3,000 μL/well, selectable in 1 μL increments

Flow rates

User programmable rates from high to low

Dispense performance

1 μL cassette: recommended range: 1 - 50 μL
Accuracy: + 5% at 1 μL, Precision: < 5% CV at 1 μL

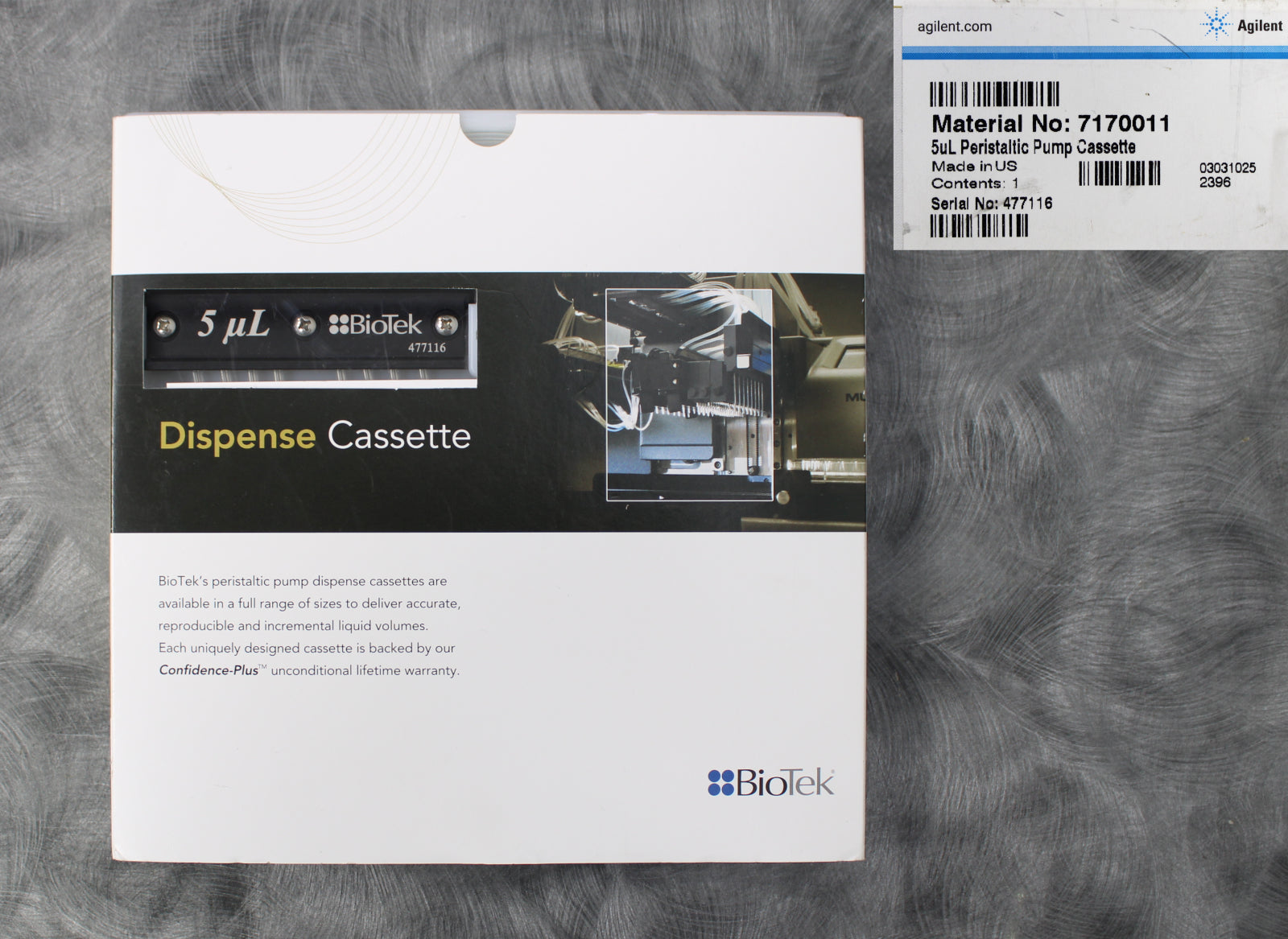

5 μL cassette: recommended range: 5 - 2,500 μL
Accuracy: + 2.0% at 5 μL, Precision: < 2.5% CV at 5 μL

10 μL cassette: recommended range: 10 - 3,000 μL
Accuracy: + 2.0% at 10 μL, Precision: < 2.0% CV at 10 μL

Washing

Wash volume range

20-30,000 μL/well

Wash cycles

1-10

Wash speed

96 wells, 8-tube manifold, 3 cycles, 300 μL/well: < 130 seconds

Dispense accuracy

±3%

Dispense precision

96-/384-well plates, 300 μL/well: < 3 % CV
6-well plates, 5560 μL/well: < 5 % CV

Residual volume

96-well plate, 300 μL/well: < 2 μL/well

Flow rates

140-422 μL/well

Supply/waste bottles

2 L, waste bottle level detection

Power rating

100-240VAC, 50-60Hz, 90W max consumption

Dimensions of base instrument (W x D x H)

17.19 x 11.75 x 8 in (43.5 x 29.2 x 20.3 cm)

Weight of base instrument

19.5 lb (8.8 kg)
