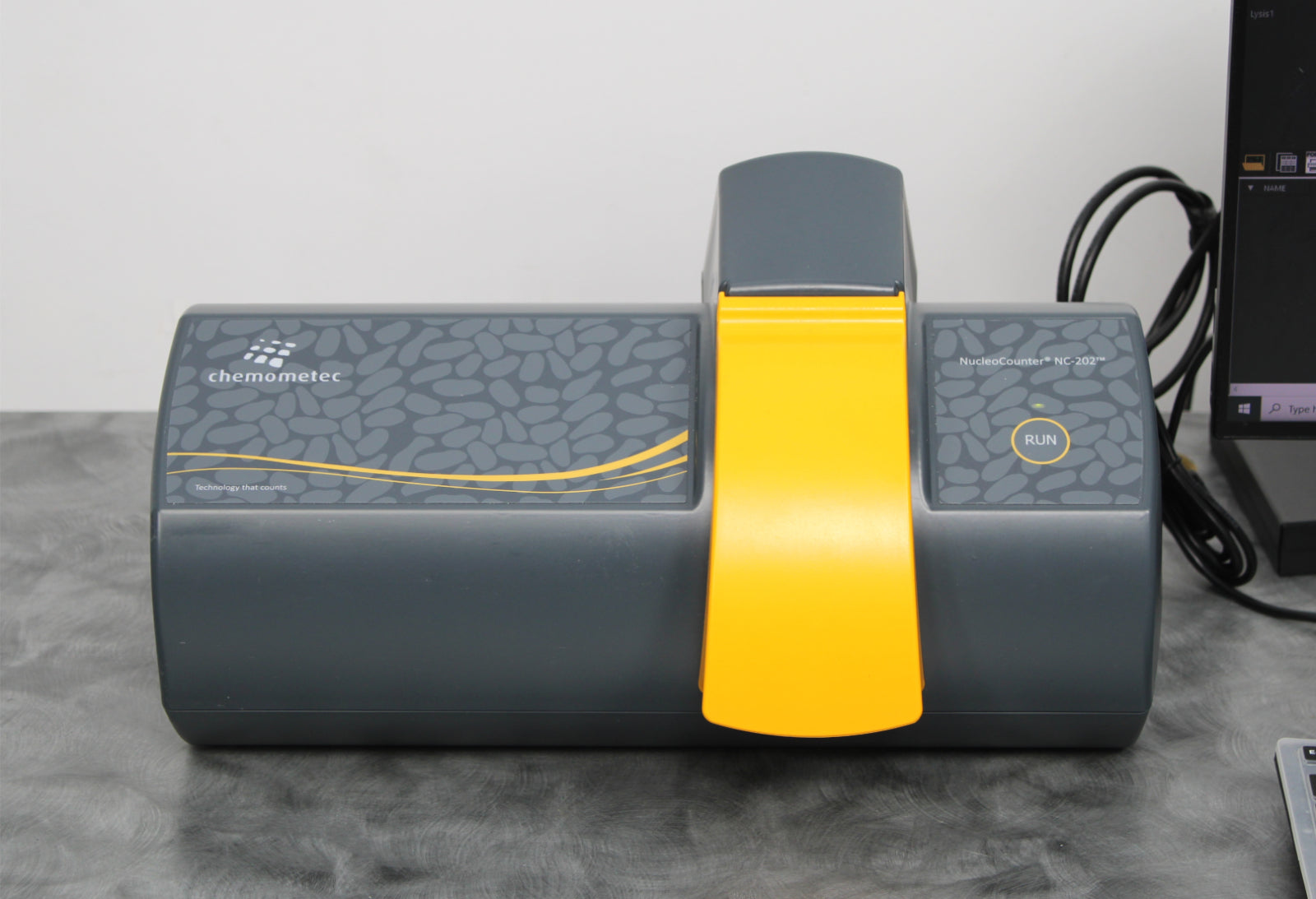

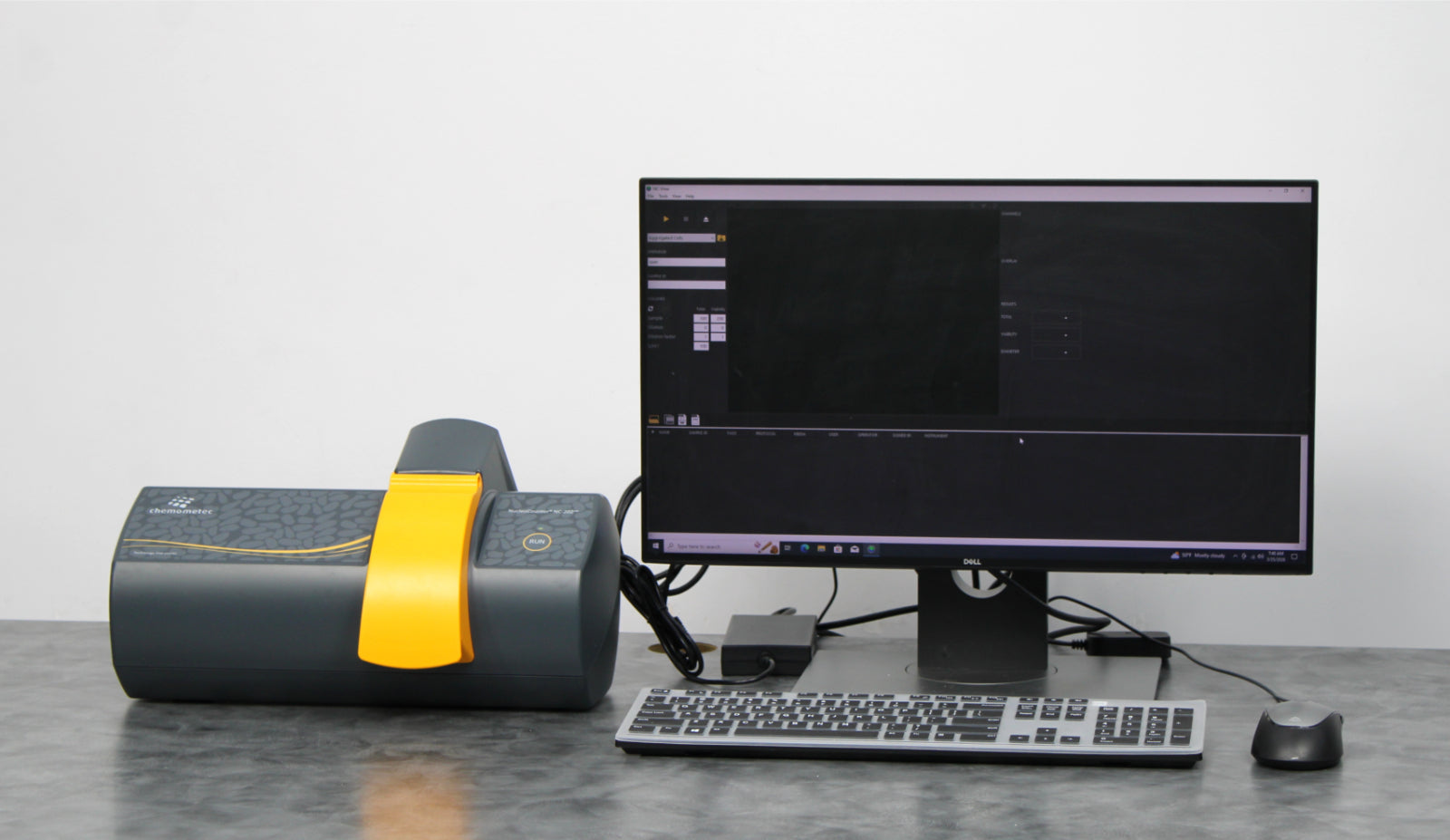

- ChemoMetec NucleoCounter NC-202 Consistent Cell Counter (900-2020)

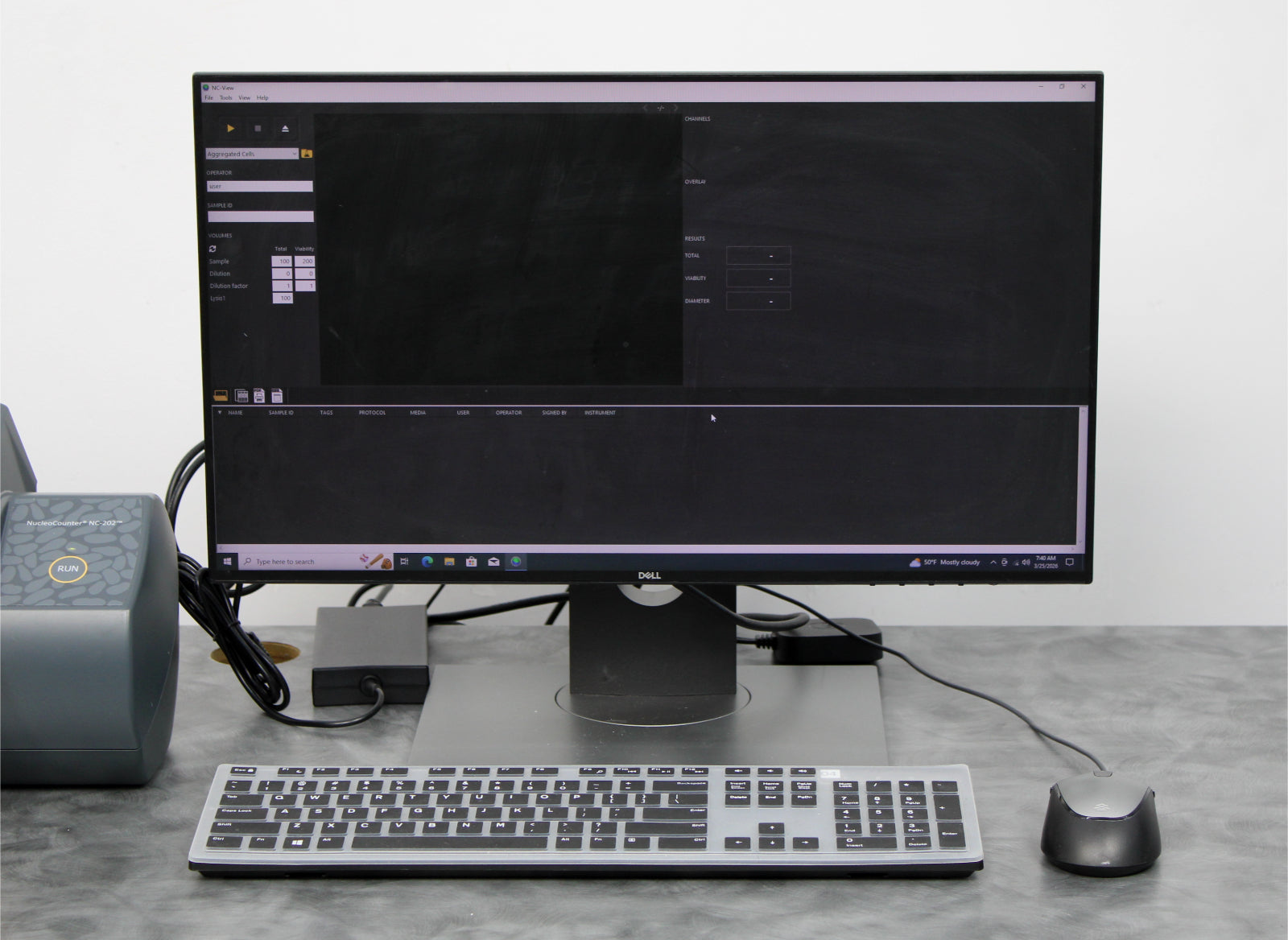

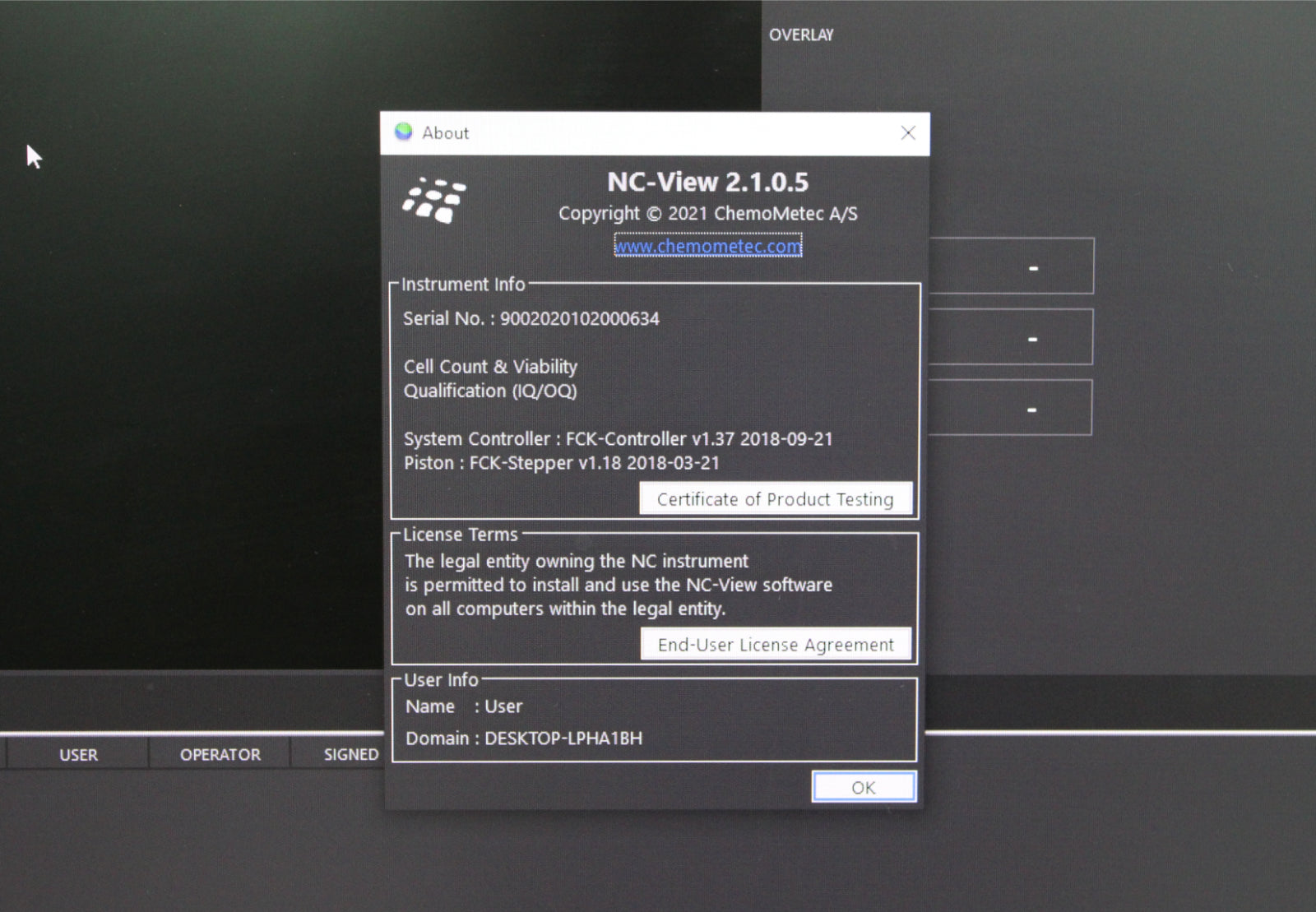

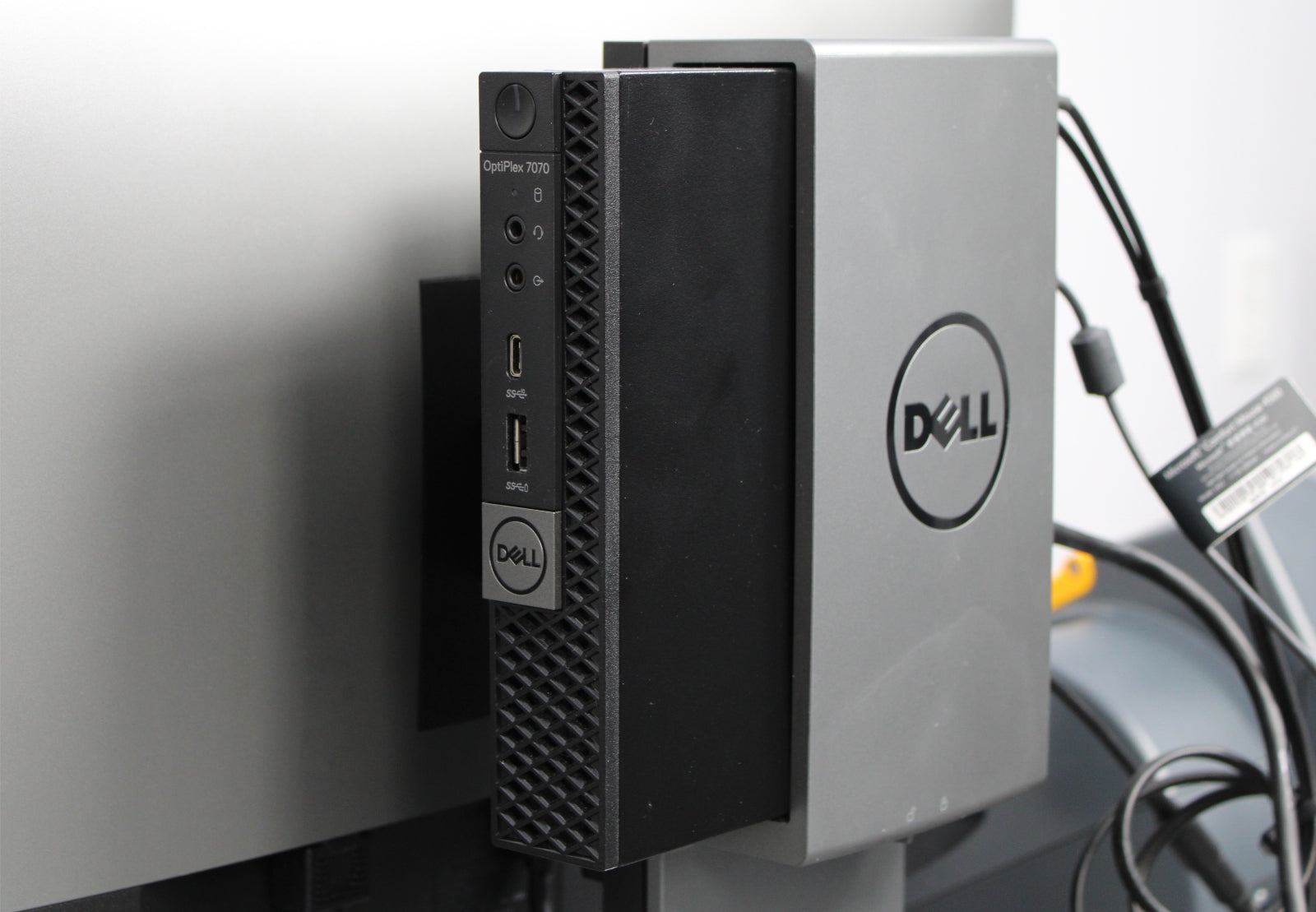

- Computer with NC-View 2.1.0.5 Software Installed
- Monitor, Keyboard, and Mouse
- Display Cable
- USB Cable
- Computer Power Adapter

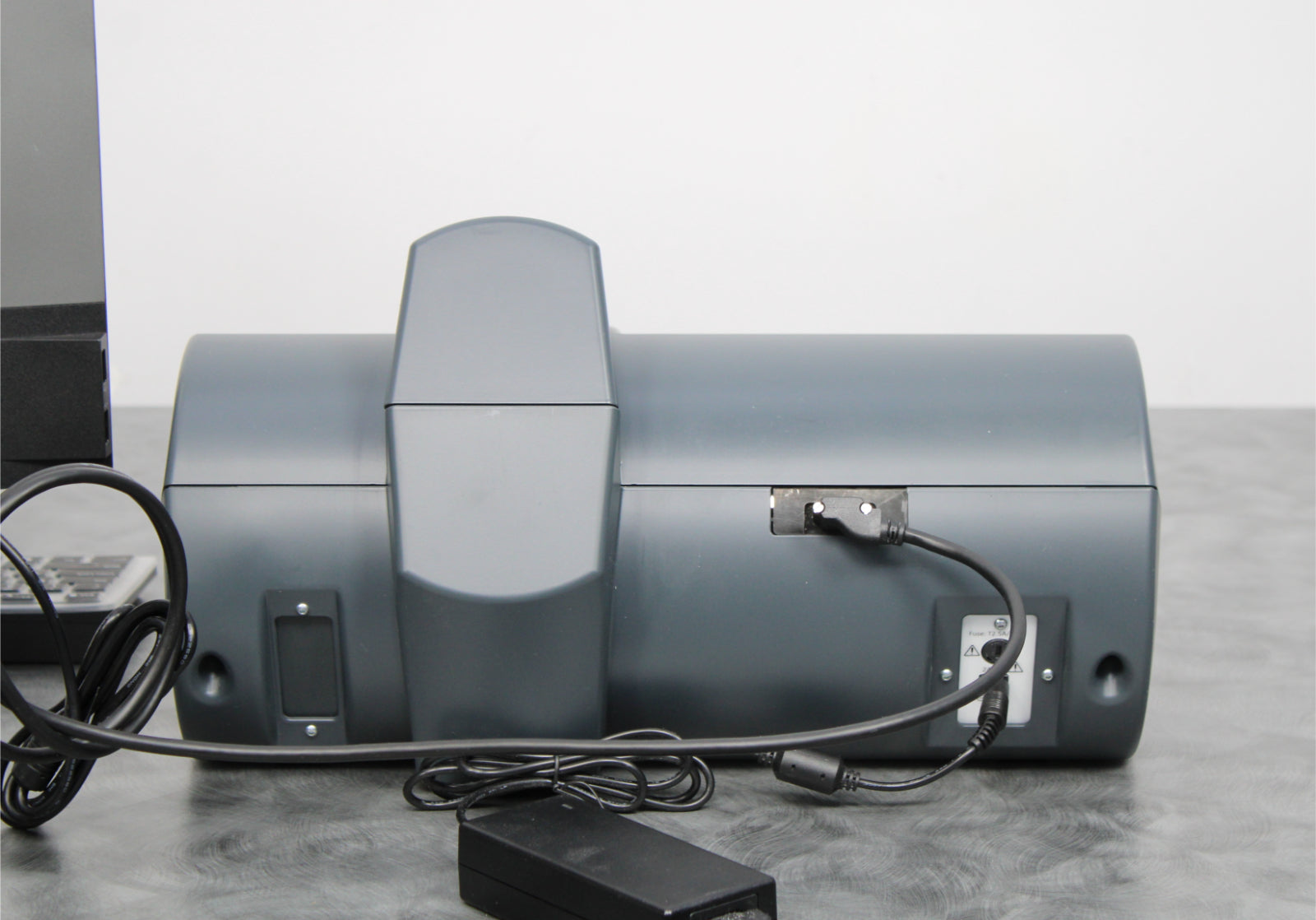

- Instrument Power Adapter
- Power Cable
- 90-Day Warranty
After its initial disinfection and inspection, our technicians tested the ChemoMetec NucleoCounter NC-202 consistent cell counter with the following results:

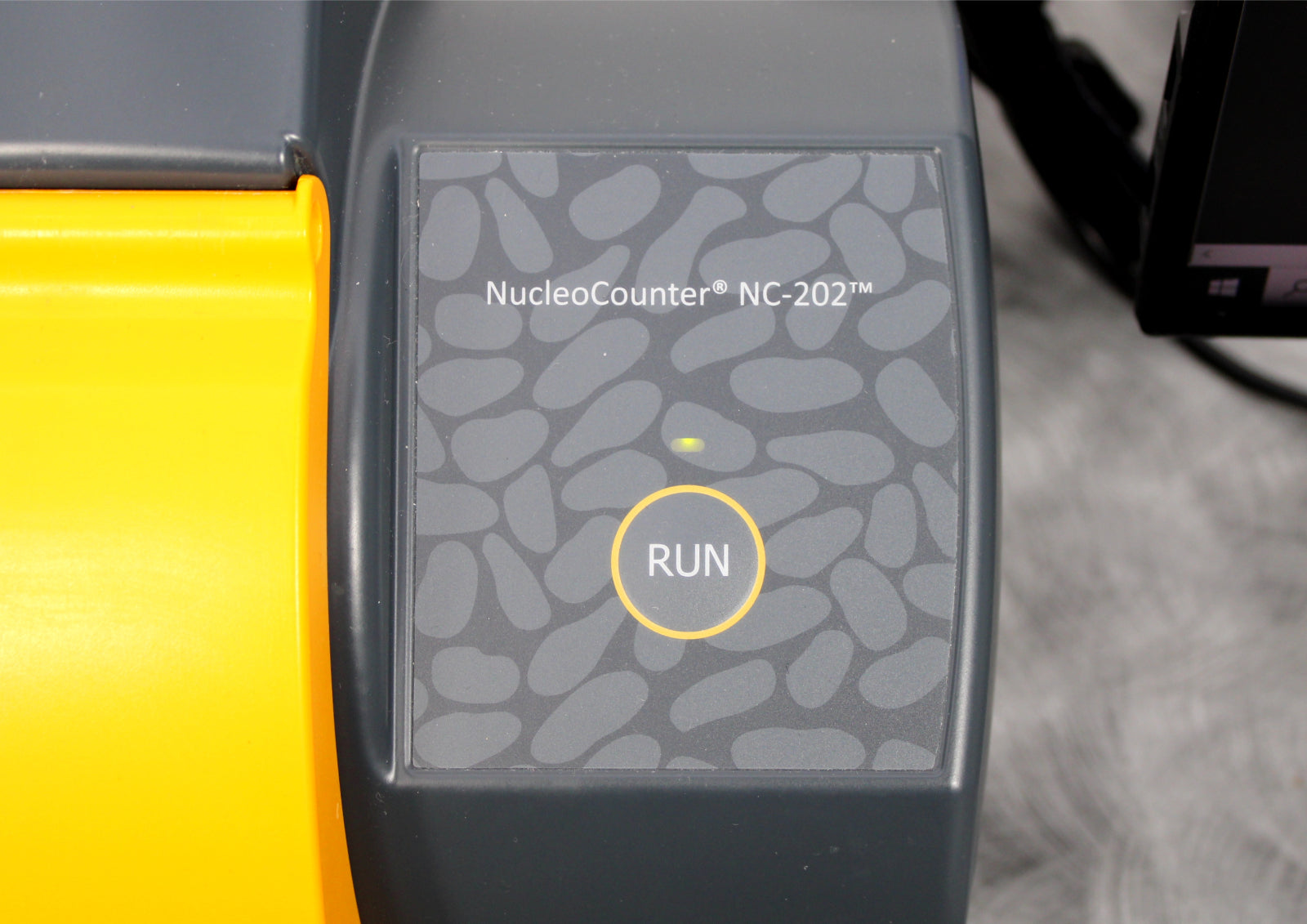

- NucleoCounter powers on; status light is red: PASSED
- NucleoCounter connects to software; status light turns green: PASSED
Notice: No further testing could be performed without consumables.
|
Manufacturer
|
ChemoMetec A/S
|
|
Model
|
NucleoCounter NC-202
|
|

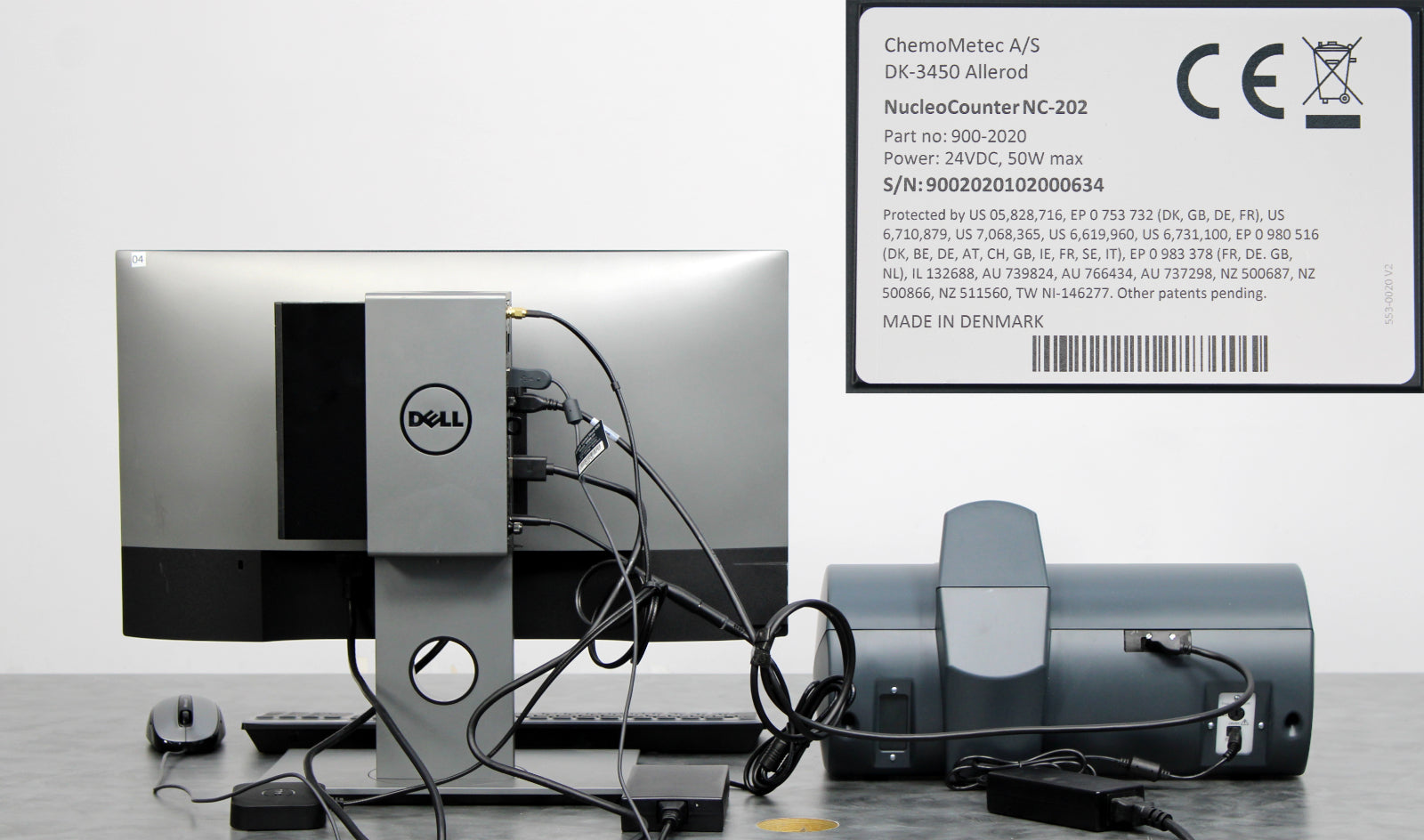

Part No.
|
900-2020
|
|
Serial No.
|
9002020102000634
|
|
Application type(s)
|
Cell count & viability for mammalian cells
|
|
Cell type(s)
|
Mammalian cells, including cell lines, leukopaks, PBMCs, whole blood, MSCs, T-cells, aggregated cells, & microcarriers
|
|
Software
|

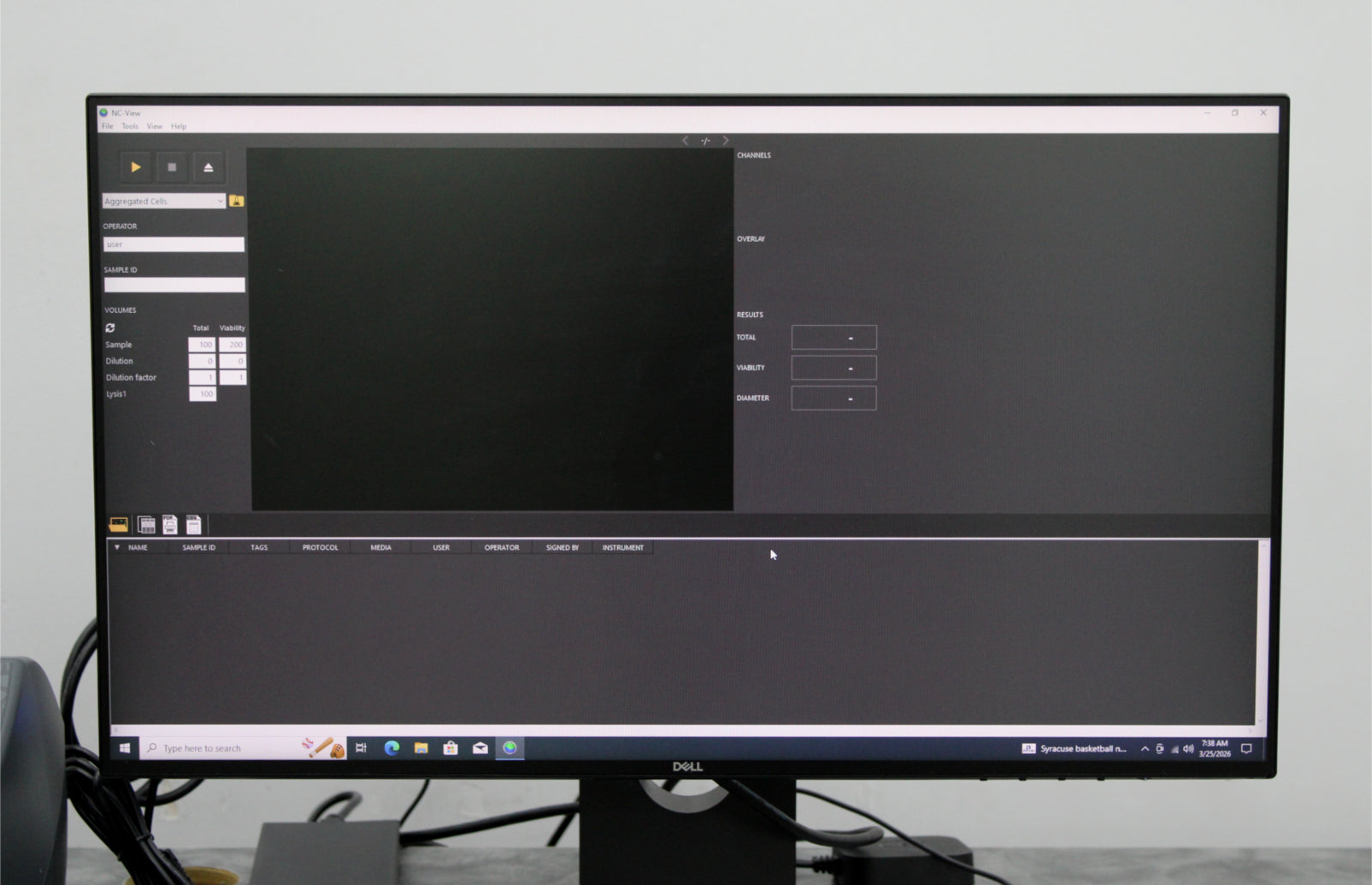

NC View
|
|
Consumable(s)
|
Via2-Cassette
|
|
Capacity (analysis time)
|
25-40 seconds
|
|
Loading volume
|
60 µl
|
|
Analysis volume
|
1.4 µl
|
|
Optimal range
|
5x104 to 1x107 cells/ml
|
|
Staining dye(s)
|
Acridine orange (AO), DAPI
|
|
Excitation
|
2 LED light sources peaking at 365 nm and 505 nm, dark field light
|
|
Emission (nm)
|
A single dual-band emission filter: 410-460 nm and 540-650 nm
|
|
Optics
|
Lens with x2.1 magnification, ⅔” CMOS camera
|
|
Data output
|
Images, tables
|
|
Data export formats
|
.cm, .csv, .pdf
|
|
Supply voltage
|
24VDC (100-240V ~50-60Hz)
|
|
Power consumption
|
50W max
|
|
Dimensions (W x D x H)
|
15.75 x 9.8 x 9 in (40 x 25 x 23 cm)
|
|
Weight
|
9.9 lb (4.9 kg)
|
