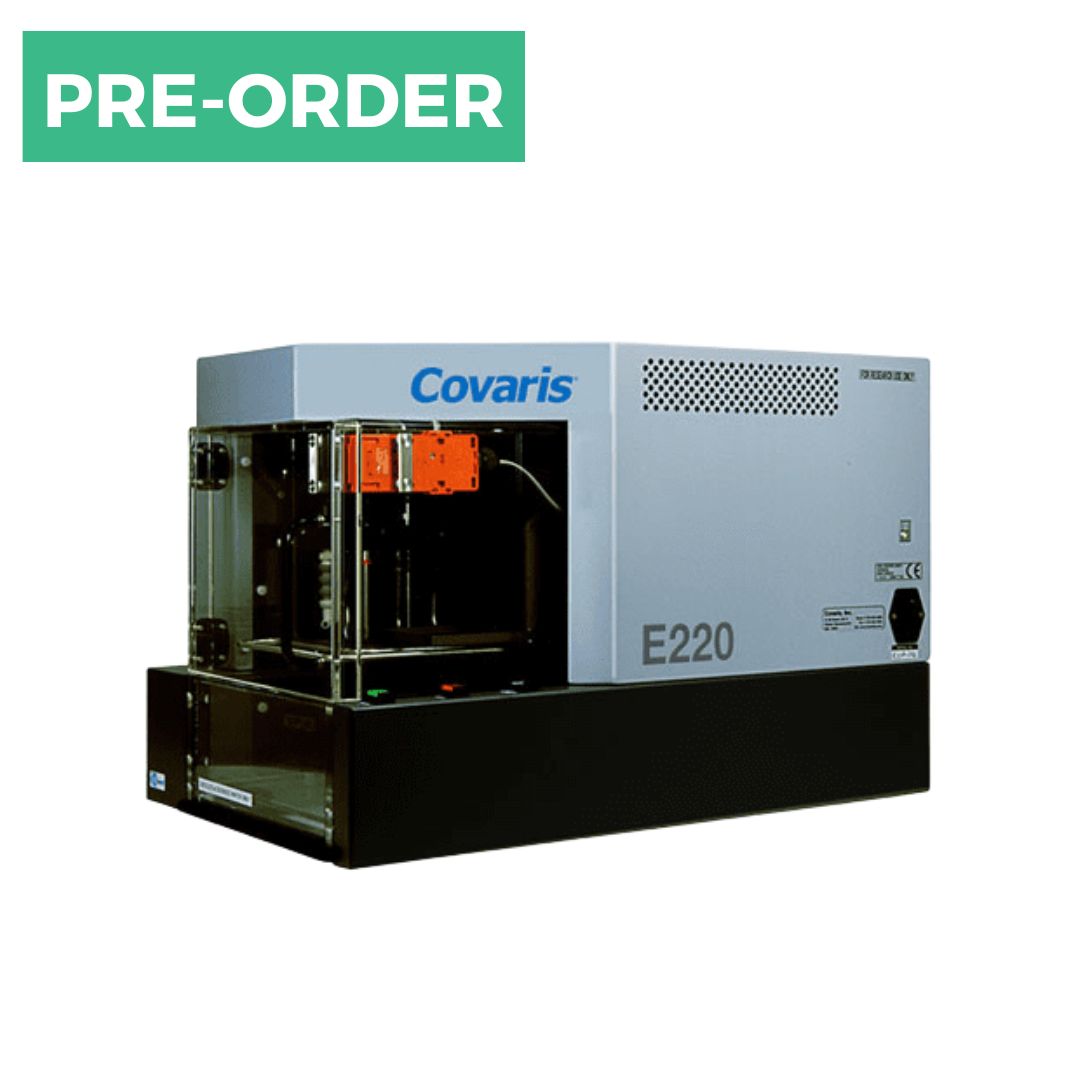

- Covaris E220 Focused-Ultrasonicator
- Laptop with SonoLab 7 Software Installed
- x3 Racks (details below)
- USB Cable
- Laptop Power Adapter
- Power Cable
- 90-Day Warranty
Notice: Consumables must be acquired separately.
- Rack E220e 8 Place microTUBE Crimp and Snap Cap (500433)
- x2 Rack E220e 4 Place milliTUBE (500431)
After its initial disinfection and inspection, our technicians tested the Covaris E220 focused-ultrasonicator with the following results:
- Filled and drained bath: PASSED
- Device and software connection: PASSED
- Ran method to confirm functionality: PASSED
- Arm movement: PASSED
|
Manufacturer
|
Covaris
|
|
Model
|
E220
|
|
Serial No.
|
005280
|
|
Primary applications
|
Cell lysis: mammalian, bacterial, yeast, cfDNA Extraction from Plasma, DNA Extraction from Dried Blood Spots, DNA/RNA/Chromatin Shearing, DNA/RNA/Total NA/Protein Extraction from FFPE, Tissue lysis and extraction
|
|
Treatment system
|
Bench-top: high intensity acoustic transducer, sample positioning system, temperature monitoring device, circulation pump, and water bath with safety enclosure.
|
|
Treatment power
|
100W average incident power
|
|
Water bath
|
Distilled or deionized water only
|
|
Operating environment
|
Ambient temperature: 19°C to 25°C (66°F to 77°F) Relative humidity: 30% to 70%
|
|
Operation temperature
|
0.5°C to 55.0°C
|
|
Temperature alarms
|
Can be programmed from +0.5°C to +55.0°C
|
|
Safety
|
Complies with Low Voltage Directive 2006/95/EC. Certified to IEC/EN/UL 61010-1:2004 “Safety Requirements for Electrical Equipment for Measurement, Control, and Laboratory Use, Part1: General Requirements
|
|
Regulatory labeling
|
CE and ETL Mark
|
|
SonoLab version
|
SonoLab 7
|
|
Operating system
|
Windows 10
|
|
WCS
|
Yes
|
|
Chiller
|
Chiller/heater re-circulating system-Not included, sold separately
|
|
Sample processing capacity
|
Single tube
|
|
NGS sample volumes
|
15 to 130µl
|
|
Recommended batch size
|
1 to 96 samples
|
|
Covaris consumables
|
microTUBE 8-strip (rack required), microTUBE 96 plate
|
|
Upgrade potential
|
No
|
|
Power consumption
|
500VA max.
|
|
Power rating
|
100-240V~, 50/60Hz
|
|
Dimensions (W x D x H)
|
24 x 30 x 19 in (61 x 76 x 48 cm)
|
|
Weight
|
approx. 110 lb (50 kg)
|
