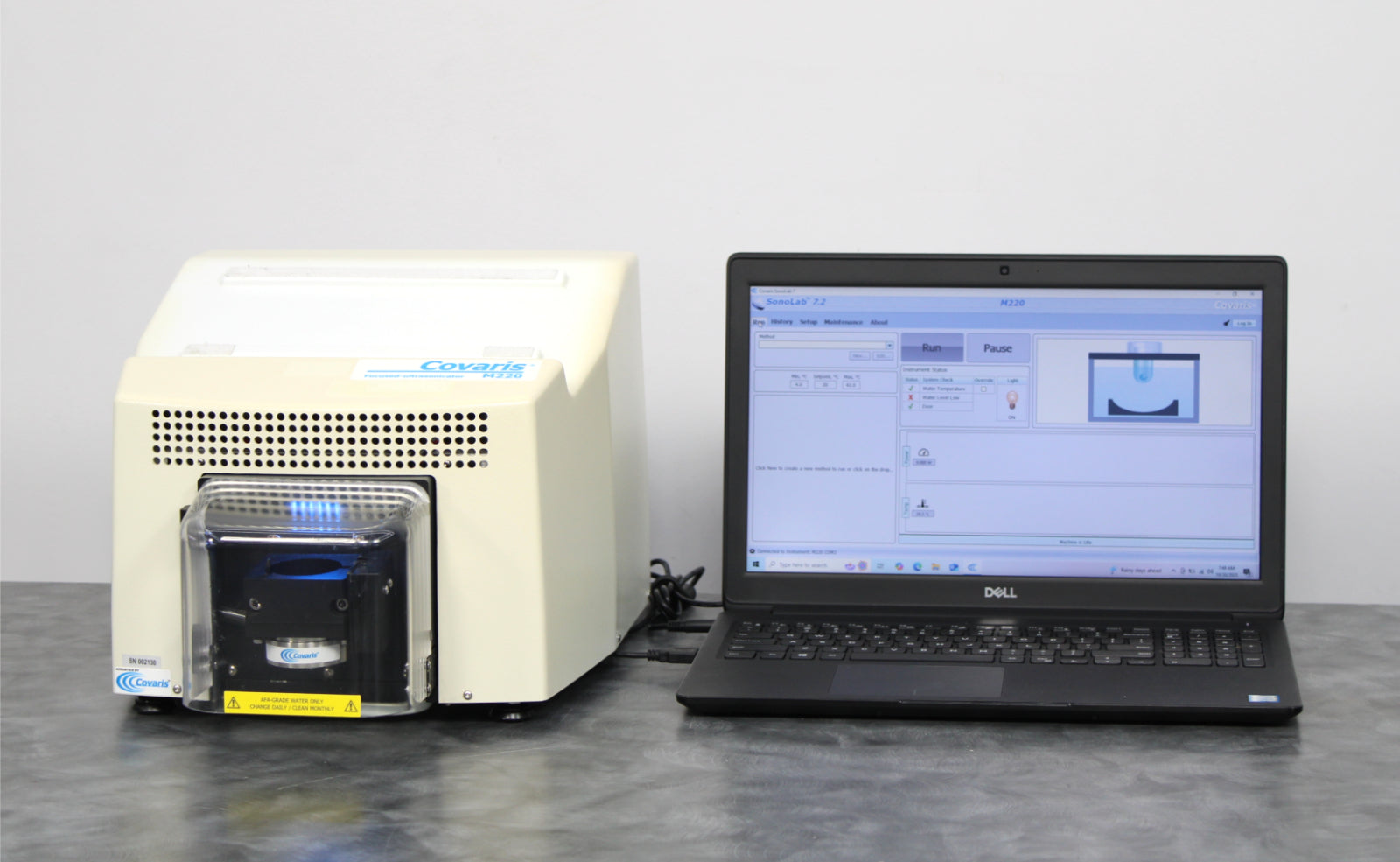

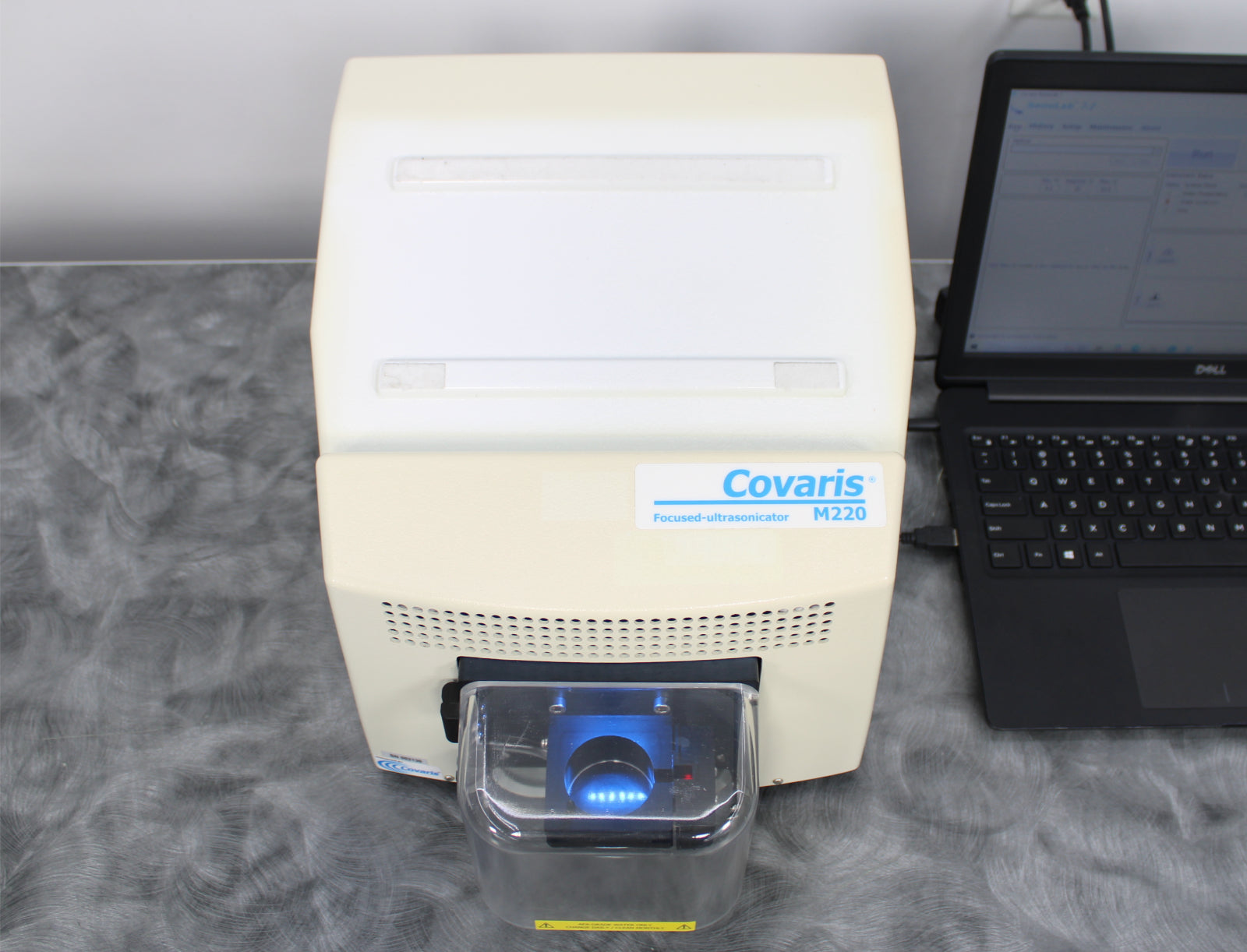

- Covaris M220 Focused-Ultrasonicator

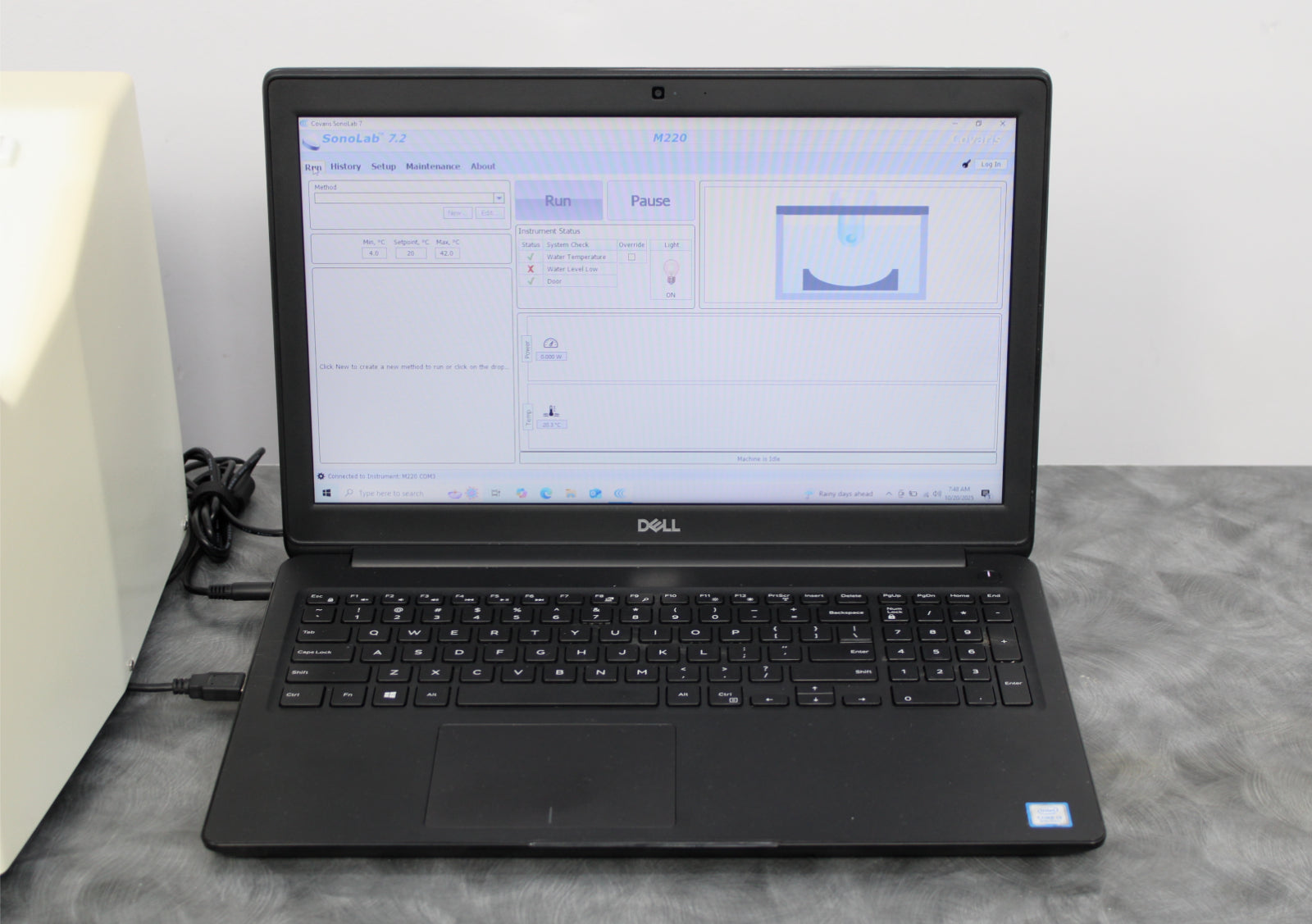

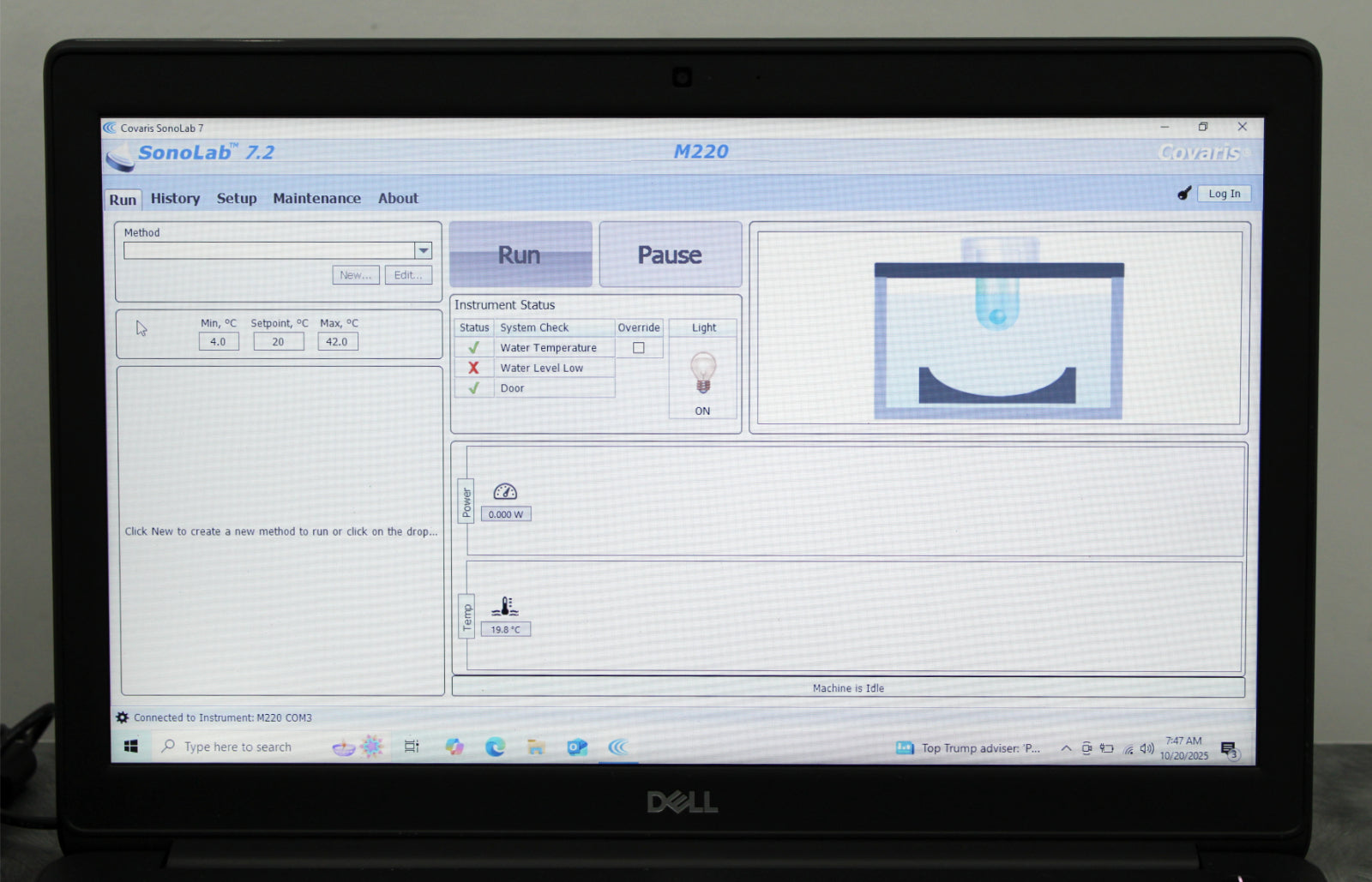

- Laptop with SonoLab 7 Software Installed
- USB Cable
- Laptop Power Adapter
- Power Cable
- 90-Day Warranty

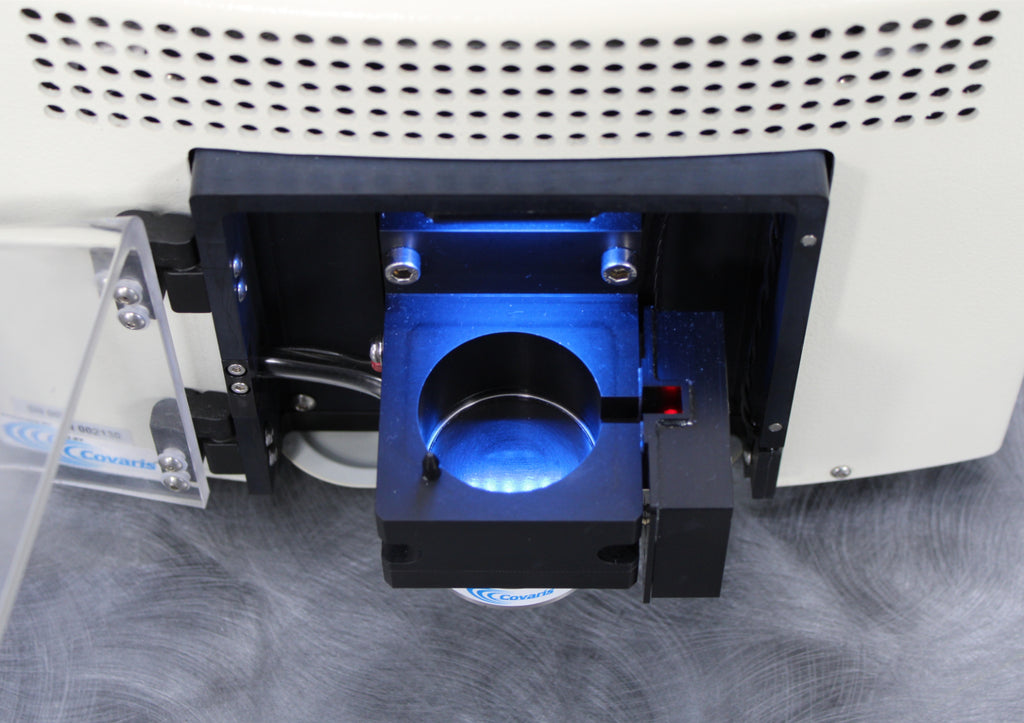

- M220 Holder XTU with Insert
Notice: A M220 Holder XTU is required for operation and must be acquired separately.
After its initial disinfection and inspection, our technicians tested the Covaris M220 Focused-ultrasonicator with the following results:
- Powers on and connects to control software: PASSED
- Systems check: PASSED

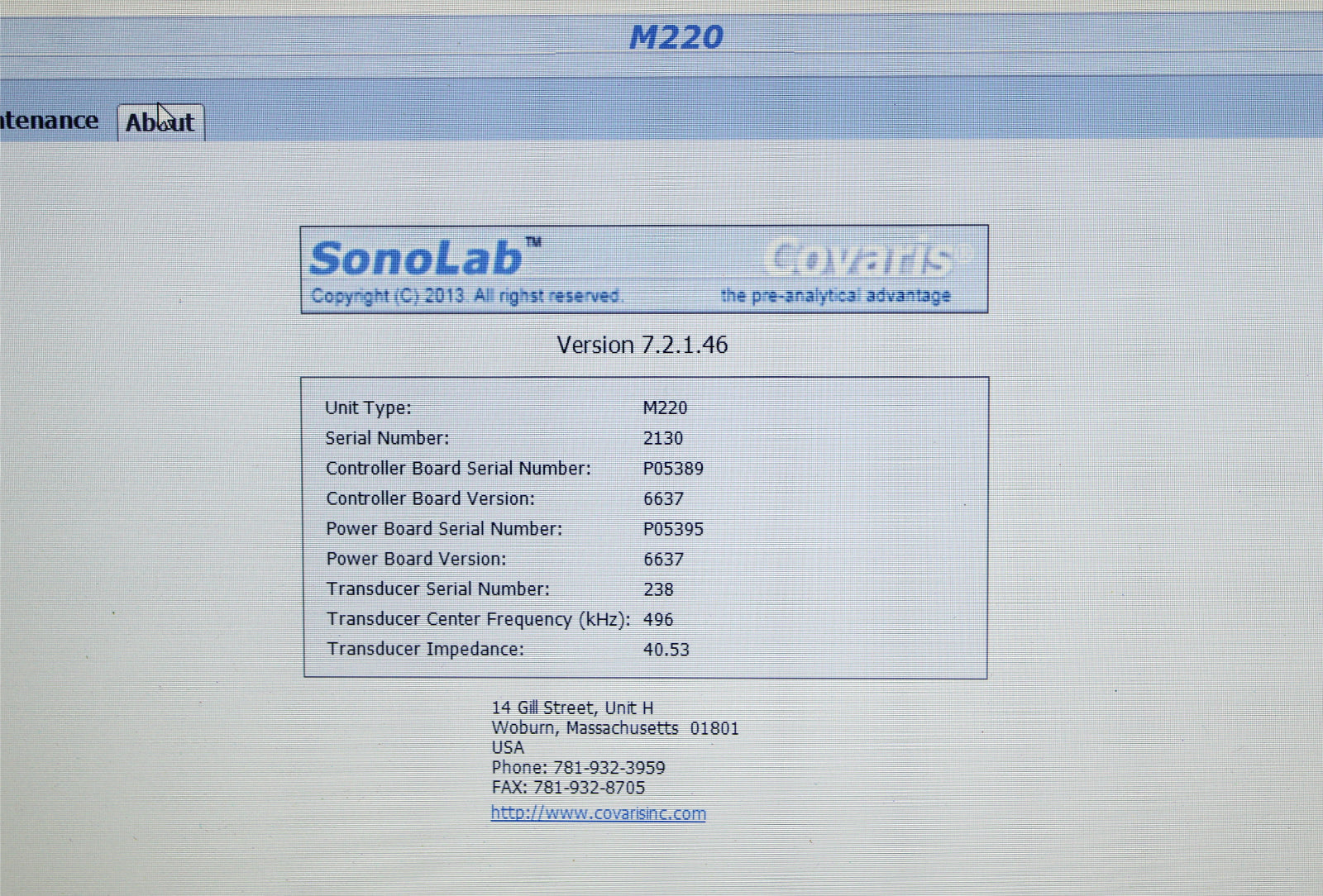

- Updated software and firmware: PASSED

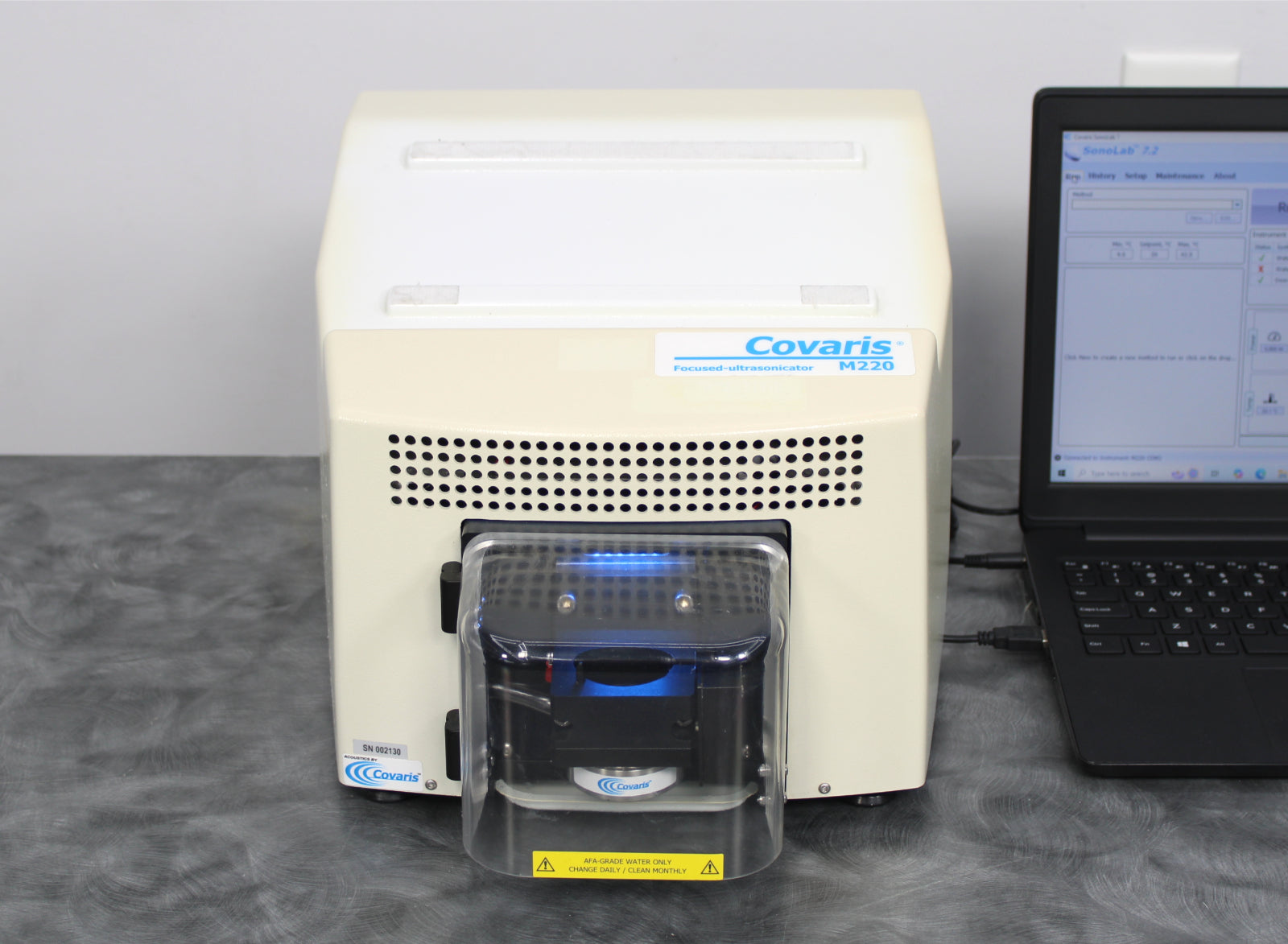

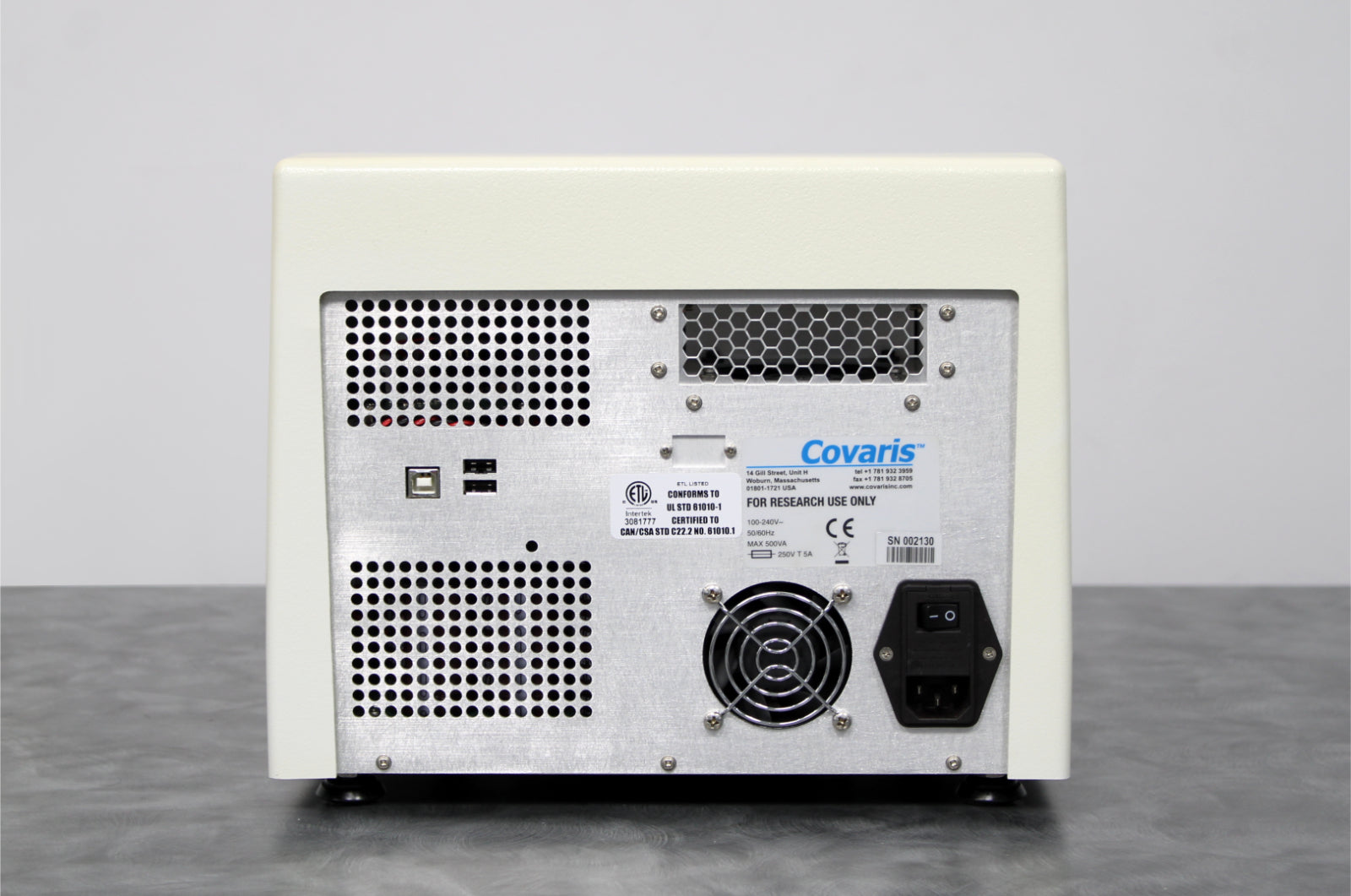

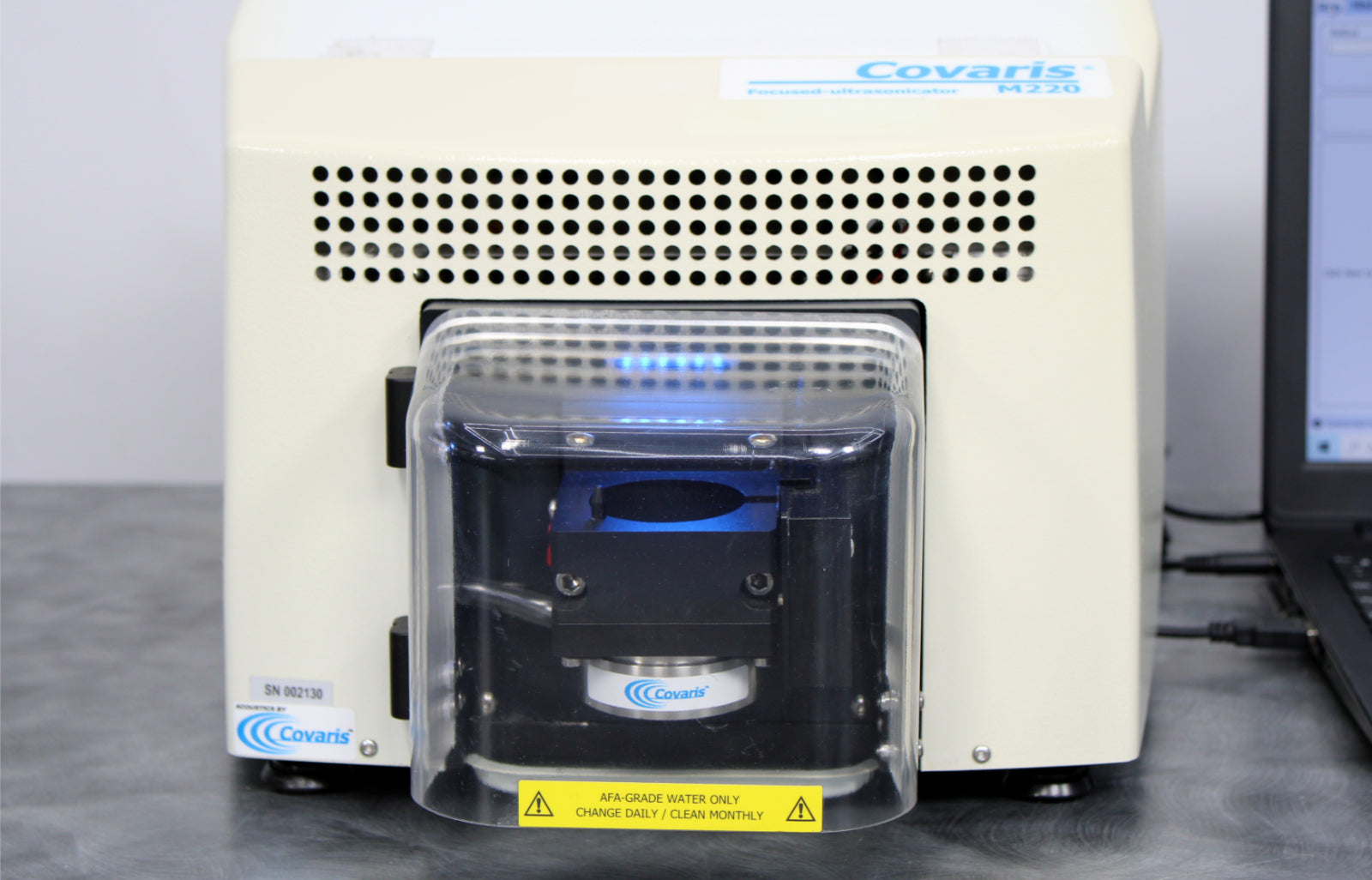

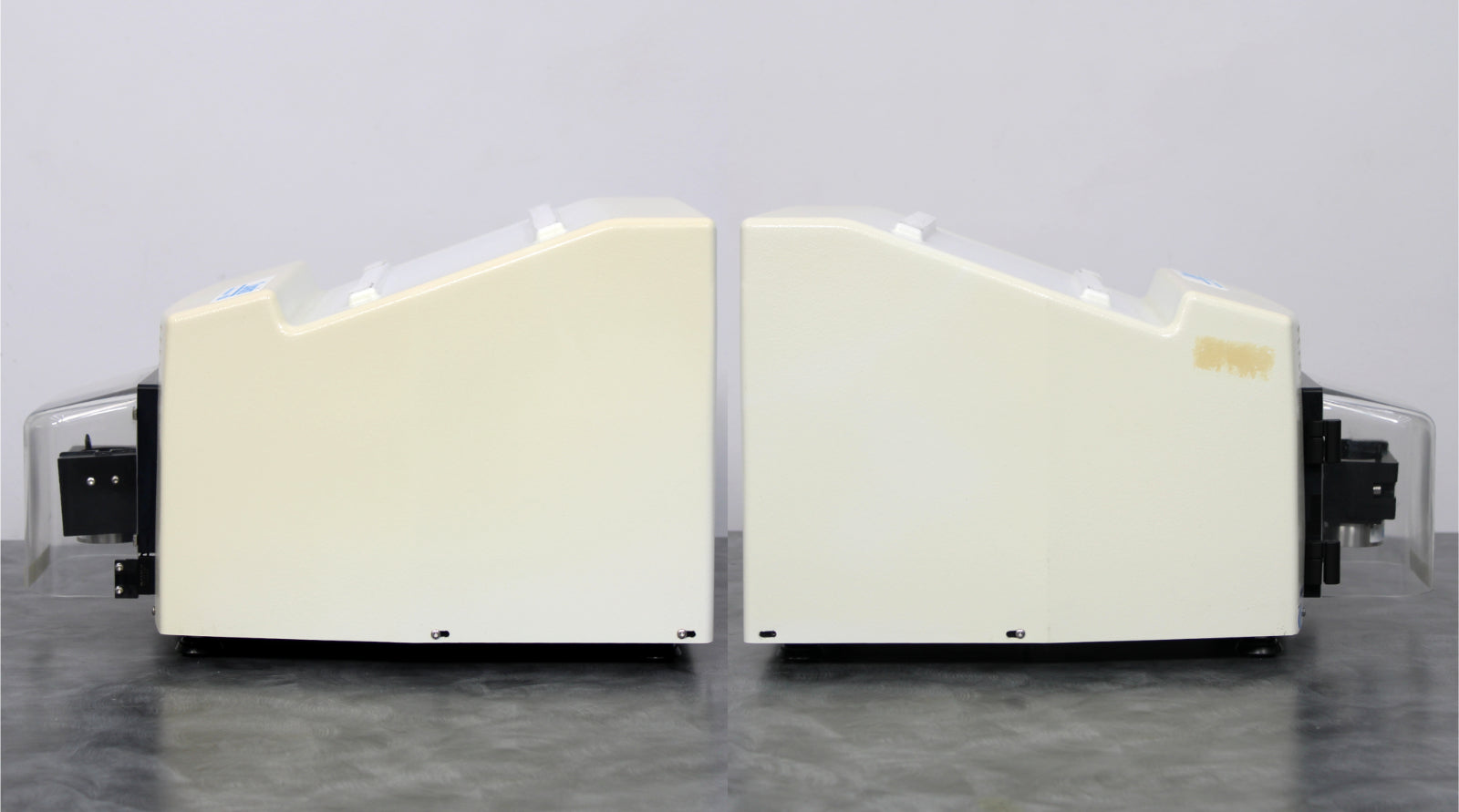

Notice: This ultrasonicator has some cosmetic blemishes. Please review the available photos to see the physical condition before purchasing.
|
Manufacturer
|
Covaris
|
|
Model
|
M220
|
|
Part No.
|
500295
|
|
Serial No.
|
002130
|
|
Primary applications
|
Cell lysis: mammalian, bacterial, yeast, cfDNA Extraction from Plasma, DNA Extraction from Dried Blood Spots, DNA/RNA/Chromatin Shearing, DNA/RNA/Total NA/Protein Extraction from FFPE, Tissue lysis and extraction
|
|
Treatment power
|
75 W PIP
|
|
SonoLab version
|
SonoLab 7
|
|
WCS
|
NA
|
|
Chiller
|
Solid state chiller built-in
|
|
Sample processing capacity
|
Single tube
|
|
NGS sample volumes
|
15 to 130 µl
|
|
Recommended batch size
|
NA
|
|
Covaris consumables
|
microTUBE, microTUBE-50, milliTUBE 1 ml, miniTUBE
|
|
Upgrade potential
|
No
|
|
Operating environment
|
Ambient temperature: 19°C to 25°C (66°F to 77°F)
Relative humidity: 30% to 70%
|
|
Operating temperature
|
Internal temperature control: Protocol temperature range from 7°C to 20°C
|
|
Regulatory labeling
|
CE, ETL Mark (for Product Safety), WEEE
|
|
Safety
|
Complies with Low Voltage Directive 2006/95/EC. Certified to IEC/EN/UL 61010-1:2004 “Safety Requirements for Electrical Equipment for Measurement, Control, and Laboratory Use, Part1: General Requirements”
|
|

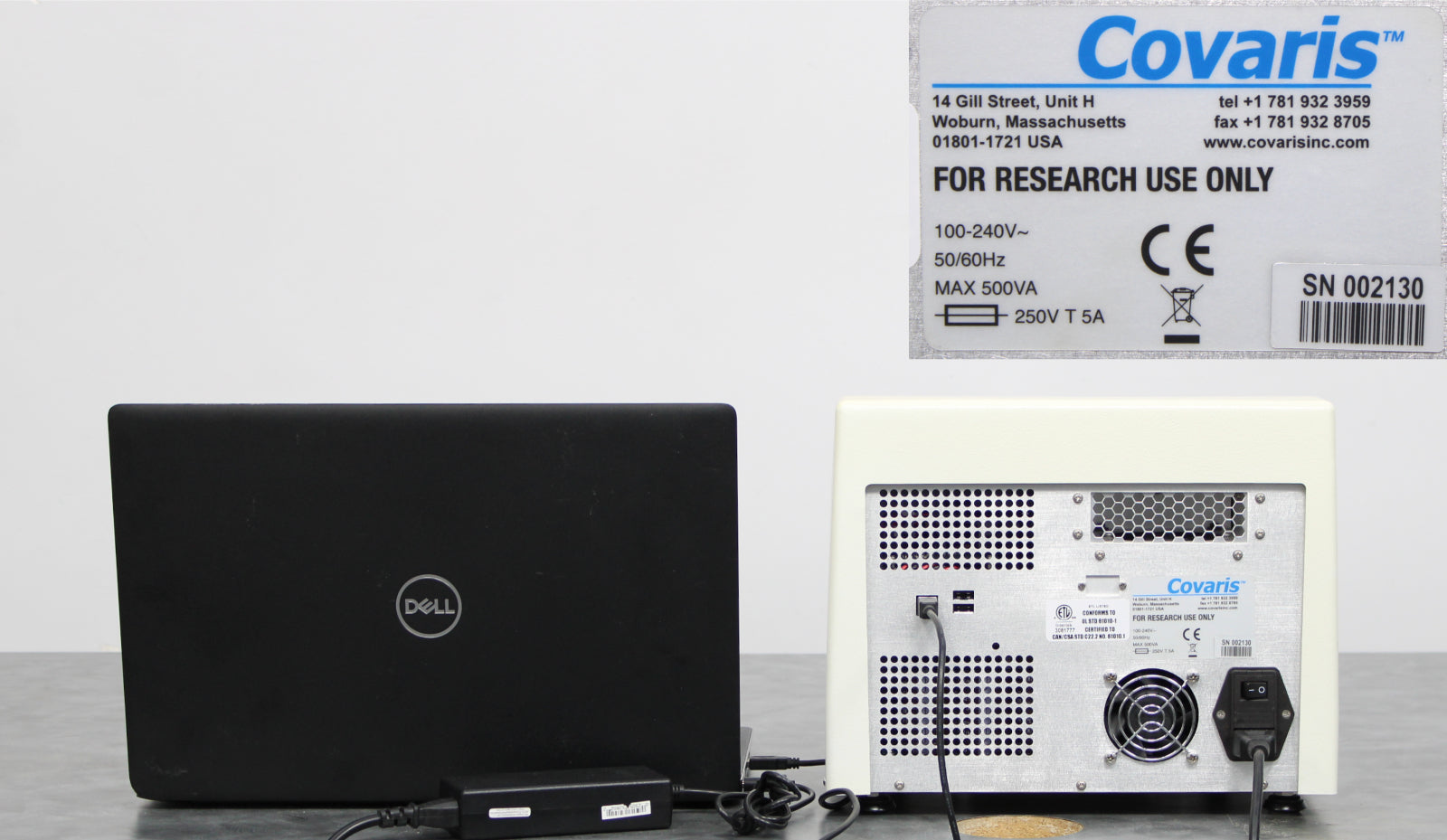

Power rating
|
100-240V~, 50/60Hz
|
|
Power consumption
|
500VA max.
|
|
Dimensions (W x D x H)
|
12.5 x 16 x 10 in
|
|
Weight
|
24 lb
|
