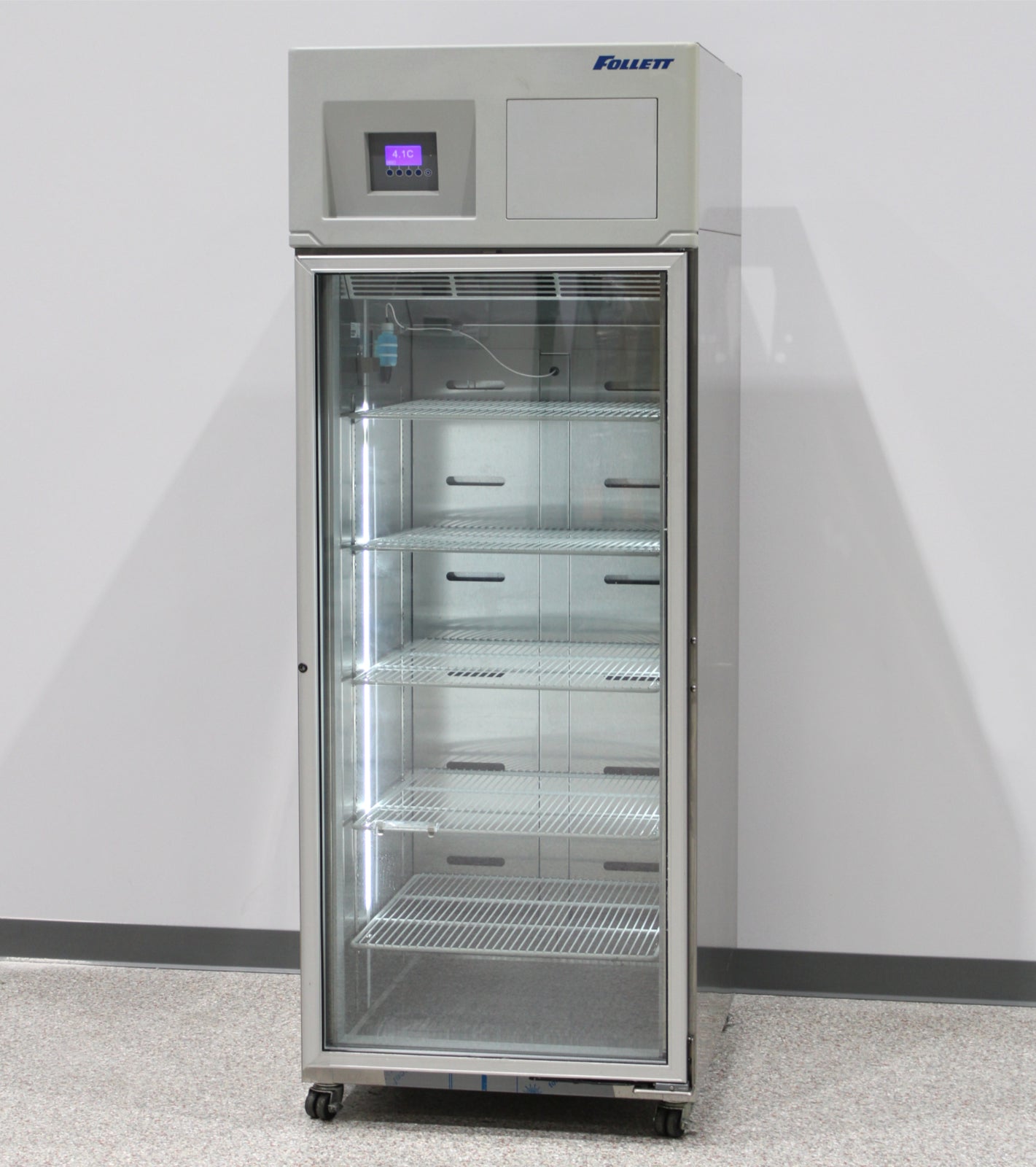

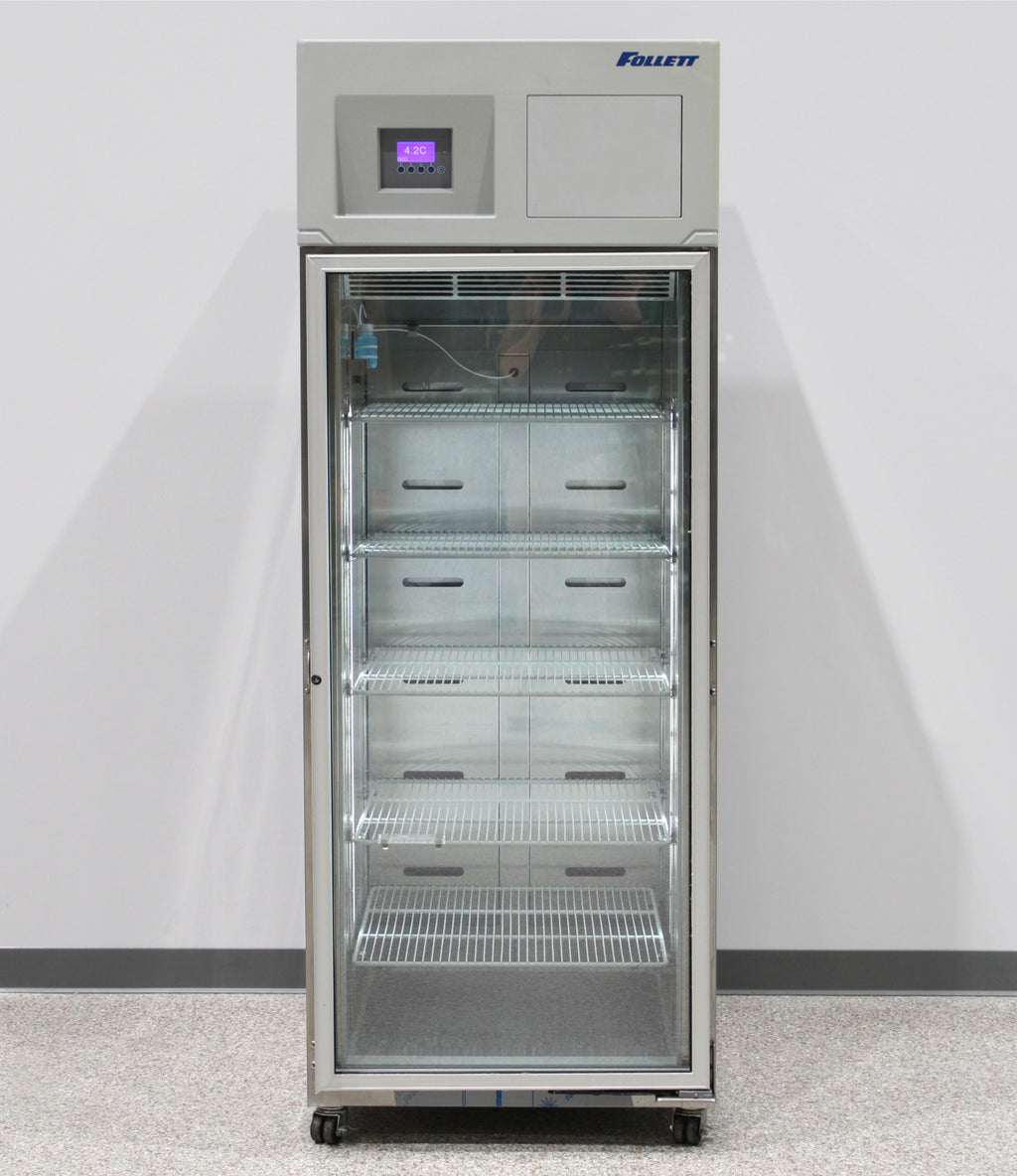

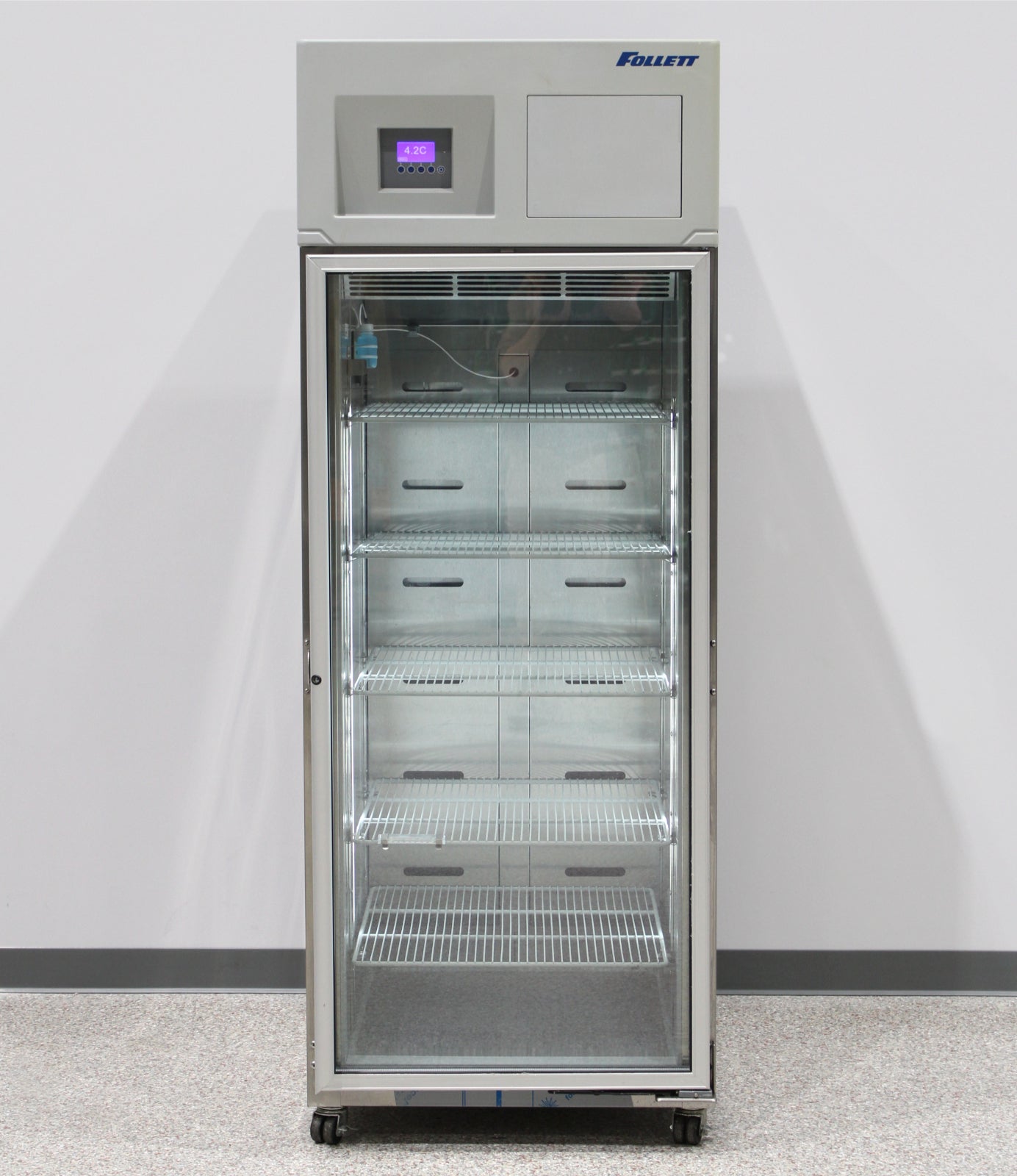

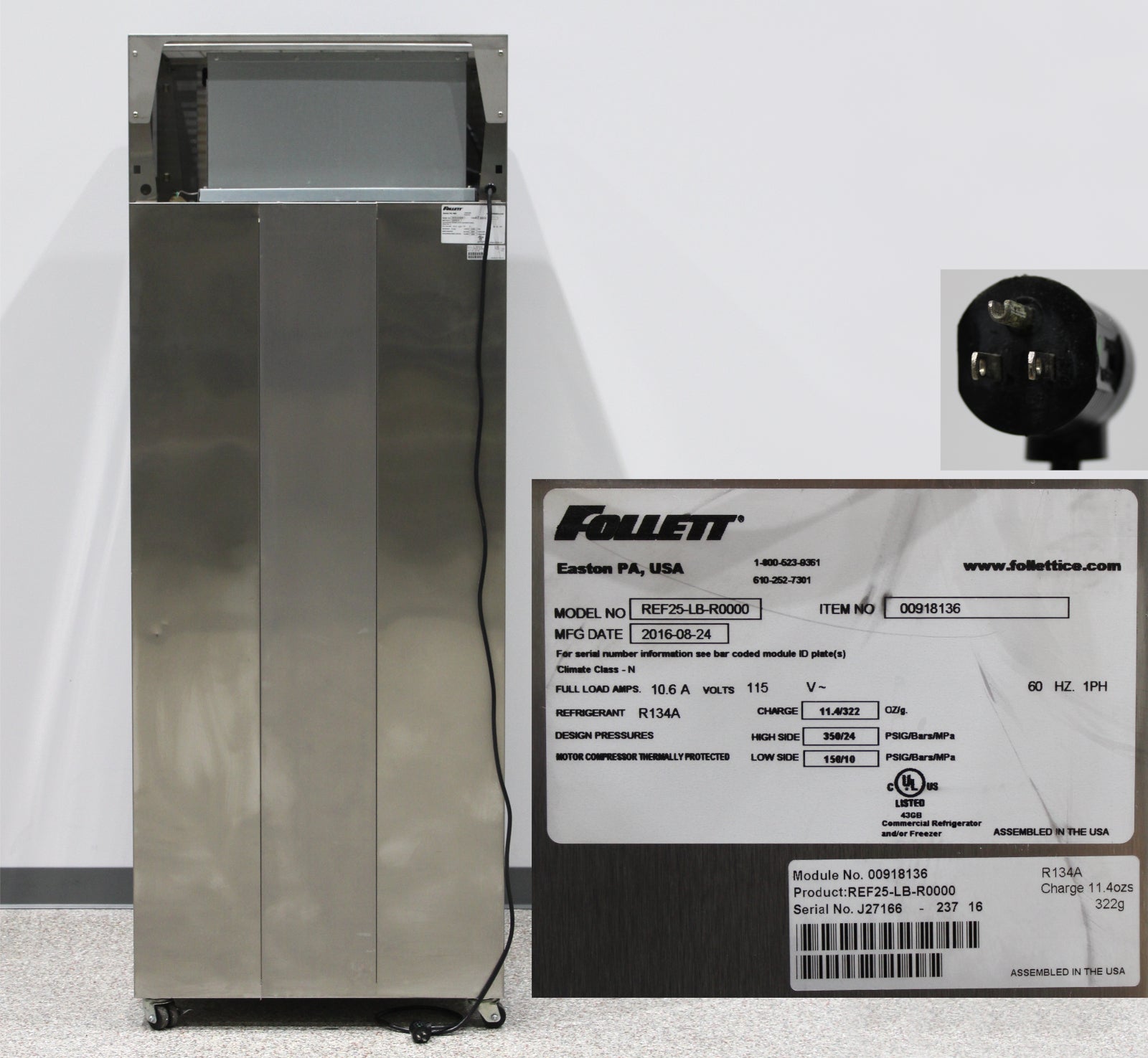

Manufacturer
|
Follett
|
|
Model No.
|
REF25-LB-R0000
|
|
Item No.
|
00918136
|
|
Serial No.
|
J27166-237 16
|
|
Mfg. date
|
2016-08-24
|
|
Nominal capacity
|
24.6 cu. ft.
|
|
Air temperature pull down
|
24° to 5°C (75° to 41°F) in 30 minutes
|
|
Product simulation bottle temperature pull down
|
24° to 5°C (75° to 41°F) in 120 minutes
|
|
Programmable operating range
|
-1.6° to 10°C (29° to 50°F)
|
|
Factory preset
|
3.3°C
|
|

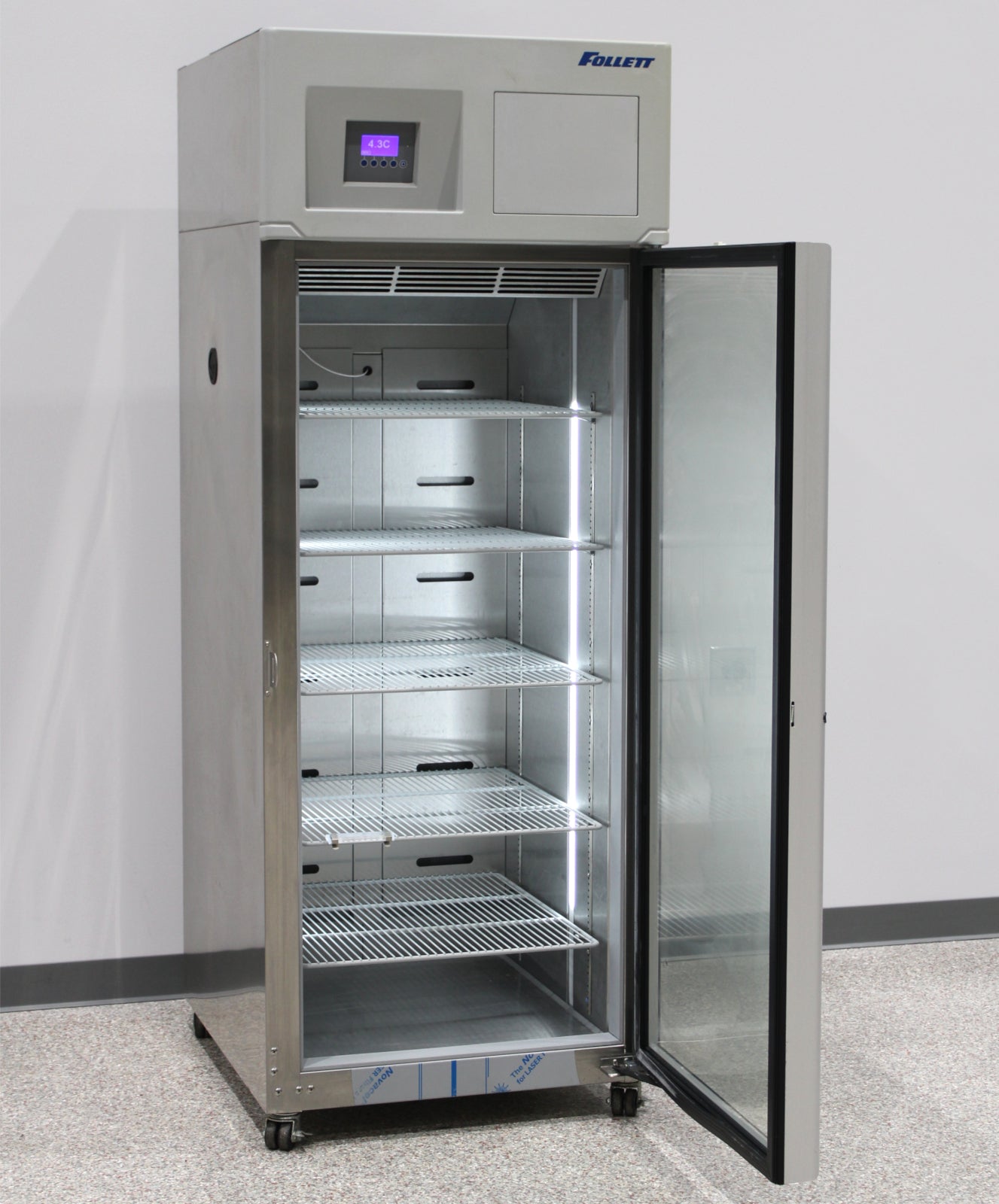

Door
|
Dual-pane glass door
|
|
Working load rating per shelf
|
78 lb (35 kg)
|
|
Max. load rating per shelf
|
117 lb (53 kg)
|
|
Lighting
|
x2 energy efficient full length LED lights
|
|
Refrigeration system
|
Integral top-mounted module with ⅓ hp compressor and air-cooled condenser
|
|
High and low product temperature alarm
|
Audible and visual, user programmable set points in C or F
|
|
Power failure alarm
|
Audible and visual
|
|
Door ajar alarm
|
Audible and visual
|
|
Probe error alarm
|
Audible and visual - product temperature probes, refrigeration and defrost
|
|
Alarm mute
|
10 minute ring-back
|
|
Alarm volume
|
0-10 scale
|
|
Low battery alert
|
Audible and visual
|
|

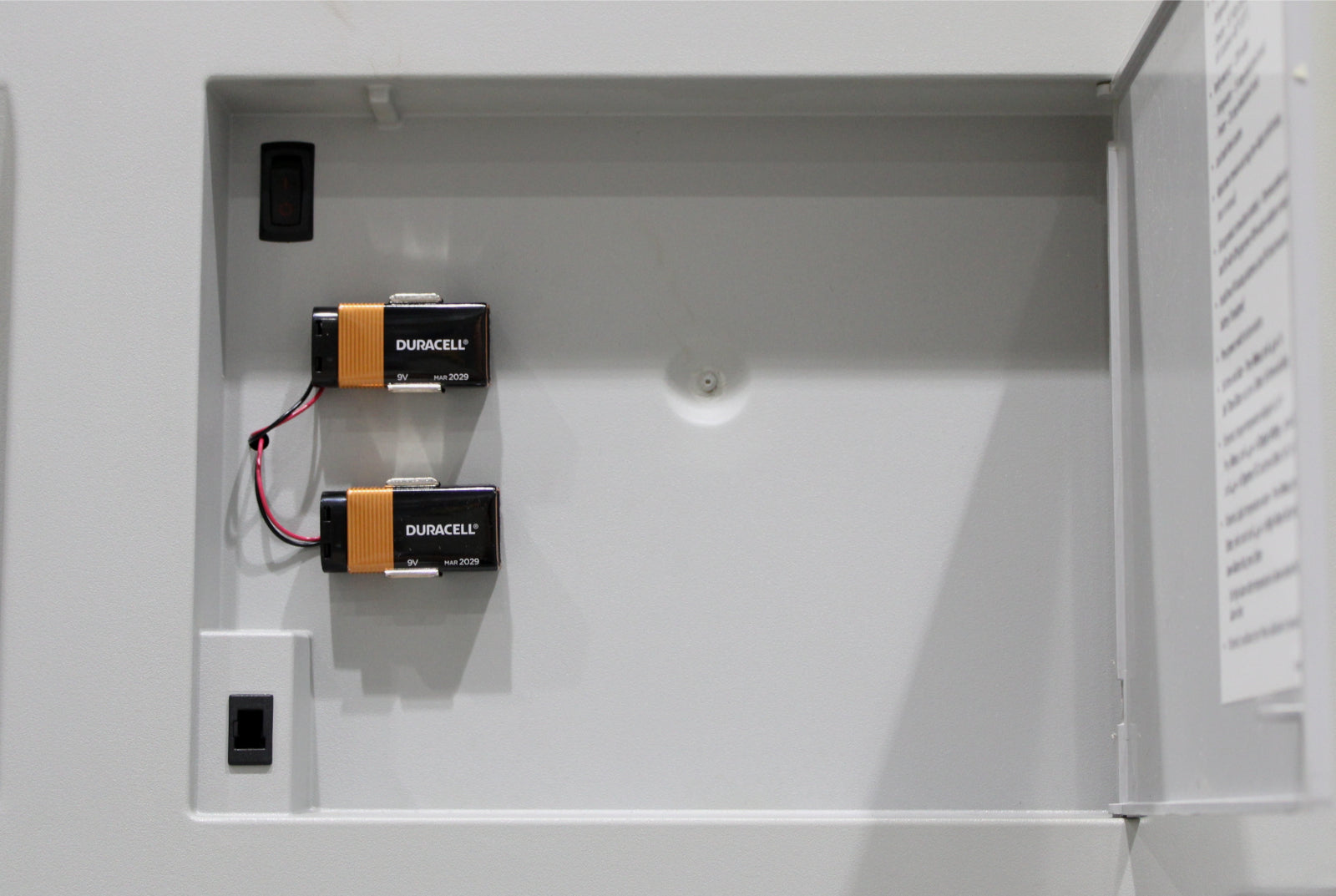

Back-up battery status
|
Shows voltage level
|
|
Min/max temperature log
|
Shows highest and lowest product temperature since last reset occurred
|
|
Information log
|
Graphs or displays temperature data and displays chronological event data (50,000 data points)
|
|
Data export
|
USB export capabilities
|
|
Temperature probe calibration
|
Top probe calibration in 0.1° increments
|
|
Password protection PIN
|
4 digit password to prevent interface setting/selection changes
|
|
Data and time
|
programmable
|
|
Production simulation bottle size
|
x1 125 ml
|
|
Top-to-bottom temperature consistency
|
±1°C (1.8°F)
|
|
Remote contacts
|
NO/NC standard, located behind front panel
|
|
Refrigeration and defrost probes
|
NTC thermistor type
|
|
Refrigeration cycle with probe error
|
Factory set at 4 min on, 8 off, user adjustable
|
|
Refrigeration charge
|
non-CFC R134a refrigerant, 11.4 oz
|
|

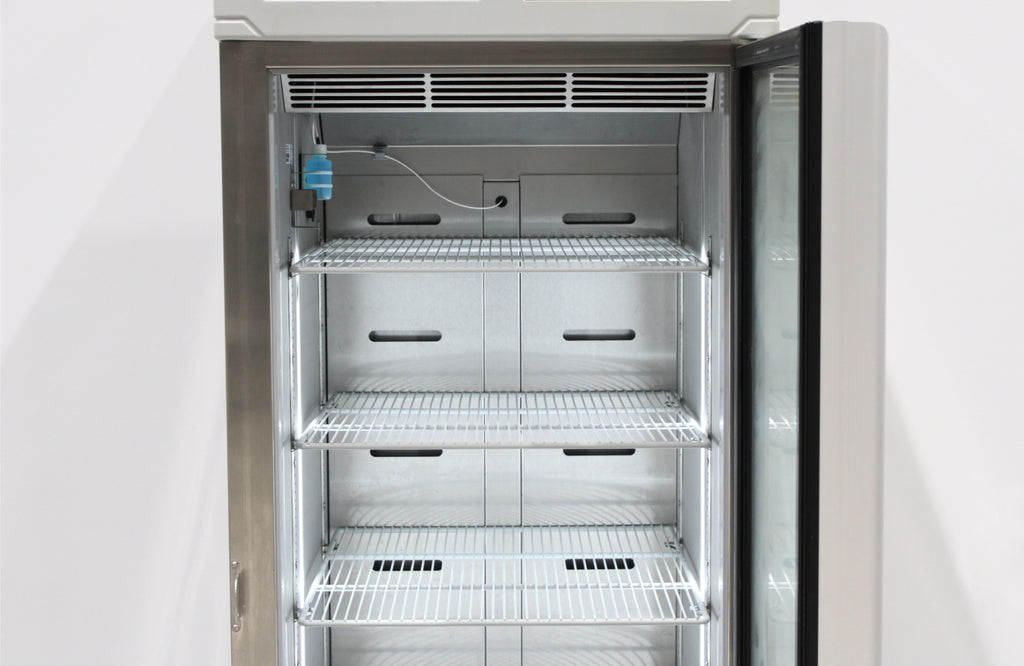

Air circulation system
|
Ducted air to each storage level through back plenum openings, front face returns
|
|
Plug type
|
NEMA 5-15
|
|
Energy consumption
|
5.4kWh/day (auto-off defrost)
|
|
BTU/hr normal heat rejection, includes duty cycle (75°F ambient)
|
1060 BTU/hr (311 Watts)
|
|
BTU/hr maximum (total) heat rejection, continuous operation (75°F ambient)
|
3210 BTU/hr (941 Watts)
|
|
Power rating
|
115V~, 60Hz, 10.6A, 1Ph
|
|
Ventilation clearance
|
10.00 in (25.4 cm) top, 2.00 in (5.08 cm) back
|
|
Door swing
|
62.5 in (158.8 cm)
|
|
Interior height
|
55.94 (142.1 cm)
|
|
Shelf dimensions (W x D)
|
23.38 x 25.5 in (59.4 x 64.8 cm)
|
|

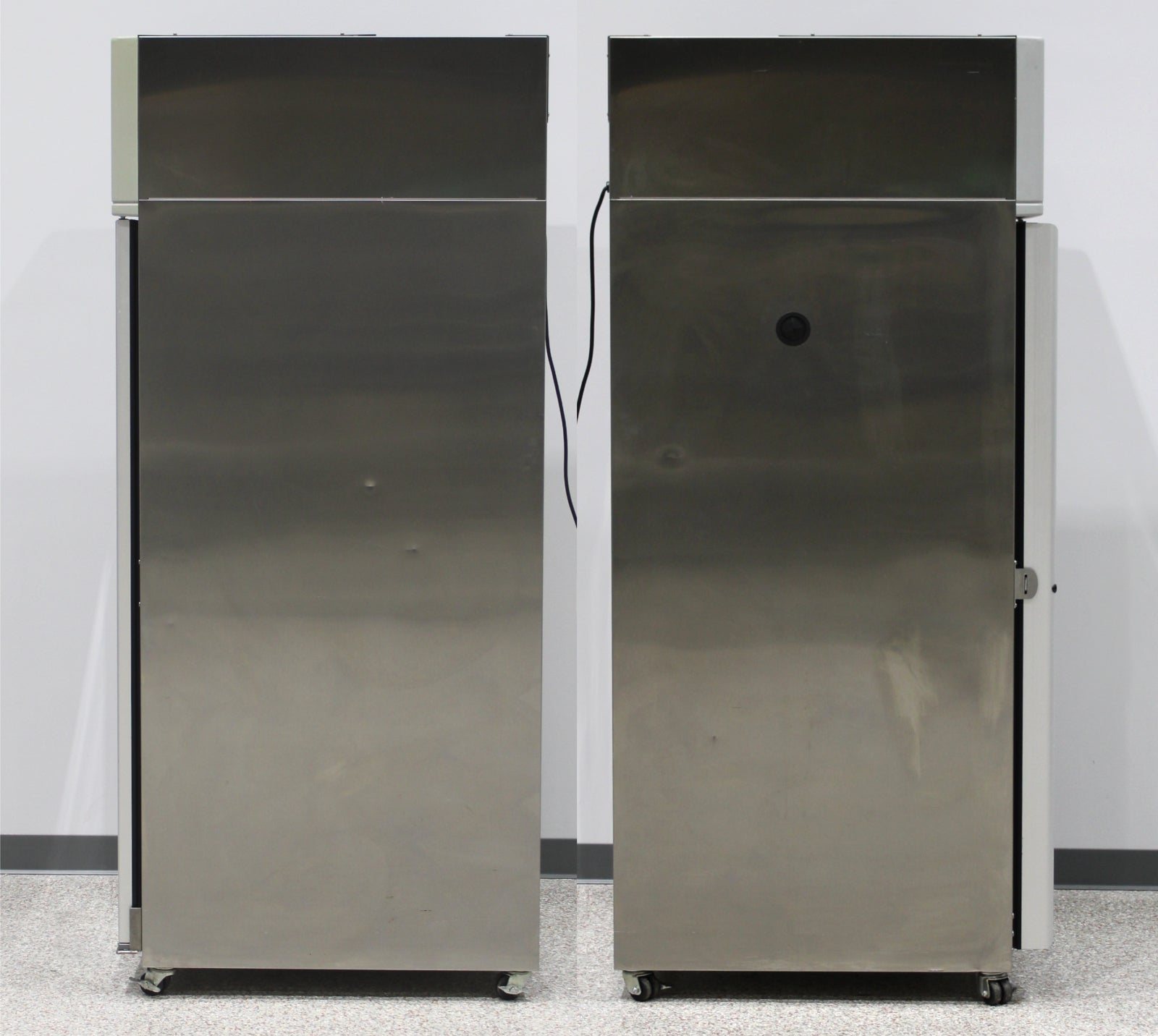

Exterior dimensions (W x D x H)
|
29.75 x 36.5 x 79.5 in (75.6 x 92.7 x 201.9 cm)
|
|
Weight
|
320 lb (145 kg)
|
