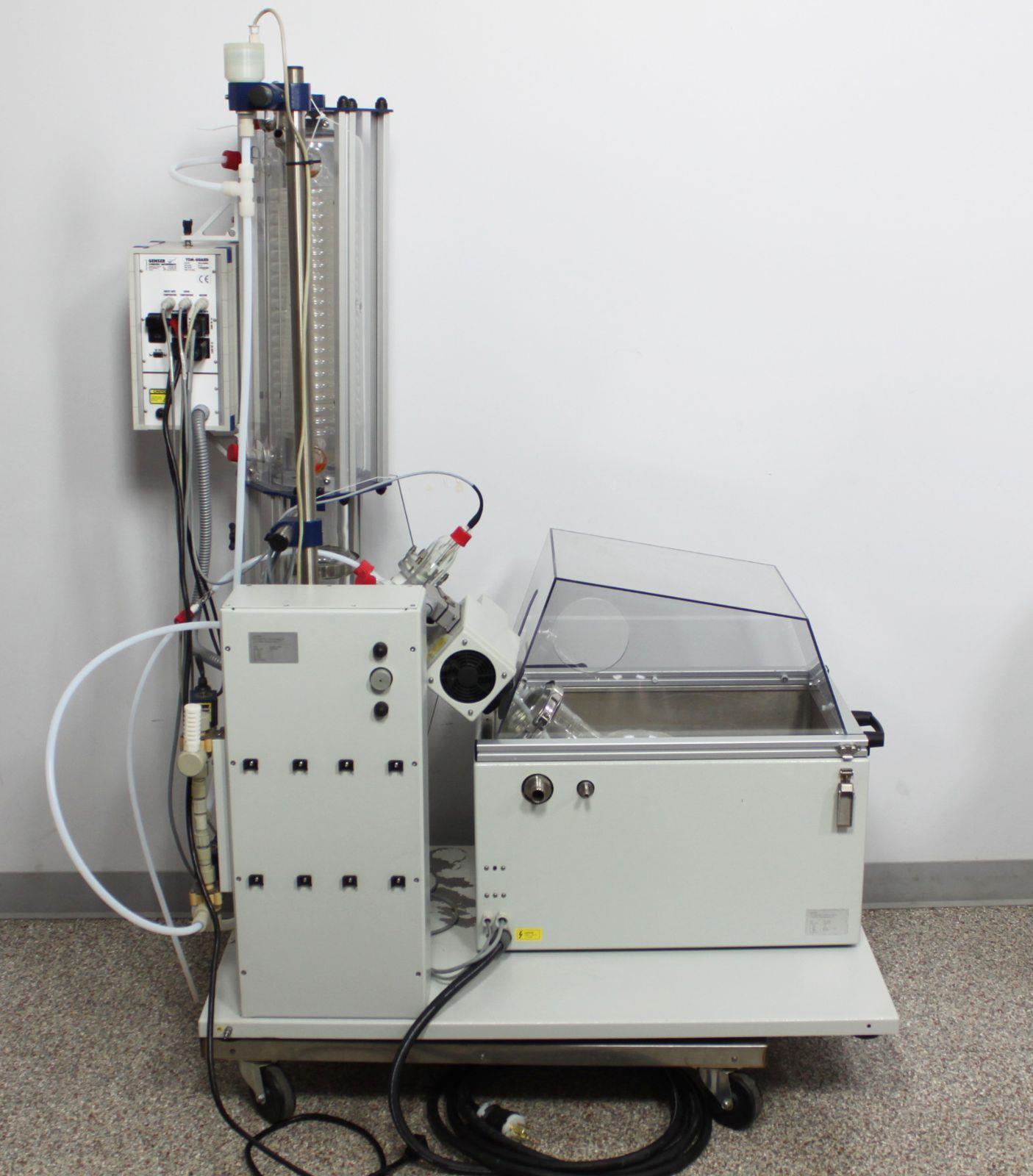

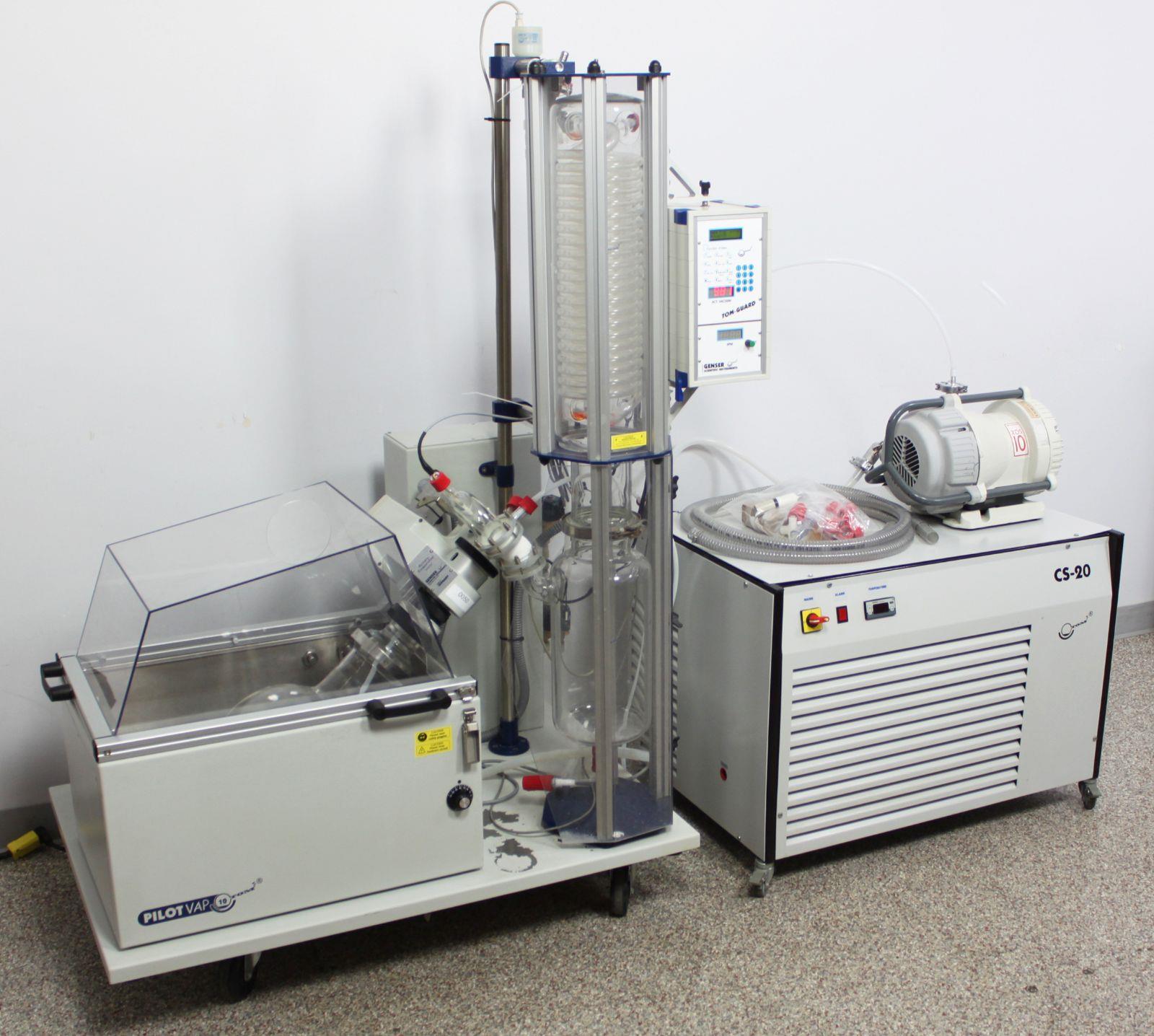

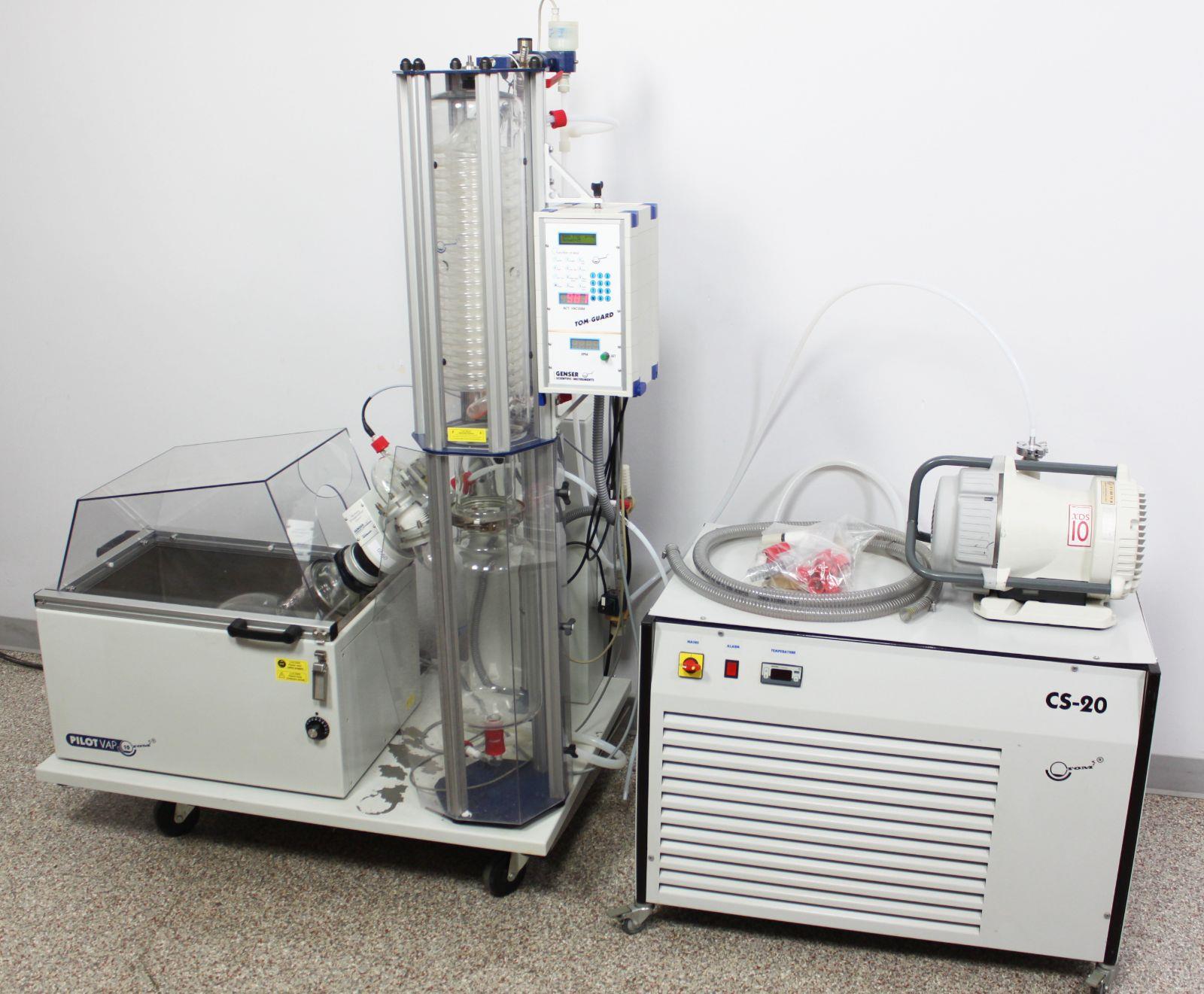

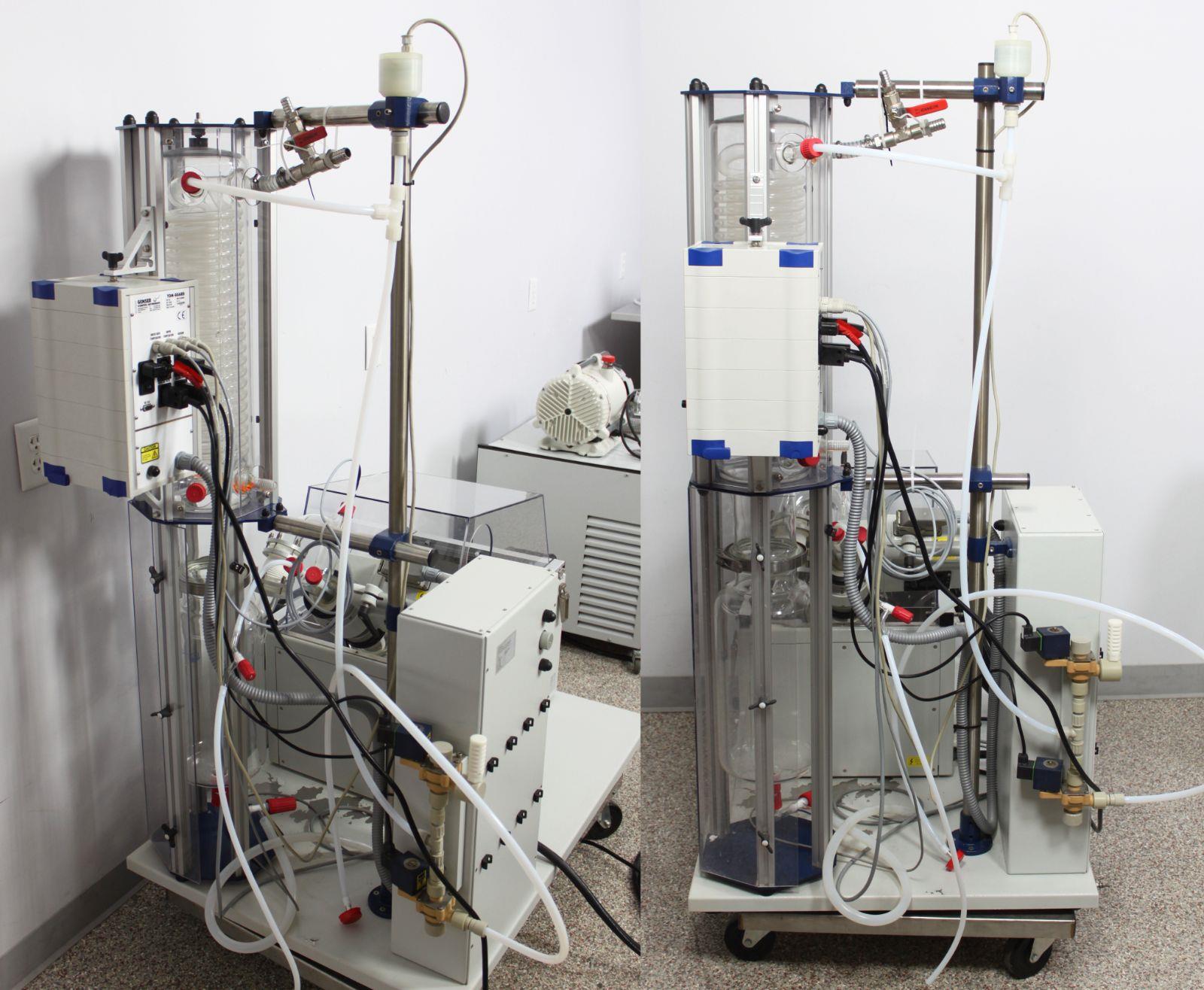

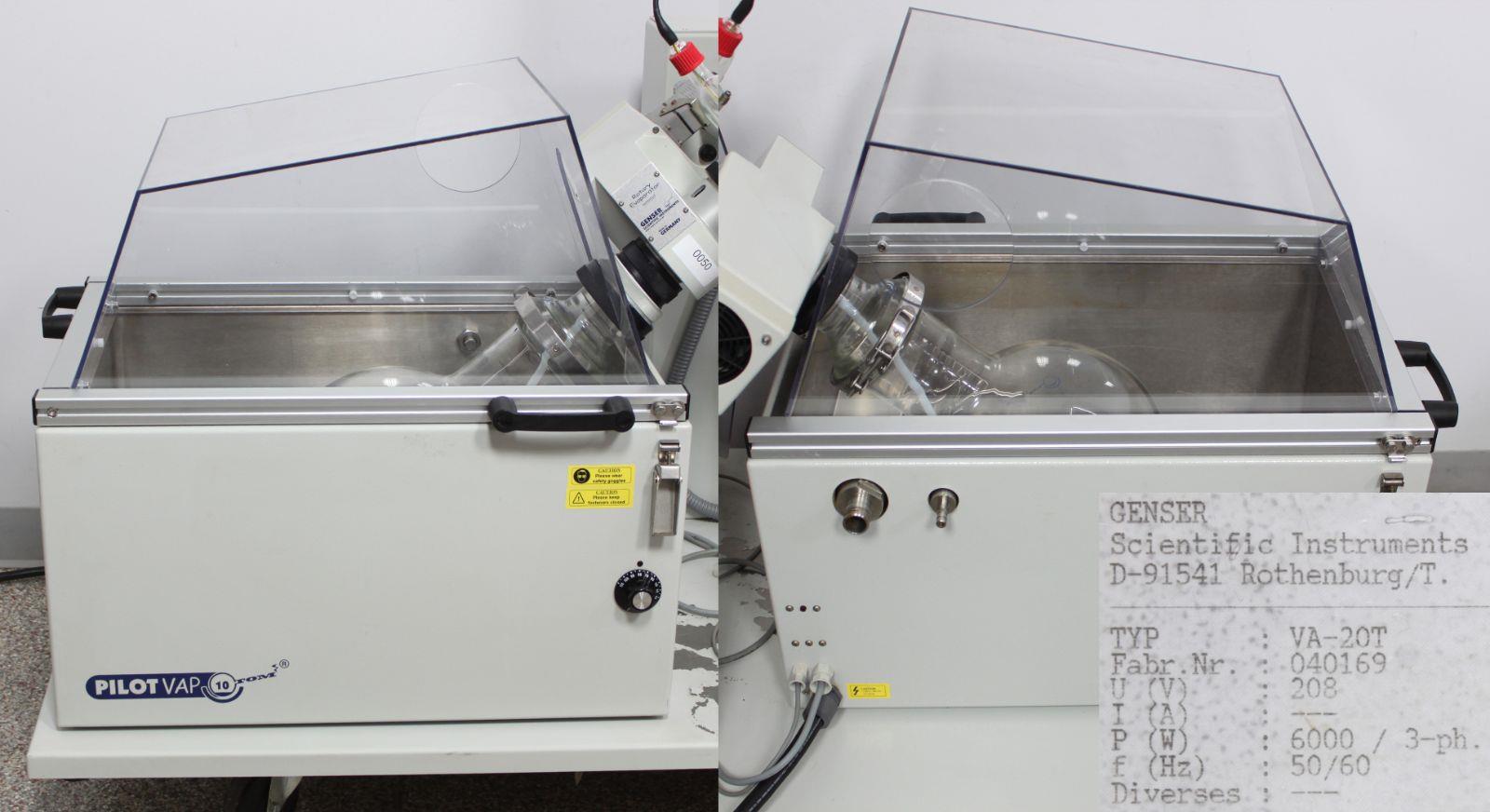

Genser PILOTVAP 10 Rotary Evaporator with CS-20 Chiller
A fully-tested, turnkey rotovap, this PILOTVAP 10 promises high-capacity evaporation capabilities perfect for labs needed to distill large amounts of solvent. According to the manufacturer, the PILOTVAP is suited for distilling solvents with high boiling points, powder drying, extract concentration, HPLC fraction concentration, and more.
This particular used PILOTVAP has been refurbished by our technical staff and is confirmed to work without issue. Included with it is a CS-20 chiller, an Edwards XDS 10 scroll vacuum pump, and all the flasks, tubes, and valves needed for operation.
Over $3,000 In New Parts Added
In order to make this PILOTVAP a turnkey evaporator, we added several brand-new components to it, including:

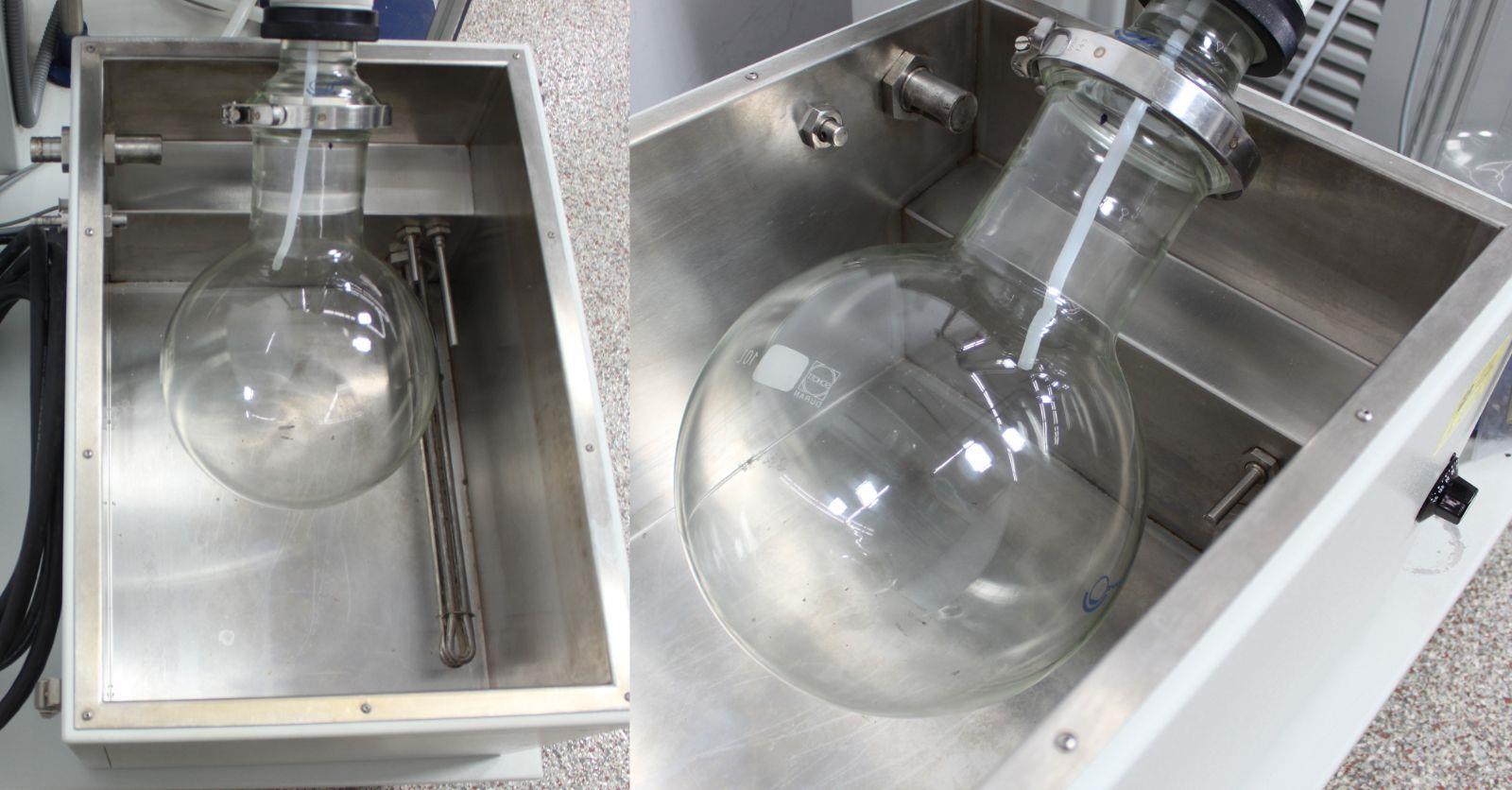

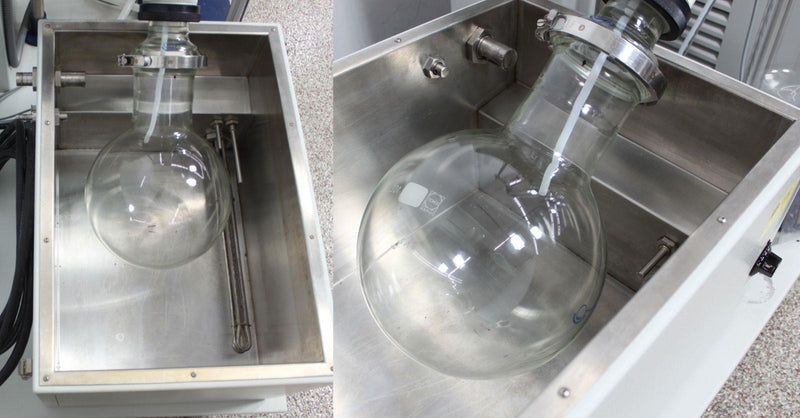

- 10L rotating flask
- Vapor sensor
- Throttling valve
- Chiller hoses
- Cords
After adding the above components, our technical staff tested this evaporator. It worked flawlessly and we were able to process 8 gallons of alcohol with it.
Here's a summary of all the components that were tested:
- Vacuum pump: PASSED

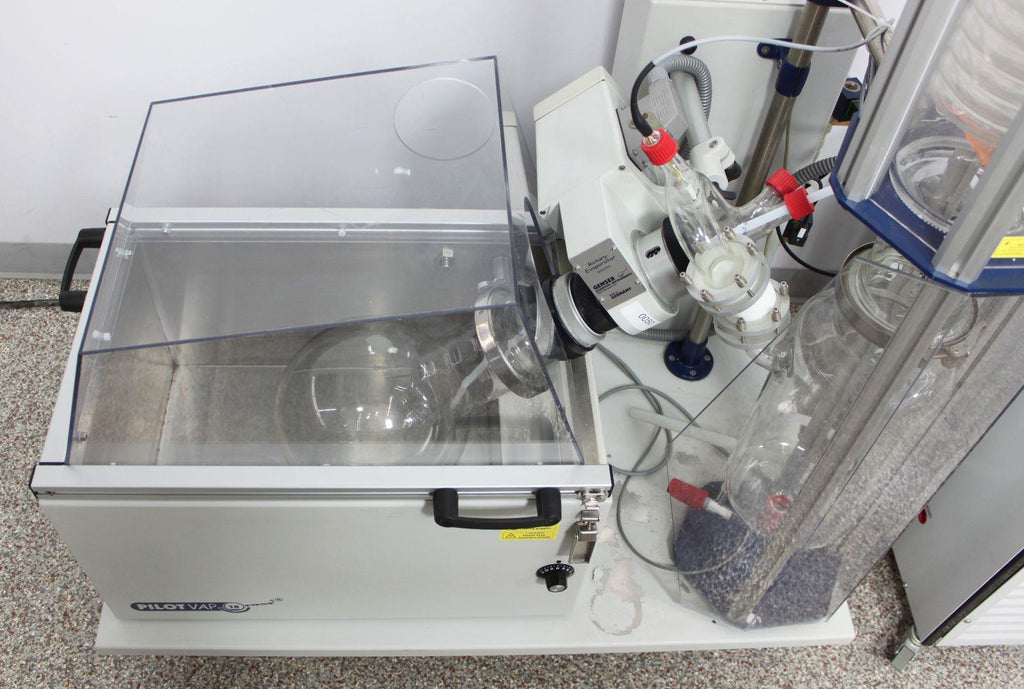

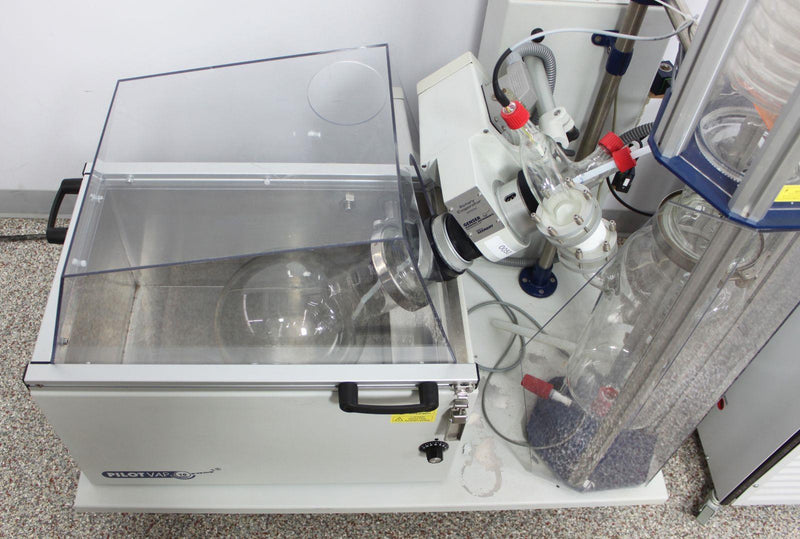

- Heating bath: PASSED

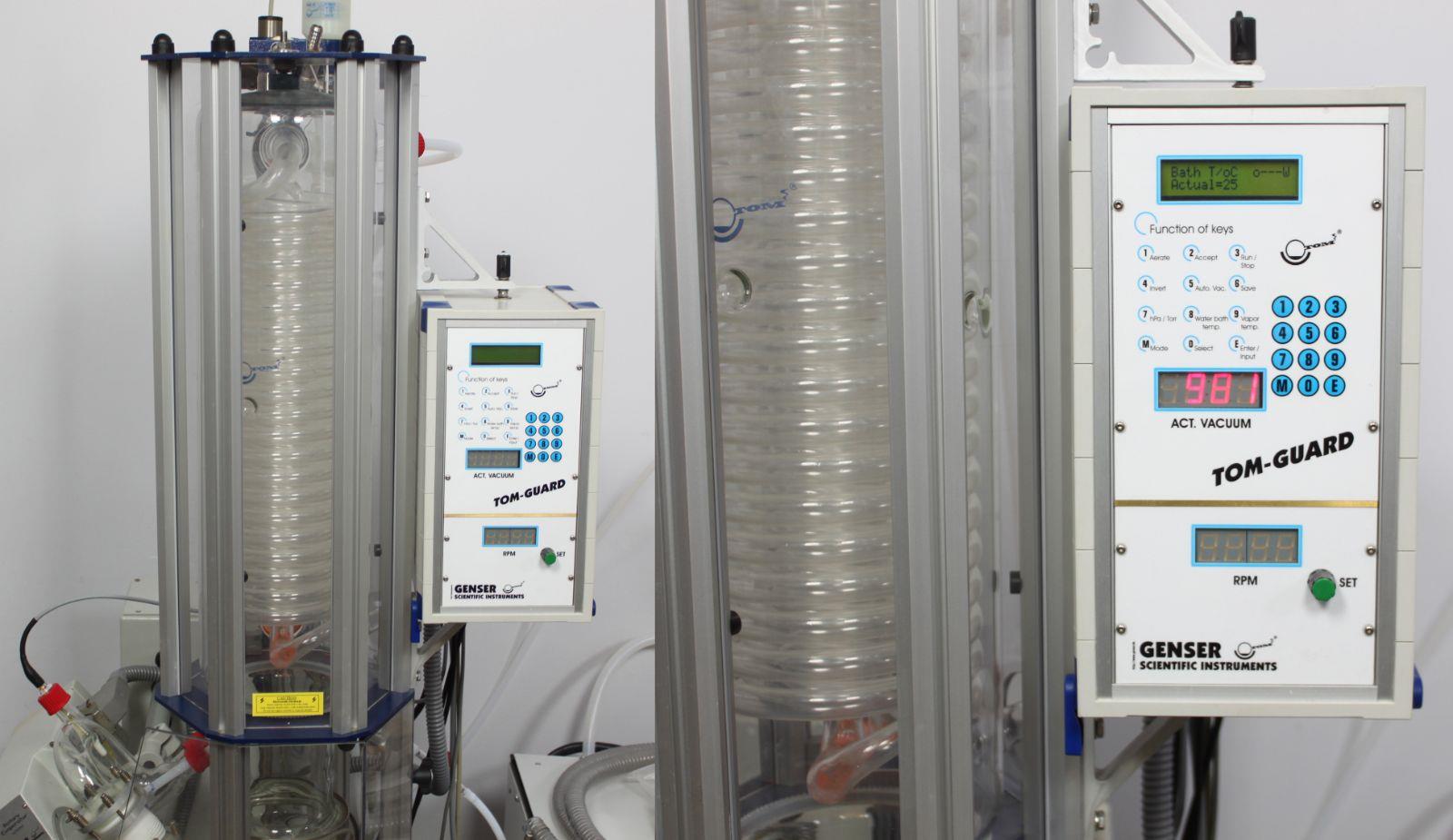

- User interface: PASSED
- Chiller: PASSED
- Drain valve: PASSED
- Feed idling valve: PASSED
- Vapor sensor: PASSED
- Genser PILOTVAP 10 Rotary Evaporator

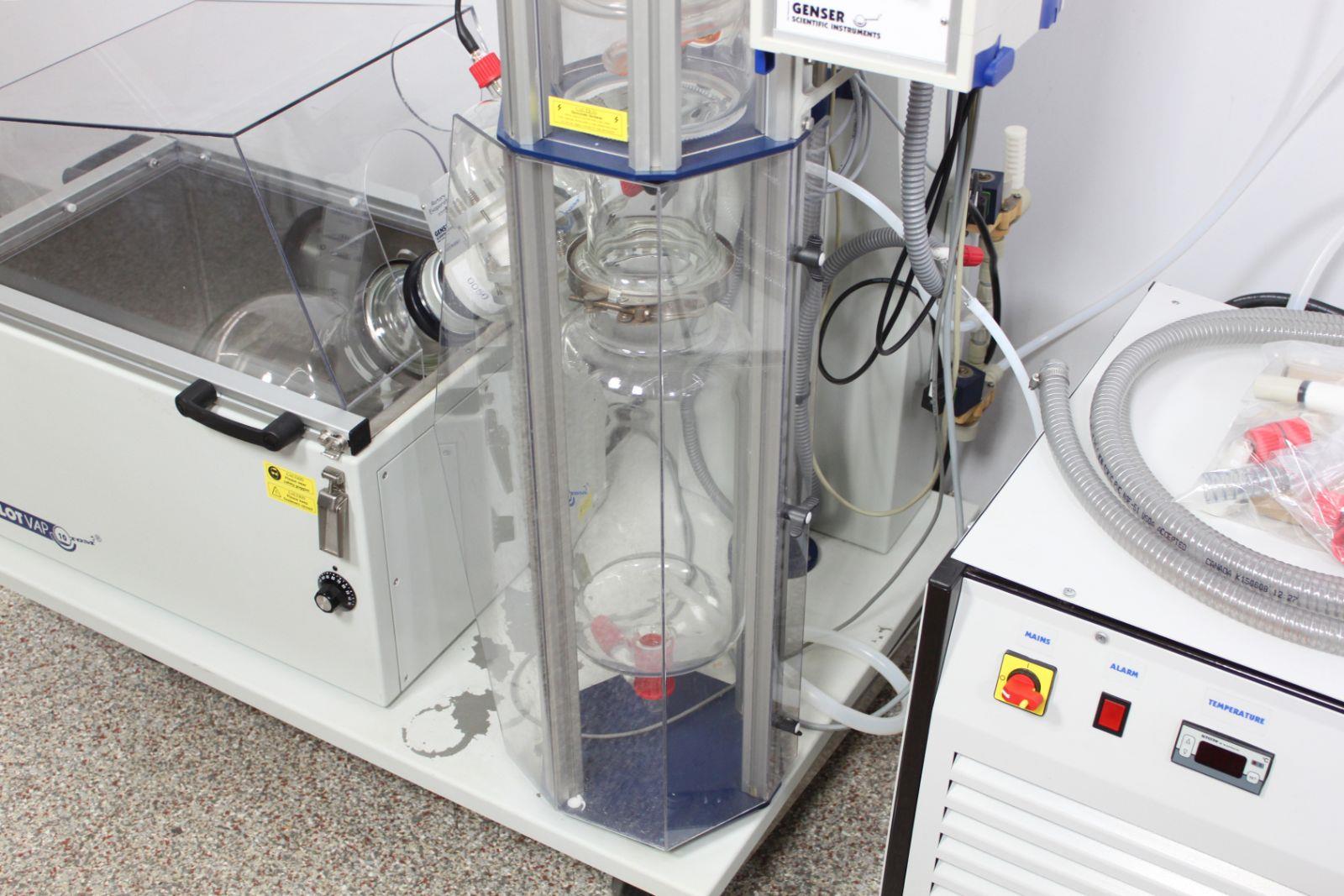

- CS-20 Chiller

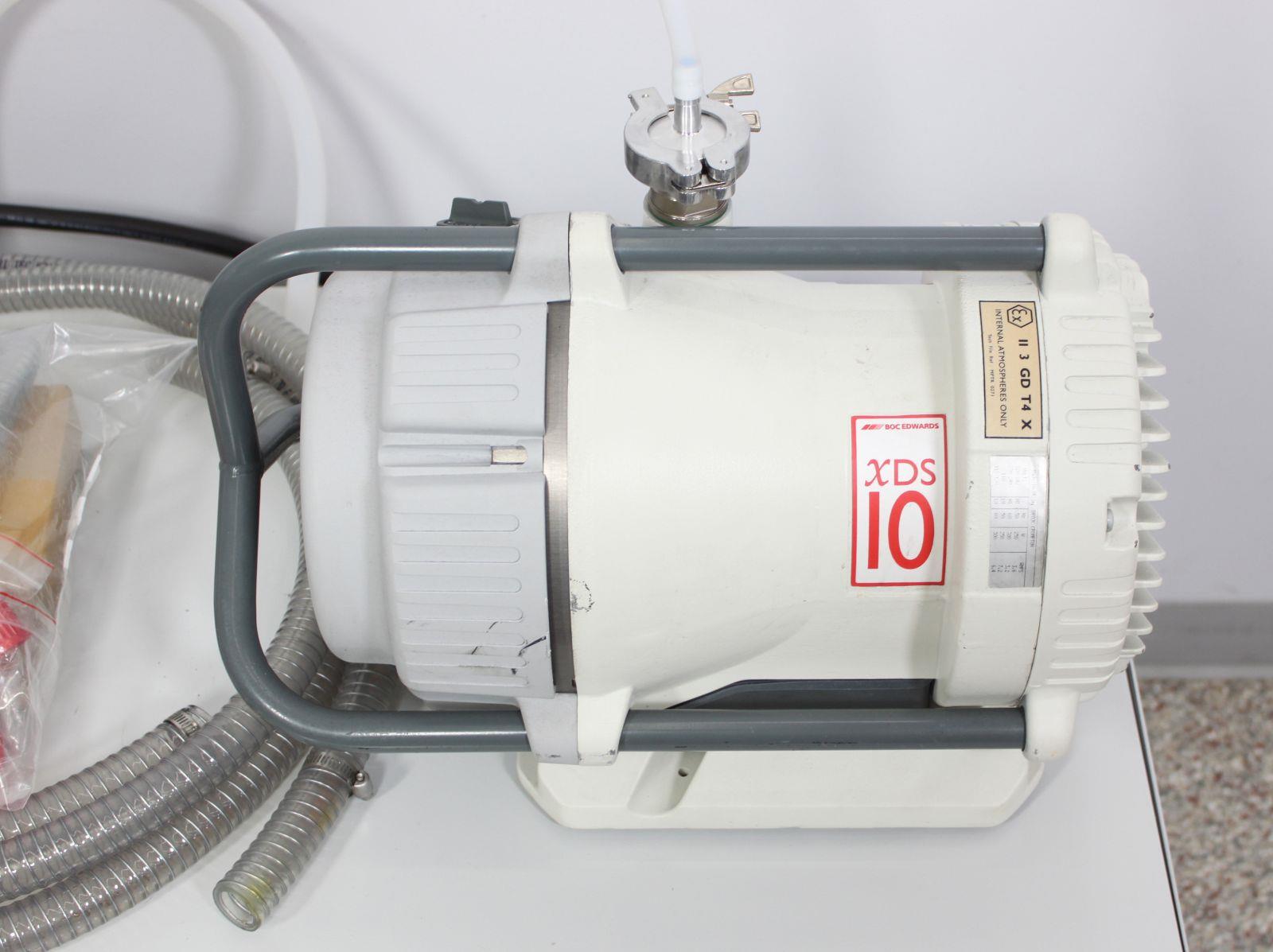

- Edwards XDS 10 Scroll Vacuum Pump

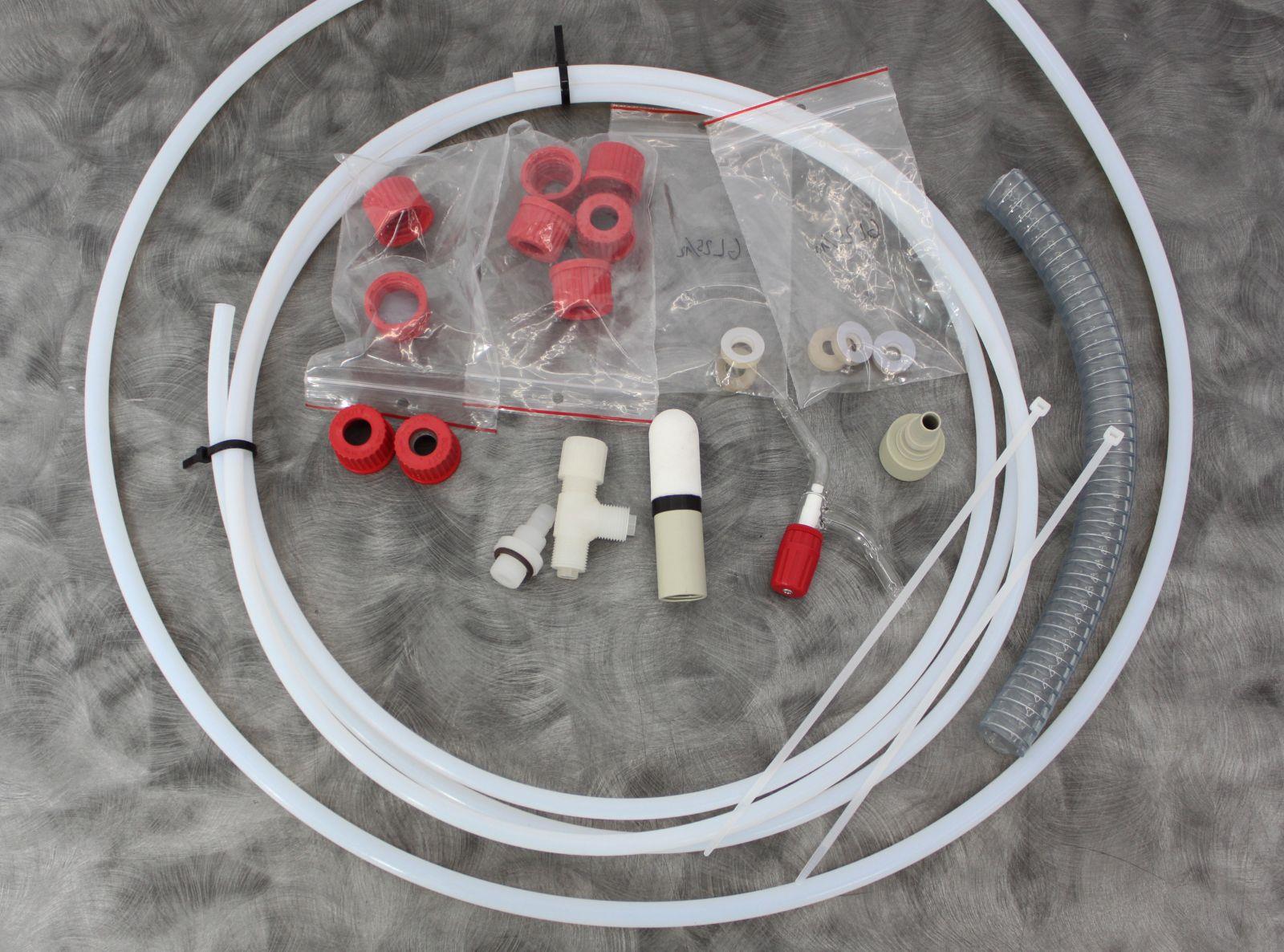

- Chiller Tubing
- Power/Comms Cables
A PDF of the manual is available upon request.
|
Manufacturer
|
Genser
|
|
Model
|
PILOTVAP 10
|
|
Installable rotating flasks
|
1, 2, 3, 4, 5, 6, 10, 20 L
|
|
Process control of vacuum, heating bath temperature, speed of rotating flask
|
Yes
|
|

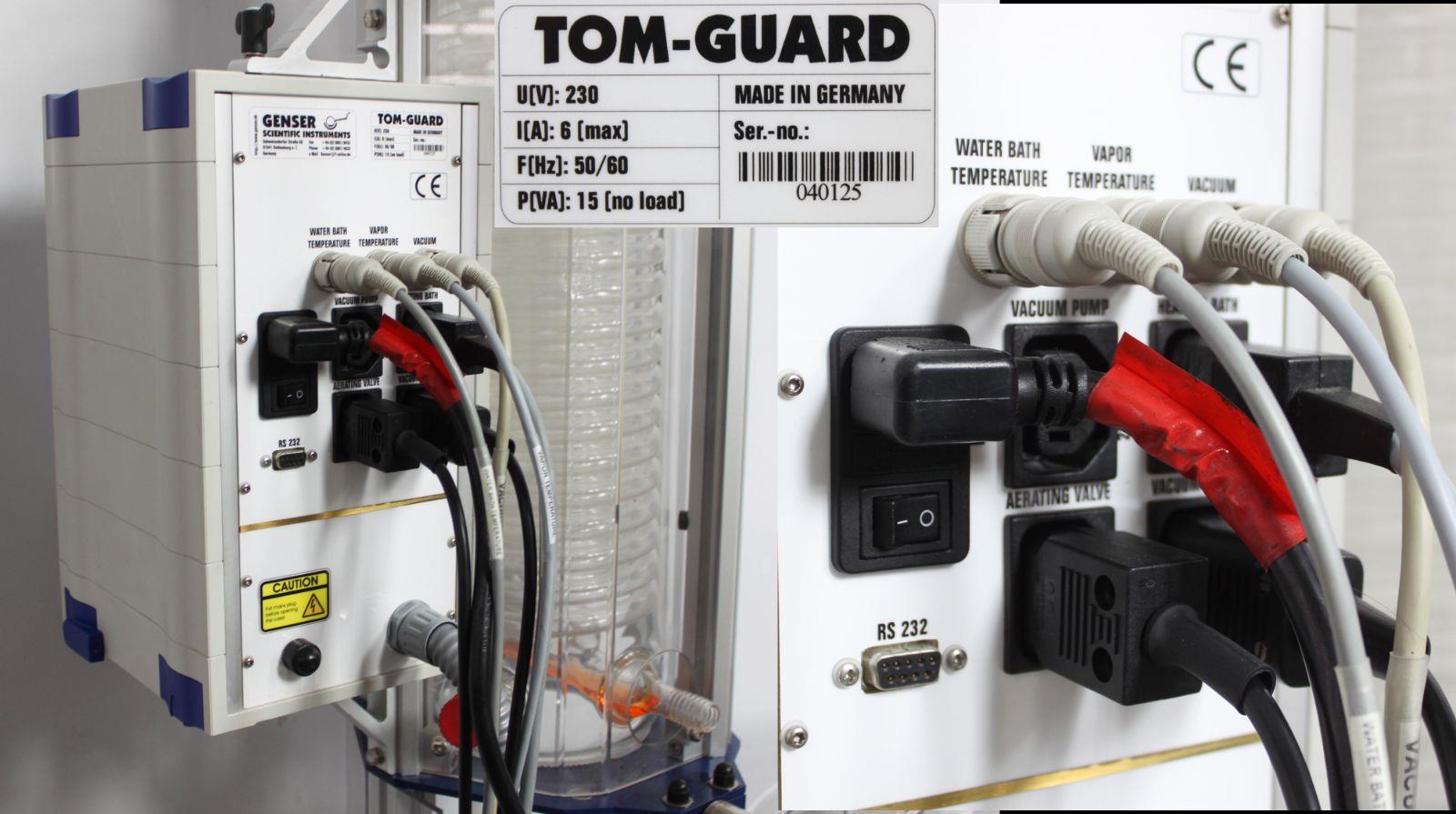

Interface RS-232/USB
|
Yes
|
|
Distillation performance of water at 60°C heating bath temperature
|
Approx. 4.5 L/hour (20 L rotating flask)
|
|
Leakage rate
|
<5 hPa/h
|
|
Final vacuum
|
0.1 hPa
|
|
Reflux
|
Yes
|
|
Dimensions (W x D x H)
|
52 x 30 x 68 in.
|
|

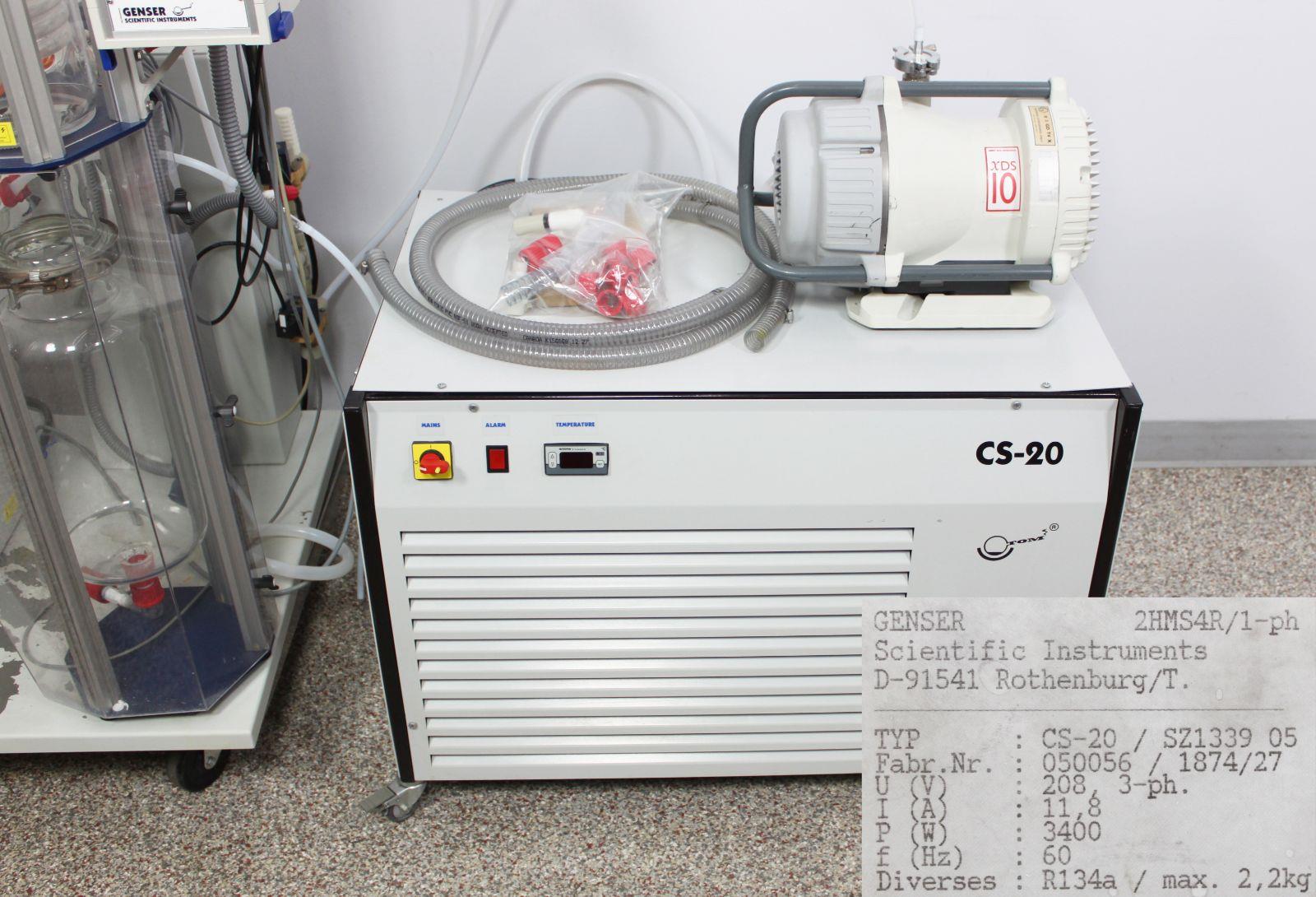

Manufacturer
|
Genser
|
|
Model
|
CS-20
|
|
Type
|
CS-20 / SZ1339 05
|
|
Fabr. No.
|
050056 / 1874/27
|
|
Electrical Specifications
|
208V (3-Ph) , 11.8A, 3400W, 60Hz
|
|
Dimensions (W x D x H)
|
36 x 24 x 26 in.
|
