Manufacturer
|
Gilson
|
|
Model
|
GX-281
|
|

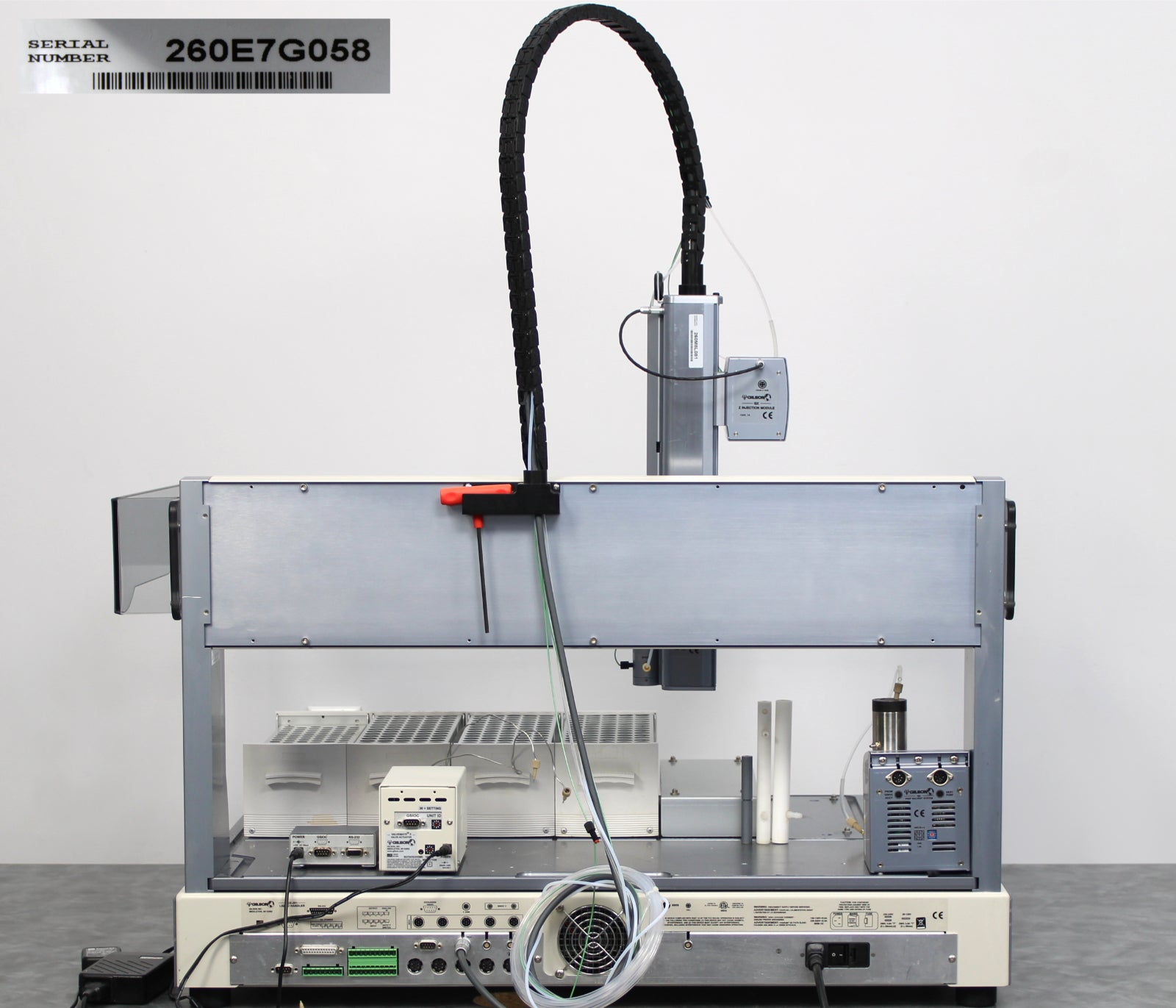

Serial No.
|
260E7G058
|
|
Arm speed
|
0.01 to 600.00 mm/sec in X dimension
0.01 to 600.00 mm/sec in Y dimension
0.01 to 125.00 mm/sec in Z dimension
|
|

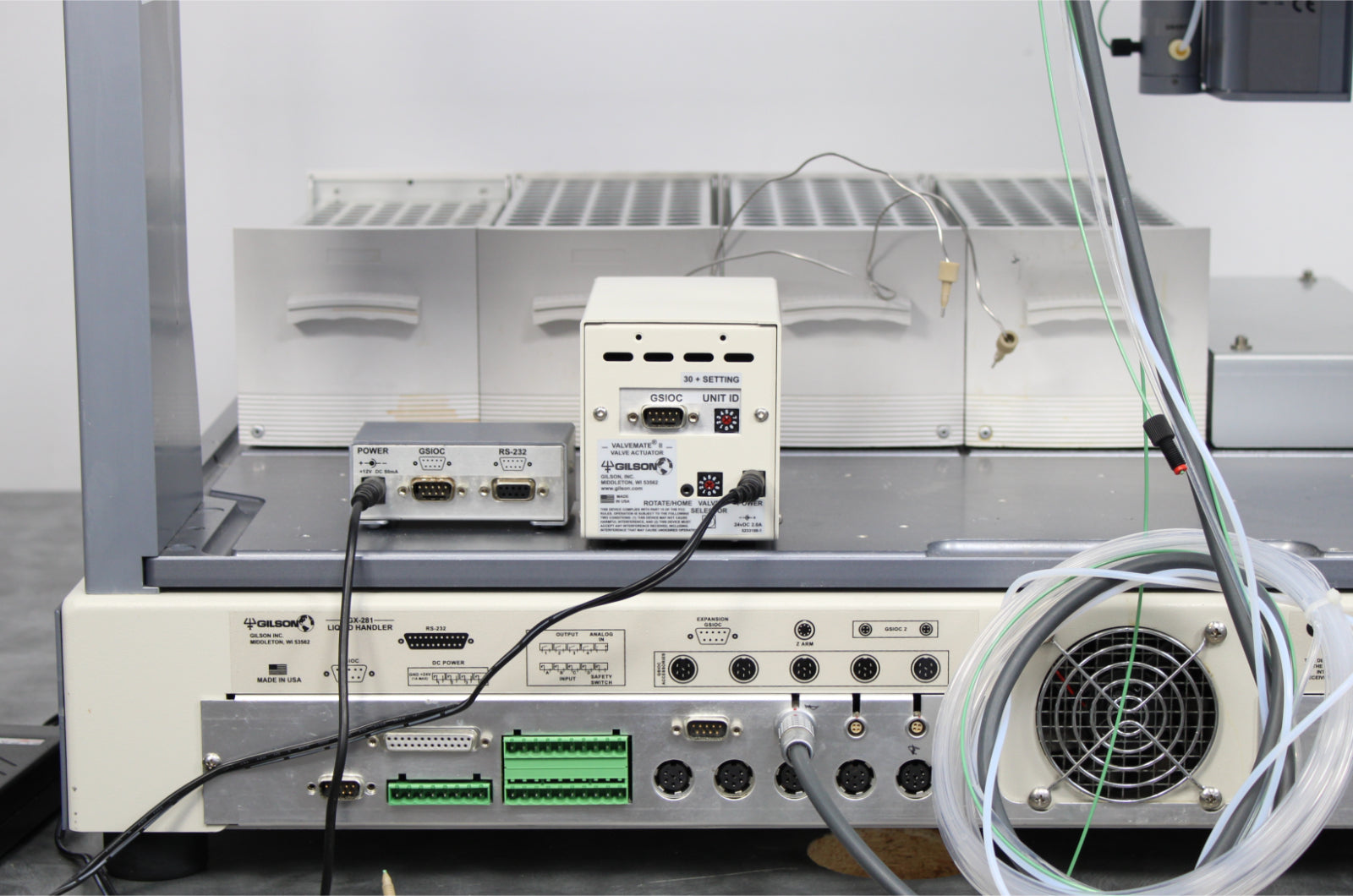

Contact control
|
Four inputs (contact closure, TTL), four relay outputs, four switched +24V DC 1A outputs, one safety input, and one analog input
Note: For your safety, do not switch voltages higher than 30V even though the output contacts are rated for high voltage.
|
|
Data acquisition
|
An input channel for analog-to-digital conversion
Input impedance: More than 100K ohms
Input voltage range: -1.0V to +1.0V
Input resolution: 10μV
|
|

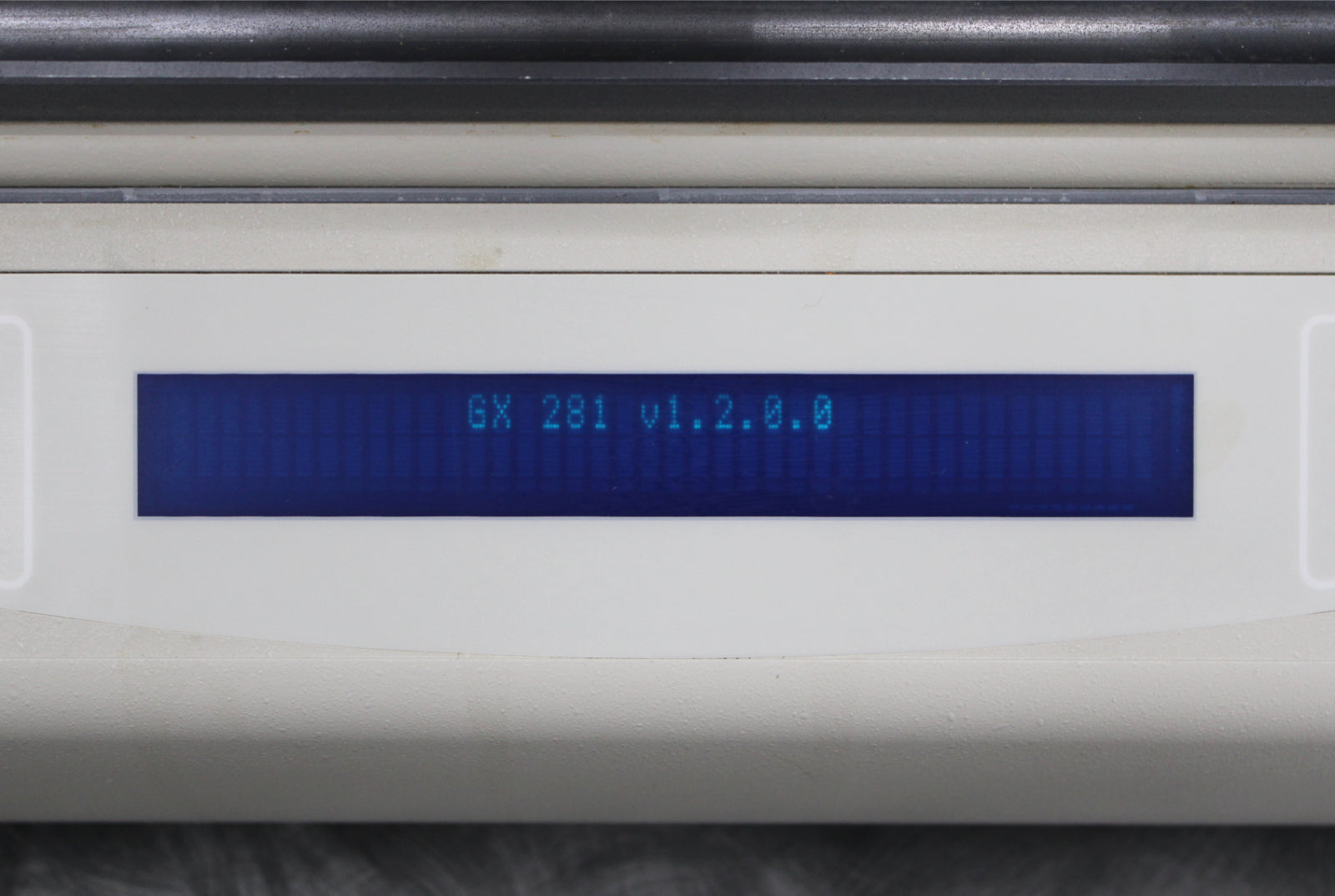

Display
|
Two lines of 40 alphanumeric characters; vacuum fluorescent display
|
|
Environmental conditions
|
Indoor use
Altitude: up to 2000 m
Temperature range: 5°–40°C
Air pressure: 75–105 kPa
Humidity: Maximum relative humidity 80% for temperatures up to 31°C, decreasing linearly to 50% relative humidity at 40°C
|
|
Front panel
|
ON/OFF and STOP soft keys and LED indicator light for power
|
|
Horizontal motion strength
|
X: 1.4 kg (3 lbs)
Y: 0.7 kg (1.5 lbs)
Z: 5.4 kg (12 lbs)
|
|

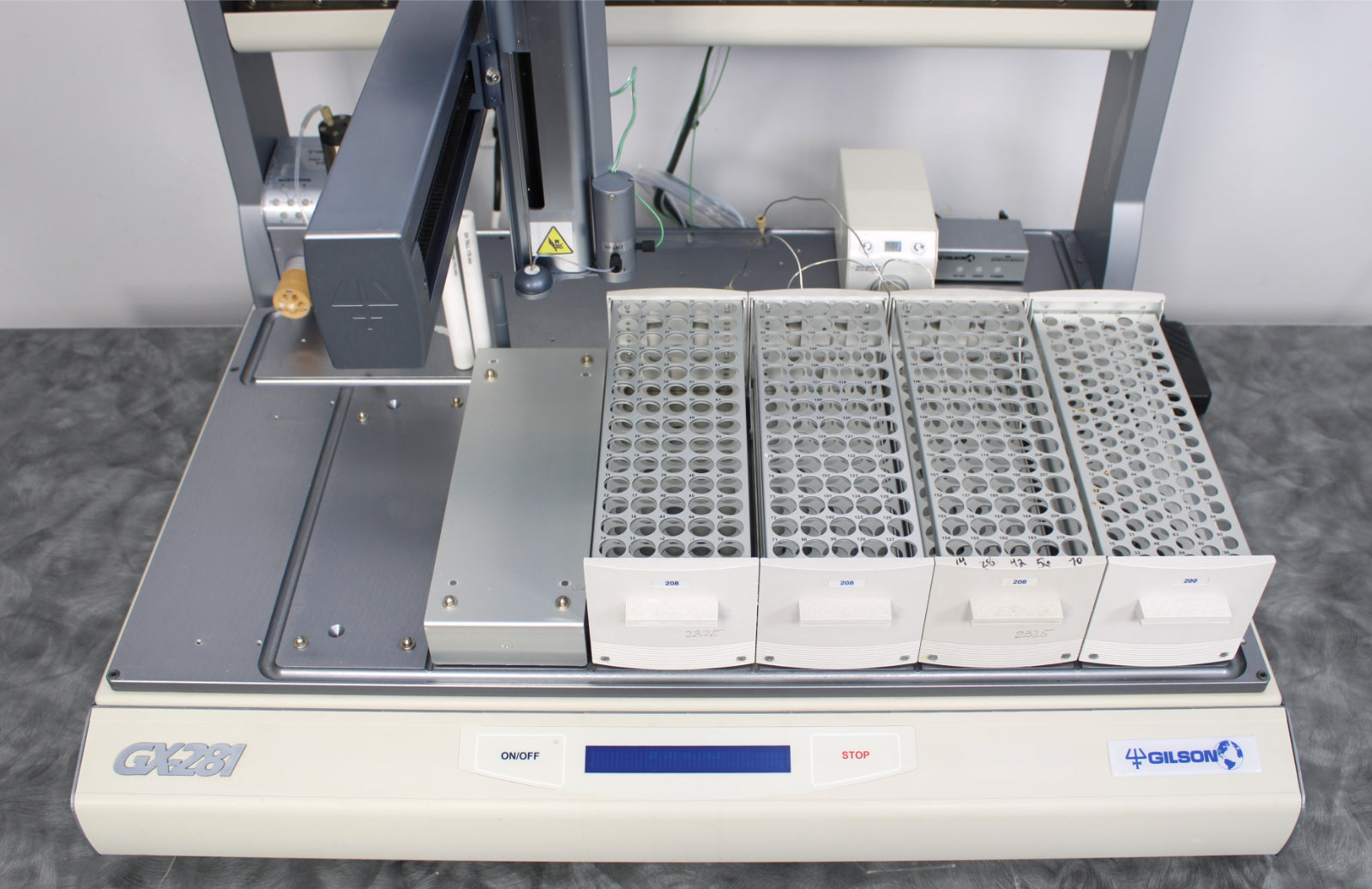

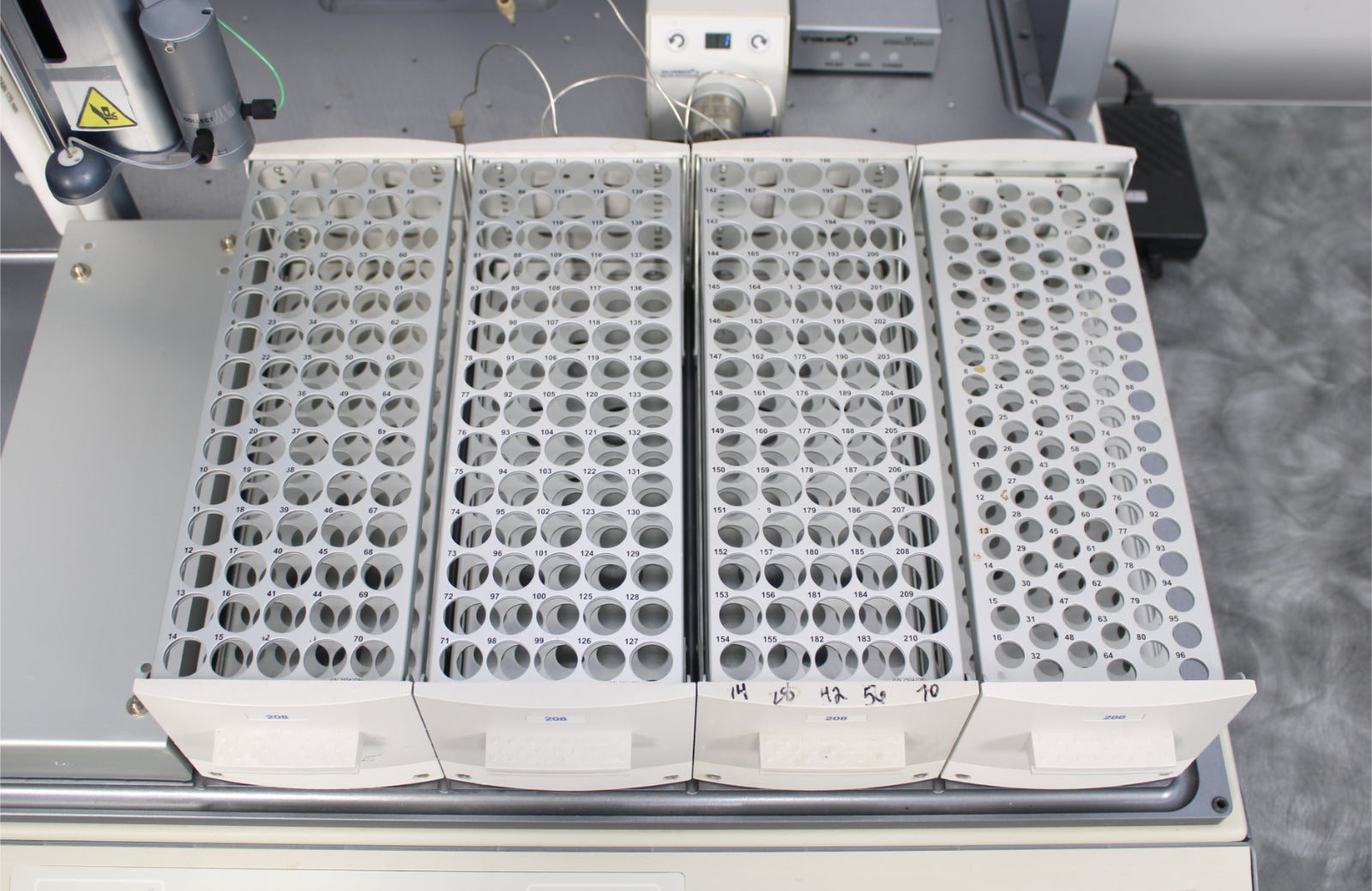

Locator plate capacity (Qty, Capacity, Gilson rack qty)
|
576, 13x100 mm tubes, Code 200 (6)
450, 16x100 mm tubes, Code 207 (6)
420, 18x150 mm tubes, Code 208 (6)
162, 20 mL scintillation vials, Code 204 (6)
162, 40 mL scintillation vials, Code 219 (6)
|
|
Probe positioning performance
|
Accuracy: ±0.05 mm in X/Y/Z dimensions
Repeatability: ±0.025 mm in X/Y/Z dimensions
|
|
Probe rinse
|
Probe rinsing occurs through a dedicated rinse station
|
|
Safety approvals/EMC compliance
|
Certified to UL, CSA, CE, and C-Tick Safety and EMC standards.
|
|

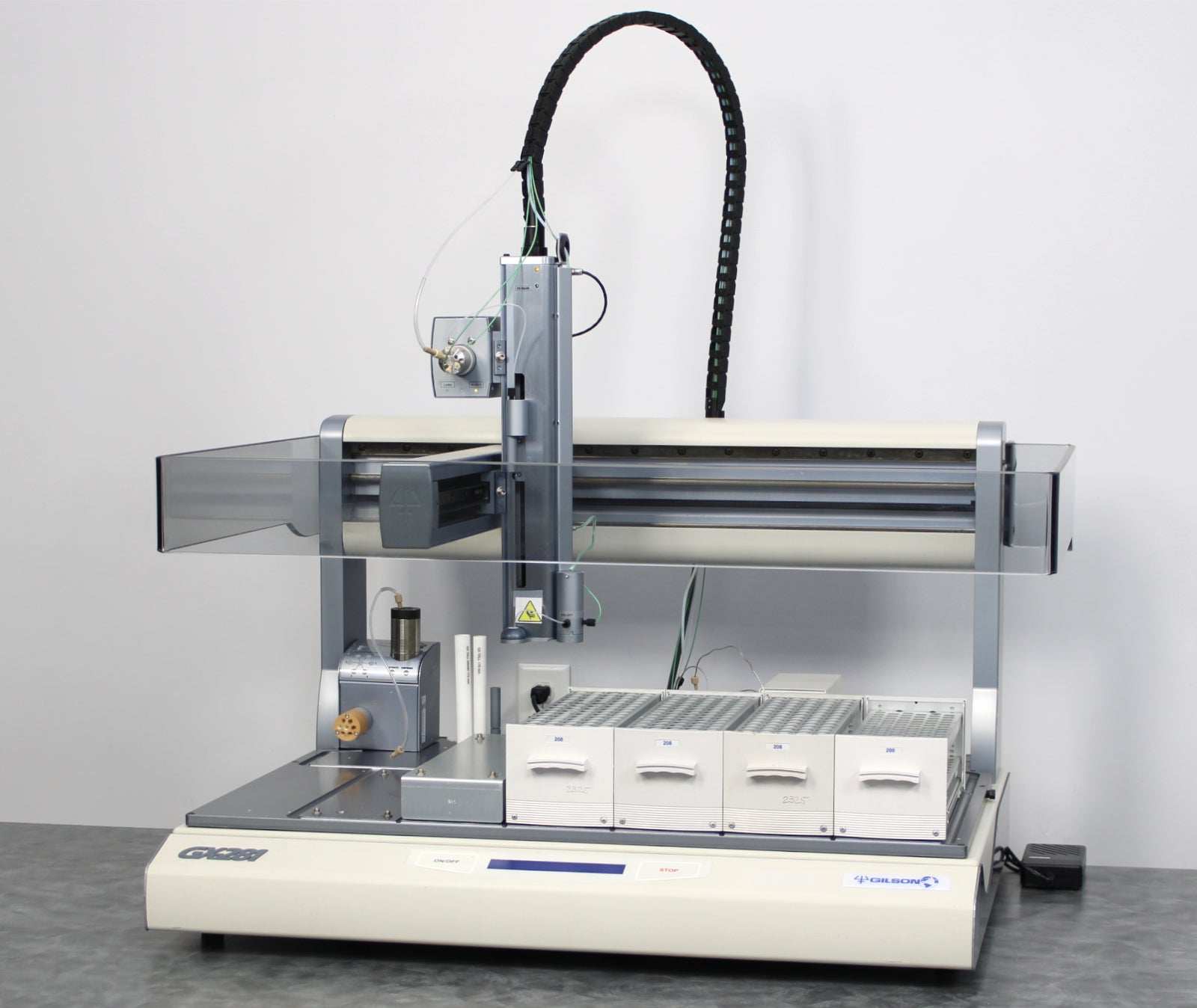

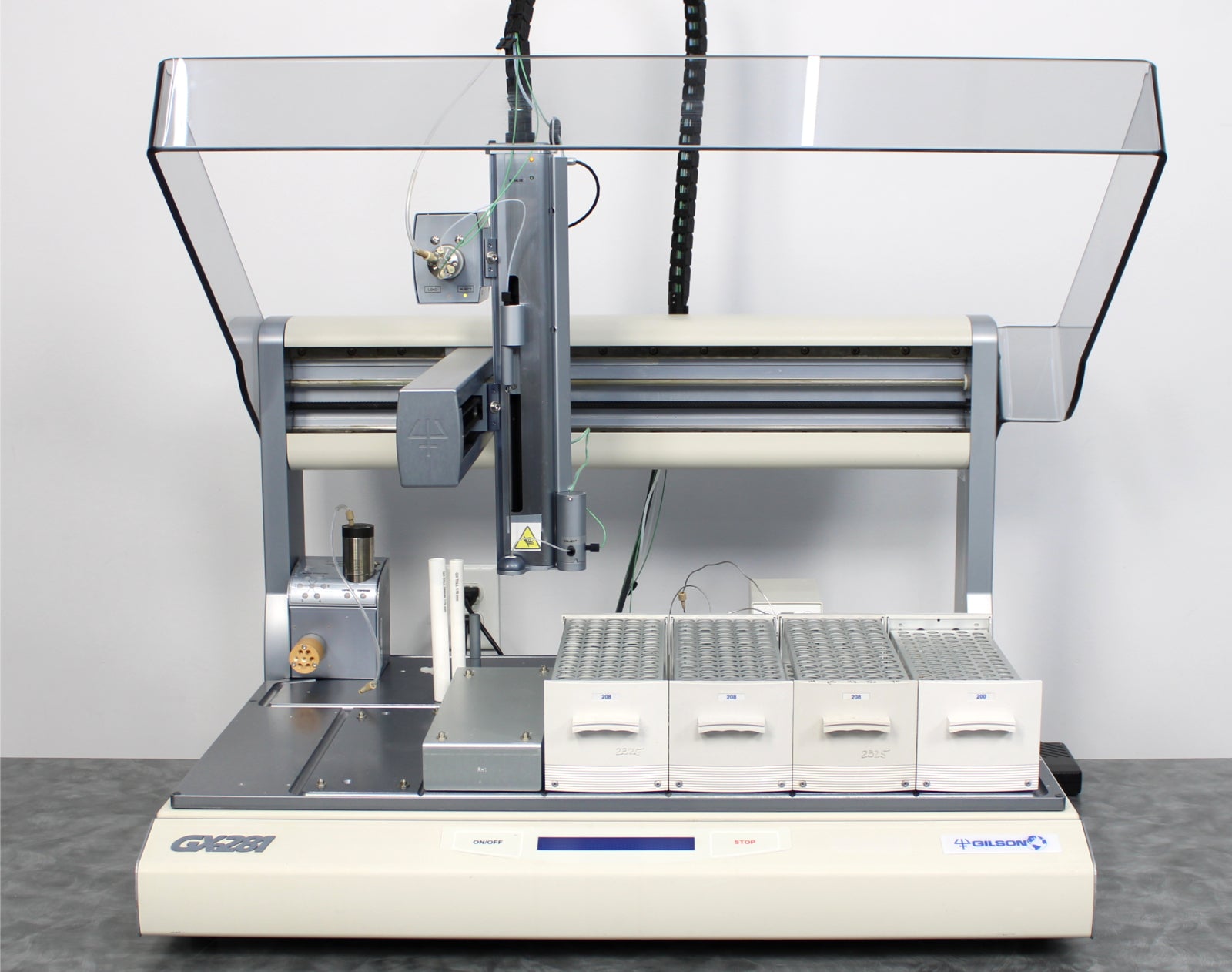

Sampler type
|
X/Y/Z with stationary rack design
|
|
Software control
|
Computer control via RS-232 or GSIOC and TRILUTION software
|
|
Vertical punch strength
|
10 lb (4.5 kg)
|
|
Fuse
|
5 x 20 mm “T” type 5.0A
One for 100-120V; two for 220-240V
|
|

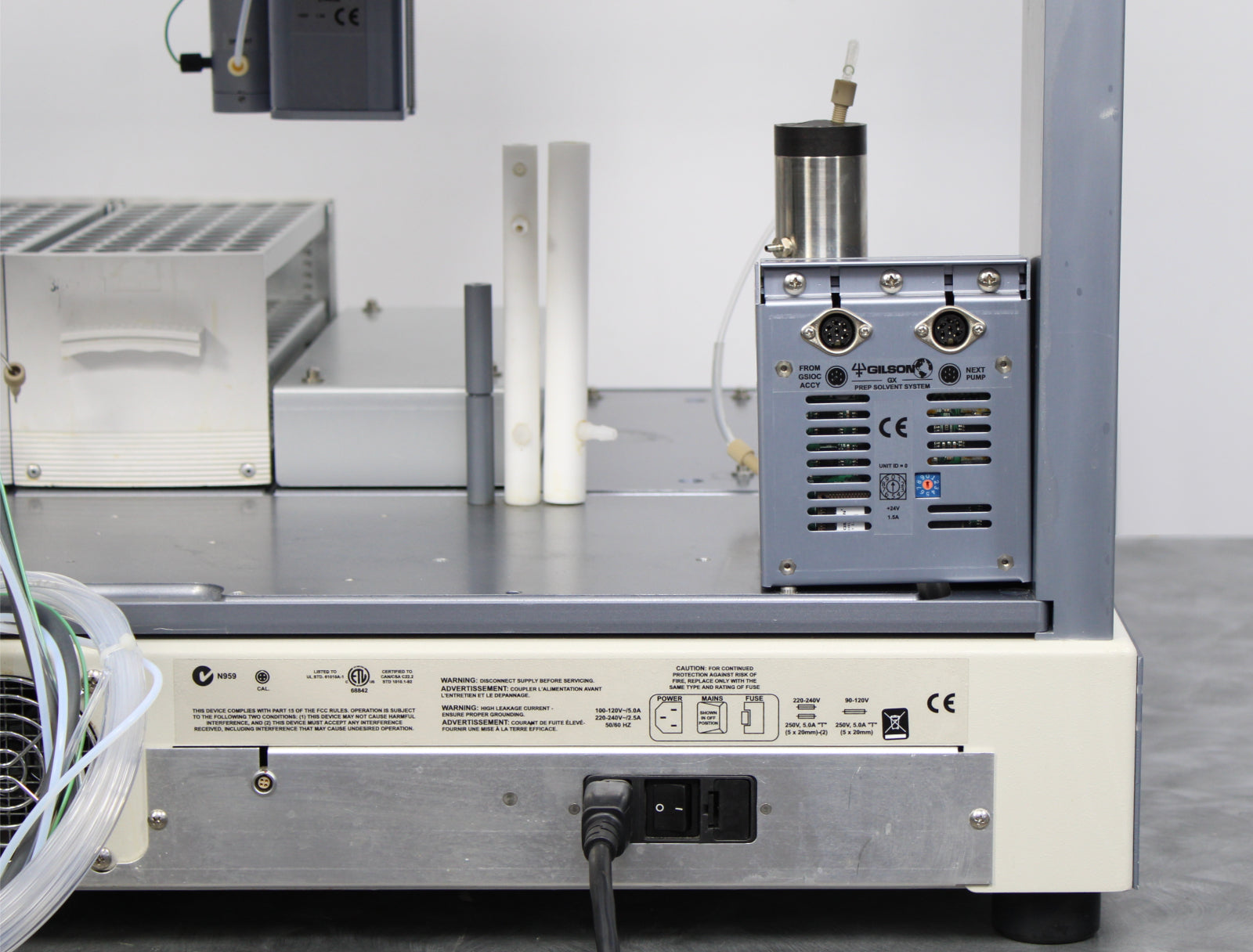

Power rating
|
100-120V~, 5.0A, 50/60Hz
220-240V~, 2.5A, 50/60Hz
|
|
Power consumption
|
500W maximum
|
|
Dimensions (W x D x H)
|
35 x 30 x 38 in (88.9 x 76.2 x 96.5 cm)
|
|
Weight
|
150 lb (68 kg)
|
