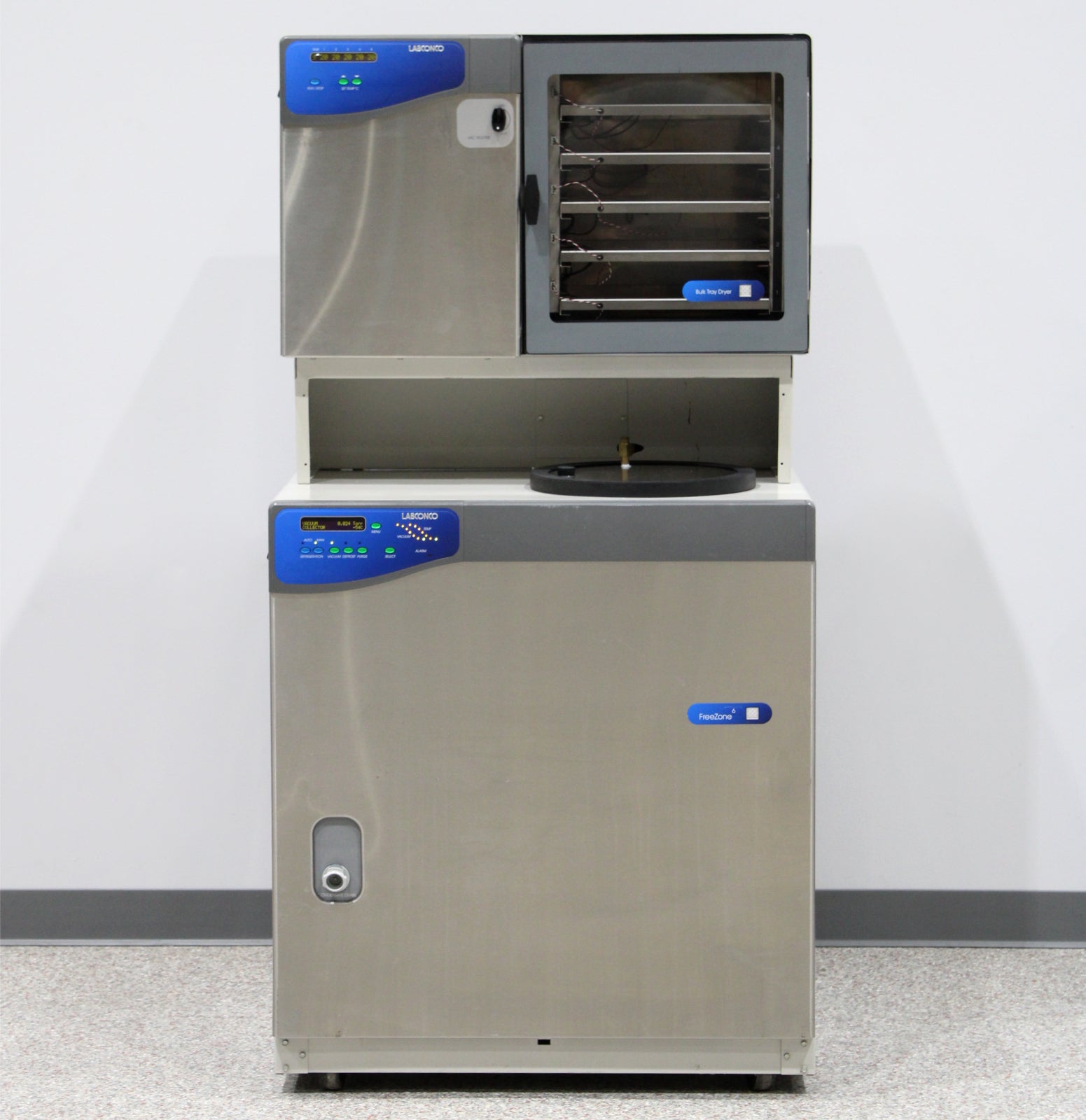

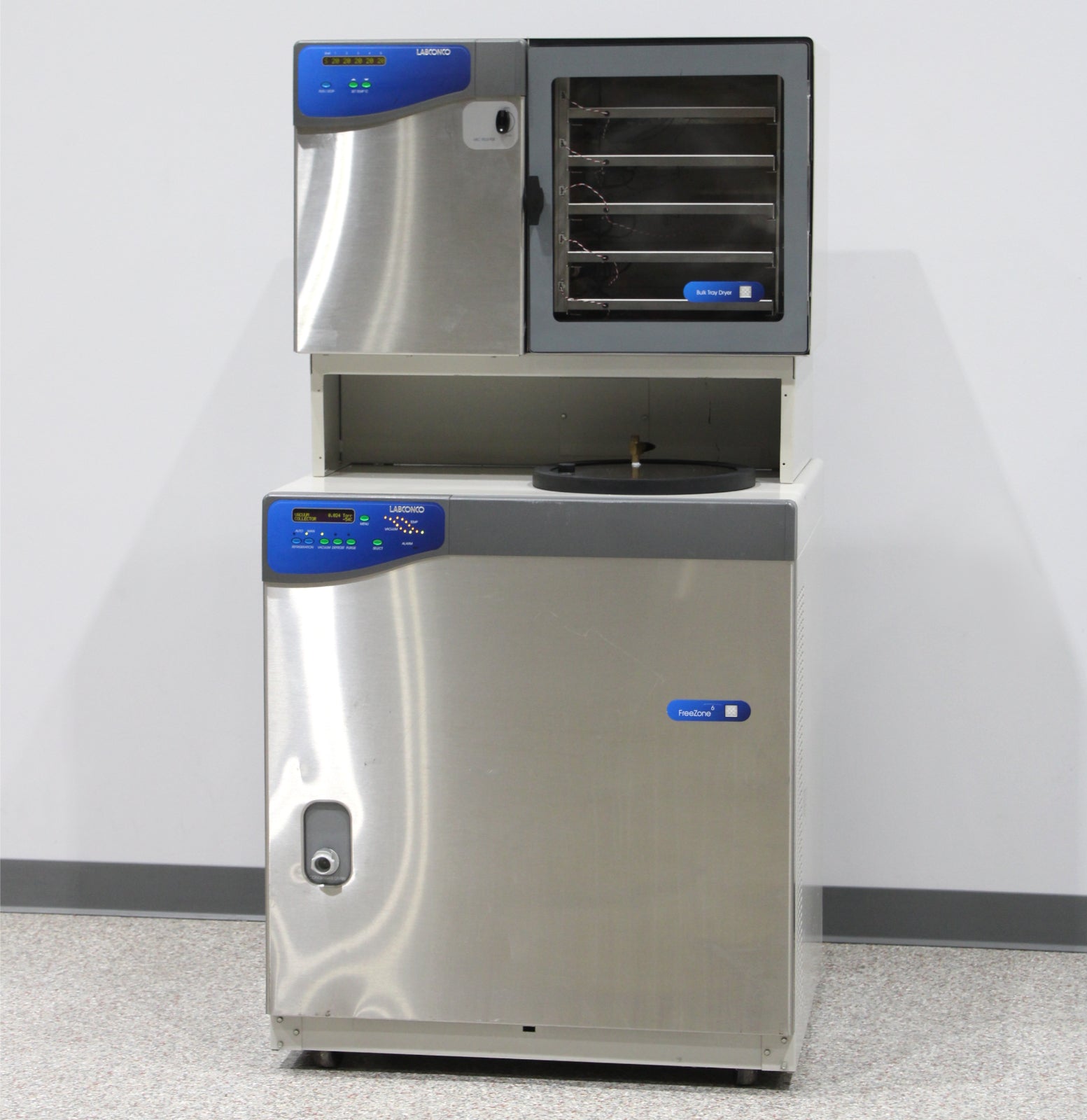

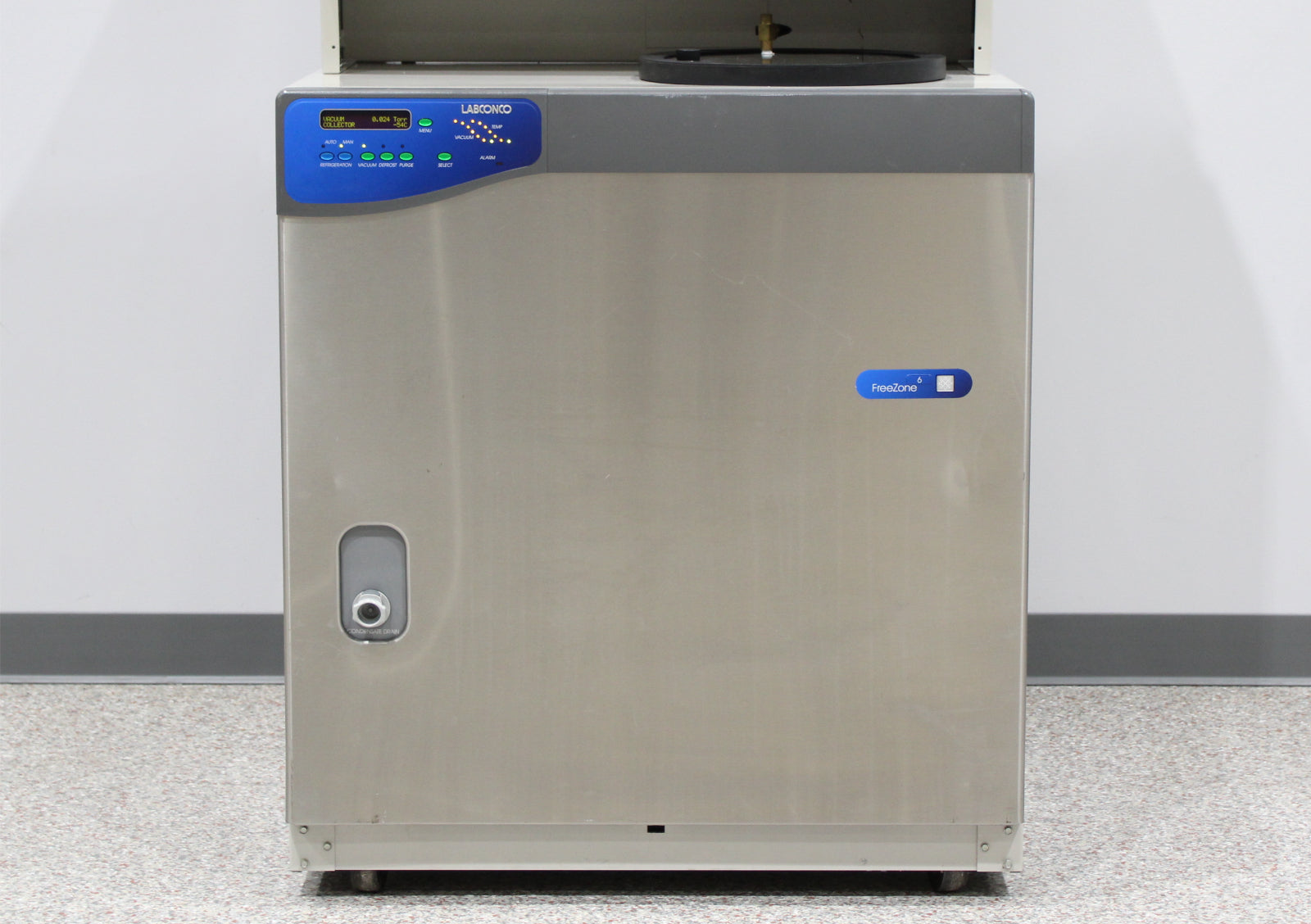

- Labconco FreeZone 6 -50°C Console Freeze Dryer 115V (7753022)
- Labconco Bulk Tray Dryer with 5 Shelves 115V (7806020)
- Vacuum Pump
- x2 Power Cables with NEMA 5-15P Plugs
- 90-Day Warranty
After its initial disinfection and inspection, our technicians tested the Labconco FreeZone 6 -50°C console freeze dryer and bulk tray dryer with the following results:

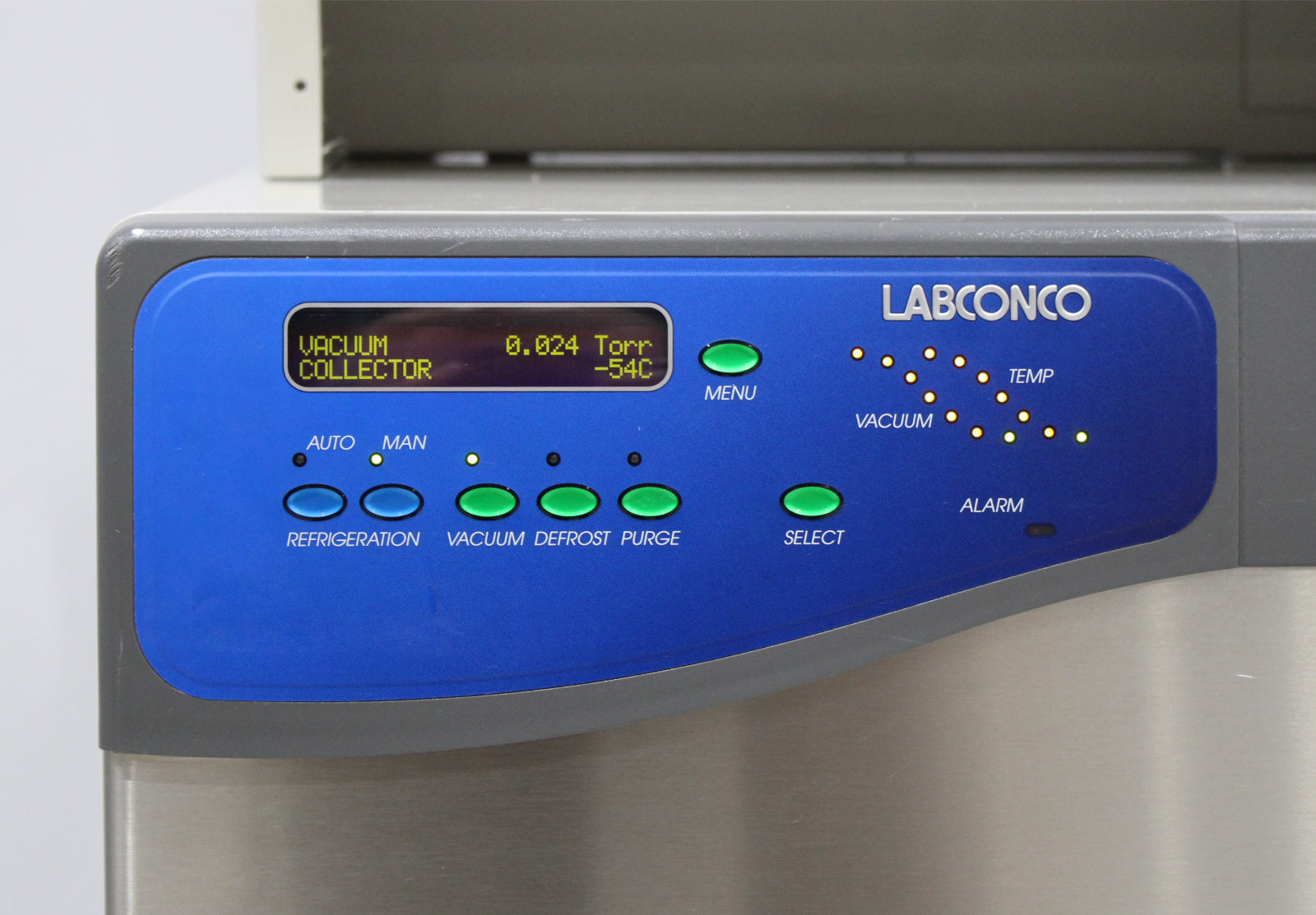

- Collector temperature achieves -54°C: PASSED
- Vacuum achieves 24mT: PASSED
- Heated shelves performance to specification: PASSED
- Inspected and replaced vacuum hoses as needed.
- Inspected and reinsulated refrigeration lines as needed.
- Installed new tray drying shelves and temperature probes.
|

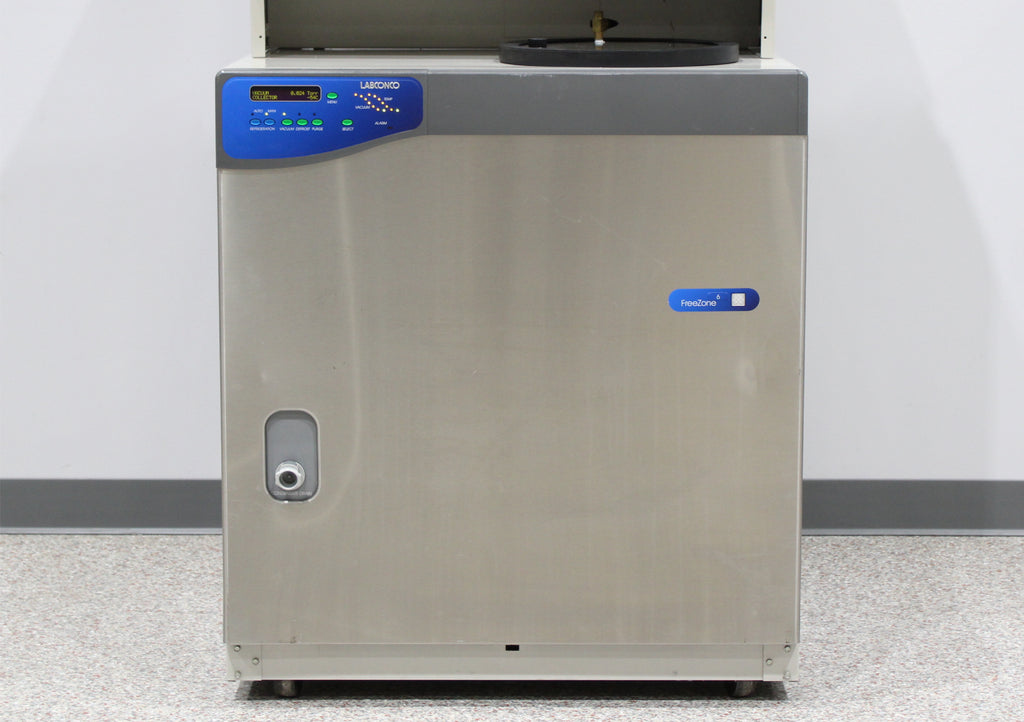

Manufacturer
|
Labconco
|
|
Model
|
FreeZone 6
|
|

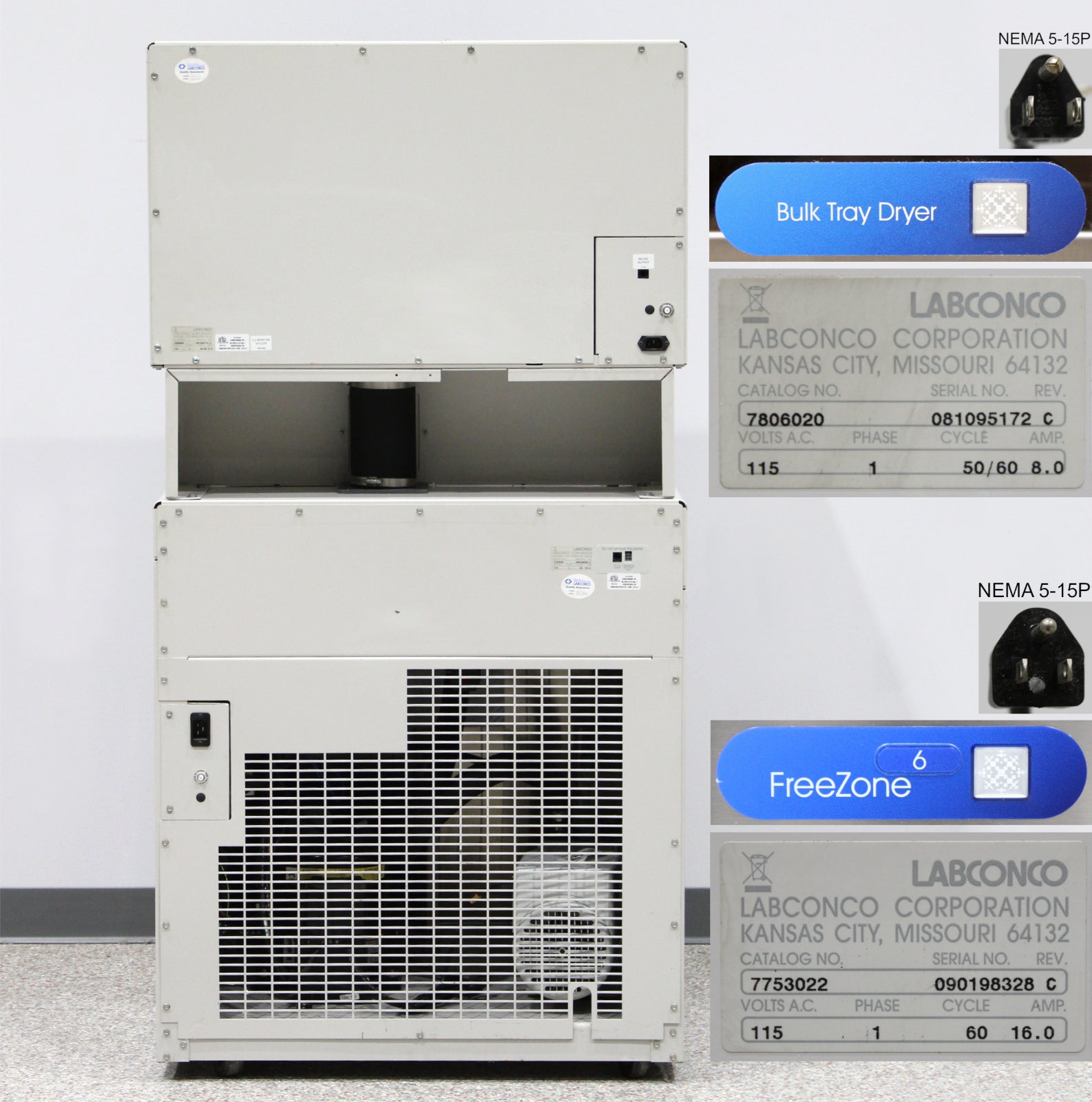

Catalog No.
|
7753022
|
|
Serial No.
|
090198328 C
|
|
Mfg. date
|
2009
|
|
Ice holding capacity
|
6 liters
|
|

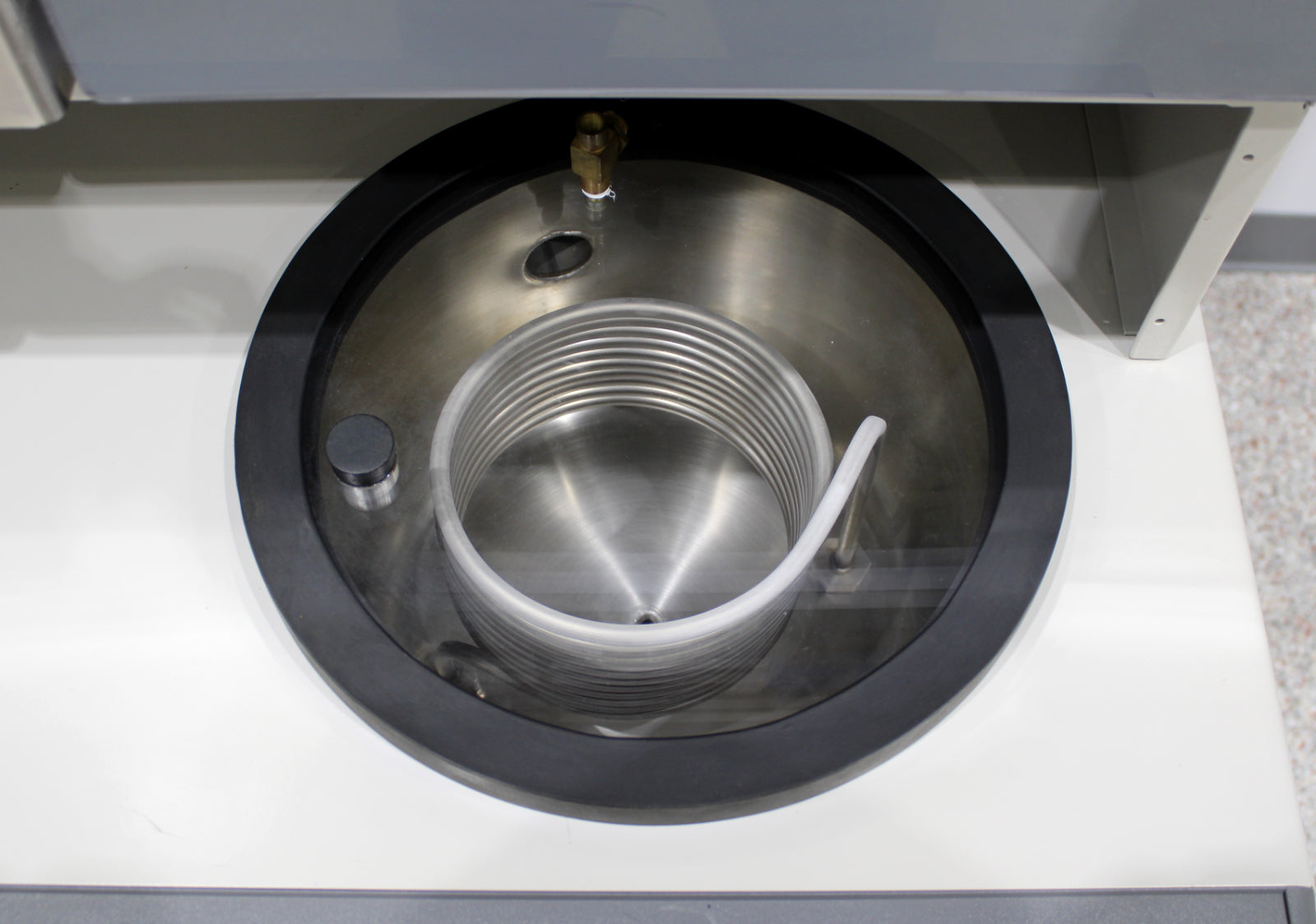

Collector temperature
|
-50°C (-58°F)
|
|
Vacuum pump displacement required
|
98L/min or larger displacement
|
|
Style
|
Console
|
|
Options included
|
Purge valve
|
|

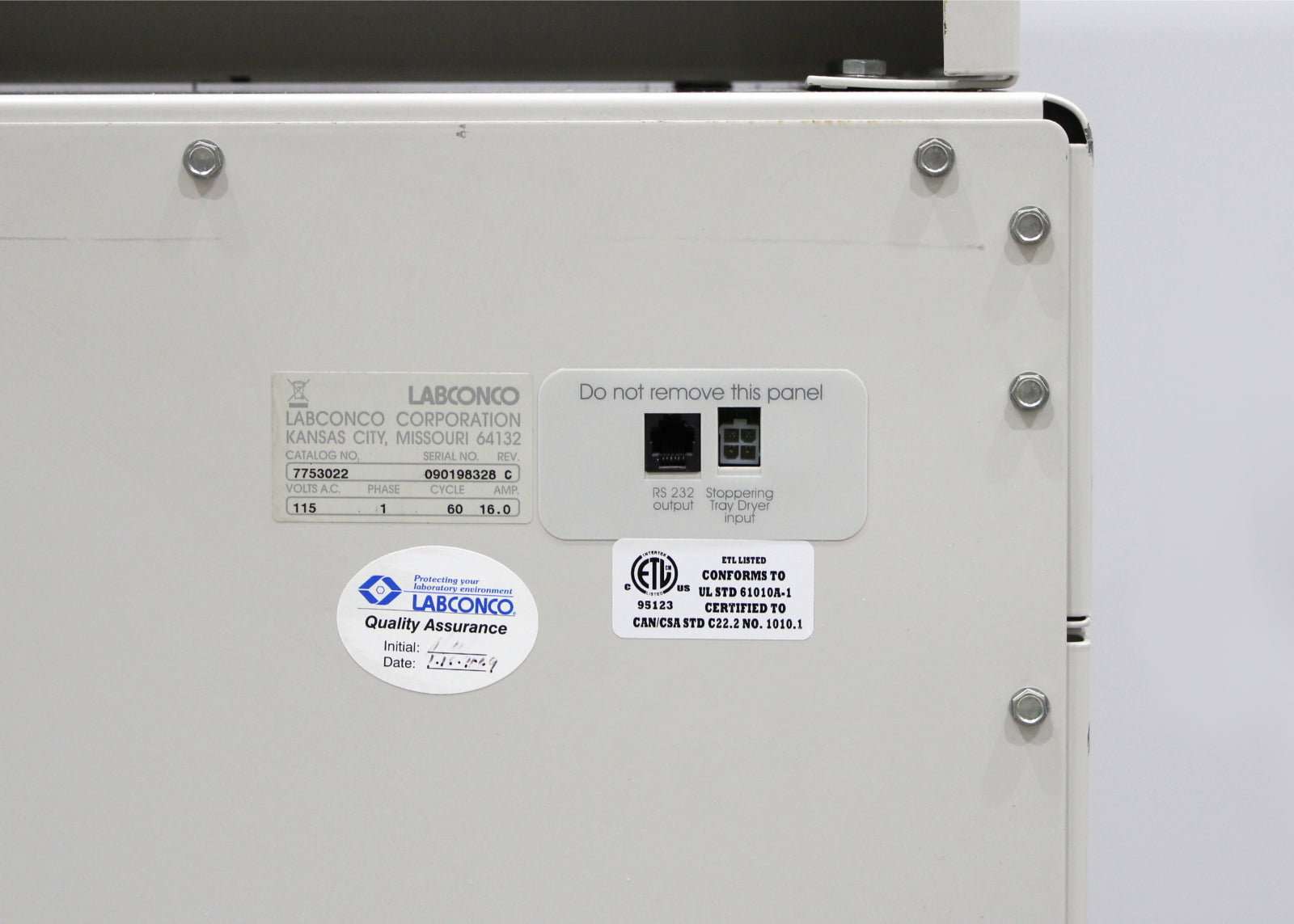

Conformance
|
CAN/CSA C22.2, UL
|
|
Plug type
|
North America, 115V
|
|
Region
|
U.S. and Canada
|
|
Power rating
|
115V, 60Hz, 16.0A, 1Ph
|
|
Dimensions (W x D x H)
|
32.2 x 28 x 36.3 in (81.8 x 71.1 x 92.2 cm)
|
|
Weight
|
257 lb (117 kg)
|
|

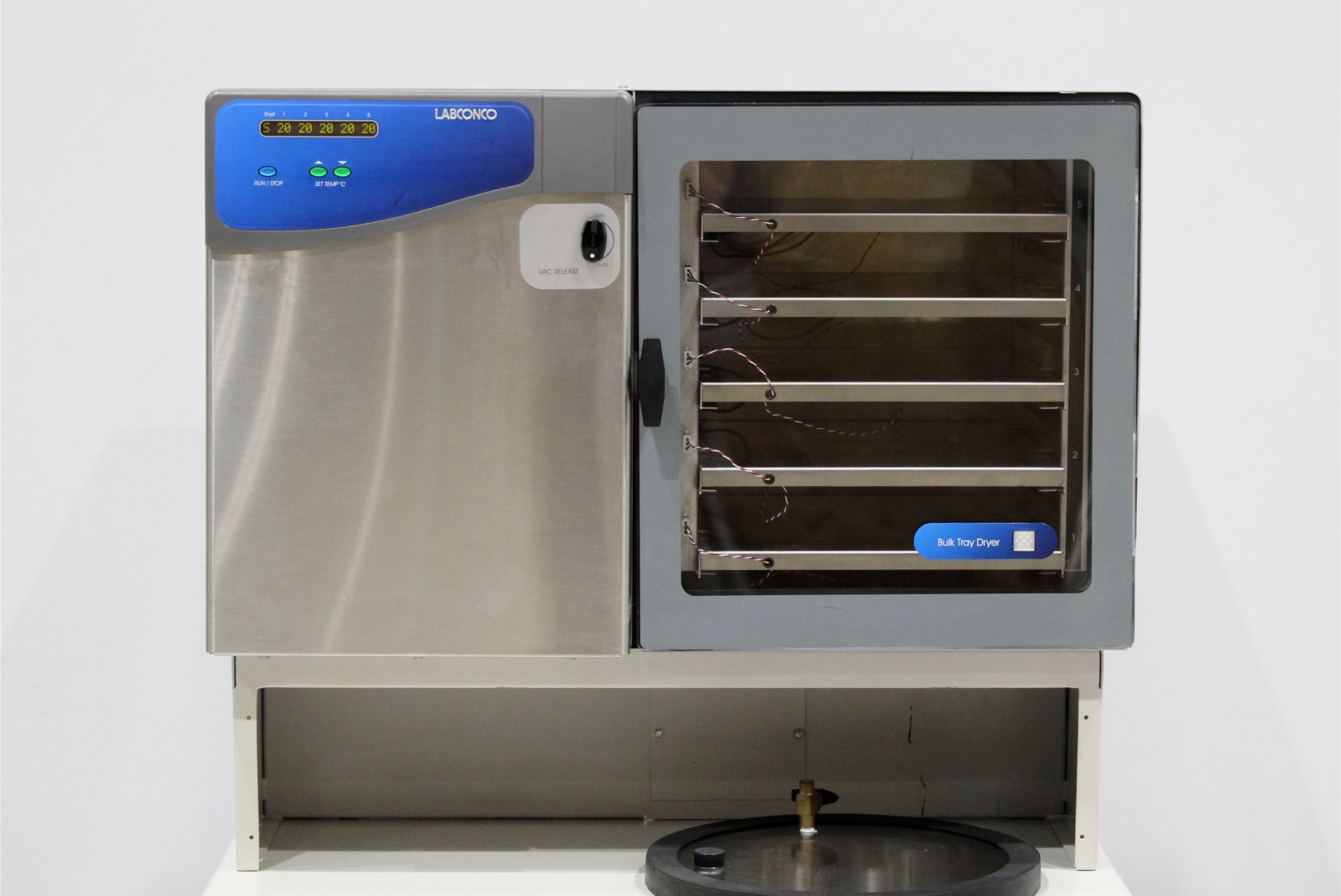

Manufacturer
|
Labconco
|
|
Model
|
Bulk Tray Dryer
|
|
Catalog No.
|
7806020
|
|
Serial No.
|
081095172 C
|
|
Mfg. date
|
2008
|
|

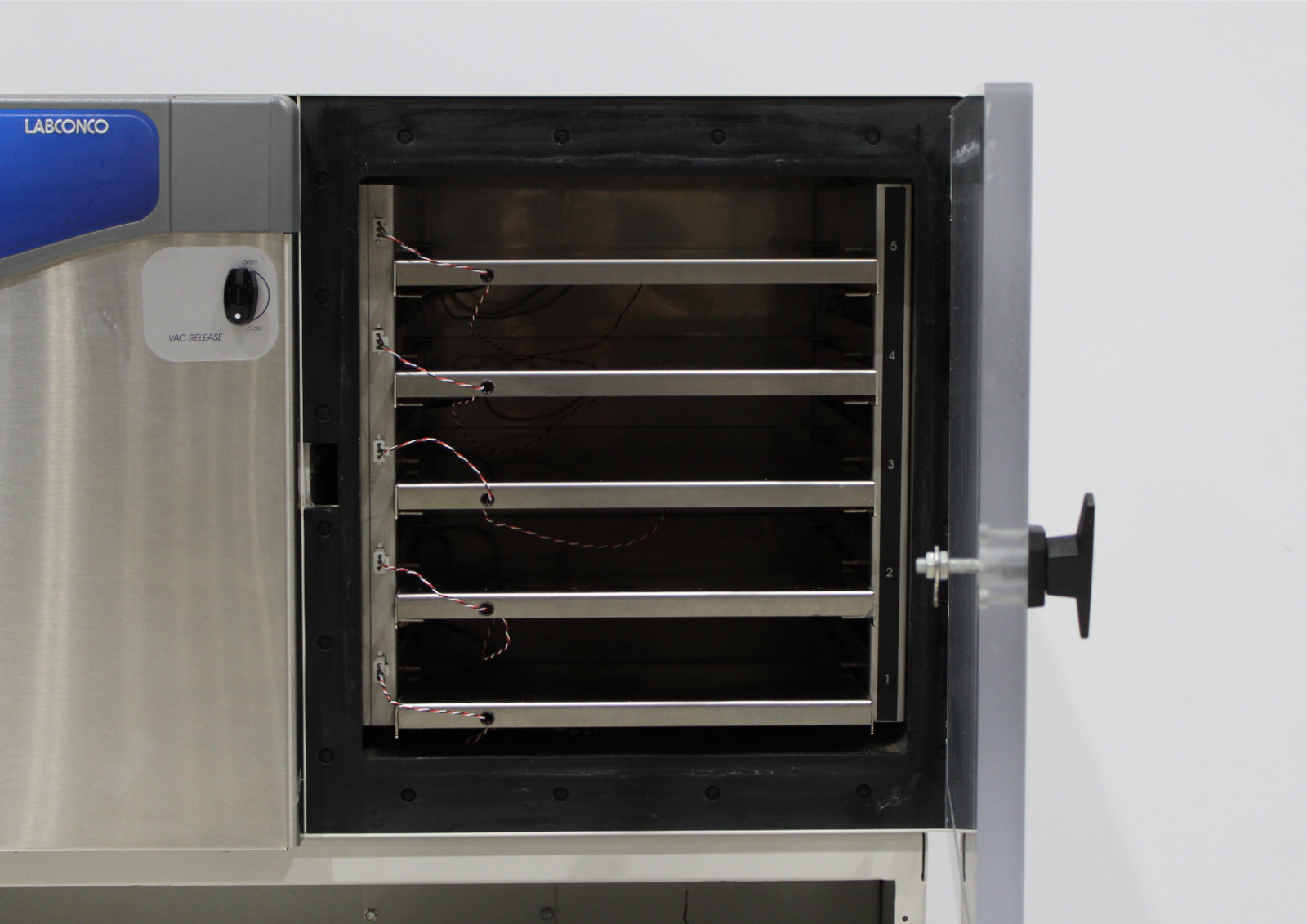

Shelves
|
3 heated stainless steel shelves (expandable to 5)
|
|
Shelf dimensions
|
12.7 x 16.6 in (32.2 x 42.2 cm) each
|
|
Temperature range
|
Up to +60°C (+140°F)
|
|

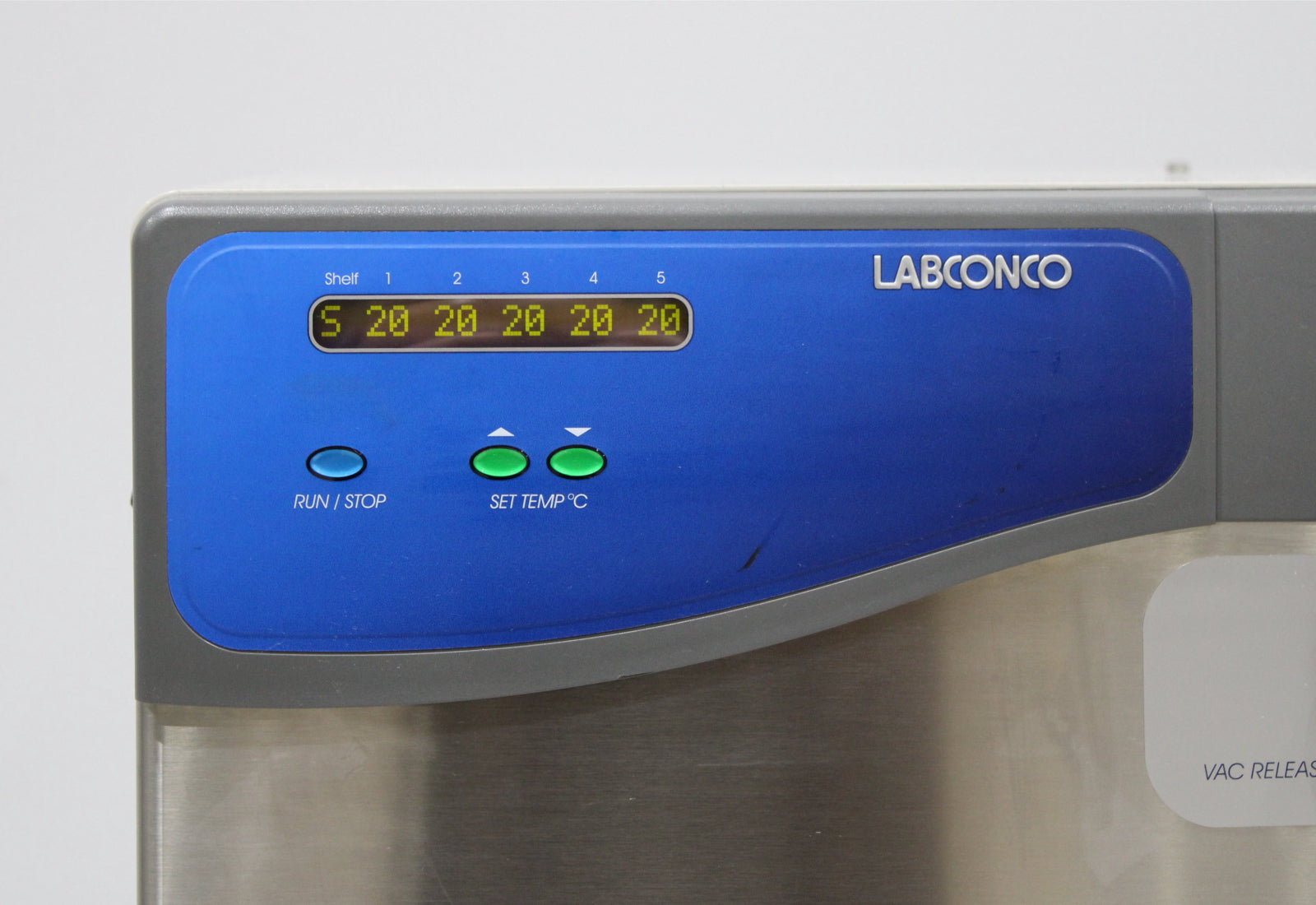

Temperature control
|
Microprocessor-controlled within ±3°C of set point
|
|
Shelf heating
|
200-watt heater per shelf
|
|
Sensors
|
3 sample temperature probes (expandable to 5)
|
|
Door
|
1” thick clear acrylic with silicone gasket
|
|
Power rating
|
115V, 50/60Hz, 8.0A, 1Ph
|
|
Dimensions (W x D x H)
|
32.2 x 21.5 x 27.1 in (81.8 x 54.6 x 68.8 cm)
|
|
Weight
|
~256 lb (116 kg)
|
