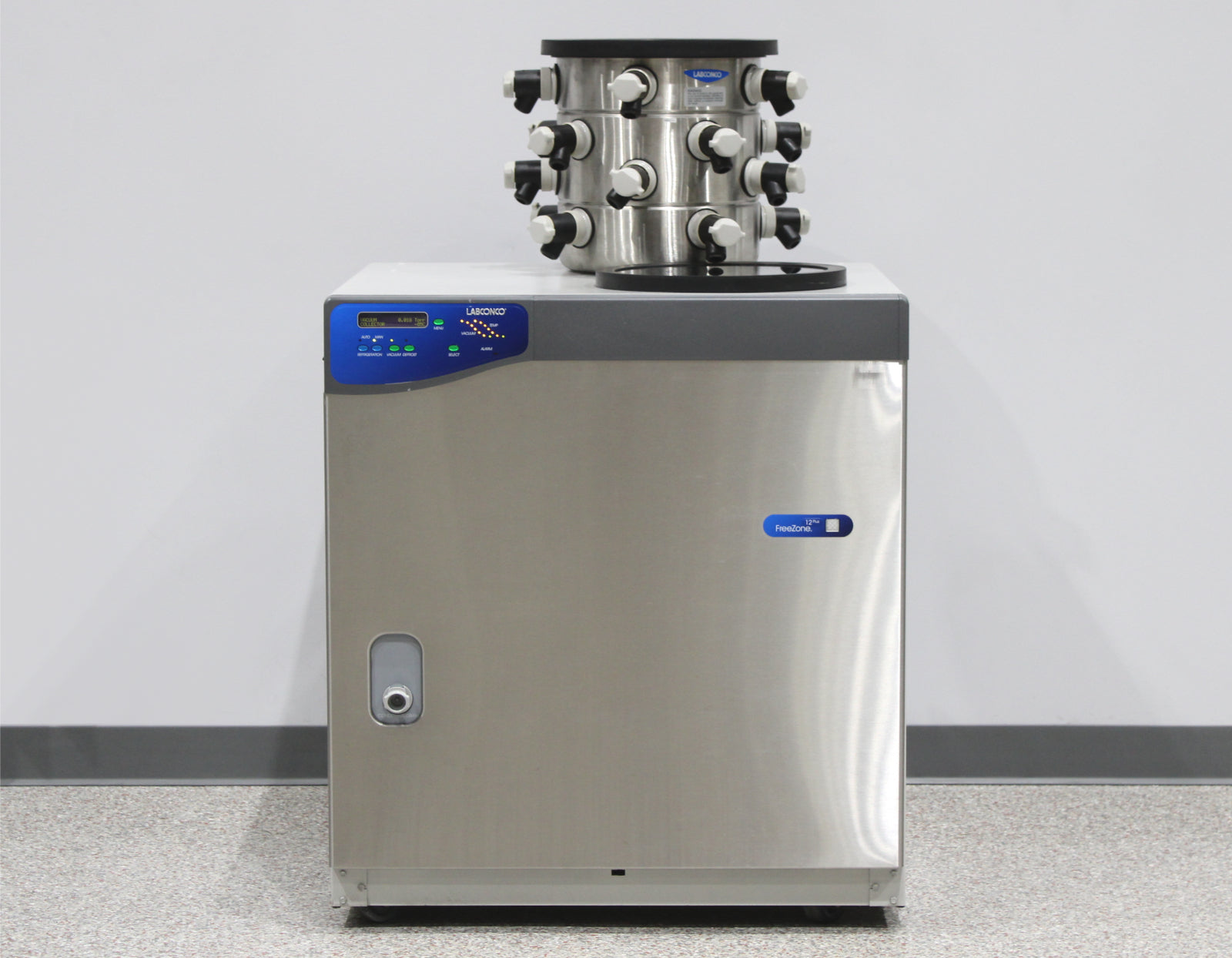

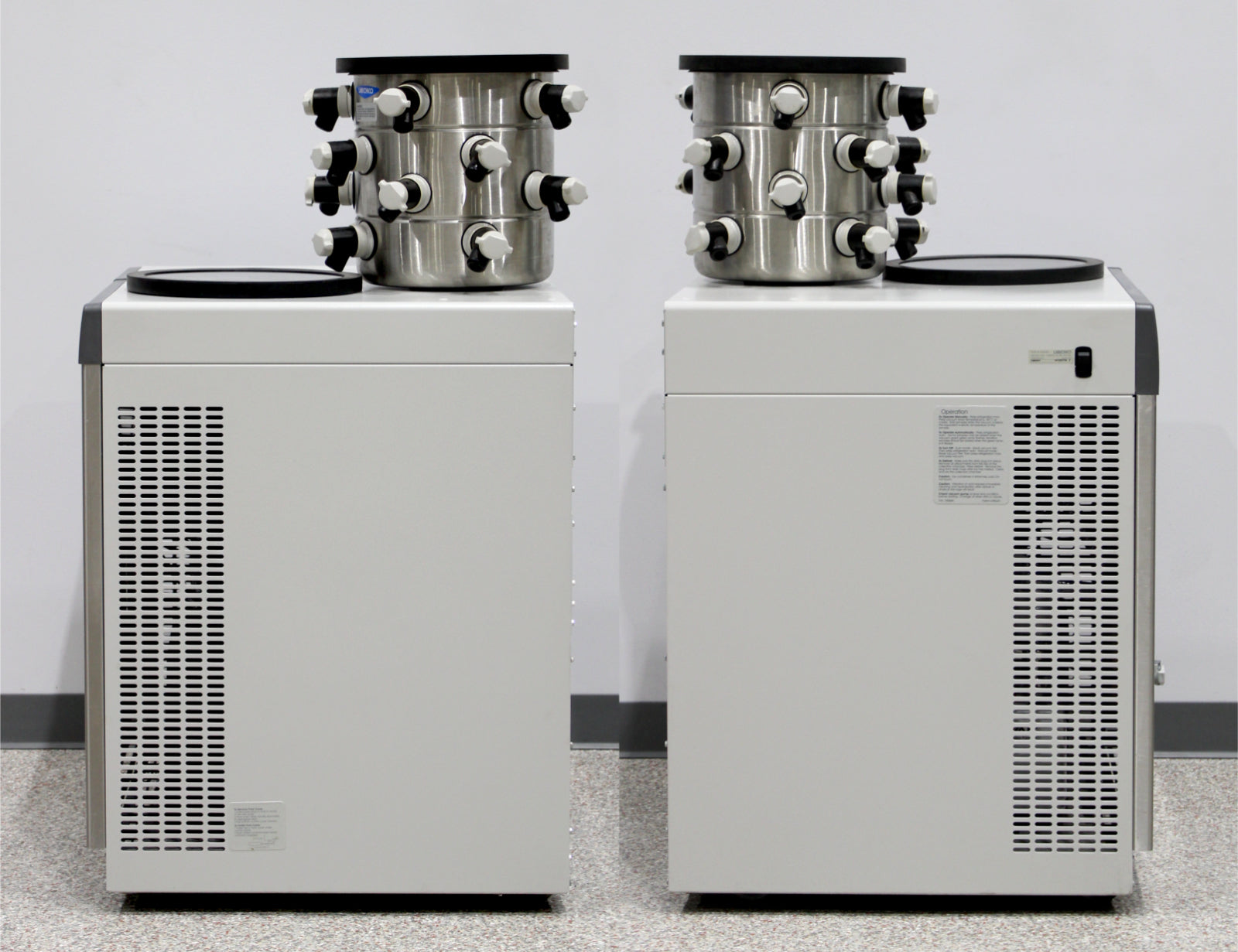

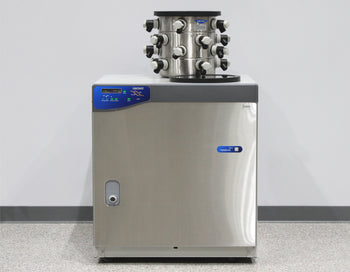

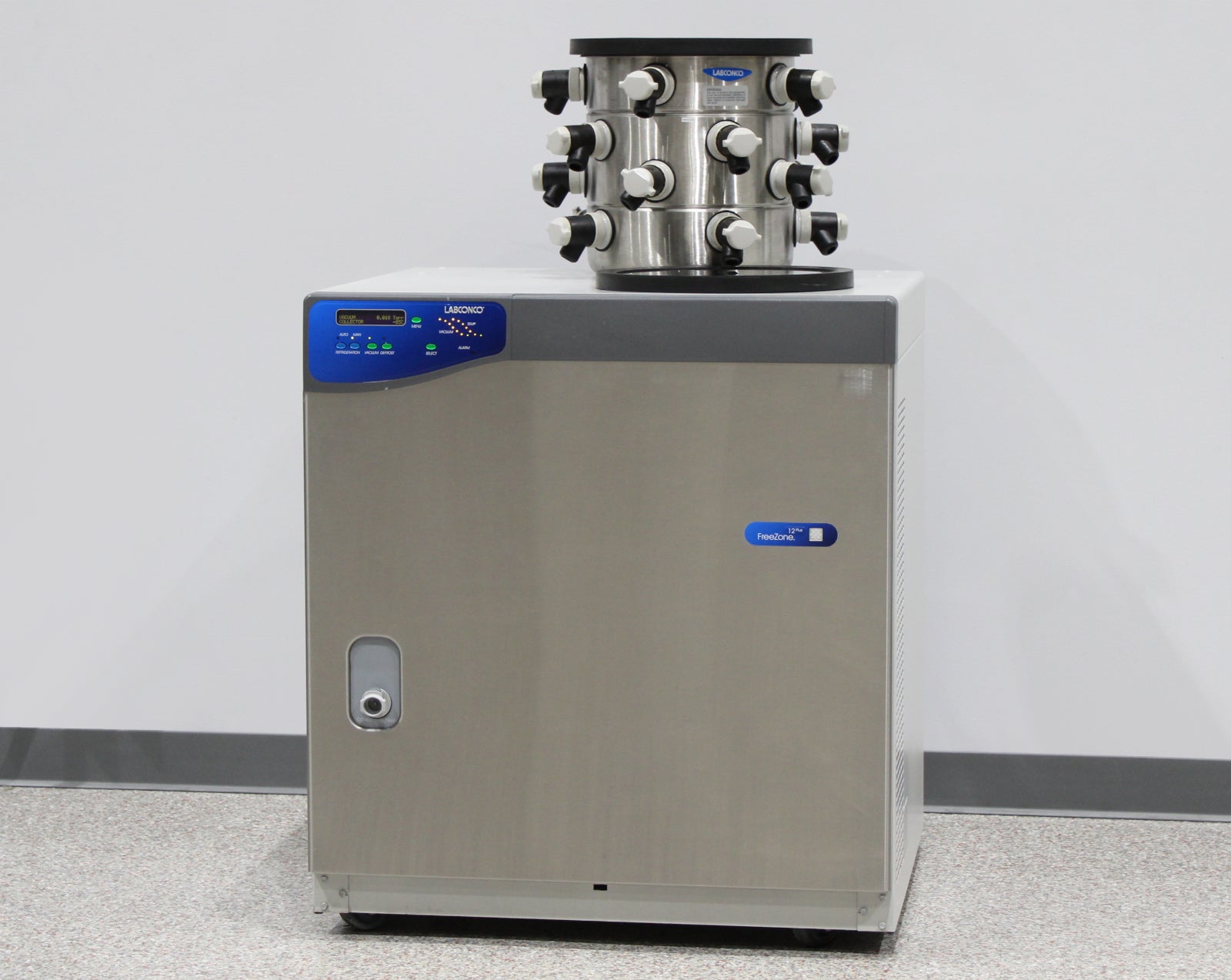

- Labconco FreeZone Plus 12 Liter -84°C Console Freeze Dryer Lyophilizer 230V (7960041)

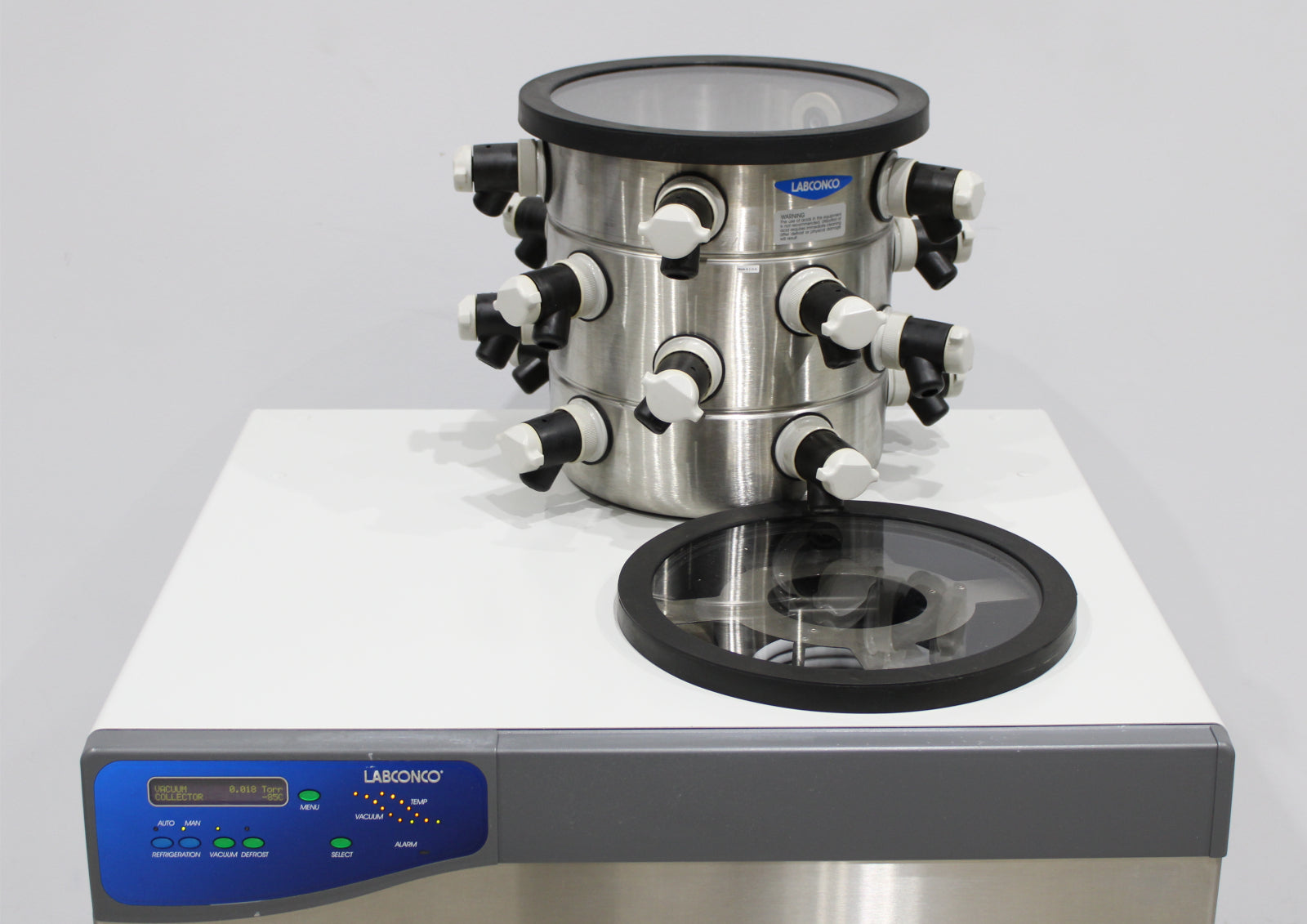

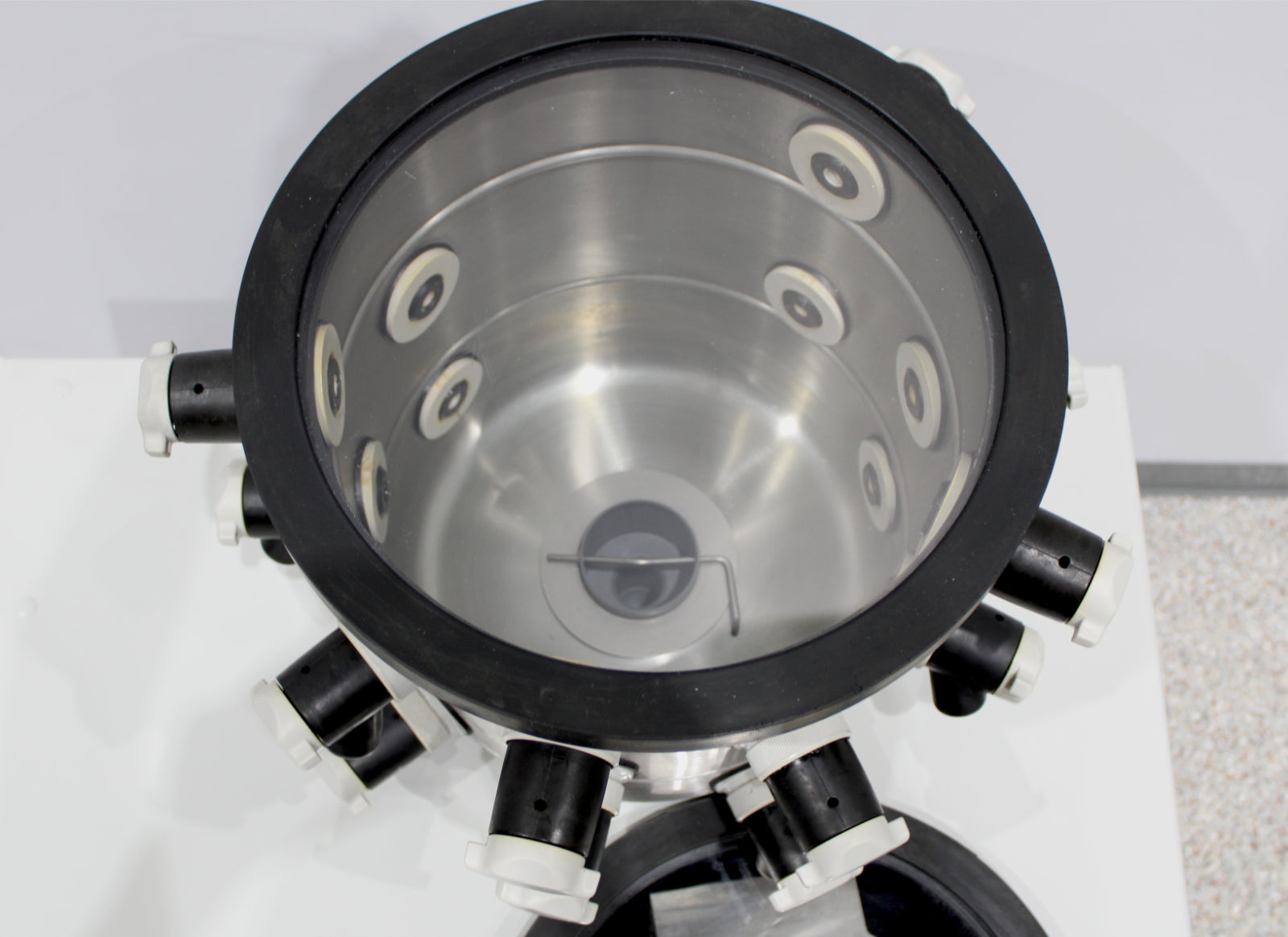

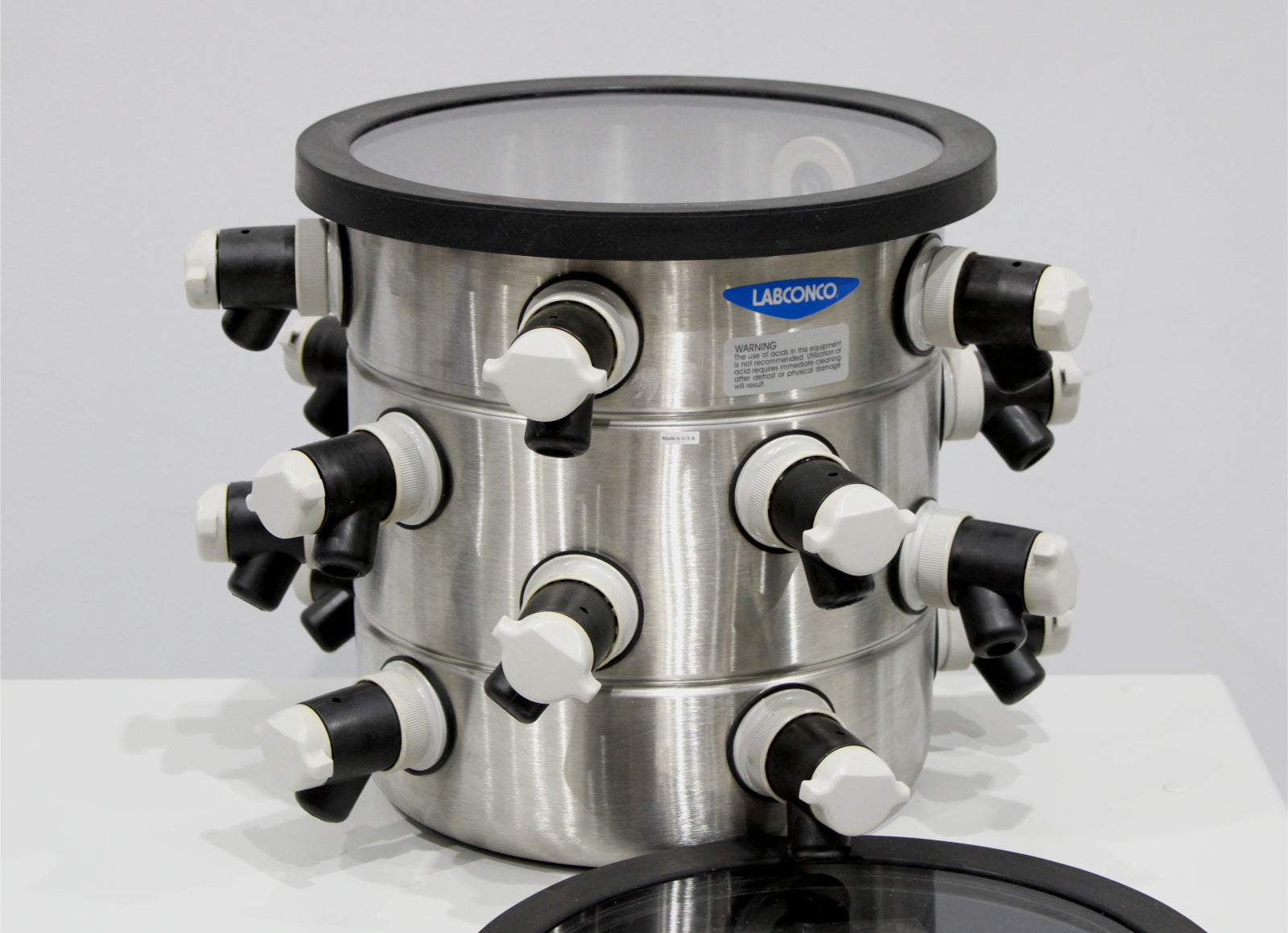

- 16-Port Drum Manifold with 16 Manifold Valves

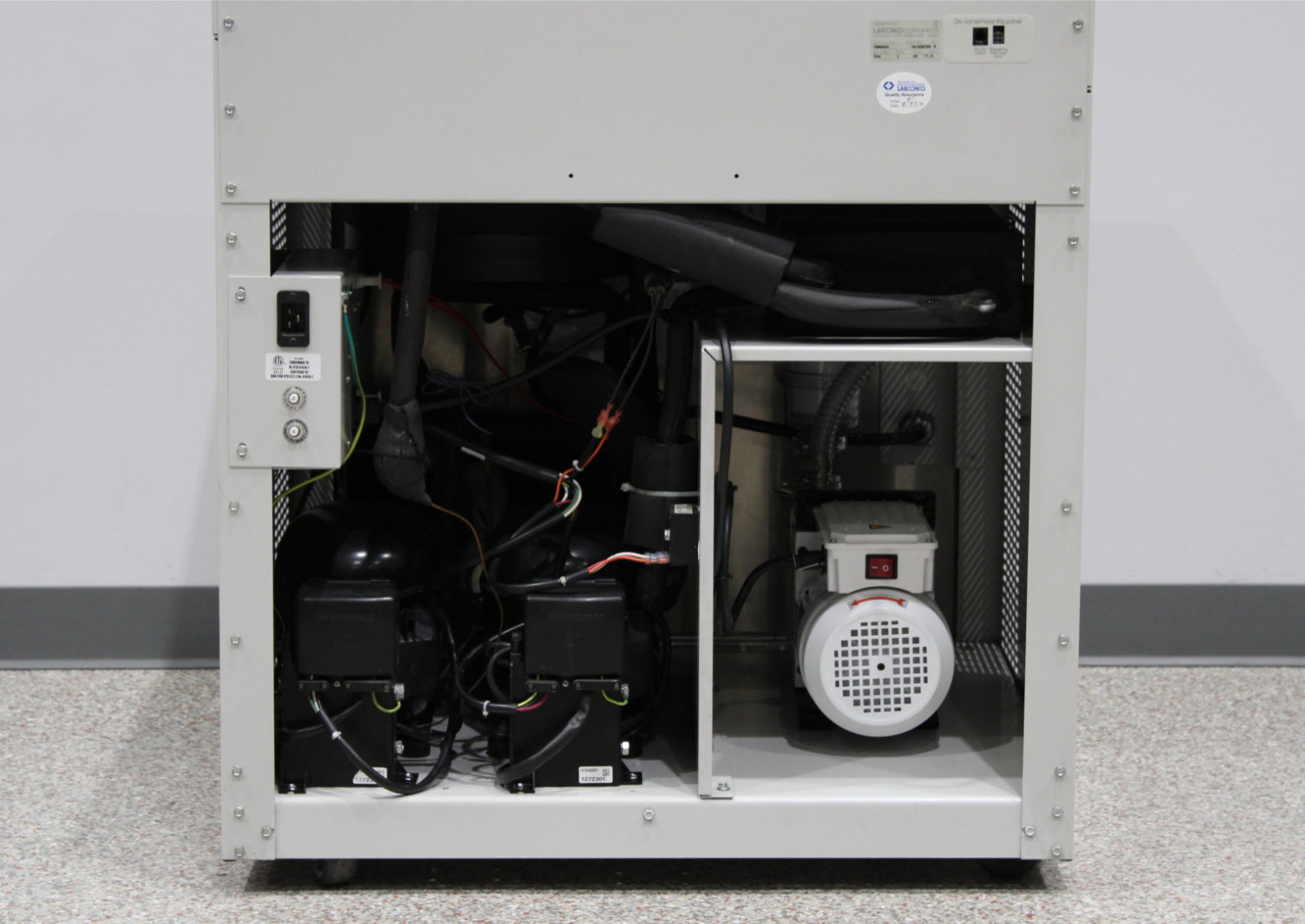

- Vacuum Pump (New)
- Power Cable with NEMA 6-20 Plug
- 90-Day Warranty

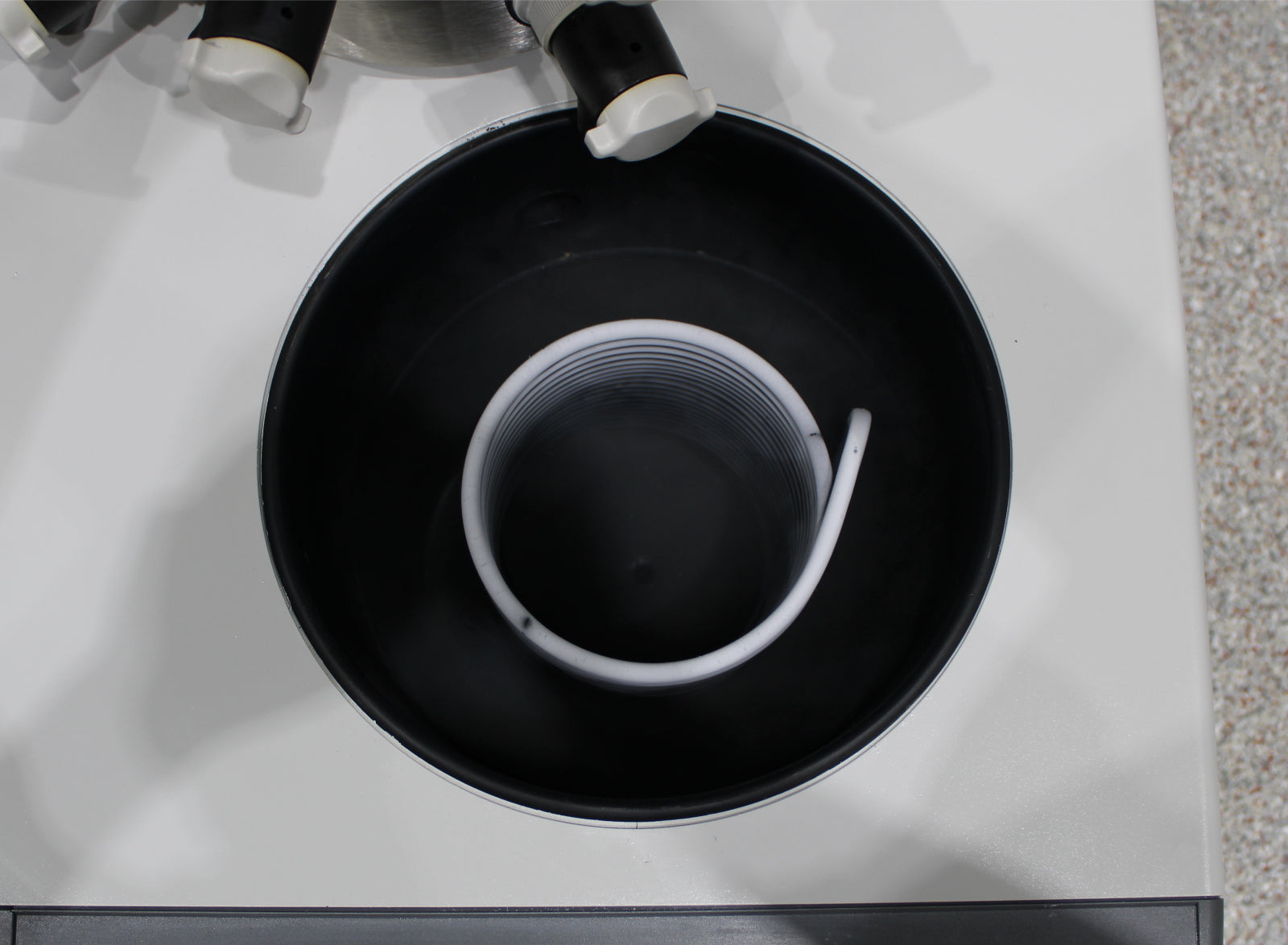

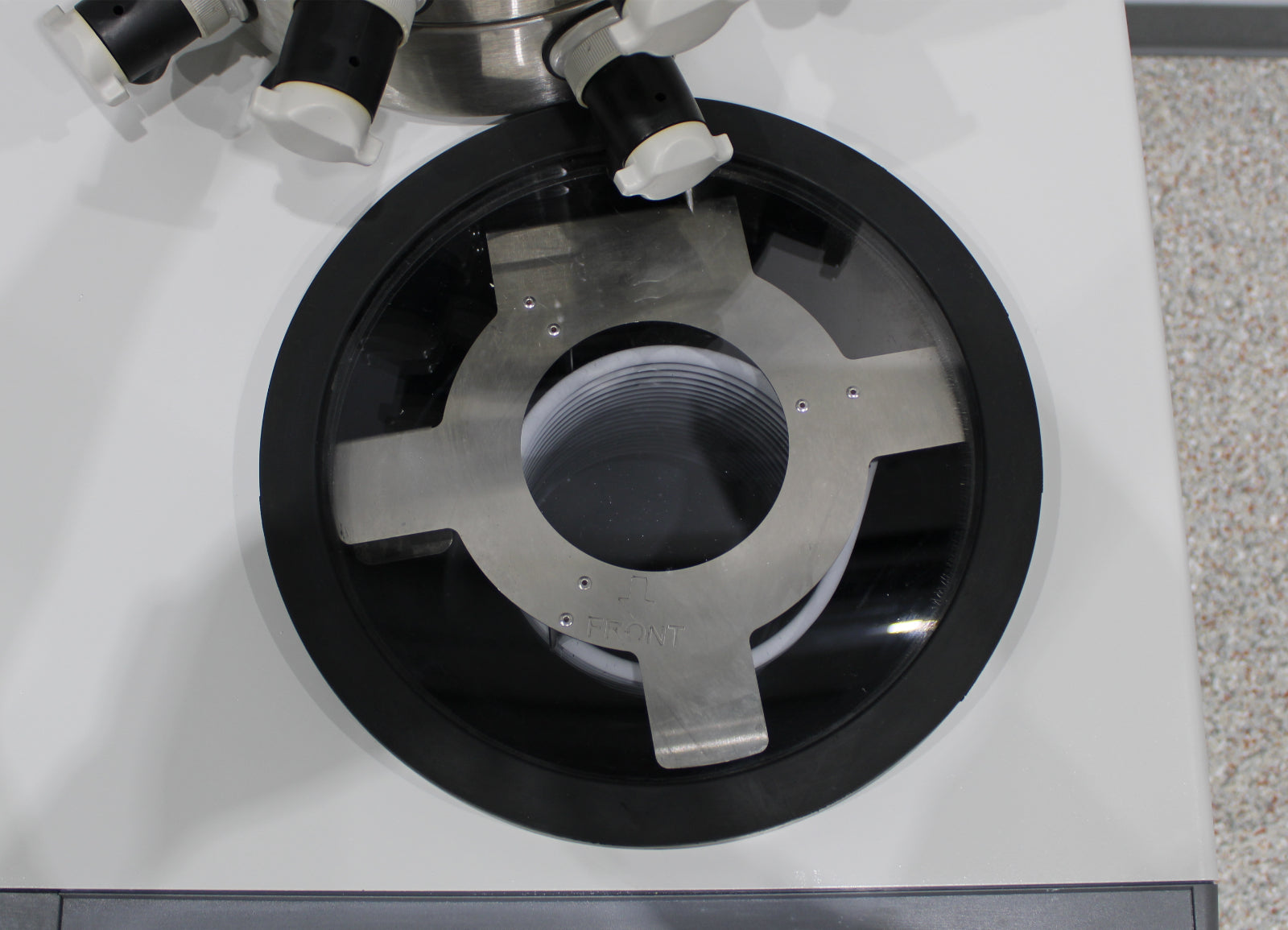

Notice: This freeze dryer has a corrosion-resistant collector.
After its initial disinfection and inspection, our technicians tested the Labconco FreeZone Plus 12 Liter -84°C console freeze dryer with the following results:

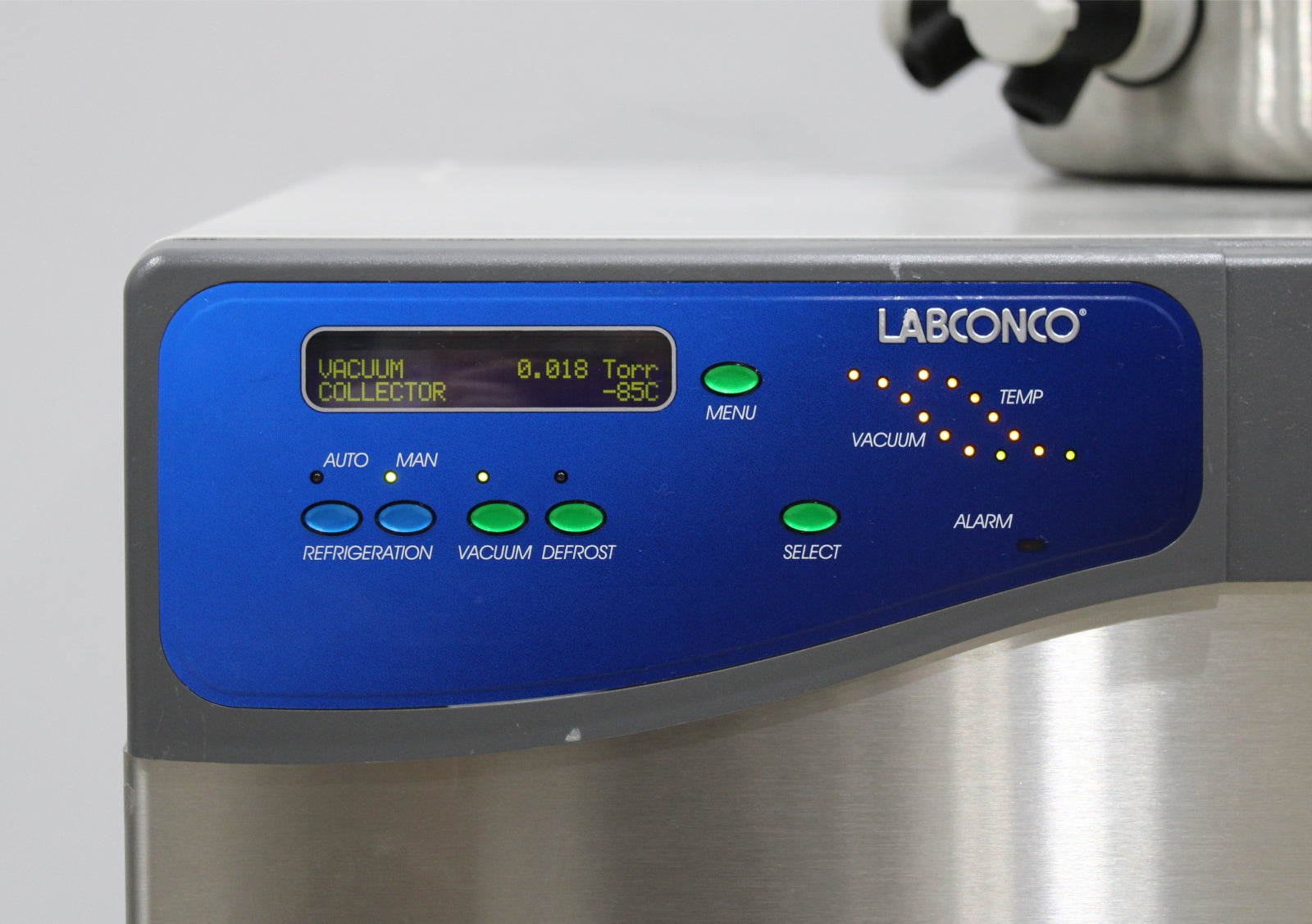

- Collector temperature maintains -85°C: PASSED
- Vacuum achieved 18 mT: PASSED
- Vacuum pump calibration: PASSED
- Inspected and reinsulated refrigeration lines as needed.
- Replaced vacuum hoses.
|
Manufacturer
|
Labconco
|
|
Model
|
FreeZone 12 Plus
|
|
Catalog No.
|
7960041
|
|

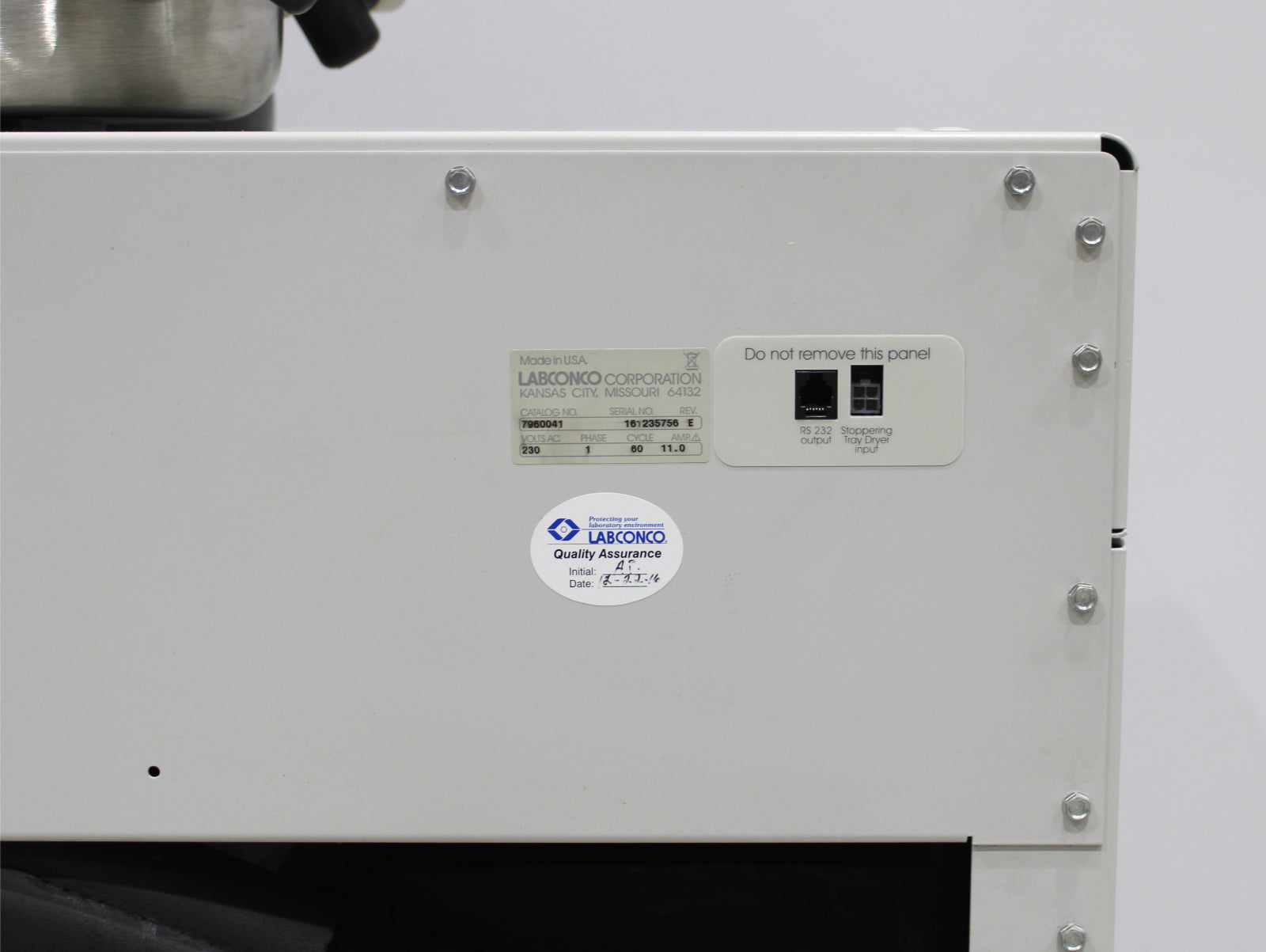

Serial No.
|
161235756 E
|
|
Mfg. date
|
2016
|
|
Style
|
Console
|
|
Collection temperature
|
-84°C (-119°F)
|
|
Ice holding capacity
|
12L
|
|
Vacuum pump displacement required
|
98 L/min or larger displacement
|
|
Options included
|
Corrosion-resistant collector
|
|
Conformance
|
CAN/CSA C22.2, UL
|
|
Plug type
|

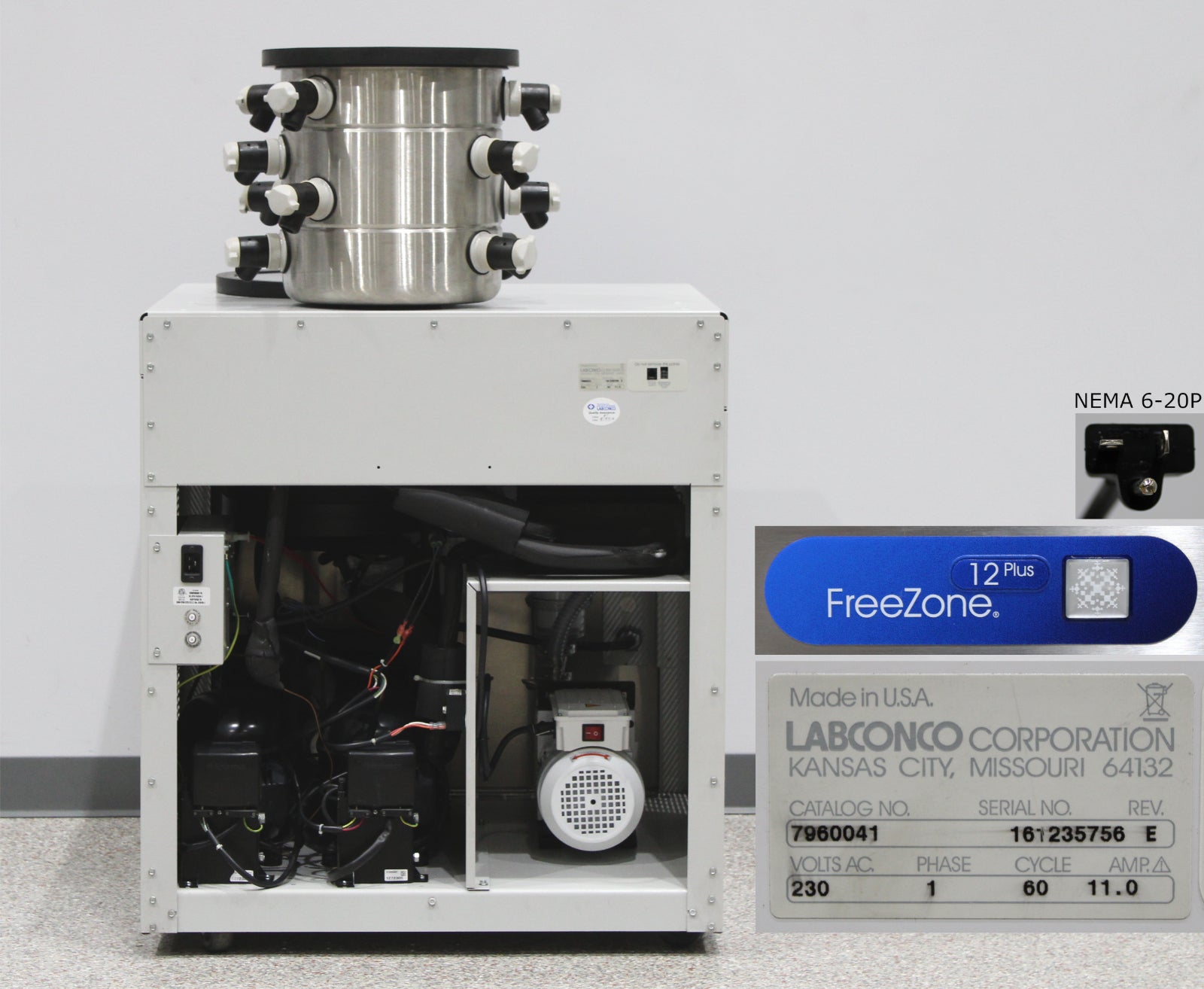

North America, 230V, NEMA 6-20P
|
|
Power rating
|
230V, 60Hz, 1Ph, 11.0A
|
|
Dimensions without manifold (W x D x H)
|
32 x 28 x 36.3 in
|
|
Dimensions with manifold (W x D x H)
|
32 x 28 x 49.5 in
|
