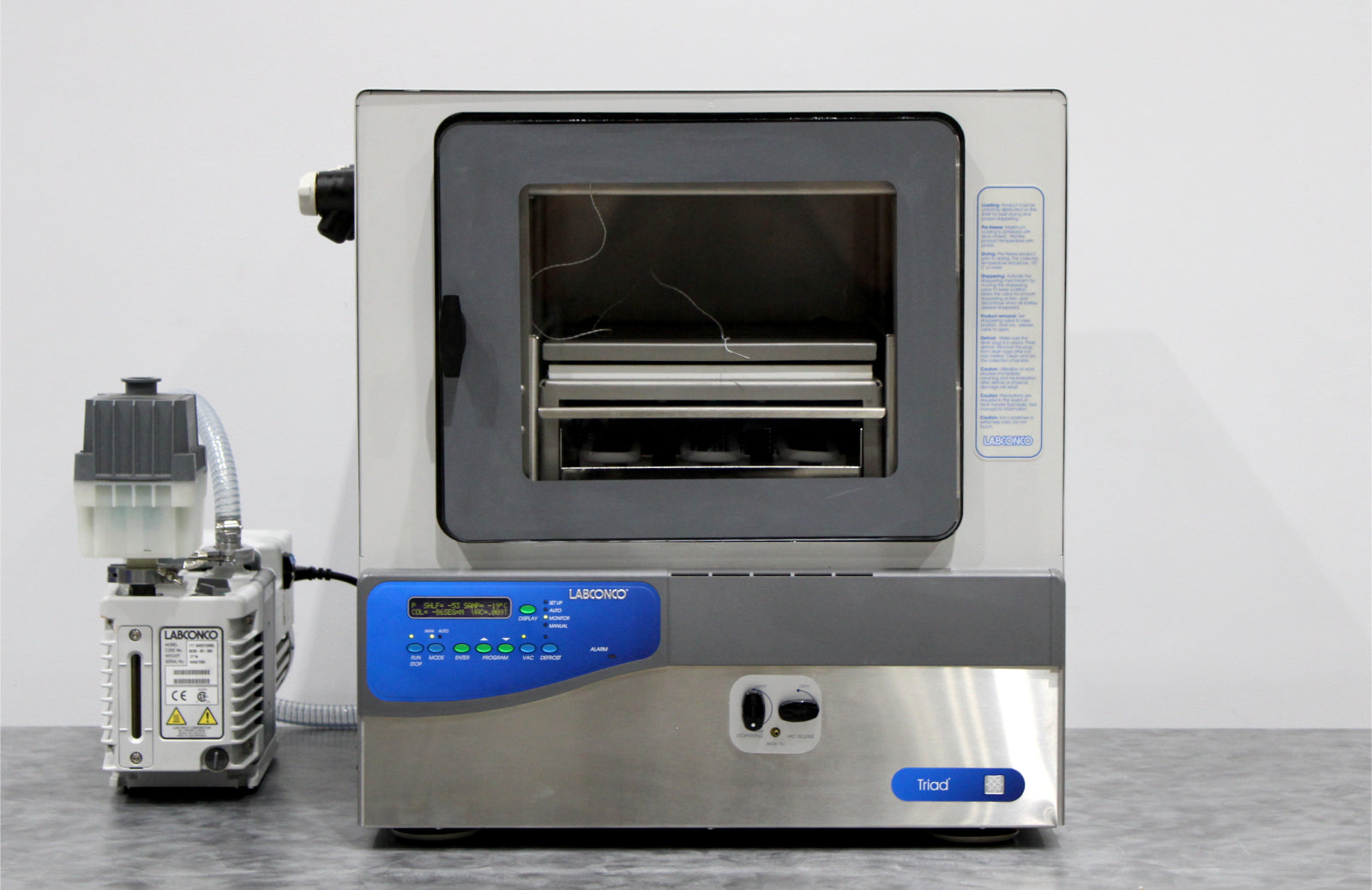

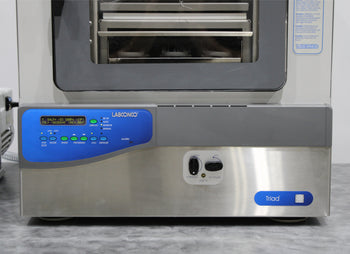

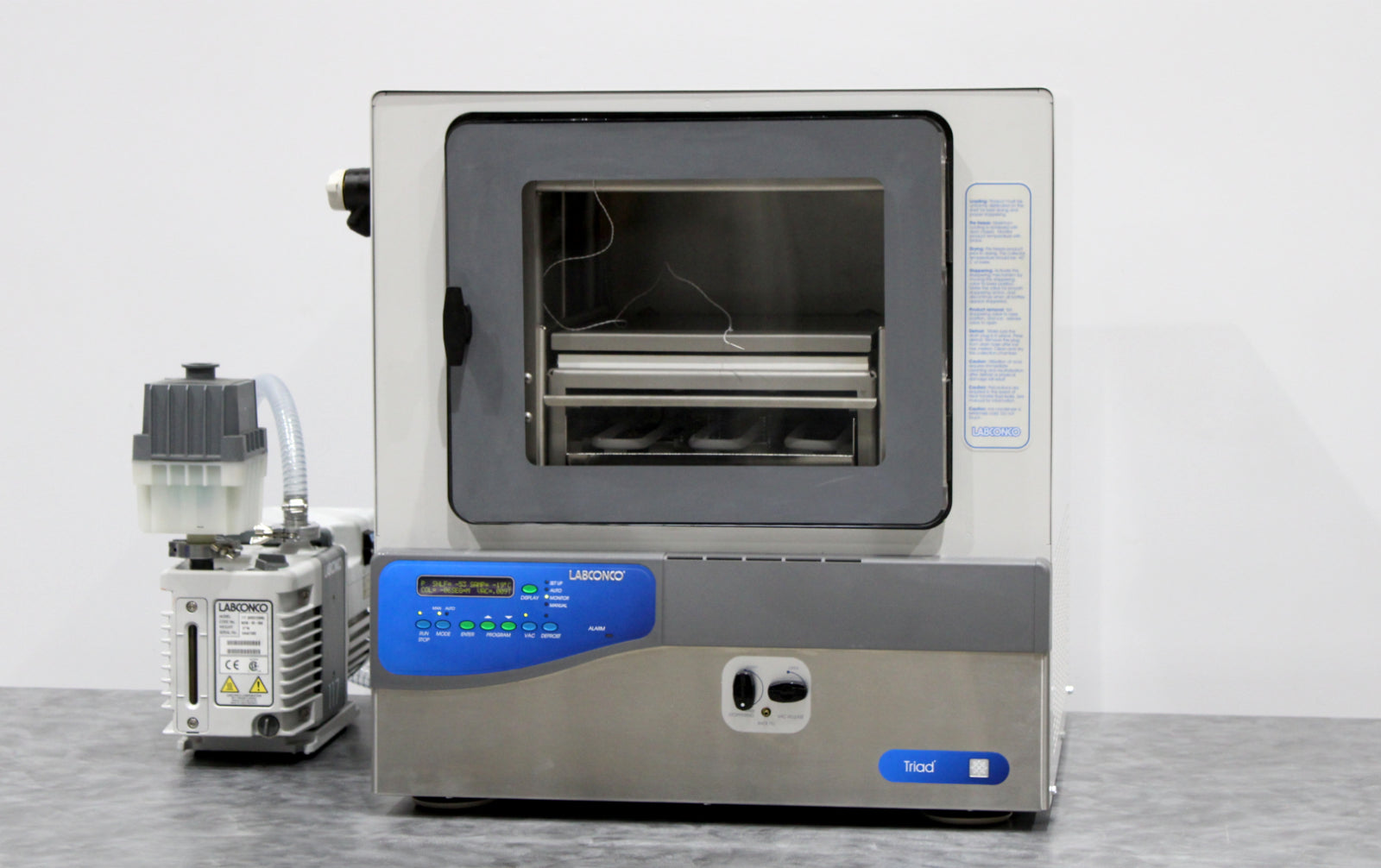

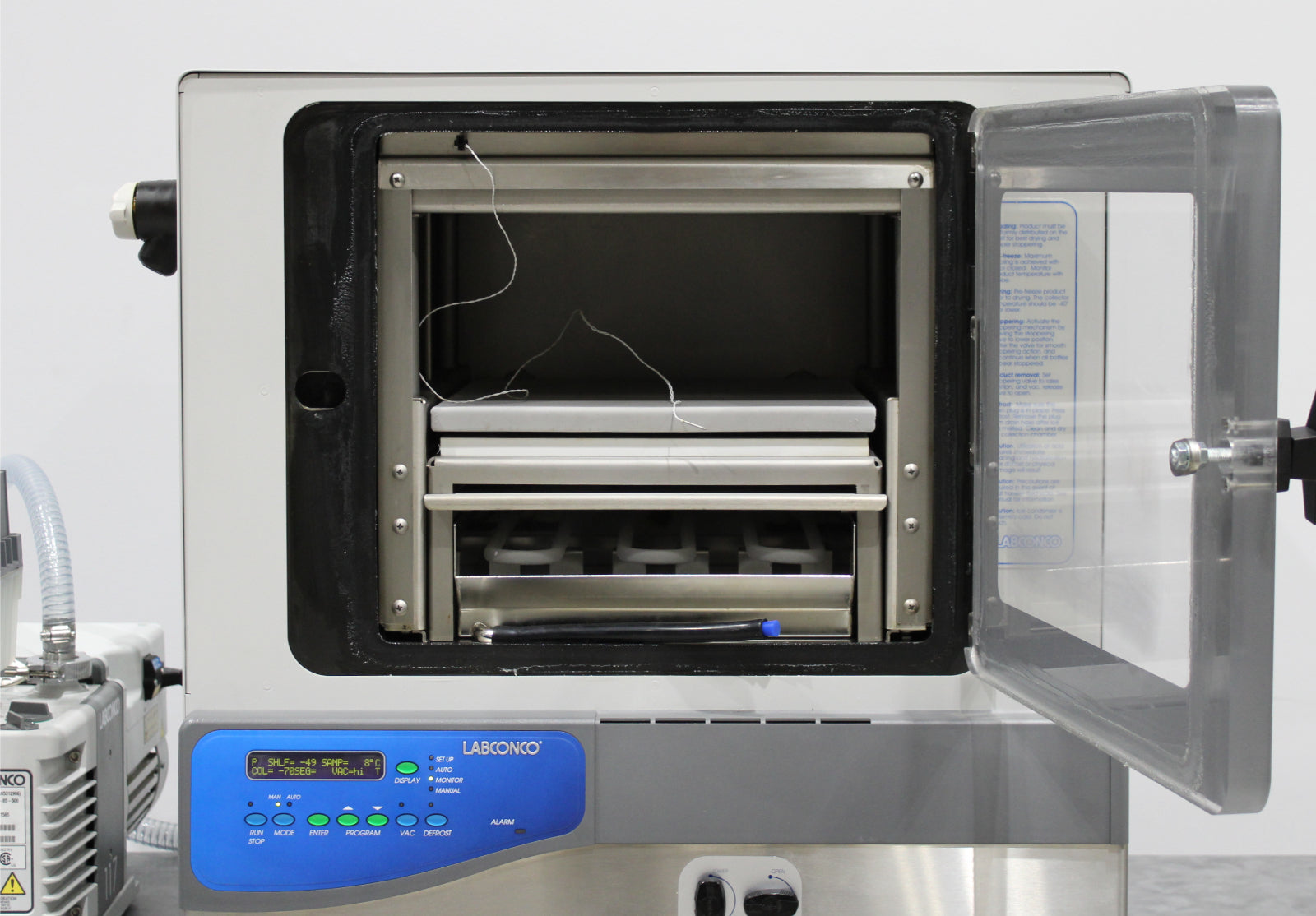

- Labconco FreeZone Triad 2.5L -84°C Stoppering Tray Benchtop Freeze Dryer 230V (7400040) with Single Stoppering Shelf

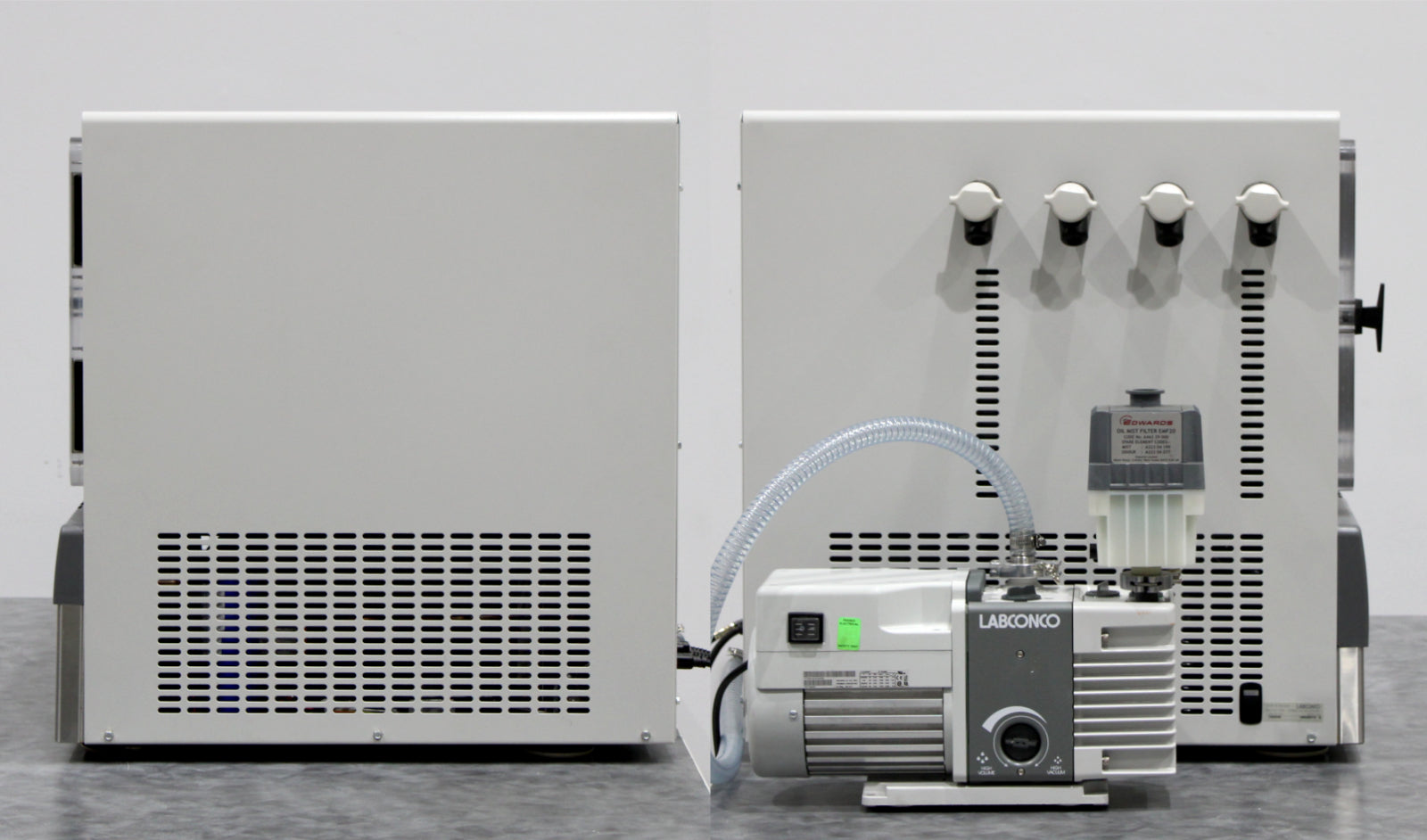

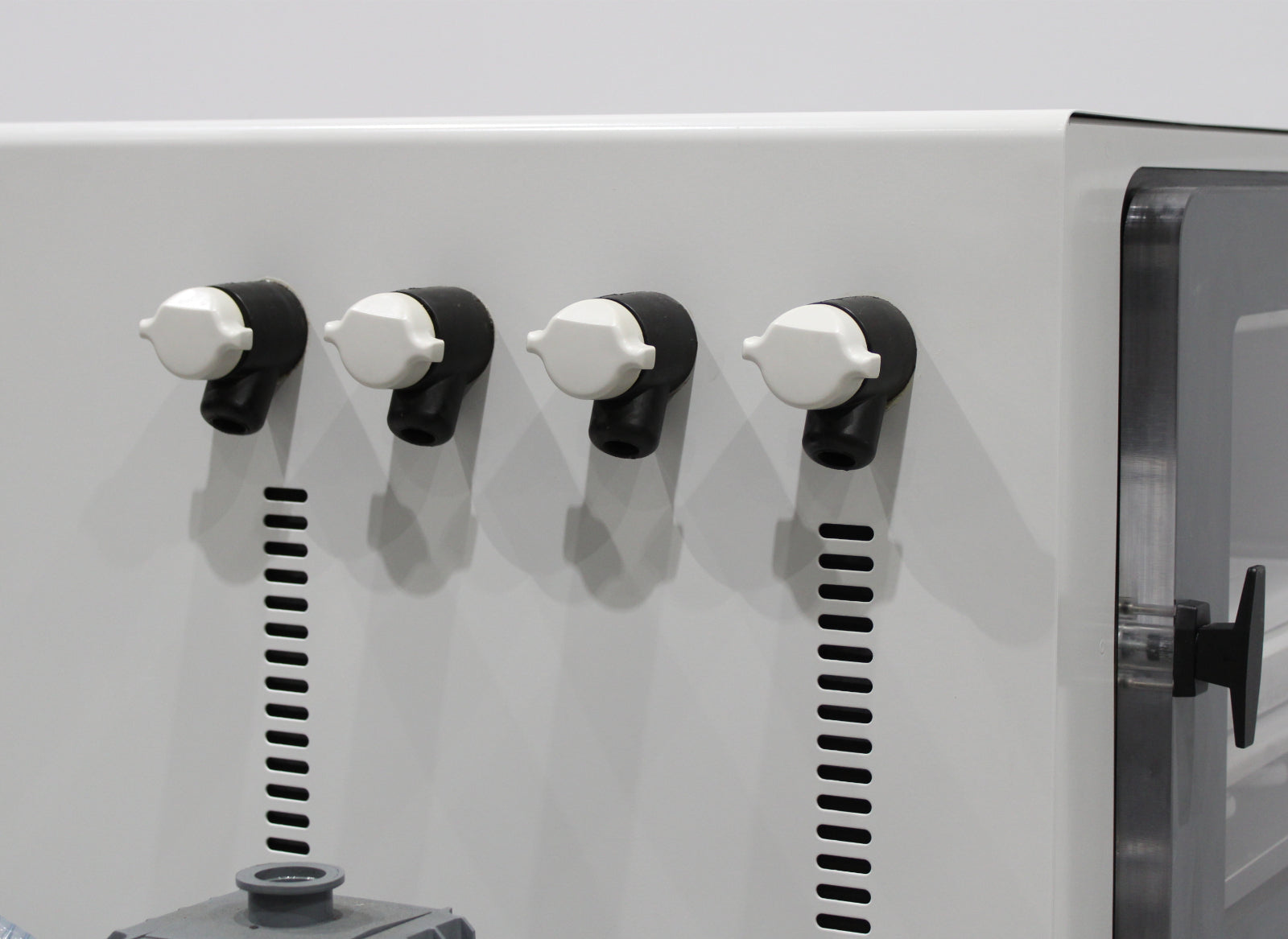

- x4 Manifold Valves

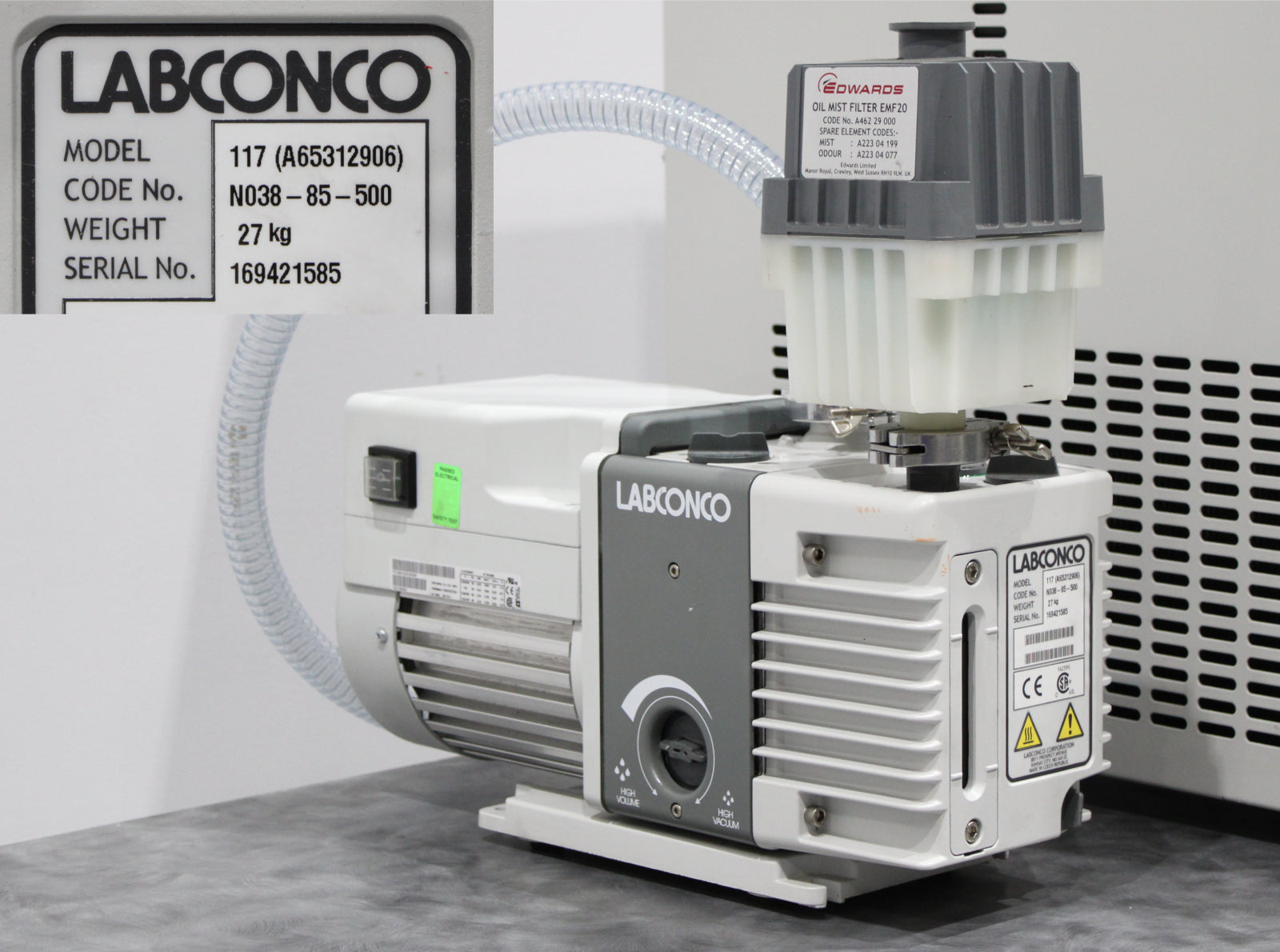

- Labconco Model 117 Vacuum Pump
- Vacuum Hose
- Vacuum Pump Power Cable

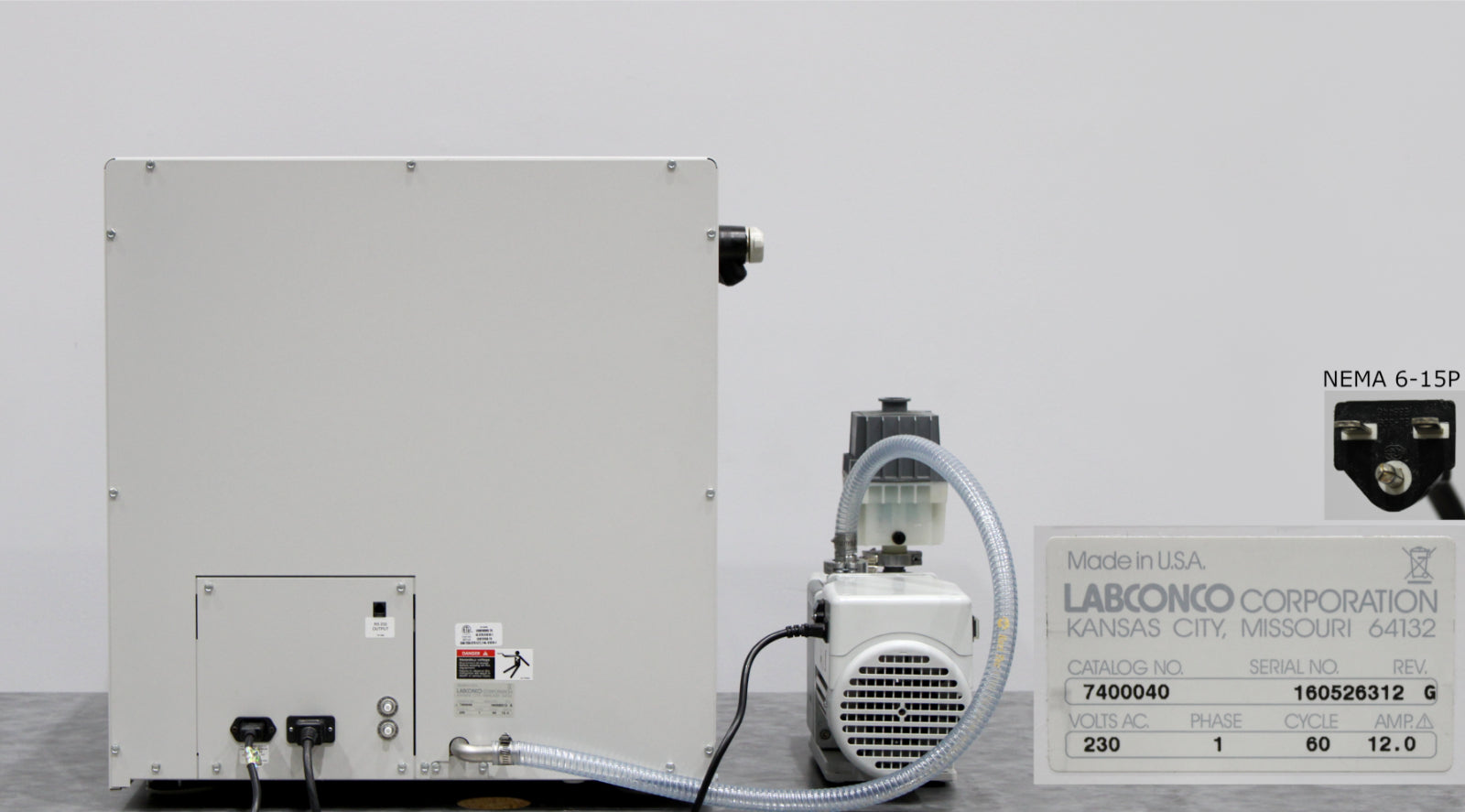

- Main Power Cable with NEMA 6-15 Plug
- 90-Day warranty

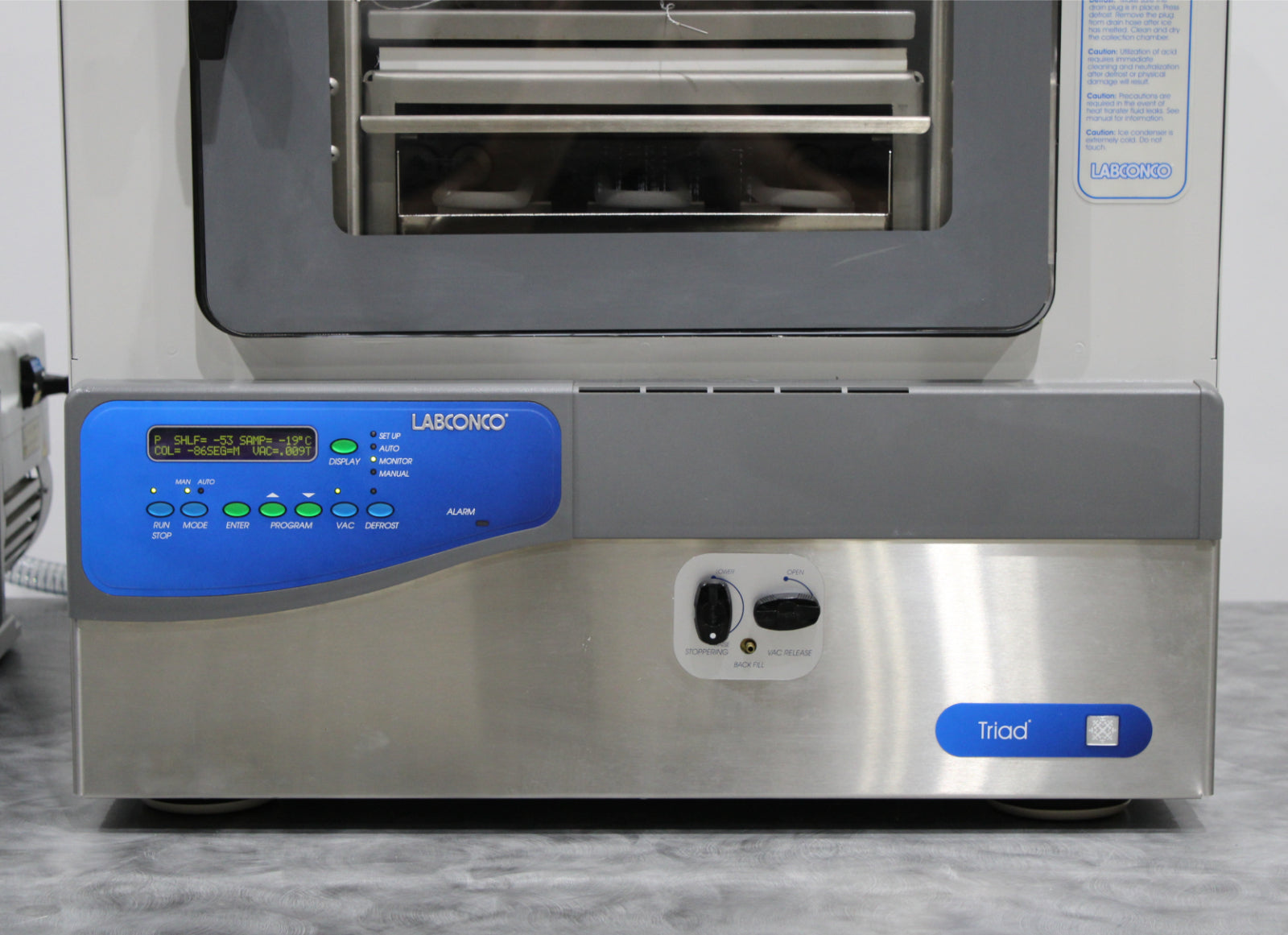

After its initial disinfection and inspection, our technicians tested the Labconco FreeZone Triad -84°C stoppering tray benchtop freeze dryer with the following results:

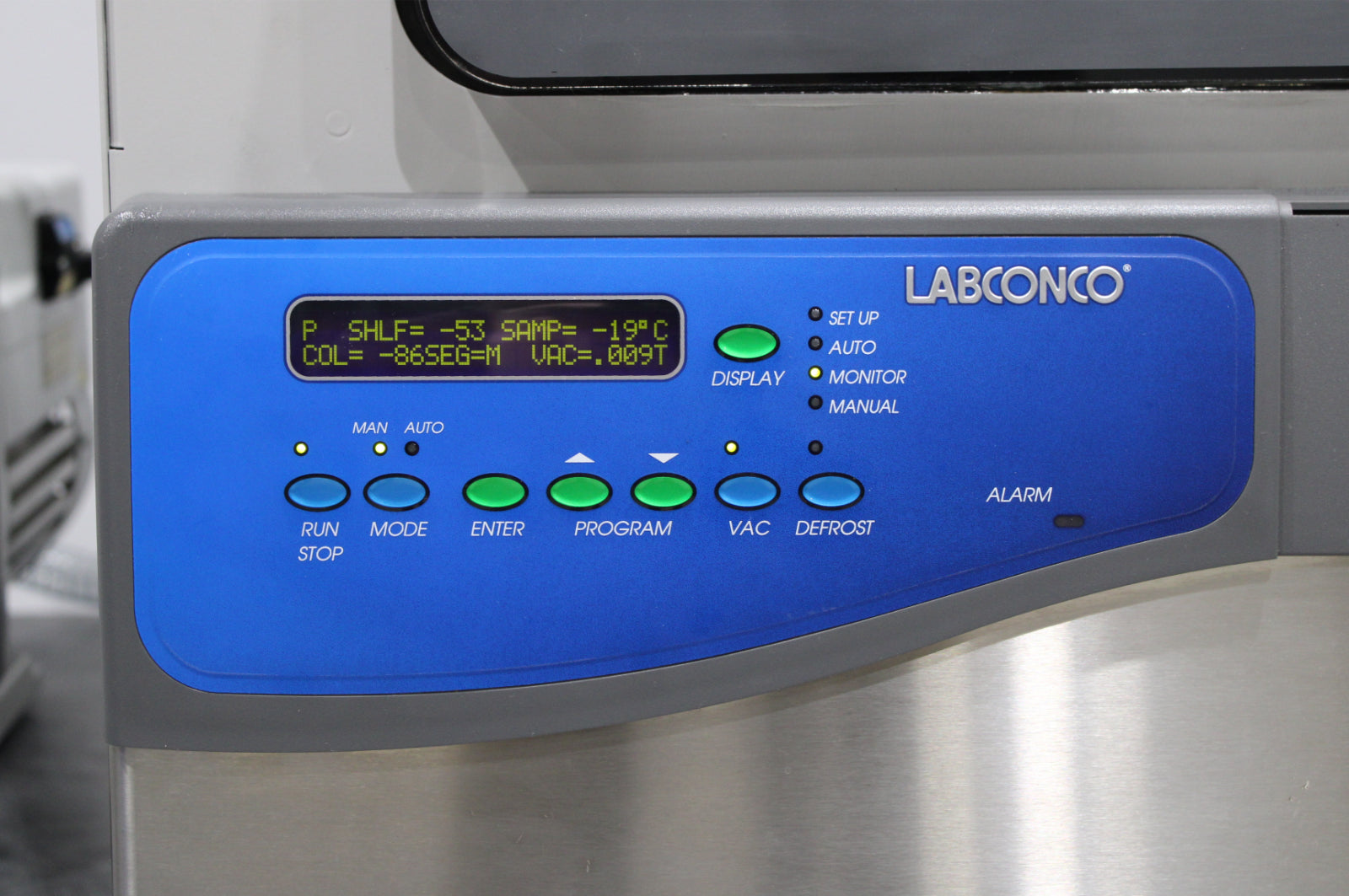

- Shelf temperature -53°C: PASSED
- Collector temperature -86°C: PASSED
- Vacuum 9 mT: PASSED
- Inspected and replaced refrigeration insulation as needed.
- Inspected and replaced vacuum hoses as needed.
- Flushed and filled vacuum pump oil.
|
Manufacturer
|
Labconco
|
|
Model
|
FreeZone Triad
|
|
Catalog No.
|
7400040
|
|
Serial No.
|
160526312 G
|
|
Mfg. date
|
2016
|
|
Style
|
Benchtop
|
|
Options Included
|
Stoppering Tray Dryer
|
|
Collector temperature
|
-84°C (-119°F)
|
|
Ice holding capacity
|
2.5L
|
|
Vacuum pump displacement required
|
98 L/min or larger displacement
|
|
Shelf dimensions (W x D)
|
12 x 14.5 in
|
|
Power rating
|
230V, 60Hz, 12.0A, 1Ph
|
|
Dimensions (W x D x H)
|
28.4 x 29.2 x 27.9 in (72.1 x 74.2 x 70.9 cm)
|
|
Weight
|
400 lb (181 kg)
|
