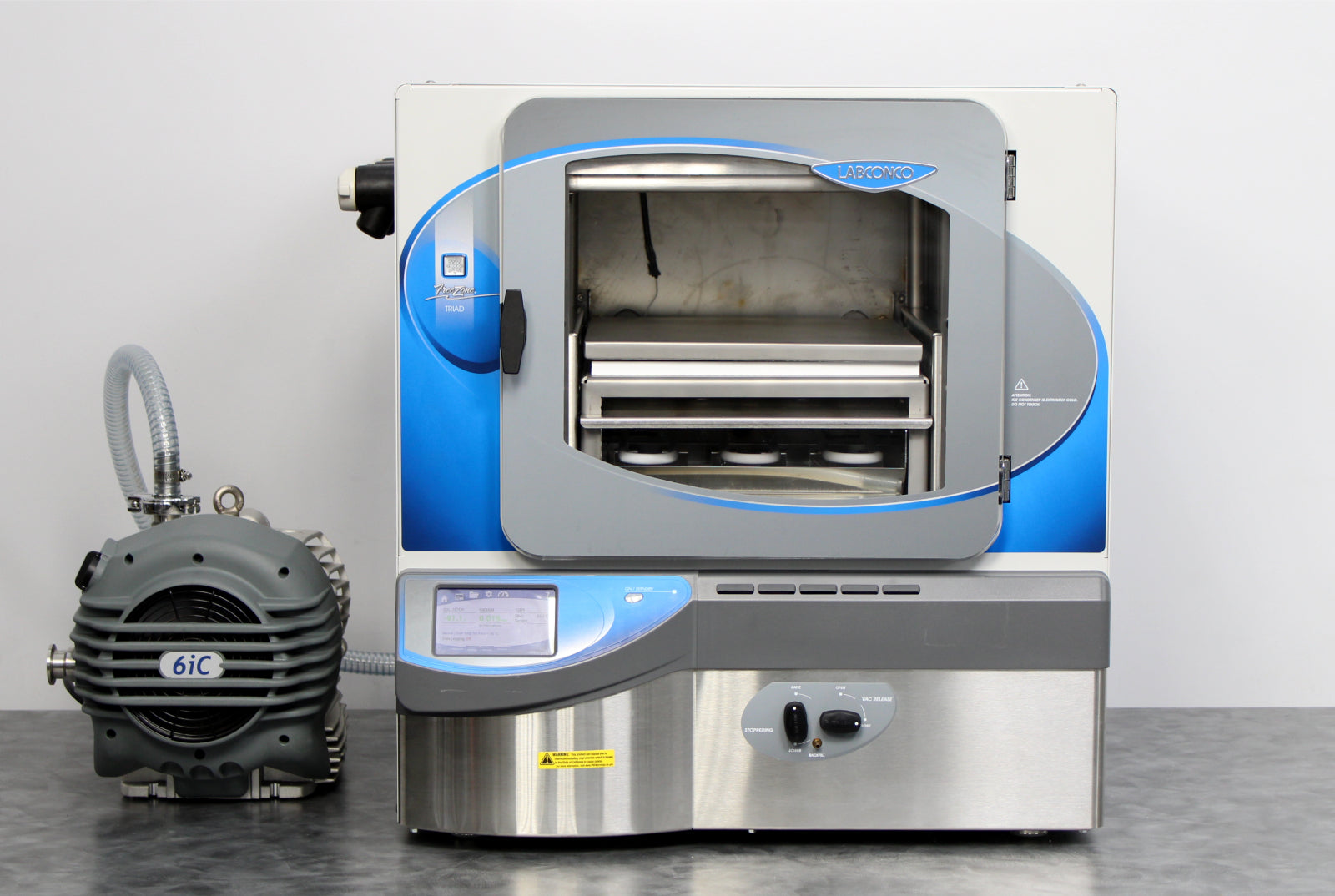

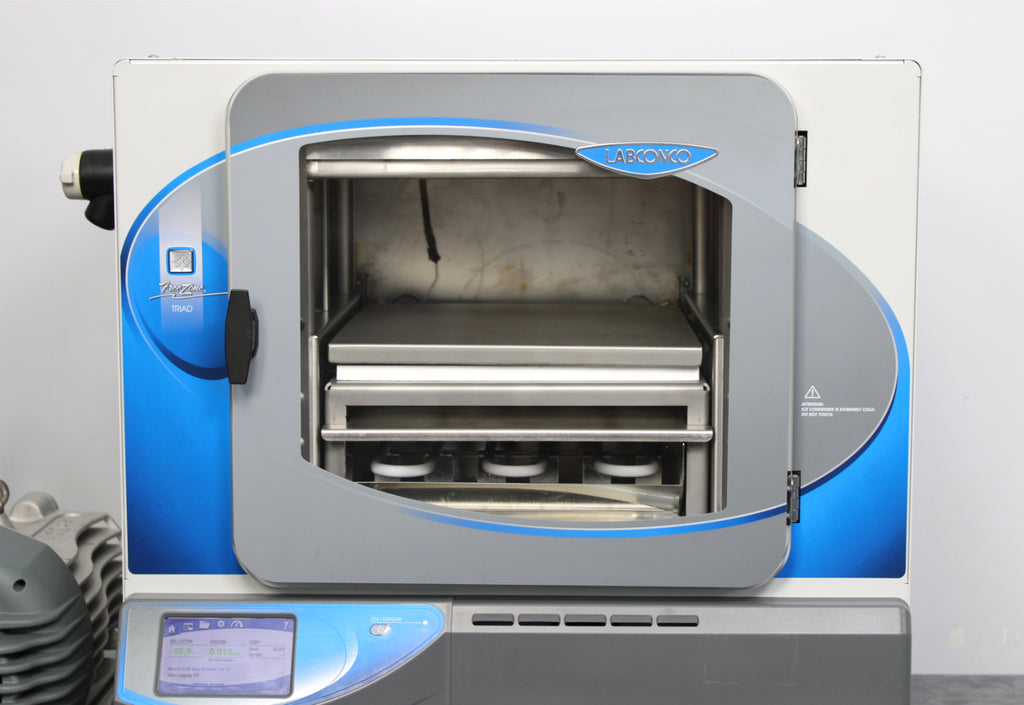

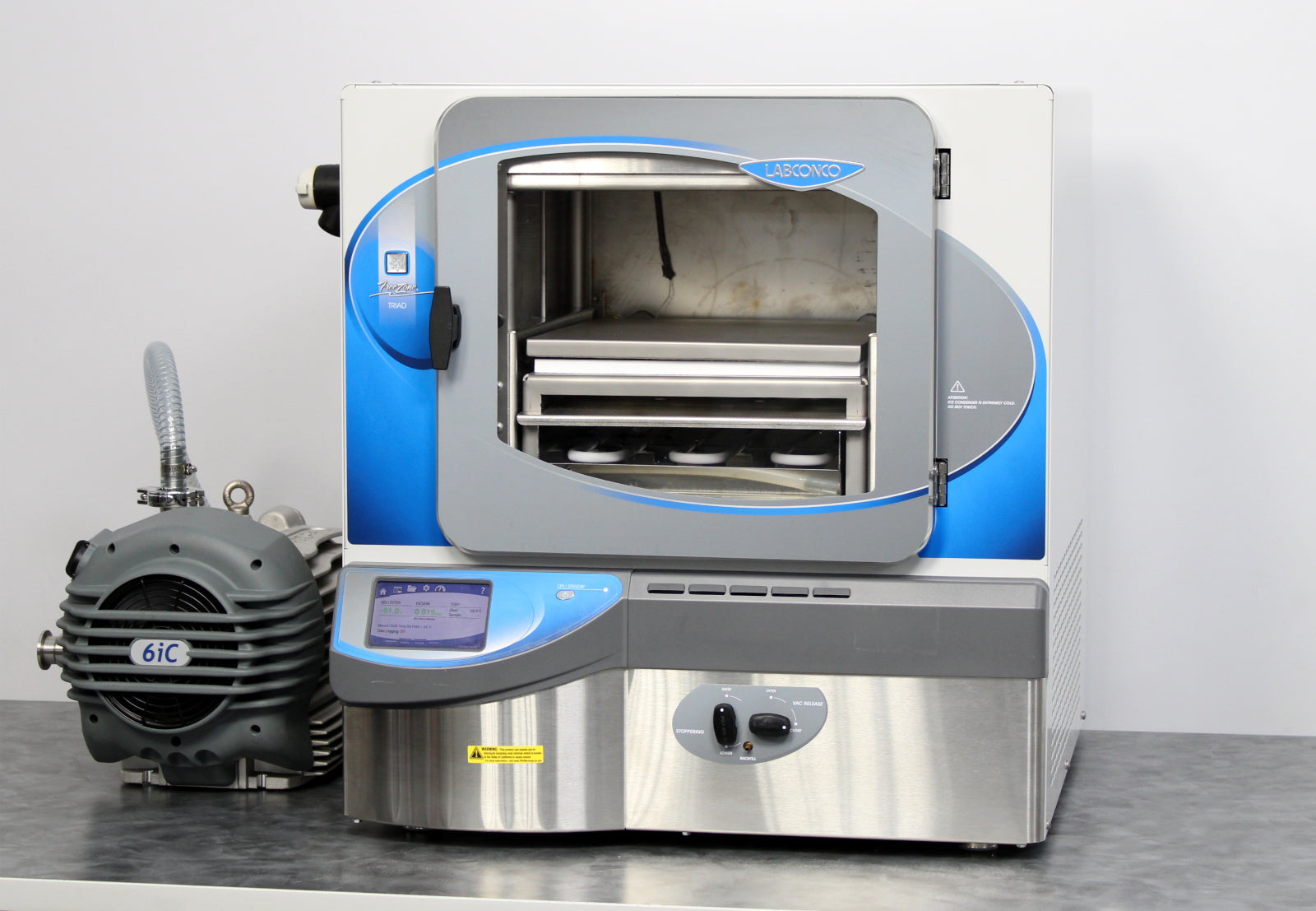

- Labconco FreeZone Triad -85°C Stoppering Tray Benchtop Freeze Dryer 230V (794001010) with 1 Shelf

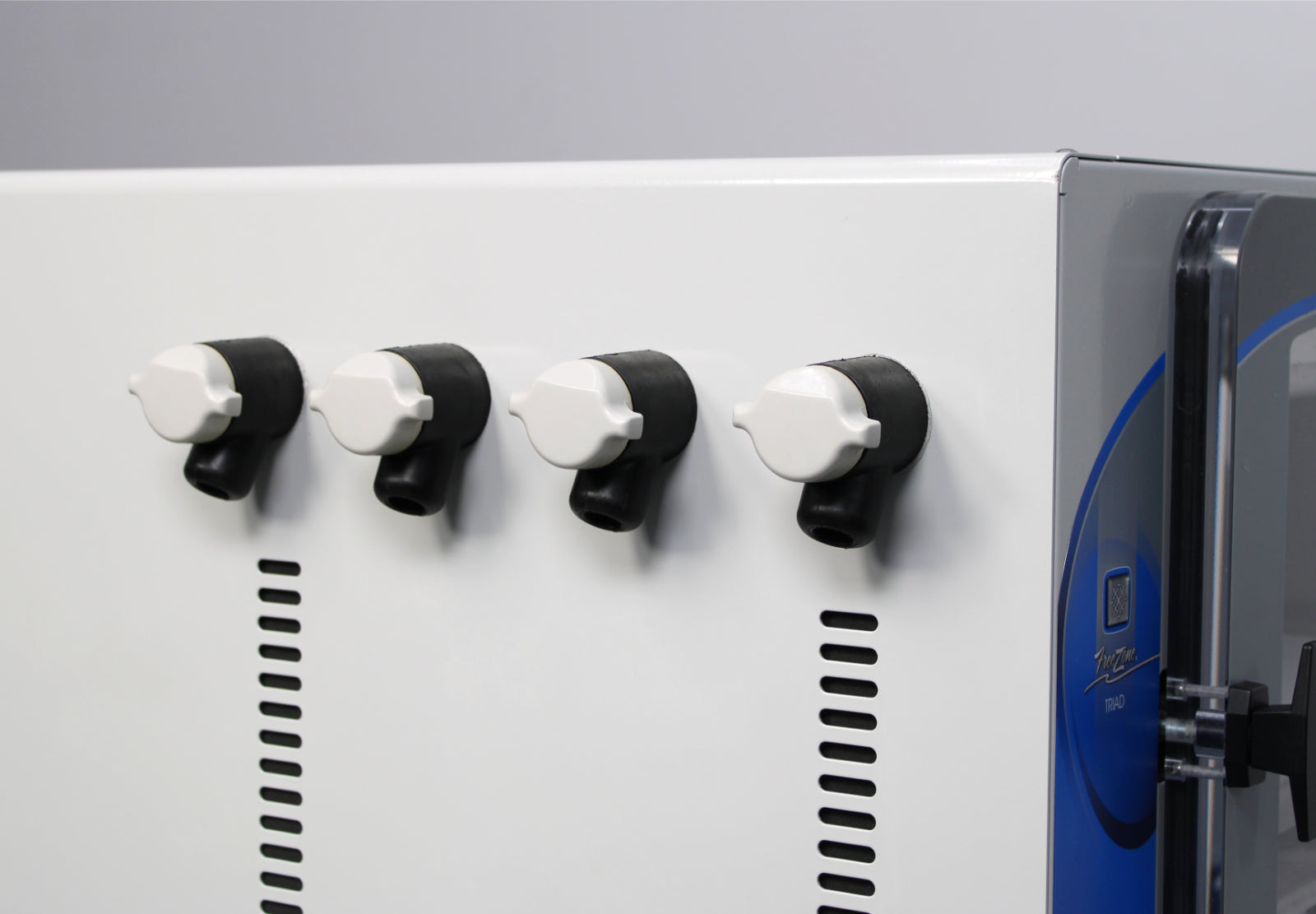

- x4 Side-Mounted Valves

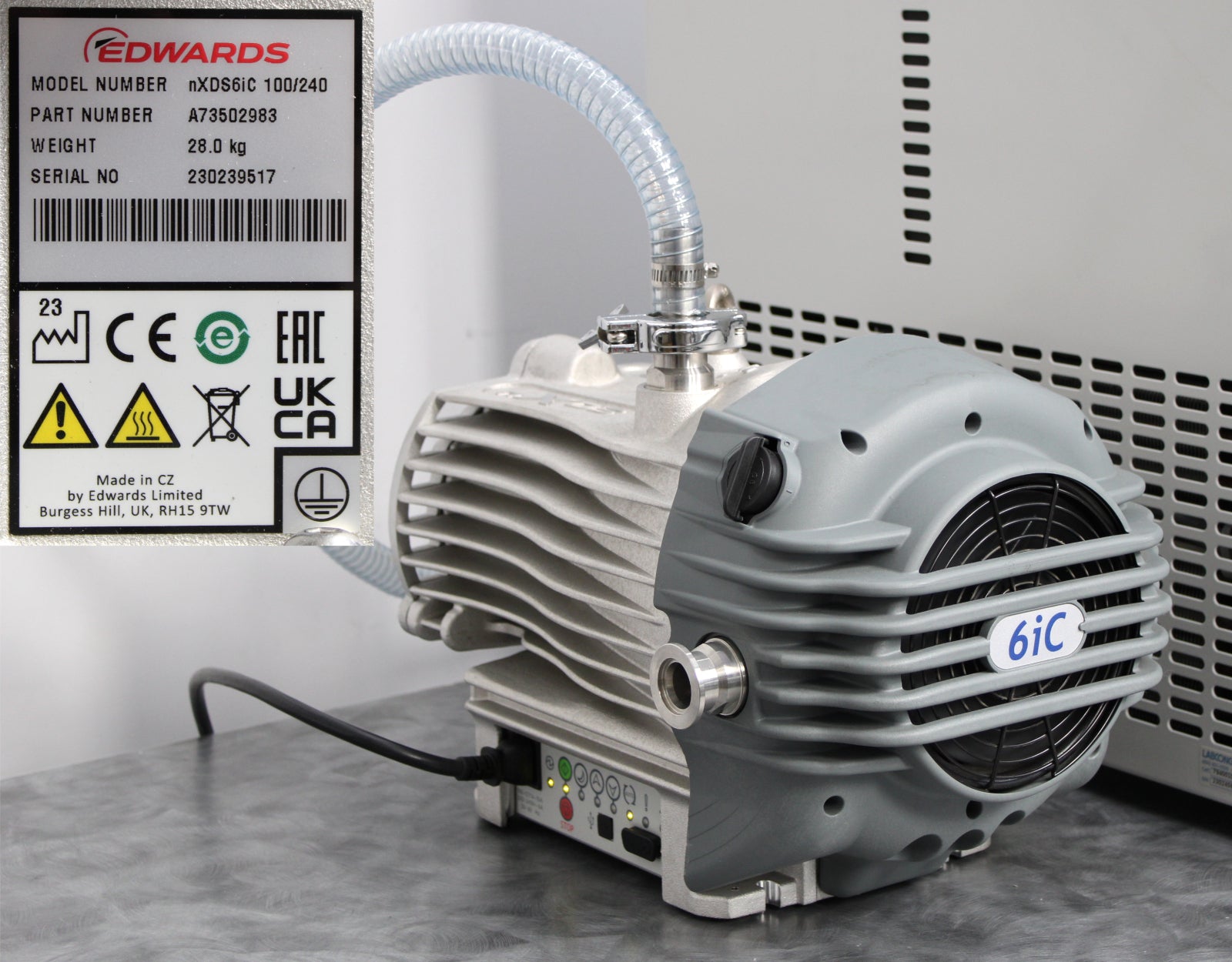

- Edwards nXDS6iC 100/240 Dry Scroll Pump (A73502983)
- Vacuum Hose
- Vacuum Pump Power Cable
- 230V Power Cable
- 90-Day Warranty
After its initial disinfection and inspection, our technicians tested the Labconco FreeZone Triad stoppering tray freeze dryer with the following results:

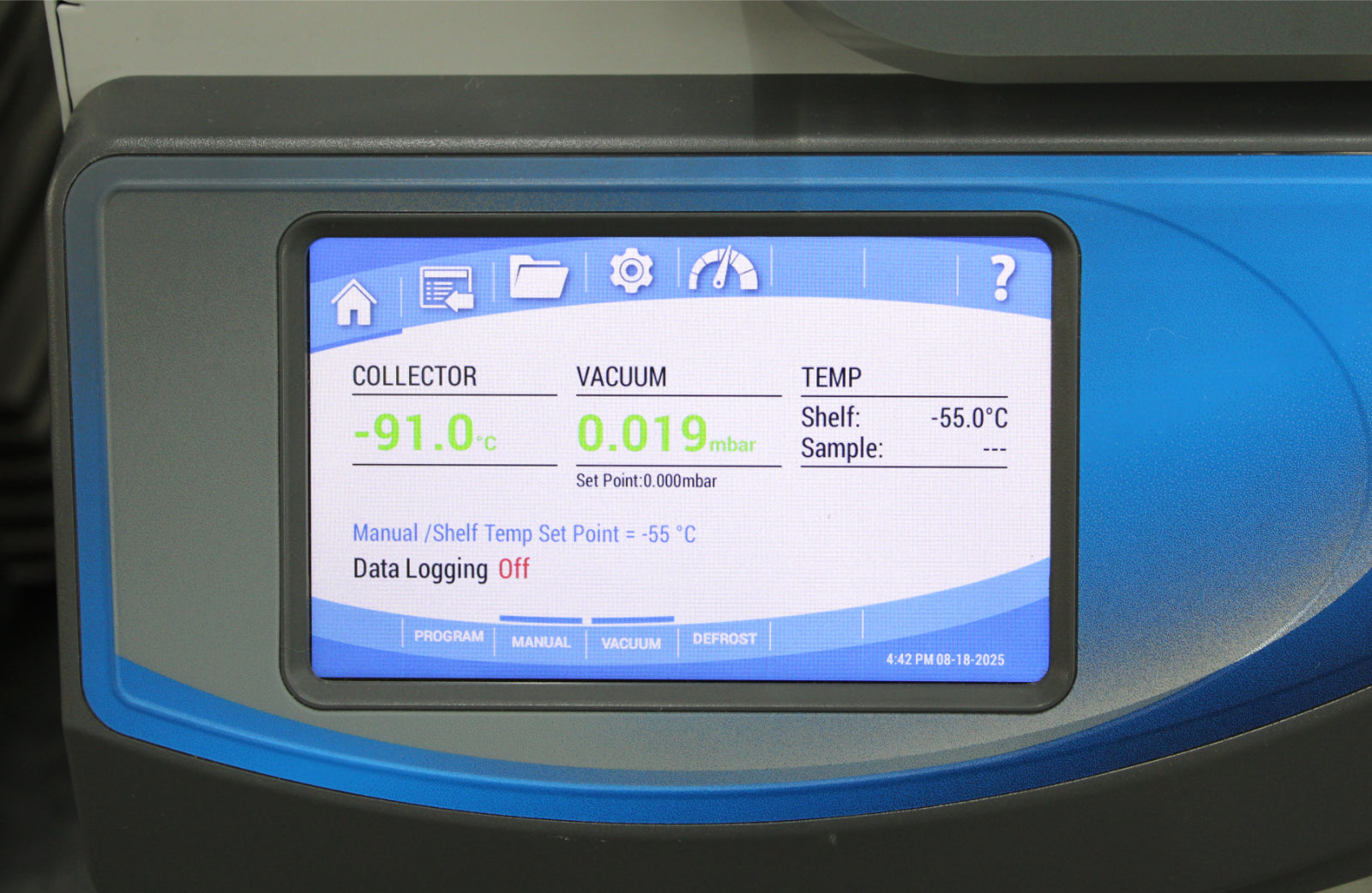

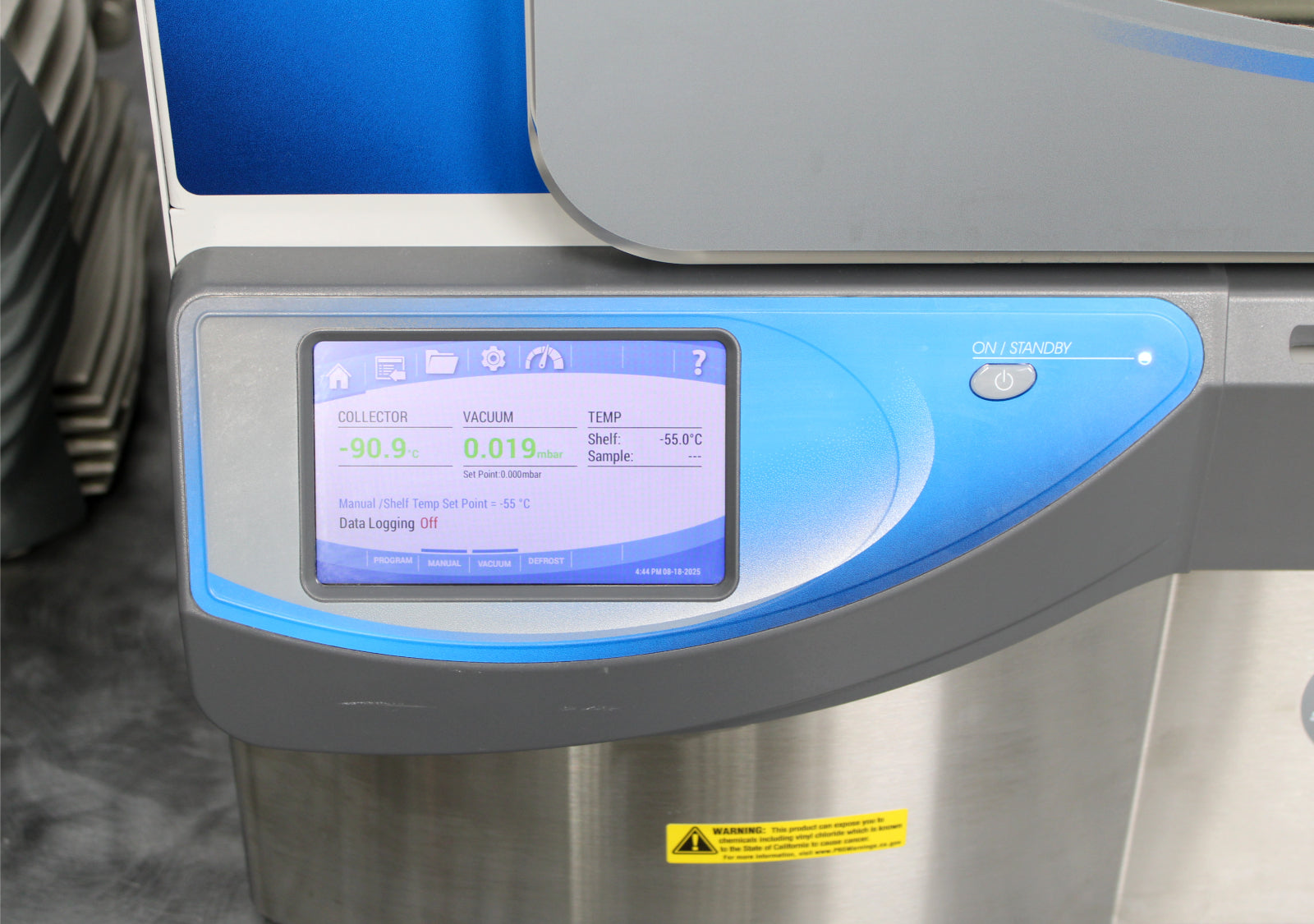

- Shelf temperature holds steady at -55°C setpoint: PASSED
- Collector temperature achieved -90°C: PASSED
- Vacuum achieved 0.019mbar: PASSED
- Inspected refrigeration insulation.
- Inspected/replaced vacuum hoses as needed.
- Silicone fluid level at recommended level.

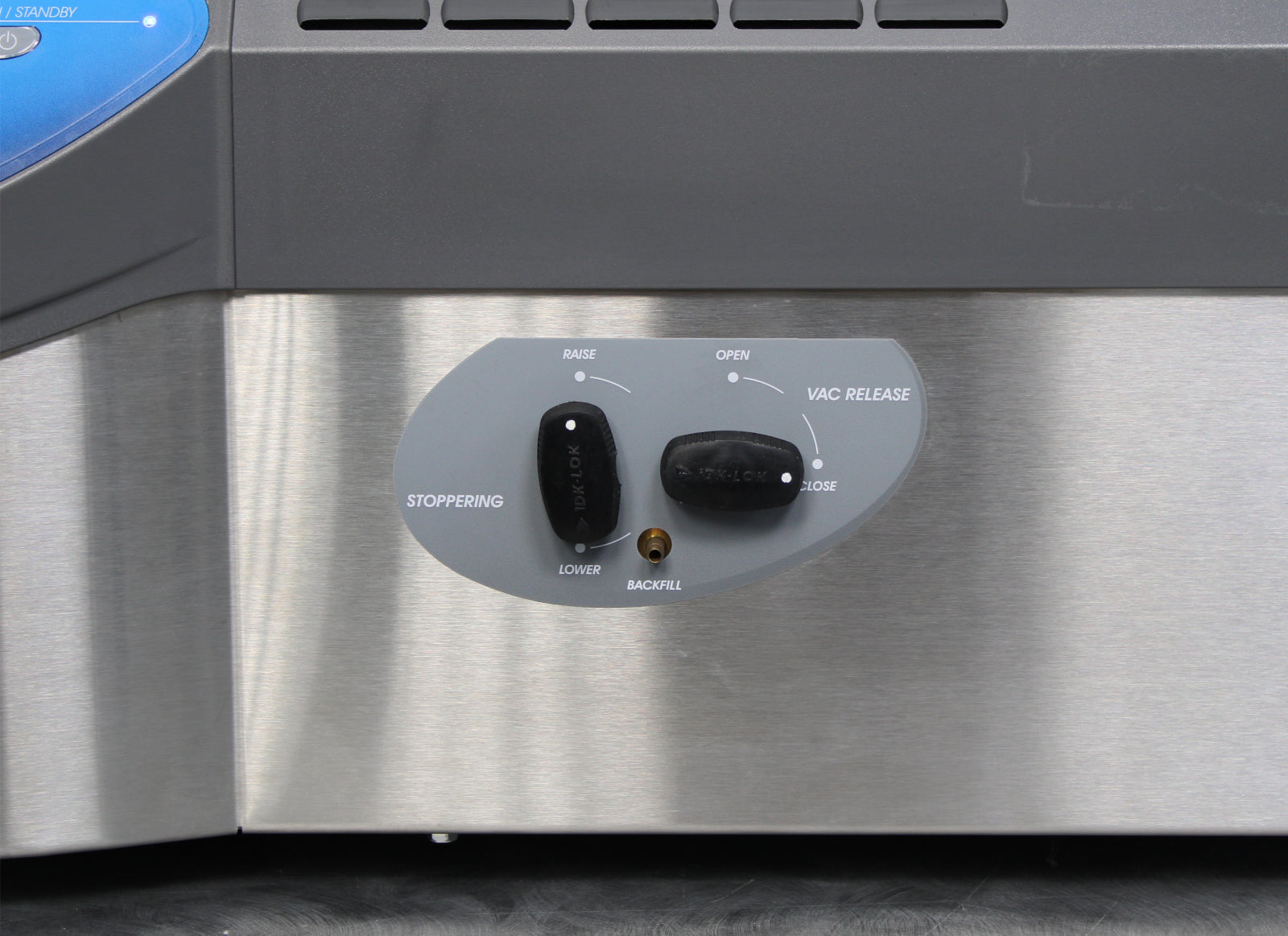

- Stoppering checked.
Notice: This freeze dryer has some minor cosmetic blemishes. Please review the available photos to see the physical condition before purchasing.
|

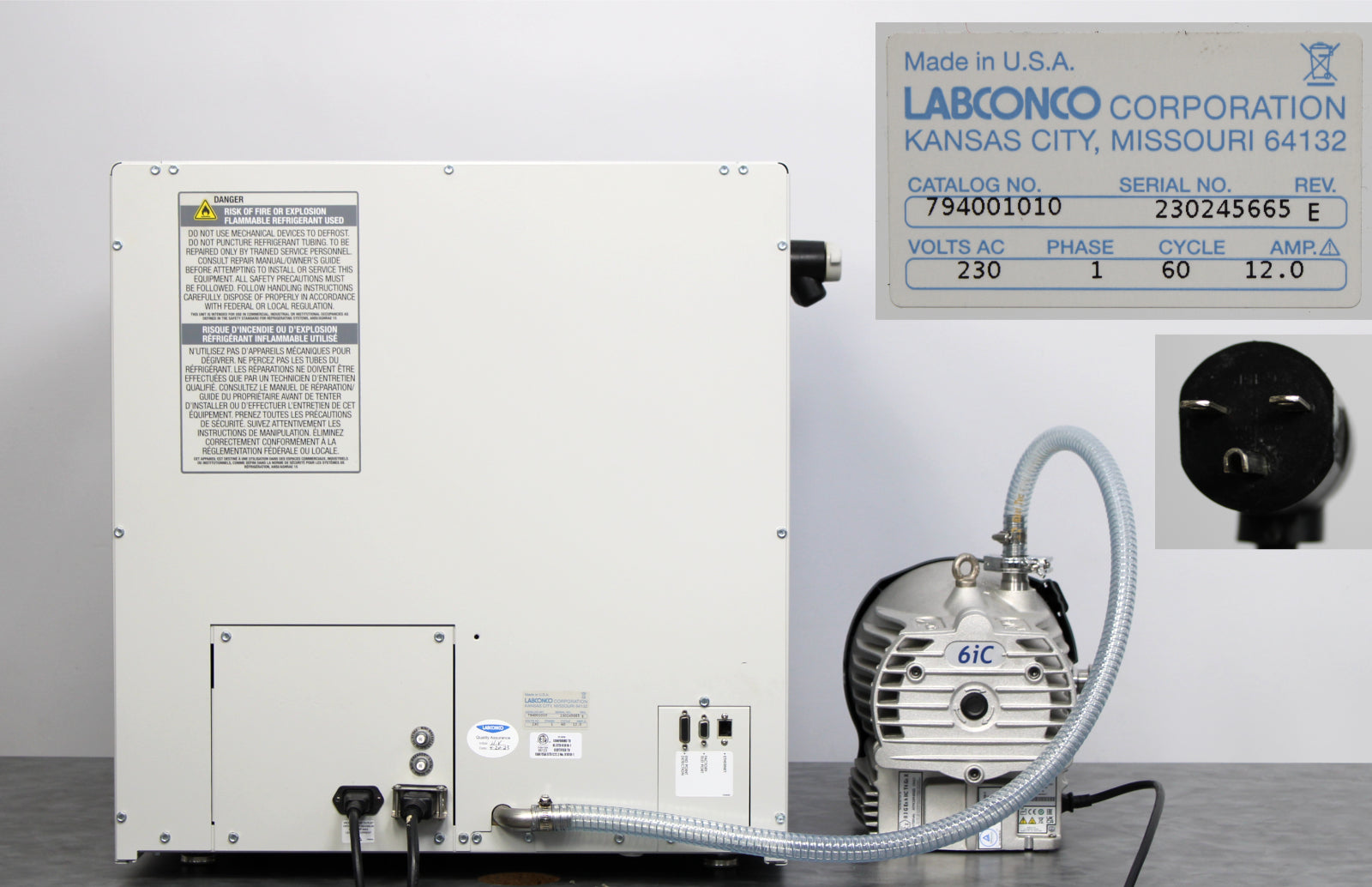

Manufacturer
|
Labconco
|
|
Model
|
FreeZone Triad
|
|
Catalog No.
|
794001010
|
|
Serial No.
|
230245665 E
|
|
Mfg. date
|
2023
|
|
Collector minimum temperature
|
-85°C (-121°F)
|
|
Collector capacity in 24 Hours
|
1.84 L
|
|
Collector total capacity
|
2.5 L
|
|
Shelf minimum temperature
|
-75°C
|
|
Shelf control temperature range
|
-55°C to +50°C (-67°F to +122°F)
|
|
Pre-freezing temperature
|
-75°C (-103°F)
|
|

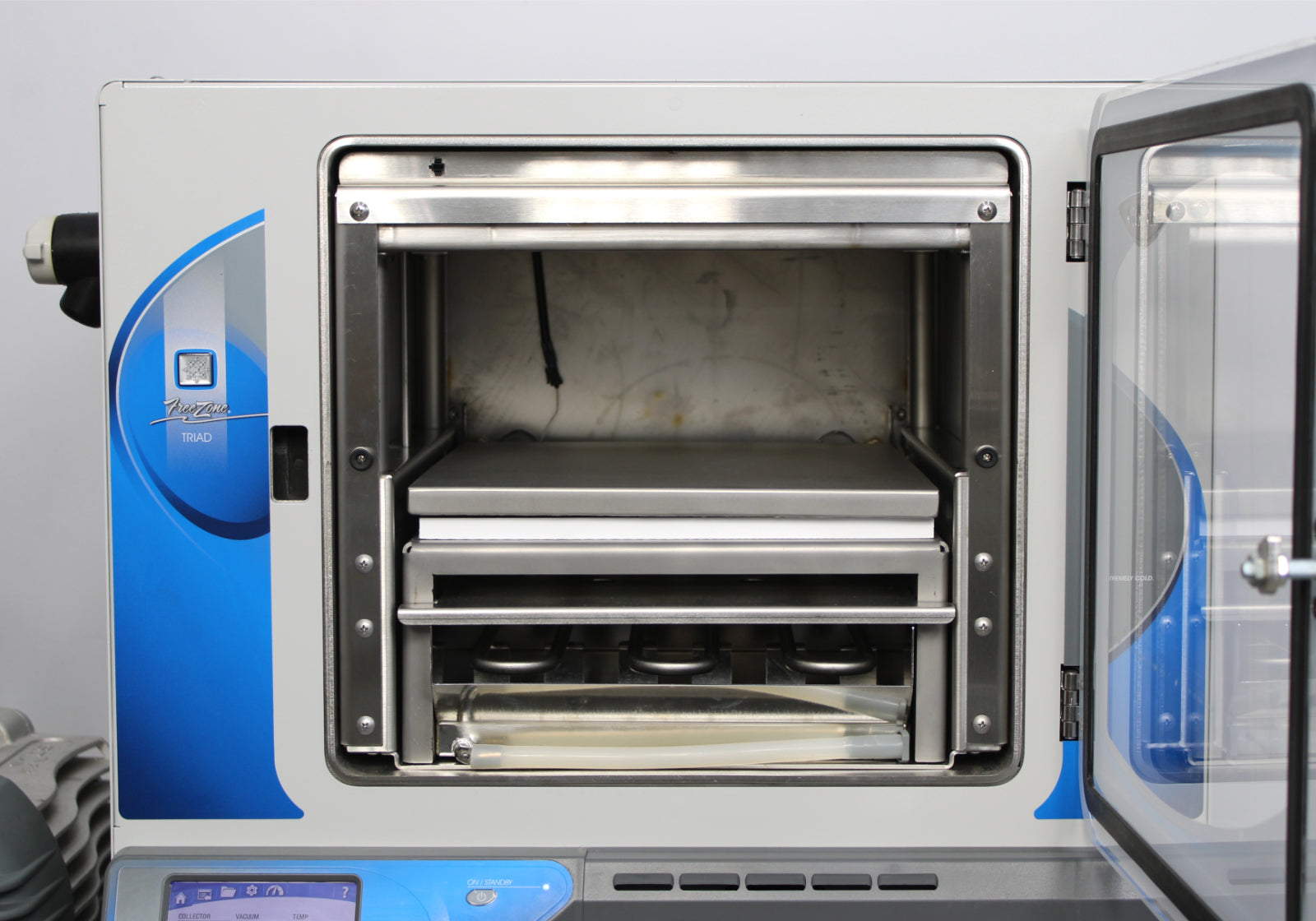

Number of shelves
|
1
|
|
Shelf dimensions (W x D)
|
12.4 x 14.5 in (31.5 x 36.8 cm)
|
|
Defrost method
|
Hot Gas
|
|
Time to defrost 2.0 L
|
1.5 Hours
|
|
Vacuum pump displacement required
|
98 L/min or larger displacement
|
|
Plug type
|
North America, 230V
|
|
Power rating
|
230VAC, 60Hz, 12.0A, 1Ph
|
|
Dimensions (W x D x H)
|
28.3 x 29.5 x 27.7 in (71.9 x 74.9 x 70.4 cm)
|
|
Weight
|
440 lb (199.6 kg)
|
