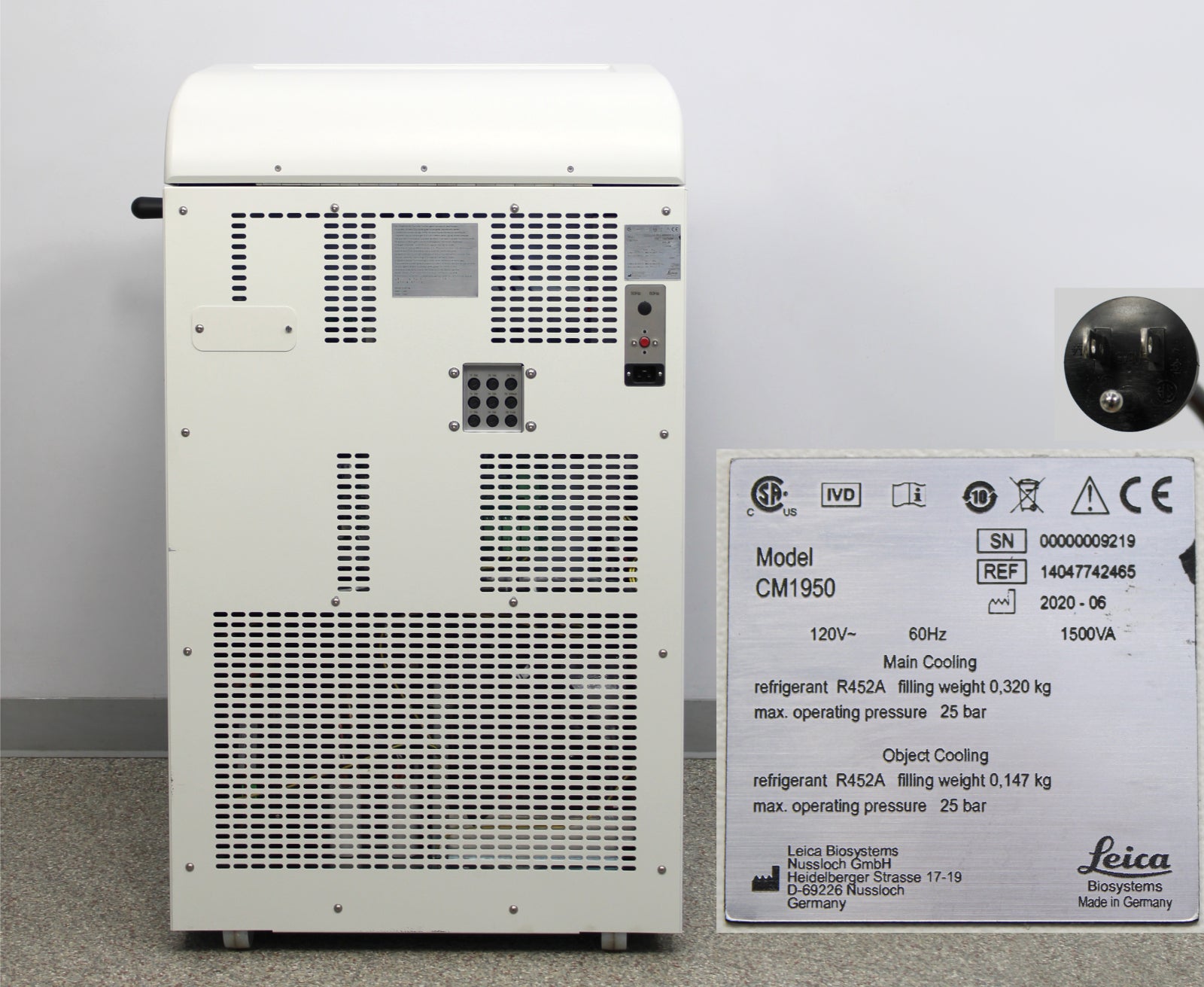

Manufacturer
|
Leica
|
|
Model
|
CM1950
|
|
Ref. No.
|
14047742465
|
|
Serial No.
|
9219
|
|
Mfg. date
|
2020 - 06
|
|
Power rating
|
120V~, 60Hz
|
|
Power consumption
|
1500VA
|
|

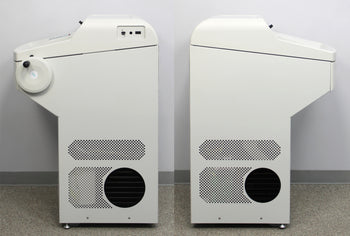

Overall size of device, without handwheel (W x D x H)
|
27.6 x 33.5 x 47.8 in (70 x 85 x 121.5 cm)
|
|

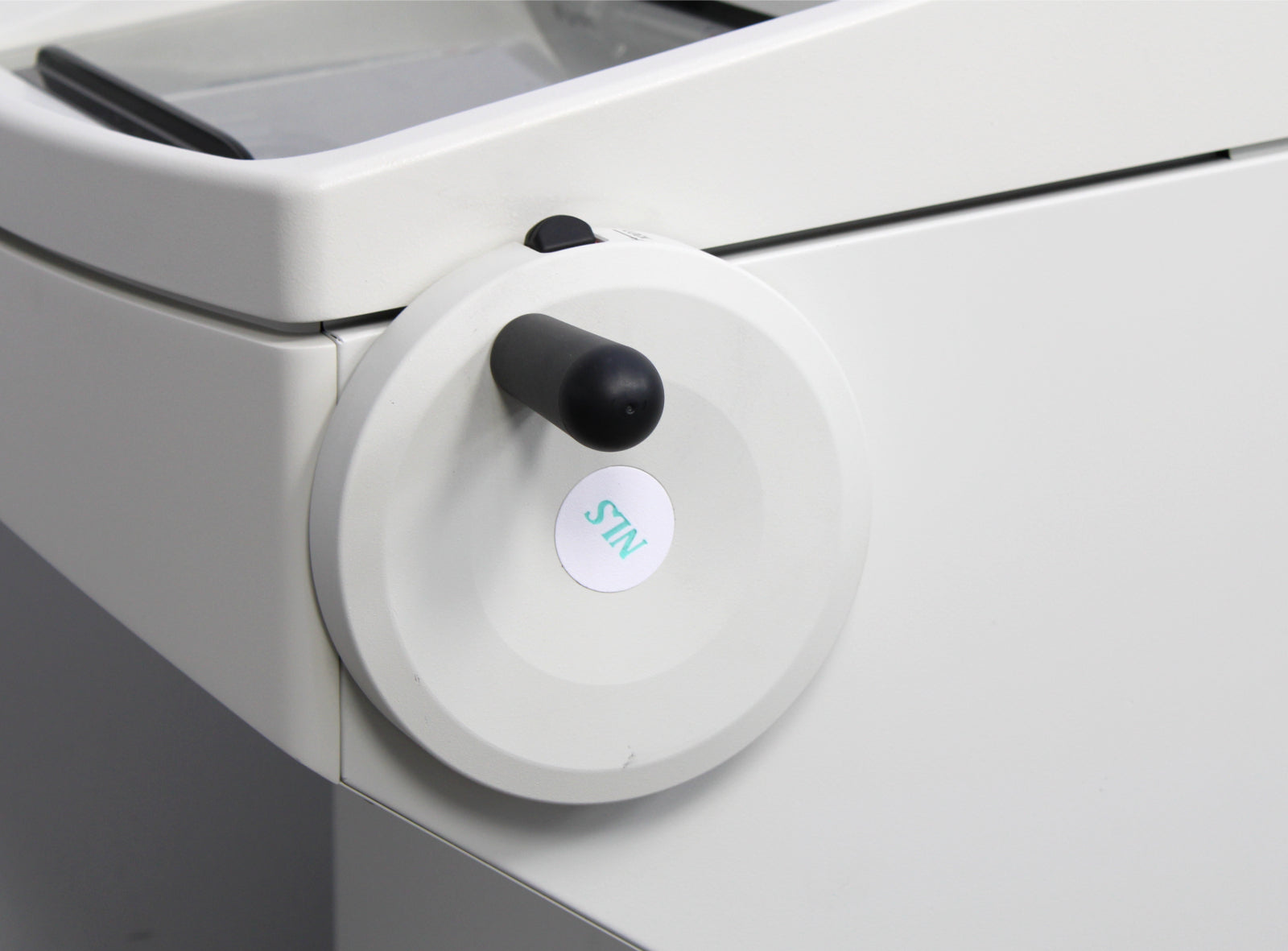

Overall size of device, with handwheel (W x D x H)
|
32.9 x 33.5 x 47.8 in (83.5 x 85 x 121.5 cm)
|
|
Working height (armrest)
|
40.4 in (102.5 cm)
|
|
Empty weight (without accessories)
|
320-425.5 lb (145-193 kg) depending on configuration
|
|

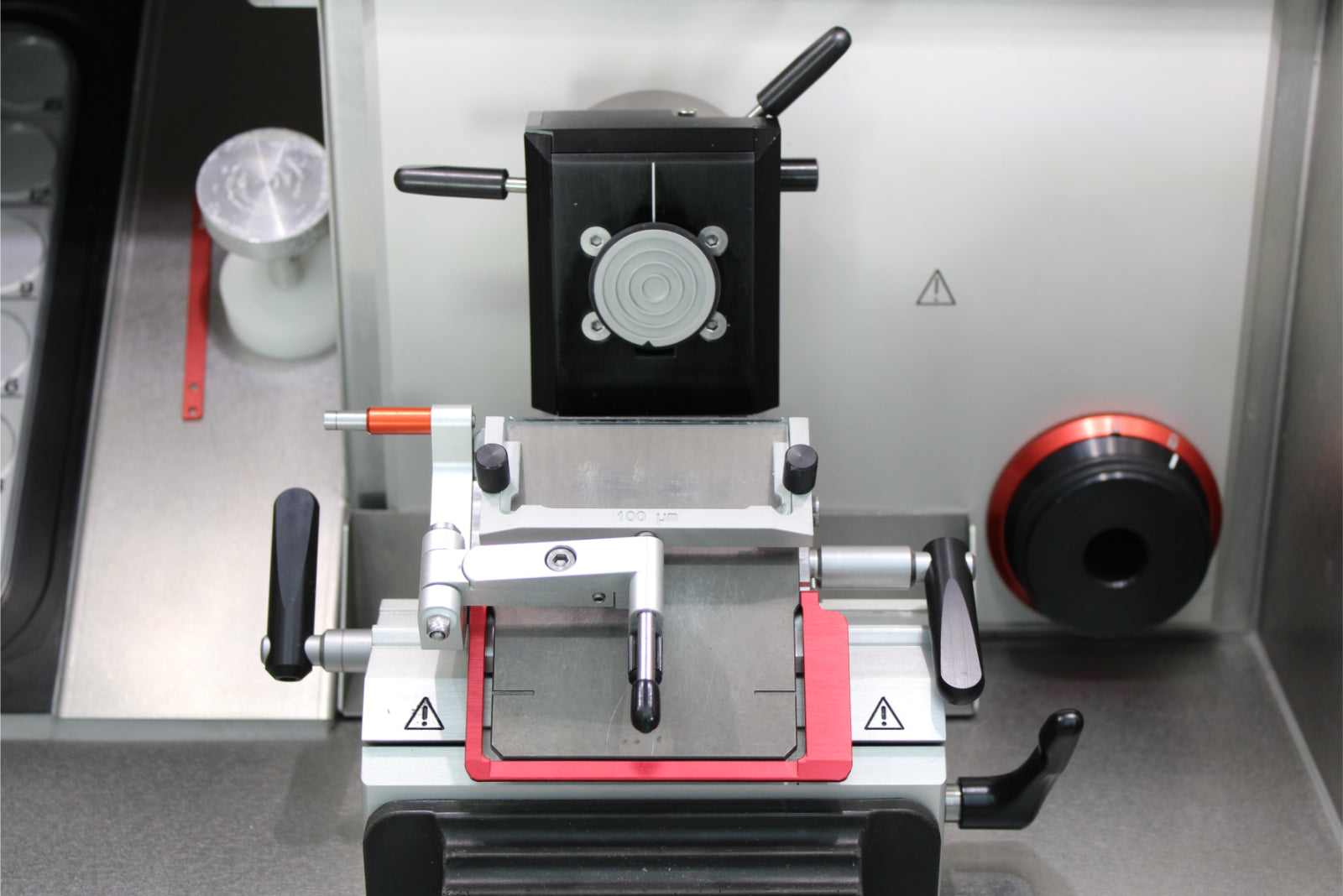

Microtome
|
|
Type
|
Rotary microtome, encapsulated
|
|
Section thickness range
|
1 to 100 um
|
|
Trimming range
|
Clinic: 10 - 40 um
Research: 1 - 600 um
|
|
Total specimen feed
|
25 mm + 1 mm
|
|
Vertical stroke
|
59 mm +/- 0.5 mm
|
|
Specimen retraction
|
20um (can be deactivated)
|
|
Maximum specimen size
|
50 x 80 mm
|
|
Cutting speed
|
Slow: 0-50 strokes/min
Fast: 0-85 strokes/min
Vmax: 85-90 strokes/min
|
|
Specimen orientation
|
8° (x, y-axis)
|
|
Electric coarse feed
|
Slow: 300 um/s
Fast: 900 um/s
|
|
UVC Lamp
|
|
Manual start
|
Yes
|
|
Automatic start
|
No
|
|
Manual abort
|
Yes
|
|
Duration cycle
|
Short cycle: 30 min
Long cycle: 180 min
|
|
Environmental Specification
|
|
Operating altitude
|
Max. 2000 m above sea level
|
|
Operating temperature
|
+18°C to +35°C
|
|
Relative humidity (operation)
|
20 to 60% RH non-condensing
|
|
Transport temperature
|
-29°C to +50°C
|
|
Storage temperature
|
+5°C to +50°C
|
|
Relative humidity (transport / storage)
|
10 to 85% RH non-condensing
|
|
Minimum distance to walls
|
Back: 150 mm
Right: 300 mm
Left: 150 mm
|
|
Refrigeration System
|
|

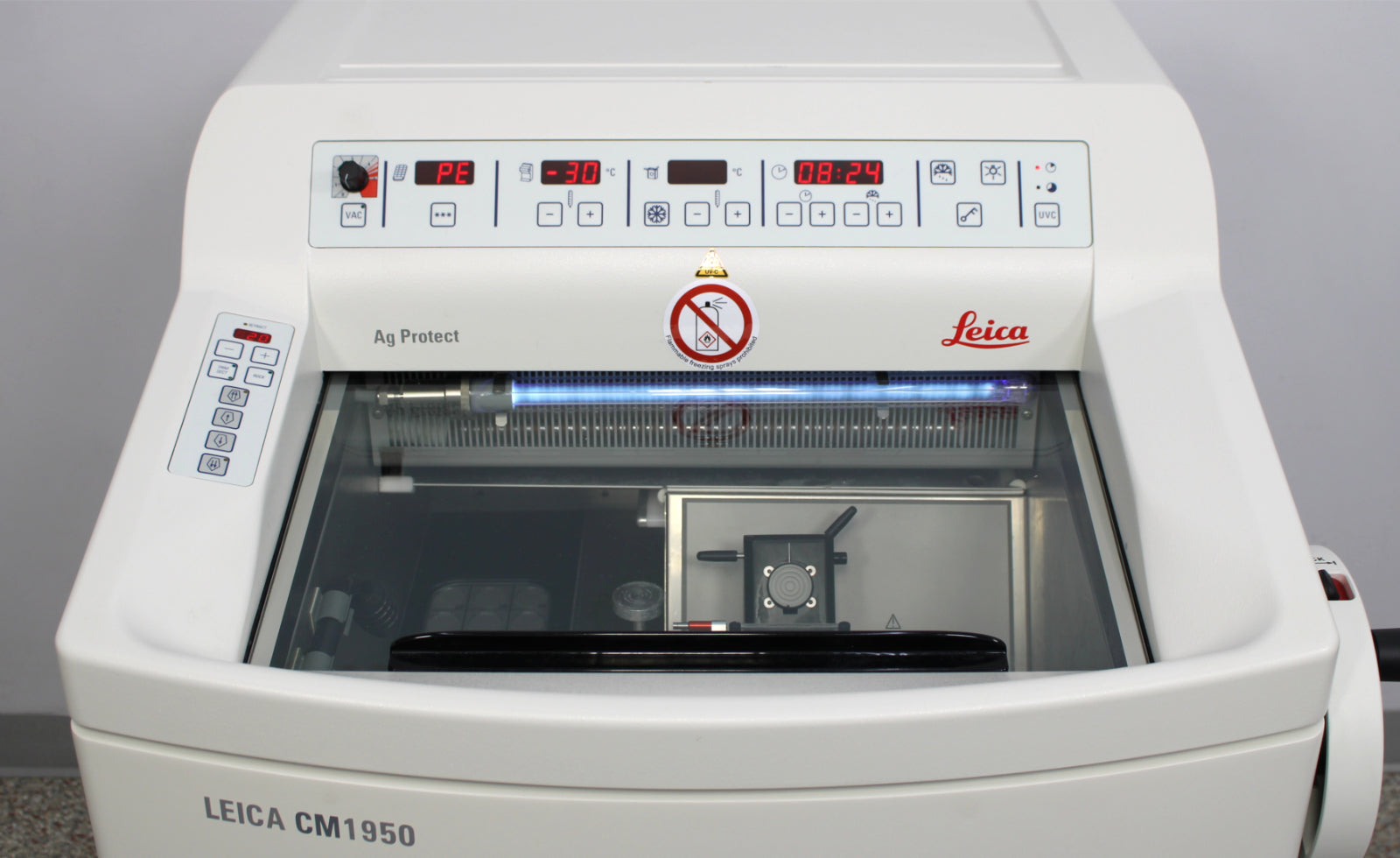

Cryochamber
|
|
Temperature range
|
0°C to -35°C +/-5 K, adjustable in 1 K increments at ambient temperature of 20°C
|
|
Cool down time to -25°C at starting point and ambient temperature of 20°C
|
approx. 5 hours
|
|
Cool down time to -35°C at starting point and ambient temperature of 20°C
|
approx. 8 hours
|
|
Max. operating pressure
|
25 bar
|
|
Refrigerant
|
320 g, refrigerant R-452A
|
|
Defrosting
|
Hot gas defrosting
|
|
Manual defrosting
|
Yes
|
|
Automatic defrosting
|
|
Programmable
|
Yes (hot gas defrost), selectable time
|
|
Defrosting intervals
|
1 defrost in 24 h or manual hot gas defrost
|
|
Defrost time
|
12 minutes
|
|
Automatic shutoff defrost
|
At chamber temperature of more than -5°C
|
|
Object head cooling
|
|
Optional feature included in model number
|
At 120V/60Hz: 14047742464, 14047742465, 14047742466, 14047742467
|
|
Temperature range
|
-10 to -50°C ±3K
|
|
Refrigerant and quantity
|
At 120V/60Hz: 147 g, refrigerant R-452A
|
|
Max. operating pressure
|
25 bar
|
|
Defrosting object head cooling
|
|
Defrosting
|
Electrical heater
|
|
Automatic defrosting
|
No
|
|
Manual defrosting
|
Yes
|
|
Defrost duration
|
15 min.
|
|
Defrost temperature
|
45°C ±2K
|
|

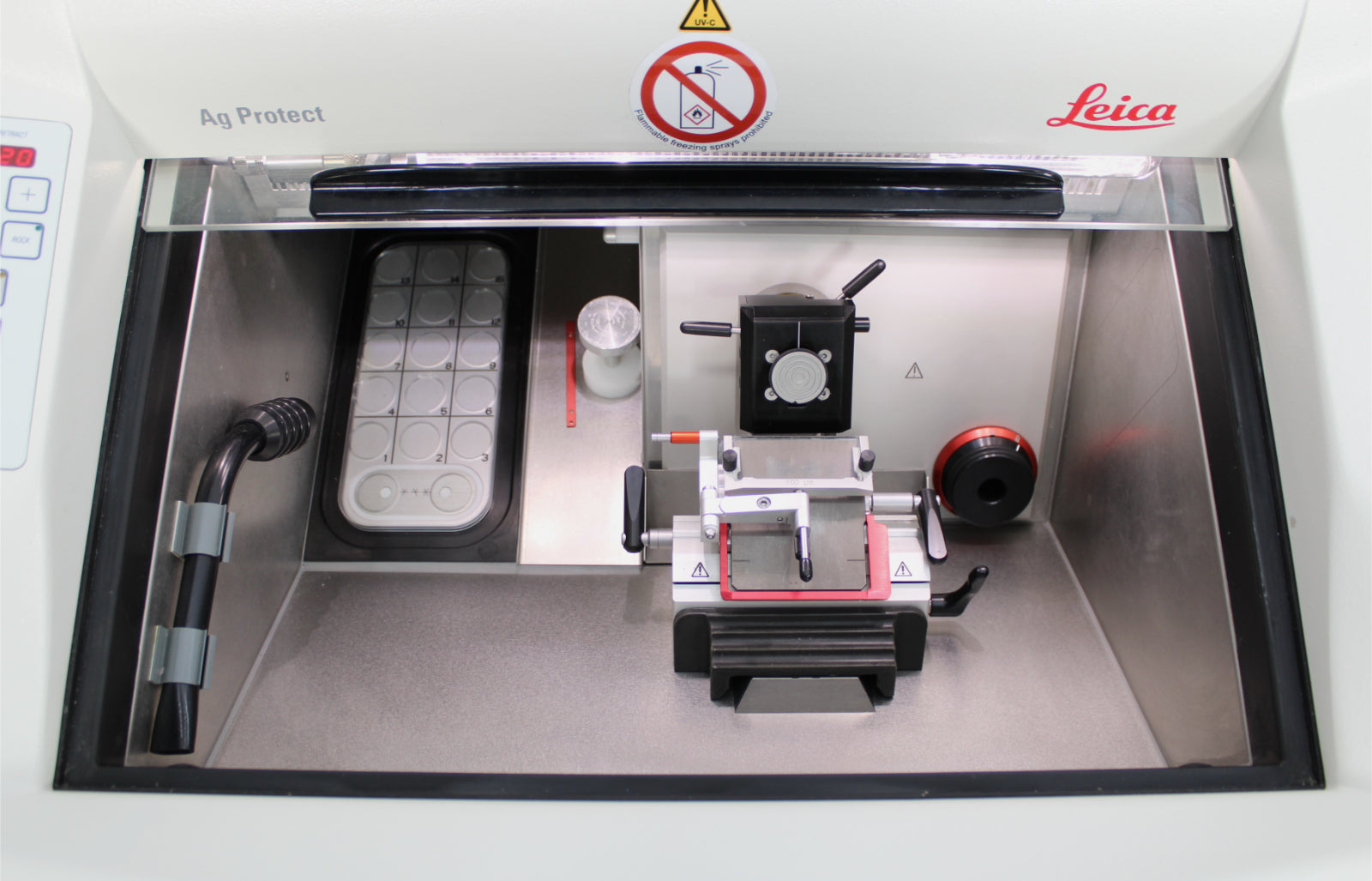

Quick-freeze shelf
|
|
Lowest temperature
|
-42°C (±5K), at chamber temp. -35°C (+5K)
|
|
Number of freezing stations
|
15+2
|
|
Defrosting
|
Manual hot gas defrost
|
|
Peltier element
|
|
Max. difference in temperature to quick-freeze shelf
|
-17 K, at chamber temperature of -35°C +5K
|
|
Number of freezing stations
|
2
|
