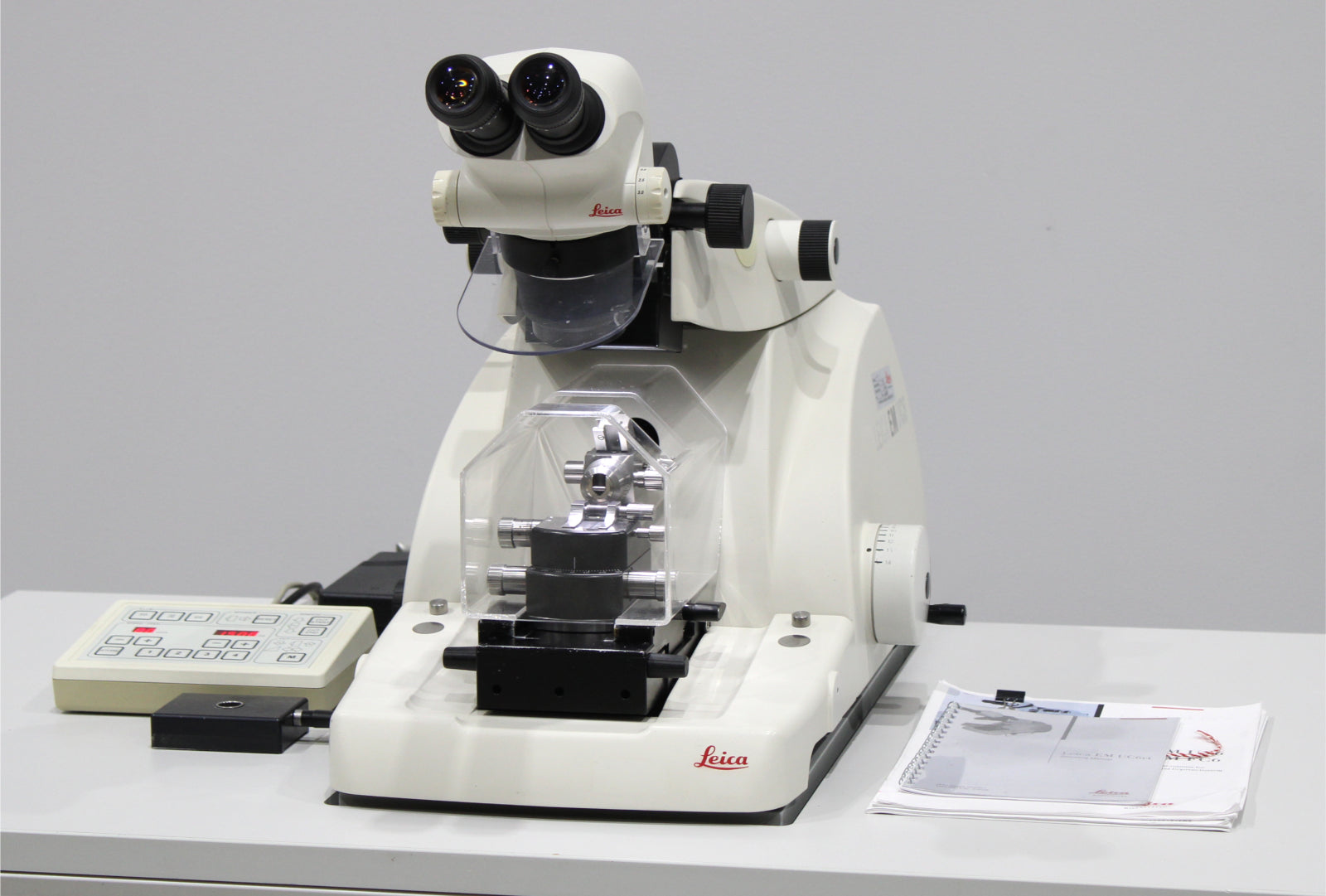

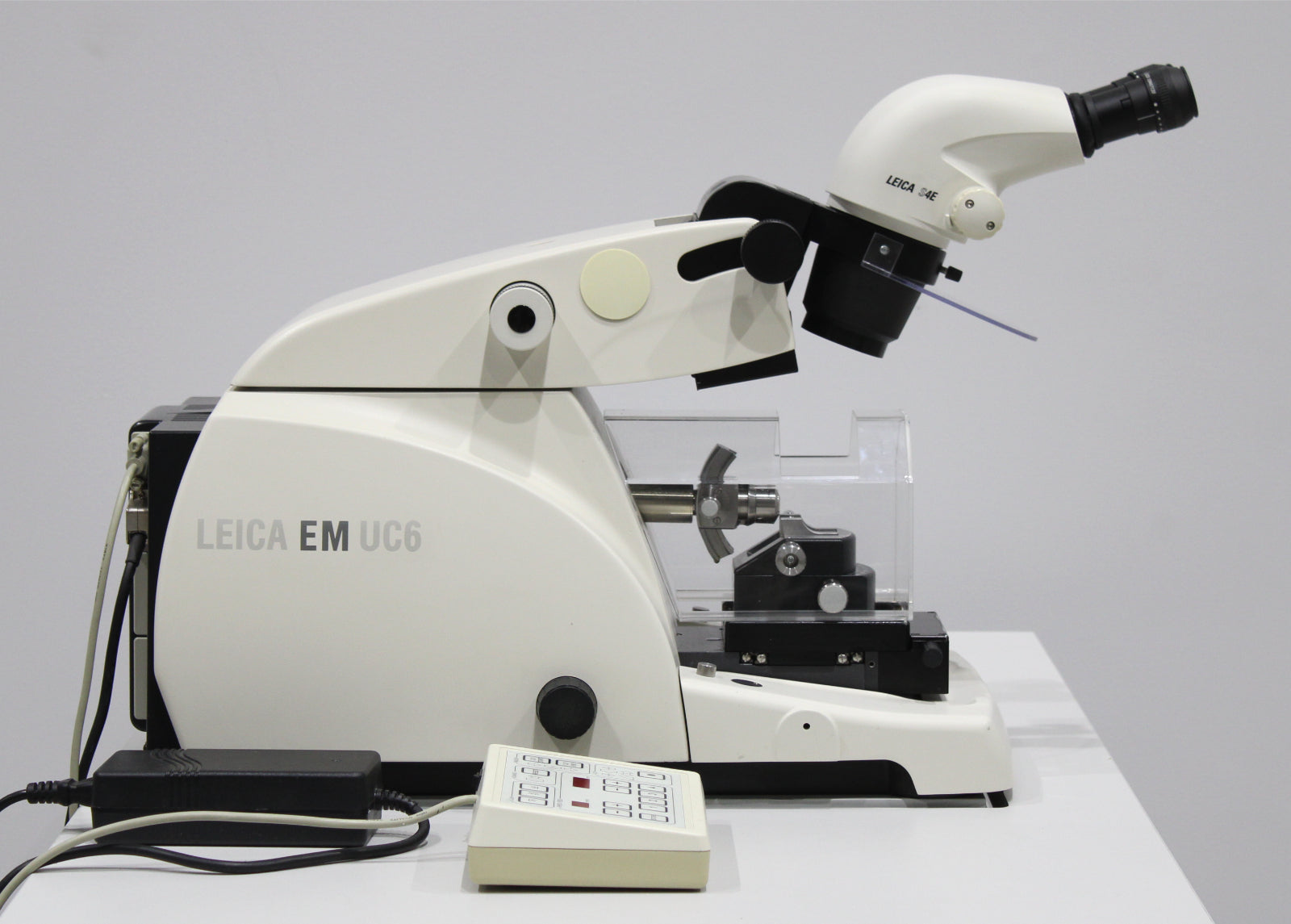

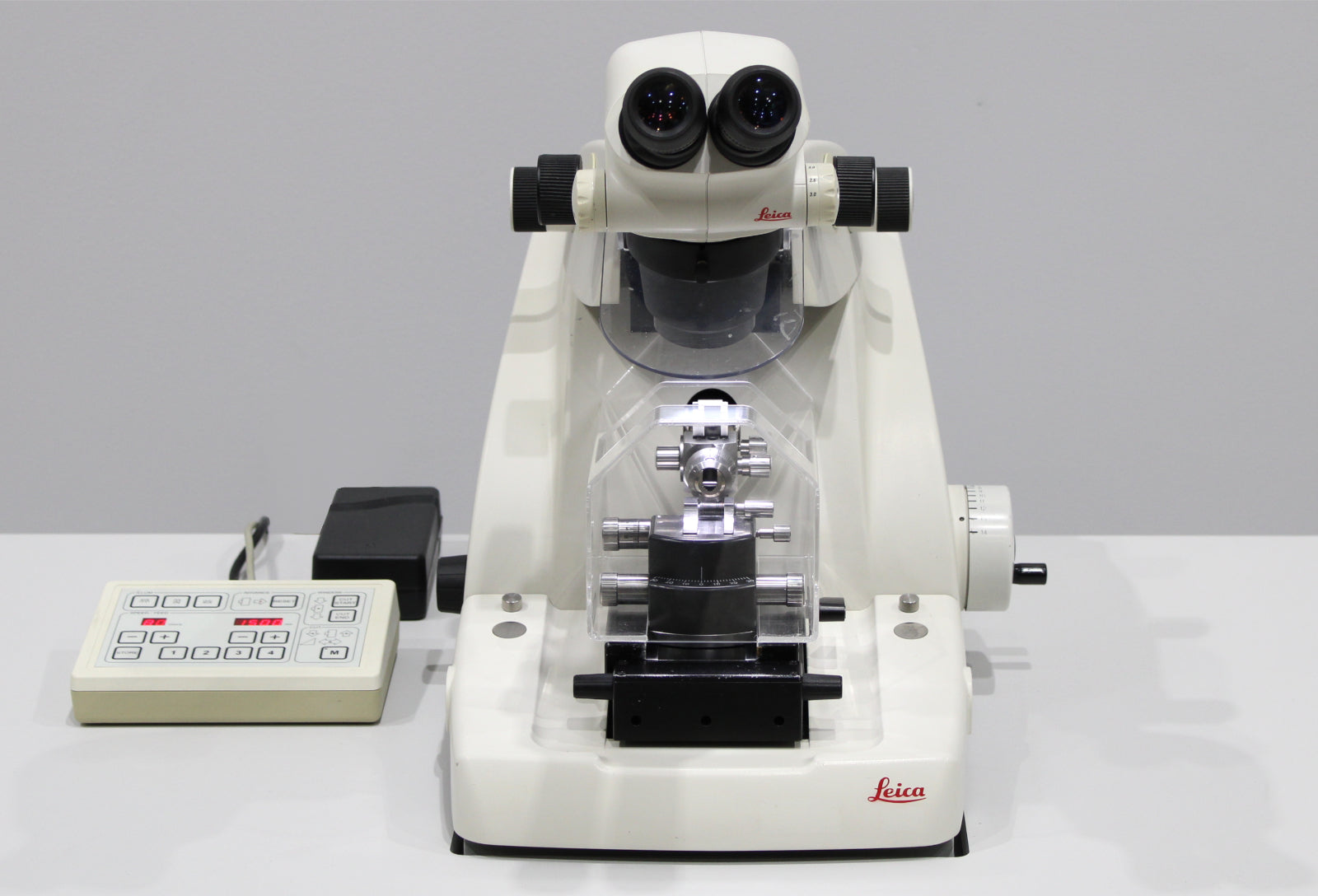

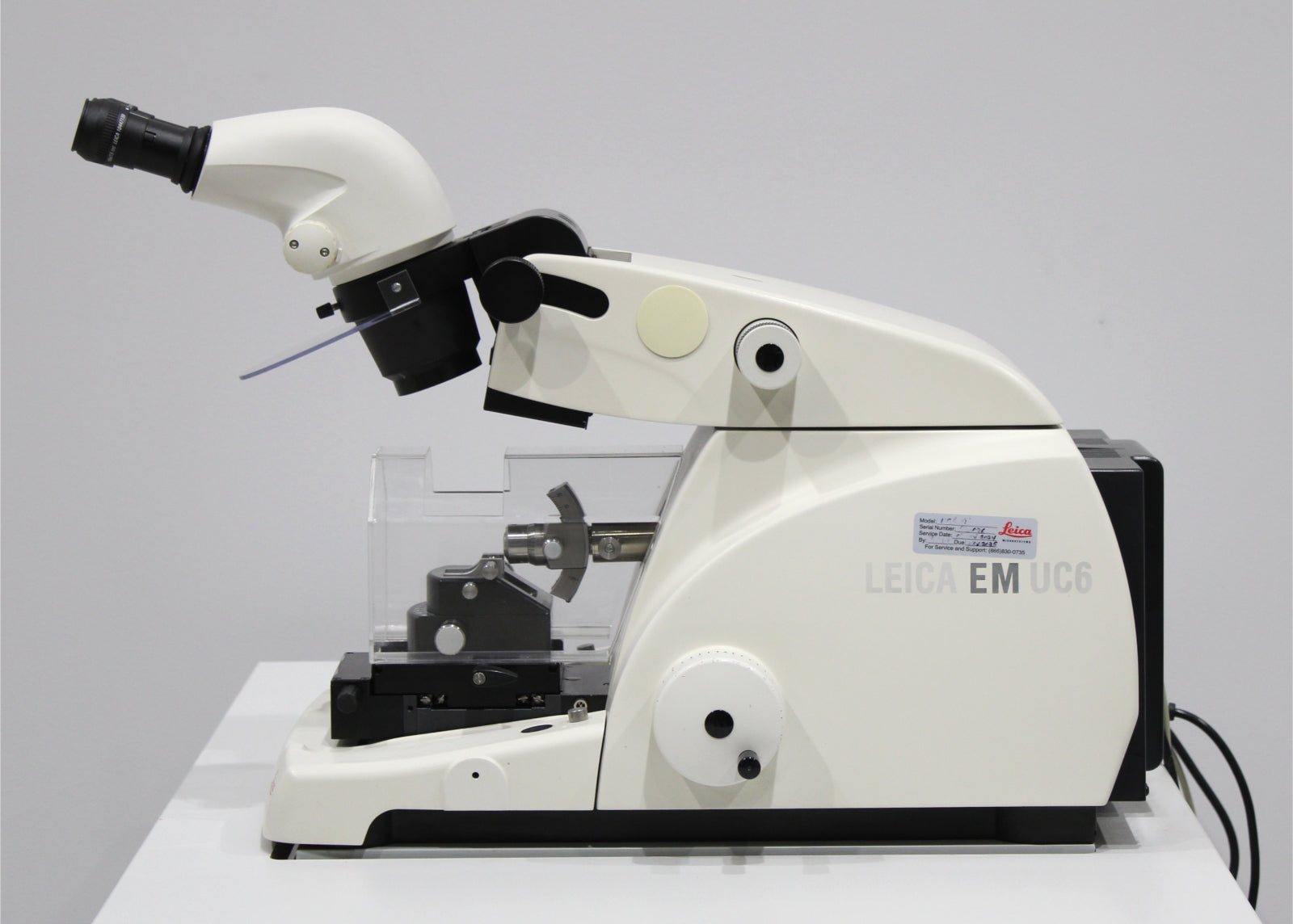

- Leica EM UC6 Ultramicrotome for Ultrathin Sectioning (705803)

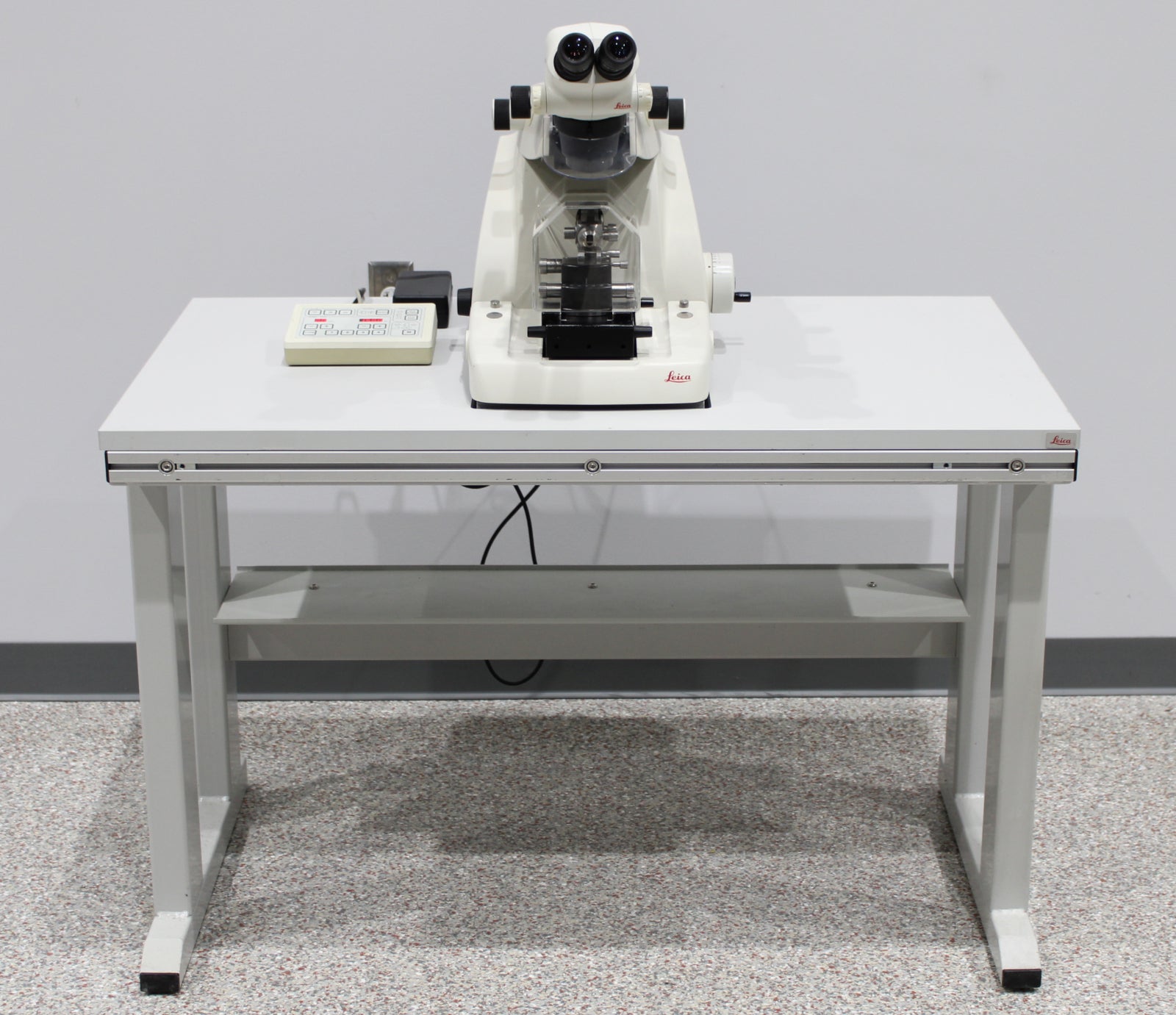

- Leica Antivibration Table for Ultramicrotome

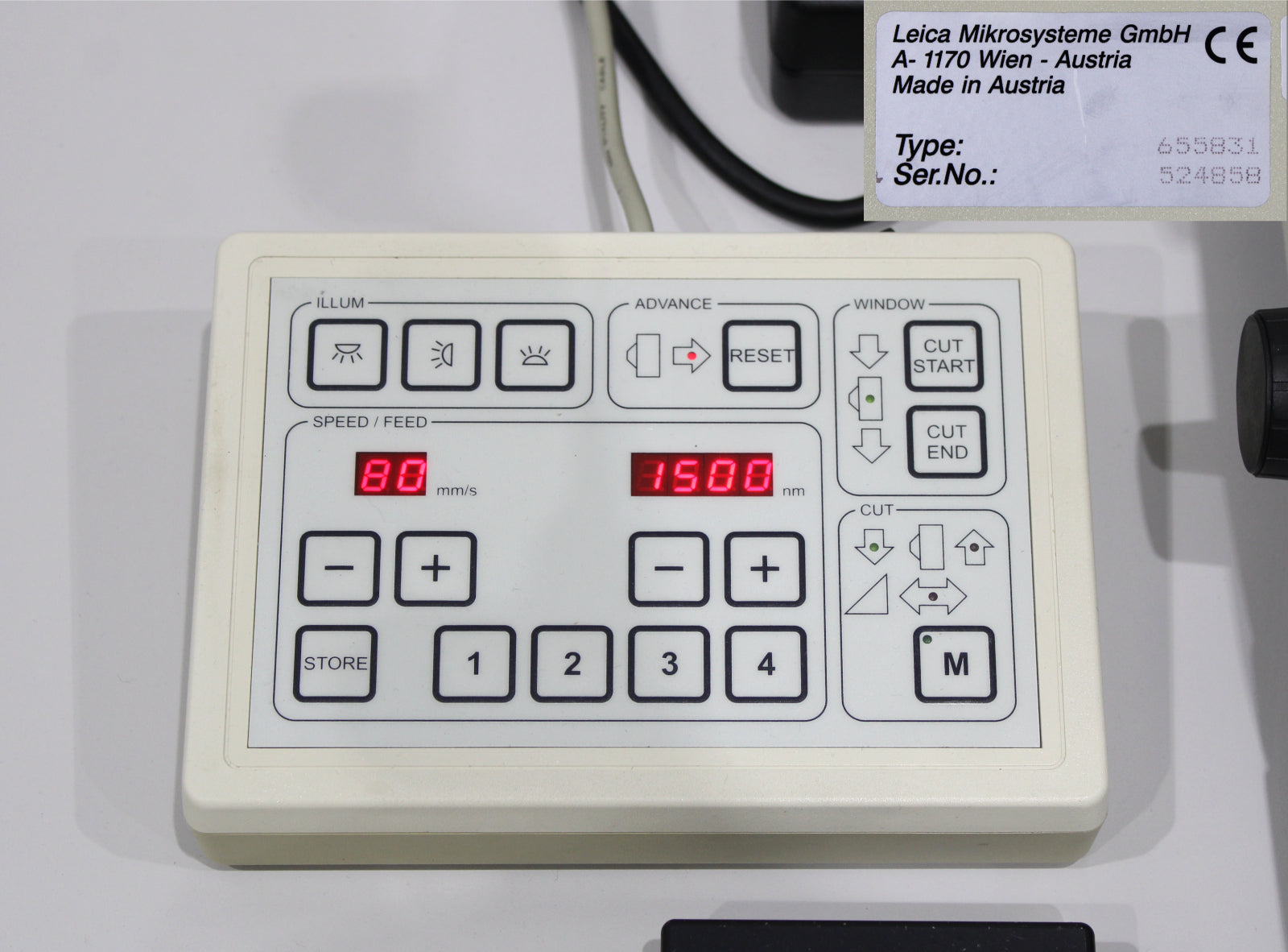

- Leica Ultramicrotome Controller (655831)

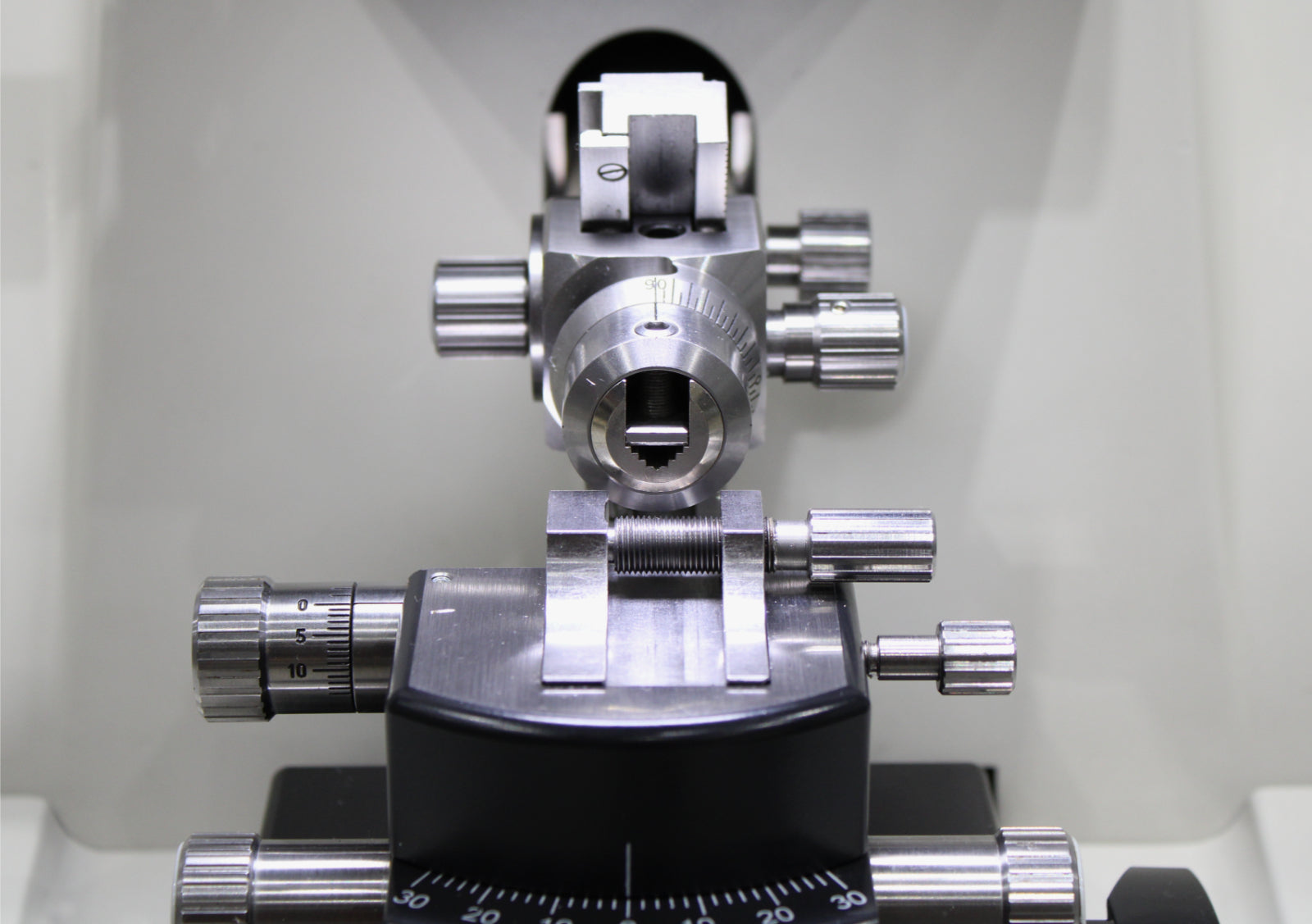

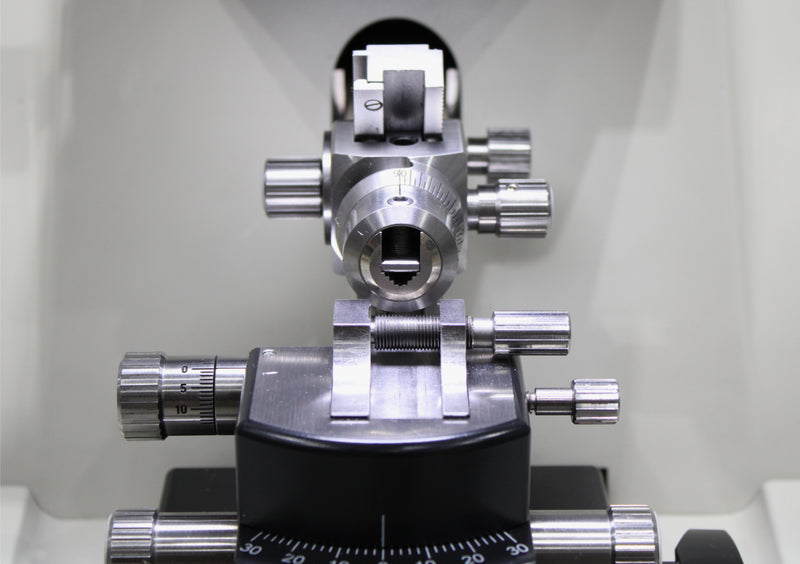

- Specimen Holder
- Knife/Blade Assembly
- Operating Manual

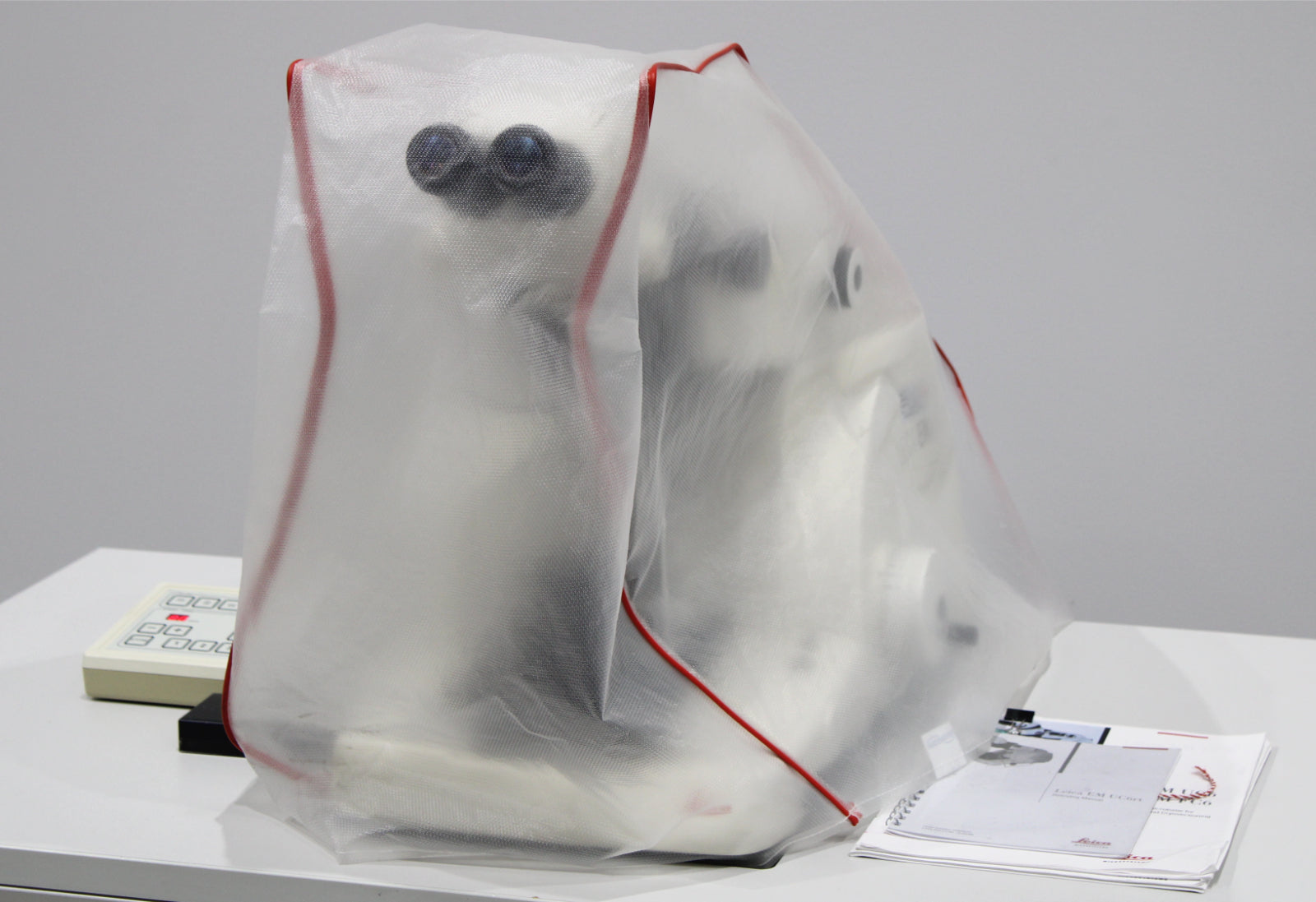

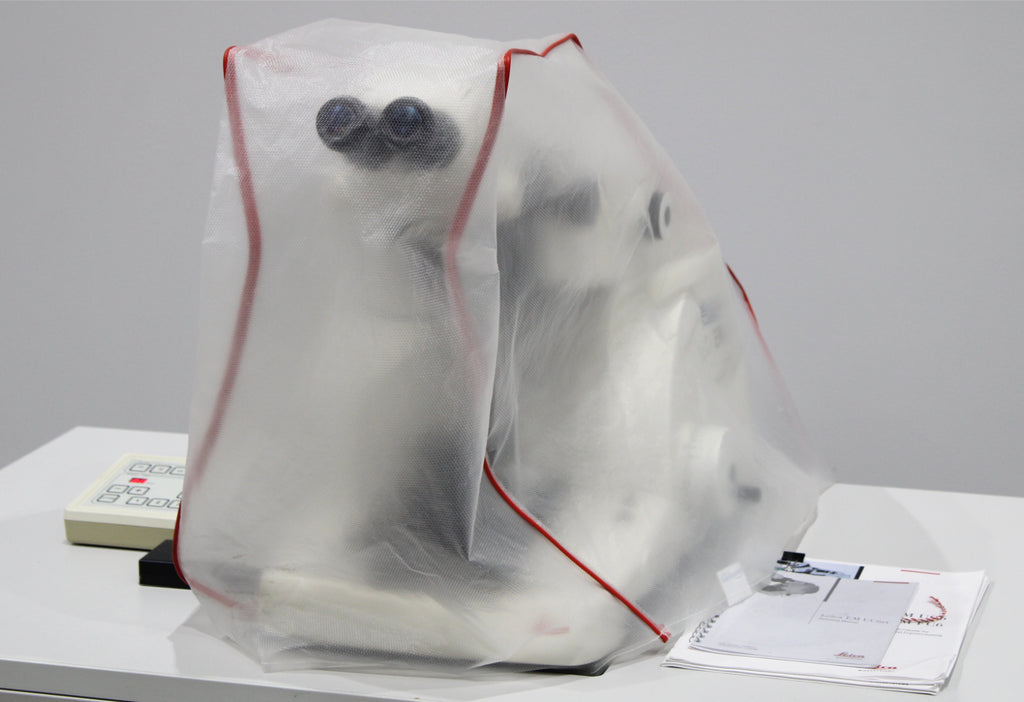

- Dust Cover
- Power Adapter
- Power Cable
- 90-Day Warranty
After its initial disinfection and inspection, our technicians tested the Leica EM UC6 Ultramicrotome with the following results:
- Automatic sectioning: PASSED
- Manual sectioning: PASSED
- Advance and retract: PASSED
- Sectioning adjustments: PASSED
- Controller functions: PASSED
- Opened and cleaned.
- Lubricate all moving components.
Notice: This microtome has some minor cosmetic blemishes. Please review the available photos to see the physical condition before purchasing.
|
Manufacturer
|
Leica
|
|
Type
|
Ultramicrotome
|
|
Model
|
EM UC6
|
|

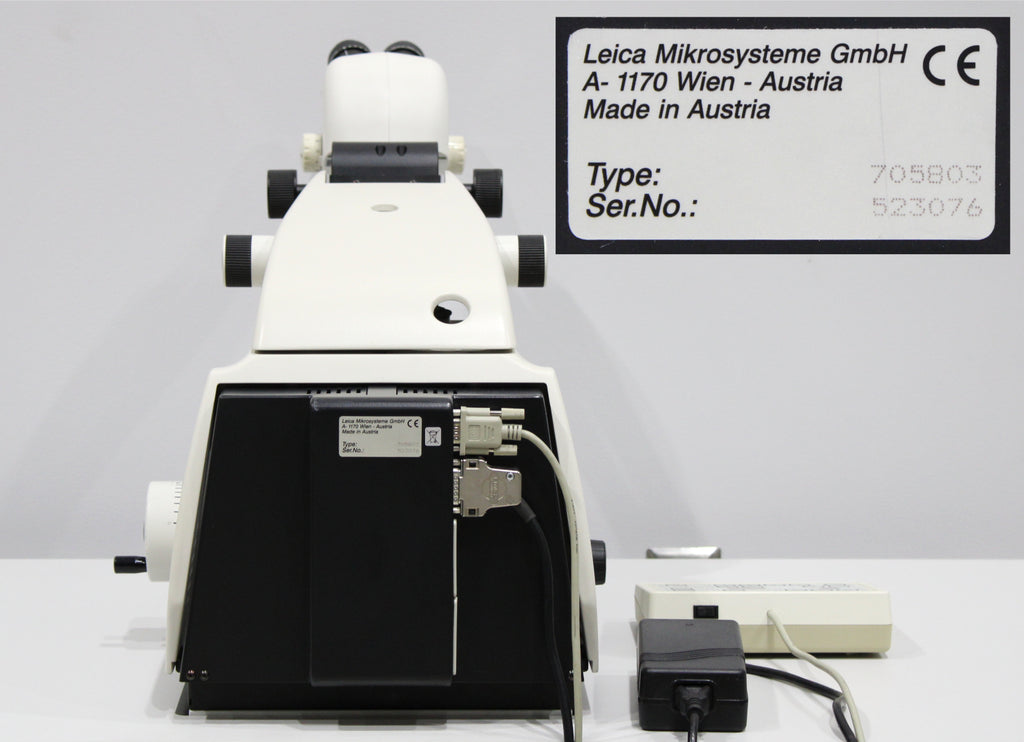

Type No.
|
705803
|
|
Serial No.
|
523076
|
|

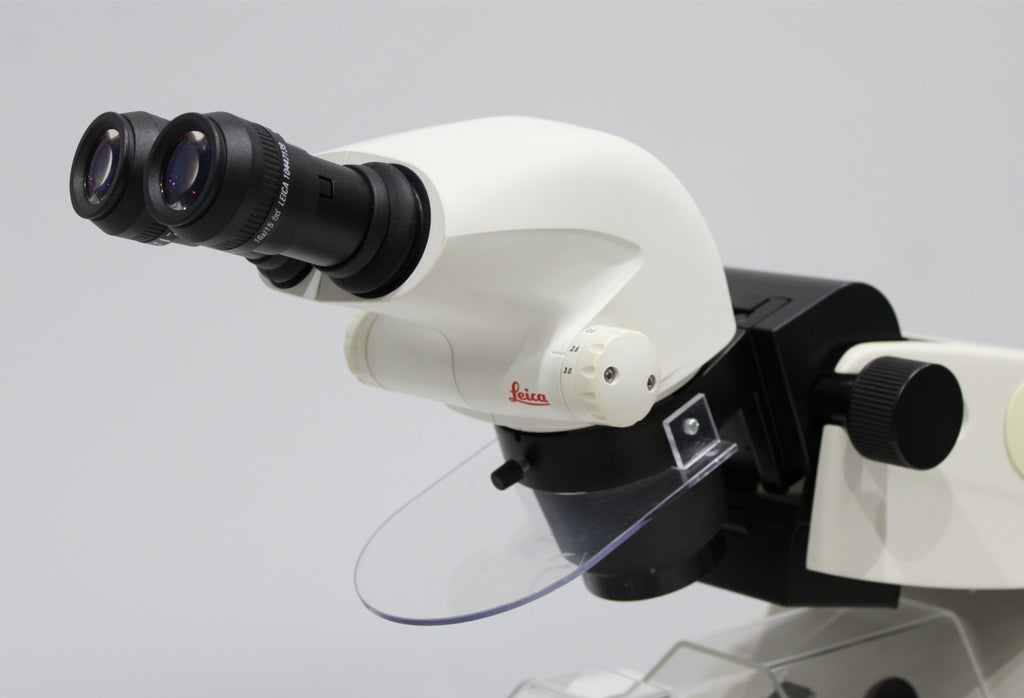

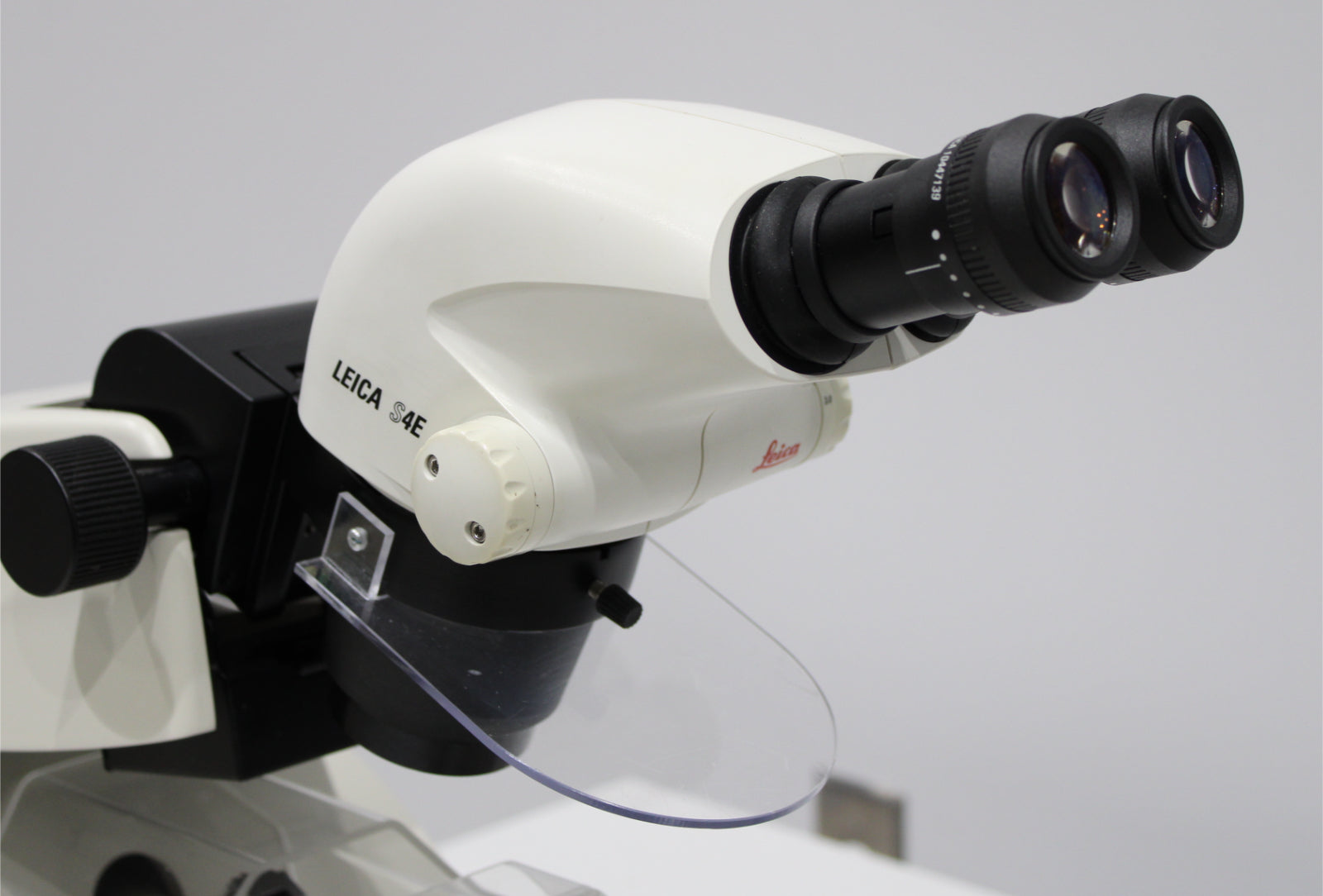

Magnification
|
S4E: 10x - 48x (included)
MZ6: 8x - 51x
S6E: 10x - 64x
|
|
Ergo-wedge
|
5° - 25°
|
|
Eucentric movement of the stereo carrier
|
+5° / -8°
|
|
Built in control of antistatic device
|
yes
|
|
Top-light
|
LED
|
|
Back-light
|
LED
|
|
Transillumination
|
LED
|
|
Cutting transmission
|
Vibration decoupled gravity stroke
|
|
Specimen advance
|
200 µm
|
|
Reserve warning
|
20 µm
|
|

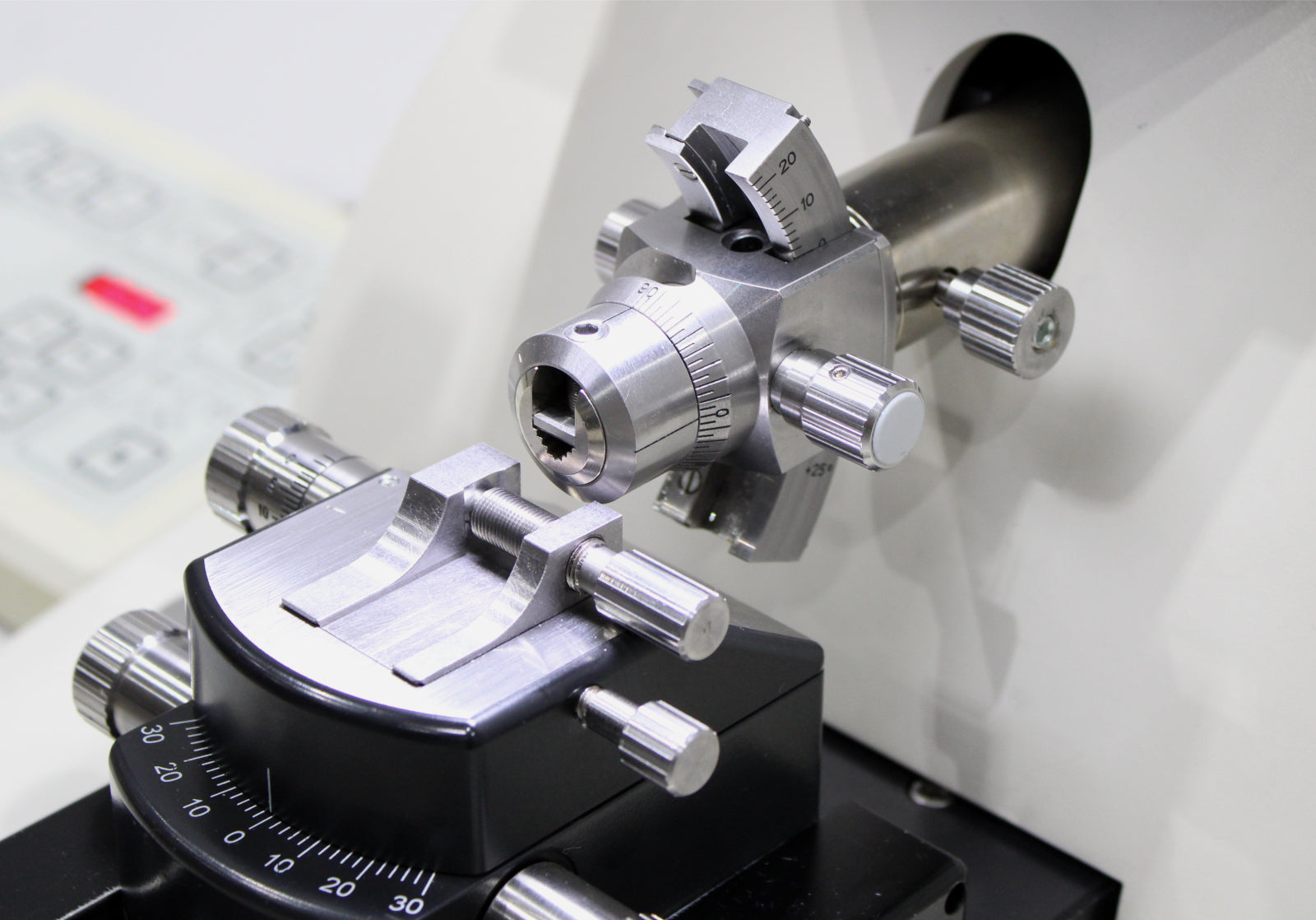

Segment arc
|
360° rotatable specimen
|
|
Eucentric movement
|
±22°
|
|
90° indiction marks for alignment
|
yes
|
|

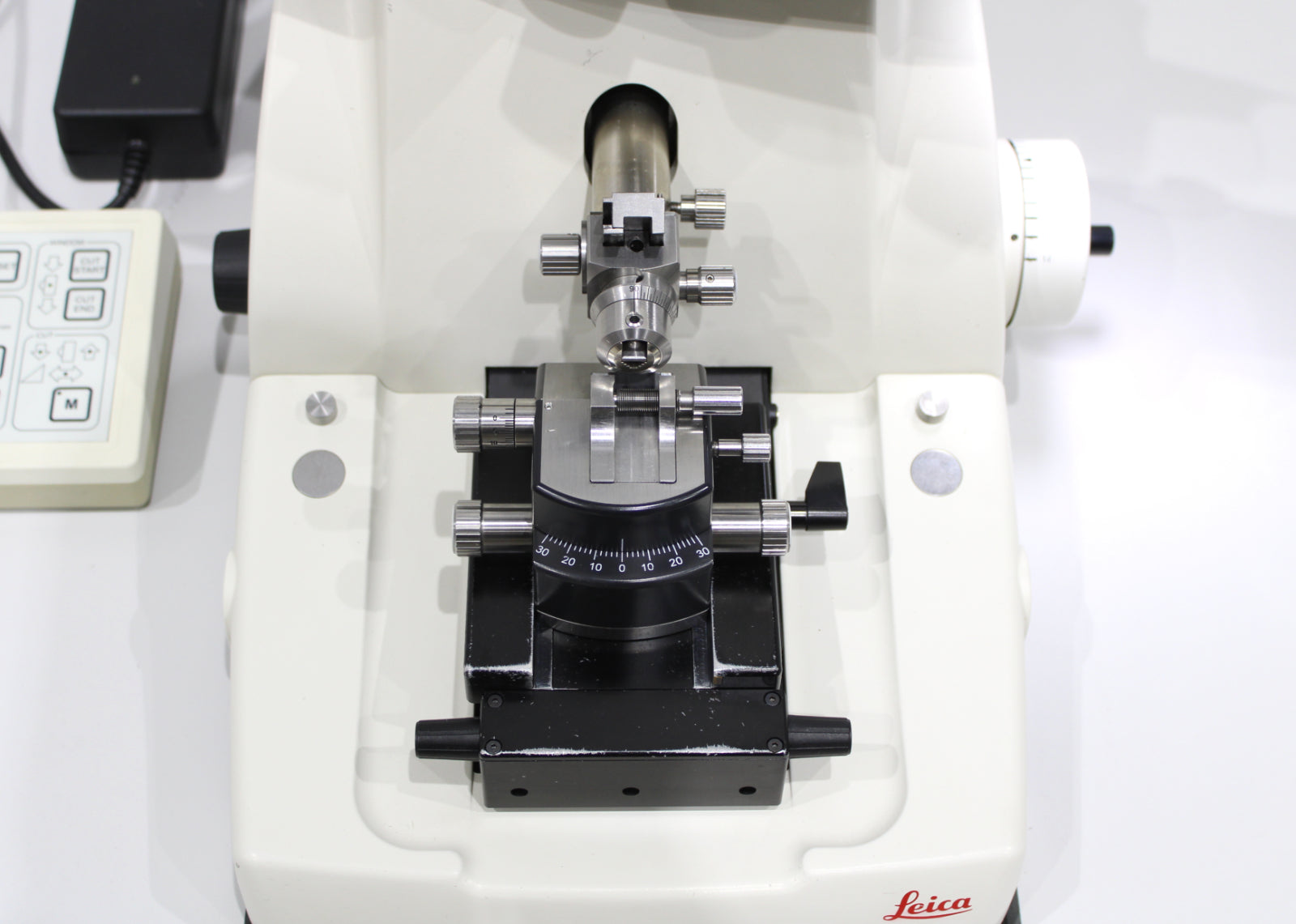

Knife block
|
360° rotatable
|
|
Self locking
|
yes
|
|
Graduation
|
±30° graduation
|
|
Clearance angle adjustment
|
-2° to 15° with 1° scale
|
|
Knife holder
|
for 6 - 12 knives
|
|
Coarse knife-movements N-S:
|
10 mm stepping motor
|
|
E-W
|
25 mm stepping motor
|
|
Cutting window
|
0.2 - 15 mm adjustable
|
|
Cutting speed
|
0.05 - 100 mm/s wheel controlled
|
|
Section thickness
|
0 - 15000 nm wheel controlled
|
|
FEED/SPEED storage (combined)
|
5 touch controller 4 key pad controller
|
|
Return speeds
|
10, 30, 50 mm/s
|
|
Step control
|
0.1 - 15 µm steps
|
|
Dimensions (W x D x H)
|
14 x 26 x 18 in
|
|
Manufacturer
|
Leica
|
|
Type
|
Antivibration table
|
|
Dimensions (W x D x H)
|
45.5 x 26.5 x 29.5 in
|
