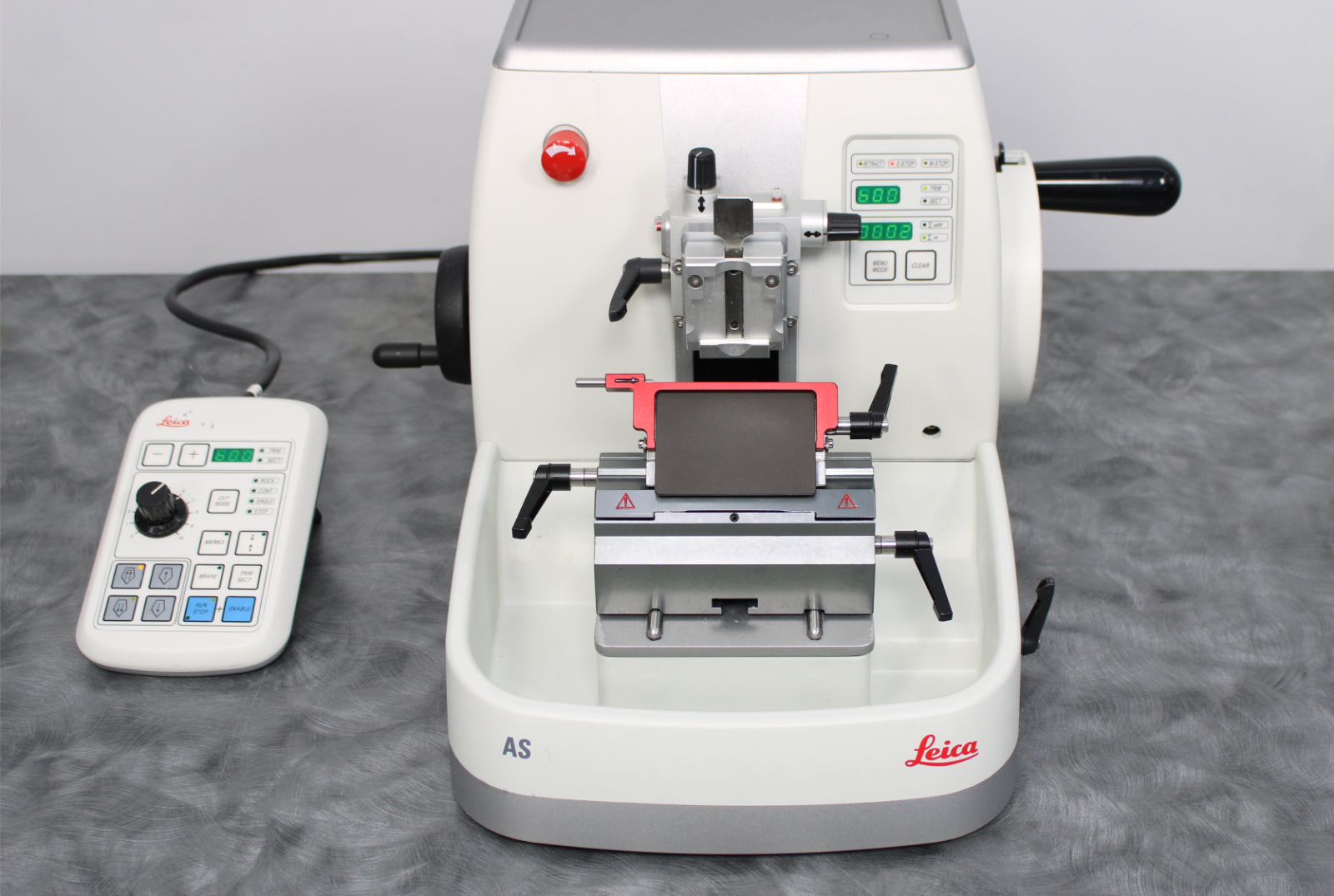

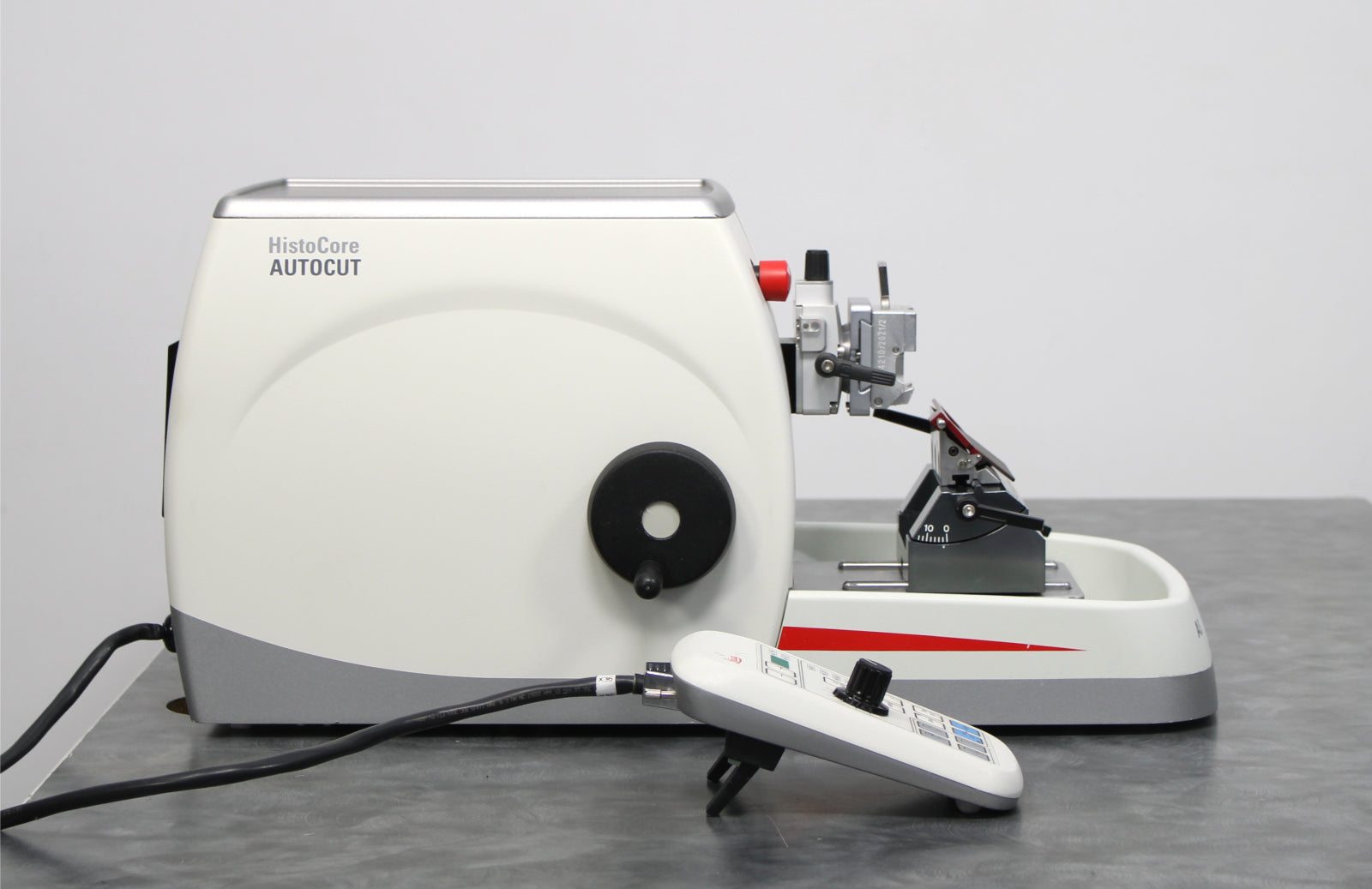

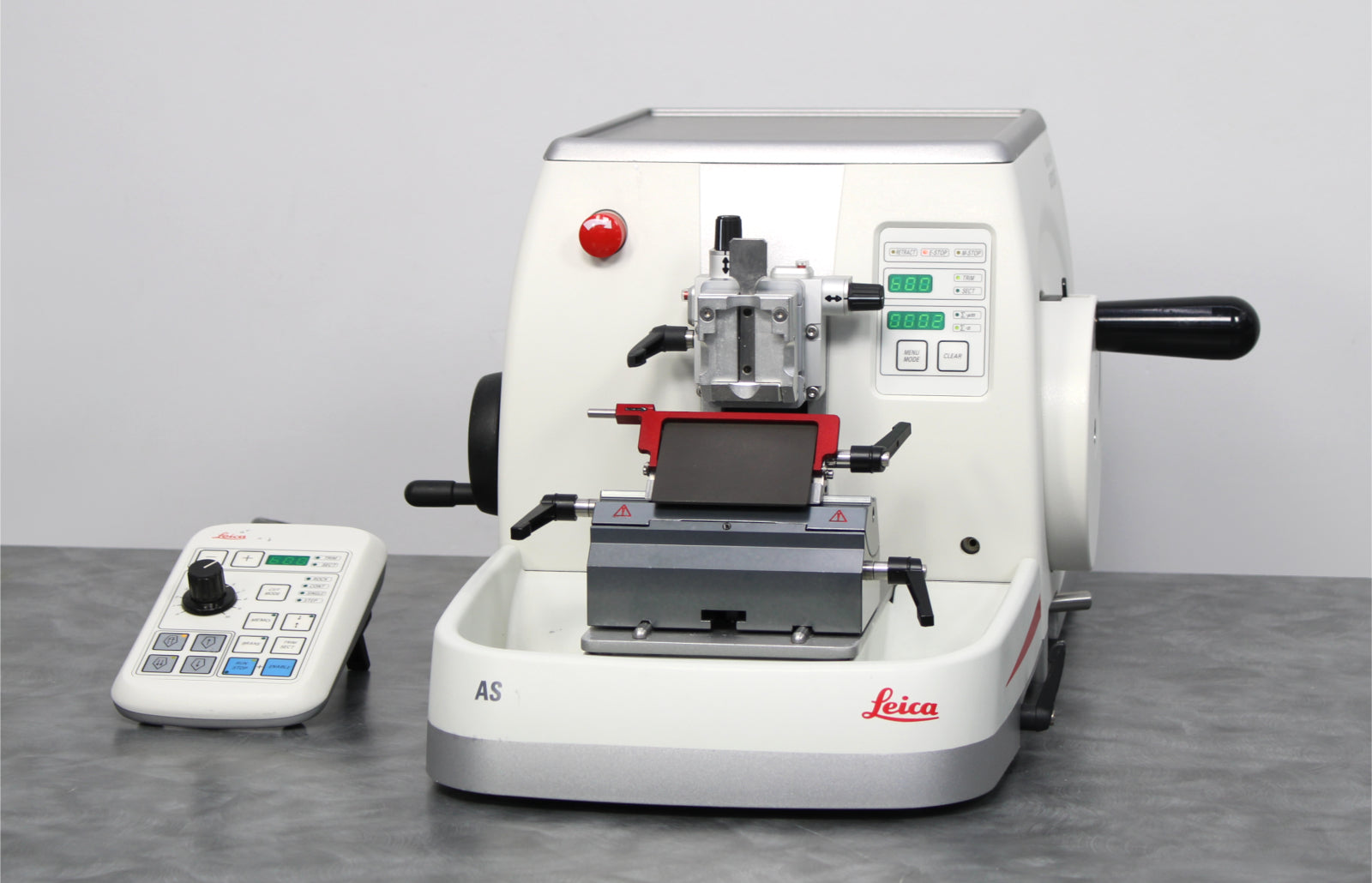

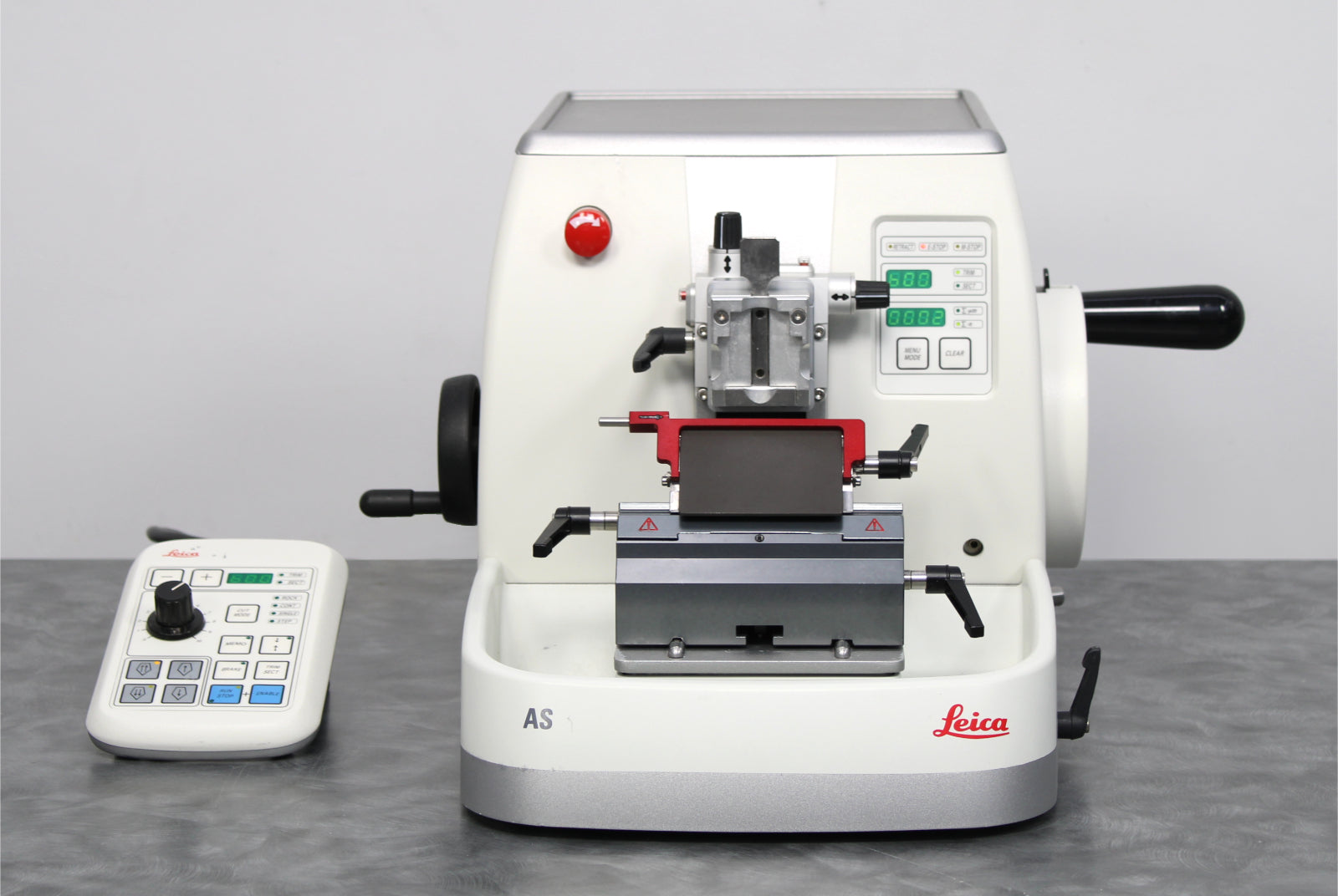

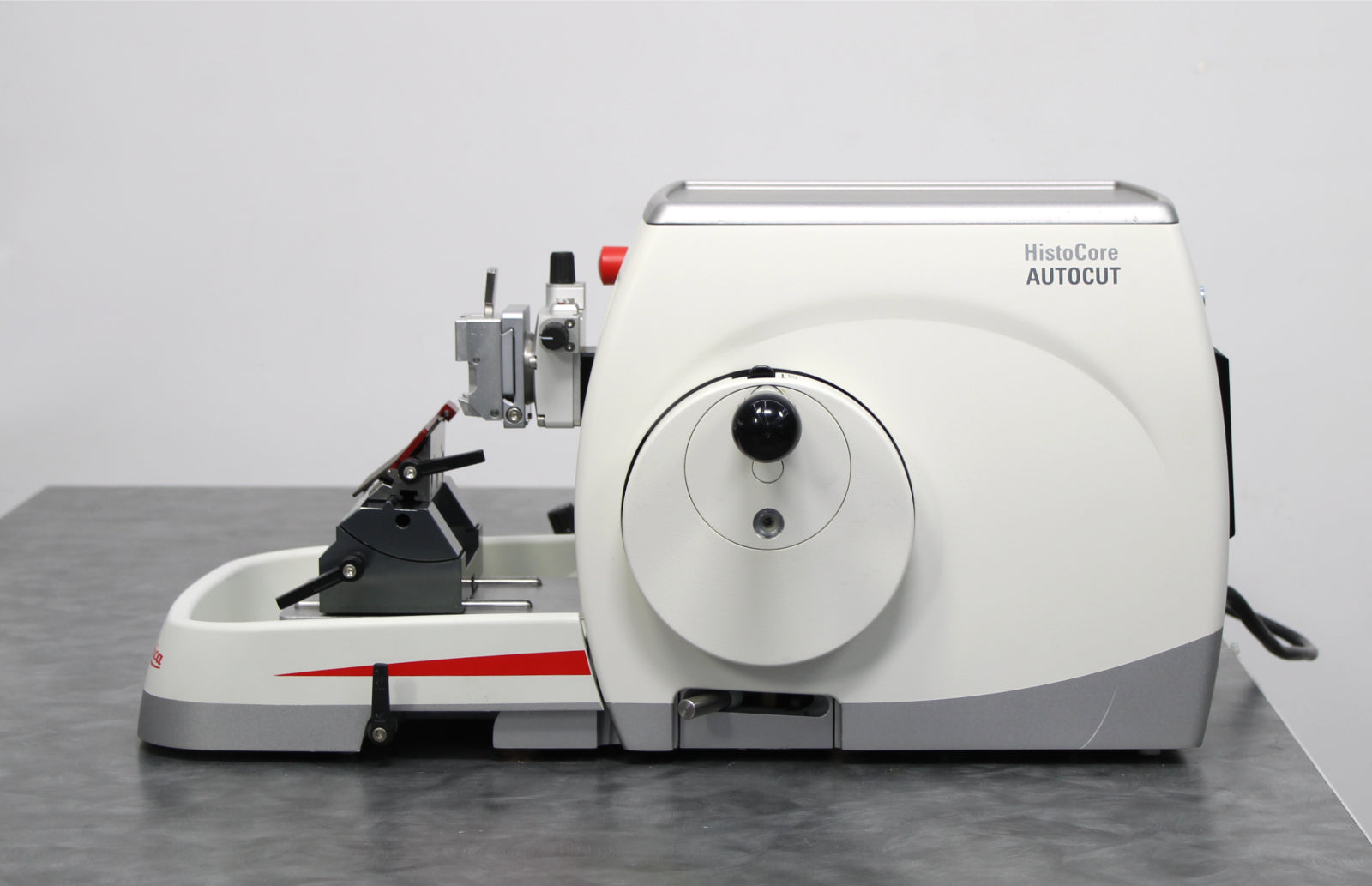

- Leica HistoCore AUTOCUT Automated Rotary Microtome (14051956472)

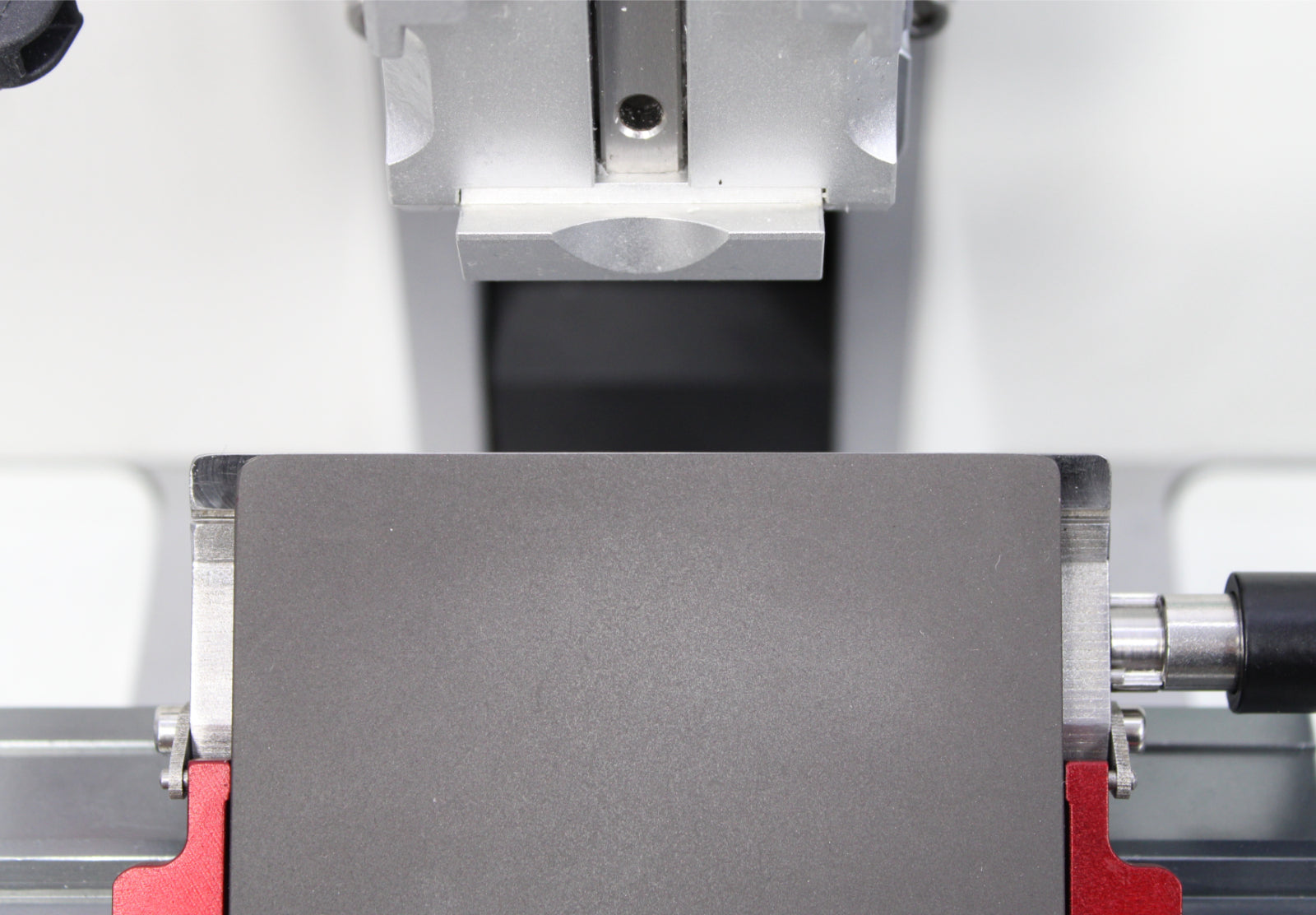

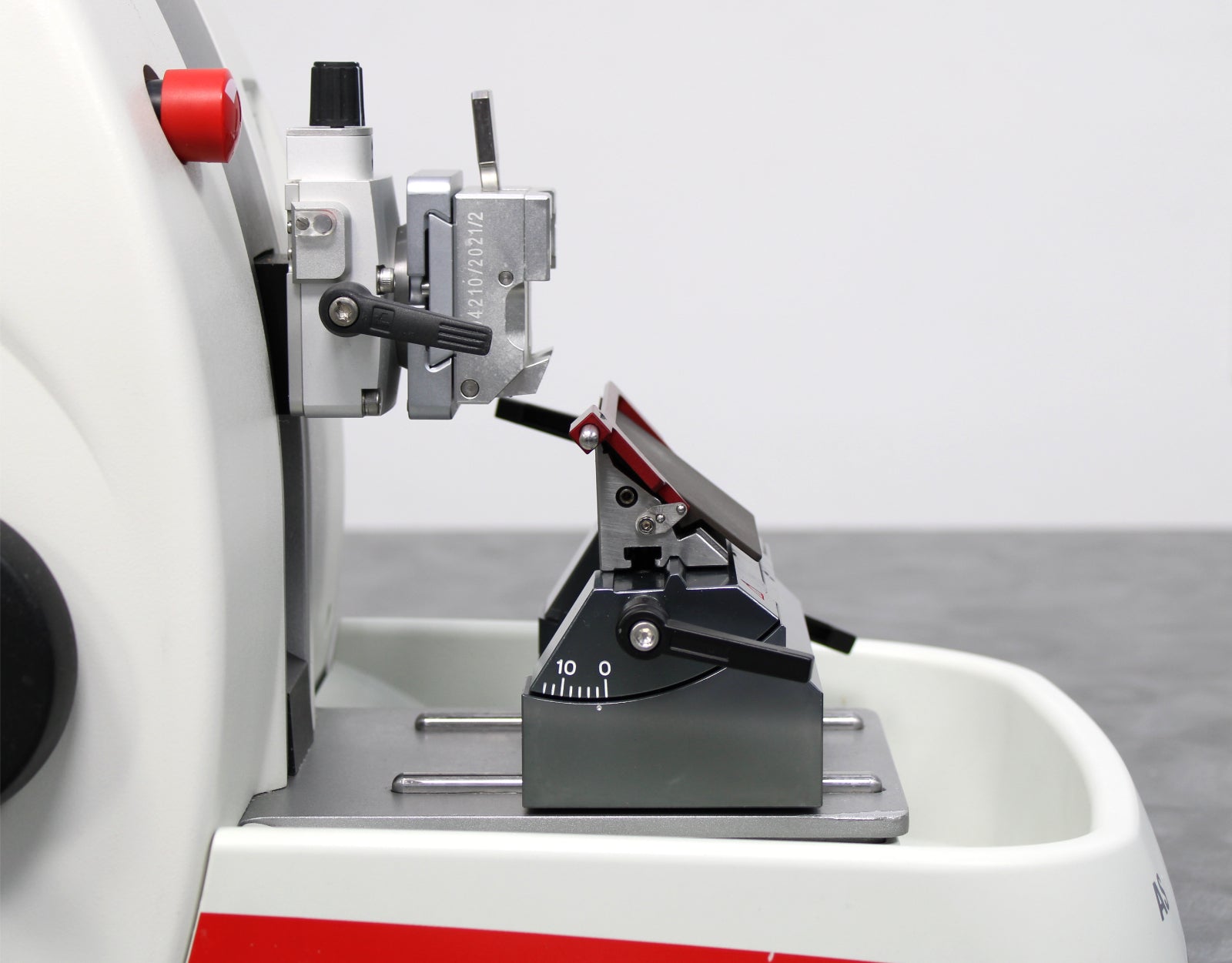

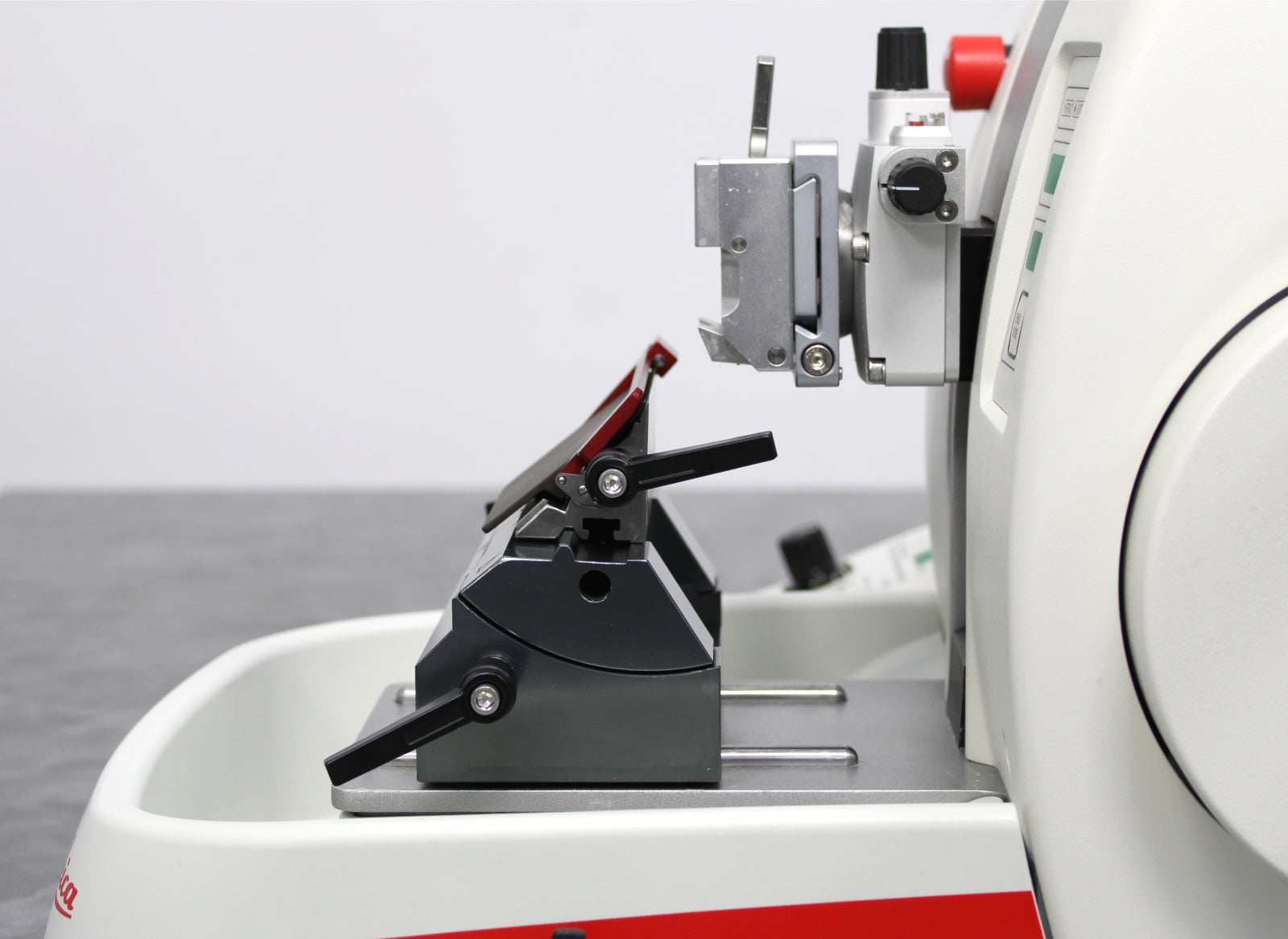

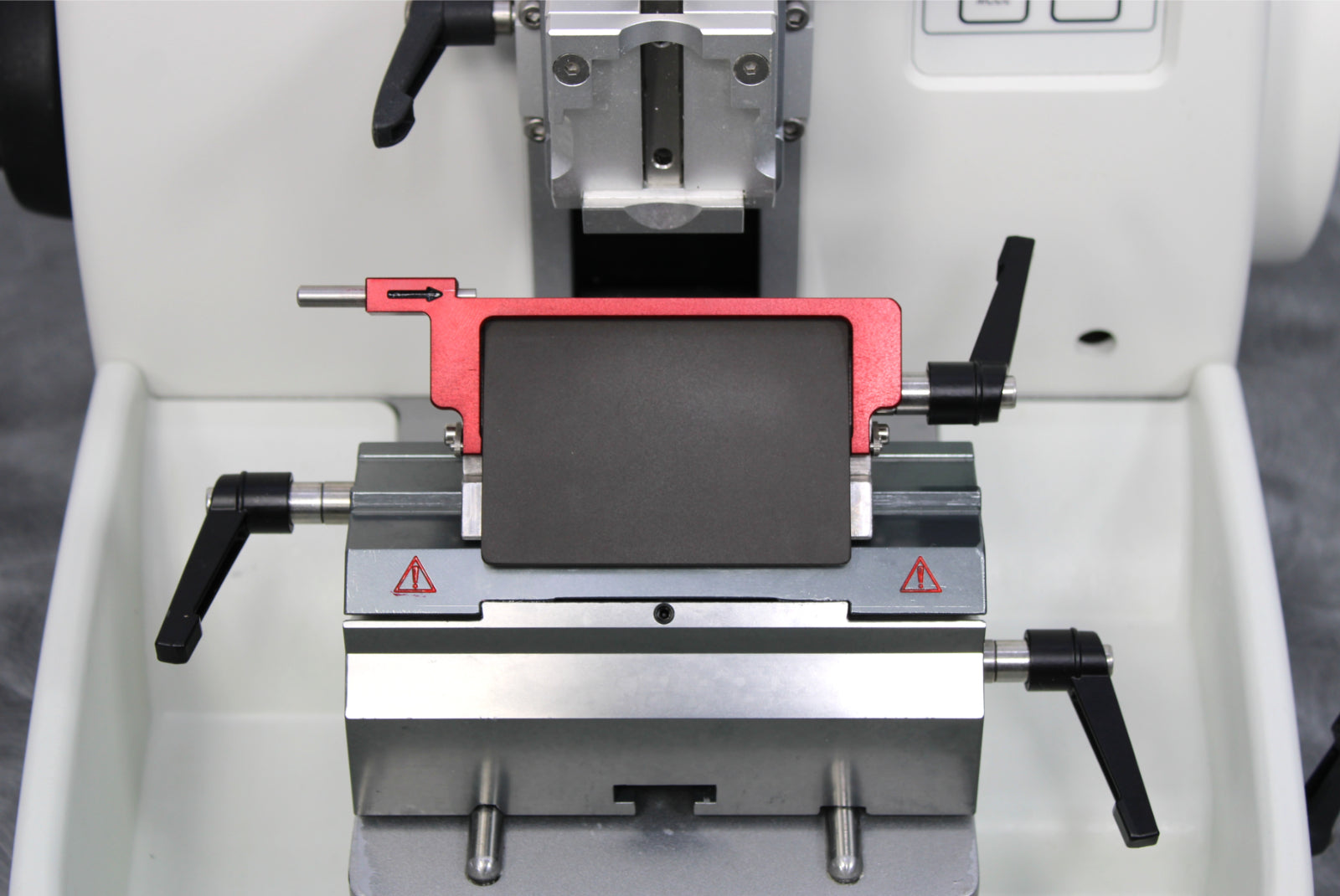

- Blade Holder

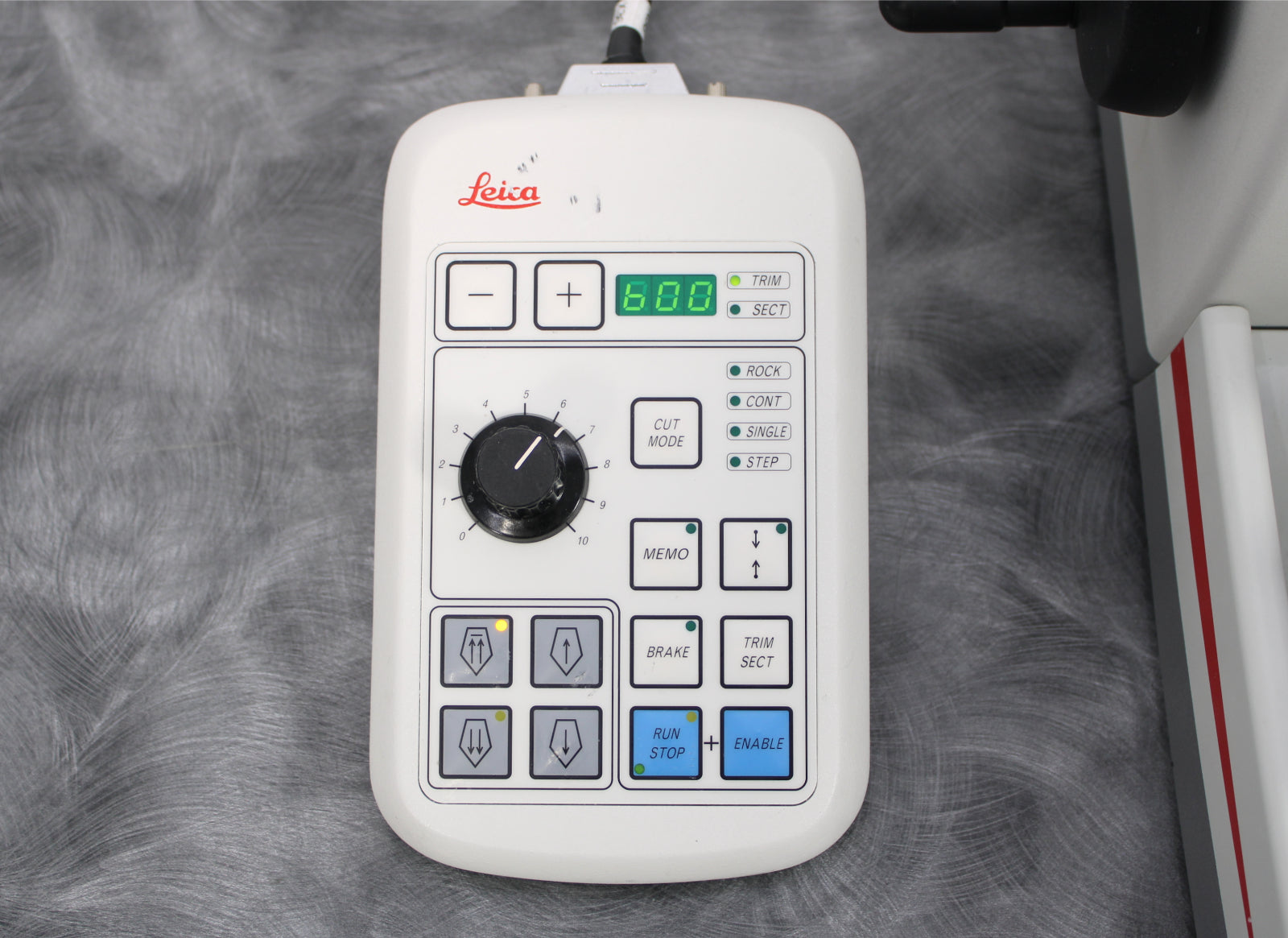

- Separate Control Panel
- Waste Tray
- Power Cable
- 90-Day Warranty
After its initial disinfection and inspection, our technicians tested the Leica HistoCore AUTOCUT automated rotary microtome with the following results:
- Auto mode retract: PASSED
- Sectioning adjustments: PASSED
- Handwheel: PASSED
- Locks and brakes: PASSED
- Separate control panel: PASSED
Notice: This microtome and separate control panel has some minor cosmetic blemishes. Please review the available photos to see the physical condition before purchasing.
|

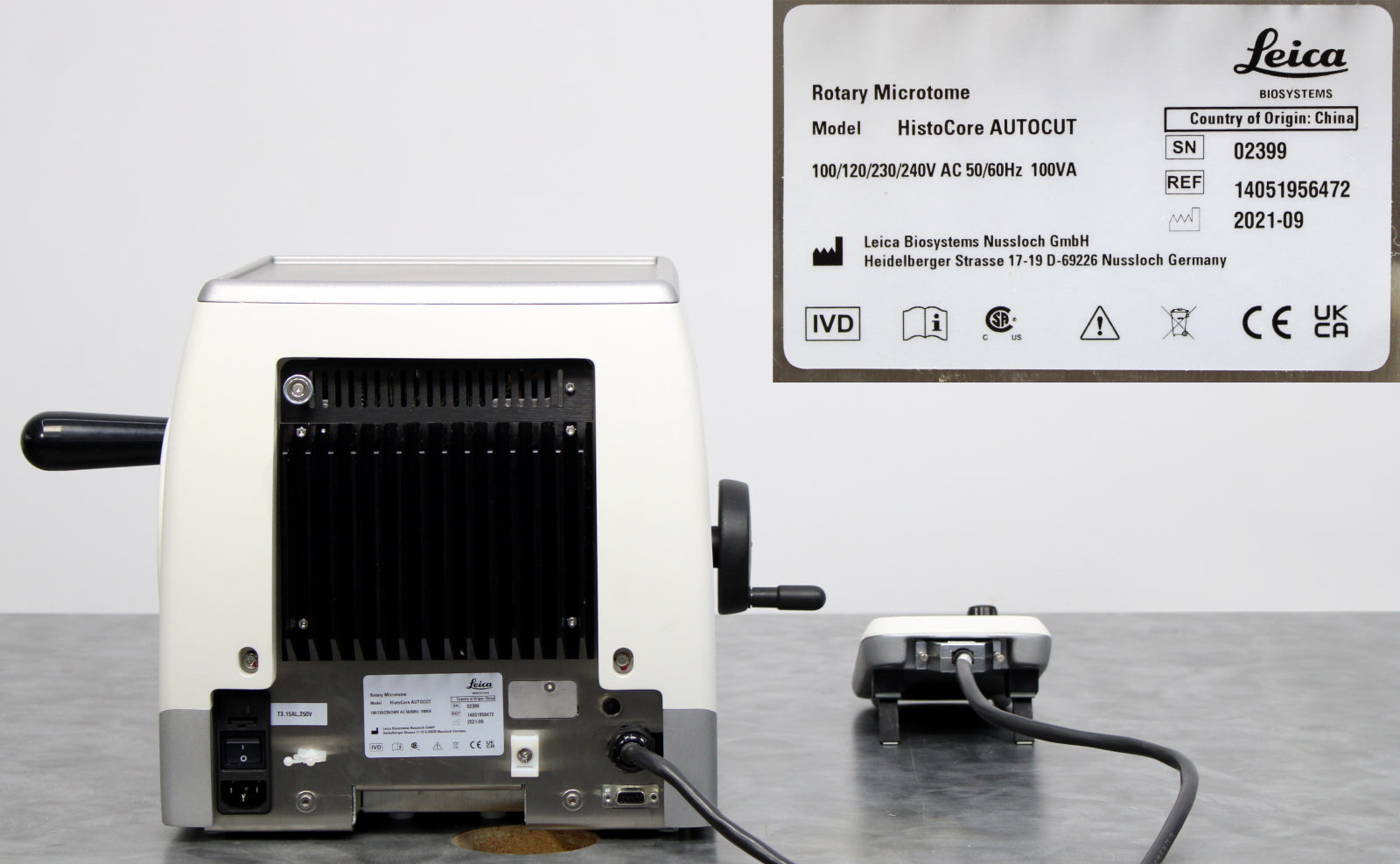

Manufacturer
|
Leica Biosystems
|
|
Type
|
Motorized microtome
|
|
Model
|
HistoCore AUTOCUT
|
|
Ref. No.
|
14051956472
|
|
Serial No.
|
02399
|
|
Mfg. date
|
2021-09
|
|
Specimen feed
|
Approx. 24 mm ±1 mm
|
|
Vertical stroke
|
70 mm ±1 mm
Large standard clamp: 55 x 50 x 30 mm
Super cassette clamp: 68 x 48 x 15 mm
|
|
Motorized sectioning speeds
|
0-420 mm/s ±10%
|
|
Specimen retraction
|
Manual: 5-100 µm (in 5 µm increments); can be turned off
Motorized: speed-dependent; can be turned off
|
|
Specimen orientation
|
Horizontal: ±8°
Vertical: ±8°
|
|
Section thickness range
|
0.5-100 µm
|
|
Section thickness settings
|
0.5-5 µm (in 0.5 µm increments)
5-20 µm (in 1 µm increments)
20-60 µm (in 5 µm increments)
60-100 µm (in 10 µm increments)
|
|
Trimming section thickness range
|
1-600 µm
|
|
Trimming section thickness settings
|
1-10 µm (in 1 µm increments)
10-20 µm (in 2 µm increments)
20-50 µm (in 5 µm increments)
50-100 µm (in 10 µm increments)
100-600 µm (in 50 µm increments)
|
|
Power rating
|
100/120/230/240V, 50/60Hz
|
|
Power consumption
|
100VA max.
|
|
Dimensions (W x D x H)
|
18.8 x 24.4 x 11.6 in (47.7 x 62 x 29.5 cm)
|
|
Weight (without accessories)
|
Approx. 88.2 lb (40 kg)
|
