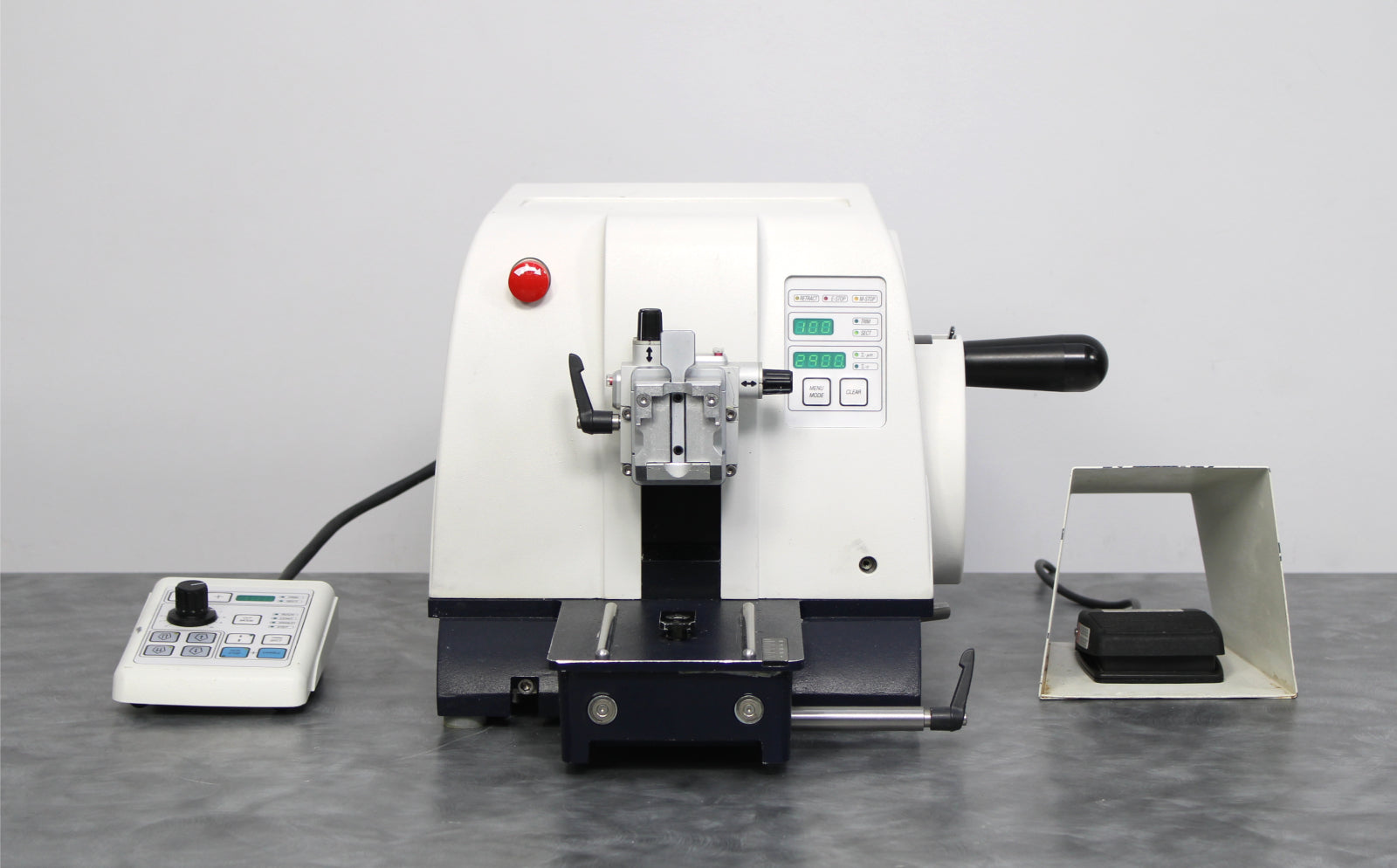

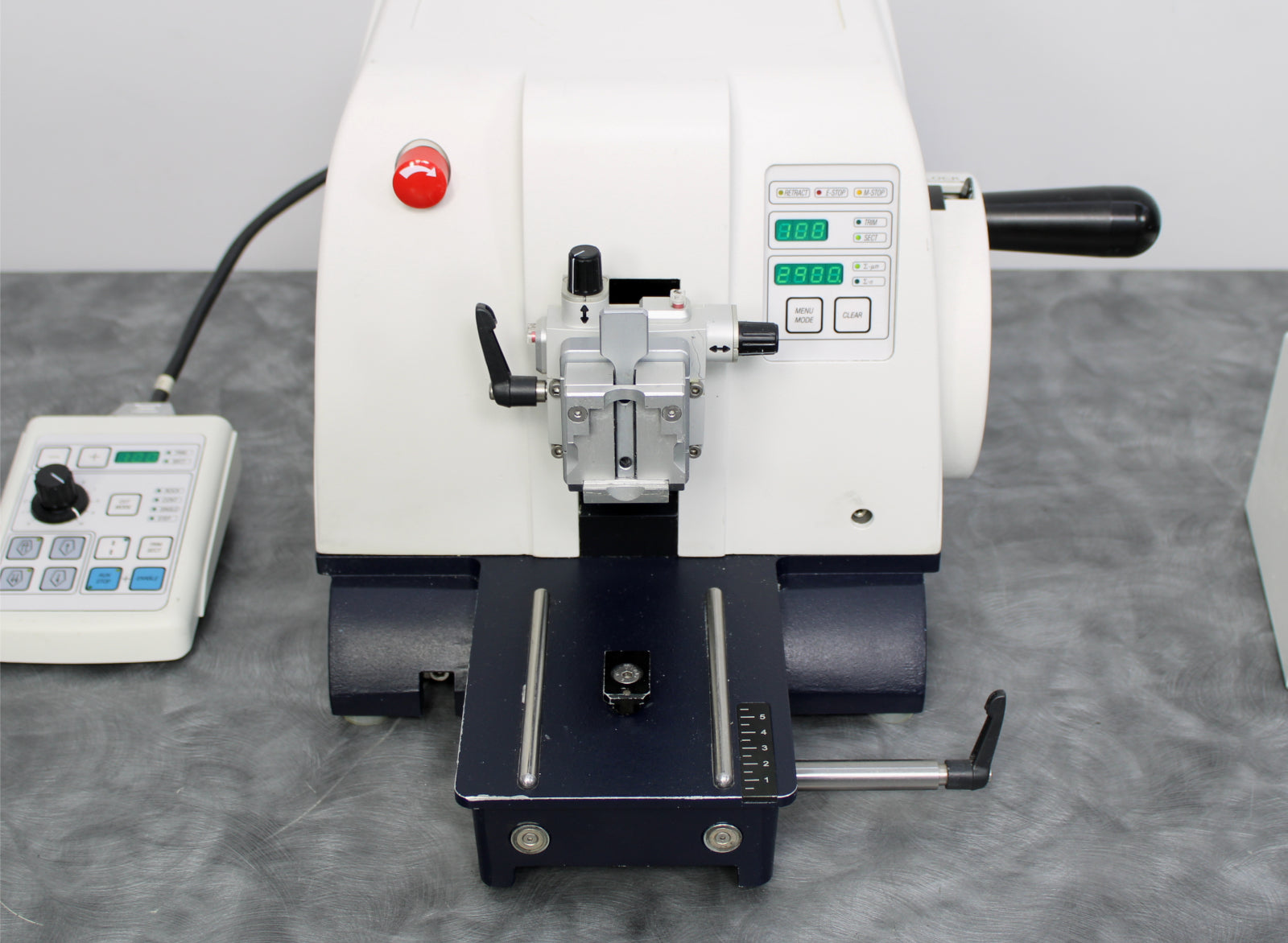

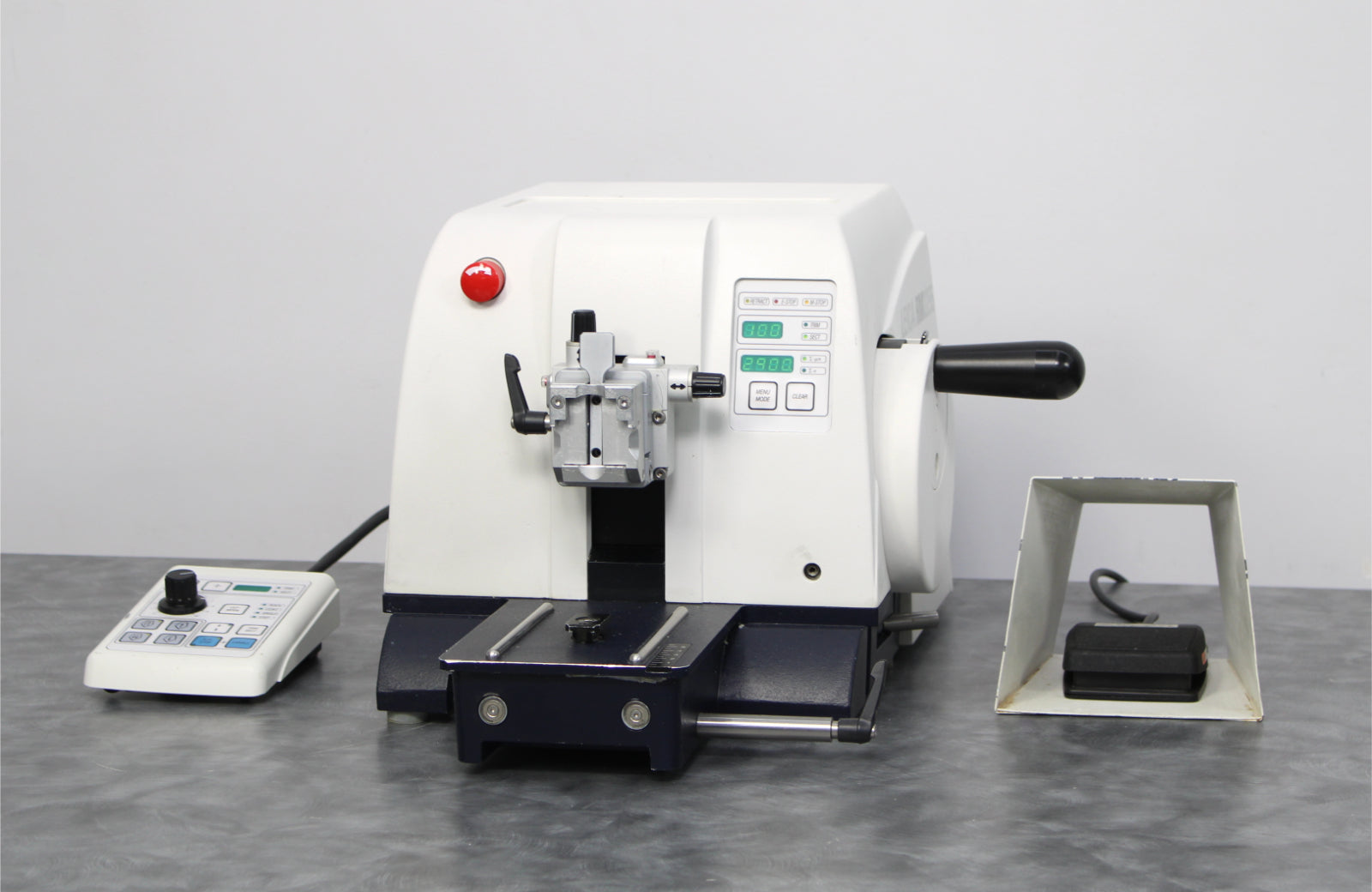

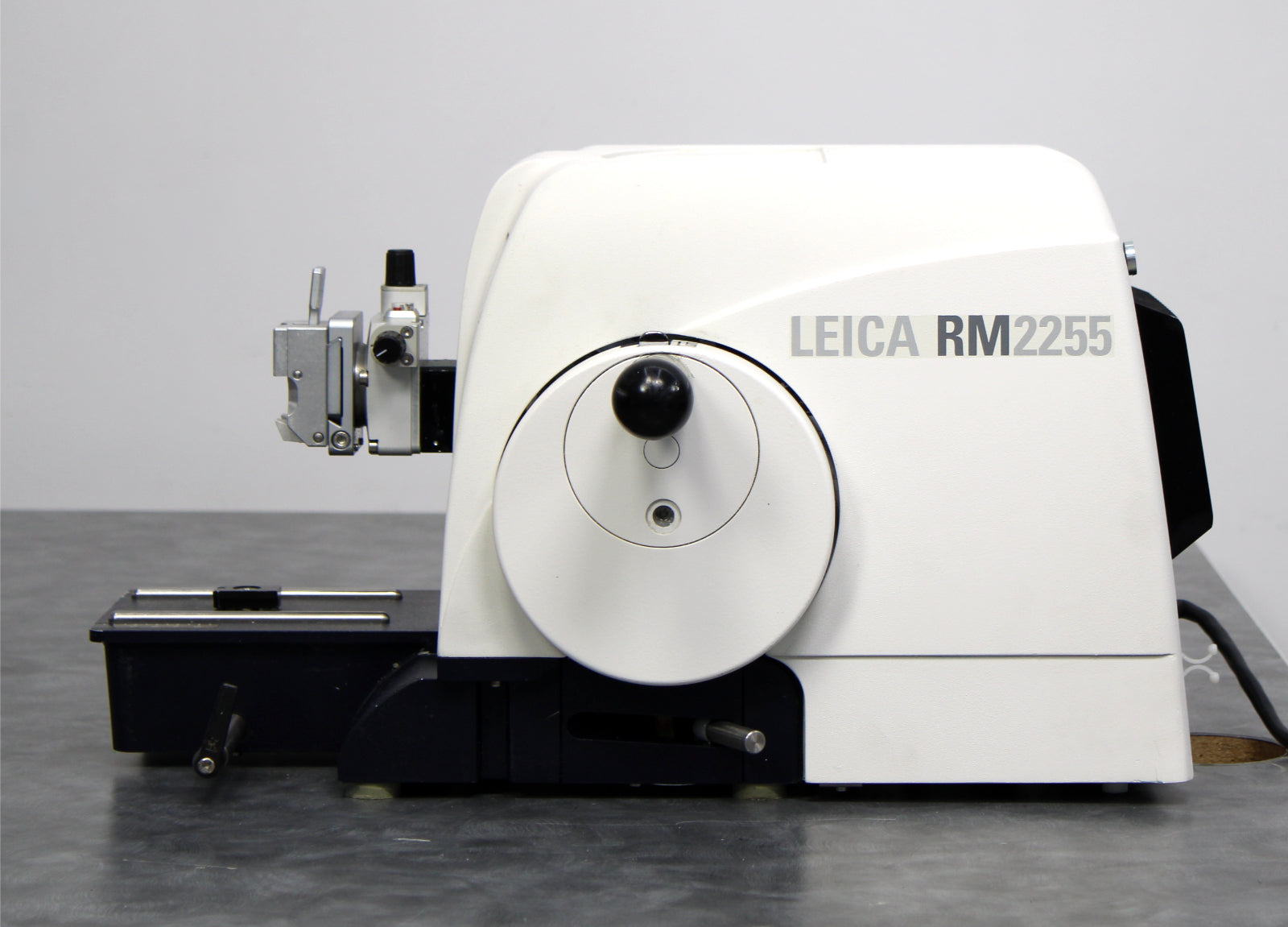

- Leica RM2255 Motorized Rotary Microtome (14050237960)

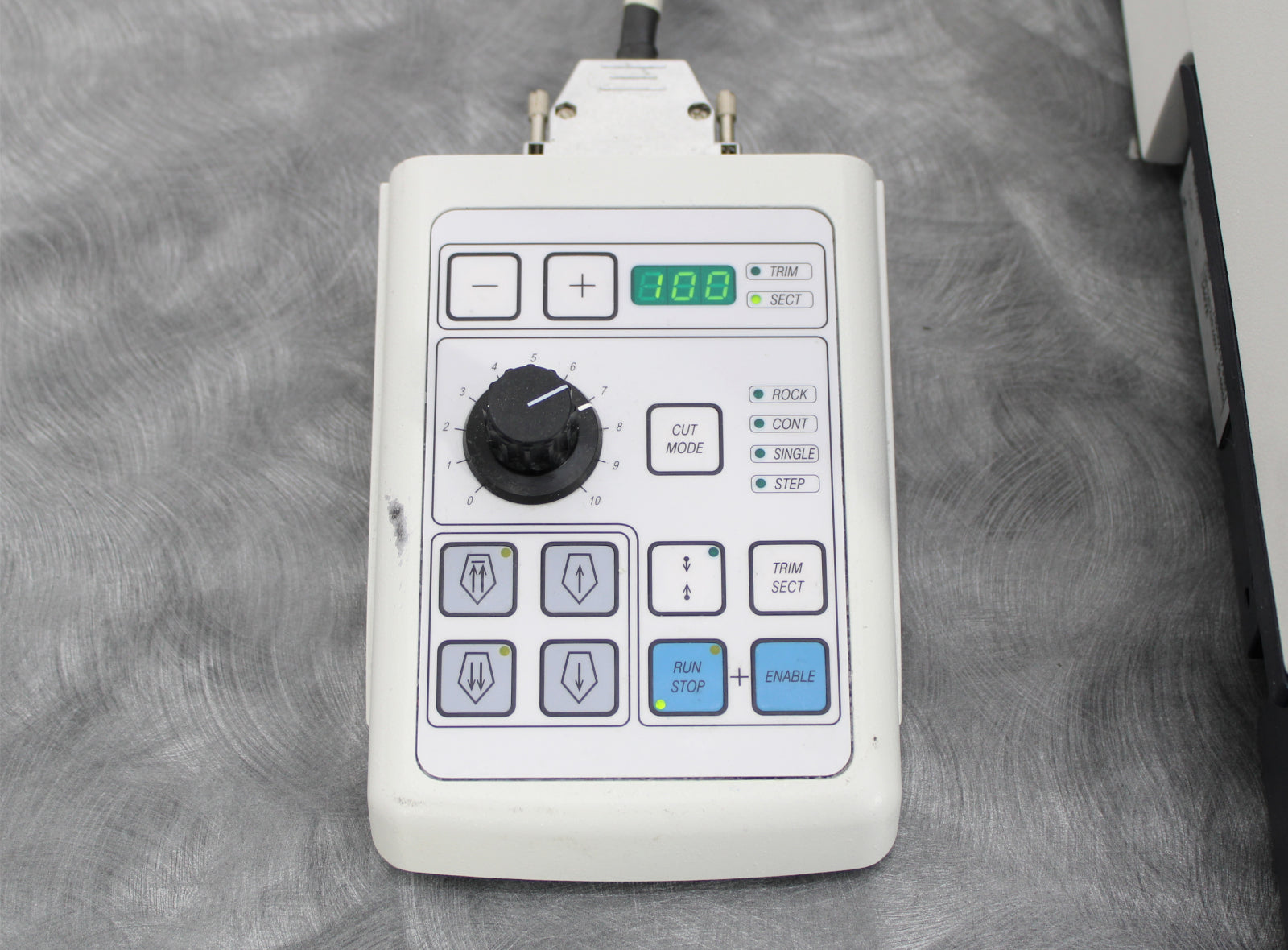

- Controller

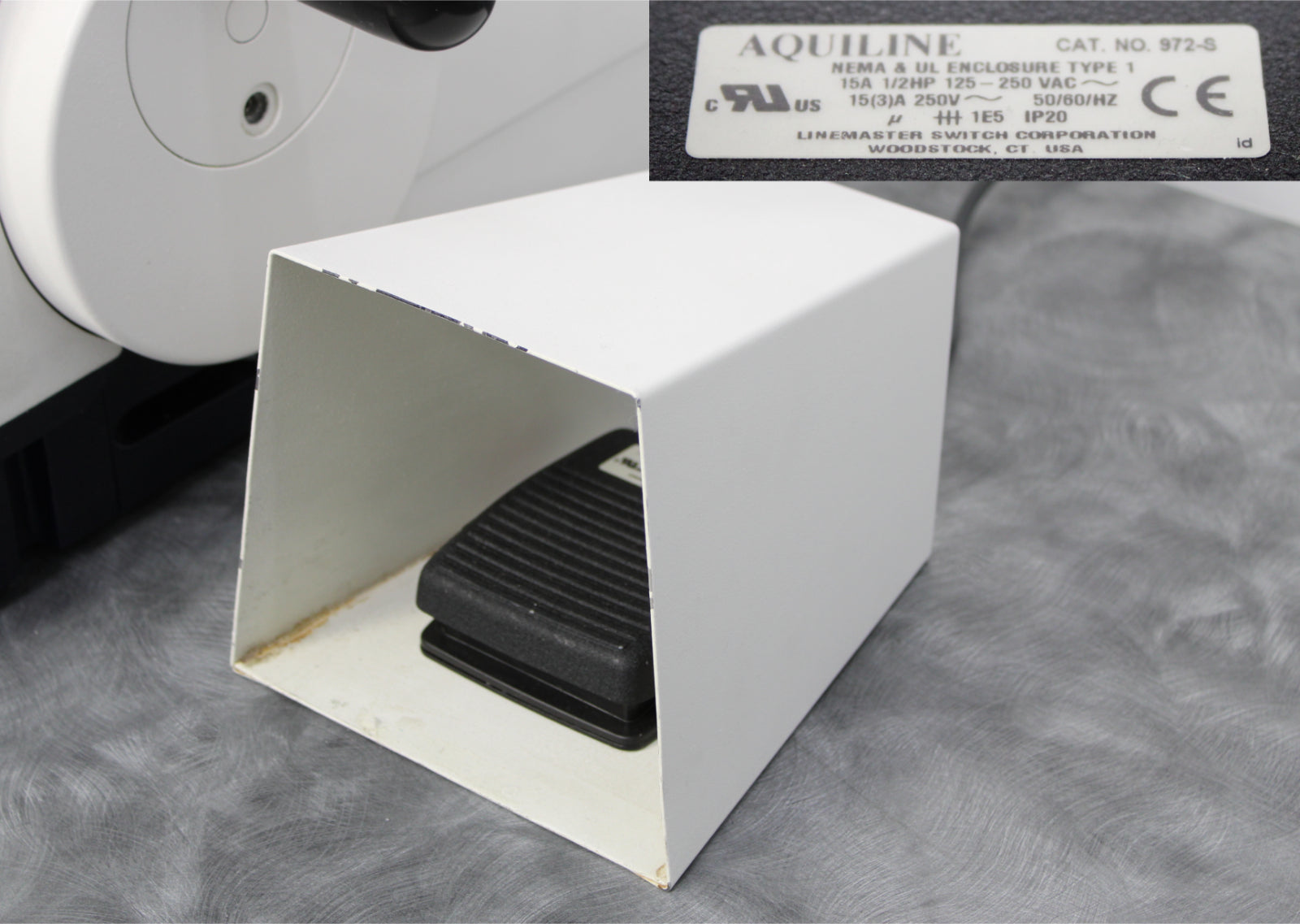

- Aquiline Foot Switch (972-S)
- Power Cable
- 90-Day Warranty
- Blade Holder
- Debris Tray
After its initial disinfection and inspection, our technicians tested the Leica RM2255 motorized rotary microtome with the following results:
- Motorized cutting: PASSED
- Advance: PASSED
- Retract: PASSED

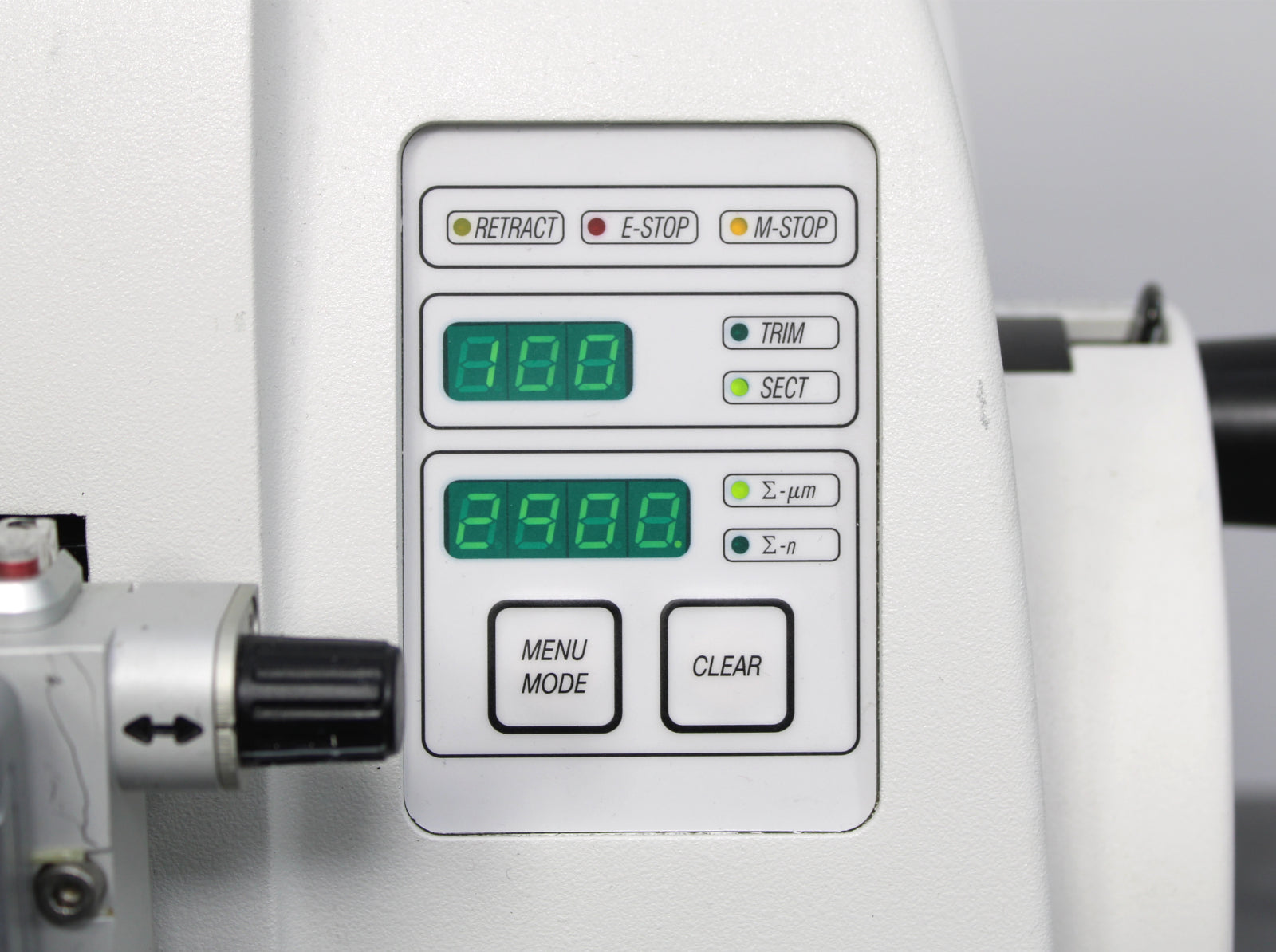

- Control panel: PASSED
Notice: This microtome has some cosmetic blemishes. Please review the available photos to see the physical condition before purchasing.
|
Manufacturer
|
Leica
|
|
Model
|
RM2255
|
|
Cat. No.
|
14050237960
|
|

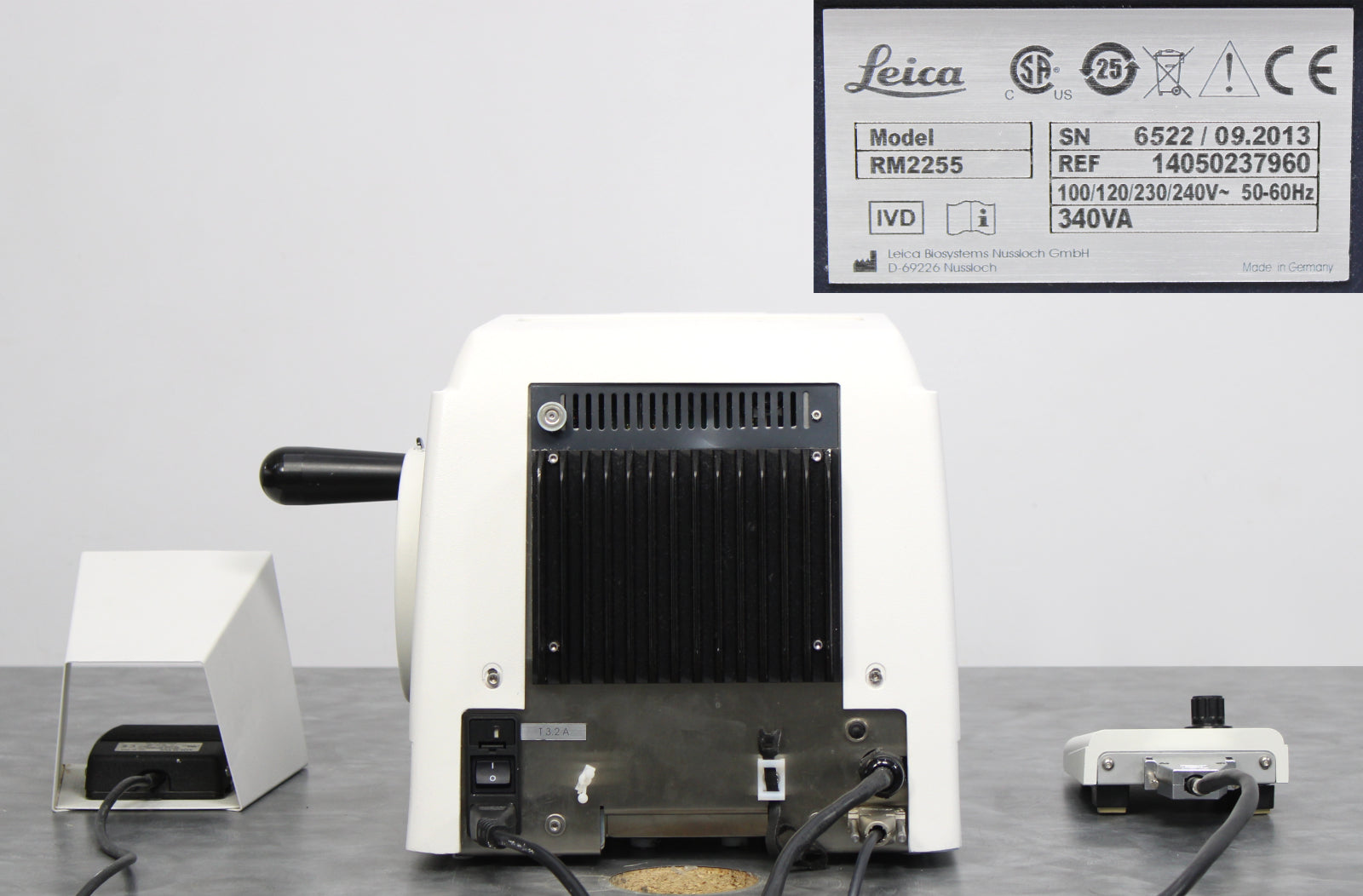

Serial No.
|
6522/09.2013
|
|
Mfg. date
|
09.2013
|
|
Section thickness setting range
|
0.50 - 100 µm
|
|
Section setting values
|
from 0.50 μm - 5.0 μm in 0.5 μm increments
from 5.0 - 20.0 μm in 1.0 μm increments
from 20.0 - 60.0 μm in 5.0 μm increments
from 60.0 - 100.0 μm in 10.0 μm increments
|
|
Trimming section thickness setting range
|
1 - 600 µm
|
|
Trimming setting values
|
from 1.0 - 10.0 μm in 1.0 μm increments
from 10.0 - 20.0 μm in 2.0 μm increments
from 20.0 - 50.0 μm in 5.0 μm increments
from 50.0 - 100.0 μm in 10.0 μm increments
from 100.0 - 600.0 μm in 50.0 μm increments
|
|
Object feed
|
28 mm ±1 mm, feed motion via step motor
|
|
Vertical stroke
|
70 mm
|
|
Maximum sectioning area w/o retraction
|
65 mm without specimen orientation
|
|
Maximum sectioning area with retraction
|
60 mm
|
|
Specimen retraction in manual mode
|
5 - 100 μm in 5 μm increments; can be turned off
|
|
Specimen retraction in motorized mode
|
varies with the sectioning speed; can be turned off
|
|
Electric coarse feed
|
300 μm/s and 900 μm/s
|
|
Sectioning speed
|
0; 0.5 - 420 mm/s ± 10%
|
|
Return speed
|
approx. 120 - 420 mm/s ± 10%
|
|
Maximum specimen size (W x D x H)
|
50 x 40 x 60 mm
|
|
Specimen orientation (horizontal/vertical)
|
8° / 8°
|
|
Power rating
|
100/120/230/240V~, 50-60Hz
|
|
Power consumption
|
340VA
|
|
Dimensions (W x D x H)
|
16.2 x 24.3 x 12 in (41.3 x 61.8 x 30.5 cm)
|
|
Weight without accessories
|
81.5 lb (37 kg)
|
