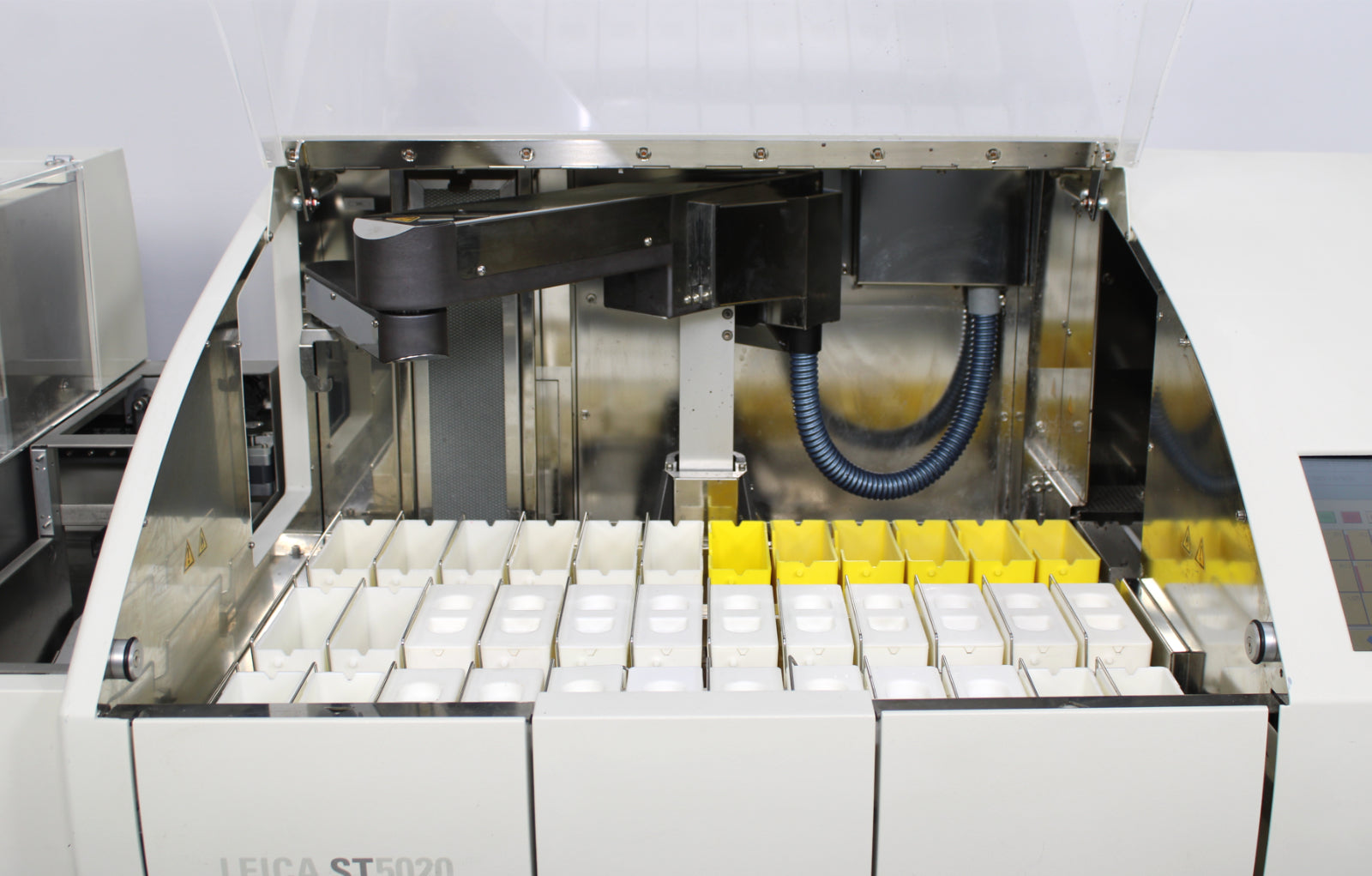

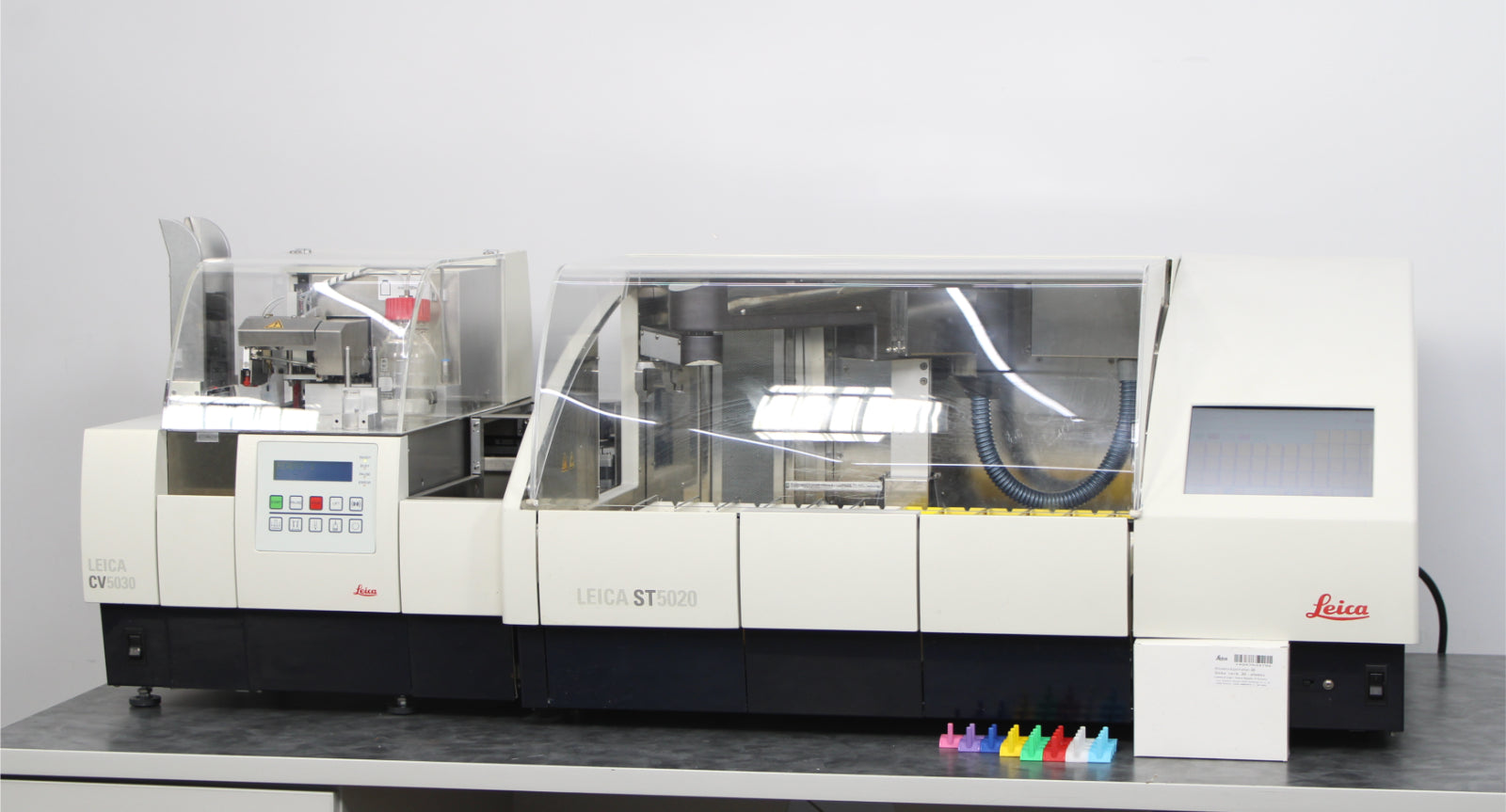

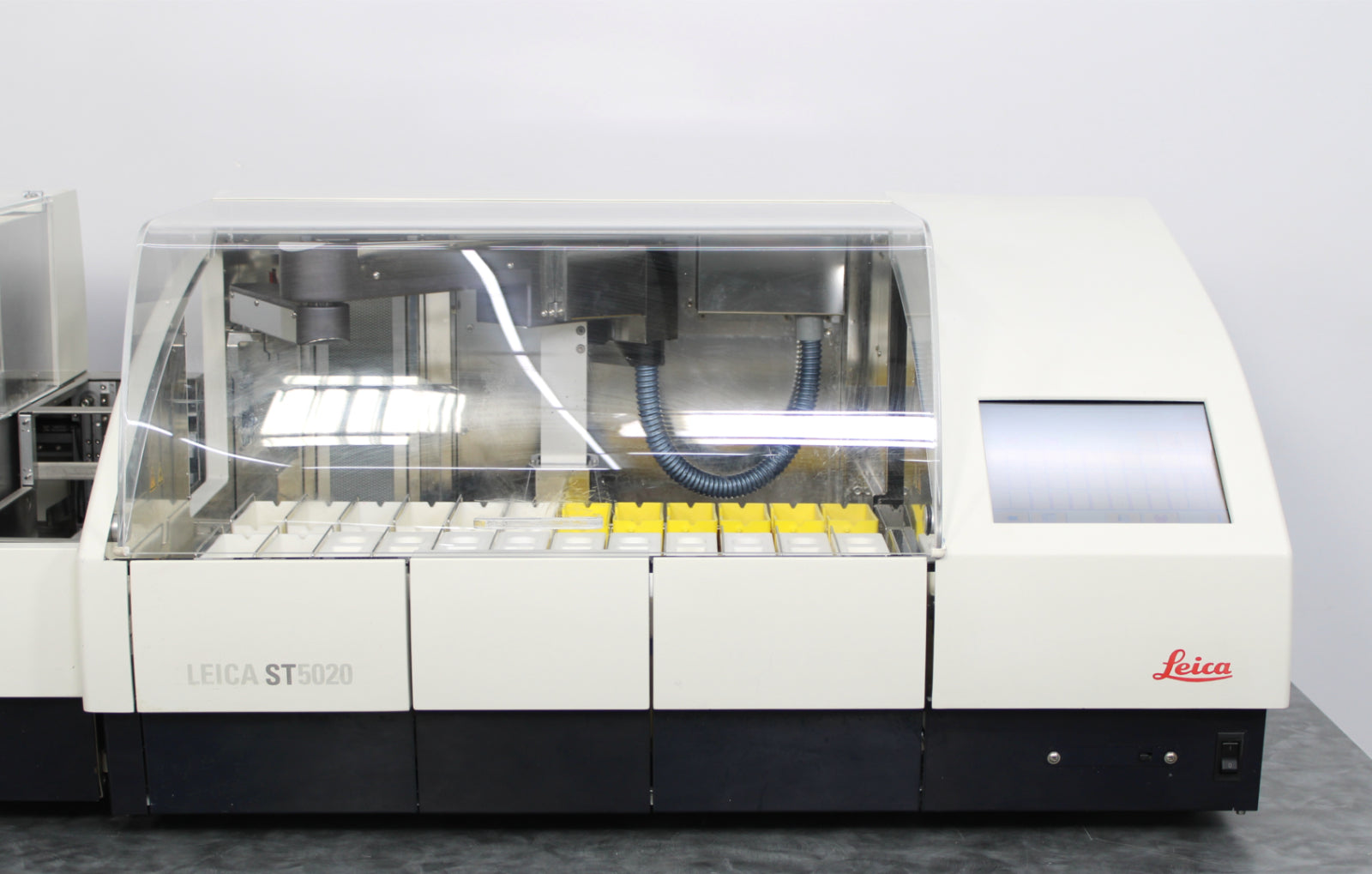

- Leica ST5020 Automated Slide Stainer (14047533623)

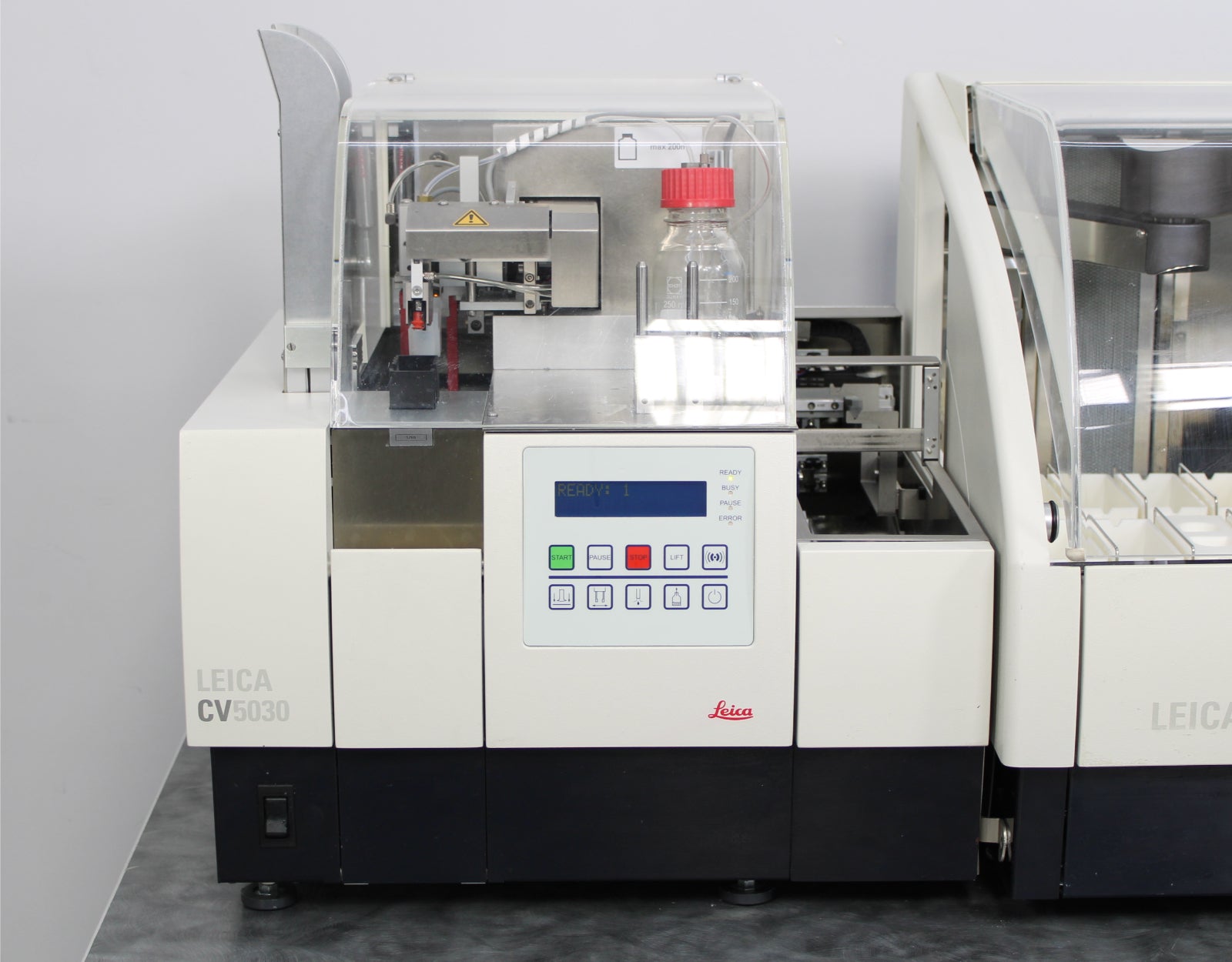

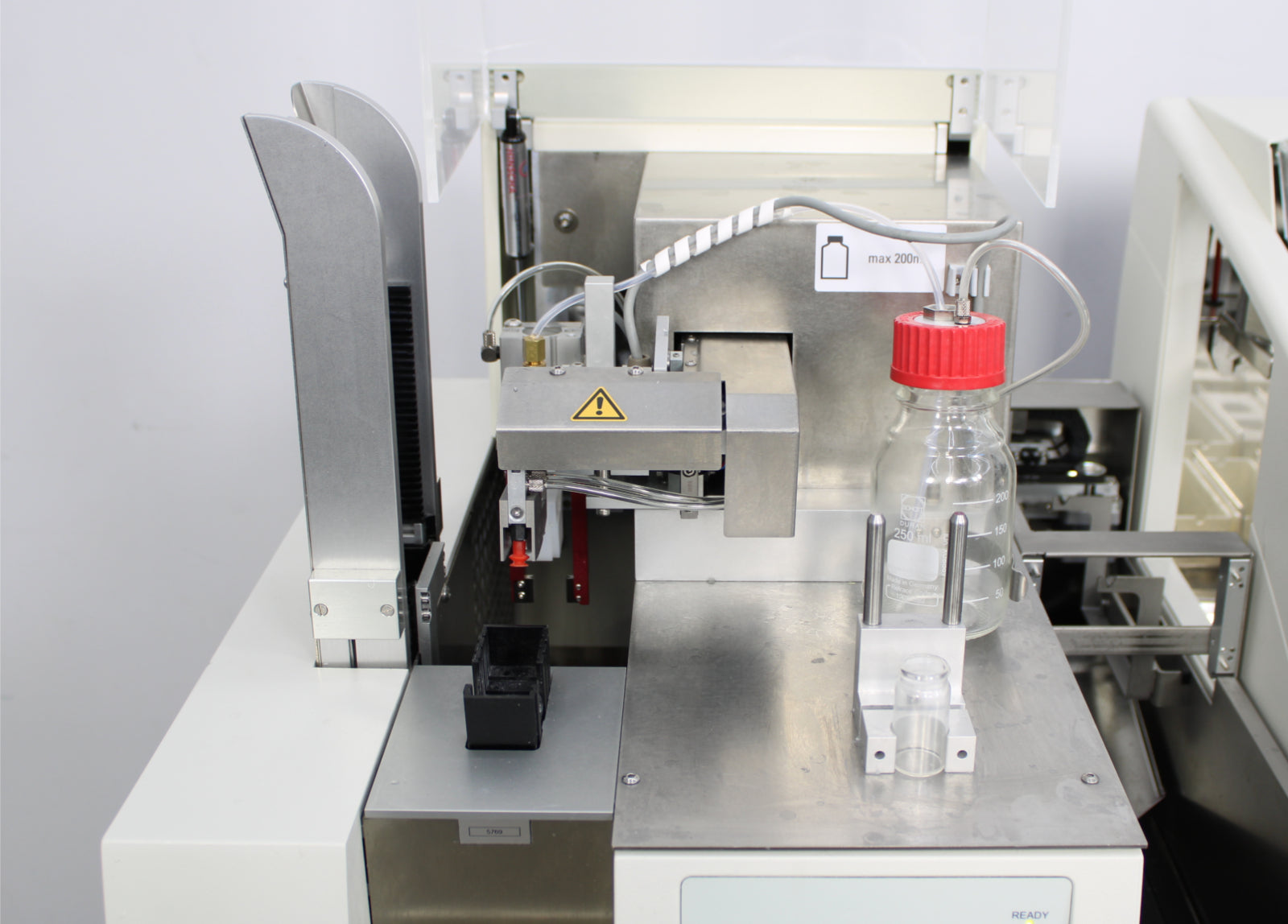

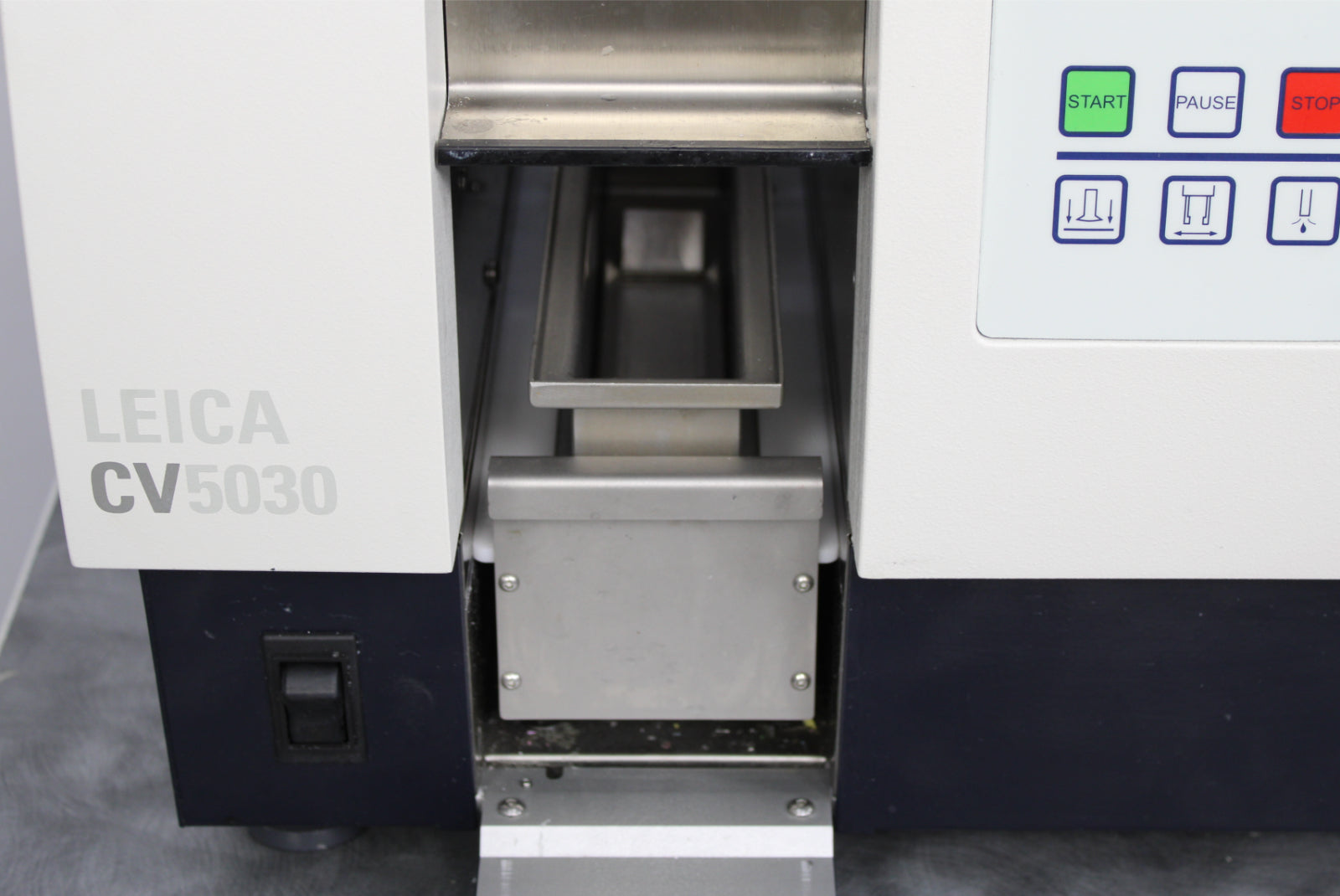

- Leica CV5030 Automated Glass Coverslipper (14047839700)
- Leica TS5025 Transfer Station (14047839710)

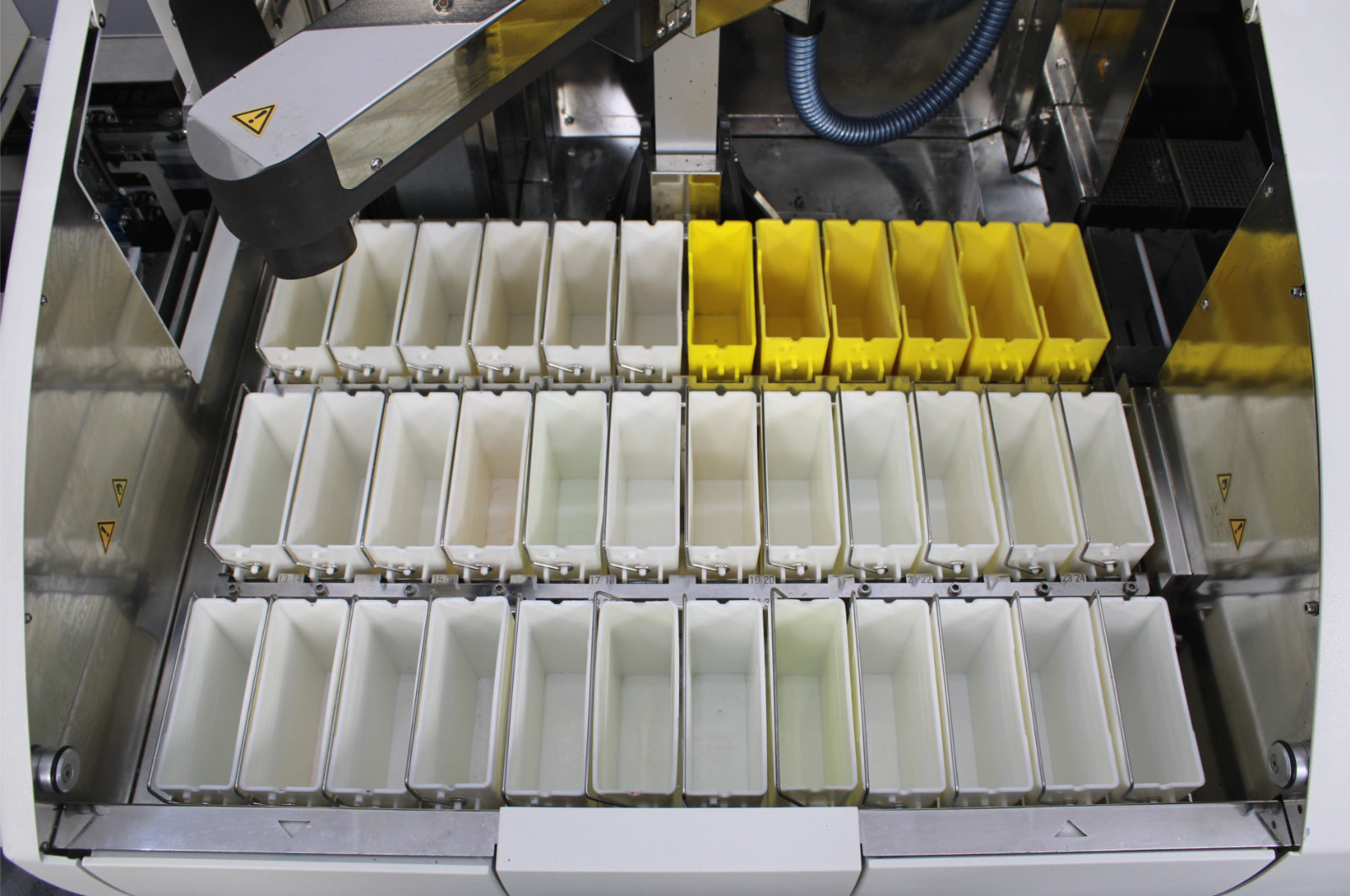

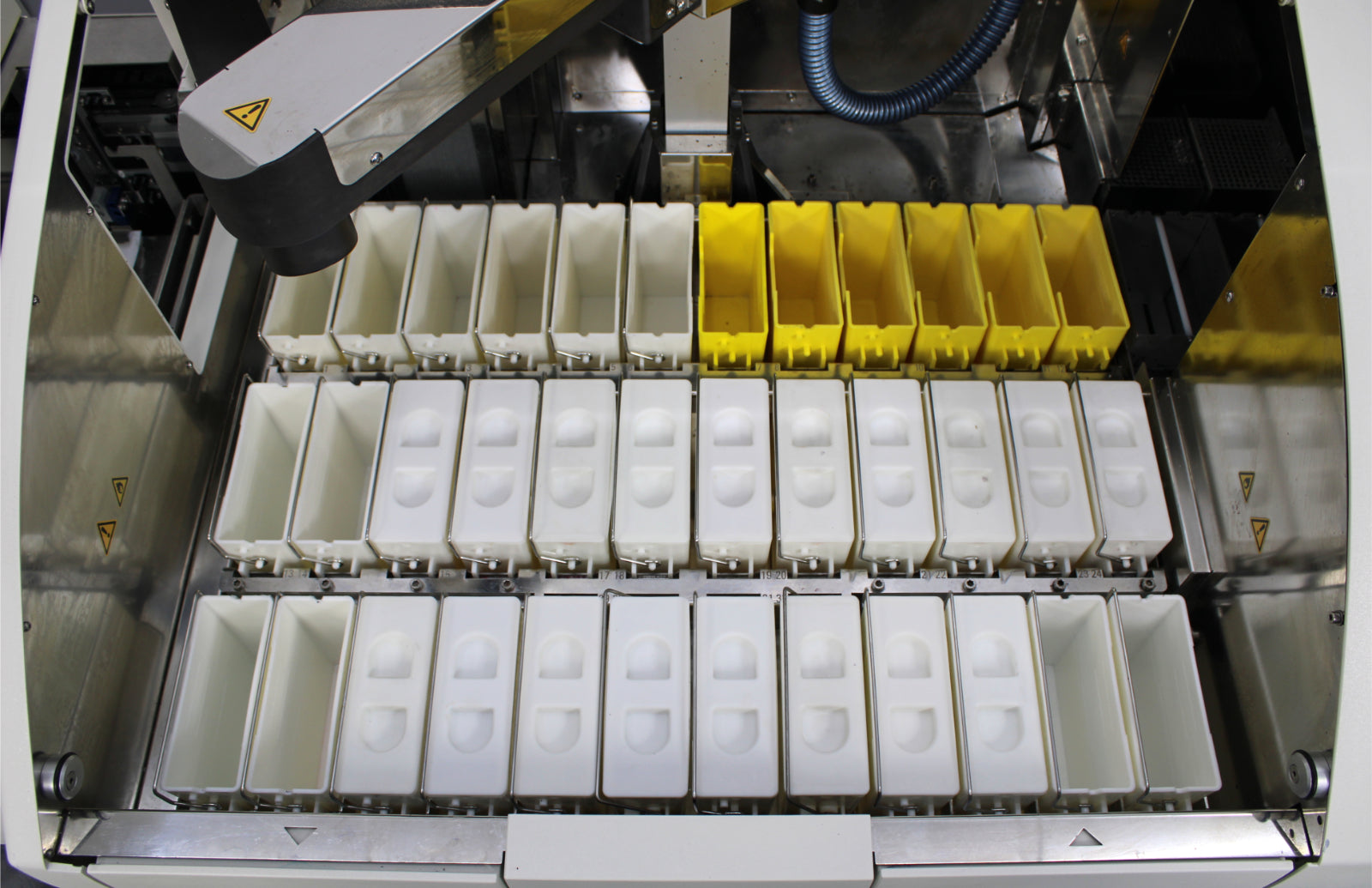

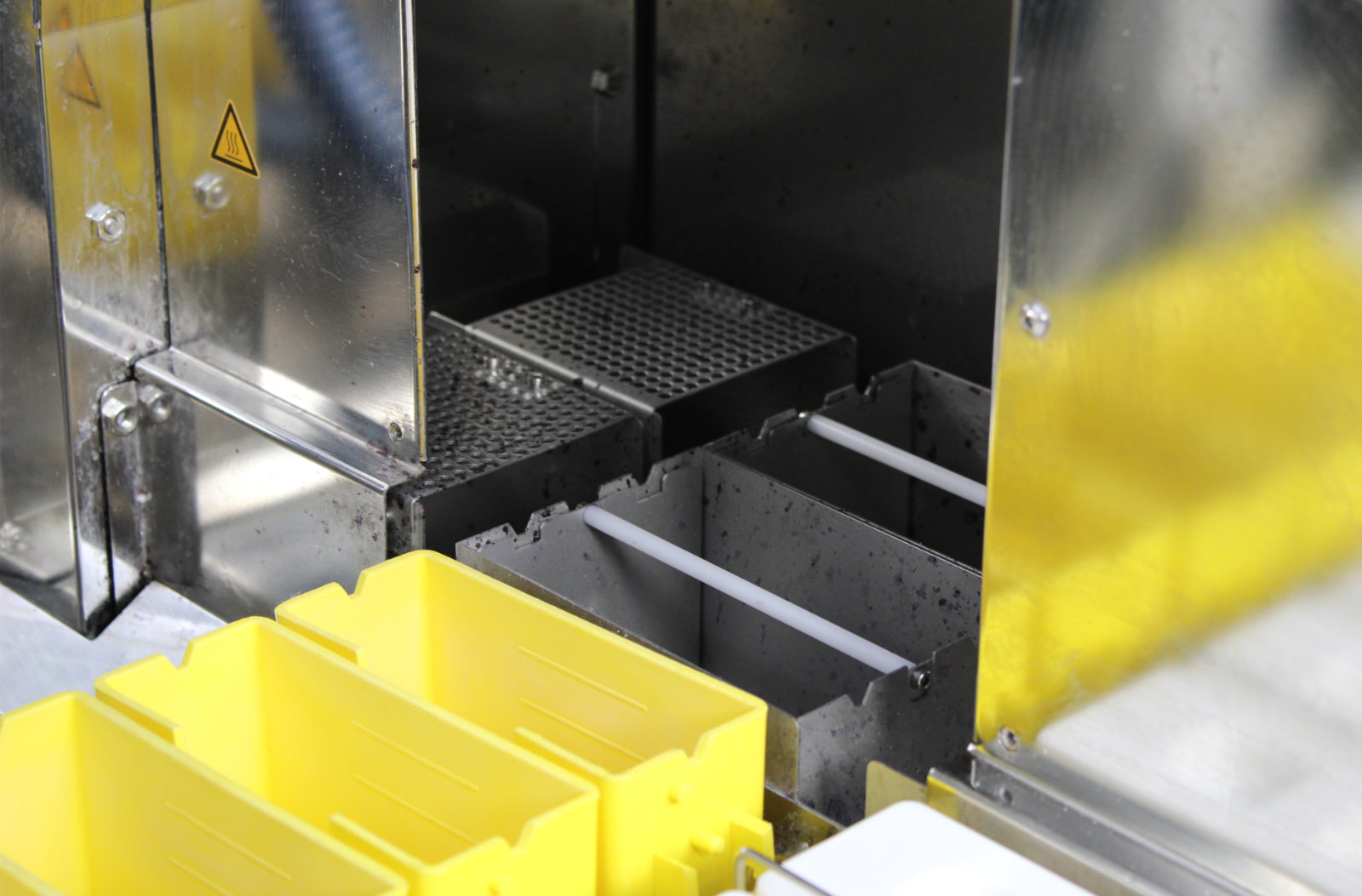

- x30 Reagent Stations
- x18 Reagent Station Lids
- x6 Rinse Stations

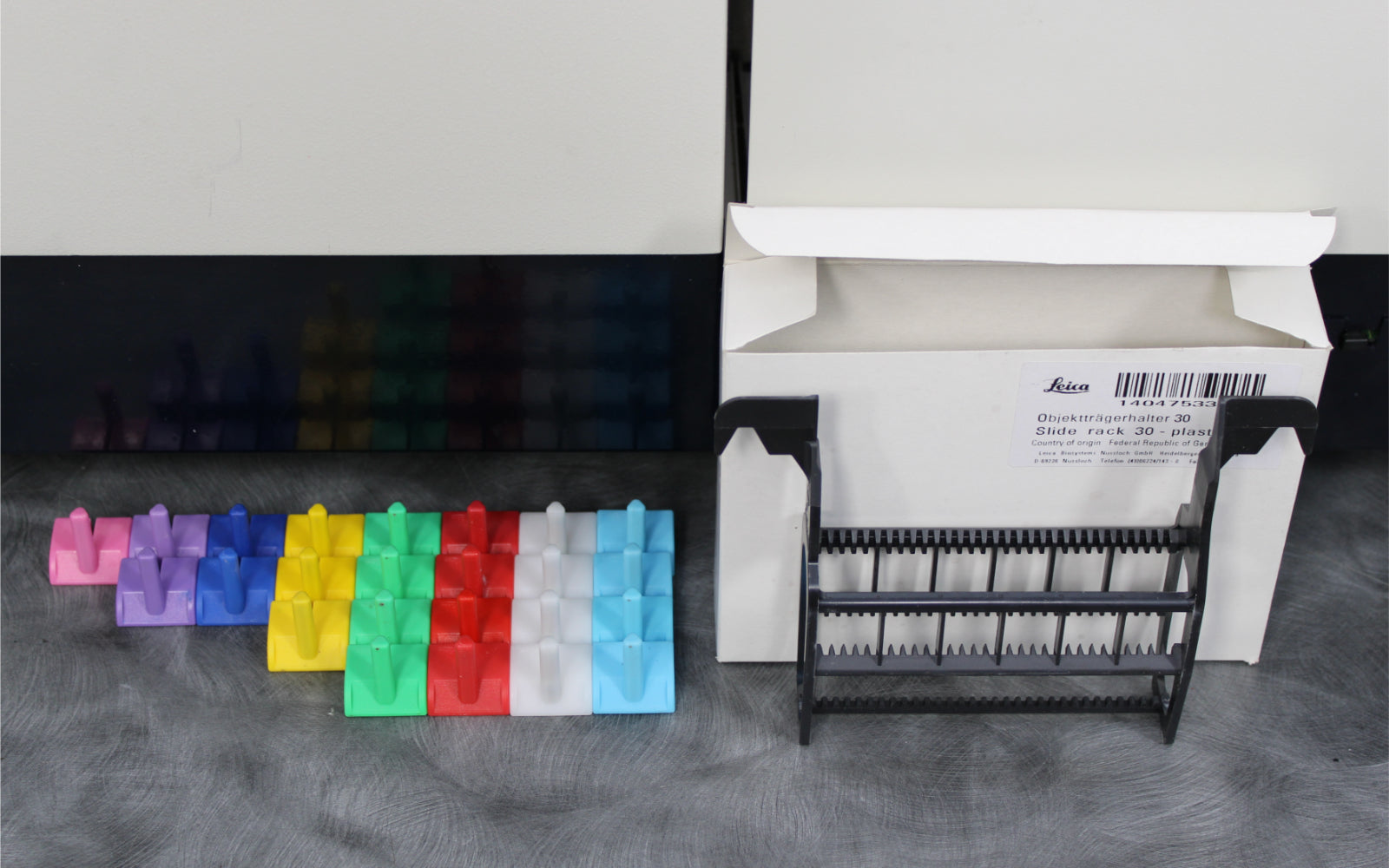

- Slide Rack
- x25 Color Coded Clips (4 light blue, 4 white, 4 red, 4 green, 3 yellow, 2 blue, 2 purple, 1 pink)
- Communication Cable
- Power Cables
- 90-Day Warranty
Notice: The transfer station is missing the plexiglass cover, but it is not necessary for operation.
Notice: The autostainer gas springs are not working properly. The hood will hold up at the top most position, but it will not hold any other position.
After its initial disinfection and inspection, our technicians tested the Leica ST5020 automated slide stainer and coverslipper with the following results:
- Ran stainer program: PASSED
- Moved basket from stainer to transfer station: PASSED
- Moved basket from transfer station to coverslipper: PASSED
- Coverslipper identifies slide positioning: PASSED

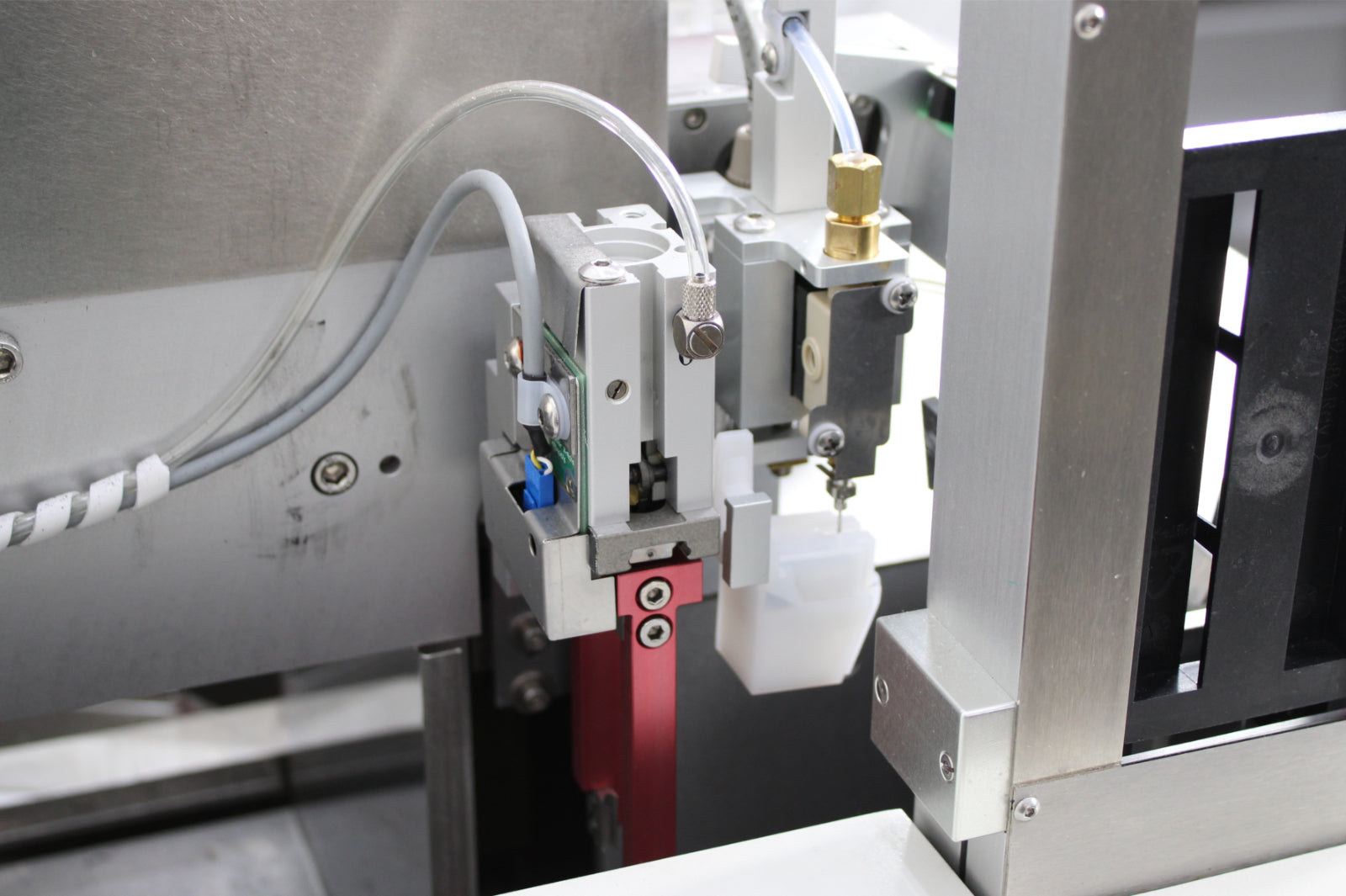

- Coverslipper slide pickup, dispense fluid, and coverslip placement: PASSED
- Moved basket to output position: PASSED
- Replaced coverslipper carbon filter.
- Replaced coverslipper gas spring.
Notice: This automated slide stainer system has some cosmetic blemishes. Please review the available photos to see the physical condition before purchasing.
|

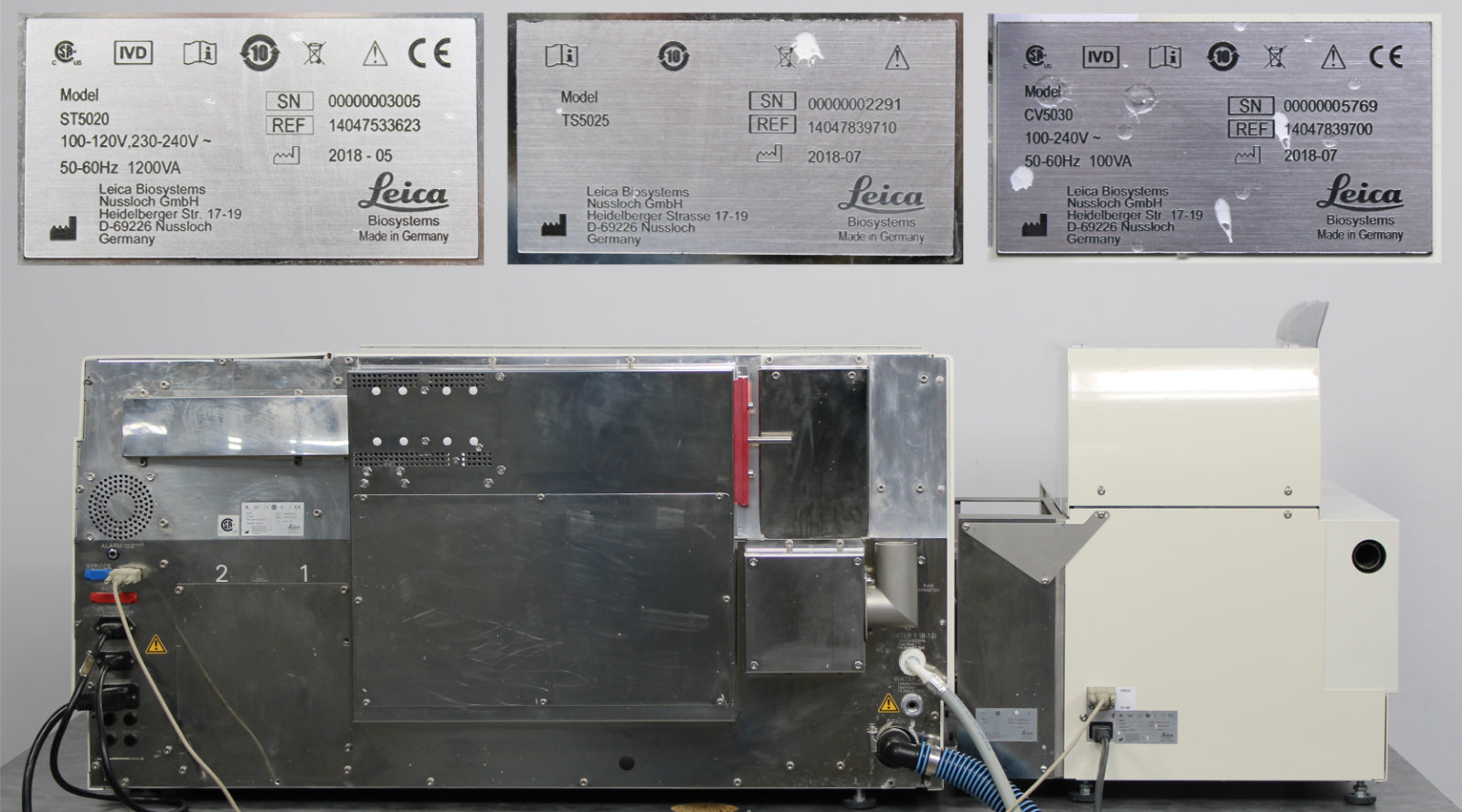

Manufacturer
|
Leica
|
|
Model
|
ST5020
|
|
Cat. No.
|
14047533623
|
|
Serial No.
|
00000003005
|
|
Mfg. date
|
2018-05
|
|
Sample types
|
Histology and cytology specimens
|
|
Throughput
|
Up to 12 racks in parallel (depending on protocol, loading schedule and instrument set-up)
|
|
Power rating
|
100-120/230-240V~, 50-60Hz
|
|
Power consumption
|
1200VA
|
|
Dimensions (W x D x H)
|
41 x 29 x 21.5 in
|
|
Weight
|
198.5 lb (90 kg)
|
|
Manufacturer
|
Leica
|
|
Model
|
CV5030
|
|
Cat. No.
|
14047839700
|
|
Serial No.
|
00000005769
|
|
Mfg. date
|
2018-07
|
|
Slide Throughput
|
1 slide in 9 seconds
|
|
Volume Mounting Media Bottle
|
250 mL
|
|
Maximum Filling Volume
|
200 mL
|
|
Relative Humidity
|
max 80%, non-condensing
|
|
Power rating
|
100-240V~, 50-60 Hz
|
|
Power consumption
|
100VA
|
|
Dimensions (with TS5025) (W x D x H)
|
22 x 23 x 23 in
|
