**Currently en route to our facility. It will take about 30 days to arrive, after which we will test and certify it.**
Included Items:

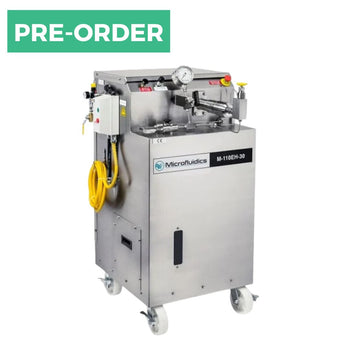

- Microfluidics M-110EH-30 Microfluidizer Processor
- Power Cable
Guaranteed to Perform Without Error
After your instrument arrives at our facility, it will be inspected and tested to verify it is free of malfunction. Unless stated otherwise, we are confident it will perform at manufacturer specifications. If you receive this instrument and it does not meet your required specifications, your purchase will be protected by our warranty.
Specifications:
|
Manufacturer
|
Microfluidics
|
|
Model Name
|
M-110EH
|
|
Model No.
|
M-110EH-30
|
|
Serial No.
|
2012040 |
|
Pressure Range
|
up to 2068 bar (30,000 psi)
|
|
Flow Rate
|
up to 330 mL/min @ 2068 bar (30,000 psi)
up to 450 mL/min @ 1725 bar (25,000 psi)
|
|
Feed Temperature Max.
|
75°C (165°F)
|
|
Holdup Volume
|
100 mL
|
|
Electrical
|
3 phase 60 Hz service, 208/230/460V, 3.7 KW (5 HP) (50 Hz European standard available)
|
|
Compressed Air
|
1 SCFM @ 3.4 bar (50 psi) with -18 to 37°C (0 to -35°F) max. dewpoint
|
|
Hydraulic Oil Heat Exchanger Cooling Water
|
9.5 lpm (2.5 gpm) minimum @ 29°C (85°F) max
|
|
Product Outlet Heat Exchanger Cooling Water
|
18.9 lpm (5 gpm) @ 16°C (65°F)
|
|
Minimum Sample Size
|
120 mL
|
|
Dimensions
|
84 x 87 x 148 cm (33”L x 34”W x 58”H)
|
|
Weight
|
205 kg (450 lbs)
|
