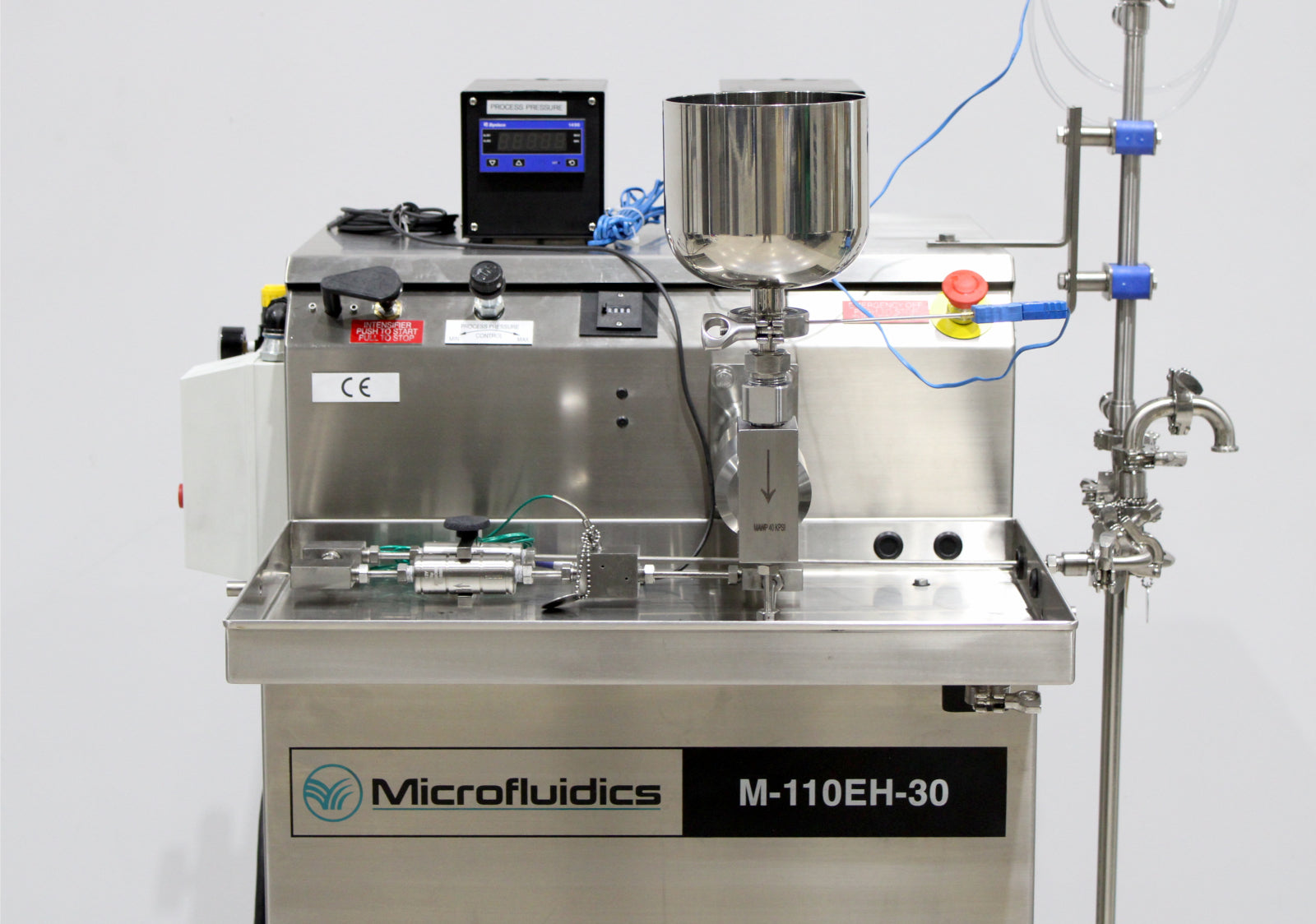

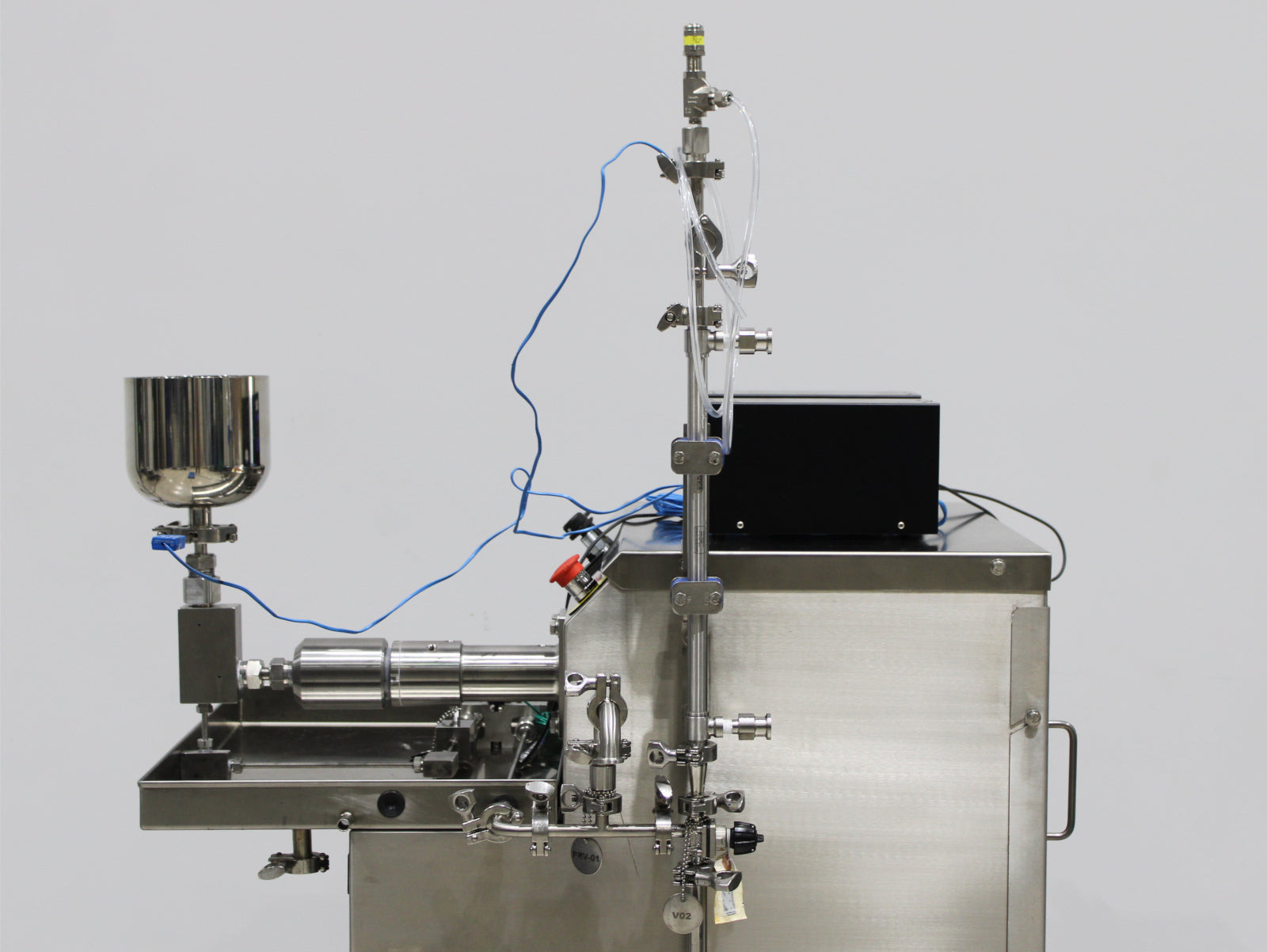

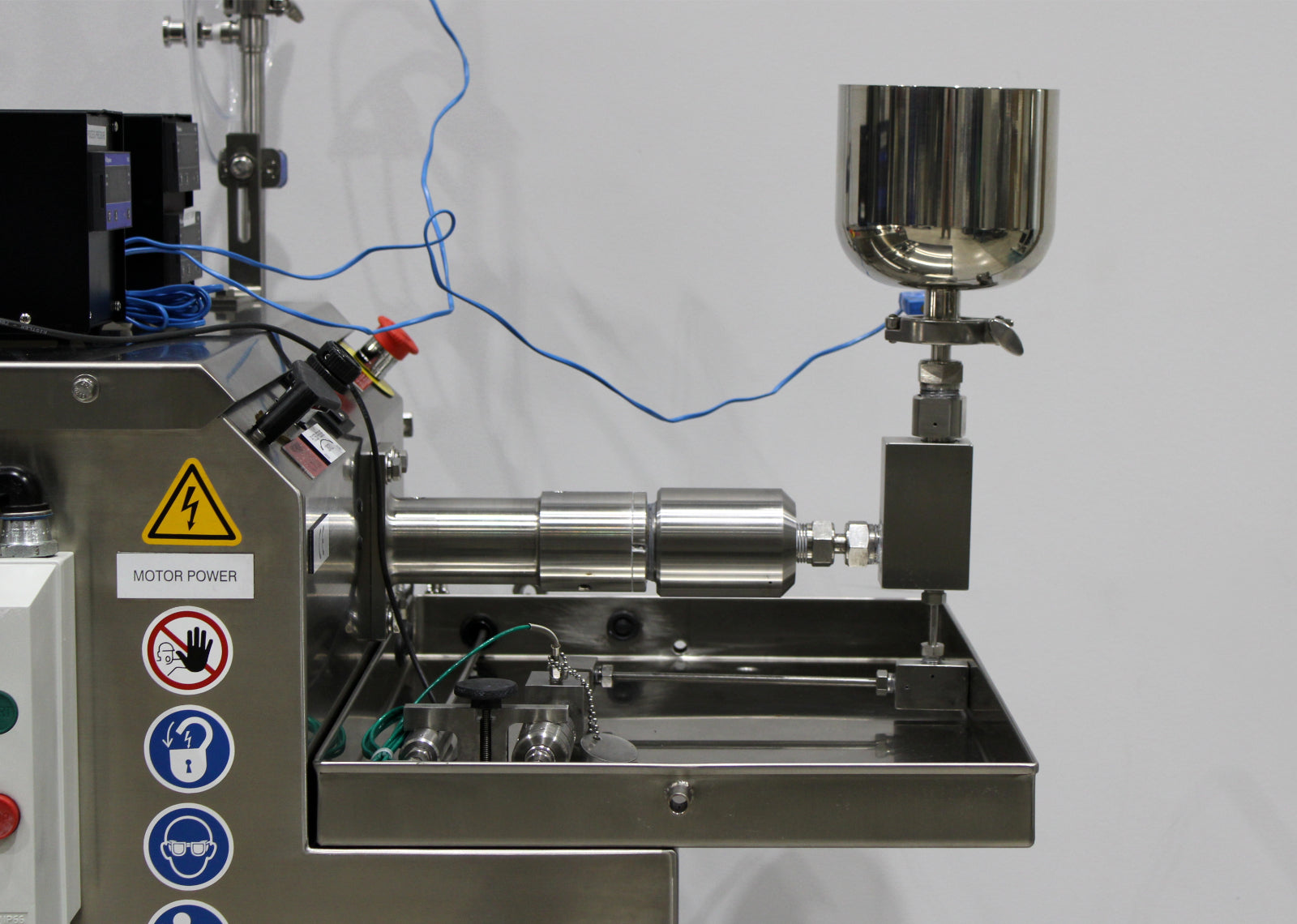

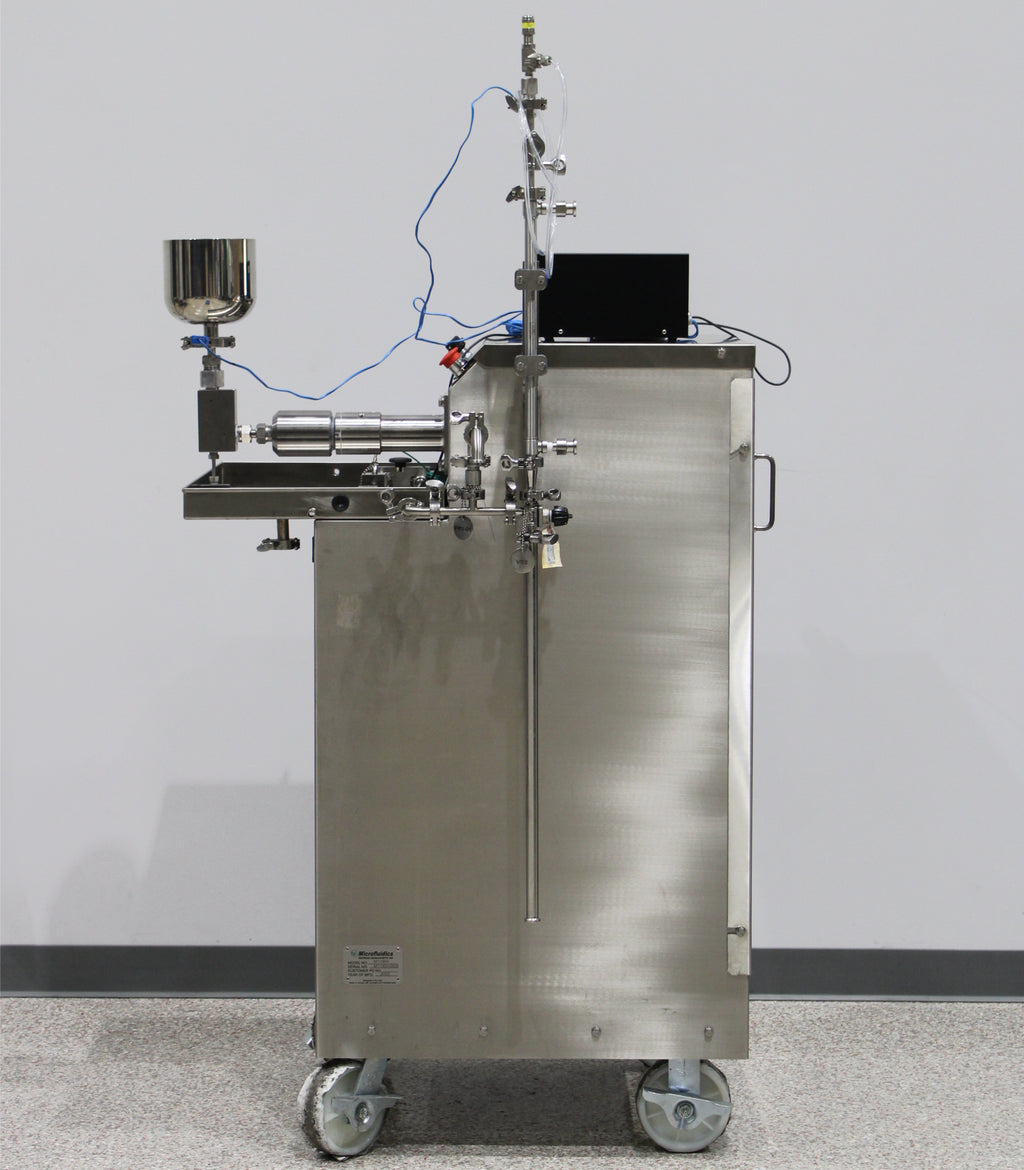

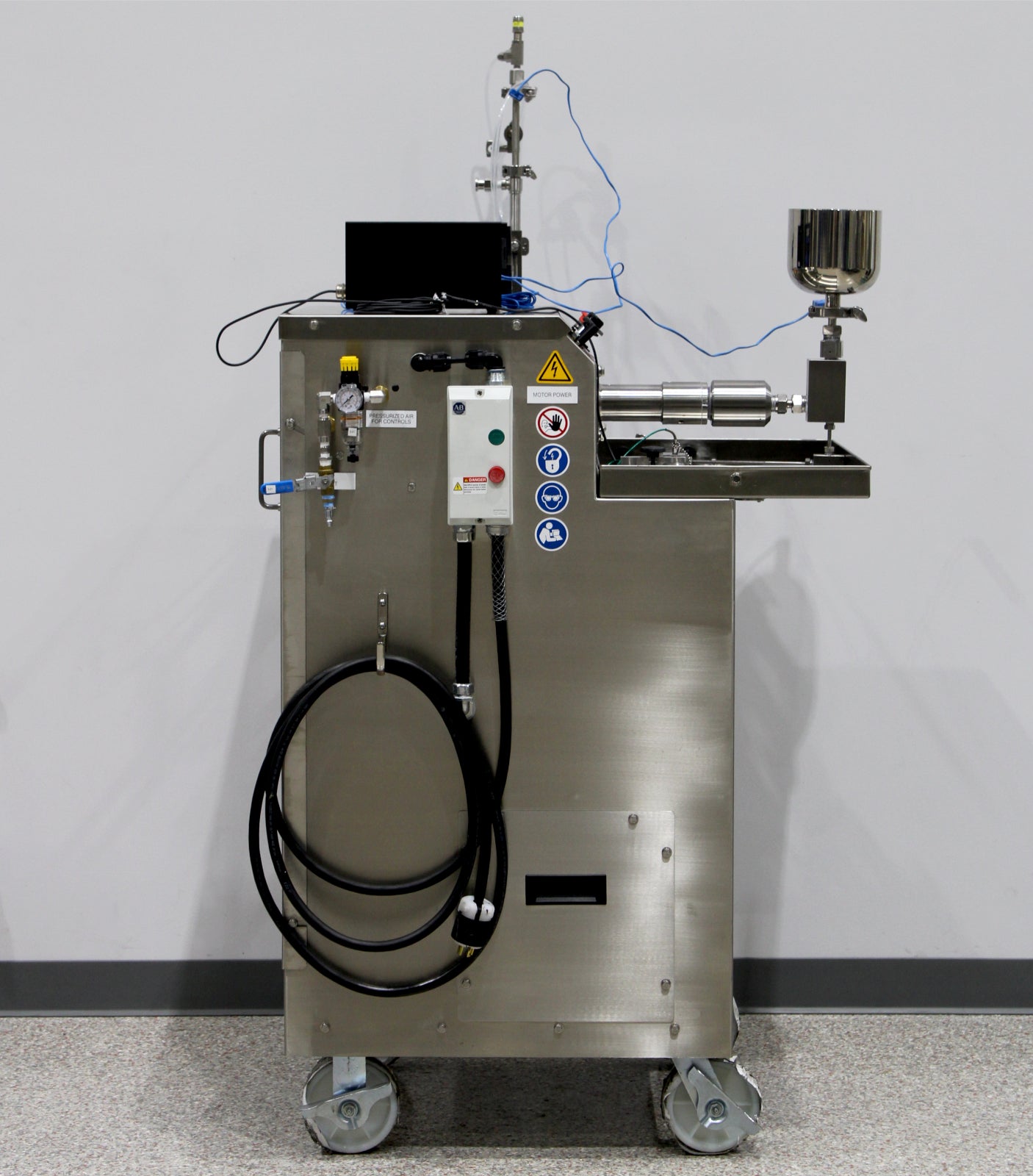

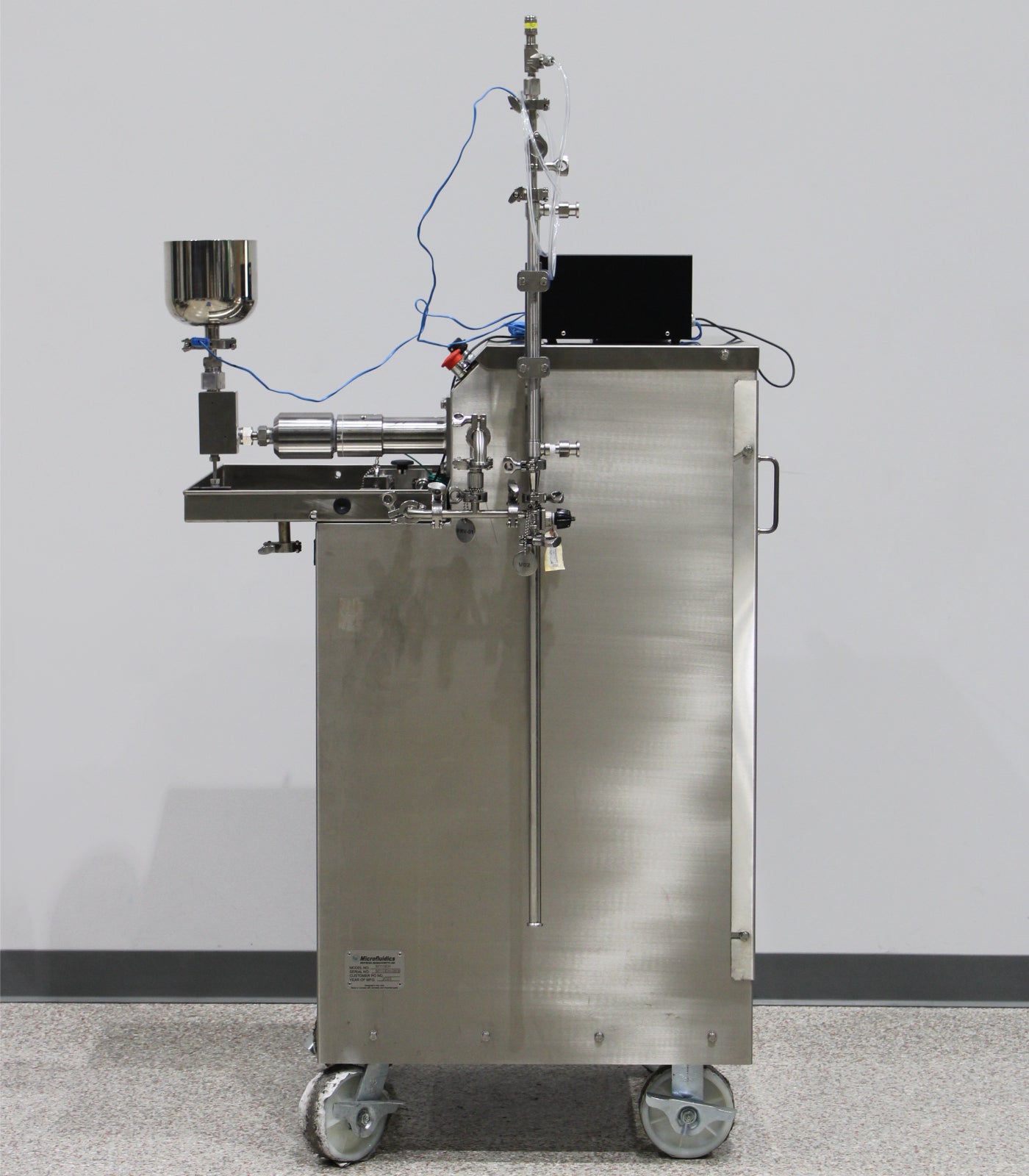

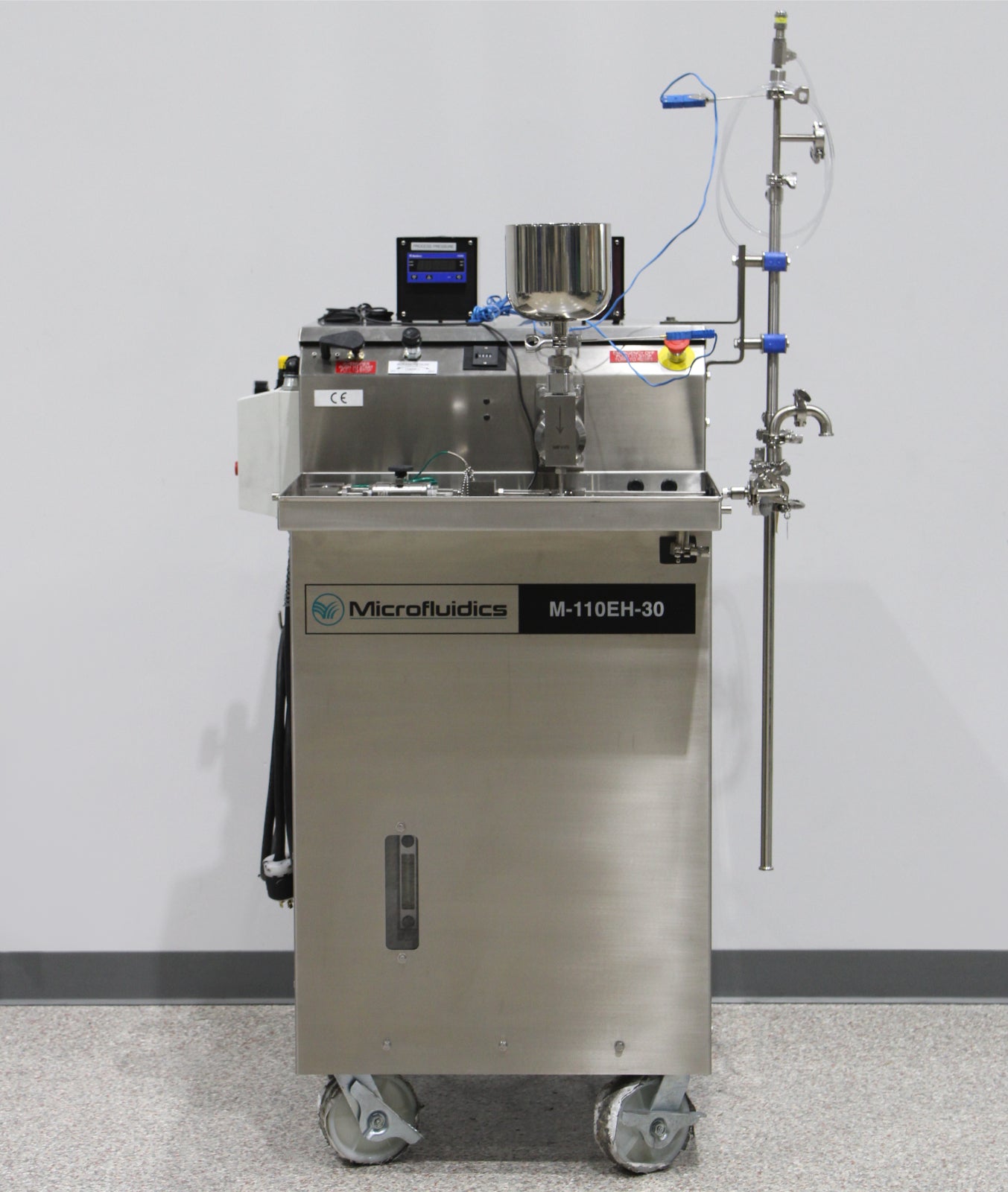

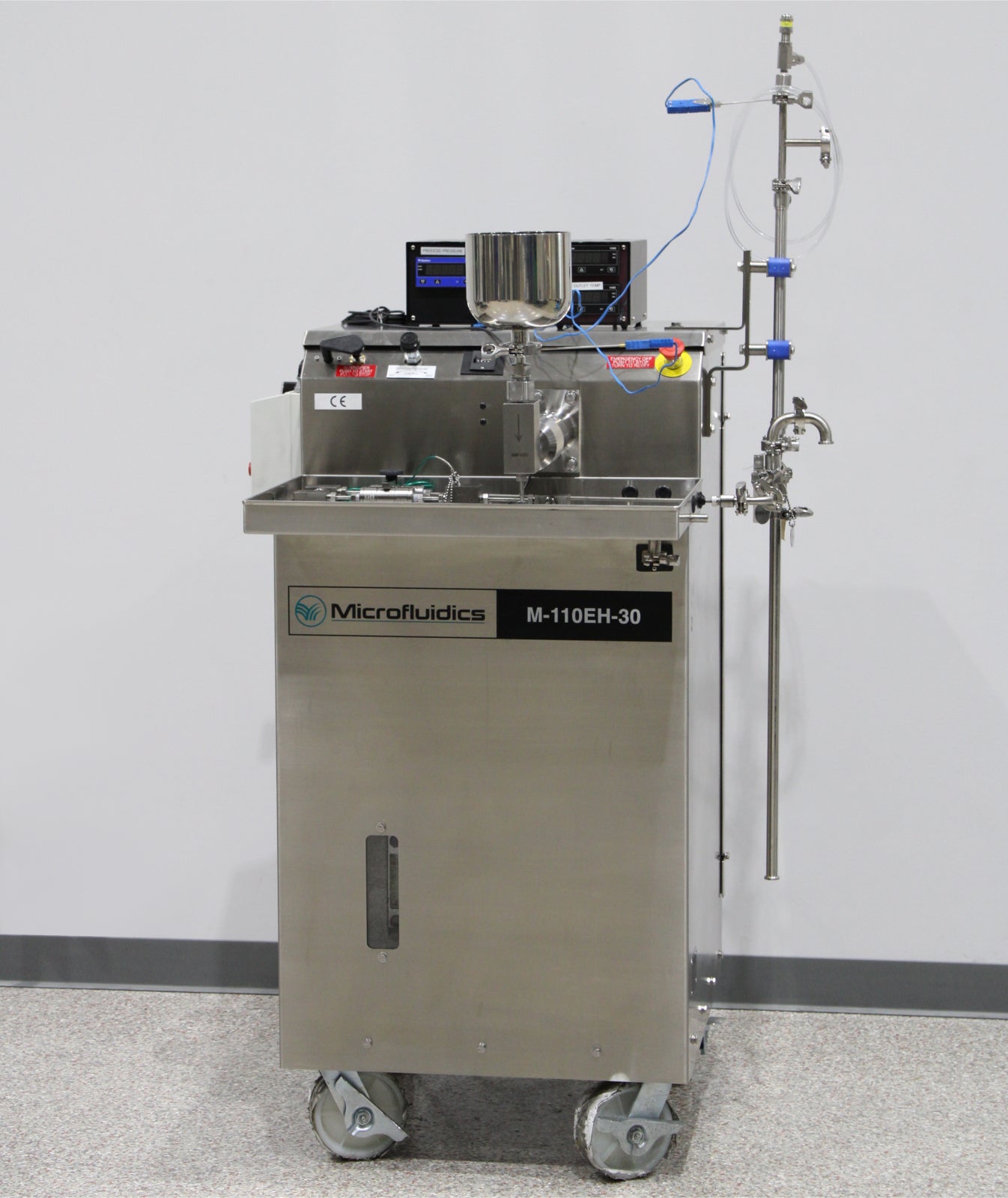

- Microfluidics M-110EH-30 Microfluidizer Processor 230V (M110EH)

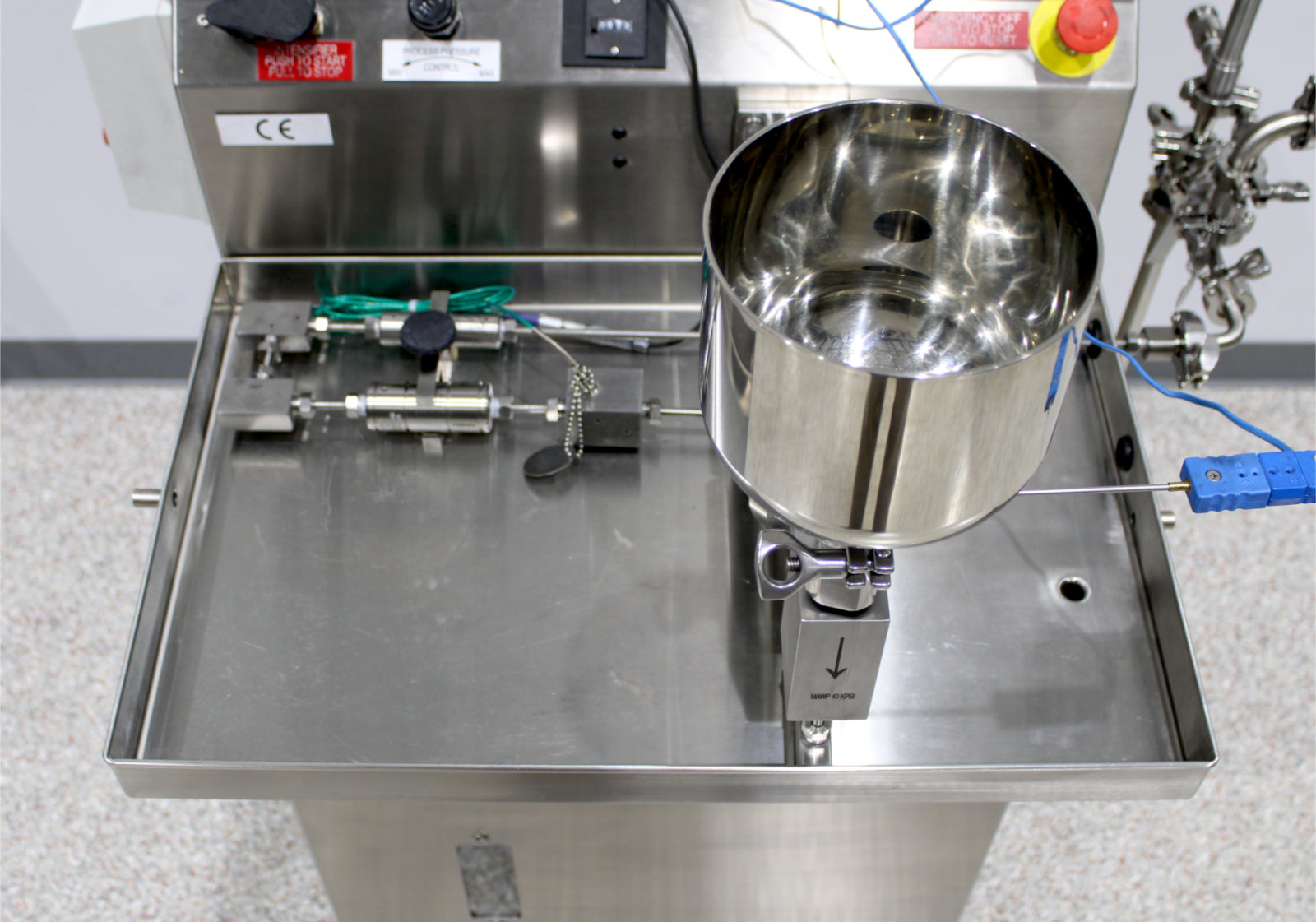

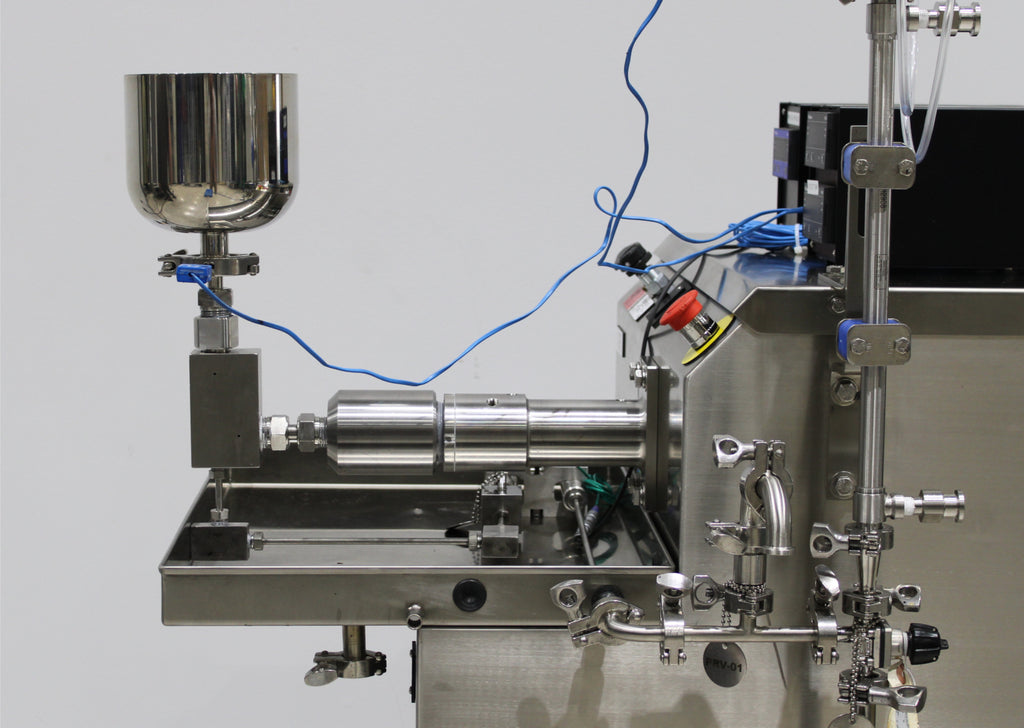

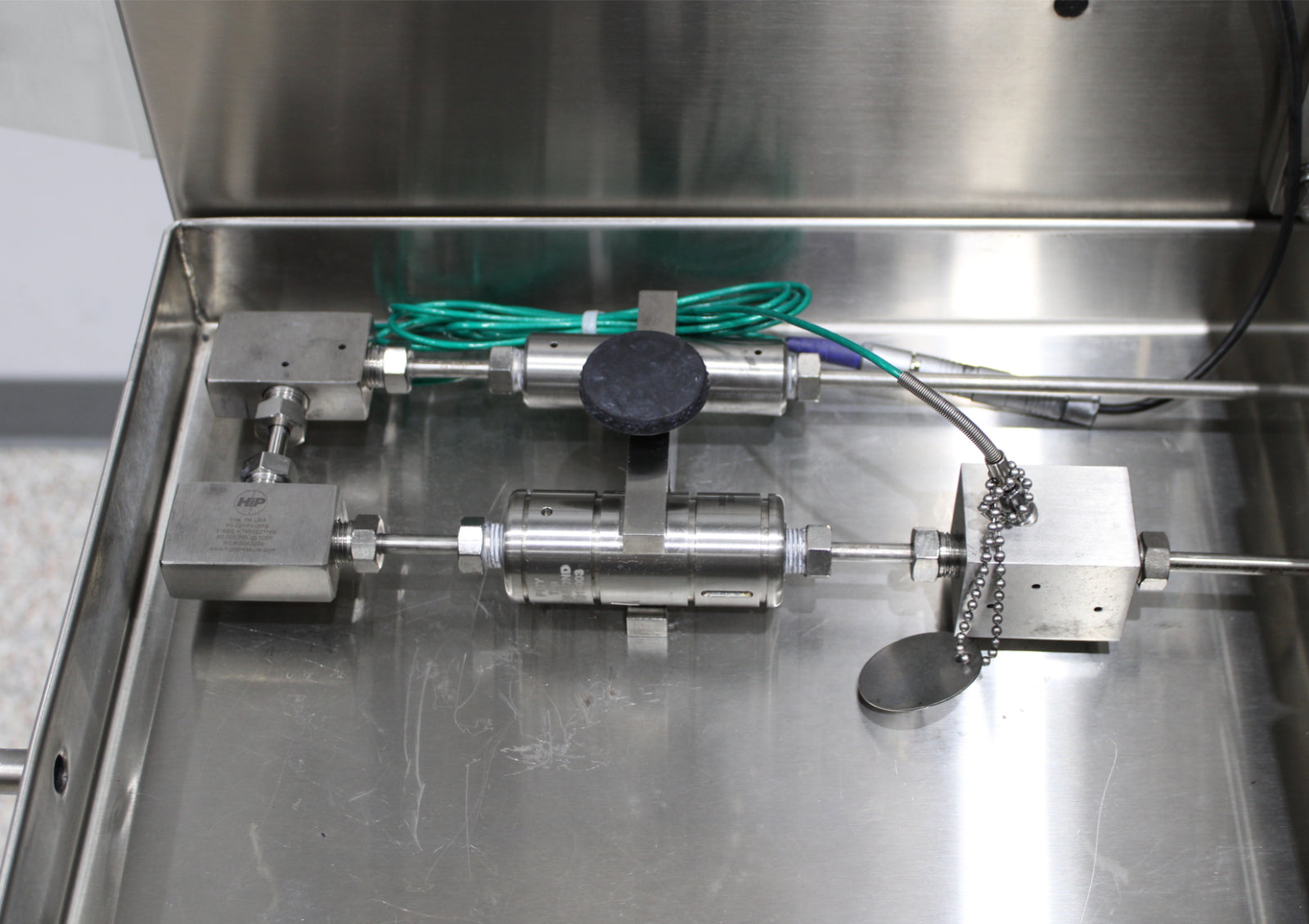

- F12Y 75 Micron Diamond Interaction Chamber (IXC)

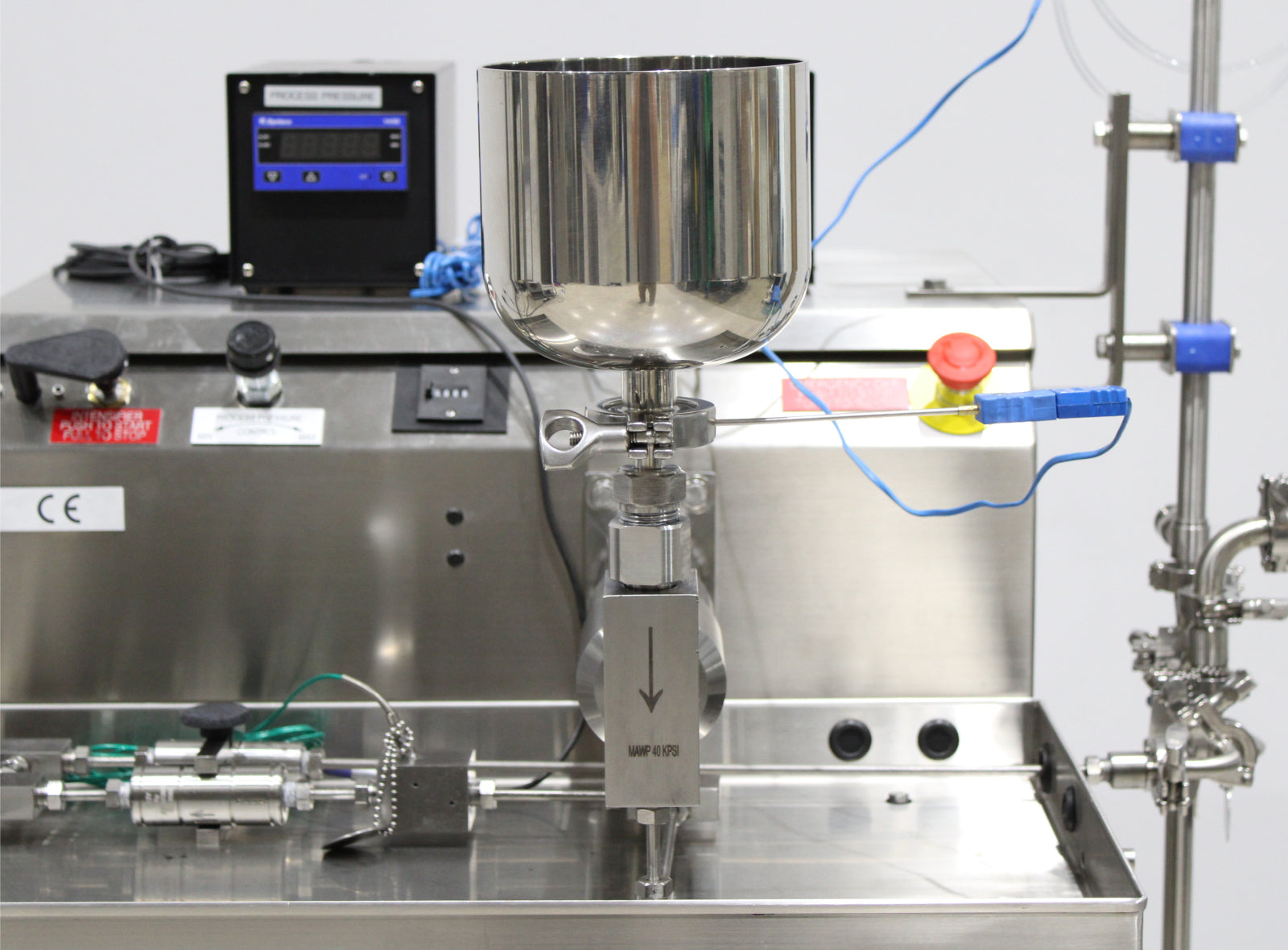

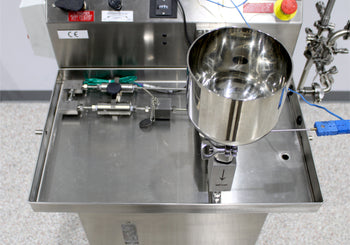

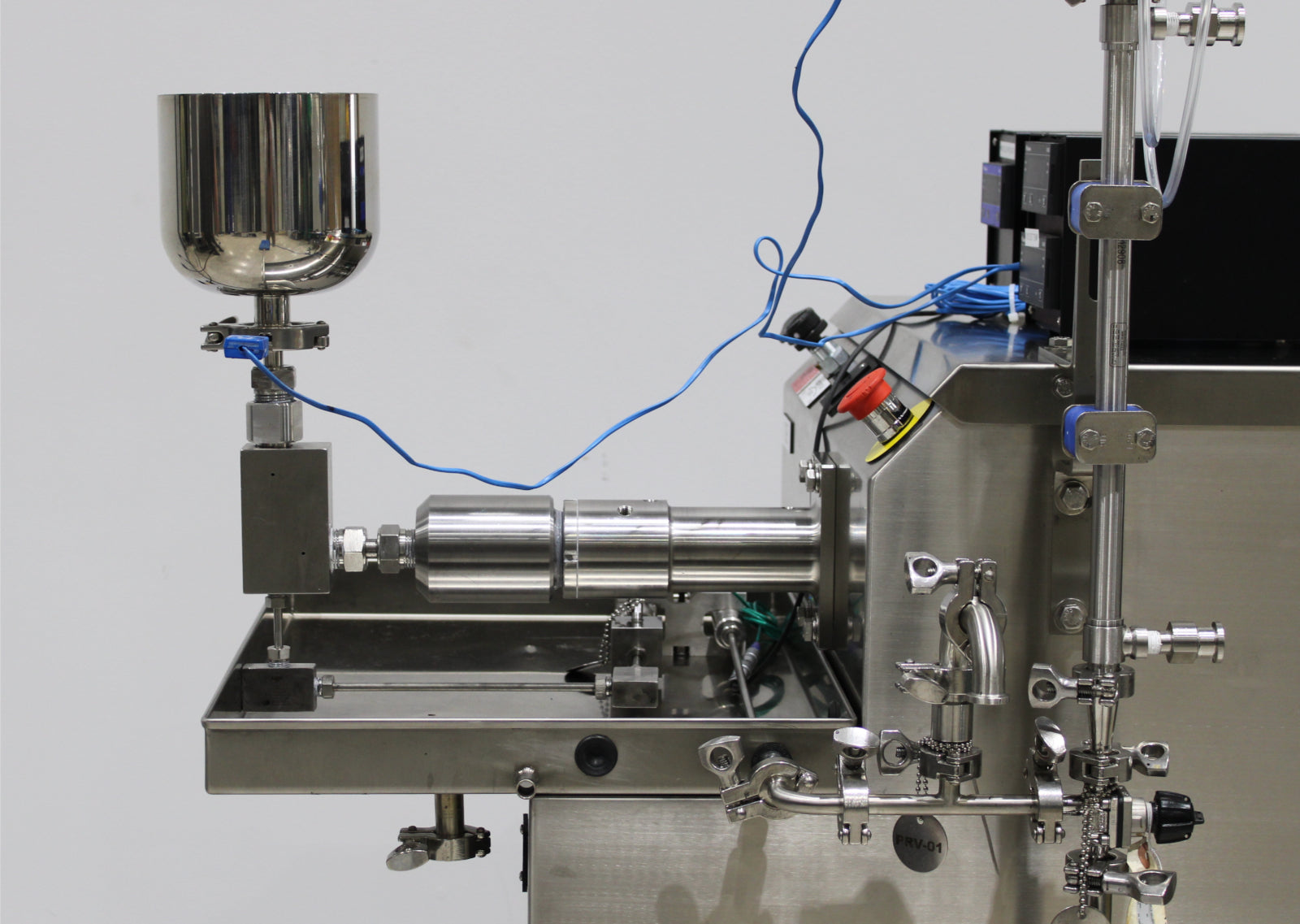

- 2 Liter Stainless Steel Reservoir
- External Product Heat Exchanger

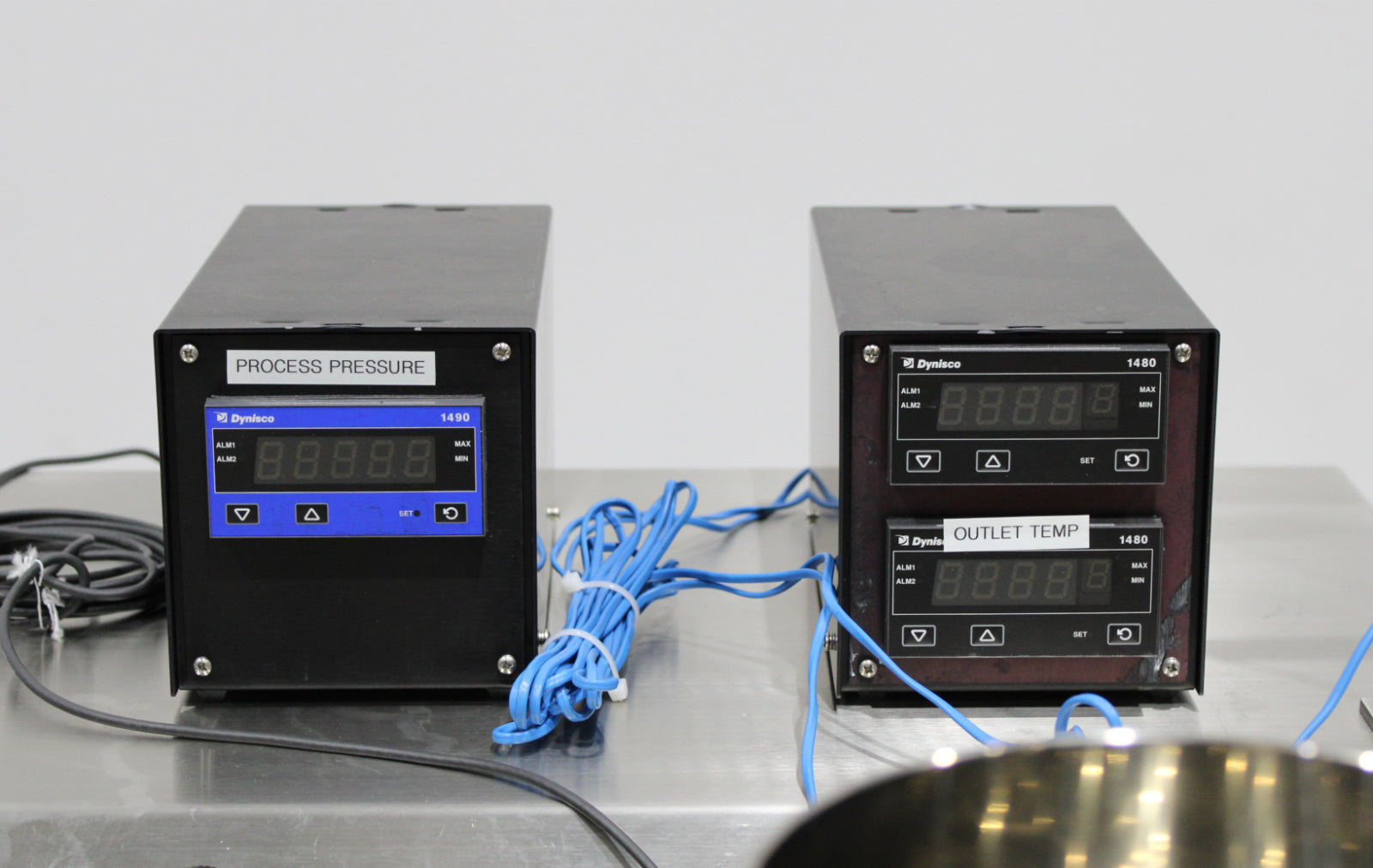

- Digital Process Pressure Gauge

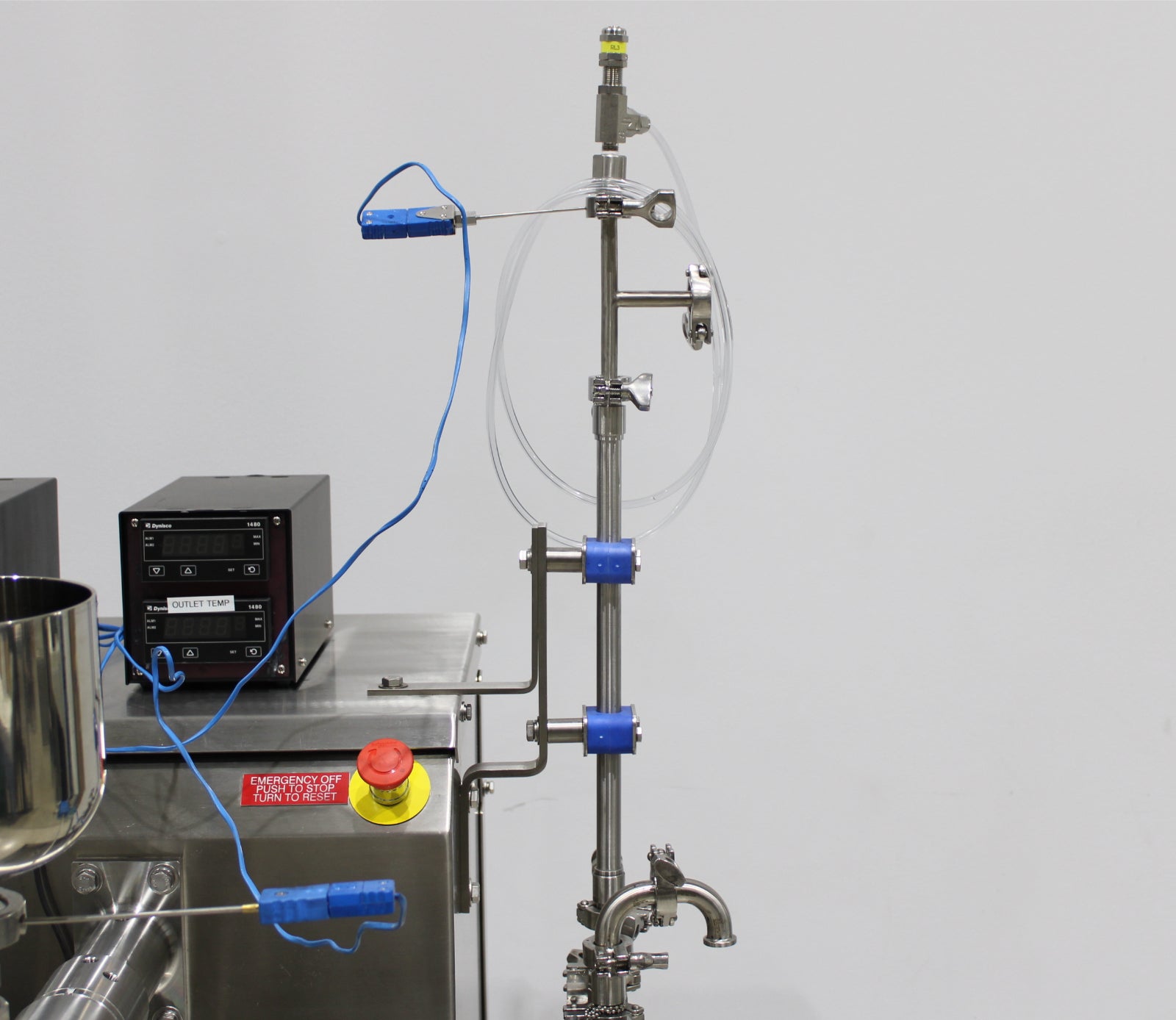

- Digital Dual Temperature Gauge with Thermocouples
- Intensifier Stroke Counter

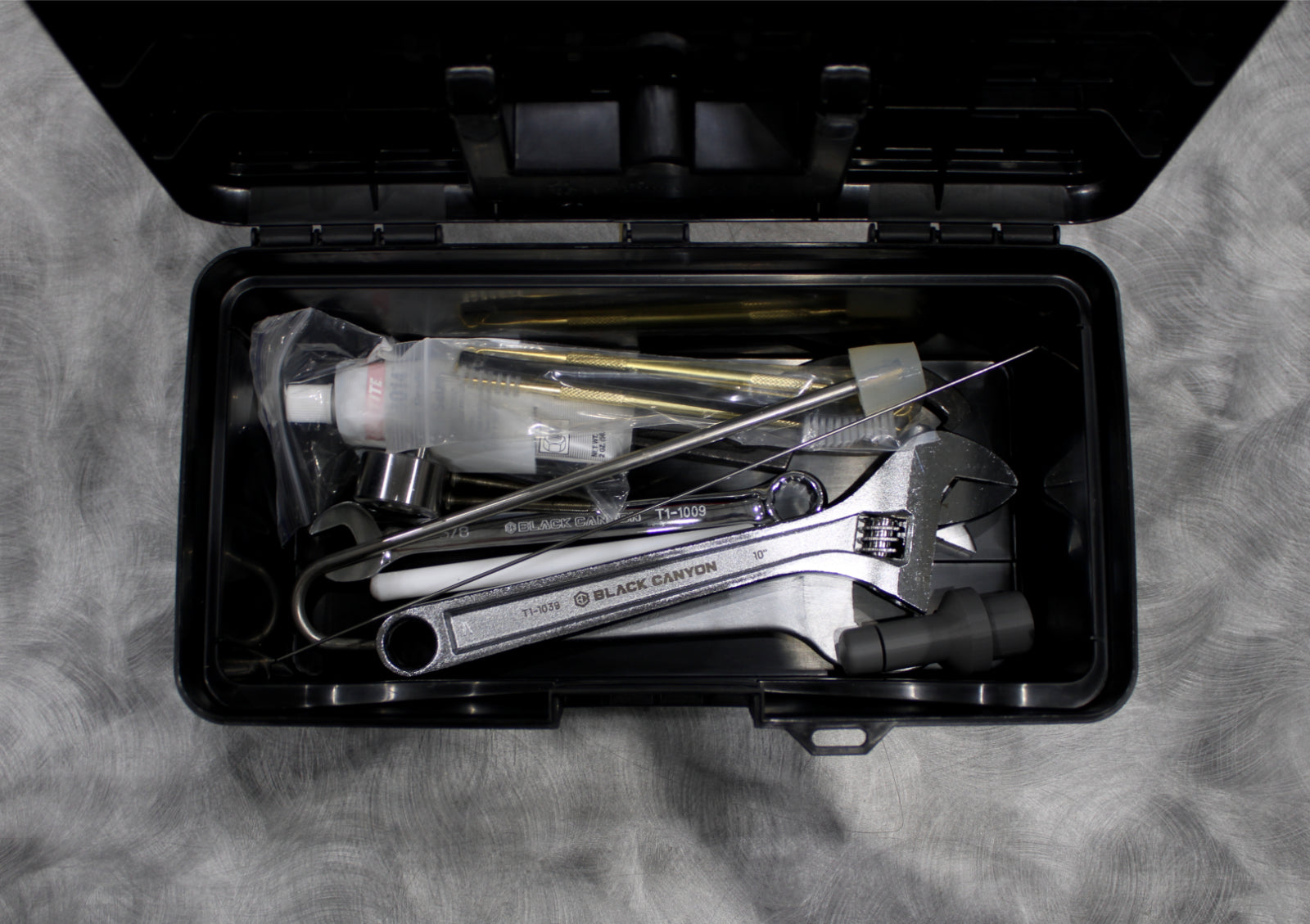

- Preventive Maintenance Toolkit
- Attached Power Cable with NEMA L15-20 Plug
- 90-Day Warranty
After its initial disinfection and inspection, our technicians tested the Microfluidics M-110EH-30 microfluidizer processor with the following results:
- Verify highest pressure ran 30,000 psi: PASSED
- Ran/sterilized with 2 liters of isopropyl alcohol: PASSED
- Cleaned/inspected liquid end and hydraulic end: PASSED

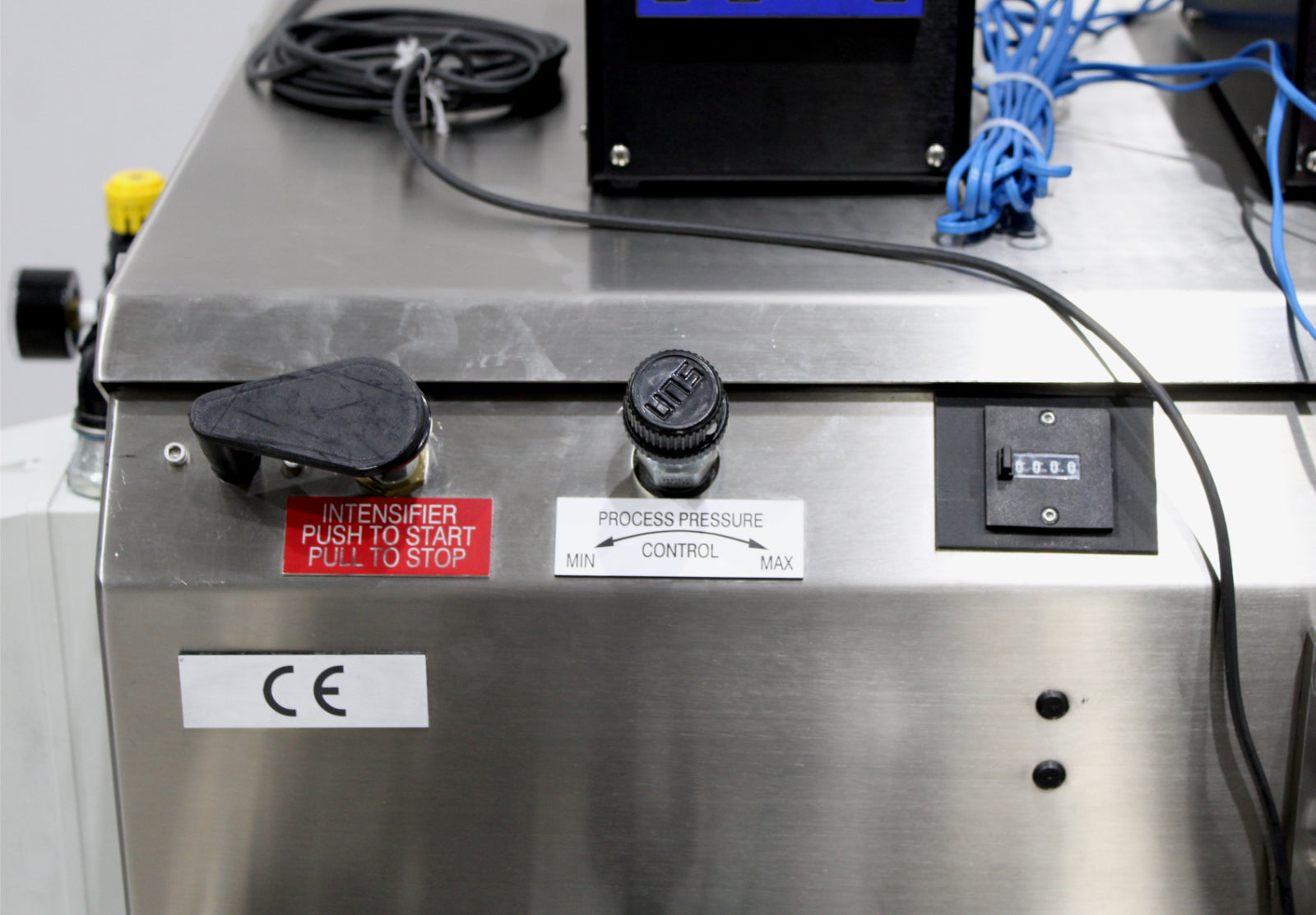

- Check process pressure control valve: PASSED
- Check motor start/stop control: PASSED

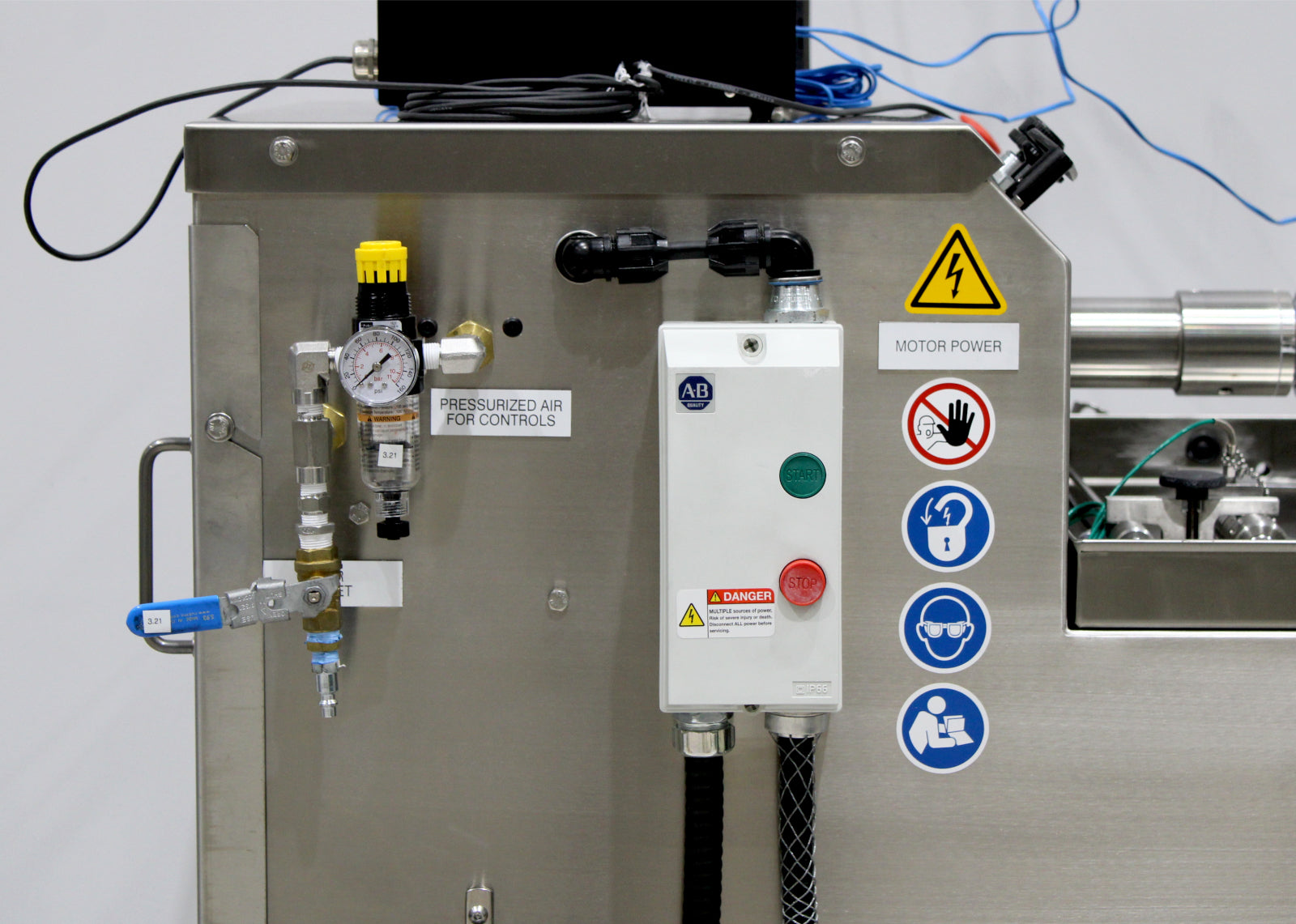

- Check pressurized air inlet assembly: PASSED
- Check hydraulic oil heat exchanger: PASSED
- Check/replace plunger seal assembly: PASSED
- Clean and inspect plunger: PASSED
- Cleaned and inspect bearing isolator/Orings: PASSED
- Clean and inspect/replace high pressure fittings: PASSED
- Clean and inspect/replace inlet check valve: PASSED

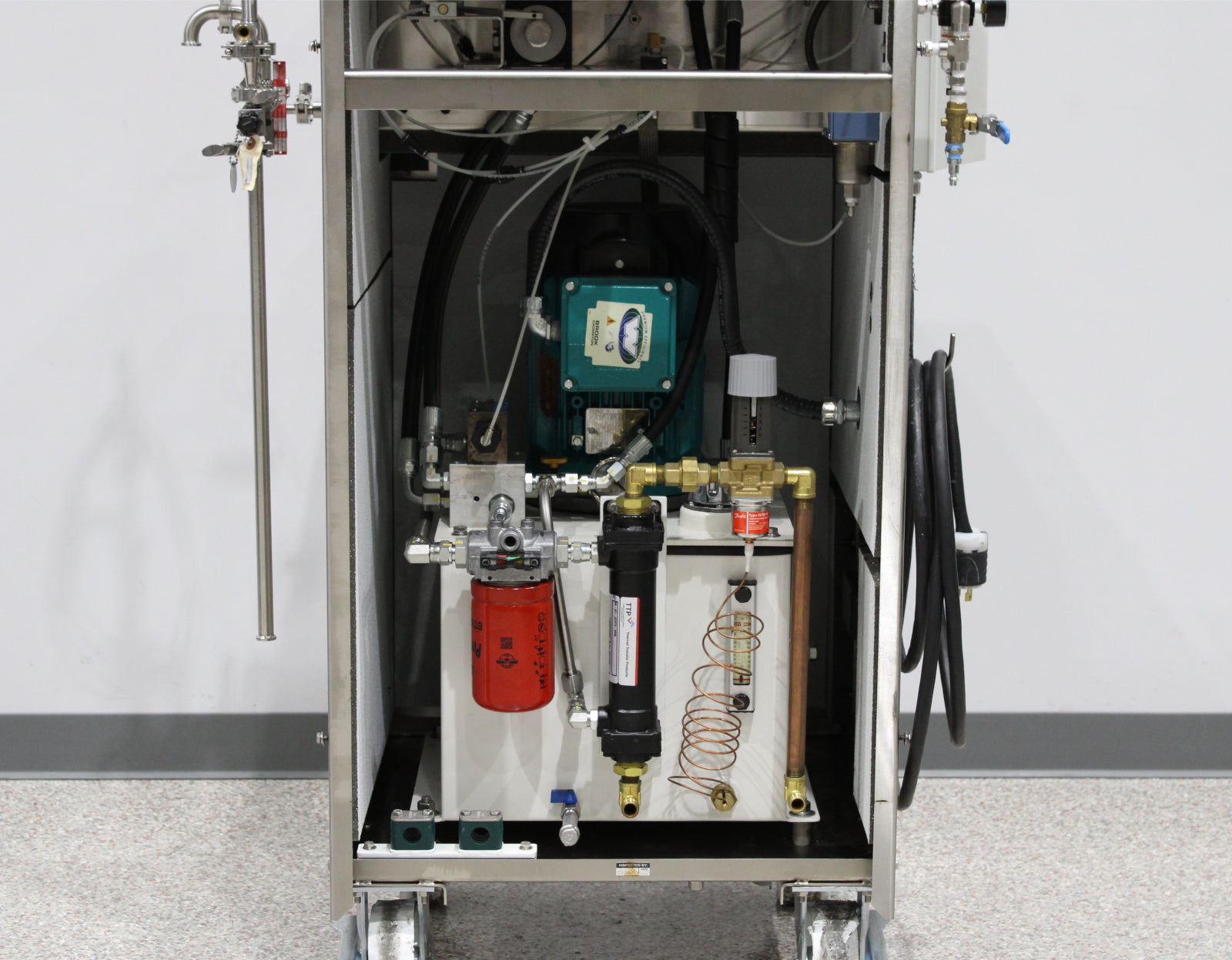

- Check/replace hydraulic oil and filter: PASSED
- Clean the hydraulic oil reservoir: PASSED
- Clean hydraulic oil suction strainer: PASSED
- Inspect/replace hydraulic cylinder seals: PASSED
- Inspect/replace pneumatic switches: PASSED
- Backflush the interaction chamber: PASSED

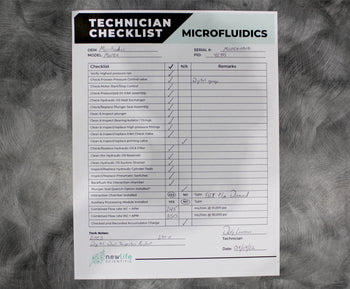

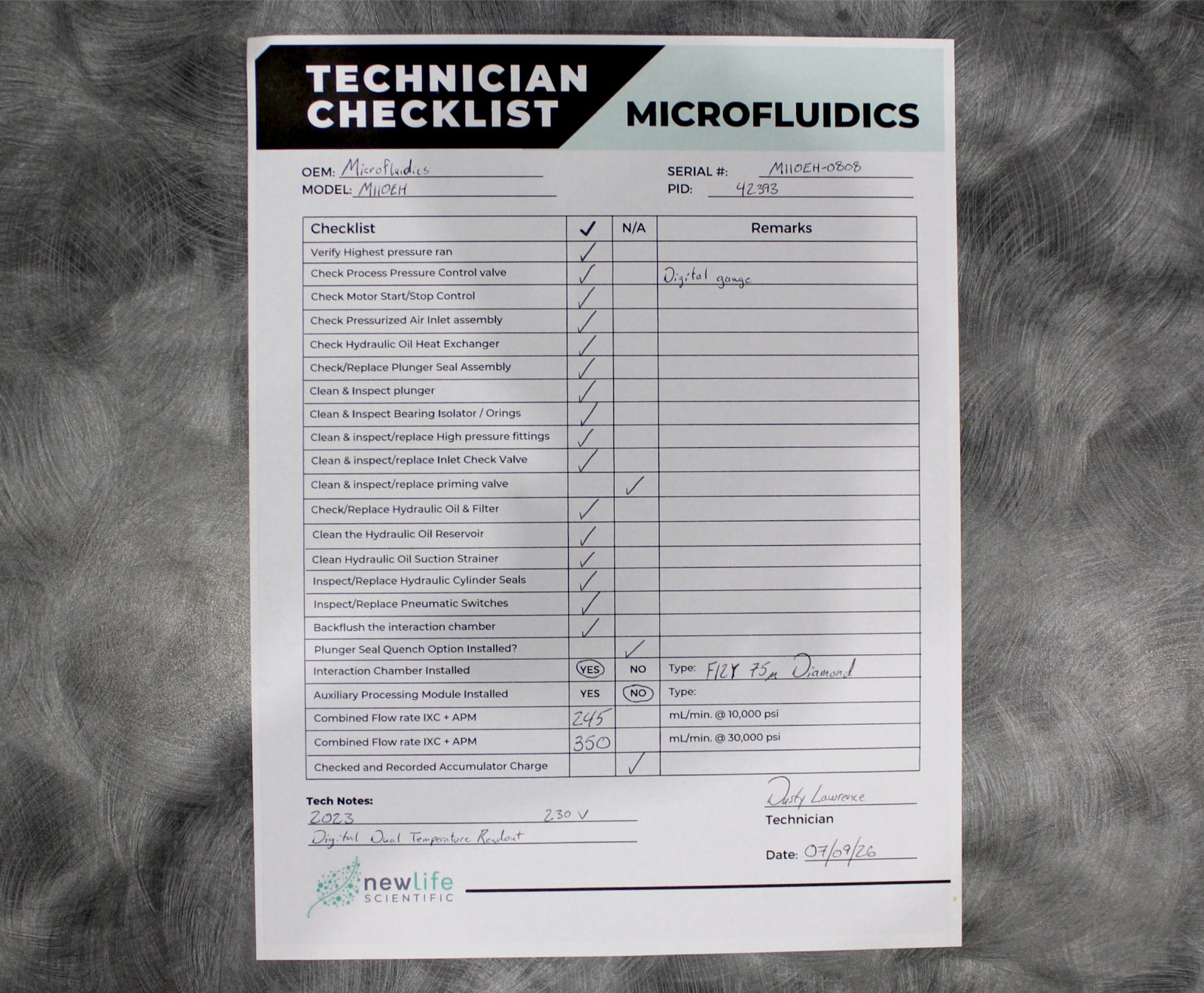

Notice: Please review the technician checklist in the product images to see more details of the inspection and testing performed.
|

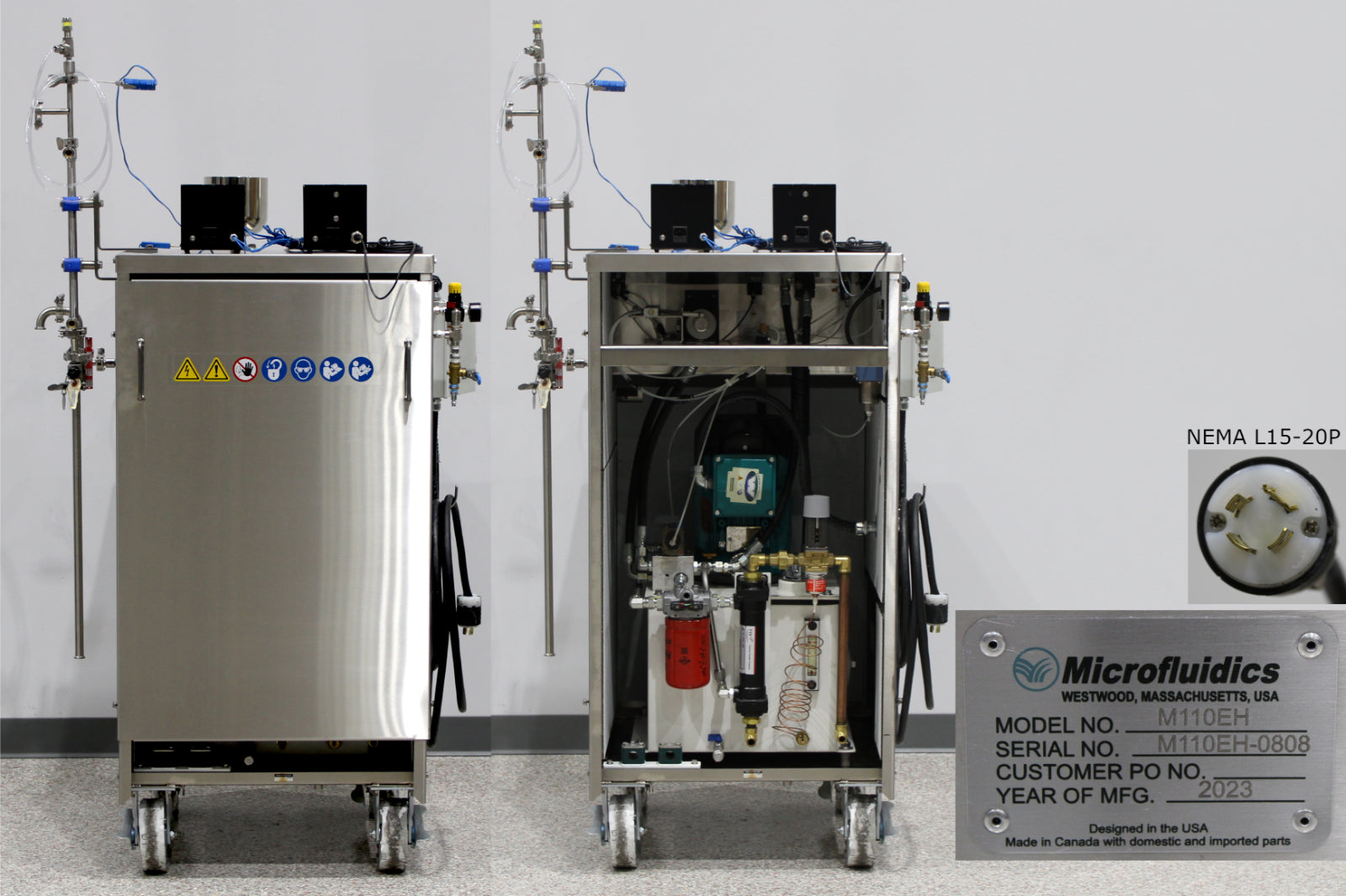

Manufacturer
|
Microfluidics
|
|
Model
|
M-110EH-30
|
|
Model No.
|
M110EH
|
|
Serial No.
|
M110EH-0808
|
|
Mfg. date
|
2023
|
|
Pressure range
|
Up to 30,000 psi (2068 bar)
|
|
Minimum sample size
|
120 ml
|
|
Flow rate range
|
295 - 450 ml/min
|
|
Air requirements
|
Requires 0.03m3 @ 3.4 bar with -25°C to -17°C (1 SCFM @ 50 psi, -35°F to 0°F) dew point air
|
|
Noise level
|
<80dB TWA
|
|
Plug type
|
NEMA L15-20P
|
|
Electrical power requirements
|
230/460 V, 3PH, 60Hz (380/400 V, 3PH, 50Hz)
|
|
Dimensions
|
38 x 30 x 59 in (97 x 76 x 150 cm)
|
|
Weight
|
450 lbs (205 kg)
|
