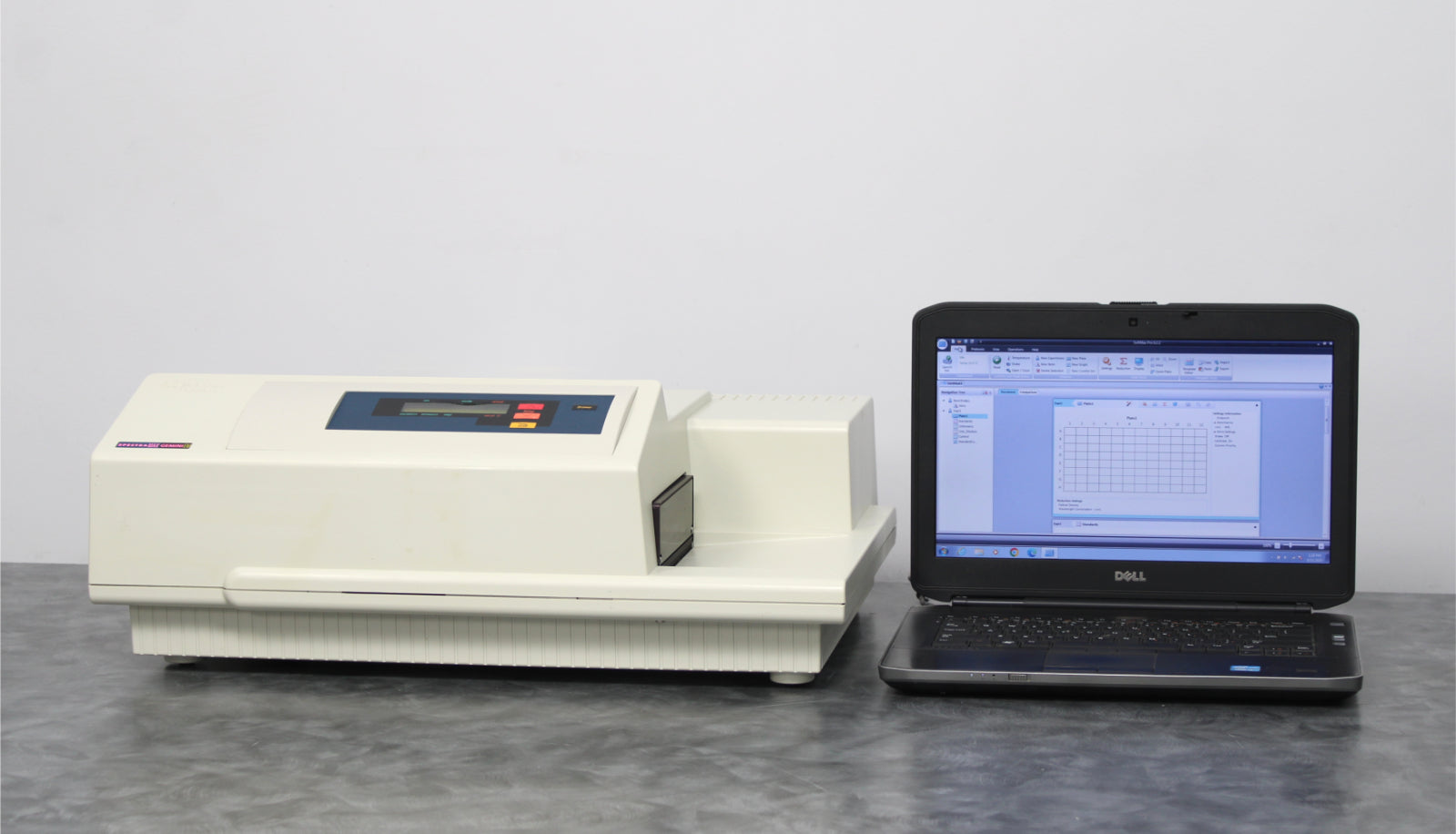

- Molecular Devices SpectraMax Gemini EM Microplate Fluorescence Reader

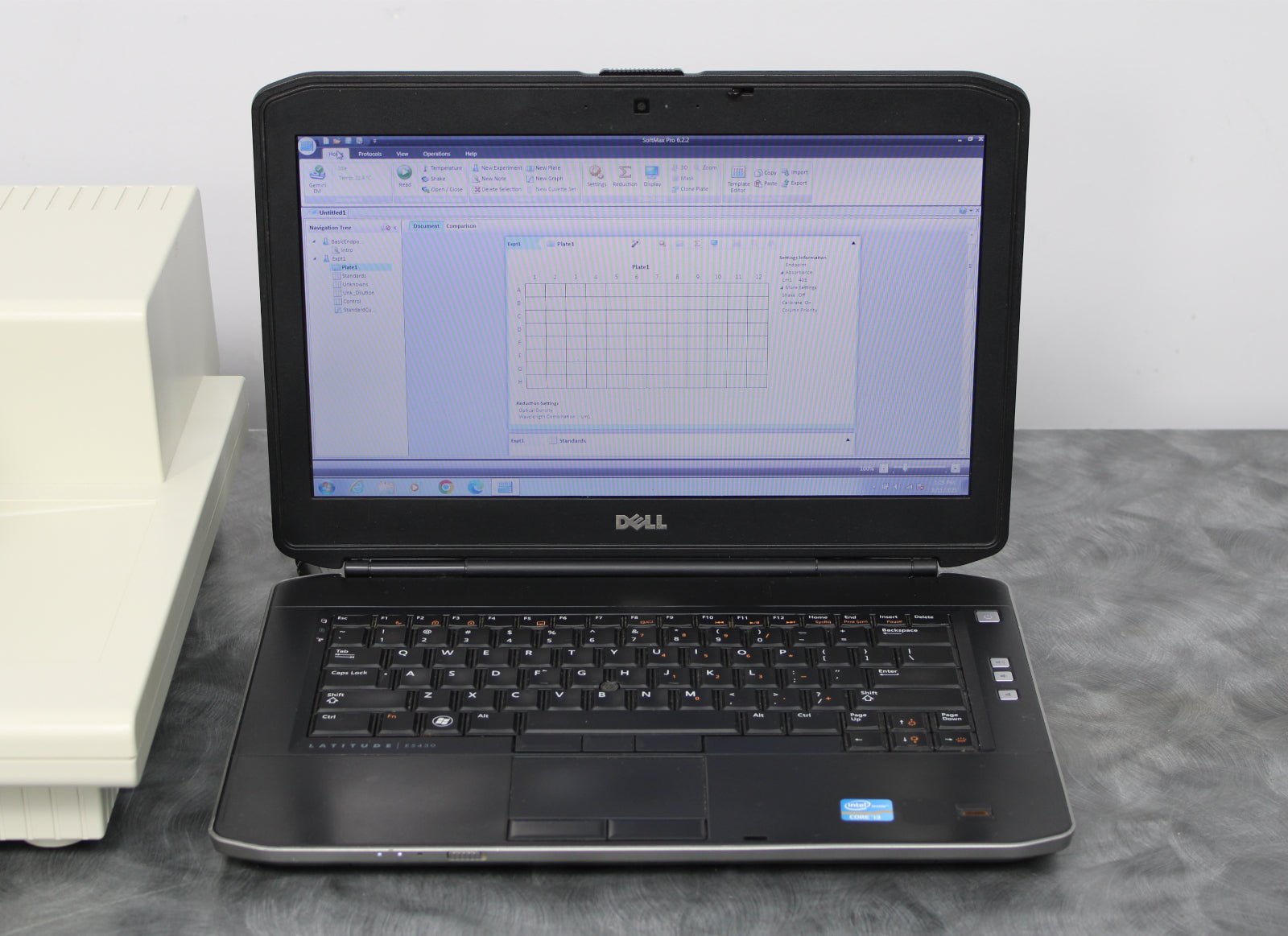

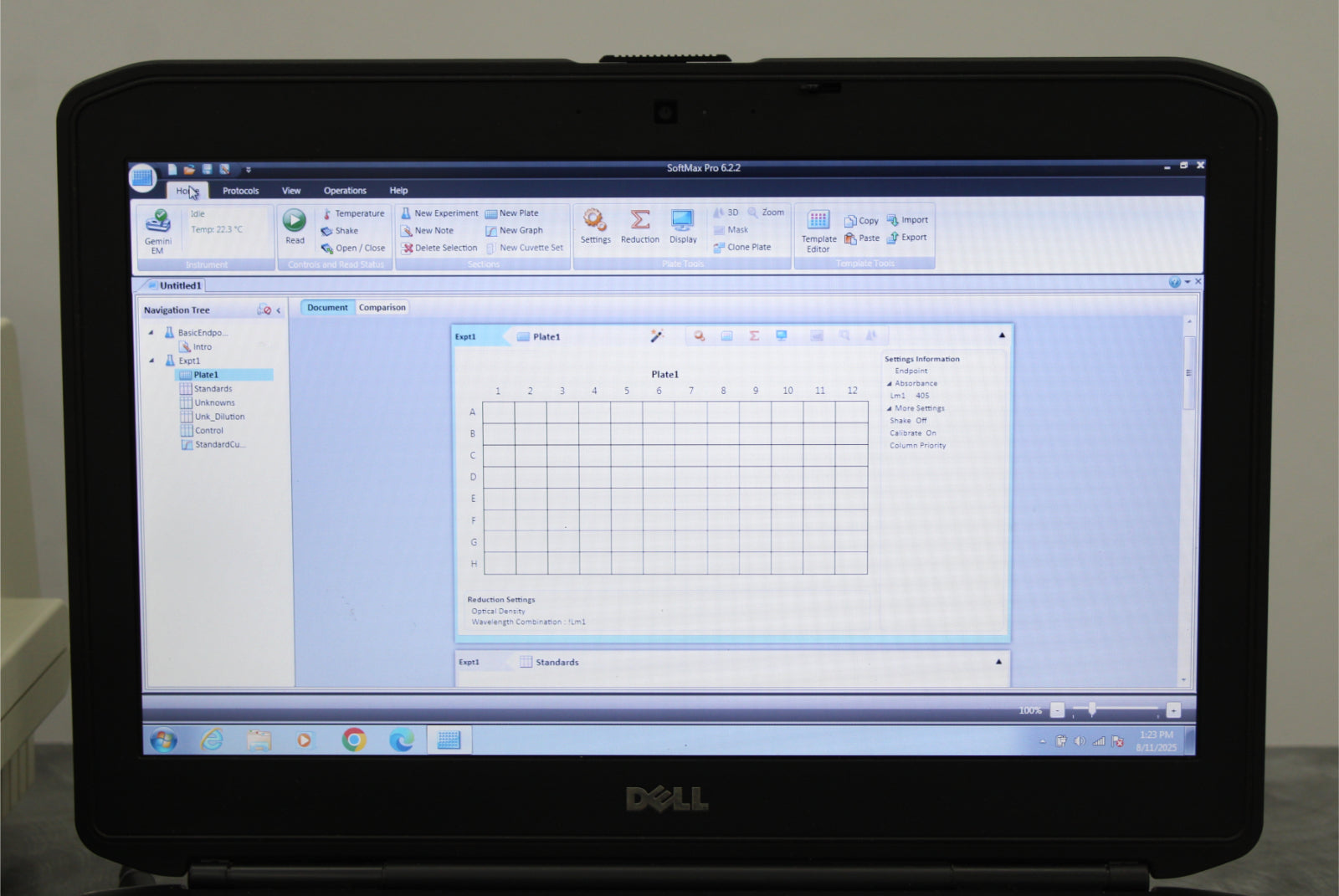

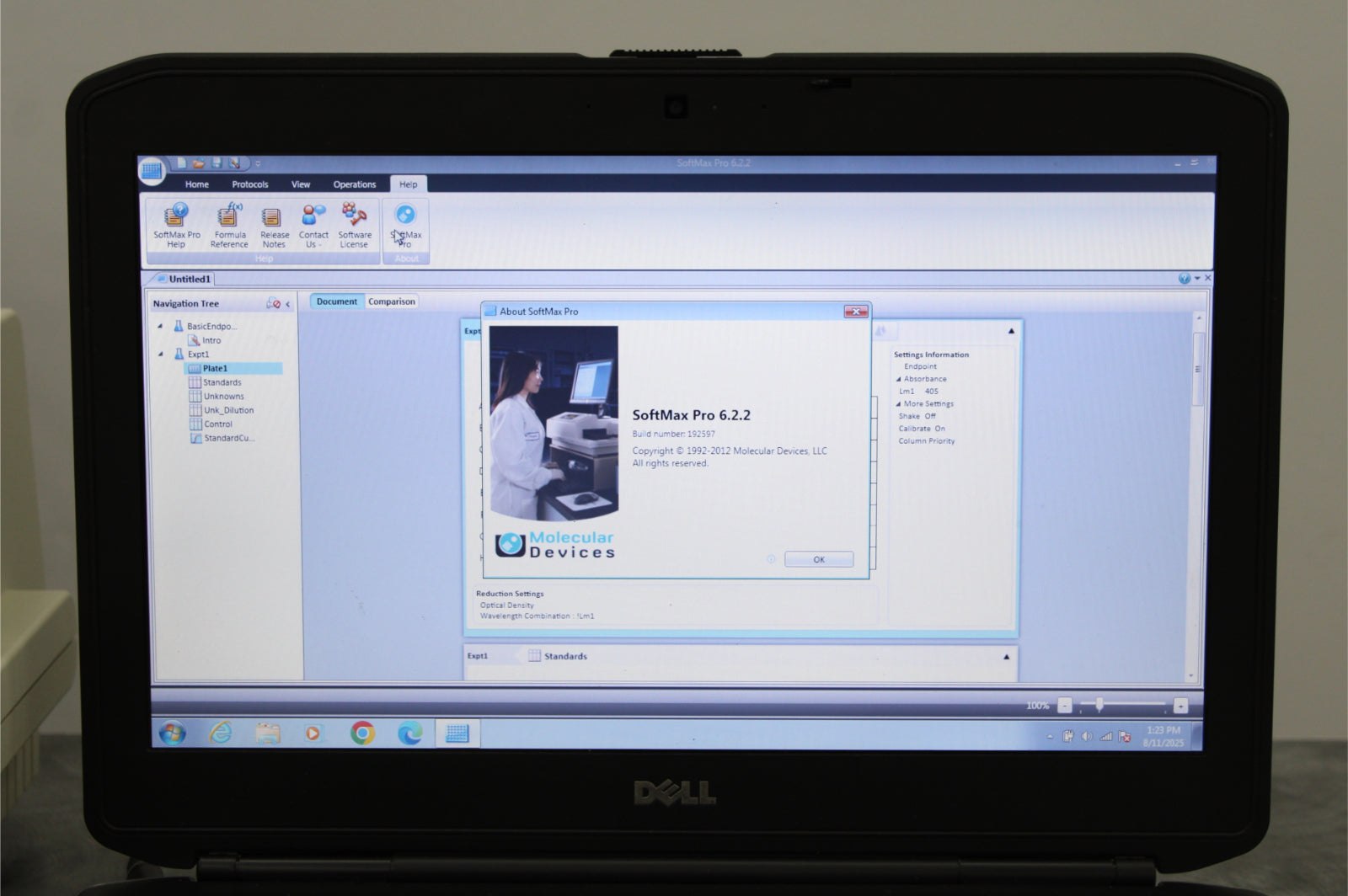

- Laptop with SoftMax Pro v6.2 Software Installed
- Laptop Charger
- USB to Serial Cable
- Serial Adapter Cable
- Power Cable
- 90-Day Warranty
After its initial disinfection and inspection, our technicians tested the Molecular Devices SpectraMax Gemini EM microplate fluorescence reader with the following results:
- Powers on, initializes, and connects to control software: PASSED
- Ran several blank runs for stray light testing: PASSED
- Ran plate with fluorescence: PASSED

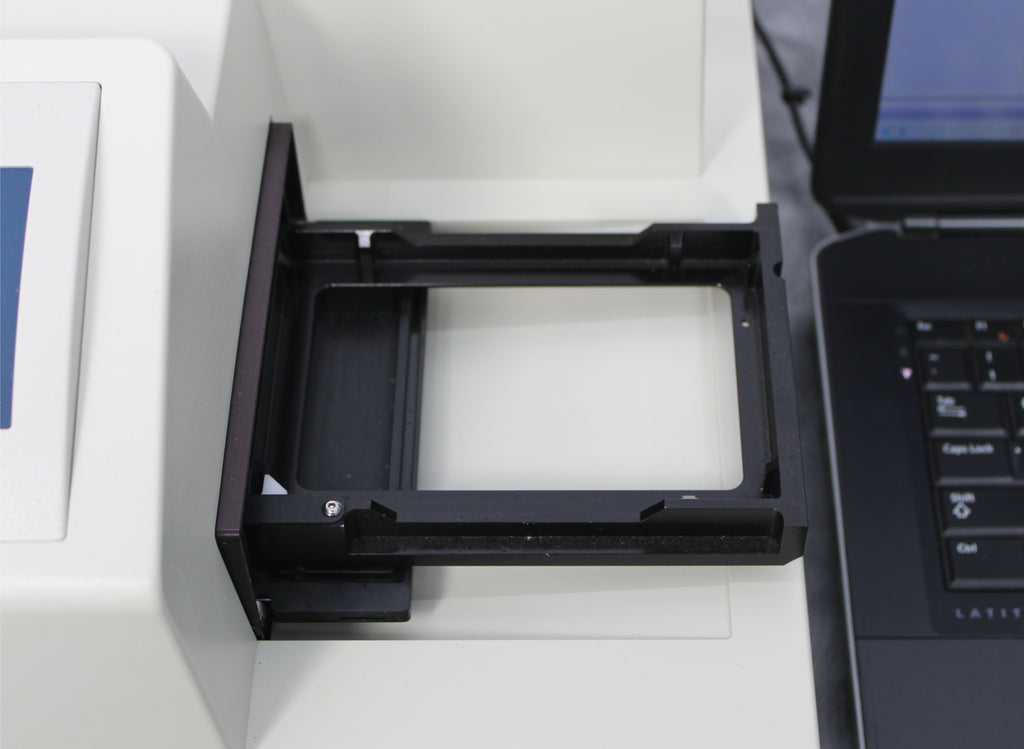

- Plate loading/unloading: PASSED

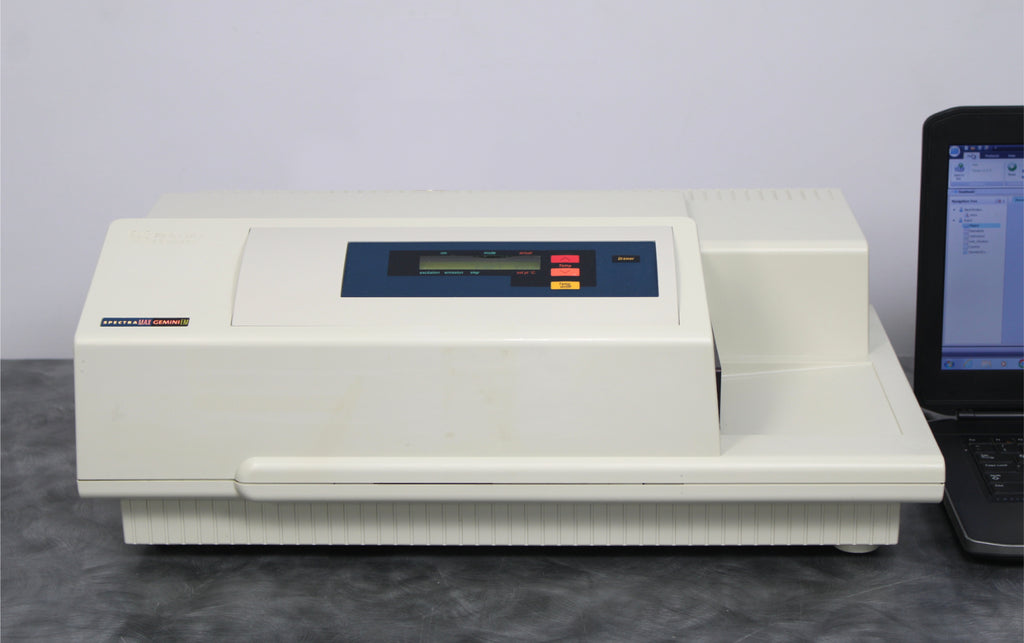

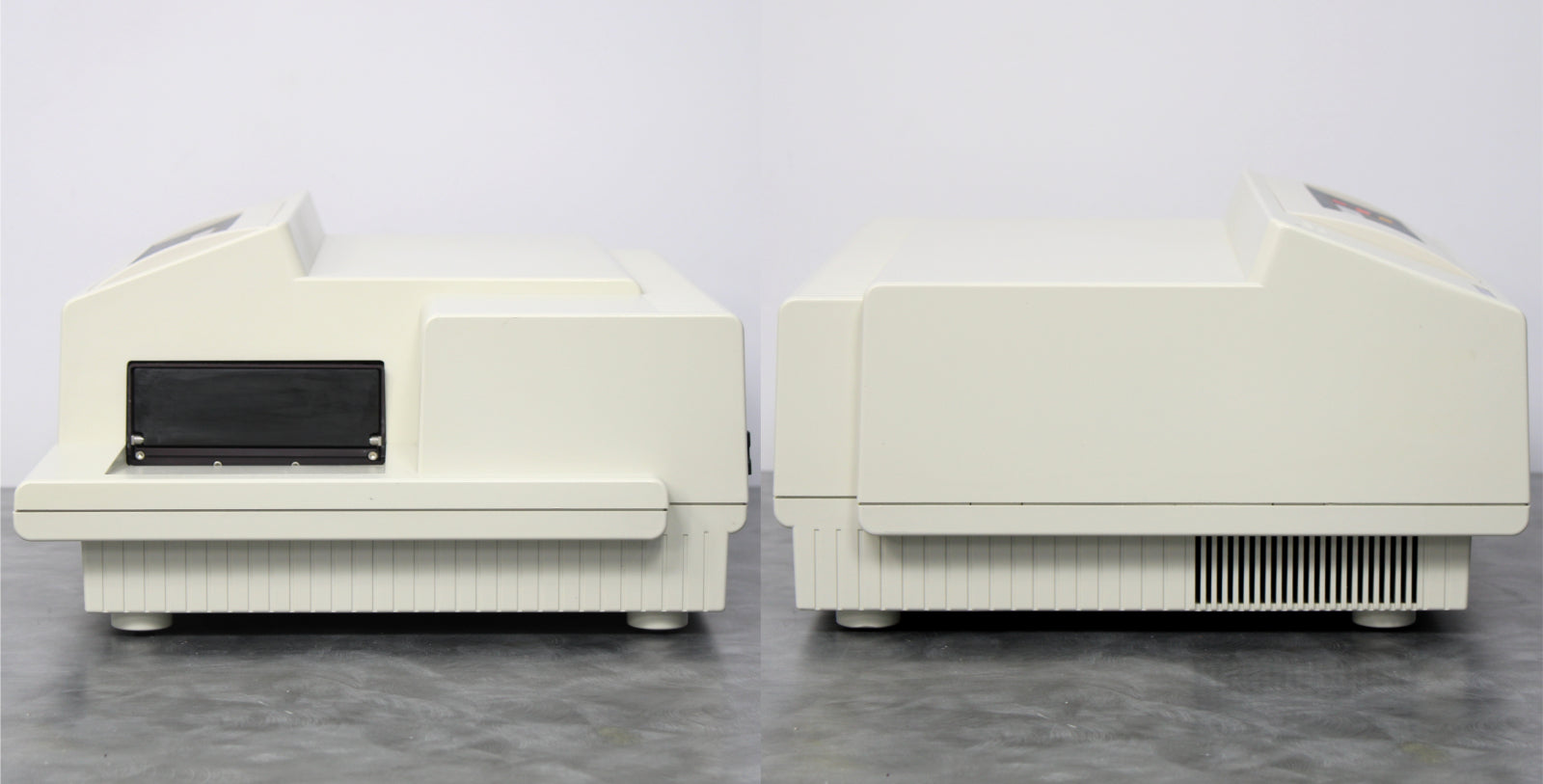

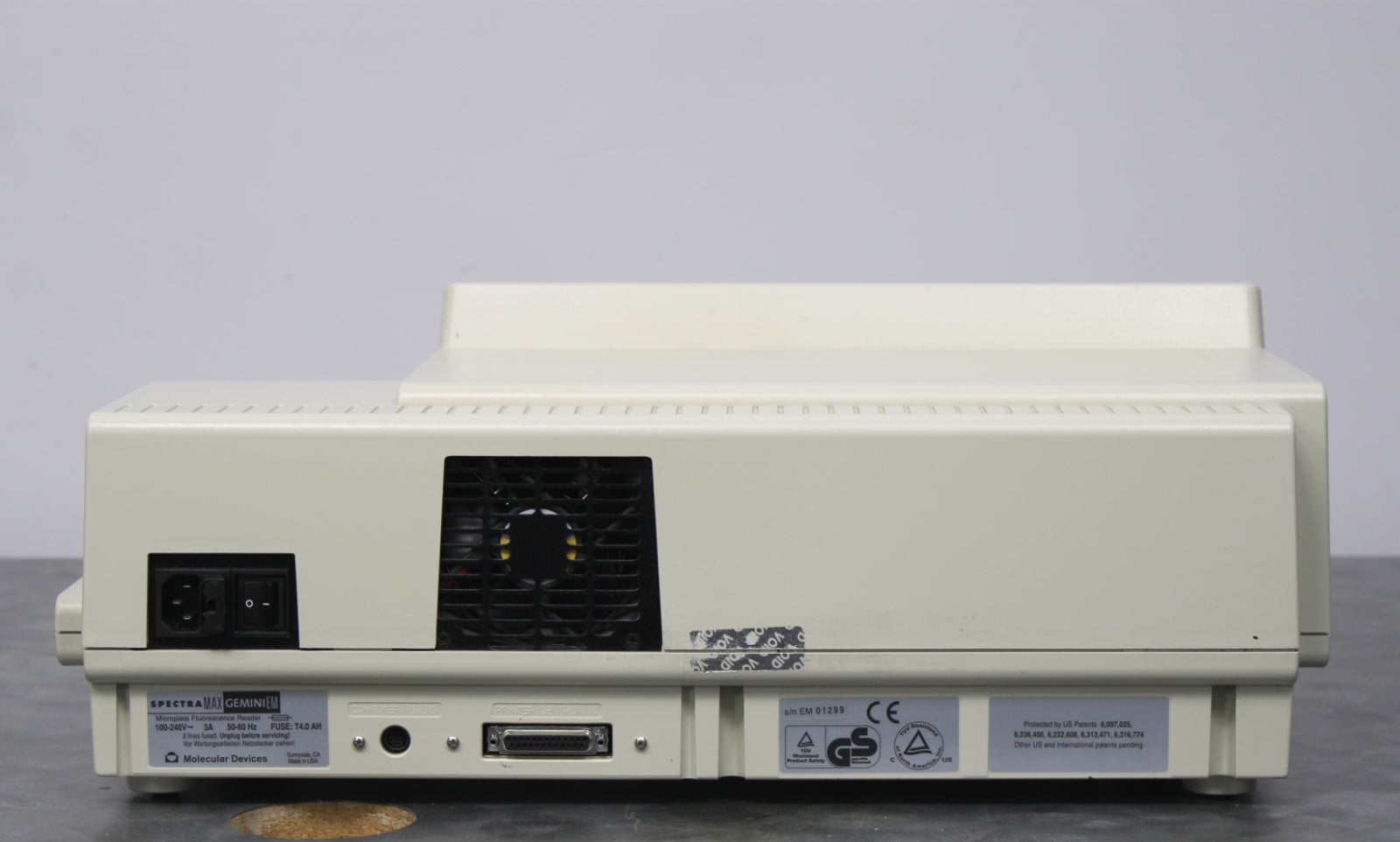

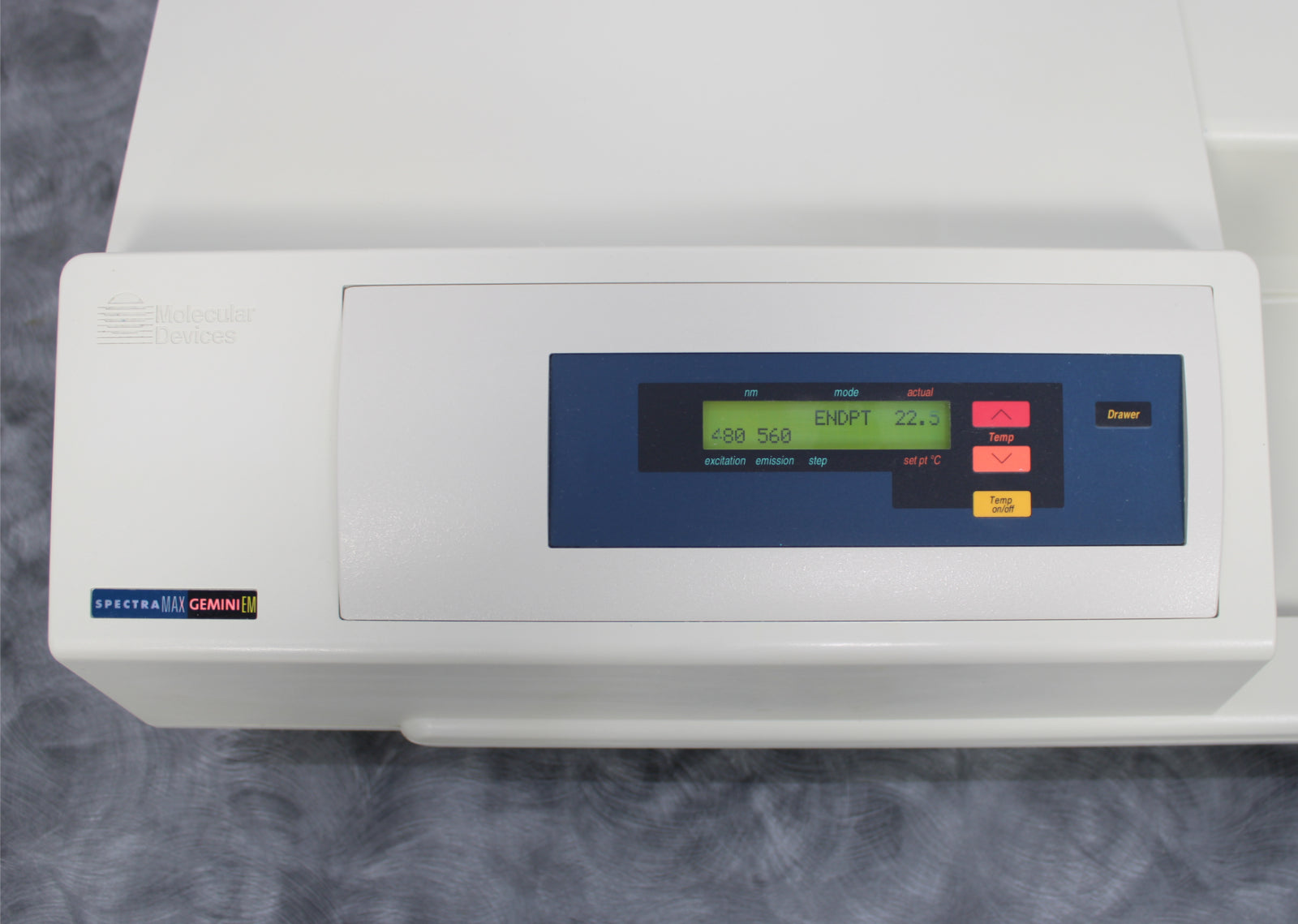

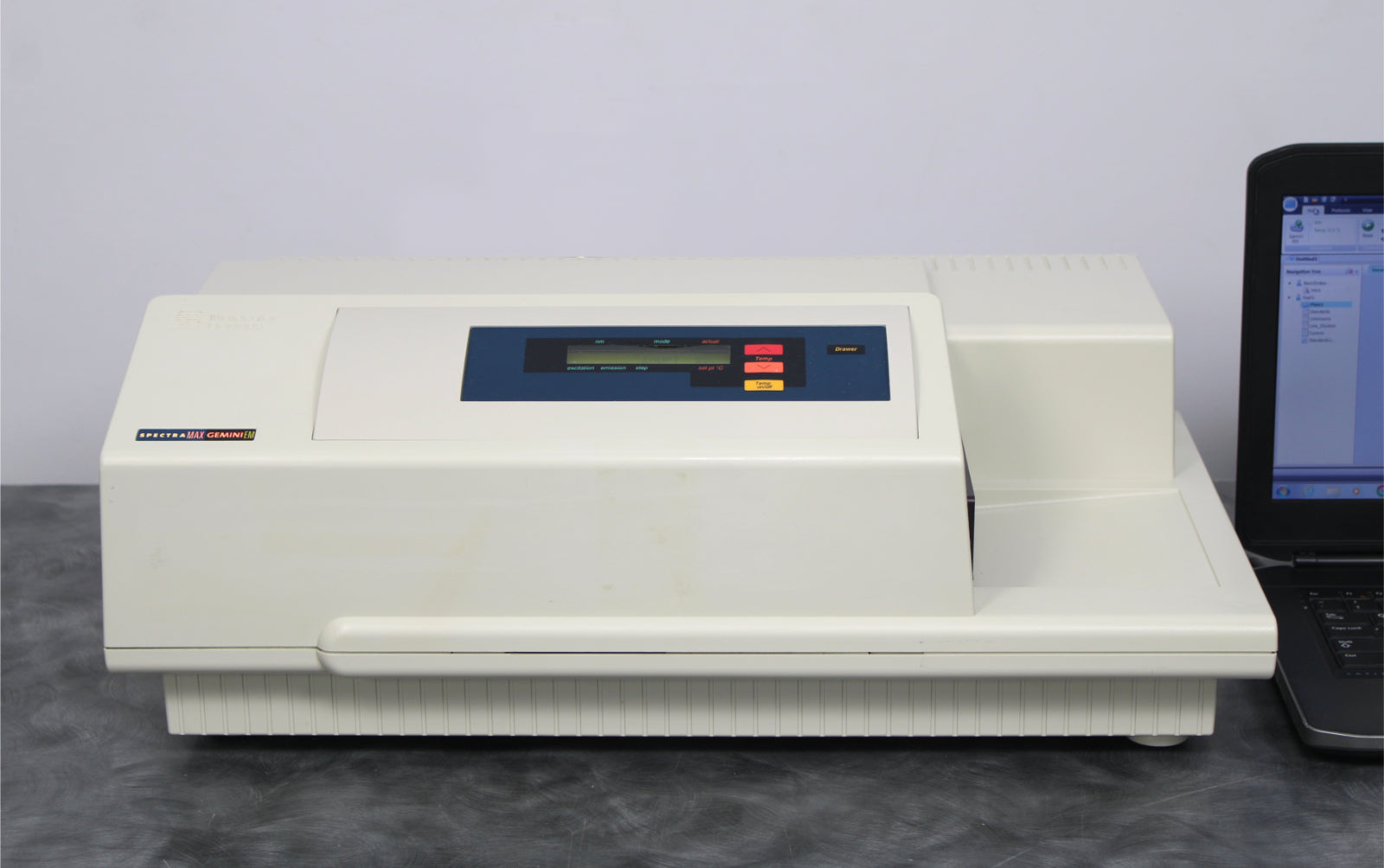

Notice: This reader has some minor cosmetic blemishes. Please review the available photos to see the physical condition before purchasing.
|
Manufacturer
|
Molecular Devices
|
|
Model
|
SpectraMax Gemini EM
|
|

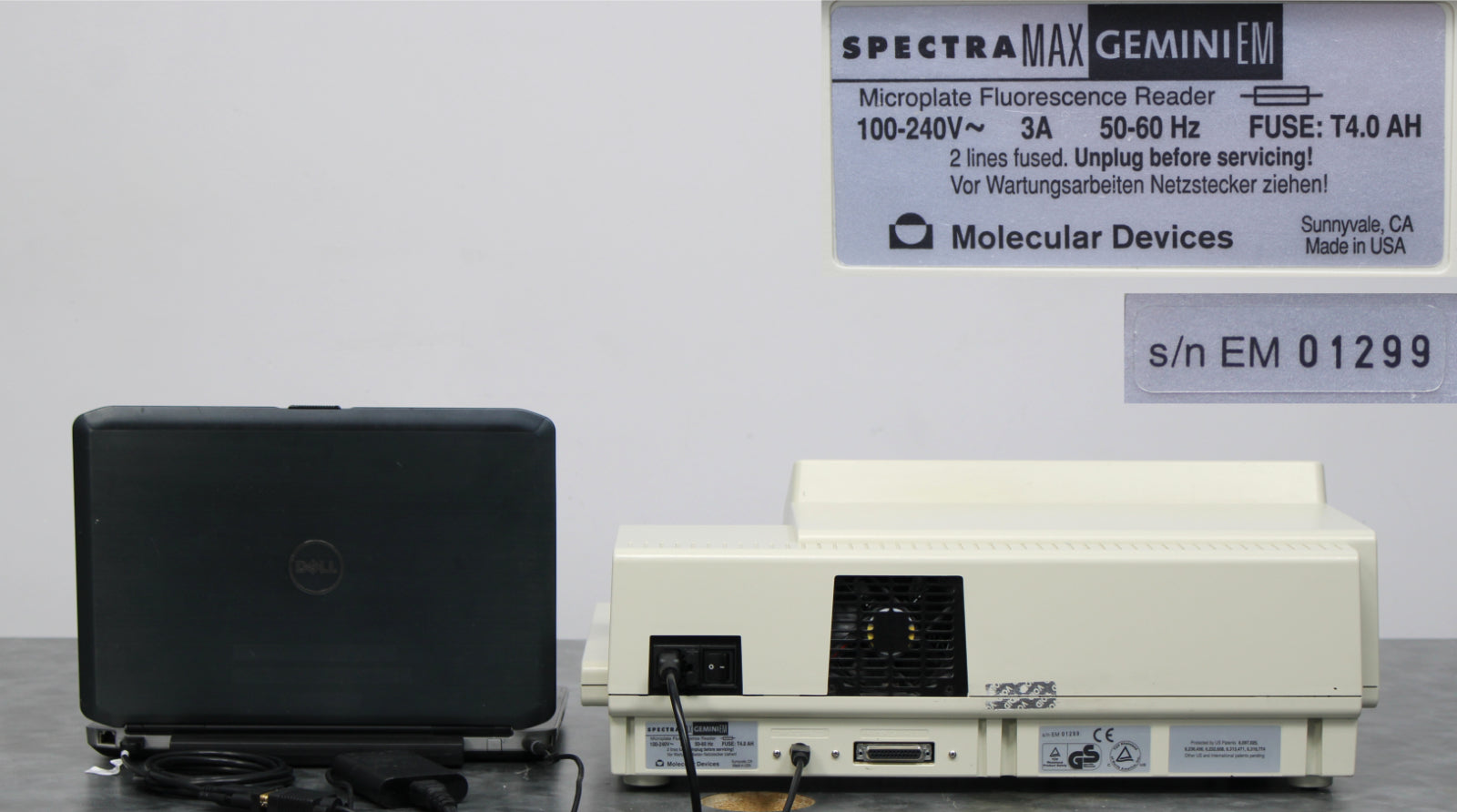

Serial No.
|
EM01299
|
|
Fluorescence photometric performance specifications
|
|
|
Dual monochromators
|
1 nm increment selection
|
|
EX wavelength range
|
250-850 nm
|
|
EM wavelength range
|
250-850 nm
|
|
Wavelength bandwidth (EX, EM)
|
9 nm
|
|
Top-read detection limit (signal 3X SD of baseline)
|
3.0 fmol/well FITC 200 µL in 96 wells
|
|
Bottom-read detection limit (signal 3X SD of baseline)
|
8.0 fmol/well FITC 200 µL in 96 wells
|
|
Time-resolved fluorescence specifications (secondary mode)
|
|
|
Wavelength range
|
250-850 nm
|
|
Data collection
|
50-1450 µsec., 200 µsec. increments
|
|
Sensitivity
|
0.5 fmol/well Eu-chelate (obtained with DELFIA reagent from Perkin Elmer using a 384-well plate)
|
|
Luminescence specifications (secondary mode)
|
|
|
Detection limit
|
10 amol/well alkaline phosphatase
200 µL/well (obtained with Emerald II reagent from Applied Biosystems)
|
|
General photometric performance specifications
|
|
|
Plate formats
|
6, 12, 24, 48, 96, 384 wells
|
|
Light source
|
Xenon flash lamp (1 joule/flash)
|
|
Detector
|
Photomultiplier (R-3896)
|
|
Read time
|
96 wells < 15 sec., 384 wells < 45 sec.
|
|
Shaker time
|
0 to 999 seconds
|
|
Temperature range
|
Ambient +4°C to 45°C
|
|
General specifications
|
|
|
Robot compatible
|
Yes
|
|
Power rating
|
100-240V~, 50-60Hz, 3A
|
|
Power consumption
|
<125W
|
|
Dimensions (W x D x H)
|
22.8 x 15 x 8.6 in (58 x 38 x 22 cm)
|
|
Weight
|
35 lb (15.9 kg)
|
