**Currently en route to our facility. It will take about 30 days to arrive, after which we will test and certify it.**
Included Items:

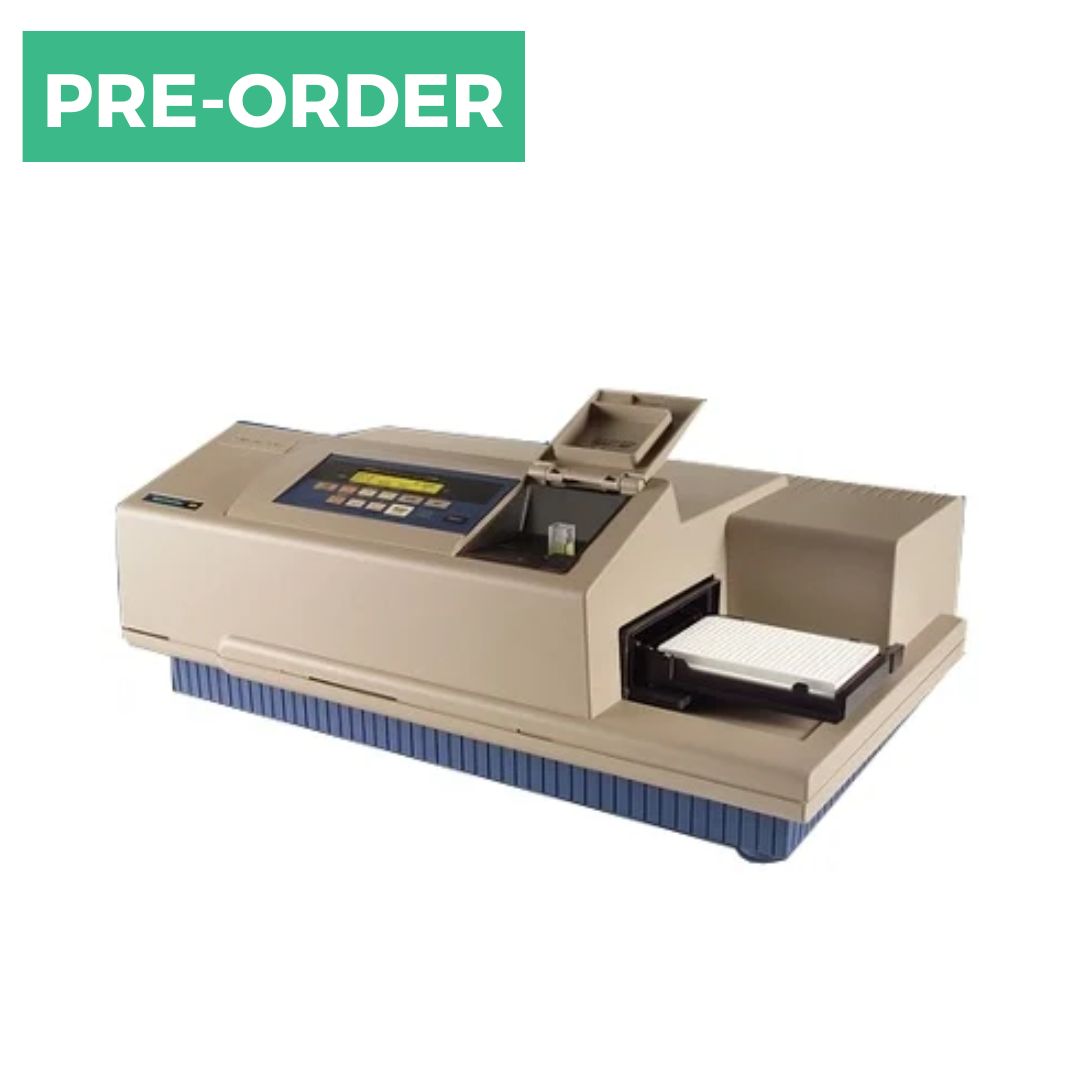

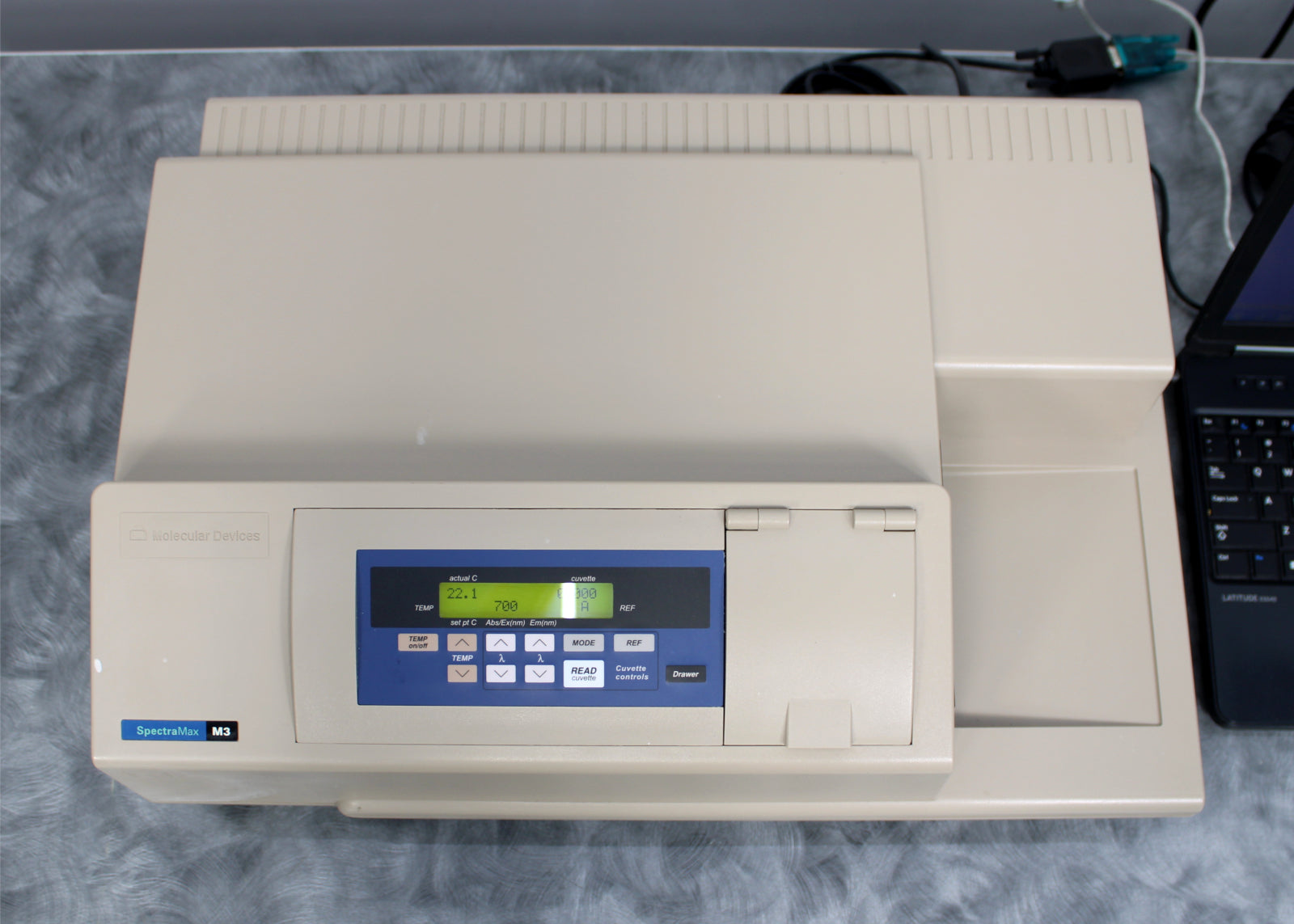

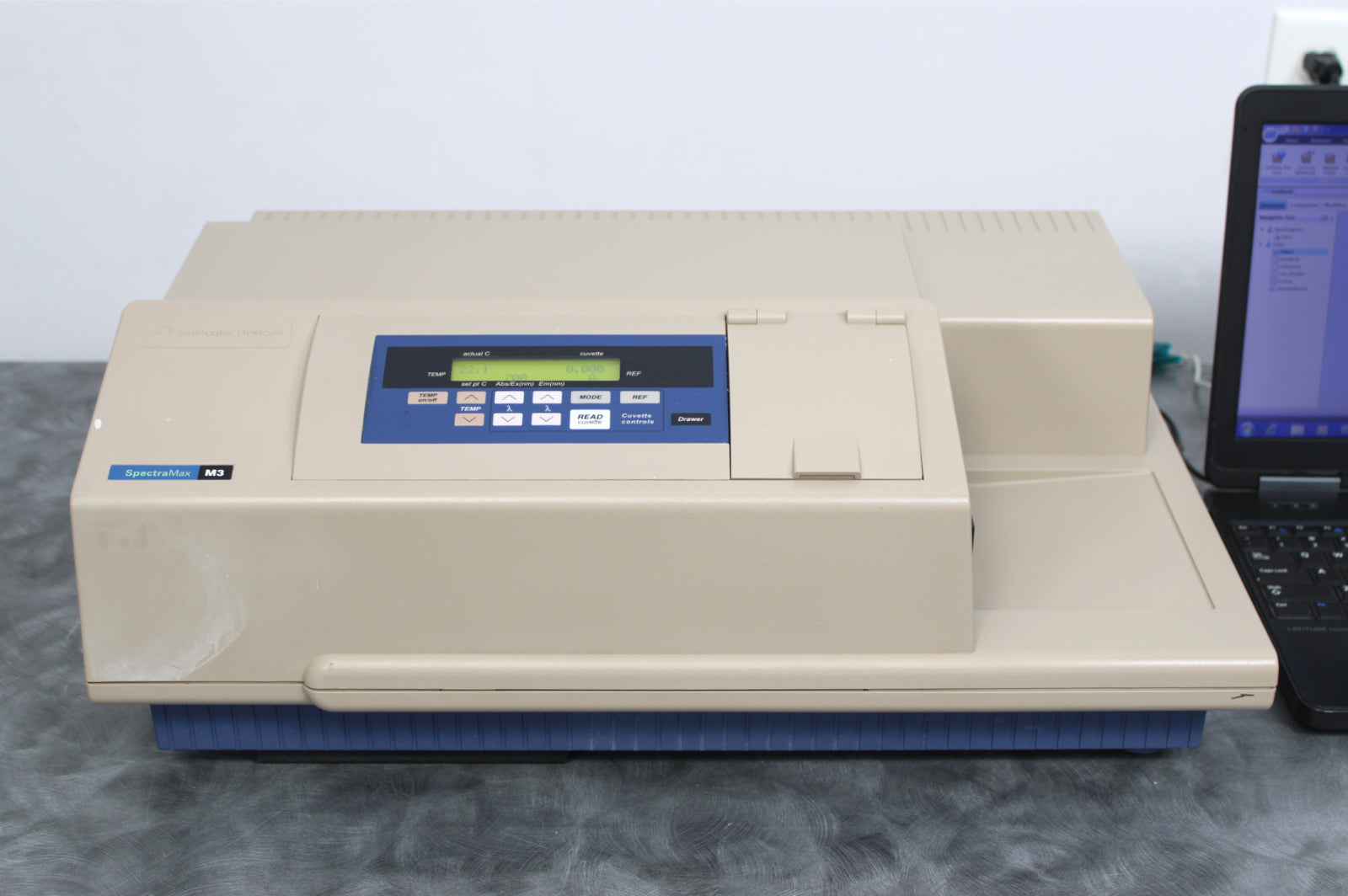

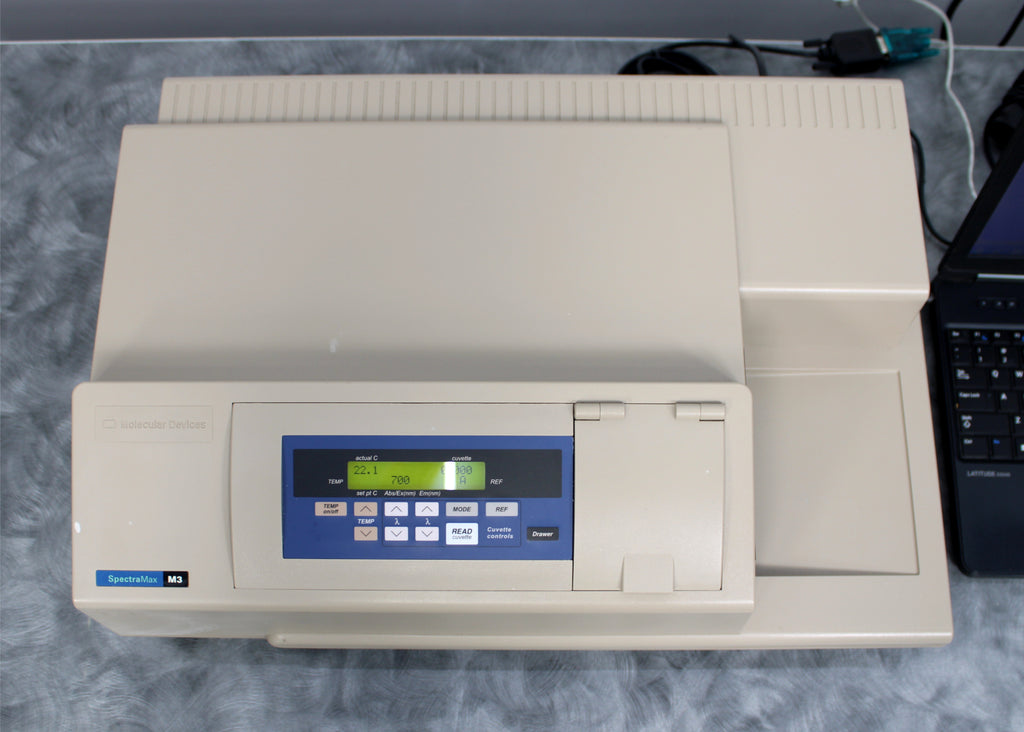

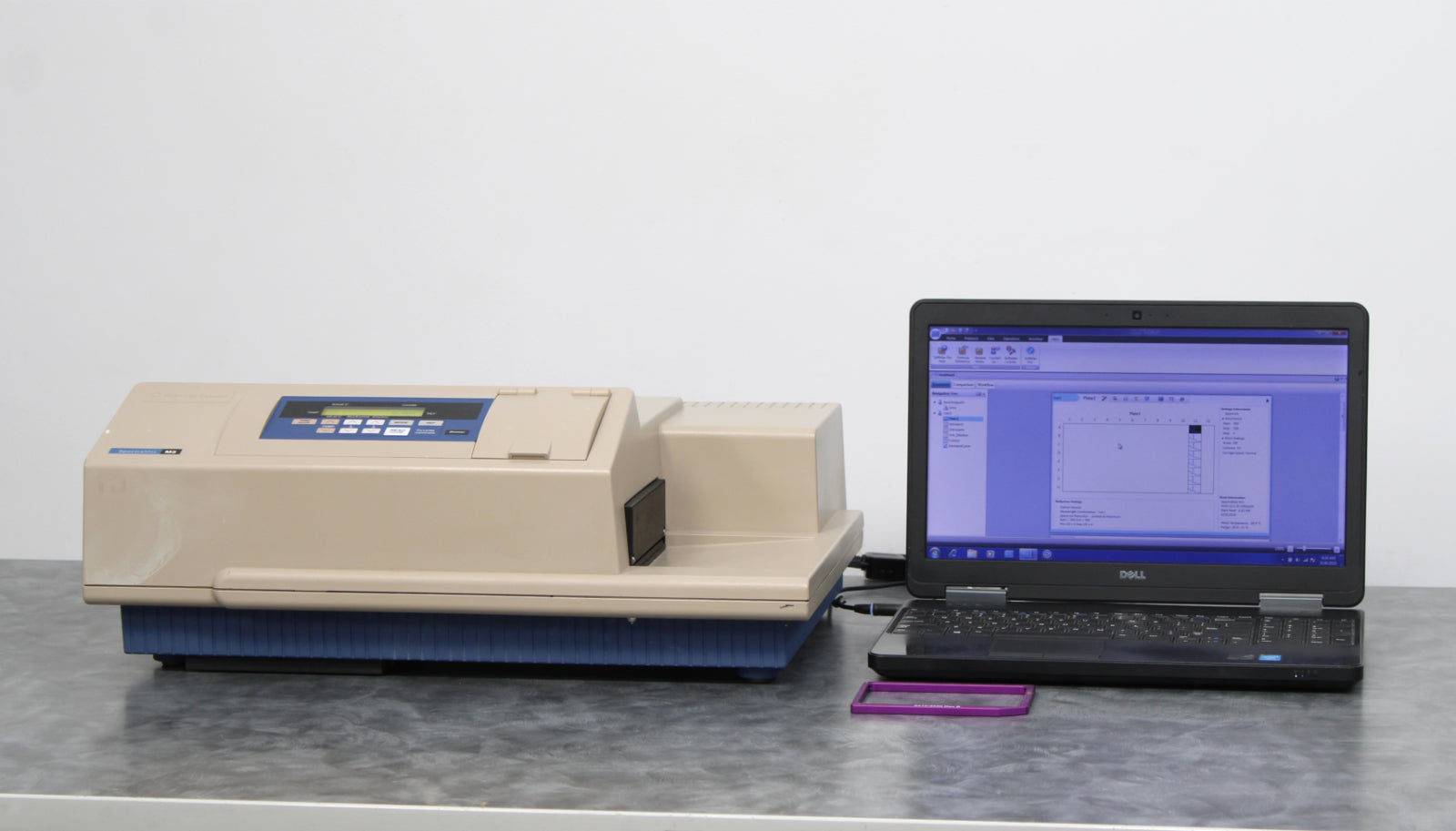

- Molecular Devices SpectraMax M3 MultiMode Microplate Reader
- Power Cable
Guaranteed to Perform Without Error
After your instrument arrives at our facility, it will be inspected and tested to verify it is free of malfunction. Unless stated otherwise, we are confident it will perform at manufacturer specifications. If you receive this instrument and it does not meet your required specifications, your purchase will be protected by our warranty.
Specifications
Absorbance Photometric Performance
|
|
Wavelength range
|
200–1000 nm
|
Wavelength selection
|
Monochromator, tunable in 1.0 nm increments
|
Wavelength bandwidth
|
4.0 nm
|
Wavelength accuracy
|
±2.0 nm
|
Wavelength repeatability
|
±0.2 nm
|
Photometric range
|
0–4.0 OD
|
Photometric resolution
|
0.001 OD
|
Photometric accuracy
|
(microplate) < ±0.006 OD ±1.0%, 0–2 OD
(cuvette) < ±0.005 OD ±1.0%, 0–2 OD
|
Photometric precision
|
< ±0.003 OD ±1.0%, 0–2 OD
|
Stray light
|
< 0.05% @ 230 nm
|
Fluorescence Intensity Performance
|
Top or bottom
|
Wavelength range
|
250–850 nm
|
Wavelength selection
|
Monochromators, tunable in 1.0 nm increments
|
Bandwidth (EX, EM)
|
9 nm, 15 nm
|
Optimized sensitivity
|
? 1 pM fluorescein in 96 wells,
? 1.5pM in 384 wells
|
Guaranteed sensitivity
|
< 5 pM fluorescein in 96 wells or cuvette,
< 20 pM in 384 wells
|
Luminescence Performance
|
Top or Bottom
|
Wavelength selection
|
Choice of simultaneous detection of all wavelengths or selection via monochromator, tunable in 1.0 nm increments
|
Wavelength range
|
250–850 nm
|
Optimized sensitivity
|
43pM ATP in 96 wells
|
Guaranteed sensitivity
|
75pM ATP in 96 wells
|
Dynamic range
|
> 6 decades
|
Cross-talk
|
< 0.3% in white 96- and 384-well Microplates
|
Dimensions
|
23 x 16 x 9 inches
|
Weight
|
36 lbs
|

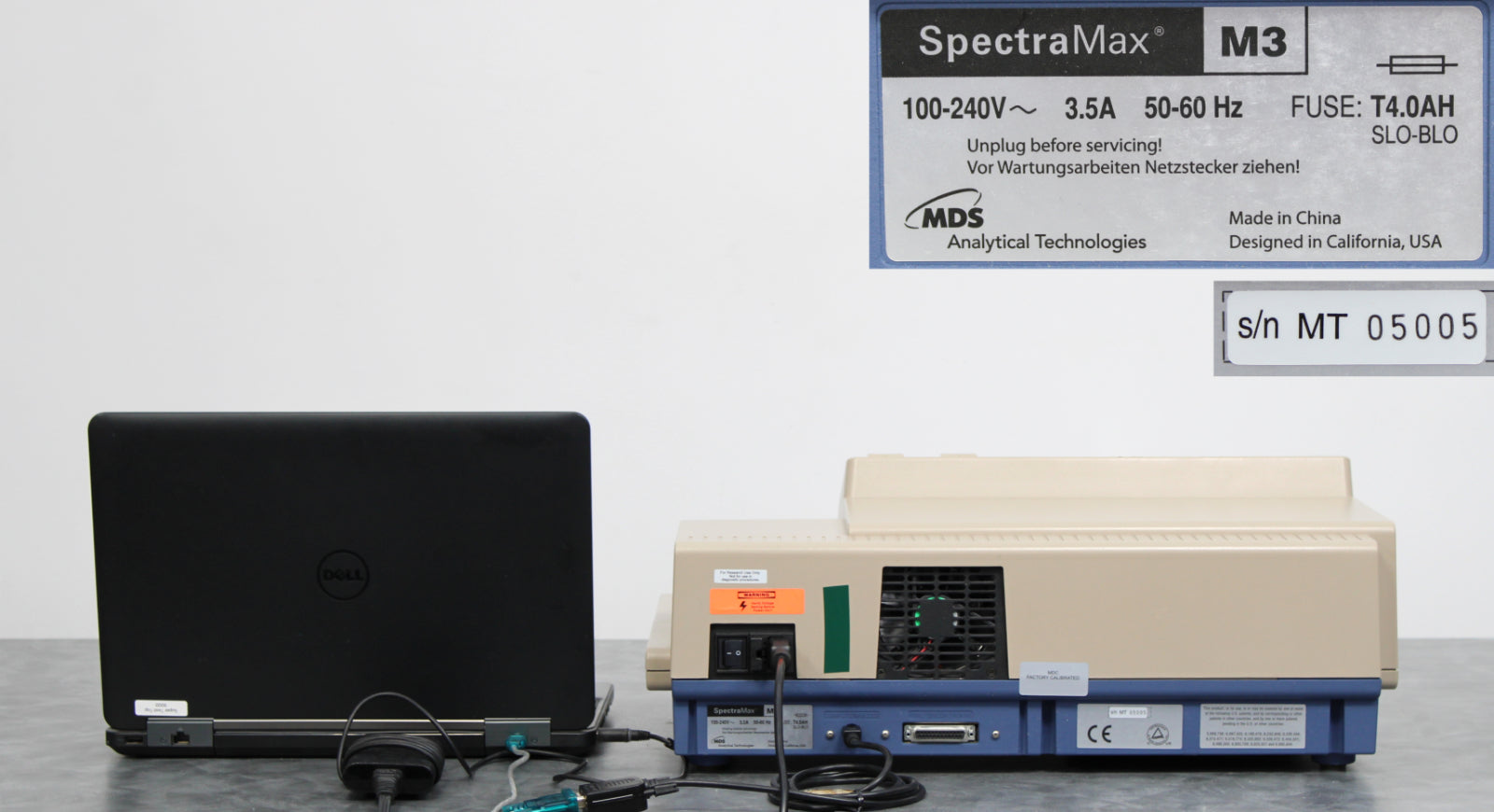

Power
|
< 420 watts, 100–240 VAC, 3.5 A, 50/60Hz
|
