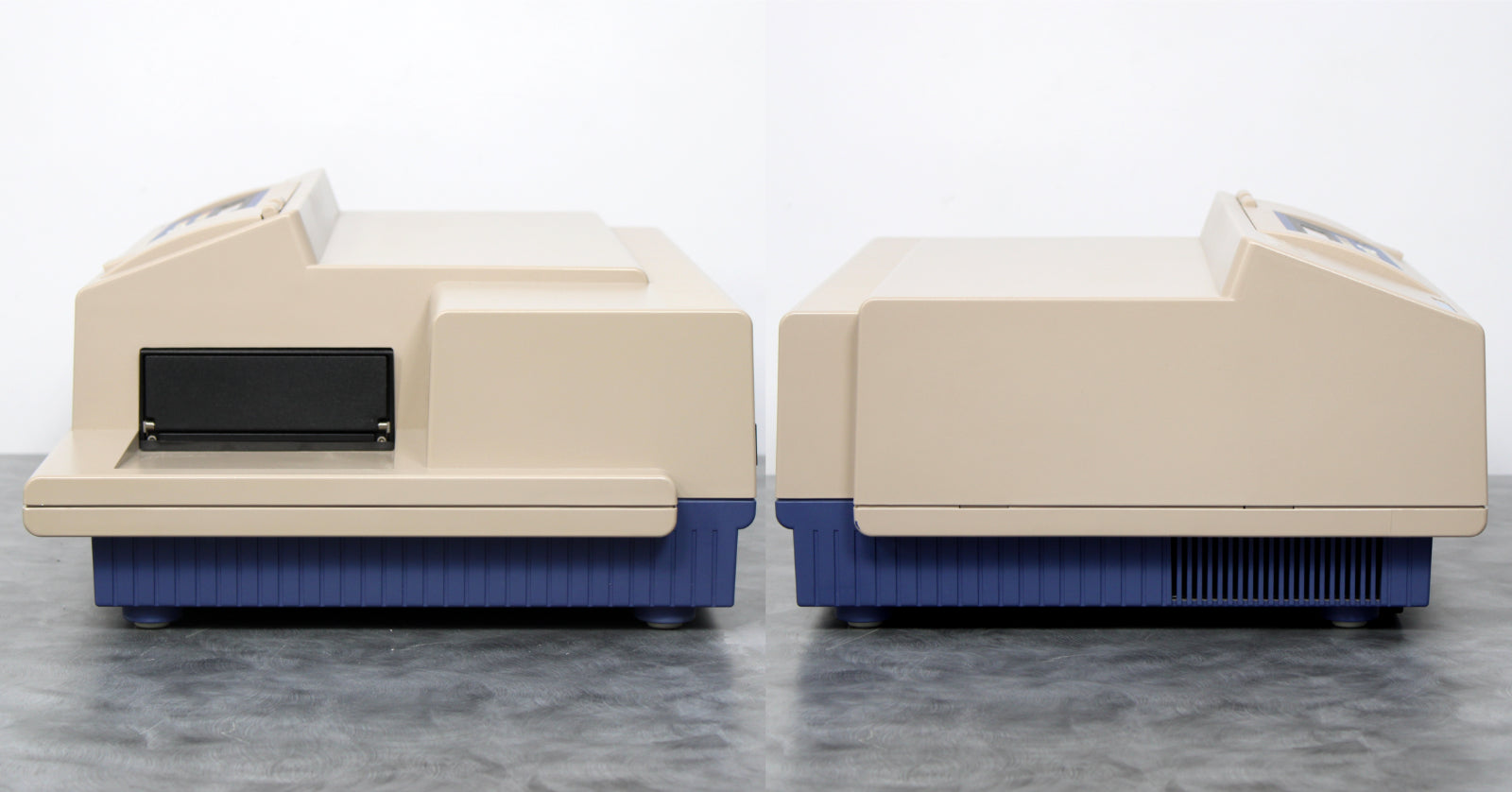

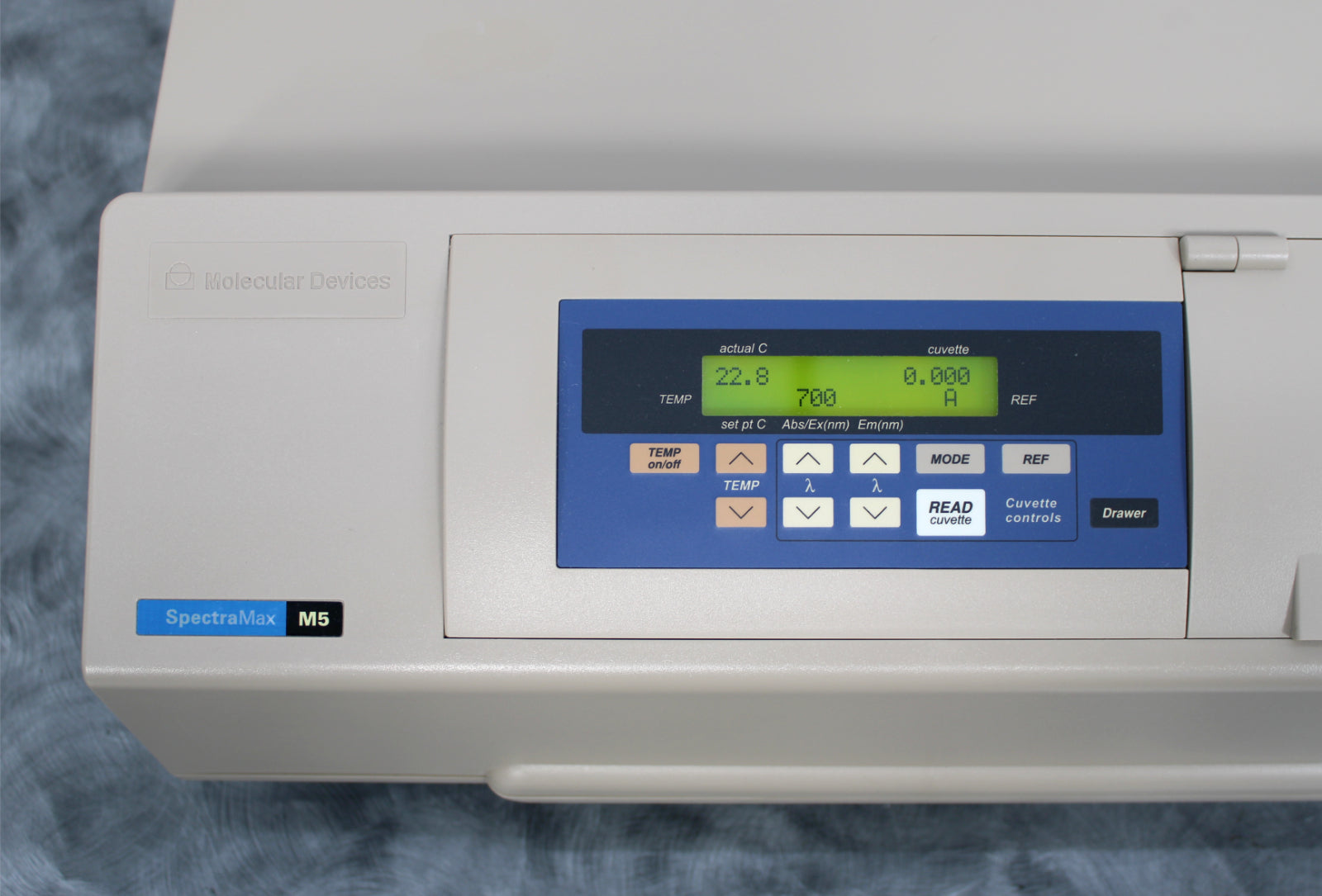

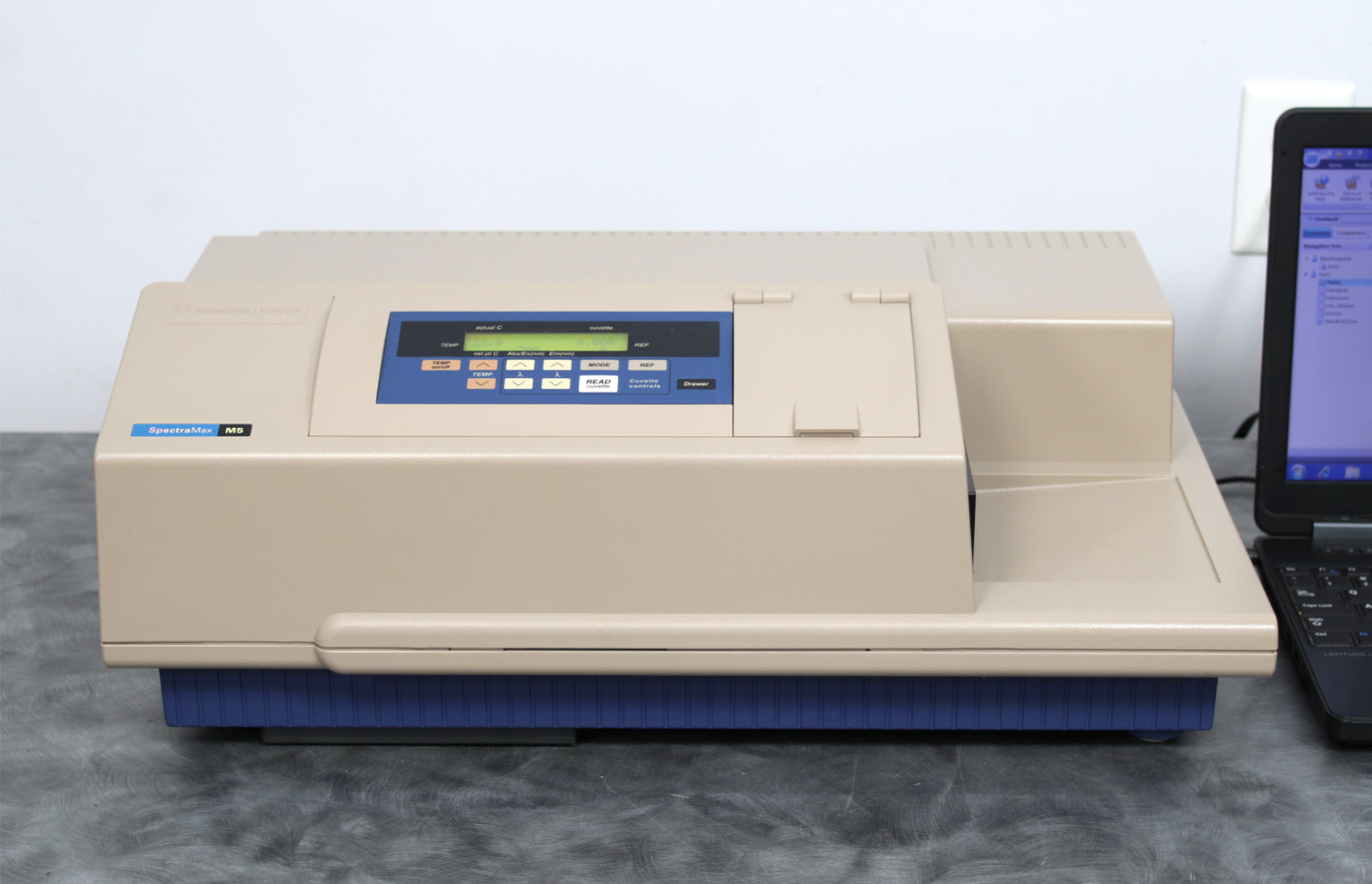

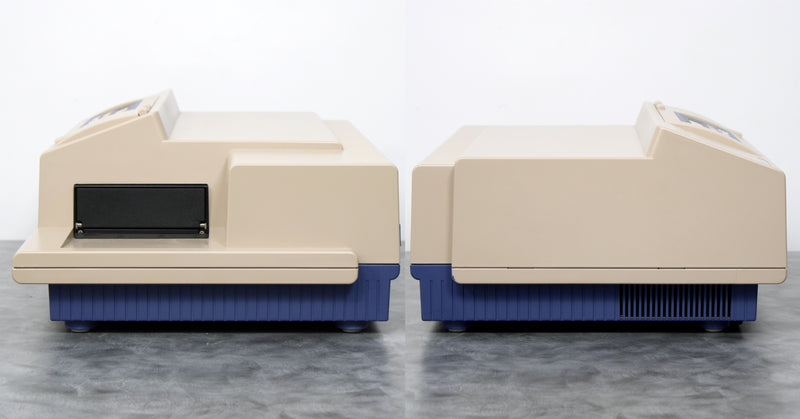

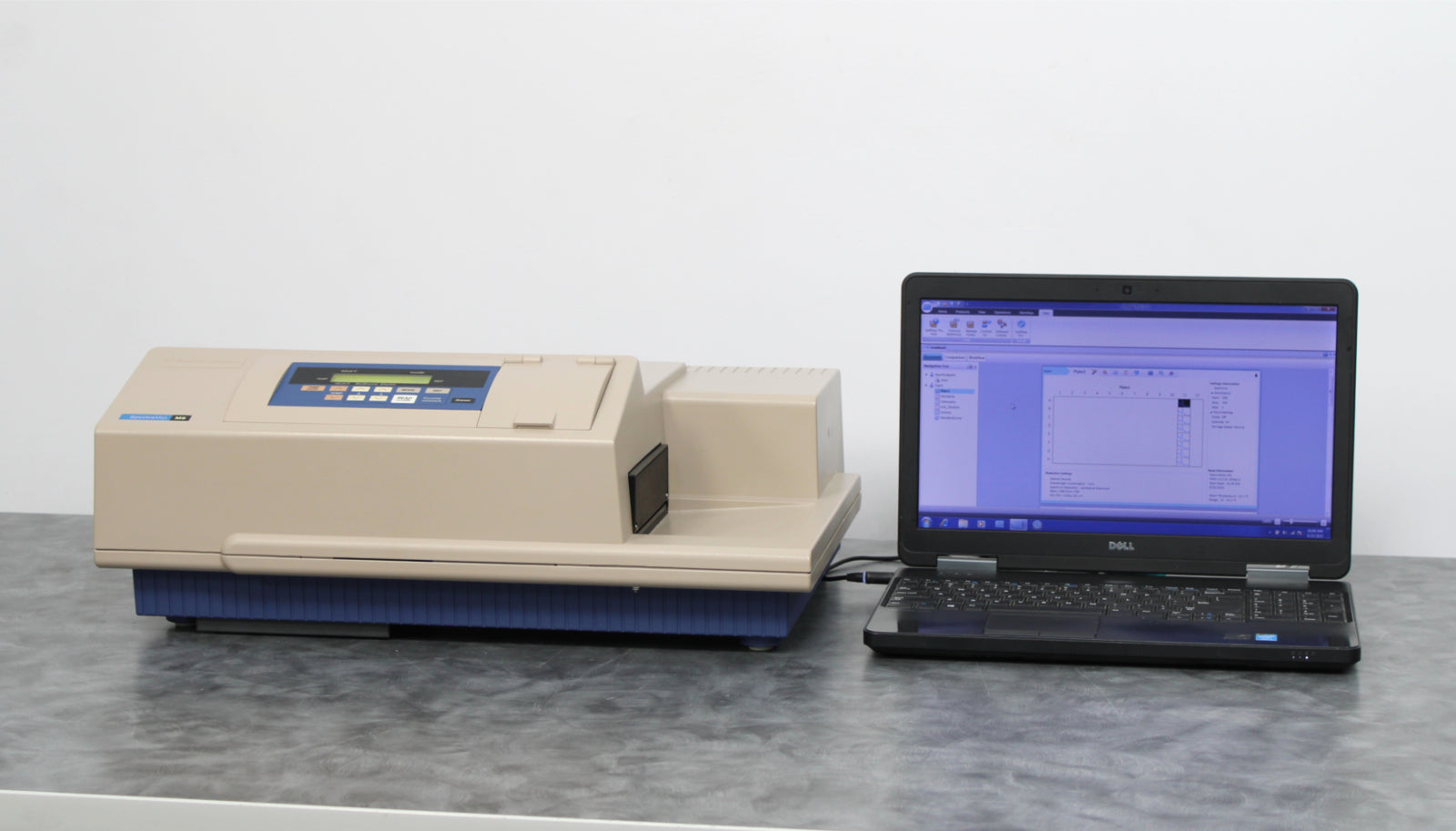

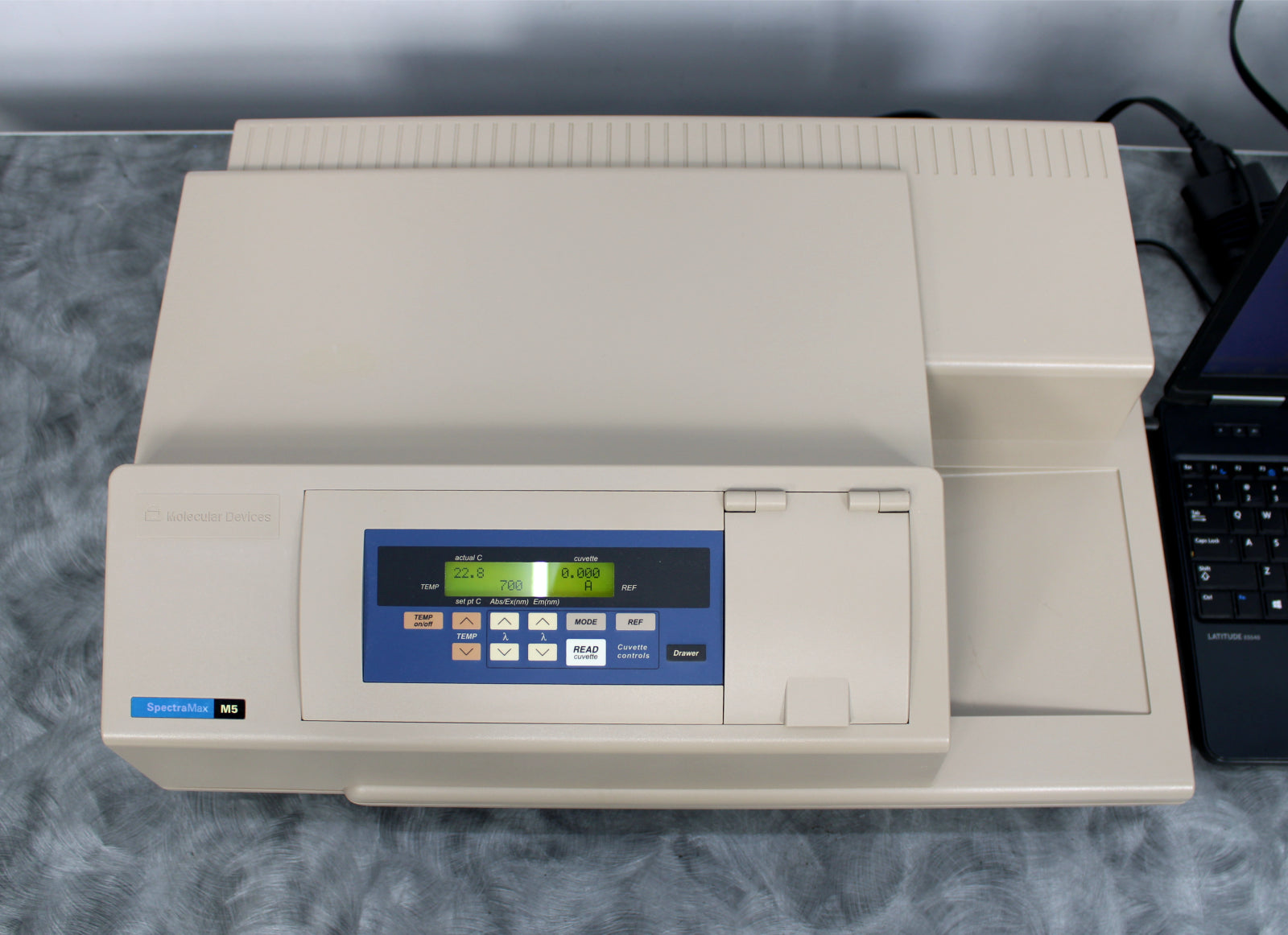

- Molecular Devices SpectraMax M5 Multi-Mode Microplate Reader

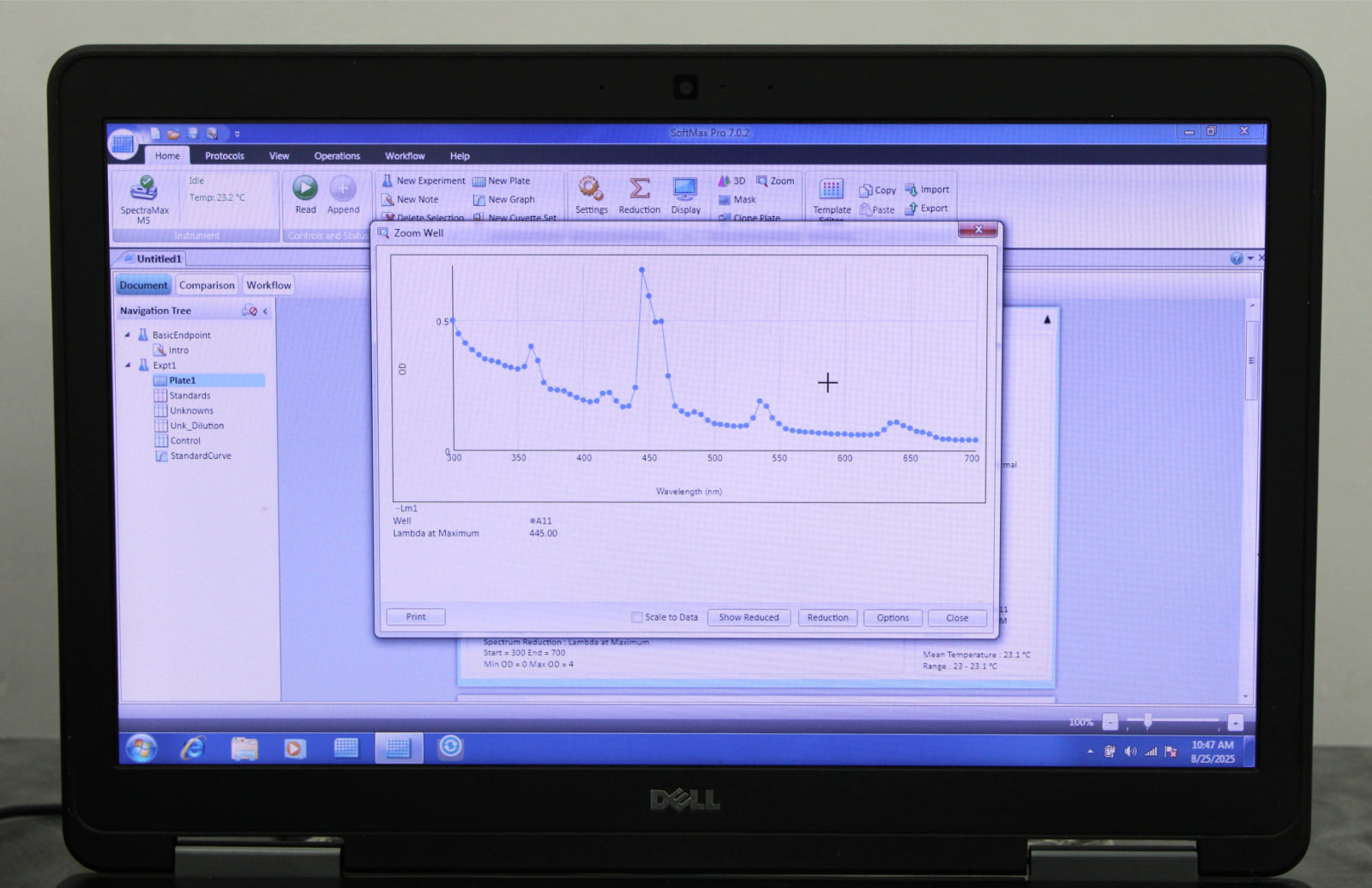

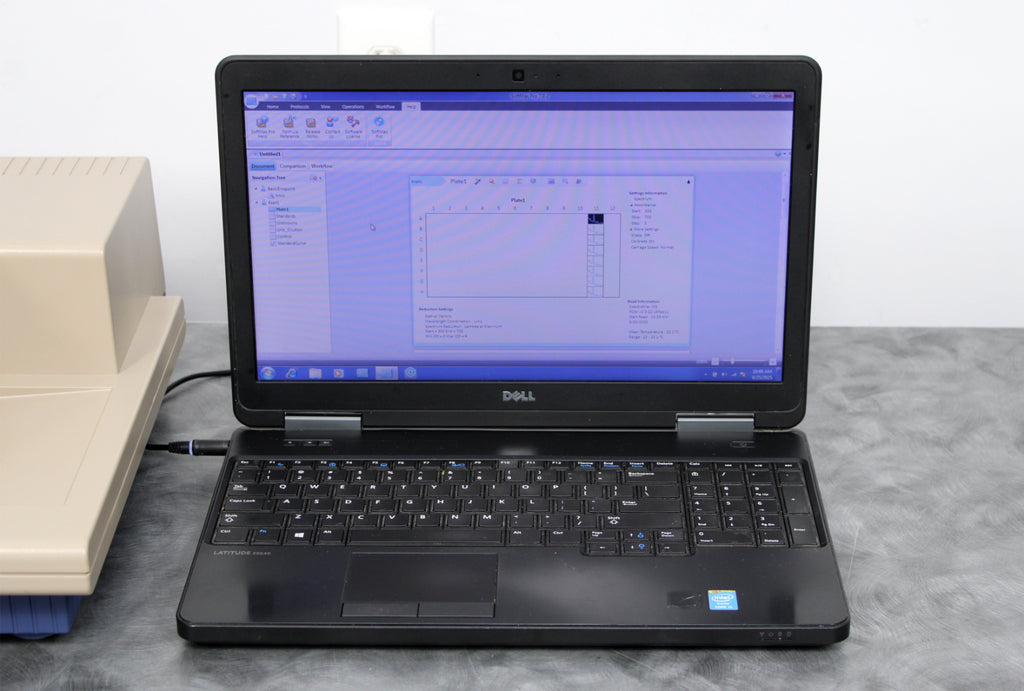

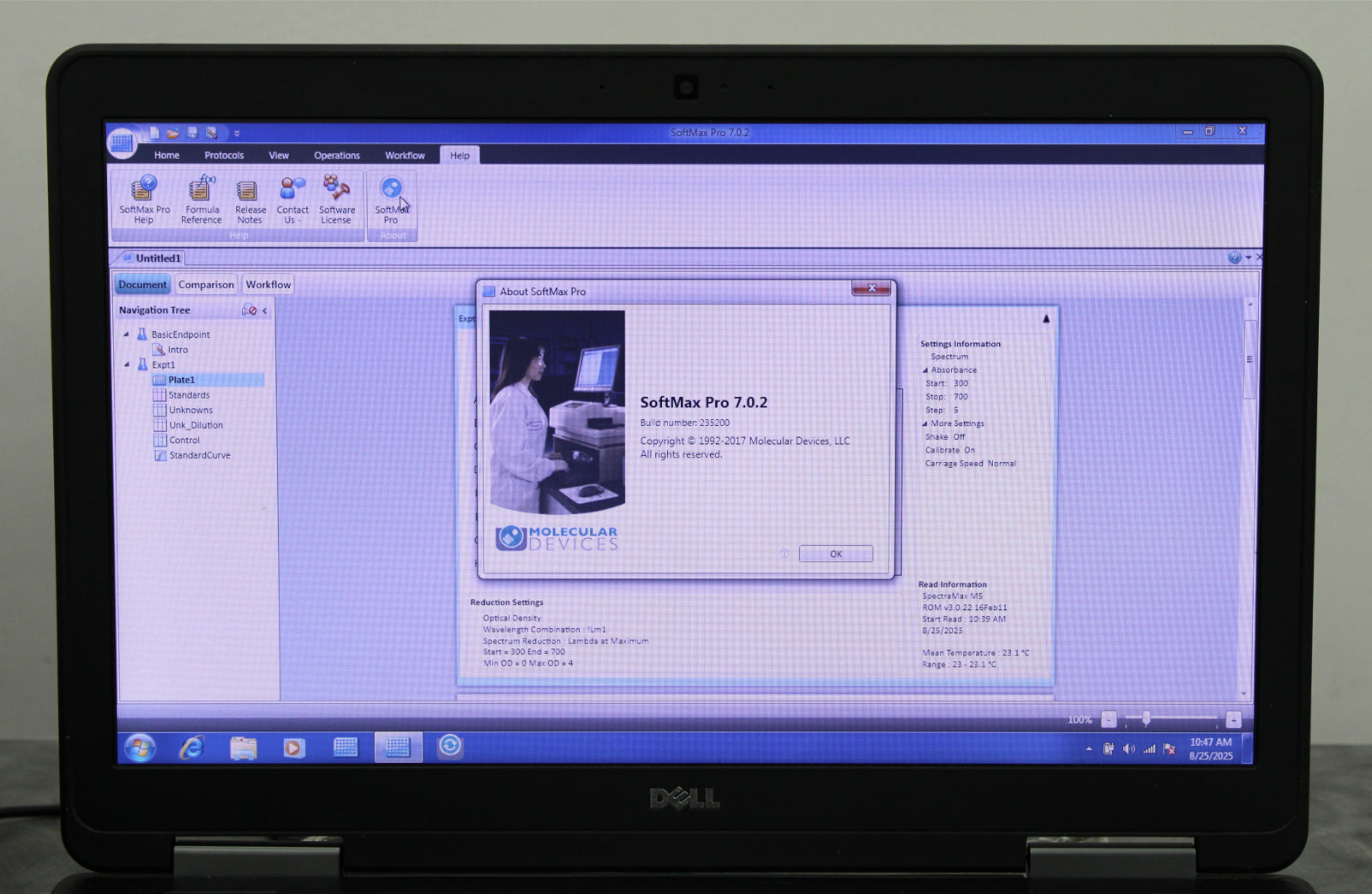

- Laptop with SoftMax Pro Software Installed
- Laptop Charger
- USB to Serial Cable
- Serial Adapter Cable
- Power Cable
- 90-Day Warranty
After its initial disinfection and inspection, our technicians tested the Molecular Devices SpectraMax M5 multi-mode microplate reader with the following results:
- Power and initialization: PASSED
- Ran standard plate; holmium oxide: PASSED

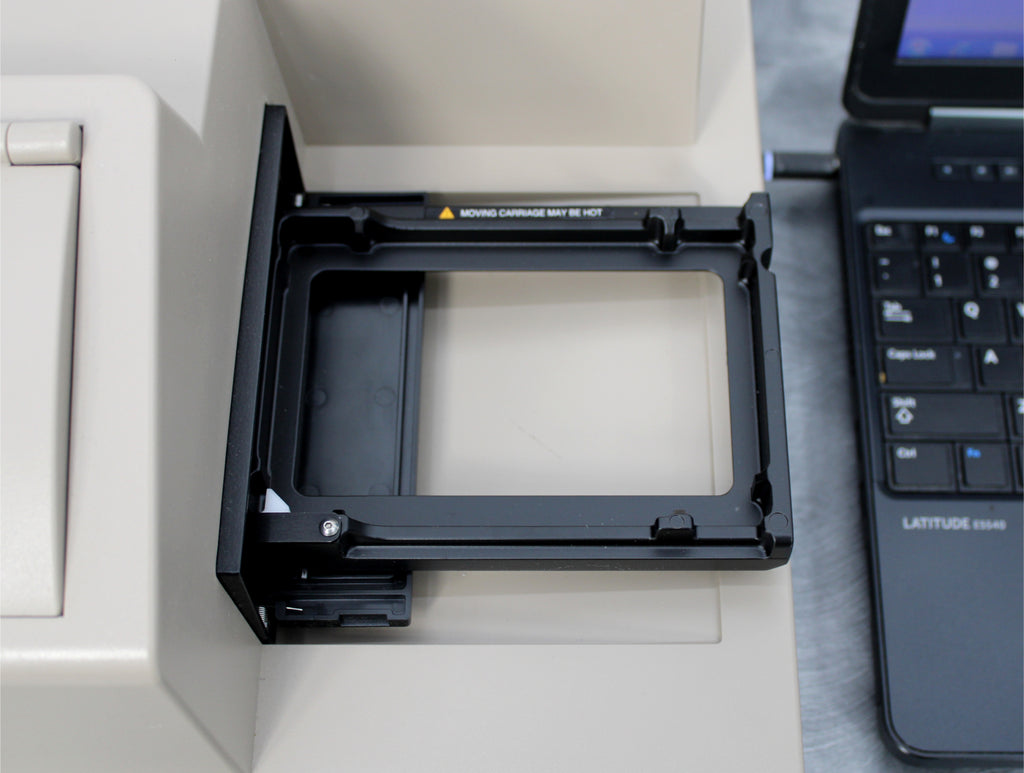

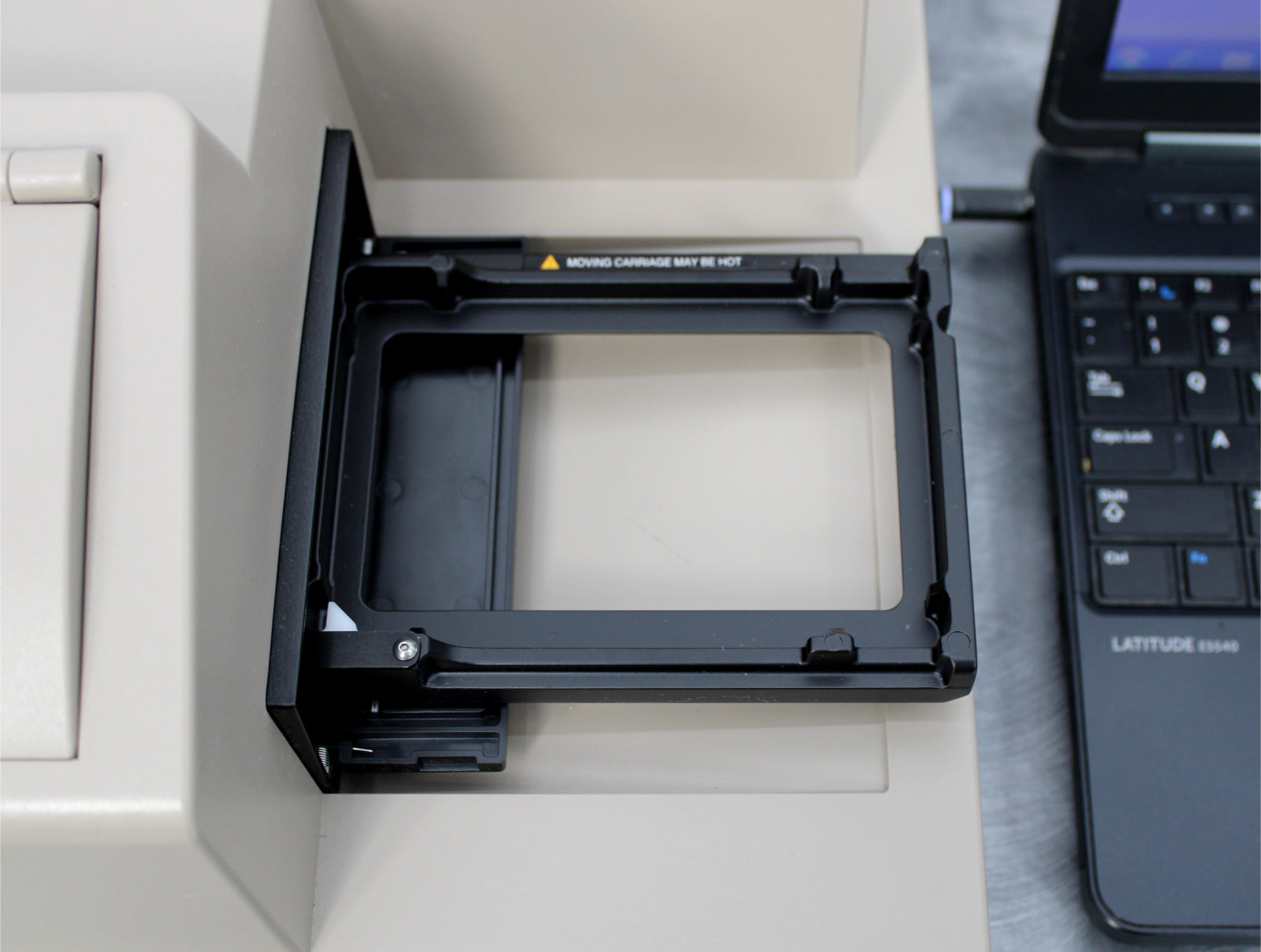

- Plate loading/unloading: PASSED
|
Manufacturer
|
Molecular Devices
|
|
Model
|
SpectraMax M5
|
|

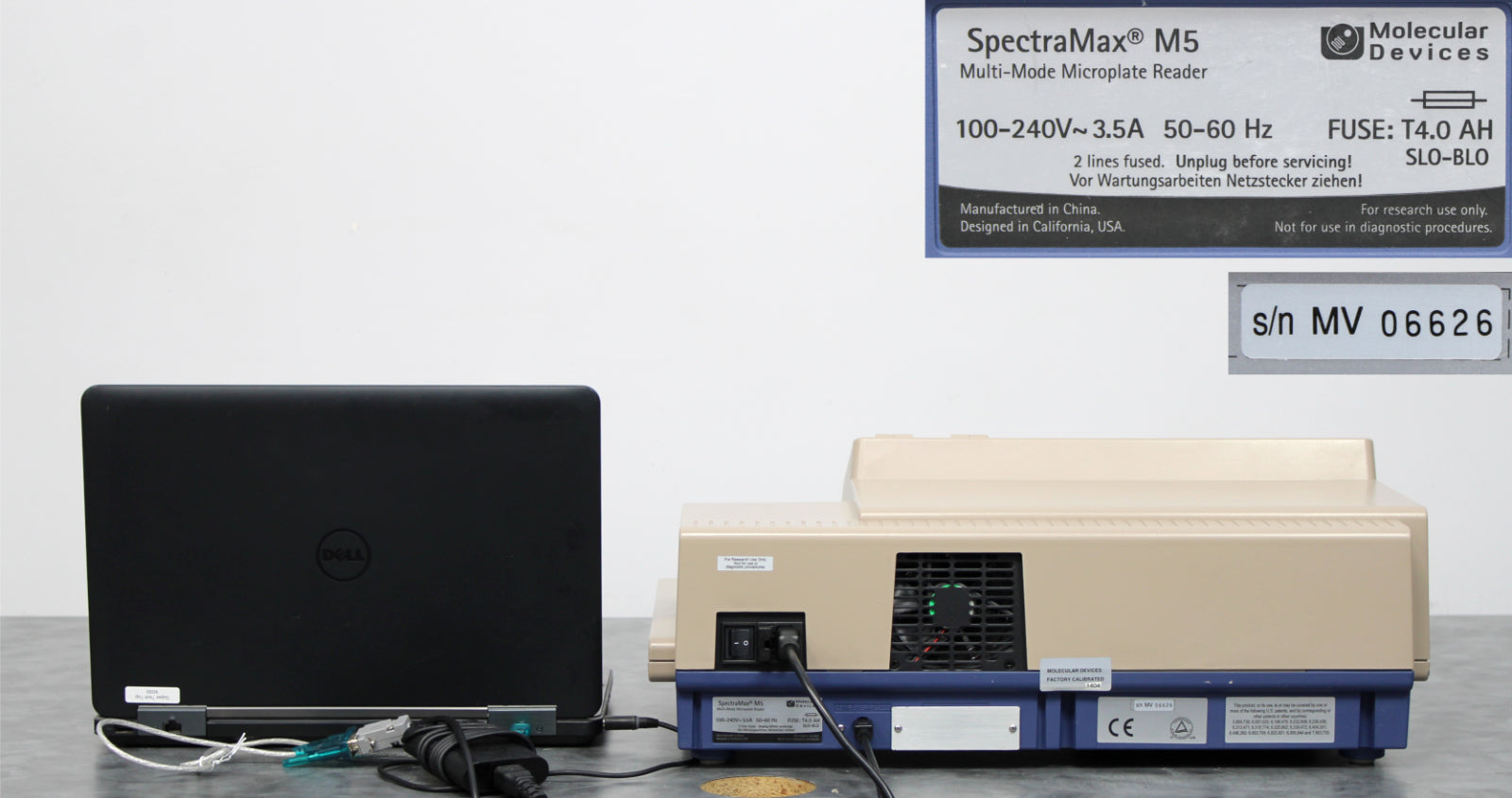

Serial No.
|
MV06626
|
|
Read modes
|
Absorbance
Fluorescence (top/bottom read)
Luminescence (top/bottom read)
Time-Resolved Fluorescence (top/bottom read)
Fluorescence Polarization (top read)
HTRF (top/bottom read)
|
|
Wavelength ranges
|
Abs: 200 - 1000 nm
FL: 250 - 850 nm
Lumi: 250 - 850 nm
TRF: 250 - 850 nm
FP: 300 - 750 nm
|
|
Wavelength selection
|
Monochromator tunable in 1-nm increments
|
|
Absorbance photometric accuracy/linearity
|
< ±1.0% and ±0.006 OD (0.0-2.0 OD)
|
|
Absorbance photometric precision/repeatability
|
< ±1.0% and ±0.003 OD (0.0-2.0 OD)
|
|
Sensitivity top read optimized
|
FL: 1 fmol/well in 200 μL FITC 96 well (< 5 pM), 2 fmol/well in 100 μL FITC 384 well (< 20 pM)
Lumi: < 2 fg/well for firefly luciferase in 96 and 384 well
TRF: 100 fM europium in 96 and 384 well
FP: < 5 mP standard deviation at 1 nM fluorescein in 96 and 384 well
|
|
Light source(s)
|
Xenon flashlamp
|
|
Detector(s)
|
Silicon photodiode
Photomultiplier tube
|
|
Read types (endpoint, kinetic, etc)
|
Endpoint
Kinetic
Spectrum scan
Well scan
|
|
Read times
|
Abs: 17 seconds
FL: 15 seconds
Lumi: 17 seconds
TRF: 15 seconds
FP: 44 seconds
|
|
Plate shaking
|
Linear
|
|

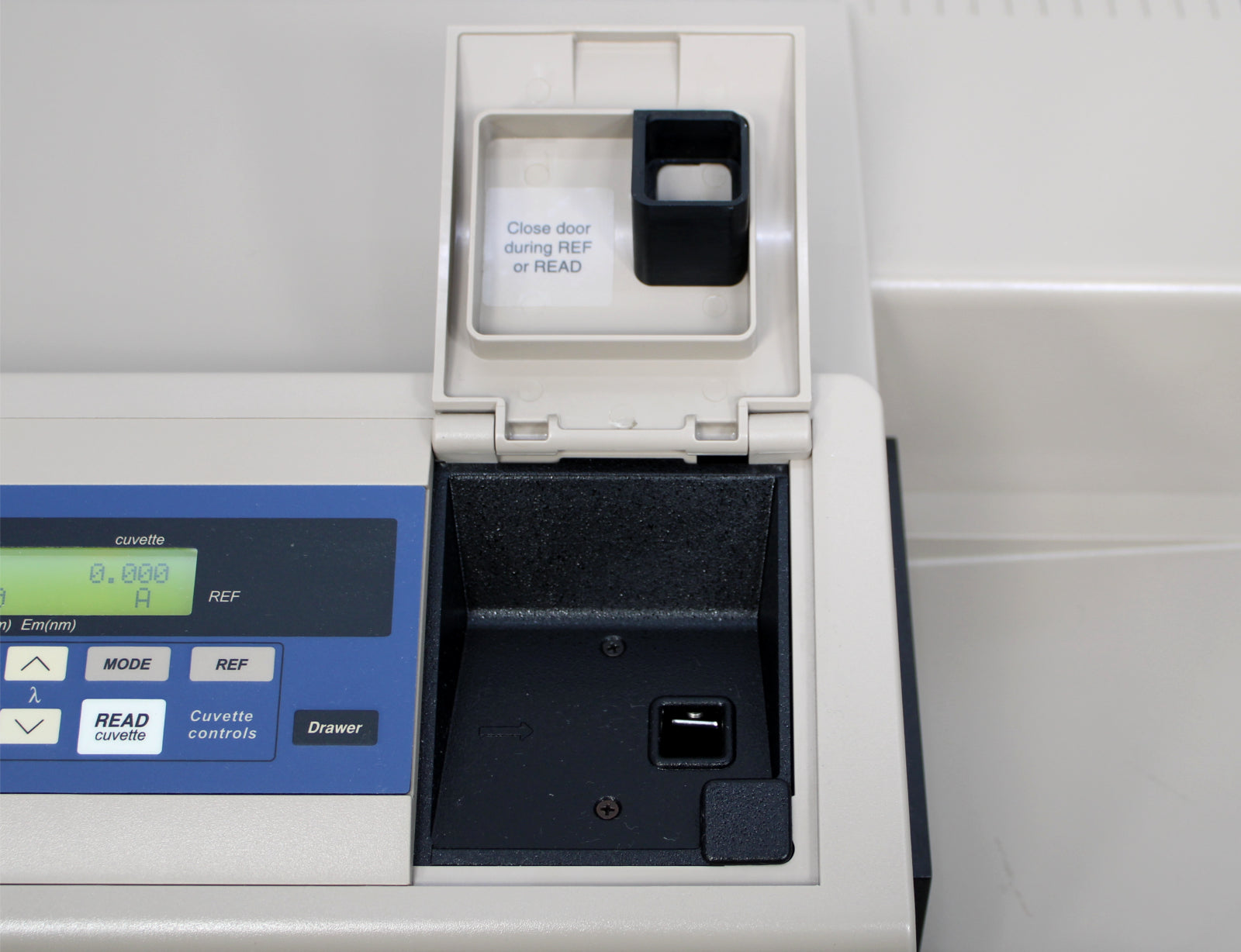

Cuvette port
|
Yes
|
|
Robotics / automation
|
Yes
|
|
Plate type(s)
|
6 - 384 well plates
|
|
Temperature control
|
Yes, Ambient +2°C to 60°C
|
|

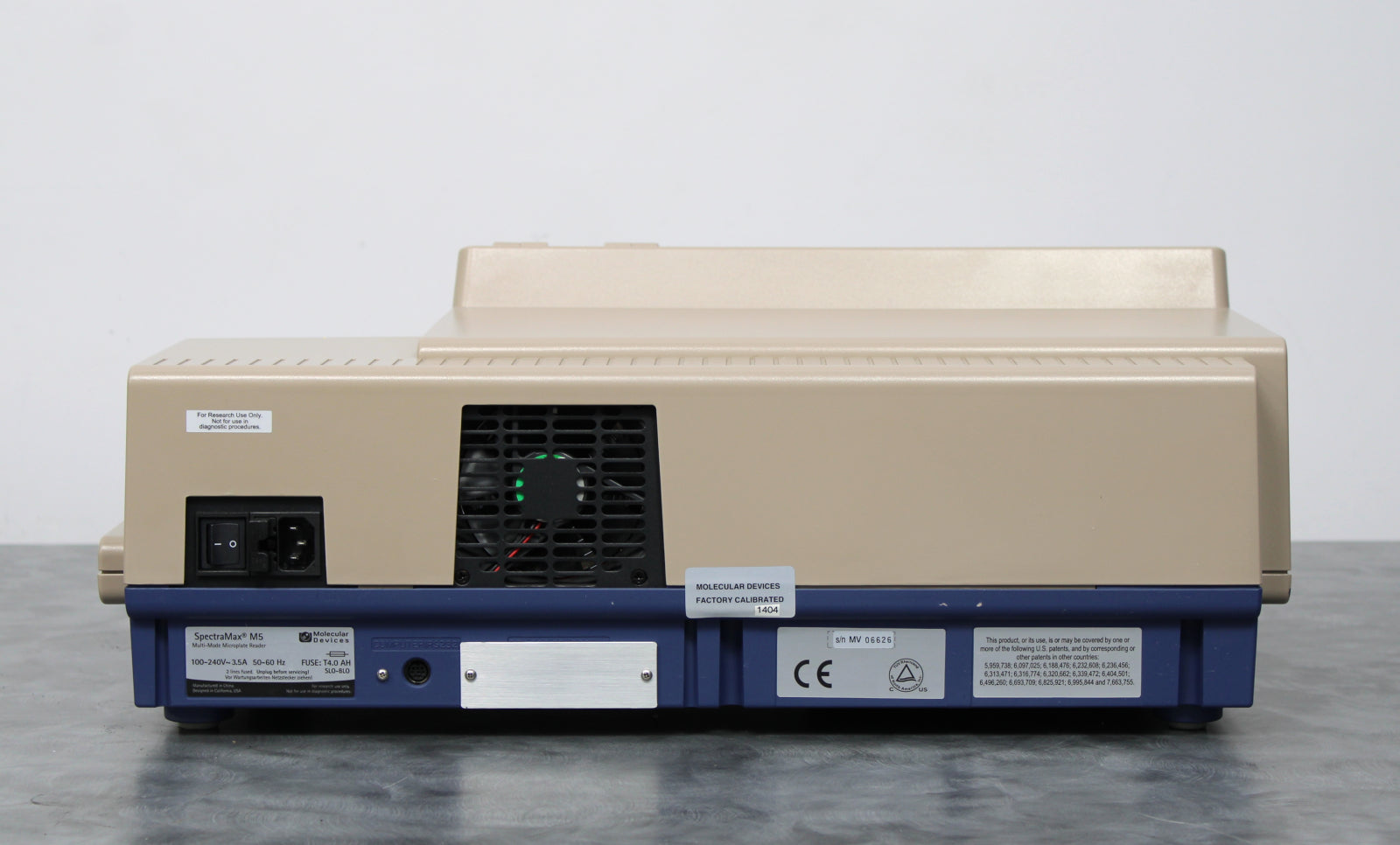

Power rating
|
100-240V~, 50-60Hz, 3.5A
|
|
Dimensions (W x D x H)
|
22.8 x 15 x 8.6 in (58 x 38 x 22 cm)
|
|
Weight
|
35 lb (15.9 kg)
|
