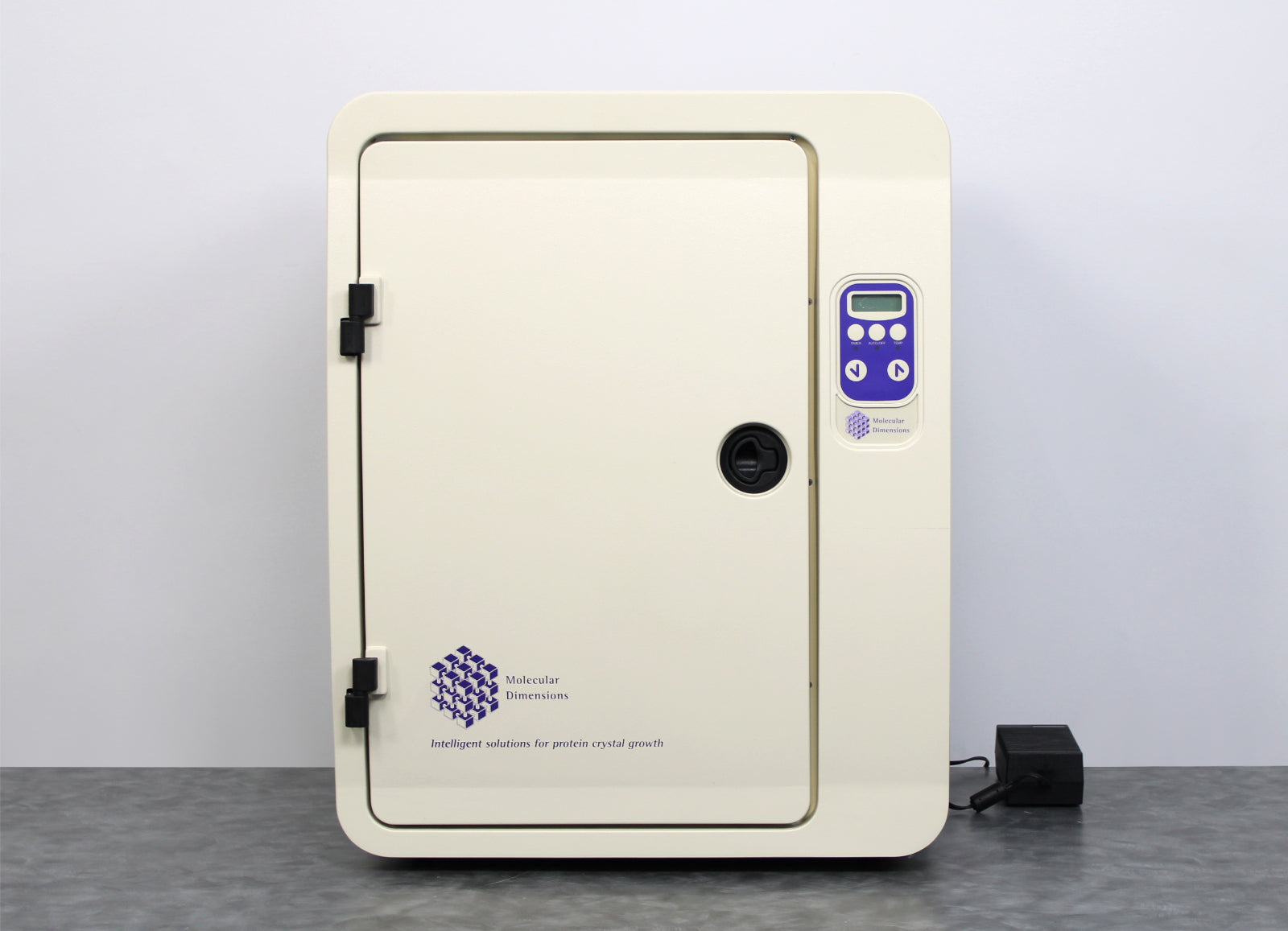

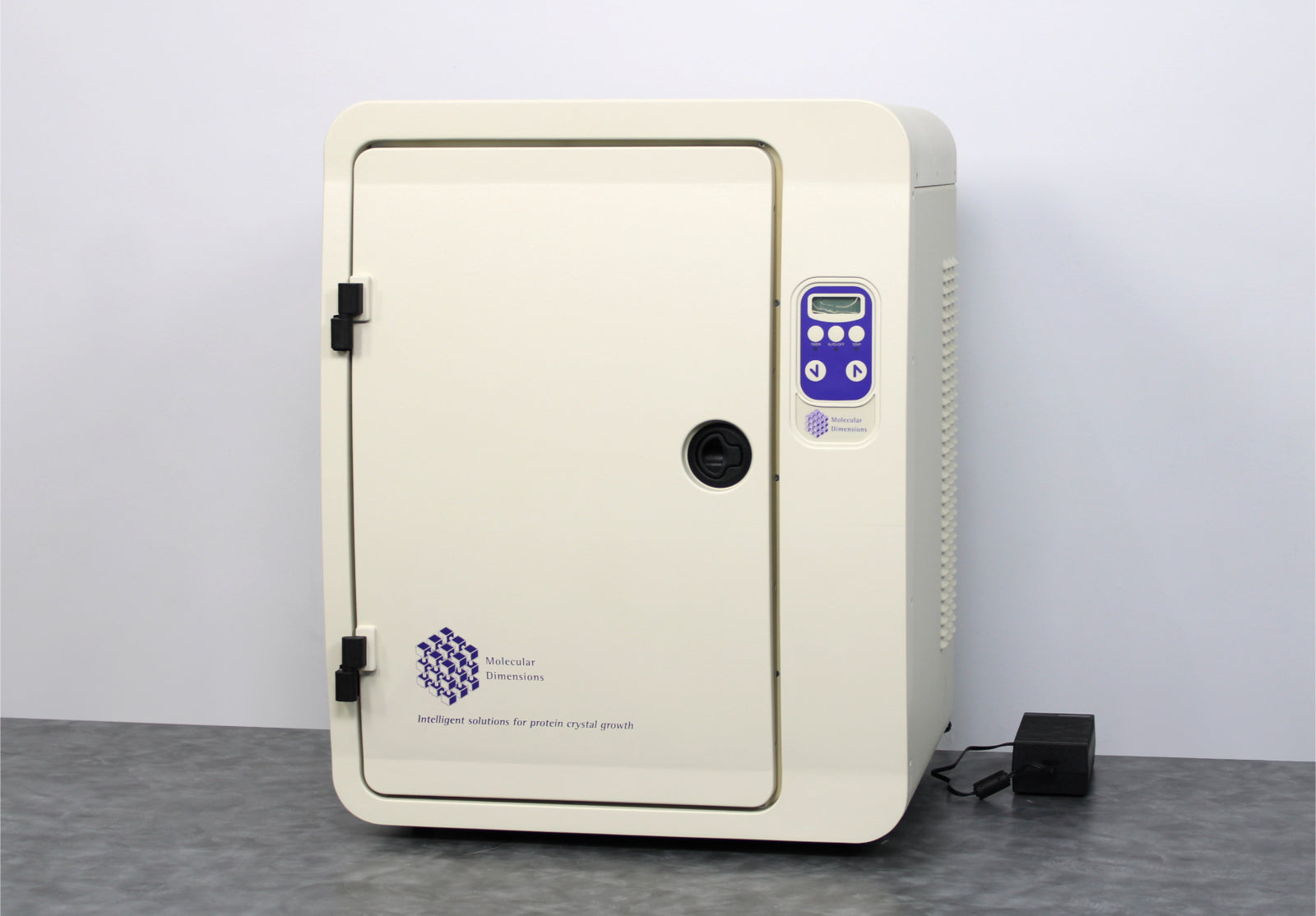

- Molecular Dimensions MD5-602 Protein Crystal Growth Chilling Incubator

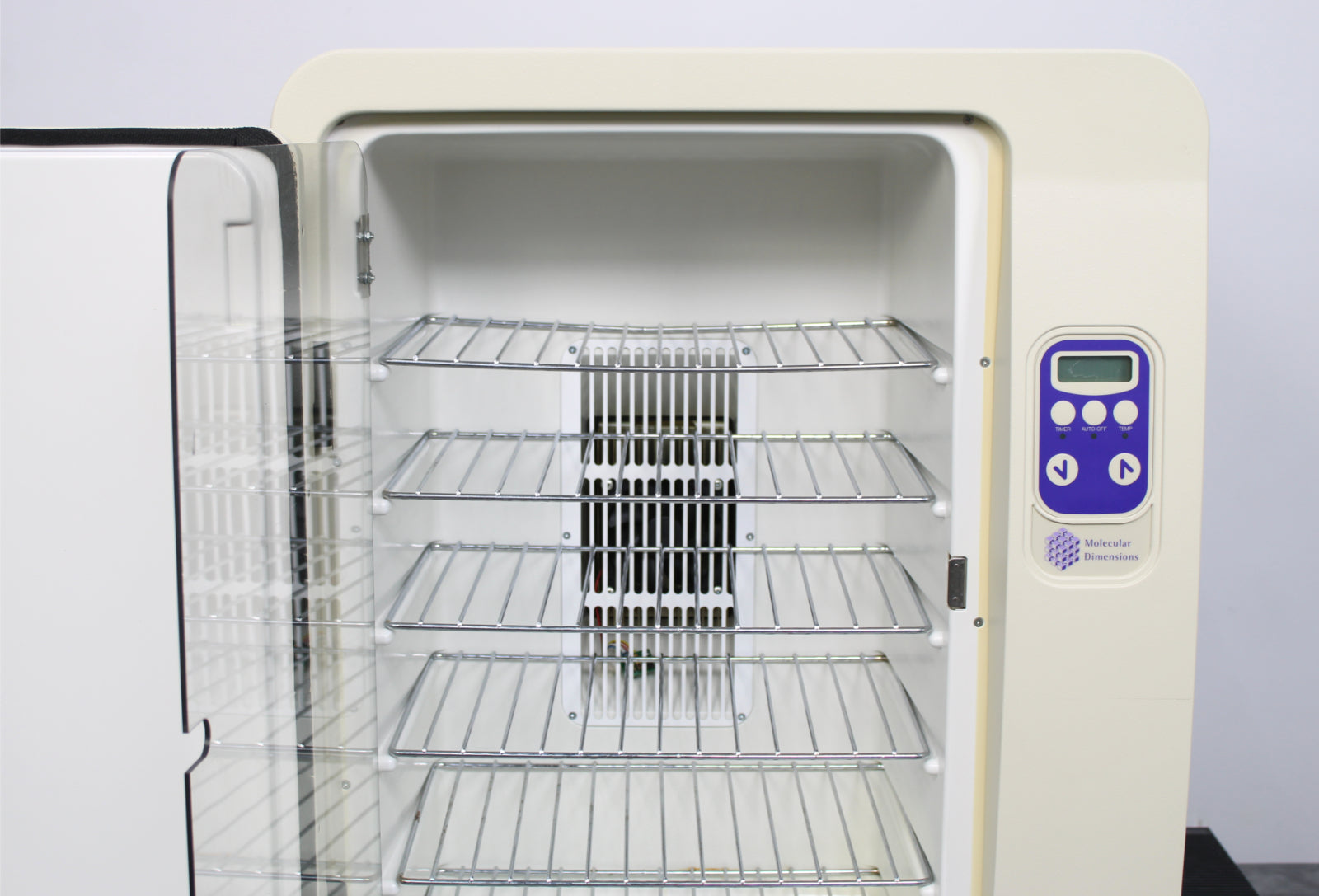

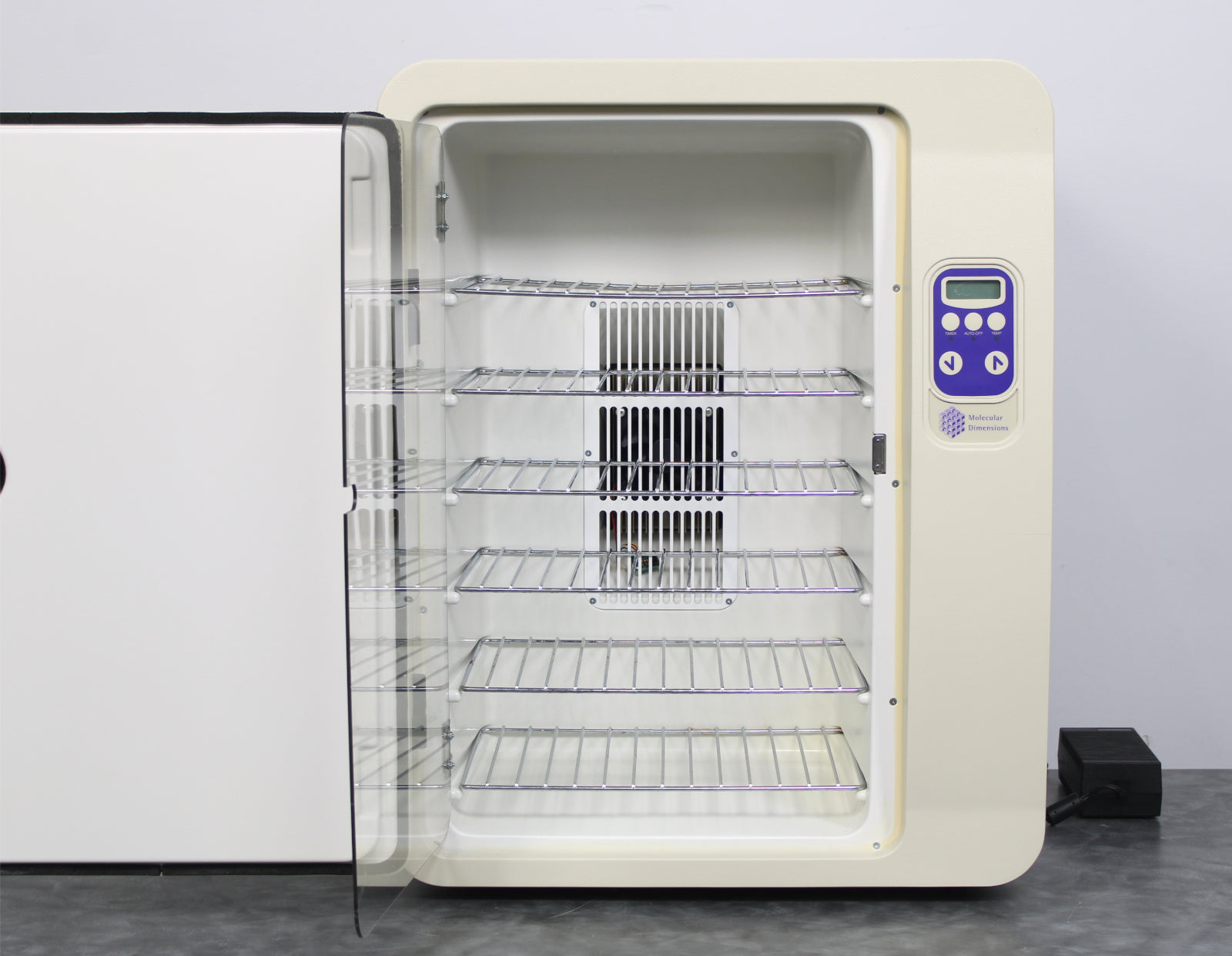

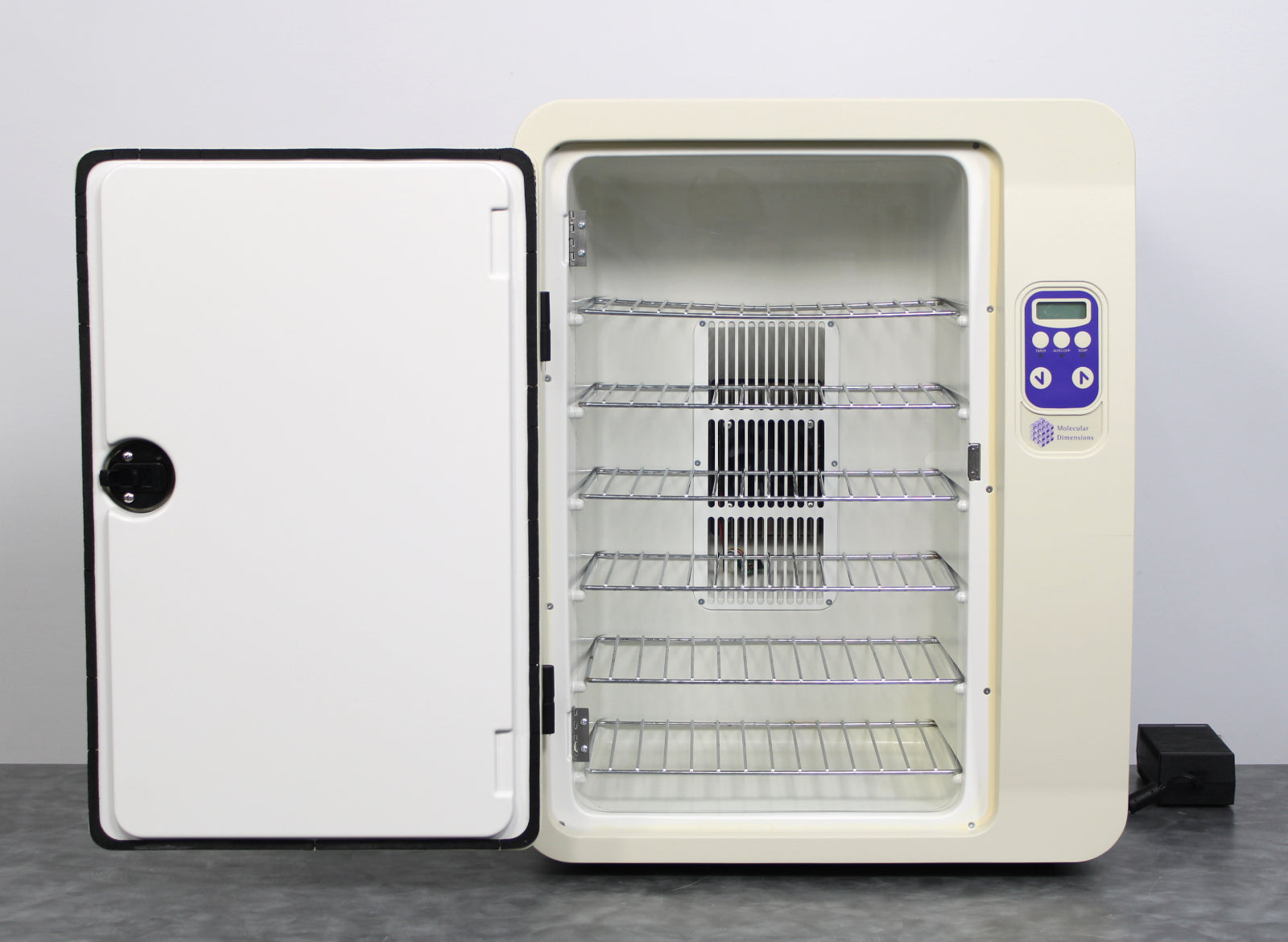

- x6 Shelves

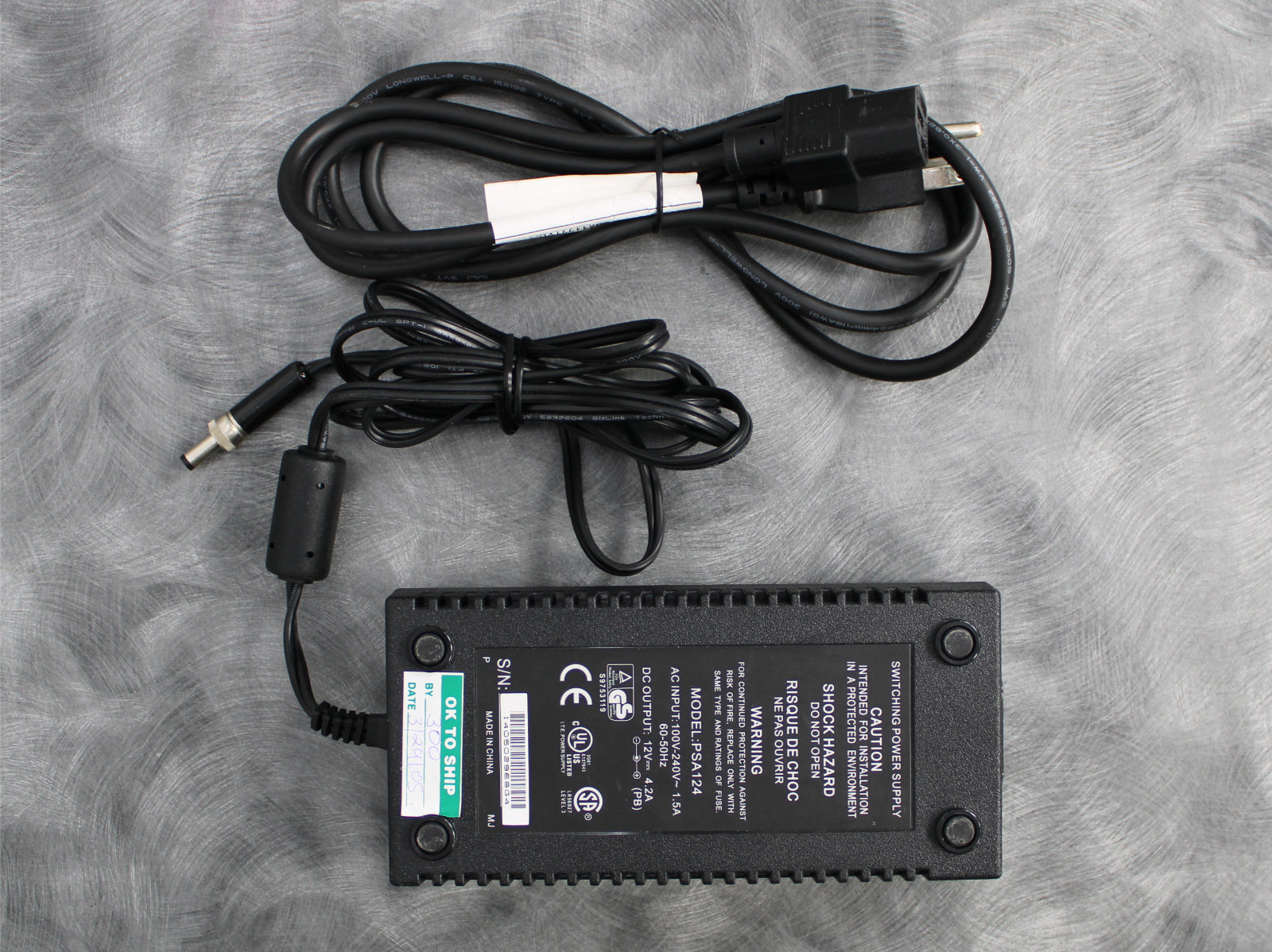

- Power Supply
- Power Cable
- 90-Day Warranty
Note: This instrument is ideal for the growth of Protein Crystal Growth. It is not a fast heating or cooling system and is run on peltiers.
After its initial disinfection and inspection, our technicians tested the Molecular Dimensions MD5-602 chilling incubator with the following results:

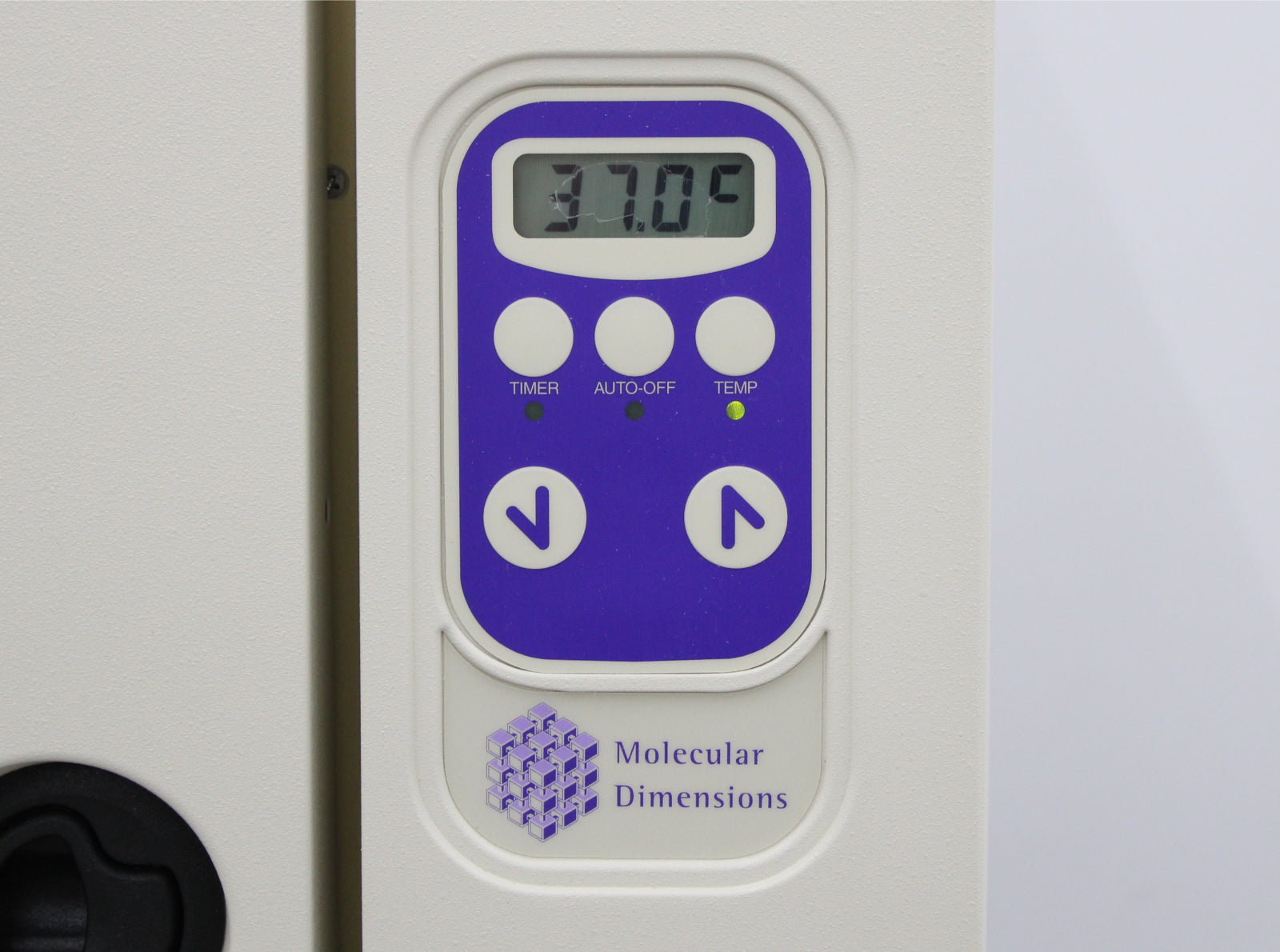

- Ran heating to 37°C setpoint; held steady: PASSED

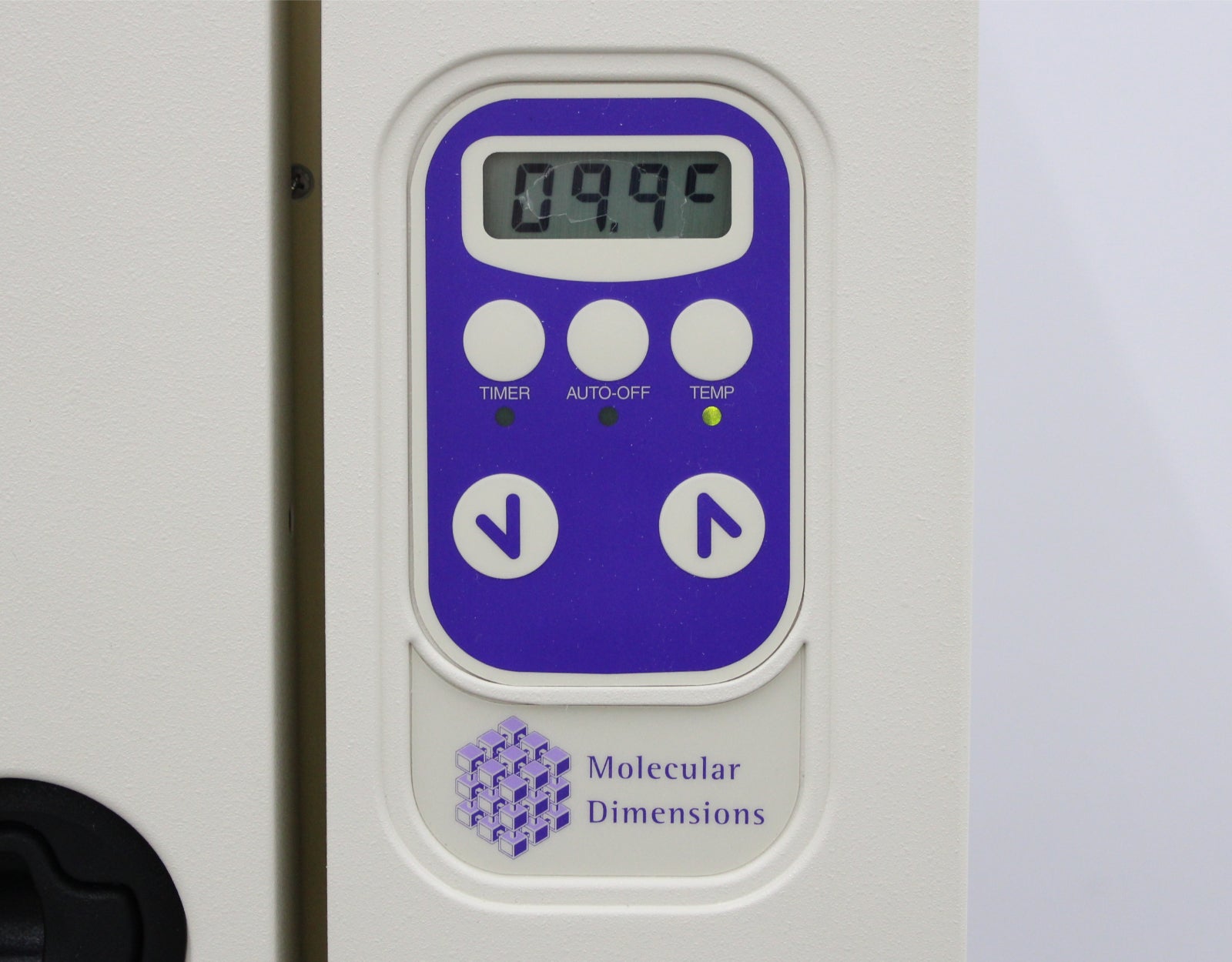

- Ran chilling to 10°C setpoint; held steady: PASSED
|
Manufacturer
|
Molecular Dimensions
|
|
Model No.
|
MD5-602
|
|

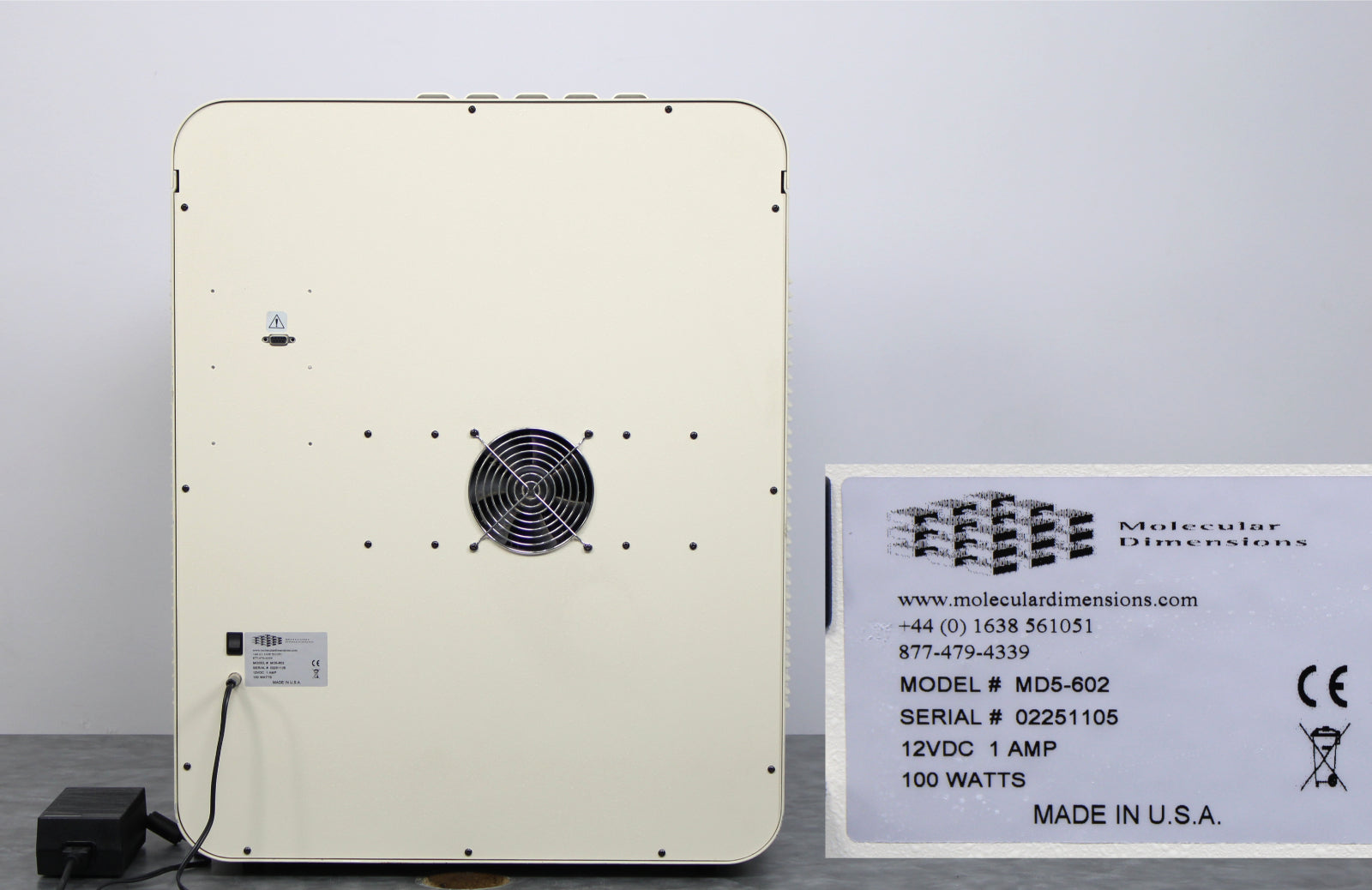

Serial No.
|
02251105
|
|
Temperature range
|
4.0°C to 70.0°C
|
|
Temperature accuracy
|
±0.5°C
|
|
Temperature control
|
Peltier-based, no compressors, no CFCs
|
|
Crystallisation plate approximate capacity
|
MRC (SBS) plates - 140 plates maximum.
XRL/Linbro plates - 58 plates maximum.
|
|
Volume
|
55 Liter
|
|
Interface
|
RS232 serial port
|
|
Power input
|
12VDC, 1A
|
|
Power consumption
|
100W
|
|
Shelf dimensions (W x D)
|
13.75 x 9.5 in
|
|
Interior dimensions (W x D x H)
|
14 x 10 x 24 in
|
|
Exterior dimensions (W x D x H)
|
22.5 x 19 x 28.5 in
|
