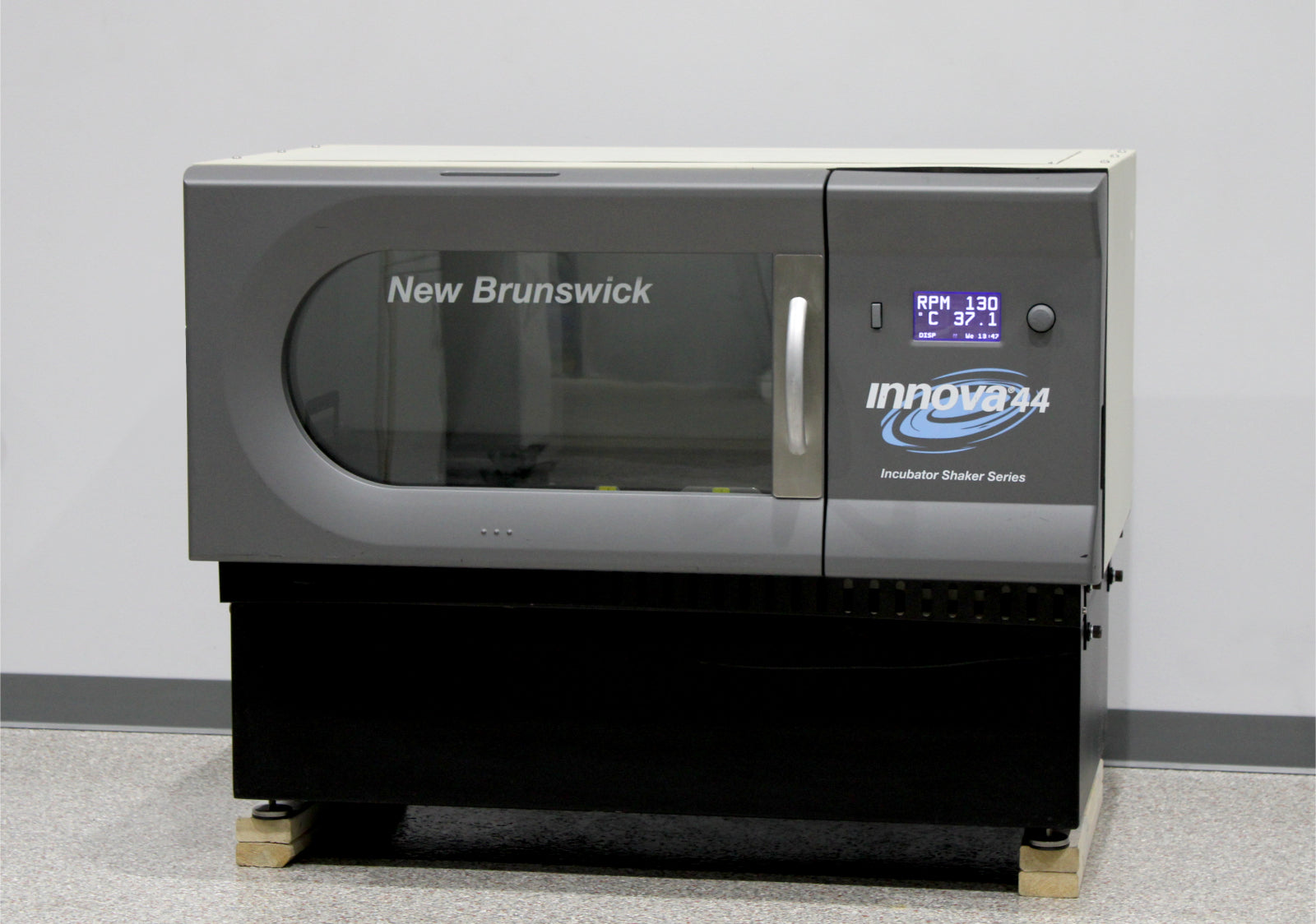

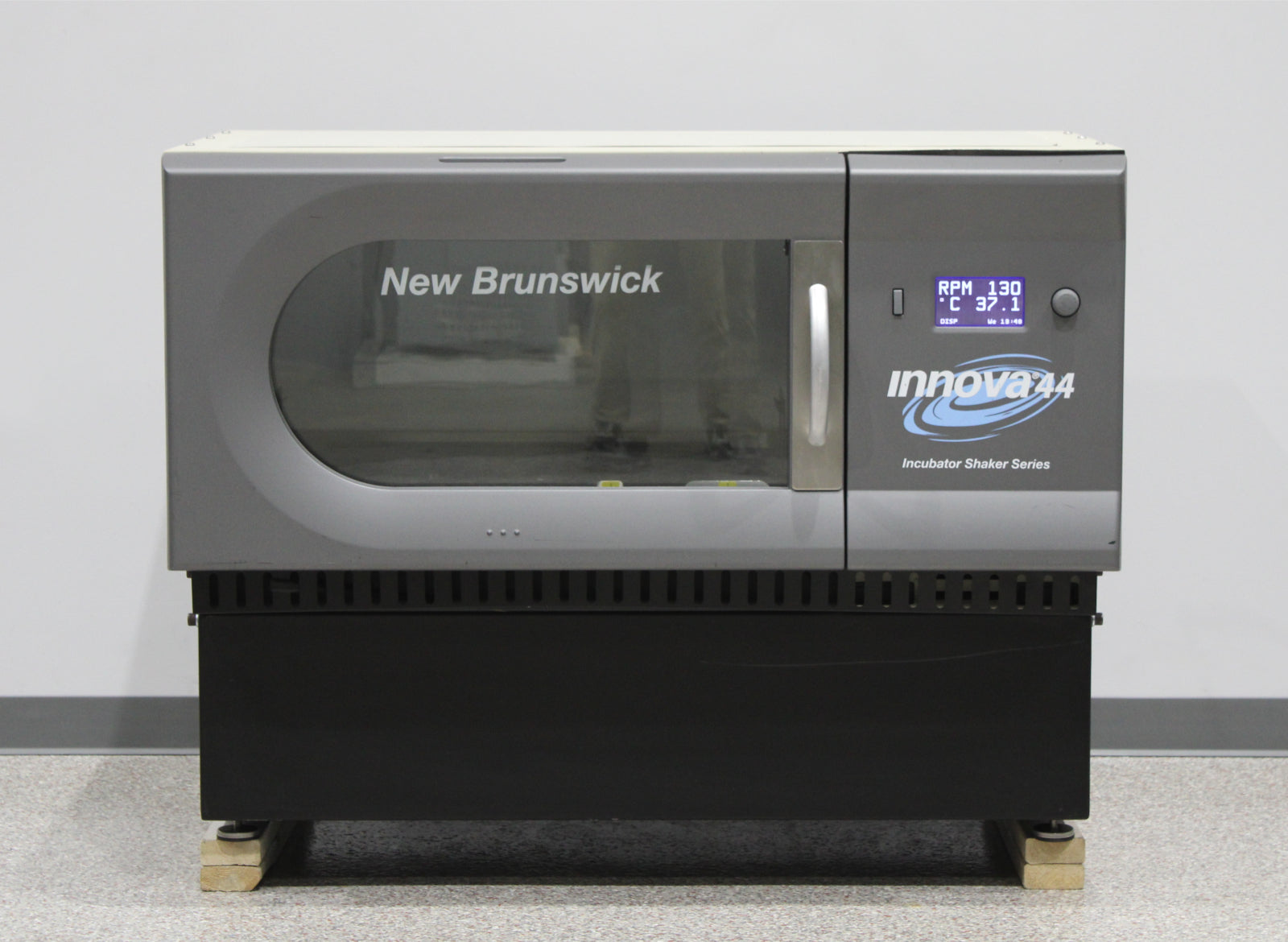

- New Brunswick Innova 44R Refrigerated Incubator Shaker 120V (M1282-0004)
- Base Riser
- Shaker Platform
- Power Cable with NEMA 5-15 Plug
- 90-Day Warranty
Notice: We have flask clamps available for an additional cost. Please contact us for information about adding flask clamps to your purchase.

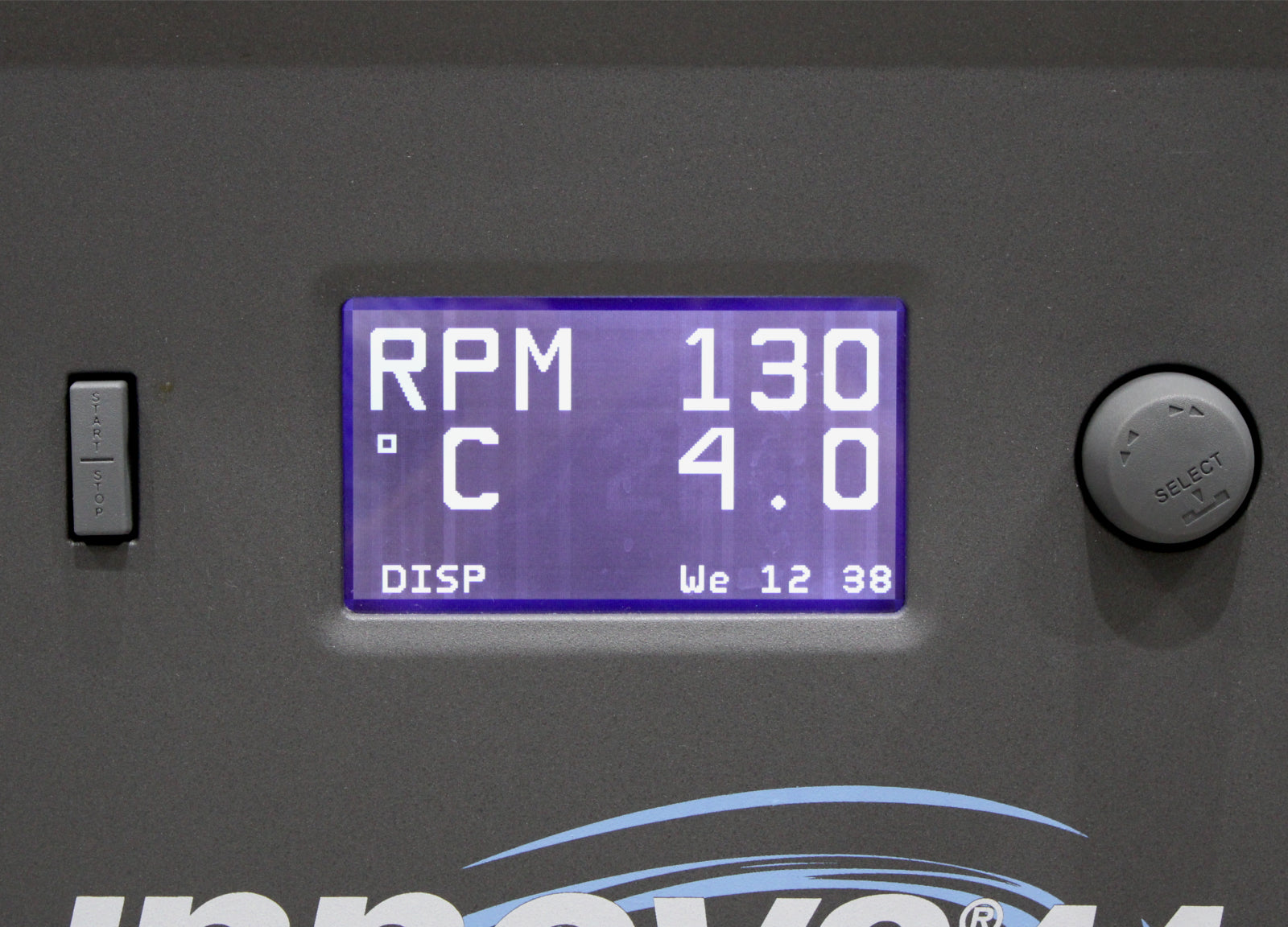

After its initial disinfection and inspection, our technicians tested the New Brunswick Innova 44R refrigerated incubator shaker with the following results:
- Shaking holds steady with no excessive noise or vibration: PASSED
- Shaking speed calibration: PASSED

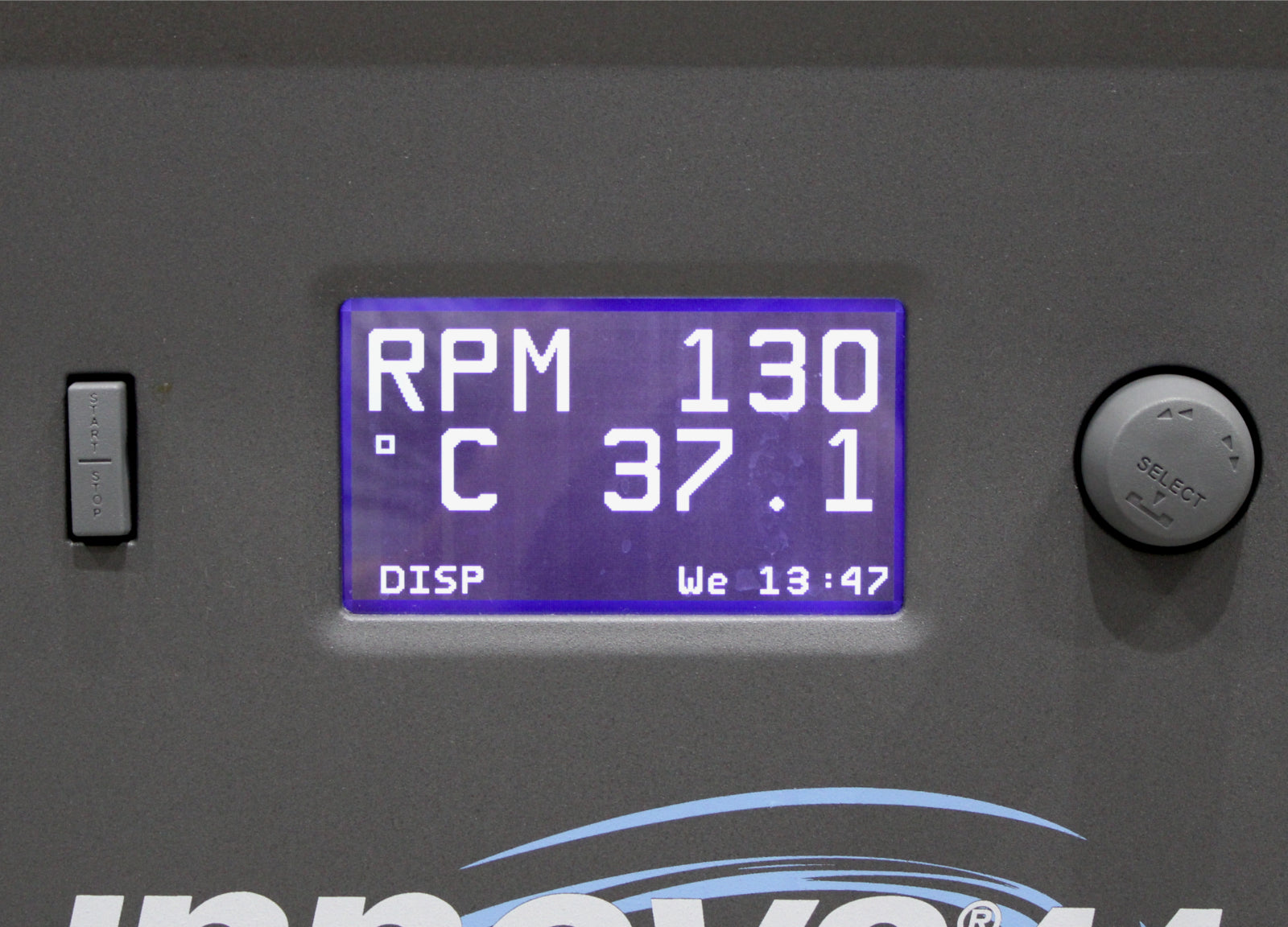

- Heating holds steady at 37°C setpoint: PASSED

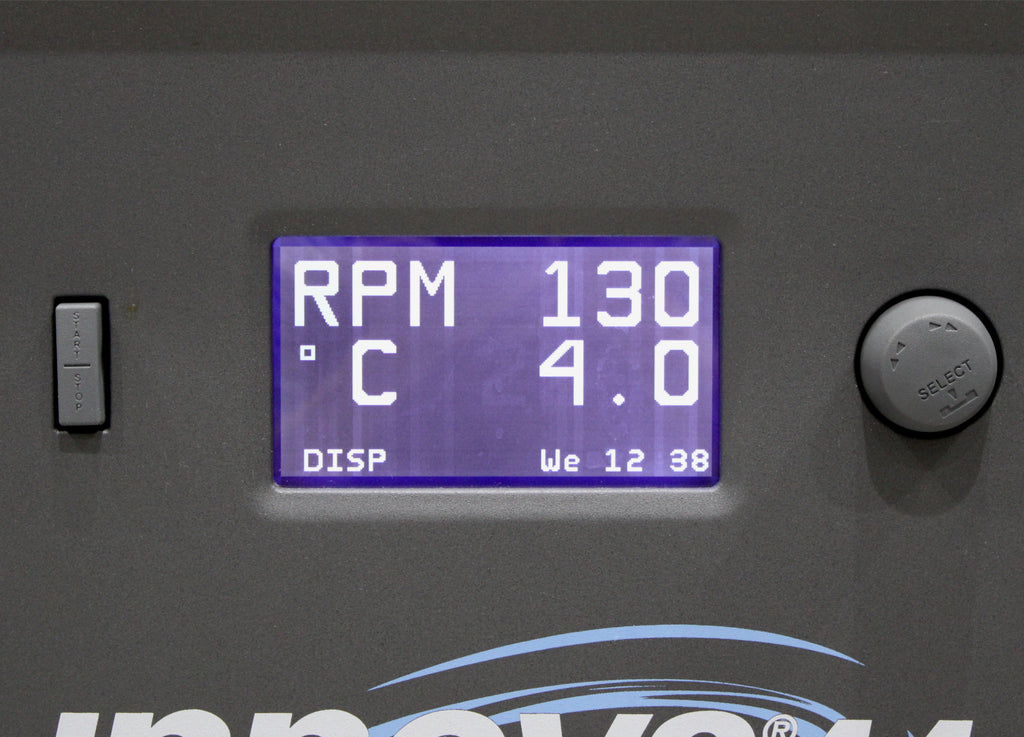

- Cooling holds steady at 4°C setpoint: PASSED
- Temperature calibration: PASSED
- Installed a new belt.
- Installed new feet.

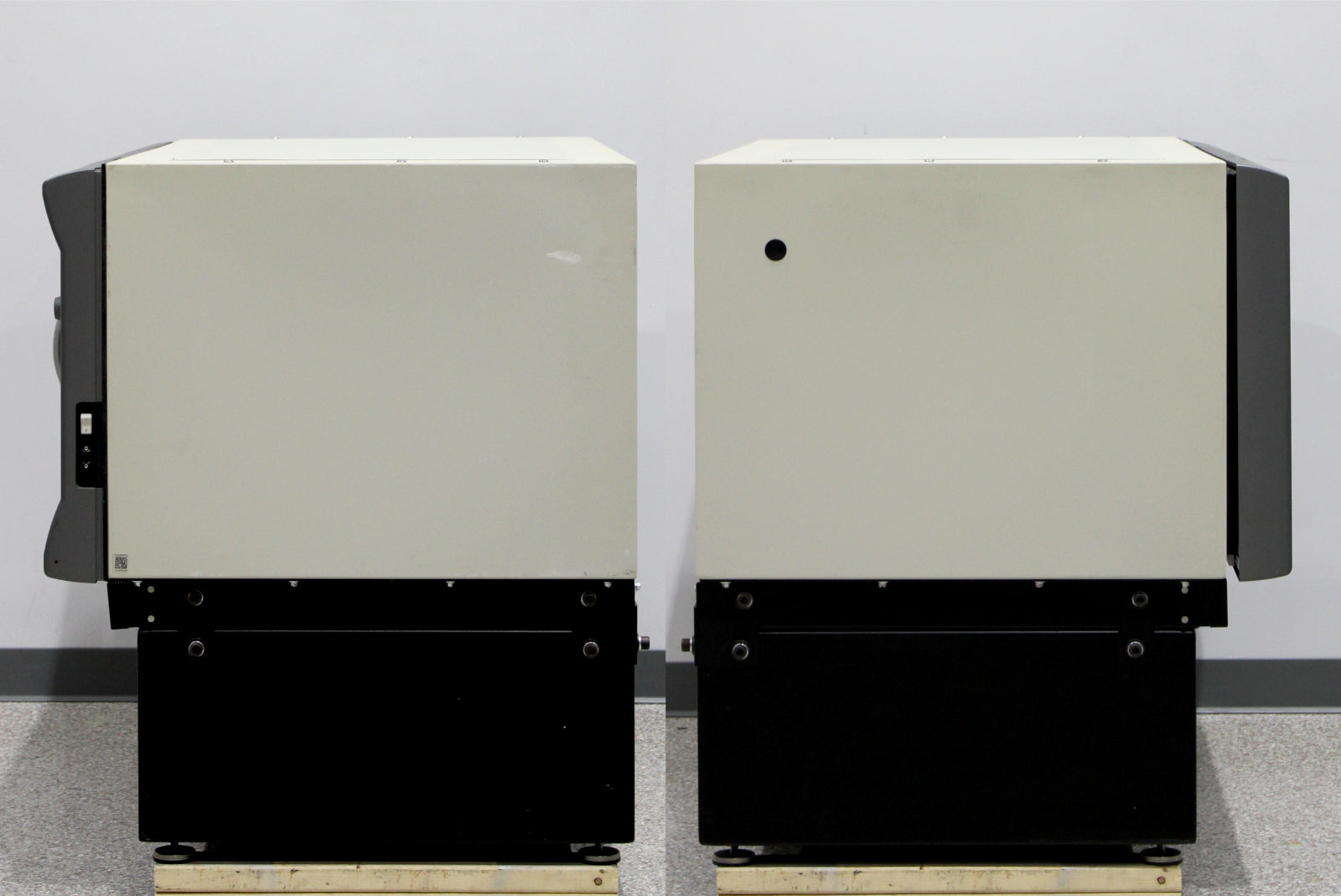

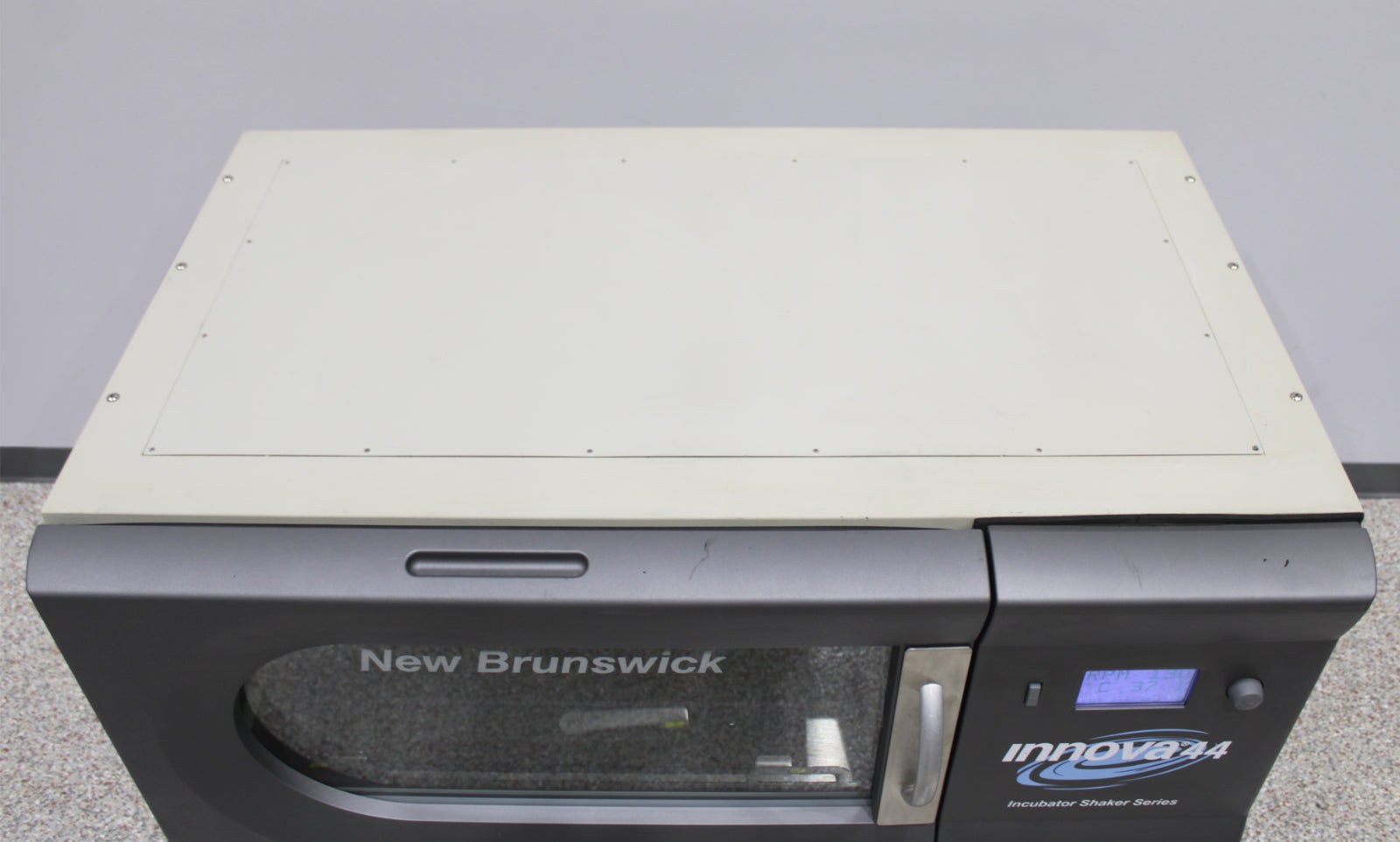

Notice: This shaker has some cosmetic blemishes. Please review the available photos to see the physical condition before purchasing.
|

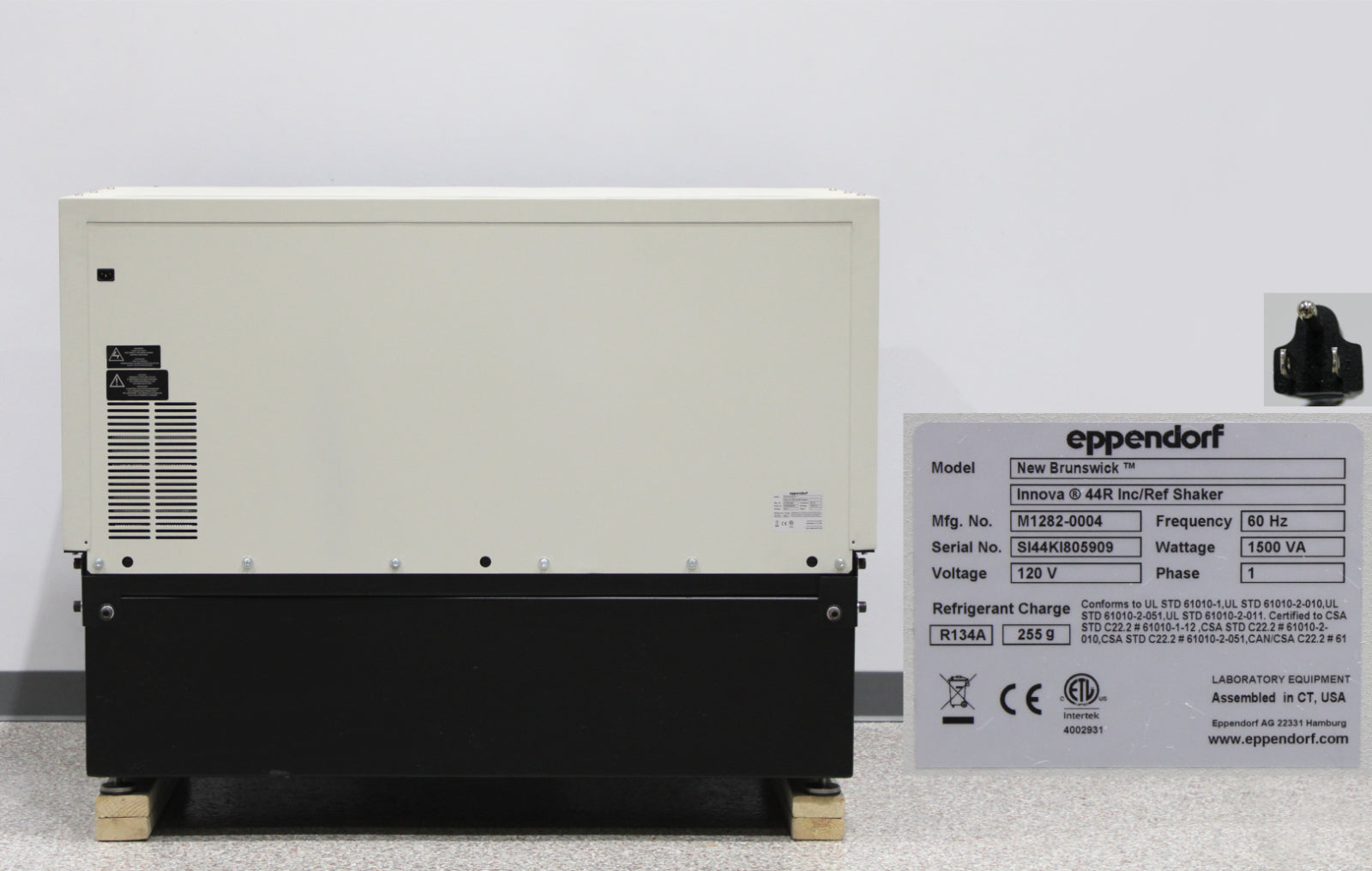

Manufacturer
|
New Brunswick Eppendorf
|
|
Model
|
Innova 44R Inc/Ref Shaker
|
|
Mfg. No.
|
M1282-0004
|
|
Serial No.
|
SI44KI805909
|
|
Mfg. date
|
March 2021
|
|
Temperature range
|
Incubated: 5°C above ambient to 80°C
Refrigerated: 20°C below ambient (min. 4°C) to 80°C
|
|
Temperature uniformity
|
±0.25°C at 37°C
|
|
Speed range
|
1.0 in (2.5 cm) orbit: 25 - 400 rpm
2.0 in (5.1 cm) orbit or 2 stacked units: 25 - 300 rpm
3 stacked units: 25 - 250 rpm
|
|
Orbit
|
1.0 in (2.5 cm)
|
|
Placement/orientation
|
Floor, stackable (x3)
|
|
Platform size
|
30 x 18 in (76 x 46 cm)
|
|

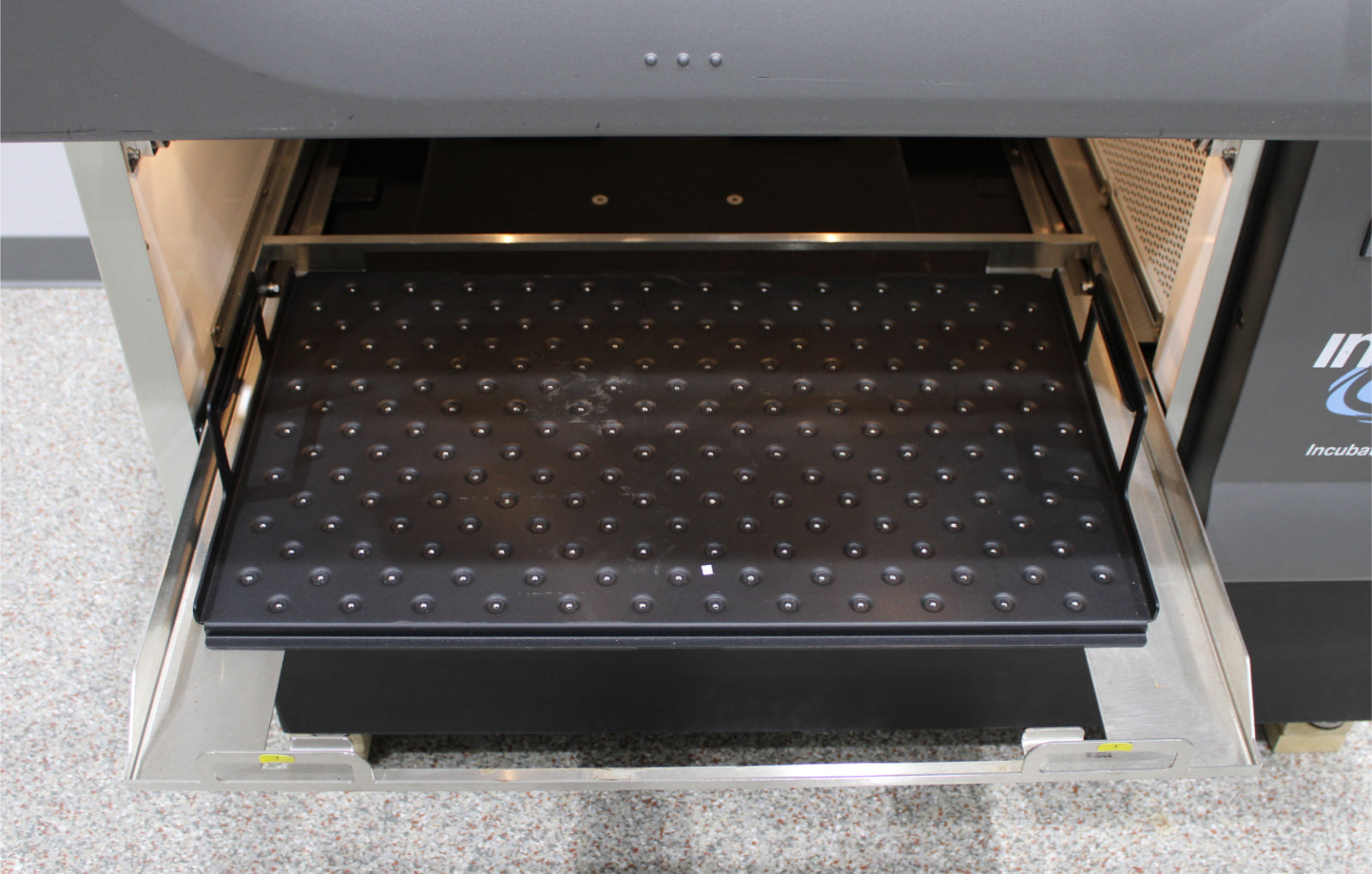

Slide-out platform
|
yes
|
|

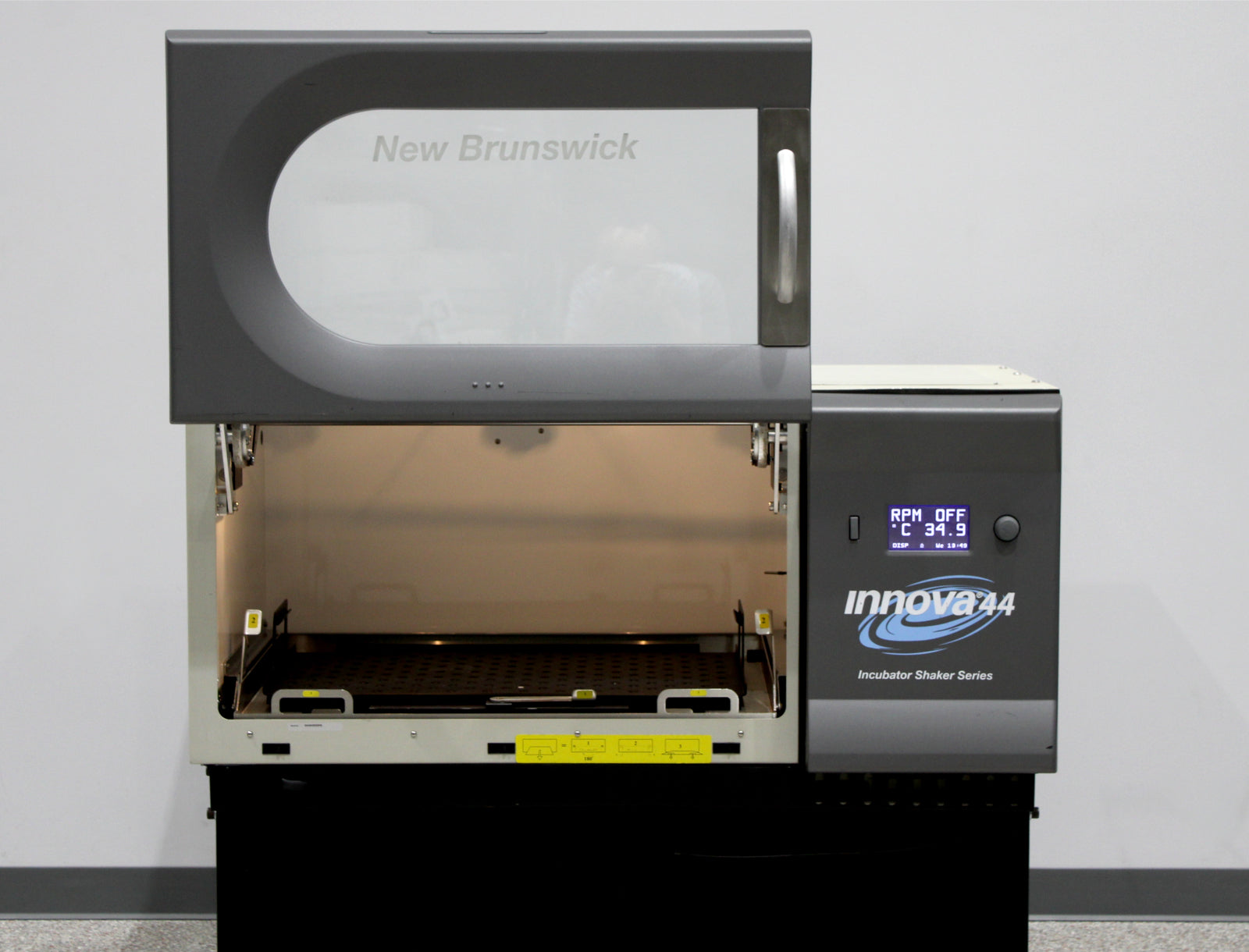

Door opening
|
Glide up
|
|
Drive mechanism
|
Triple-eccentric counterbalanced drive
|
|
Motor type
|
Solid state, DC brushless motor
|
|

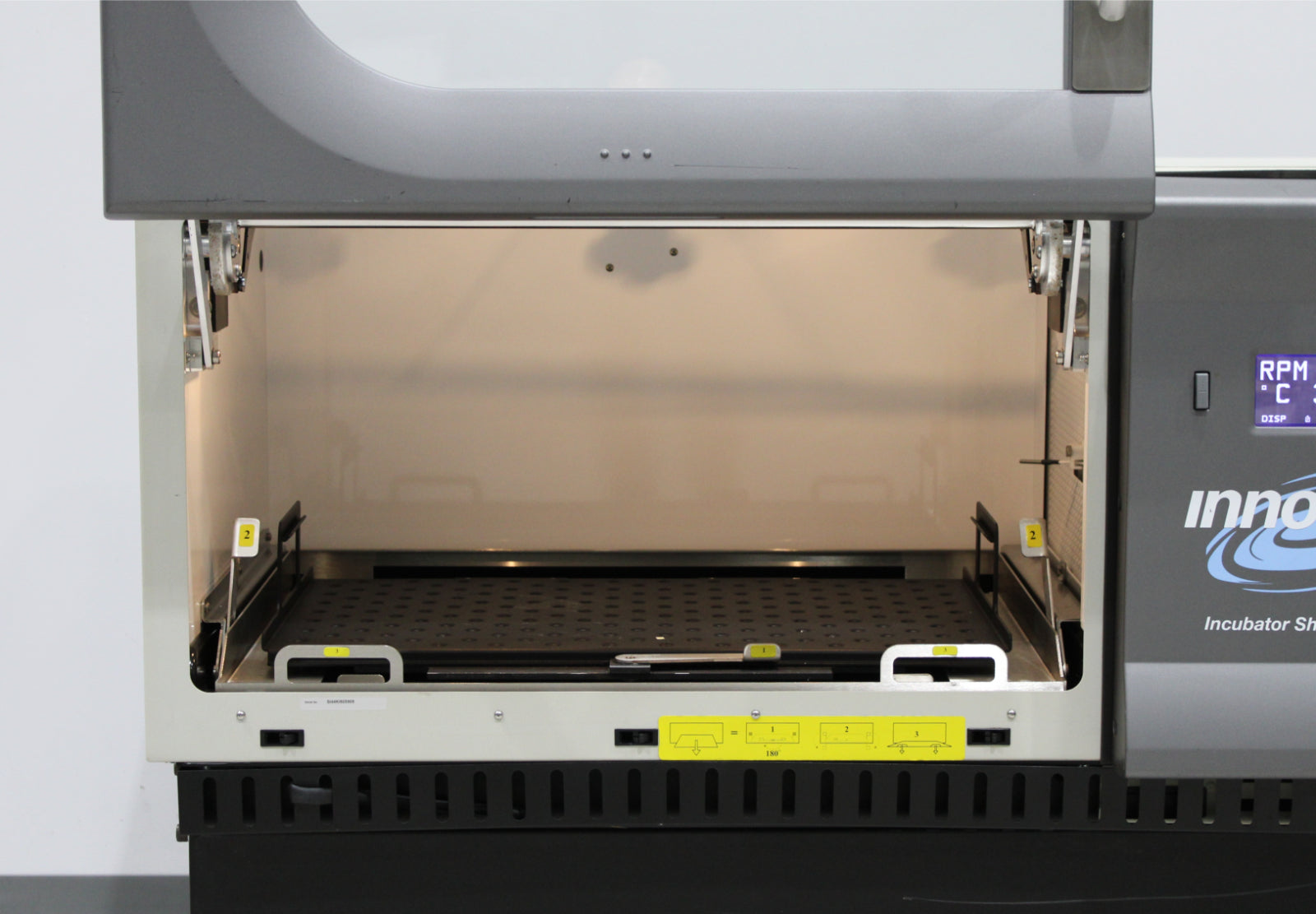

Space-saving glide-up doors
|
yes
|
|
Audible and visual alarms
|
yes
|
|
Available program modes
|
Constant speed and temperature
Programmable multi-steps

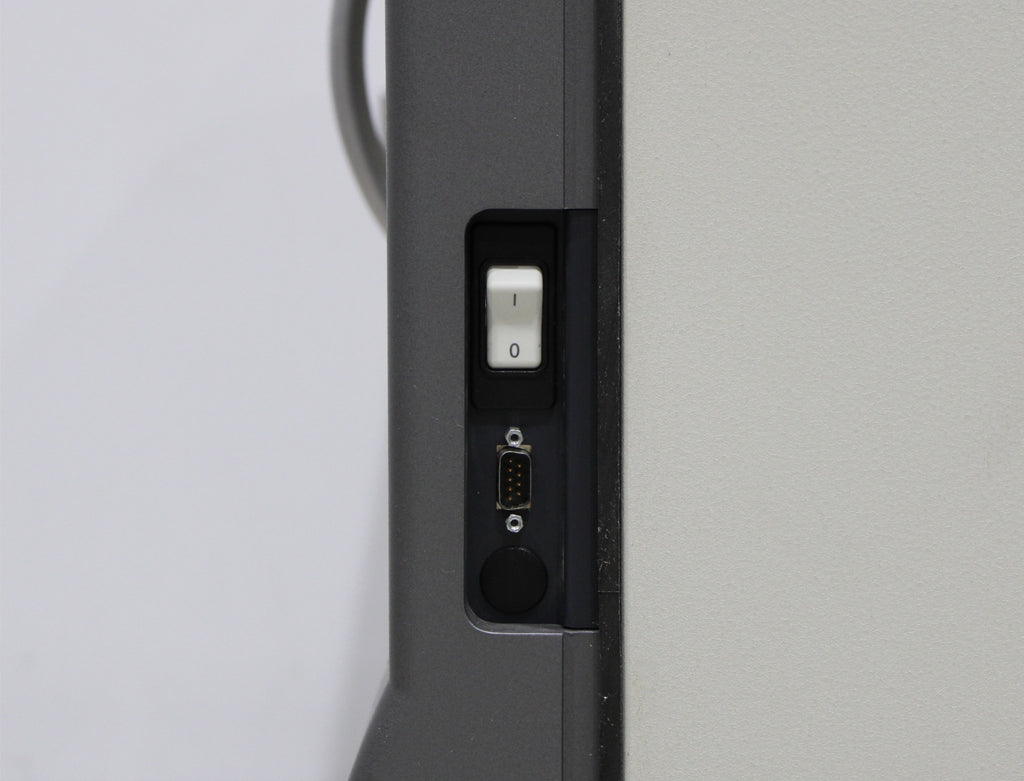

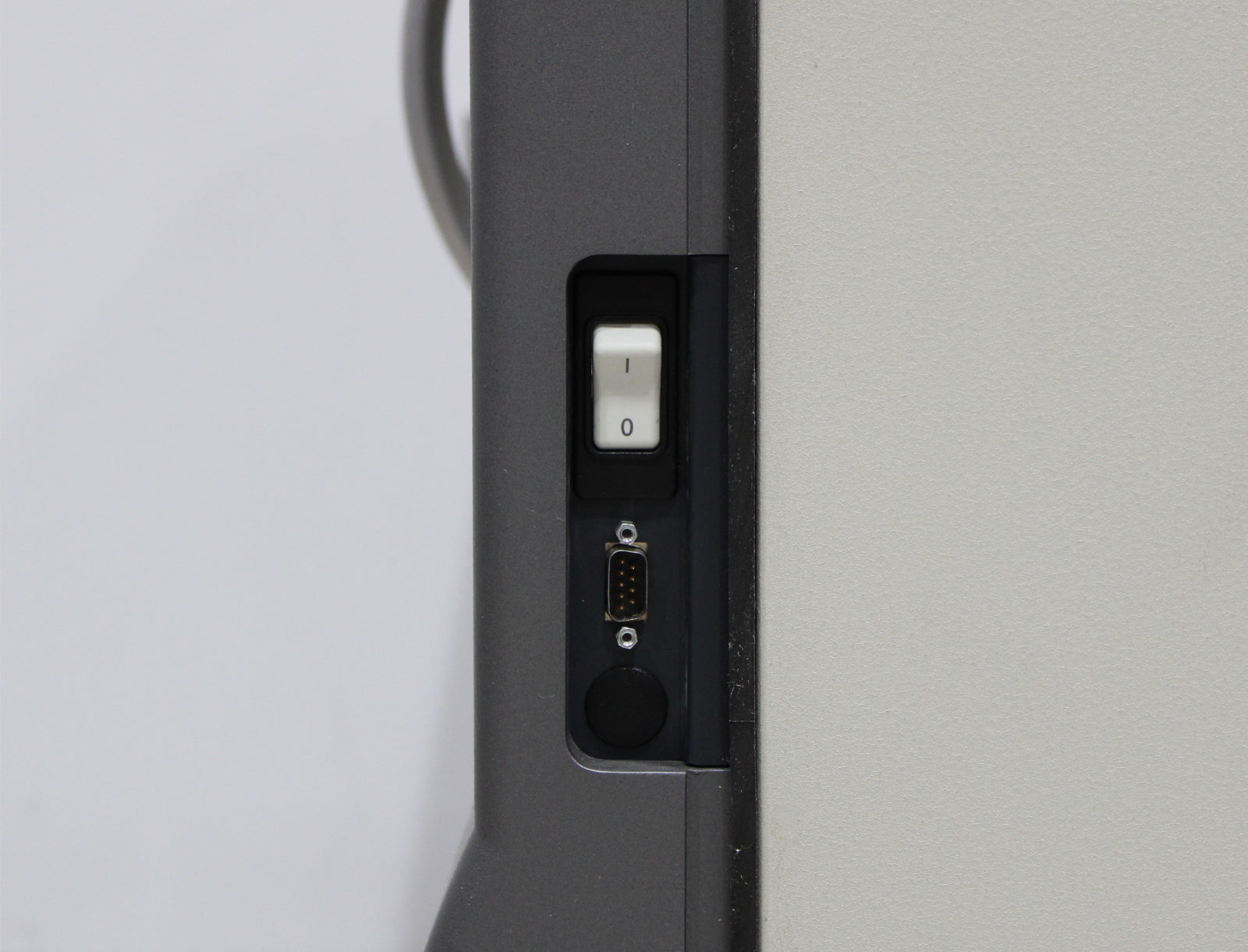

RS-232 communication port
|
|
Steps per program
|
15
|
|
Stored programs
|
4
|
|
Timer
|
0.01 - 99.59 h, continuous
|
|
Power rating
|
120V, 60Hz, 1Ph
|
|
Power consumption
|
1500VA
|
|
Dimensions (W x D x H)
|
53.1 x 33.2 x 27 in (134.9 x 84.3 x 68.6 cm)
|
|
Dimensions with base riser (W x D x H)
|
53.1 x 33.2 x 39.5 in (134.9 x 84.3 x 100 cm)
|
|
Weight
|
566 lb (257 kg)
|
