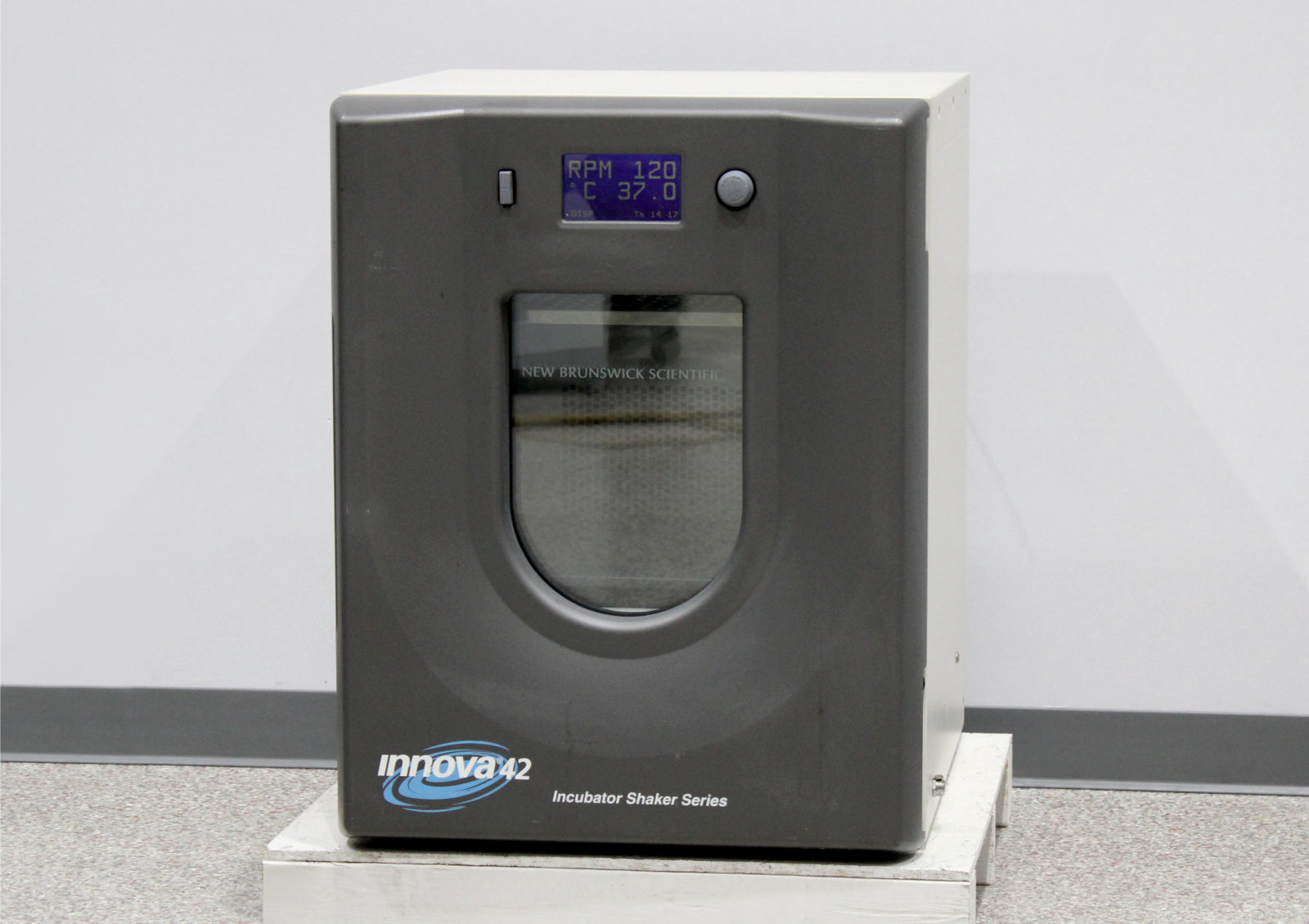

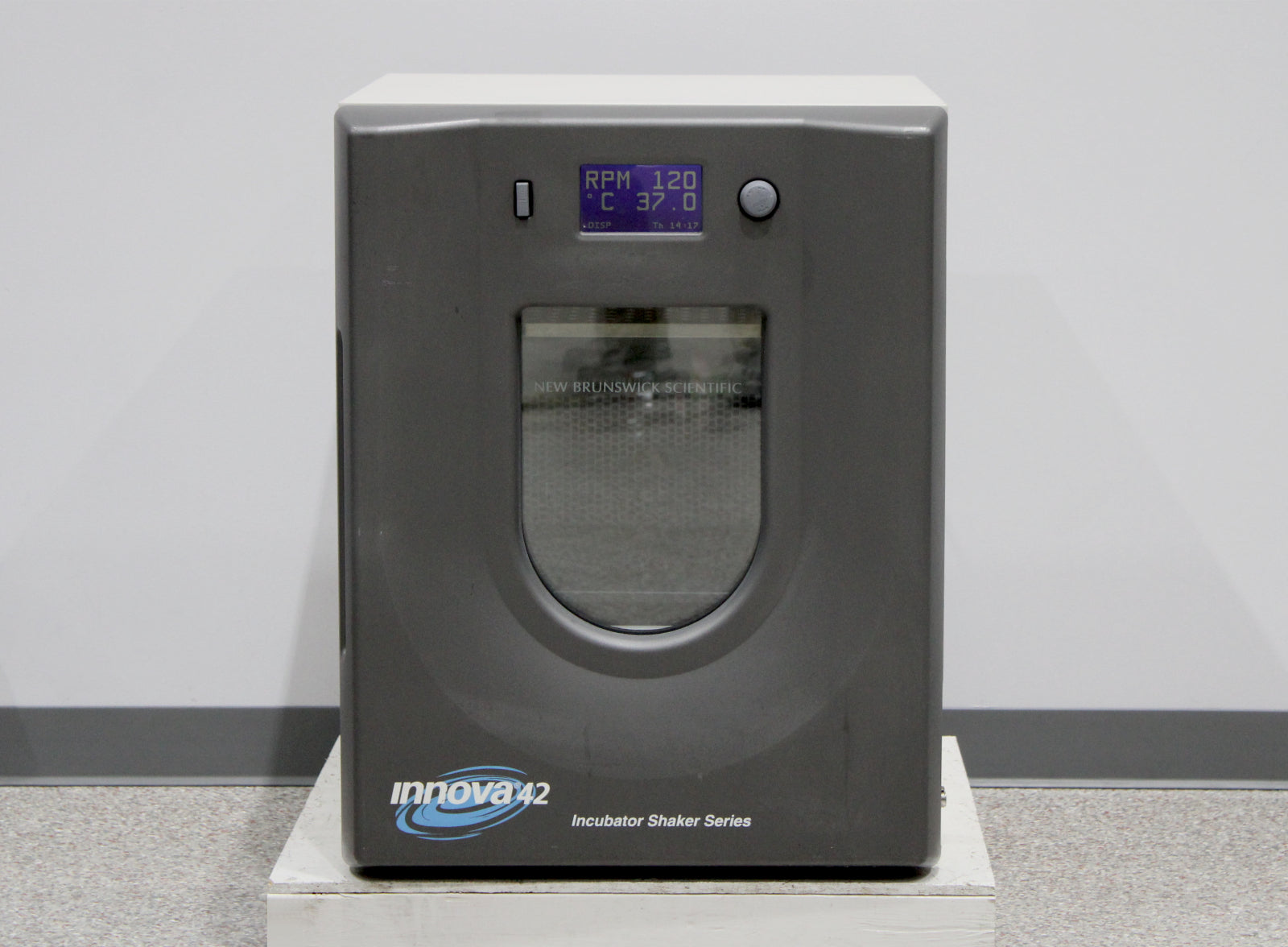

- New Brunswick Scientific Innova 42R Refrigerated Incubator Shaker 120V (M1335-0014)

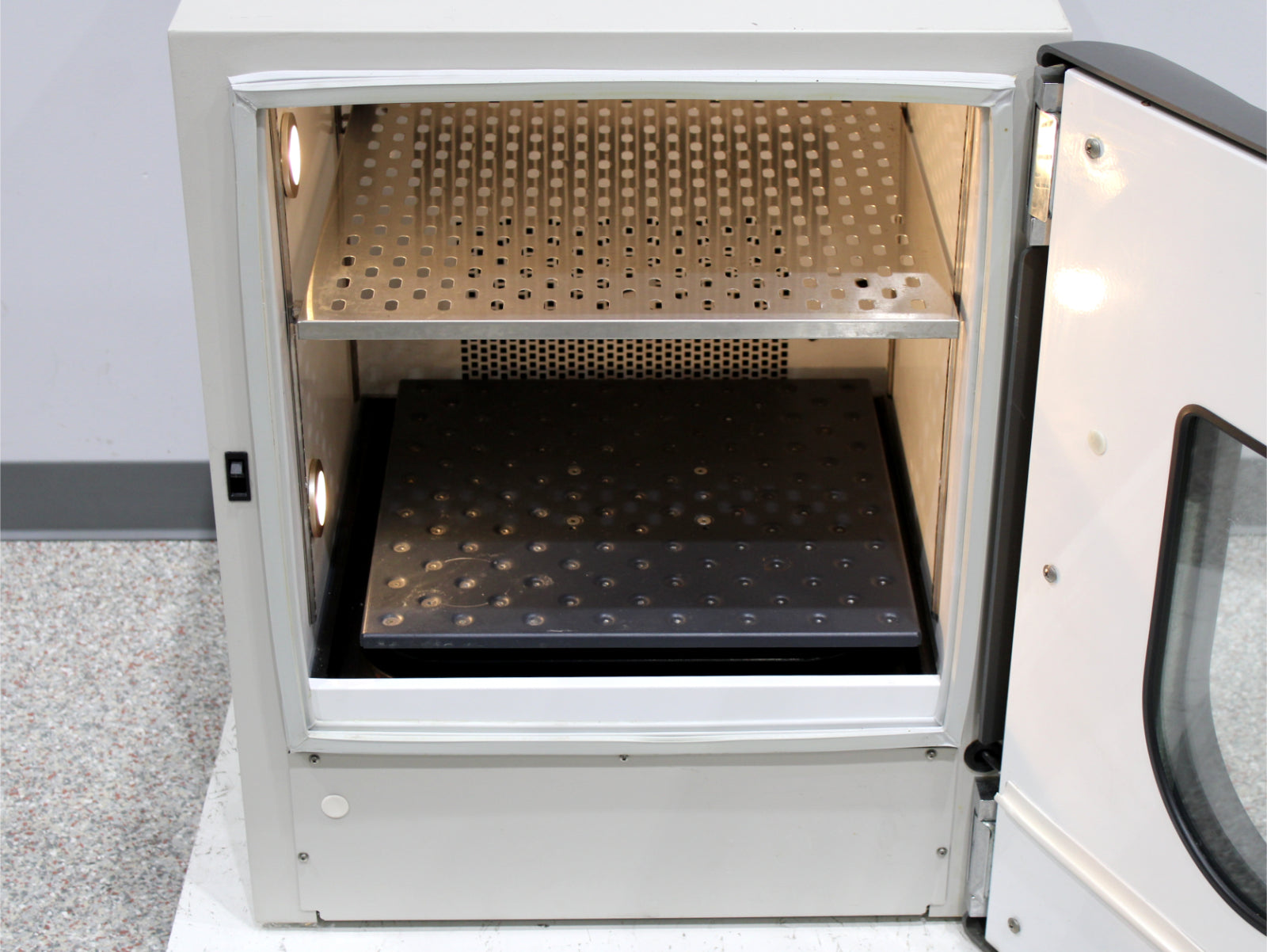

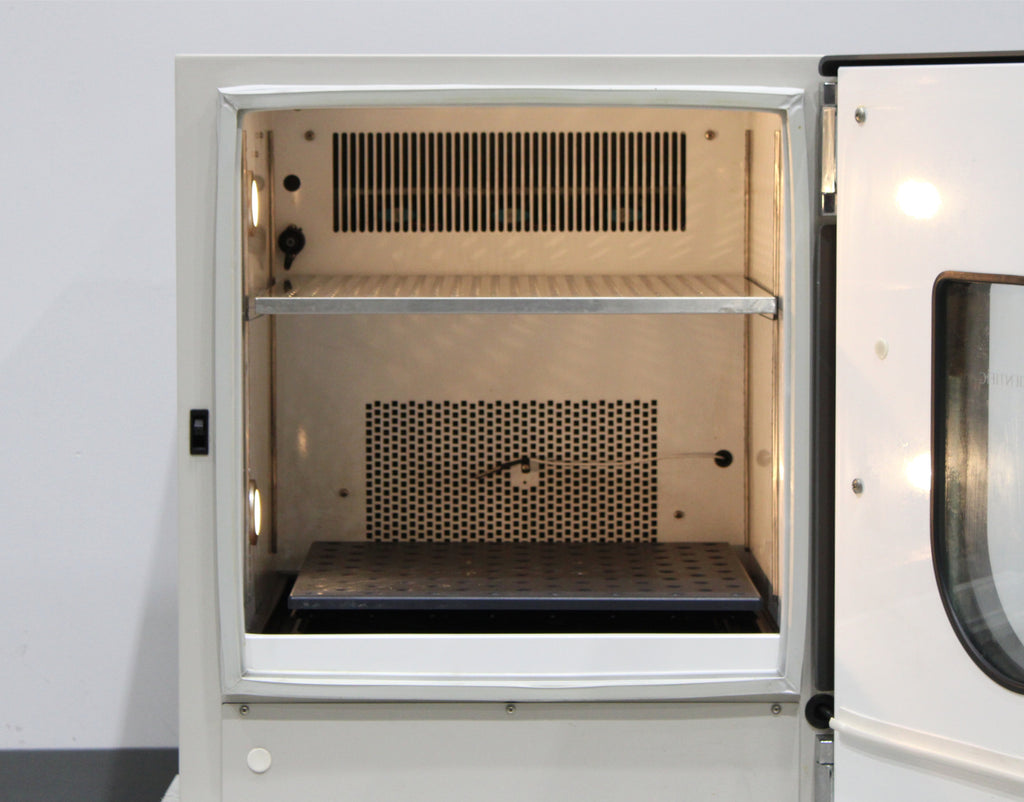

- Shaker Platform
- Shelf
- Power Cable
- 90-Day Warranty
After its initial disinfection and inspection, our technicians tested the New Brunswick Scientific Innova 42R refrigerated incubator shaker with the following results:
- Shaking holds steady with no excessive noise or vibration: PASSED
- Shaker calibration: PASSED

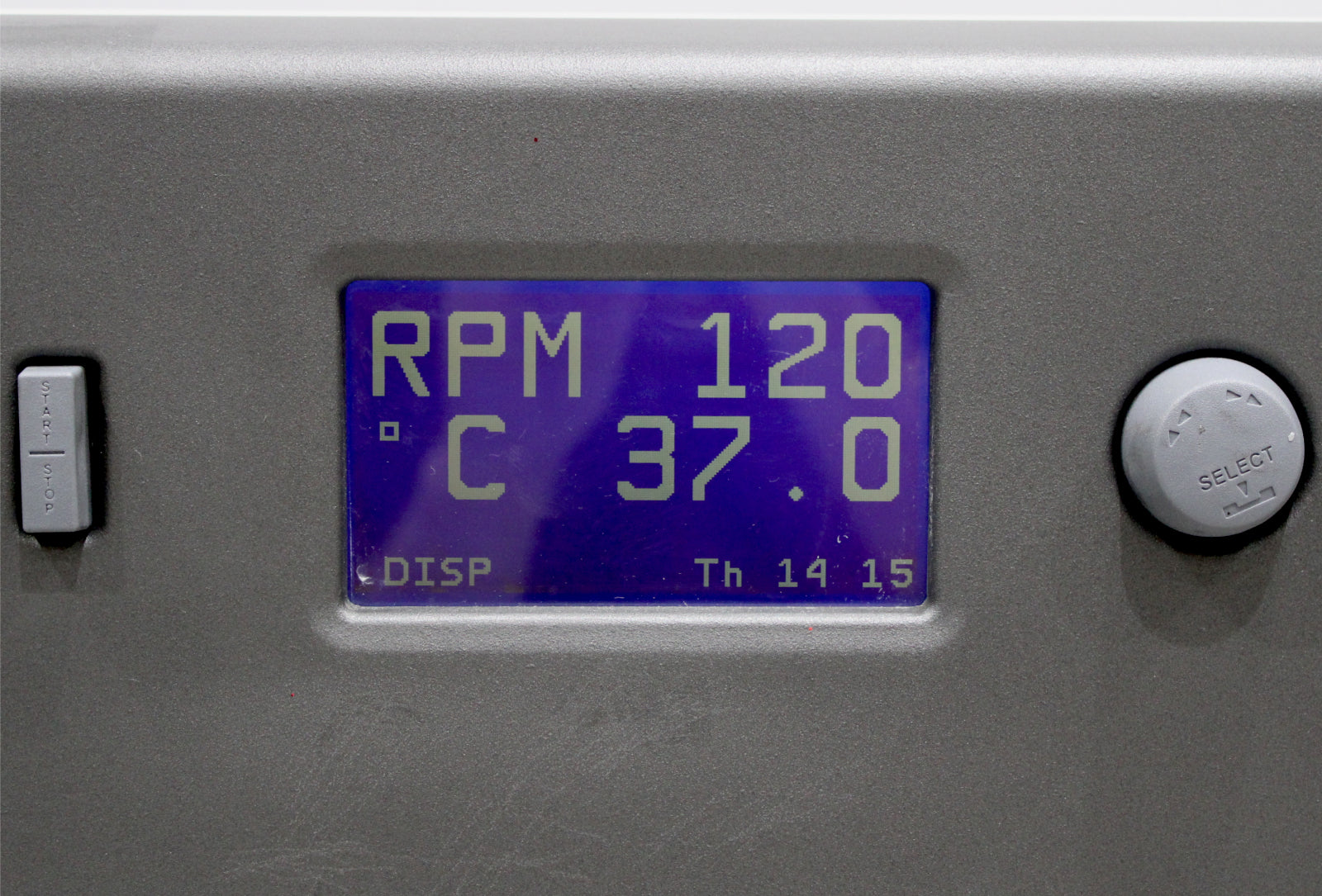

- Heating holds steady at 37°C setpoint: PASSED

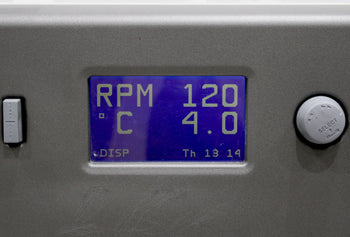

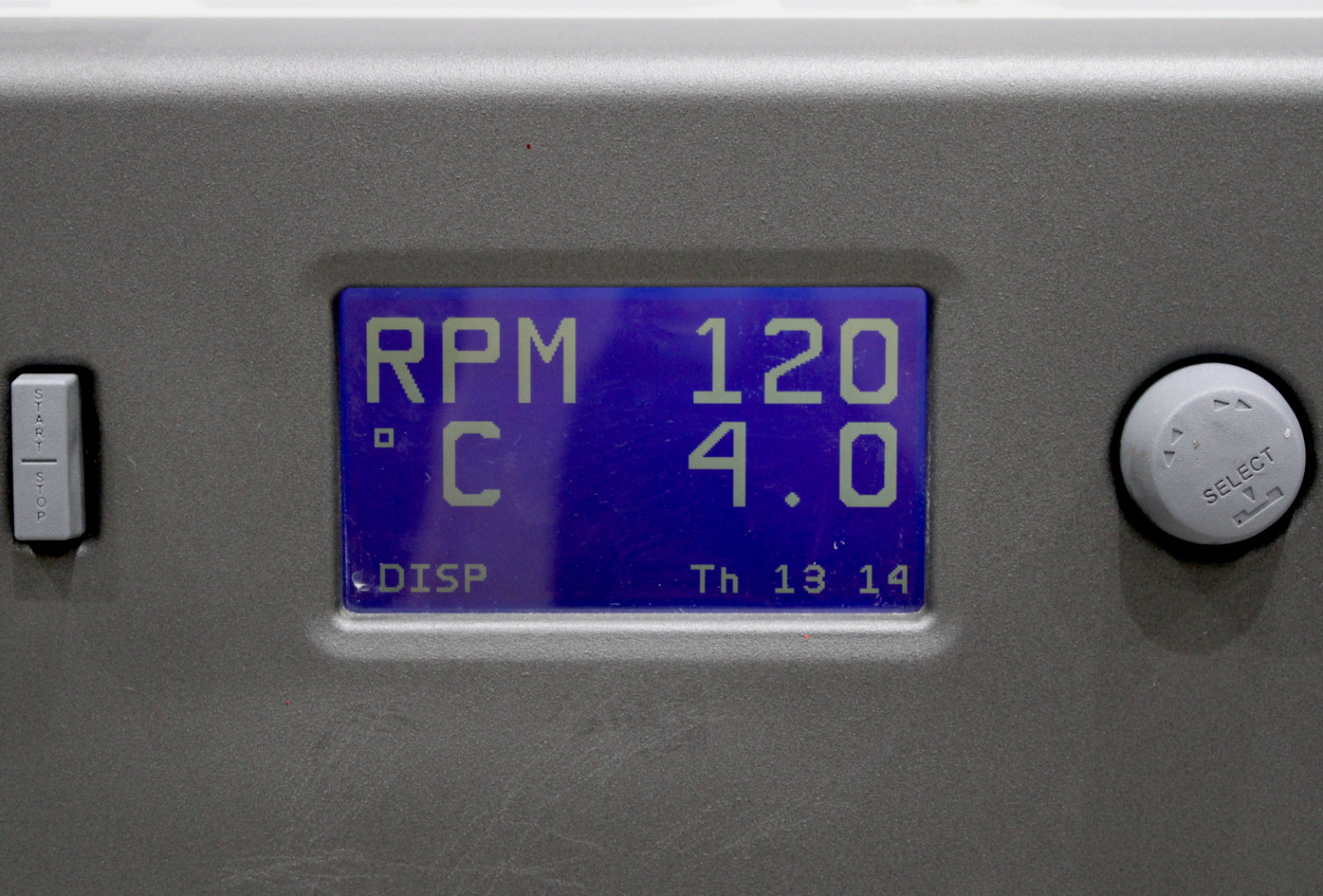

- Cooling holds steady at 4.0°C setpoint: PASSED
- Temperature calibration: PASSED
- Installed a new belt.
- Installed new feet.

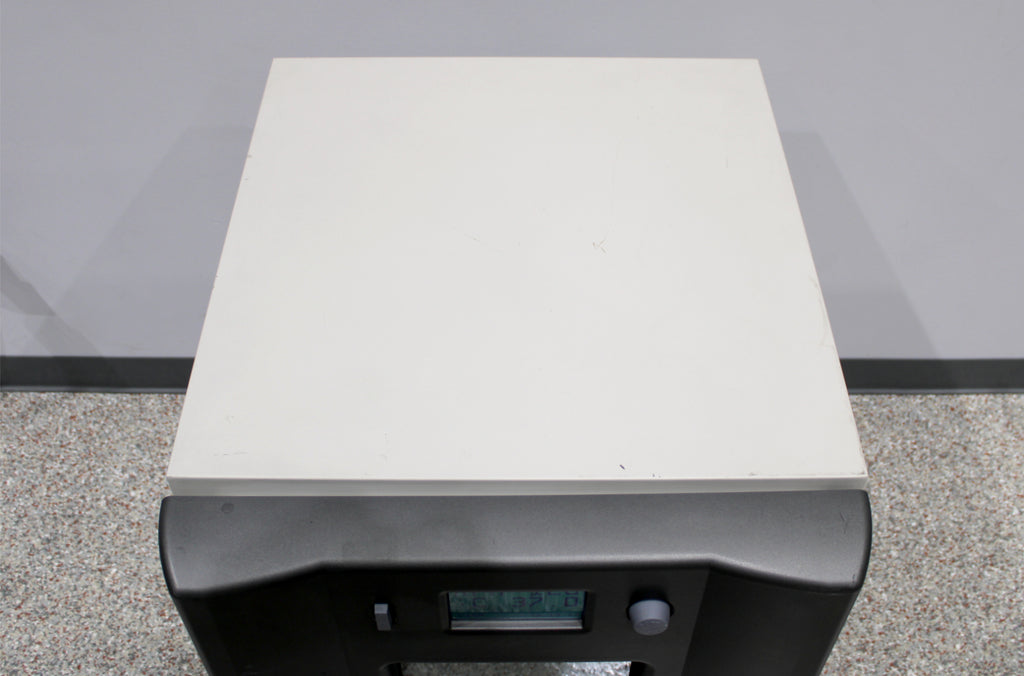

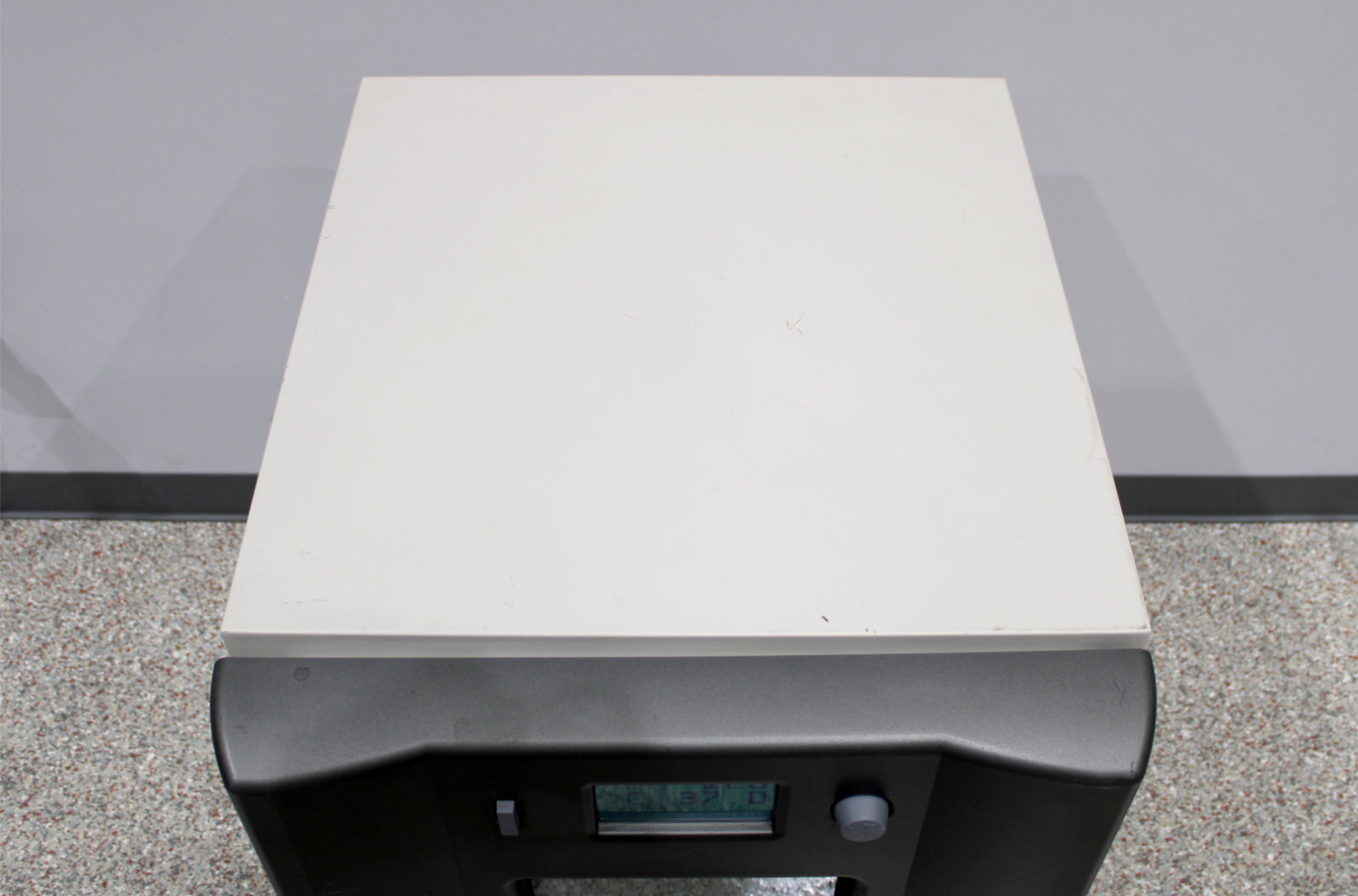

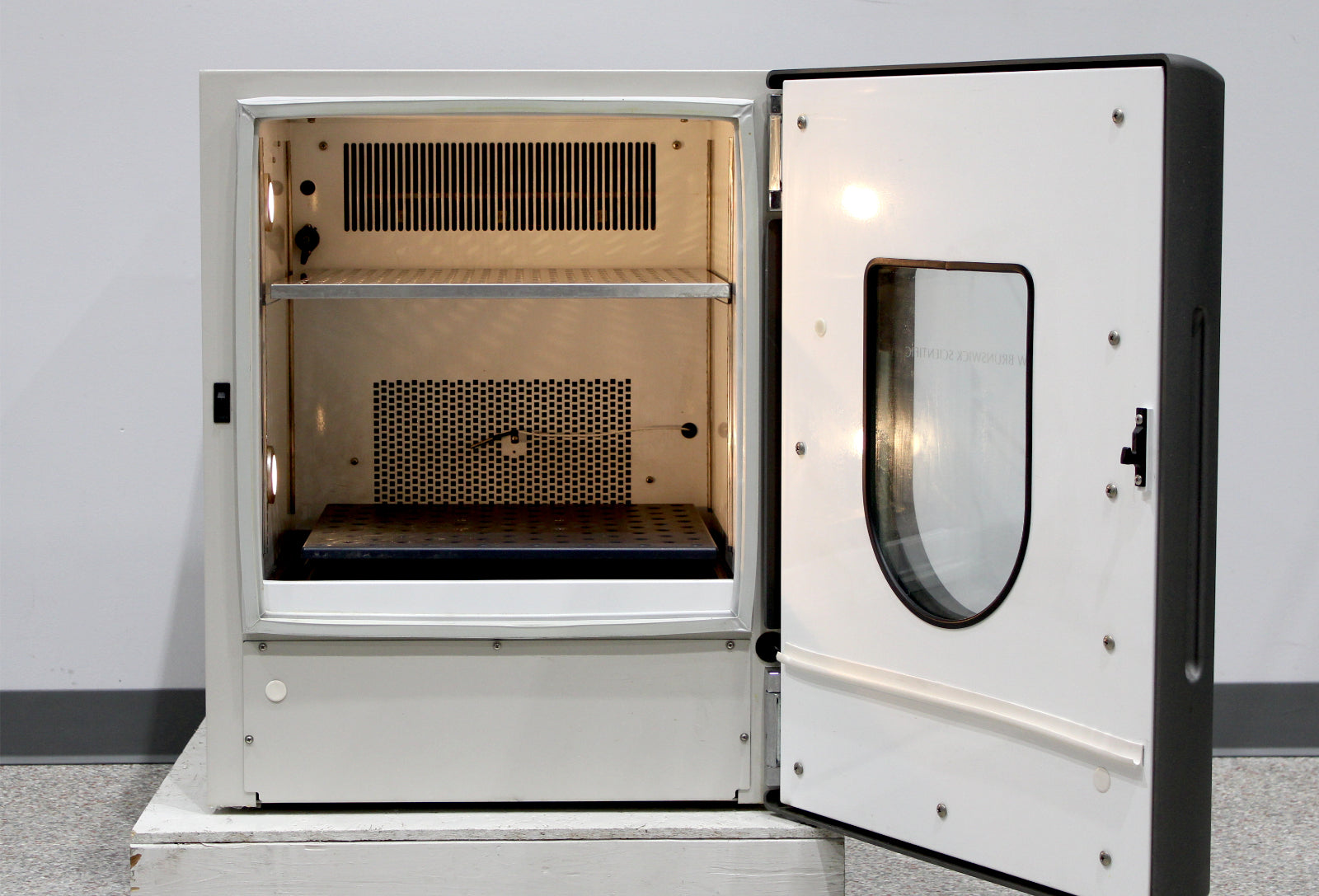

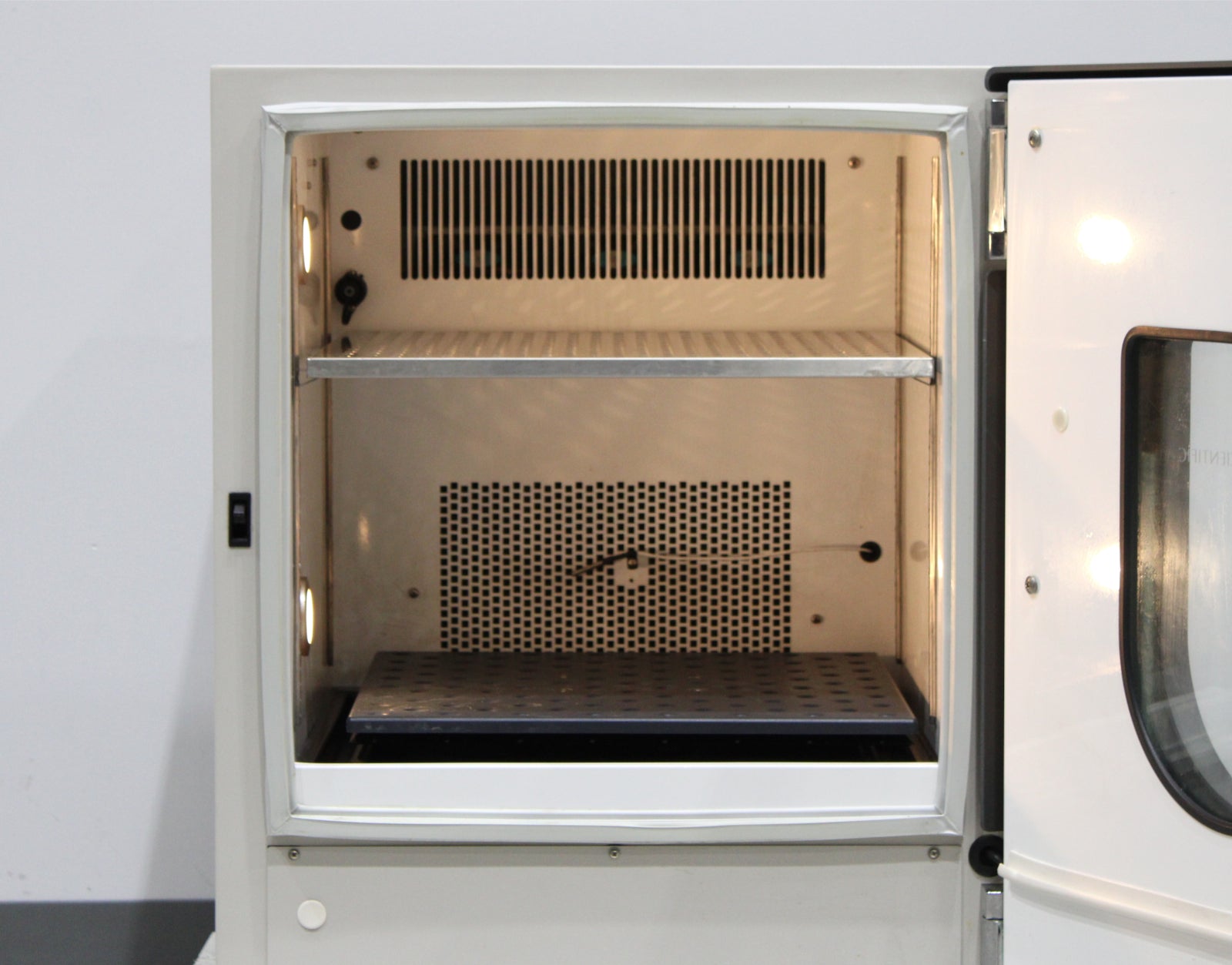

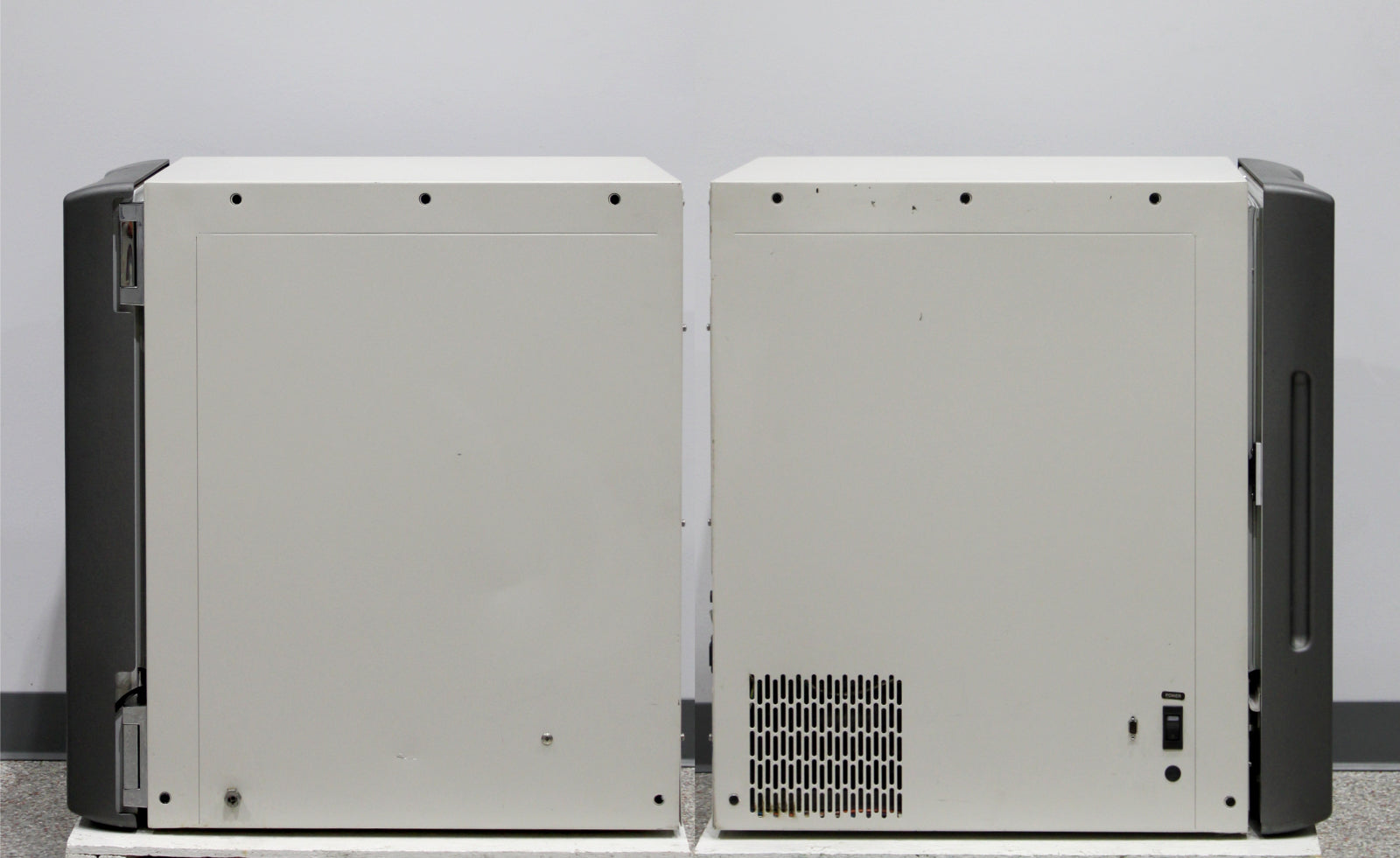

Notice: This shaker has some minor cosmetic blemishes. Please review the available photos to see the physical condition before purchasing.
|

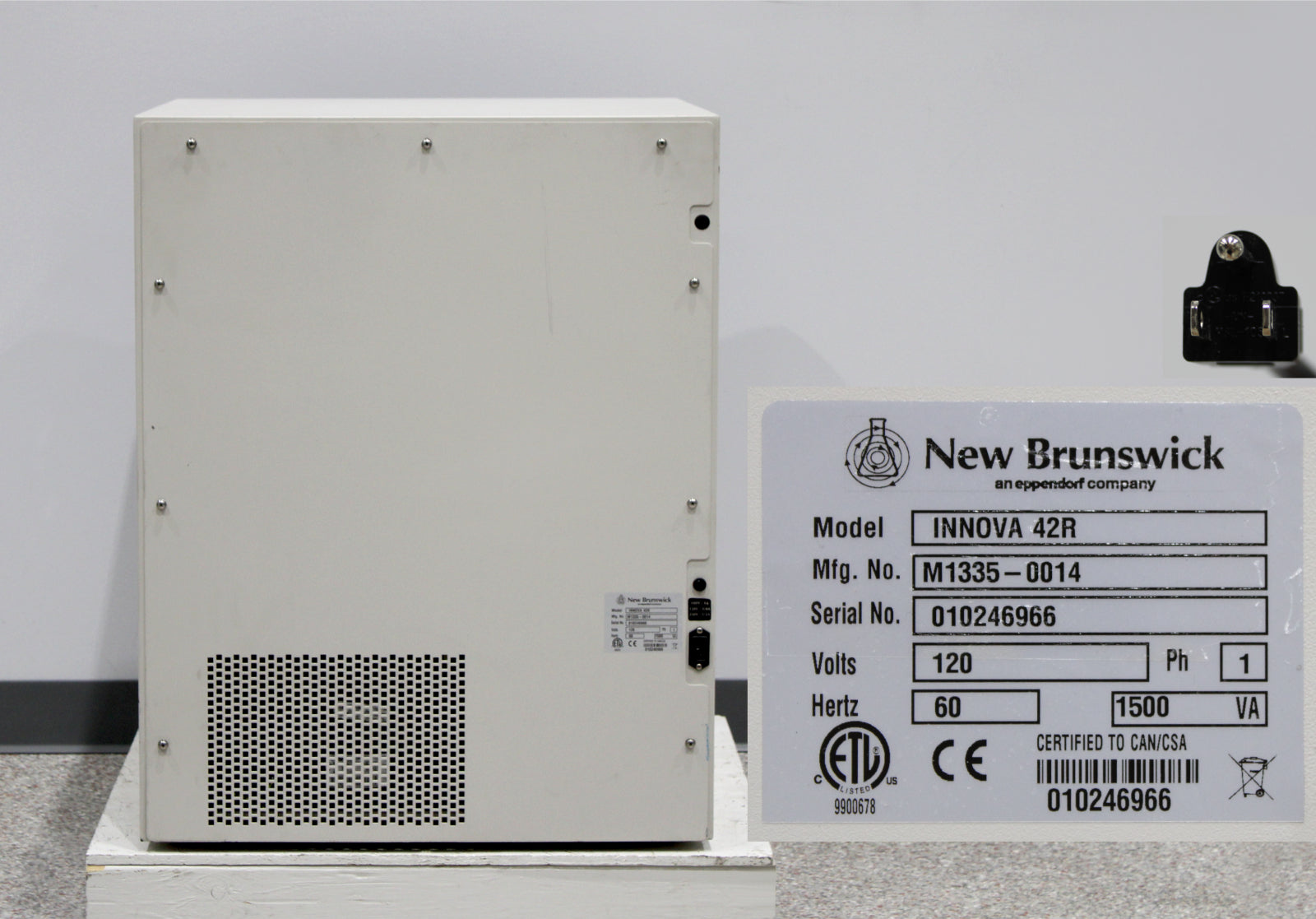

Manufacturer
|
New Brunswick Scientific
|
|
Model
|
Innova 42R
|
|
Mfg. No.
|
M1335-0014
|
|
Serial No.
|
010246966
|
|
Mfg. date
|
February 2010
|
|
Power rating
|
120V, 60Hz, 1Ph
|
|
Power consumption
|
1500VA
|
|
Shaking
|
|
Speed
|
25 - 400 rpm
|
|
Control accuracy
|
±1 rpm
|
|
Stroke
|
1 inch (2.54 cm)
|
|
Indication
|
Displayed in 1 rpm increments
|
|
Alarm signal
|
Visible and audible alarm when speed deviates ±5 rpm from setpoint
|
|
Drive mechanism
|
Triple-eccentric counterbalanced drive with nine permanently lubricated ball bearings
|
|
Safety
|
Drive Interrupt shuts off power to Shaker when door opens
Acceleration/deceleration circuit prevents sudden starts and stops, minimizing both splashing and mechanical damage. Independent mechanical sensing switch also shuts the motor off in an unbalanced condition.
|
|
Temperature control
|
|
Heaters
|
Long-life, low-watt density resistance-type heater with high temperature thermostat
|
|
Control accuracy
|
±0.1° at 37°C
±0.5°C over the remaining range
|
|
Temperature range (42R)
|
20°C below ambient temperature (minimum 4°C) to 80°C
|
|
Alarm signal
|
Visible and audible alarm when temperature deviates ±1°C from setpoint
|
|
Physical specifications
|
|
Shelf dimensions (W x D)
|
19.5 x 19.5 in (49.5 x 49.5 cm)
|
|
Platform dimensions (W x D)
|
18 x 18 in (45.7 x 45.7 cm)
|
|
Exterior dimensions (W x D x H)
|
25 x 30 x 32 in (63.5 x 76.2 x 81.3 cm)
|
|
Weight
|
266 lb (121 kg)
|
