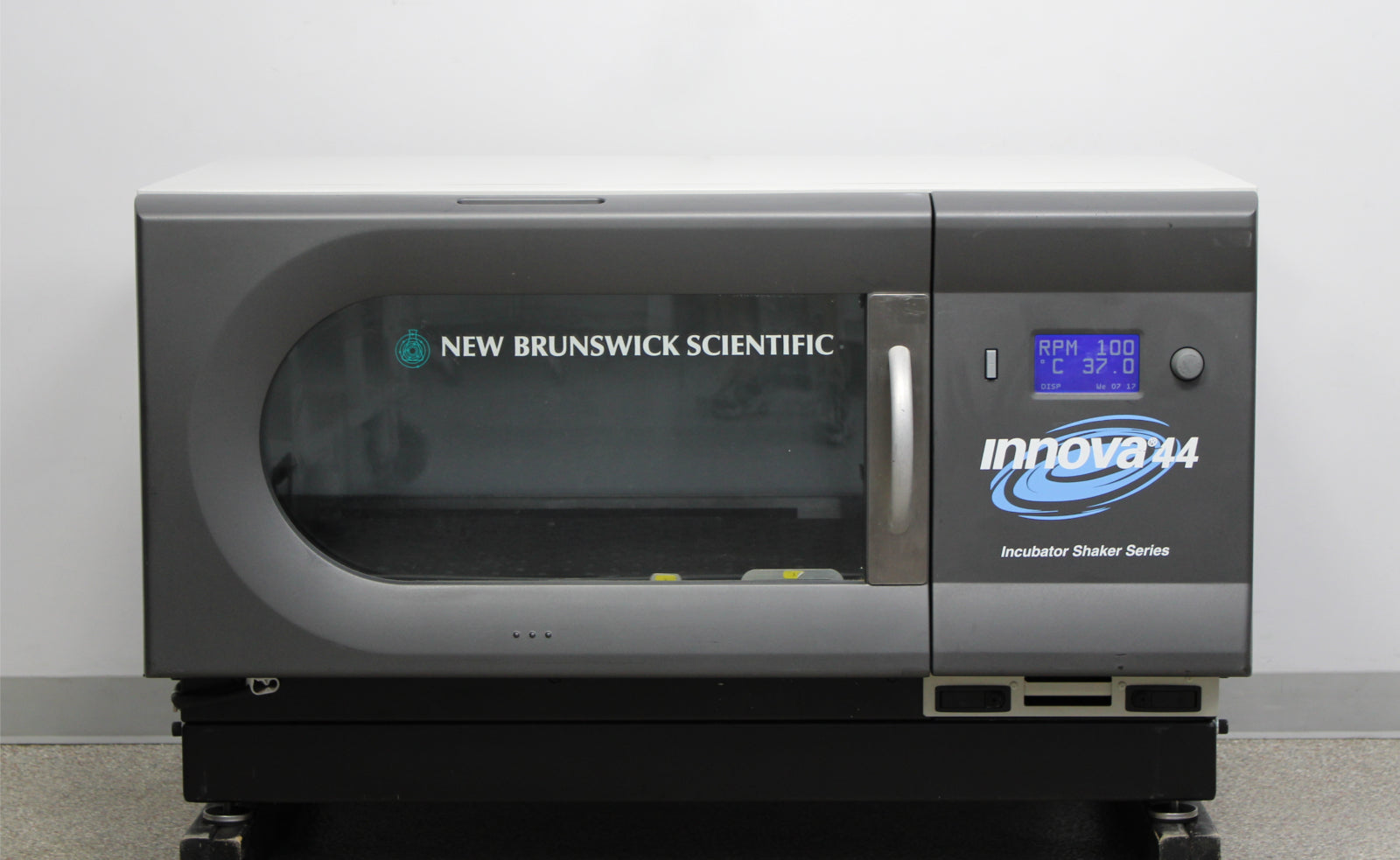

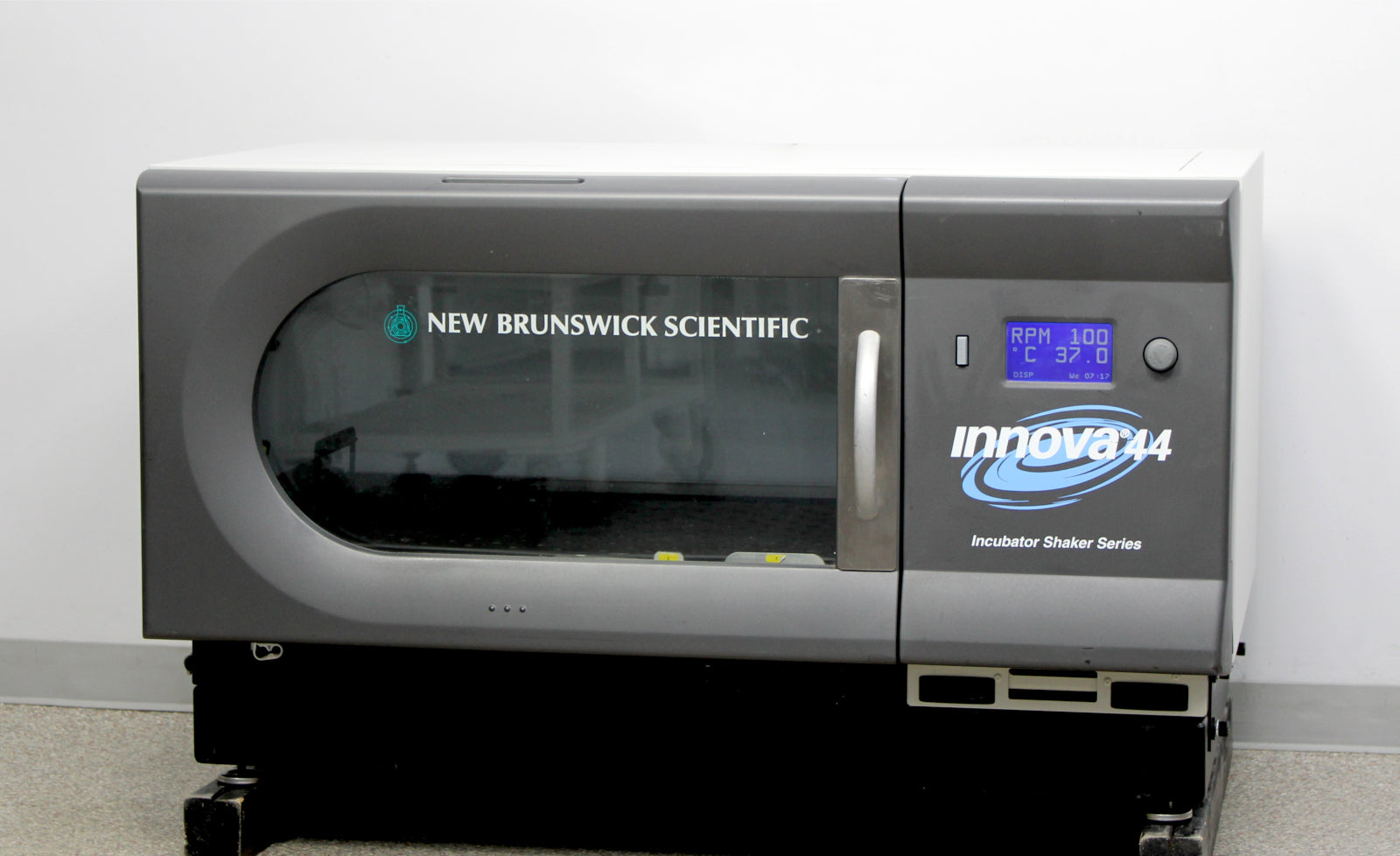

- New Brunswick Scientific Innova 44R Refrigerated Incubator Shaker 120V (M1282-0016)

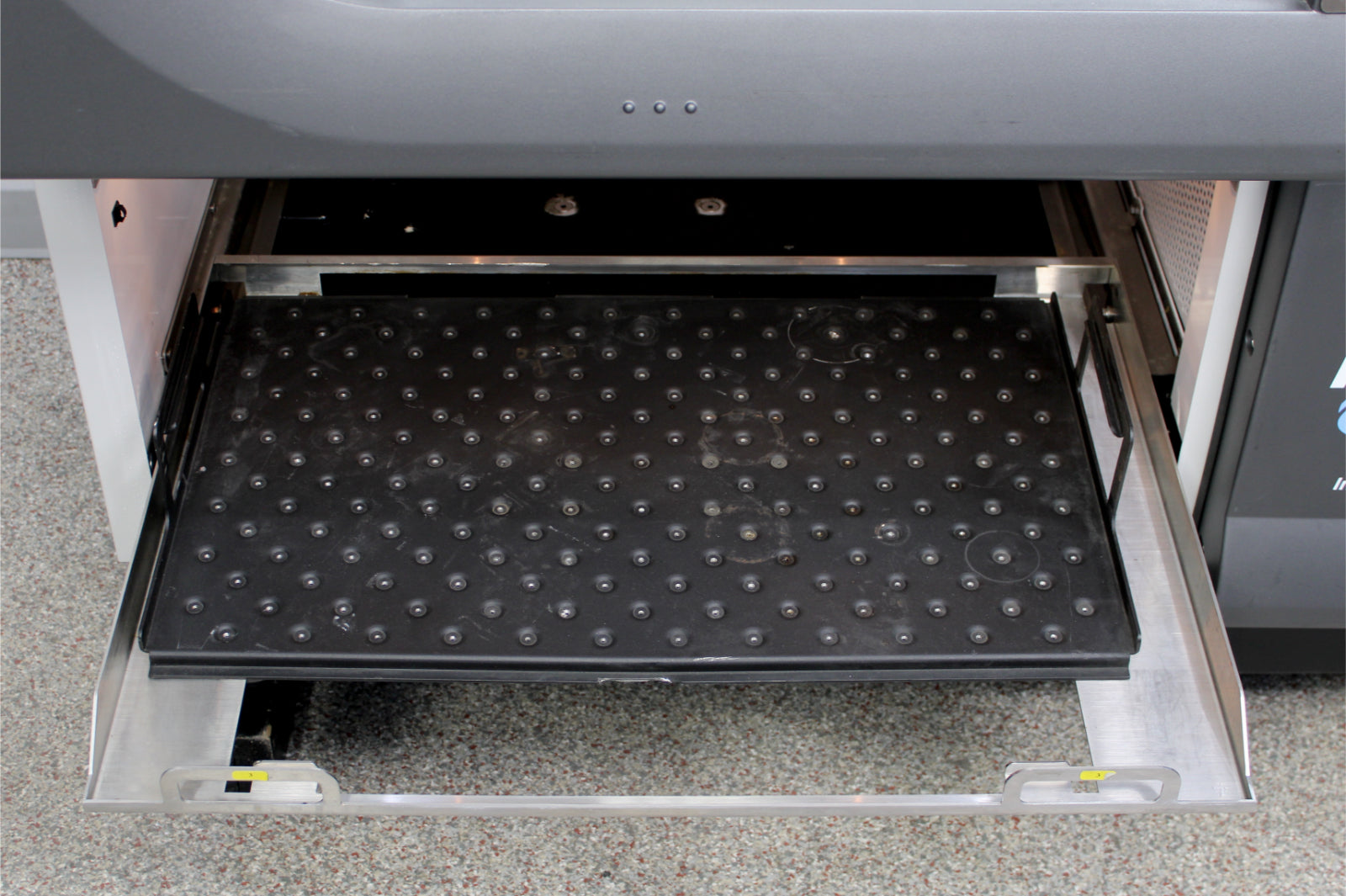

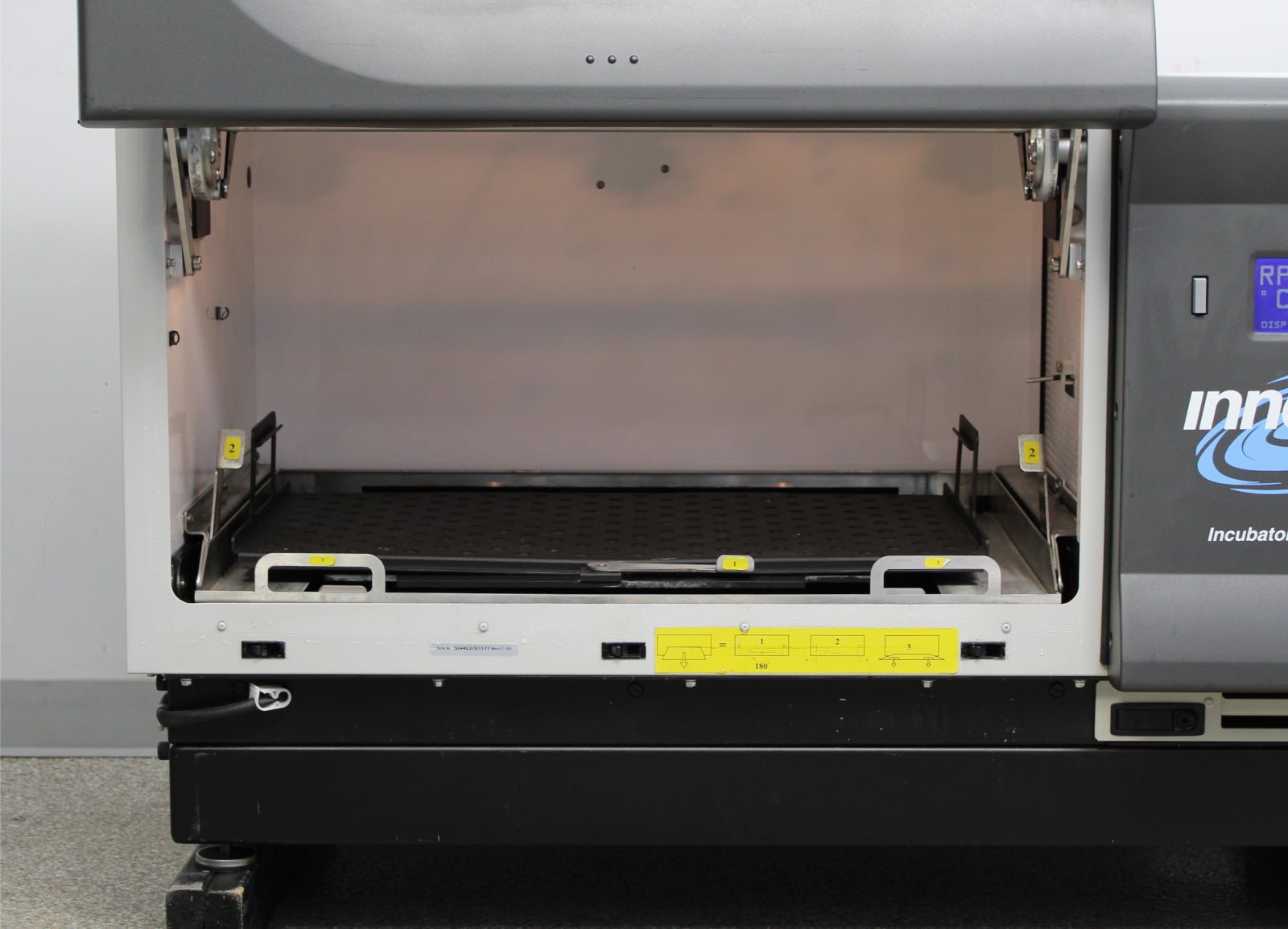

- Shaker Platform
- Power Cable
- 90-Day Warranty
Notice: We have flask clamps available for an additional cost. Please contact us for information about adding flask clamps to your purchase.
After its initial disinfection and inspection, our technicians tested the New Brunswick Scientific Innova 44R refrigerated incubator shaker with the following results:
- Shaking holds steady with no excessive noise or vibration: PASSED
- Shaking speed calibration verification: PASSED

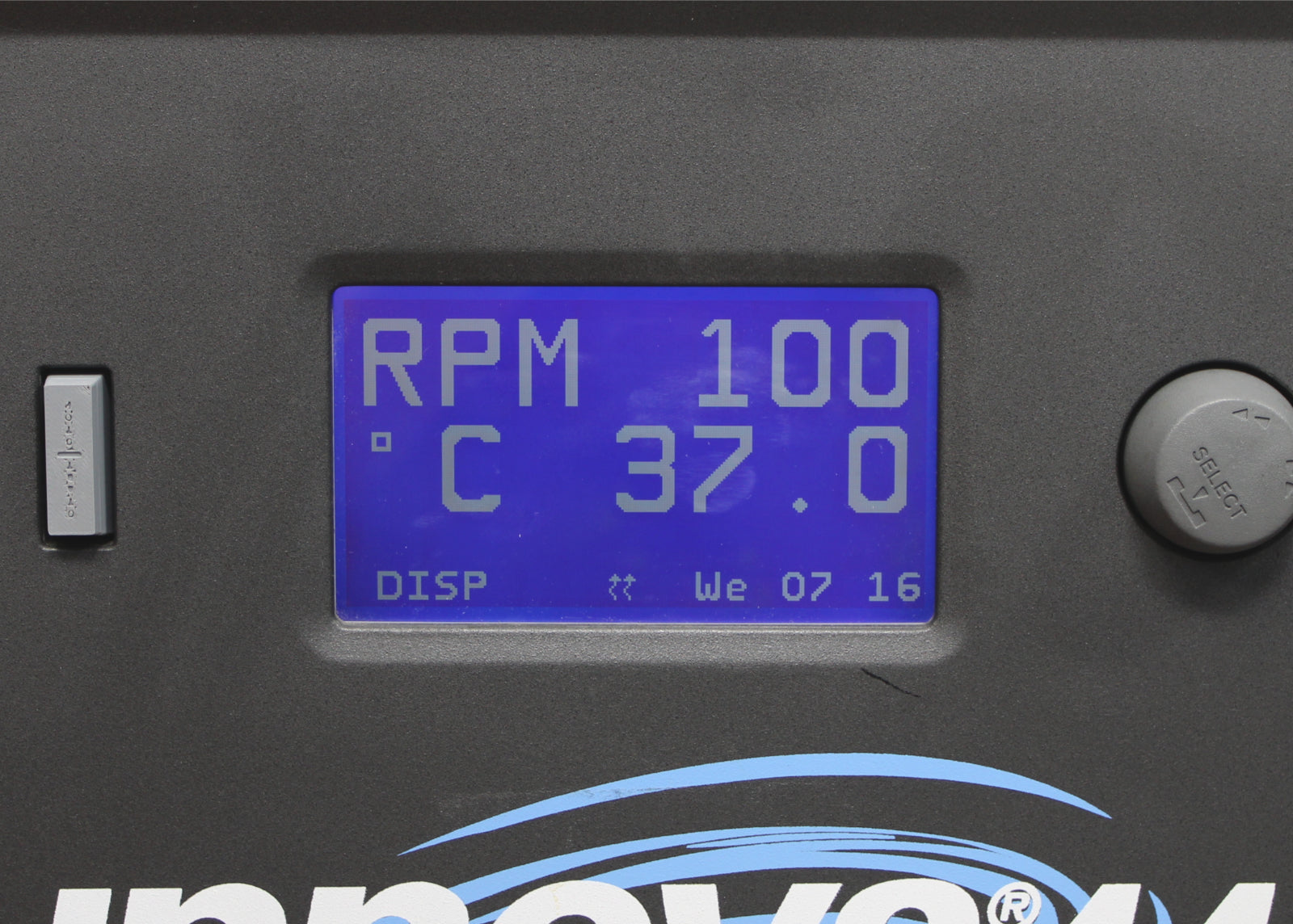

- Heating holds steady at 37°C setpoint: PASSED

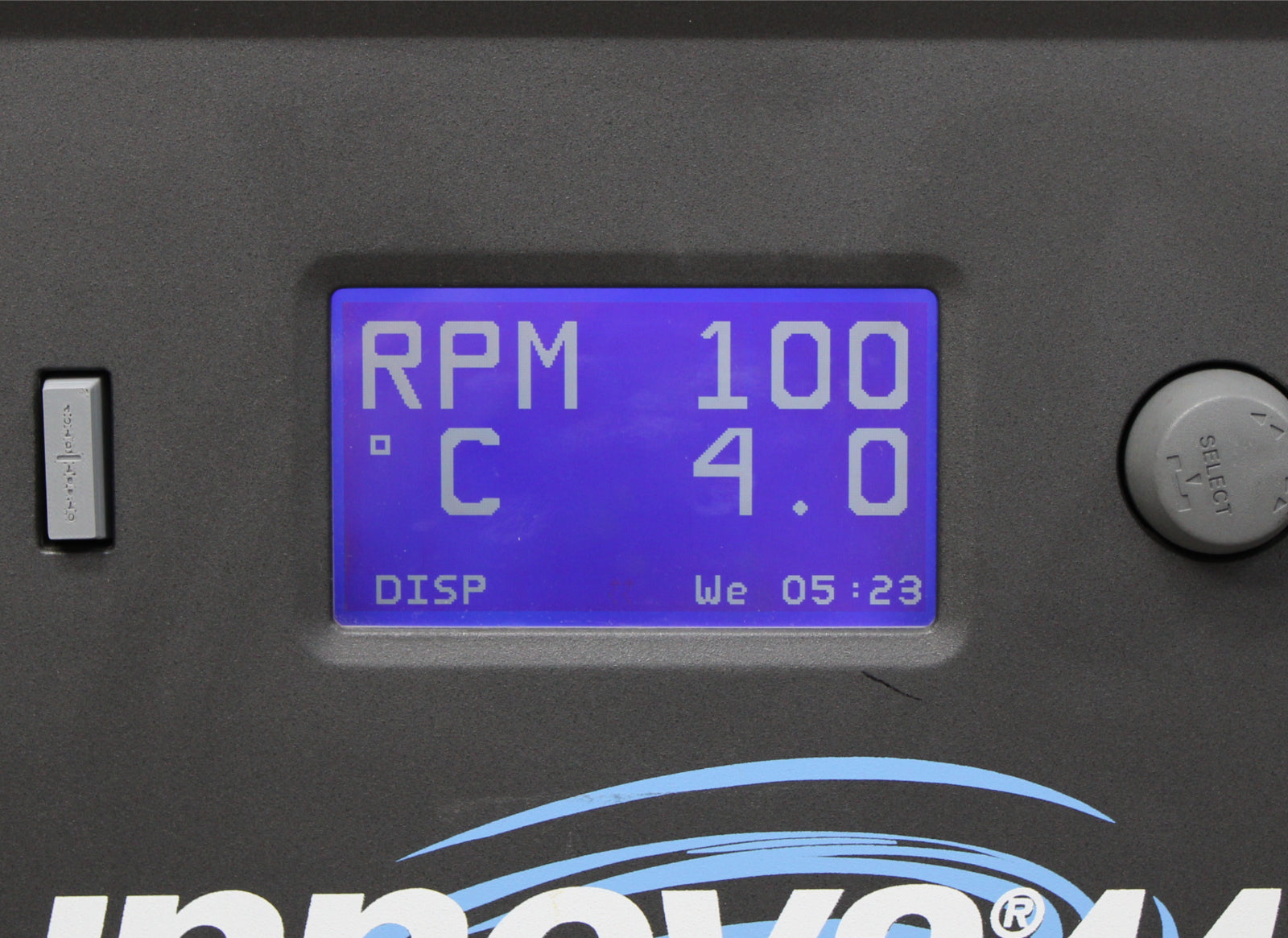

- Cooling holds steady at 4°C setpoint: PASSED
- Temperature reading calibration verification: PASSED
Notice: This shaker has some minor cosmetic blemishes. Please review the available photos to see the physical condition before purchasing.
|

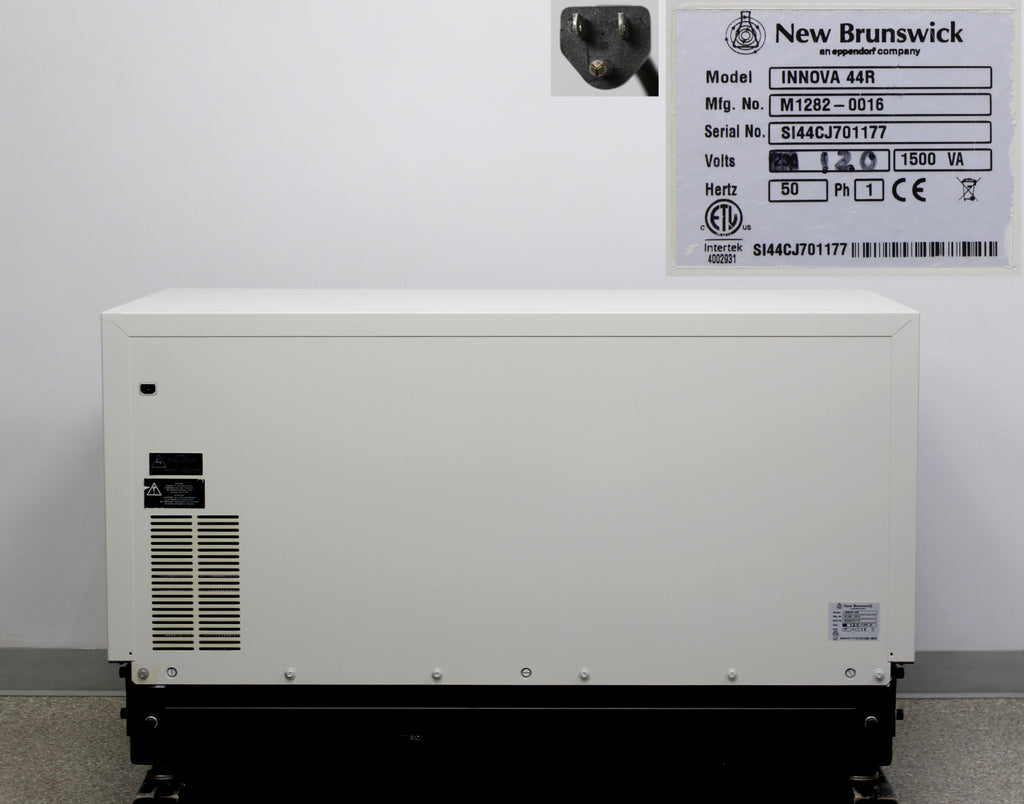

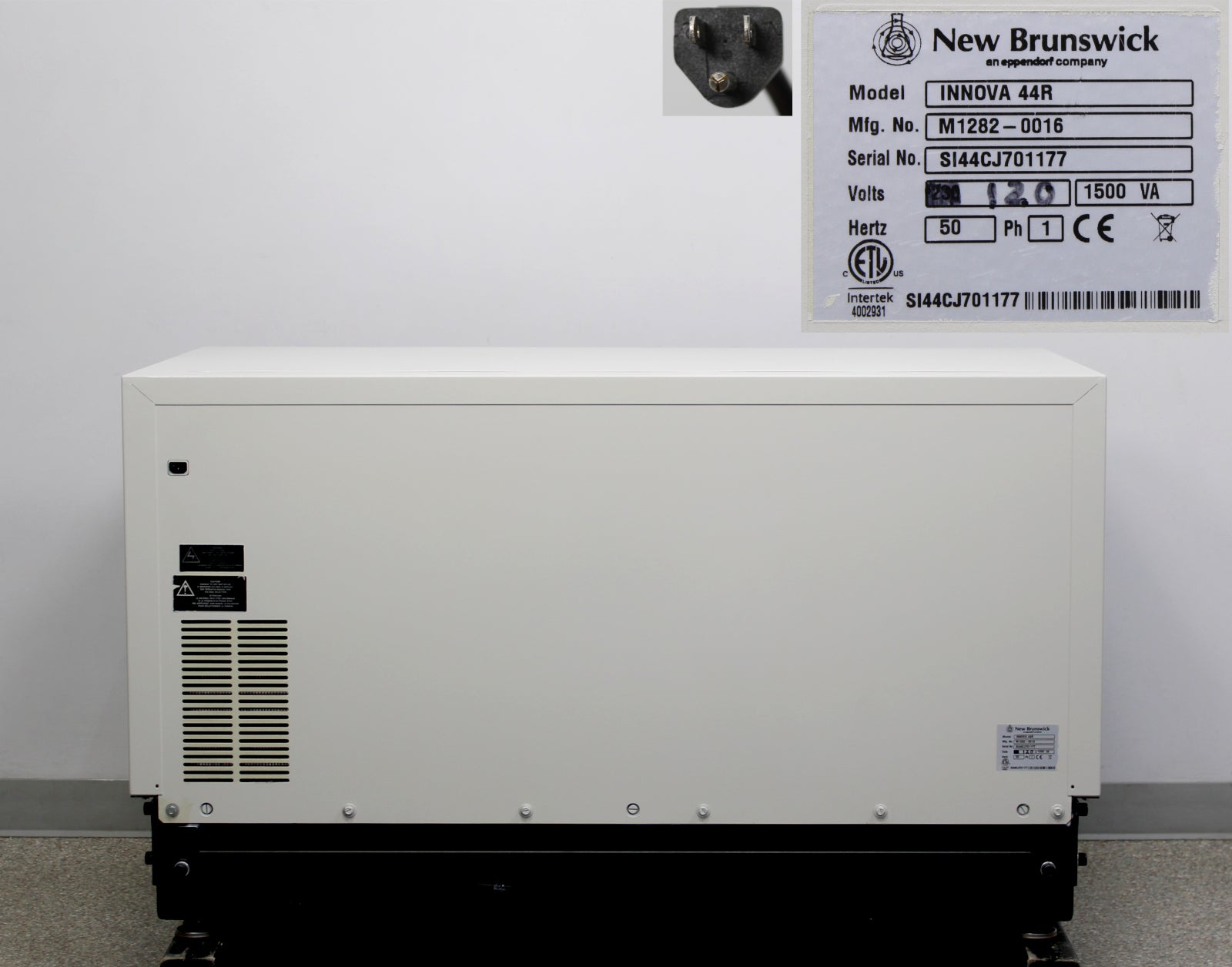

Manufacturer
|
New Brunswick
|
|
Model
|
Innova 44R
|
|
Mfg. No.
|
M1282-0016
|
|
Serial No.
|
SI44CJ701177
|
|
Mfg. date
|
April 2013
|
|
Positioning
|
Stackable (2-3x) incubator shaker with high vessel capacity
|
|
Temperature range
|
Incubated: 10°C above ambient to 80°C
Refrigerated: 20°C below ambient (min. 4°C) to 80°C
|
|
Temperature accuracy
|
±0.1°C at 37°C
|
|
Temperature uniformity
|
±0.25°C
|
|
Speed range
|
25 - 400 rpm with 2.5 cm orbit
25 - 300 rpm with 5.1 cm orbit or 2 stacked units
25 - 250 rpm with 3 stacked units
|
|
Orbit options
|
5.1 cm (2.0 in)
|
|
Shaking control
|
±1 rpm
|
|
Drive mechanism
|
Triple-eccentric counterbalanced drive in cast iron housing with permanently lubricated ball bearings. Driven by solid-state brushless DC motor
|
|
Platform size
|
30 x 18 in (76 x 46 cm)
|
|
Max. vessel volume (without static shelf, depending on flask format)
|
5 L
|
|
Timer and parameter control
|
Speed and temperature continuous
Shaker can be set to run from 0.1 to 99.9 hours
On-board firmware can program multiple parameter changes to temperature and speed. On 44R can program optional photosynthetic lighting and UV decontamination
Shaker control and data logging via RS-232 and remote computer running conventional laboratory management software or HyperTerminal
|
|
Alarms
|
Indicate when speed deviates more than 5 rpm or temperature more than 1°C from setpoint, and when program or time has finished. Alarm may be muted
|
|
Computer interface
|
RS-232
|
|

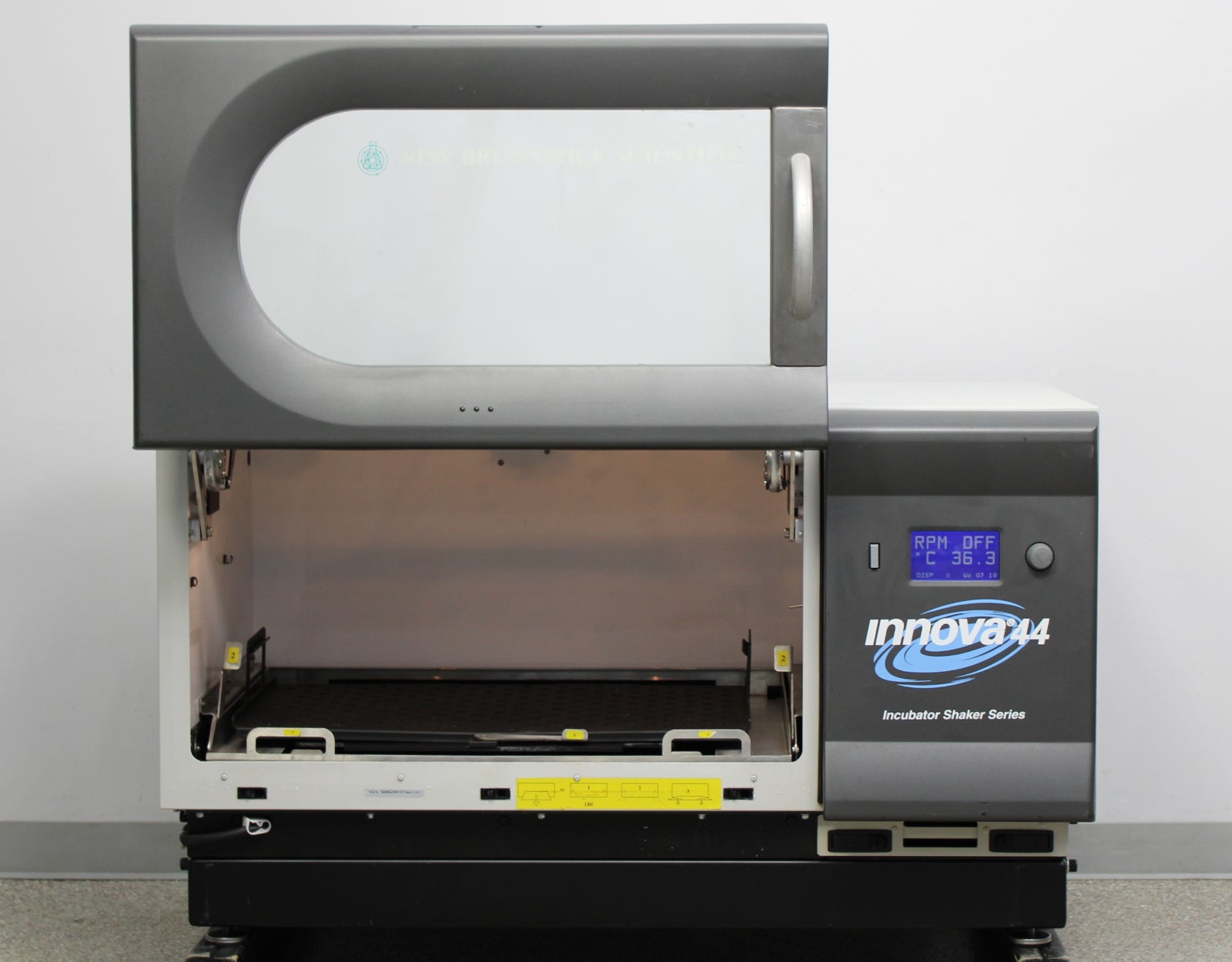

Door opening
|
Glide up
|
|
Platform type
|
Slide out
|
|
Programming steps / storable programs
|
15/4
|
|
VisioNize connectivity
|
VisioNize box enabled
|
|
Power rating
|
120V, 50Hz, 1Ph
|
|
Power consumption
|
1500VA
|
|
Dimensions (W x D x H)
|
53.1 x 33.2 x 31.5 in (134.9 x 84.3 x 80 cm)
|
|
Weight
|
570 lb (259 kg)
|
