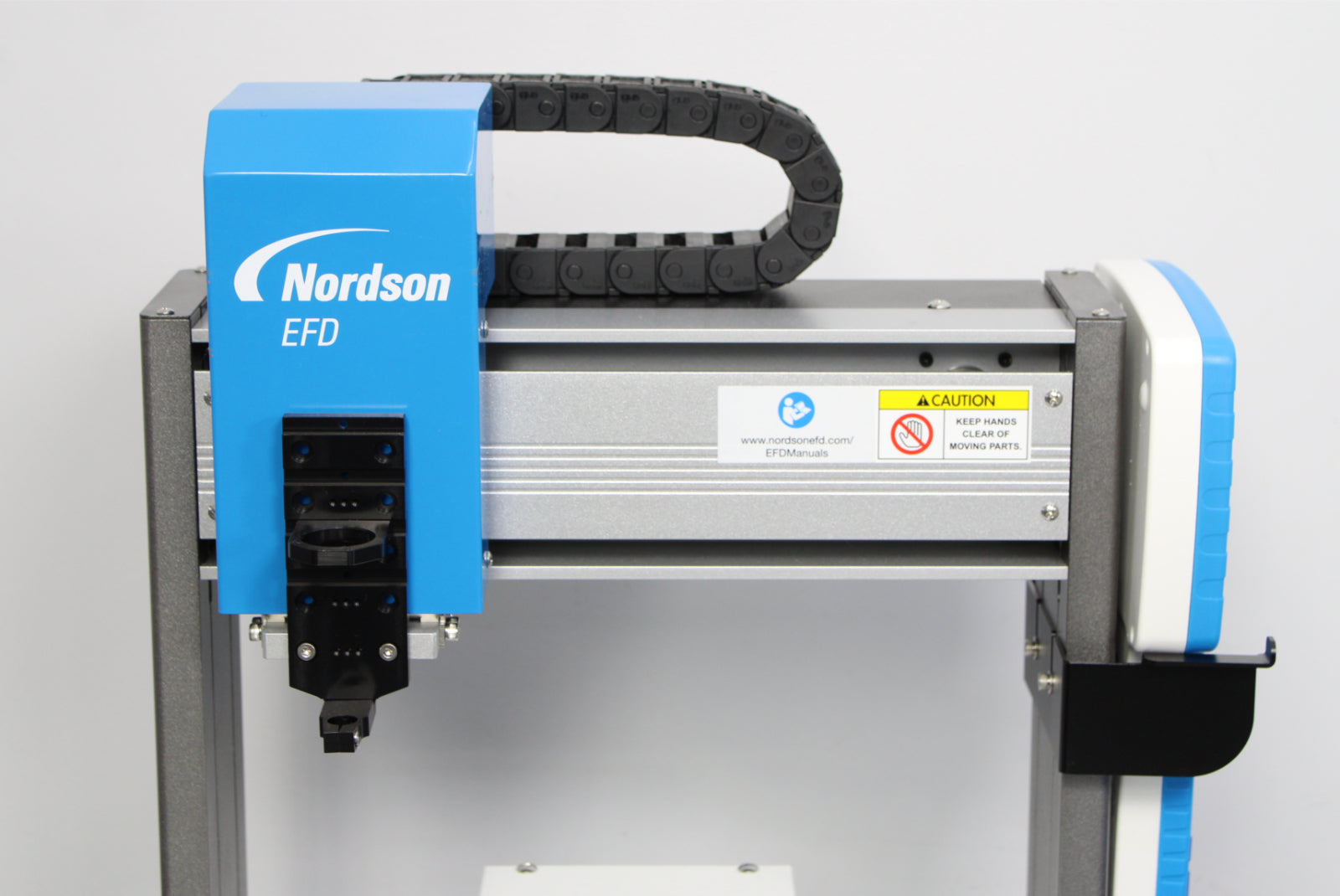

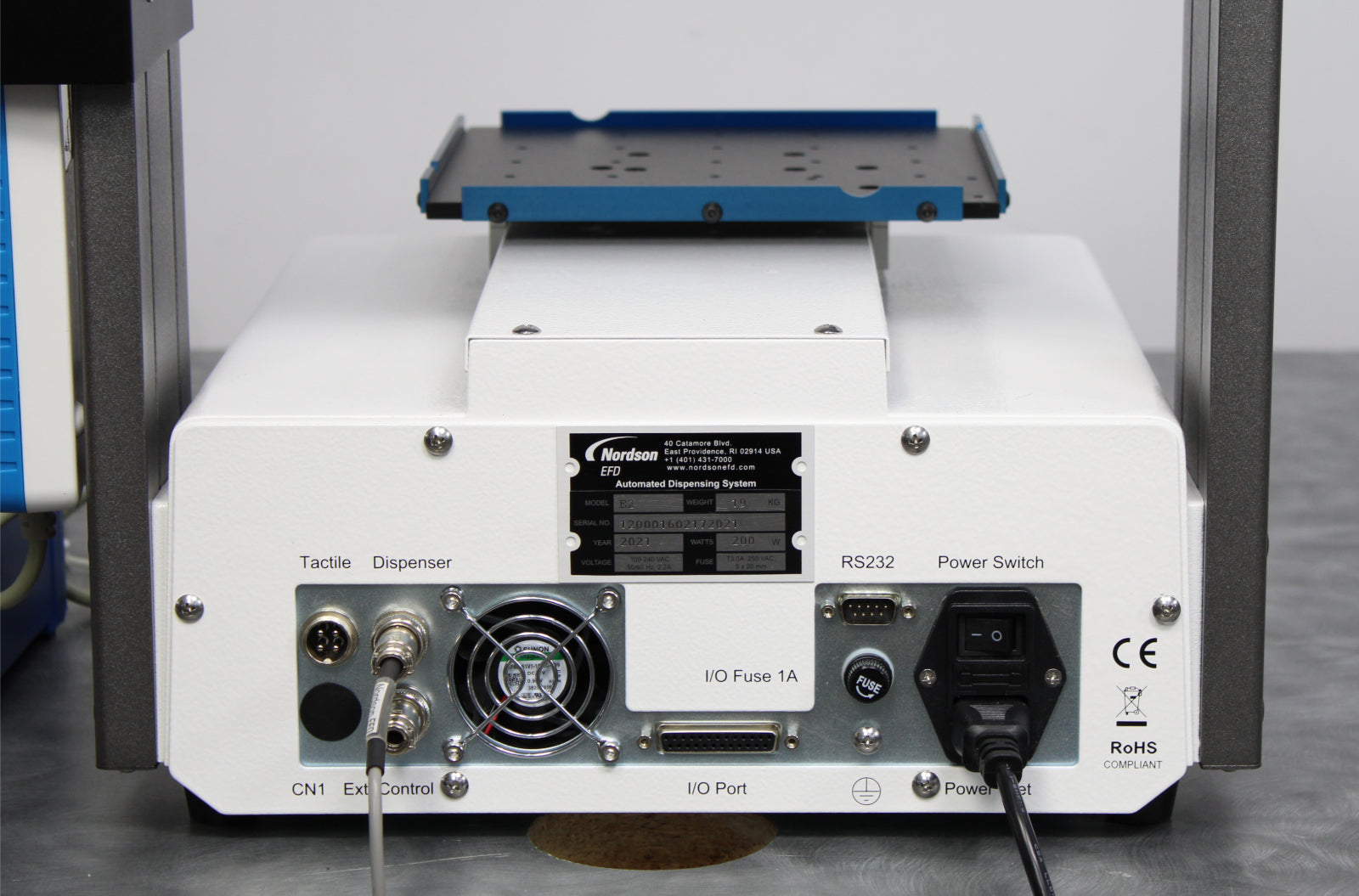

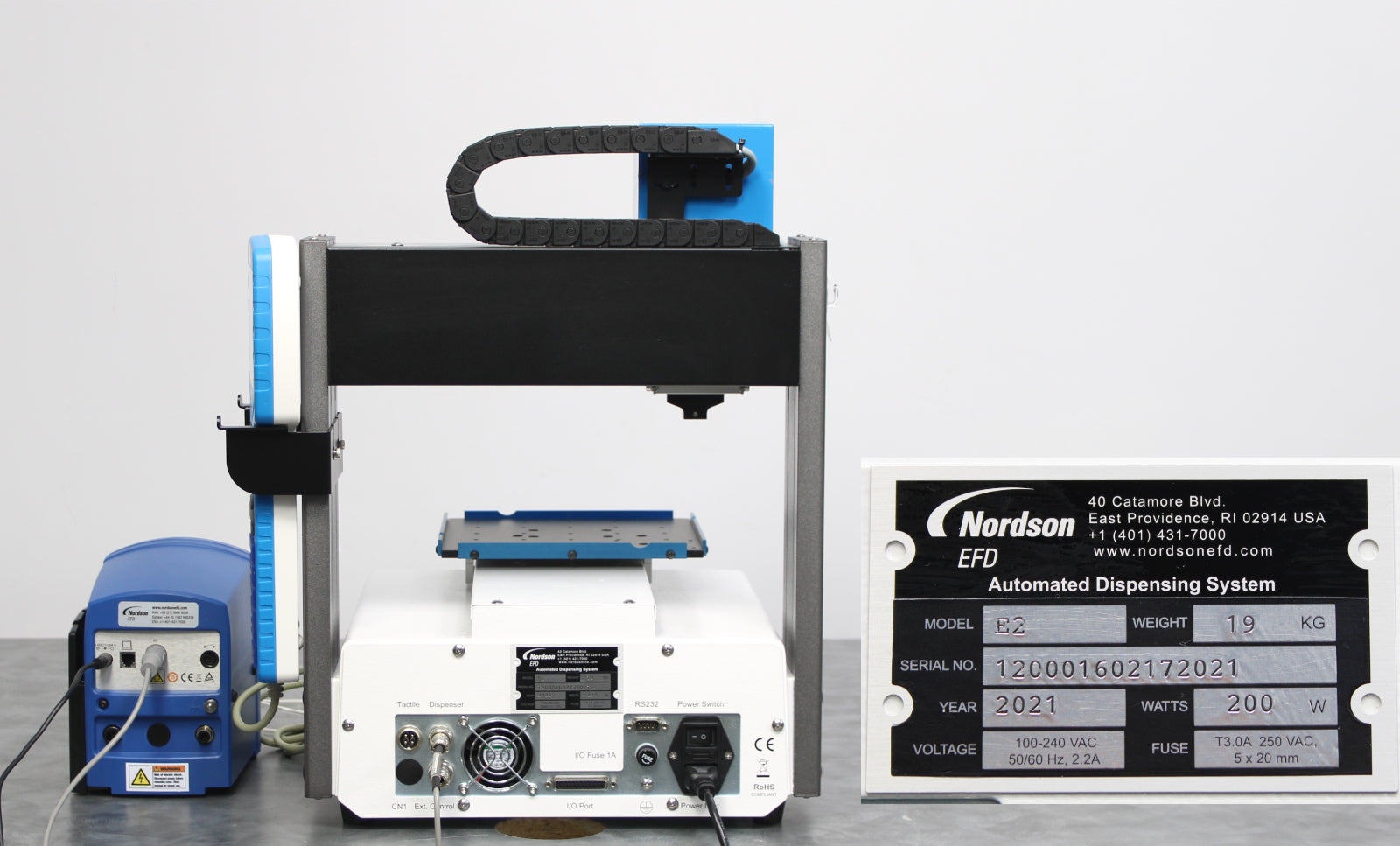

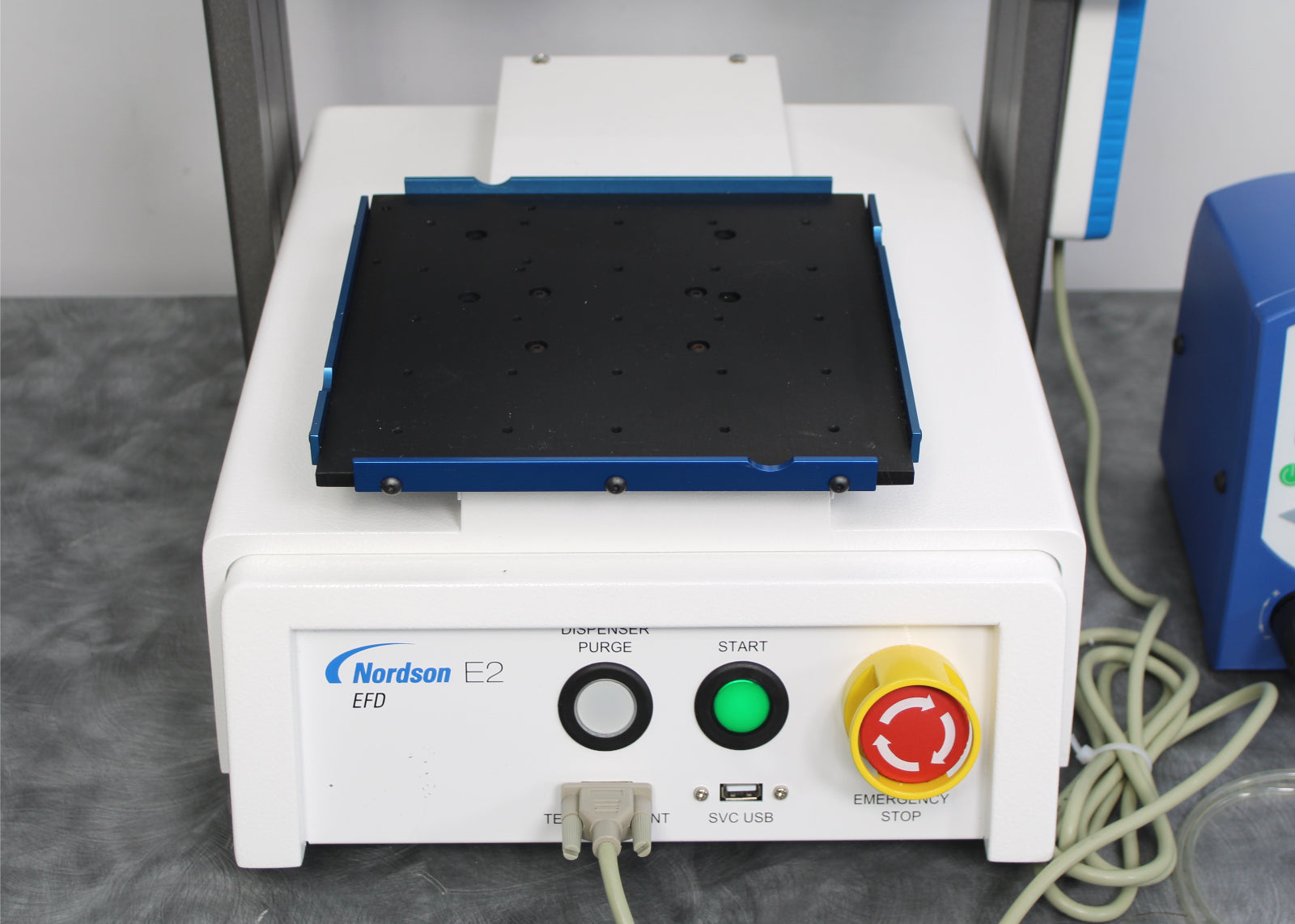

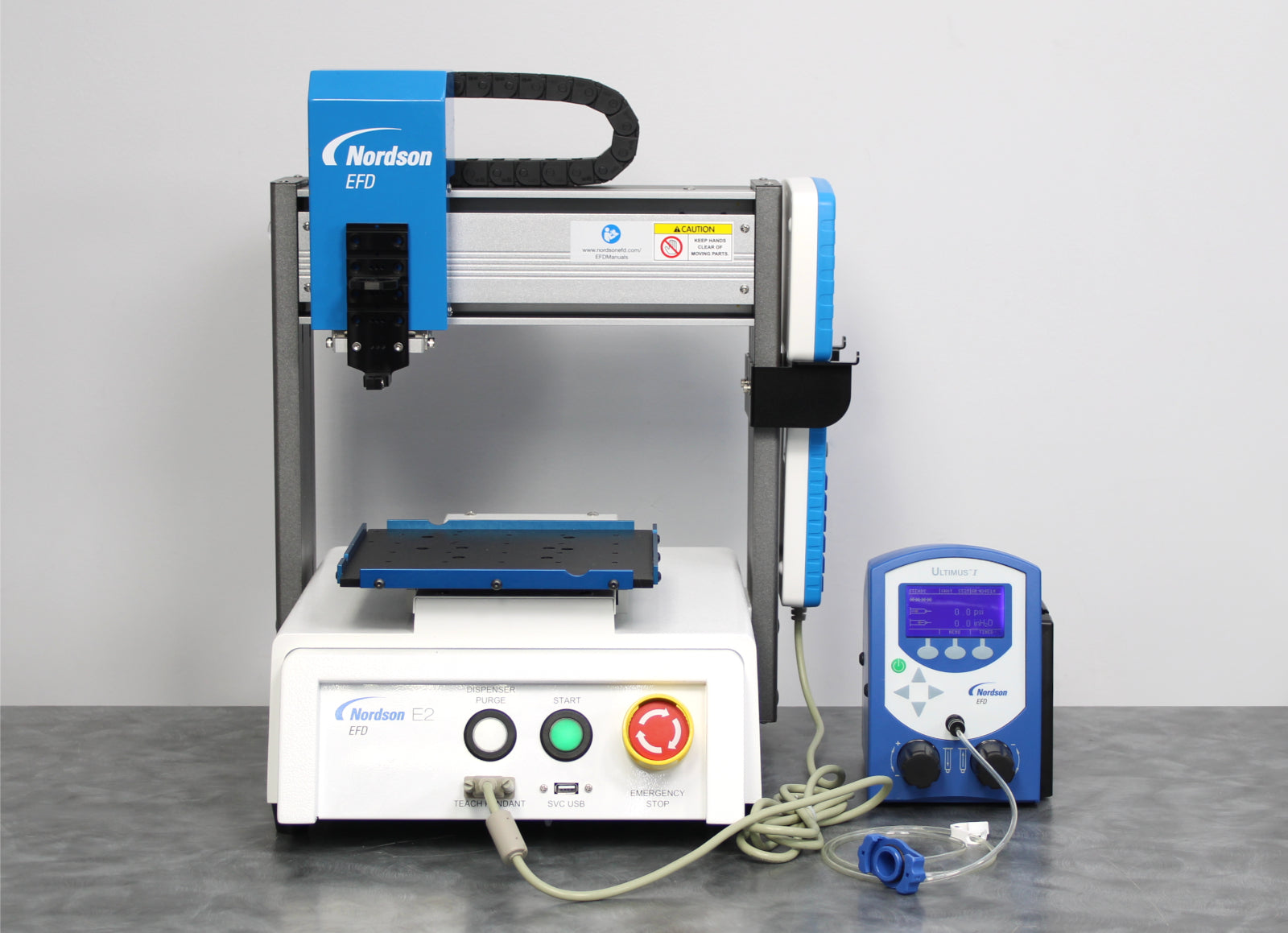

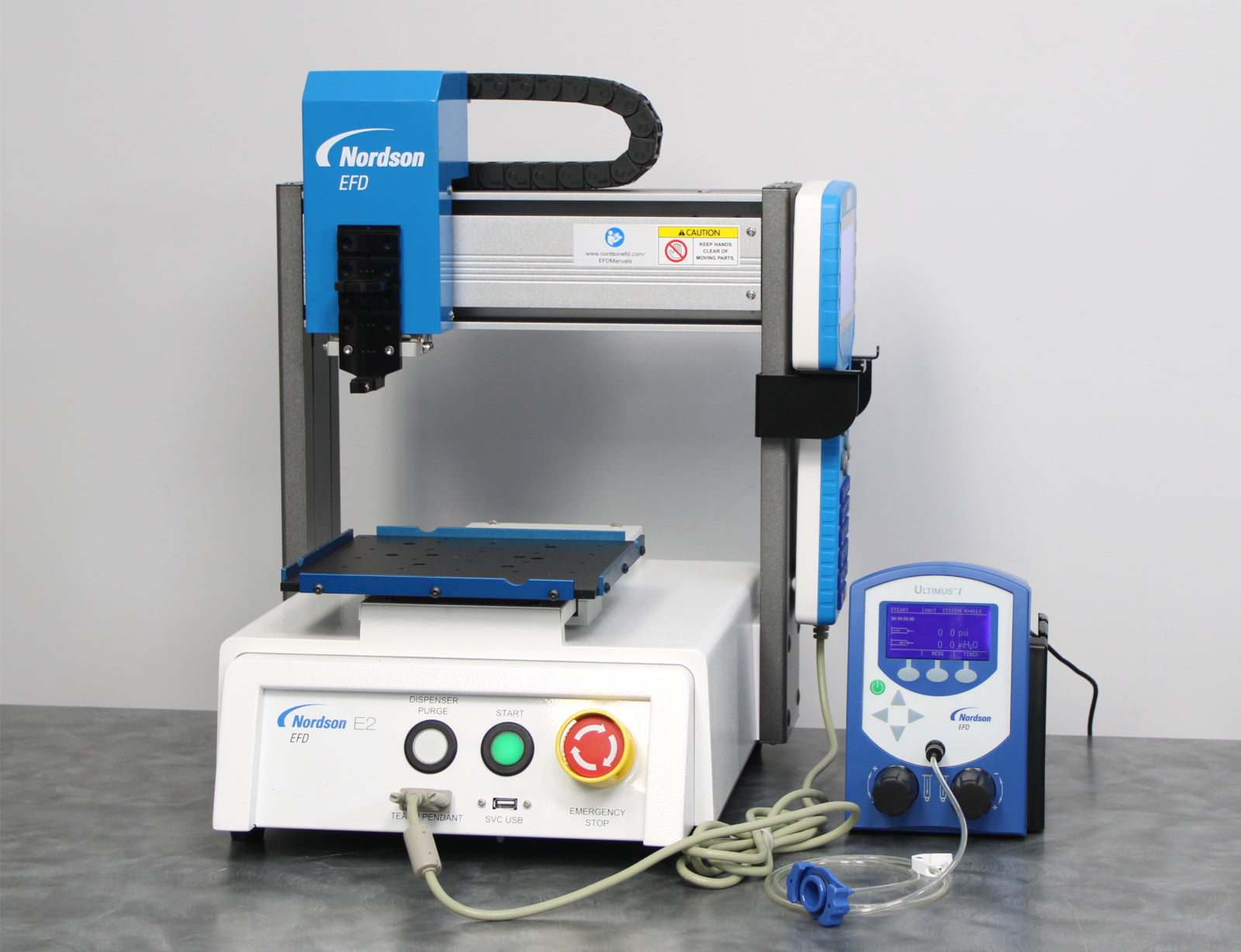

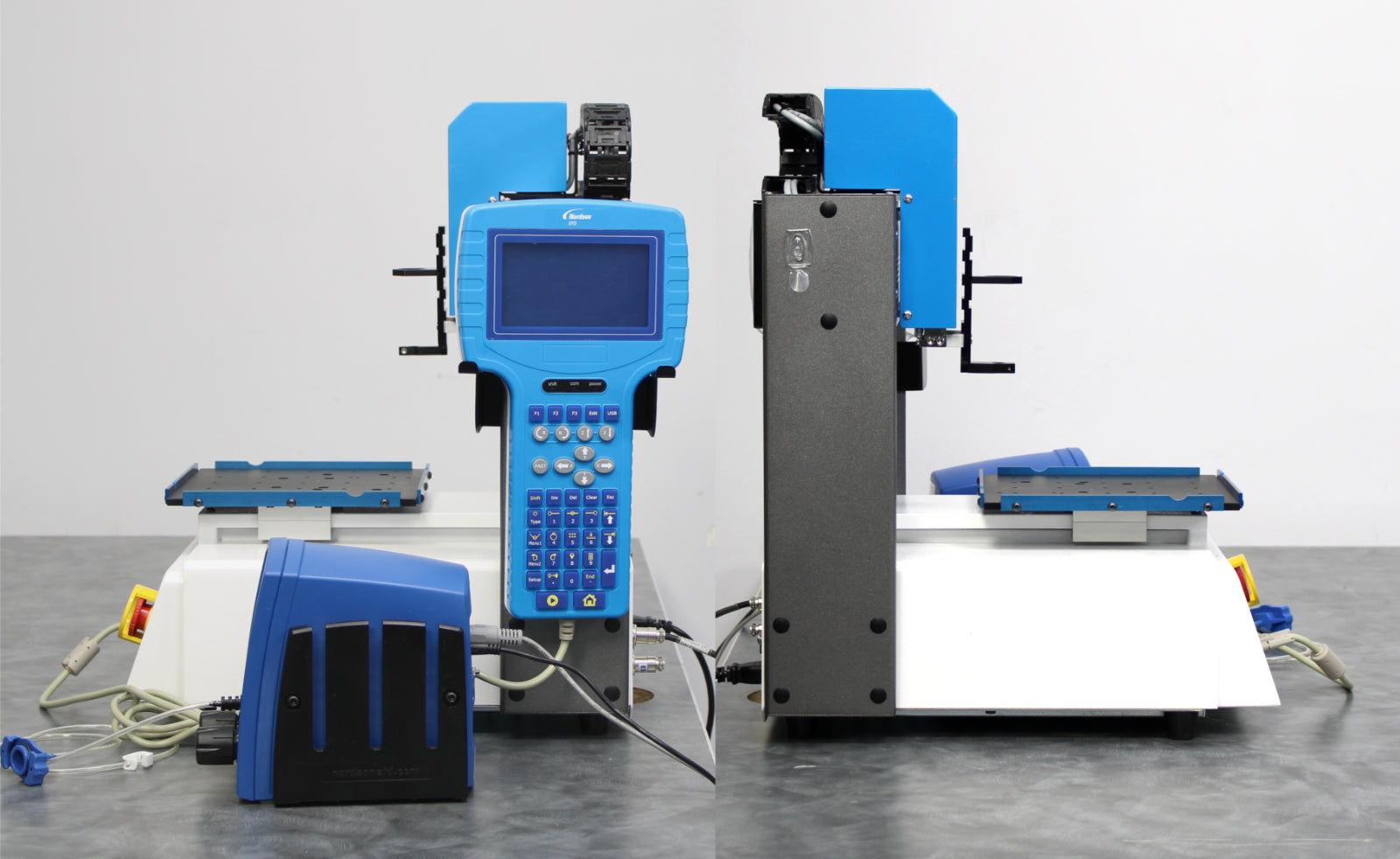

- Nordson EFD 3-Axis E Series E2 Automated Fluid Dispensing Robot

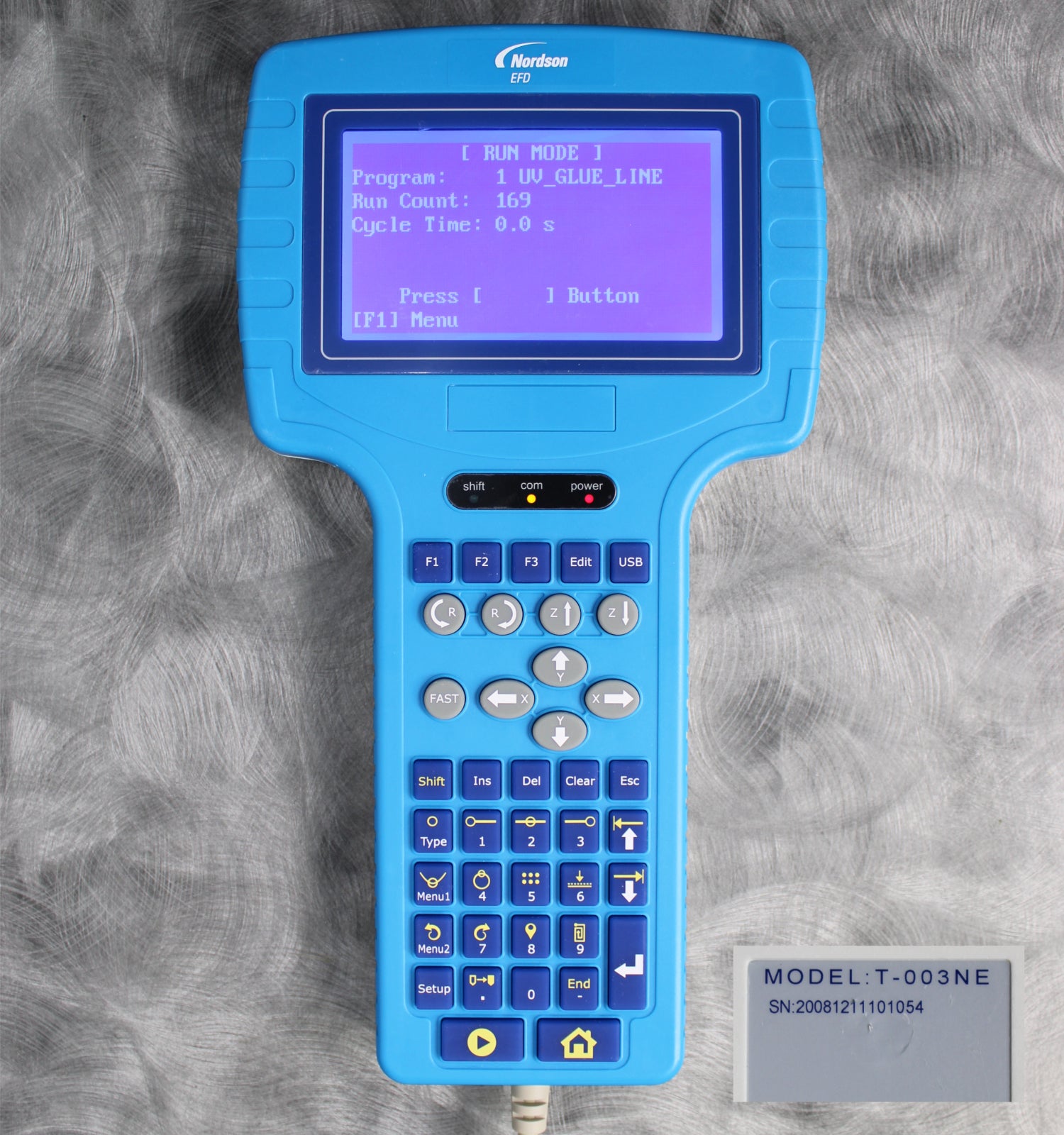

- Teach Pendant

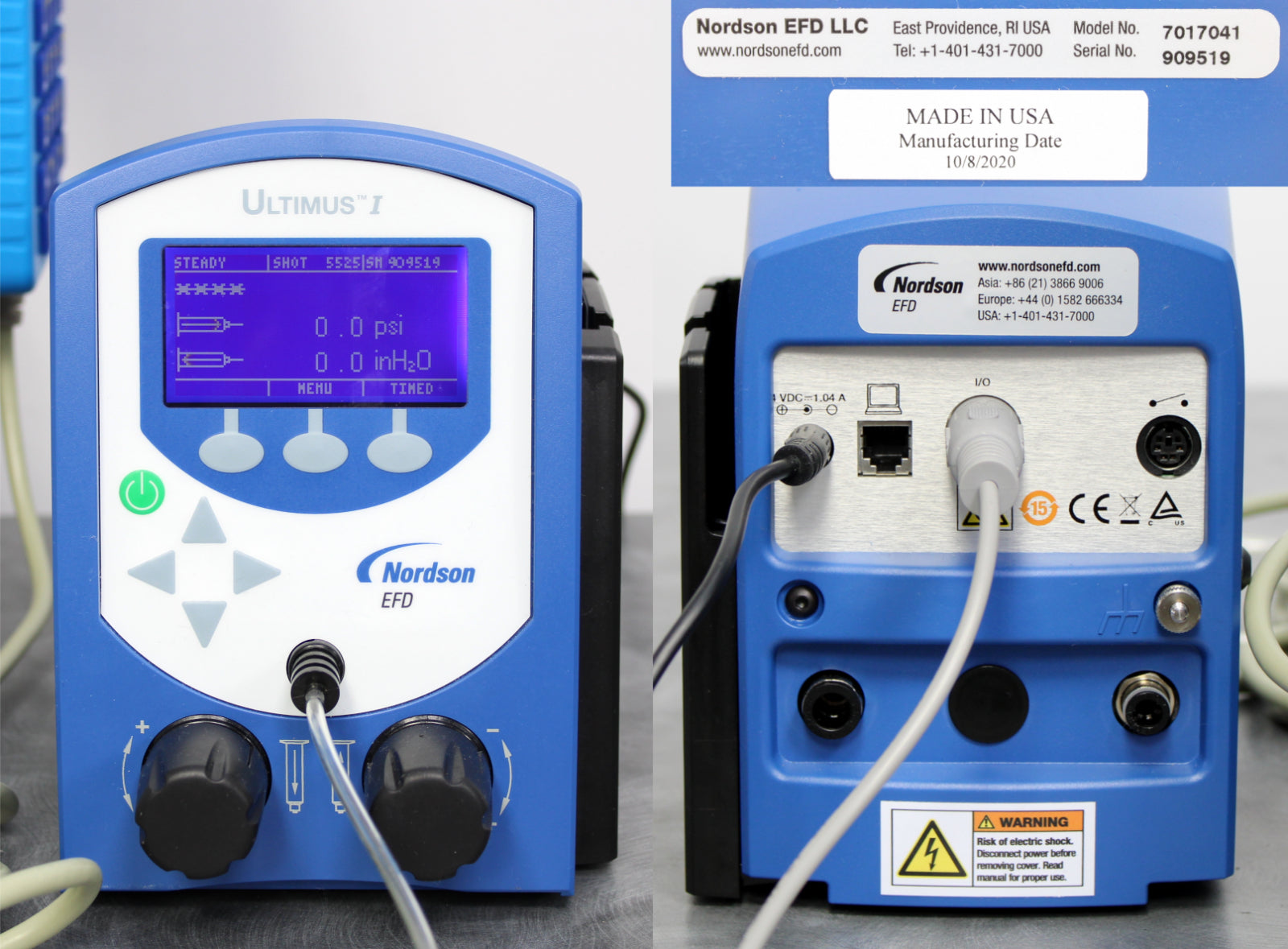

- Nordson EFD Ultimus I Dispenser
- Communication Cable
- Power Adapter
- Power Cable
- 90-Day Warranty
After its initial disinfection and inspection, our technicians tested the Nordson EFD 3-Axis E Series E2 automated fluid dispensing robot with the following results:
- Ran a full dispensing program: PASSED
- Created custom dispensing program: PASSED
- Ultimus I dispenser: PASSED
Notice: This dispensing robot has some minor cosmetic blemishes. Please review the available photos to see the cosmetic condition before purchasing.
|
Manufacturer
|
Nordson EFD
|
|
Type
|
Automated Dispensing System
|
|
Model
|
E2
|
|
Serial No.
|
120001602172021
|
|
Mfg. date
|
2021
|
|
Number of axes
|
3
|
|
Maximum working area (X/Y/Z)
|
8/8/2” (200/200/50mm)
|
|
Workpiece payload
|
11 lb (5 kg)
|
|
Tool payload
|
6.6 lb (3 kg)
|
|
Maximum speed
|
20/10”/s (500/250 mm/s)
|
|
Drive system
|
3 phase micro-stepping motor
|
|
Memory capacity
|
1-99 programs / 1-9,999 points per program
|
|
General purpose I/O
|
8 inputs / 8 outputs
|
|
Repeatability
|
±0.008 mm
|
|
Teach pendant
|
Included
|
|
Tip alignment
|
Optional
|
|
Height detection
|
Optional
|
|
Approvals
|
CE, UKCA, RoHS, WEEE, China RoHS
|
|
Power rating
|
100-240VAC, 50/60Hz, 2.2A
|
|
Power consumption
|
200W
|
|
Dimensions (W x D x H)
|
15 x 16 x 20 in (37 x 41.4 x 51 cm)
|
|
Weight
|
41.9 lb (19 kg)
|
