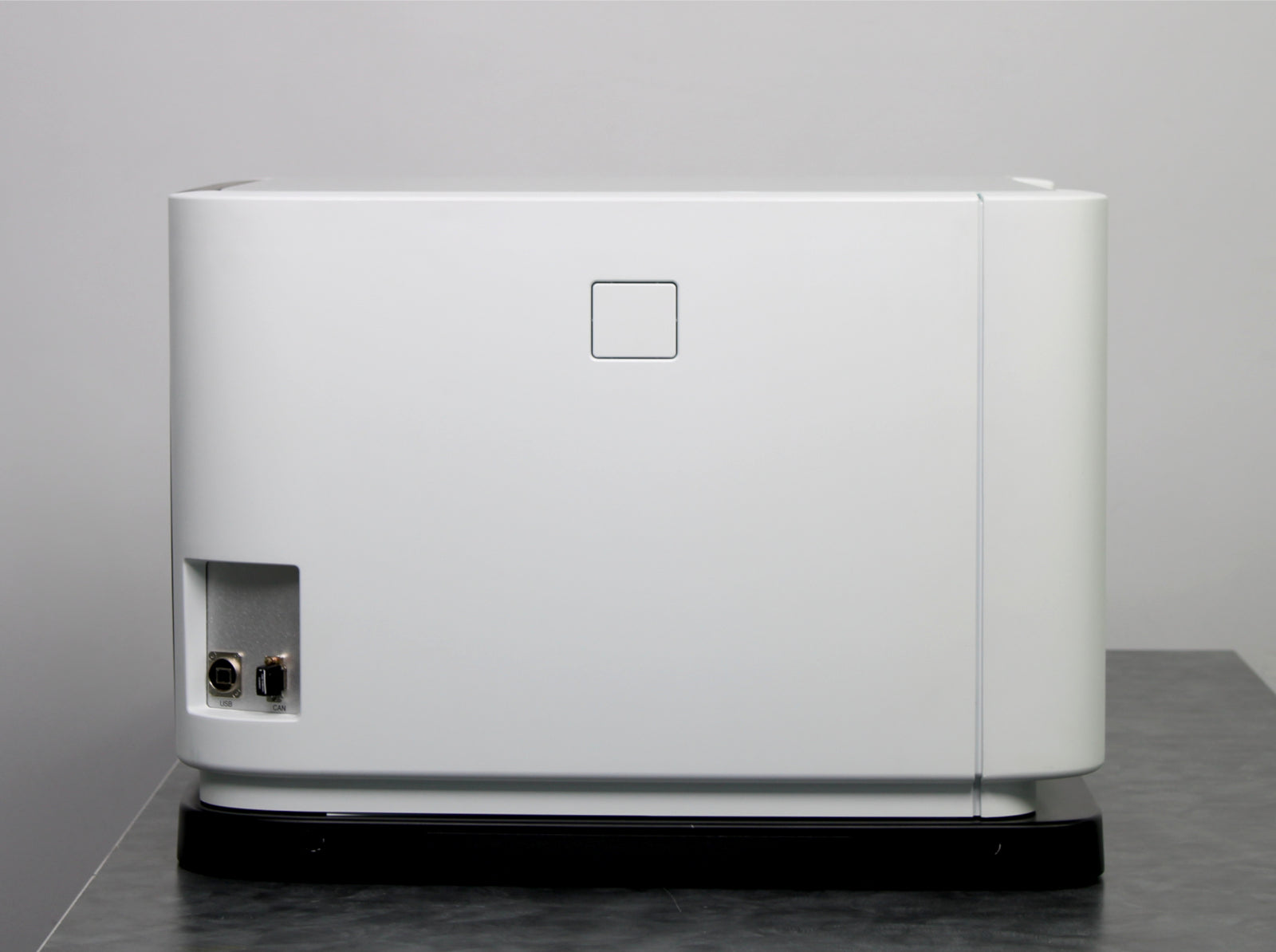

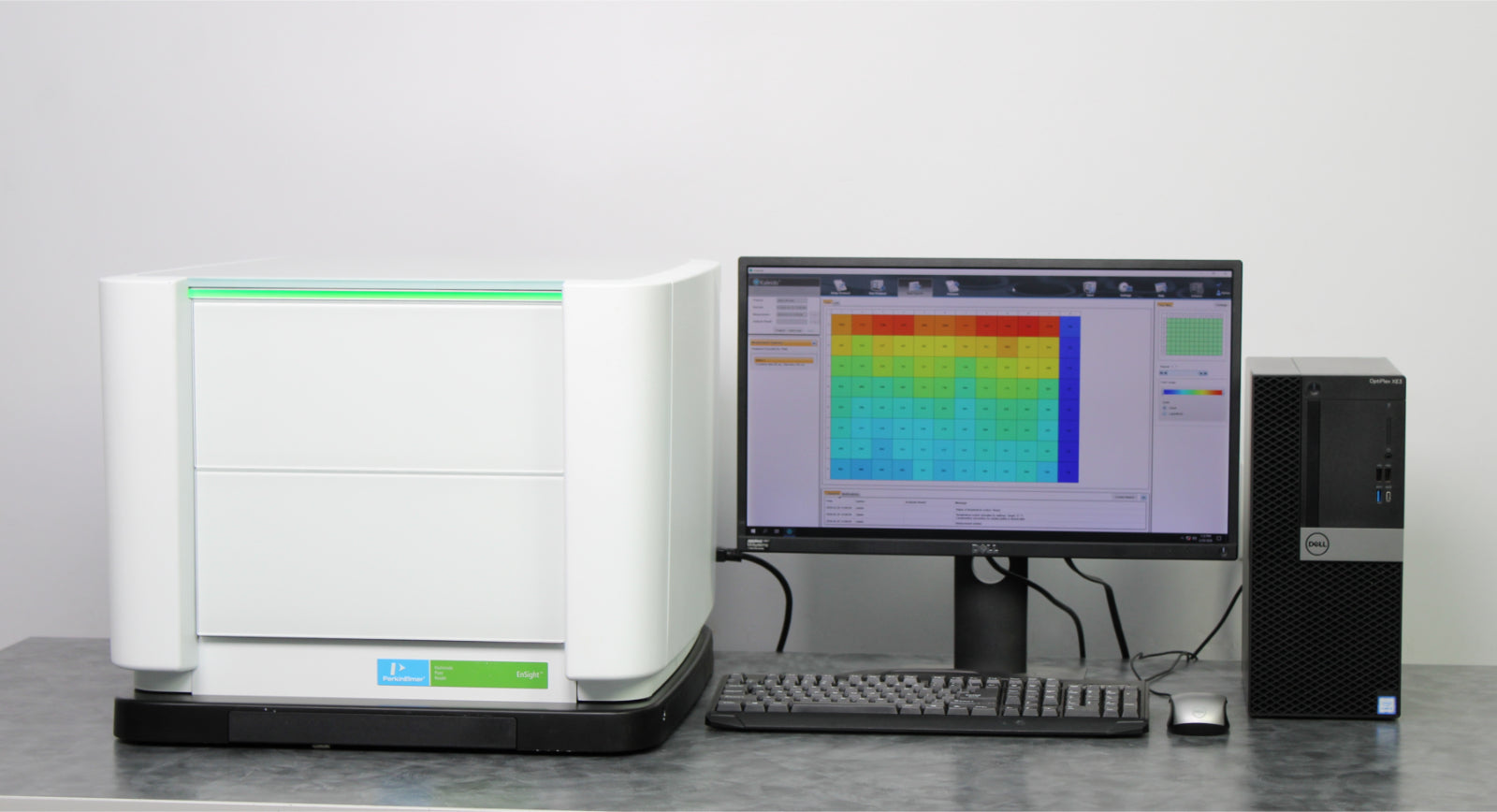

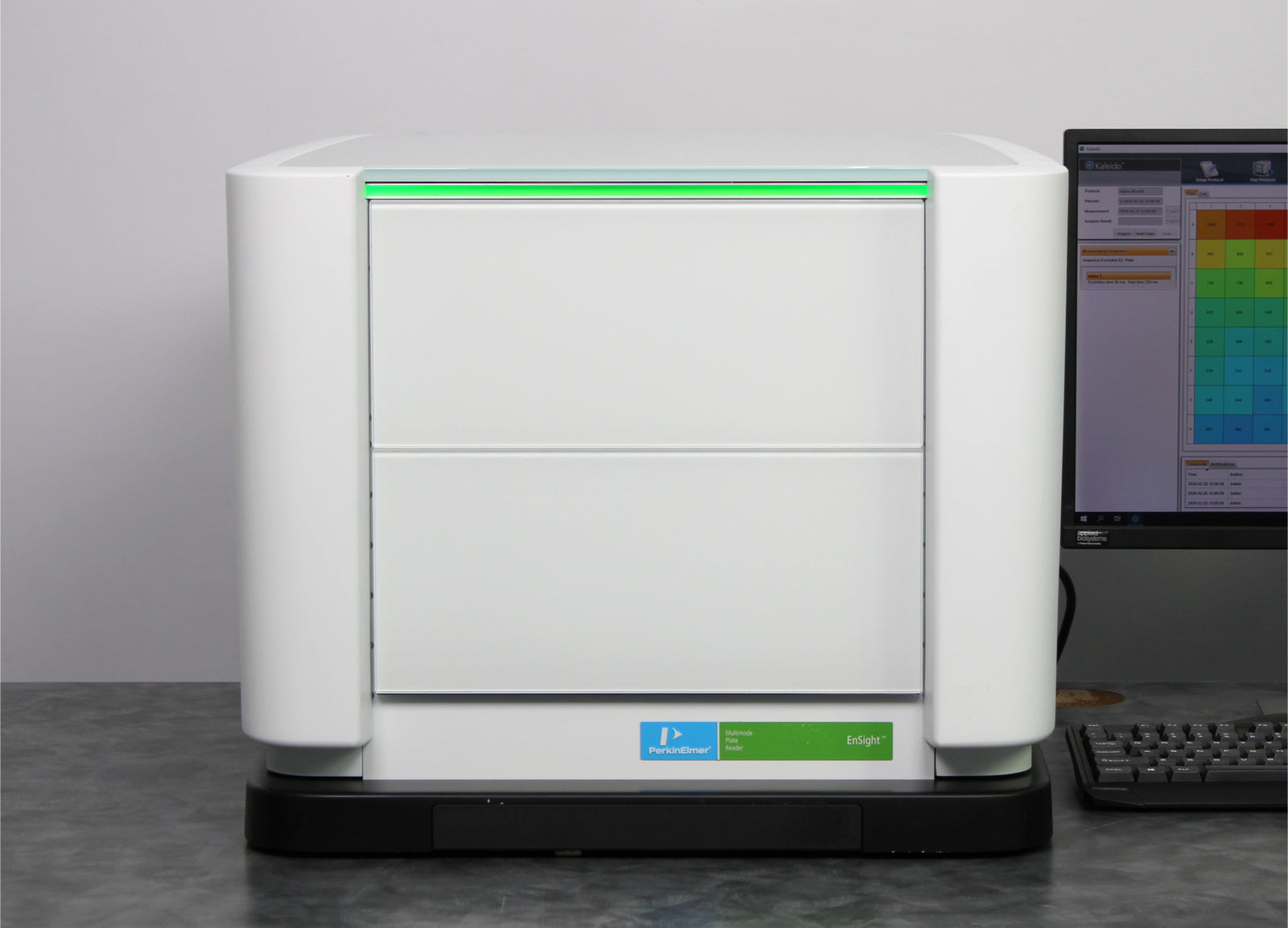

- Perkin Elmer EnSight Multimode Plate Reader

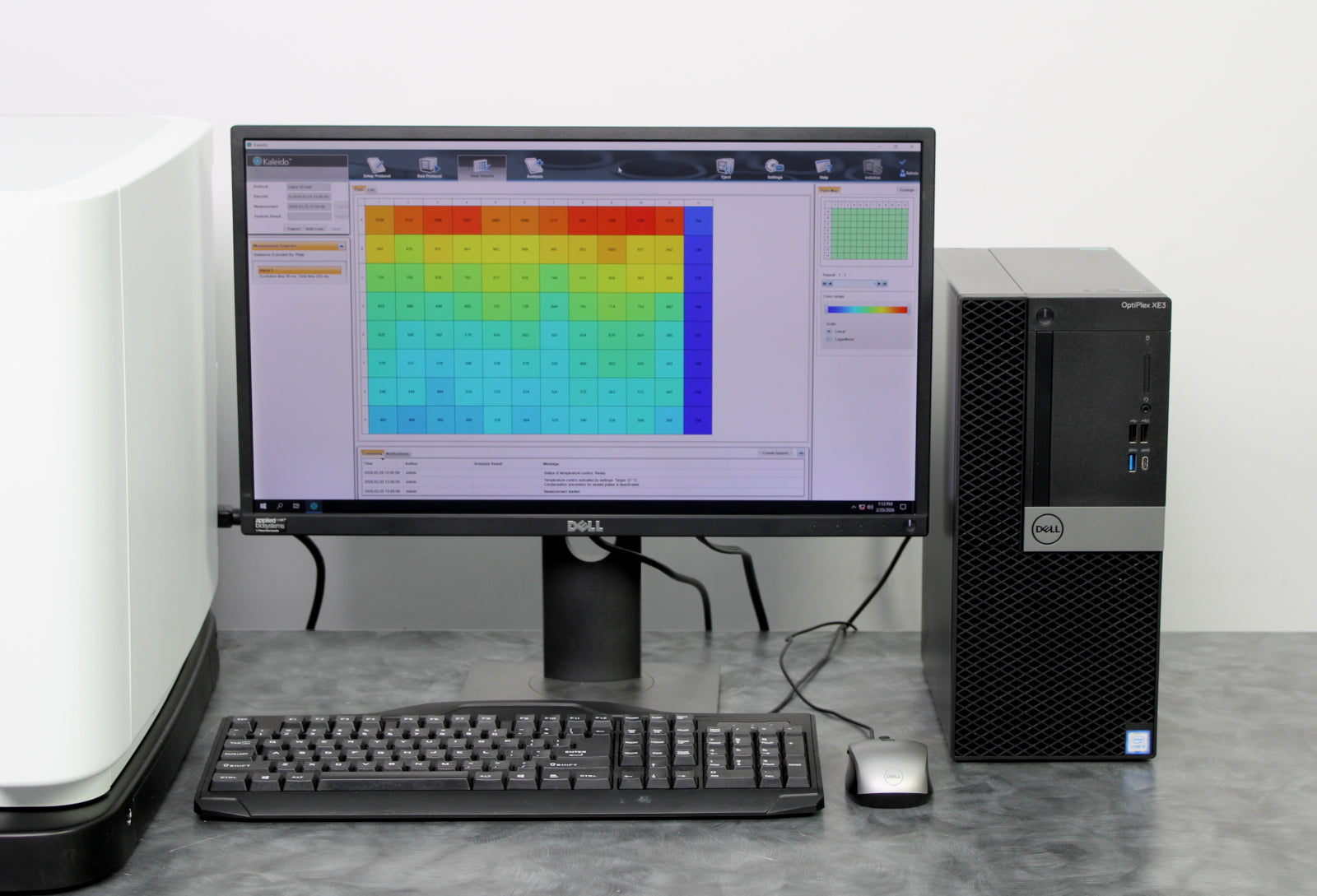

- Computer with Kaleido 3.0 Software Installed
- Monitor, Keyboard, and Mouse

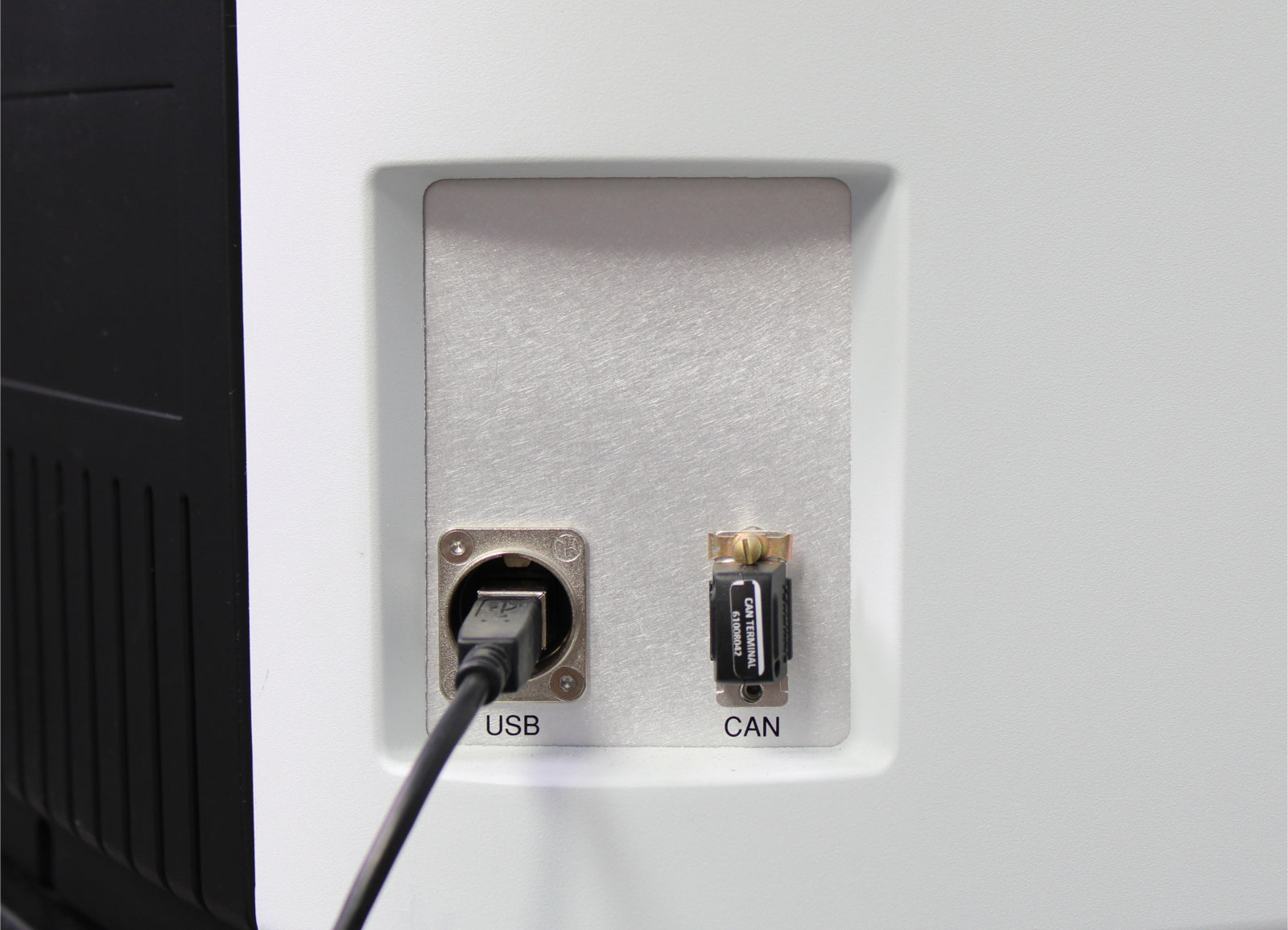

- USB Cable
- x3 Power Cables
- 90-Day Warranty

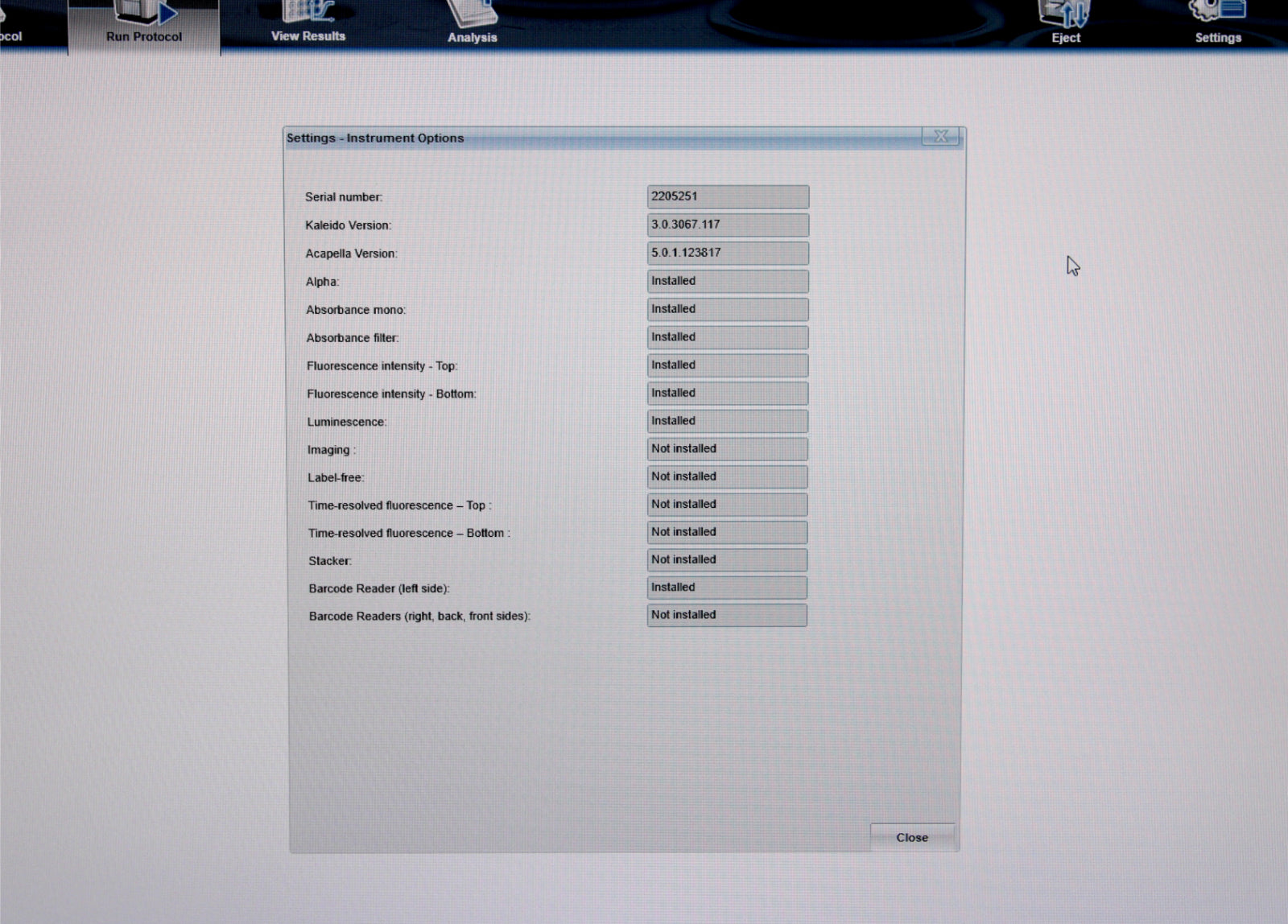

- Alpha
- Absorbance mono
- Absorbance filter
- Fluorescence intensity - Top
- Fluorescence intensity - Bottom
- Luminescence
After its initial disinfection and inspection, our technicians tested the Perkin Elmer EnSight multimode plate reader with the following results:
- Power and initialization: PASSED

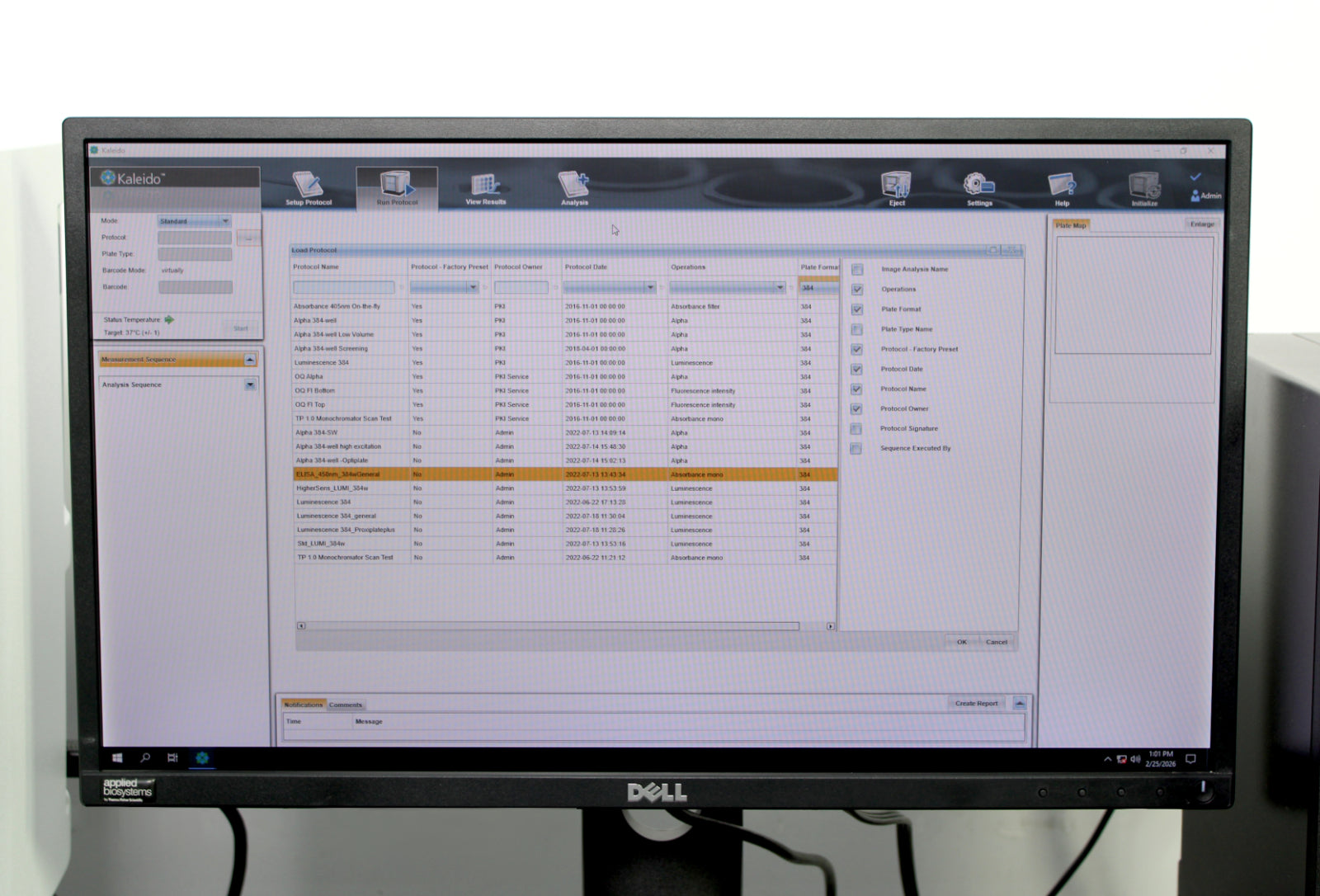

- Reader to Kaleido 3.0 software communication: PASSED

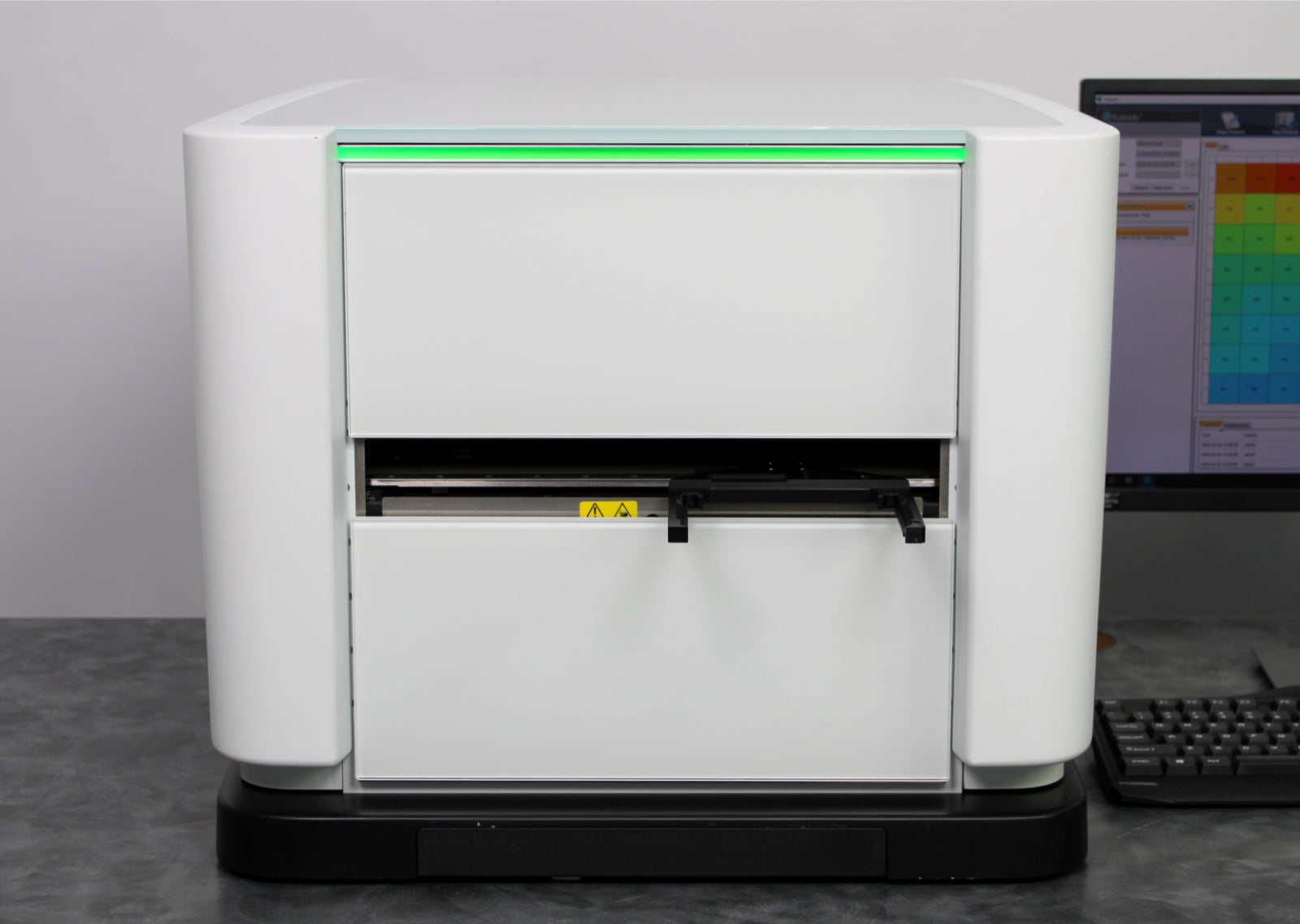

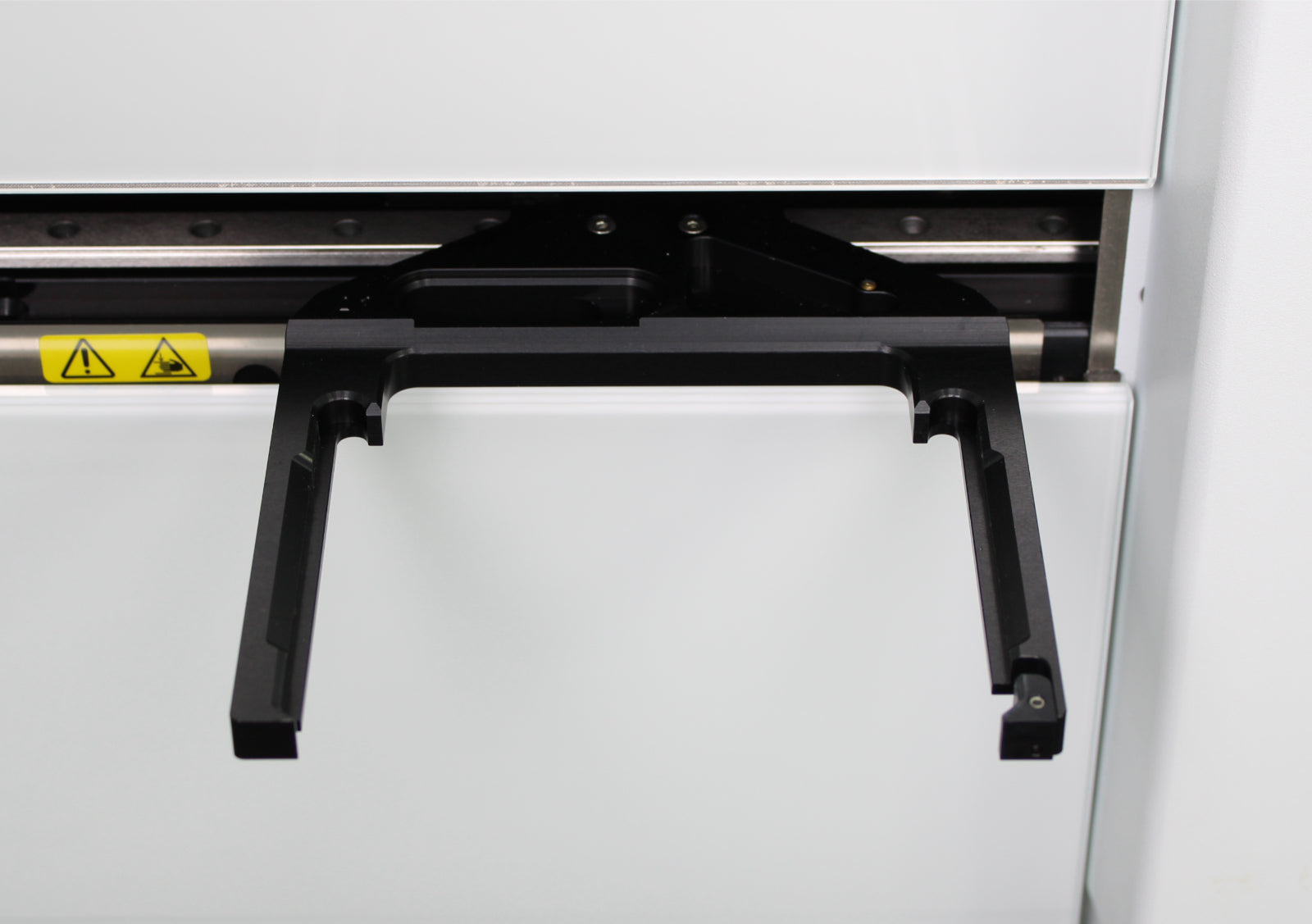

- Plate unload and load: PASSED

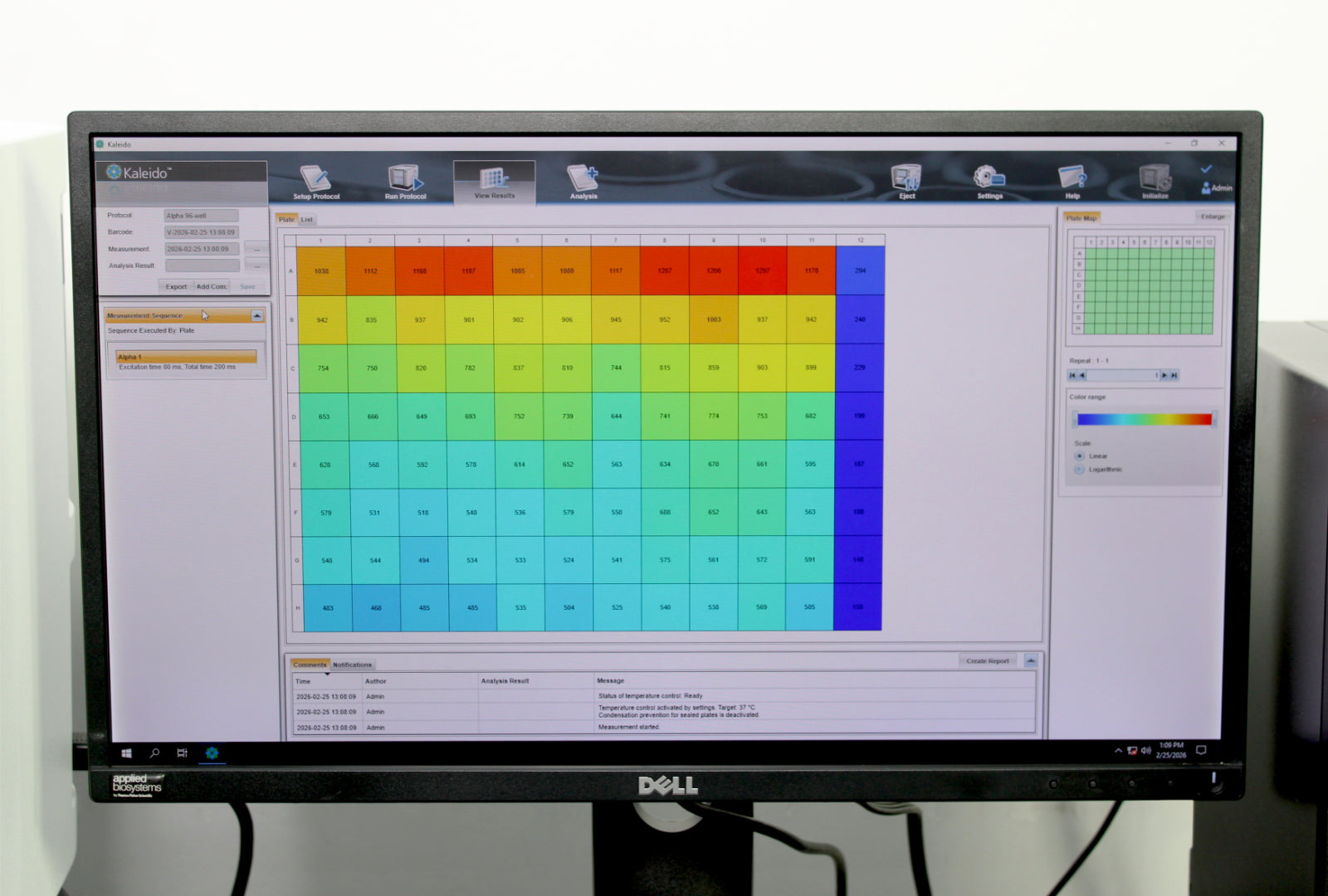

- Absorbance run: PASSED
- Luminescence run: PASSED
- Motor performance: PASSED
|

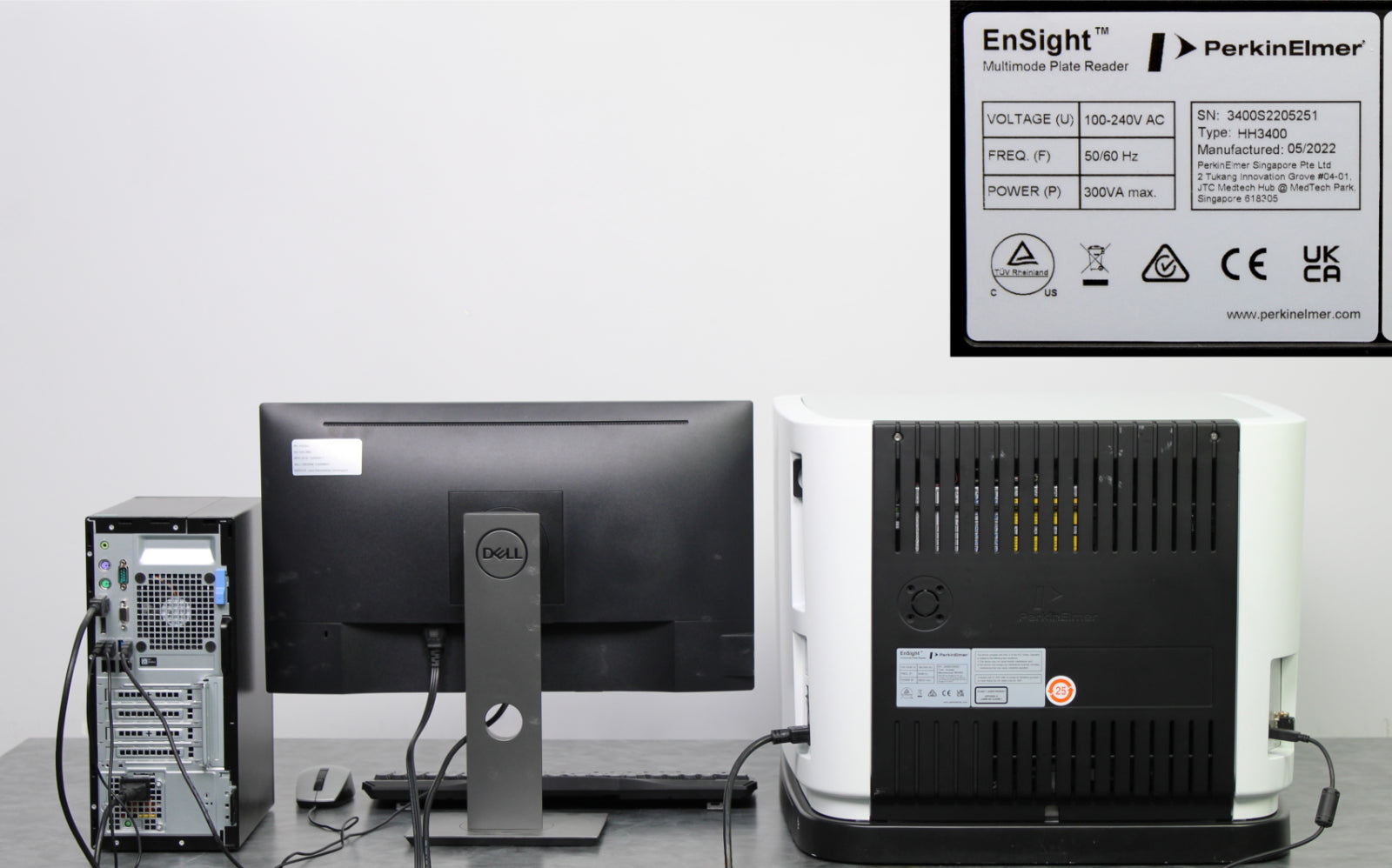

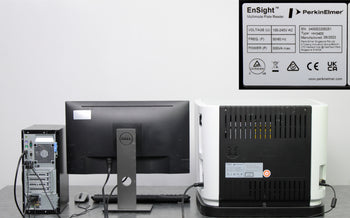

Manufacturer
|
PerkinElmer
|
|
Model
|
EnSight
|
|
Type
|
HH3400
|
|
Serial No.
|
3400S2205251
|
|
Mfg. date
|
05/2022
|
|
Plate format
|
6, 12, 24, 48, 96 and 384-well plates
|
|
Temperature control range
|
3°C above ambient to 65°C (0.5°C increments)
|
|
Temperature control uniformity
|
+0.5°C
|
|
Shaking
|
Linear, orbital, double orbital
|
|
Barcode reader
|
All four sides of the microplate
|
|

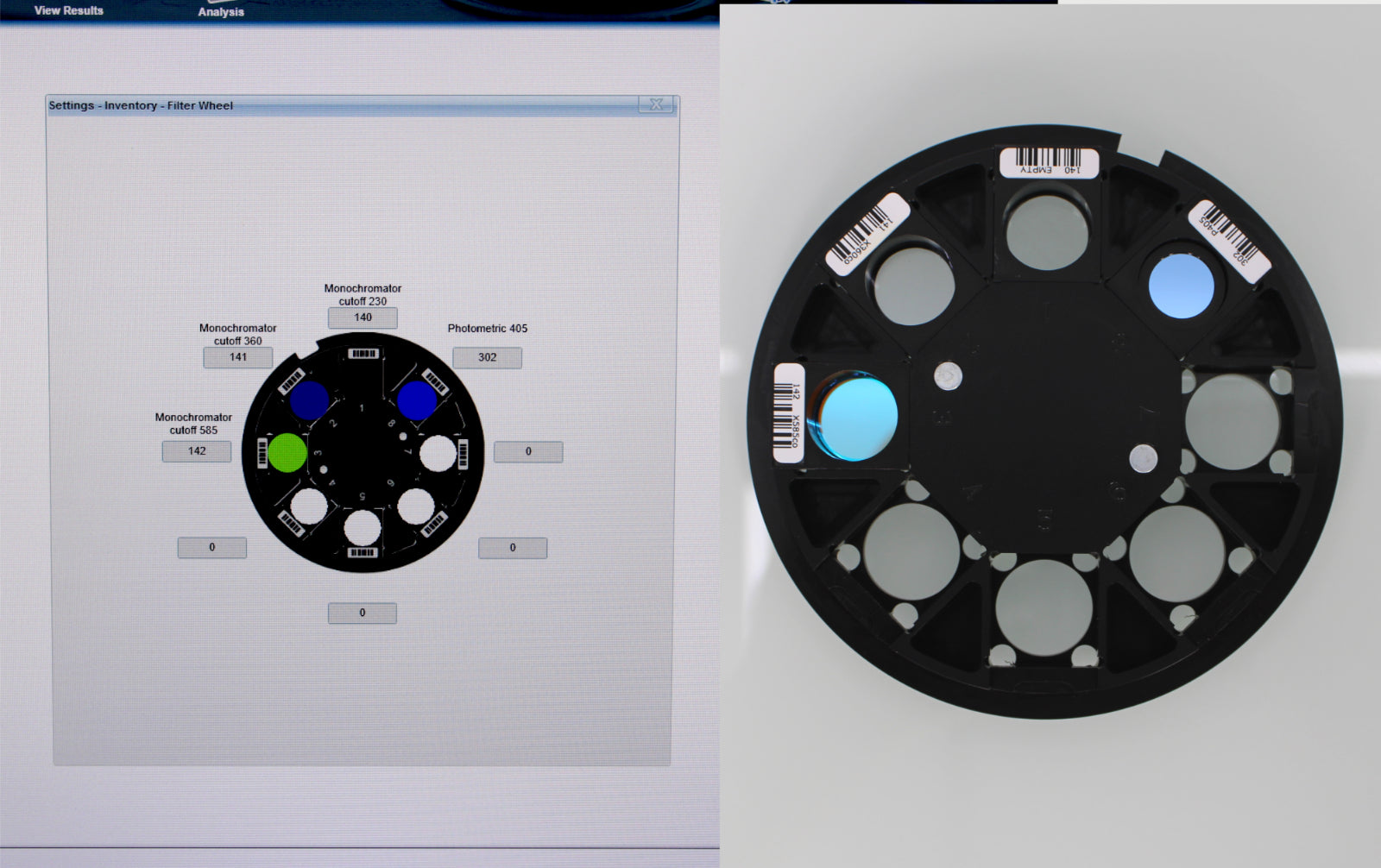

Monochromator bandwidth
|
<8 nm (FWHM)
|
|
Monochromator wavelength range
|
230-1000 nm (excitation), 0.5 nm increments; 230-850 nm (emission), 0.5 nm increments
|
|
Monochromator wavelength precision
|
±0.38 nm
|
|
Monochromator wavelength accuracy
|
±2 nm
|
|
Stacker
|
Optional (not included)
|
|
Power rating
|
100-240V AC, 50/60 Hz
|
|
Power consumption
|
300VA max.
|
|
Dimensions (W x D x H)
|
22.2 x 24.9 x 18.3 in (56.4 x 63.2 x 46.6 cm)
|
|
Weight
|
165 lb (75 kg)
|
|
Technology
|
96-well
|
384-well
|
|
Well-imaging
|
1 min 30 sec
|
4 min
|
|
Label-free
|
55 sec
|
1 min 30 sec
|
|
Alpha
|
43 sec
|
1 min 14 sec
|
|
Fluorescence
|
38 sec
|
1 min 14 sec
|
|
Time-resolved fluorescence
|
50 sec
|
1 min 15 sec
|
|
Absorbance standard mode
|
22 sec
|
1 min 10 sec
|
|
Absorbance on-the-fly
|
22 sec
|
27 sec
|
|
Luminescence
|
35 sec
|
1 min 15 sec
|
