Overview of Barnstead Lab-Line MaxQ 5000 Floor Refrigerated Incubator Shaker
The Barnstead MaxQ 5000 is a versatile large capacity unit that can handle heavy workloads. In an enclosed environment where you can control certain conditions, like temperature and humidity, the substances in the incubator merge, allowing you to grow and cultivate various biomaterials. The incubator shaker can be used in biotechnology, molecular biology and numerous other fields for applications like cell aeration, DNA replication and life sciences studies.
View in stock used incubator shakers for sale here. Need assistance? Get in touch with us today.
Barnstead MaxQ 5000 Features
• Easy to use: Door opens using a foot pedal for hands free operation. Shaking action stops when the door is open.
• Speed: Speed ranges from 15 to 500 rpm.
• Non-volatile memory: All set points are retained by non-volatile memory that automatically reactivates after power is restored.
• Protection: Over temperature protection in the event of primary control failure. A user adjustable over-temperature safety signal with an independent thermostat controls the heat if the main controller fails.
Barnstead MaxQ 5000 Specifications
|
Manufacturer |
Barnstead Lab-Line |
|
Model |
MaxQ 5000 |
|
Speed range |
15 to 500 rpm, ±1 rpm |
|
Timer range |
Continuous or timed operation from 0.1 minute to 999 hours or 0.1-999 mins |
|
Temperature range |
15°C below ambient to 60°C. Refrigeration system needs to be turned off whenever the set point is at or above 32°C. |
|
Temperature accuracy |
±0.1°C at 37°C |
|
Recorder output |
None |
|
RS232 interface |
Monitor speed and time with a computer |
|
Motor |
Solid state brushless DC |
|
Power rating |
120V, 50/60Hz, 14.0A |
|
Power consumption |
1600W |
|
Platform (W x D) |
30 x 18 in (76.2 x 45.7 cm) |
|
Dimensions (W x D x H) |
41 x 32 x 41 in (104.1 x 81.3 x 104.1 cm) |
|
Weight |
512 lb (232.2 kg) |
Our Testing Process
1. The shaking incubator technician pre-tests the unit’s heating and cooling (if applicable) and ensures the unit shakes and spins. If anything is not working, necessary diagnosis and fix are done before continuing to the next testing step.
2. The shaking incubator technician runs the shaking platform to the maximum and minimum specifications to make sure that it will get up to where it needs to and to listen for bearing noise or other rubbing noises.
3. The shaking platforms are disassembled, cleaned, and greased where necessary including the shaking mechanisms. The shaking incubator technician inspects the belts, fans, and power button circuit and proceeds with necessary repair/s.
4. The incubator technician tests the heat with our NIST traceable incubator thermometers for the temperature to steady at 37°C setpoint. If necessary, calibration is performed.
5. If the unit is equipped with CO2, the incubator technician calibrates the CO2 to zero.
6. The incubator technician looks over various parts of the unit such as feet, fans, front panel, etc. Redecal, repaint, and replace parts are performed if necessary.
MaxQ 5000 Floor Refrigerated Incubator Shaker Upgrades and Accessories
• Shaker platform
• Flask clamps
• Power Cable
• 90-Day to 1-Year Warranty

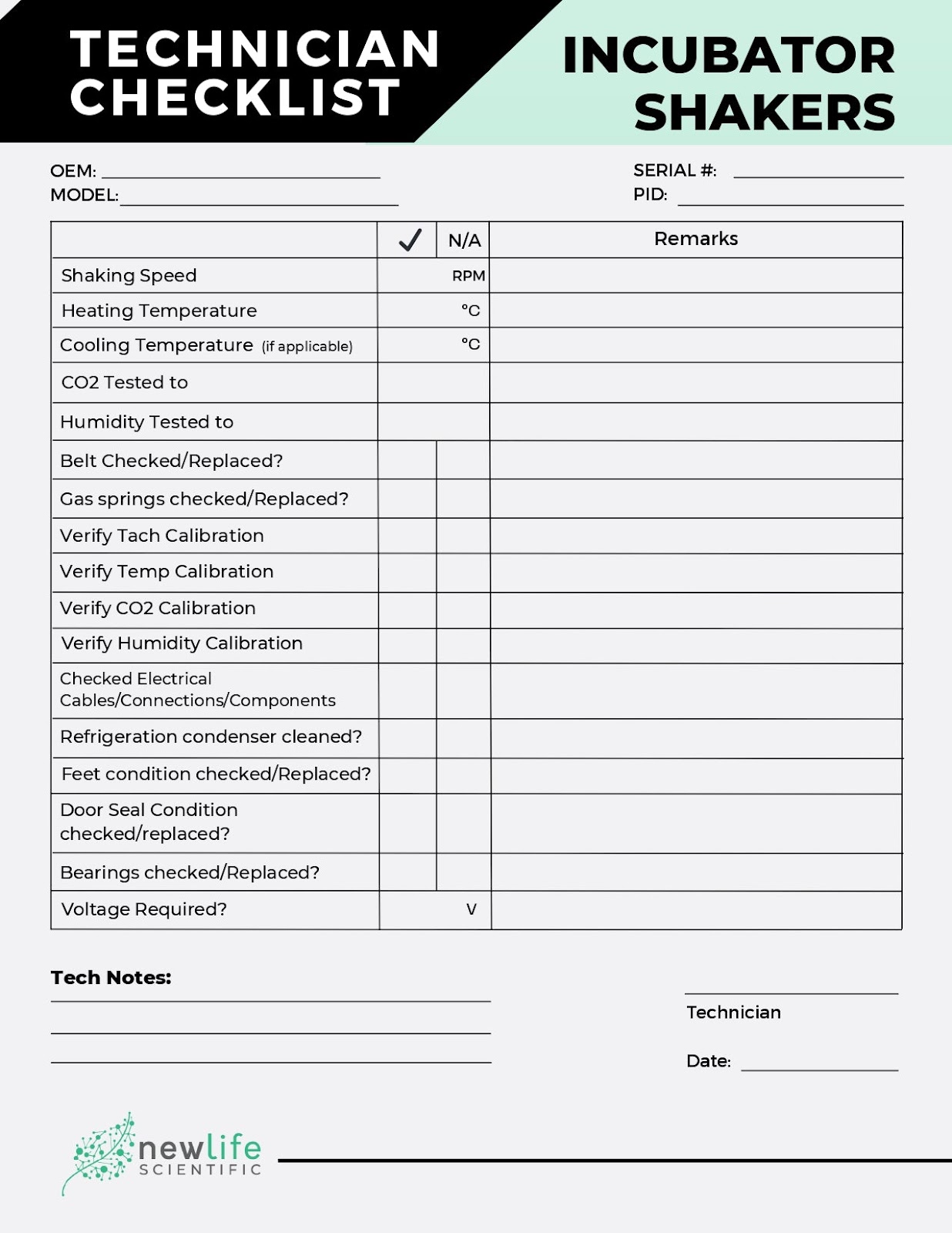

Our Incubator Shaker Technician Checklist
At New Life Scientific, our technicians test each device thoroughly before shipping to verify performance and functionality. After our incubator shaker technician finishes the initial testing process, this Incubator Shakers Technician Checklist is filled out to record the important information gathered throughout the repair process. This checklist will be available publicly after the unit has undergone tech completion.
Barnstead MaxQ 5000 Floor Refrigerated Incubator Shaker Applications
• Fermentation/Cell Culture - The shaker helps maintain uniform mixing of culture medium, which is critical for maintaining consistent conditions during microbial fermentation.
• Protein Expression and Purification - The shaking ensures aeration and nutrient mixing, while the incubation provides the necessary temperature conditions for growth. This shaker is useful for optimizing conditions during the expression phase before moving to purification processes.
• Enzyme Reactions - In enzyme kinetic studies, researchers use the shaker to maintain uniform conditions for enzyme reactions that require precise temperature control and consistent mixing. The shaker can also facilitate the incubation of enzyme-substrate mixtures, ensuring that all components are evenly mixed throughout the reaction.
• Microbiological Testing - The shaker can help in testing the efficacy of antibiotics by incubating bacterial cultures while shaking them. For understanding the growth rate of microorganisms under various conditions, the incubator shaker can monitor and maintain optimal growth environments.
• DNA and RNA Work - In PCR optimization, the shaker can help provide precise and stable conditions for reactions requiring consistent agitation and temperature control. In hybridization, the incubator shaker ensures that the probes and target sequences are uniformly mixed and incubated at the required temperature for accurate results.
• Chemical and Biochemical Reactions - For gentle mixing, like biochemical assays, the incubator shaker can ensure proper distribution of reagents.
• Tissue Culture - For certain types of tissue cultures, the incubator shaker can provide a gentle shaking action to ensure that cell monolayers grow evenly and receive sufficient nutrients.
Contact New Life Scientific Today for Additional Information
Are you ready to add a MaxQ 5000 to your laboratory's workbench? Contact us today if you have questions or need additional specifications. You may also:
• Live chat with us by clicking on the icon at the lower right of your screen.
• Email us at cs@newlifescientific.com
• Call us at (567)-210-2838
