You Will Receive:

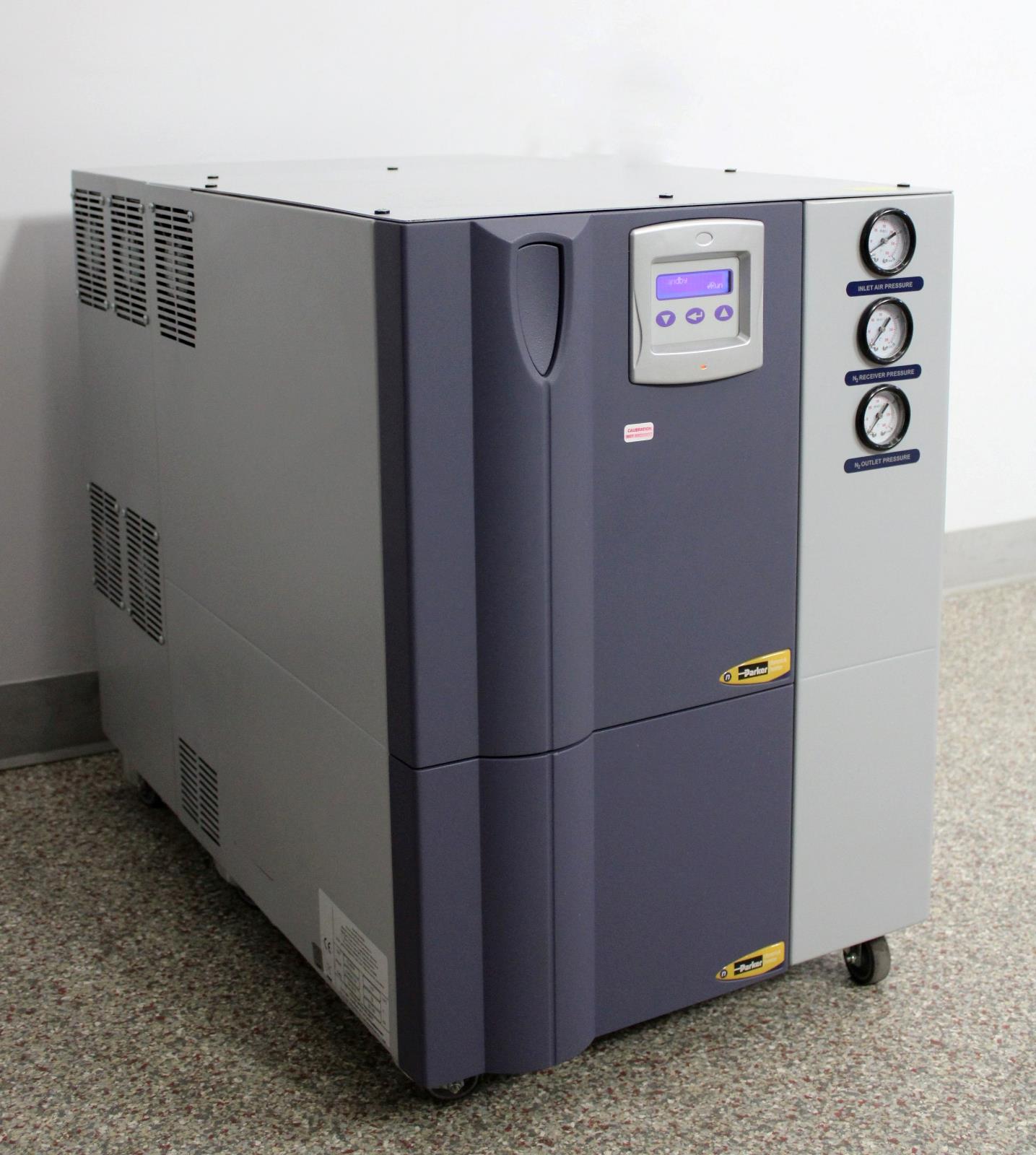

- R180475 Parker Hannifin LCMS30-1-W Nitrogen Gas Generator
- Power cable
Tested and Working
After its initial disinfection and inspection, our technicians tested this LCMS30-1-W with the following results:

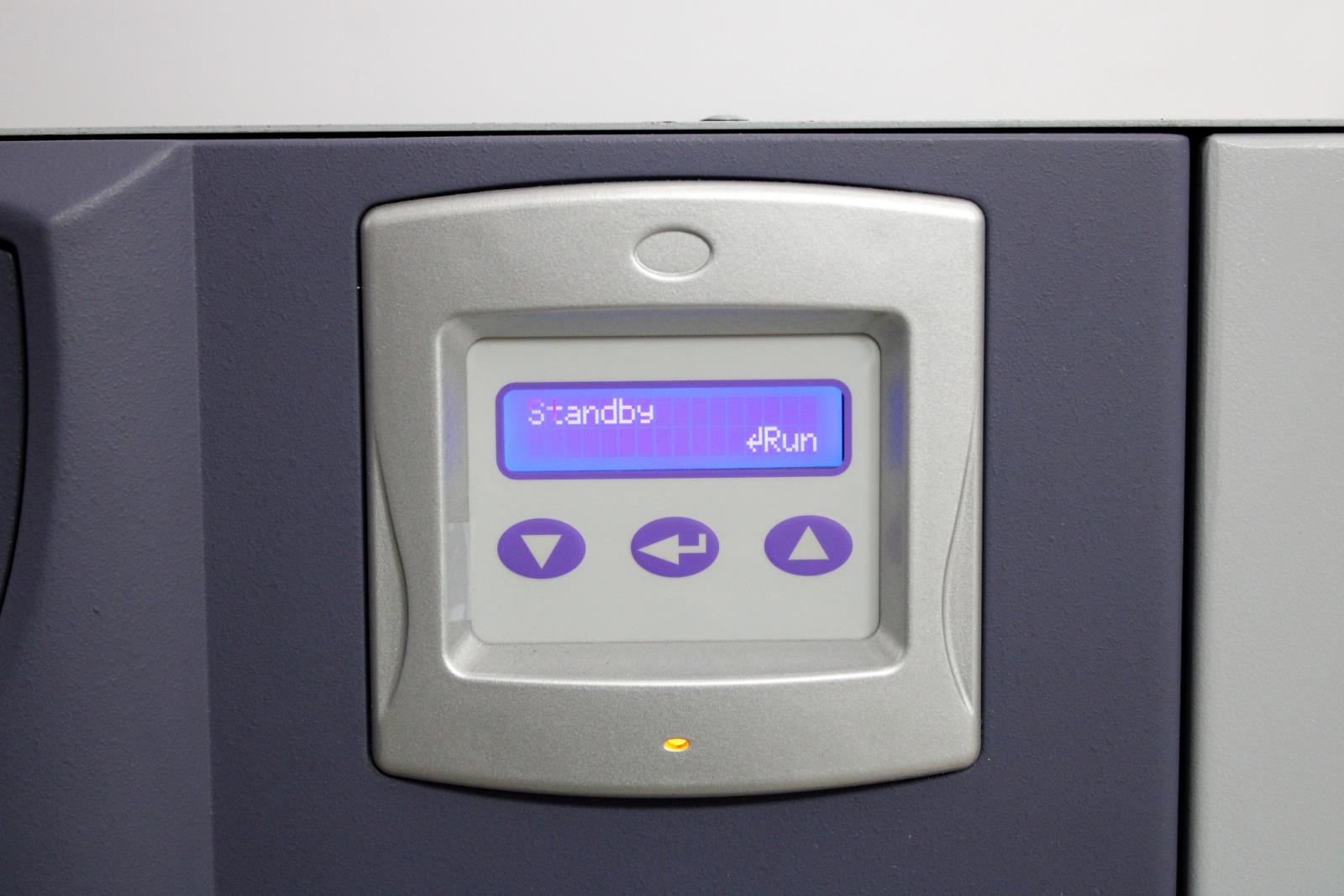

- Unit initializes smoothly: PASSED
- Nitrogen successfully comes out of the nitrogen port: PASSED
- Plugs port to increase pressure on the gause: PASSED
Specifications
|
Manufacturer
|
Parker Hannifin
|
|
Model
|
LCMS30-1-W
|
|

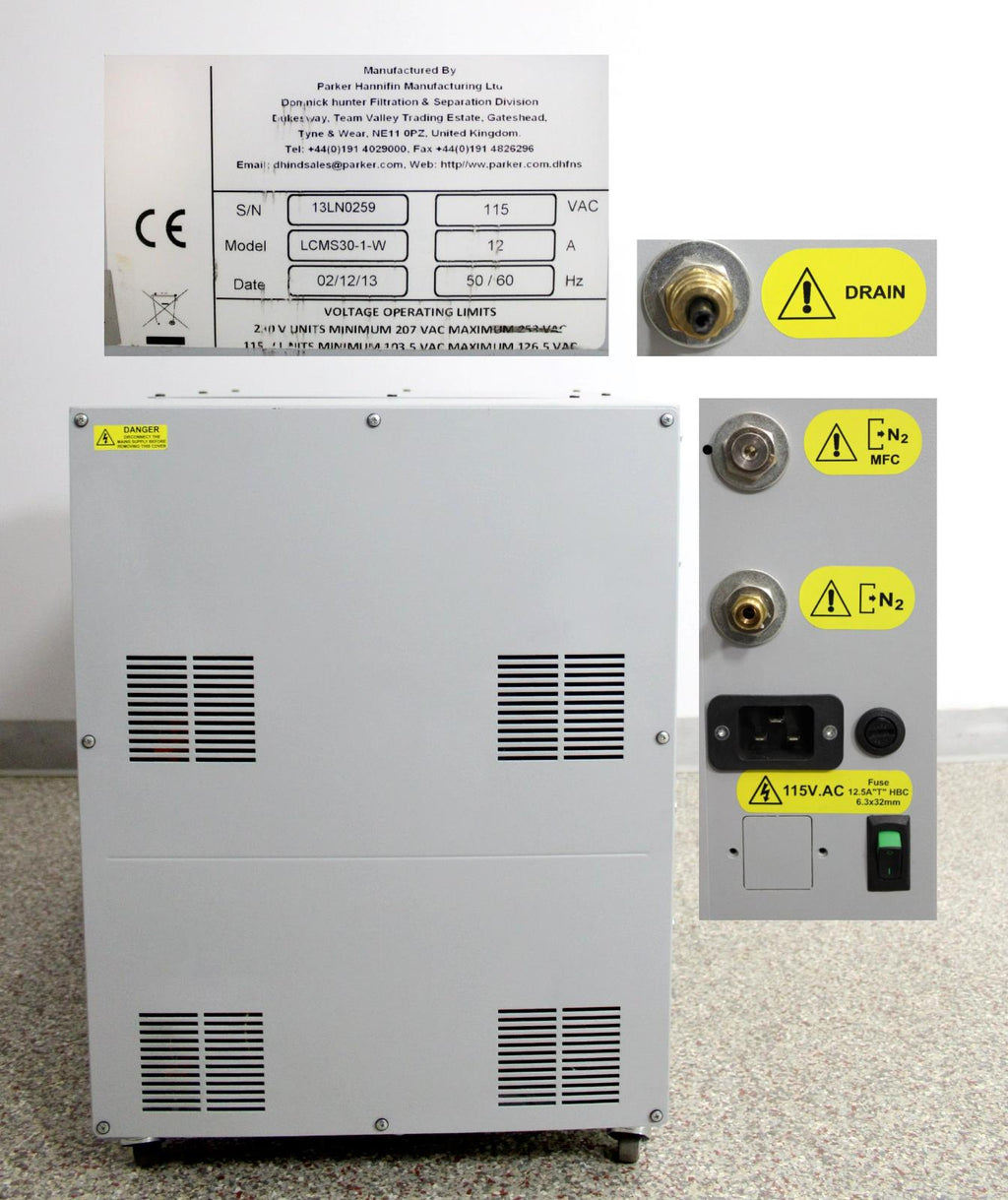

Serial No.
|
13LN0259
|
|
Mfg. Date
|
02/12/13
|
|
Integral Compressor
|
Yes
|
|
Flow Rate
|
30 l/min
|
|
Gas Purity
|
>99%
|
|
Inlet Air Quality Specifications
|
N/A
|
|
Inlet/Outlet Port Size
|
1/4 Compression Fitting inch
|
|
Ambient Temp. Range
|
5-40 °C/41-104 °F
|
|
Dimensions (W x D x H)
|
20.1 x 32.5 x 27.8
|
|
Inlet Air Requirement
|
N/A
|
|
Maximum Outlet Pressure Rating
|
7 barg, 101.5 psig
|
|
Weight
|
129 kg
|
