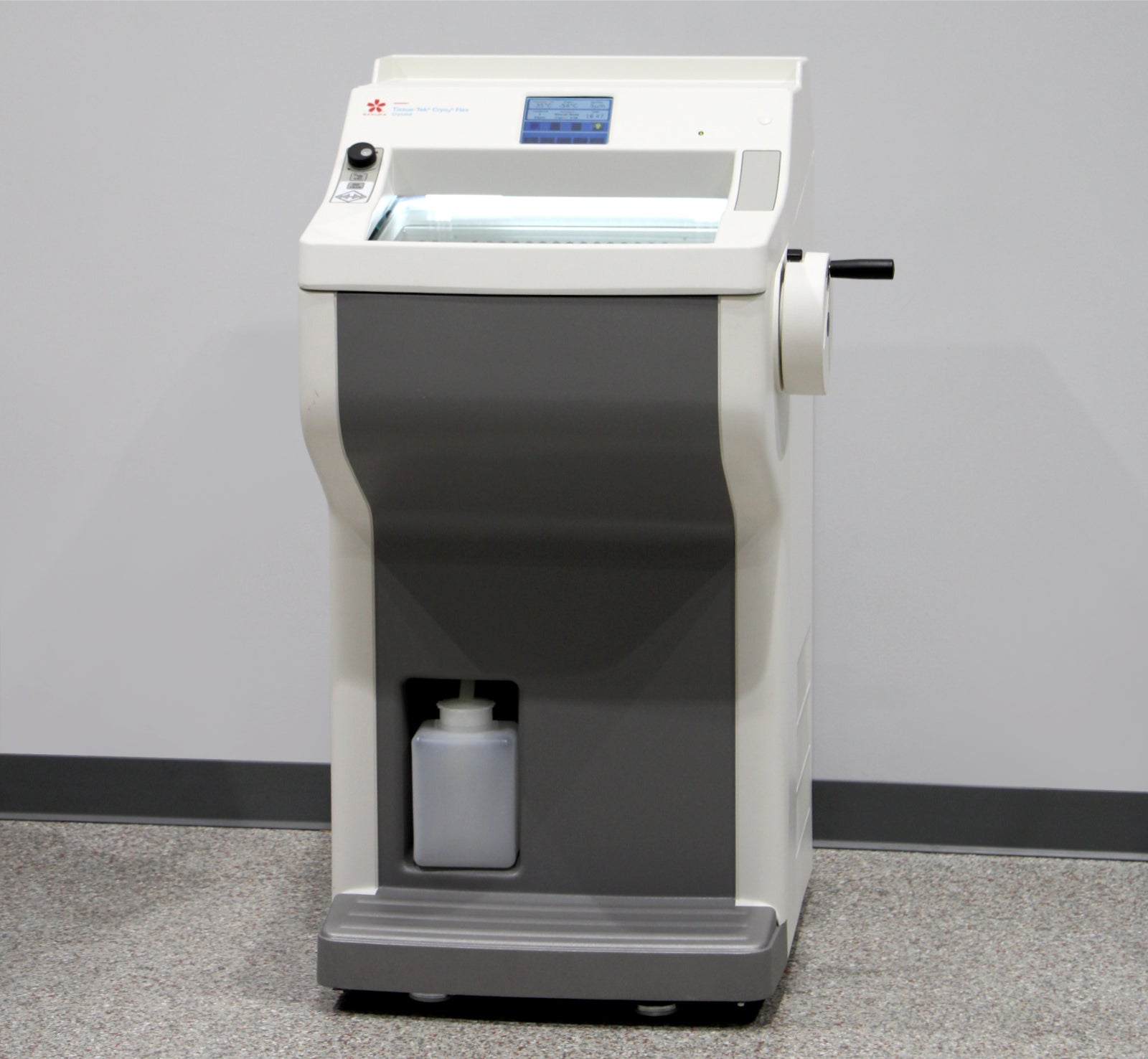

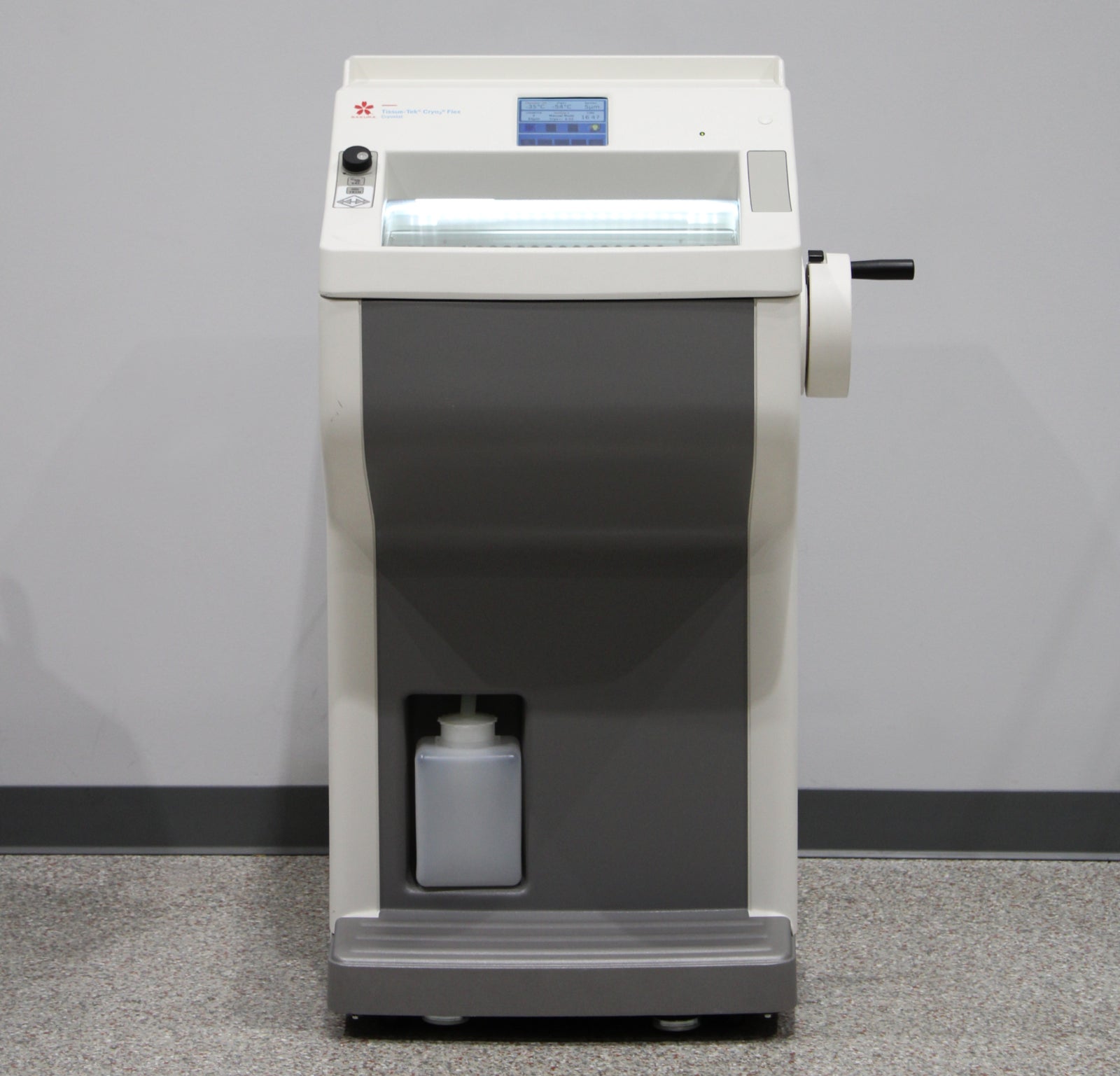

- Sakura Tissue-Tek Cryo3 Flex D Cryostat Microtome 115/120V (6201)

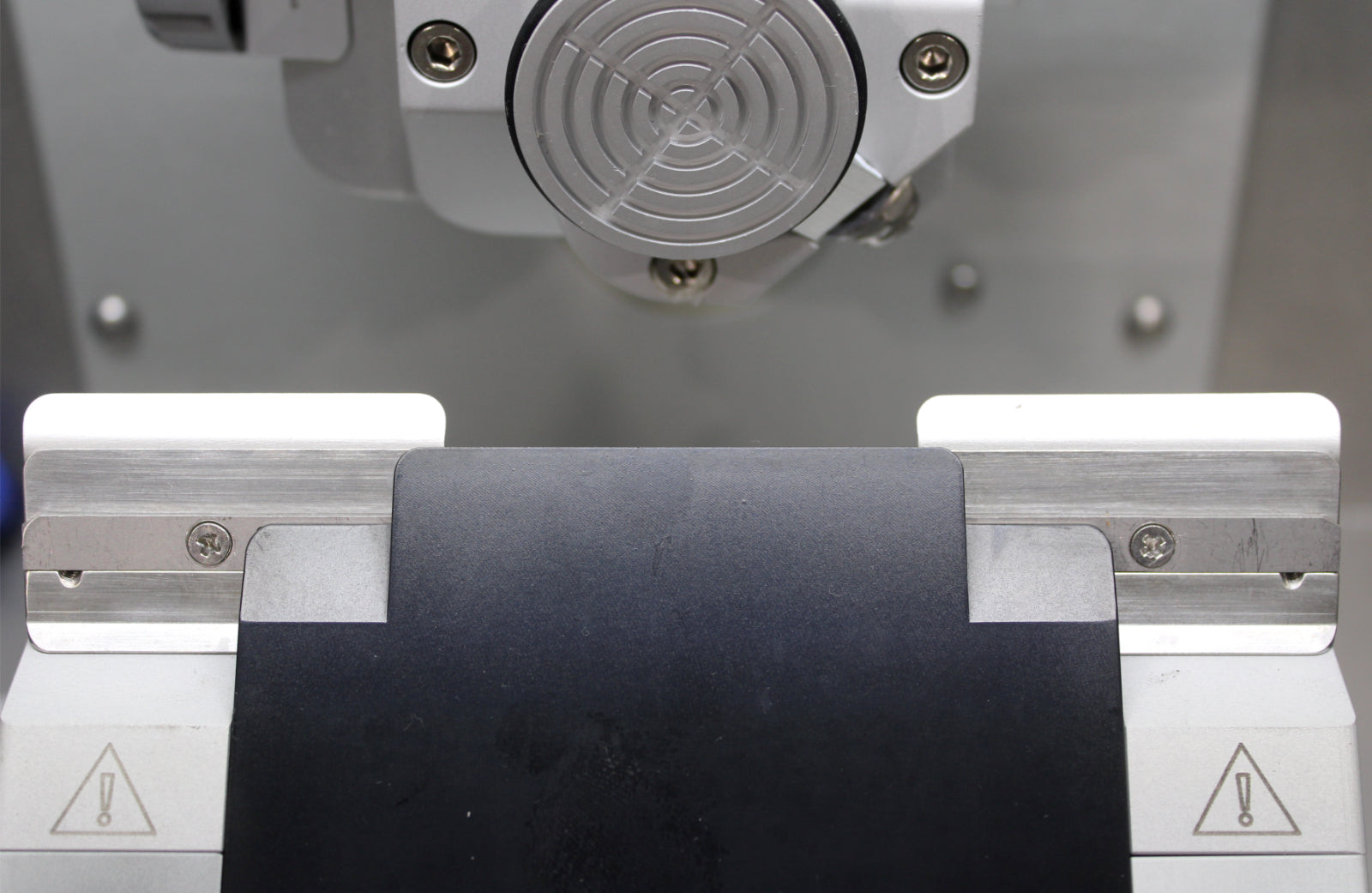

- Knife Holder Assembly
- Anti-Roll Rake
- Heat Extractor Tool
- x4 Specimen Discs
- Power Cable with NEMA 5-15 Plug
- 90-Day Warranty

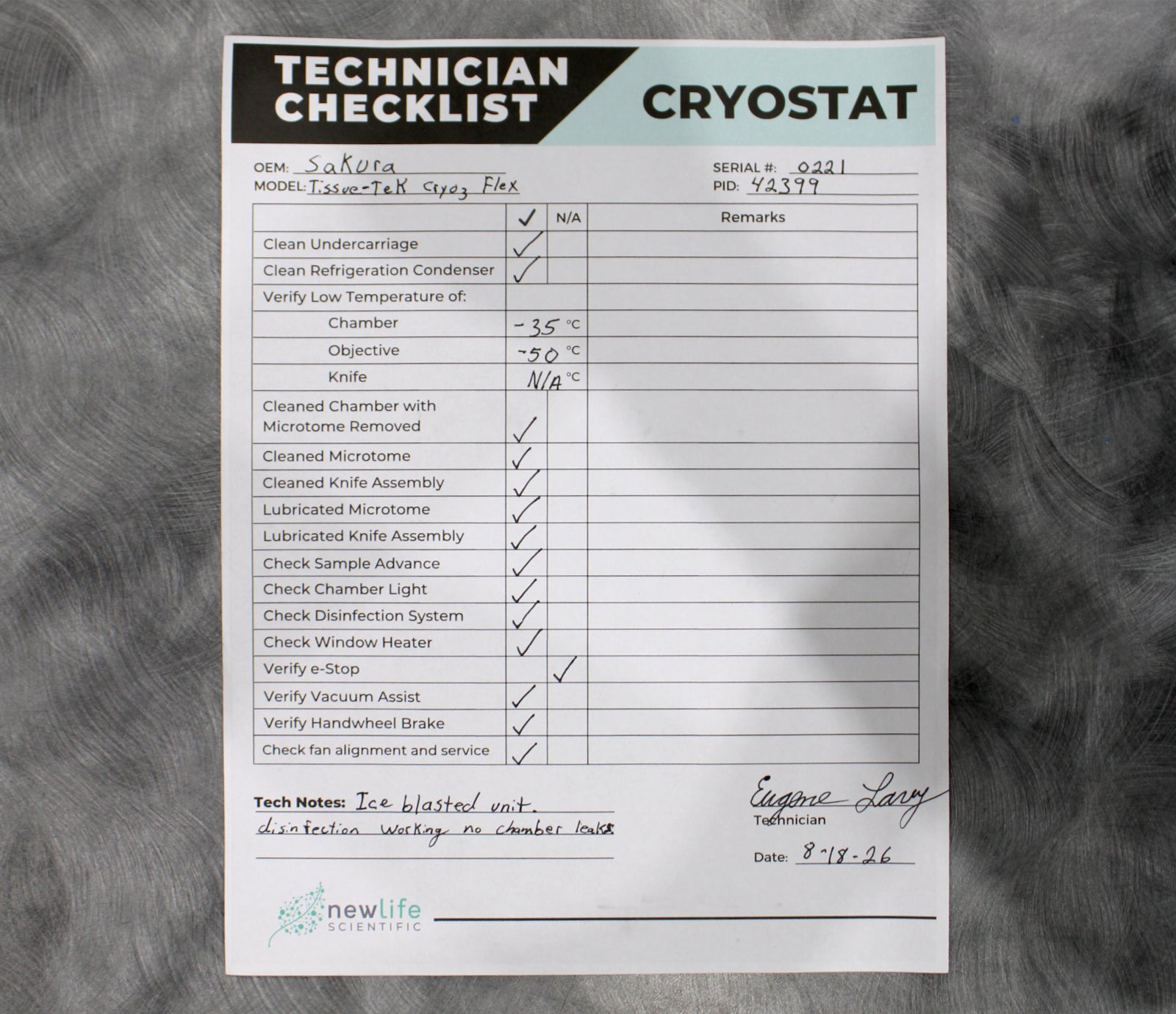

After its initial disinfection and inspection, our technicians tested the Sakura Tissue-Tek Cryo3 Flex cryostat microtome with the following results:

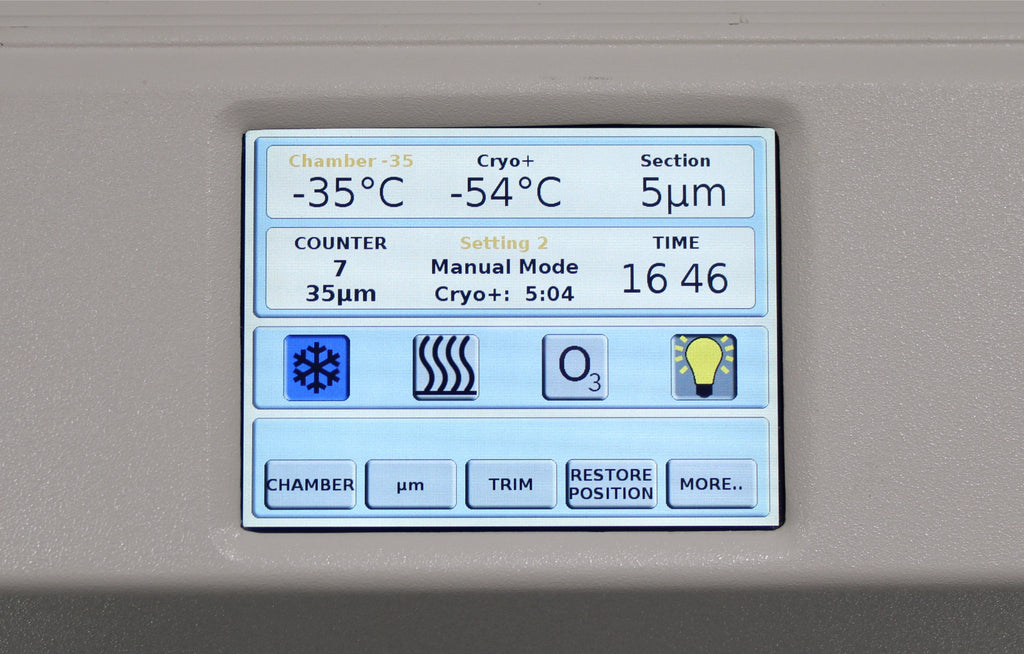

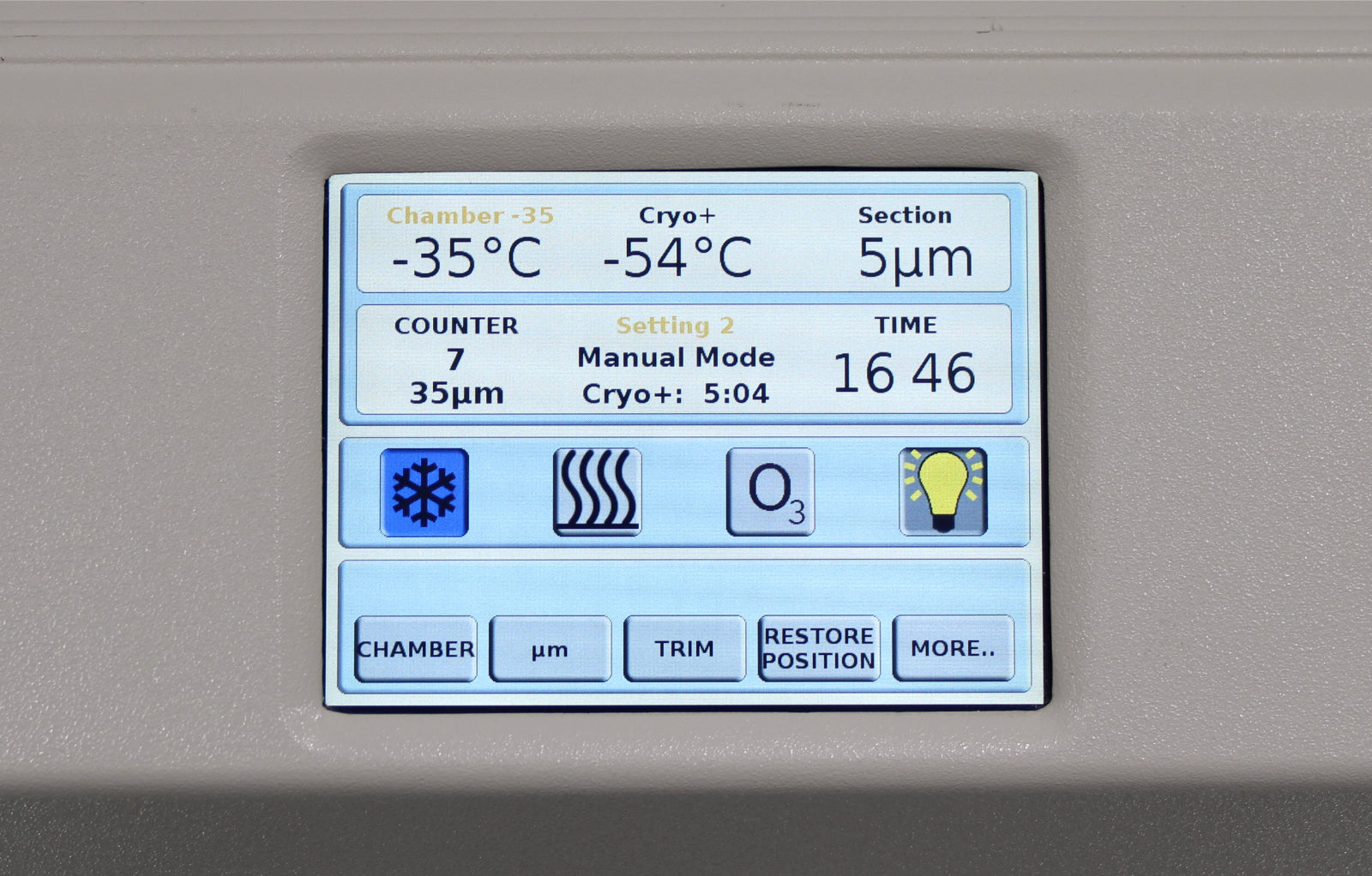

- Chamber maintains -35°C: PASSED
- Cryobar reaches -54°C: PASSED
- Sample advance: PASSED
- Chamber light: PASSED
- Ozone disinfection system: PASSED
- Window heater: PASSED
- Vacuum: PASSED
- Defrost: PASSED
- Handwheel brake: PASSED
- Cleaned undercarriage.
- Cleaned refrigeration condenser.

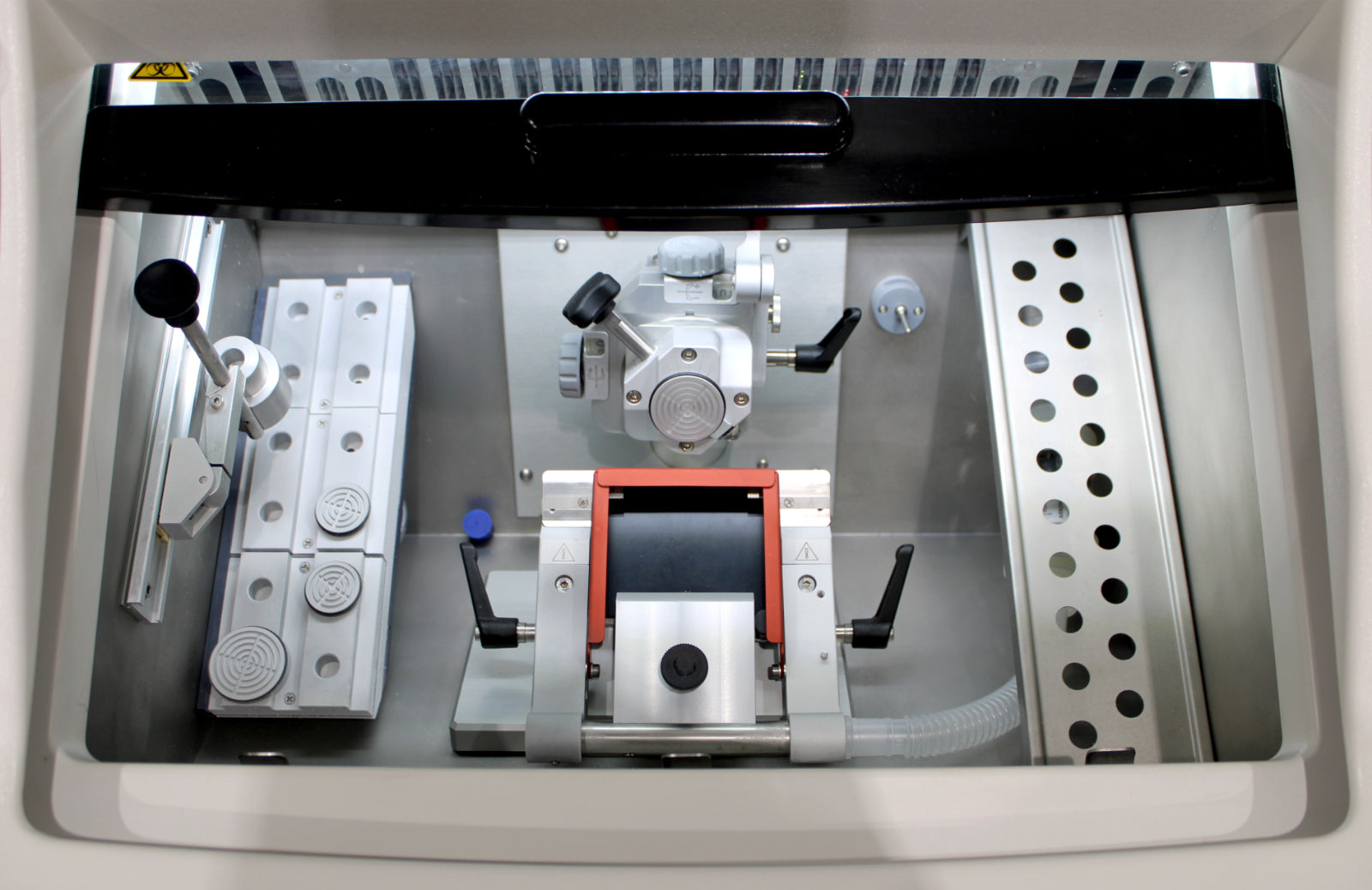

- Cleaned chamber with microtome removed.
- Cleaned and lubricated microtome.
- Cleaned and lubricated knife assembly.

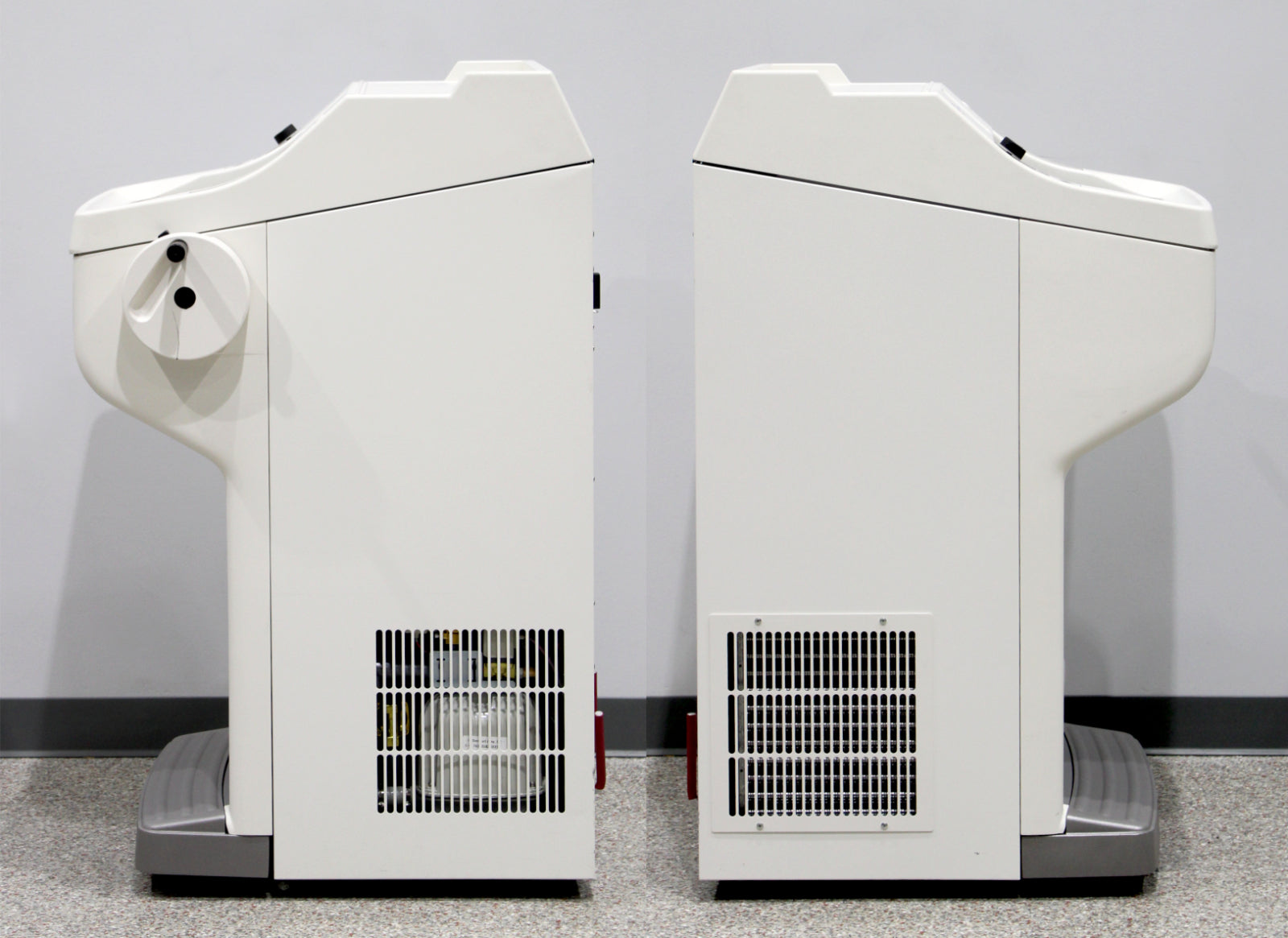

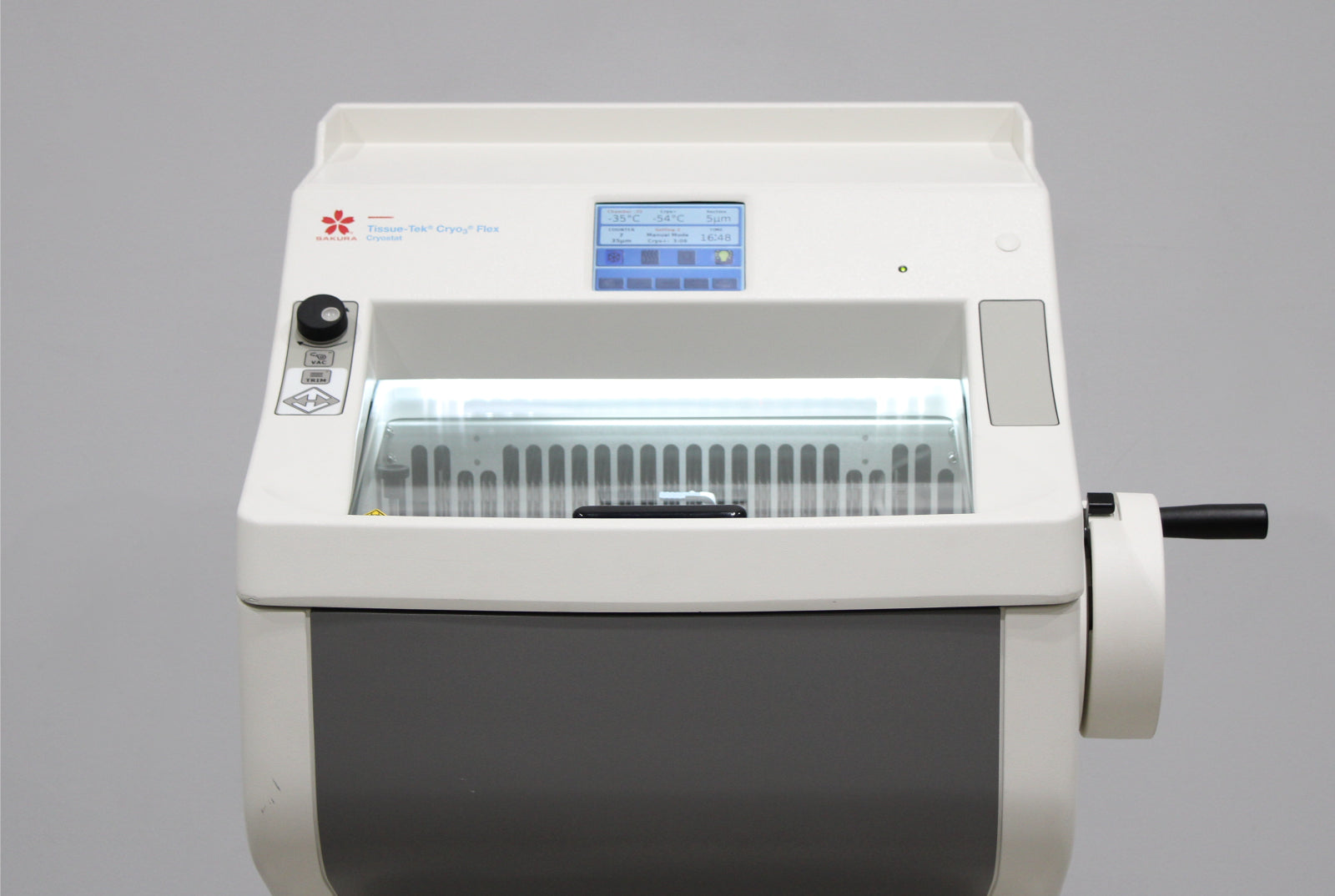

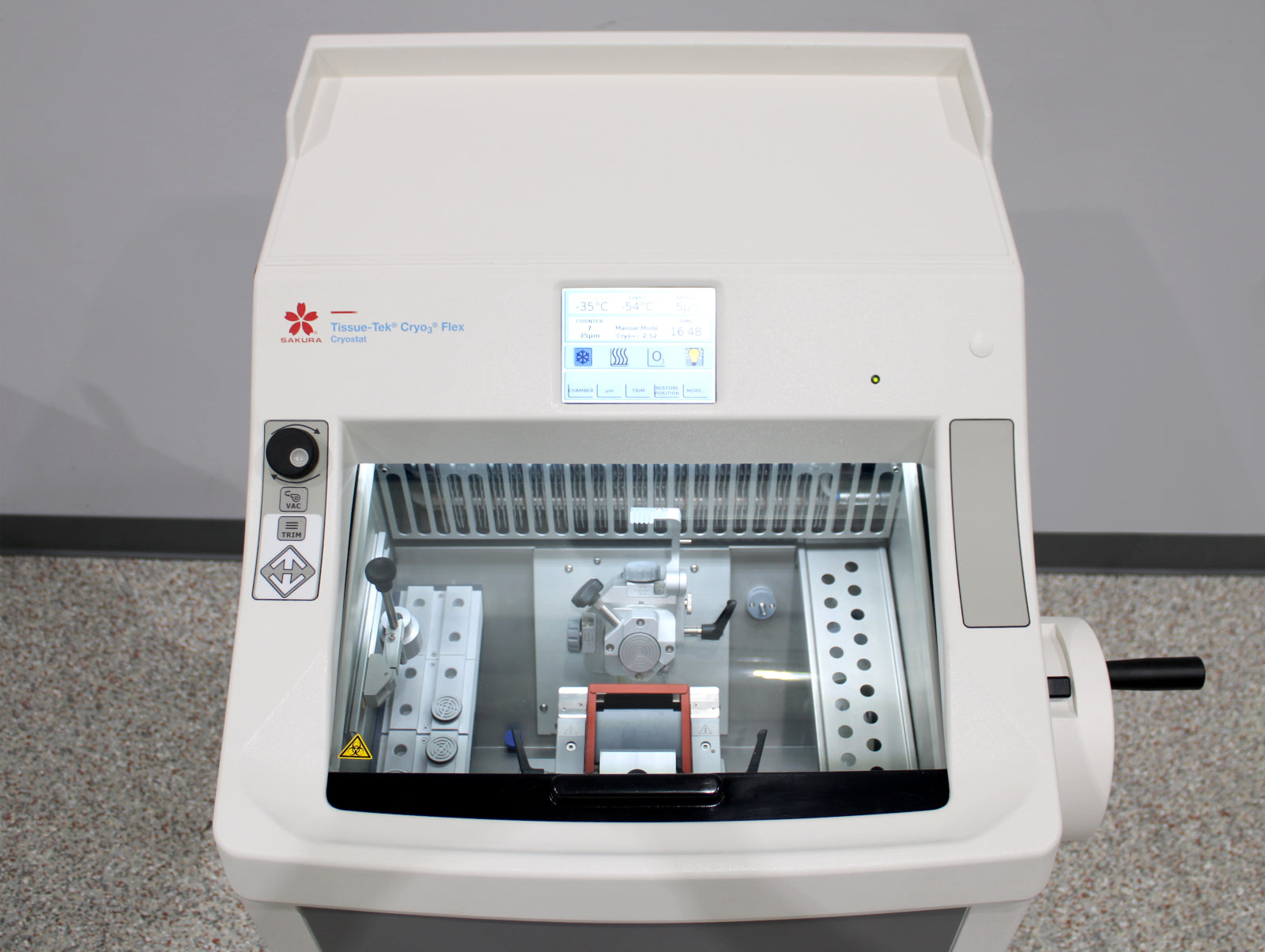

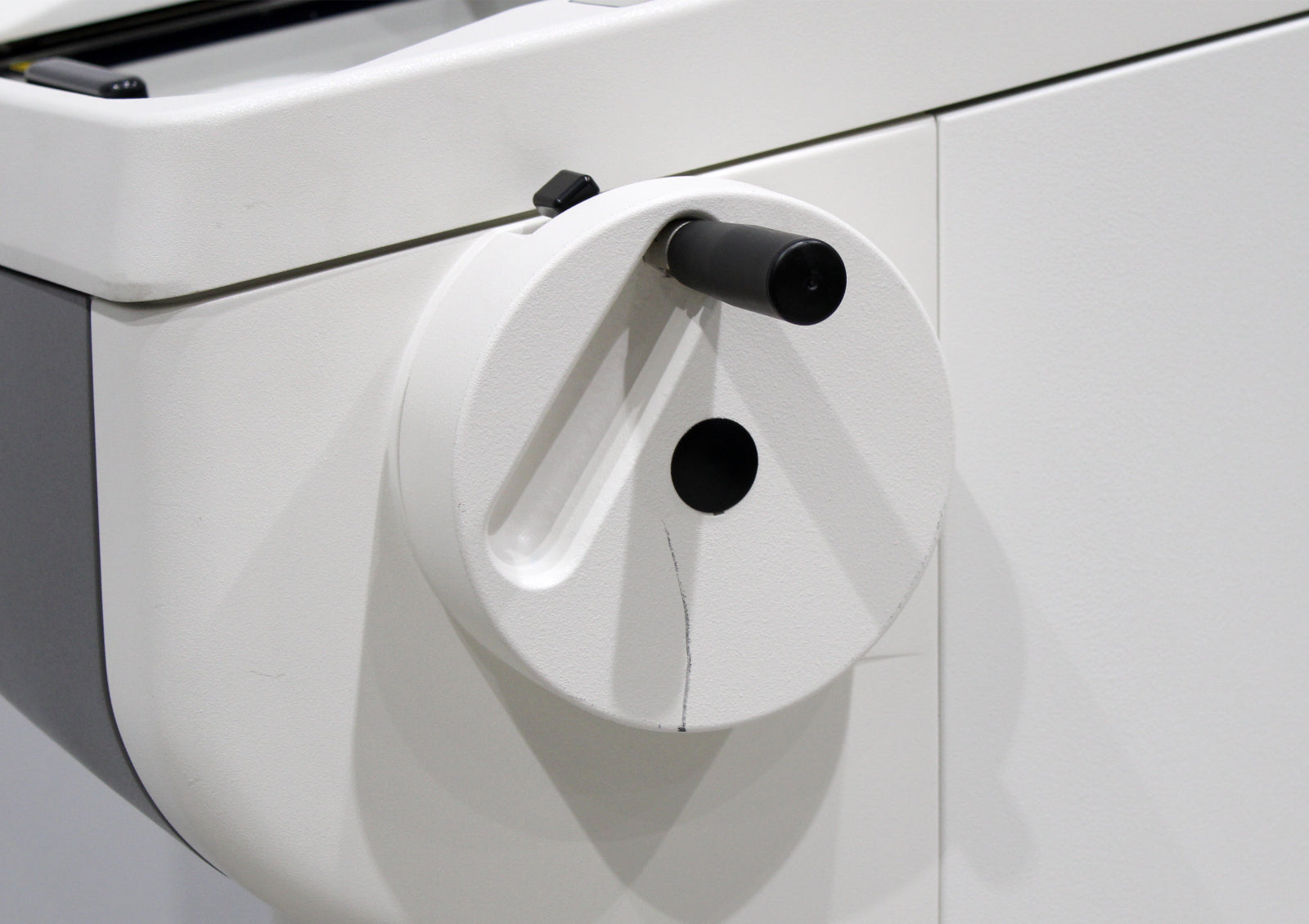

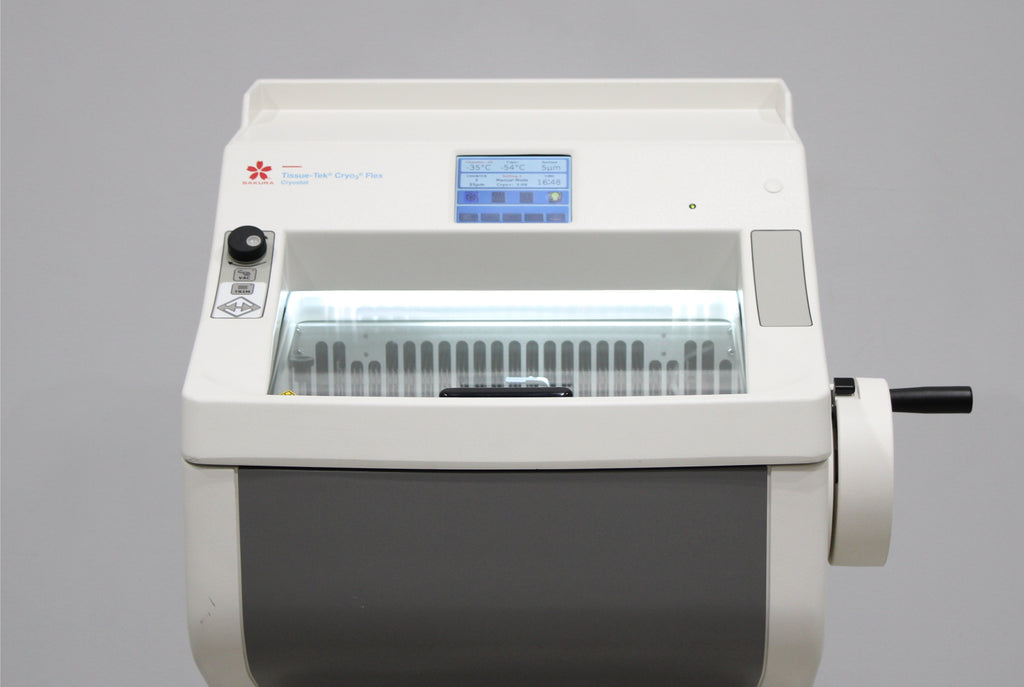

Notice: This cryostat has only minor cosmetic blemishes. Please review the available photos to see the physical condition before purchasing.
|
Manufacturer
|
Sakura
|
|
Model
|
Tissue-Tek Cryo3 Flex Cryostat, D
|
|
Ref. No.
|
6201
|
|

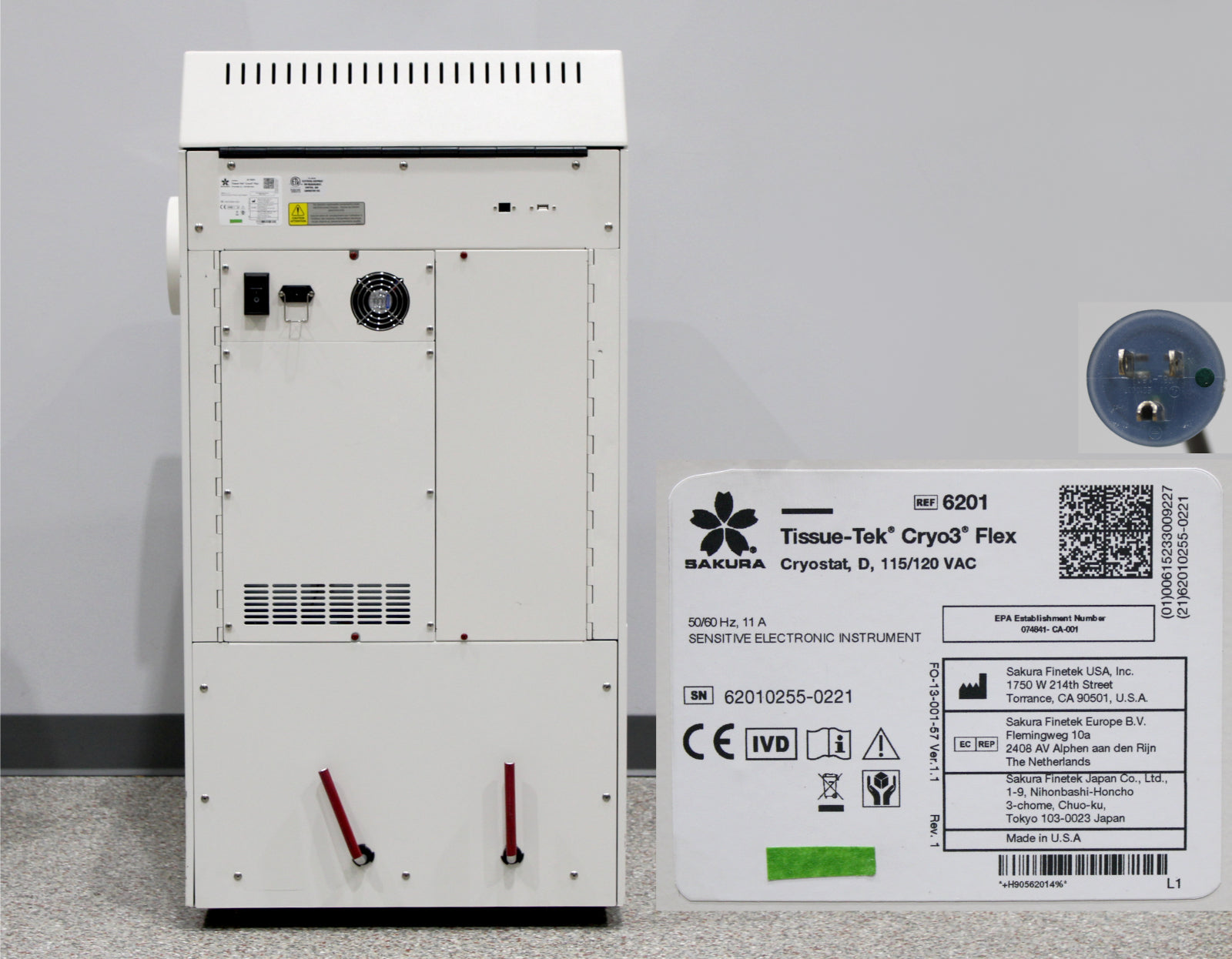

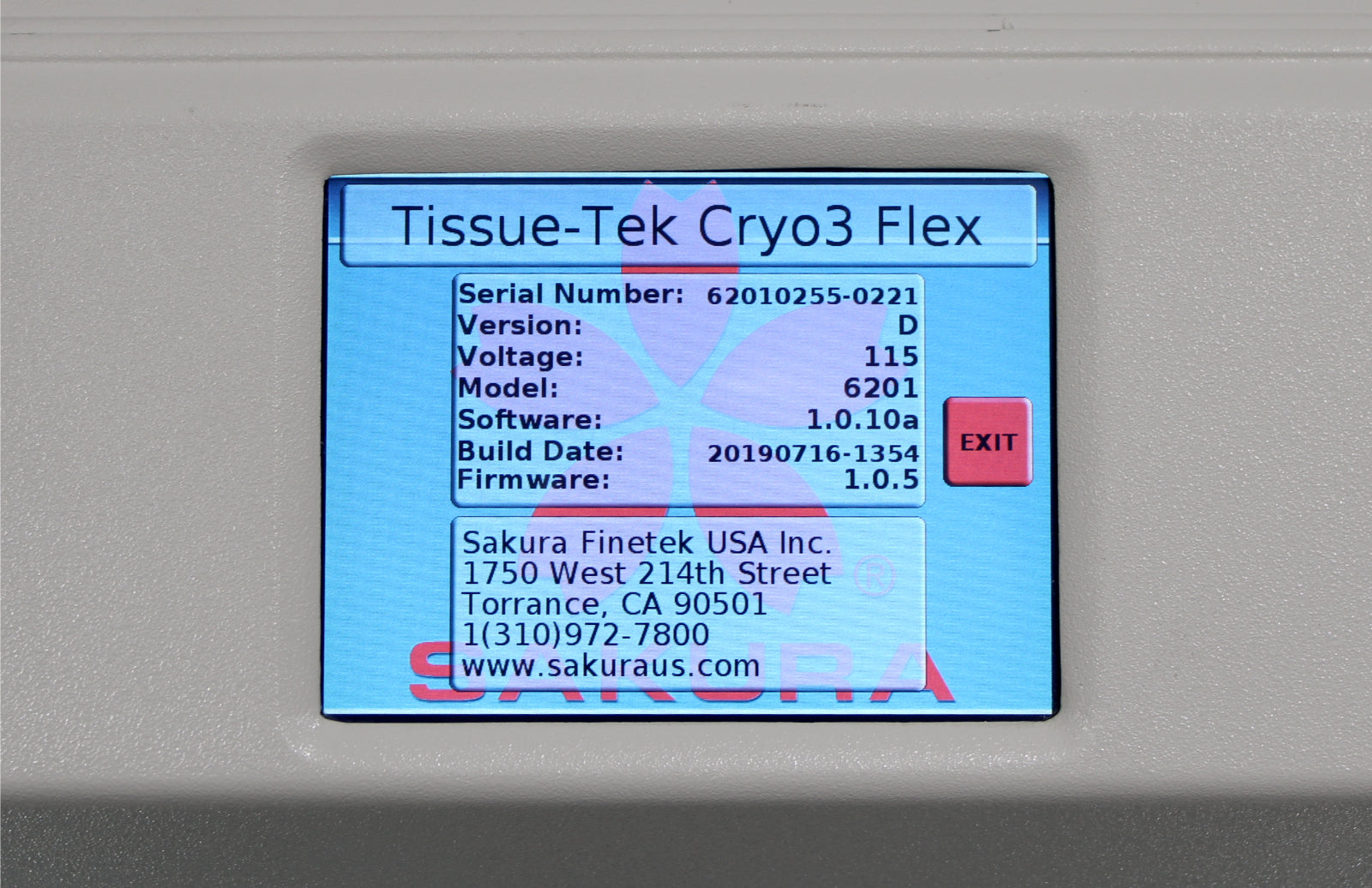

Serial No.
|
62010255-0221
|
|
Mfg. date
|
February 2021
|
|

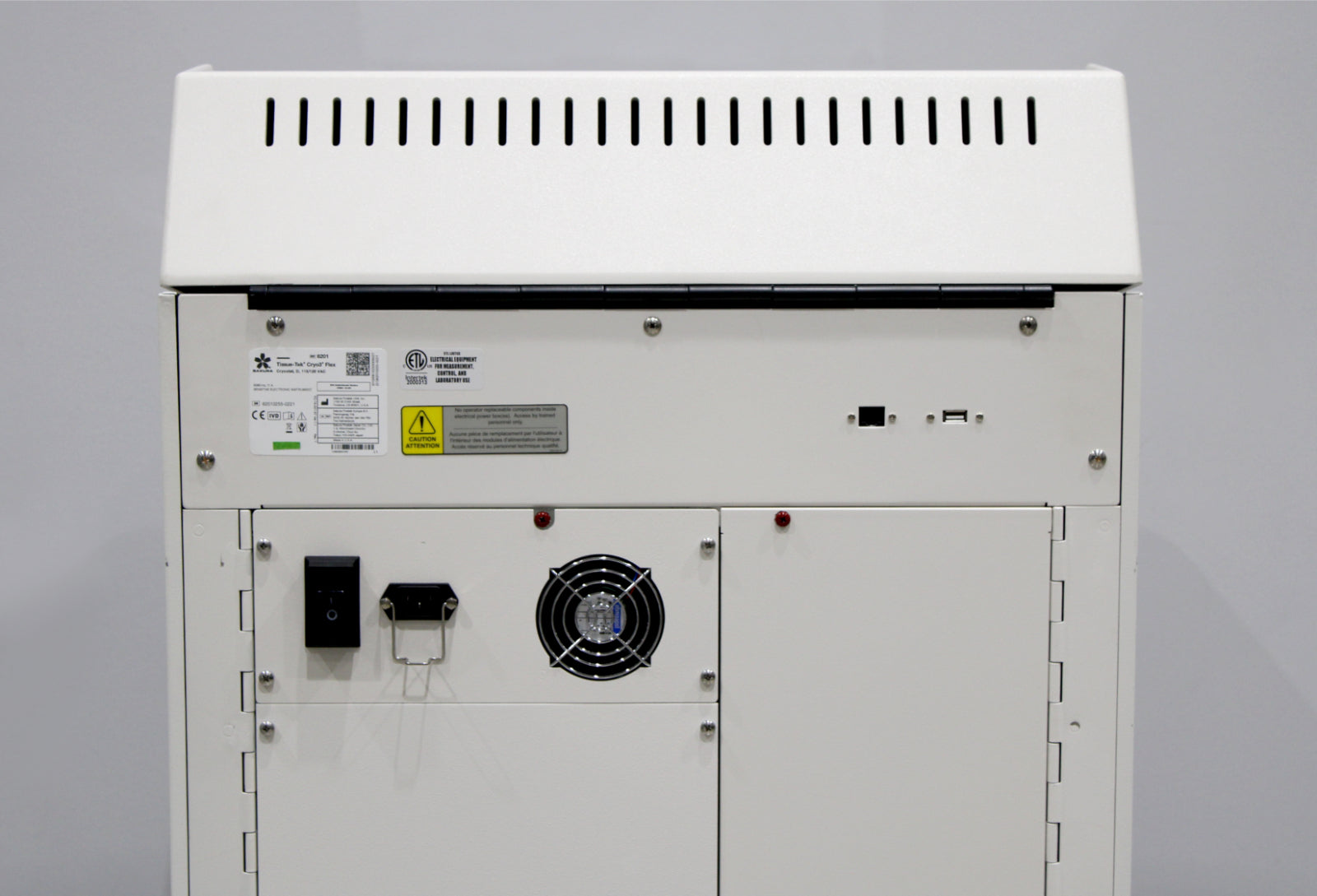

Data interface
|
USB and LAN
|
|
Chamber temperature set range
|
-35°C to 0°C; chamber temperature is maintained within ±2°C
|
|
Cryo+ temperature
|
When activated Cryo+ is 20°C lower than the chamber temperature, within 5 minutes. Lowest Cryo+ temperature is -50°C
|
|
Section thickness settings
|
1 to 99 microns in 1 micron steps
|
|
Maximum specimen thickness
|
25 mm
|
|
Trimming range
|
1 to 100 microns in 1 micron steps
|
|
Specimen holder sizes
|
Round 26 mm, 36 mm, 55 mm
(all including an alignment mark on the shaft)
|
|
Specimen orientation
|
±8° (XY axis), 360° (Z axis)
|
|
Chuck
|

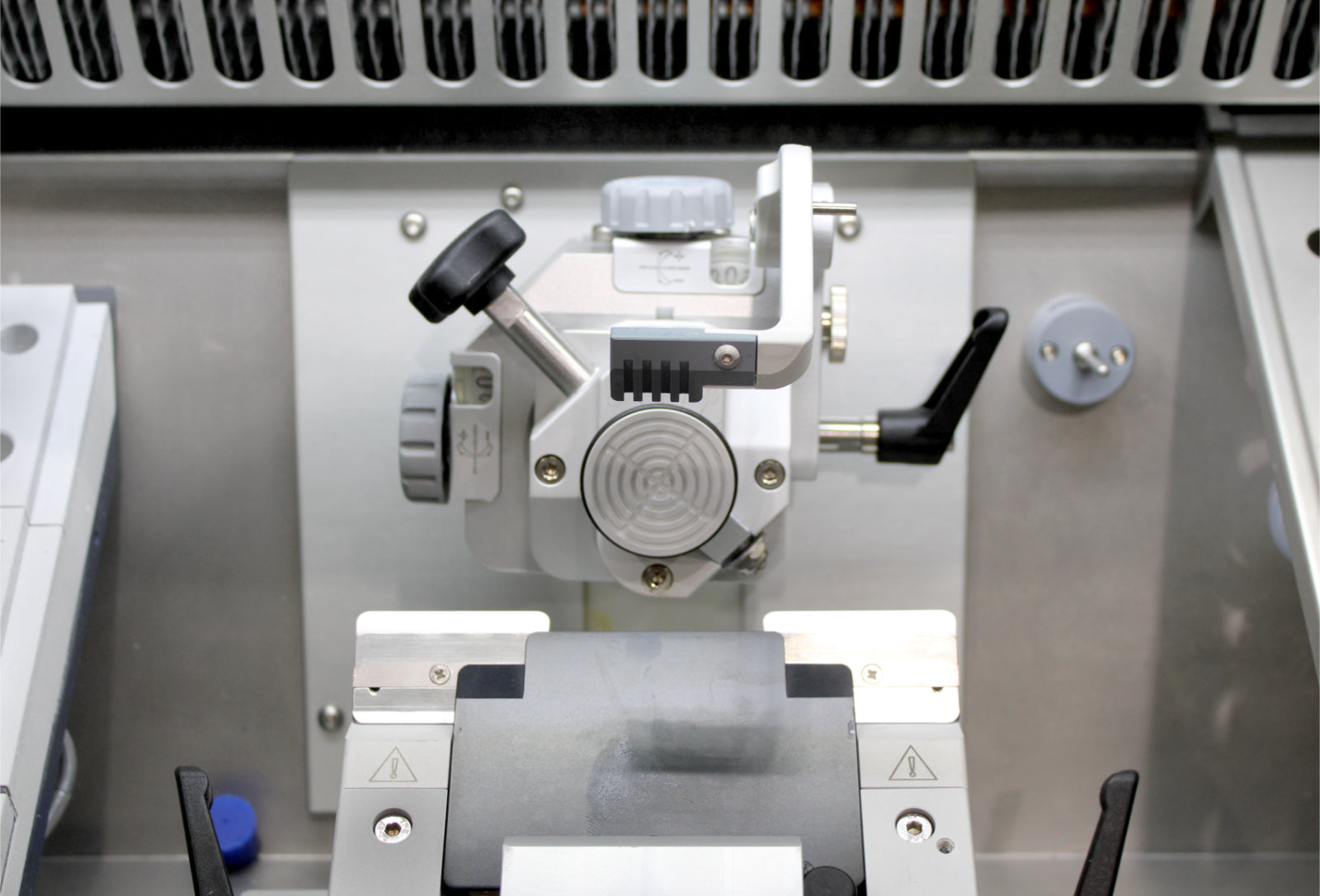

3D Precision Chuck secures the Specimen Holder to the Microtome. Dial indicators show the exact angle of the Chuck. The guide marks show the exact orientation of the Specimen Holders in the Chuck
|
|
Travel range
|
Vertical: 2.5 inches (63.0 mm)
Horizontal: 1.0 inch (25.4 mm)
|
|
Defrost cycle
|
Manual start: defrosts the Chamber within 30 minutes, when activated
Automatic start: defrosts the Chamber within 1 hour; start time can be set within a 24 hour period
|
|
Disinfection (D and DM models only)
|
Manual start: two Ozone Disinfections cycles are available:
Long: approximately 135 minutes (warm)
Short: approximately 45 minutes (cold)
Automatic start: always performs a Long Disinfection Cycle.
Start time can be set within a 24 hour period
|
|
Certifications
|
IEC 61010-1:2010 Ed:3, IEC 61010-2-010 Ed:3, IEC 61010-2-101 Ed:2, UL 61010-1 Ed:3, CAN/CSA C22.2 # 61010-1:2012 Ed:3, EMC: CENELEC IEC/EN 61326-1, EMC: CANELEC IEC/EN 61326-2-6
|
|
Regulatory status
|
IVD, FDA Class I
|
|
Power rating
|
115/120VAC, 50/60Hz, 11.0A
|
|
Dimensions (W x D x H)
|
25.8 x 29.7 x 47 in (65.4 x 75.4 x 119.4 cm)
|
|
Weight
|
373 lb (169.2 kg)
|
