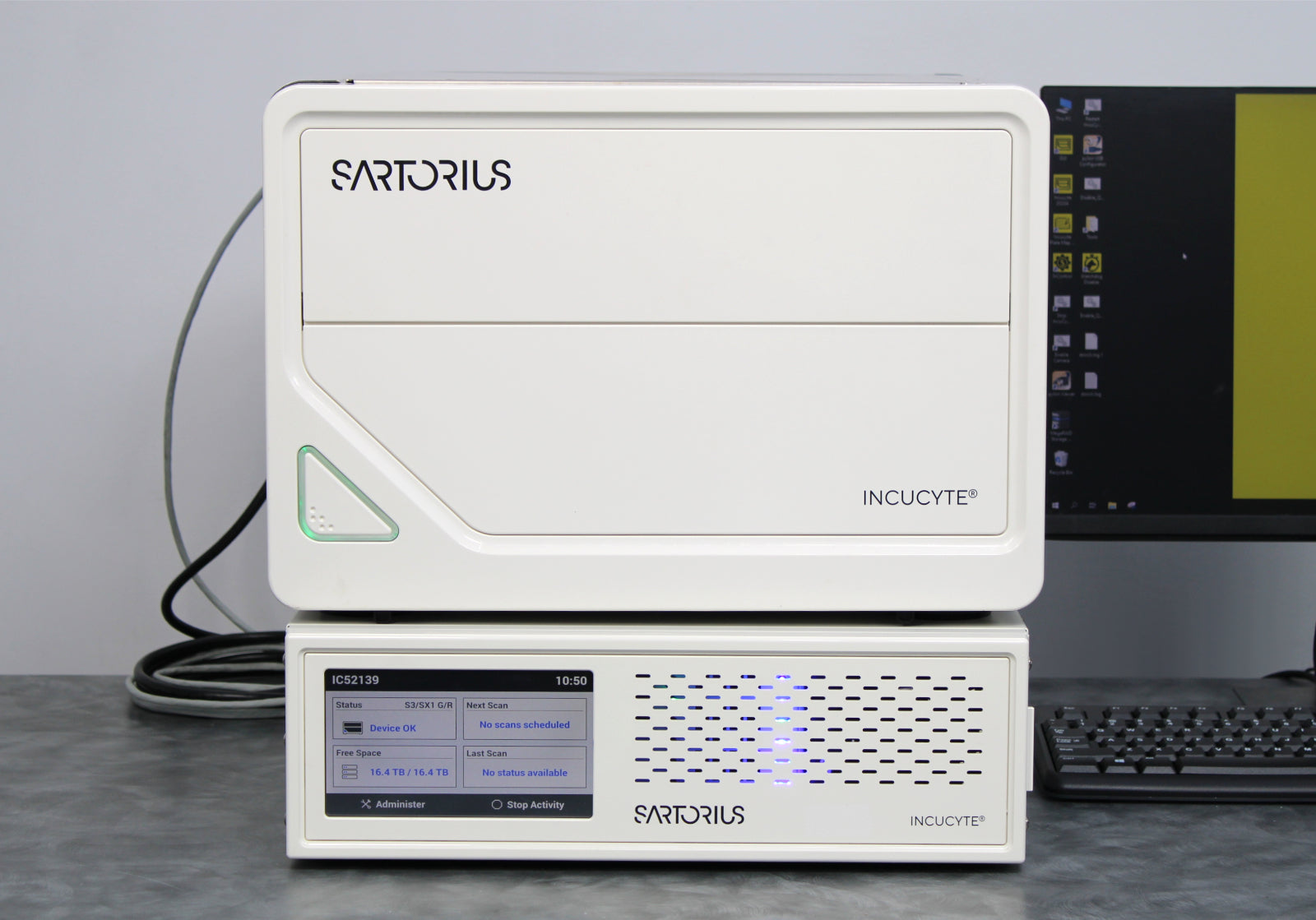

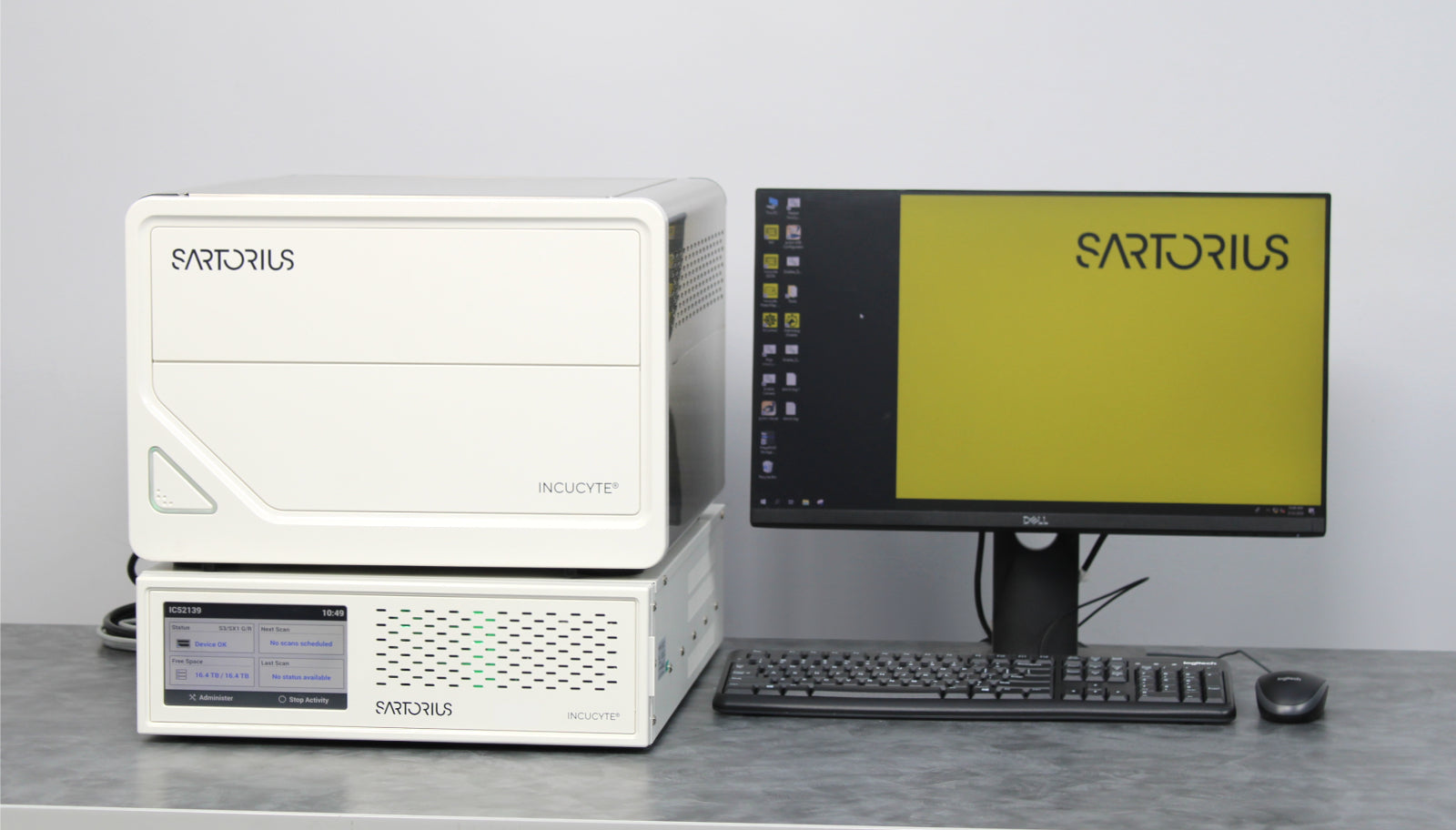

- Sartorius IncuCyte S3 Live-Cell Analysis Controller
- Sartorius IncuCyte S3 Gantry Microscope
- x3 Microplate Holders

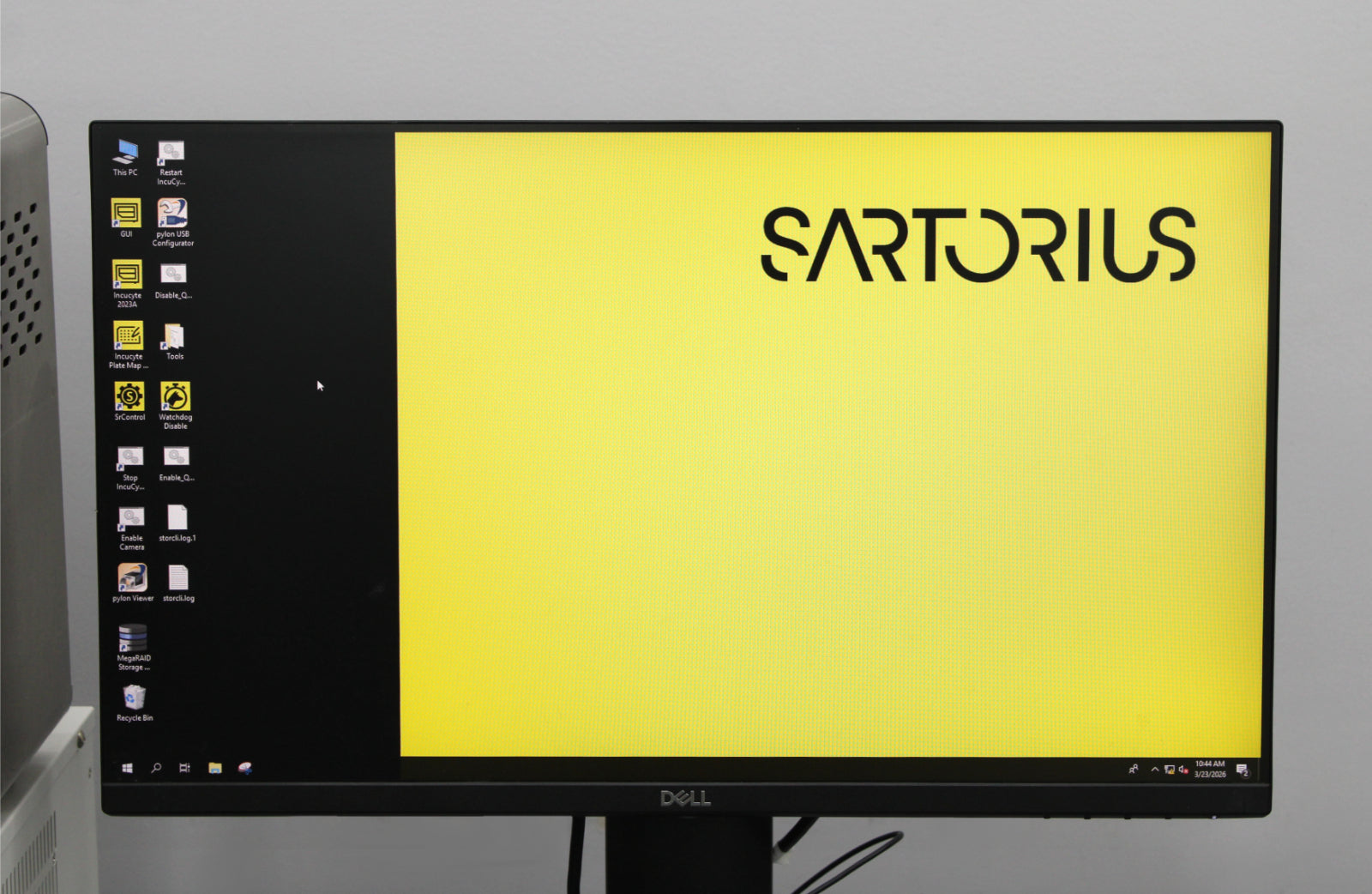

- Monitor, Keyboard, and Mouse
- VGA Cable
- x2 Power Cables
- 90-Day Warranty
After its initial disinfection and inspection, our technicians tested the Sartorius IncuCyte S3 controller and gantry with the following results:
- Power and initialization: PASSED

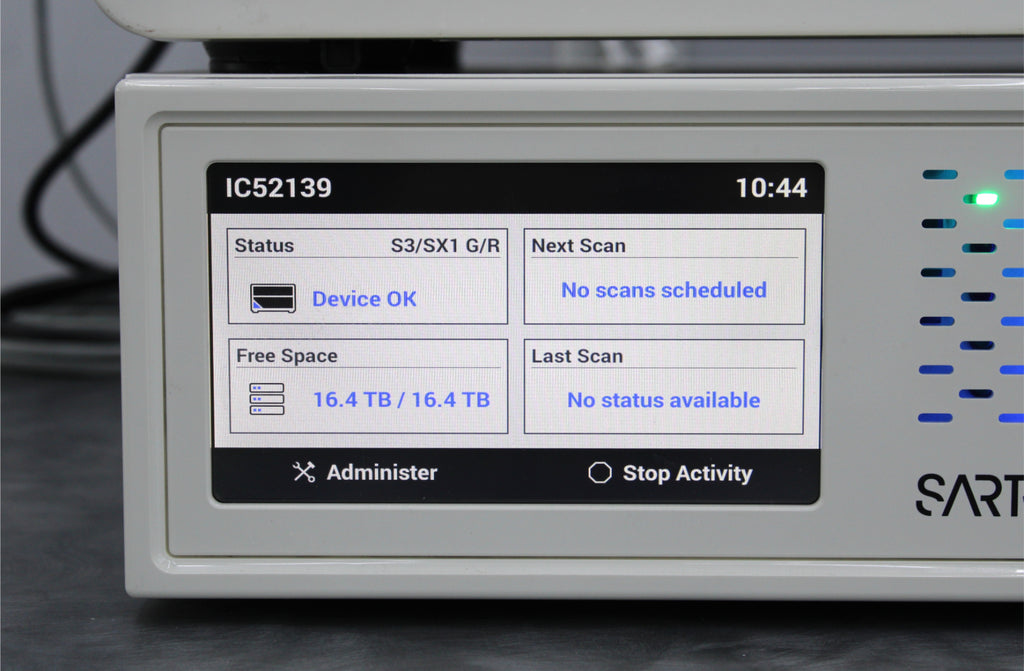

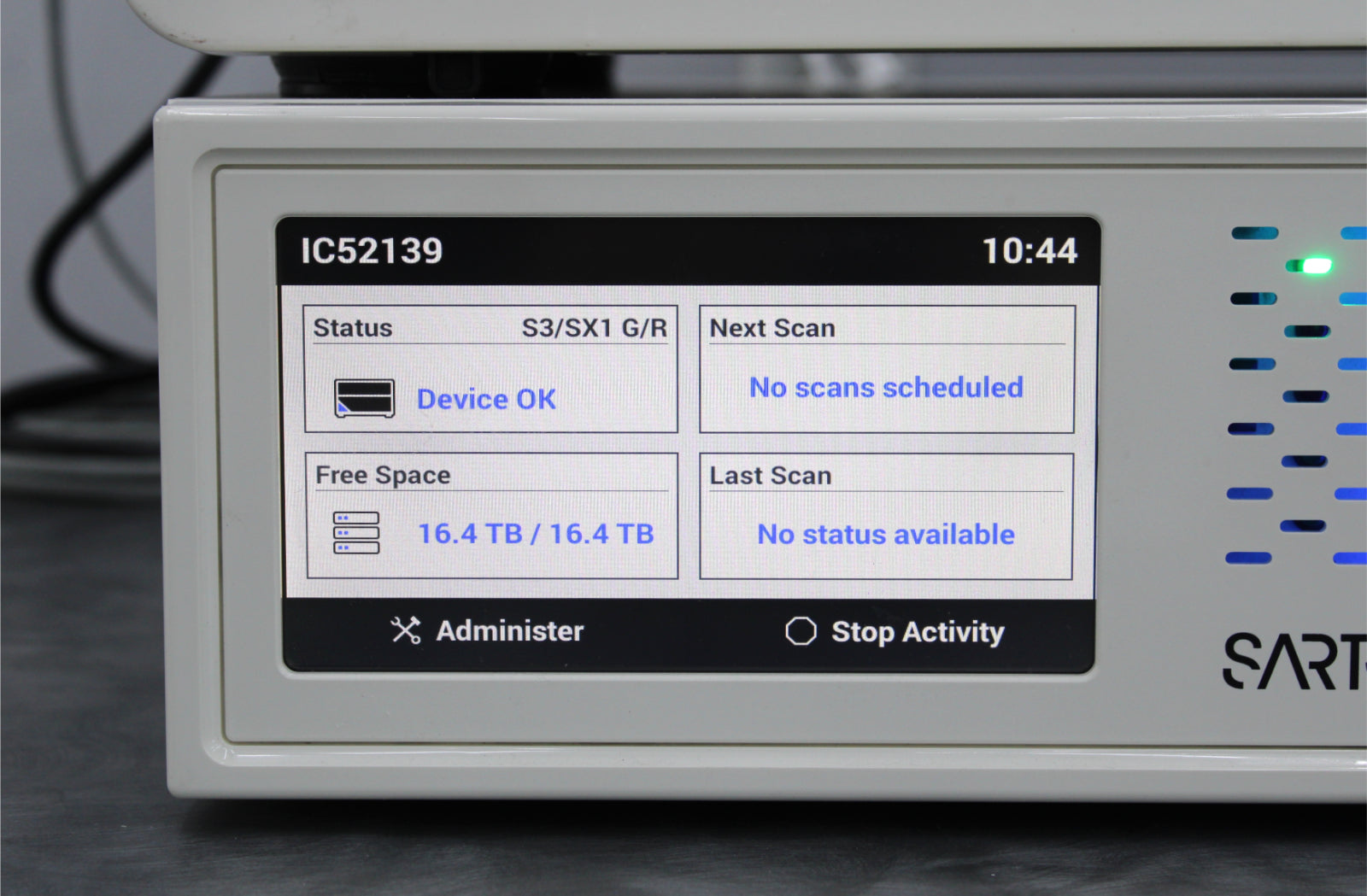

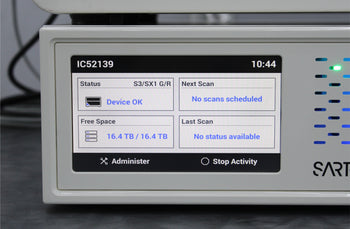

- System warmup to ‘Device OK’ status: PASSED
- Controller and gantry connection: PASSED
- Gantry door open and close: PASSED
Notice: No further testing could be performed without login credentials. This system will need to go through the Sartorius Secondhand instrument Reinstatement program to obtain the username and password.
|
Manufacturer
|
Sartorius
|
|
Model
|
IncuCyte S3 Controller
|
|
Serial No.
|
52139
|
|
Mfg. date
|
May 10, 2022
|
|
Fluorescence channels
|
2
|
|
Optical module
|
Green/Red (Standard), Label-Free HD Phase Imaging
|
|
Objectives
|
4X, 10X, 20X (all included)
|
|
Objective automation
|
Automated turret
|
|
Multi-user support
|
Remote network capability, Unlimited, Free user licenses, Independent vessel scheduling
|
|
Incubator size
|
>200L required
|
|

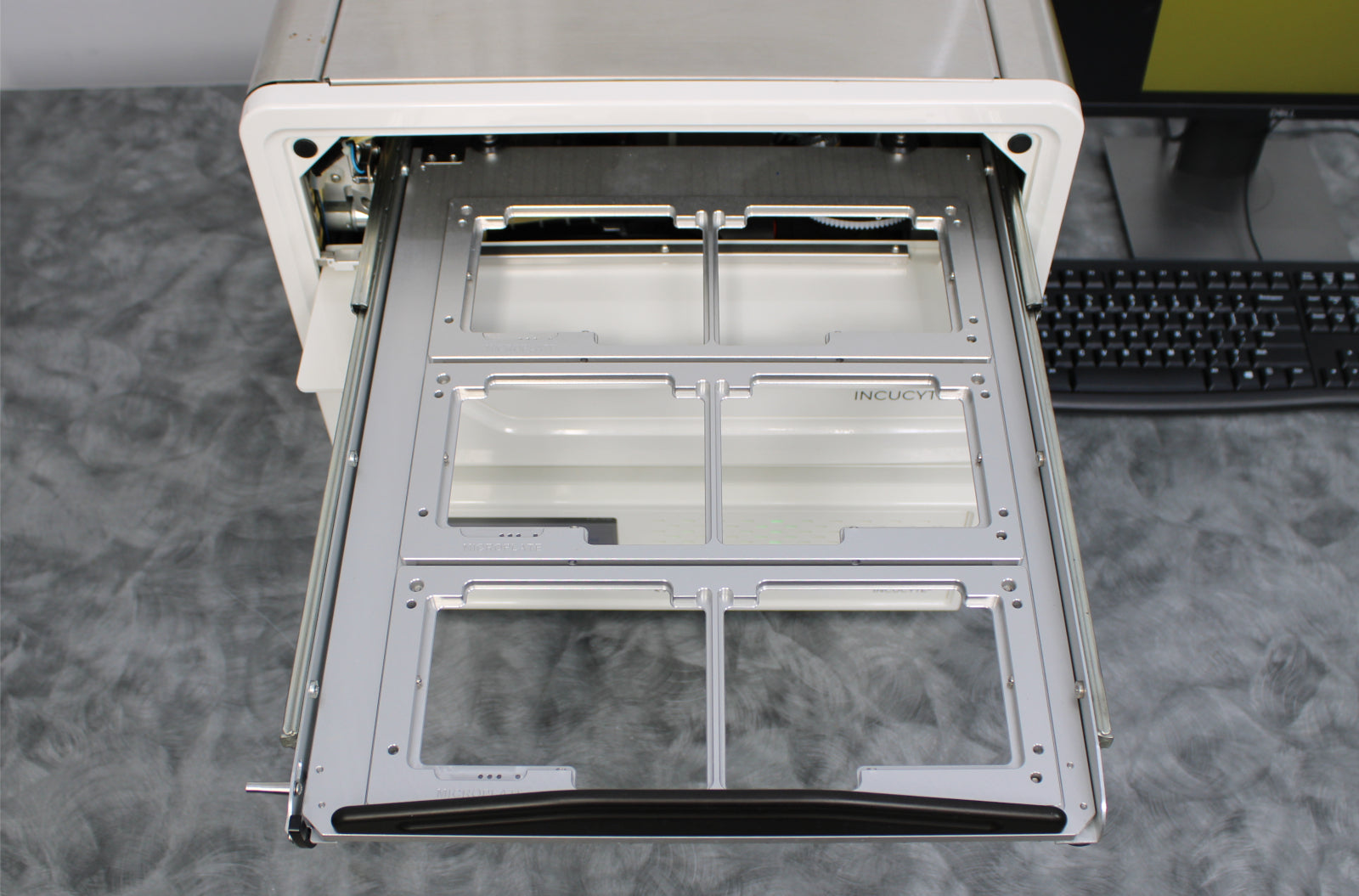

Interchangeable trays
|
3
|
|
Microplate capacity
|
6
|
|
Microplate compatibility
|
6, 12, 24, 48, 96, 384-well
|
|
Flask compatibility
|
T-25, T-50, T-75, T-100, T-175, T-225
|
|
Other labware compatibility
|
35mm, 60mm, 100mm, 150mm dishes and chamber slides
|
|
Network connection
|
Ethernet 10, 100, 1000 Mbps
|
|
Controller operating environmental conditions
|
0° to 33°C
5% to 90% RH Non-Condensing
|
|
Power rating
|
100-240 VAC, 50/60 Hz
3.5 Amps max @ 120 V
1.75 Amps max @ 240 V
|
|
Dimensions (W x D x H)
|
17 x 22.7 x 5.5 in (43.2 x 57.7 x 14 cm)
|
|
Weight
|
41 lb (18.6 kg)
|
|

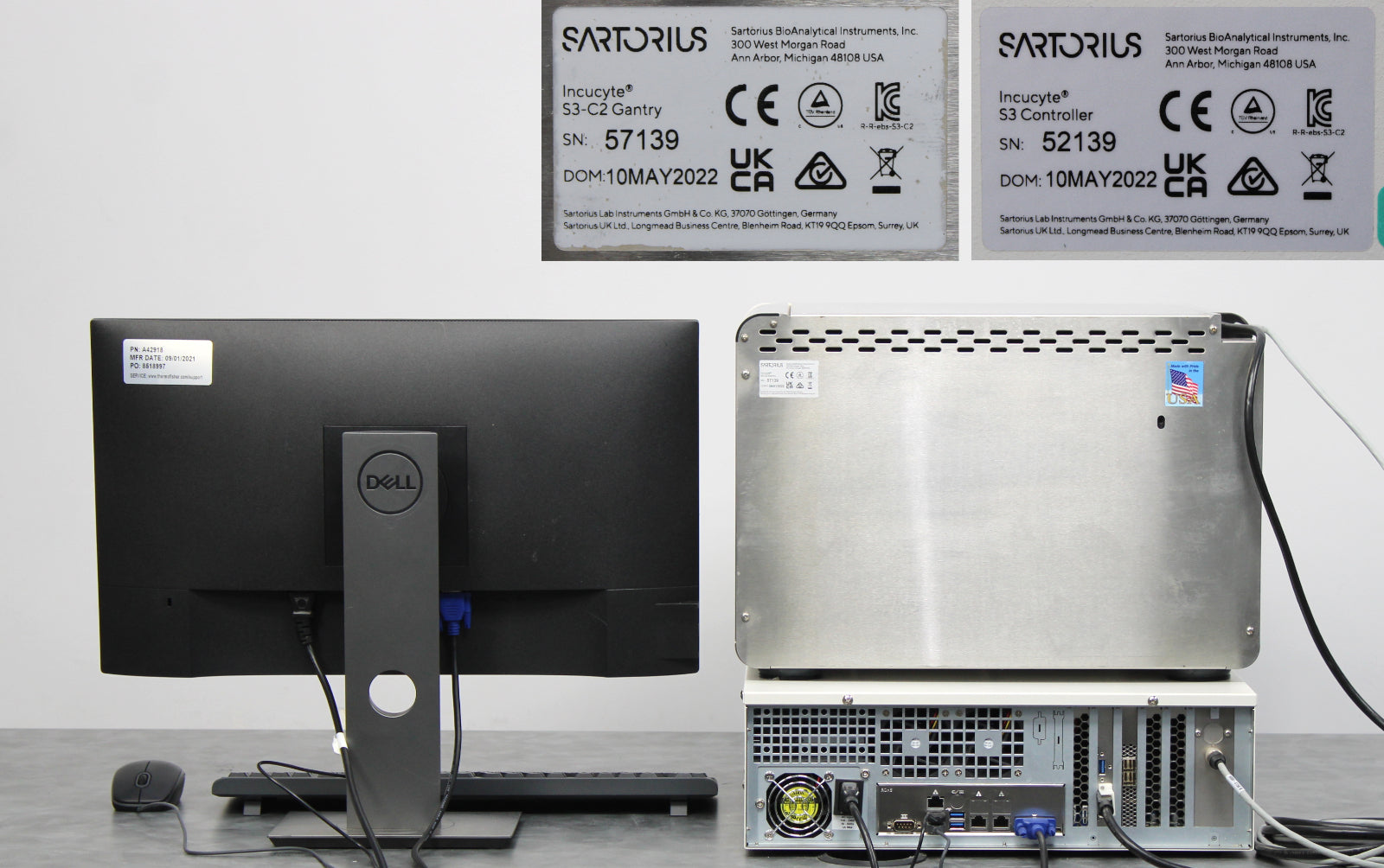

Manufacturer
|
Sartorius
|
|
Model
|
IncuCyte S3 Gantry
|
|
Serial No.
|
57139
|
|
Mfg. date
|
May 10, 2022
|
|
Microscope operating environmental conditions
|
0° to 42°C
5% to 95% RH Non-Condensing
|
|
Dimensions (W x D x H)
|
17.7 x 18.8 x 12.6 in (45 x 47.8 x 32 cm)
|
|
Weight
|
52 lb (23.6 kg)
|
