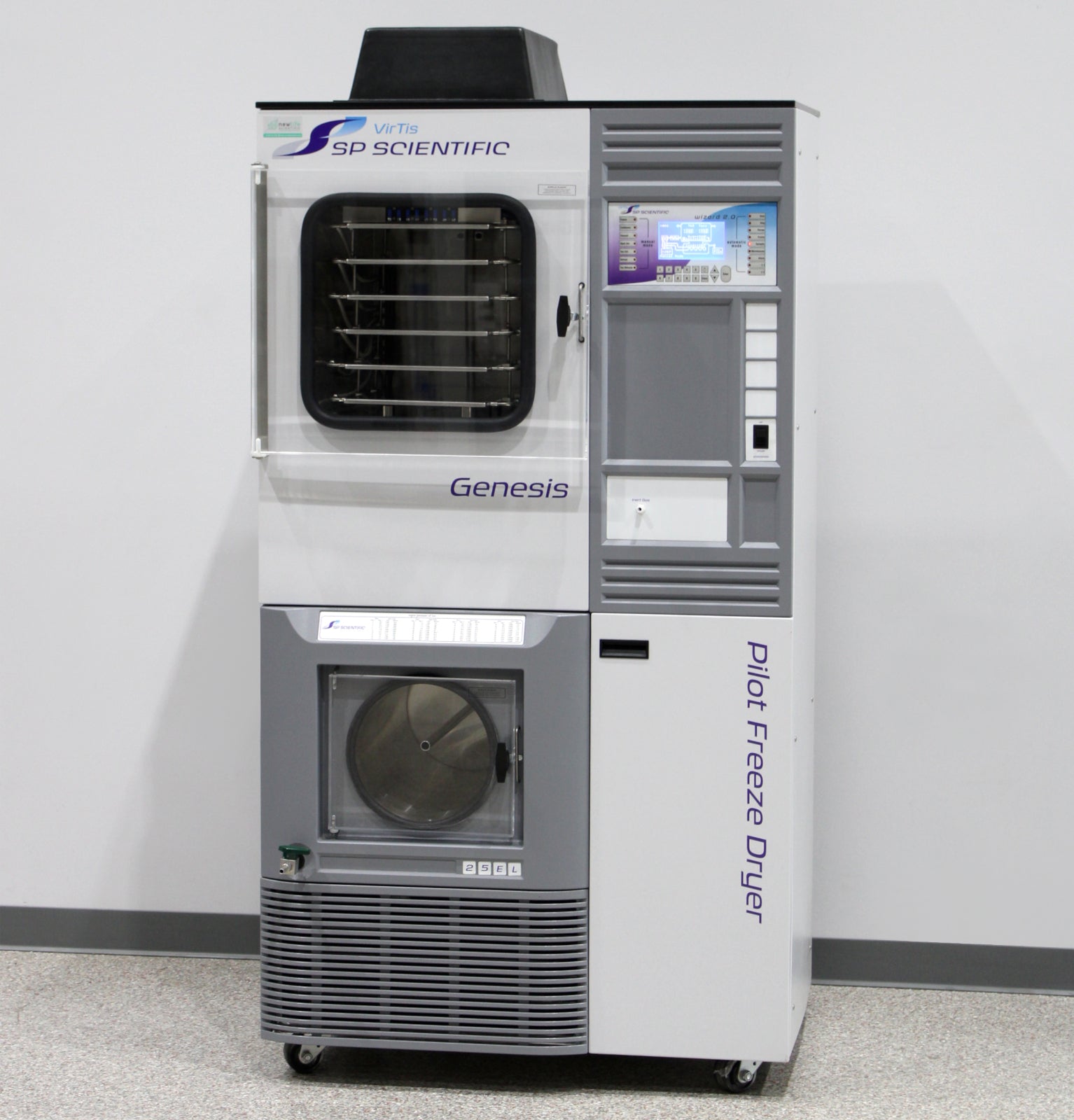

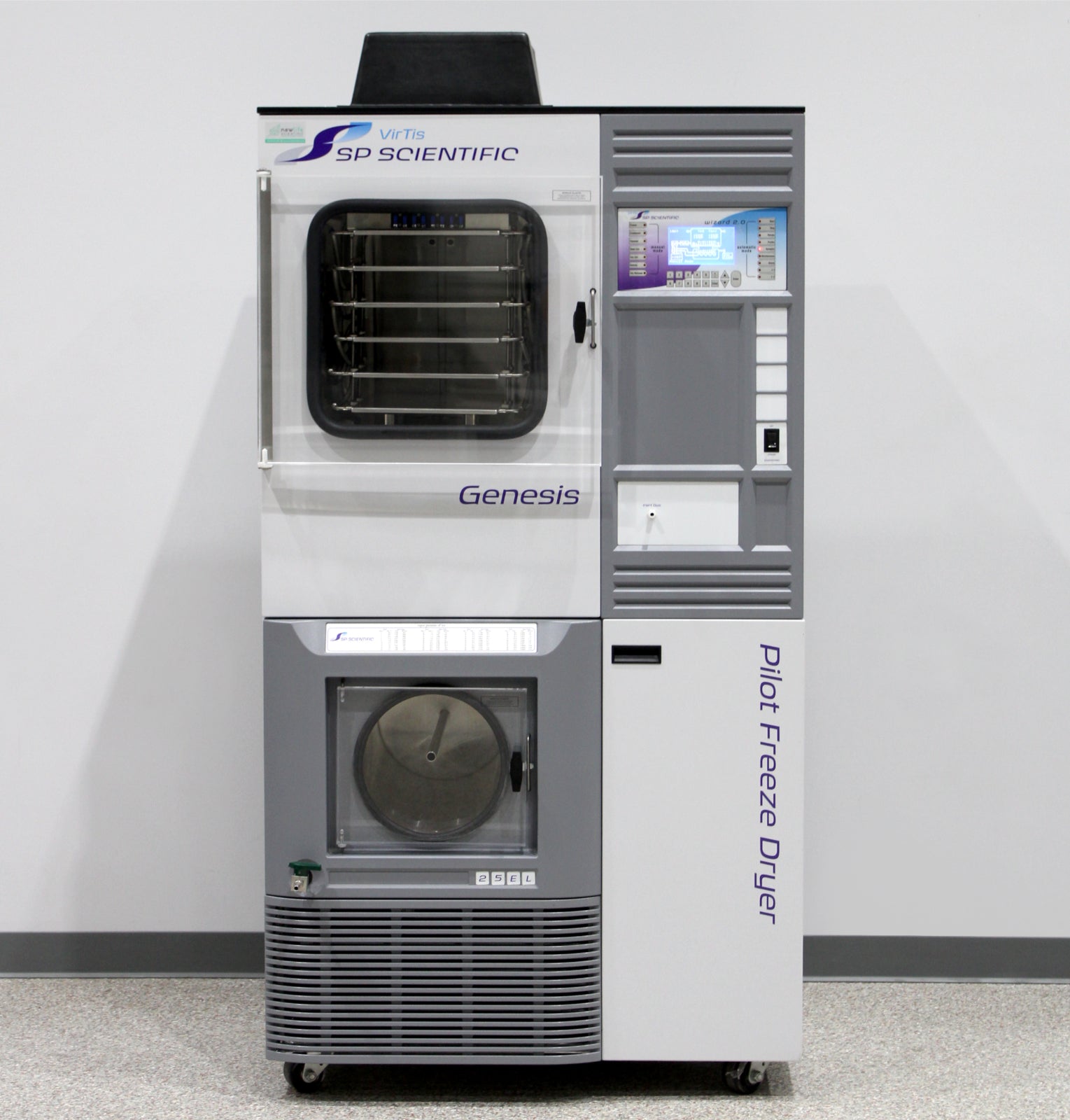

- SP Scientific VirTis 25L Genesis EL-85° Stoppering Freeze Dryer Pilot Lyophilizer (100029132)

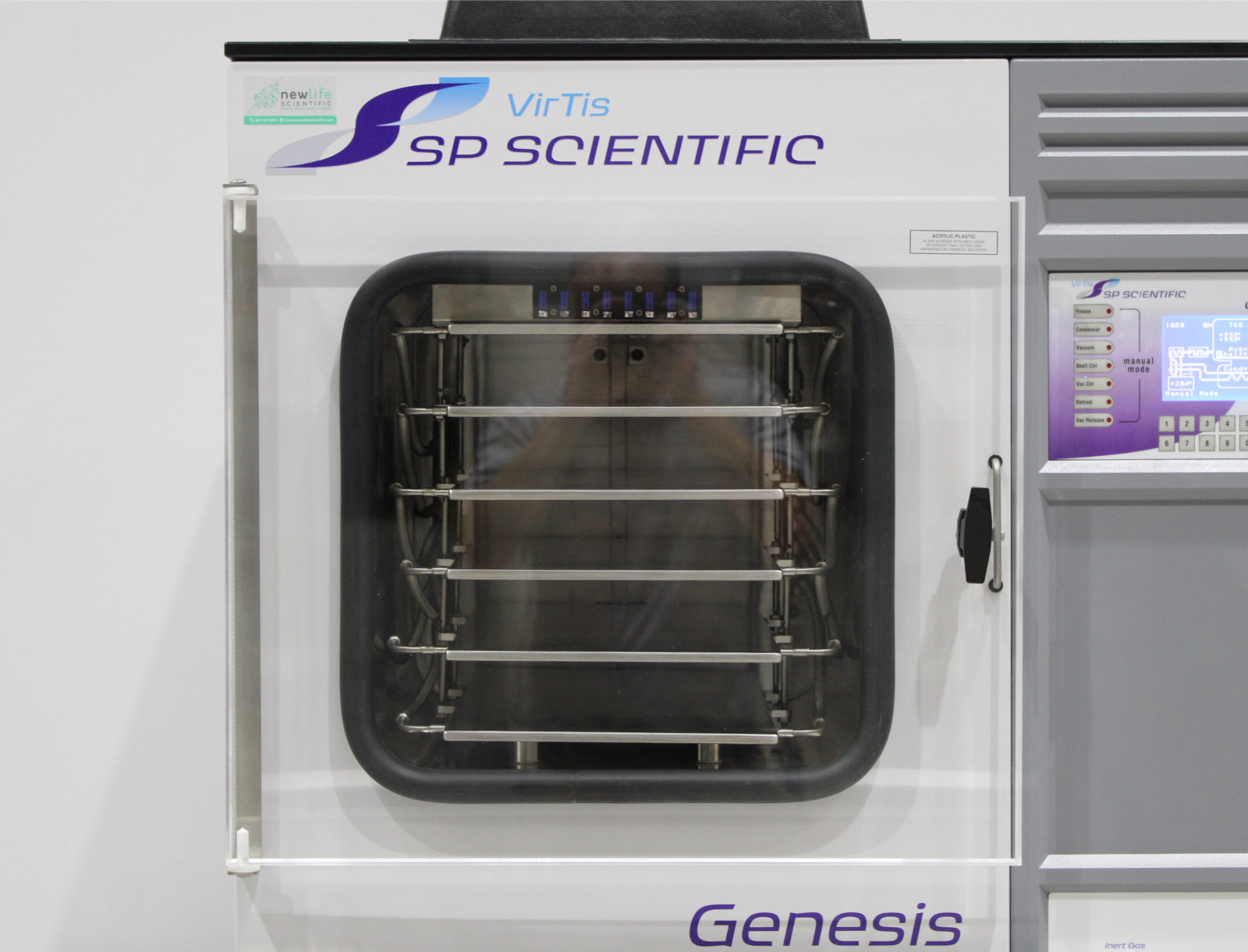

- 5 Shelves with Stoppering

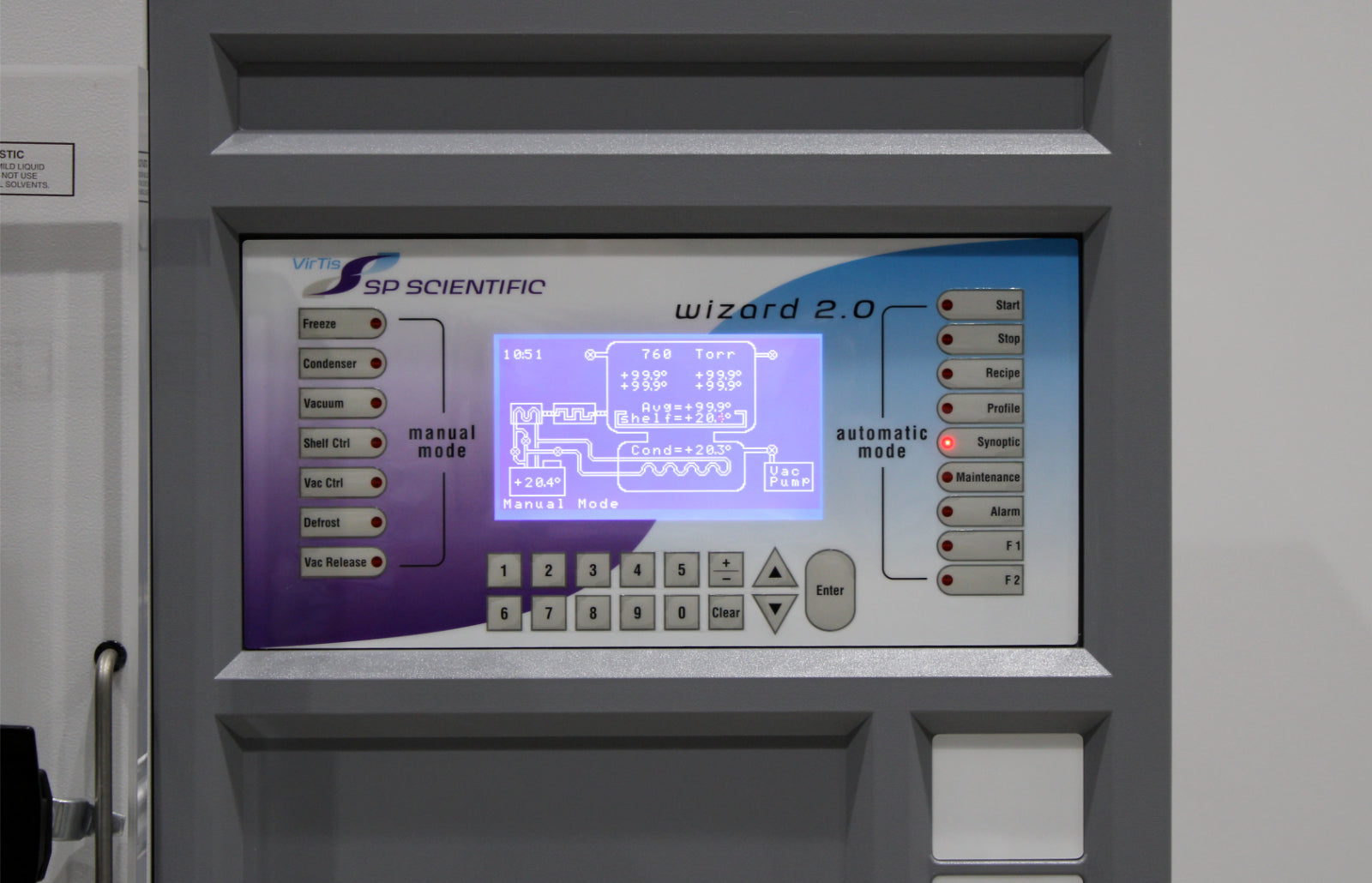

- Wizard 2.0 Control System (New)

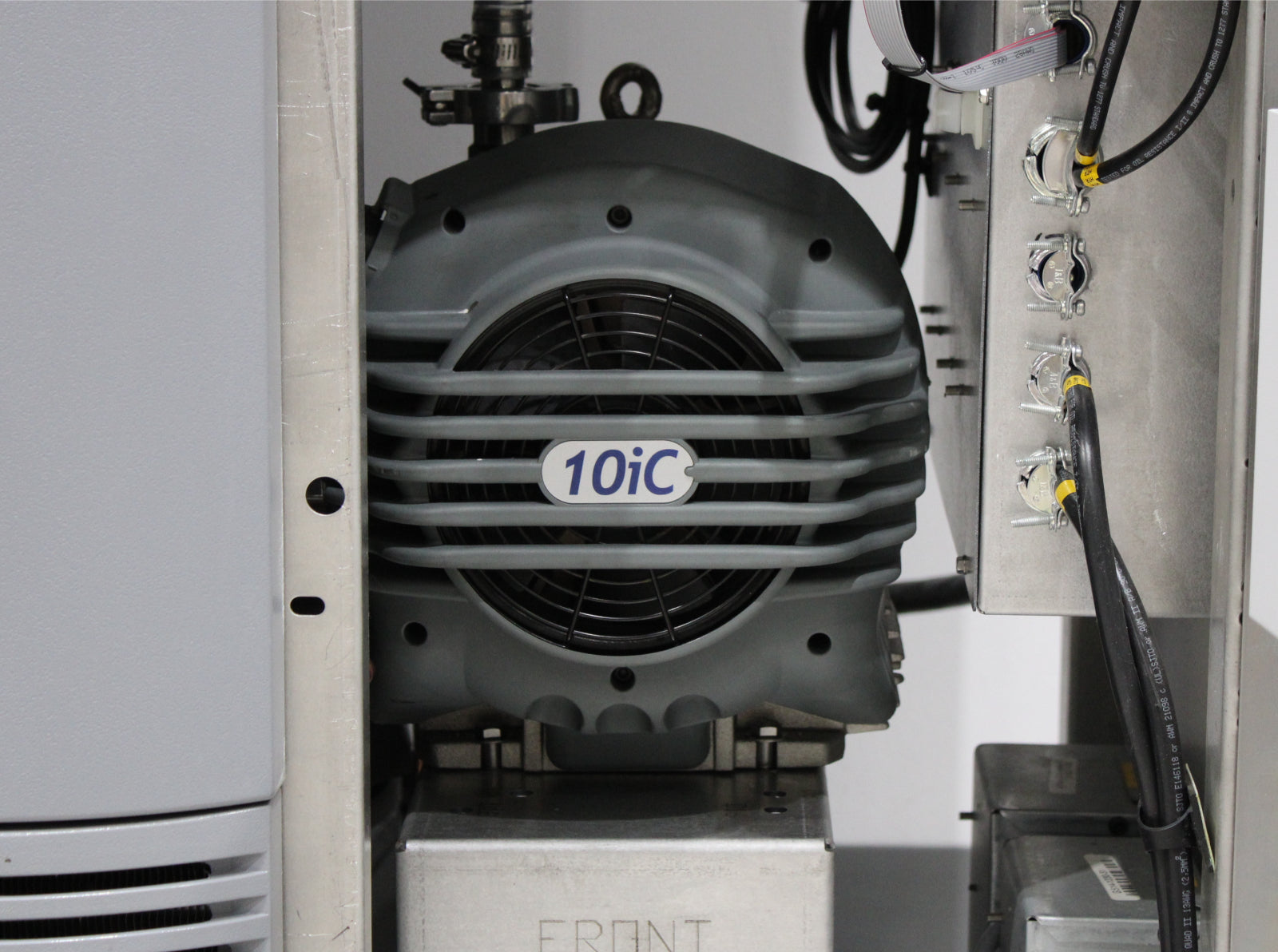

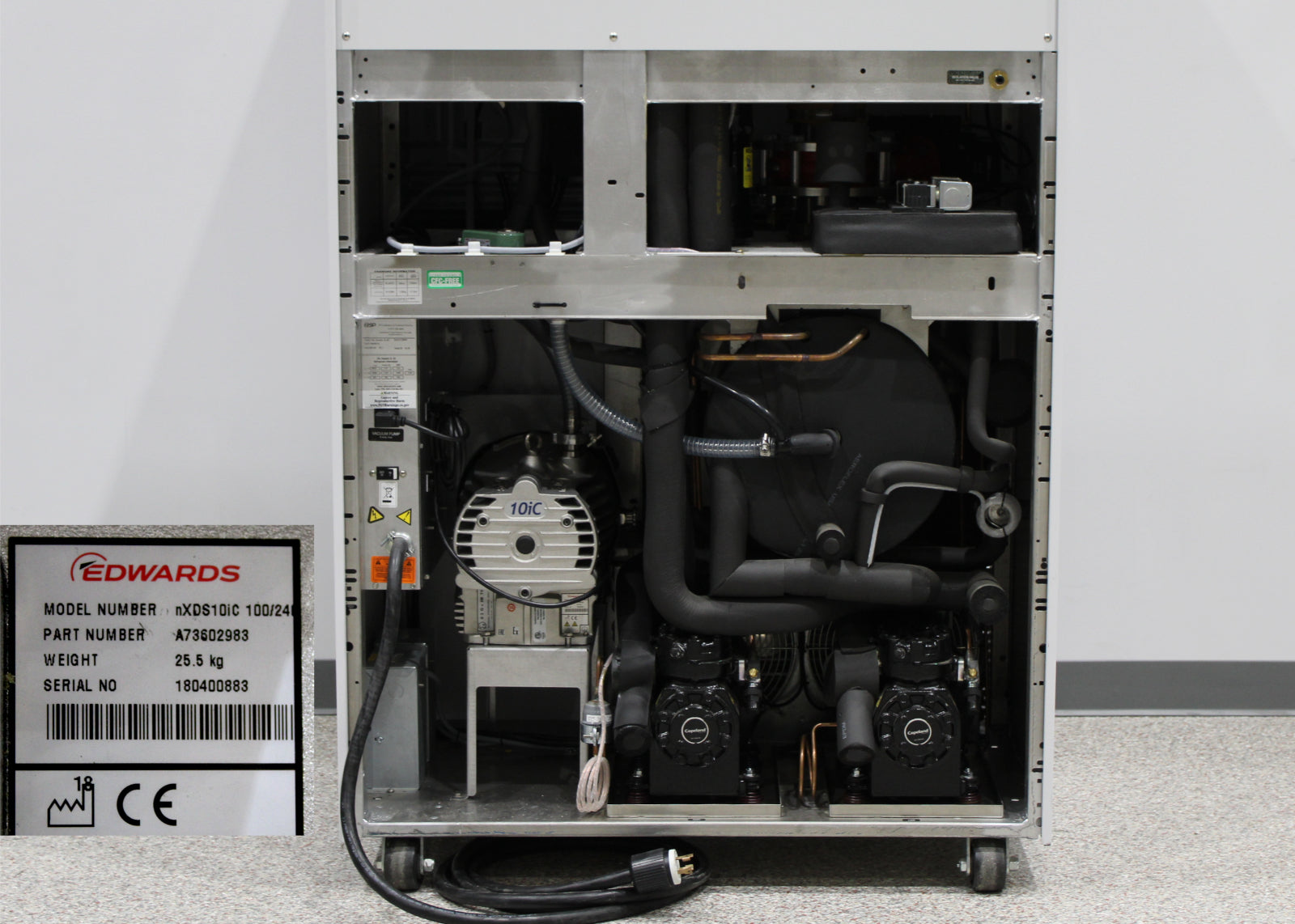

- Edwards nXDS10iC Dry Scroll Vacuum Pump with New Tip Seals
- Attached Power Cable with L6-30 Plug
- 90-Day Warranty
- 1 Year Extended Warranty
- Annual PM Service Visit: Preventative maintenance involves checking vacuum integrity and instrument calibration
- IQ/OQ Service: Installation Qualification and Operational Qualification Service Visit. This can be a requirement for any company that is producing products that fall under FDA Regulations.
- Acid Trap Installation: Necessary for applications that involve the processing of corrosive materials
Please contact us if you would like to know more about these service upgrades.
After its initial disinfection and inspection, our technicians tested the SP Scientific VirTis 25L Genesis EL-85° stoppering freeze dryer with the following results:
- Shelf reached -43.8°C in 50 min test: PASSED
- Lowest shelf temperature -75°C: PASSED
- Lowest condenser temperature -86°C: PASSED
- Temperature calibration: PASSED
- Lowest vacuum 12 microns: PASSED
- Vacuum calibration: PASSED
- Inspected and replaced refrigeration insulation as needed.
- Inspected and replaced vacuum hoses as needed.
Shelf size (W x D): 10.8 in x 20.5 in (274.3 mm x 520.7 mm)
Total shelf area: 7.7 ft2 (7,154 cm2)
Shelf clearance: 2.3 in (58 mm)
|
Manufacturer
|
SP Scientific
|
|
Model
|
25L Genesis EL-85°
|
|
Part No.
|
100029132
|
|
Serial No.
|
328441
|
|
Lowest shelf temperature (50Hz/60Hz)
|
≤ -67°C/-70°C
|
|
Shelf temperature control range
|
-55°C to 65°C
|
|
Shelf pull-down from 20°C to -40°C
|
≤ 30 minutes
|
|
Lowest condenser temperature (50Hz/60Hz)
|
≤ -82°C/-85°C
|
|
Maximum condenser capacity
|
≥ 25 L
|
|

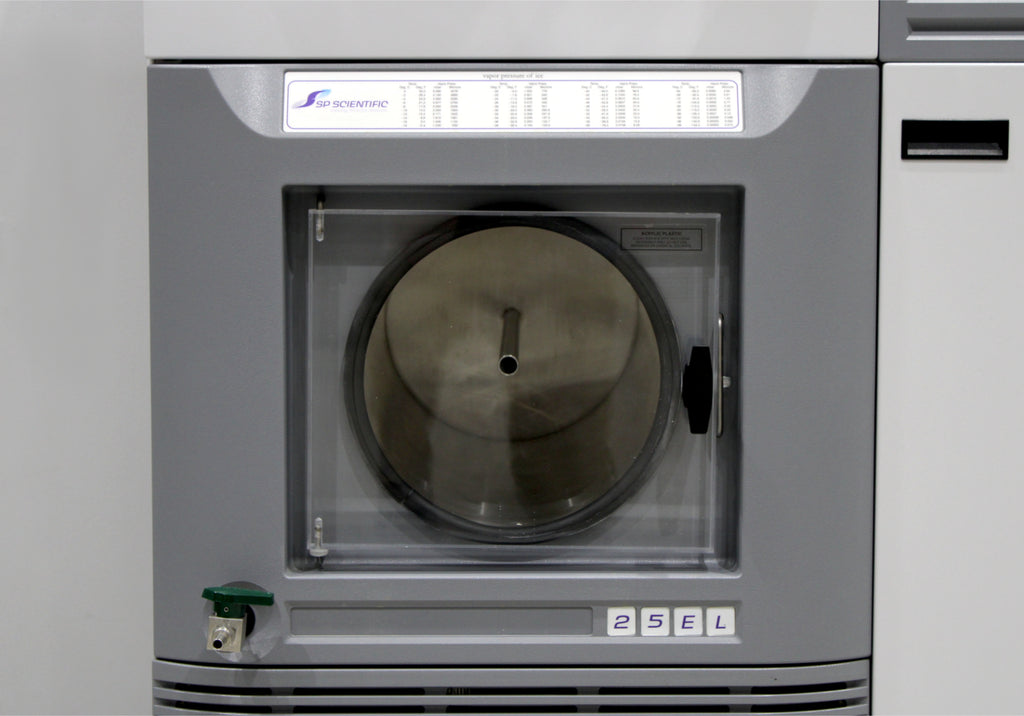

Condenser surface area
|
506 in2 (3,264 cm2)
|
|
Condenser pull-down from 20°C to -45°C
|
≤ 25 minutes
|
|
Maximum ice condensing capacity in 24 hours
|
≥ 12 L
|
|
Maximum deposition rate
|
≥ 0.5 L/hour
|
|
Number of compressors
|
2
|
|
Compressor horsepower
|
1 hp, 1 hp
|
|
Vacuum time to 100 millitorr
|
≤ 20 minutes
|
|
Vacuum rate of rise
|
≤ 30 mT/hour
|
|
Vacuum control ±5mTorr
|
50 to 500mTorr
|
|
Volume-based leak rate
|
≤ .0016 mbar• L/sec
|
|
Lowest system vacuum
|
≤ 15 mT
|
|
Temperature uniformity
|
± 1.0°C
|
|

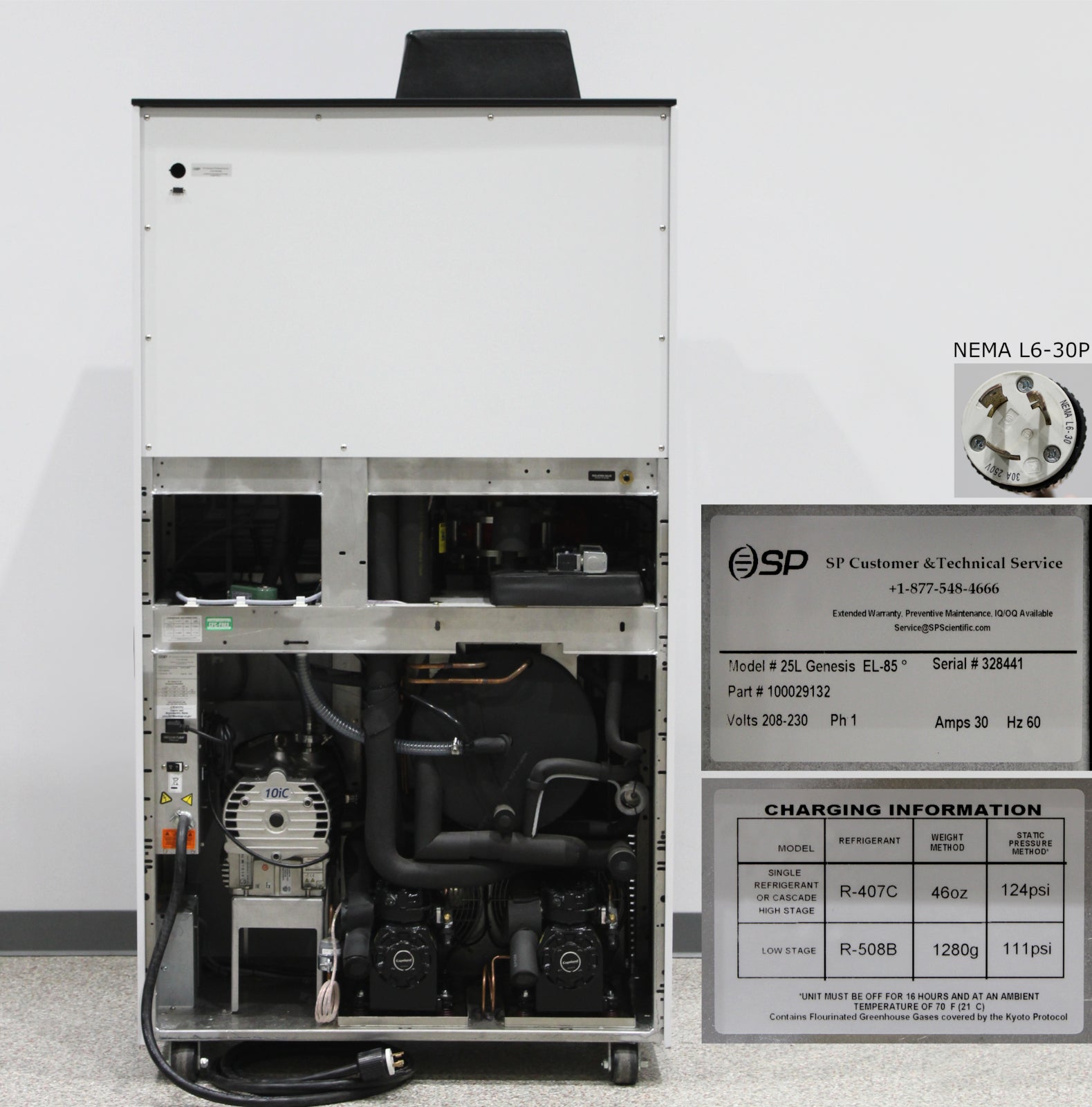

Plug type
|
NEMA L6-30P
|
|
Power rating
|
208-230V, 60Hz, 30A, 1Ph
|
|

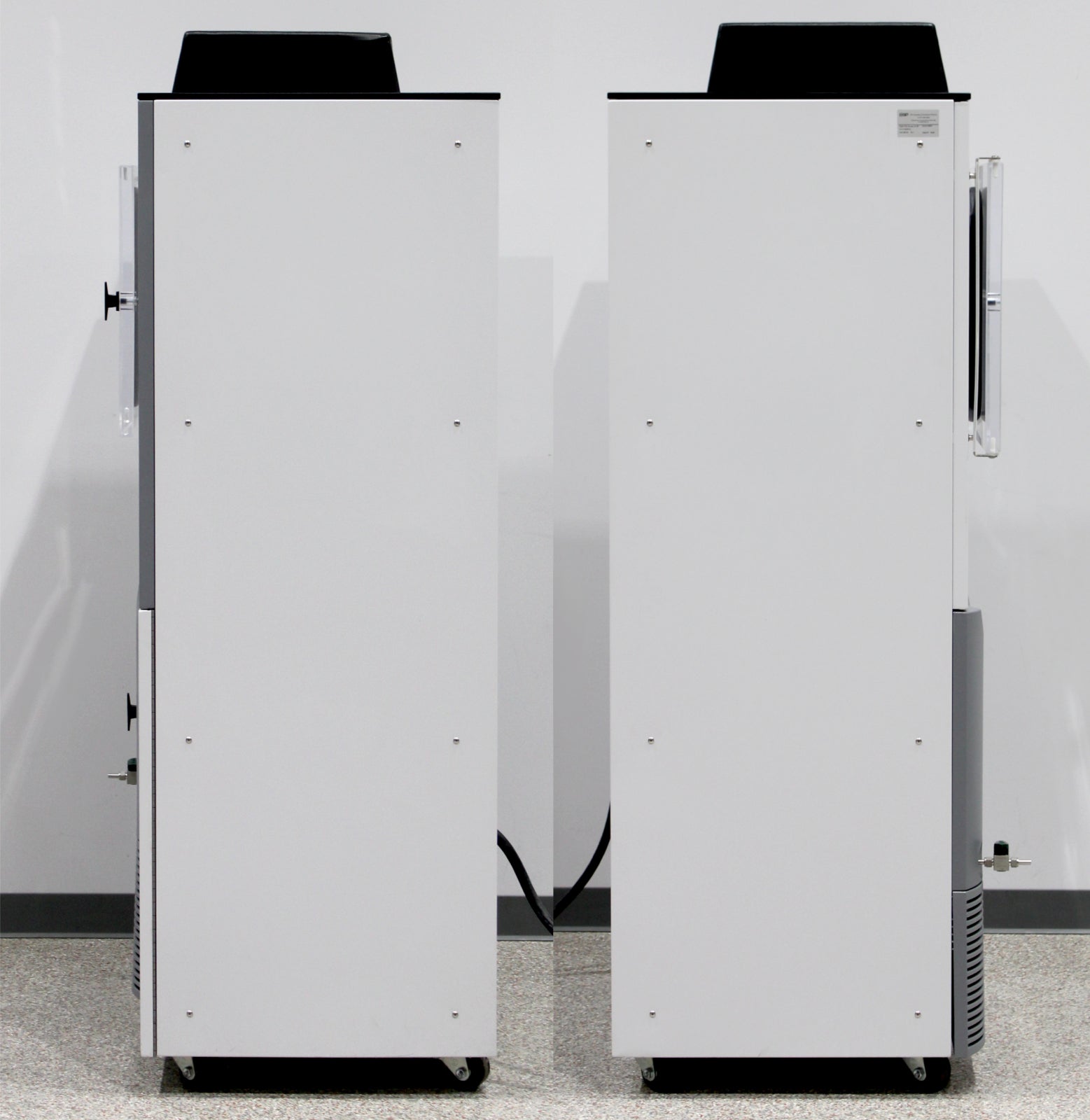

Dimensions (W x D x H)
|
40 x 30 x 80 in (101.6 x 76.2 x 203.2 cm)
|
|
Weight
|
800 lb (363 kg)
|
|
Minimum clearance on all sides
|
10 in (25 cm)
|
Note: Performance specifications are based on SP Scientific test data from units operating at an ambient room temperature of approximately 20°C. SP recommends an optimum operating range of 15-25°C (59-77°F).
Note: SP recommends a 24-inch (61 cm) clearance around all sides of the unit for serviceability. If machines are placed side by side, increase the minimum clearance to 48 inches (121.9 cm)
|
Compressed air (for units with isolation valve)
|
80 psig (5.5 bar)
|
|
Ambient room temperature
|
15-25°C (59-77°F)
|
|
Approx. peak heat generated (air-cooled units)
|
10,200 BTU/h (3.0 kW)
|
|
Construction
|
316L stainless steel shelves, product chamber and condenser chamber
|
|

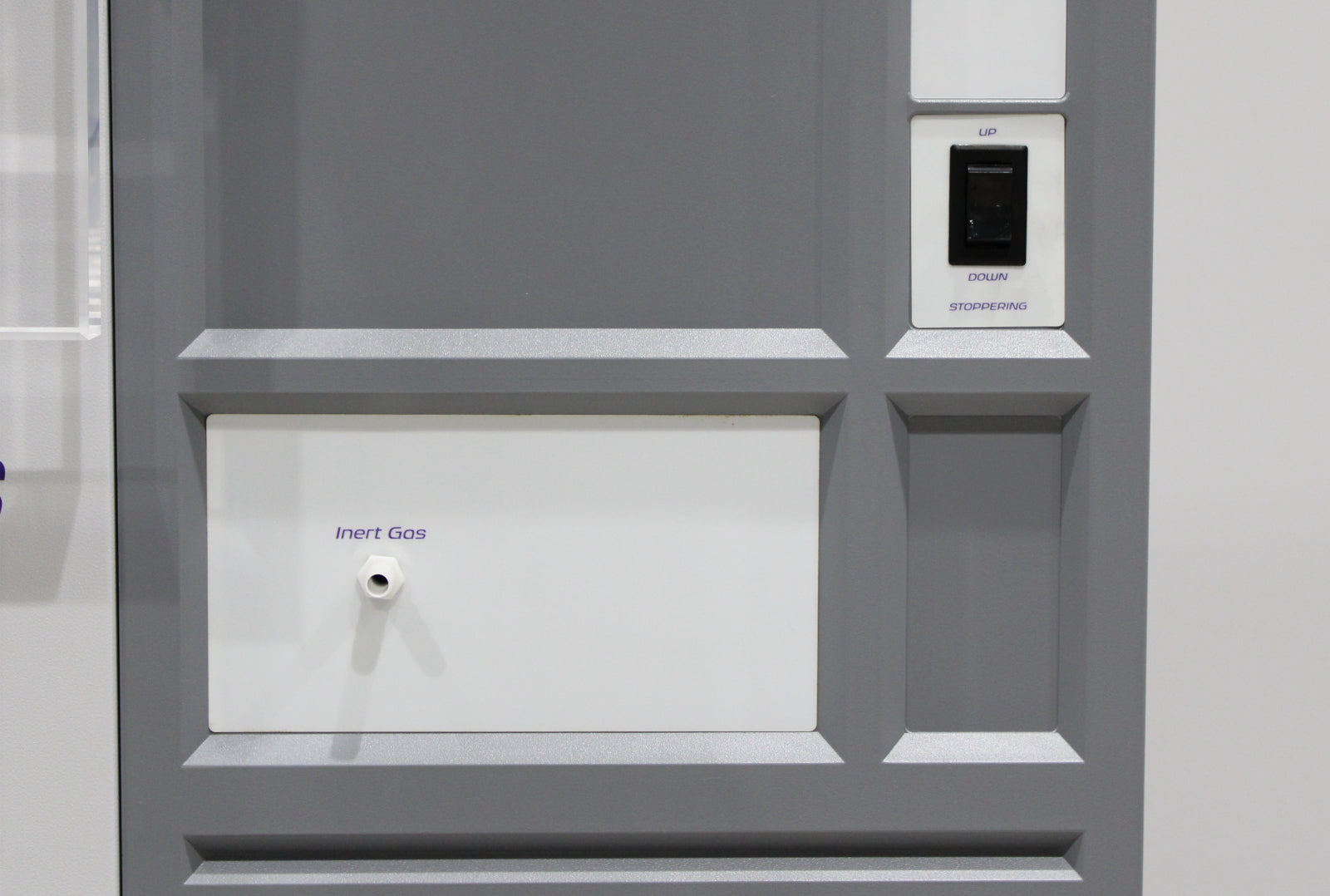

Stoppering
|
Top-down hydraulic
|
|
Defrost type
|
Hot gas
|
|
Refrigerant type
|
CFC-free
|
|
Vapor port
|
4 in (10.2 cm)
|
