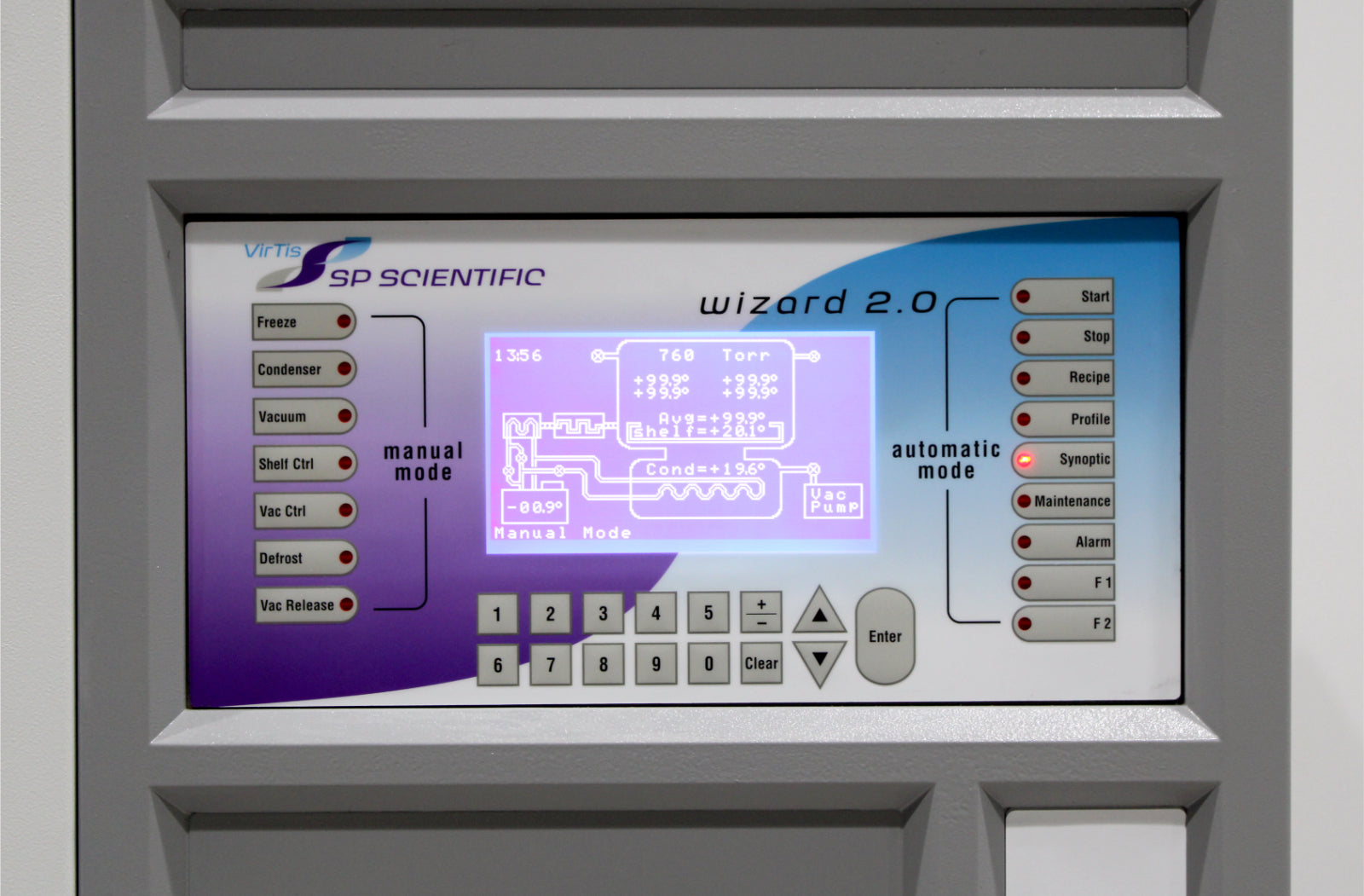

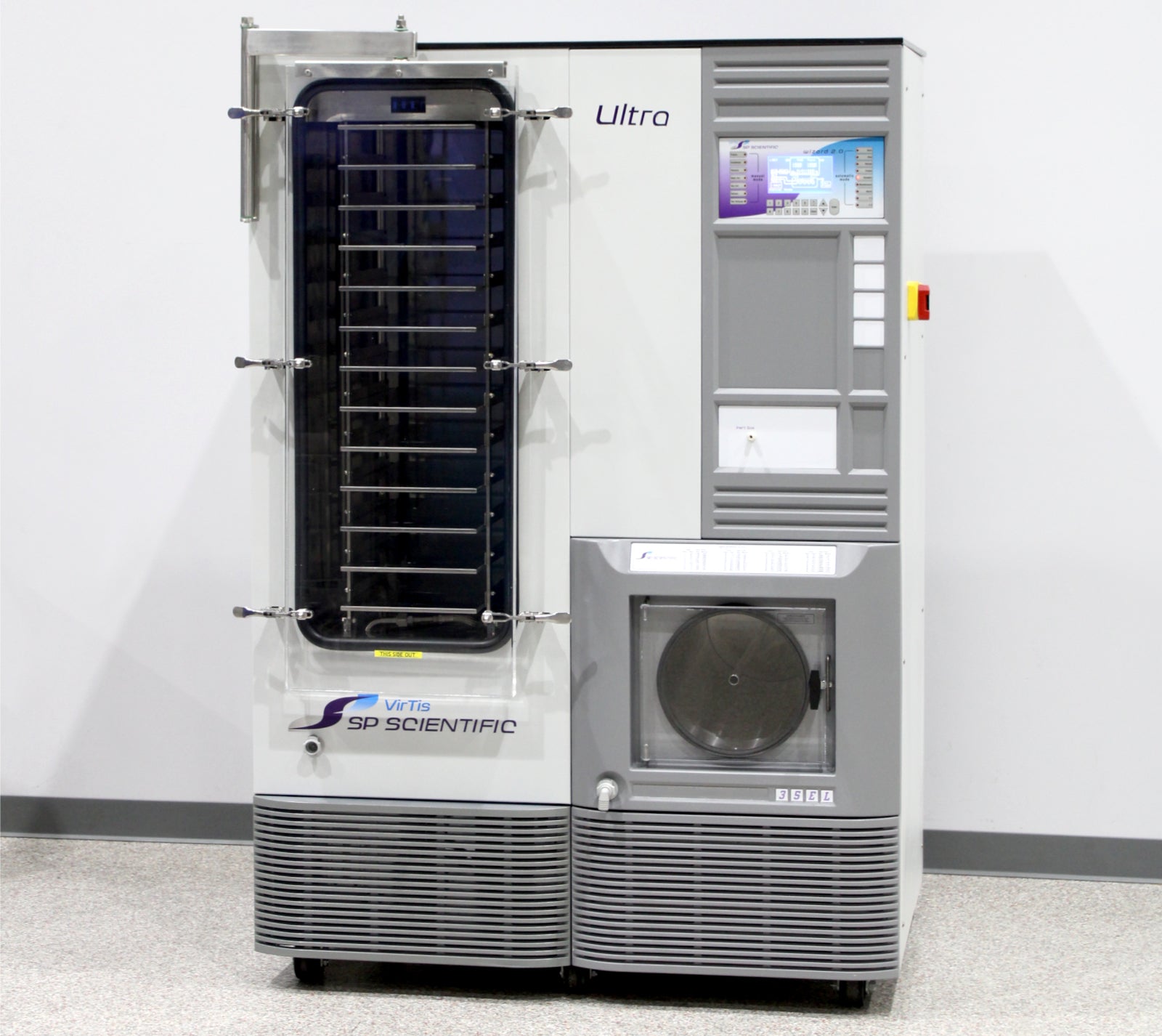

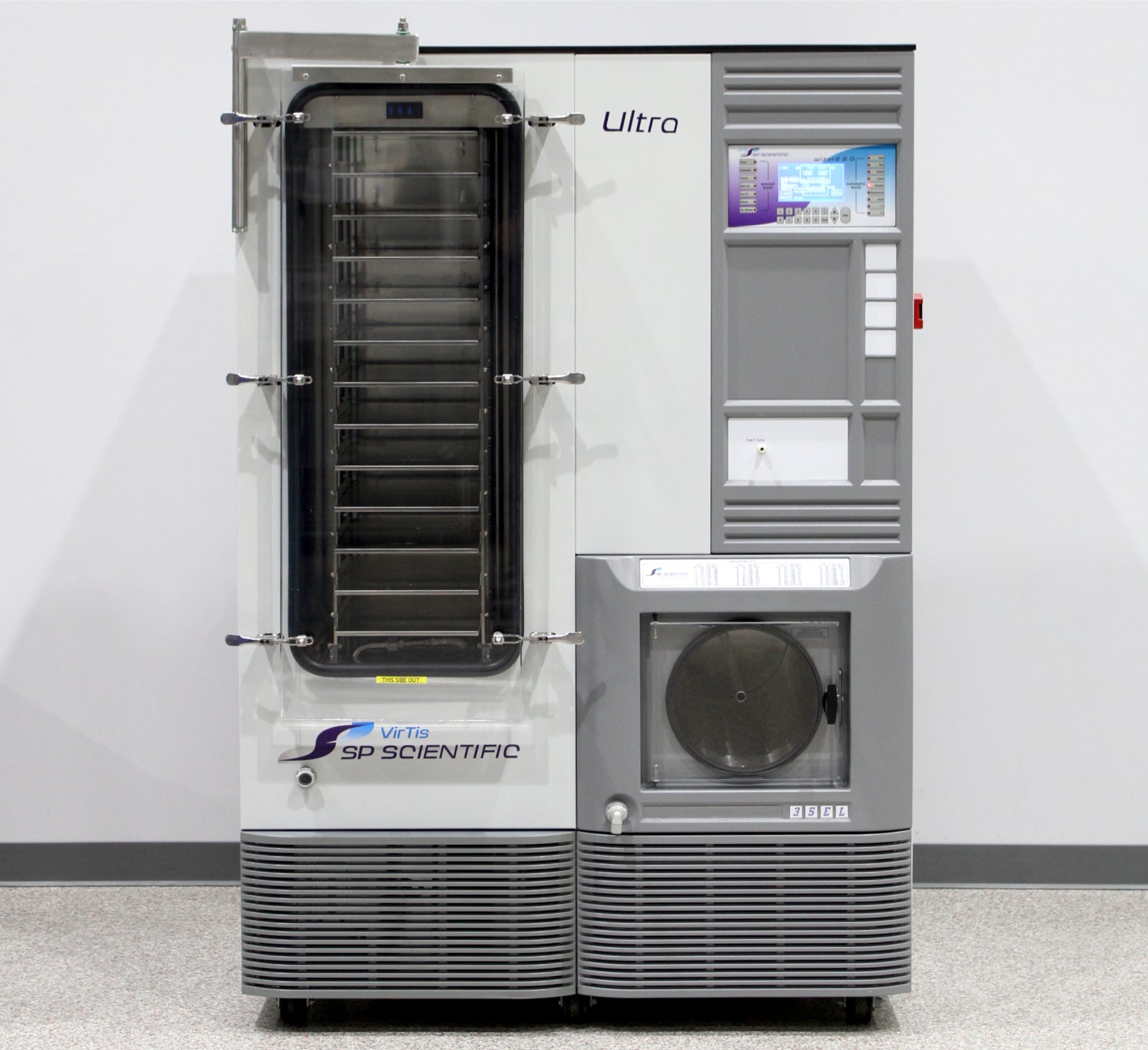

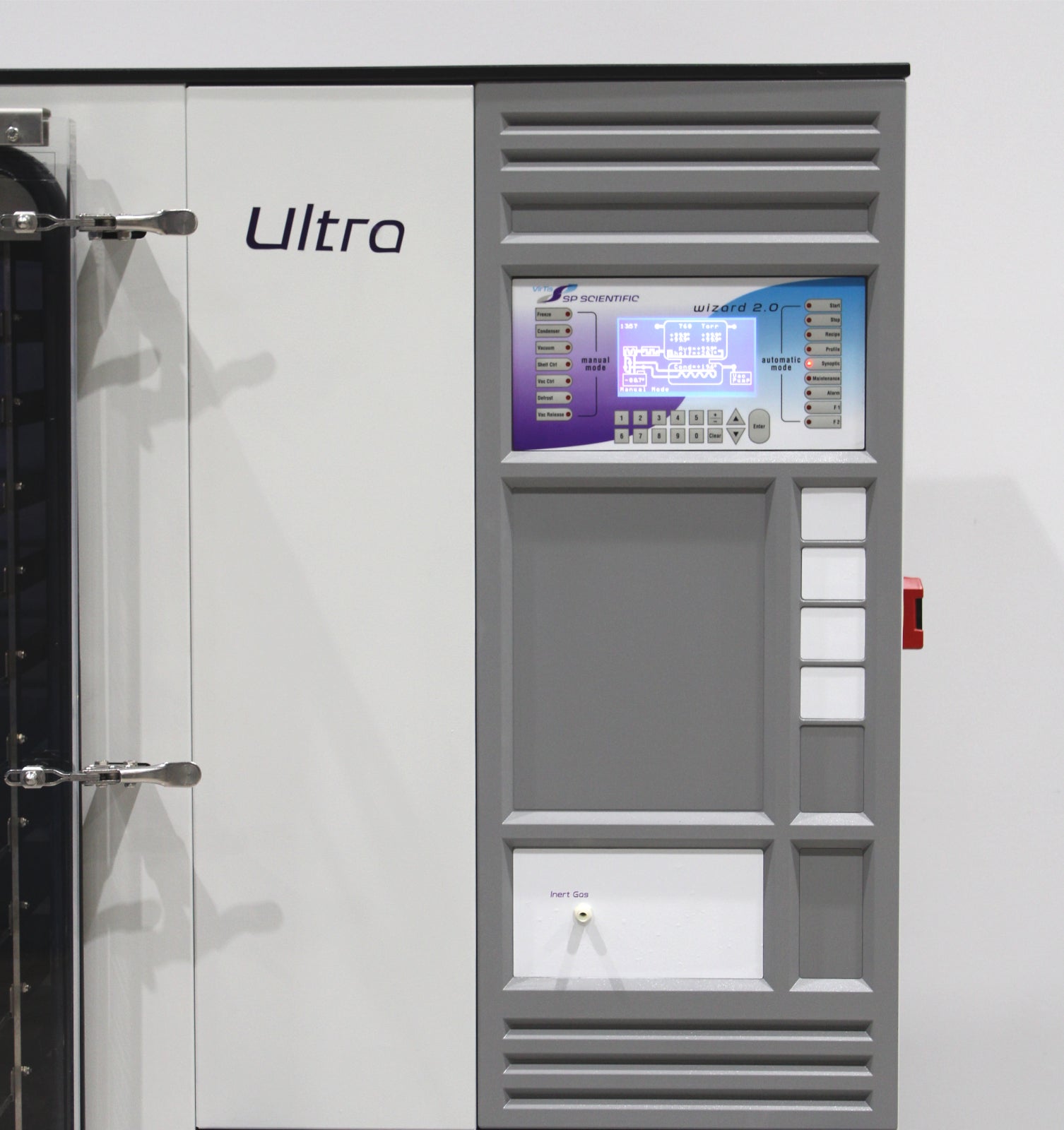

- SP Scientific VirTis 35L Ultra EL-85 Pilot Lyophilizer Freeze Dryer 208/230V (100005414) with Wizard 2.0 Controller

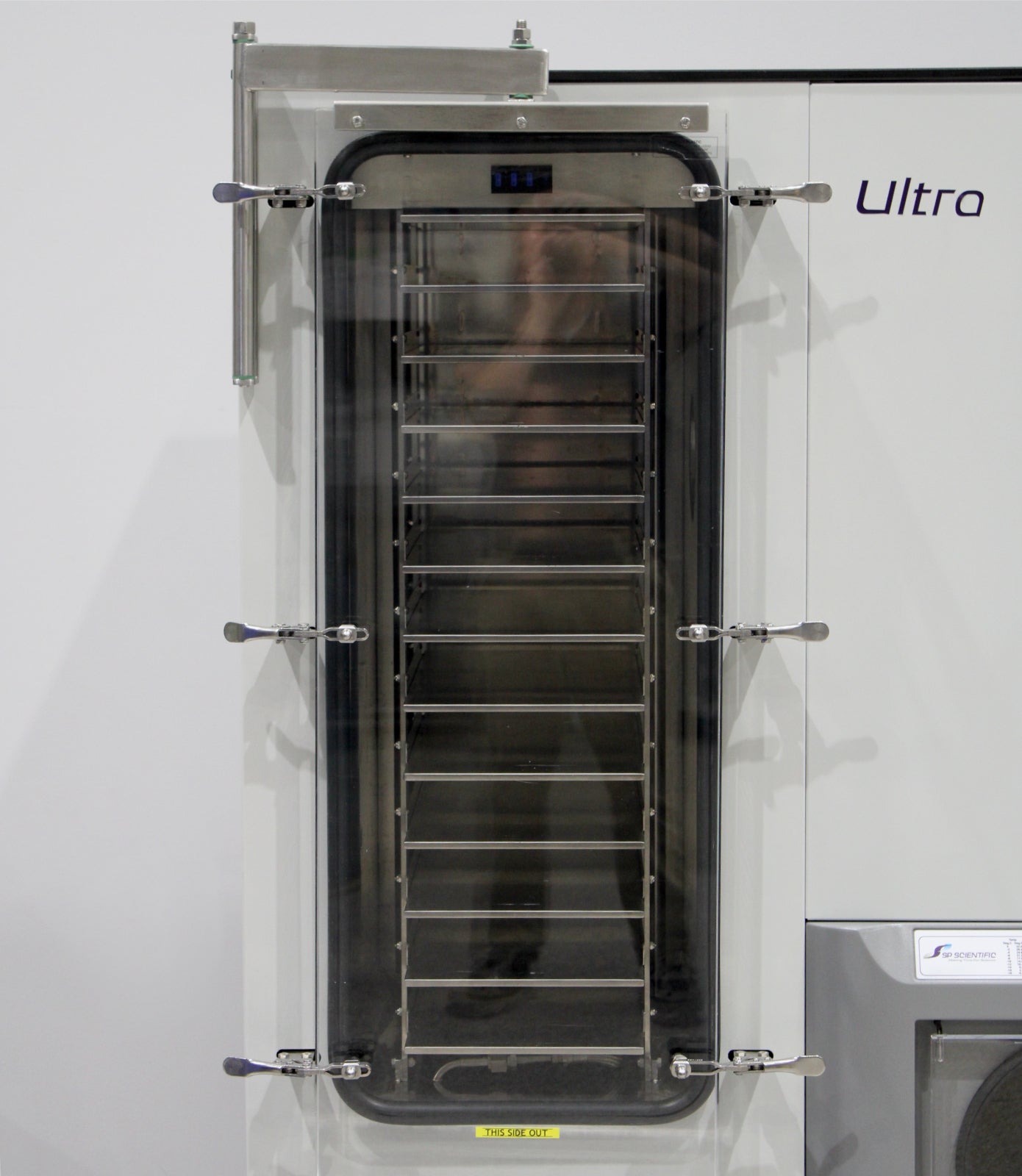

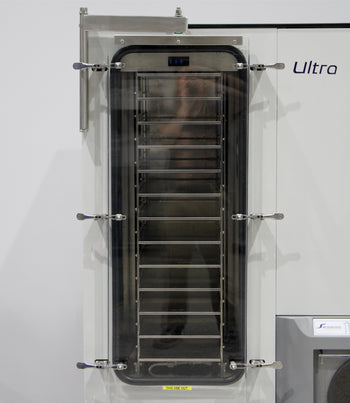

- x12 Bulk Drying Shelves

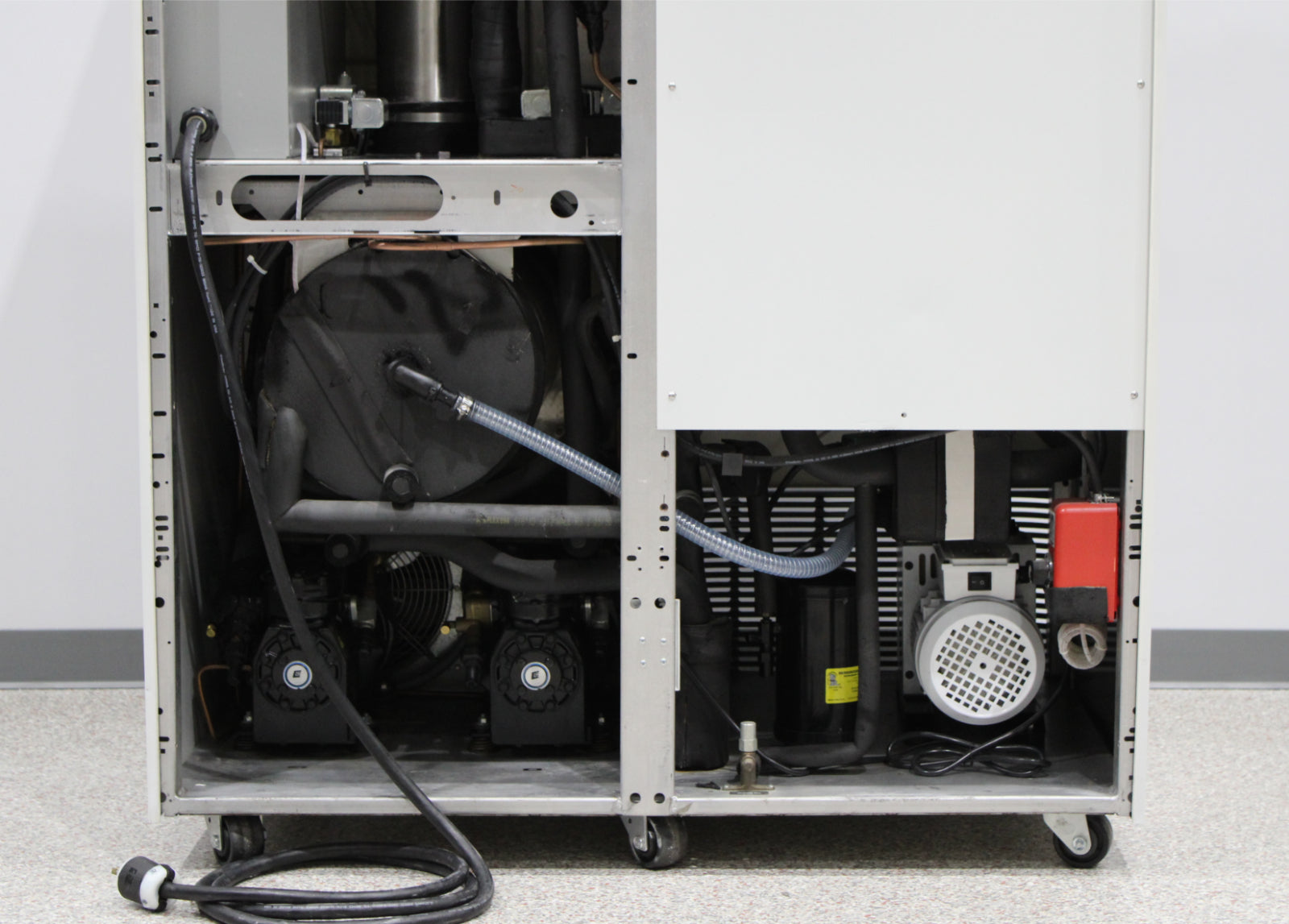

- Vacuum Pump

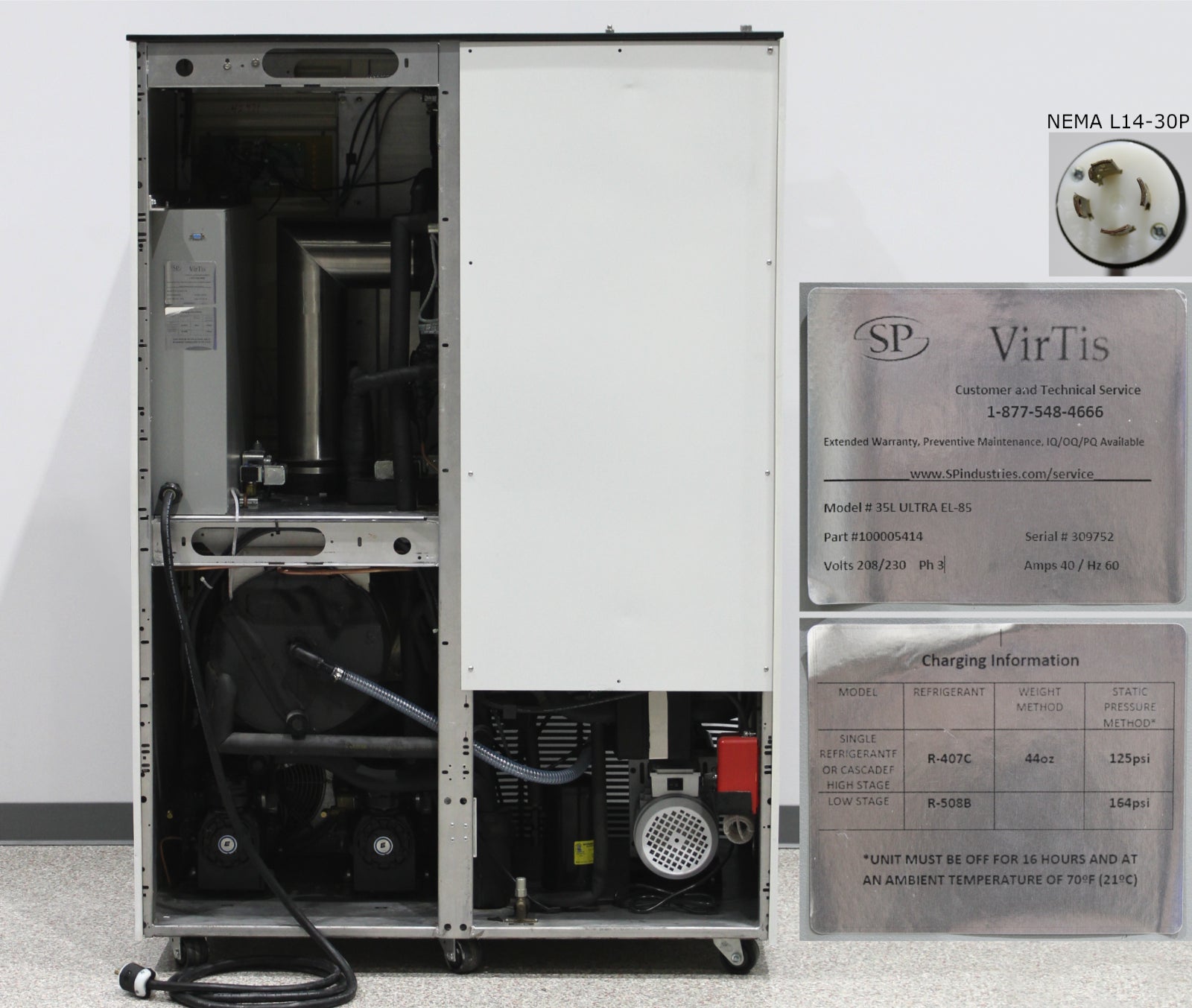

- Attached Main Power Cable with NEMA L14-30 Plug
- 90-Day Warranty
Notice: This freeze dryer does not have hydraulic stoppering.
After its initial disinfection and inspection, our technicians tested the SP Scientific VirTis 35L Ultra EL-85 freeze dryer with the following results:

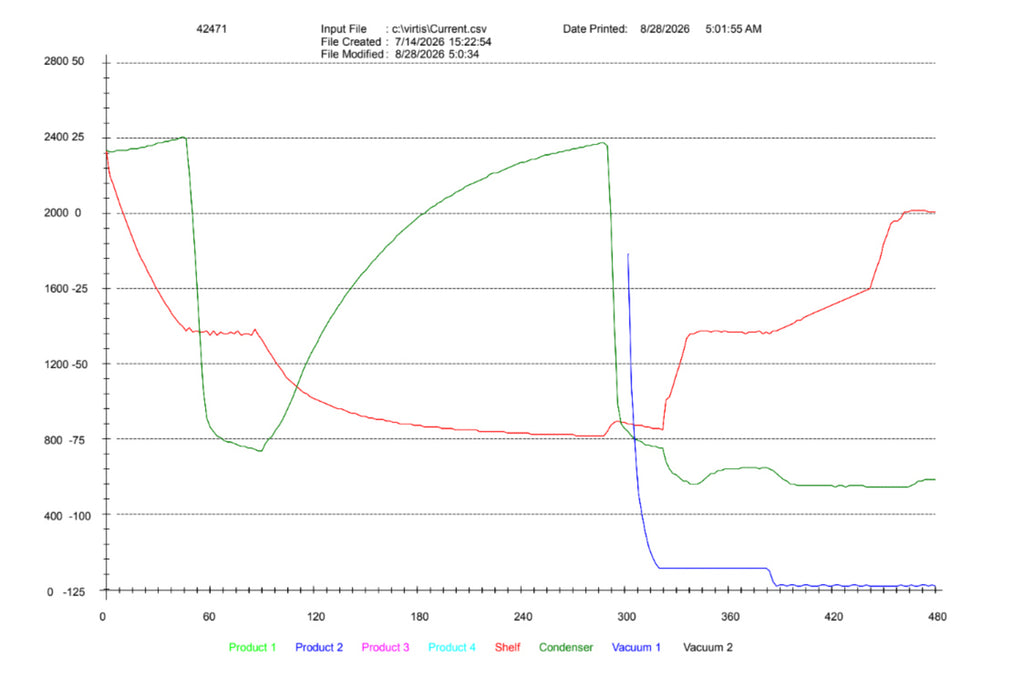

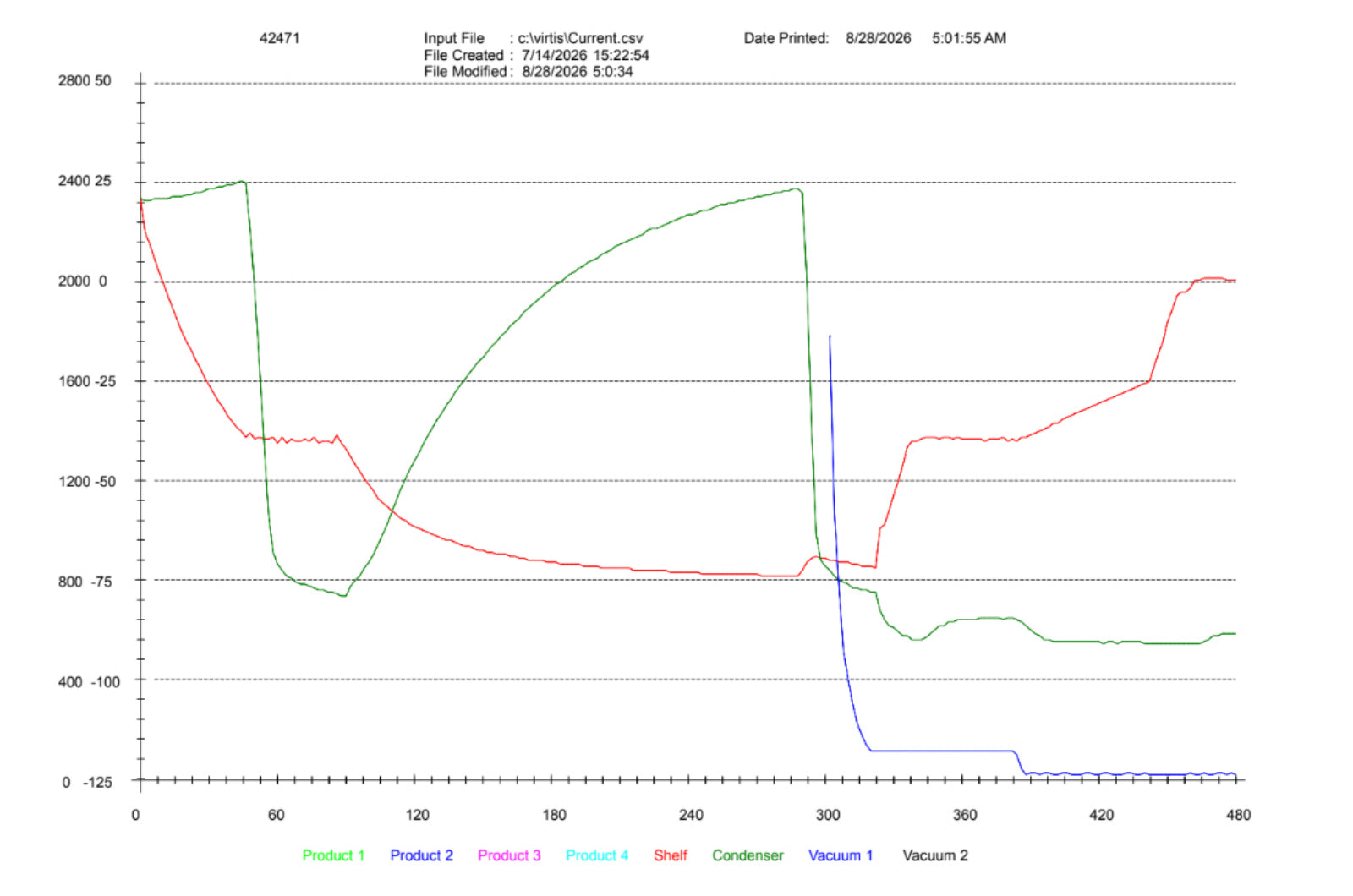

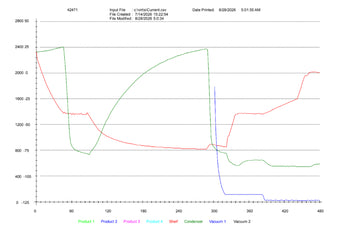

- Recipe test performed: PASSED
- Condenser temperature achieved -86°C: PASSED
- Shelf temperature achieved -70°C: PASSED
- Vacuum achieved 20 mT: PASSED
- Calibrated vacuum and temperature.
- Flushed and filled vacuum pump oil.
- Inspected and replaced vacuum hoses as needed.
- Inspected and replaced refrigeration line insulation as needed.
Shelf size (W x D): 10.75 x 20.5 in (273 x 521 mm)
Shelf area: 18.36 ft2 (17,057 cm2)
Shelf clearance: 2.71 in (68 mm)
|
Manufacturer
|
SP Scientific
|
|
Model
|
35L Ultra EL-85
|
|
Part No.
|
100005414
|
|
Serial No.
|
309752
|
|
Shelf temperature control range
|
-55 to 65°C
|
|
Lowest shelf temperature (50Hz / 60Hz)
|
-67°C / -70°C
|
|
Lowest condenser temperature (50Hz / 60 Hz)
|
-82°C / -85°C
|
|
Maximum condenser capacity
|
35 L
|
|
Condenser surface area
|
750 in2 (4838 cm2)
|
|
Maximum ice condensing capacity in 24 hours
|
20 L
|
|
Maximum deposition rate
|
0.83 L/hour
|
|
Shelf pull-down from 20°C to -40°C
|
≤ 40 minutes
|
|
Condenser pull-down from 20°C to -45°C
|
≤ 25 minutes
|
|
Number of compressors
|
2
|
|
Compressor horsepower
|
1.5 hp, 1.5 hp
|
|
Vacuum time to 100 mTorr
|
≤ 30 minutes
|
|
Vacuum rate of rise
|
≤ 30 mT/hour
|
|
Volume-based leak rate
|
≤ .0036 mbar L/sec
|
|
Lowest system vacuum
|
≤ 15 mT
|
|
Temperature uniformity
|
± 1.0°C
|
|
Plug type
|
NEMA L14-30P
|
|
Power rating
|
208/230VAC, 60Hz, 40A, 3Ph
|
|
Dimensions (W x D x H)
|
50 x 38.75 x 75.75 in (127 x 98 x 193 cm)
|
|
Minimum clearance
|
10 in (25.4 cm)
|
|
Approximate weight
|
2,000 lb (909 kg)
|
Note: Performance specifications are based on SP test data from units operating at an ambient room temperature of approximately 20°C. SP recommends an optimum operation range of 15-25°C (59-77°F).
Note: SP recommends a 24-inch (61 cm) clearance around all sides of the unit for serviceability. If machines are placed side by side, increase the minimum clearance to 48 inches (121.9 cm)
|
Air-Cooled
|
|
Ambient room temperature
|
20°C
|
|
Approx. peak room heat generated
|
17,800 BTU/h
|
|
Construction
|
316L stainless steel shelves, product chamber and condenser chamber
|
|
Defrost type
|
Hot gas
|
|
Refrigerant type
|
CFC free
|
|
Vapor port
|
6 inches
|
