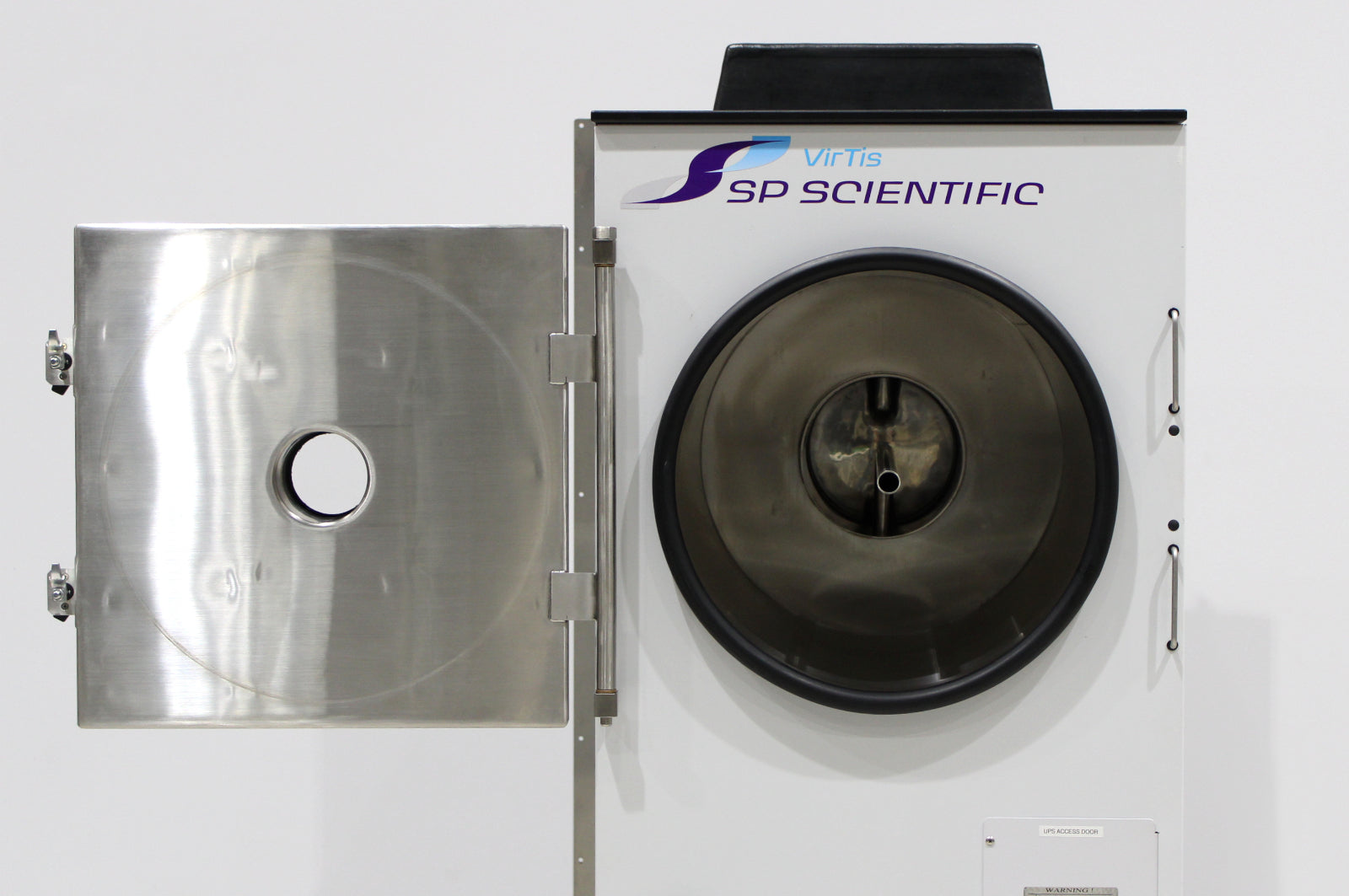

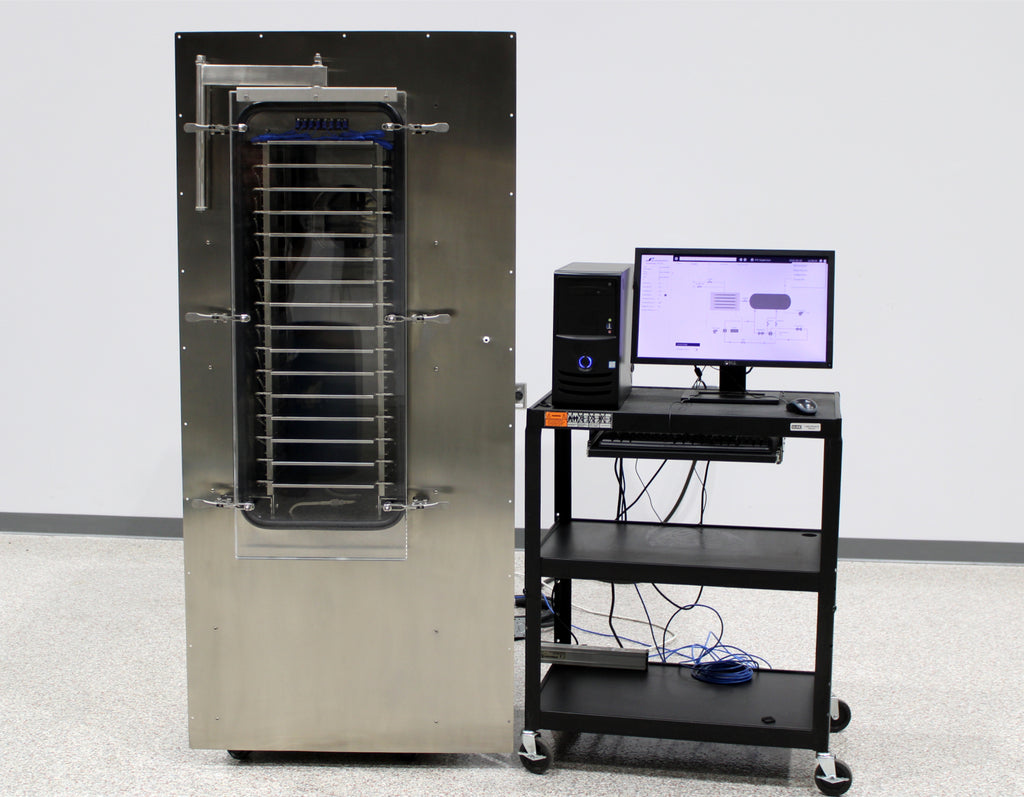

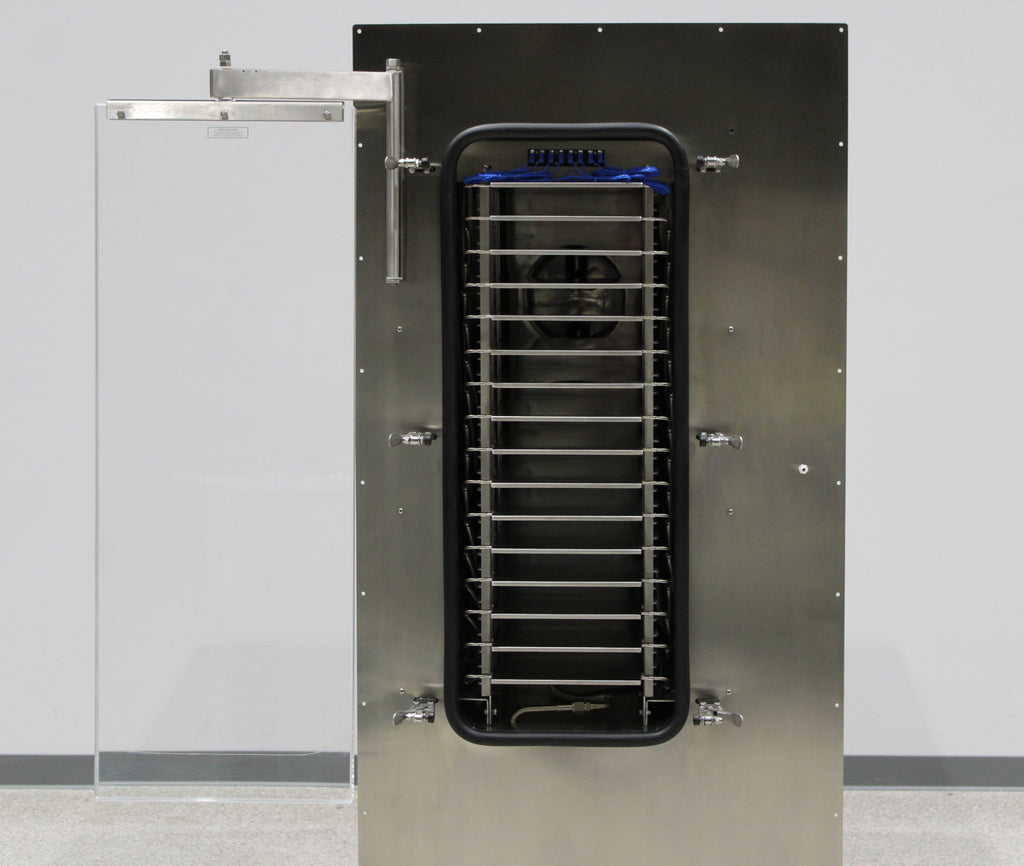

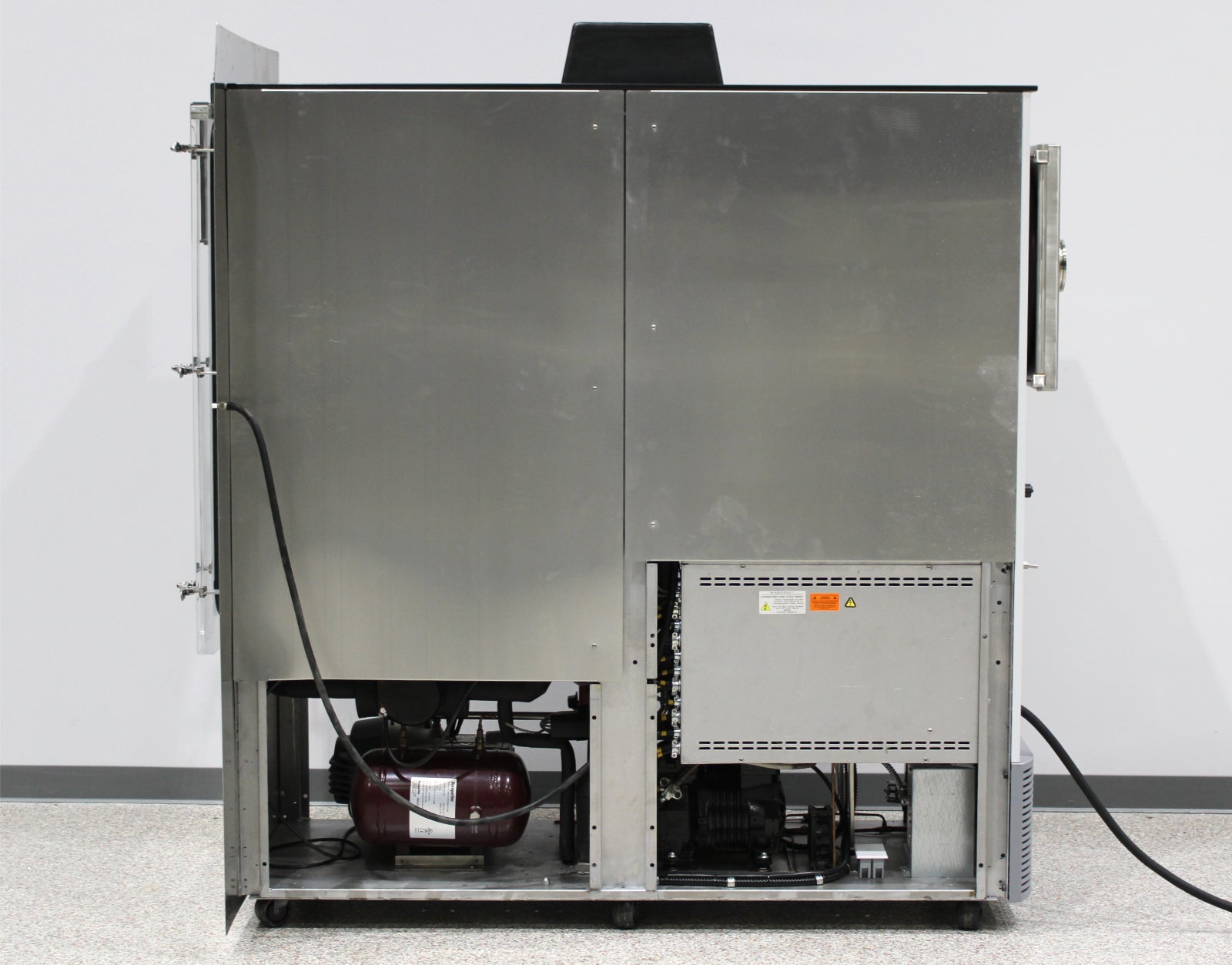

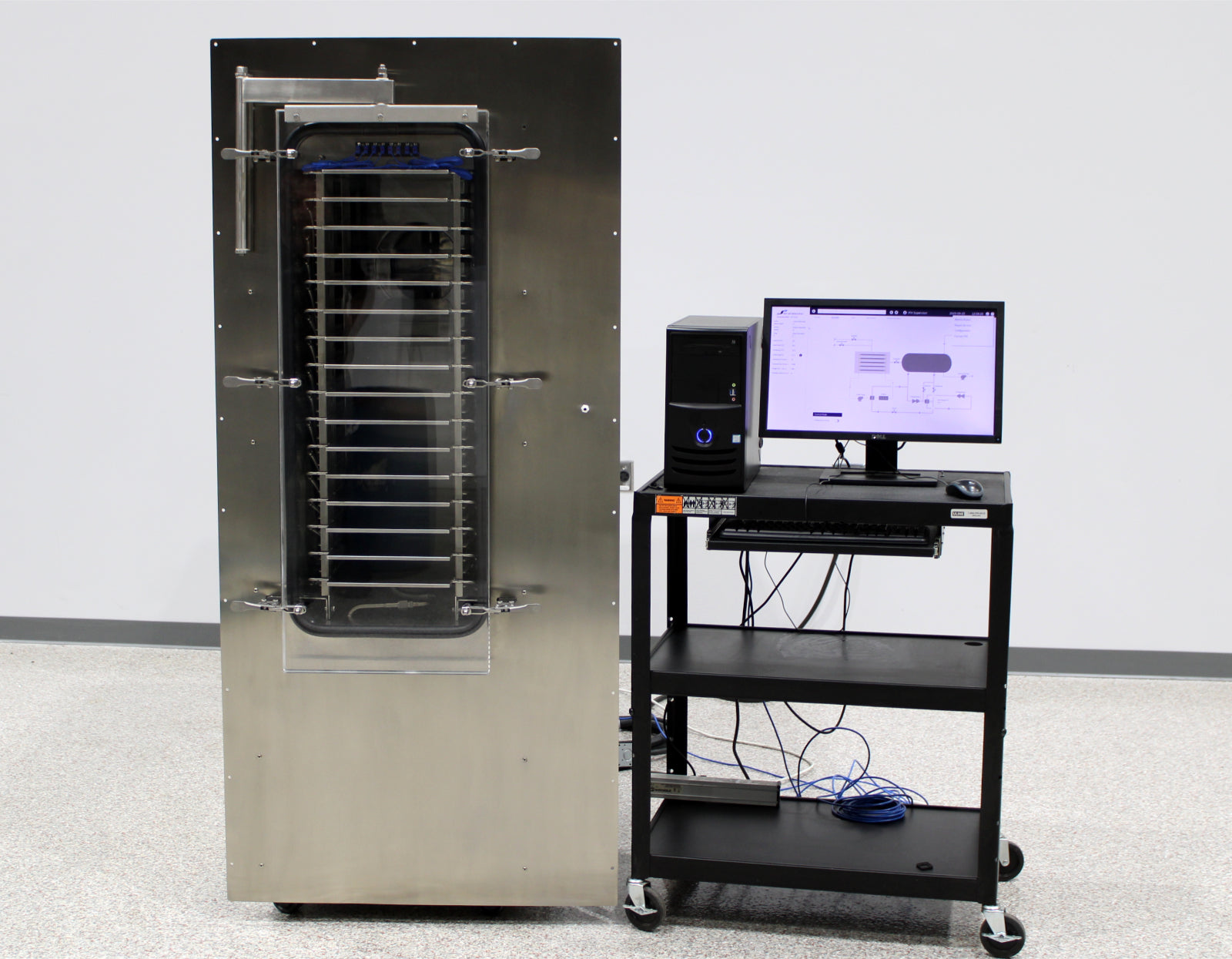

- SP Scientific VirTis 50L Ultra EL-85°C Pilot Clean Room Configuration Freeze Dryer Lyophilizer (100019549)

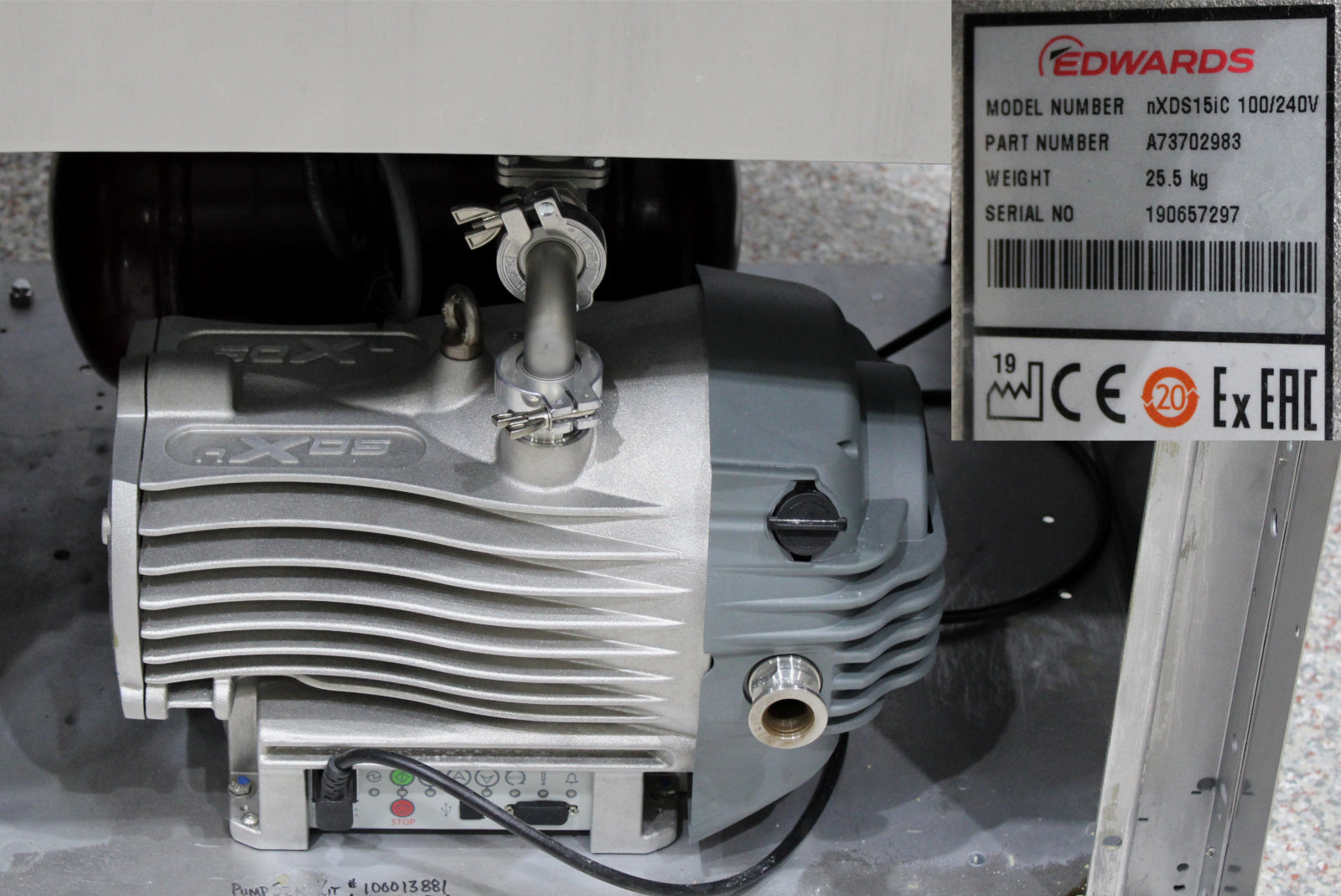

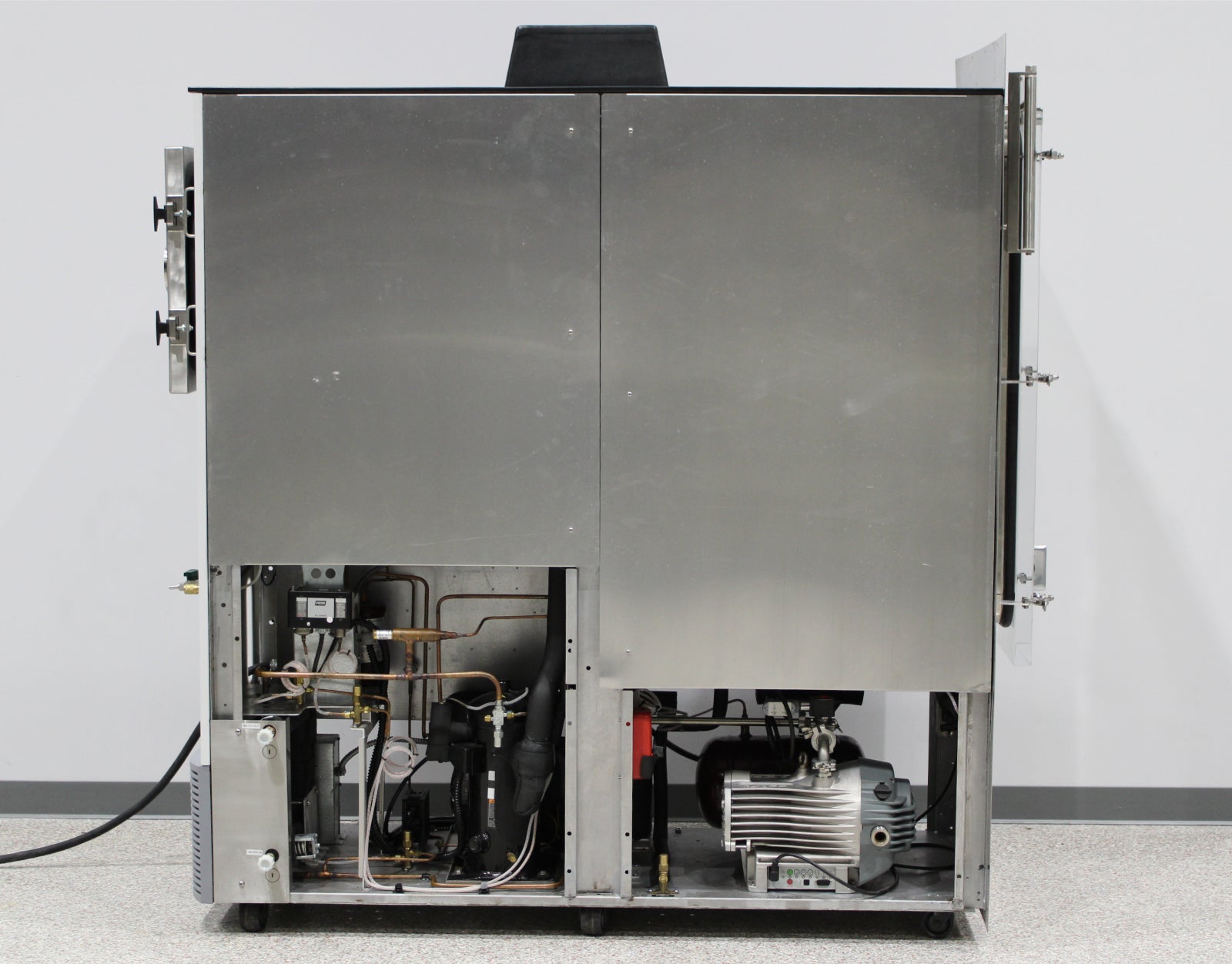

- Edwards nXDS15iC Dry Scroll Vacuum Pump

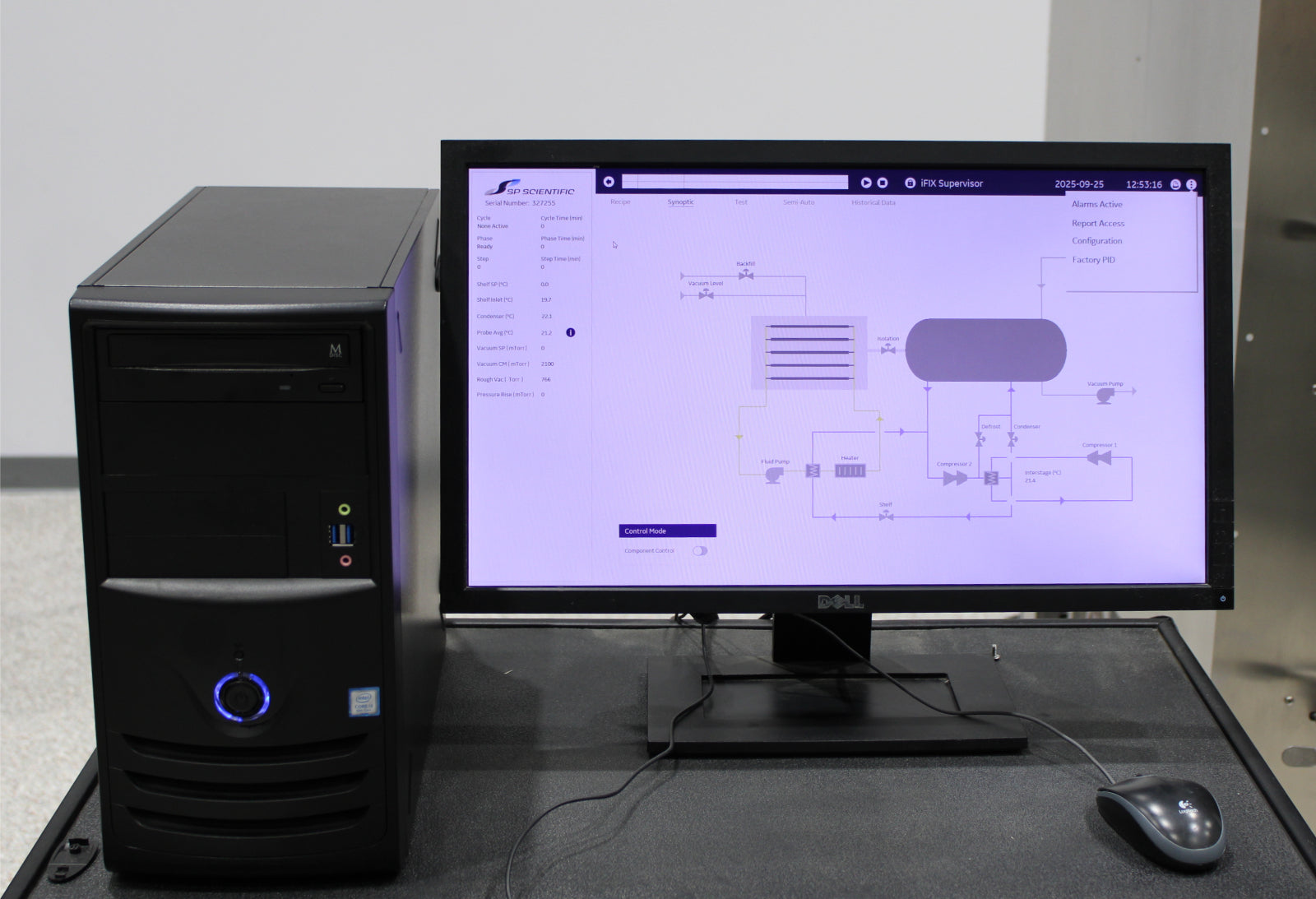

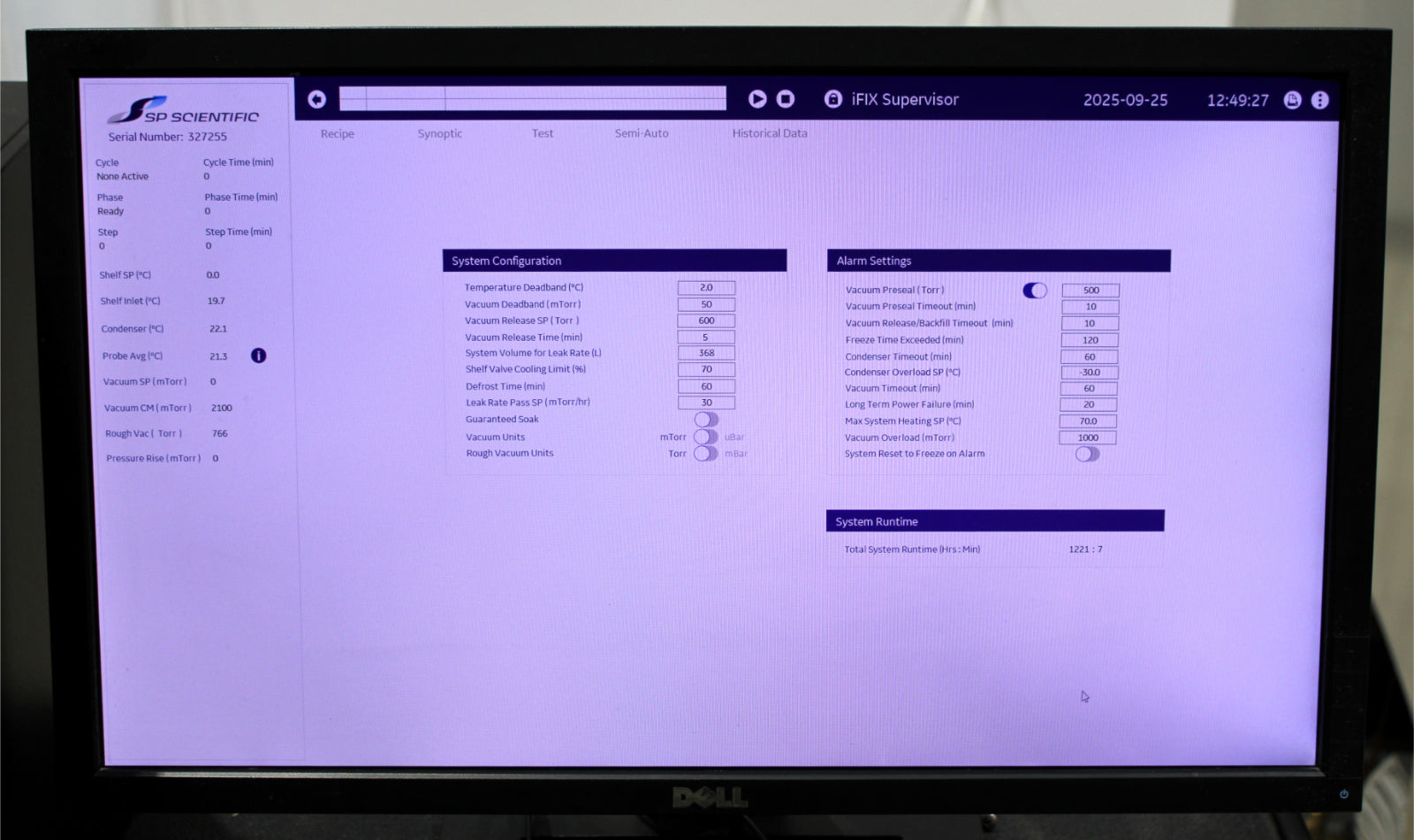

- Computer (with Monitor, Keyboard, Mouse) and LyoS 2.0 Control Software
- UPS Battery Backup

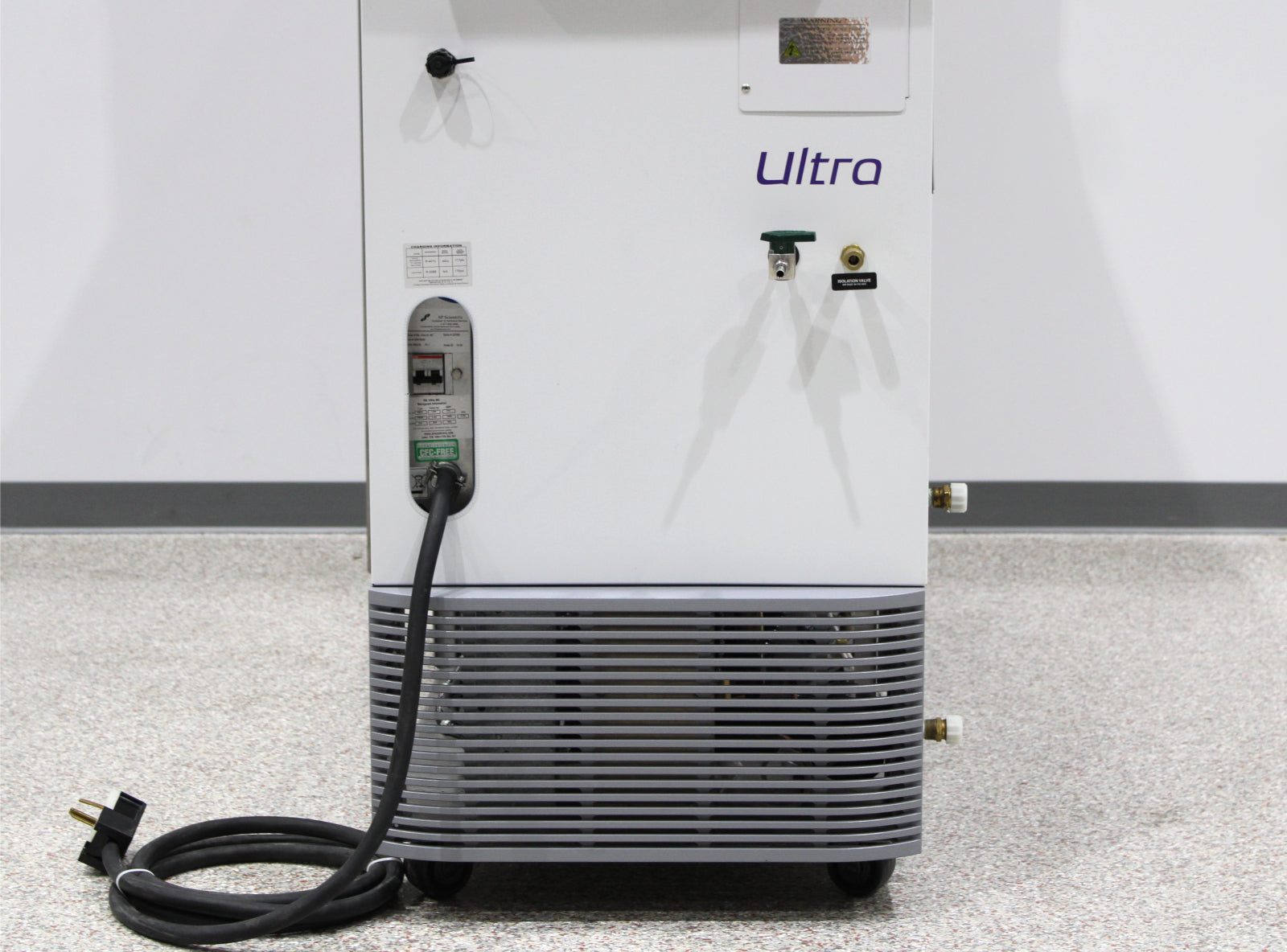

- Attached Power Cable
- 90-Day Warranty
Notice: This freeze dryer is water cooled. You will need to meet this utility requirement to operate this freeze dryer.
- 1 Year Extended Warranty
- Annual PM Service Visit: Preventative maintenance involves checking vacuum integrity and instrument calibration
- IQ/OQ Service: Installation Qualification and Operational Qualification Service Visit. This can be a requirement for any company that is producing products that fall under FDA Regulations.
- Acid Trap Installation: Necessary for applications that involve the processing of corrosive materials
Please contact us if you would like to know more about these service upgrades.

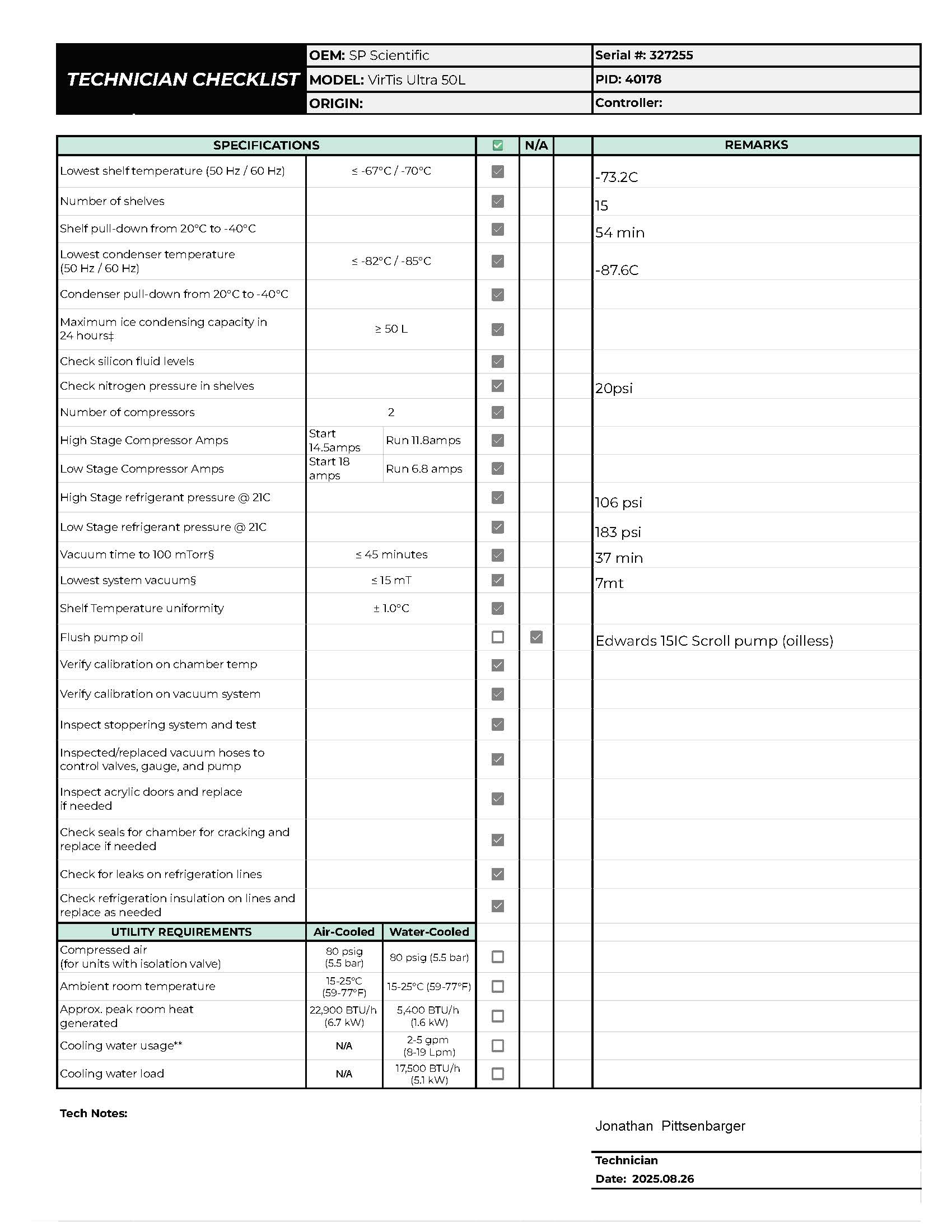

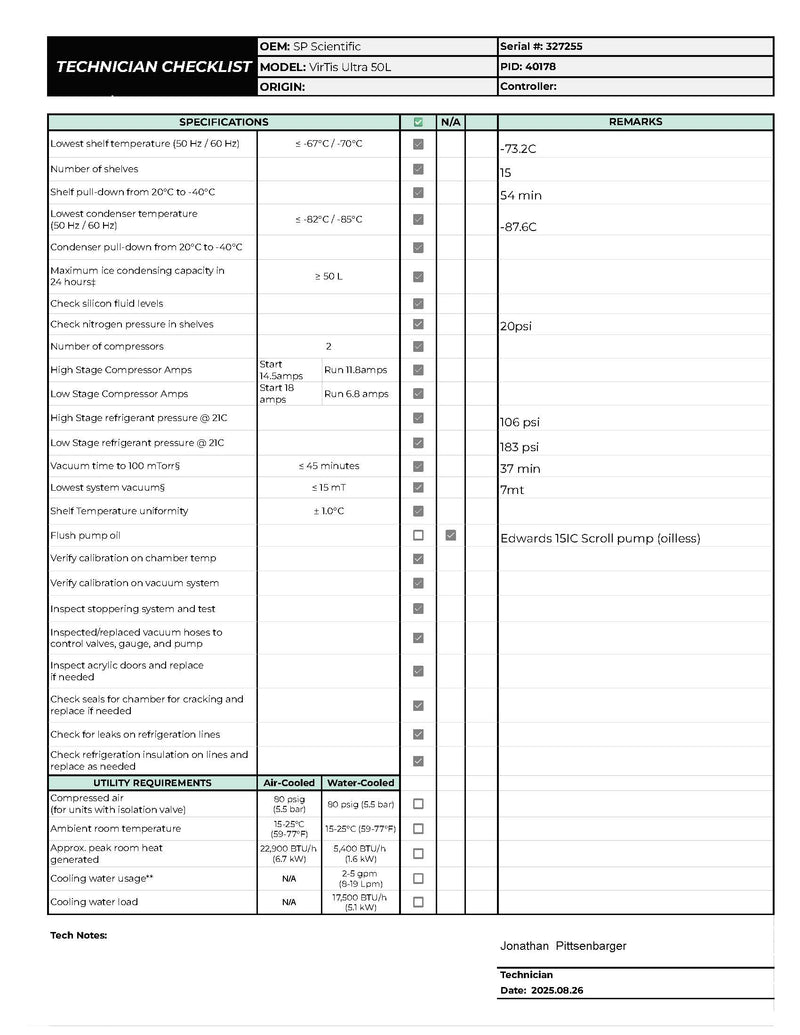

After its initial disinfection and inspection, our technicians tested the SP Scientific VirTis 50L Ultra EL-85°C pilot clean room freeze dryer with the following results:

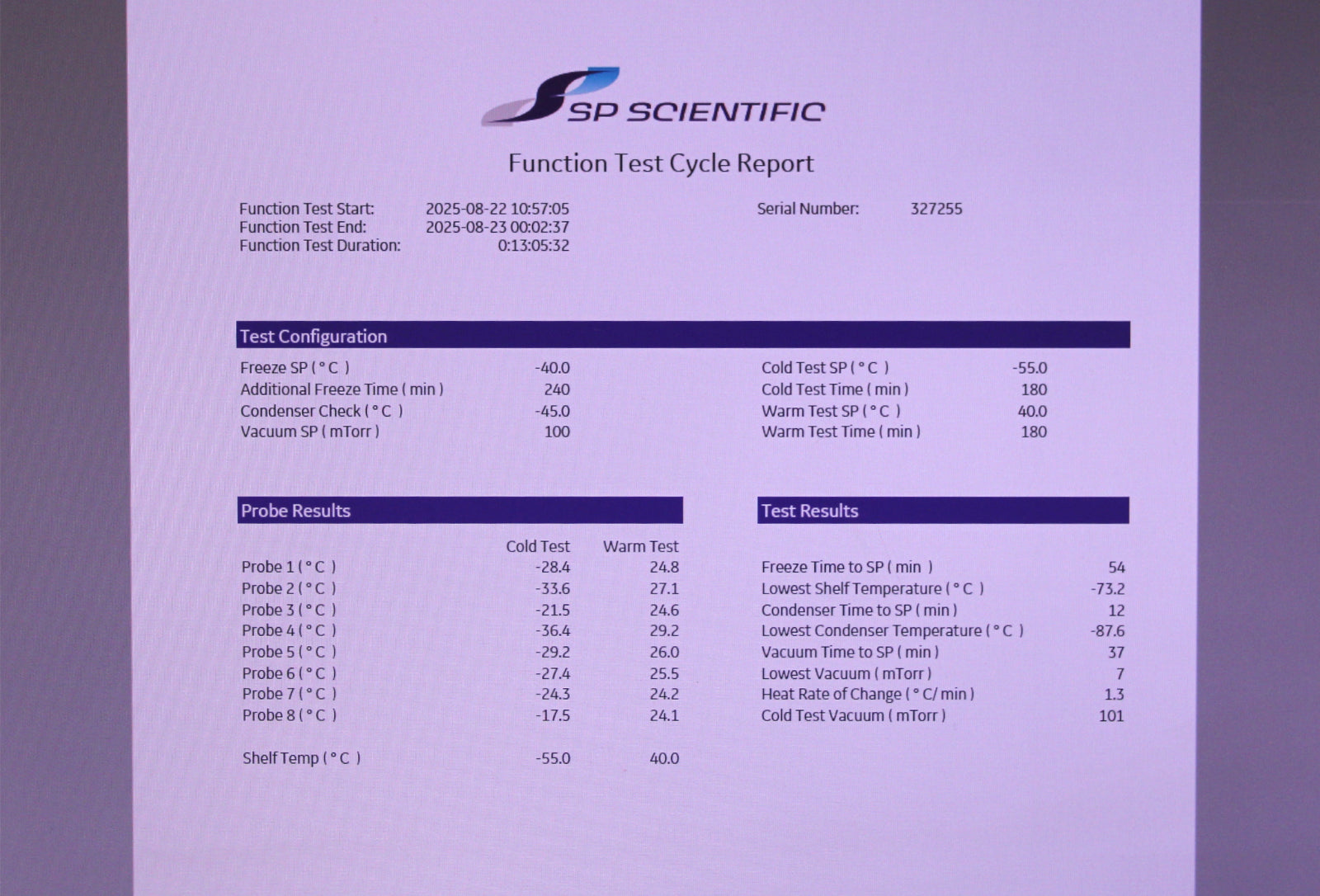

- Function test cycle: PASSED

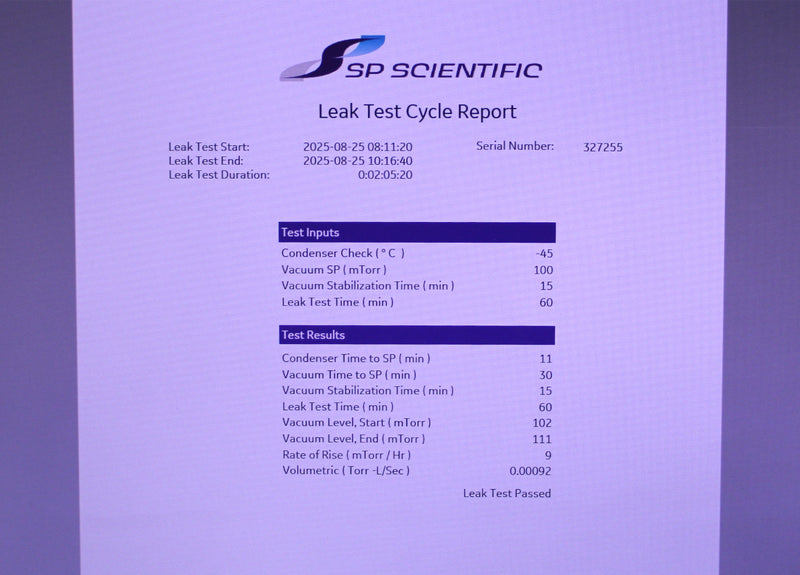

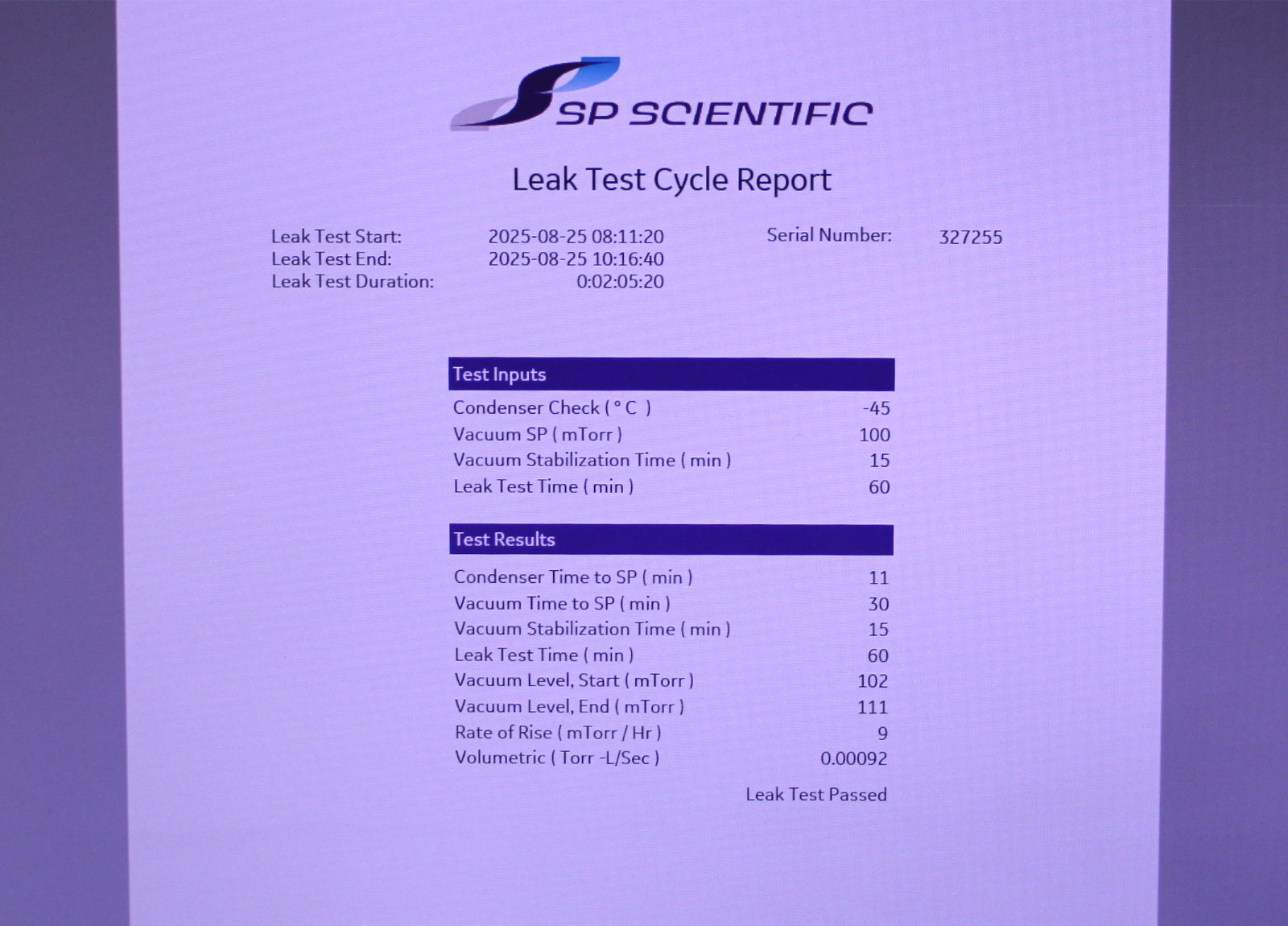

- Leak test cycle: PASSED
- Condenser temperature achieved -87.6°C (manufacturer’s spec): PASSED
- Shelf temperature achieved -73.2°C (manufacturer’s spec): PASSED
- Vacuum reading at 7mT (manufacturer’s spec): PASSED
Shelf size (W x D): 10.8 in x 20.5 in (274.3 mm x 520.7 mm)
Shelf area: 22.96 ft2 (21,331 cm2)
|

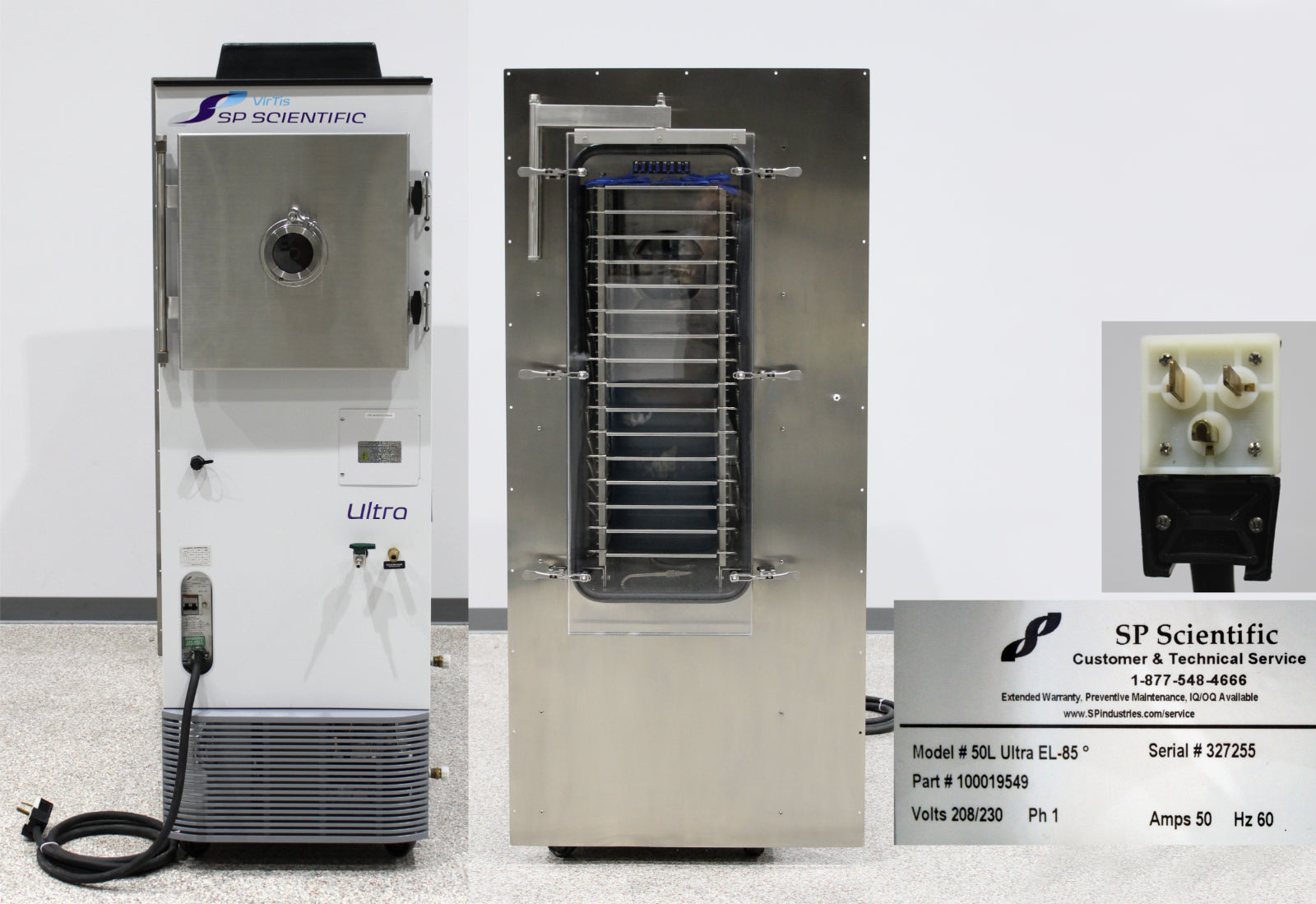

Manufacturer
|
SP Scientific
|
|
Model
|
50L Ultra EL-85°
|
|
Part No.
|
100019549
|
|
Serial No.
|
327255
|
|
Lowest shelf temperature (50Hz / 60Hz)
|
≤ -67°C / -70°C
|
|
Shelf temperature control range
|
-55 to 65°C
|
|
Shelf pull-down from 20°C to -40°C
|
≤ 40 minutes
|
|
Lowest condenser temperature (50Hz / 60 Hz)
|
≤ -82°C / -85°C
|
|
Maximum condenser capacity
|
≥ 50 L
|
|
Condenser surface area
|
10 ft2 (.93 m2)
|
|
Condenser pull-down from 20°C to -45°C
|
≤ 35 minutes
|
|
Maximum ice condensing capacity in 24 hours
|
≥ 20 L
|
|
Maximum deposition rate
|
≥ 0.83 L/hour
|
|
Number of compressors
|
2
|
|
Compressor horsepower
|
3.5 hp, 1.5 hp
|
|
Vacuum time to 100 mTorr
|
≤ 45 minutes
|
|
Vacuum rate of rise
|
≤ 30 mT/hour
|
|
Vacuum control +/- 5 mTorr
|
50mTorr to 500mTorr
|
|
Volume-based leak rate
|
≤ .0042 mbar L/sec
|
|
Lowest system vacuum
|
≤ 15 mT
|
|
Temperature uniformity
|
± 1.0°C
|
|
Construction
|
316L stainless steel shelves, product chamber and condenser chamber
|
|
Stoppering
|
Bottom-up hydraulic
|
|
Defrost type
|
Hot gas
|
|
Refrigerant type
|
CFC-free
|
|
Vapor port
|
8 in (20.3 cm)
|
|
Power rating
|
208-230VAC, 60Hz, 50A, 1Ph
220VAC, 50Hz
|
|
Recommended outlet
|
NEMA 6-50R
|
|
Overall dimensions (W x D x H)
|
25 x 78 x 75.75 in (64 x 198 x 192 cm)
|
|
Minimum clearance
|
10 in (25.4 cm)
|
|
Weight
|
2,000 lb (909 kg)
|
Note: Performance specifications are based on SP test data from units operating at an ambient room temperature of approximately 20°C. SP recommends an optimum operation range of 15-25°C (59-77°F).
Note: SP recommends a 24-inch (61 cm) clearance around all sides of the unit for serviceability. If machines are placed side by side, increase the minimum clearance to 48 inches (121.9 cm)
|

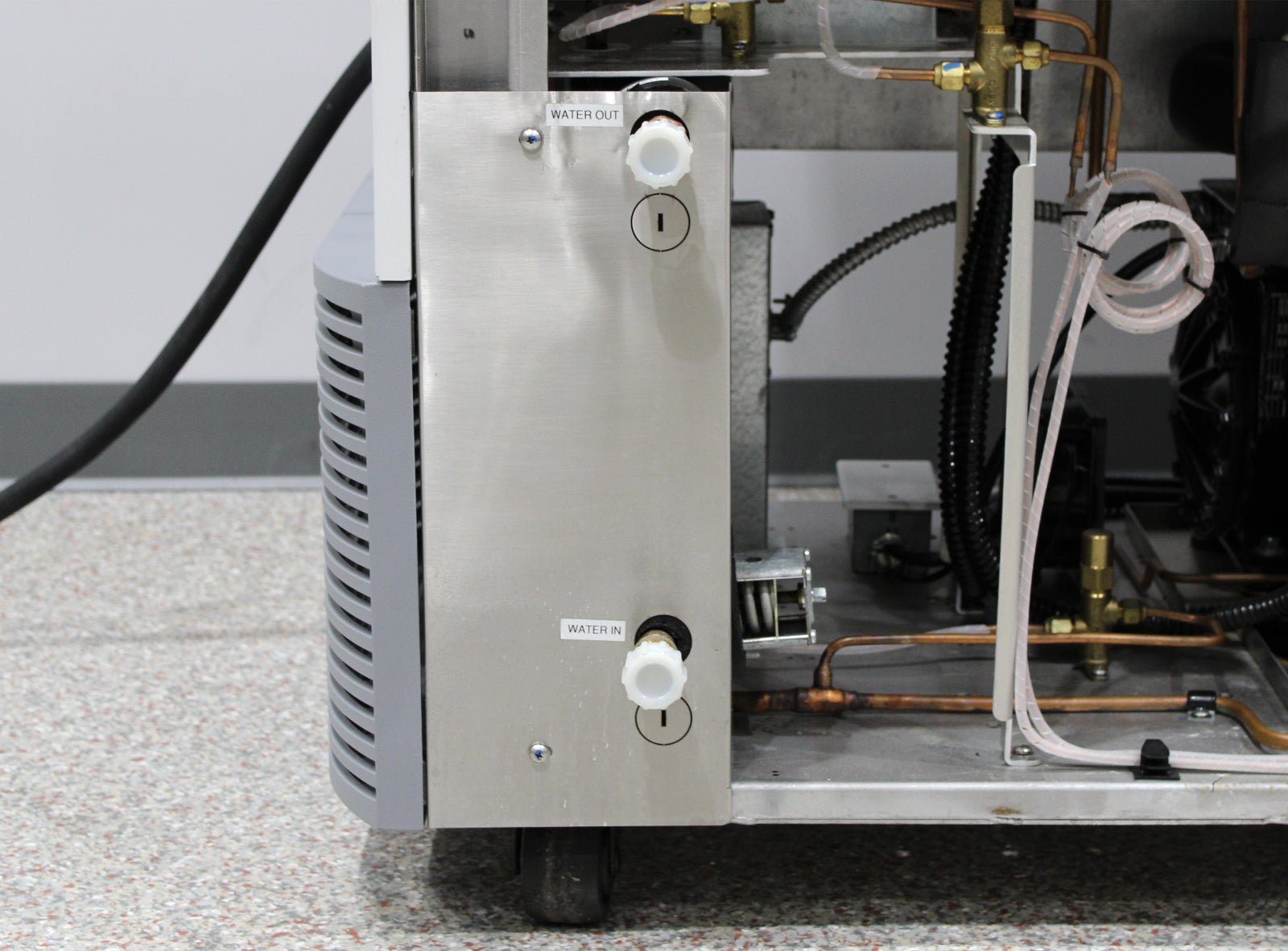

Water-Cooled
|
|
Compressed air (for units with isolation valve)
|
80 psig (5.5 bar)
|
|
Ambient room temperature
|
15-25°C (59-77°F)
|
|
Approx. peak room heat generated
|
5,400 BTU/h (1.6 kW)
|
|
Cooling water usage
|
2-5 gpm (8-19 Lpm)
|
|
Cooling water load
|
17,500 BTU/h (5.1 kW)
|
|
Electrical power rating
|
208/230VAC, 60Hz, 50A, 1Ph
|
|
Recommended power outlet
|
NEMA 6-50R
|
|
Gas 1
|
Gas 2
|
|
F gas
|
R407C
|
R508B
|
|
Charge (Kg)
|
1.245
|
0.970 (AC); 0.452 (WC)
|
|
GWP
|
1774
|
13396
|
|
EPA SNAP
|
IP/VLTR
|
IPR/VLTR
|
|
Safety Class
|
A1
|
A1
|
|
Total CO2e (t)
|
15.198 (AC); 8.264 (WC)
|
15.198 (AC); 8.264 (WC)
|
