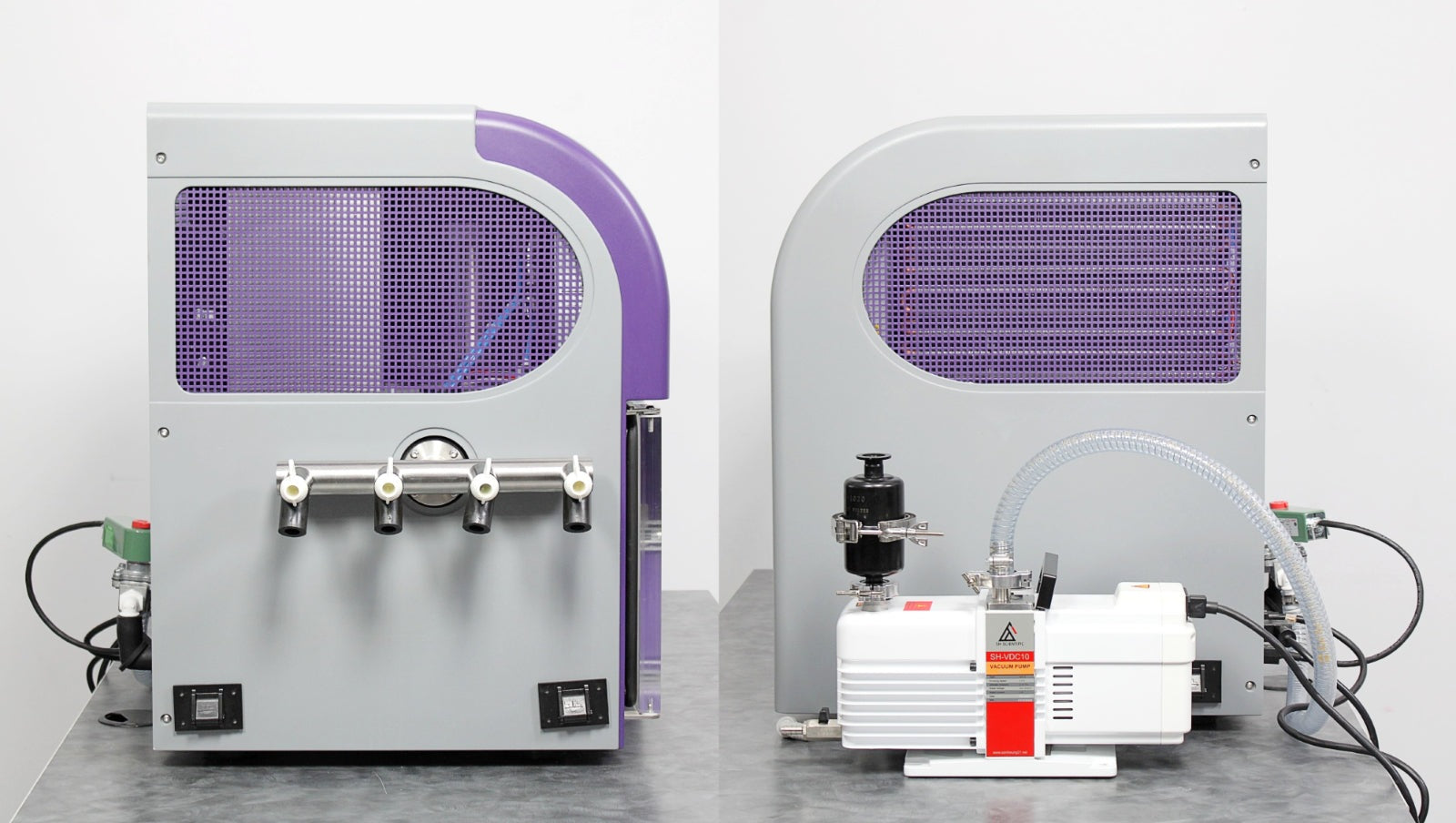

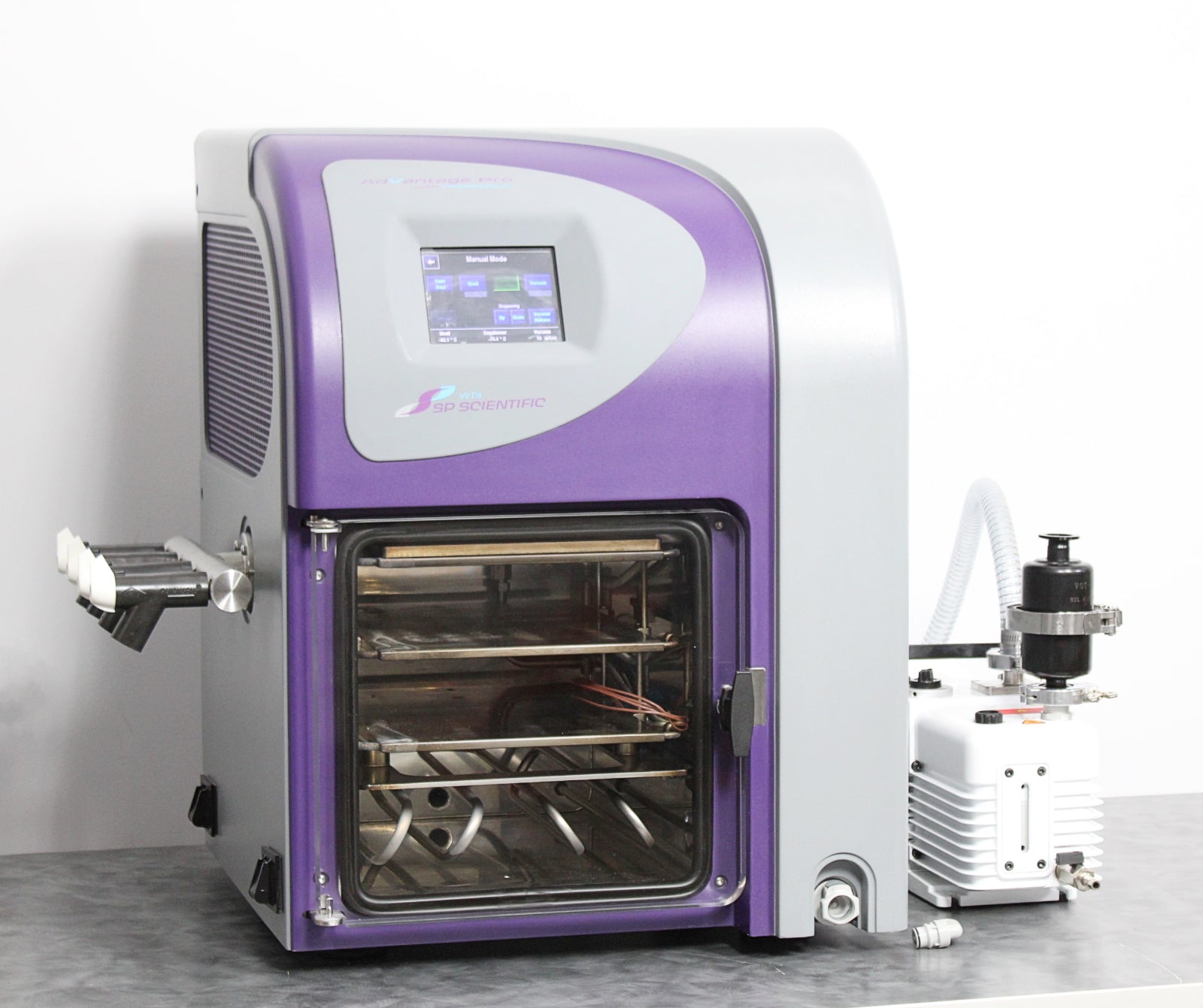

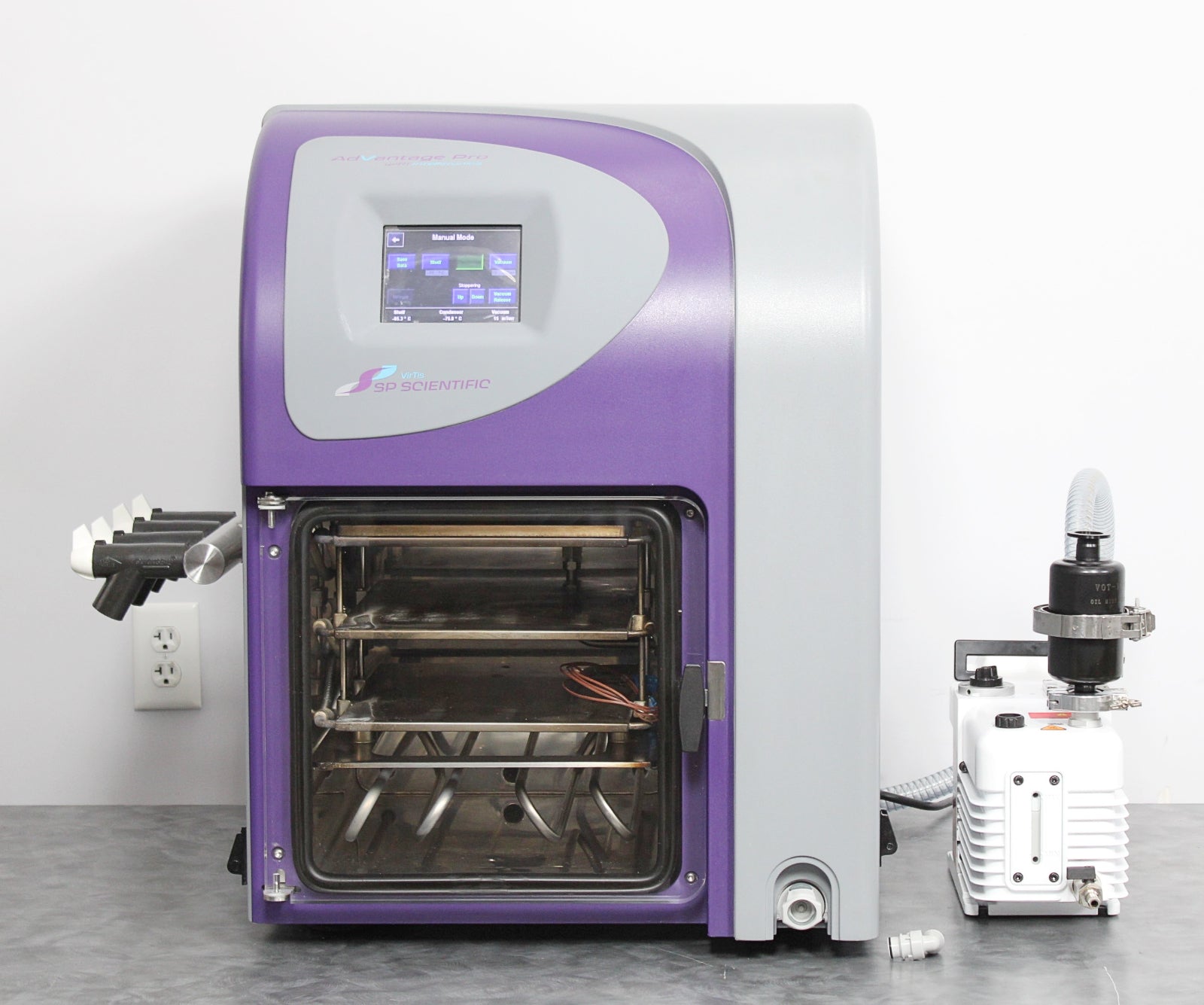

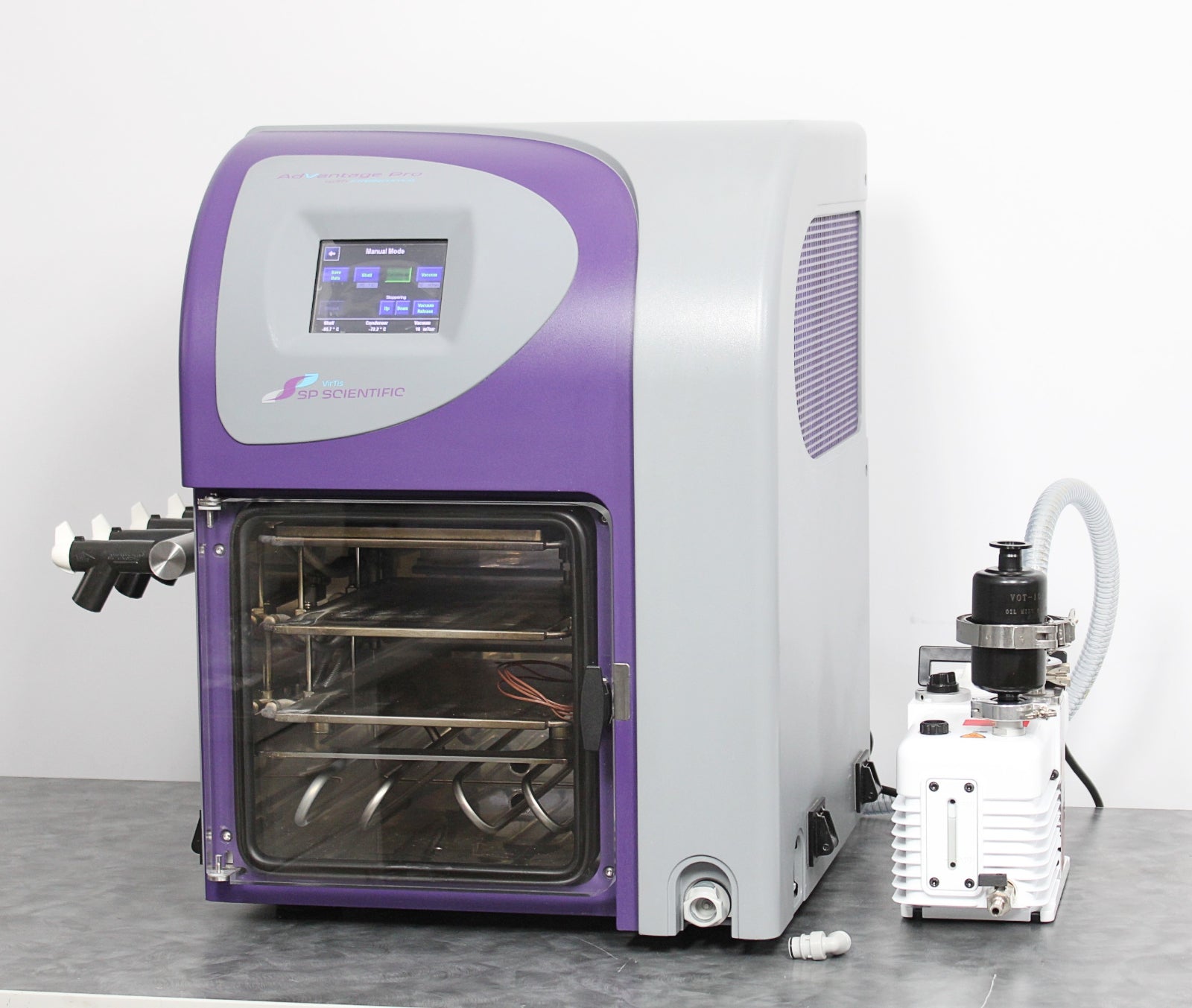

- SP Scientific VirTis AdVantage Pro stoppering tray freeze dryer

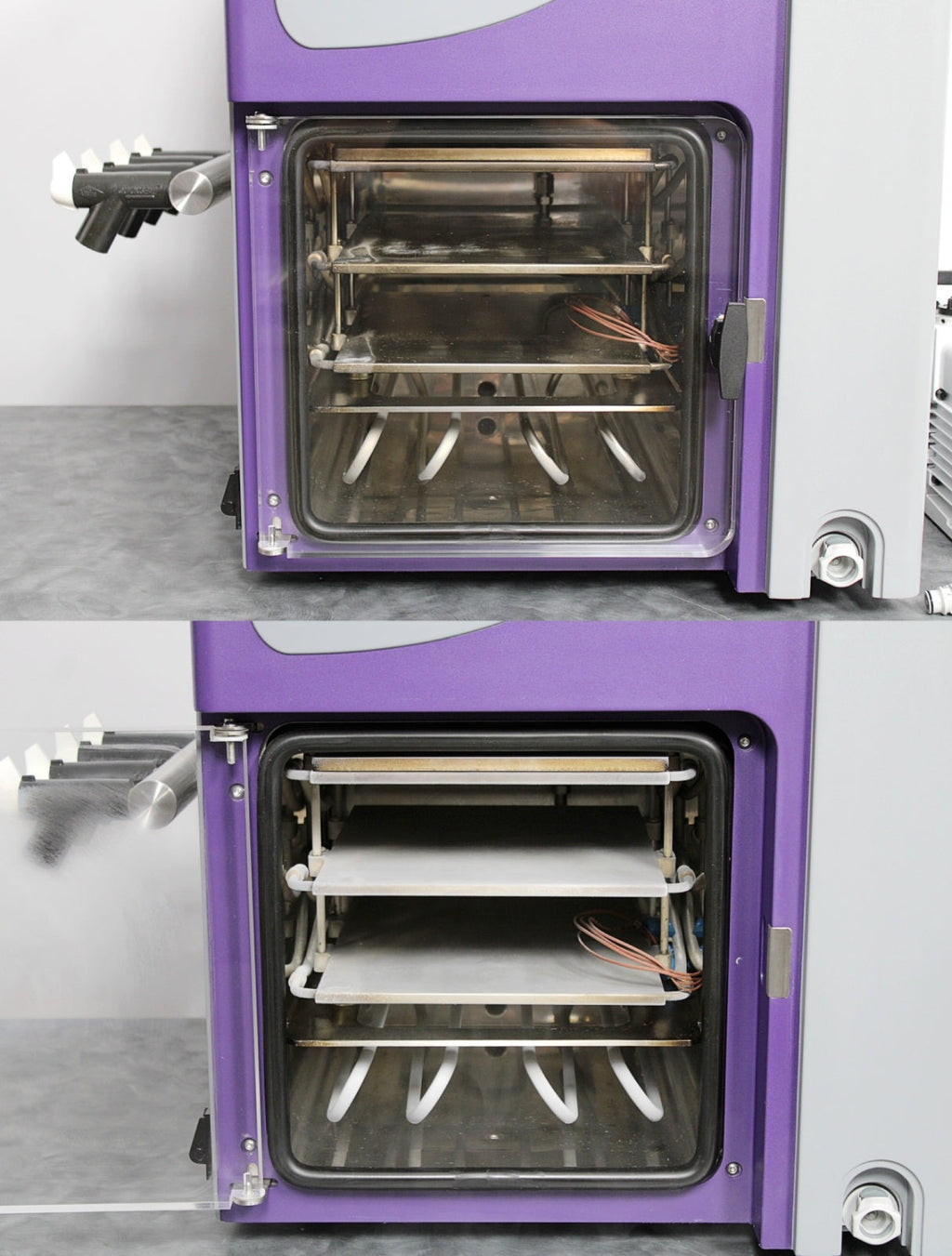

- Two (2) shelves with stoppering

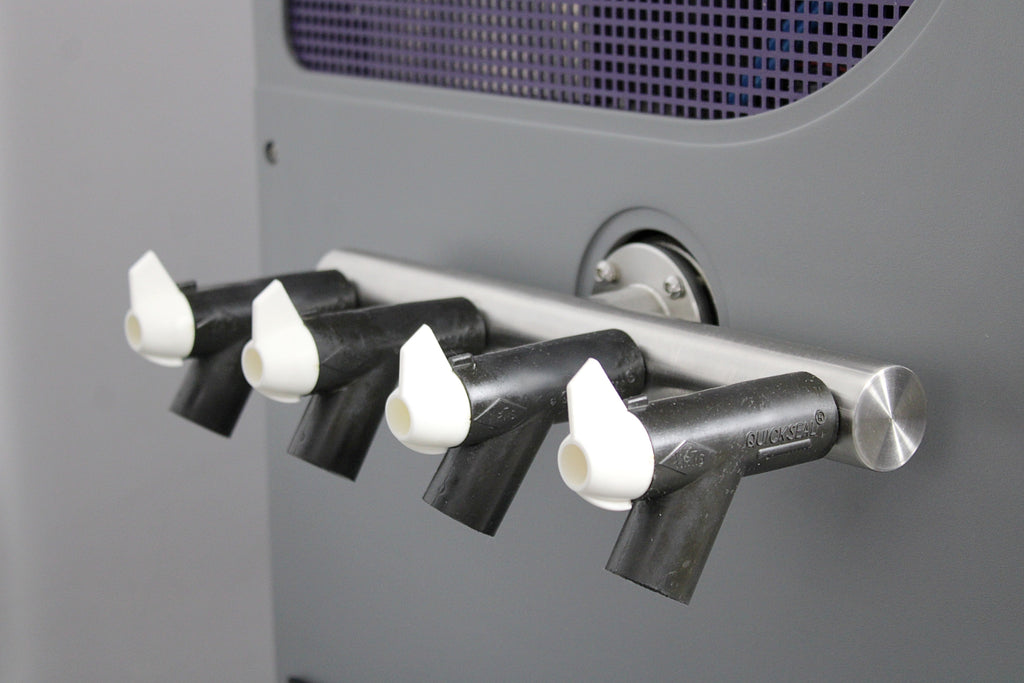

- Four (4) manifold valves

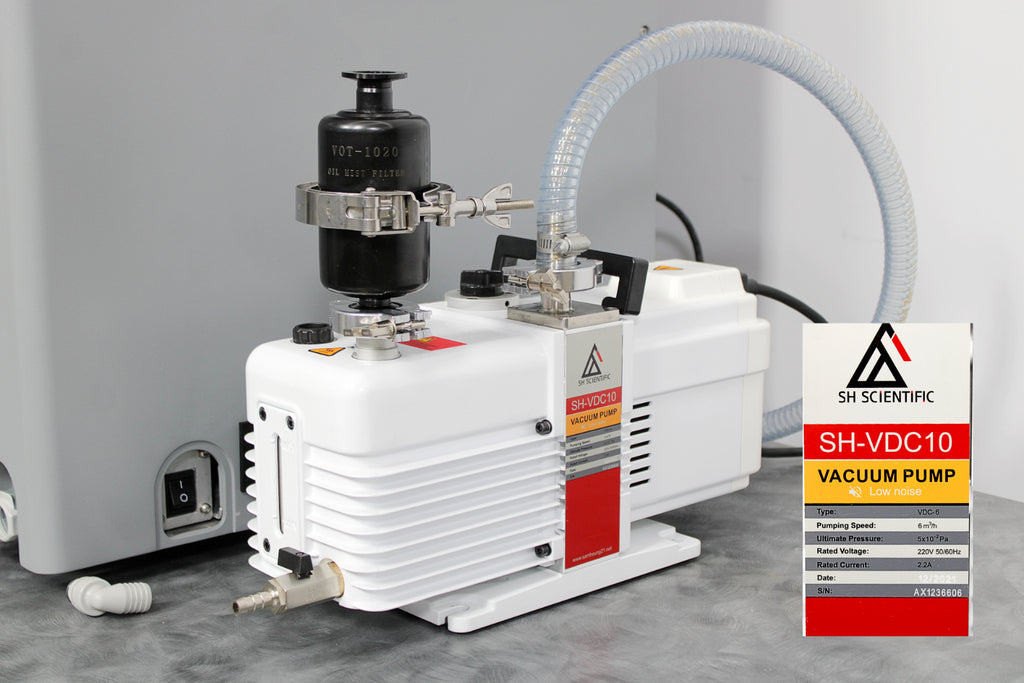

- SH Scientific SH-VDC10 vacuum pump
- Vacuum hose
- Power cables
- 120-day warranty

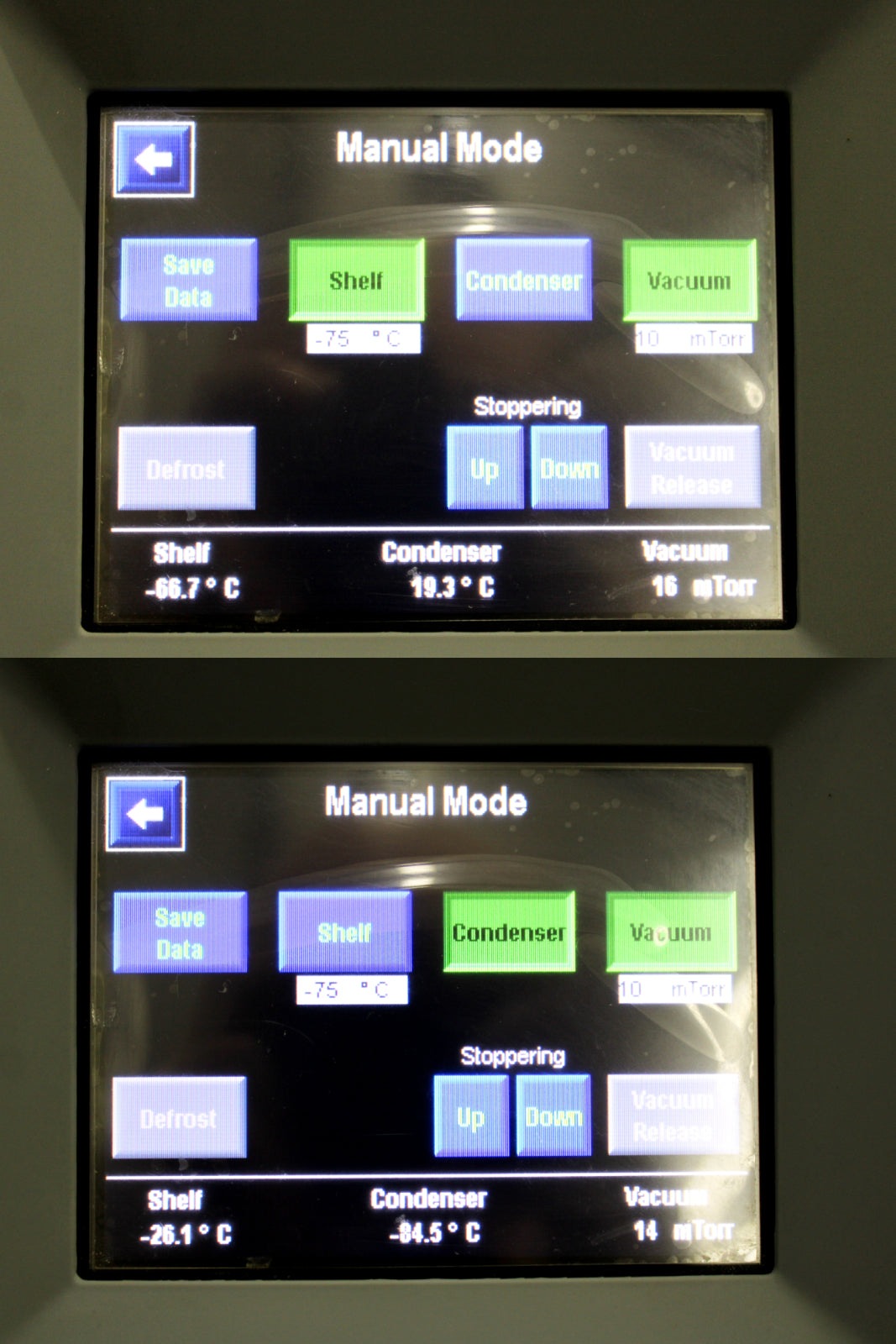

After its initial disinfection and inspection, our technicians tested the SP Scientific VirTis AdVantage Pro stoppering tray freeze dryer with the following results:
- Shelf temperature achieved manufacturer spec. -69°C: PASSED
- Condenser temperature achieved manufacturer spec. -84°C: PASSED
- Vacuum achieved manufacturer spec. 12mT: PASSED

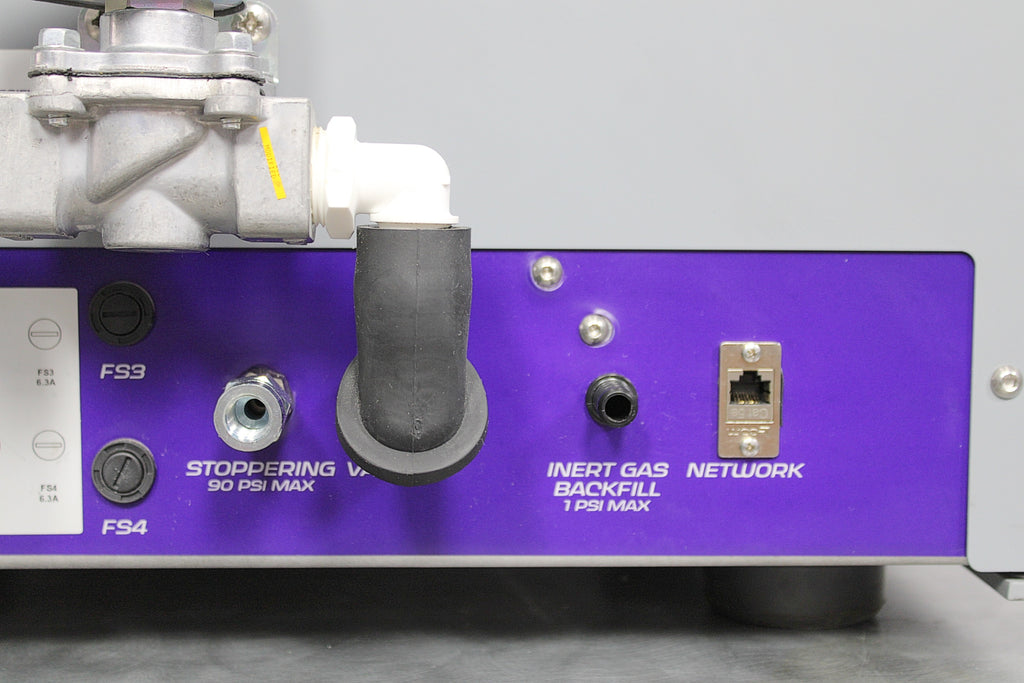

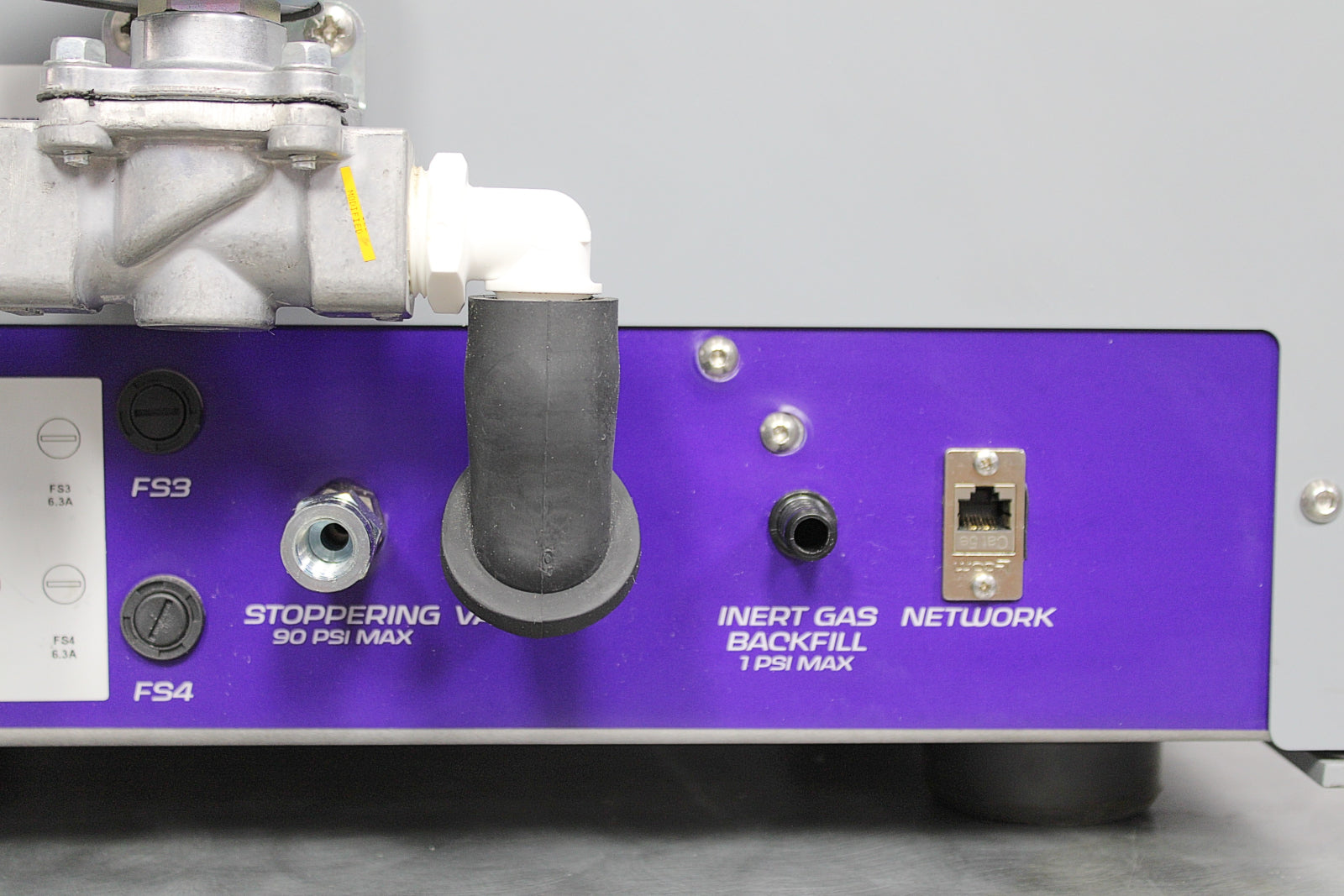

This freeze dryer has the stoppering option. To use the stoppering option you will need to have an air source connected to the back of the dryer.
|
Manufacturer
|
SP Scientific/VirTis
|
|
Model
|
AdVantage Pro
|
|

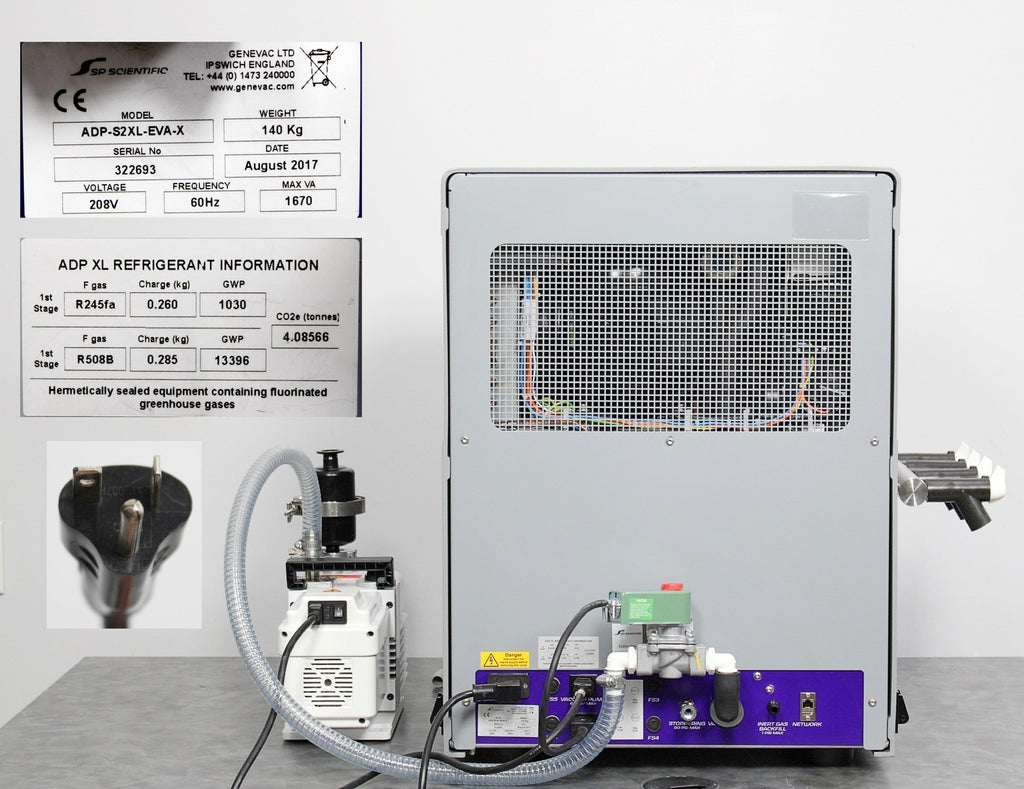

Model No.
|
ADP-S2XL-EVA-X
|
|
Serial No.
|
322693
|
|
Mfg. date
|
August 2017
|
|
Shelf Temperature Control Range
|
-55 to 60°C
|
|
Lowest Shelf Temperature† (50 Hz / 60 Hz)
|
-62 °C / -65 °C
|
|
Shelf Pull-Down from 20 °C to -40 °C‡
|
≤ 30 minutes
|
|
Temperature Uniformity
|
± 1.0 °C
|
|
Lowest Condenser Temp. (50 Hz / 60Hz)
|
-82°C / -85°C
|
|
Max. Condenser Capacity
|
6 L
|
|
Maximum Ice Condensing Capacity in 24 hours
|
4 L
|
|
Number of Compressors
|
2
|
|
Compressor Horsepower
|
1/3, 3/4
|
|
System Refrigerant
|
R508B, R407C
|
|
Refrigerant Type
|
CFC-free
|
|
Construction
|
AISI Type 316L SS
|
|
Electrical requirements
|
208V, 60Hz, 1670 Max VA
|
|
Dimensions (W x D x H)
|
28.5 x 25.7 x 29.7 in
|
|
Weight
|
310 lbs (140 kg)
|
