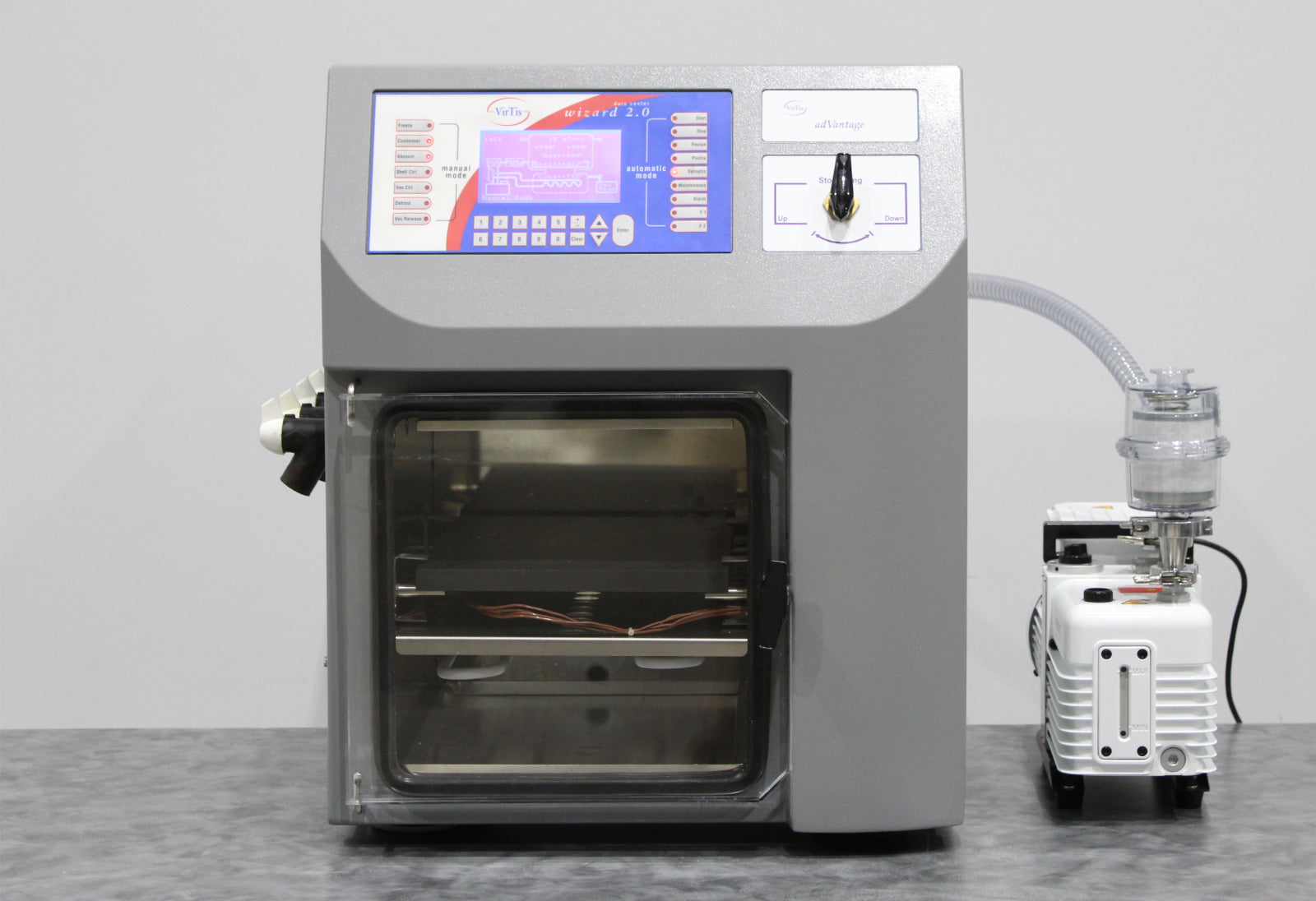

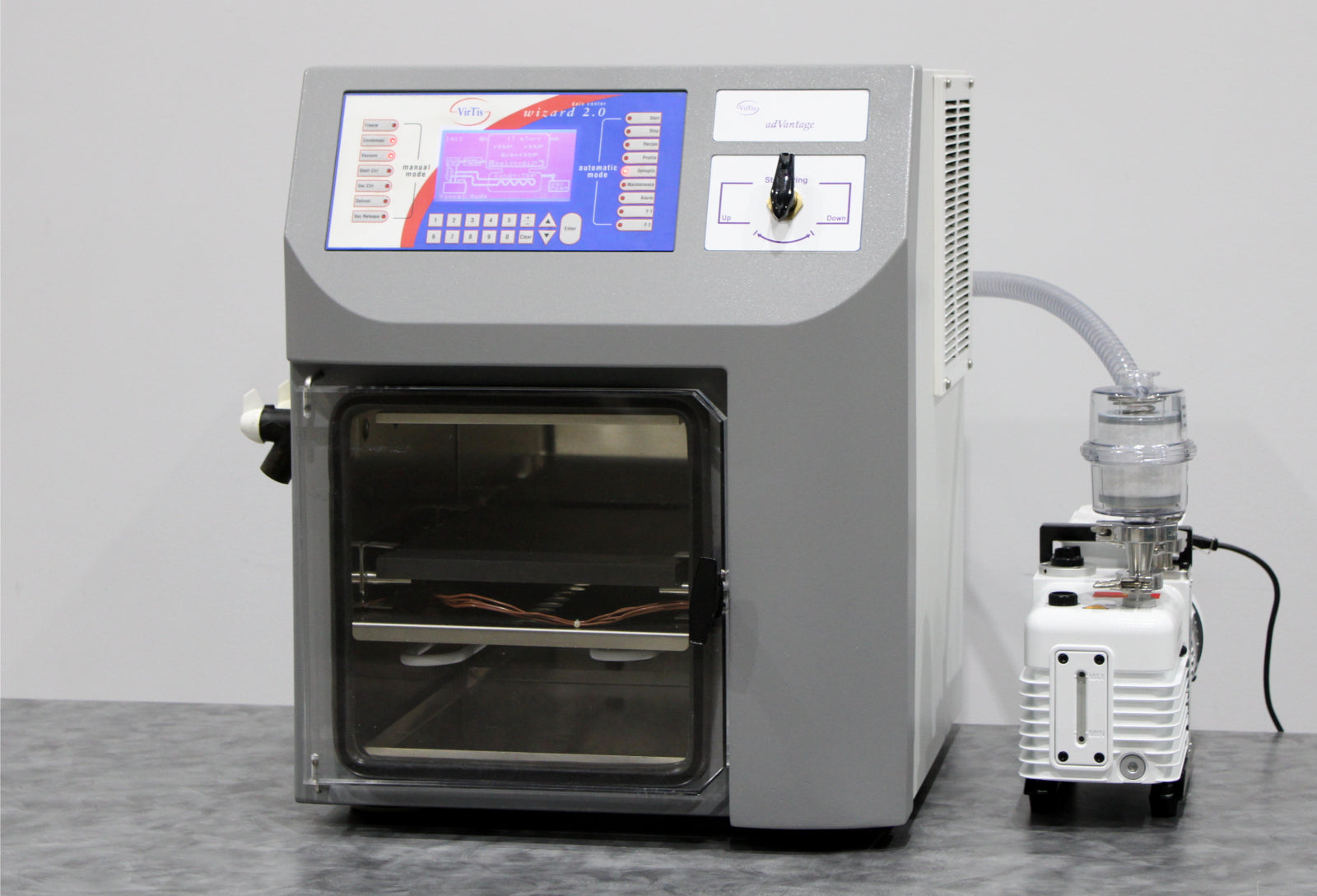

- SP Scientific VirTis Advantage XL-70 Benchtop Stoppering Shelf Freeze Dryer Lyophilizer 100/115V (449203)

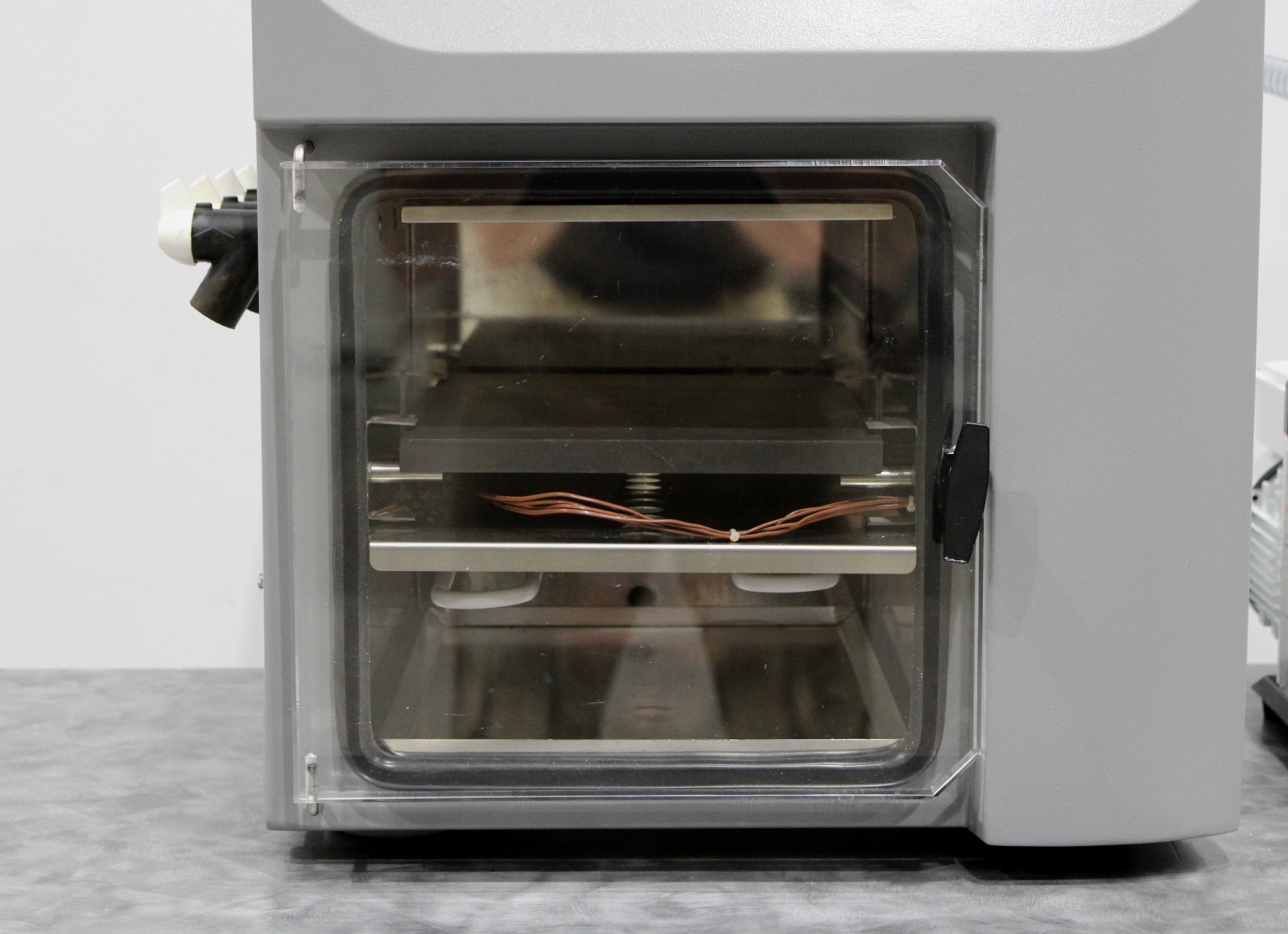

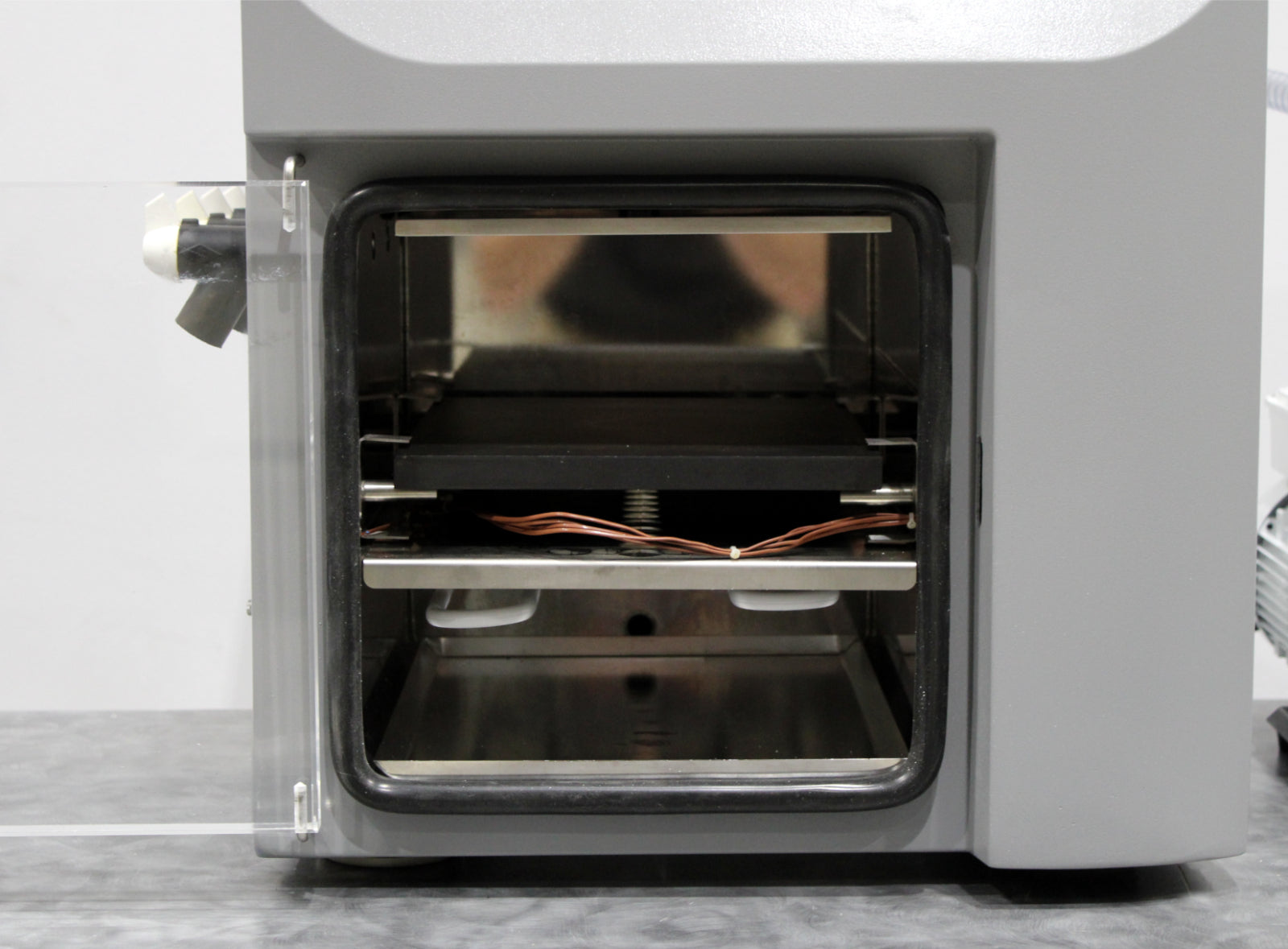

- Shelf

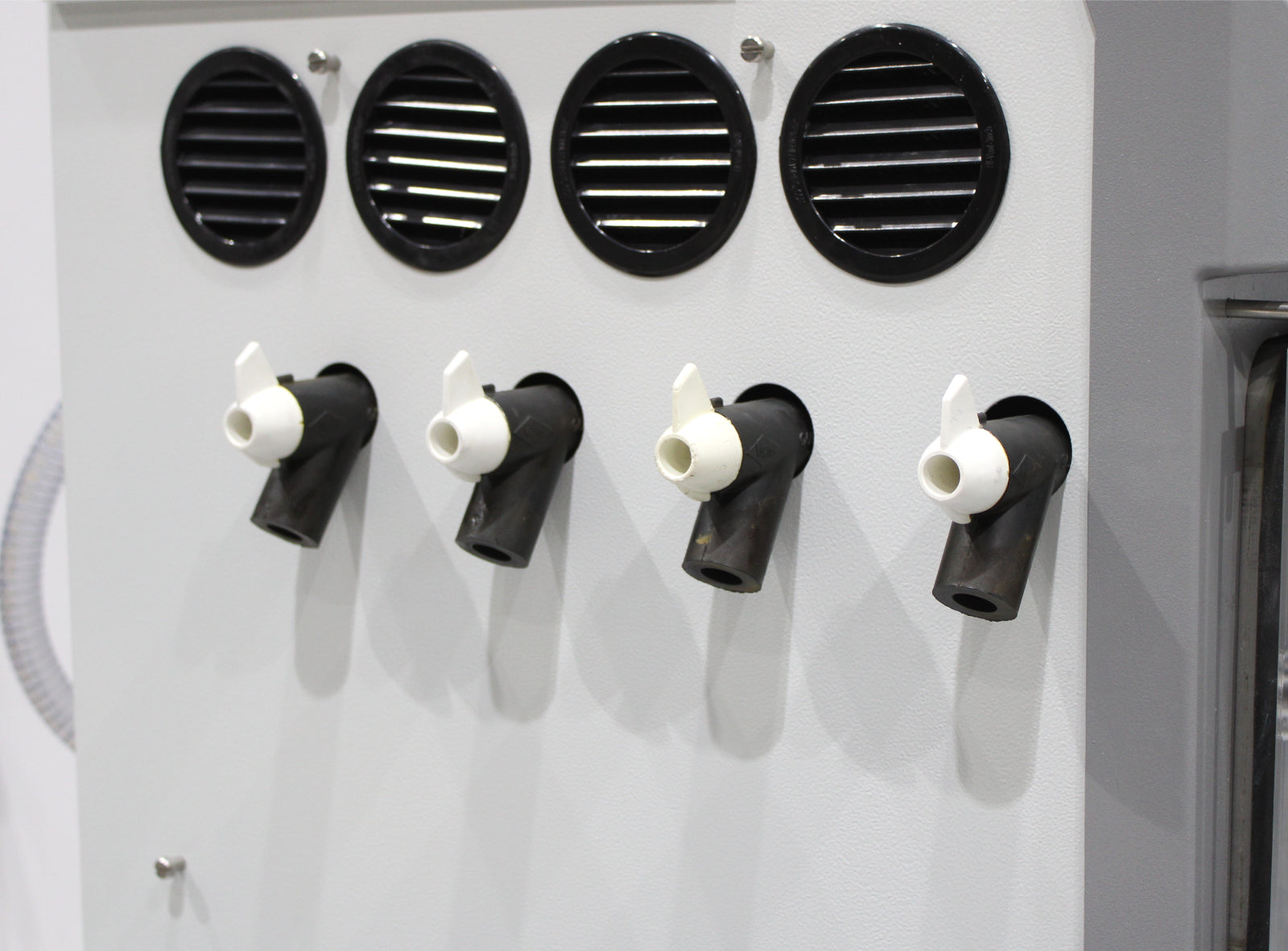

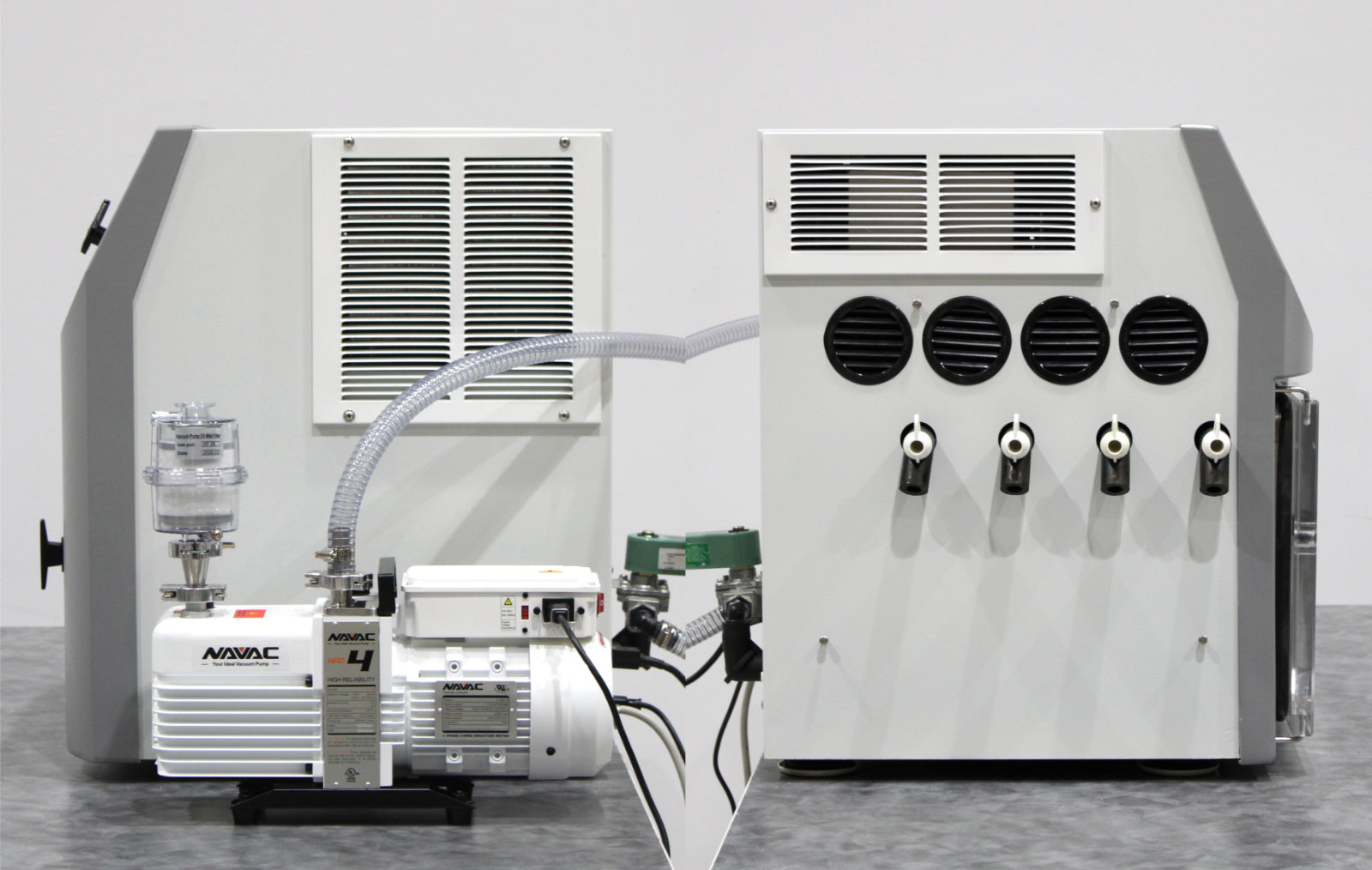

- 4-Port Side Manifold with 4 Manifold Valves

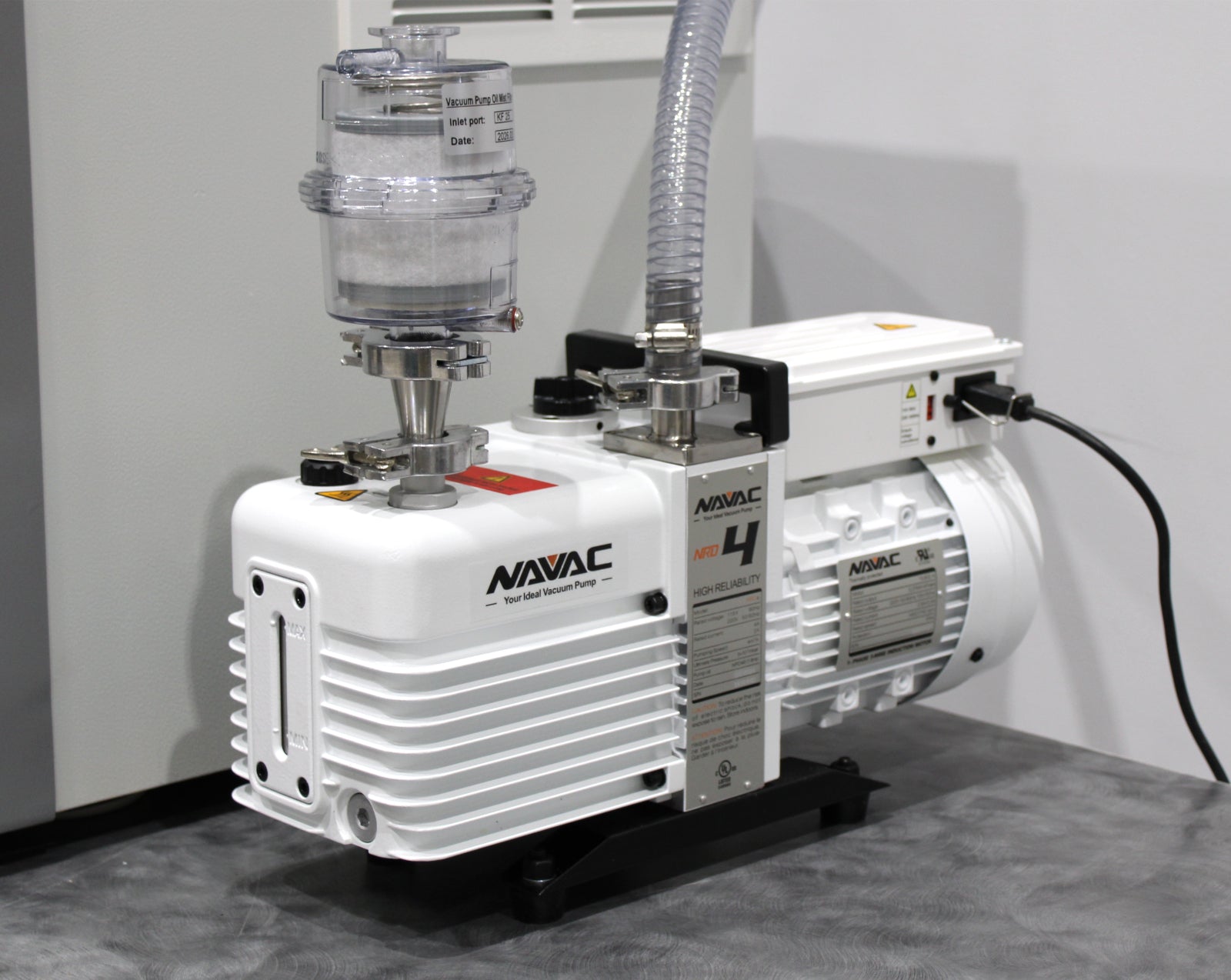

- Vacuum Pump (New)
- Vacuum Hose
- Vacuum Pump Power Cable
- Attached Power Cable with NEMA 5-15P Plug
- 90-Day Warranty
After its initial disinfection and inspection, our technicians tested the SP Scientific VirTis Advantage XL-70 benchtop shelf freeze dryer with the following results:
- Shelf temperature achieves -57.5°C: PASSED
- Condenser temperature achieves -79.5°C: PASSED
- Temperature reading calibration: PASSED
- Vacuum achieves 18 mT: PASSED
- Vacuum reading calibration: PASSED
- Inspected and replaced refrigeration lines as needed.
- Inspected and replaced vacuum hoses as needed.
|

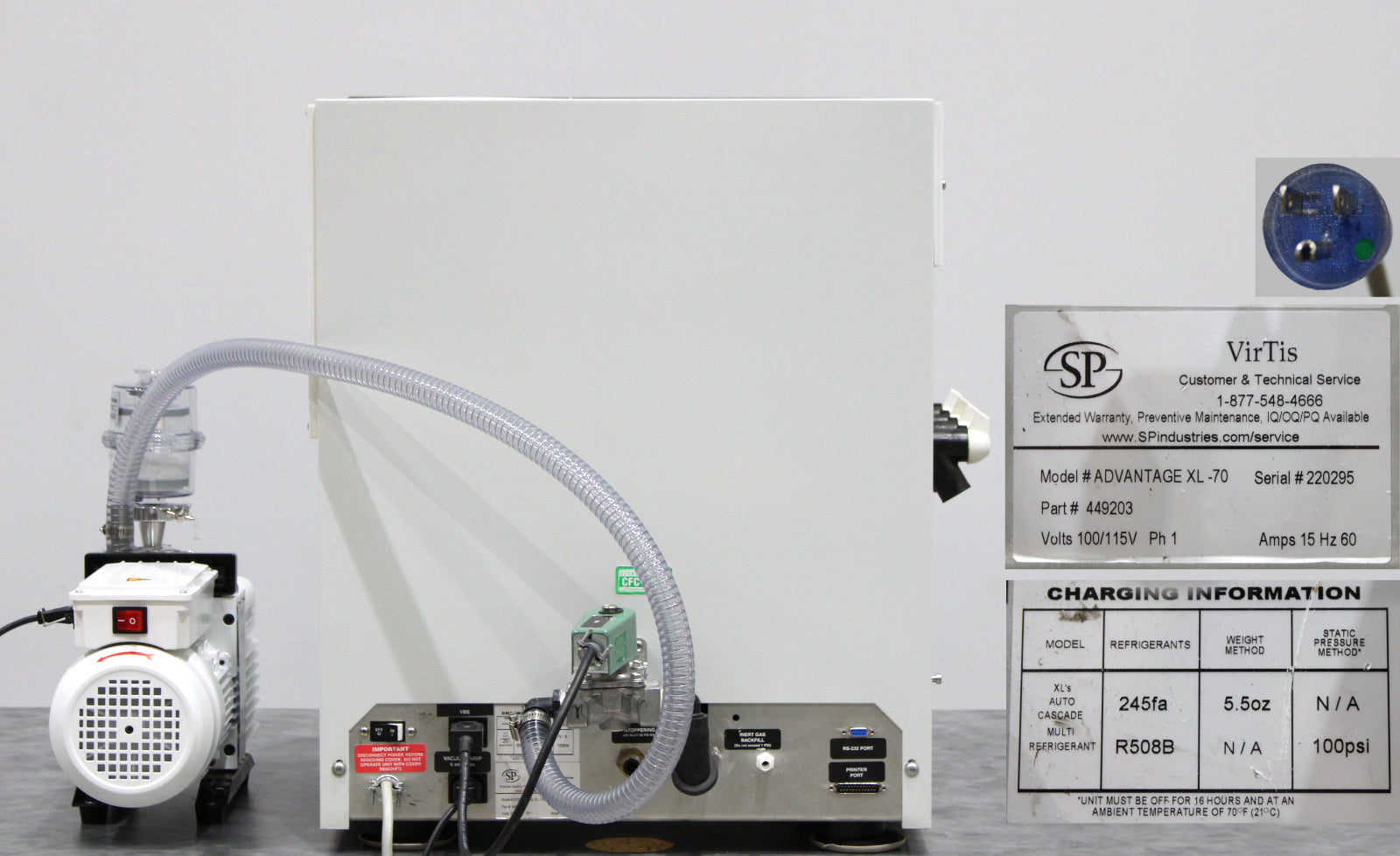

Manufacturer
|
SP Industries
|
|
Model
|
Advantage XL-70
|
|
Part No.
|
449203
|
|
Serial No.
|
220295
|
|
Condenser temperature
|
-70°C
|
|
Shelf temperature range
|
-60 to +60°C
|
|
Condenser capacity
|
2 Liters
|
|
Number of compressors
|
1
|
|
Compressor horsepower
|
3/8
|
|
System refrigerants
|
CFC-free
|
|
Recommended vacuum pump
|
67 or 127 LPM
|
|
Shelf dimensions (W x D)
|
10.5 x 14 in
|
|
Power rating
|
100/115V, 60Hz, 15A, 1Ph
|
|
Dimensions (W x D x H)
|
25 x 24 x 27 in
|
|
Approximate weight
|
~220 lb (99.8 kg)
|
