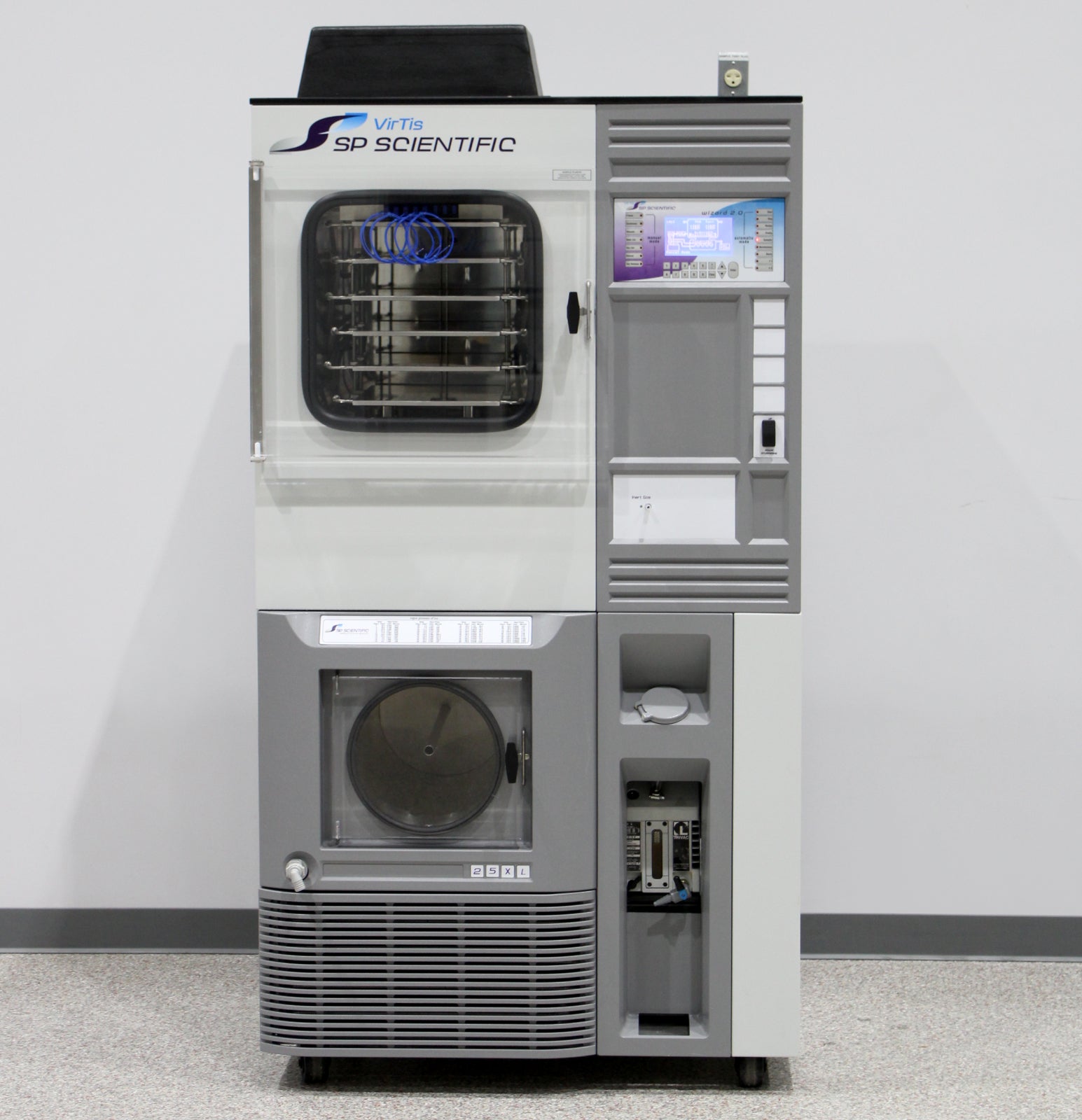

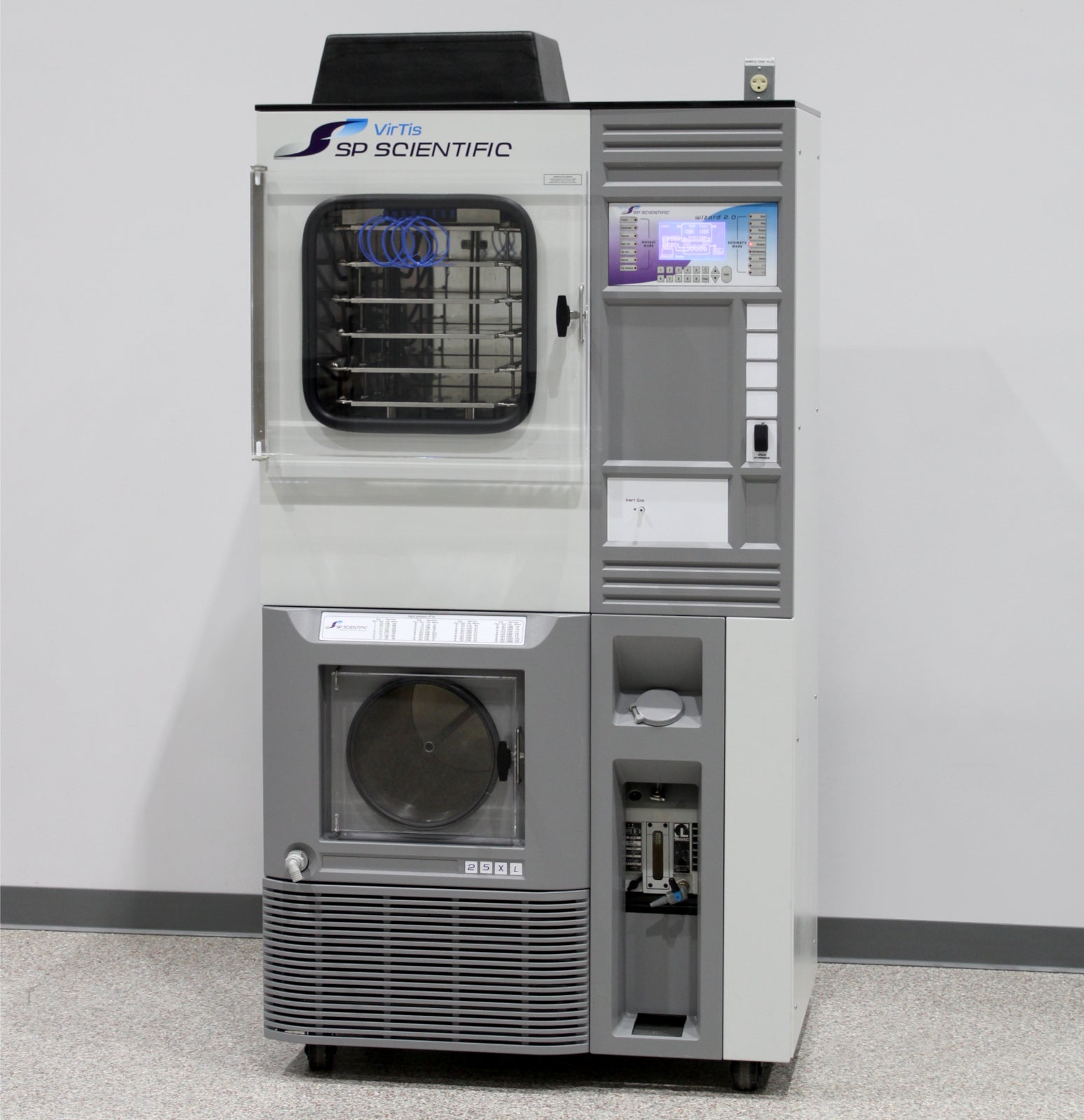

- SP Scientific VirTis 25L Genesis SQ Super XL-70 Stoppering Freeze Dryer Pilot Lyophilizer (447326)

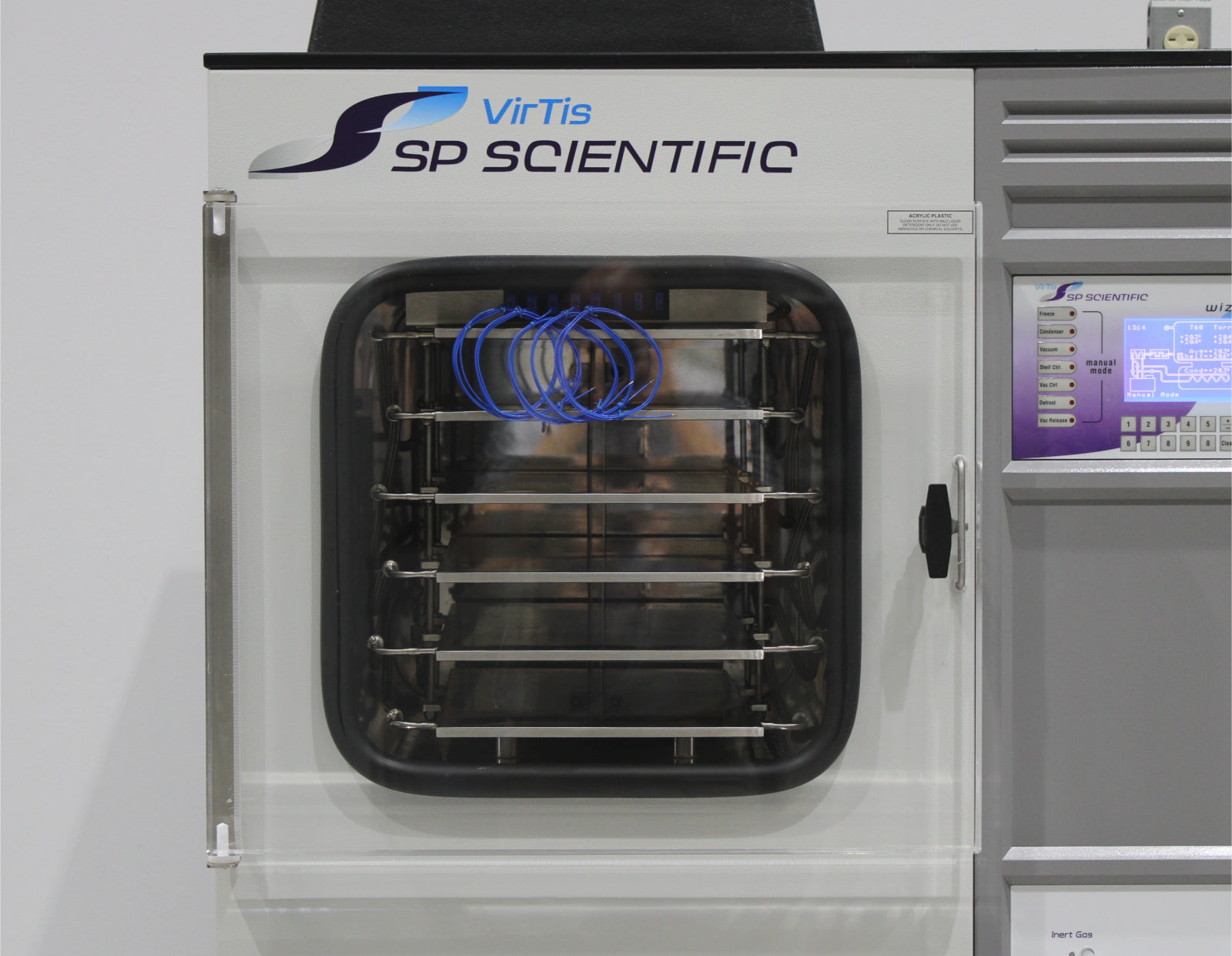

- 5 Shelves with Stoppering
- Wizard 2.0 Controller (New)

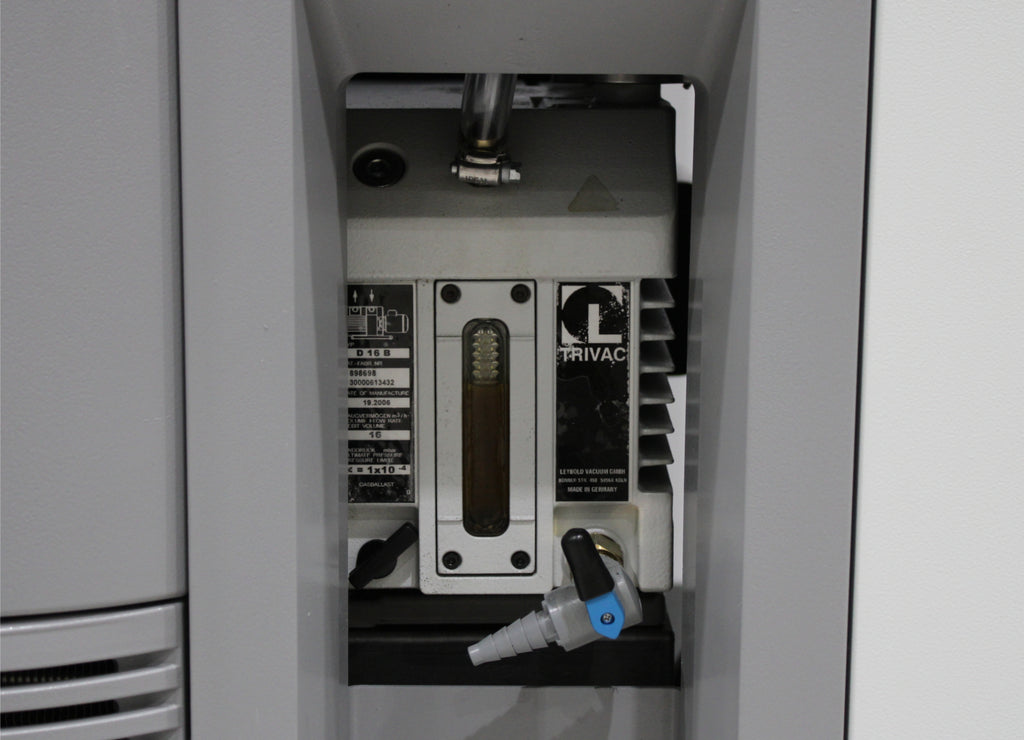

- Vacuum Pump

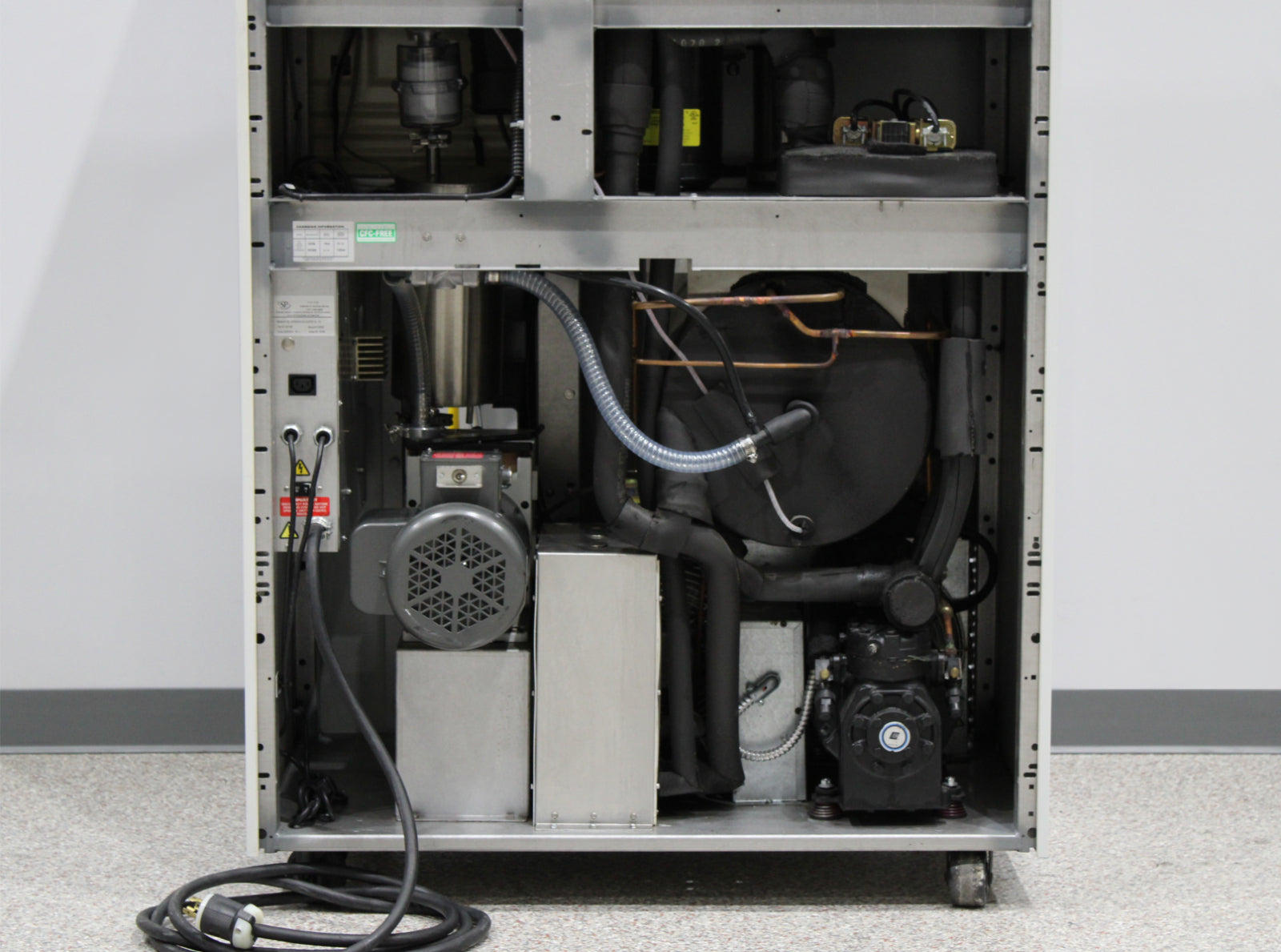

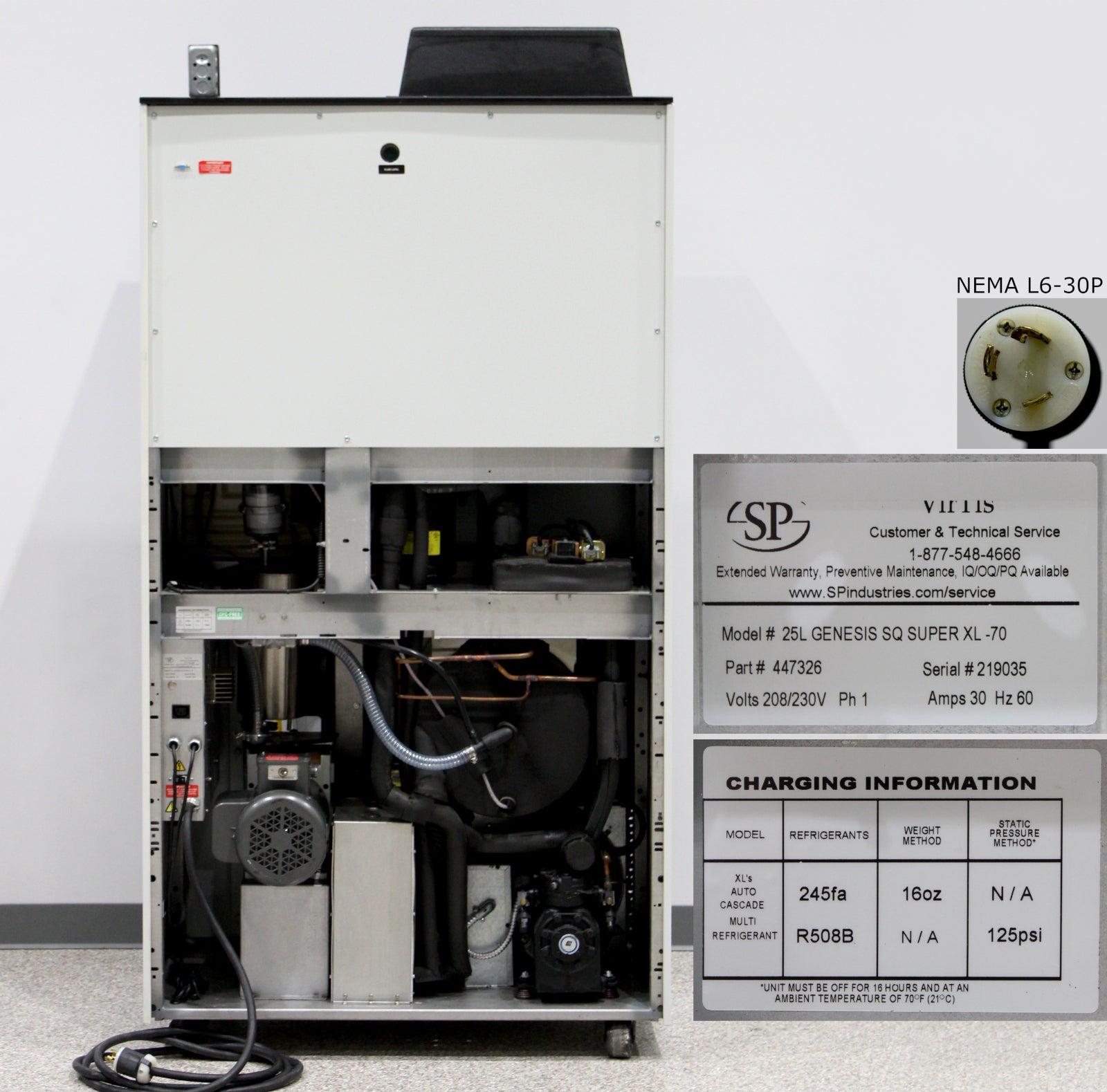

- Attached Power Cable with NEMA L6-30 Plug
- 90-Day Warranty
After its initial disinfection and inspection, our technicians tested the SP Scientific VirTis 25L Genesis SQ Super XL-70 stoppering freeze dryer with the following results:
- Shelf temperature reached -40°C within 75 minutes: PASSED
- Lowest shelf temperature -67.1°C: PASSED
- Lowest condenser temperature -79°C: PASSED
- Temperature calibration: PASSED
- Lowest vacuum 68 microns: PASSED
- Vacuum calibration: PASSED
- Inspected and replaced refrigeration insulation as needed.
- Inspected and replaced vacuum hoses as needed.

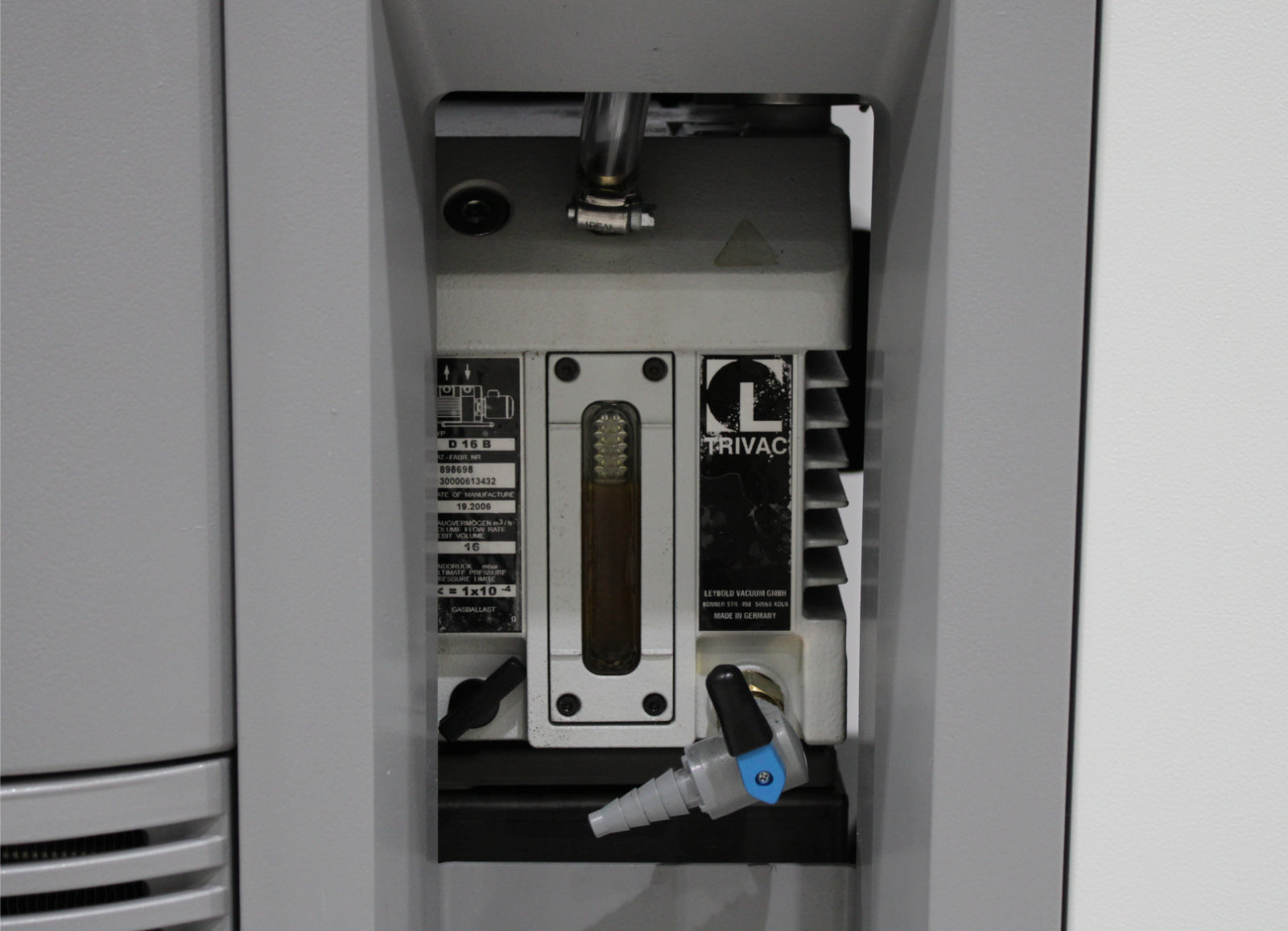

- Flushed and filled vacuum pump.

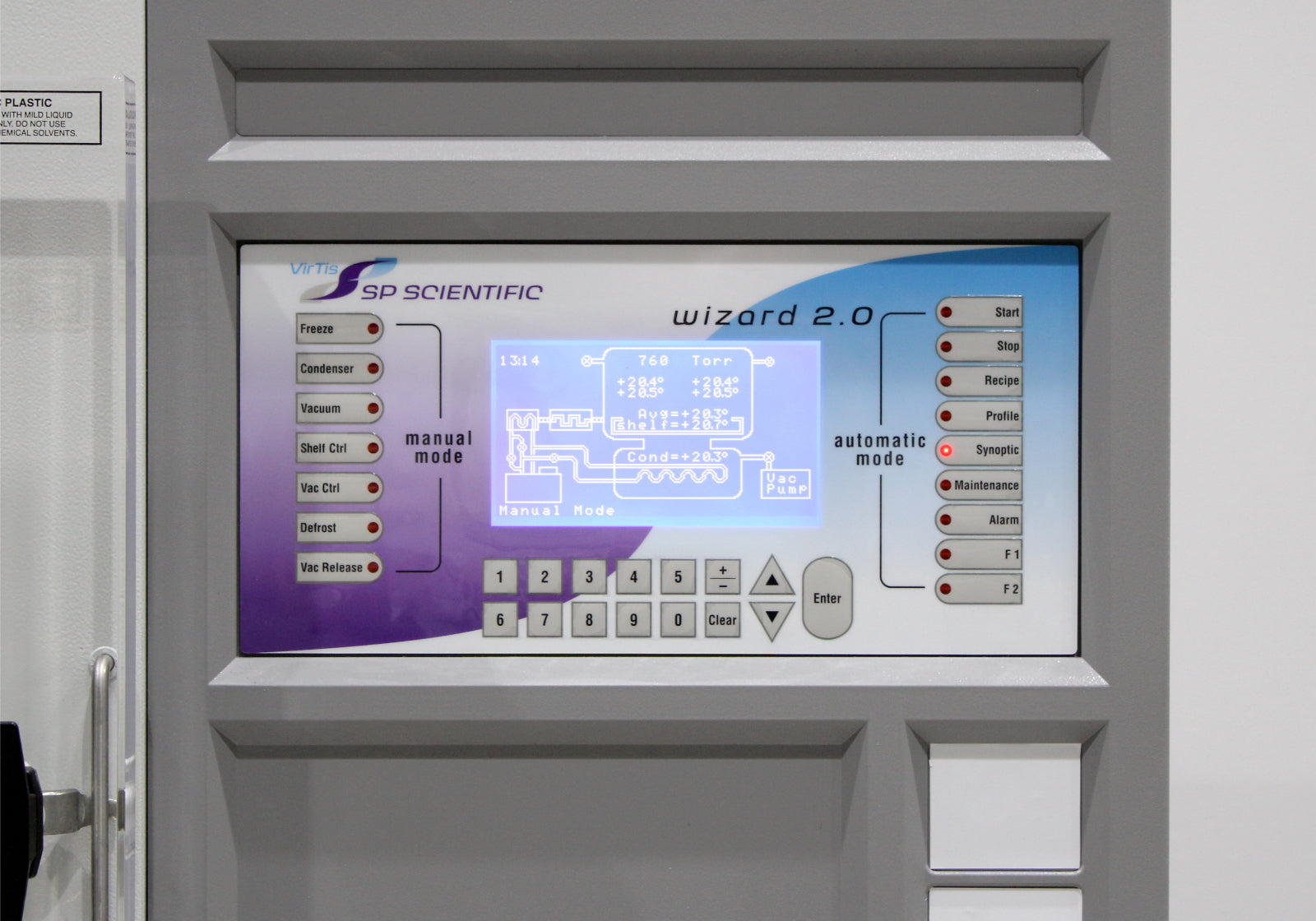

- Installed a new Wizard 2.0 controller.

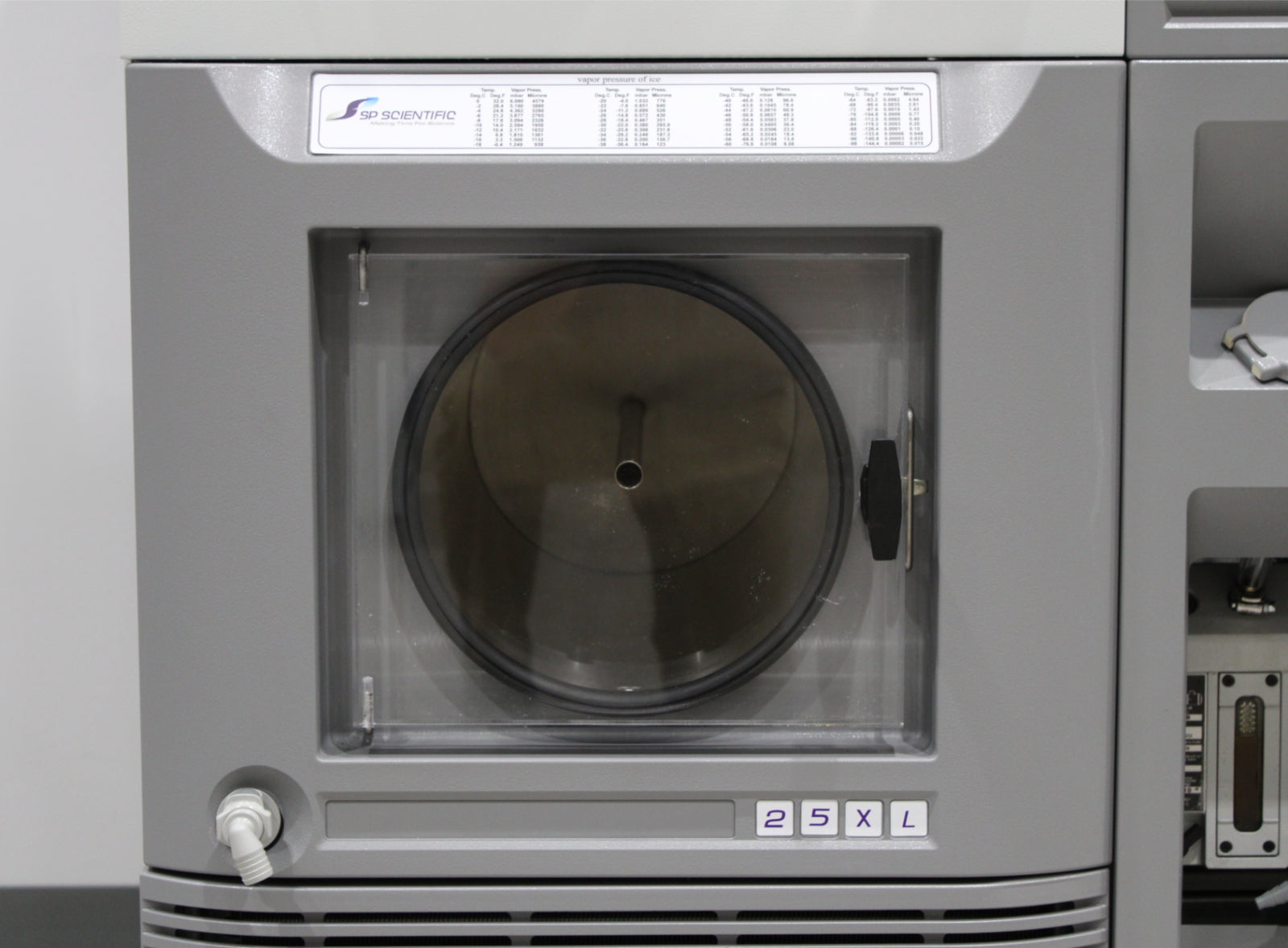

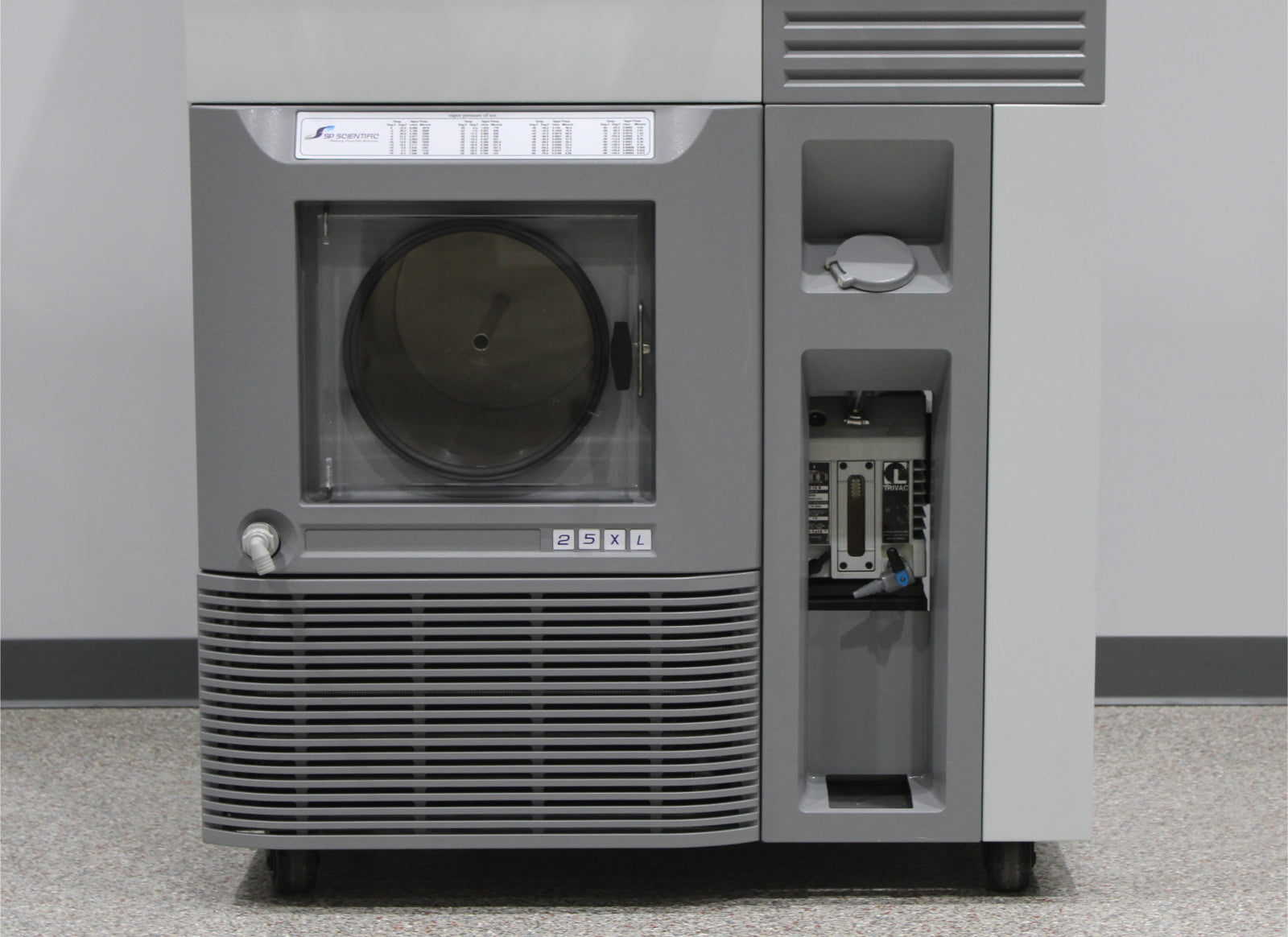

- Installed a new condenser acrylic door.
Shelf size (W x D): 10.75 in x 20.5 in (273 mm x 521 mm)
Total shelf area: 7.65 ft2 (7,110 cm2)
Shelf clearance: 2.27 in (57.7 mm)
|
Manufacturer
|
SP Scientific
|
|
Model
|
25L Genesis SQ Super XL-70
|
|
Part No.
|
447326
|
|
Serial No.
|
219035
|
|
Shelf temperature control range
|
-40°C to 65°C
|
|
Lowest shelf temperature (50Hz/60Hz)
|
≤ -57°C/-60°C
|
|
Lowest condenser temperature (50Hz/60Hz)
|
≤ -67°C/-70°C
|
|
Maximum condenser capacity
|
≥ 25 liters
|
|
Condenser surface area
|
506 in2 (3,264 cm2)
|
|
Maximum ice condensing capacity in 24 hours
|
≥ 12 liters
|
|
Maximum deposition rate
|
≥ 0.5 L/hour
|
|
Condenser pull-down from 20°C to -45°C
|
≤ 25 minutes
|
|
Shelf pull-down from 20°C to -40°C
|
≤ 45 minutes
|
|
Number of compressors
|
1
|
|
Compressor horsepower
|
1.5 hp
|
|
Vacuum time to 100 millitorr
|
≤ 20 minutes
|
|
Vacuum rate of rise
|
≤ 30 mT/hour
|
|
Volume-based leak rate
|
≤ .0016 mbar• L/sec
|
|
Lowest system vacuum
|
≤ 15 mT
|
|
Temperature uniformity
|
± 1.0°C
|
|
Plug type
|
NEMA L6-30P
|
|
Power rating
|
208/230V, 60Hz, 30A, 1Ph
|
|
Dimensions (W x D x H)
|
40 x 30 x 80 in (102 x 76 x 203 cm)
|
|
Weight
|
800 lb (362.9 kg)
|
|
Minimum clearance on all sides
|
10 in (25.4 cm)
|
Note: Performance specifications are based on SP Scientific test data from units operating at an ambient room temperature of approximately 20°C. SP recommends an optimum operating range of 15-25°C (59-77°F).
Note: SP Scientific recommends a 24-inch (61 cm) clearance around all sides of the unit for serviceability. If machines are placed side by side, increase the minimum clearance to 48 inches (121.9 cm).
|
Compressed air (for units with isolation valve)
|
80 psig (6.5 bar)
|
|
Ambient room temperature
|
20°C (68°F)
|
|
Approx. peak room heat generated (air-cooled units)
|
8,900 BTU/h
|
|
Construction
|
316L stainless steel shelves, product chamber and condenser chamber
|
|

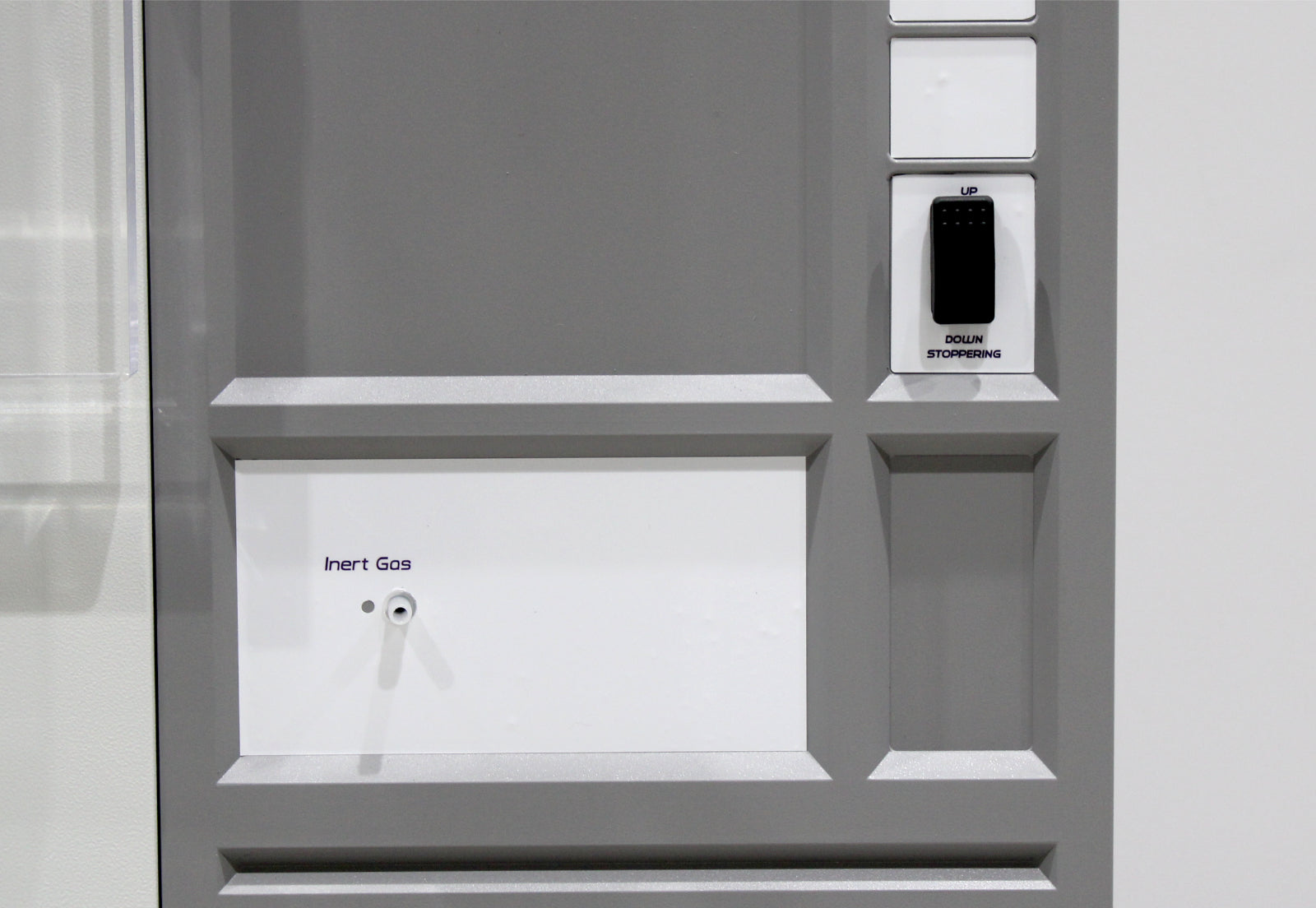

Stoppering
|
Top-down hydraulic
|
|
Defrost type
|
Hot gas
|
|
Refrigerant type
|
CFC-free
|
|
Vapor port
|
4 in (10.2 cm)
|
